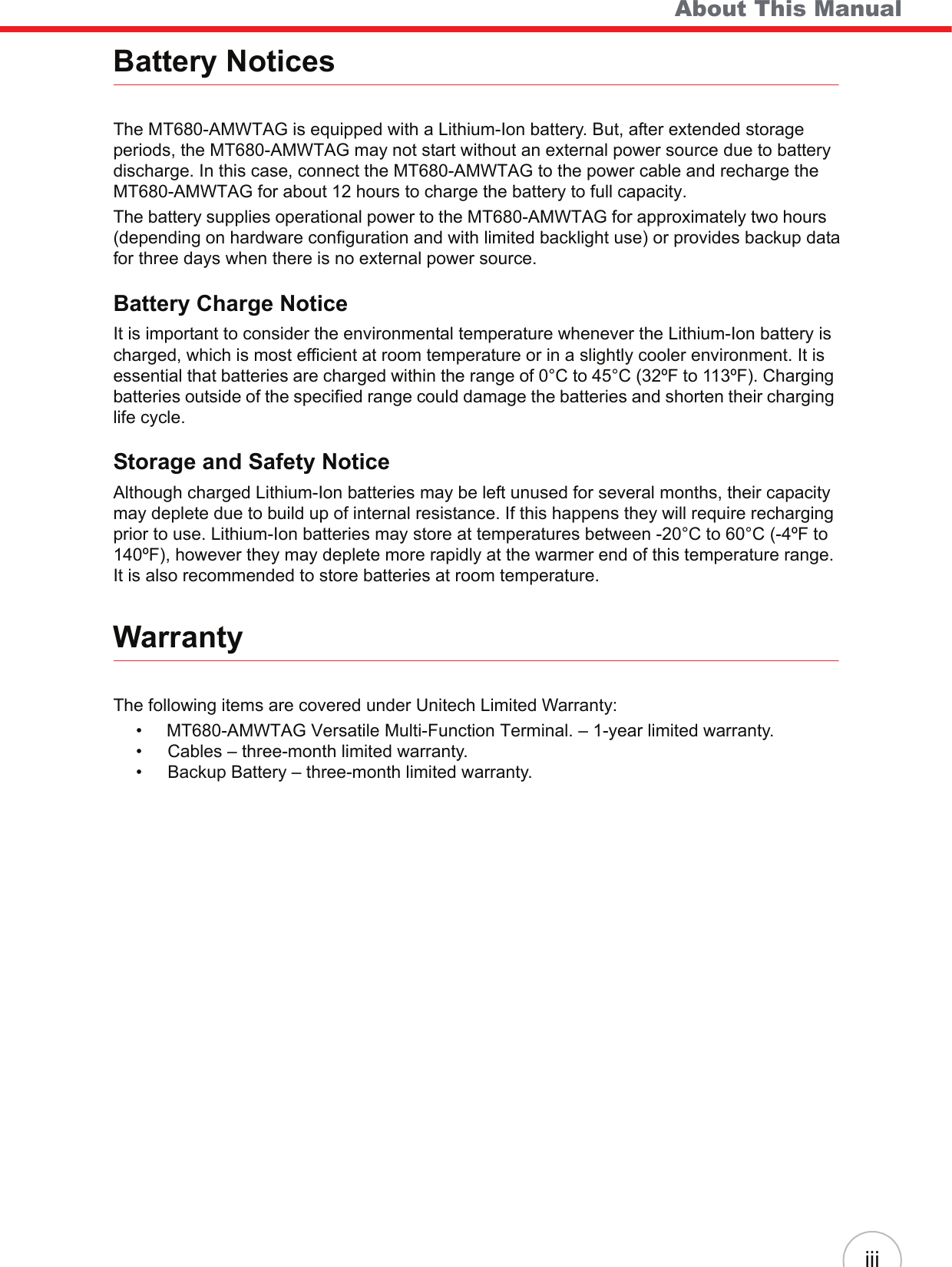

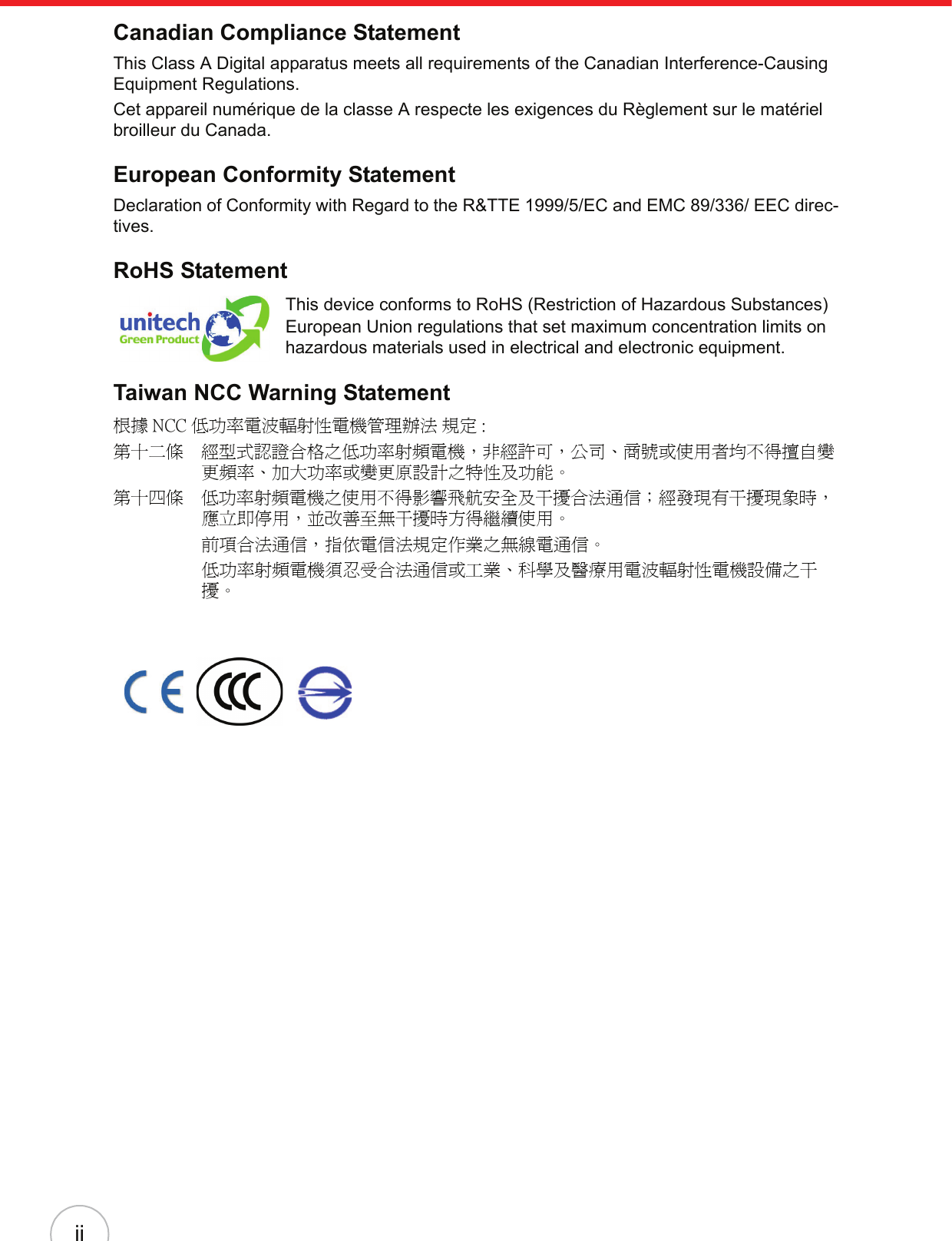

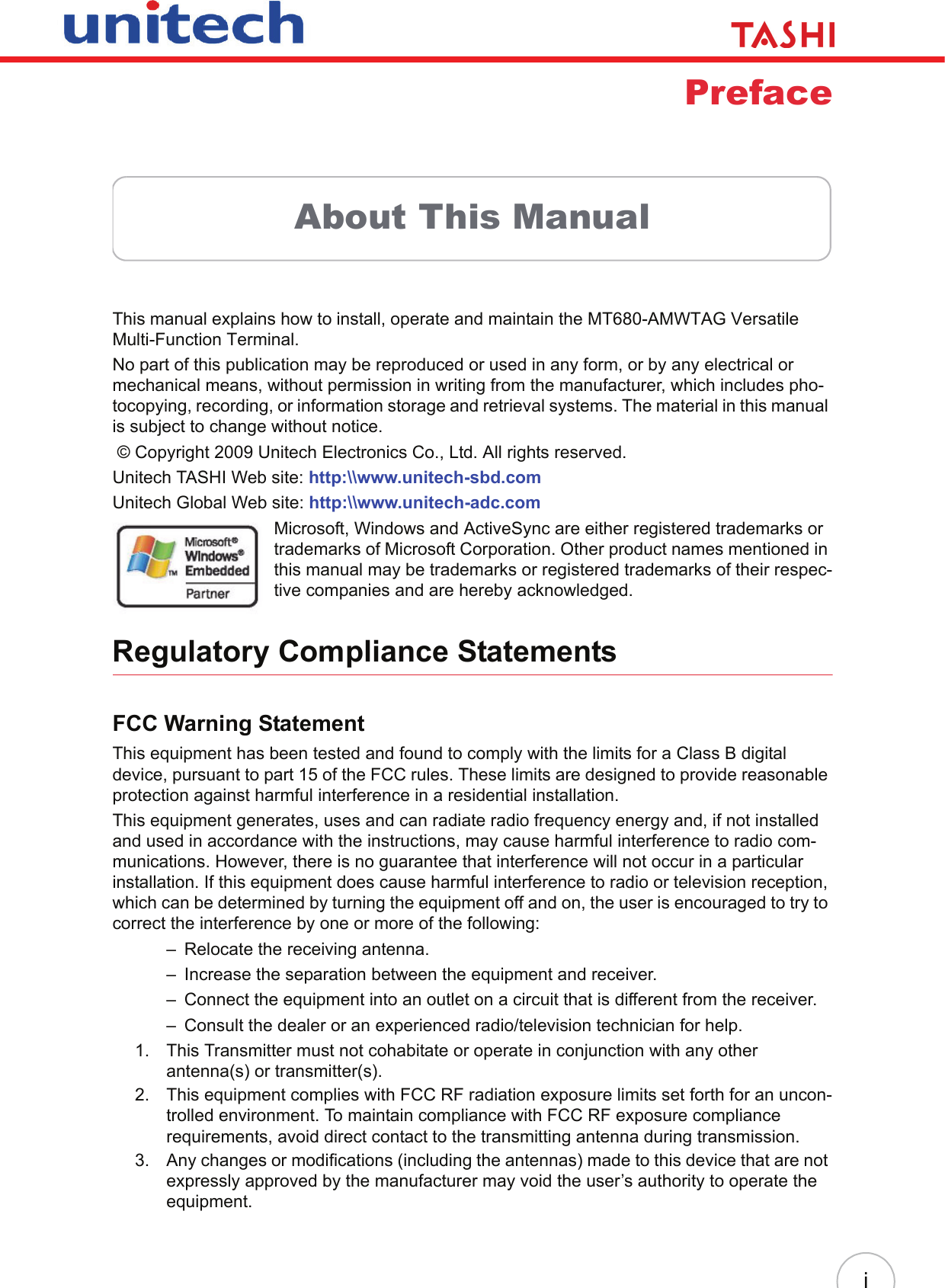

About This ManualiiiBattery NoticesThe MT680-AMWTAG is equipped with a Lithium-Ion battery. But, after extended storage periods, the MT680-AMWTAG may not start without an external power source due to battery discharge. In this case, connect the MT680-AMWTAG to the power cable and recharge the MT680-AMWTAG for about 12 hours to charge the battery to full capacity.The battery supplies operational power to the MT680-AMWTAG for approximately two hours (depending on hardware configuration and with limited backlight use) or provides backup datafor three days when there is no external power source.Battery Charge NoticeIt is important to consider the environmental temperature whenever the Lithium-Ion battery is charged, which is most efficient at room temperature or in a slightly cooler environment. It is essential that batteries are charged within the range of 0°C to 45°C (32ºF to 113ºF). Charging batteries outside of the specified range could damage the batteries and shorten their charging life cycle.Storage and Safety NoticeAlthough charged Lithium-Ion batteries may be left unused for several months, their capacity may deplete due to build up of internal resistance. If this happens they will require recharging prior to use. Lithium-Ion batteries may store at temperatures between -20°C to 60°C (-4ºF to 140ºF), however they may deplete more rapidly at the warmer end of this temperature range. It is also recommended to store batteries at room temperature.WarrantyThe following items are covered under Unitech Limited Warranty:• MT680-AMWTAG Versatile Multi-Function Terminal. – 1-year limited warranty.• Cables – three-month limited warranty.• Backup Battery – three-month limited warranty.
iv
vTable of ContentsPrefaceAbout This Manual .................................................................................... iRegulatory Compliance Statements .................................................................... iFCC Warning Statement ................................................................................. iCanadian Compliance Statement................................................................... iiEuropean Conformity Statement .................................................................... iiRoHS Statement............................................................................................. iiTaiwan NCC Warning Statement ................................................................... iiBattery Notices .................................................................................................. iiiBattery Charge Notice ................................................................................... iiiStorage and Safety Notice............................................................................. iiiWarranty ............................................................................................................ iiiChapter 1Getting Started ........................................................................................ 1Introducing the MT680-AMWTAG...................................................................... 1Features ......................................................................................................... 1Setting up the MT680-AMWTAG......................................................................... 2Connect Power............................................................................................... 2Charging the Battery....................................................................................... 2Using the Touch-screen...................................................................................... 2Using the MT680-AMWTAG for the First Time ................................................... 3Powering On the MT680-AMWTAG................................................................ 3Calibrate Screen............................................................................................. 3Setting the Date and Time.............................................................................. 3Chapter 2Using the Hardware ................................................................................ 4Using the Function Keys..................................................................................... 4Using the Windows CE 5.0 Keyboard ............................................................ 5Entering Characters ................................................................................... 5Moving the Keyboard ................................................................................. 5Closing the Keyboard................................................................................. 5Using the RFID Reader ...................................................................................... 6Testing RFID Card Verification....................................................................... 6Using the Camera............................................................................................... 8Testing the Imager.......................................................................................... 8Using the Audio Input/Output............................................................................ 10Skipping the Calibration Routine ...................................................................... 11Chapter 3Data Communication............................................................................. 14Establishing the USB Connection..................................................................... 14Establishing the MT680-AMWTAG/PC Connection ......................................... 14USB Cable.................................................................................................... 14
viSerial Cable.................................................................................................. 14Ethernet Cable ............................................................................................. 14Using Mircosoft ActiveSync .............................................................................. 15Additional Capabilities.............................................................................. 15Requirements........................................................................................... 15Installing Microsoft ActiveSync ..................................................................... 15Connecting the MT680-AMWTAG to the Compute........ .............................. 15Establishing a Wi-Fi Connection....................................................................... 17Set Up an IP Address ....................................................................................... 19Obtaining an IP Address via DHCP Server .................................................. 19Specifying an IP Address ............................................................................. 20Chapter 4Power System ....................................................................................... 21Charging the Battery for the First Time............................................................. 21Checking the Battery Status......................................................................... 21Extending Battery Life....................................................................................... 22Changing the Automatic Power Settings...................................................... 22Reducing CPU Speed .................................................................................. 22Adjusting the Backlight ................................................................................. 23Performing a Hardware Reset .......................................................................... 24Performing a Warm Start.............................................................................. 24Performing a Cold Start................................................................................ 25Appendix ASystem Specification............................................................................. 26Appendix BWorldwide Support................................................................................ 27

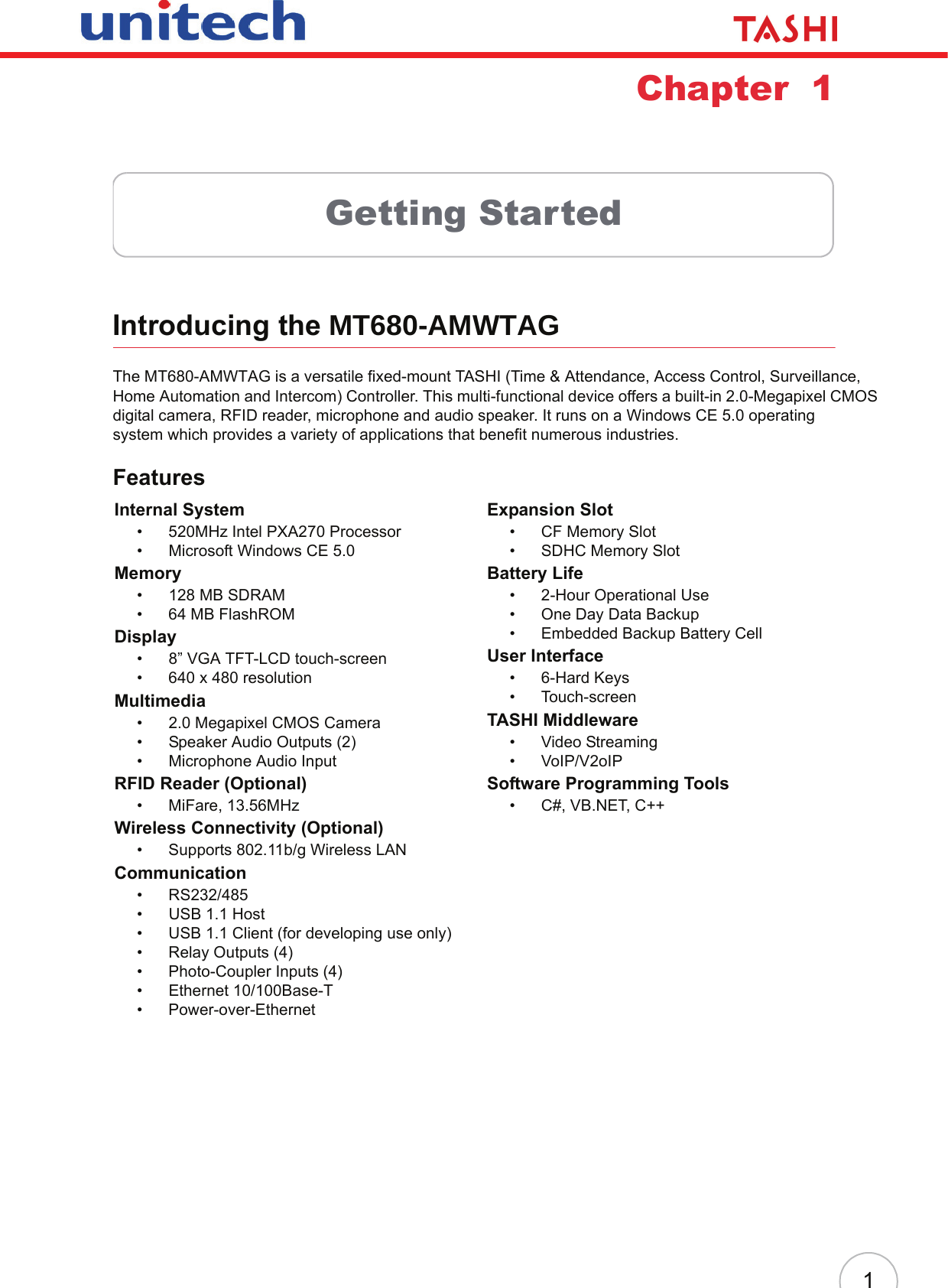

1Chapter 1Getting StartedIntroducing the MT680-AMWTAGThe MT680-AMWTAG is a versatile fixed-mount TASHI (Time & Attendance, Access Control, Surveillance, Home Automation and Intercom) Controller. This multi-functional device offers a built-in 2.0-Megapixel CMOS digital camera, RFID reader, microphone and audio speaker. It runs on a Windows CE 5.0 operating system which provides a variety of applications that benefit numerous industries.FeaturesInternal System• 520MHz Intel PXA270 Processor• Microsoft Windows CE 5.0Memory• 128 MB SDRAM• 64 MB FlashROMDisplay• 8” VGA TFT-LCD touch-screen• 640 x 480 resolutionMultimedia• 2.0 Megapixel CMOS Camera• Speaker Audio Outputs (2)• Microphone Audio InputRFID Reader (Optional)• MiFare, 13.56MHzWireless Connectivity (Optional)• Supports 802.11b/g Wireless LANCommunication• RS232/485• USB 1.1 Host• USB 1.1 Client (for developing use only)• Relay Outputs (4)• Photo-Coupler Inputs (4)• Ethernet 10/100Base-T• Power-over-EthernetExpansion Slot• CF Memory Slot• SDHC Memory SlotBattery Life• 2-Hour Operational Use• One Day Data Backup• Embedded Backup Battery CellUser Interface• 6-Hard Keys• Touch-screenTASHI Middleware• Video Streaming• VoIP/V2oIPSoftware Programming Tools• C#, VB.NET, C++

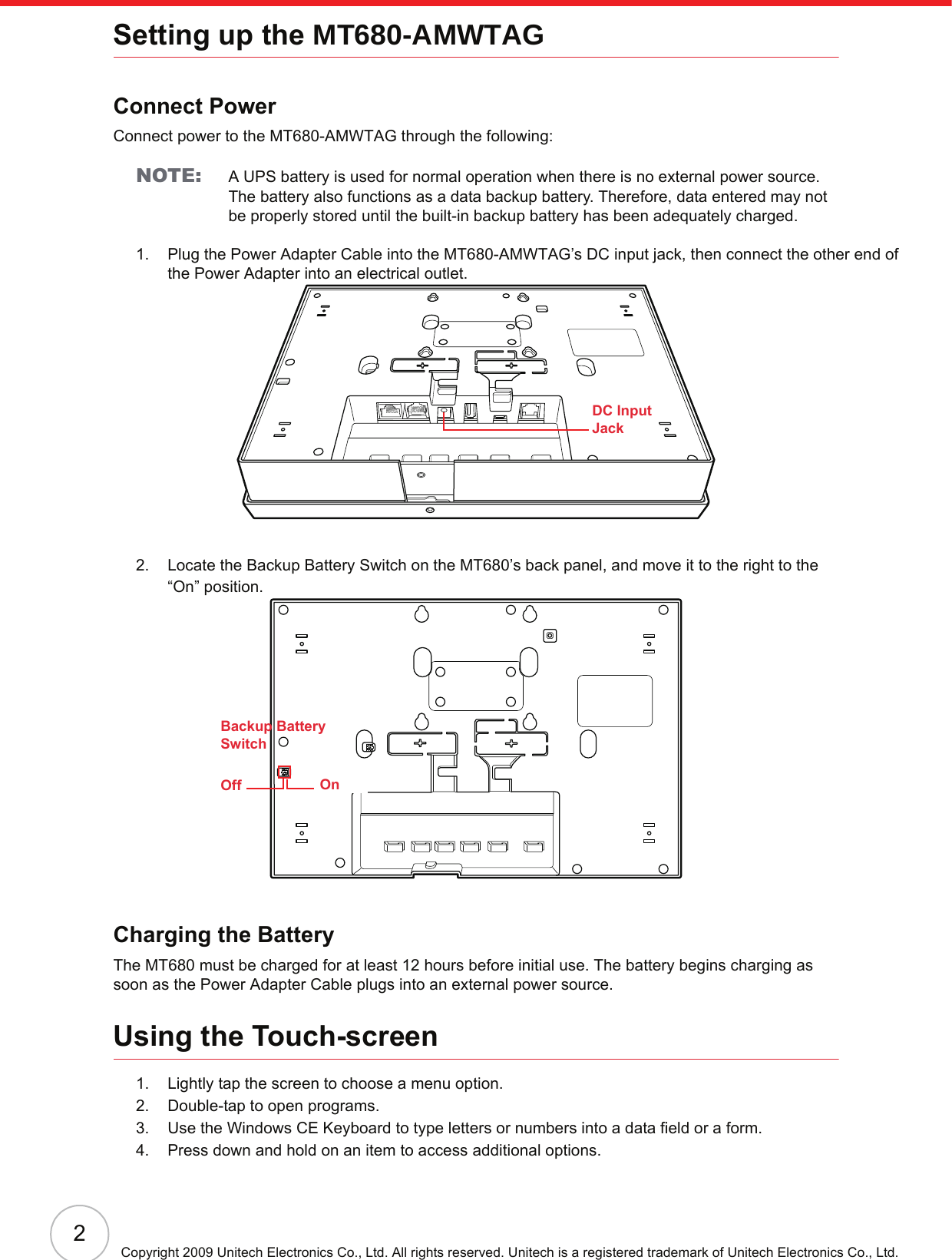

2Copyright 2009 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.Setting up the MT680-AMWTAGConnect PowerConnect power to the MT680-AMWTAG through the following:NOTE: A UPS battery is used for normal operation when there is no external power source. The battery also functions as a data backup battery. Therefore, data entered may not be properly stored until the built-in backup battery has been adequately charged.1. Plug the Power Adapter Cable into the MT680-AMWTAG’s DC input jack, then connect the other end of the Power Adapter into an electrical outlet.2. Locate the Backup Battery Switch on the MT680’s back panel, and move it to the right to the “On” position.Charging the BatteryThe MT680 must be charged for at least 12 hours before initial use. The battery begins charging as soon as the Power Adapter Cable plugs into an external power source.Using the Touch-screen1. Lightly tap the screen to choose a menu option.2. Double-tap to open programs.3. Use the Windows CE Keyboard to type letters or numbers into a data field or a form.4. Press down and hold on an item to access additional options.DC InputJackOff OnBackup BatterySwitch

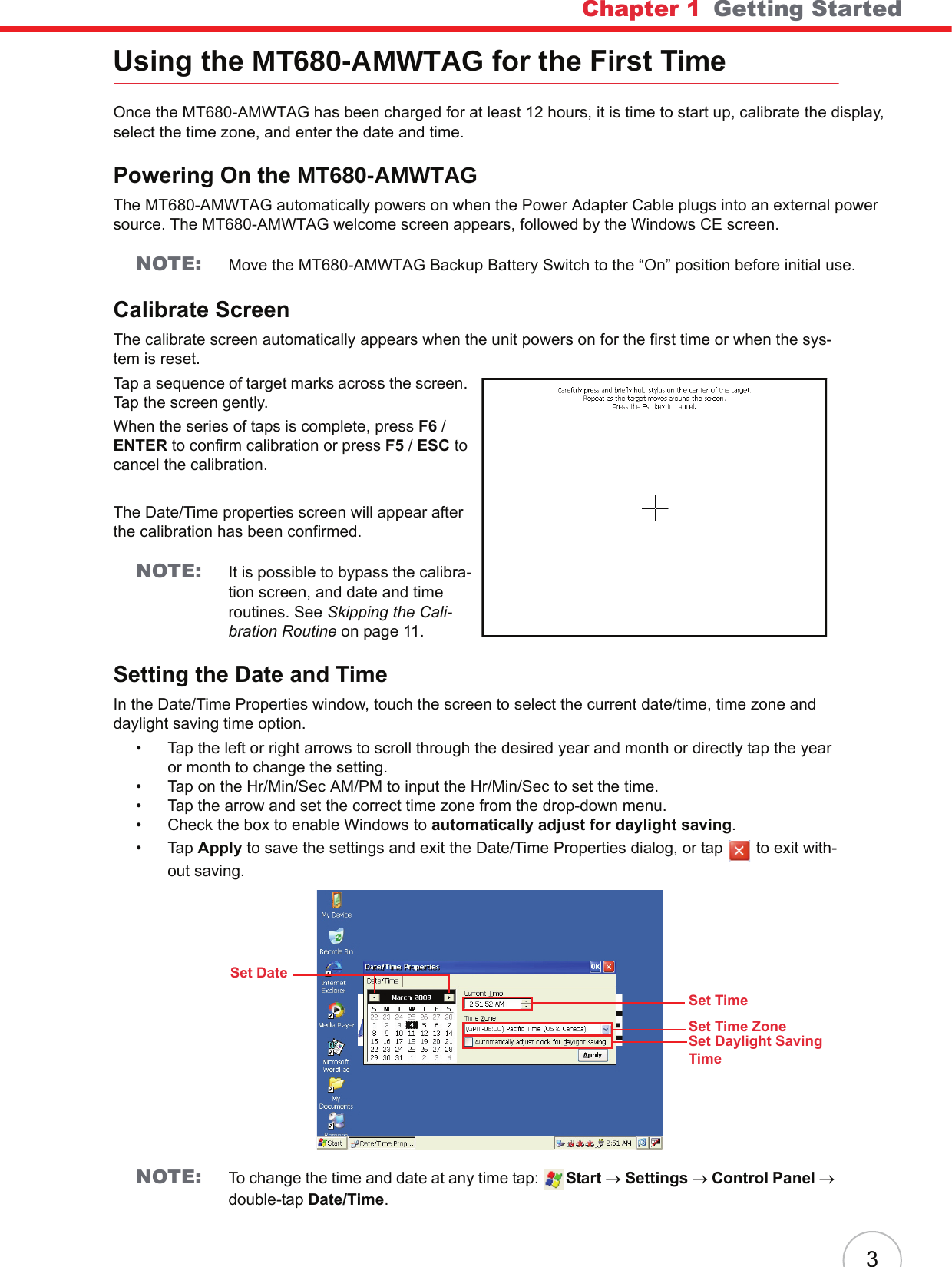

Chapter 1 Getting Started3Using the MT680-AMWTAG for the First TimeOnce the MT680-AMWTAG has been charged for at least 12 hours, it is time to start up, calibrate the display, select the time zone, and enter the date and time.Powering On the MT680-AMWTAGThe MT680-AMWTAG automatically powers on when the Power Adapter Cable plugs into an external power source. The MT680-AMWTAG welcome screen appears, followed by the Windows CE screen.NOTE: Move the MT680-AMWTAG Backup Battery Switch to the “On” position before initial use.Calibrate ScreenThe calibrate screen automatically appears when the unit powers on for the first time or when the sys-tem is reset.Tap a sequence of target marks across the screen. Tap the screen gently.When the series of taps is complete, press F6 / ENTER to confirm calibration or press F5 / ESC to cancel the calibration.The Date/Time properties screen will appear after the calibration has been confirmed.NOTE: It is possible to bypass the calibra-tion screen, and date and time routines. See Skipping the Cali-bration Routine on page 11.Setting the Date and TimeIn the Date/Time Properties window, touch the screen to select the current date/time, time zone and daylight saving time option.• Tap the left or right arrows to scroll through the desired year and month or directly tap the year or month to change the setting.• Tap on the Hr/Min/Sec AM/PM to input the Hr/Min/Sec to set the time.• Tap the arrow and set the correct time zone from the drop-down menu.• Check the box to enable Windows to automatically adjust for daylight saving.•Tap Apply to save the settings and exit the Date/Time Properties dialog, or tap to exit with-out saving.NOTE: To change the time and date at any time tap: Start → Settings → Control Panel → double-tap Date/Time.Set DateSet TimeSet Time ZoneSet Daylight Saving Time

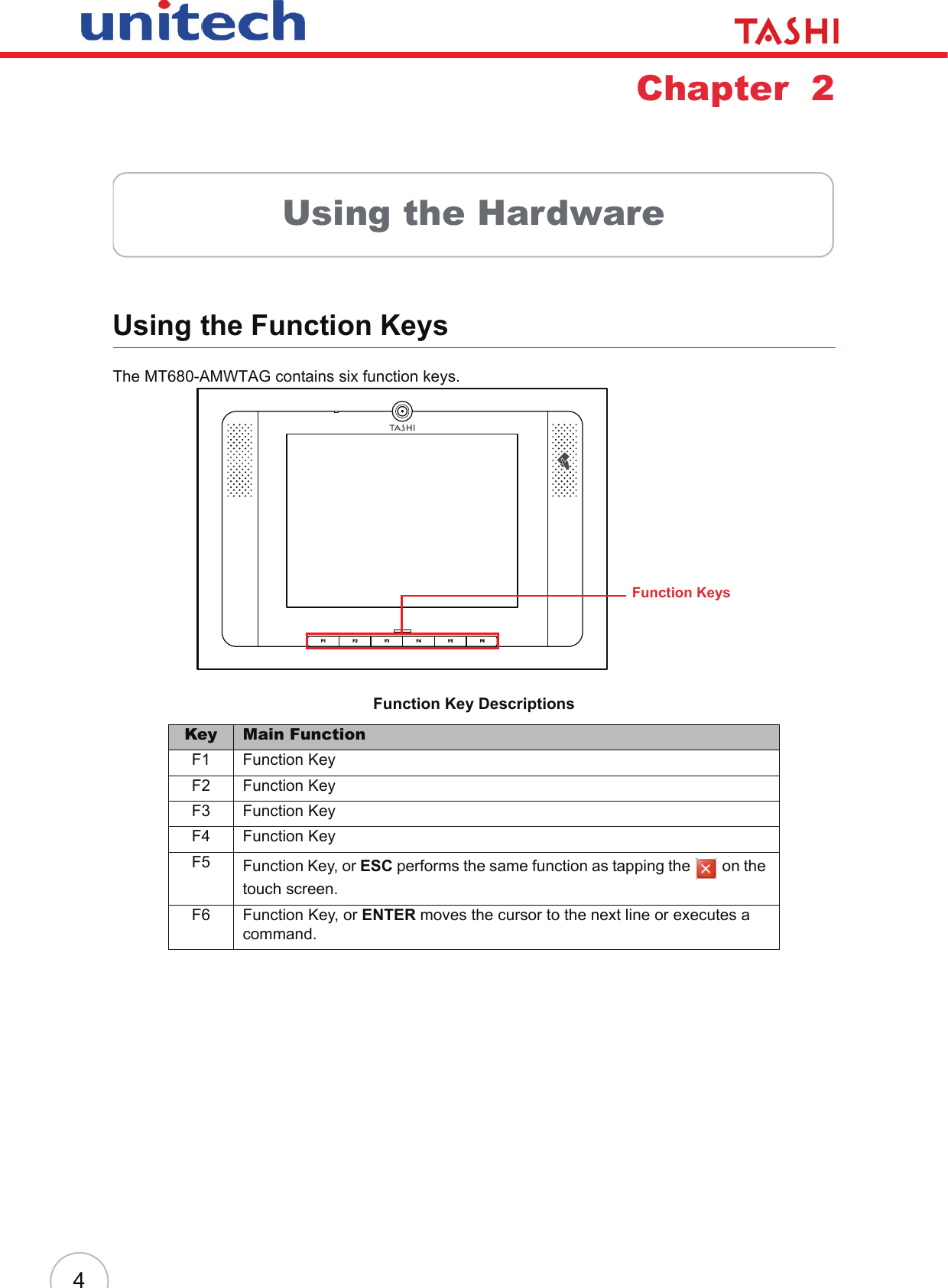

4Chapter 2Using the HardwareUsing the Function KeysThe MT680-AMWTAG contains six function keys.Function Key DescriptionsKey Main FunctionF1 Function KeyF2 Function KeyF3 Function KeyF4 Function KeyF5 Function Key, or ESC performs the same function as tapping the on the touch screen.F6 Function Key, or ENTER moves the cursor to the next line or executes a command.F6F5F4F3F2F1Function Keys

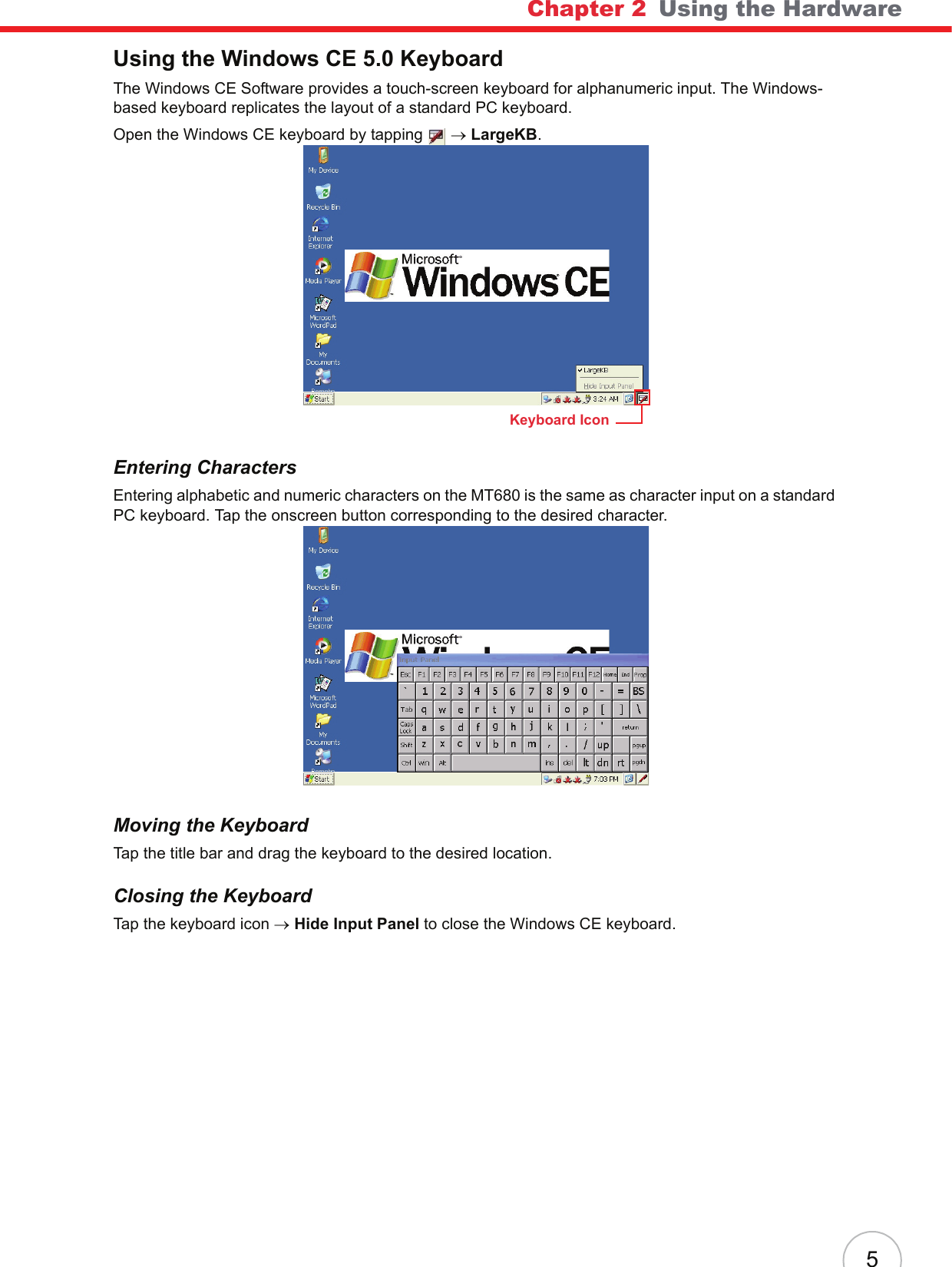

Chapter 2 Using the Hardware5Using the Windows CE 5.0 KeyboardThe Windows CE Software provides a touch-screen keyboard for alphanumeric input. The Windows-based keyboard replicates the layout of a standard PC keyboard.Open the Windows CE keyboard by tapping → LargeKB.Entering CharactersEntering alphabetic and numeric characters on the MT680 is the same as character input on a standard PC keyboard. Tap the onscreen button corresponding to the desired character.Moving the KeyboardTap the title bar and drag the keyboard to the desired location.Closing the KeyboardTap the keyboard icon → Hide Input Panel to close the Windows CE keyboard.Keyboard Icon

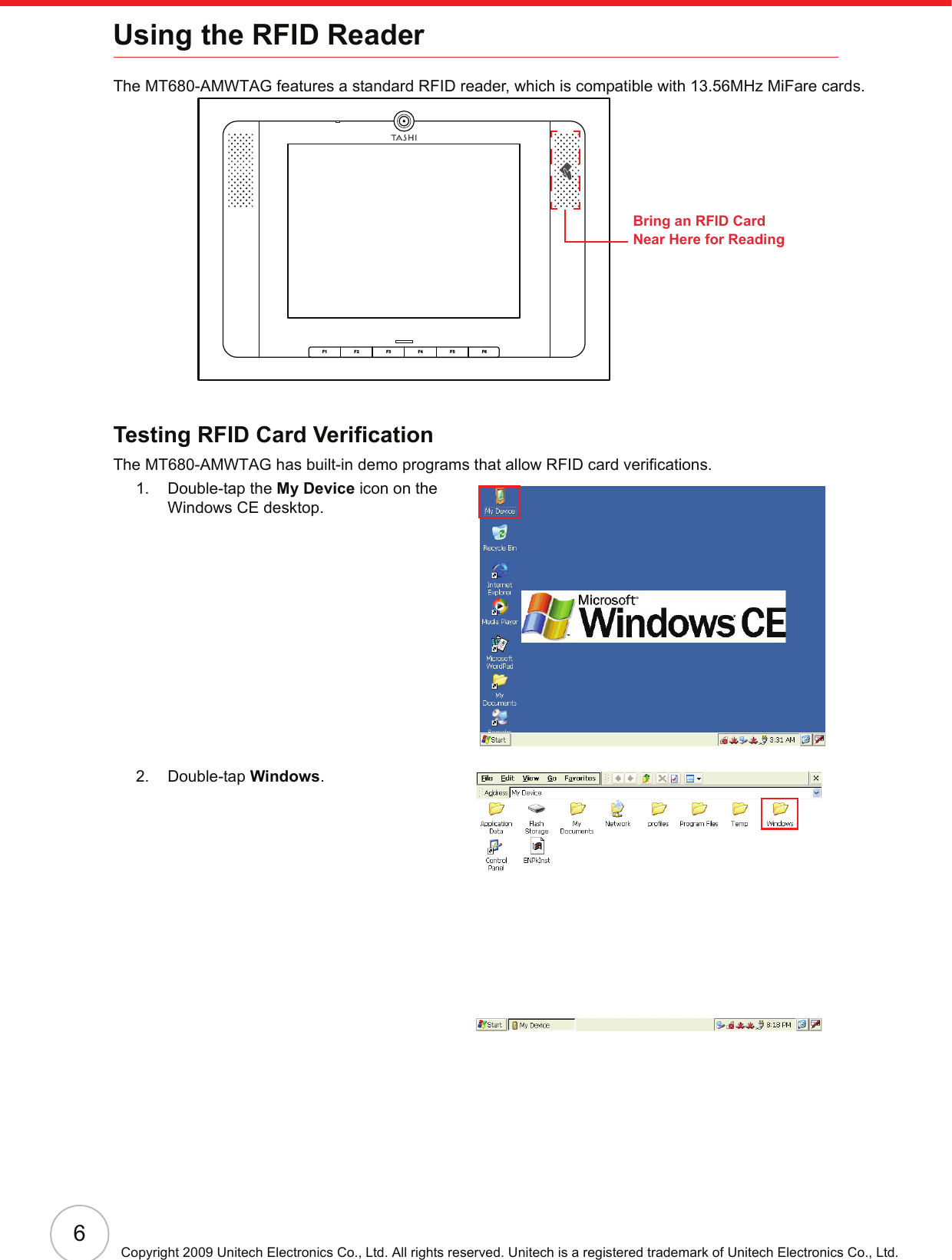

6Copyright 2009 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.Using the RFID ReaderThe MT680-AMWTAG features a standard RFID reader, which is compatible with 13.56MHz MiFare cards.Testing RFID Card VerificationThe MT680-AMWTAG has built-in demo programs that allow RFID card verifications.1. Double-tap the My Device icon on the Windows CE desktop.2. Double-tap Windows.F6F5F4F3F2F1Bring an RFID Card Near Here for Reading

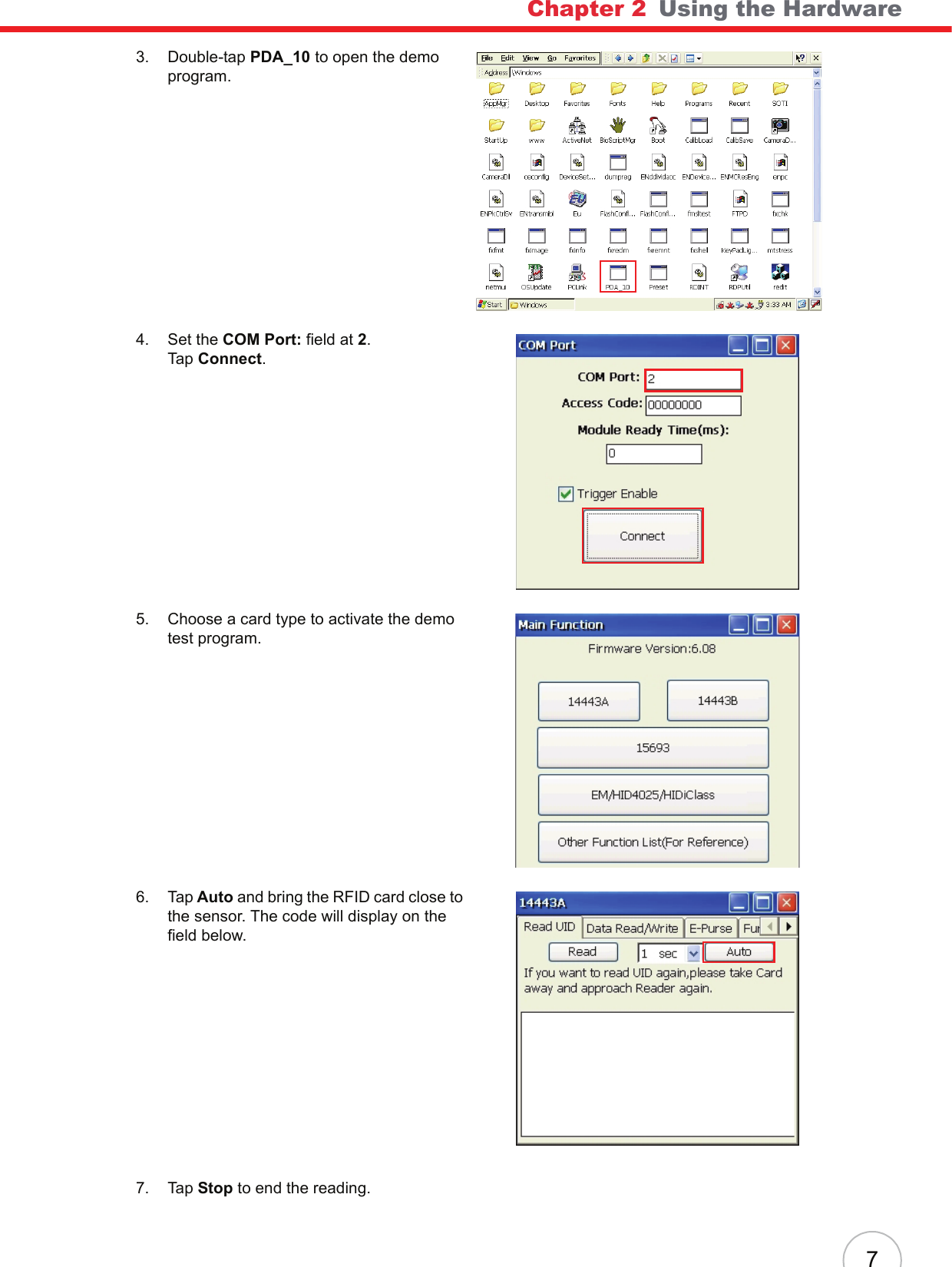

Chapter 2 Using the Hardware73. Double-tap PDA_10 to open the demo program.4. Set the COM Port: field at 2. Tap Connect.5. Choose a card type to activate the demo test program.6. Tap Auto and bring the RFID card close to the sensor. The code will display on the field below.7. Tap Stop to end the reading.

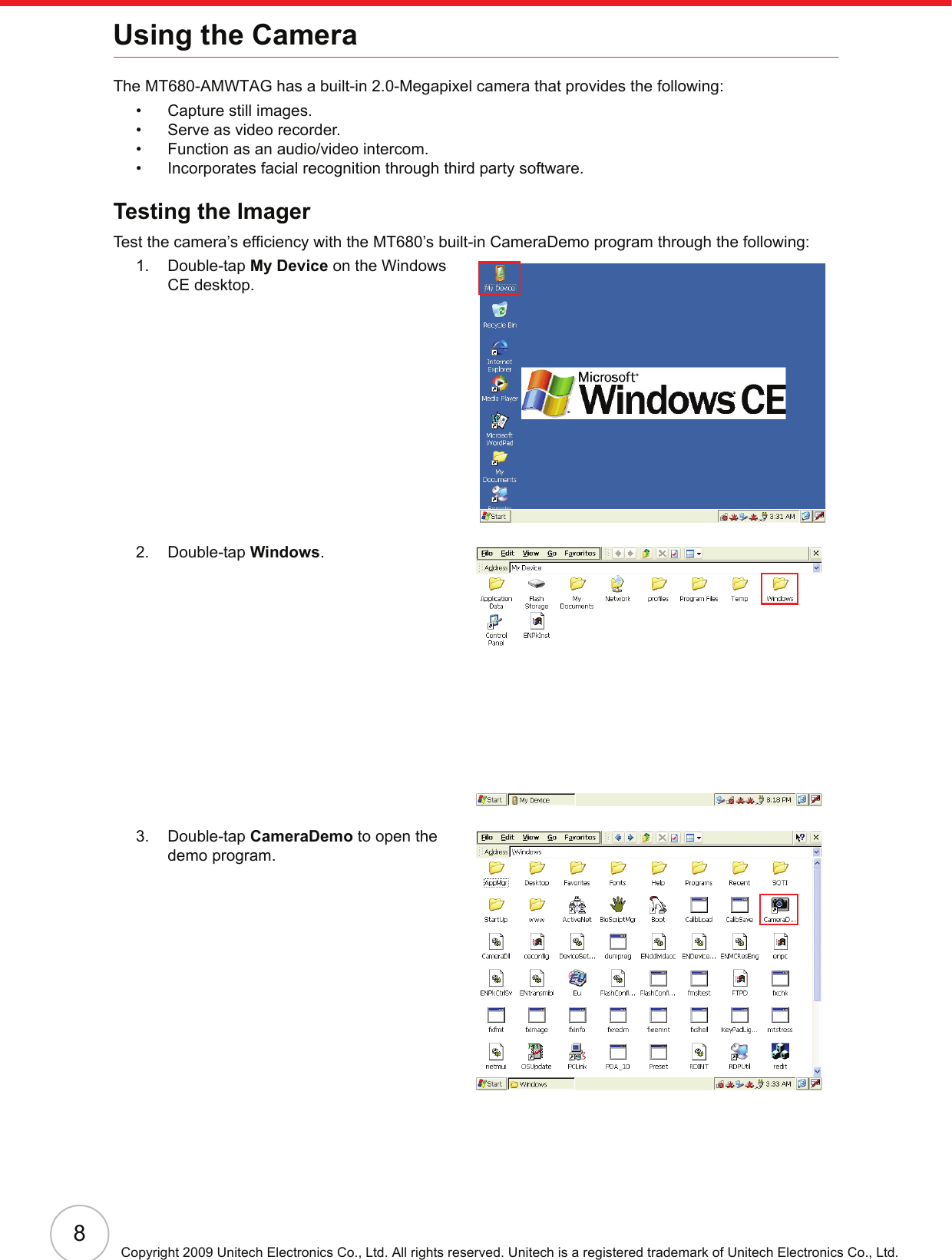

8Copyright 2009 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.Using the CameraThe MT680-AMWTAG has a built-in 2.0-Megapixel camera that provides the following:• Capture still images.• Serve as video recorder.• Function as an audio/video intercom.• Incorporates facial recognition through third party software.Testing the ImagerTest the camera’s efficiency with the MT680’s built-in CameraDemo program through the following:1. Double-tap My Device on the Windows CE desktop.2. Double-tap Windows.3. Double-tap CameraDemo to open the demo program.

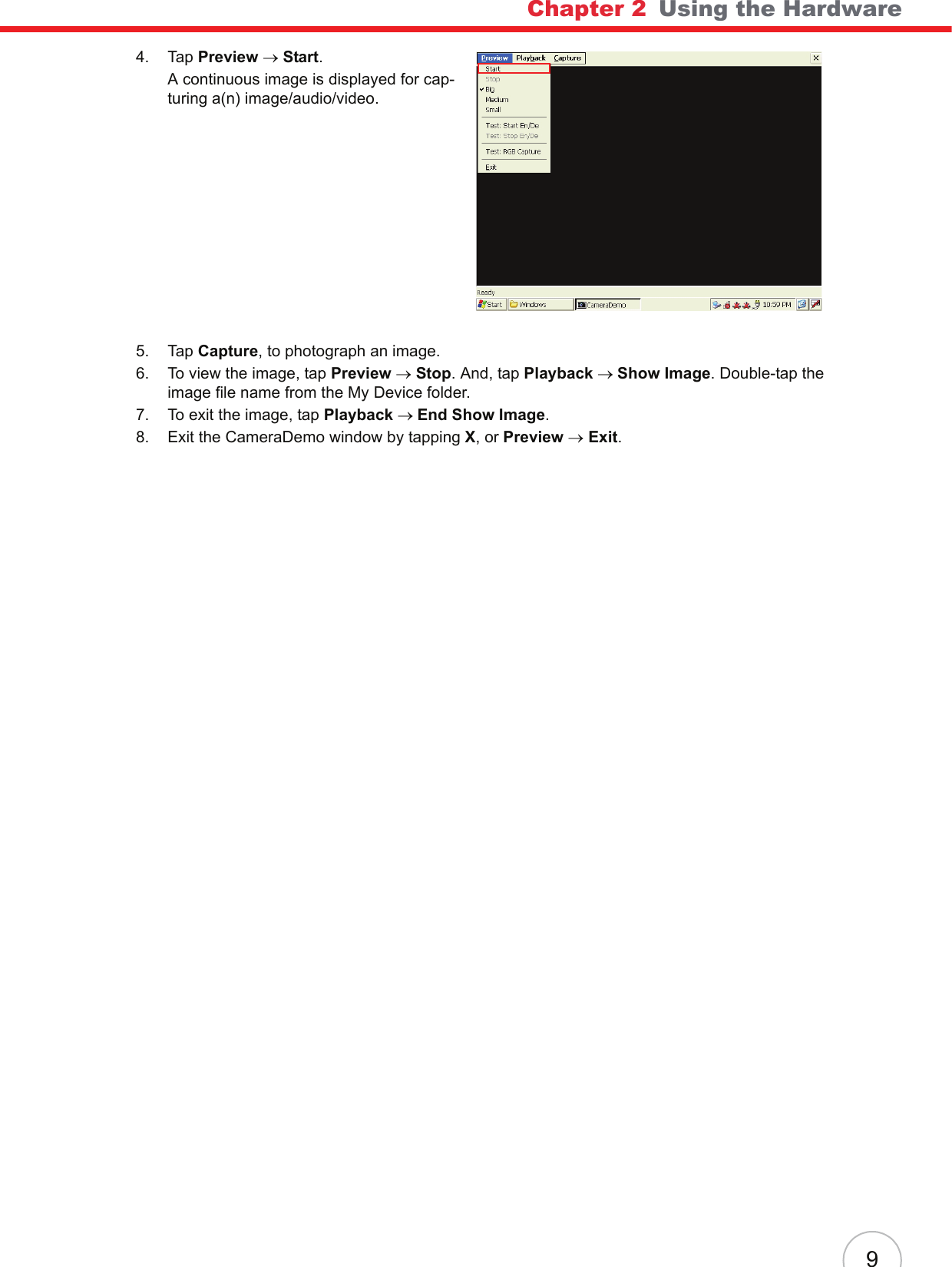

Chapter 2 Using the Hardware94. Tap Preview → Start.A continuous image is displayed for cap-turing a(n) image/audio/video.5. Tap Capture, to photograph an image.6. To view the image, tap Preview → Stop. And, tap Playback → Show Image. Double-tap the image file name from the My Device folder.7. To exit the image, tap Playback → End Show Image.8. Exit the CameraDemo window by tapping X, or Preview → Exit.

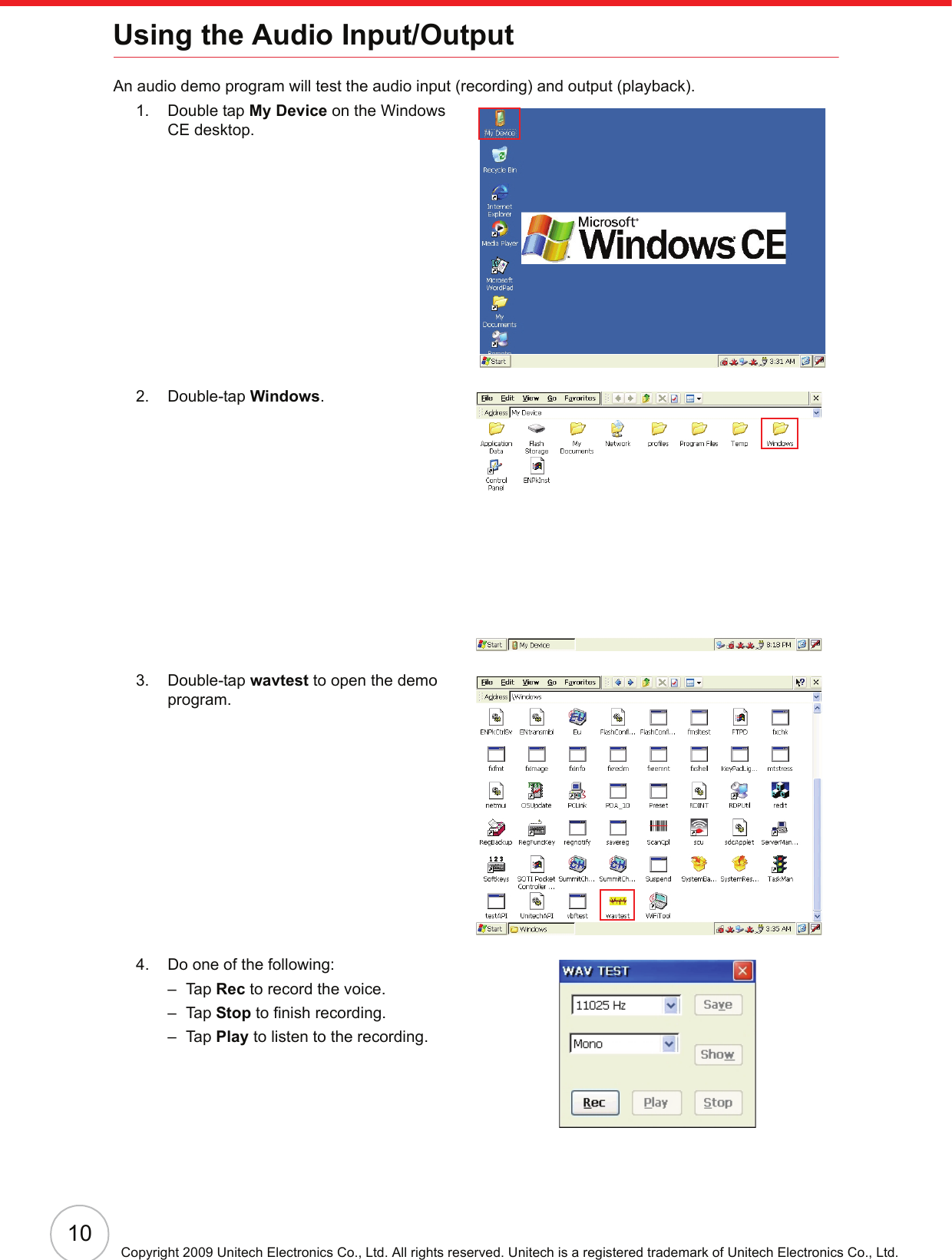

10Copyright 2009 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.Using the Audio Input/OutputAn audio demo program will test the audio input (recording) and output (playback).1. Double tap My Device on the Windows CE desktop.2. Double-tap Windows.3. Double-tap wavtest to open the demo program.4. Do one of the following:–Tap Rec to record the voice.–Tap Stop to finish recording.–Tap Play to listen to the recording.

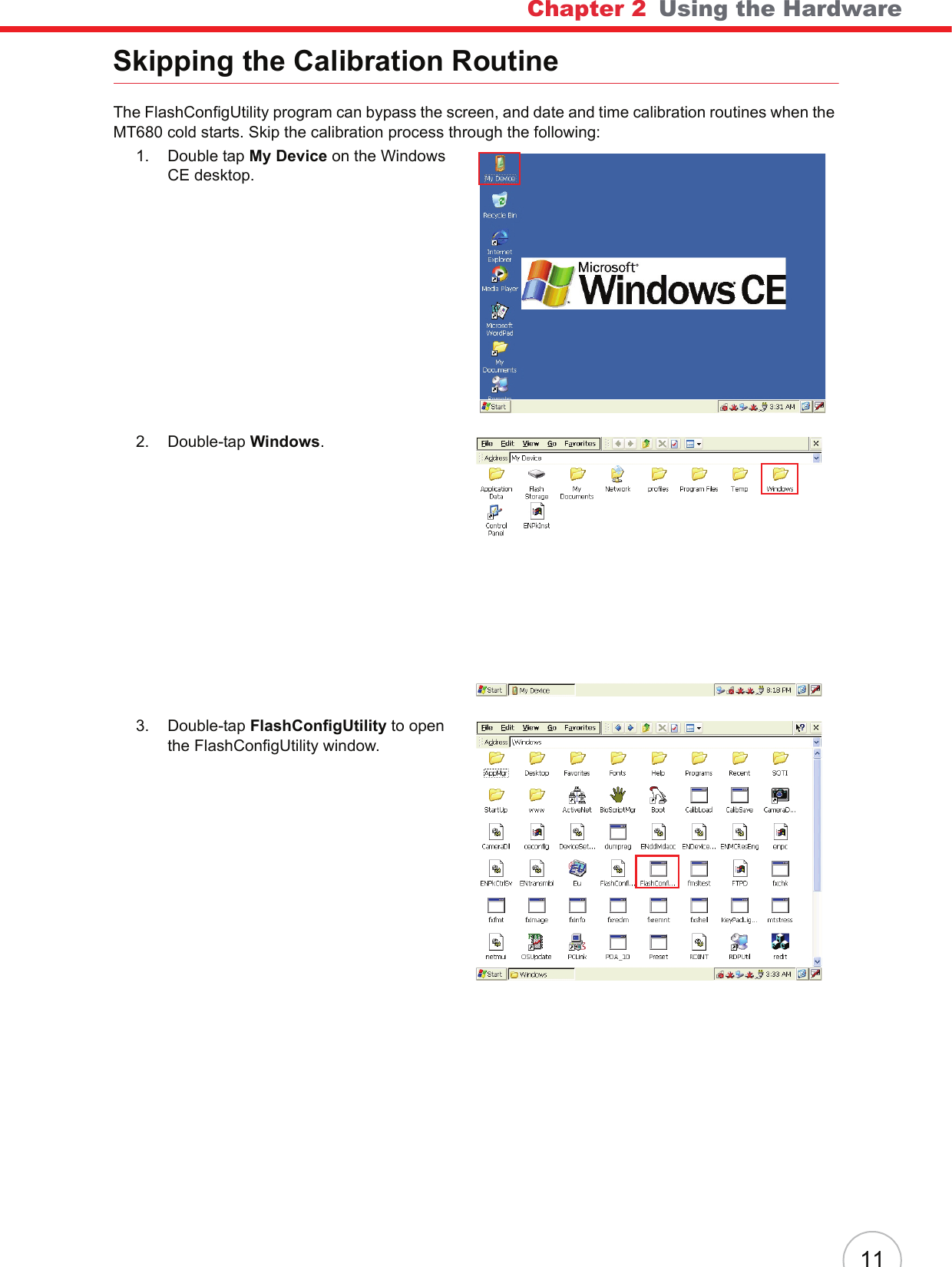

Chapter 2 Using the Hardware11Skipping the Calibration RoutineThe FlashConfigUtility program can bypass the screen, and date and time calibration routines when the MT680 cold starts. Skip the calibration process through the following:1. Double tap My Device on the Windows CE desktop.2. Double-tap Windows.3. Double-tap FlashConfigUtility to open the FlashConfigUtility window.

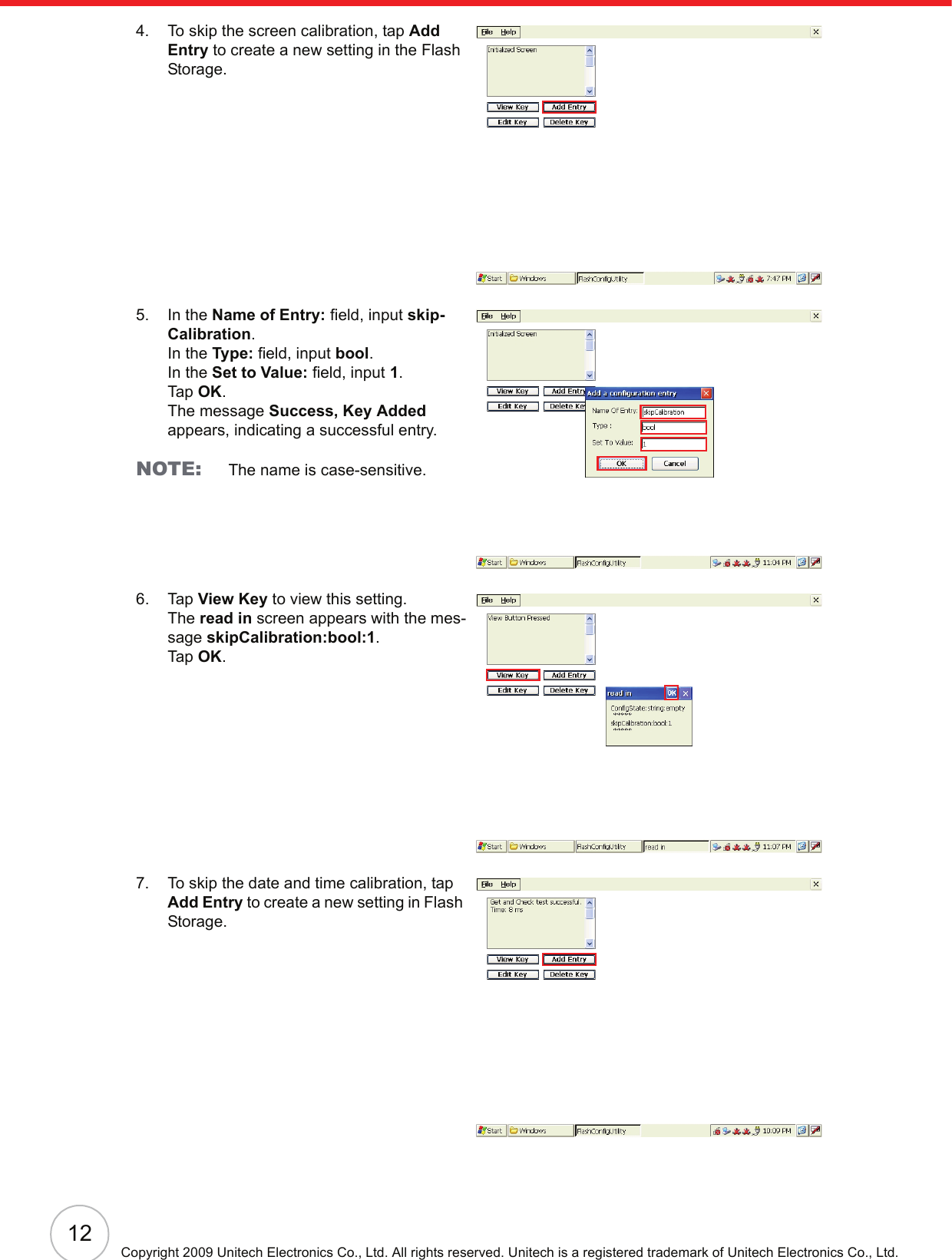

12Copyright 2009 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.4. To skip the screen calibration, tap Add Entry to create a new setting in the Flash Storage.5. In the Name of Entry: field, input skip-Calibration.In the Type: field, input bool.In the Set to Value: field, input 1.Tap OK.The message Success, Key Added appears, indicating a successful entry.NOTE: The name is case-sensitive.6. Tap View Key to view this setting.The read in screen appears with the mes-sage skipCalibration:bool:1.Tap OK.7. To skip the date and time calibration, tap Add Entry to create a new setting in Flash Storage.

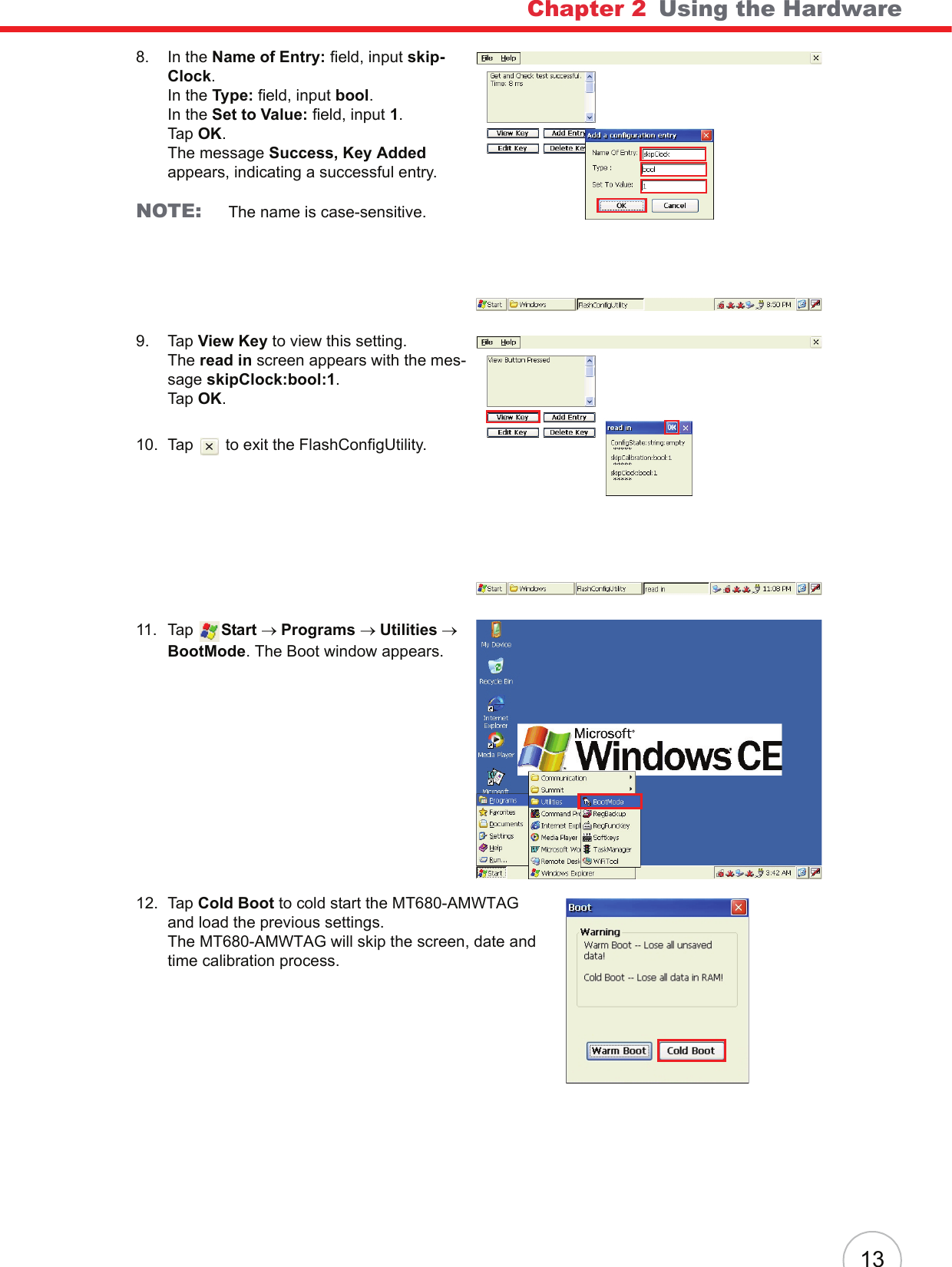

Chapter 2 Using the Hardware138. In the Name of Entry: field, input skip-Clock.In the Type: field, input bool.In the Set to Value: field, input 1.Tap OK.The message Success, Key Added appears, indicating a successful entry.NOTE: The name is case-sensitive.9. Tap View Key to view this setting.The read in screen appears with the mes-sage skipClock:bool:1.Tap OK.10. Tap to exit the FlashConfigUtility.11. Tap Start → Programs → Utilities → BootMode. The Boot window appears.12. Tap Cold Boot to cold start the MT680-AMWTAG and load the previous settings.The MT680-AMWTAG will skip the screen, date and time calibration process.

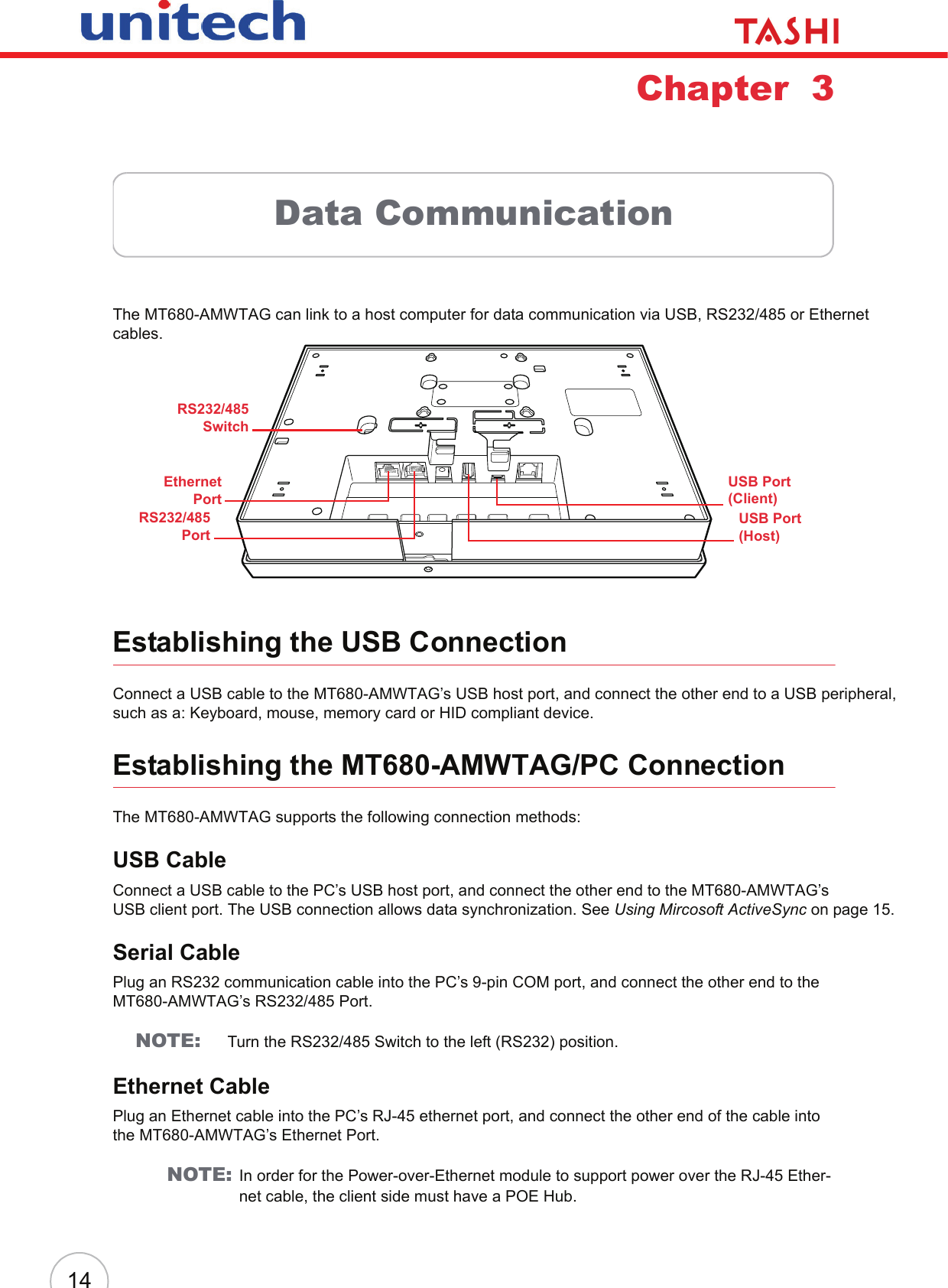

14Chapter 3Data CommunicationThe MT680-AMWTAG can link to a host computer for data communication via USB, RS232/485 or Ethernet cables.Establishing the USB ConnectionConnect a USB cable to the MT680-AMWTAG’s USB host port, and connect the other end to a USB peripheral, such as a: Keyboard, mouse, memory card or HID compliant device.Establishing the MT680-AMWTAG/PC ConnectionThe MT680-AMWTAG supports the following connection methods:USB CableConnect a USB cable to the PC’s USB host port, and connect the other end to the MT680-AMWTAG’s USB client port. The USB connection allows data synchronization. See Using Mircosoft ActiveSync on page 15.Serial CablePlug an RS232 communication cable into the PC’s 9-pin COM port, and connect the other end to the MT680-AMWTAG’s RS232/485 Port.NOTE: Turn the RS232/485 Switch to the left (RS232) position.Ethernet CablePlug an Ethernet cable into the PC’s RJ-45 ethernet port, and connect the other end of the cable into the MT680-AMWTAG’s Ethernet Port.NOTE: In order for the Power-over-Ethernet module to support power over the RJ-45 Ether-net cable, the client side must have a POE Hub.USB Port (Host)EthernetPortRS232/485PortUSB Port (Client)RS232/485Switch

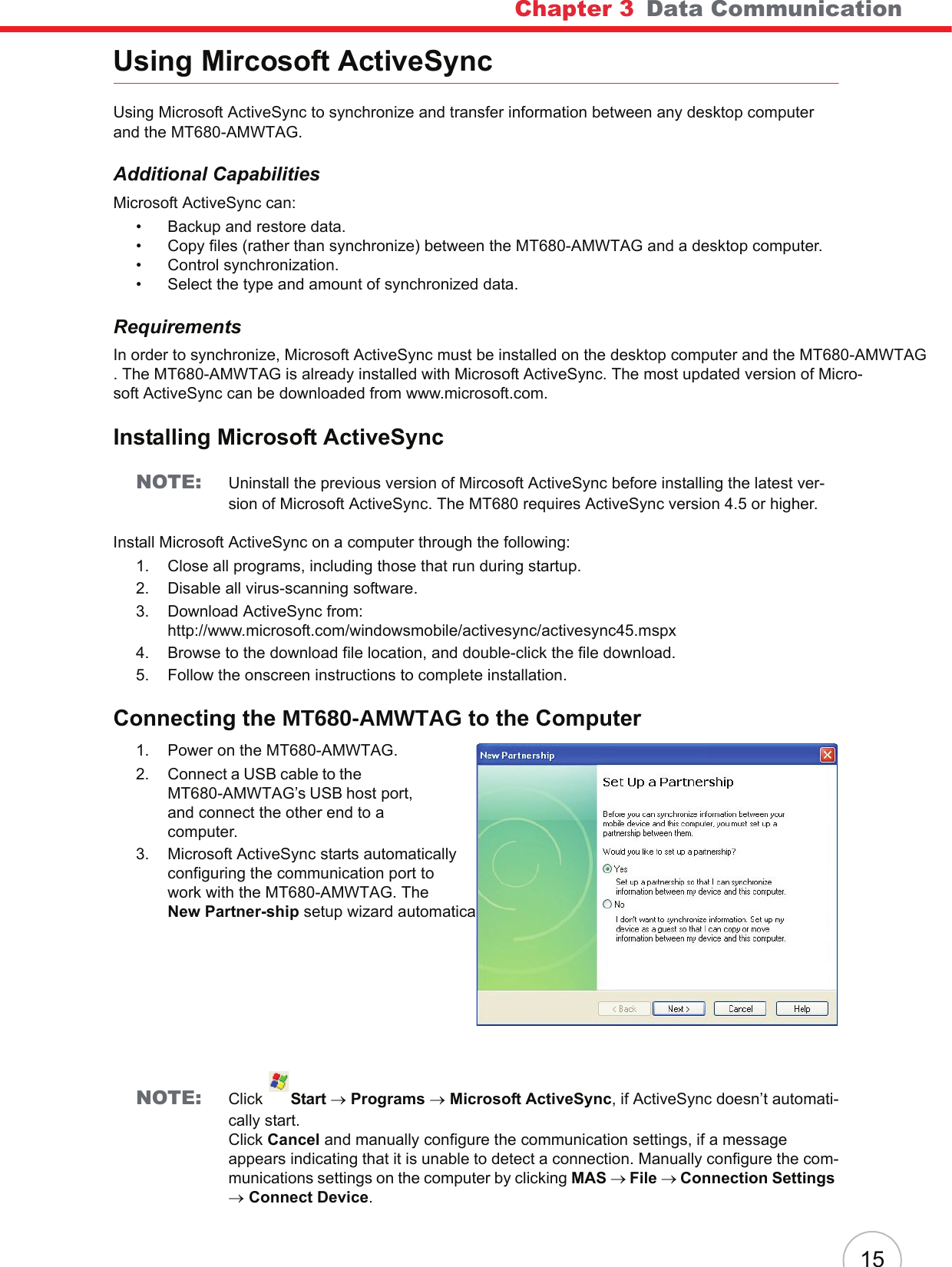

Chapter 3 Data Communication15Using Mircosoft ActiveSyncUsing Microsoft ActiveSync to synchronize and transfer information between any desktop computer and the MT680-AMWTAG.Additional CapabilitiesMicrosoft ActiveSync can:• Backup and restore data.• Copy files (rather than synchronize) between the MT680-AMWTAG and a desktop computer.• Control synchronization.• Select the type and amount of synchronized data.RequirementsIn order to synchronize, Microsoft ActiveSync must be installed on the desktop computer and the MT680-AMWTAG. The MT680-AMWTAG is already installed with Microsoft ActiveSync. The most updated version of Micro-soft ActiveSync can be downloaded from www.microsoft.com.Installing Microsoft ActiveSyncNOTE: Uninstall the previous version of Mircosoft ActiveSync before installing the latest ver-sion of Microsoft ActiveSync. The MT680 requires ActiveSync version 4.5 or higher.Install Microsoft ActiveSync on a computer through the following:1. Close all programs, including those that run during startup.2. Disable all virus-scanning software.3. Download ActiveSync from:http://www.microsoft.com/windowsmobile/activesync/activesync45.mspx4. Browse to the download file location, and double-click the file download.5. Follow the onscreen instructions to complete installation.Connecting the MT680-AMWTAG to the Computer1. Power on the MT680-AMWTAG.2. Connect a USB cable to the MT680-AMWTAG’s USB host port, and connect the other end to a computer.3. Microsoft ActiveSync starts automatically configuring the communication port to work with the MT680-AMWTAG. The New Partner-ship setup wizard automatically starts.NOTE: Click Start → Programs → Microsoft ActiveSync, if ActiveSync doesn’t automati-cally start.Click Cancel and manually configure the communication settings, if a message appears indicating that it is unable to detect a connection. Manually configure the com-munications settings on the computer by clicking MAS → File → Connection Settings → Connect Device.

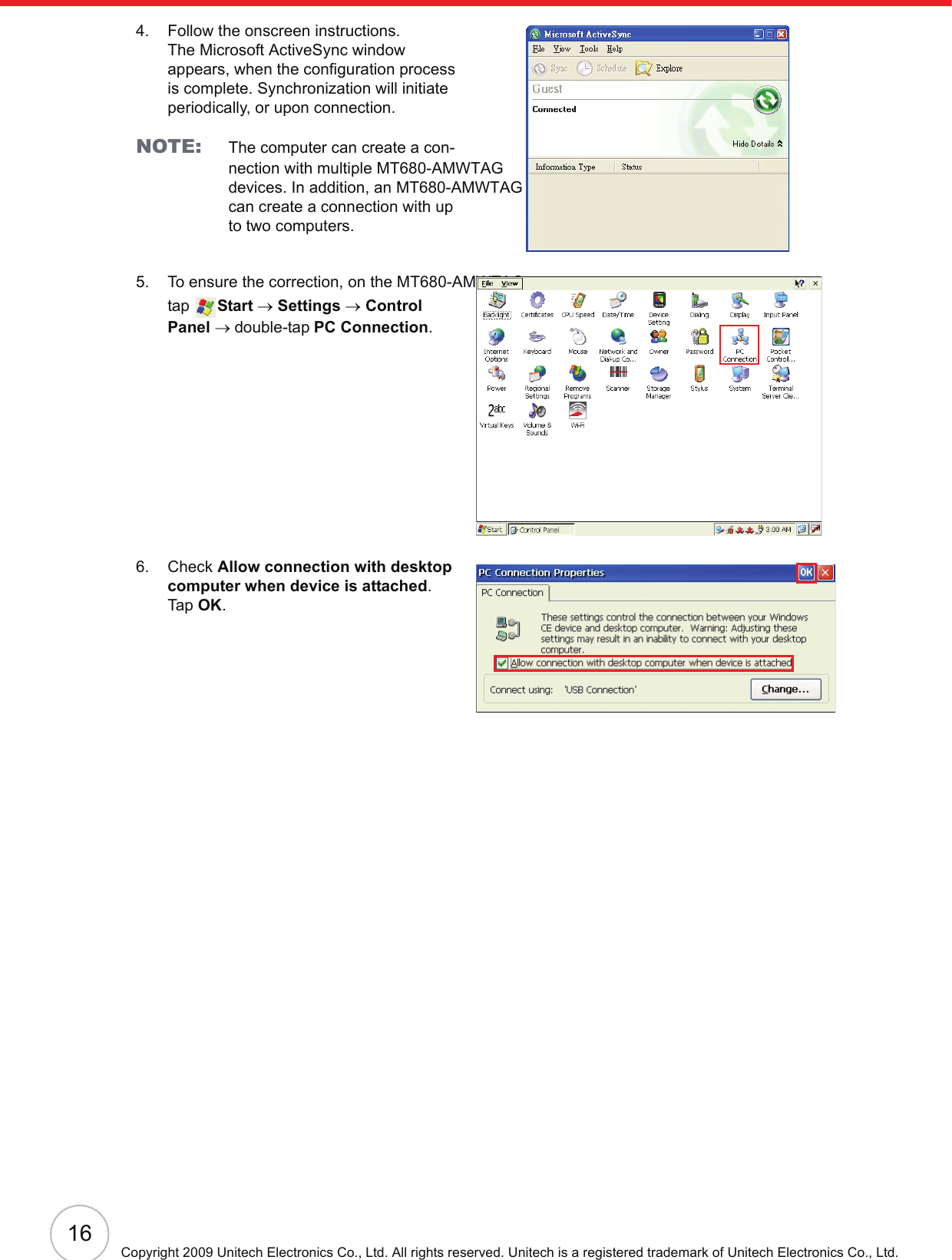

16Copyright 2009 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.4. Follow the onscreen instructions.The Microsoft ActiveSync window appears, when the configuration process is complete. Synchronization will initiate periodically, or upon connection.NOTE: The computer can create a con-nection with multiple MT680-AMWTAG devices. In addition, an MT680-AMWTAGcan create a connection with up to two computers.5. To ensure the correction, on the MT680-AMWTAG, tap Start → Settings → Control Panel → double-tap PC Connection.6. Check Allow connection with desktop computer when device is attached.Tap OK.

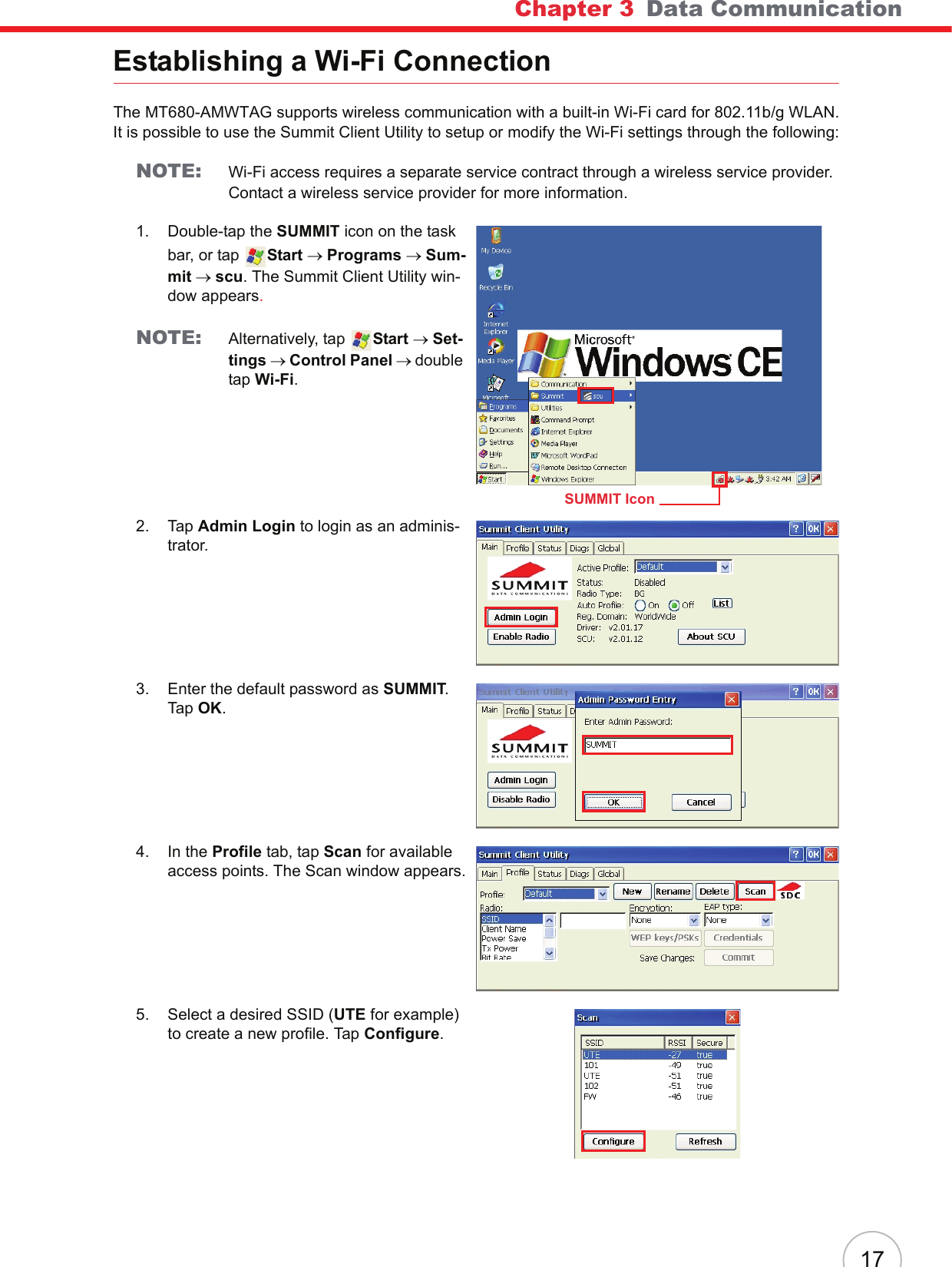

Chapter 3 Data Communication17Establishing a Wi-Fi ConnectionThe MT680-AMWTAG supports wireless communication with a built-in Wi-Fi card for 802.11b/g WLAN. It is possible to use the Summit Client Utility to setup or modify the Wi-Fi settings through the following:NOTE: Wi-Fi access requires a separate service contract through a wireless service provider. Contact a wireless service provider for more information.1. Double-tap the SUMMIT icon on the task bar, or tap Start → Programs → Sum-mit → scu. The Summit Client Utility win-dow appears.NOTE: Alternatively, tap Start → Set-tings → Control Panel → double tap Wi-Fi.2. Tap Admin Login to login as an adminis-trator.3. Enter the default password as SUMMIT. Tap OK.4. In the Profile tab, tap Scan for available access points. The Scan window appears.5. Select a desired SSID (UTE for example) to create a new profile. Tap Configure.SUMMIT Icon

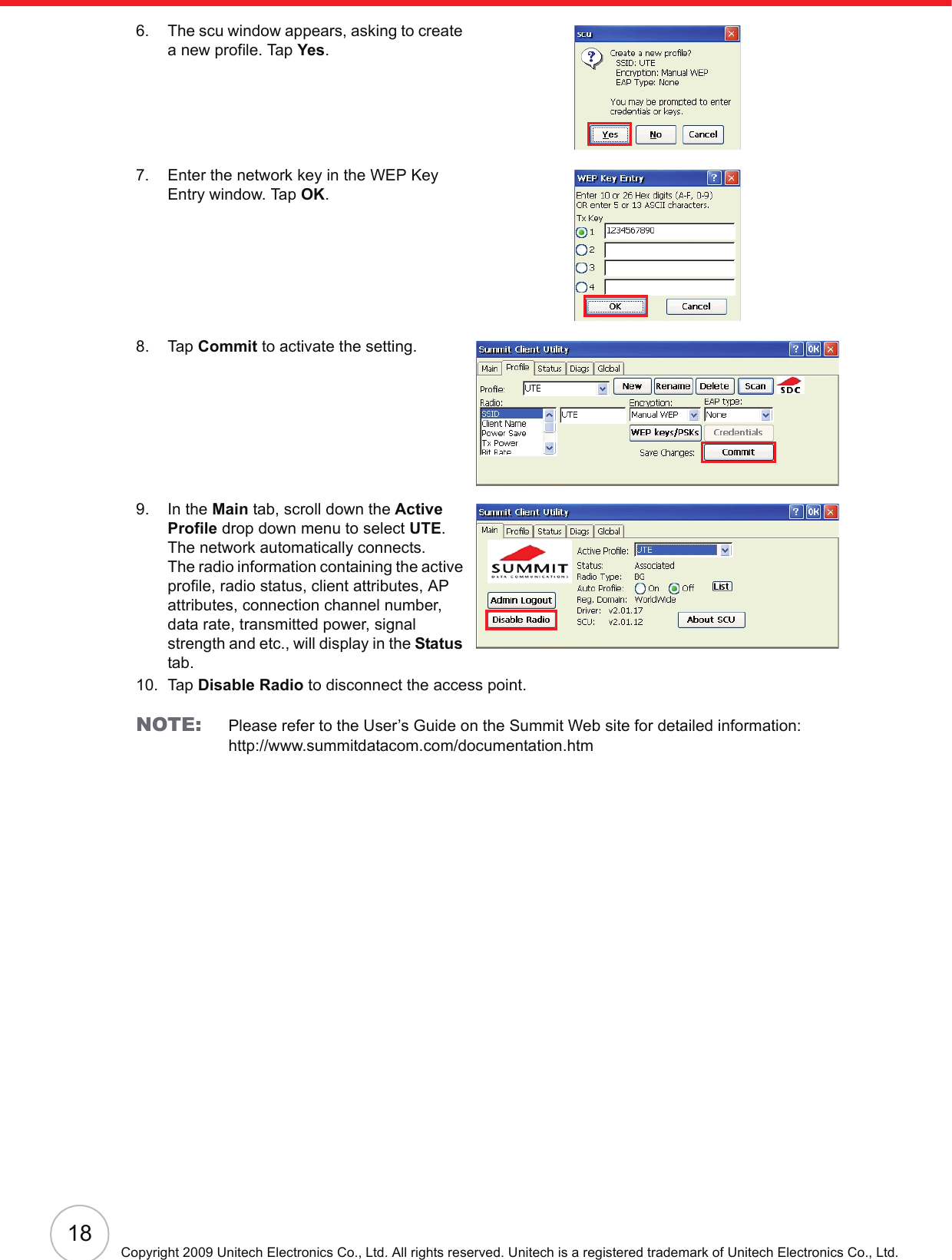

18Copyright 2009 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.6. The scu window appears, asking to create a new profile. Tap Yes.7. Enter the network key in the WEP Key Entry window. Tap OK.8. Tap Commit to activate the setting.9. In the Main tab, scroll down the Active Profile drop down menu to select UTE. The network automatically connects.The radio information containing the active profile, radio status, client attributes, AP attributes, connection channel number, data rate, transmitted power, signal strength and etc., will display in the Status tab.10. Tap Disable Radio to disconnect the access point.NOTE: Please refer to the User’s Guide on the Summit Web site for detailed information:http://www.summitdatacom.com/documentation.htm

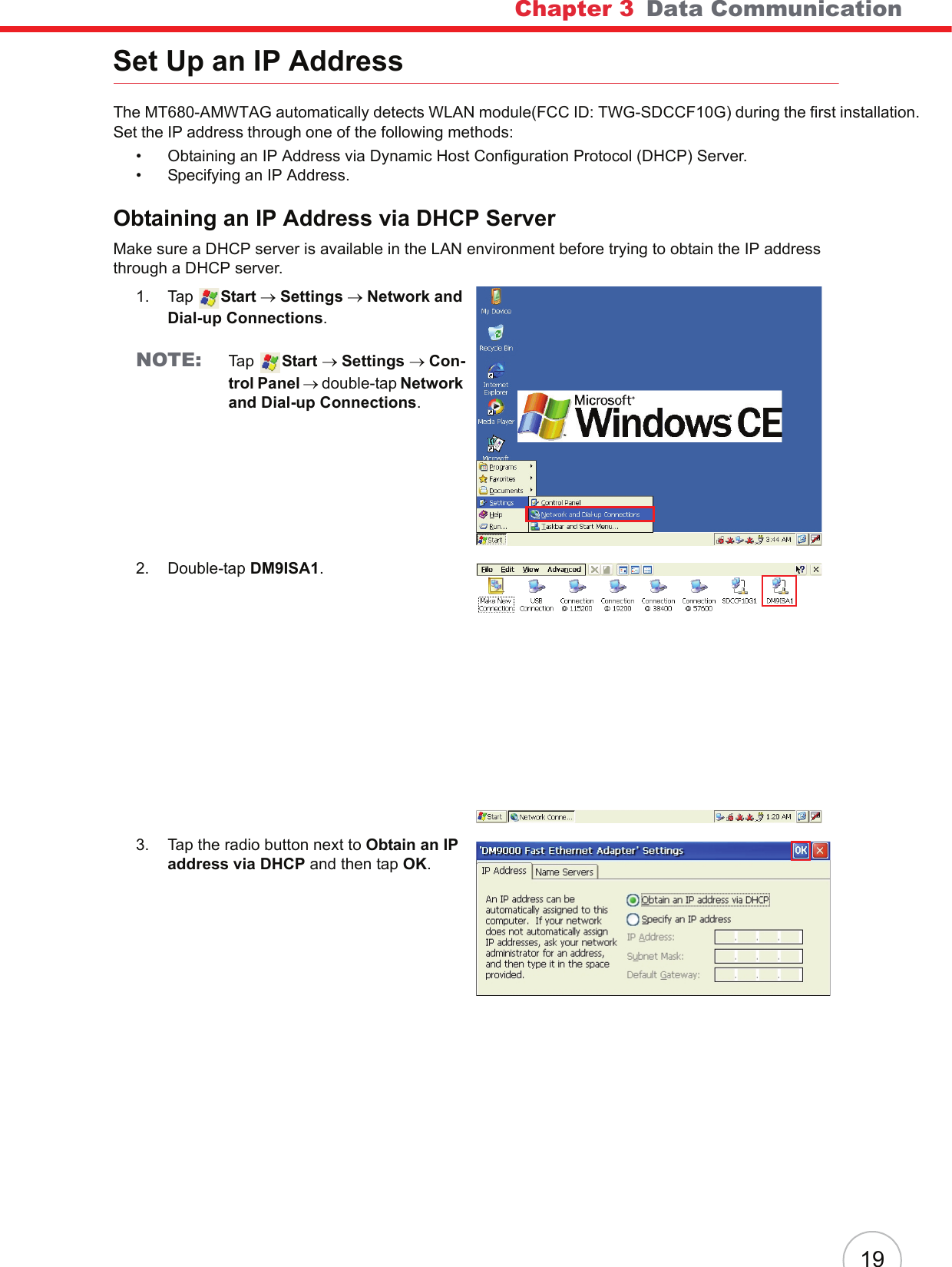

Chapter 3 Data Communication19Set Up an IP AddressThe MT680-AMWTAG automatically detects WLAN module(FCC ID: TWG-SDCCF10G) during the first installation. Set the IP address through one of the following methods:• Obtaining an IP Address via Dynamic Host Configuration Protocol (DHCP) Server.• Specifying an IP Address.Obtaining an IP Address via DHCP ServerMake sure a DHCP server is available in the LAN environment before trying to obtain the IP address through a DHCP server.1. Tap Start → Settings → Network and Dial-up Connections.NOTE: Ta p Start → Settings → Con-trol Panel → double-tap Network and Dial-up Connections.2. Double-tap DM9ISA1.3. Tap the radio button next to Obtain an IP address via DHCP and then tap OK.

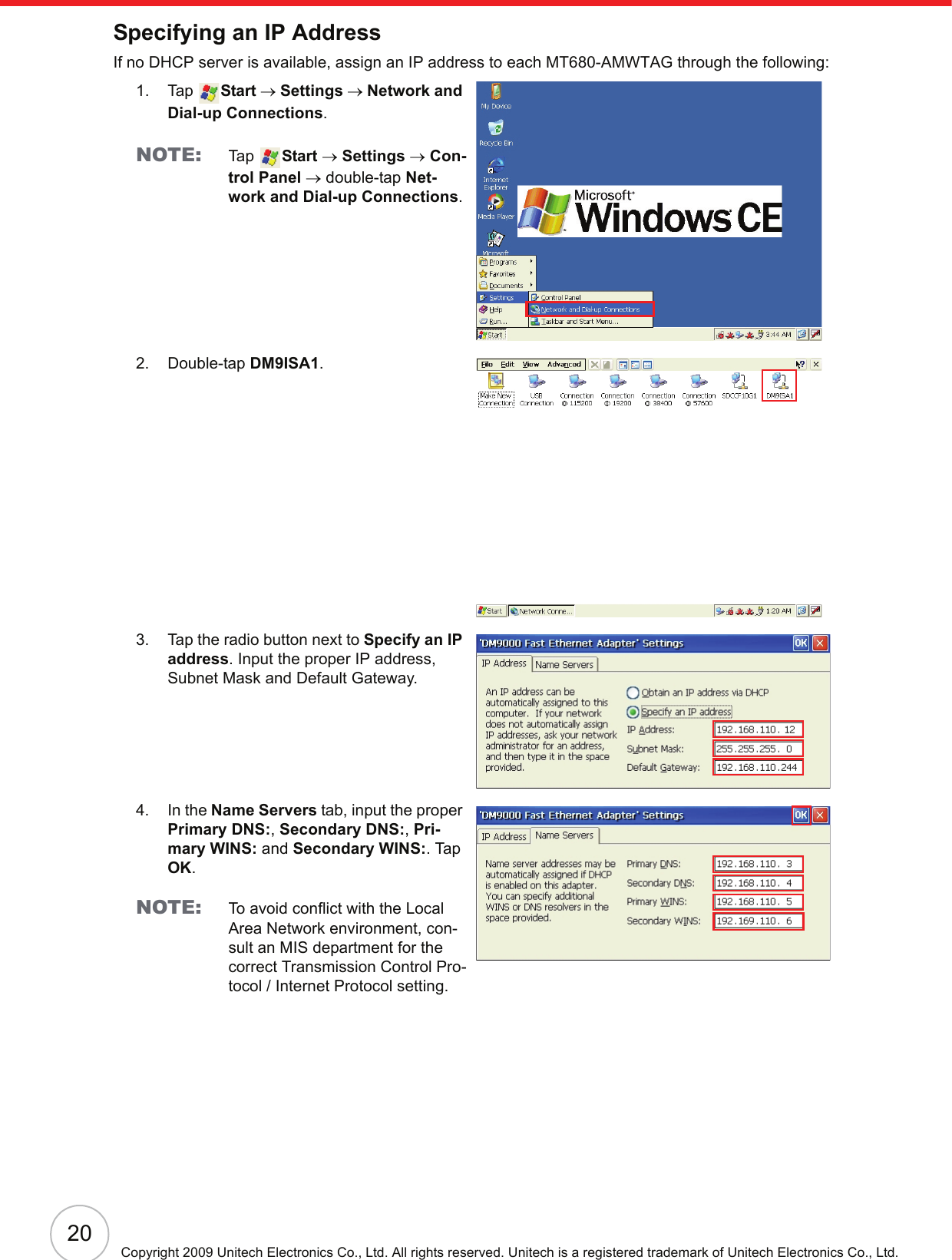

20Copyright 2009 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.Specifying an IP AddressIf no DHCP server is available, assign an IP address to each MT680-AMWTAG through the following:1. Tap Start → Settings → Network and Dial-up Connections.NOTE: Ta p Start → Settings → Con-trol Panel → double-tap Net-work and Dial-up Connections.2. Double-tap DM9ISA1.3. Tap the radio button next to Specify an IP address. Input the proper IP address, Subnet Mask and Default Gateway.4. In the Name Servers tab, input the proper Primary DNS:, Secondary DNS:, Pri-mary WINS: and Secondary WINS:. Tap OK.NOTE: To avoid conflict with the Local Area Network environment, con-sult an MIS department for the correct Transmission Control Pro-tocol / Internet Protocol setting.

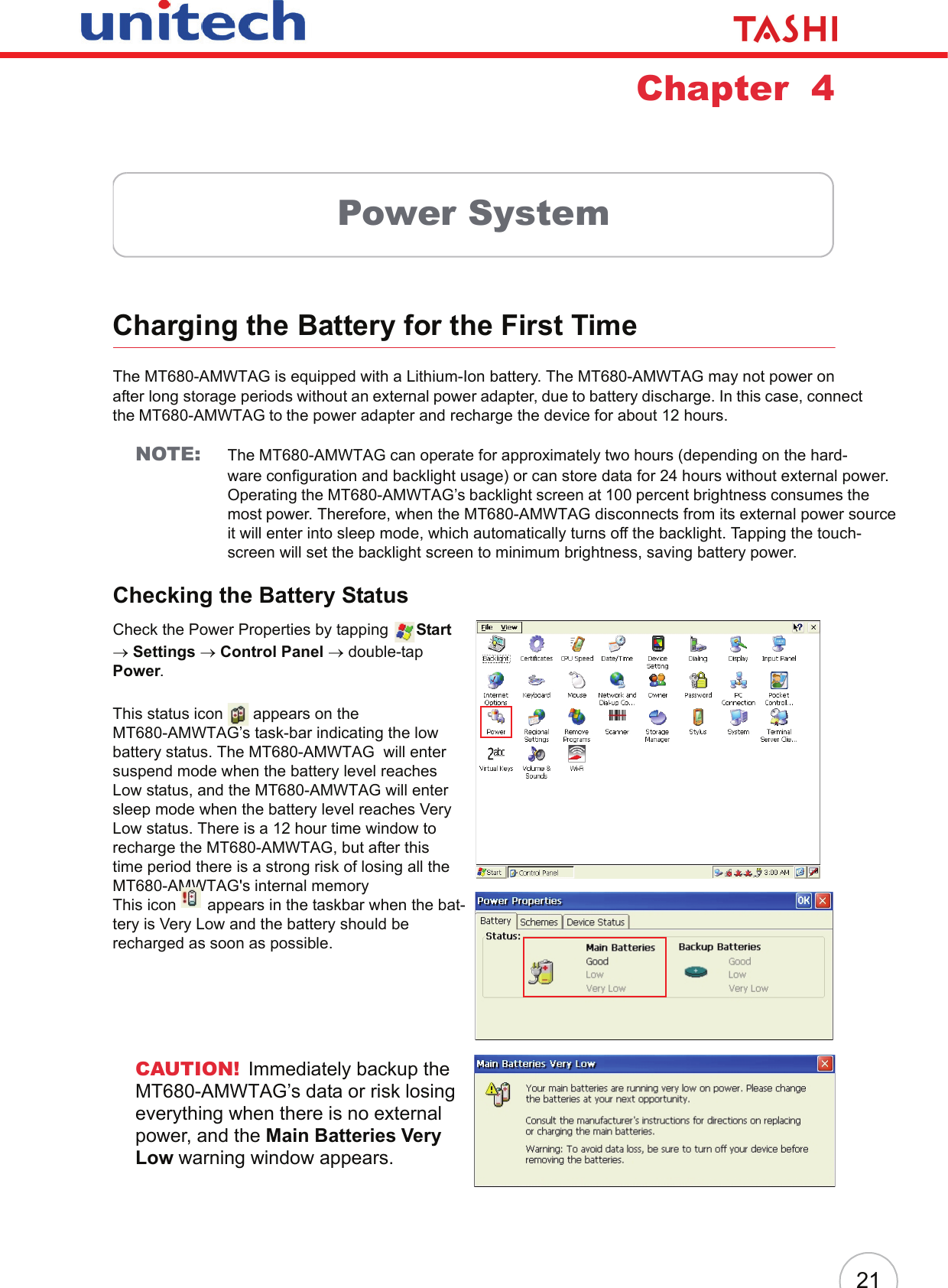

21Chapter 4Power SystemCharging the Battery for the First TimeThe MT680-AMWTAG is equipped with a Lithium-Ion battery. The MT680-AMWTAG may not power on after long storage periods without an external power adapter, due to battery discharge. In this case, connect the MT680-AMWTAG to the power adapter and recharge the device for about 12 hours.NOTE: The MT680-AMWTAG can operate for approximately two hours (depending on the hard-ware configuration and backlight usage) or can store data for 24 hours without external power. Operating the MT680-AMWTAG’s backlight screen at 100 percent brightness consumes the most power. Therefore, when the MT680-AMWTAG disconnects from its external power sourceit will enter into sleep mode, which automatically turns off the backlight. Tapping the touch-screen will set the backlight screen to minimum brightness, saving battery power.Checking the Battery StatusCheck the Power Properties by tapping Start → Settings → Control Panel → double-tap Power.This status icon appears on the MT680-AMWTAG’s task-bar indicating the low battery status. The MT680-AMWTAG will enter suspend mode when the battery level reaches Low status, and the MT680-AMWTAG will enter sleep mode when the battery level reaches Very Low status. There is a 12 hour time window to recharge the MT680-AMWTAG, but after this time period there is a strong risk of losing all the MT680-AMWTAG's internal memoryThis icon appears in the taskbar when the bat-tery is Very Low and the battery should be recharged as soon as possible.CAUTION! Immediately backup the MT680-AMWTAG’s data or risk losing everything when there is no external power, and the Main Batteries Very Low warning window appears.

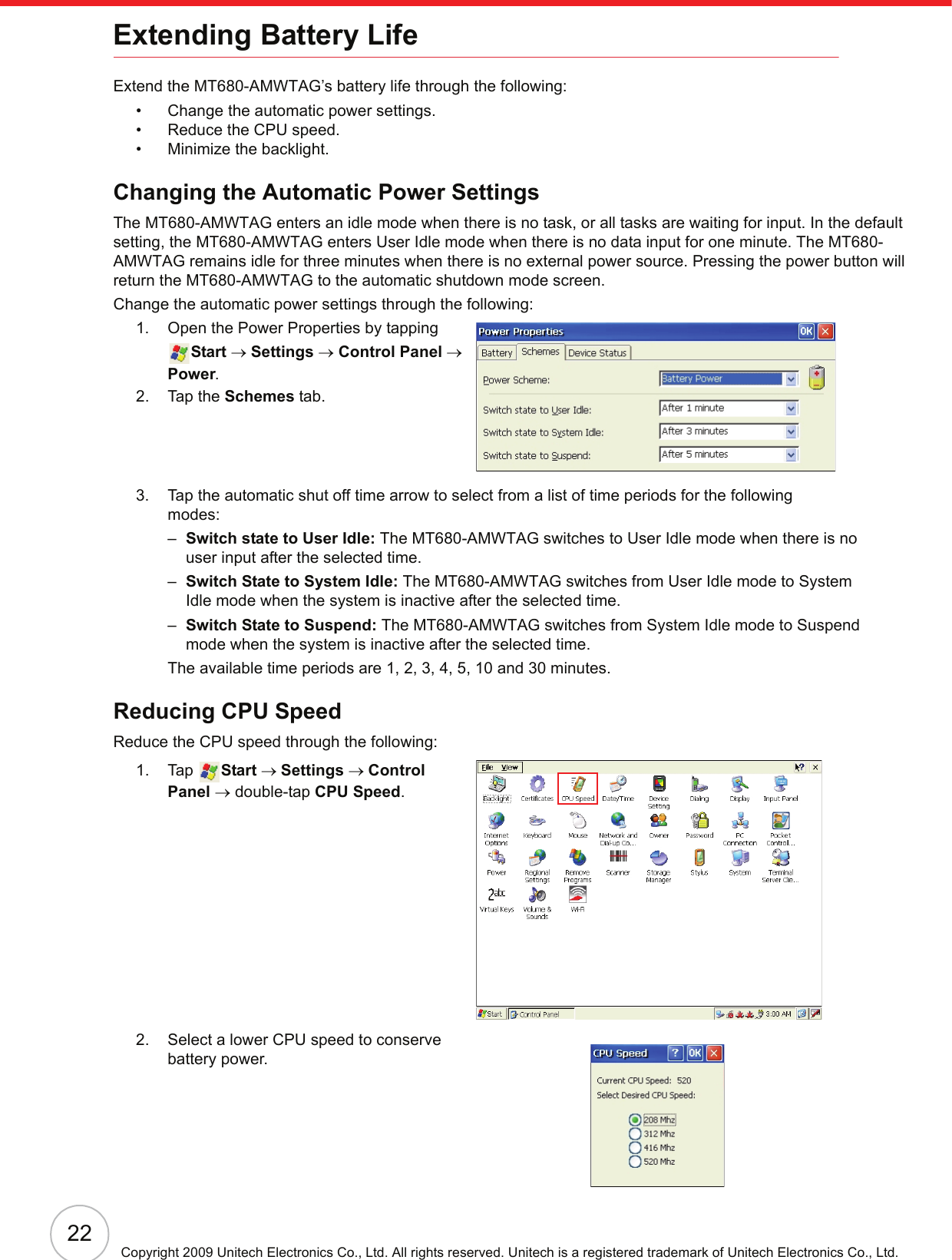

22Copyright 2009 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.Extending Battery LifeExtend the MT680-AMWTAG’s battery life through the following:• Change the automatic power settings.• Reduce the CPU speed.• Minimize the backlight.Changing the Automatic Power SettingsThe MT680-AMWTAG enters an idle mode when there is no task, or all tasks are waiting for input. In the default setting, the MT680-AMWTAG enters User Idle mode when there is no data input for one minute. The MT680-AMWTAG remains idle for three minutes when there is no external power source. Pressing the power button will return the MT680-AMWTAG to the automatic shutdown mode screen.Change the automatic power settings through the following:1. Open the Power Properties by tapping Start → Settings → Control Panel → Power.2. Tap the Schemes tab.3. Tap the automatic shut off time arrow to select from a list of time periods for the following modes:–Switch state to User Idle: The MT680-AMWTAG switches to User Idle mode when there is no user input after the selected time.–Switch State to System Idle: The MT680-AMWTAG switches from User Idle mode to System Idle mode when the system is inactive after the selected time.–Switch State to Suspend: The MT680-AMWTAG switches from System Idle mode to Suspend mode when the system is inactive after the selected time.The available time periods are 1, 2, 3, 4, 5, 10 and 30 minutes.Reducing CPU SpeedReduce the CPU speed through the following:1. Tap Start → Settings → Control Panel → double-tap CPU Speed.2. Select a lower CPU speed to conserve battery power.

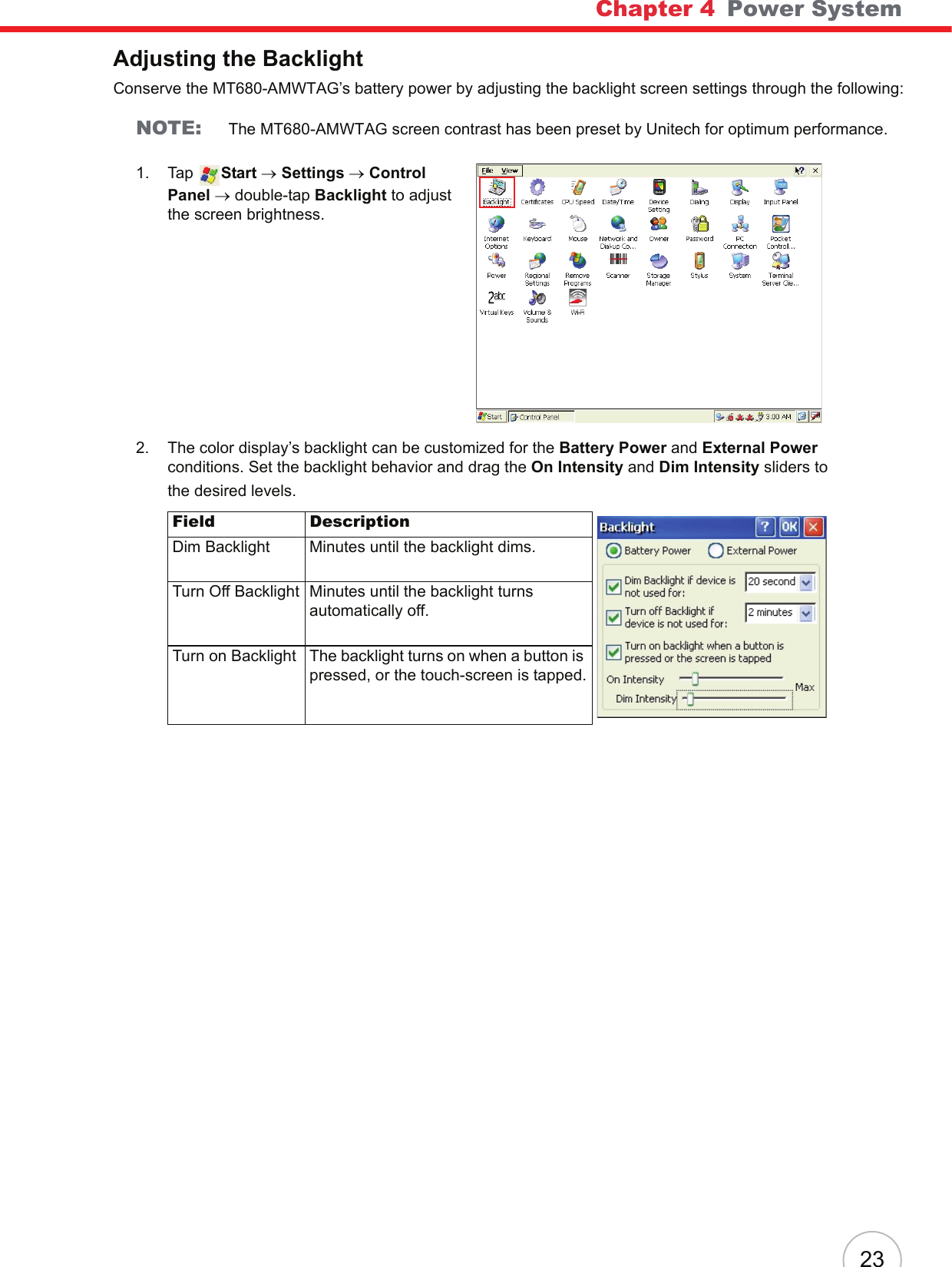

Chapter 4 Power System23Adjusting the BacklightConserve the MT680-AMWTAG’s battery power by adjusting the backlight screen settings through the following:NOTE: The MT680-AMWTAG screen contrast has been preset by Unitech for optimum performance.1. Tap Start → Settings → Control Panel → double-tap Backlight to adjust the screen brightness.2. The color display’s backlight can be customized for the Battery Power and External Power conditions. Set the backlight behavior and drag the On Intensity and Dim Intensity sliders to the desired levels.Field DescriptionDim Backlight Minutes until the backlight dims.Turn Off Backlight Minutes until the backlight turns automatically off.Turn on Backlight The backlight turns on when a button is pressed, or the touch-screen is tapped.

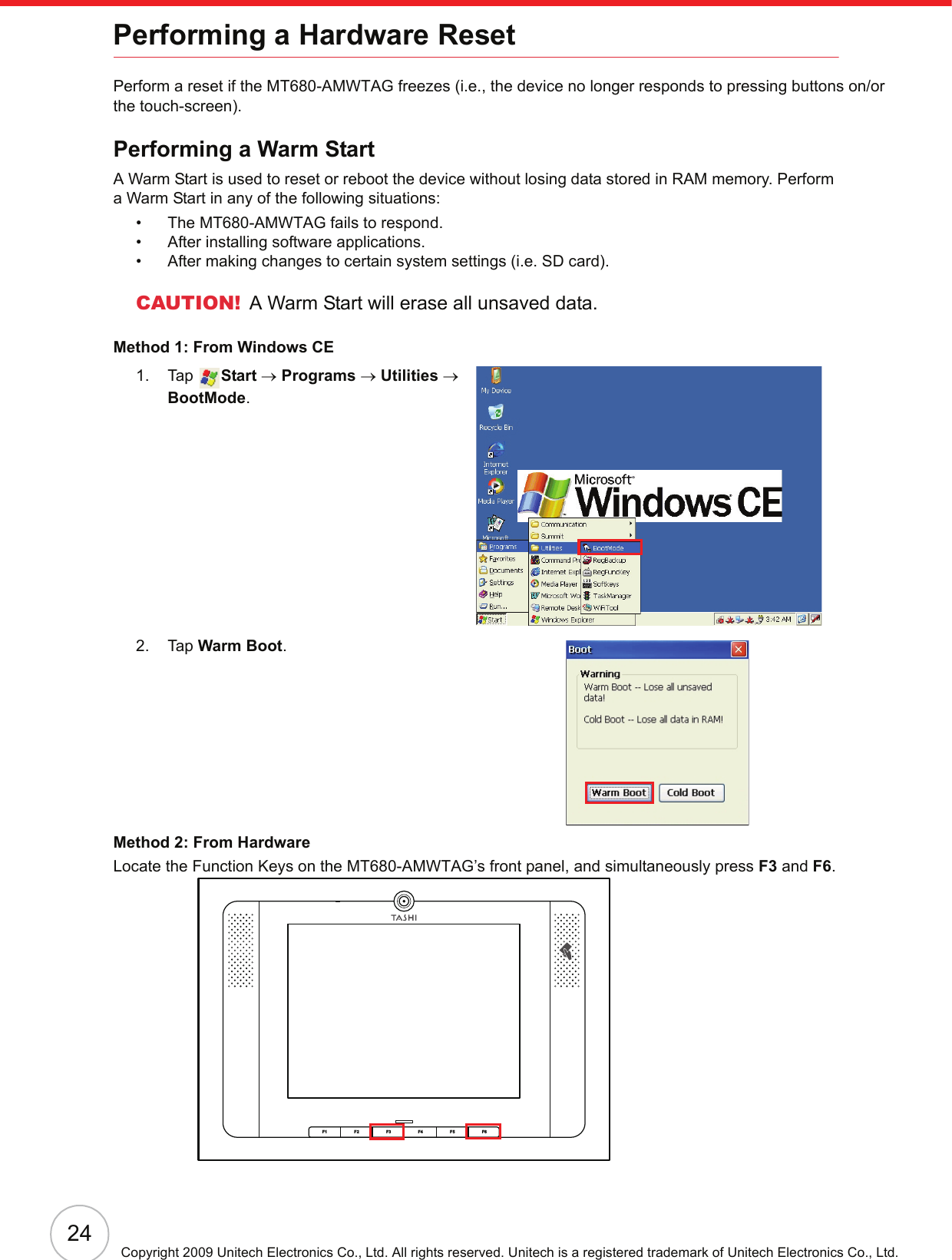

24Copyright 2009 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.Performing a Hardware ResetPerform a reset if the MT680-AMWTAG freezes (i.e., the device no longer responds to pressing buttons on/orthe touch-screen).Performing a Warm StartA Warm Start is used to reset or reboot the device without losing data stored in RAM memory. Perform a Warm Start in any of the following situations:• The MT680-AMWTAG fails to respond.• After installing software applications.• After making changes to certain system settings (i.e. SD card).CAUTION! A Warm Start will erase all unsaved data.Method 1: From Windows CE1. Tap Start → Programs → Utilities → BootMode.2. Tap Warm Boot.Method 2: From HardwareLocate the Function Keys on the MT680-AMWTAG’s front panel, and simultaneously press F3 and F6.F6F5F4F3F2F1

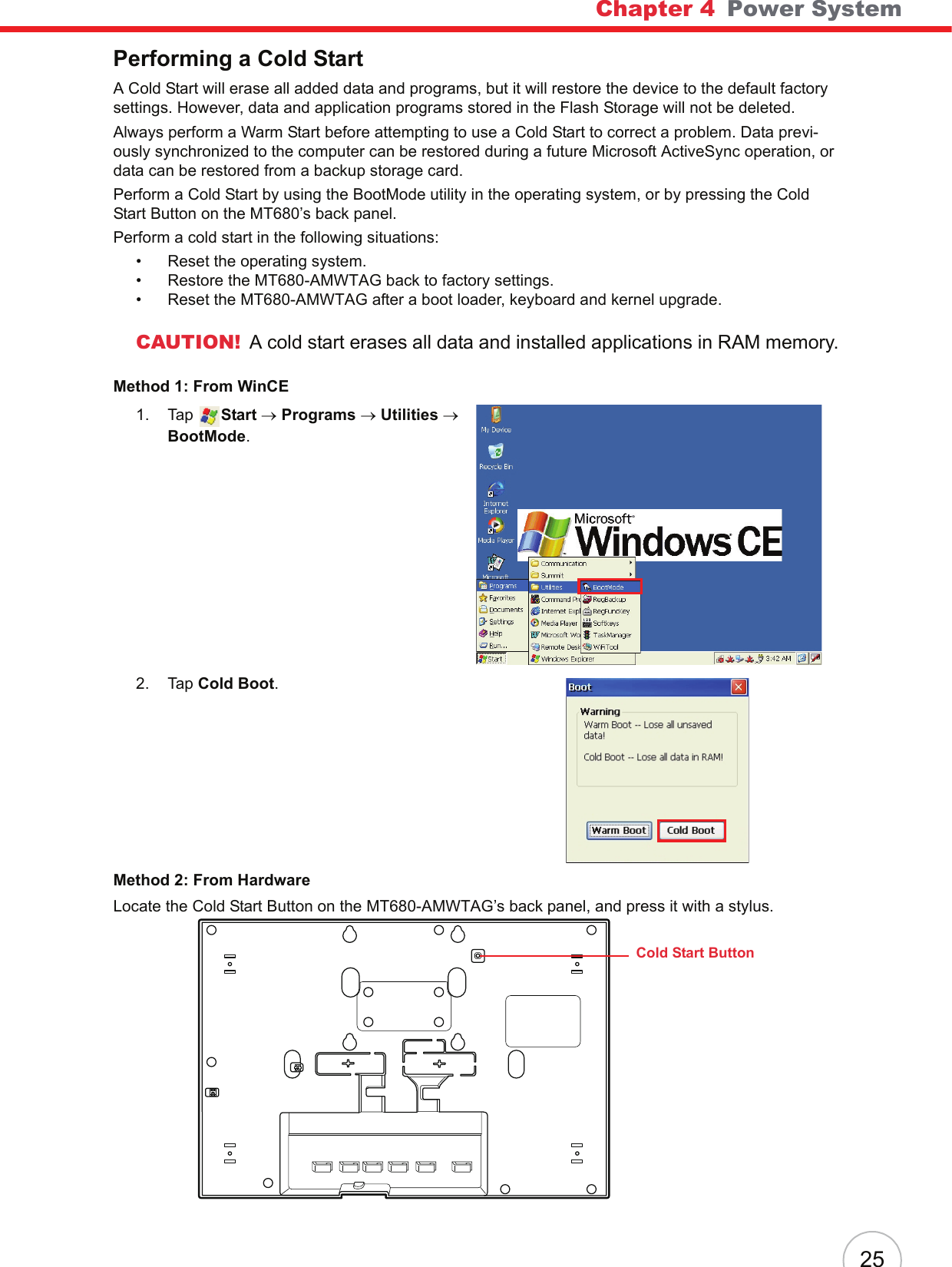

Chapter 4 Power System25Performing a Cold StartA Cold Start will erase all added data and programs, but it will restore the device to the default factory settings. However, data and application programs stored in the Flash Storage will not be deleted.Always perform a Warm Start before attempting to use a Cold Start to correct a problem. Data previ-ously synchronized to the computer can be restored during a future Microsoft ActiveSync operation, or data can be restored from a backup storage card.Perform a Cold Start by using the BootMode utility in the operating system, or by pressing the Cold Start Button on the MT680’s back panel.Perform a cold start in the following situations:• Reset the operating system.• Restore the MT680-AMWTAG back to factory settings.• Reset the MT680-AMWTAG after a boot loader, keyboard and kernel upgrade.CAUTION! A cold start erases all data and installed applications in RAM memory.Method 1: From WinCE1. Tap Start → Programs → Utilities → BootMode.2. Tap Cold Boot.Method 2: From HardwareLocate the Cold Start Button on the MT680-AMWTAG’s back panel, and press it with a stylus.Cold Start Button

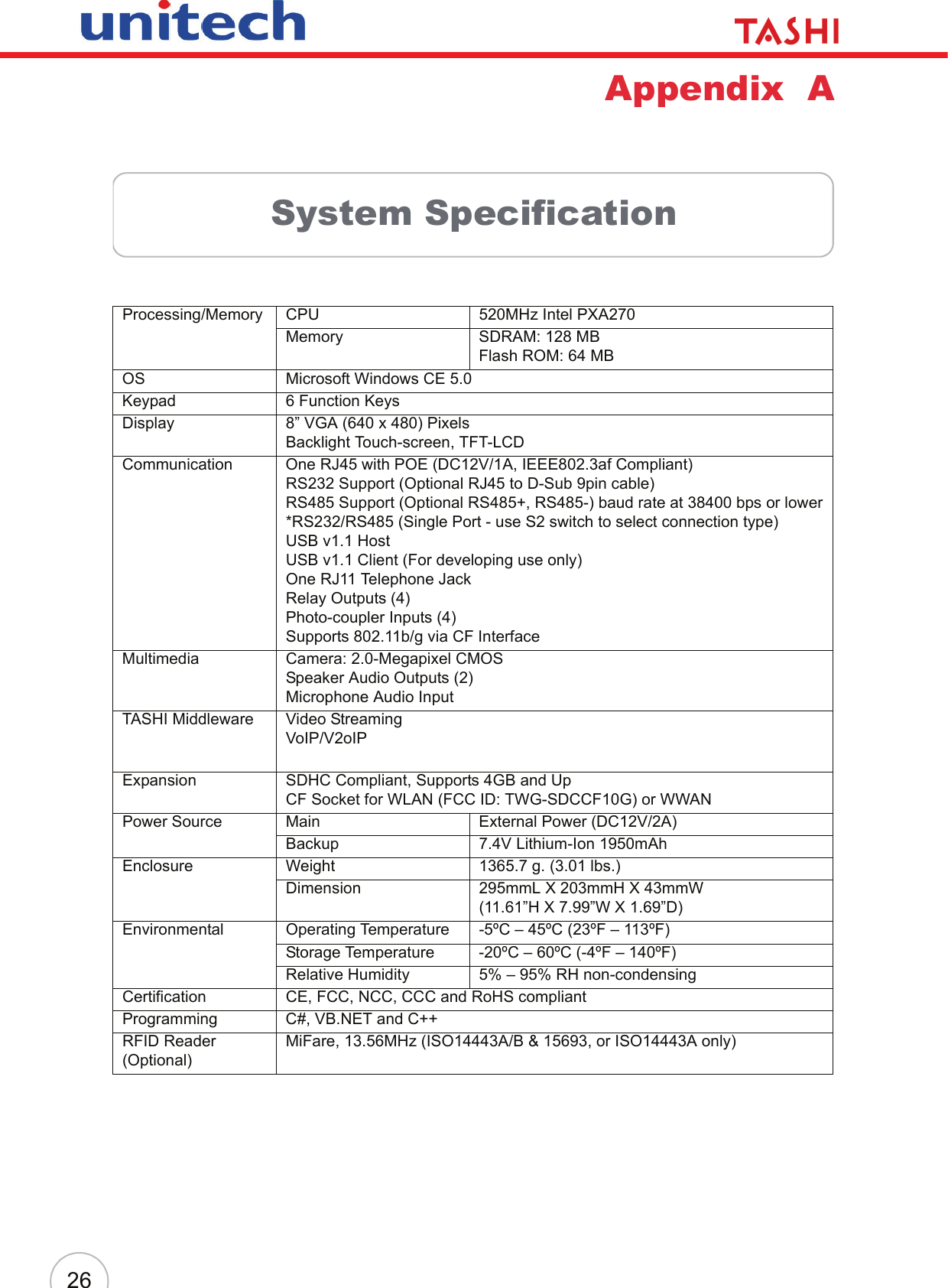

26Appendix ASystem SpecificationProcessing/Memory CPU 520MHz Intel PXA270Memory SDRAM: 128 MBFlash ROM: 64 MBOS Microsoft Windows CE 5.0Keypad 6 Function KeysDisplay 8” VGA (640 x 480) PixelsBacklight Touch-screen, TFT-LCDCommunication One RJ45 with POE (DC12V/1A, IEEE802.3af Compliant)RS232 Support (Optional RJ45 to D-Sub 9pin cable)RS485 Support (Optional RS485+, RS485-) baud rate at 38400 bps or lower*RS232/RS485 (Single Port - use S2 switch to select connection type)USB v1.1 HostUSB v1.1 Client (For developing use only)One RJ11 Telephone JackRelay Outputs (4)Photo-coupler Inputs (4)Supports 802.11b/g via CF InterfaceMultimedia Camera: 2.0-Megapixel CMOSSpeaker Audio Outputs (2)Microphone Audio InputTASHI Middleware Video StreamingVoIP/V2oIP Expansion SDHC Compliant, Supports 4GB and UpCF Socket for WLAN (FCC ID: TWG-SDCCF10G) or WWANPower Source Main External Power (DC12V/2A)Backup 7.4V Lithium-Ion 1950mAhEnclosure Weight 1365.7 g. (3.01 lbs.)Dimension 295mmL X 203mmH X 43mmW(11.61”H X 7.99”W X 1.69”D)Environmental Operating Temperature -5ºC – 45ºC (23ºF – 113ºF)Storage Temperature -20ºC – 60ºC (-4ºF – 140ºF)Relative Humidity 5% – 95% RH non-condensingCertification CE, FCC, NCC, CCC and RoHS compliantProgramming C#, VB.NET and C++RFID Reader (Optional)MiFare, 13.56MHz (ISO14443A/B & 15693, or ISO14443A only)

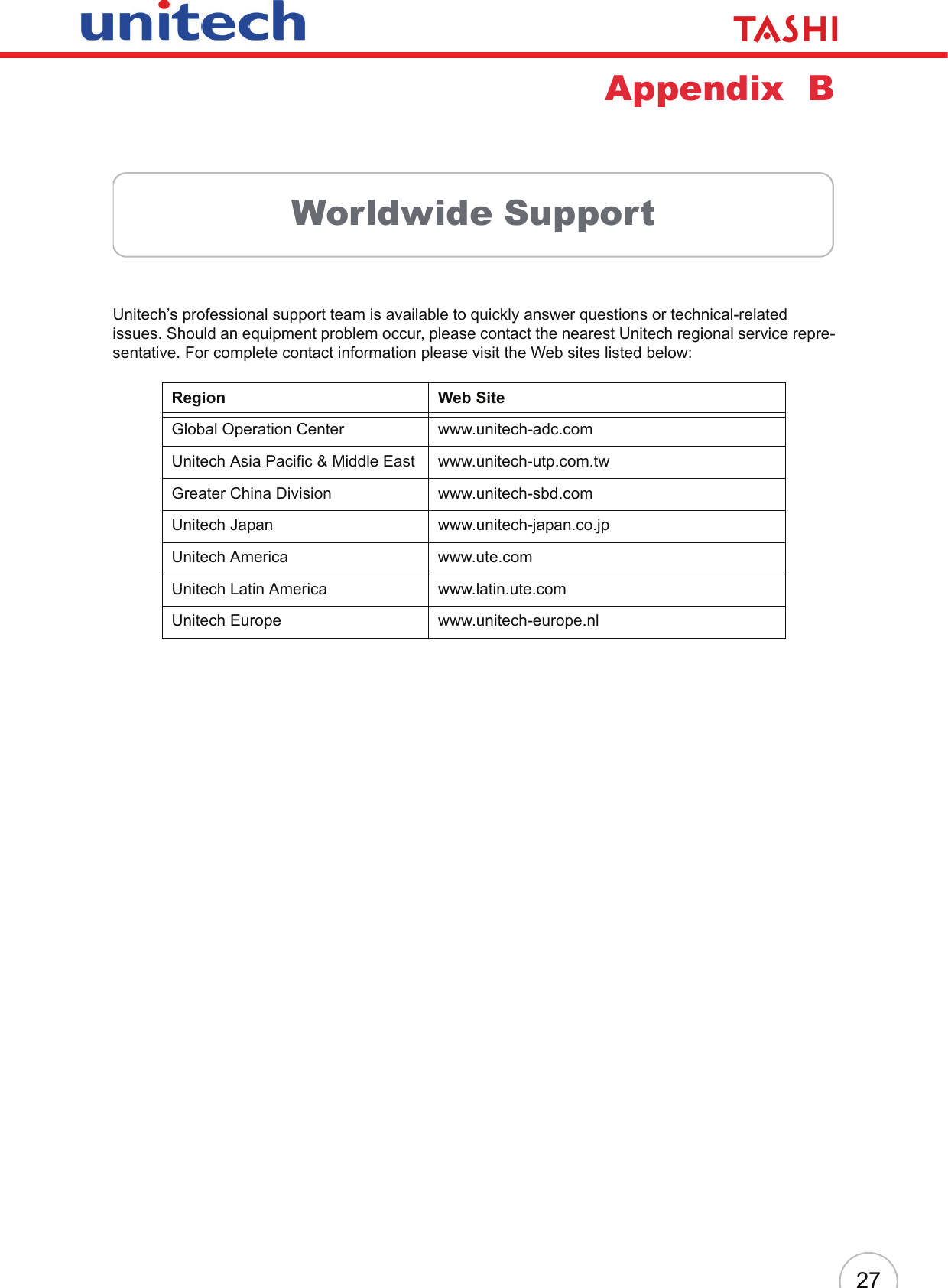

27Appendix BWorldwide SupportUnitech’s professional support team is available to quickly answer questions or technical-related issues. Should an equipment problem occur, please contact the nearest Unitech regional service repre-sentative. For complete contact information please visit the Web sites listed below:Region Web SiteGlobal Operation Center www.unitech-adc.comUnitech Asia Pacific & Middle East www.unitech-utp.com.twGreater China Division www.unitech-sbd.comUnitech Japan www.unitech-japan.co.jpUnitech America www.ute.comUnitech Latin America www.latin.ute.comUnitech Europe www.unitech-europe.nl
