PA500II Data Collection Terminal

- PA500II -

User’s Manual

400892G Preliminary

Preface

About This Manual

This manual explains how to install, operate and maintain the PA500II Data

Collection Terminal.

No part of this publication may be reproduced or used in any form, or by any

electrical or mechanical means, without permission in writing from the

manufacturer. This includes electronic or mechanical means, such as

photocopying, recording, or information storage and retrieval systems. The

material in this manual is subject to change without notice.

Unitech global website address: http://www.ute.com

Bluetooth is a registered trademark of Bluetooth SIG.

Microsoft, Windows and ActiveSync are either

registered trademarks or trademarks of Microsoft

Corporation. Other product names mentioned in this

manual may be trademarks or r

egistered trademarks

of their respective companies and are hereby

acknowledged.

Unitech is a member of Oracle Embedded Software

Licensing Program.

Regulatory Compliance Statements

FCC Warning Statement

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference with radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference with radio or

television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of

the following measures:

–Reorient or relocate the receiving antenna.

–Increase the separation between the equipment and receiver.

–Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

–Consult the dealer or an experienced radio/TV technician for help.

1. This Transmitter must not be co-located or operating in conjunction with

any other antenna or transmitter.

2. This equipment complies with FCC RF radiation exposure limits set forth

for an uncontrolled environment. To maintain compliance with FCC RF

exposure requirements, avoid direct contact to the transmitting antenna

during transmitting.

3. Any changes or modifications (including the antennas) made to this device

that are not expressly approved by the manufacturer may void the user’s

authority to operate the equipment.

iii

FCC Label Statement

This device complies with part 15 of the FCC rules. Operation is subject to the

following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference

that may cause undesired operation.

RF Radiation Exposure Statement

For body contact during operation, this phone has been tested and meets FCC

RF exposure guidelines when used with an accessory that contains no metal

and that positions the handset a minimum of 1.5 cm from the body. Use of

other accessories may not ensure compliance with FCC RF exposure

guidelines.

Canadian Compliance Statement

This Class B Digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

Cet appareil numerique de la classe B respecte les exigences du Reglement

sur le material broilleur du Canada.

European Conformity Statement

Declaration of Conformity with regards to the R&TTE 1999/5/EC and EMC

89/336/ EEC directives.

RoHS Statement

This device conforms to RoHS (Reduction Of

Hazardous Substances) European Union regulations

that set maximum concentration limits on hazardous

materials used in electrical and electronic

equipment.

TaiwanNCC Warning Statement

交通部電信總局低功率電波輻射性電機管理辦法 (930322)

根據交通部低功率管理辦法規定：

第十二條經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者

均不得擅自變更頻率、加大功率或變更原設計之特性及功能。

第十四條低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有

干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合

法通信，指依電信法規定作業之無線電通信。

低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電

機設備之干擾。

Laser Information

The Unitech PA500II series is certified in the U.S. to conform to the

requirements of DHHS/CDRH 21CFR Subchapter J and to the requirements of

IEC 825-1. Class II and Class 2 products are not considered to be hazardous.

The PA500II series contains internally a Visible Laser Diode (VLD) whose

emissions do not exceed the maximum limits as set forth in the above

regulations. The scanner is designed so that there is no human access to

harmful laser light during normal operation, user maintenance or prescribed

service operations.

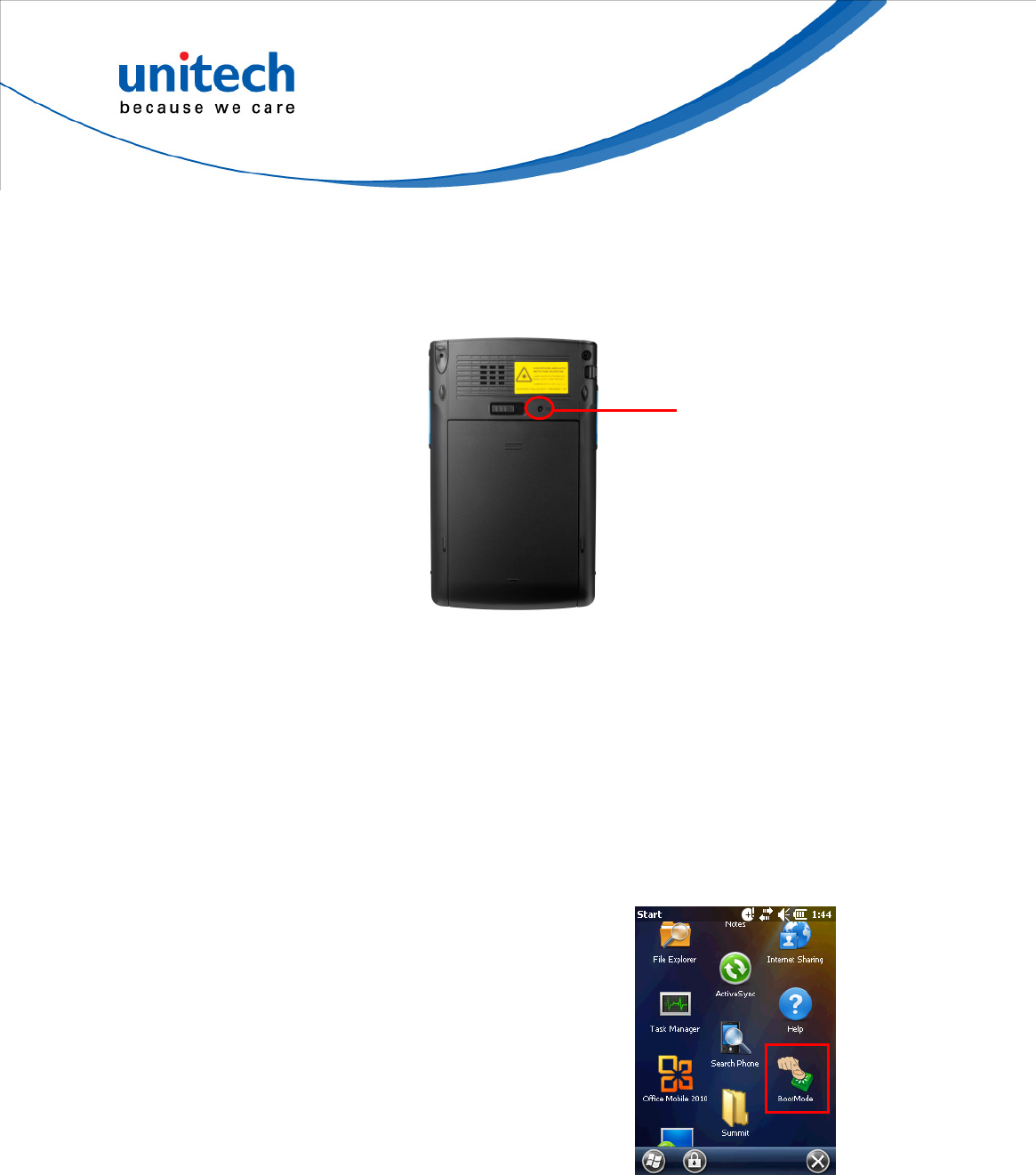

The laser safety warning label required by the DHHS/IEC for the PA500II

series' optional laser scanner module is located on the memory compartment

cover, on the back of the unit.

CAUTION! Use of controls or adjustments or performance of procedures other

than those specified herein may result in hazardous laser light.

Use of optical instruments with the scanner, including binoculars,

microscopes, and magnifying glasses, with will increase eye

damage.

This does not include eyeglasses worn by the user.

Battery Notices

The PA500II is equipped with a Lithium-Ion battery pack and backup battery.

Both batteries will discharge after an extended period of not being used.

When both batteries are discharged, recharge the unit for 4.5 hours in order to

fully charge the main battery and backup battery. Recharge the PA500II

through the following:

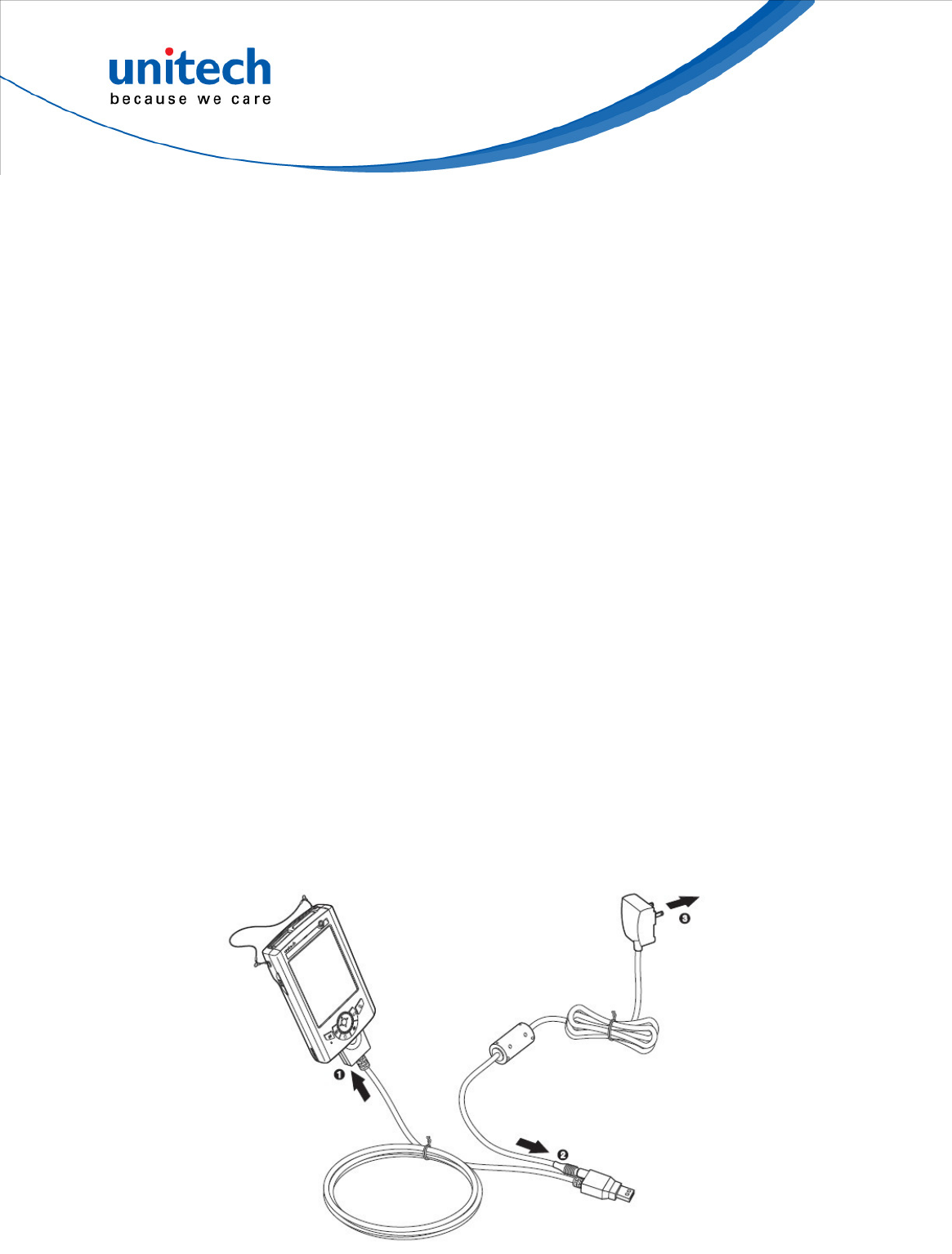

1. Plug the USB charging cable to the PA500II and plug the 5V/3A AC-DC

adapter to the power jack of the USB charging cable.

If the main battery is removed, the backup battery ensures the data on SDRAM

is safe for up to 2 hours. To prevent data loss, do not leave the PA500II

uncharged with the main battery removed for an extended period. For more

details, refer to the section titling Charging the Battery.

Note: Rechargeable batteries are advised to replace every year or when 500

charge/discharge cycles achieved to guarantee optimal performance. It

is normal that the battery balloons or expands beyond one year or the

maximum of 500 cycles. Although it does not cause harm, it cannot be

used again and must be disposed of according to the location's safe

battery disposal procedures.

If the performance decrease is greater than 20% in a Lithium-Ion battery,

the battery is at the end of its life cycle. Do not continue to use, and

ensure the battery is disposed of properly.

The length of time that a battery power lasts depends on the battery type and

how the device is used. Conserve the battery life through the following:

 Avoid frequent full discharges because this places additional strain on the

battery. Several partial discharges with frequent recharges are better than

a deep one. Recharging a partially charged lithium-Ion battery does not

cause harm because there is no memory.

 Keep the lithium-Ion battery cool. Avoid a hot car. For prolonged storage,

keep the battery at a 40% charge level.

 Do not leave the lithium-Ion battery discharged and unused for an

extended period because the battery will wear out and the longevity of the

battery will be at least shorter than half of the one with frequent recharges.

Battery charge notice

It is important to consider the environment temperature whenever the

Lithium-Ion battery pack is charged. Charging is most efficient at normal room

temperature or in a slightly cooler environment. It is essential that batteries are

charged within the stated range of 0°C to 40°C. Charging batteries outside of

the specified range could damage the batteries and shorten their charging life

cycle.

CAUTION! Do not charge batteries at a temperature lower than 0°C, which will

increase the internal resistance to cause heat and make the

batteries unstable and unsafe. Please use a battery

temperature-detecting device for a charger to ensure a safe

charging temperature range. Further, to protect and avoid battery

from inflating, the battery is detected for thermal protection and will

not be charged when the temperature of battery is over 50

degrees.

vii

Storage and safety notice

Although charged Lithium-Ion batteries may be left unused for several months,

their capacity may be depleted due to build up of internal resistance. If this

happens they will require recharging prior to use. Lithium-Ion batteries may be

stored at temperatures between -20°C to 60°C, however they may deplete

more rapidly at the higher temperature ranges. It is recommended to store

batteries within normal room temperature ranges.

Warranty

The following items covered under Unitech Limited Warranty are free from

defects during normal use:

 PA500II – 1-year limited warranty.

 Lithium-Ion battery – 6-month limited warranty.

Warranty becomes void if equipment is modified, improperly installed or used,

dam-aged by accident or neglect, or if any parts are improperly installed or

replaced by the user.

Use only the adapter supplied. Using the wrong adapter may damage the unit

and will void the warranty.

viii

Table of Contents

Preface

About This Manual ............................................................................................ i

Battery Notices .......................................................................................... v

Battery charge notice ......................................................................... vi

Storage and safety notice.................................................................. vii

Warranty.................................................................................................. vii

Chapter 1

Getting Started.................................................................................................1

Introducing the PA500II .............................................................................1

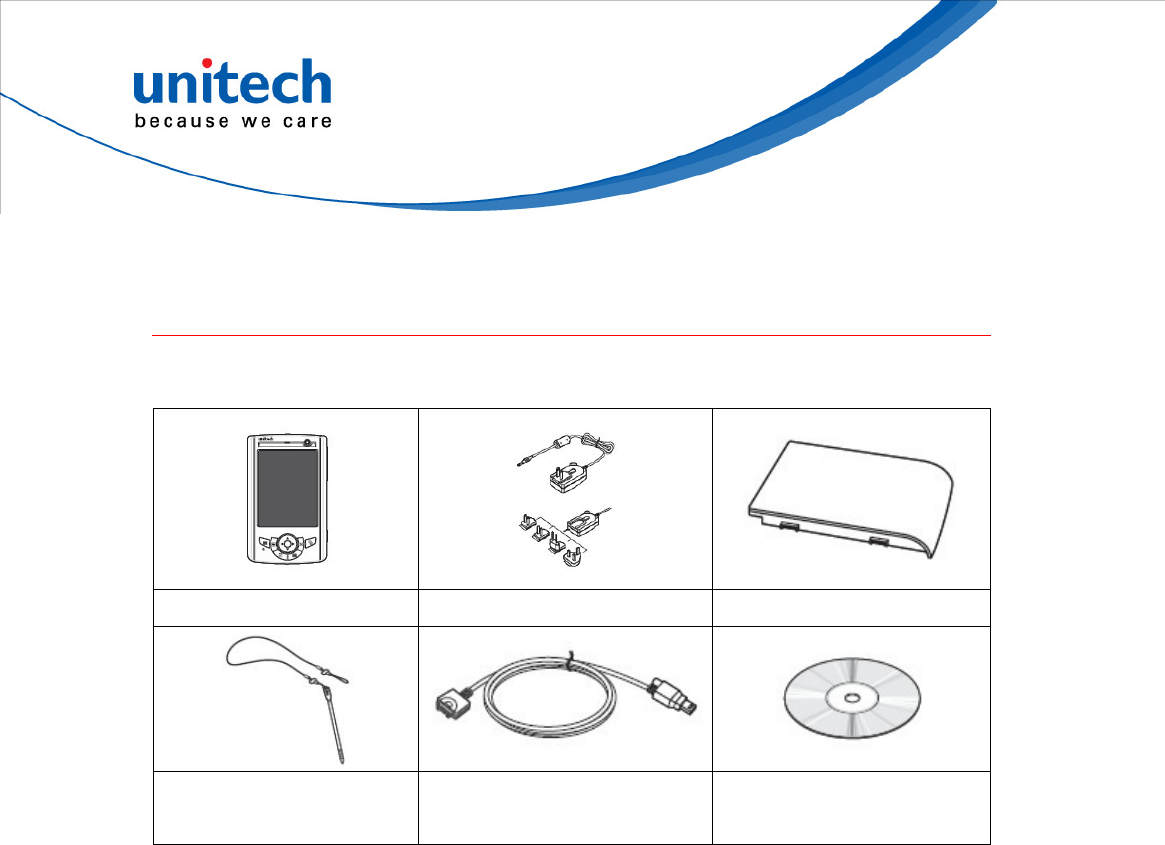

PA500II Product Introduction & Accessory Kit ...........................................2

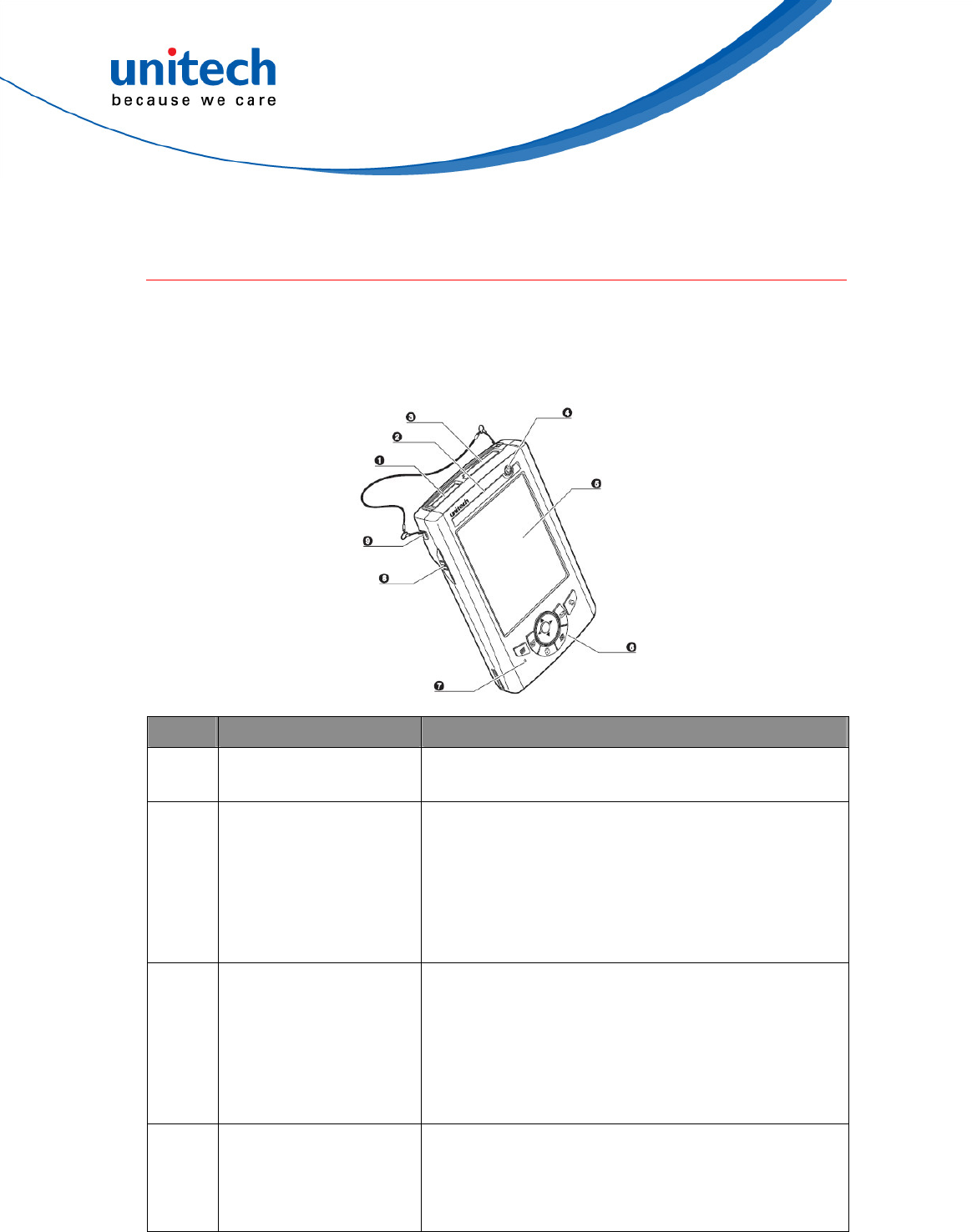

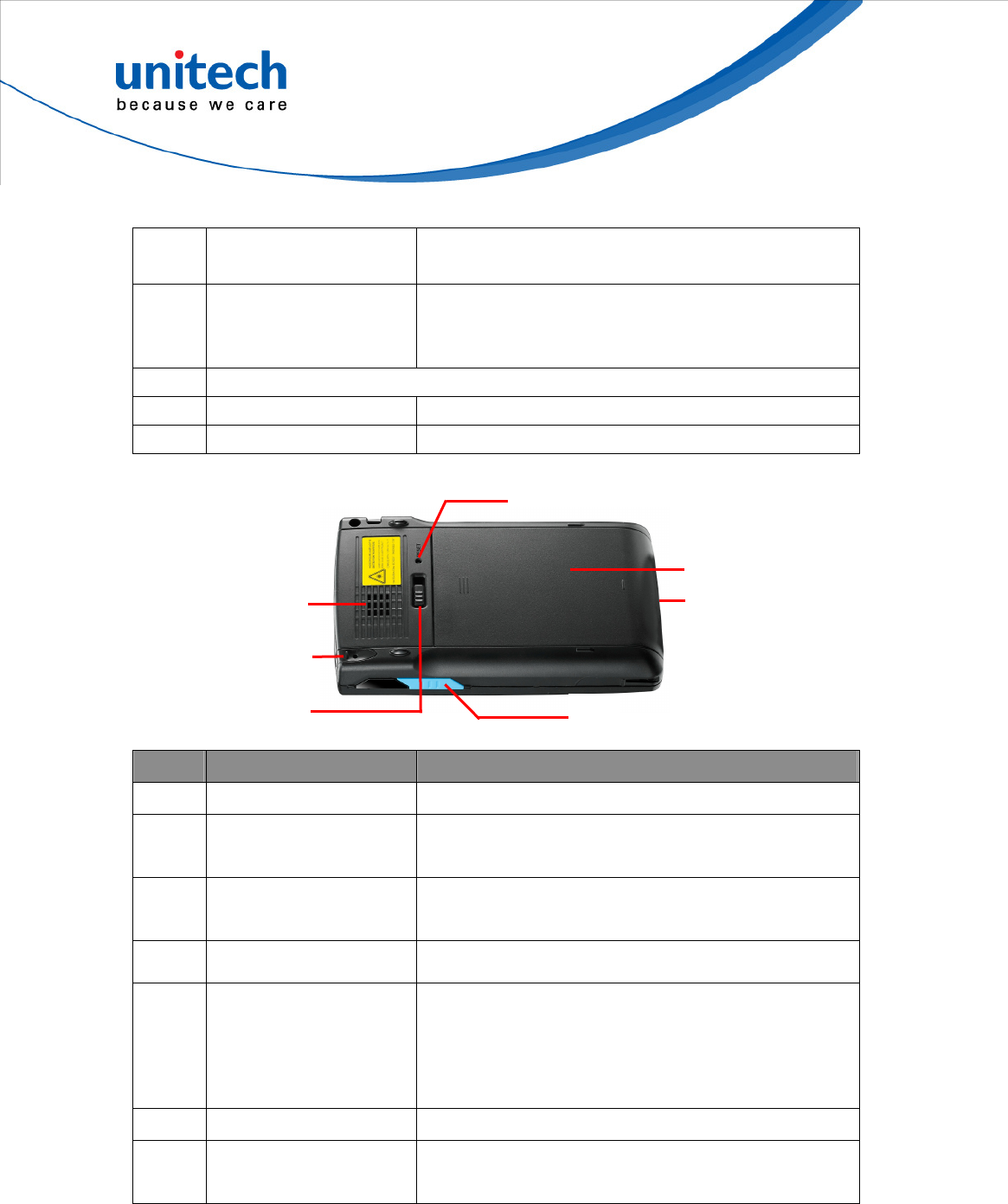

Tour of the PA500II ....................................................................................3

Setting up the PA500II...............................................................................5

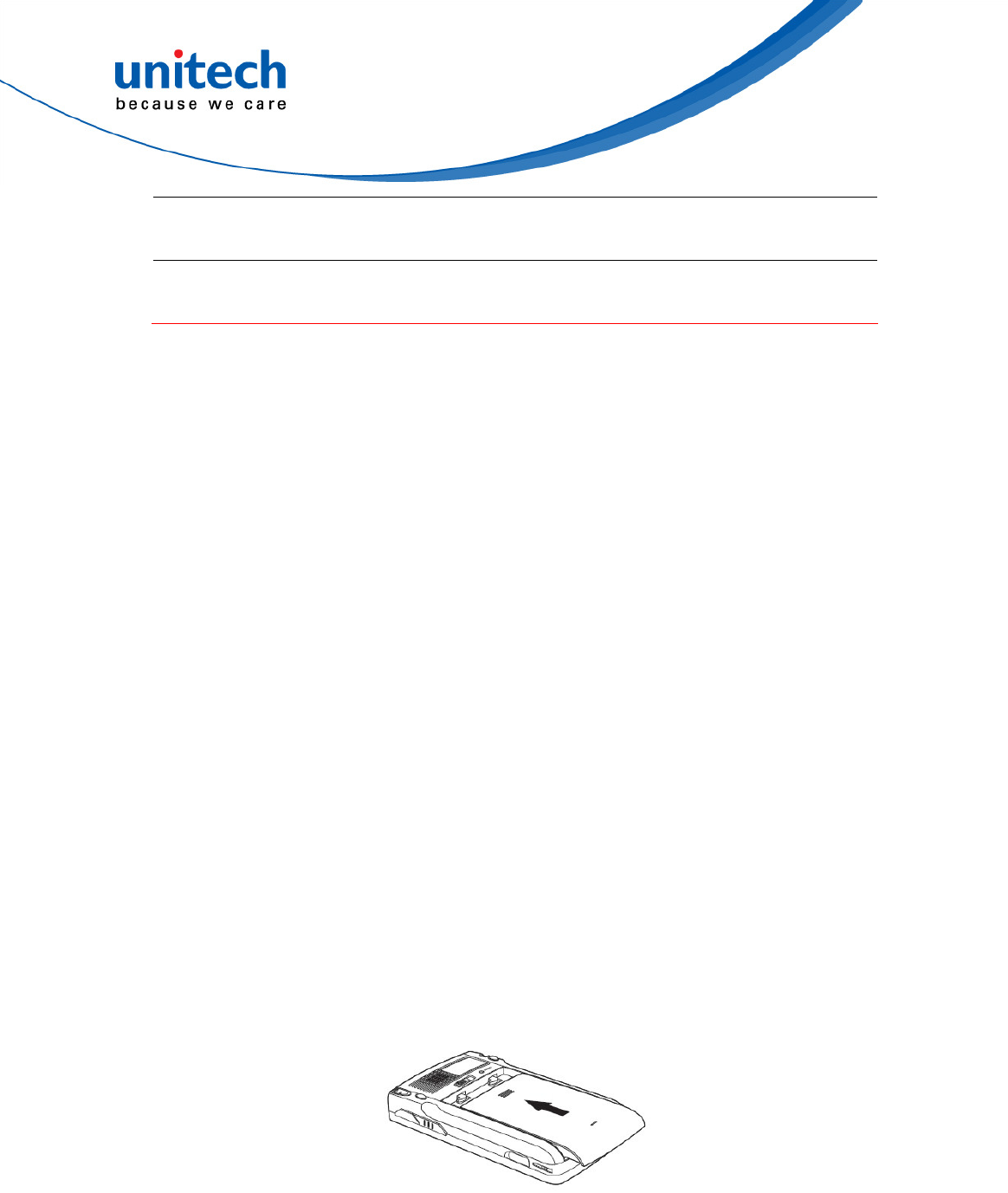

Installing the Battery............................................................................5

Charging the PA500II..........................................................................6

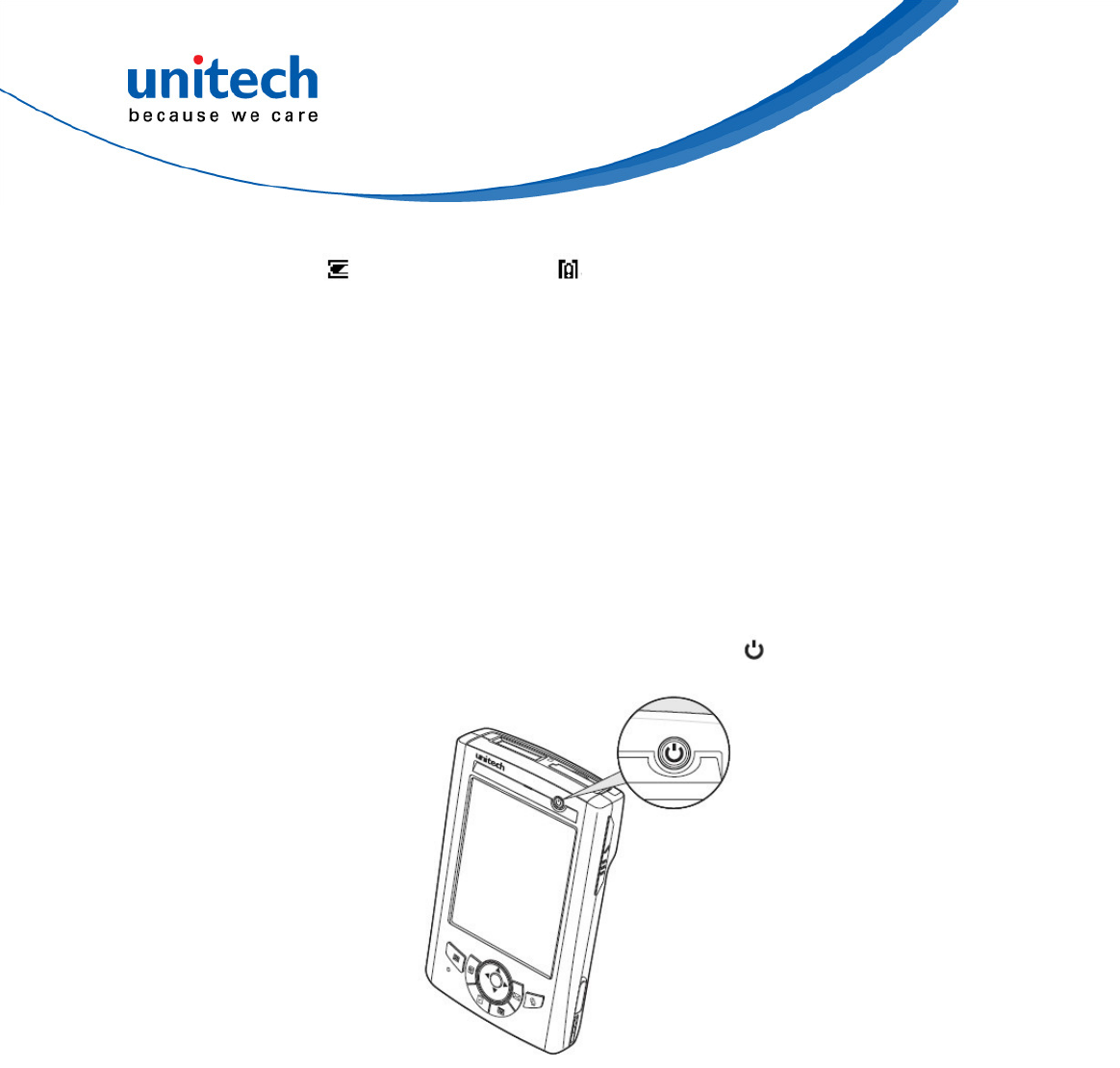

Powering On the PA500II....................................................................7

Chapter 2

Using the Hardware .........................................................................................9

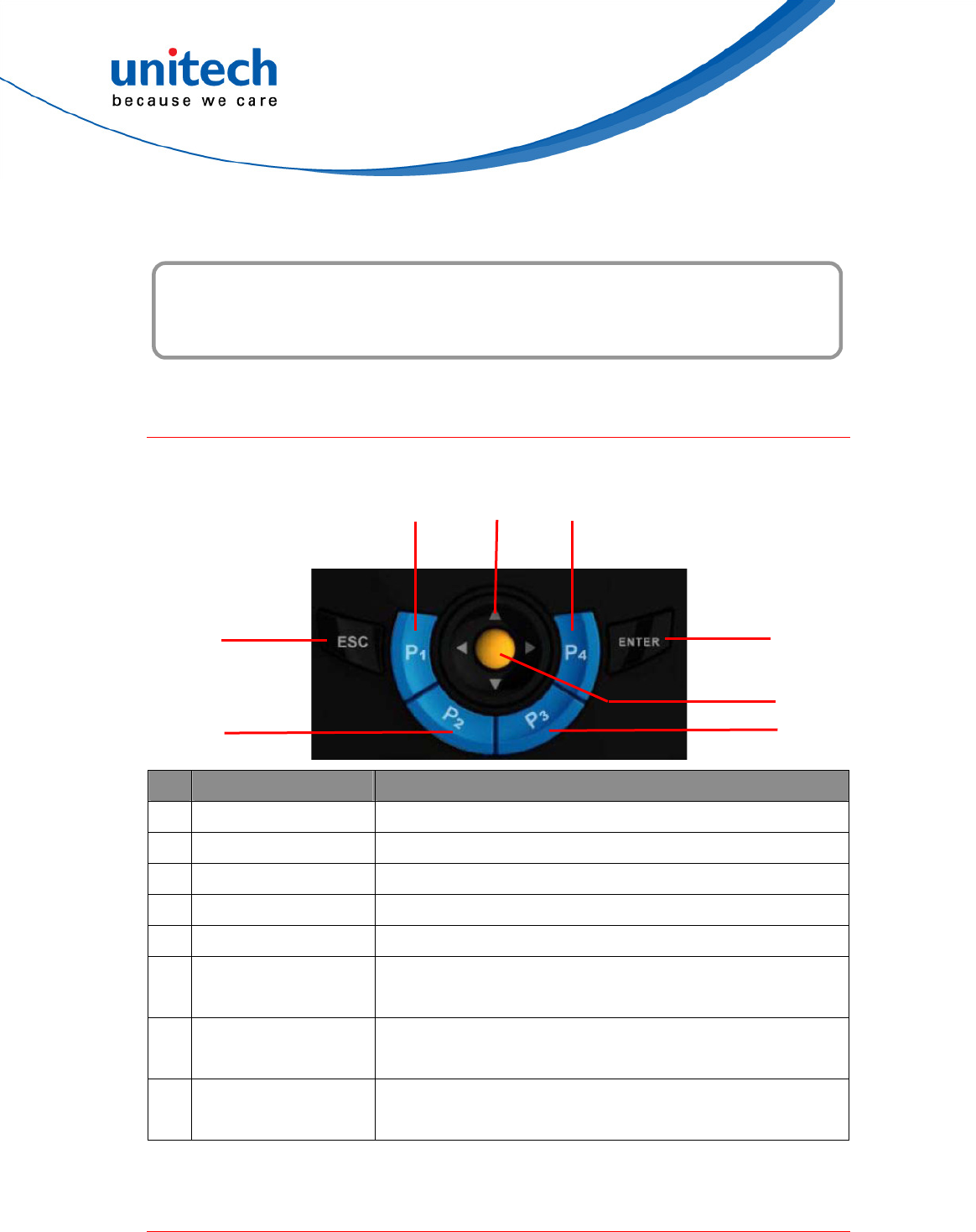

Using the Keypad ......................................................................................9

Using the Stylus.........................................................................................9

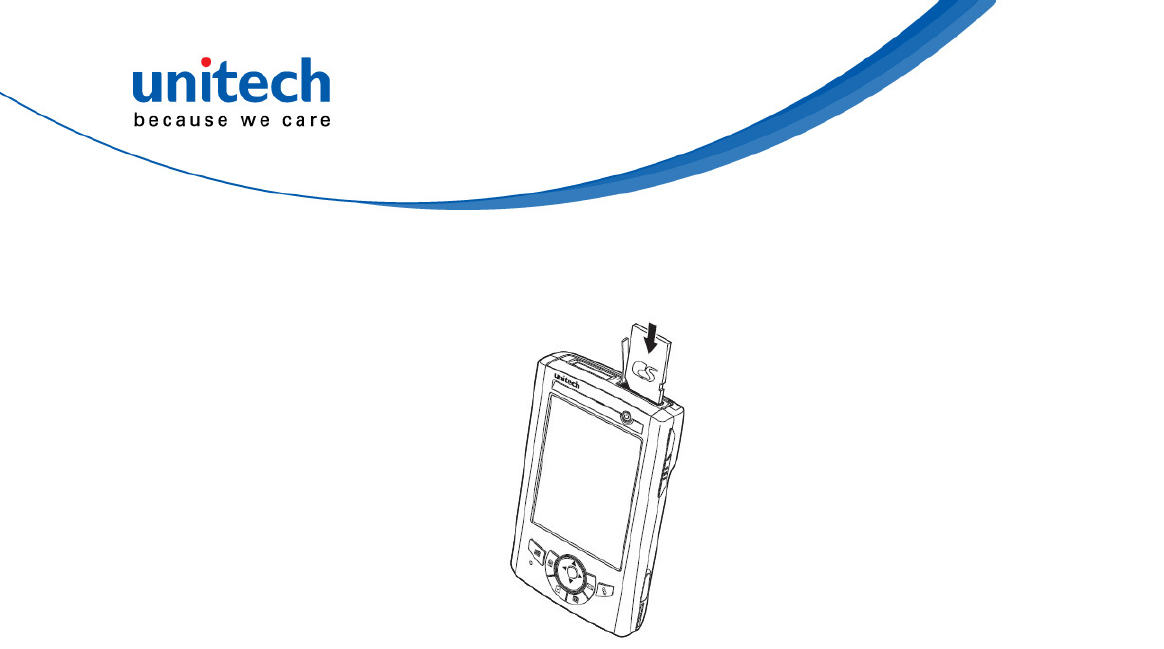

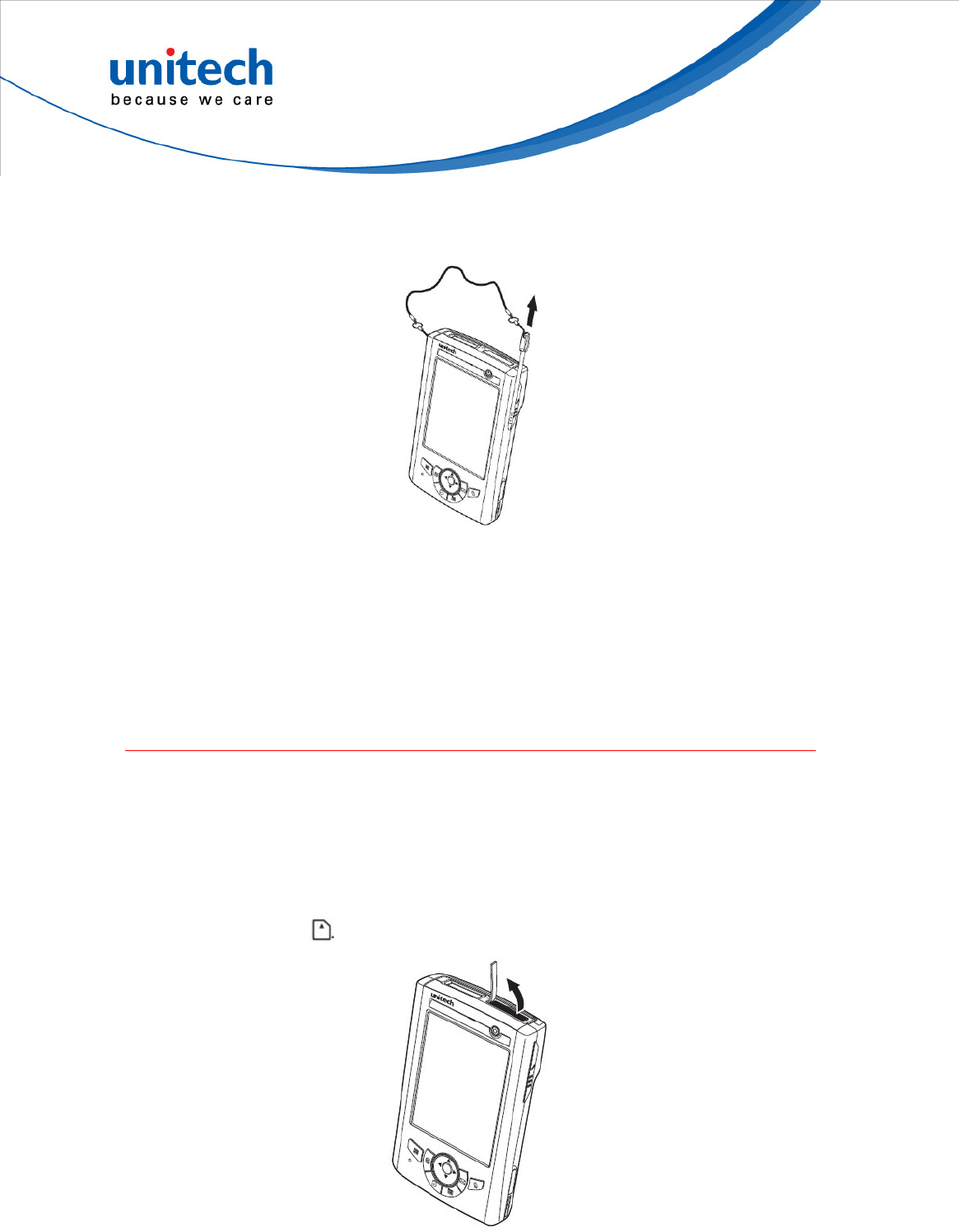

Using the SDIO/MMC Slot.......................................................................10

Chapter 3

Getting Connected .........................................................................................12

Establishing Device-PC Connection ........................................................12

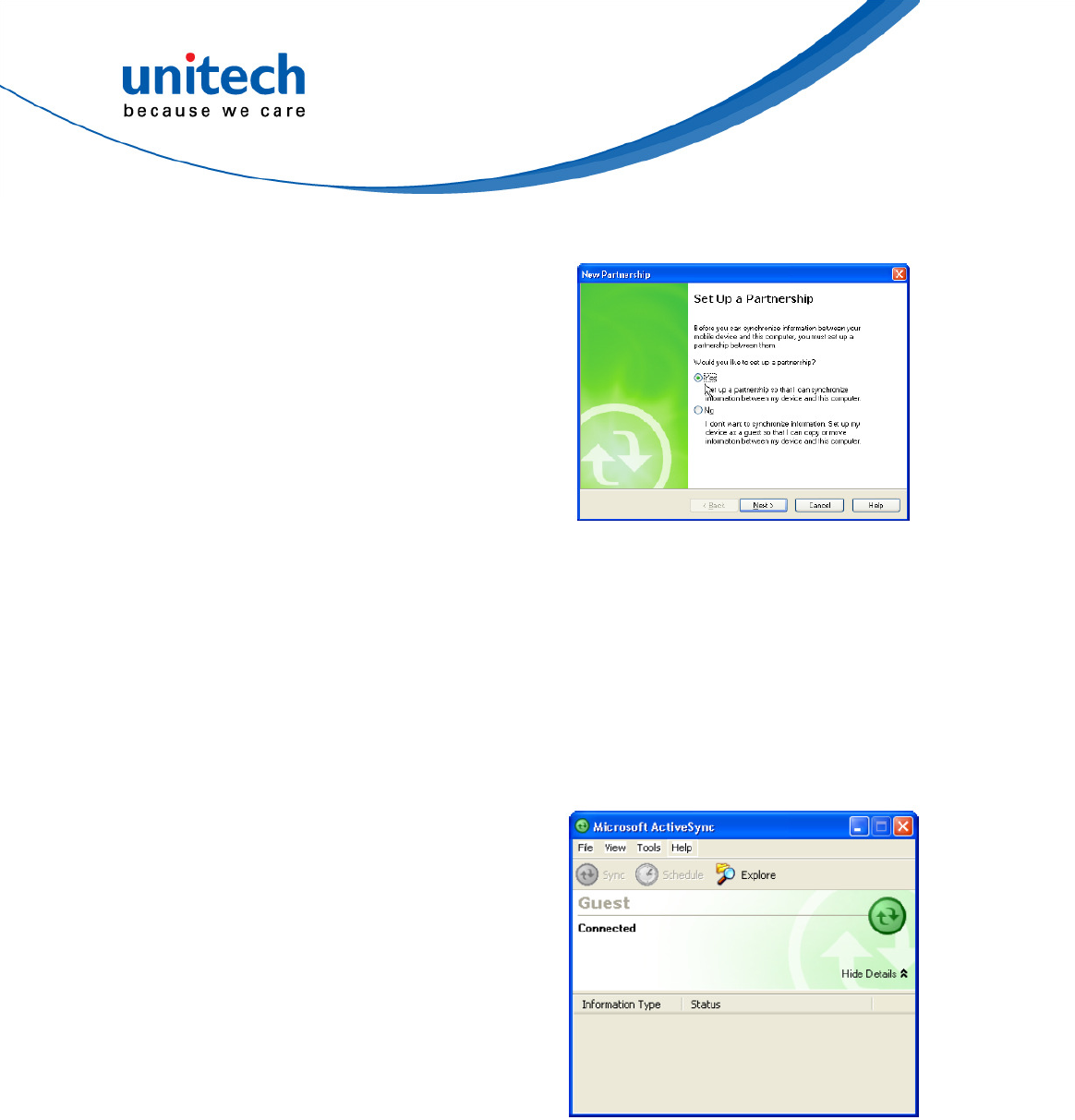

Installing Microsoft ActiveSync..........................................................12

Connecting the Device to Your Computer .........................................13

WiFi Connection ......................................................................................14

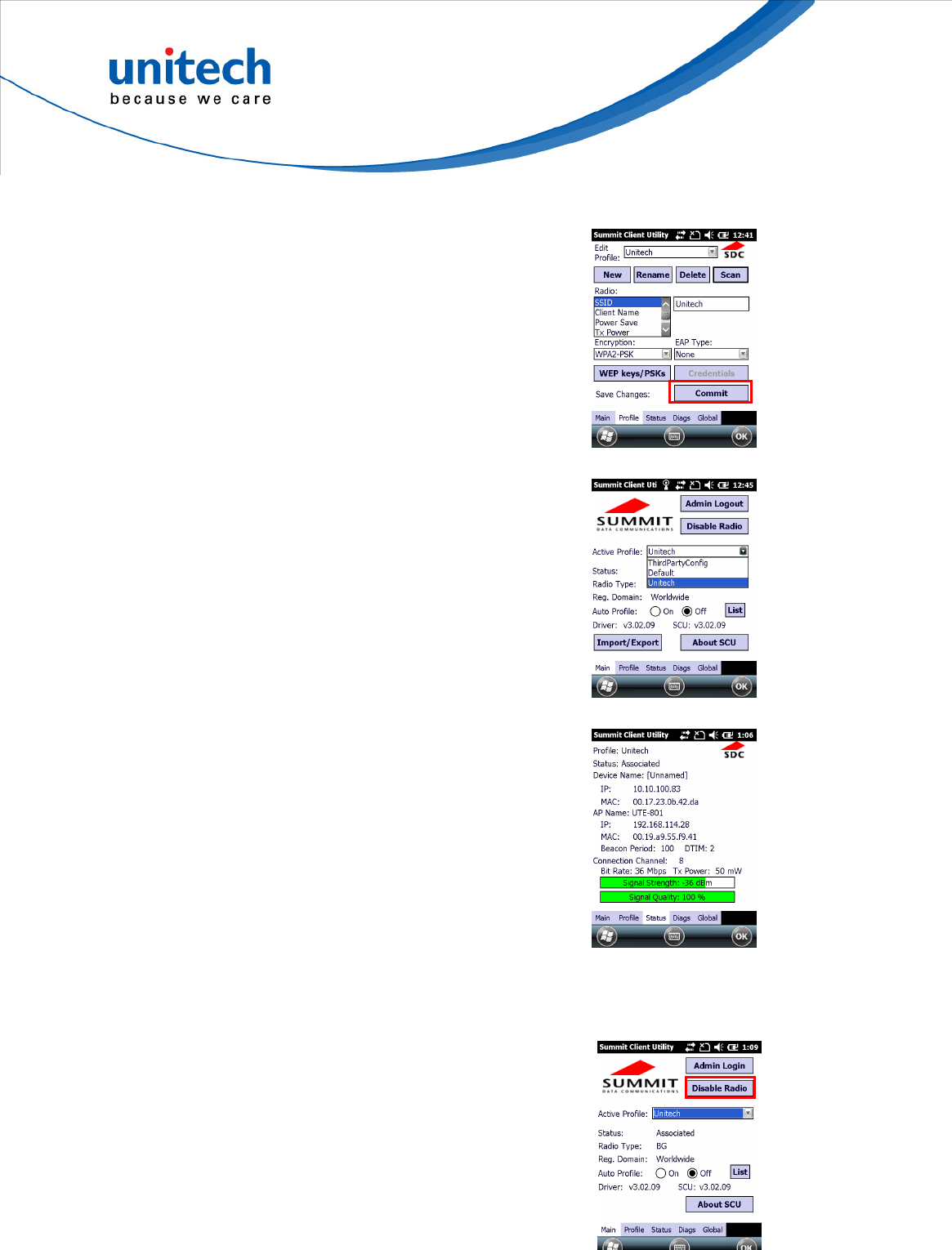

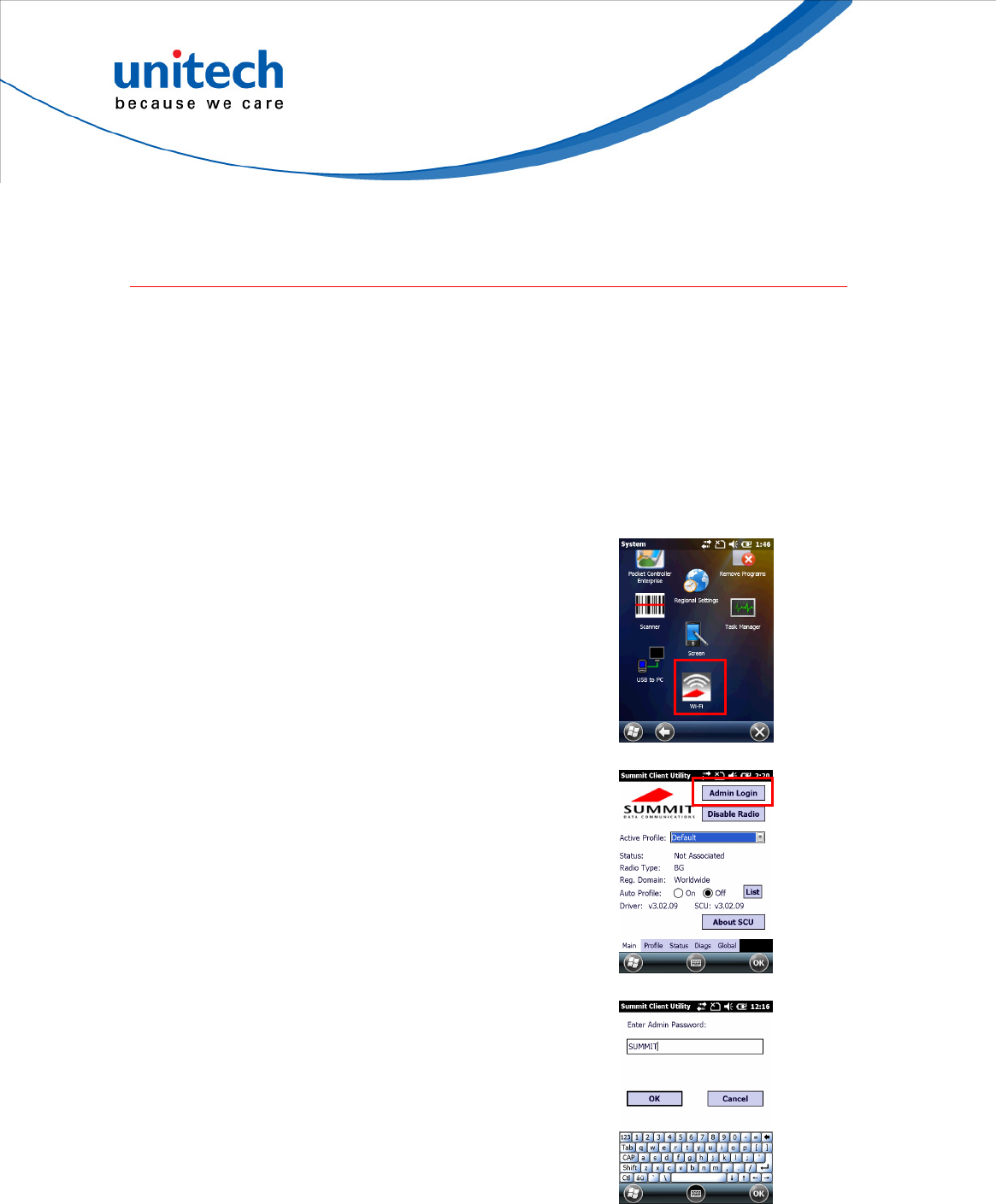

Using the Summit Utilities .................................................................14

Chapter 4

Barcode Scanner Programs...........................................................................17

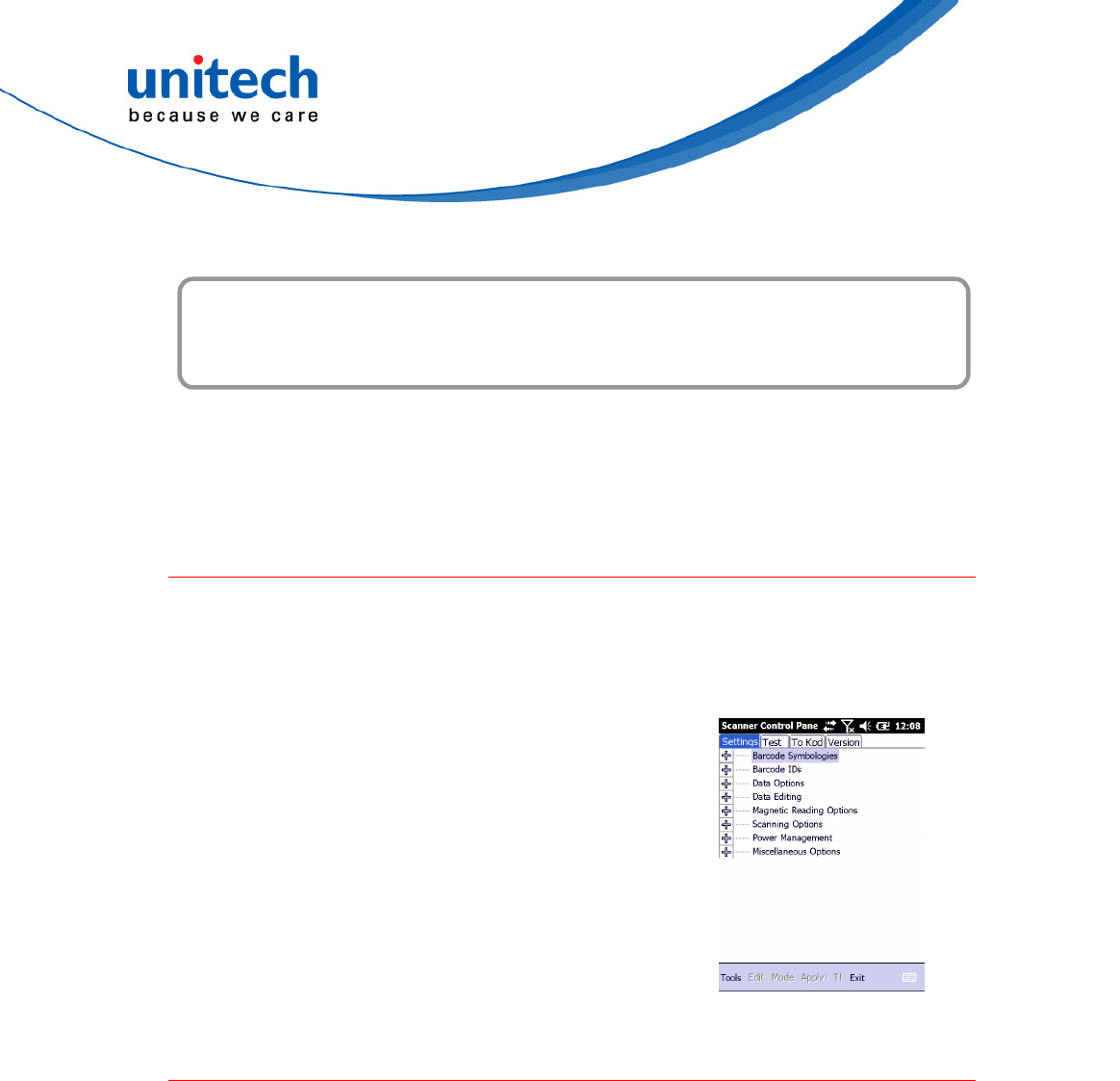

Scanner Setting.......................................................................................17

Scan2Key ................................................................................................17

Barcode Symbologies .......................................................................18

Barcode Symbologies 2D..................................................................19

Chapter 5

Advanced Settings .........................................................................................21

Performing a Hardware Reset .................................................................21

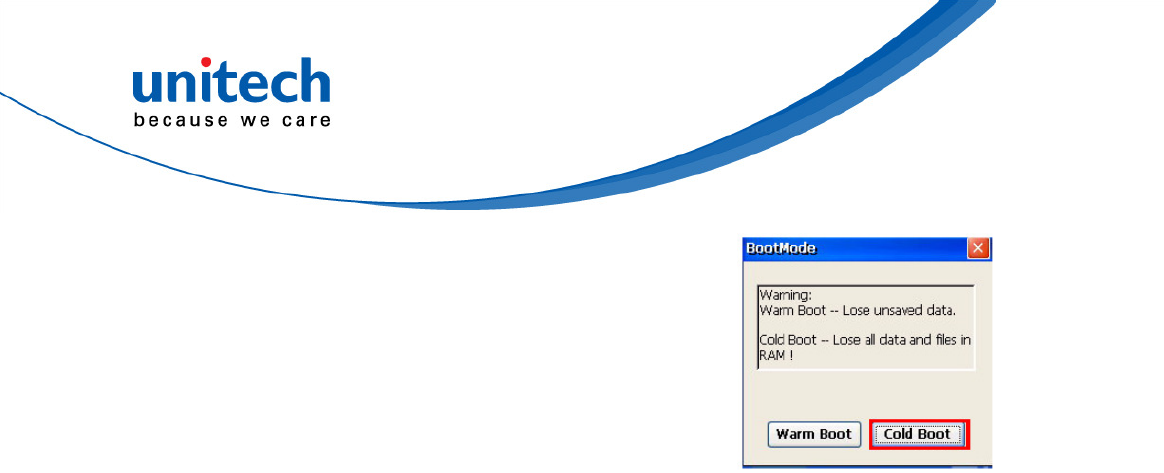

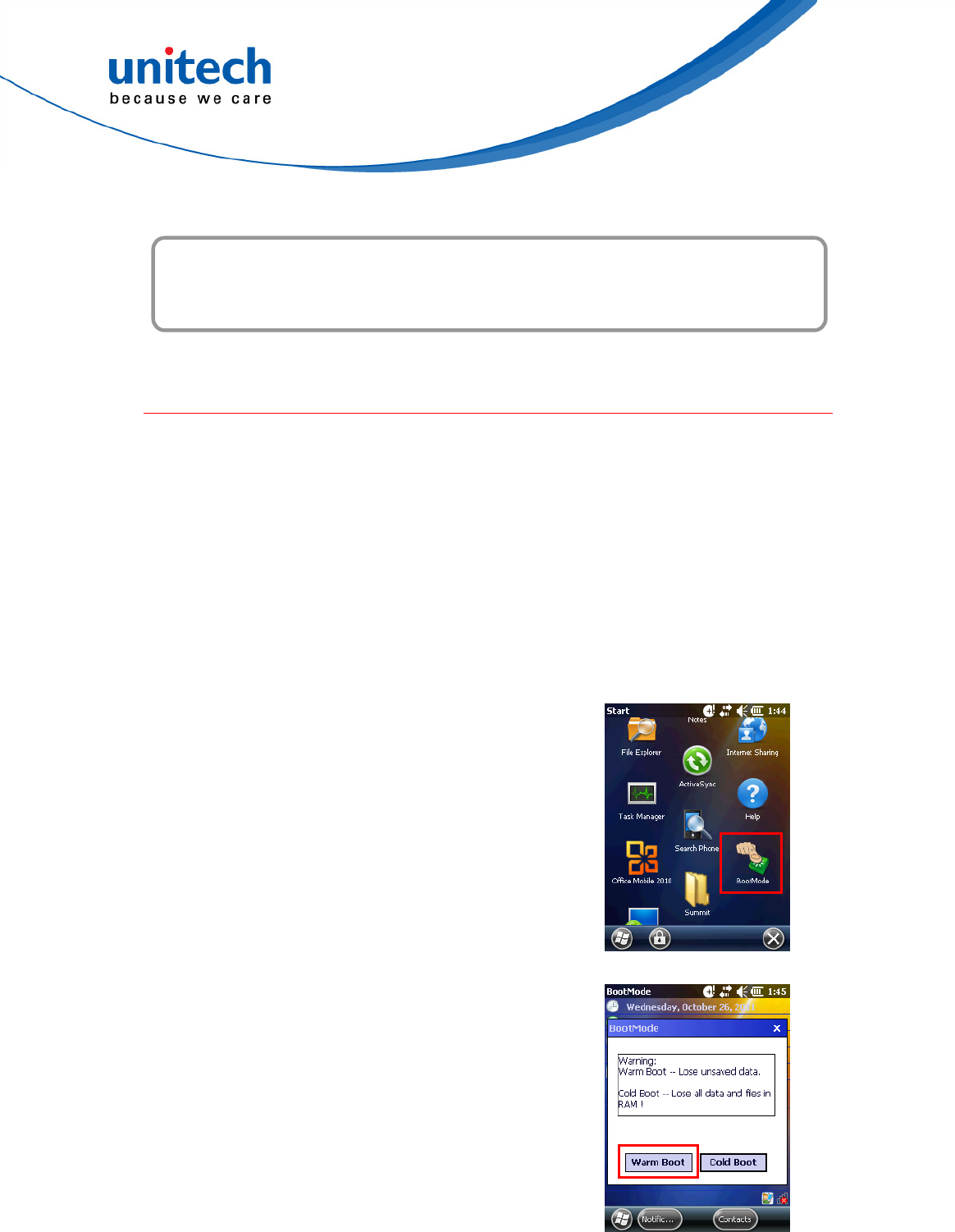

Performing a Warm Boot...................................................................21

Performing a Cold Boot.....................................................................22

Appendix I

System Specification......................................................................................25

Appendix II

Worldwide Support.........................................................................................27

Chapter 1

Getting Started

Introducing the PA500II

Thank you for purchasing the PA500II Data Collection Terminal. Your PA500II

was designed for users who need a compact and durable portable computer

for data collection and real time transactions. The unitech PA500II Data

Collection Terminal is a compact mobile computing device designed for

maximum durability.

Easy to Use

The unit is equipped with a color display with touch screen, a five-way

directional key, and six application keys. The PA500II supports integrated long

range scanners for fast and accurate data collection. The device also supports

infrared interface, Bluetooth, and wireless communication capability for

exchanging information in a computing communication system.

PA500II Product Introduction & Accessory Kit

After opening the box, ensure the following accessories for the PA500II are

present:

PA500II Terminal Power Adapter* Battery Pack

Stylus with bungee

lanyard USB charging cable QRG/UM CD-ROM

* The adapter’s replaceable clip plugs is available, depending on the region.

If anything is missing or appears damaged, contact your dealer.

Tour of the PA500II

The following sections describe the main components and features of the

PA500II.

Front View

No. Component Description

1 Barcode laser scanner

(optional)

Reads and captures information on a barcode label.

2 Status indicator

Indicates the battery charging and barcode scanning

status.

Green - Battery is fully charged, the device is running on

battery power, or barcode scanning

Red – Battery is being charged and barcode scanner is

fired/activated.

3 SDIO/MMC slot

Accepts an SD (Secure Digital), MMC (Multimedia Card)

or SDIO (Secure Digital Input Output) cards, allowing you

to add more memory.

Install add-

on applications or use audio text files stored in

it for use with internal applications. You can also use it to

backup data from your device.

4 Power button

If the device is off, press this button to turn it on.

Alternatively, when the unit is on, this key must be

pressed and held down for about two seconds in order to

turn the device off.

5 LCD touch screen

Displays the applications and data stored on your device.

It is touch-sensitive and responds to the stylus or finger.

6 Keypad

Includes a software keyboard button, navigation key and

application buttons to launch Microsoft Outlook Mobile

programs.

7 (Reserved)

8 Left scanner trigger key Press to activate the barcode laser scanner.

9 Cord holder Eyelet for holding the elastic bungee lanyard.

Rear View

No. Component Description

10 Speaker When the speaker is active, sounds are emitted here.

11 Battery release latch

Slide toward the right side of the device and hold firmly,

then detach the battery from its bay.

12 Reset button Press the end of the stylus into the button to reset your

device.

13 Main battery Removable and rechargeable 3.7 V, 2200 mAh battery

pack.

14 Universal connector

Connects your device to a USB charging/communication

cable. This USB cable connects to the computer's USB

port and accepts the 5V AC adapter to provide power to

the PA500II. .

15 Right scanner trigger key Press to activate the barcode laser scanner.

16 Stylus

To use the stylus, remove it from its holder and hold it the

same way as you hold a pen or pencil.

Setting up the PA500II

Perform the following set up tasks to begin using your device:

 Install the battery pack.

 Charge your device.

 Power on the PA500II

Installing the Battery

WARNING! There is a risk of fire and burn if the battery pack is handled

improperly. DO NOT disassemble, crush, puncture, short external

contacts, or dispose the battery pack in fire or water. DO NOT

attempt to open or service the battery pack. Dispose of used

batteries according to the local recycling guidelines in your area.

A backup battery cell is embedded into your device to prevent data loss when

the removable battery pack is removed or completely discharged. The backup

battery will keep the data and system settings up to 1 hour if the main battery is

removed.

NOTE: To enable the internal battery cell to provide backup power supply,

charge your device with the main battery pack for at least three and a

half hours.

1. Position the battery pack, making sure the battery pack fits the shape of

the battery compartment.

2. Slide the battery pack into the battery bay. The battery pack locks to the

chassis with an audible click.

3. If you remove the main battery and plug it back before the backup battery

lost power, PA500II will be warm start.

4. If you remove the main battery and plug it back after the backup battery

lost power, PA500II will be clean booted.

Charging the PA500II

For initial use, you need to charge your device for about 16 hours. After that,

you can charge it everyday to recharge the battery to full capacity. You can

charge your device using the USB charging cable.

CAUTION! Operating the PA500II for the first time without the AC adapter, and

without fully charging the backup battery may result in loss of data

stored in RAM memory.

NOTE: Data you entered may not be properly stored until the internal backup

battery has been fully charged.

To charge the device using the USB charging cable:

1. Attach the clip plug to the AC adapter, if necessary. Slide the replaceable

clip plug into the AC adapter until it locks into place with an audible click.

2. Press and hold the connector button on the USB charging cable and

connect it to the PA500II (1).

3. Plug the AC adapter cable into the power jack on the USB charging cable

(2).

4. Connect the AC adapter into an electrical outlet (3).

If the battery level becomes low, a status icon appears on the device screen

indicating low or very low battery status. In both cases, perform an

ActiveSync operation to back up your data, and then recharge your device as

soon as possible. If the battery level reaches a low status, the device will enter

a sleep mode and cannot be powered up until the battery is charged. Windows

Mobile 5.0 devices will retain installed applications and data when the main

battery is completely drained for extended periods of time.

Powering On the PA500II

After you have initially charged your device for about 16 hours, the device is

ready to be used. You can now start up your device where you can calibrate

the screen, set up the system time zone, and learn some basic stylus usage.

1. Turn on your device by pressing the Power button on the front panel.

NOTE: The PA500II screen ships with a protective plastic film. You may

remove it by peeling from one corner. The screen will be more

susceptible to scratching without the film, but will be more readable.

The unitech PA500II welcome screen appears. The Windows Mobile

screen will appear shortly.

2. Calibrate the PA500II

The calibrate screen will automatically appear when the unit is

powered-on for the first time or after the system is reset. This screen can

also be accessed at any time by tapping Start → Settings → System tab

→ Screen.

The PA500II will prompt you to calibrate the unit by tapping a sequence of

screen locations. Tap gently but firmly. When you have completed the

series of taps, press the Enter button to confirm it.

3. Set the Time Zone, Date, and Time

Select your current time zone from the Time zone drop-down menu, and

then tap Next.

4. Follow all onscreen instructions to complete the set up. The setup wizard

provides tips for using the pop-up menus and assign a lock password to

access your device.

After the device setup, you can create an ActiveSync partnership to

synchronize information between your computer and your device. See

Establishing Device-PC Connection in chapter 3 for detailed instructions.

Chapter 2

Using the Hardware

Using the Keypad

The PA500II keypad has a navigation key and six special keys to launch

particular applications and display the on-screen keyboard.

No.

Button Name Description

1 ESC Press the ESC button to exit from the section you entered.

2 P

Press P

to enable Task Manager.

3 P

Press P

to enable scanner.

4 P

Press P

to enable Battery.

5 P

Press P

to enable Device Setting.

6 Enter Press the Enter button to

access the menu options and confirm

your selection.

7 Navigation key Use the up, down, left, and right arrow keys to navigate

through

the menu options.

8 OK Press the OK button to access the menu options and confirm

your selection.

Using the Stylus

CAUTION! Never use anything other than PA500II stylus on the screen;

otherwise this could cause a permanent damage.

3 4

1. Push the stylus in the direction of the arrow, then pull out to remove the

stylus from its holder.

2. Hold the stylus like holding a pencil.

3. To make a choice from a menu, lightly tap the tip of the stylus on that

choice.

4. To write data into a field on a form, use the stylus to print the letters or

numbers (of on-screen keyboard). Use very light pressure.

Using the SDIO/MMC Slot

Your device has an expansion slot compatible with a range of SD, SDIO, and

MMC storage cards, which are primarily used to back up or transfer files and

data.

To insert a storage card:

1. Hold the device securely, and then lift the rubber cover from the

SDIO/MMC slot

2. Push the card into the slot until you feel the SD card click into place, and

this will signal that the card is already properly seated in the slot.

The card is secure when it is not protruding from the slot.

To remove a storage card:

1. Hold the device securely. Push the card in and release. The card pops

out.

2. Remove the card from the slot.

Chapter 3

Getting Connected

The PA500II enables users to link to a host computer using an RS-232, or

Bluetooth, WiFi, and GPRS connection for data communication. This chapter

provides an over-view of PA500II communication options.

Establishing Device-PC Connection

Installing Microsoft ActiveSync

In order to exchange data between your computer and the PA500II, Microsoft

Active-Sync must be installed on your computer. Use the USB/RS232 charging

cable that comes with your device or the docking station to connect the device

to your computer.

NOTE: If you have a previous version of the Microsoft ActiveSync installed in

your computer, uninstall it first before installing the latest version of

Microsoft ActiveSync.

To install Microsoft ActiveSync on your computer:

1. Close any open programs, including those that run at startup, and disable

any virus-scanning software.

2. Download the ActiveSync software from the Microsoft ActiveSync

Download page at

http://www.microsoft.com/downloads/details.aspx?Fami-lyID=7269173a-2

8bf-4cac-a682-58d3233efb4c&DisplayLang=en.

3. Browse to the location of the downloaded file, and double-click it. The

installation wizard begins.

4. Follow the instructions on the screen to install Microsoft ActiveSync.

Connecting the Device to Your Computer

1. After ActiveSync has been

installed, connect PA500II to your

PC as described in connecting the

terminal to a host (PC/Notebook)

to a PC.

2. Turn the PA500II on.

3. ActiveSync starts automatically

and configure the USB port to

work with the PA500II. The New Partnership setup wizard automatically

starts.

NOTE: If ActiveSync doesn’t start automatically, click Start → Programs →

Microsoft ActiveSync.

NOTE: If a message appears indicating that it is unable to detect a connection,

click the Cancel button and manually configure the communication

settings.

4. Follow the on-screen instructions.

When the configuration process is

complete, the Active-

Sync window

appears.

6. Synchronization will be initialized and will take place if you’ve chosen to

synchronize periodically or upon connection.

NOTE: Your computer can create a partnership with multiple PA500IIs. Also, a

PA500II can create a partnership with up to two computers.

WiFi Connection

Unitech terminals come with built-in RF facility. A wireless network can be

added either when the network is detected or by manually entering settings

information. Before following these instructions, make sure if authentication

information is needed.

Using the Summit Utilities

You can use the Summit Client Utility tool to setup or change the WiFi settings.

Admin Login

1. Tap Start → Setting → System → Wi-Fi.

The Summit Client Utility window appears.

2. To login as an administrator, tap Admin Login.

3. Enter the Admin Password. (Default password:

SUMMIT)

Scan Available AP

1. Under Profile tab, tap Scan for available AP.

2. You may select a desired AP to create a new

profile. Tap Configure.

3. Tap Yes to create the new profile.

4. Enter the WEP key or network key. Tap OK.

Commit and Activate

1. Tap Commit to activate the setting.

2. Under Main tab, select the profile you want to

activate.

3. Under Status tab, you can see the IP address,

signal strength and quality.

4. Tap OK to exit the Summit Client Utility.

5. Tap Start → Boot-Mode. Tap Warm Boot to warm start the terminal and

load the previous settings.

6. If you want to disconnect the AP, tap Disable

Radio.

Chapter 4

Barcode Scanner Programs

PA500II provides an option for the barcode scanner, allowing you to scan and

decode various types of 1D/2D barcodes.

Scanner Setting

When it is necessary for the user to change the default barcode symbology for

a different application, the Scanner Control Panel provides the ability to

change default symbology, place delimiter characters behind scanned data,

and save the settings.

Tap Start → Settings → System → Scanner.

The Scanner Control Panel appears.

NOTE: Press Func key and “7” button.

Scan2Key

The Scan2Key application routes input from a scanner port to a keypad buffer,

making all input from the scanner emulate input from the keypad. Using

Scan2Key, scanned data will be directed from the scanner port to any waiting

(active/focused) text editor such as MS Mobile Word or a text box in an

application.

Barcode Symbologies

Barcode

Symbology

Enable /

Disable

Char Check

/ Digit

verification

Transmit

Check

Char/digit

Others

Australian

Post

YES Send bar width data

British Post

YES

Canadian

Post

YES

Codabar YES YES YES Transmit start & stop char, *data length

Code 11 YES YES *data length

Code

128/EAN

128

YES *data length

Code 39 YES YES YES For ASCII, Transmit start & stop char,

Append mode, *data length

Code 93 YES *data length

Dutch (KIX)

Post

YES

EAN 13 YES YES 2 digit addenda, 5 digit addenda,

Addenda required, Include addenda

separator

EAN 8 YES YES 2 digit addenda, 5 digit addenda,

Addenda required, Include addenda

separator

IATA 2 of 5 YES *data length

Interleaved

2 of 5

YES YES YES *data length

ISBT YES

Japanese

Post

YES

Korean Post

YES *data length

Matrix 2 of 5

YES *data length

MSI YES YES *data length

Planet YES YES

Barcode

Symbology

Enable /

Disable

Char Check

/ Digit

verification

Transmit

Check

Char/digit

Others

Postnet YES YES

RSS

(Databar)

YES *data length

UPC A YES YES 2 digit addenda, 5 digit addenda,

Addenda required, Include addenda

separator, Send number system

UPC E YES YES 2 digit addenda, 5 digit addenda,

Addenda required, Include addenda

separator, Send number system,

Expanded UPC-E

UPC E1 YES YES 2 digit addenda, 5 digit addenda,

Addenda required, Include addenda

separator, Send number system,

Expanded UPC-E

NOTE: *Value Adjustable Scanner Control Panel Version 5.14

Barcode Symbologies 2D

Barcode Symbology

Enable /

Disable

Char Check

/ Digit

verification

Transmit

Check

Char/digit

Others

Aztec YES Runes, *data length

Codablock F YES *data length

Code 49 YES *data length

Data Matrix YES *data length

EAN-UCC Composite

YES UPC composite, *data

length

MaxiCode YES *data length

MicroPDF417 YES *data length

OCR YES

OCR mode, OCR direction,

Template, Group G, Group

H, Check character

PDF-417 YES *data length

QR Code YES

Barcode Symbology

Enable /

Disable

Char Check

/ Digit

verification

Transmit

Check

Char/digit

Others

TLC-39 (TCIF Linked

Code 39)

YES

NOTE: *Value Adjustable Scanner Control Panel Version 5.14

Chapter 5

Advanced Settings

Performing a Hardware Reset

You may have to perform a reset if the device freezes (i.e., the device no

longer responds to the buttons or tapping on the screen).

A soft reset allows your device to get a fresh start, similar to rebooting a

computer.

This will restart your device and adjust memory allocation. All records and

entries are retained after a soft reset. Unsaved data in open programs may be

lost.

Performing a Warm Boot

Method 1: From Windows Mobile

1. Tap Start → BootMode.

The BootMode Screen appears.

2. Tap Warm Boot.

The system is reset and you will lose unsaved

data.

eset button

Method 2: From Hardware

1. Remove the stylus from its holder.

2. Lightly press the tip of the stylus to the reset button located at the rear side

of the terminal.

Performing a Cold Boot

A cold boot will erase all data and all programs you have added, and will

restore the device to the default factory settings.

Never perform a cold boot unless a warm boot does not correct your problem.

When you perform your next ActiveSync operation, you can restore any data

that you previously synchronized to your computer or you can restore data that

you backed up to a storage card.

Method 1: From Windows Mobile

1. Tap Start → BootMode.

The BootMode Screen appears.

2. Tap Cold Boot.

The system is reset and you will lose all data

including all files in the RAM memory.

Performing a Clean Boot

Performing clean boot will set the terminal to the factory default settings.

To perform the clean boot, press the hard reset key and keep pressing the

ESC key during boot screen that appears.

Appendix I

System Specification

System

CPU: Marvell PXA320 Processor, 806MHz

Mobile DDR RAM: 256MB

NAND Flash RAM: 512MB

OS: Windows Embedded Handheld 6.5 Classic

Display

Transflective color 3.5” QVGA with backlight 240×320 touch

panel LCD

Keypad 4 function keys + Navigation keys

Notification LED

Symbologies

1D Barcode EngineUPC-A/E, EAN-8/13, Codabar, Code 39,

Code 39 full ASCI, Code 93,Code32, Interleaved & Std. 2 of 5,

EAN 128, Code 11, Delta, MSI/Plessey,Code 128, Toshiba

Indicator

Dual Function LED

Green (Data scanning)

Red (Charging status)

Communication

USB: USB1.1 Host & Client

WLAN: IEEE 802.11 b/g/n

PAN: Bluetooth 2.1 + EDR

Audio 0.8 Watts Speaker

Expansion Slot

SD Memory with SDHC Support (up to 32GB)

Power Source

Main Battery: 8.14 Watt-Hour 3.7V @2200 mAh

Backup Battery: Ni-Mh battery Supports 2 hours backup

Enclosure

Weight: 213g (with battery)

Dimension: 126mm (L) x 25mm (H) x 77mm (W)

Environmental

Operating Temperature: 14°F to 122°F (-10°C to 50°C)

Storage Temperature: -4°F to 140°F (-20°C to 60°C)

Charging Temperature: 32°F to 104°F (0°C to 40° C)

Relative Humidity: 5% ~ 95% (non-condensing)

Drop Test to Concrete:

3 feet ( 90 cm) on 6 faces/4 corners to

concrete

Software

Microsoft Visual Studio 2005/2008

Auto Installer

Mobile Device

Management

Software and

Service

12Manage: Software and configuration management, Asset

tracking, remote diagnostics and performance measurement

(For more detailed information, please visit

http://portal.unitech.eu/RDM/v2/v2login.aspx.)

Accessories

Main battery (2200mAh) USB communication and charging

cable

AC adaptor

Regulatory

Approvals

CE, FCC, BSMI, VCCI, CCC, RoHS compliance

Appendix II

Worldwide Support

Unitech’s professional support team is available to quickly answer questions or

technical-related issues. Should an equipment problem occur, please contact

the nearest Unitech regional service representative. For complete contact

information please visit the Web sites listed below:

Region Web Site

Global Operation Center http://www.ute.com

Unitech Taiwan http://tw.ute.com

Unitech Asia Pacific & Middle East http://apac.ute.com

;

http://india.ute.com

Greater China Division http://cn.ute.com

Unitech Japan http://jp.ute.com

Unitech America http://us.ute.com ; http://can.ute.com

Unitech Latin America http://latin.ute.com

Unitech Europe http://eu.ute.com

Unitech Electronics PA500IIBTG Data Collection Terminal User Manual PA500II 400892G UM V1 0

Unitech Electronics Co., Ltd. Data Collection Terminal PA500II 400892G UM V1 0

PA500II_400892G_UM_V1 0 (11.21) user manaul ver02

Navigation menu

Namespaces

Views

Navigation
