Unitech Electronics PA550BTGGR PDA Scanner User Manual PA550 400822G UM V1 3

Unitech Electronics Co., Ltd. PDA Scanner PA550 400822G UM V1 3

User Manual

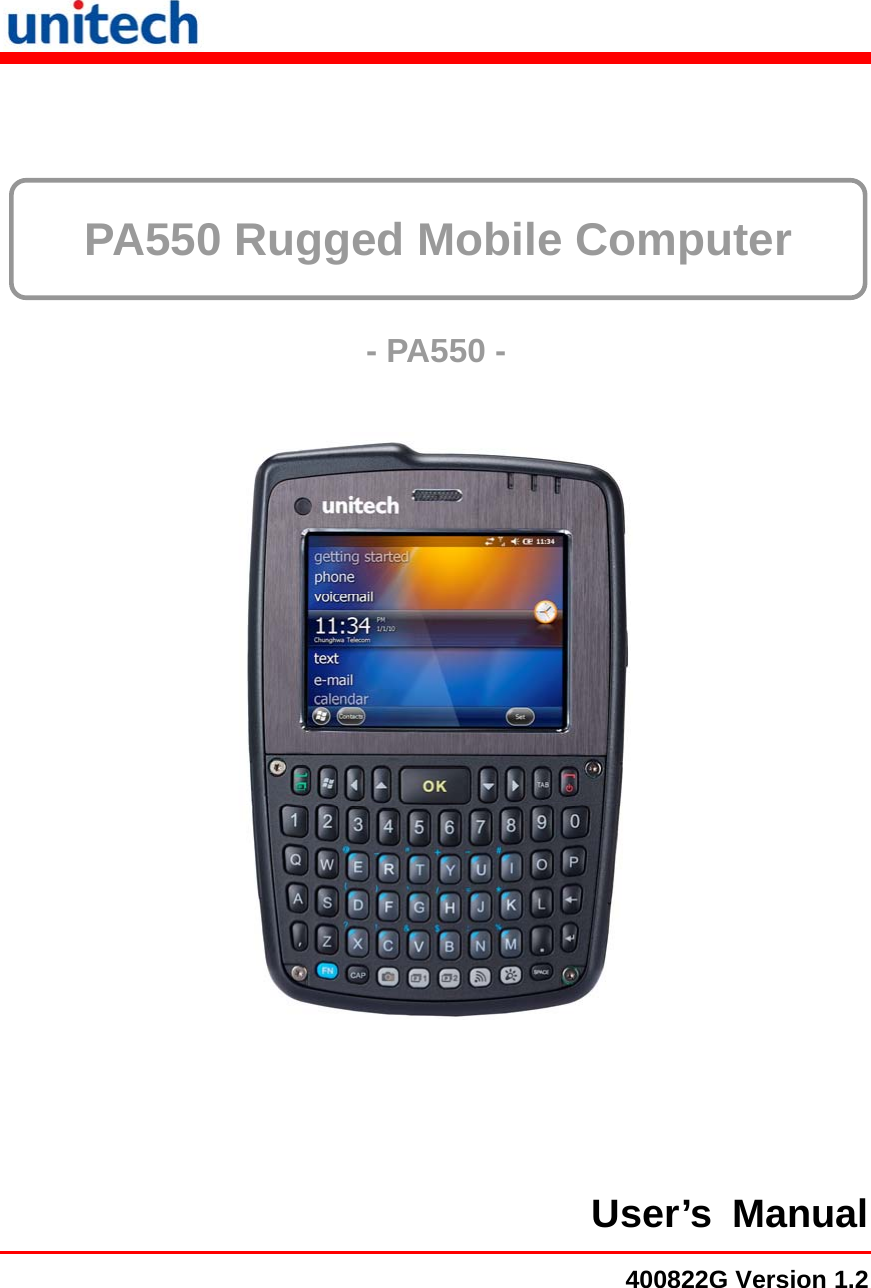

PA550 Rugged Mobile Computer - PA550 - User’s Manual400822G Version 1.2

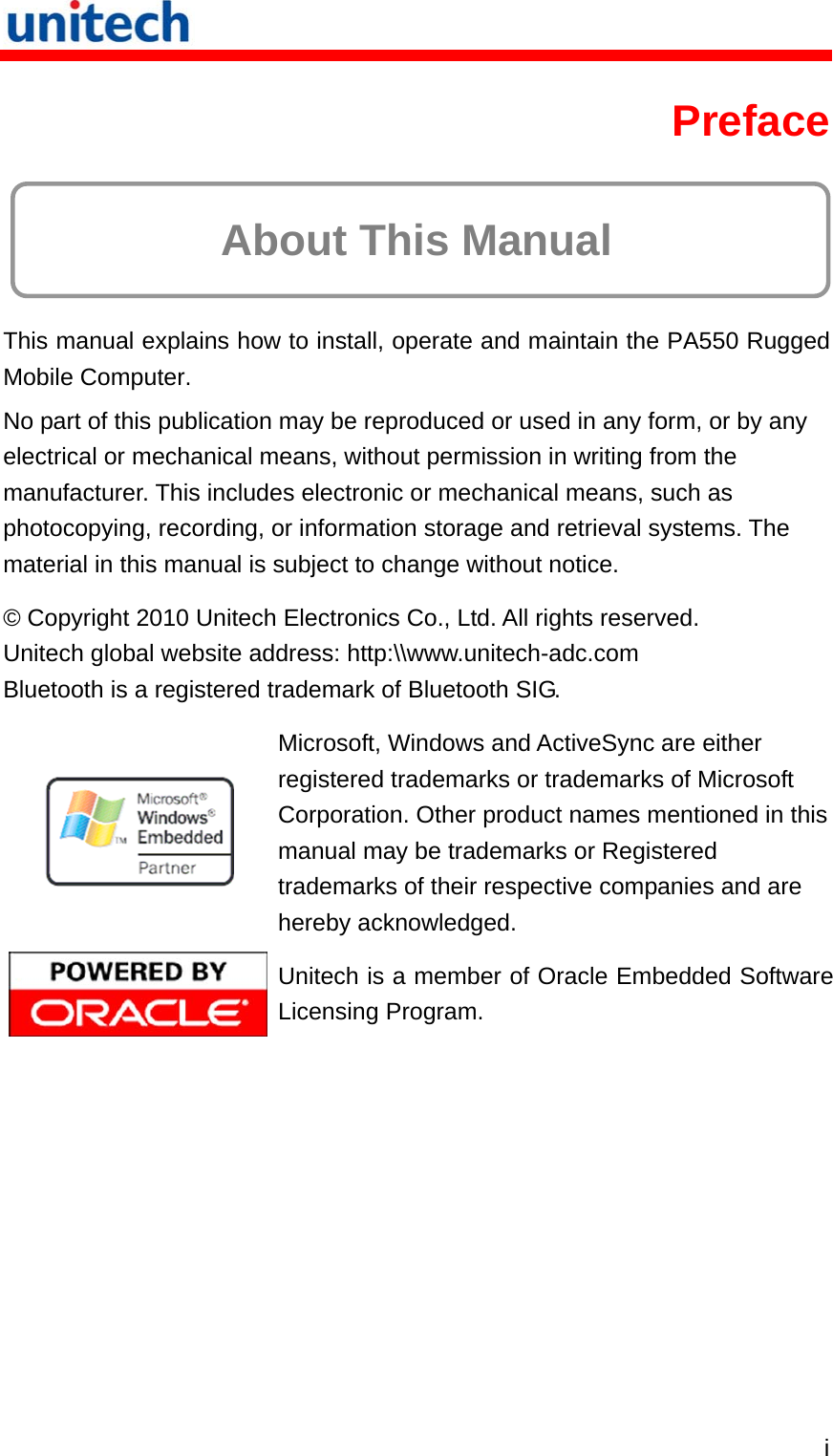

i Preface About This Manual This manual explains how to install, operate and maintain the PA550 Rugged Mobile Computer. No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means, without permission in writing from the manufacturer. This includes electronic or mechanical means, such as photocopying, recording, or information storage and retrieval systems. The material in this manual is subject to change without notice. © Copyright 2010 Unitech Electronics Co., Ltd. All rights reserved. Unitech global website address: http:\\www.unitech-adc.com Bluetooth is a registered trademark of Bluetooth SIG. Microsoft, Windows and ActiveSync are either registered trademarks or trademarks of Microsoft Corporation. Other product names mentioned in this manual may be trademarks or Registered trademarks of their respective companies and are hereby acknowledged. Unitech is a member of Oracle Embedded Software Licensing Program.

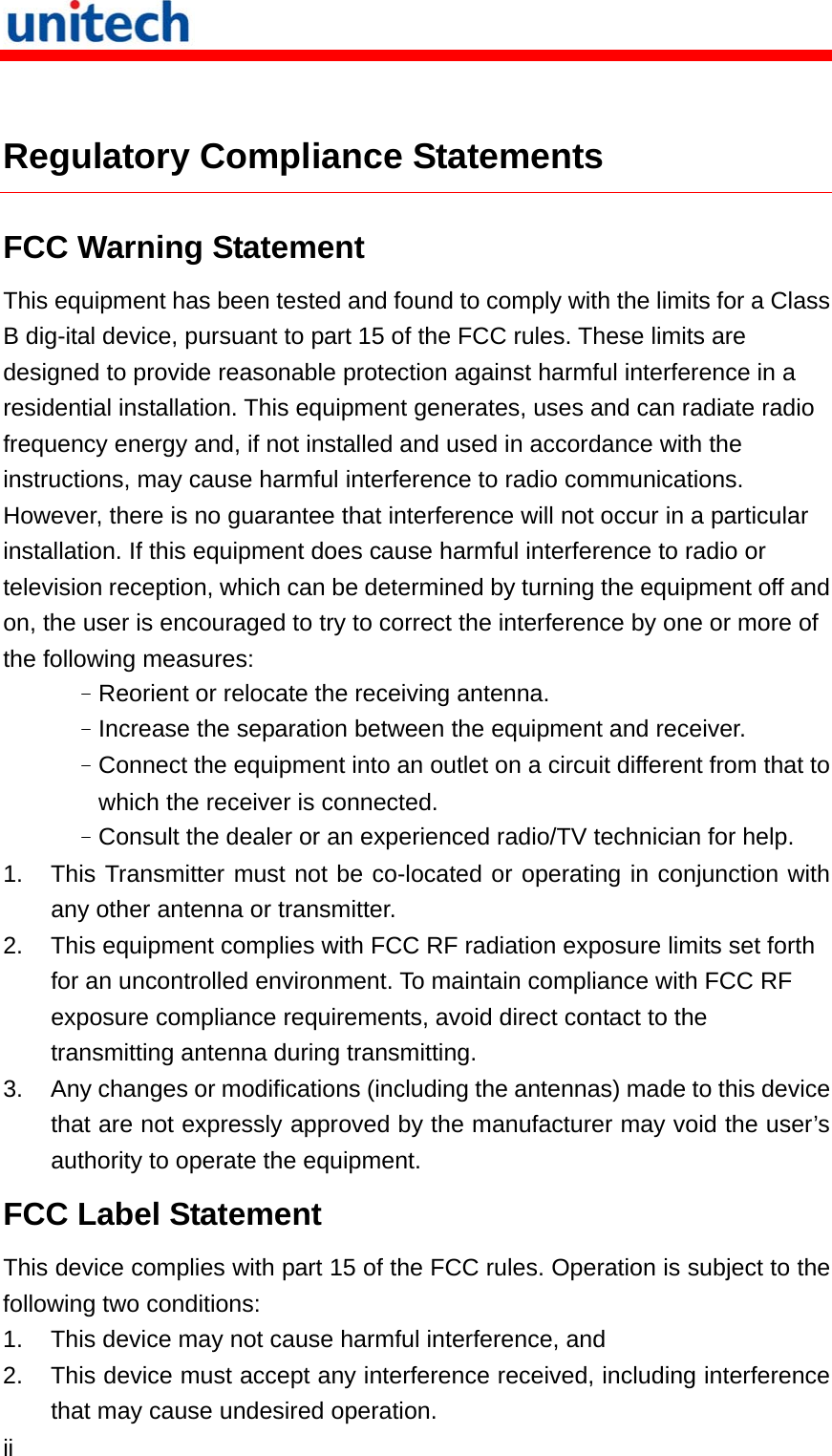

ii Regulatory Compliance Statements FCC Warning Statement This equipment has been tested and found to comply with the limits for a Class B dig-ital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: –Reorient or relocate the receiving antenna. –Increase the separation between the equipment and receiver. –Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. –Consult the dealer or an experienced radio/TV technician for help. 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with FCC RF exposure compliance requirements, avoid direct contact to the transmitting antenna during transmitting. 3. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. FCC Label Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

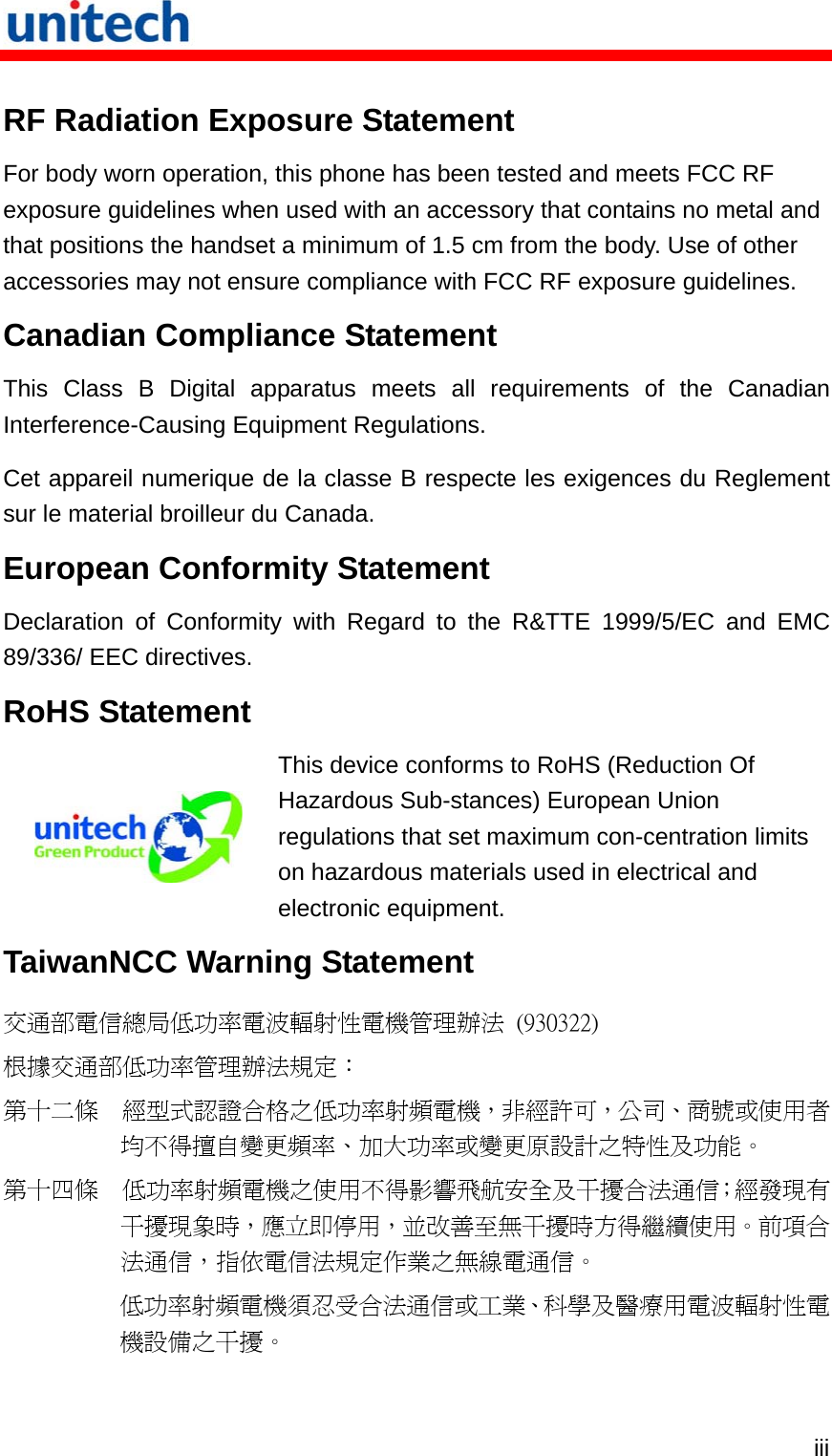

iii RF Radiation Exposure Statement For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 1.5 cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Canadian Compliance Statement This Class B Digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numerique de la classe B respecte les exigences du Reglement sur le material broilleur du Canada. European Conformity Statement Declaration of Conformity with Regard to the R&TTE 1999/5/EC and EMC 89/336/ EEC directives. RoHS Statement This device conforms to RoHS (Reduction Of Hazardous Sub-stances) European Union regulations that set maximum con-centration limits on hazardous materials used in electrical and electronic equipment. TaiwanNCC Warning Statement 交通部電信總局低功率電波輻射性電機管理辦法 (930322) 根據交通部低功率管理辦法規定： 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。 低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

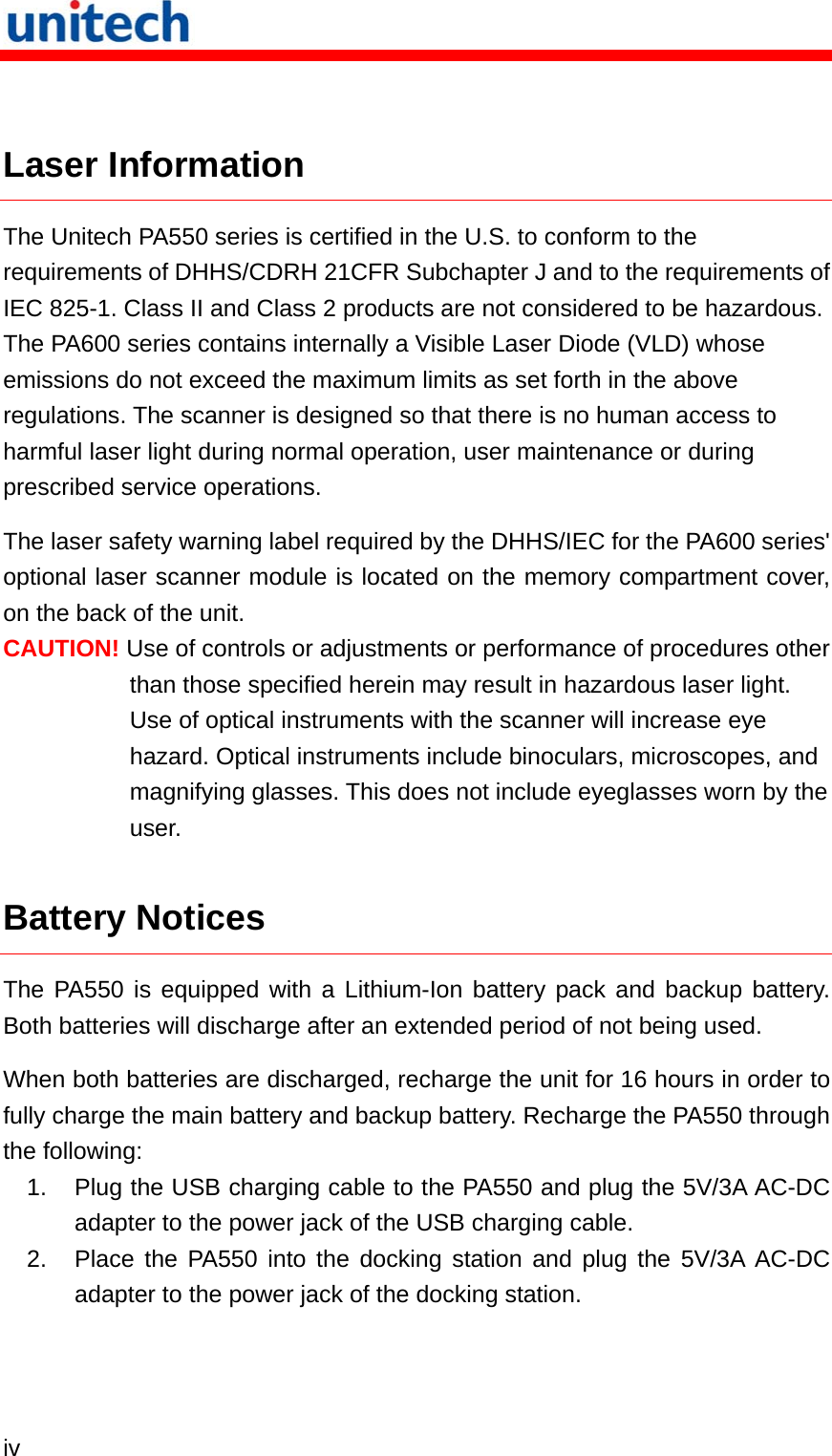

iv Laser Information The Unitech PA550 series is certified in the U.S. to conform to the requirements of DHHS/CDRH 21CFR Subchapter J and to the requirements of IEC 825-1. Class II and Class 2 products are not considered to be hazardous. The PA600 series contains internally a Visible Laser Diode (VLD) whose emissions do not exceed the maximum limits as set forth in the above regulations. The scanner is designed so that there is no human access to harmful laser light during normal operation, user maintenance or during prescribed service operations. The laser safety warning label required by the DHHS/IEC for the PA600 series' optional laser scanner module is located on the memory compartment cover, on the back of the unit. CAUTION! Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous laser light. Use of optical instruments with the scanner will increase eye hazard. Optical instruments include binoculars, microscopes, and magnifying glasses. This does not include eyeglasses worn by the user. Battery Notices The PA550 is equipped with a Lithium-Ion battery pack and backup battery. Both batteries will discharge after an extended period of not being used. When both batteries are discharged, recharge the unit for 16 hours in order to fully charge the main battery and backup battery. Recharge the PA550 through the following: 1. Plug the USB charging cable to the PA550 and plug the 5V/3A AC-DC adapter to the power jack of the USB charging cable. 2. Place the PA550 into the docking station and plug the 5V/3A AC-DC adapter to the power jack of the docking station.

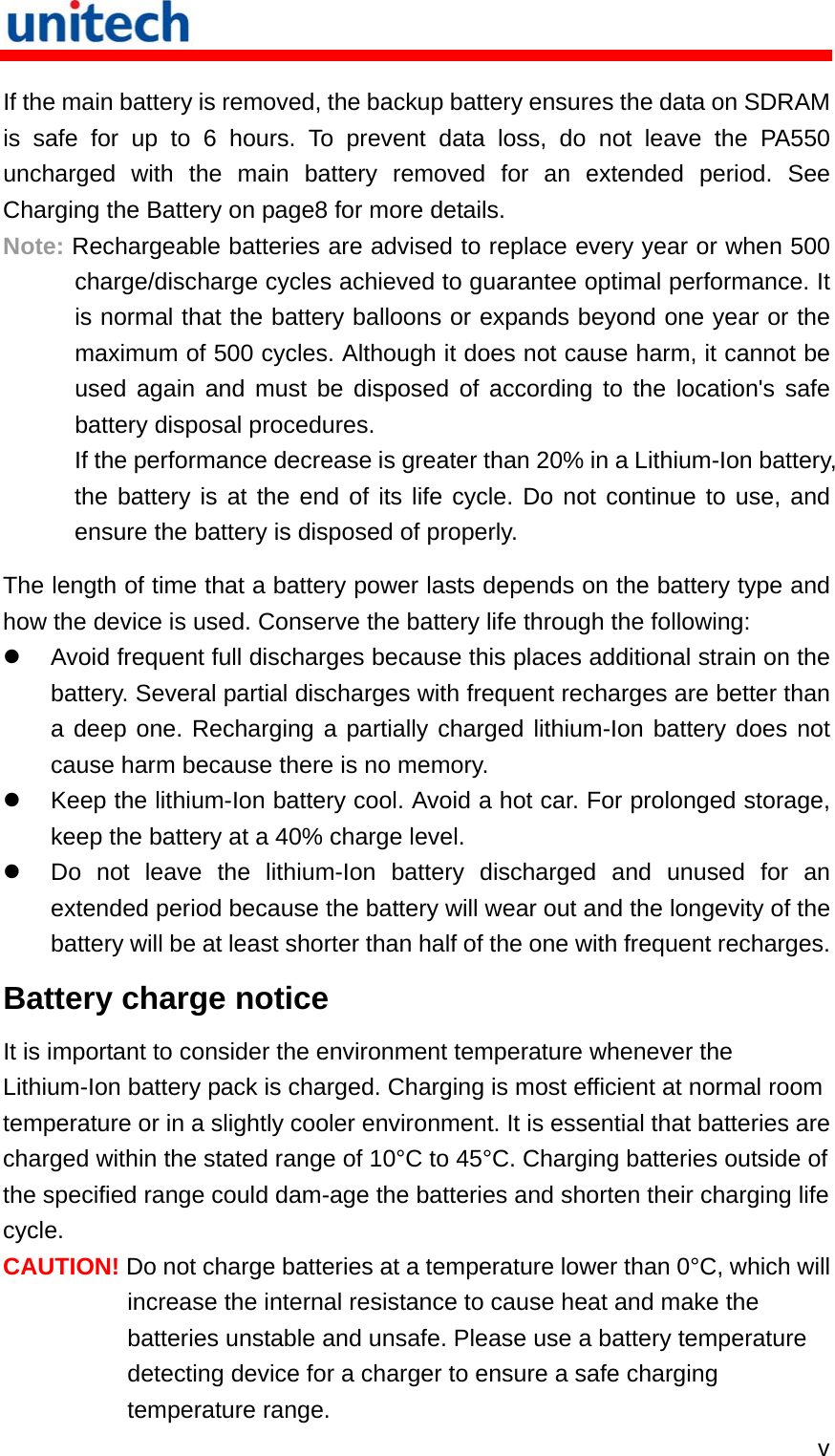

v If the main battery is removed, the backup battery ensures the data on SDRAM is safe for up to 6 hours. To prevent data loss, do not leave the PA550 uncharged with the main battery removed for an extended period. See Charging the Battery on page8 for more details. Note: Rechargeable batteries are advised to replace every year or when 500 charge/discharge cycles achieved to guarantee optimal performance. It is normal that the battery balloons or expands beyond one year or the maximum of 500 cycles. Although it does not cause harm, it cannot be used again and must be disposed of according to the location's safe battery disposal procedures. If the performance decrease is greater than 20% in a Lithium-Ion battery, the battery is at the end of its life cycle. Do not continue to use, and ensure the battery is disposed of properly. The length of time that a battery power lasts depends on the battery type and how the device is used. Conserve the battery life through the following:  Avoid frequent full discharges because this places additional strain on the battery. Several partial discharges with frequent recharges are better than a deep one. Recharging a partially charged lithium-Ion battery does not cause harm because there is no memory.  Keep the lithium-Ion battery cool. Avoid a hot car. For prolonged storage, keep the battery at a 40% charge level.  Do not leave the lithium-Ion battery discharged and unused for an extended period because the battery will wear out and the longevity of the battery will be at least shorter than half of the one with frequent recharges. Battery charge notice It is important to consider the environment temperature whenever the Lithium-Ion battery pack is charged. Charging is most efficient at normal room temperature or in a slightly cooler environment. It is essential that batteries are charged within the stated range of 10°C to 45°C. Charging batteries outside of the specified range could dam-age the batteries and shorten their charging life cycle. CAUTION! Do not charge batteries at a temperature lower than 0°C, which will increase the internal resistance to cause heat and make the batteries unstable and unsafe. Please use a battery temperature detecting device for a charger to ensure a safe charging temperature range.

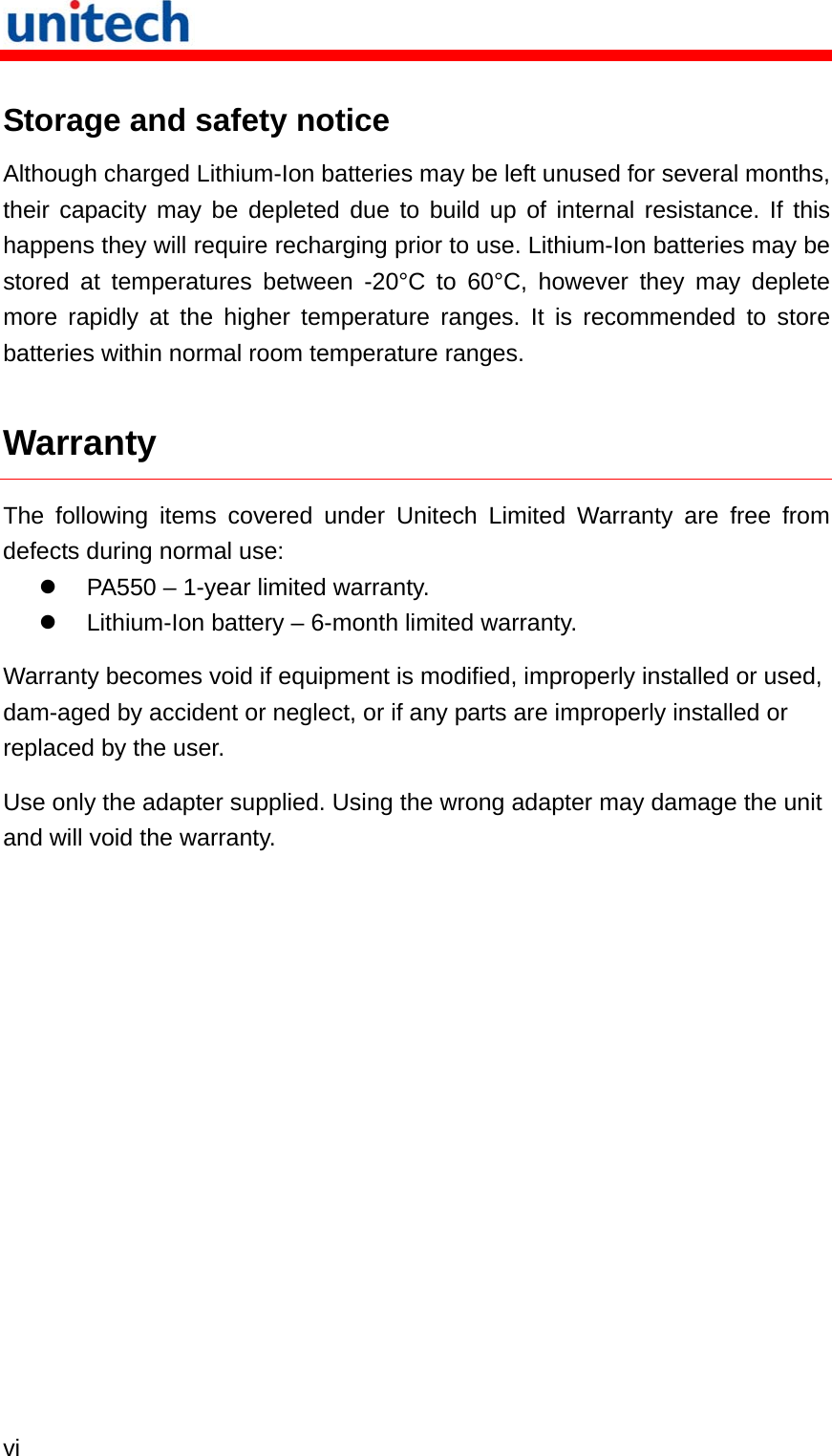

vi Storage and safety notice Although charged Lithium-Ion batteries may be left unused for several months, their capacity may be depleted due to build up of internal resistance. If this happens they will require recharging prior to use. Lithium-Ion batteries may be stored at temperatures between -20°C to 60°C, however they may deplete more rapidly at the higher temperature ranges. It is recommended to store batteries within normal room temperature ranges. Warranty The following items covered under Unitech Limited Warranty are free from defects during normal use:  PA550 – 1-year limited warranty.  Lithium-Ion battery – 6-month limited warranty. Warranty becomes void if equipment is modified, improperly installed or used, dam-aged by accident or neglect, or if any parts are improperly installed or replaced by the user. Use only the adapter supplied. Using the wrong adapter may damage the unit and will void the warranty.

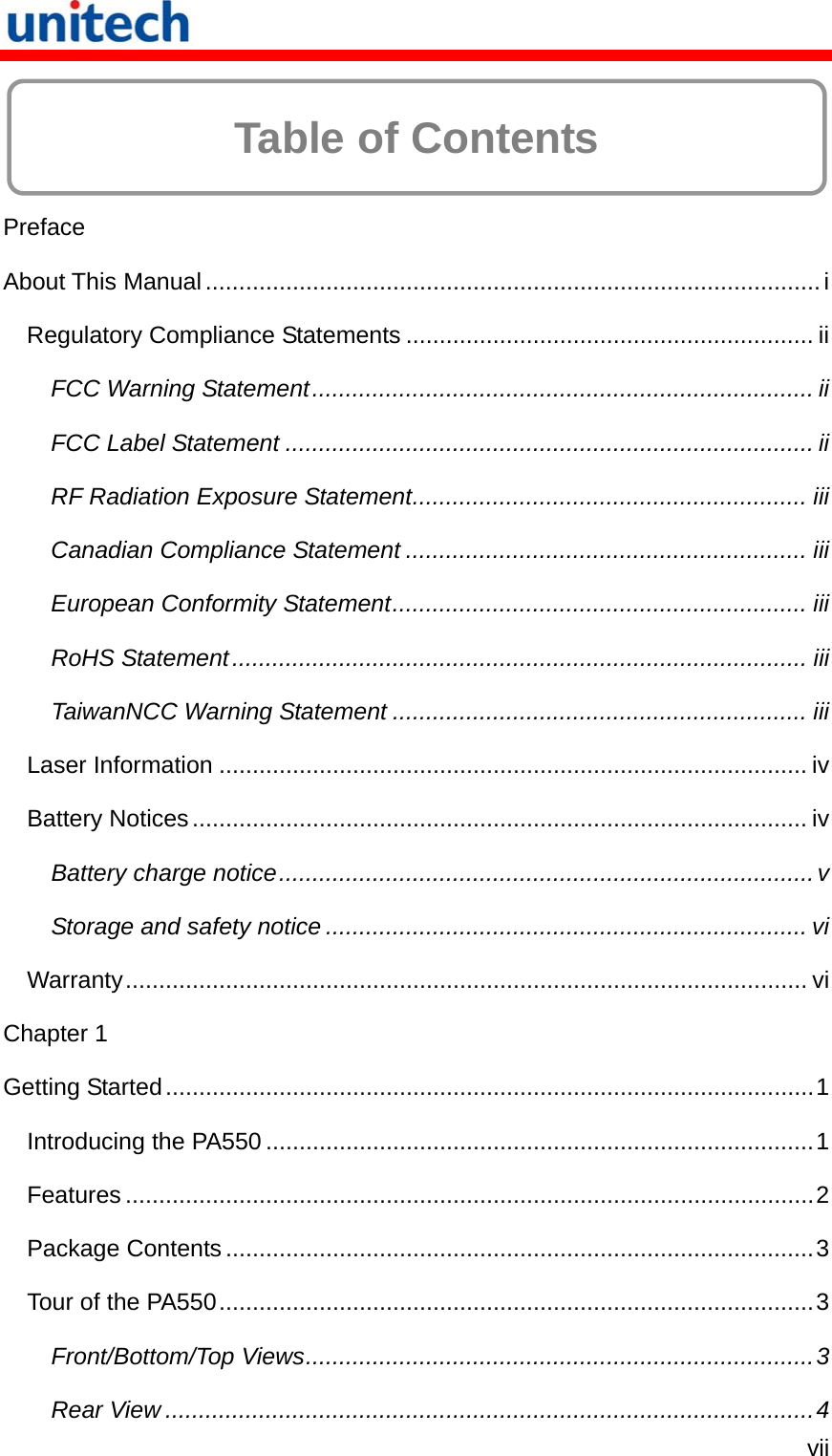

vii Table of Contents Preface About This Manual............................................................................................i Regulatory Compliance Statements ............................................................. ii FCC Warning Statement........................................................................... ii FCC Label Statement ............................................................................... ii RF Radiation Exposure Statement........................................................... iii Canadian Compliance Statement ............................................................ iii European Conformity Statement.............................................................. iii RoHS Statement...................................................................................... iii TaiwanNCC Warning Statement .............................................................. iii Laser Information ........................................................................................ iv Battery Notices............................................................................................ iv Battery charge notice................................................................................v Storage and safety notice ........................................................................ vi Warranty...................................................................................................... vi Chapter 1 Getting Started.................................................................................................1 Introducing the PA550..................................................................................1 Features .......................................................................................................2 Package Contents........................................................................................3 Tour of the PA550.........................................................................................3 Front/Bottom/Top Views............................................................................3 Rear View .................................................................................................4

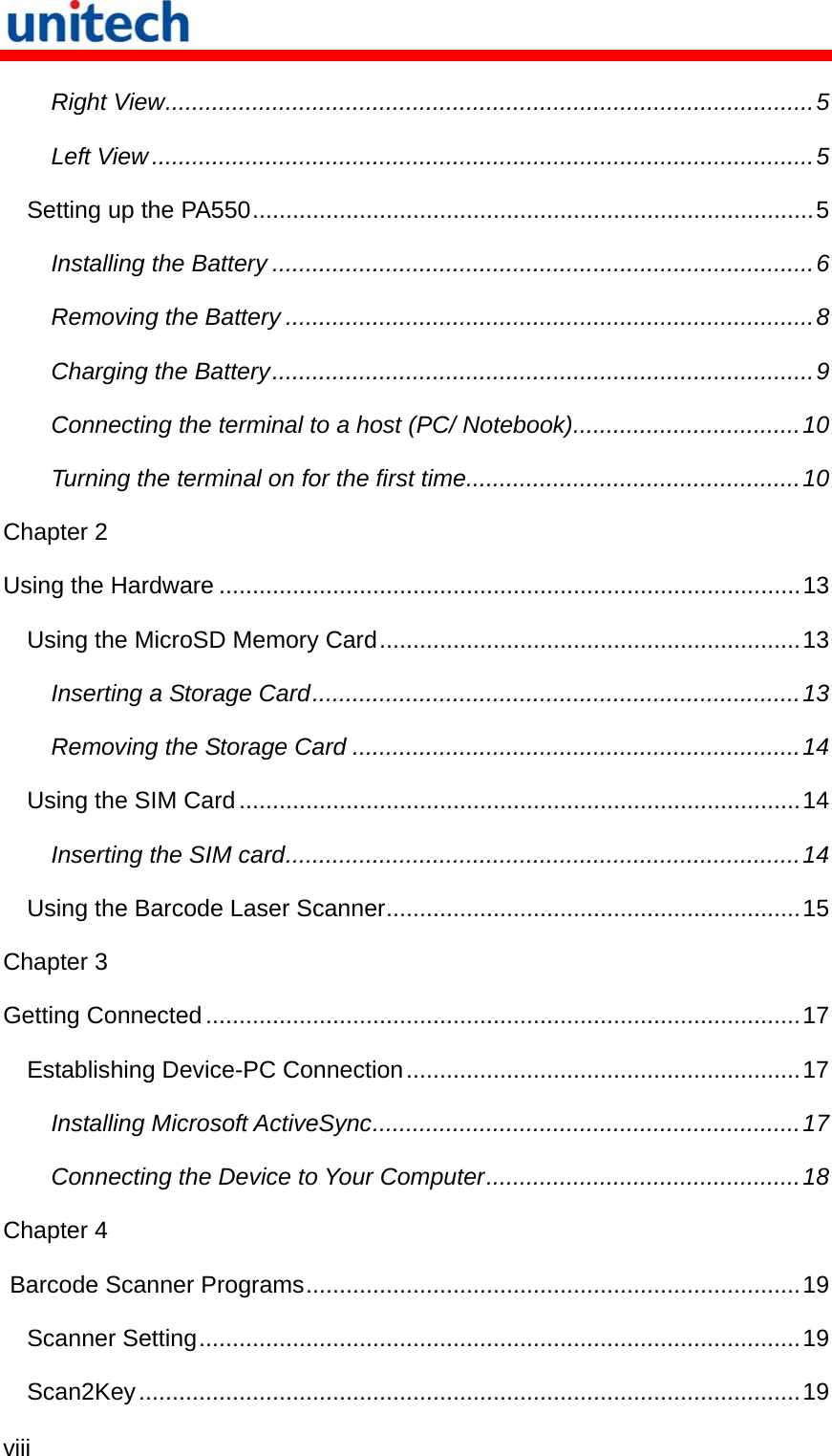

viii Right View.................................................................................................5 Left View ...................................................................................................5 Setting up the PA550....................................................................................5 Installing the Battery .................................................................................6 Removing the Battery ...............................................................................8 Charging the Battery.................................................................................9 Connecting the terminal to a host (PC/ Notebook)..................................10 Turning the terminal on for the first time..................................................10 Chapter 2 Using the Hardware .......................................................................................13 Using the MicroSD Memory Card...............................................................13 Inserting a Storage Card.........................................................................13 Removing the Storage Card ...................................................................14 Using the SIM Card....................................................................................14 Inserting the SIM card.............................................................................14 Using the Barcode Laser Scanner..............................................................15 Chapter 3 Getting Connected.........................................................................................17 Establishing Device-PC Connection...........................................................17 Installing Microsoft ActiveSync................................................................17 Connecting the Device to Your Computer...............................................18 Chapter 4 Barcode Scanner Programs..........................................................................19 Scanner Setting..........................................................................................19 Scan2Key...................................................................................................19

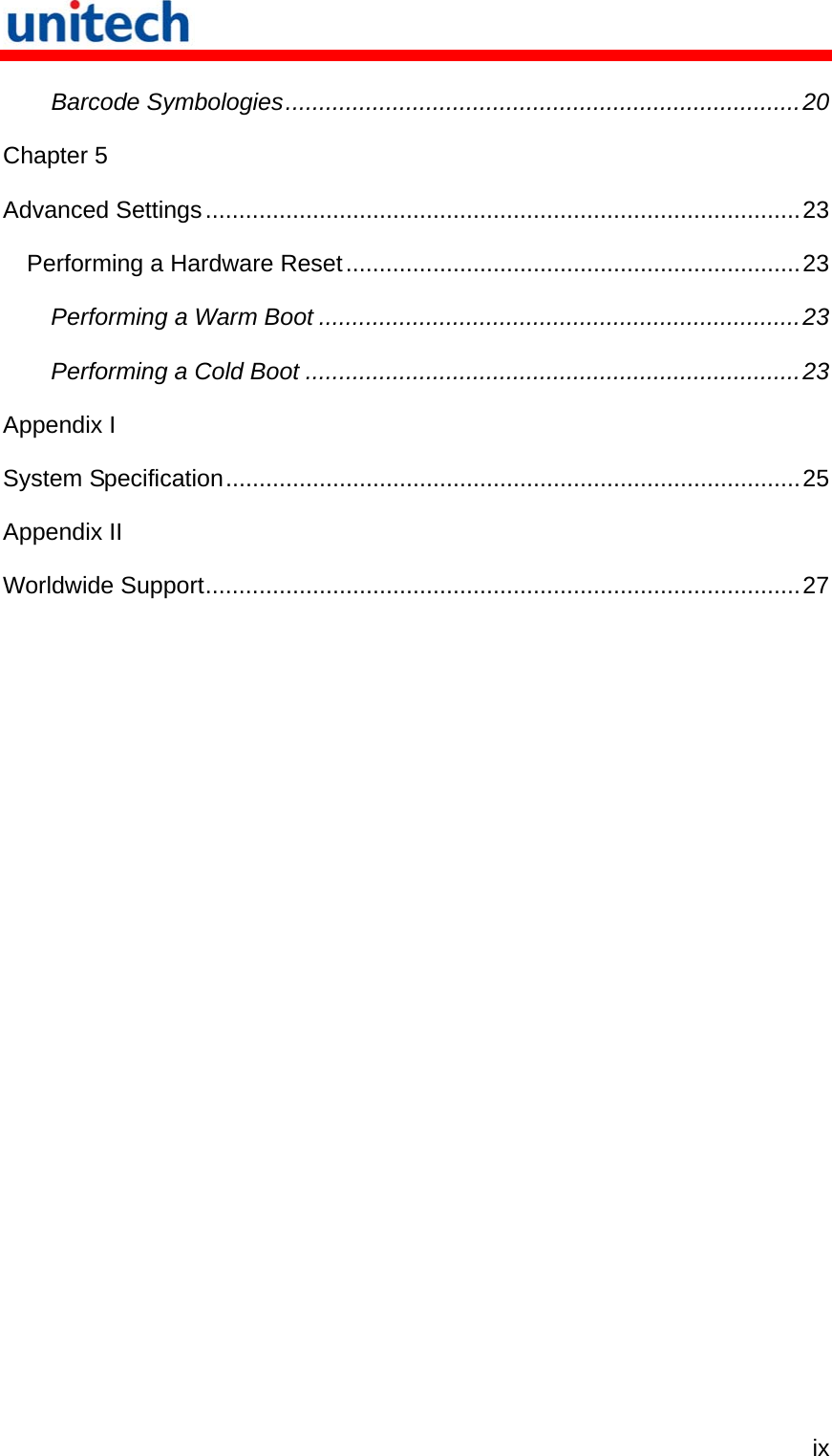

ix Barcode Symbologies.............................................................................20 Chapter 5 Advanced Settings.........................................................................................23 Performing a Hardware Reset....................................................................23 Performing a Warm Boot ........................................................................23 Performing a Cold Boot ..........................................................................23 Appendix I System Specification......................................................................................25 Appendix II Worldwide Support.........................................................................................27
x

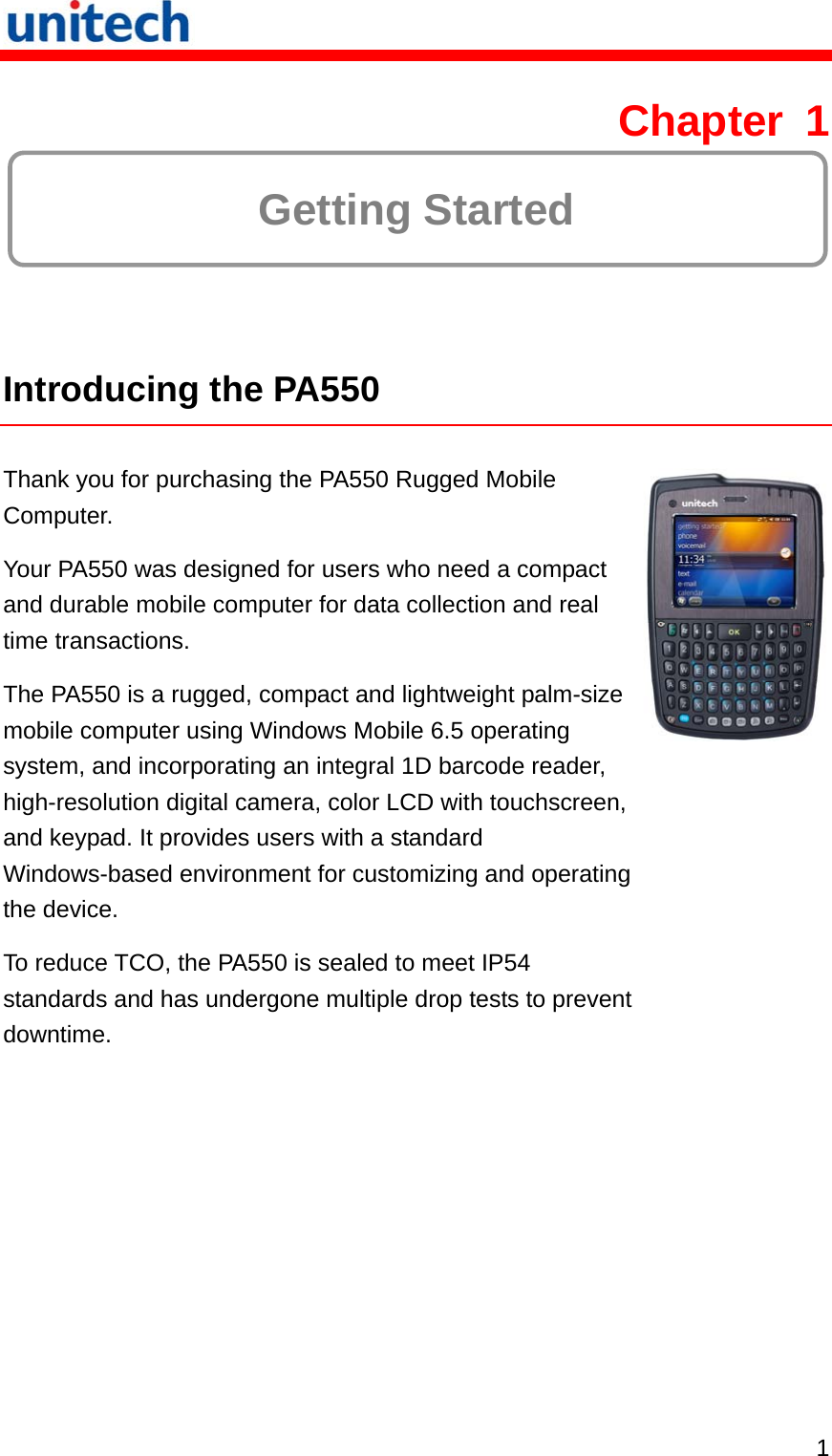

1 Chapter 1 Getting Started Introducing the PA550 Thank you for purchasing the PA550 Rugged Mobile Computer. Your PA550 was designed for users who need a compact and durable mobile computer for data collection and real time transactions. The PA550 is a rugged, compact and lightweight palm-size mobile computer using Windows Mobile 6.5 operating system, and incorporating an integral 1D barcode reader, high-resolution digital camera, color LCD with touchscreen, and keypad. It provides users with a standard Windows-based environment for customizing and operating the device. To reduce TCO, the PA550 is sealed to meet IP54 standards and has undergone multiple drop tests to prevent downtime.

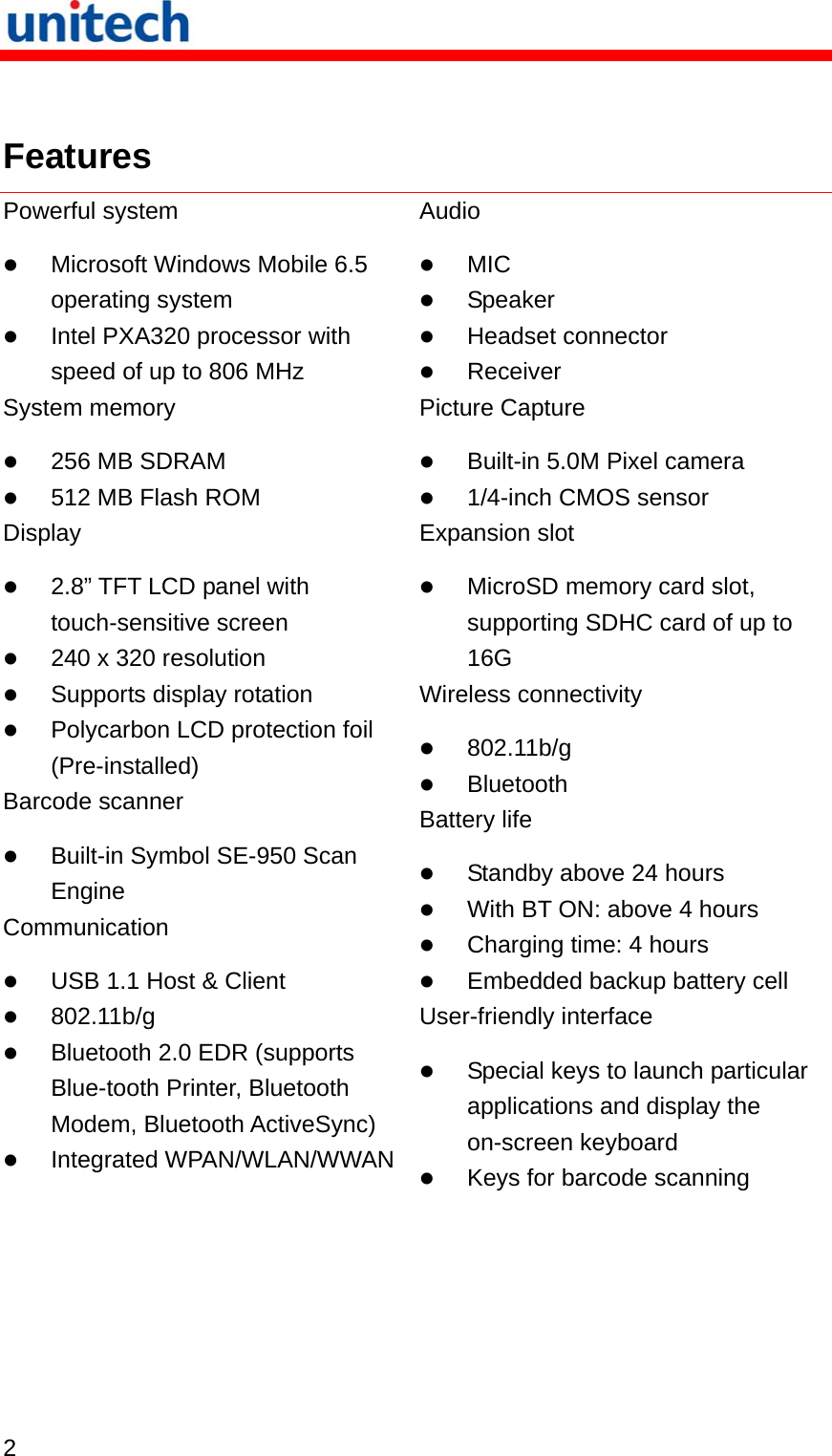

2 Features Powerful system  Microsoft Windows Mobile 6.5 operating system  Intel PXA320 processor with speed of up to 806 MHz System memory  256 MB SDRAM  512 MB Flash ROM Display  2.8” TFT LCD panel with touch-sensitive screen  240 x 320 resolution  Supports display rotation  Polycarbon LCD protection foil (Pre-installed) Barcode scanner  Built-in Symbol SE-950 Scan Engine Communication  USB 1.1 Host & Client  802.11b/g  Bluetooth 2.0 EDR (supports Blue-tooth Printer, Bluetooth Modem, Bluetooth ActiveSync)  Integrated WPAN/WLAN/WWAN Audio  MIC  Speaker  Headset connector  Receiver Picture Capture  Built-in 5.0M Pixel camera  1/4-inch CMOS sensor Expansion slot  MicroSD memory card slot, supporting SDHC card of up to 16G Wireless connectivity  802.11b/g  Bluetooth Battery life  Standby above 24 hours  With BT ON: above 4 hours  Charging time: 4 hours  Embedded backup battery cell User-friendly interface  Special keys to launch particular applications and display the on-screen keyboard  Keys for barcode scanning

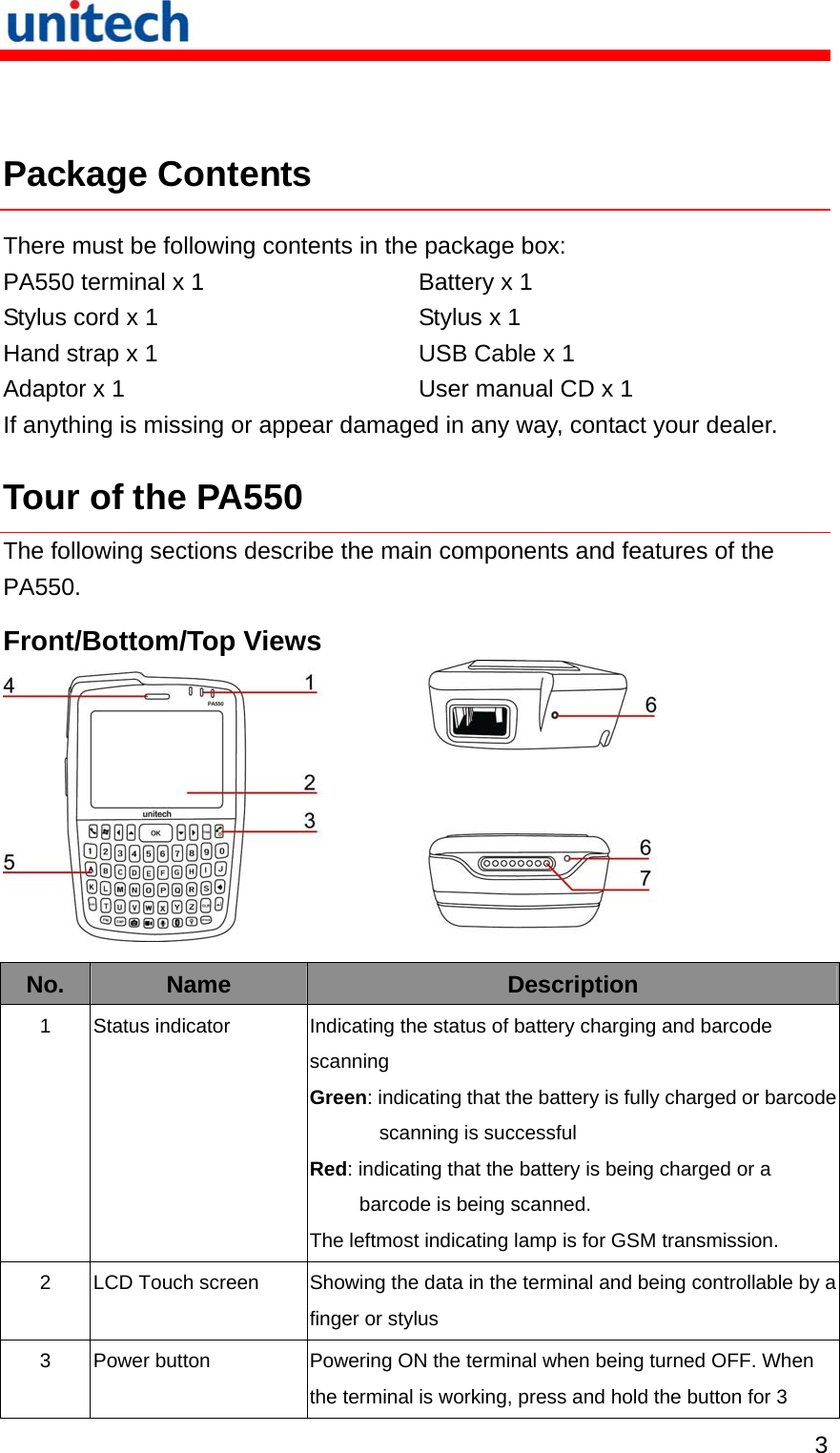

3 Package Contents There must be following contents in the package box: PA550 terminal x 1 Battery x 1 Stylus cord x 1 Stylus x 1 Hand strap x 1 USB Cable x 1 Adaptor x 1 User manual CD x 1 If anything is missing or appear damaged in any way, contact your dealer. Tour of the PA550 The following sections describe the main components and features of the PA550. Front/Bottom/Top Views No. Name Description 1 Status indicator Indicating the status of battery charging and barcode scanning Green: indicating that the battery is fully charged or barcode scanning is successful Red: indicating that the battery is being charged or a barcode is being scanned. The leftmost indicating lamp is for GSM transmission. 2 LCD Touch screen Showing the data in the terminal and being controllable by a finger or stylus 3 Power button Powering ON the terminal when being turned OFF. When the terminal is working, press and hold the button for 3

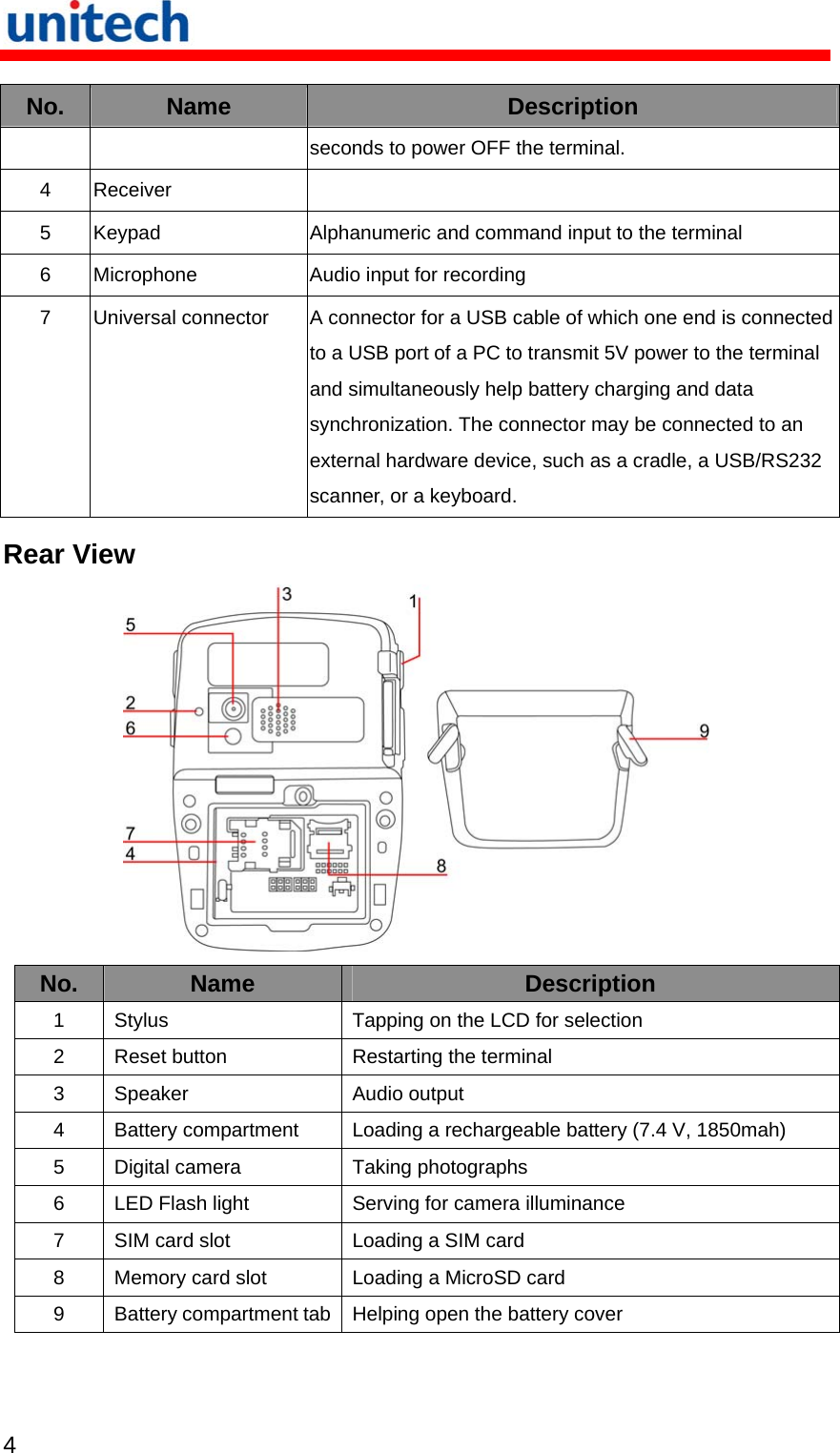

4 No. Name Description seconds to power OFF the terminal. 4 Receiver 5 Keypad Alphanumeric and command input to the terminal 6 Microphone Audio input for recording 7 Universal connector A connector for a USB cable of which one end is connected to a USB port of a PC to transmit 5V power to the terminal and simultaneously help battery charging and data synchronization. The connector may be connected to an external hardware device, such as a cradle, a USB/RS232 scanner, or a keyboard. Rear View No. Name Description 1 Stylus Tapping on the LCD for selection 2 Reset button Restarting the terminal 3 Speaker Audio output 4 Battery compartment Loading a rechargeable battery (7.4 V, 1850mah) 5 Digital camera Taking photographs 6 LED Flash light Serving for camera illuminance 7 SIM card slot Loading a SIM card 8 Memory card slot Loading a MicroSD card 9 Battery compartment tab Helping open the battery cover

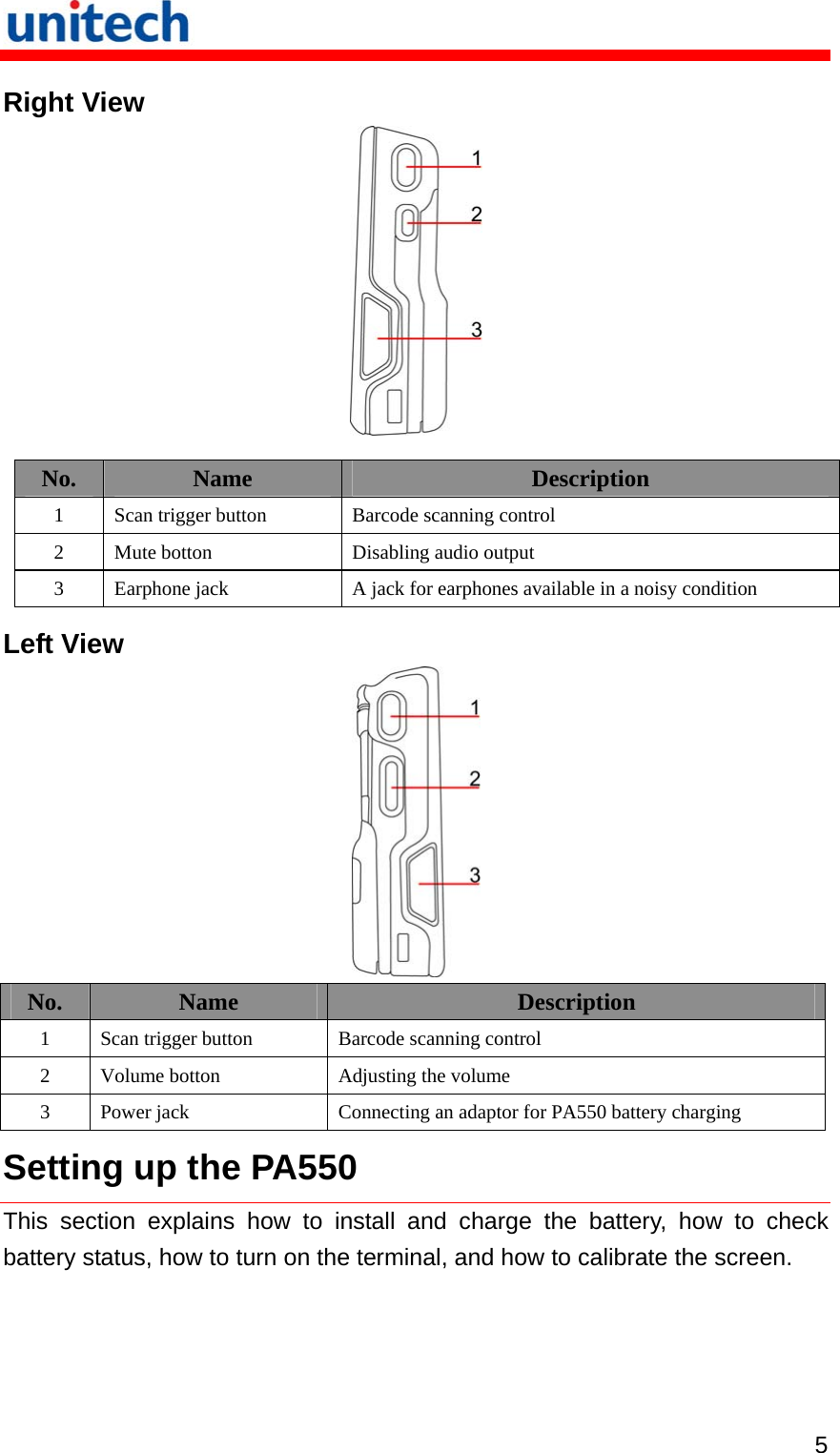

5 Right View No. Name Description 1 Scan trigger button Barcode scanning control 2 Mute botton Disabling audio output 3 Earphone jack A jack for earphones available in a noisy condition Left View No. Name Description 1 Scan trigger button Barcode scanning control 2 Volume botton Adjusting the volume 3 Power jack Connecting an adaptor for PA550 battery charging Setting up the PA550 This section explains how to install and charge the battery, how to check battery status, how to turn on the terminal, and how to calibrate the screen.

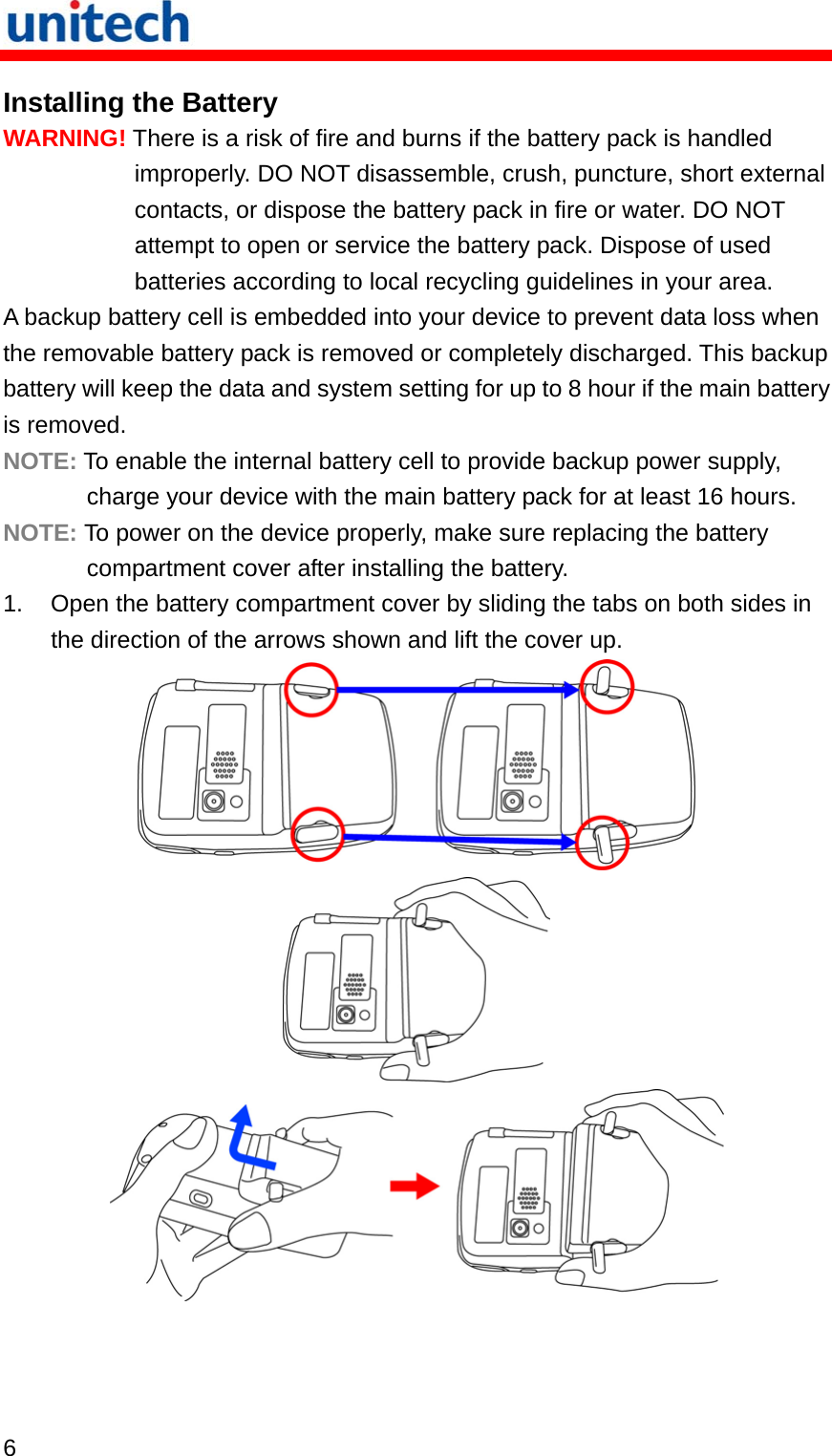

6 Installing the Battery WARNING! There is a risk of fire and burns if the battery pack is handled improperly. DO NOT disassemble, crush, puncture, short external contacts, or dispose the battery pack in fire or water. DO NOT attempt to open or service the battery pack. Dispose of used batteries according to local recycling guidelines in your area. A backup battery cell is embedded into your device to prevent data loss when the removable battery pack is removed or completely discharged. This backup battery will keep the data and system setting for up to 8 hour if the main battery is removed. NOTE: To enable the internal battery cell to provide backup power supply, charge your device with the main battery pack for at least 16 hours. NOTE: To power on the device properly, make sure replacing the battery compartment cover after installing the battery. 1. Open the battery compartment cover by sliding the tabs on both sides in the direction of the arrows shown and lift the cover up.

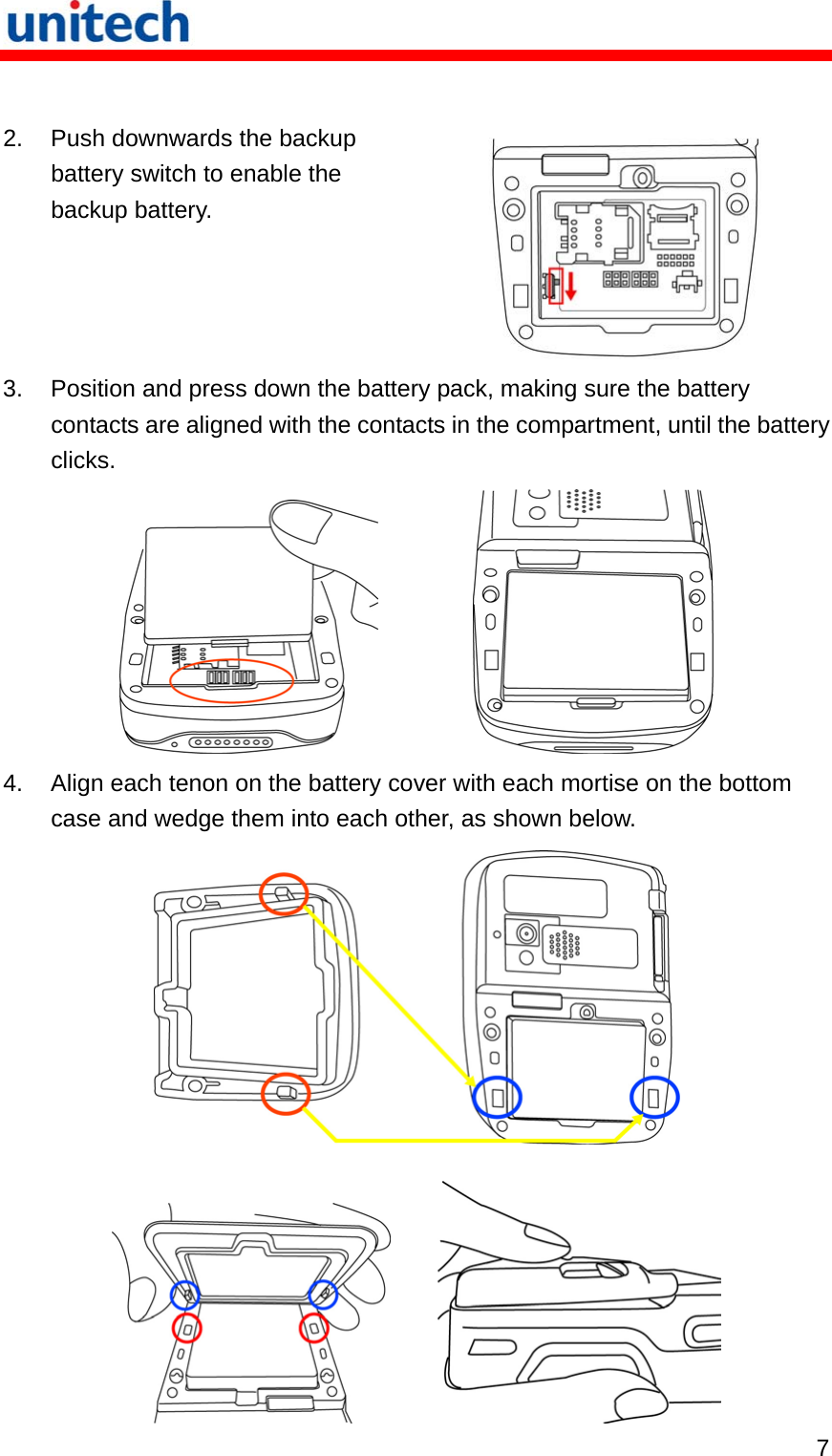

7 2. Push downwards the backup battery switch to enable the backup battery. 3. Position and press down the battery pack, making sure the battery contacts are aligned with the contacts in the compartment, until the battery clicks. 4. Align each tenon on the battery cover with each mortise on the bottom case and wedge them into each other, as shown below.

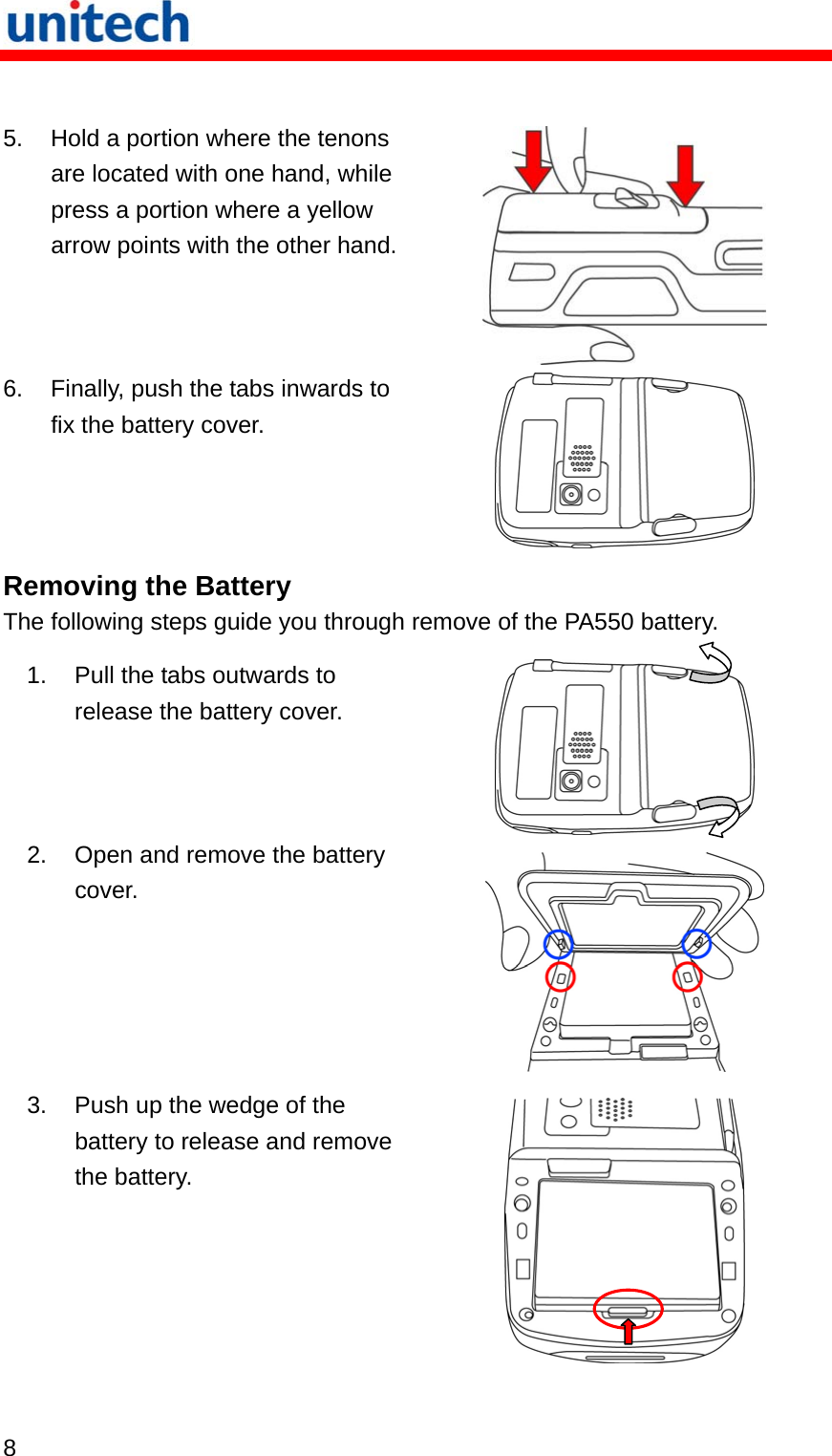

8 5. Hold a portion where the tenons are located with one hand, while press a portion where a yellow arrow points with the other hand. 6. Finally, push the tabs inwards to fix the battery cover. Removing the Battery The following steps guide you through remove of the PA550 battery. 1. Pull the tabs outwards to release the battery cover. 2. Open and remove the battery cover. 3. Push up the wedge of the battery to release and remove the battery.

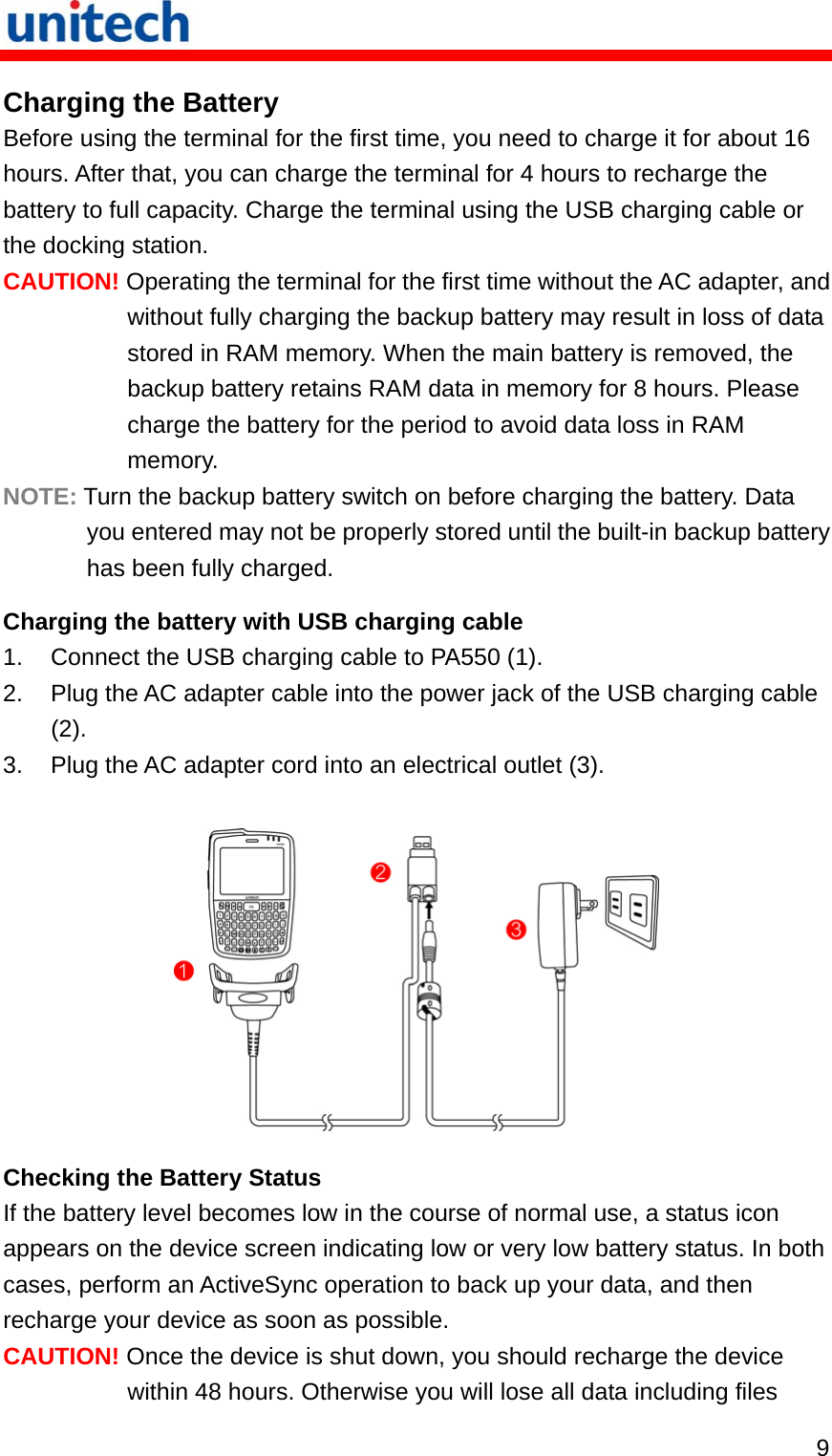

9 Charging the Battery Before using the terminal for the first time, you need to charge it for about 16 hours. After that, you can charge the terminal for 4 hours to recharge the battery to full capacity. Charge the terminal using the USB charging cable or the docking station. CAUTION! Operating the terminal for the first time without the AC adapter, and without fully charging the backup battery may result in loss of data stored in RAM memory. When the main battery is removed, the backup battery retains RAM data in memory for 8 hours. Please charge the battery for the period to avoid data loss in RAM memory. NOTE: Turn the backup battery switch on before charging the battery. Data you entered may not be properly stored until the built-in backup battery has been fully charged. Charging the battery with USB charging cable 1. Connect the USB charging cable to PA550 (1). 2. Plug the AC adapter cable into the power jack of the USB charging cable (2). 3. Plug the AC adapter cord into an electrical outlet (3). Checking the Battery Status If the battery level becomes low in the course of normal use, a status icon appears on the device screen indicating low or very low battery status. In both cases, perform an ActiveSync operation to back up your data, and then recharge your device as soon as possible. CAUTION! Once the device is shut down, you should recharge the device within 48 hours. Otherwise you will lose all data including files

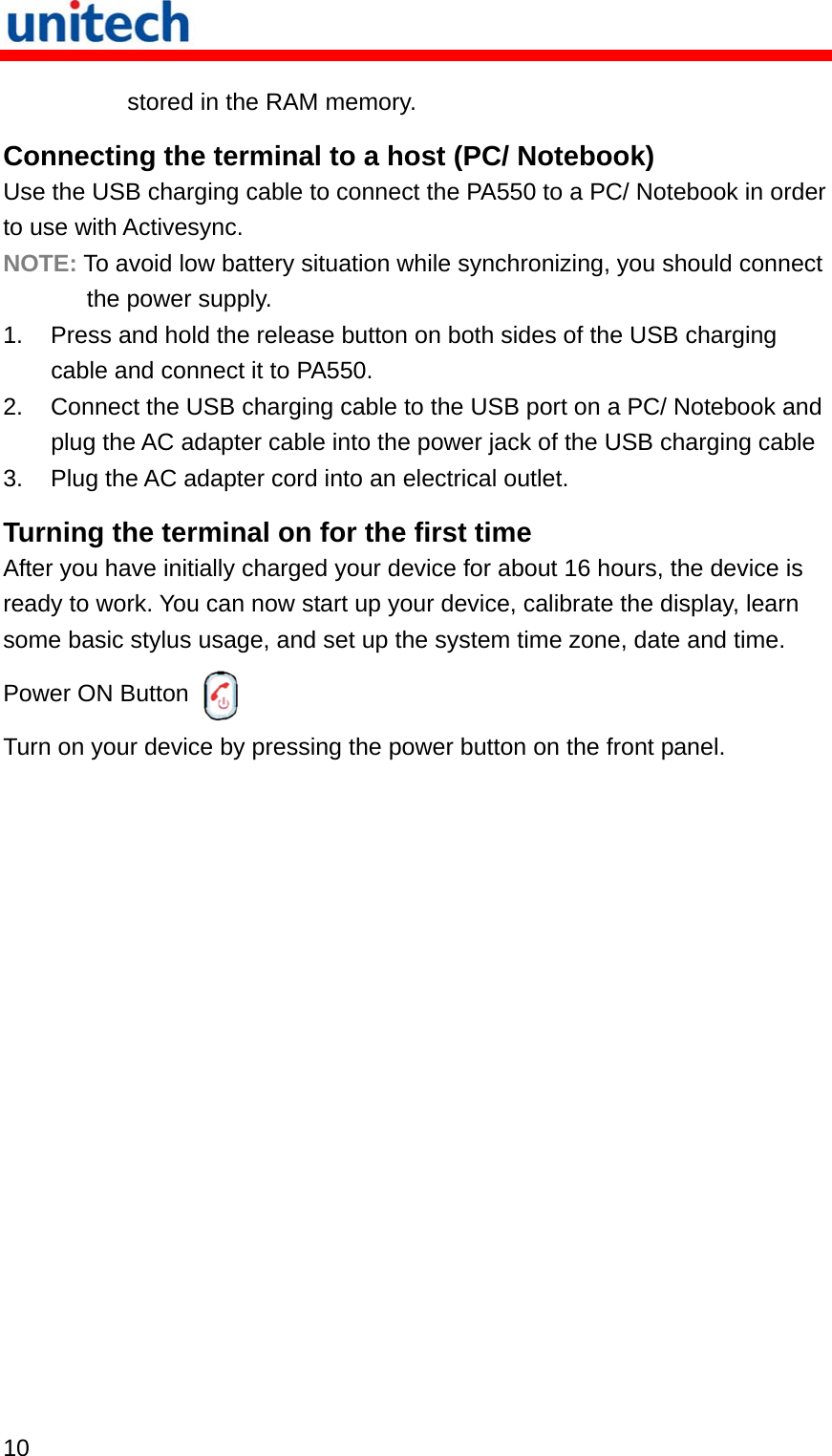

10 stored in the RAM memory. Connecting the terminal to a host (PC/ Notebook) Use the USB charging cable to connect the PA550 to a PC/ Notebook in order to use with Activesync. NOTE: To avoid low battery situation while synchronizing, you should connect the power supply. 1. Press and hold the release button on both sides of the USB charging cable and connect it to PA550. 2. Connect the USB charging cable to the USB port on a PC/ Notebook and plug the AC adapter cable into the power jack of the USB charging cable 3. Plug the AC adapter cord into an electrical outlet. Turning the terminal on for the first time After you have initially charged your device for about 16 hours, the device is ready to work. You can now start up your device, calibrate the display, learn some basic stylus usage, and set up the system time zone, date and time. Power ON Button Turn on your device by pressing the power button on the front panel.

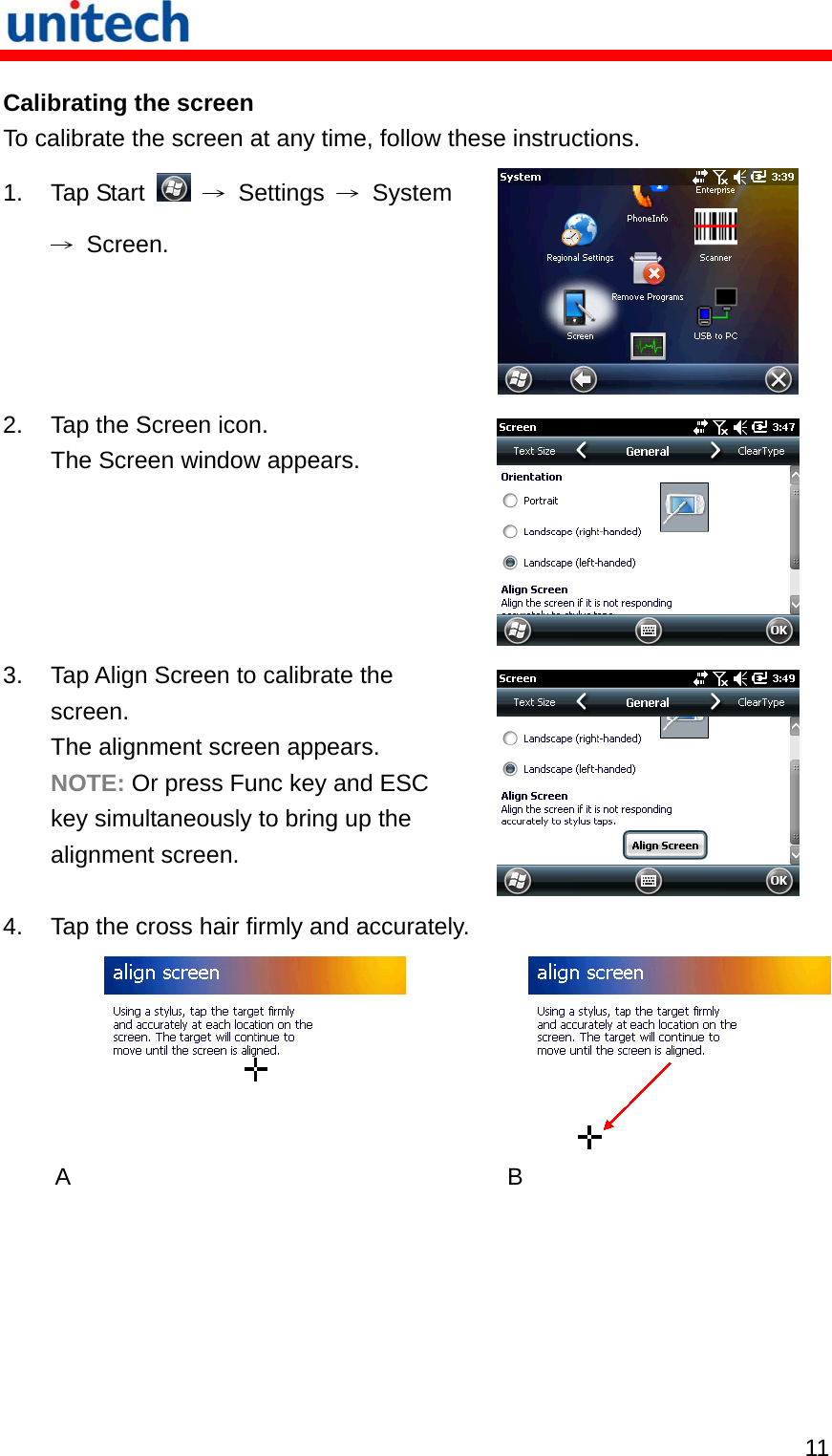

11 Calibrating the screen To calibrate the screen at any time, follow these instructions. 1. Tap Start → Settings →System → Screen. 2. Tap the Screen icon. The Screen window appears. 3. Tap Align Screen to calibrate the screen. The alignment screen appears. NOTE: Or press Func key and ESC key simultaneously to bring up the alignment screen. 4. Tap the cross hair firmly and accurately. A B

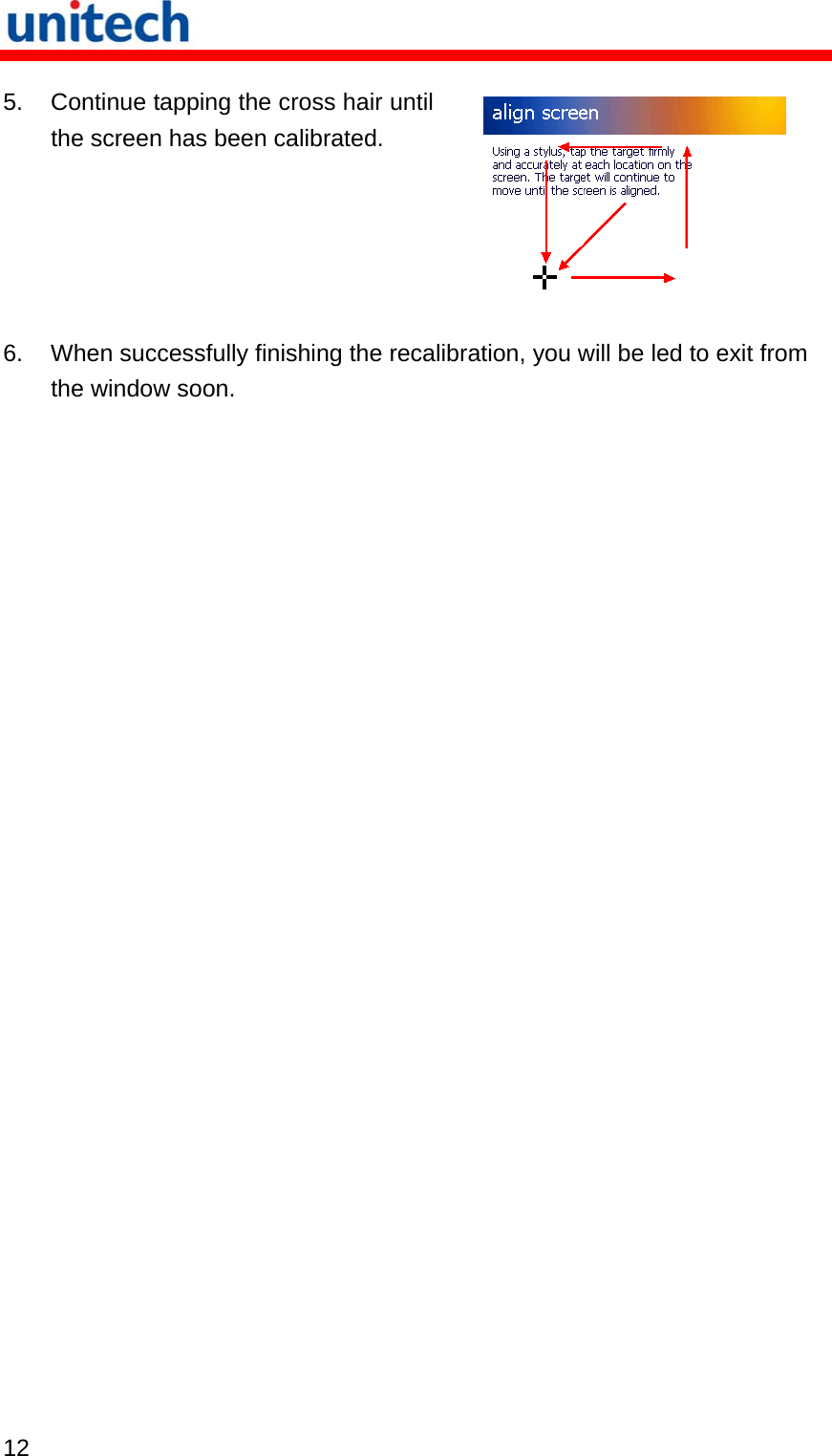

12 5. Continue tapping the cross hair until the screen has been calibrated. 6. When successfully finishing the recalibration, you will be led to exit from the window soon.

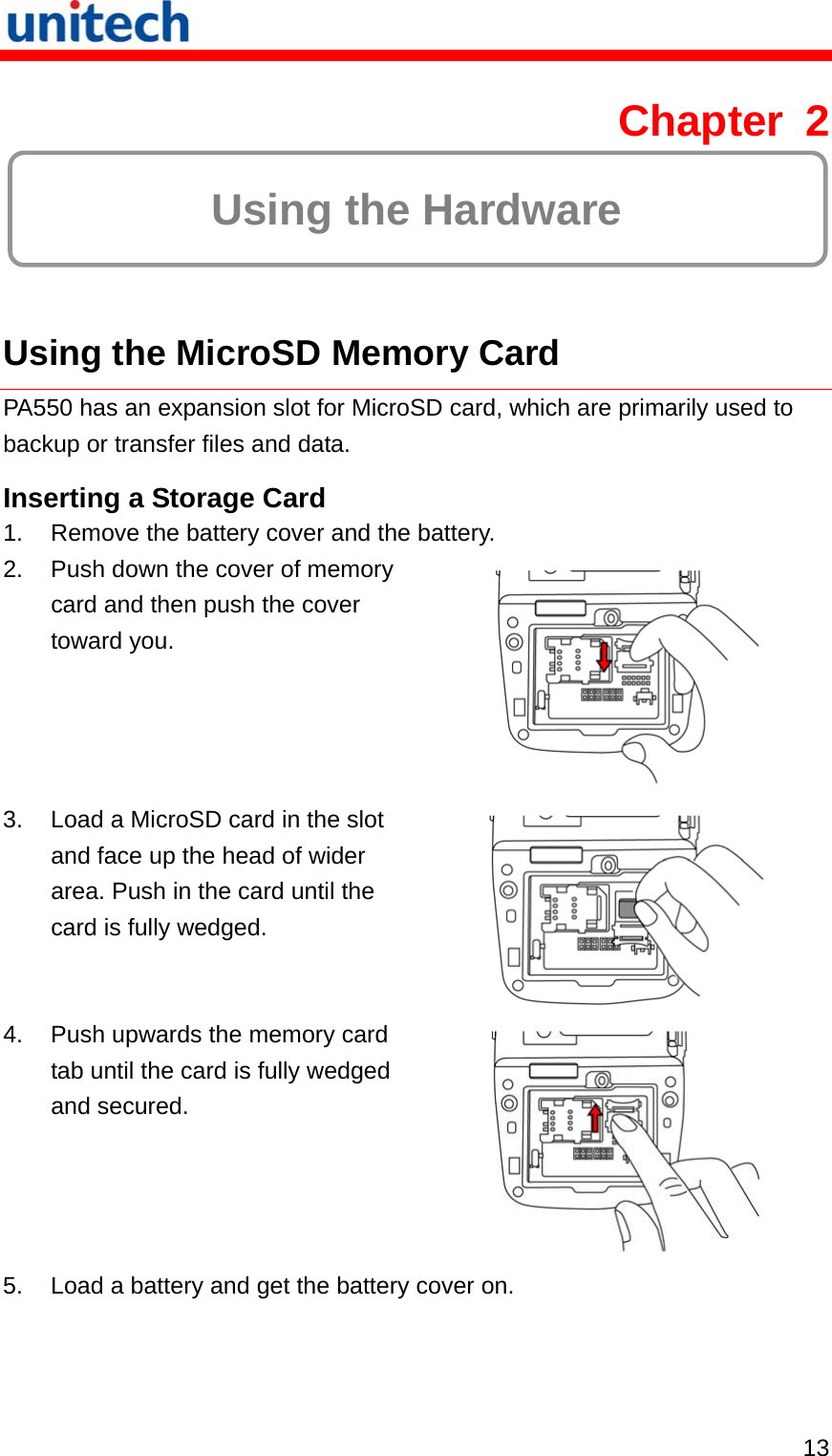

13 Chapter 2 Using the Hardware Using the MicroSD Memory Card PA550 has an expansion slot for MicroSD card, which are primarily used to backup or transfer files and data. Inserting a Storage Card 1. Remove the battery cover and the battery. 2. Push down the cover of memory card and then push the cover toward you. 3. Load a MicroSD card in the slot and face up the head of wider area. Push in the card until the card is fully wedged. 4. Push upwards the memory card tab until the card is fully wedged and secured. 5. Load a battery and get the battery cover on.

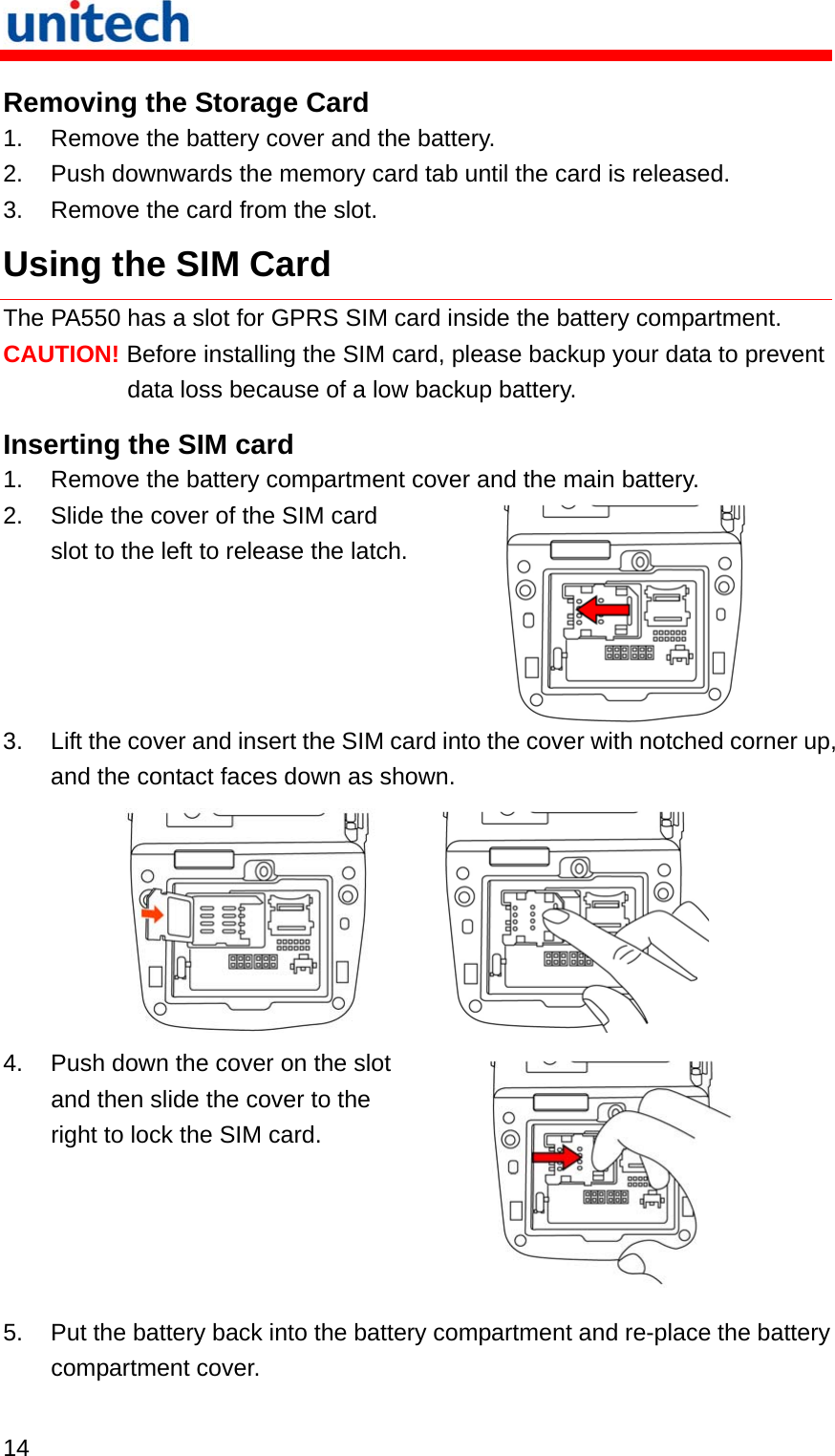

14 Removing the Storage Card 1. Remove the battery cover and the battery. 2. Push downwards the memory card tab until the card is released. 3. Remove the card from the slot. Using the SIM Card The PA550 has a slot for GPRS SIM card inside the battery compartment. CAUTION! Before installing the SIM card, please backup your data to prevent data loss because of a low backup battery. Inserting the SIM card 1. Remove the battery compartment cover and the main battery. 2. Slide the cover of the SIM card slot to the left to release the latch. 3. Lift the cover and insert the SIM card into the cover with notched corner up, and the contact faces down as shown. 4. Push down the cover on the slot and then slide the cover to the right to lock the SIM card. 5. Put the battery back into the battery compartment and re-place the battery compartment cover.

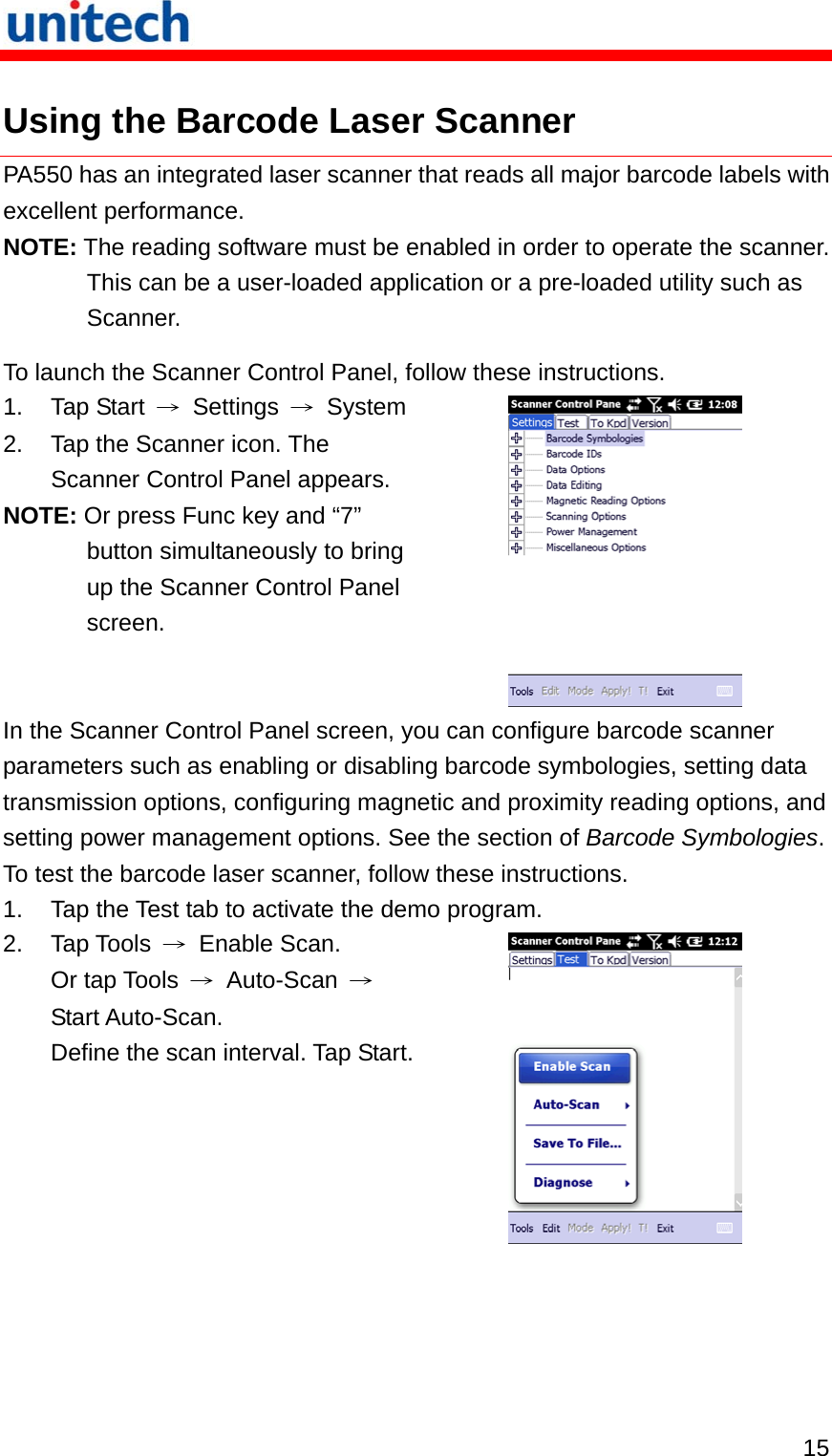

15 Using the Barcode Laser Scanner PA550 has an integrated laser scanner that reads all major barcode labels with excellent performance. NOTE: The reading software must be enabled in order to operate the scanner. This can be a user-loaded application or a pre-loaded utility such as Scanner. To launch the Scanner Control Panel, follow these instructions. 1. Tap Start → Settings → System2. Tap the Scanner icon. The Scanner Control Panel appears. NOTE: Or press Func key and “7” button simultaneously to bring up the Scanner Control Panel screen. In the Scanner Control Panel screen, you can configure barcode scanner parameters such as enabling or disabling barcode symbologies, setting data transmission options, configuring magnetic and proximity reading options, and setting power management options. See the section of Barcode Symbologies. To test the barcode laser scanner, follow these instructions. 1. Tap the Test tab to activate the demo program. 2. Tap Tools → Enable Scan. Or tap Tools → Auto-Scan → Start Auto-Scan. Define the scan interval. Tap Start.

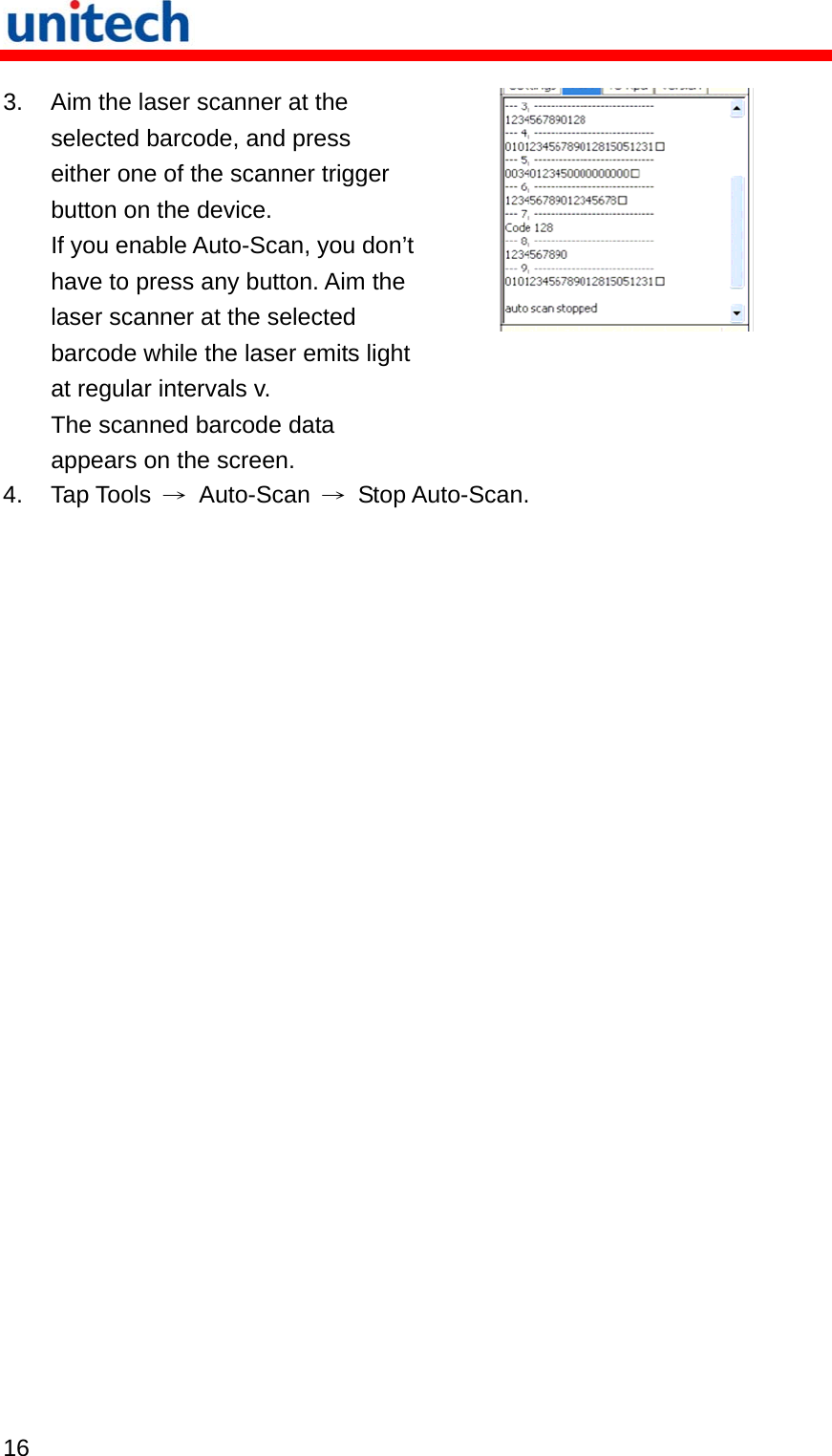

16 3. Aim the laser scanner at the selected barcode, and press either one of the scanner trigger button on the device. If you enable Auto-Scan, you don’t have to press any button. Aim the laser scanner at the selected barcode while the laser emits light at regular intervals v. The scanned barcode data appears on the screen. 4. Tap Tools → Auto-Scan → Stop Auto-Scan.

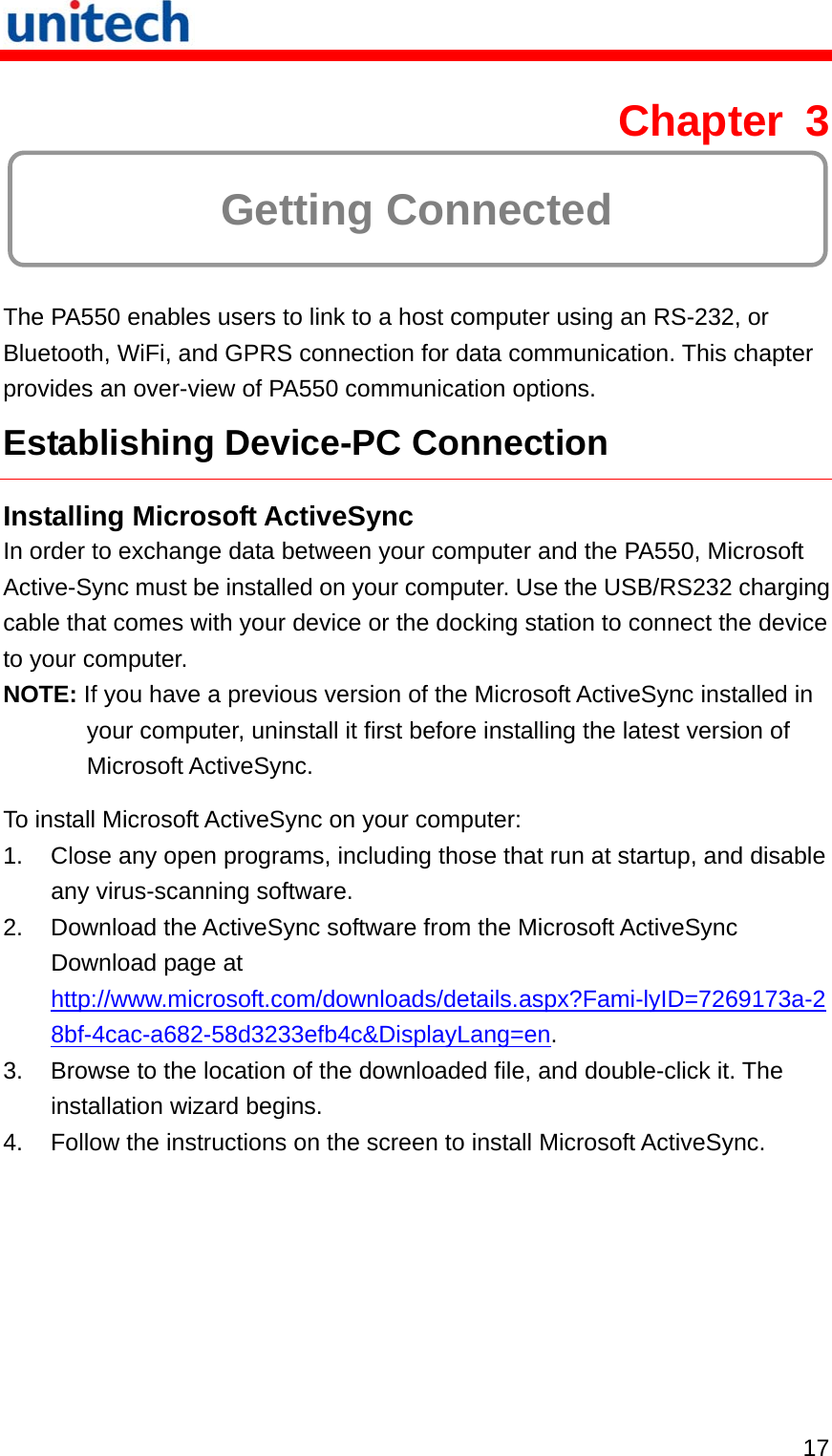

17 Chapter 3 Getting Connected The PA550 enables users to link to a host computer using an RS-232, or Bluetooth, WiFi, and GPRS connection for data communication. This chapter provides an over-view of PA550 communication options. Establishing Device-PC Connection Installing Microsoft ActiveSync In order to exchange data between your computer and the PA550, Microsoft Active-Sync must be installed on your computer. Use the USB/RS232 charging cable that comes with your device or the docking station to connect the device to your computer. NOTE: If you have a previous version of the Microsoft ActiveSync installed in your computer, uninstall it first before installing the latest version of Microsoft ActiveSync. To install Microsoft ActiveSync on your computer: 1. Close any open programs, including those that run at startup, and disable any virus-scanning software. 2. Download the ActiveSync software from the Microsoft ActiveSync Download page at http://www.microsoft.com/downloads/details.aspx?Fami-lyID=7269173a-28bf-4cac-a682-58d3233efb4c&DisplayLang=en. 3. Browse to the location of the downloaded file, and double-click it. The installation wizard begins. 4. Follow the instructions on the screen to install Microsoft ActiveSync.

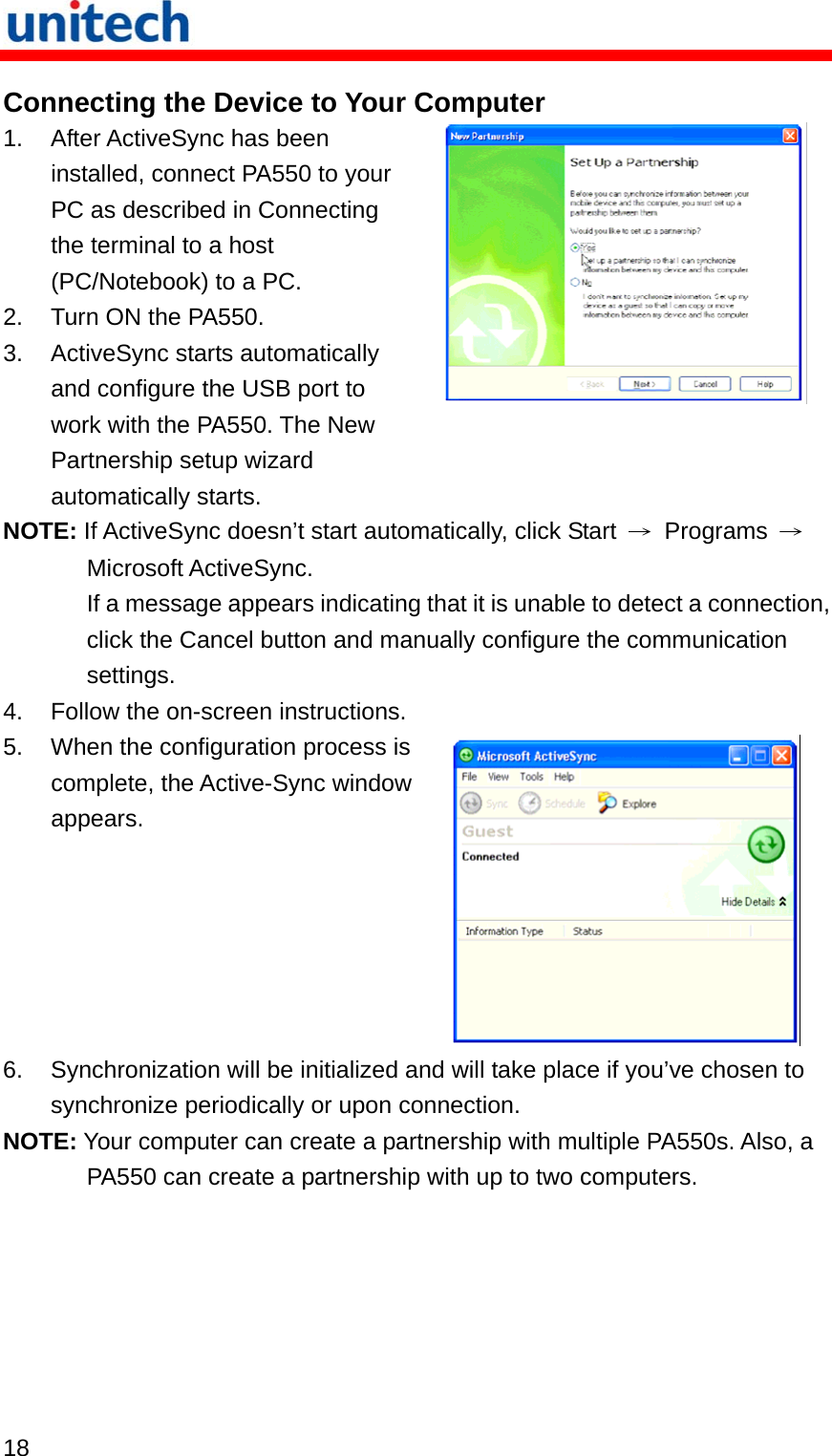

18 Connecting the Device to Your Computer 1. After ActiveSync has been installed, connect PA550 to your PC as described in Connecting the terminal to a host (PC/Notebook) to a PC. 2. Turn ON the PA550. 3. ActiveSync starts automatically and configure the USB port to work with the PA550. The New Partnership setup wizard automatically starts. NOTE: If ActiveSync doesn’t start automatically, click Start → Programs → Microsoft ActiveSync. If a message appears indicating that it is unable to detect a connection, click the Cancel button and manually configure the communication settings. 4. Follow the on-screen instructions. 5. When the configuration process is complete, the Active-Sync window appears. 6. Synchronization will be initialized and will take place if you’ve chosen to synchronize periodically or upon connection. NOTE: Your computer can create a partnership with multiple PA550s. Also, a PA550 can create a partnership with up to two computers.

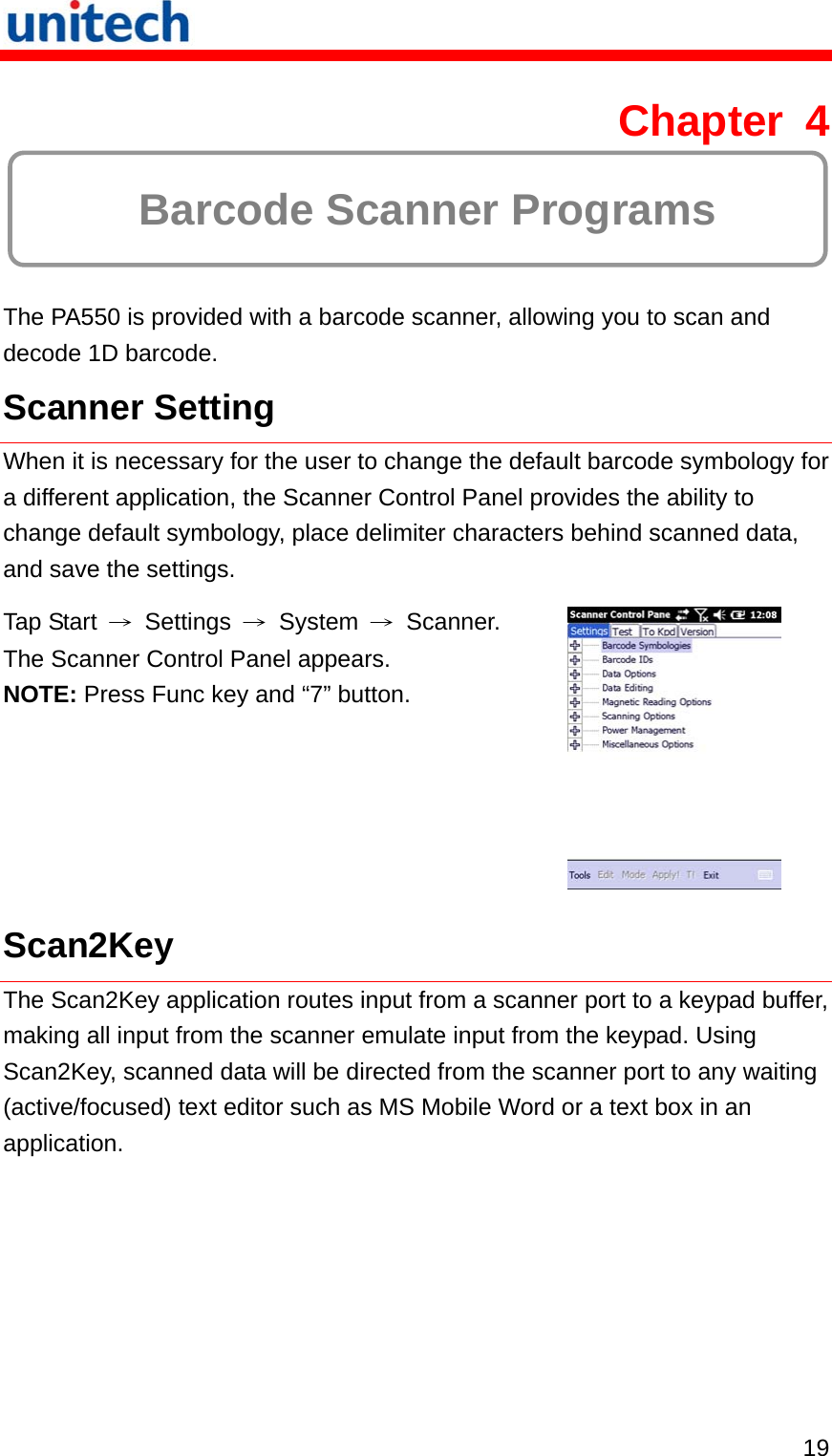

19 Chapter 4 Barcode Scanner Programs The PA550 is provided with a barcode scanner, allowing you to scan and decode 1D barcode. Scanner Setting When it is necessary for the user to change the default barcode symbology for a different application, the Scanner Control Panel provides the ability to change default symbology, place delimiter characters behind scanned data, and save the settings. Tap Start → Settings → System → Scanner. The Scanner Control Panel appears. NOTE: Press Func key and “7” button. Scan2Key The Scan2Key application routes input from a scanner port to a keypad buffer, making all input from the scanner emulate input from the keypad. Using Scan2Key, scanned data will be directed from the scanner port to any waiting (active/focused) text editor such as MS Mobile Word or a text box in an application.

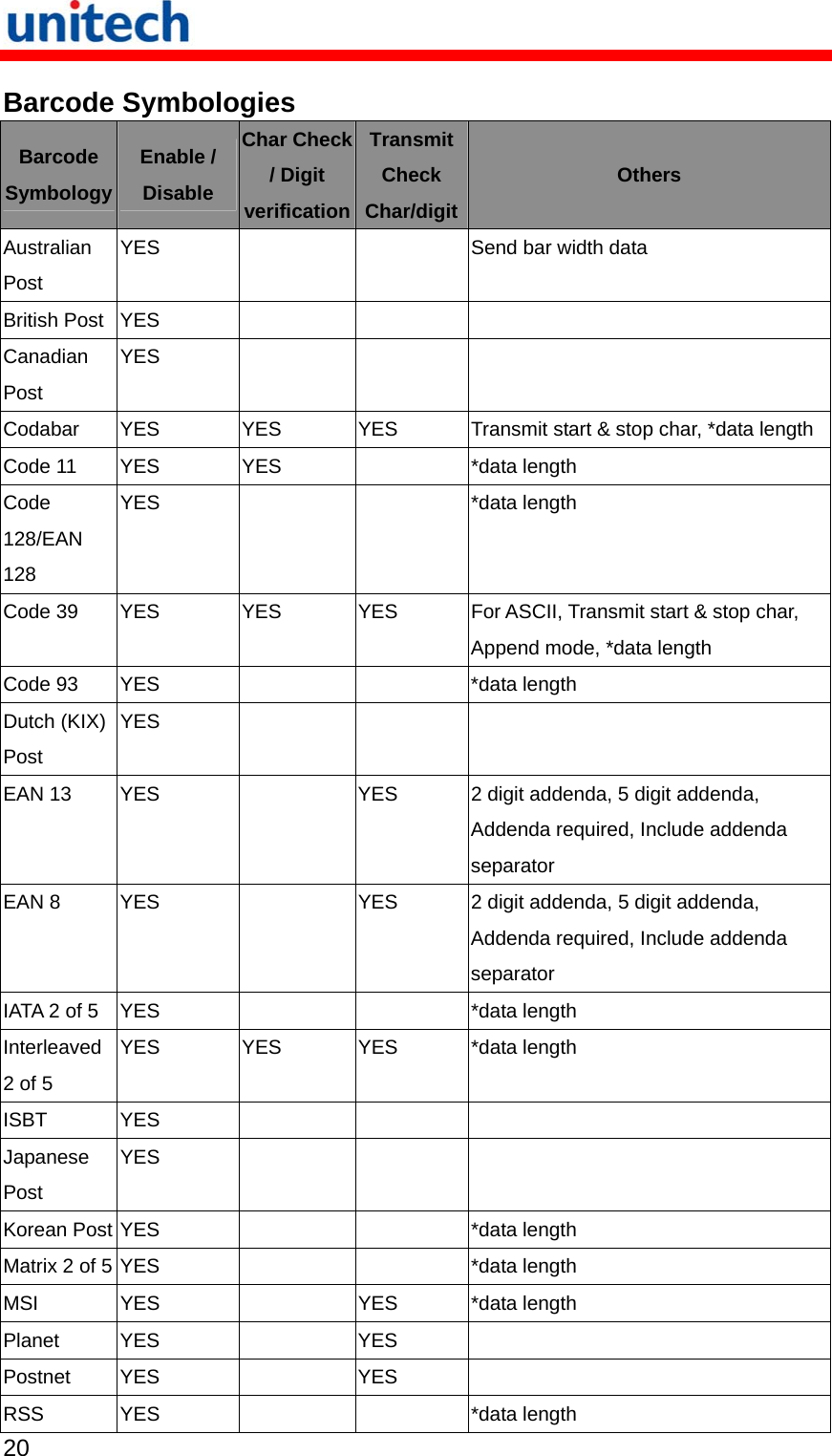

20 Barcode Symbologies Barcode Symbology Enable / Disable Char Check / Digit verificationTransmit Check Char/digitOthers Australian Post YES Send bar width data British Post YES Canadian Post YES Codabar YES YES YES Transmit start & stop char, *data lengthCode 11 YES YES *data length Code 128/EAN 128 YES *data length Code 39 YES YES YES For ASCII, Transmit start & stop char, Append mode, *data length Code 93 YES *data length Dutch (KIX) Post YES EAN 13 YES YES 2 digit addenda, 5 digit addenda, Addenda required, Include addenda separator EAN 8 YES YES 2 digit addenda, 5 digit addenda, Addenda required, Include addenda separator IATA 2 of 5 YES *data length Interleaved 2 of 5 YES YES YES *data length ISBT YES Japanese Post YES Korean Post YES *data length Matrix 2 of 5 YES *data length MSI YES YES *data length Planet YES YES Postnet YES YES RSS YES *data length

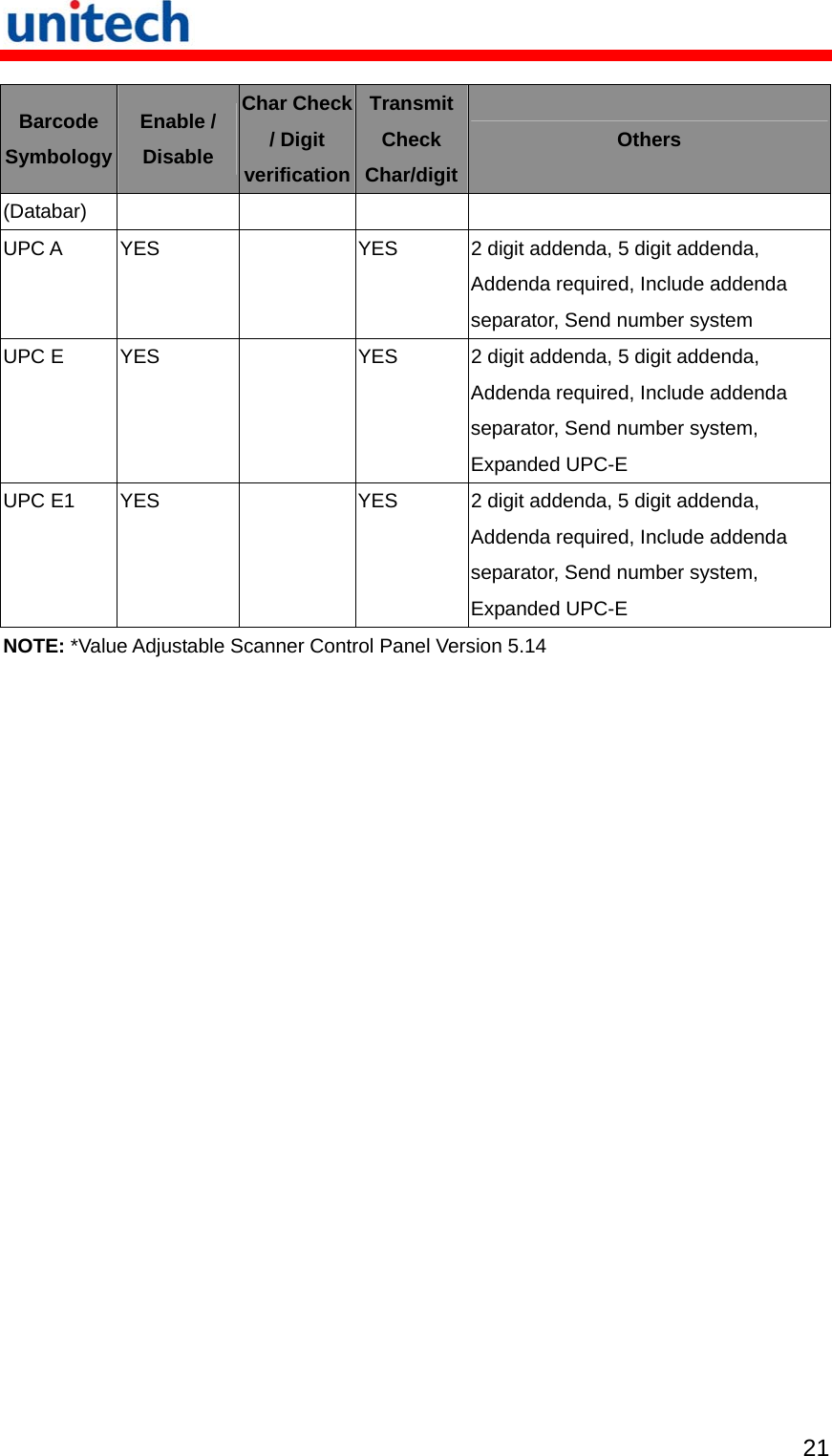

21 Barcode Symbology Enable / Disable Char Check / Digit verificationTransmit Check Char/digitOthers (Databar) UPC A YES YES 2 digit addenda, 5 digit addenda, Addenda required, Include addenda separator, Send number system UPC E YES YES 2 digit addenda, 5 digit addenda, Addenda required, Include addenda separator, Send number system, Expanded UPC-E UPC E1 YES YES 2 digit addenda, 5 digit addenda, Addenda required, Include addenda separator, Send number system, Expanded UPC-E NOTE: *Value Adjustable Scanner Control Panel Version 5.14
22

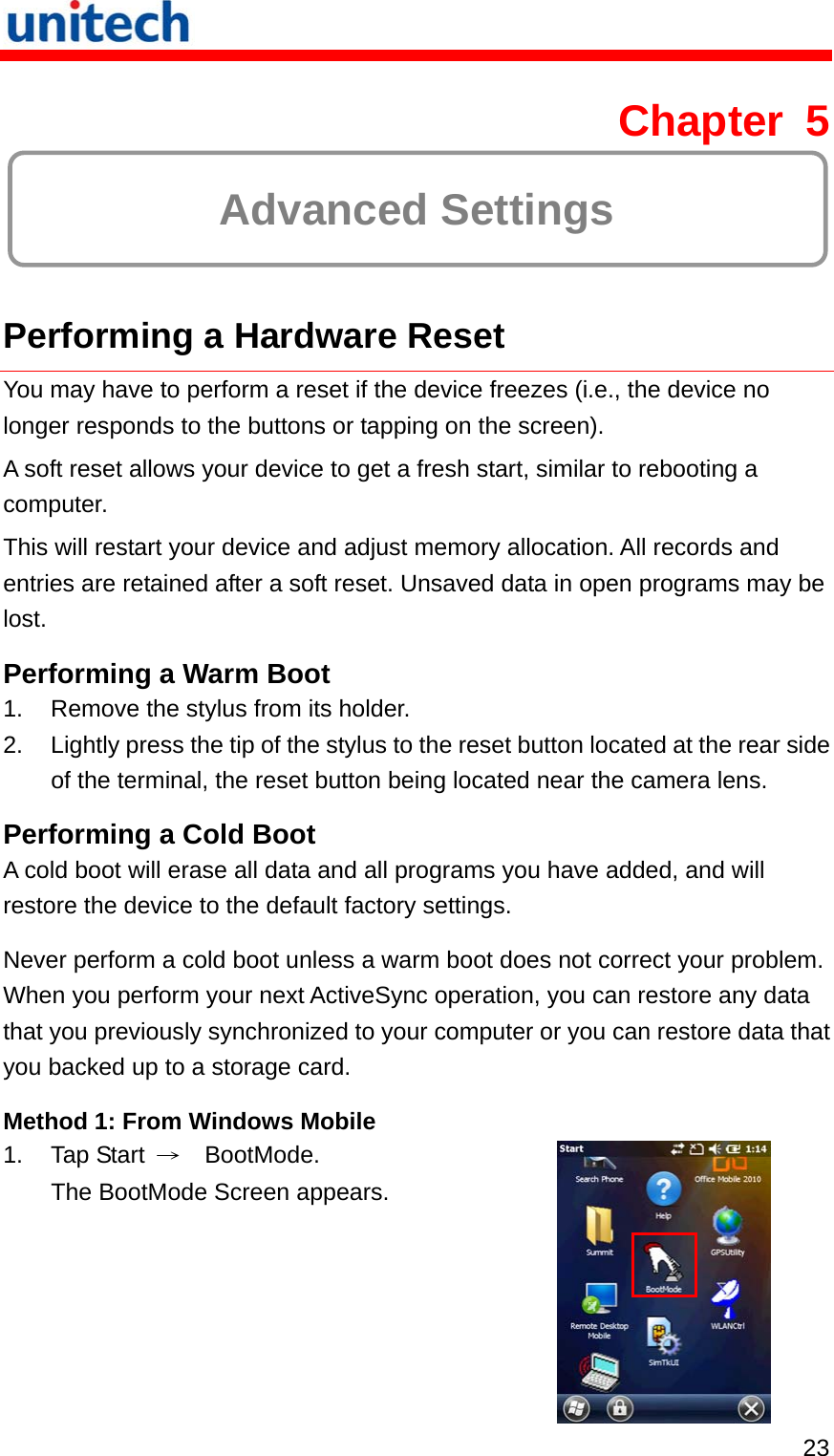

23 Chapter 5 Advanced Settings Performing a Hardware Reset You may have to perform a reset if the device freezes (i.e., the device no longer responds to the buttons or tapping on the screen). A soft reset allows your device to get a fresh start, similar to rebooting a computer. This will restart your device and adjust memory allocation. All records and entries are retained after a soft reset. Unsaved data in open programs may be lost. Performing a Warm Boot 1. Remove the stylus from its holder. 2. Lightly press the tip of the stylus to the reset button located at the rear side of the terminal, the reset button being located near the camera lens. Performing a Cold Boot A cold boot will erase all data and all programs you have added, and will restore the device to the default factory settings. Never perform a cold boot unless a warm boot does not correct your problem. When you perform your next ActiveSync operation, you can restore any data that you previously synchronized to your computer or you can restore data that you backed up to a storage card. Method 1: From Windows Mobile 1. Tap Start → BootMode. The BootMode Screen appears.

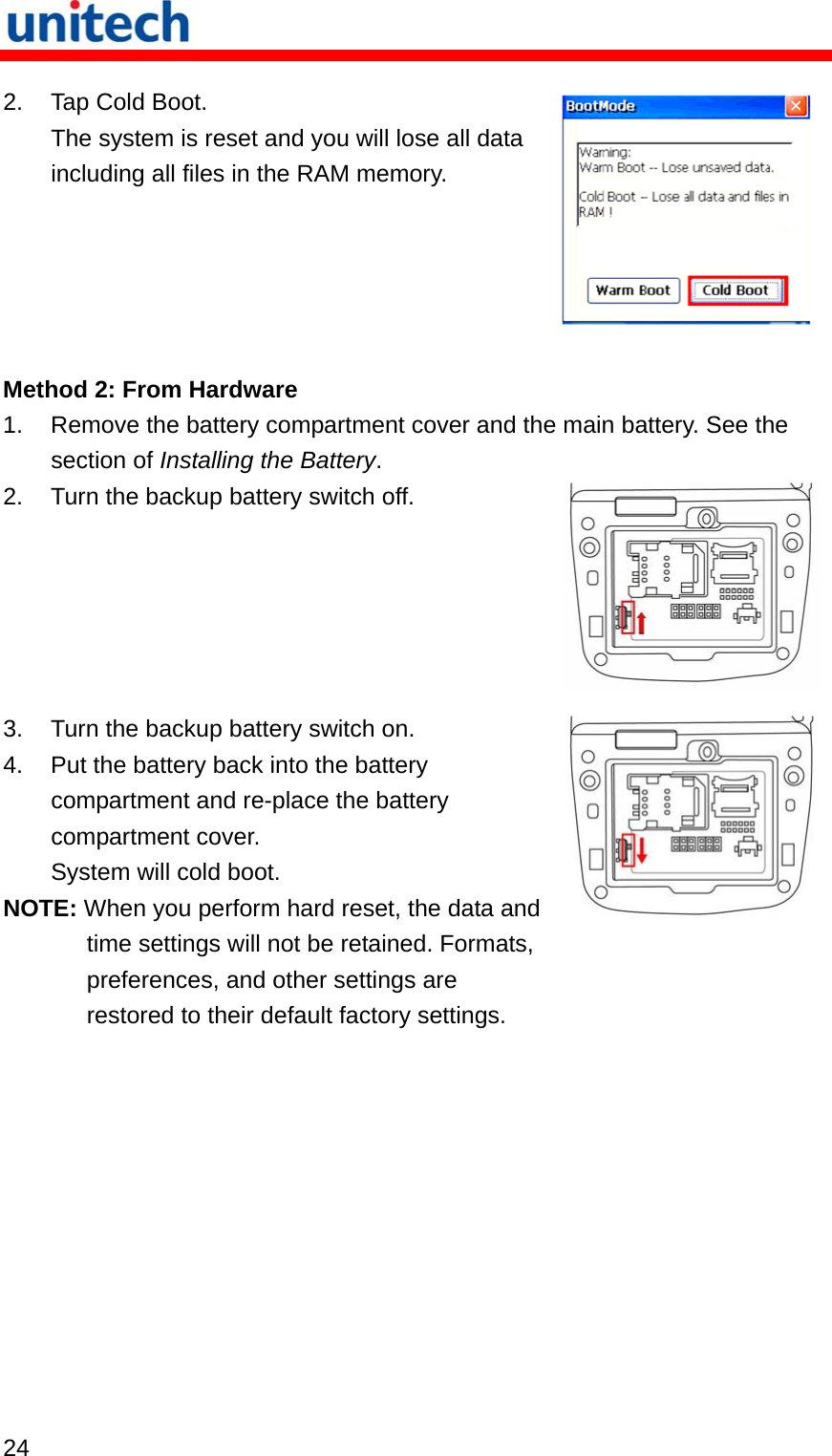

24 2. Tap Cold Boot. The system is reset and you will lose all data including all files in the RAM memory. Method 2: From Hardware 1. Remove the battery compartment cover and the main battery. See the section of Installing the Battery. 2. Turn the backup battery switch off. 3. Turn the backup battery switch on. 4. Put the battery back into the battery compartment and re-place the battery compartment cover. System will cold boot. NOTE: When you perform hard reset, the data and time settings will not be retained. Formats, preferences, and other settings are restored to their default factory settings.

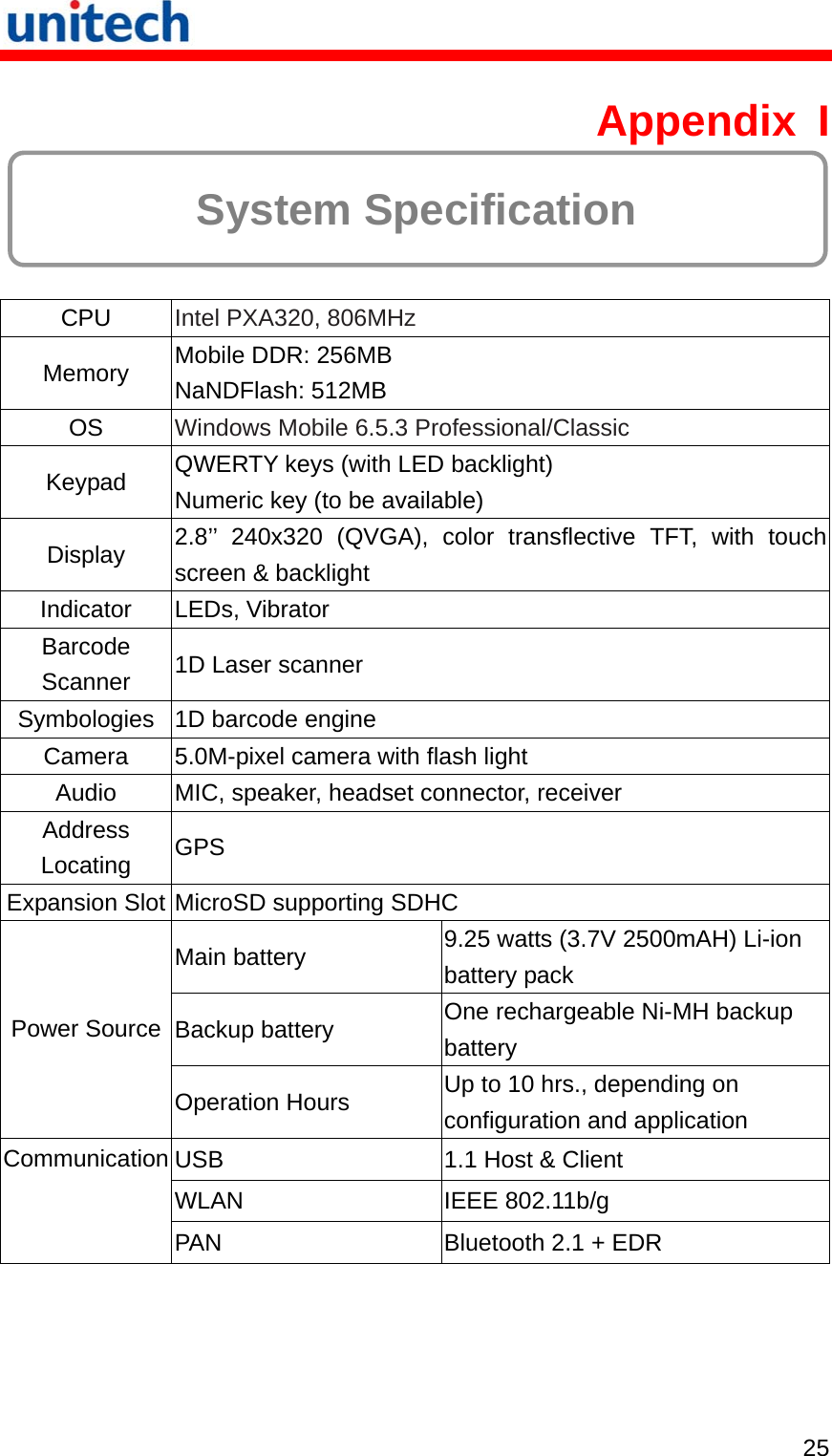

25 Appendix I System Specification CPU Intel PXA320, 806MHz Memory Mobile DDR: 256MB NaNDFlash: 512MB OS Windows Mobile 6.5.3 Professional/Classic Keypad QWERTY keys (with LED backlight) Numeric key (to be available) Display 2.8’’ 240x320 (QVGA), color transflective TFT, with touch screen & backlight Indicator LEDs, Vibrator Barcode Scanner 1D Laser scanner Symbologies 1D barcode engine Camera 5.0M-pixel camera with flash light Audio MIC, speaker, headset connector, receiver Address Locating GPS Expansion Slot MicroSD supporting SDHC Main battery 9.25 watts (3.7V 2500mAH) Li-ion battery pack Backup battery One rechargeable Ni-MH backup battery Power Source Operation Hours Up to 10 hrs., depending on configuration and application USB 1.1 Host & Client WLAN IEEE 802.11b/g Communication PAN Bluetooth 2.1 + EDR

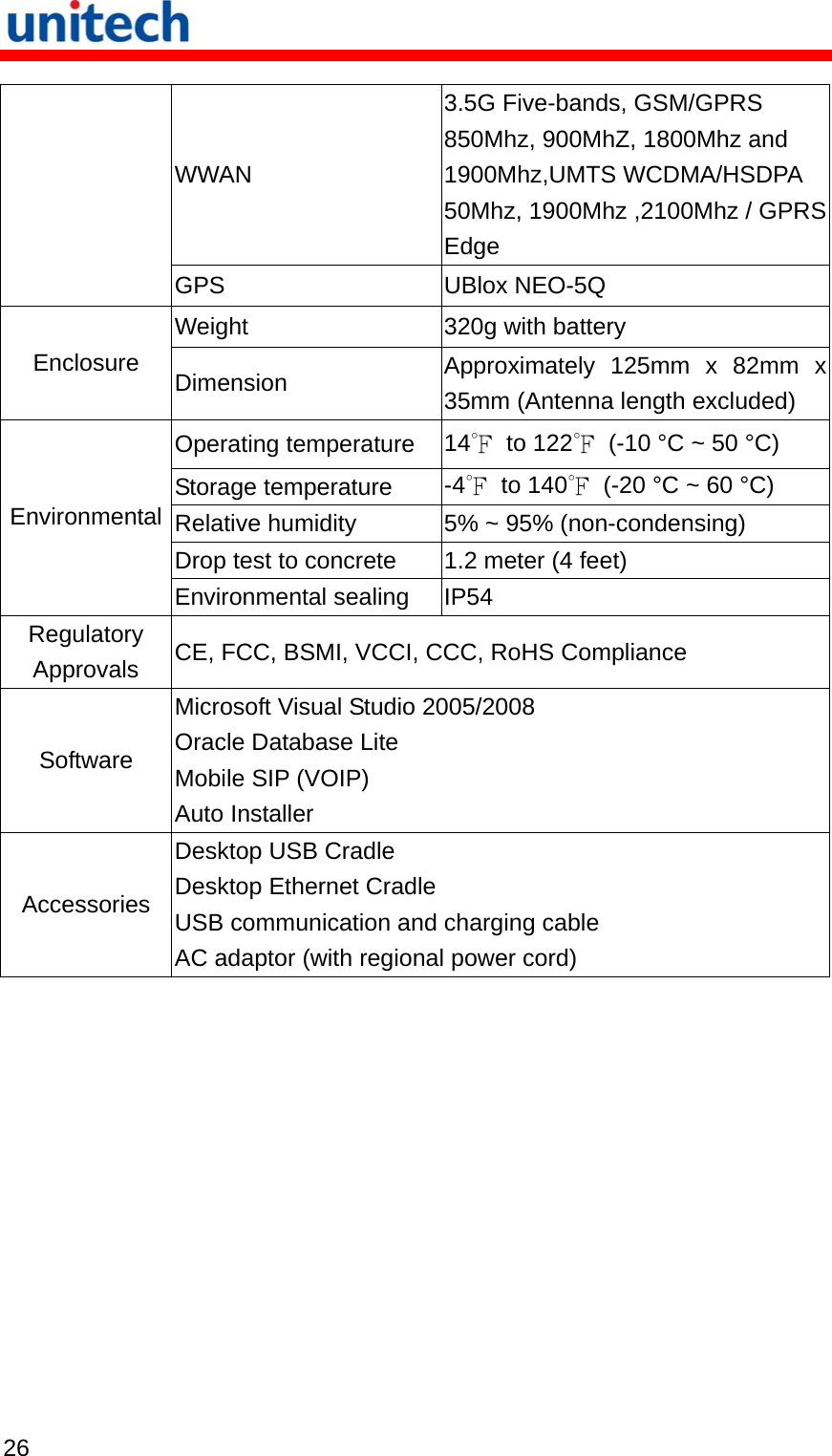

26 WWAN 3.5G Five-bands, GSM/GPRS 850Mhz, 900MhZ, 1800Mhz and 1900Mhz,UMTS WCDMA/HSDPA 50Mhz, 1900Mhz ,2100Mhz / GPRS Edge GPS UBlox NEO-5Q Weight 320g with battery Enclosure Dimension Approximately 125mm x 82mm x35mm (Antenna length excluded) Operating temperature 14℉ to 122℉ (-10 °C ~ 50 °C) Storage temperature -4℉ to 140℉ (-20 °C ~ 60 °C) Relative humidity 5% ~ 95% (non-condensing) Drop test to concrete 1.2 meter (4 feet) Environmental Environmental sealing IP54 Regulatory Approvals CE, FCC, BSMI, VCCI, CCC, RoHS Compliance Software Microsoft Visual Studio 2005/2008 Oracle Database Lite Mobile SIP (VOIP) Auto Installer Accessories Desktop USB Cradle Desktop Ethernet Cradle USB communication and charging cable AC adaptor (with regional power cord)

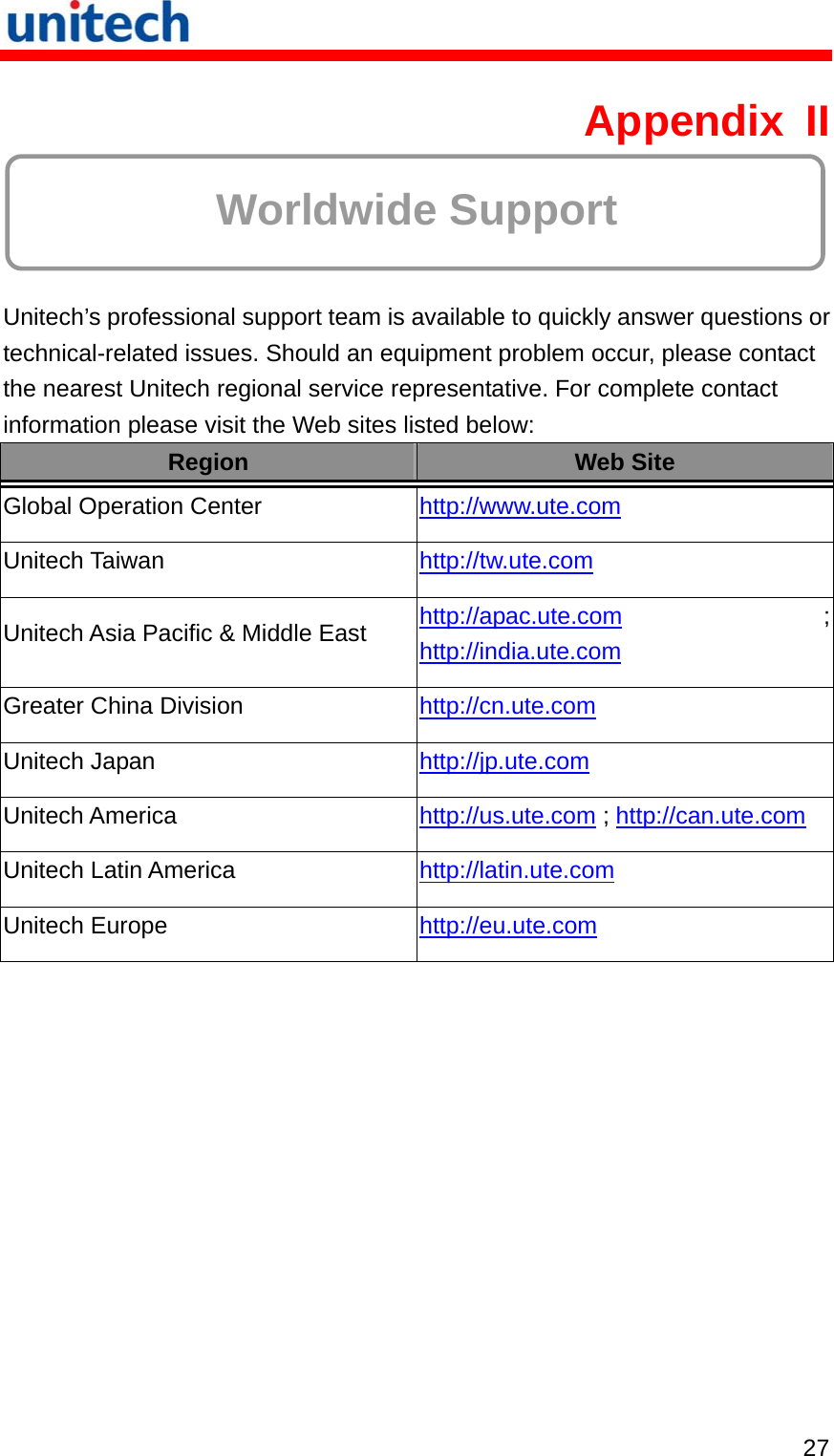

27 Appendix II Worldwide Support Unitech’s professional support team is available to quickly answer questions or technical-related issues. Should an equipment problem occur, please contact the nearest Unitech regional service representative. For complete contact information please visit the Web sites listed below: Region Web Site Global Operation Center http://www.ute.com Unitech Taiwan http://tw.ute.com Unitech Asia Pacific & Middle East http://apac.ute.com ; http://india.ute.com Greater China Division http://cn.ute.com Unitech Japan http://jp.ute.com Unitech America http://us.ute.com ; http://can.ute.com Unitech Latin America http://latin.ute.com Unitech Europe http://eu.ute.com
