Users Manual

unitech

PA600 Rugged Enterprise PDA

User’s Manual

400546G Rev. A

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the

user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device

may not cause harmful interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation.

Preface

About This Manual

This manual explains how to install, operate and maintain the PA600 PDA Barcode

Scanner.

No part of this publication may be reproduced or used in any form, or by any electrical

or mechanical means, without permission in writing from the manufacturer. This

includes electronic or mechanical means, such as photocopying, recording, or infor-

mation storage and retrieval systems. The material in this manual is subject to change

without notice.

Bluetooth is a registered trademark of Bluetooth SIG. Microsoft, Windows and Active-

Sync are either registered trademarks or trademarks of Microsoft Corporation. Other

product names mentioned in this manual may be trademarks or registered trademarks

of their respective companies and are hereby acknowledged.

Regulatory Compliance Statements

FCC Statement

This is a FCC Part 15 Class B product. In a domestic environment this product may

cause radio interference, in which case the user may be required to take adequate

measures.

Canadian Compliance Statement

This Class B Digital apparatus meets all requirements of the Canadian Interference-

Causing Equipment Regulations.

Cet appareil numerique de la classe B respecte les exigences du Reglement sur le

material broilleur du Canada.

The device is certified to the requirements of RSS-139-1 for 2.4 GHz spread spectrum

devices.

European Conformity Statement

Declaration of Conformity with Regard to the R&TTE 1999/5/EC and EMC 89/336/

EEC directives.

Laser Information

The Unitech PA600 series is certified in the U.S. to conform to the requirements of

DHHS/CDRH 21CFR Subchapter J and to the requirements of IEC 825-1. Class II and

Class 2 products are not considered to be hazardous. The PA600 series contains

internally a Visible Laser Diode (VLD) whose emissions do not exceed the maximum

limits as set forth in the above regulations. The scanner is designed so that there is no

human access to harmful laser light during normal operation, user maintenance or

during prescribed service operations.

The laser safety warning label required by the DHHS/IEC for the PA600 series's

optional laser scanner module is located on the memory compartment cover, on the

back of the unit.

CAUTION! Use of controls or adjustments or performance of procedures other

than those specified herein may result in hazardous laser light. Use of

optical instruments with the scanner will increase eye hazard. Optical

instruments include binoculars, microscopes, and magnifying glasses.

This does not include eye glasses worn by the user.

Notices

This unit is equipped with a battery pack and backup battery. It is possible that the

Unitech PA600 may not power-on due to battery discharge as a result of storage.

In the above situation, plug the PA600 to the USB charging cable which is with DC in

port or put the unit into the Unitech PA600 Cradle (with 5V/2A AC-DC adapter), and

recharge the unit for 16 hours in order to fully charge its backup battery.

The backup battery will charge from external power or the main battery (if the main

battery still has enough power to turn on). In the event the main battery is fully

charged, refrain from using the PA600 for 16 hours in order for the main battery to fully

charge the backup battery.

Backing-up data by backup battery only without the main battery installed in battery

compartment may take as long as 6 hours. Therefore, in order to prevent data protec-

tion failure due to backup battery failure, do not leave the PA962 without the recharge-

able battery pack installed, or without connection to AC power for an extended period

of time.

Battery charge notice

It is important to consider the environment temperature whenever you are charging

the Lithium-Ion battery pack. The process is most efficient at normal room tempera-

ture or slightly cooler. It is essential that you charge batteries within the

stated range of -5°C to 50°C. Charging batteries outside of the specified range could

damage the batteries and shorten their charging life cycle.

About This Manual

iii

Storage and safety notice

Although charged Lithium-Ion batteries may be left unused for several months, their

capacity may be depleted due to build up of internal resistance. If this happens they

will require recharging prior to use. Lithium-Ion batteries may be stored at tempera-

tures between-20°C to 60°C, however they may be depleted more rapidly at the high

end of this range. It is recommended to store batteries within normal room tempera-

ture ranges.

Table of Contents

Preface

About This Manual i

Regulatory Compliance Statements ............................................................................. i

FCC Statement........................................................................................................................ i

Canadian Compliance Statement............................................................................................ i

European Conformity Statement ............................................................................................. i

Laser Information ................................................................................................................. ii

Notices ...................................................................................................................................... ii

Battery charge notice............................................................................................................... ii

Storage and safety notice....................................................................................................... iii

Chapter 1

Getting Started 1

Introducing the PA600....................................................................................................... 1

Features................................................................................................................................... 2

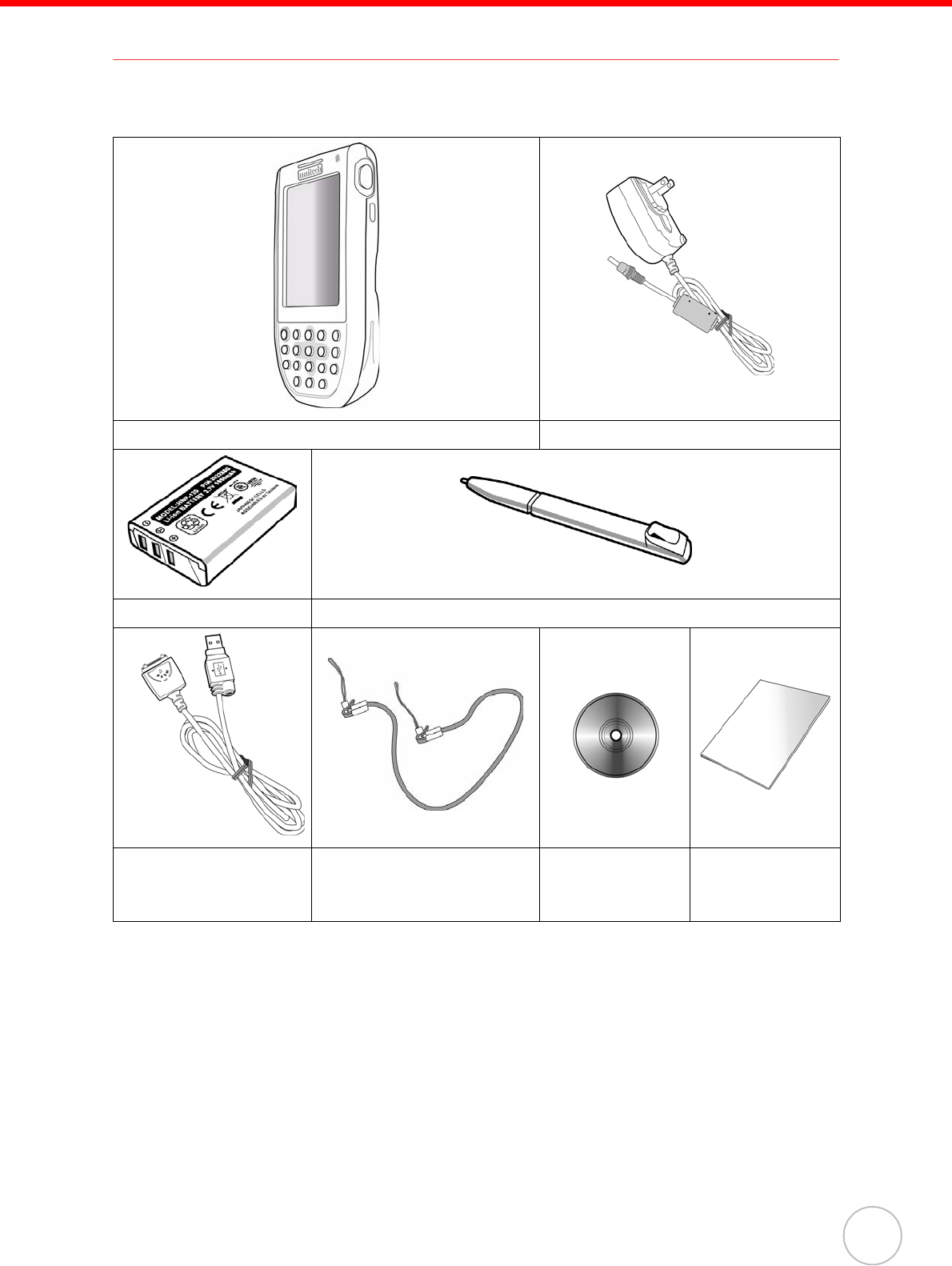

Package Contents ............................................................................................................... 3

A Tour of the PA600............................................................................................................ 4

Front Left View........................................................................................................................ 4

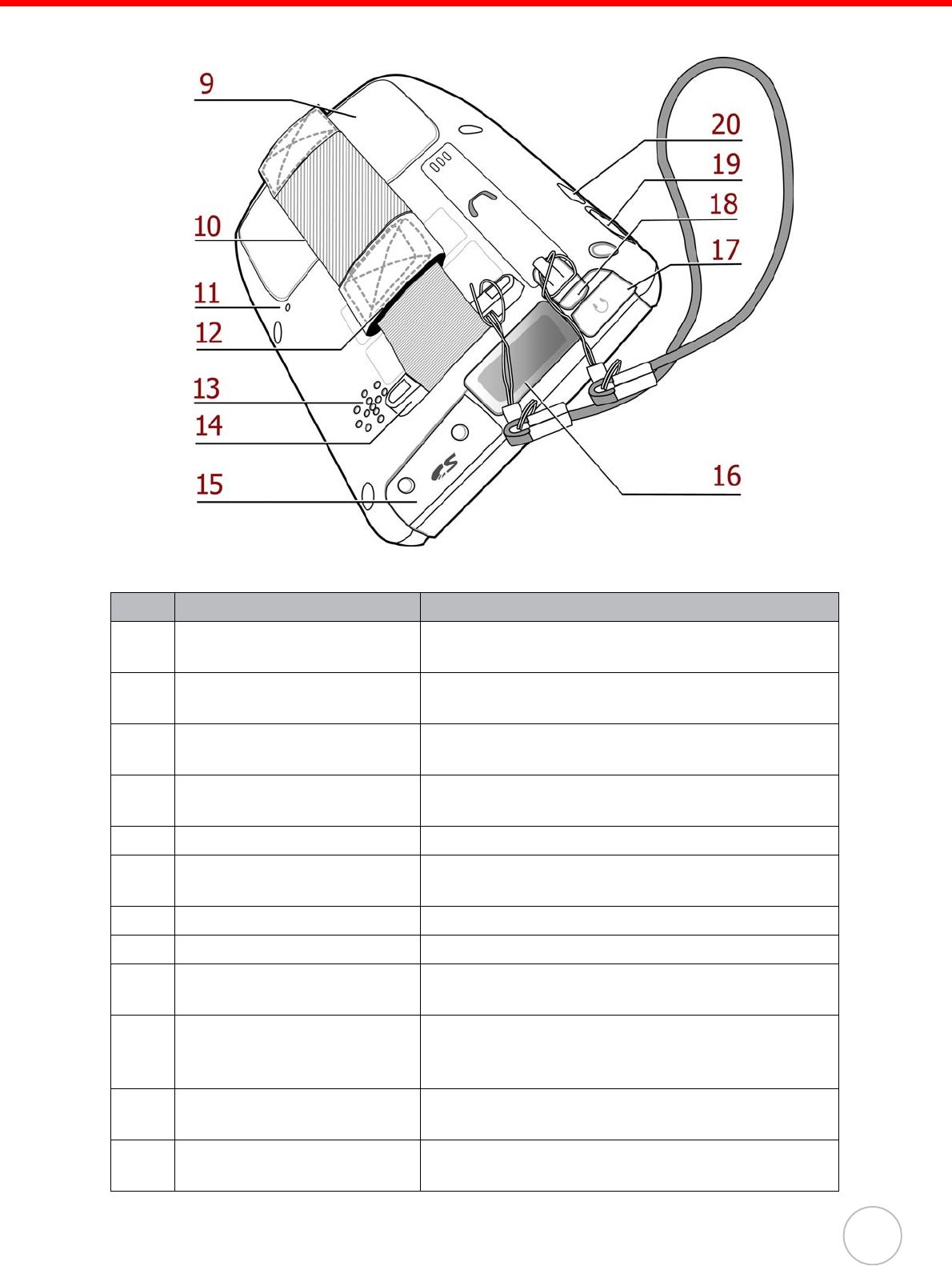

Back View............................................................................................................................... 5

Getting Started...................................................................................................................... 6

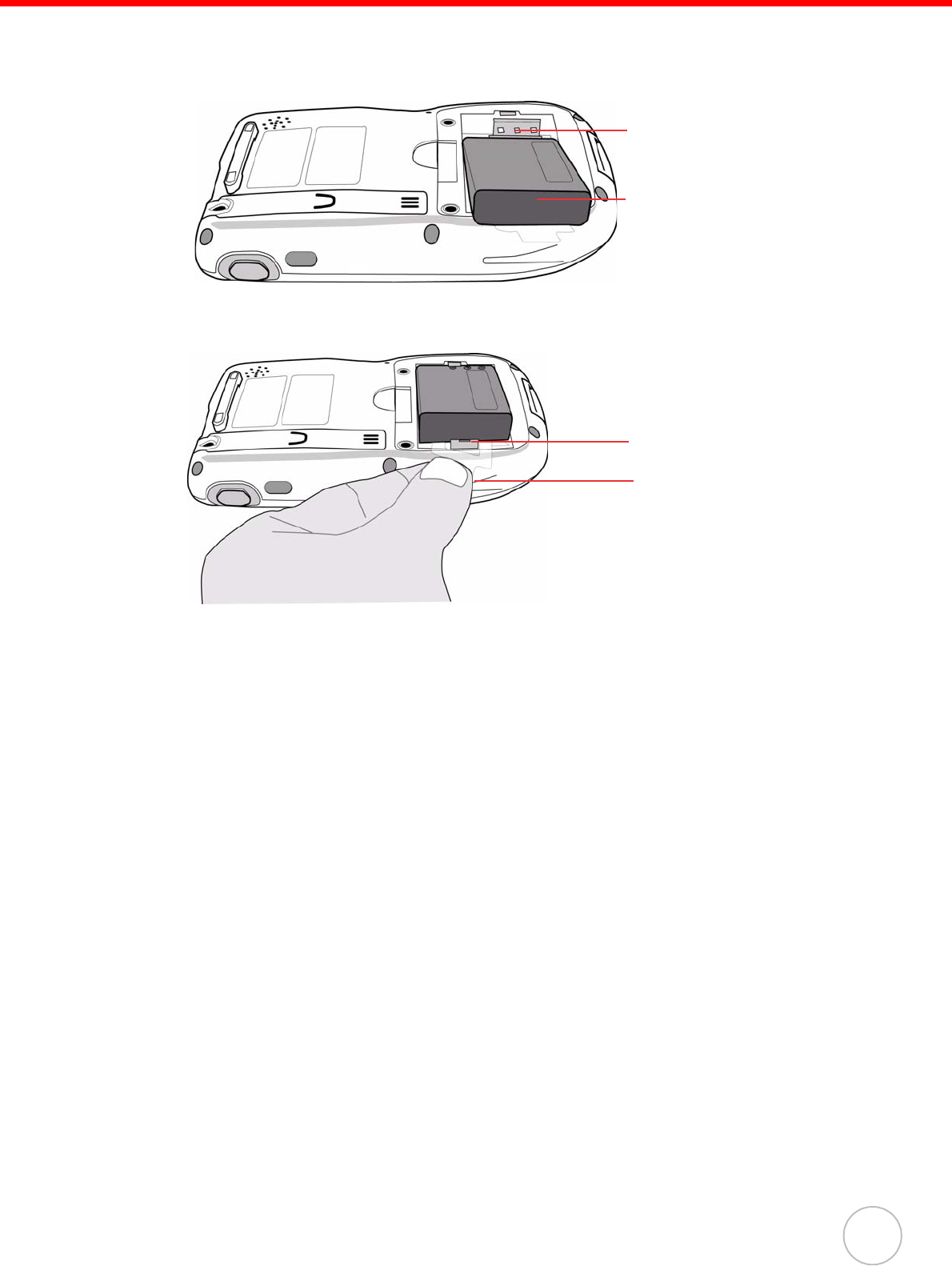

Installing the Battery ............................................................................................................... 6

Charging the Battery............................................................................................................... 8

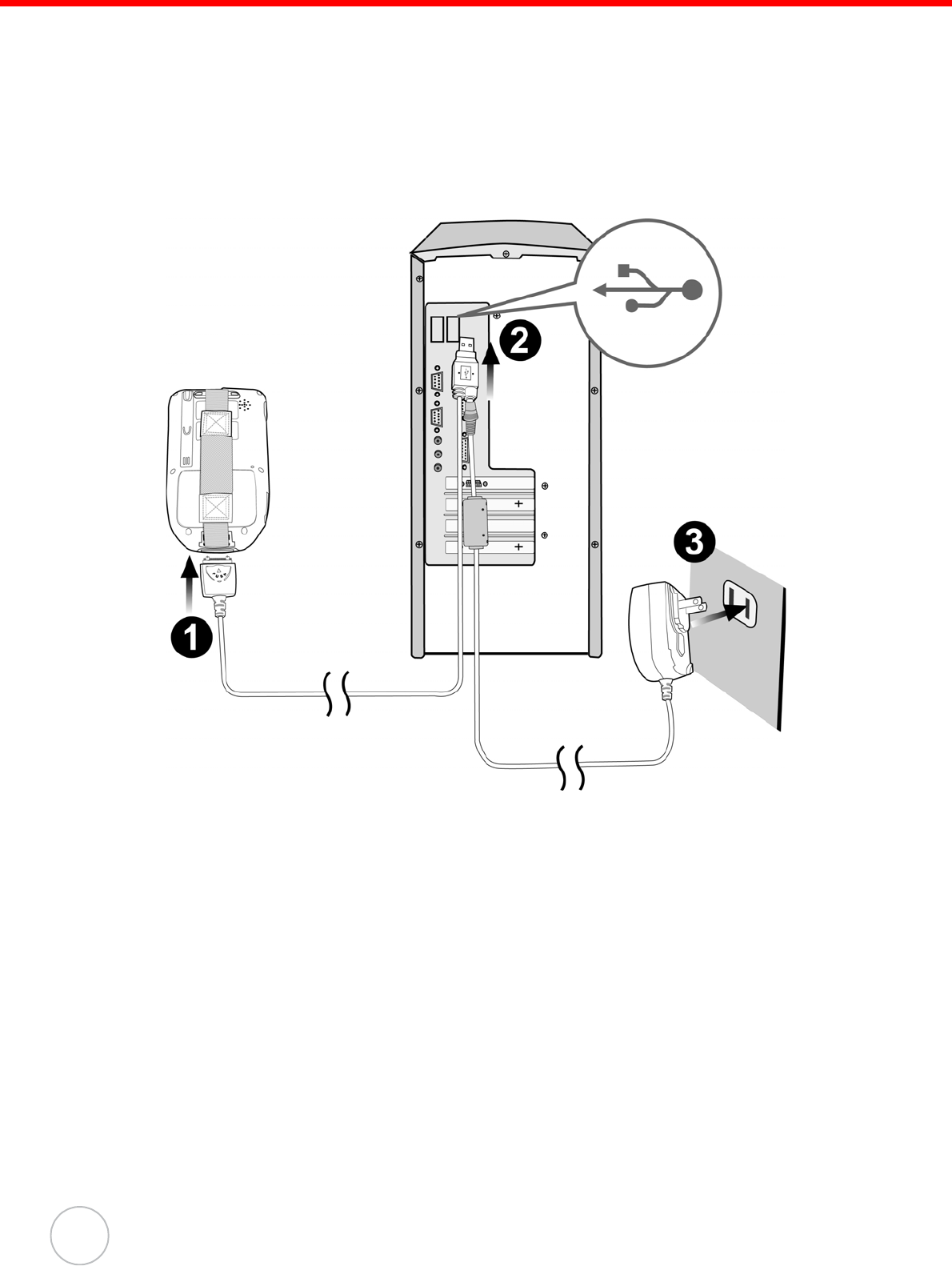

Charging the Battery using the USB Cable ....................................................................... 8

Charging the Battery with the Docking Station .................................................................. 9

Checking the Battery Status .............................................................................................. 9

Connecting the PA600 to a PC............................................................................................. 10

Turning the PA600 on for the First Time............................................................................... 11

Powering On.................................................................................................................... 11

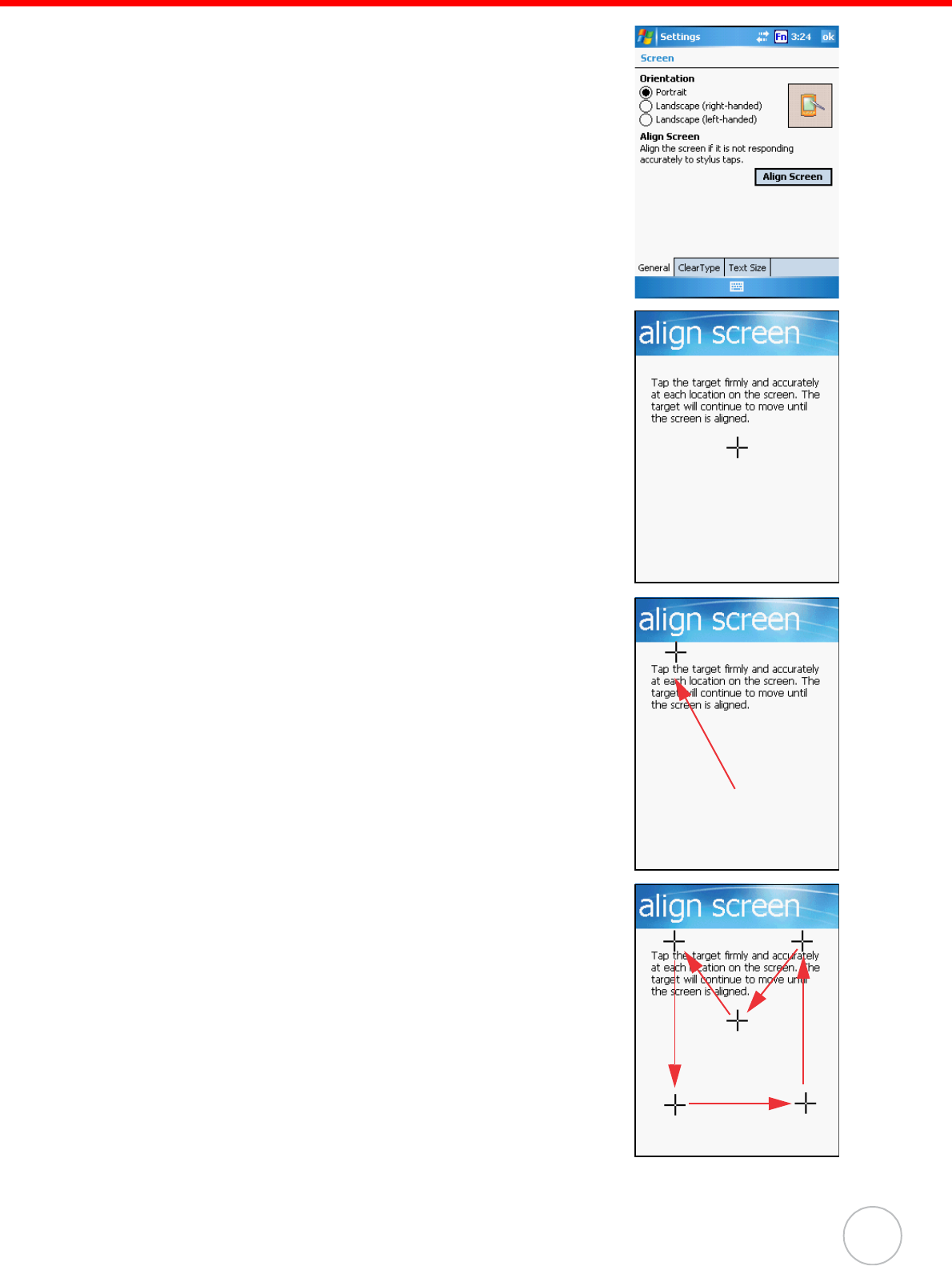

Calibrating the PA600 Screen ......................................................................................... 12

Chapter 2

Using the Hardware 14

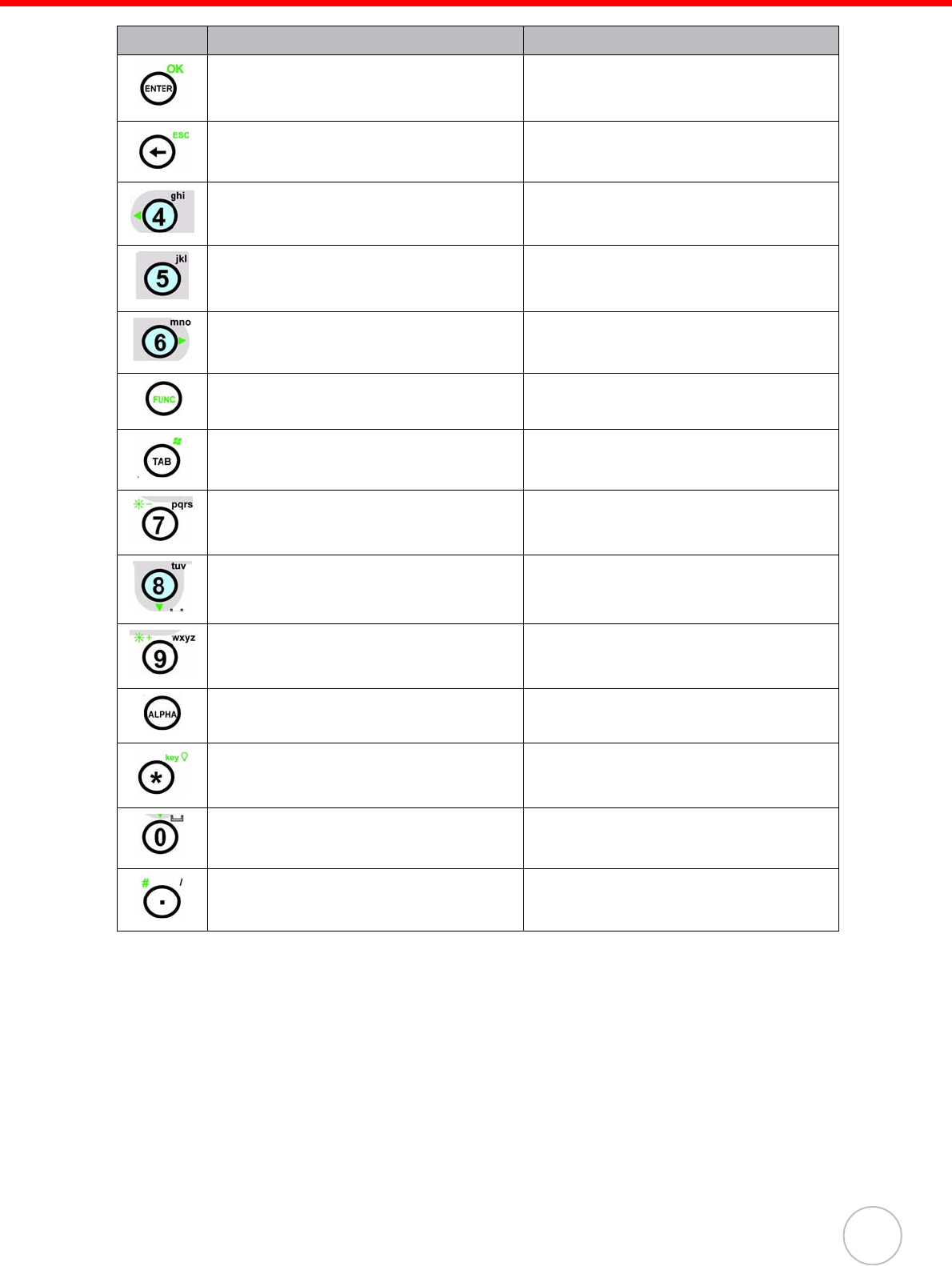

Keypads and Function Buttons................................................................................... 14

Adjusting the Screen Brightness................................................................................ 16

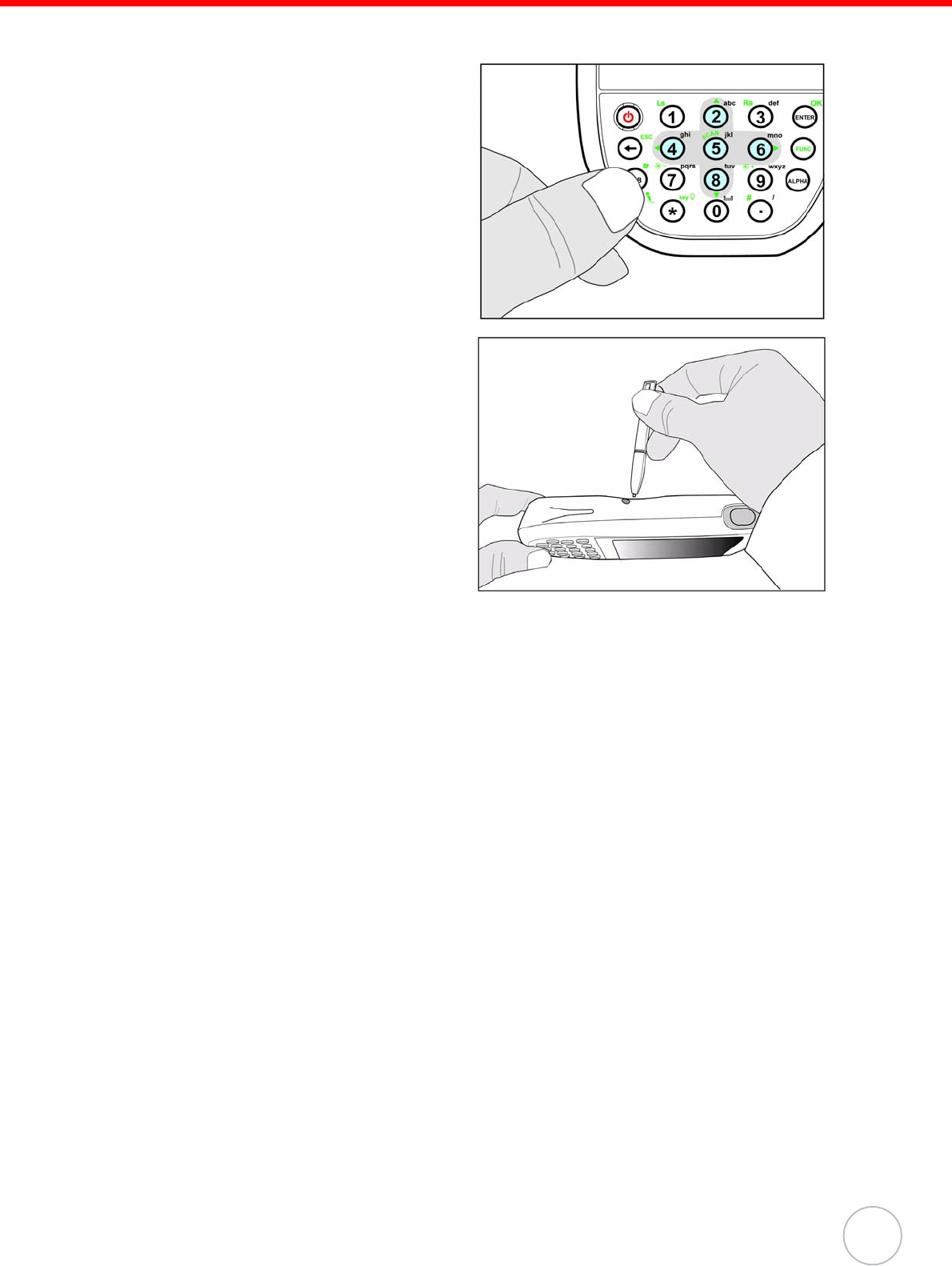

Using the Stylus................................................................................................................. 16

Using the SD/MMC memory card ................................................................................ 17

Inserting a Storage Card ................................................................................................. 17

Removing a Storage Card ............................................................................................... 17

Using the Laser Scanner ................................................................................................ 18

Chapter 3

Getting Connected 20

Establishing Device-PC Connection.......................................................................... 20

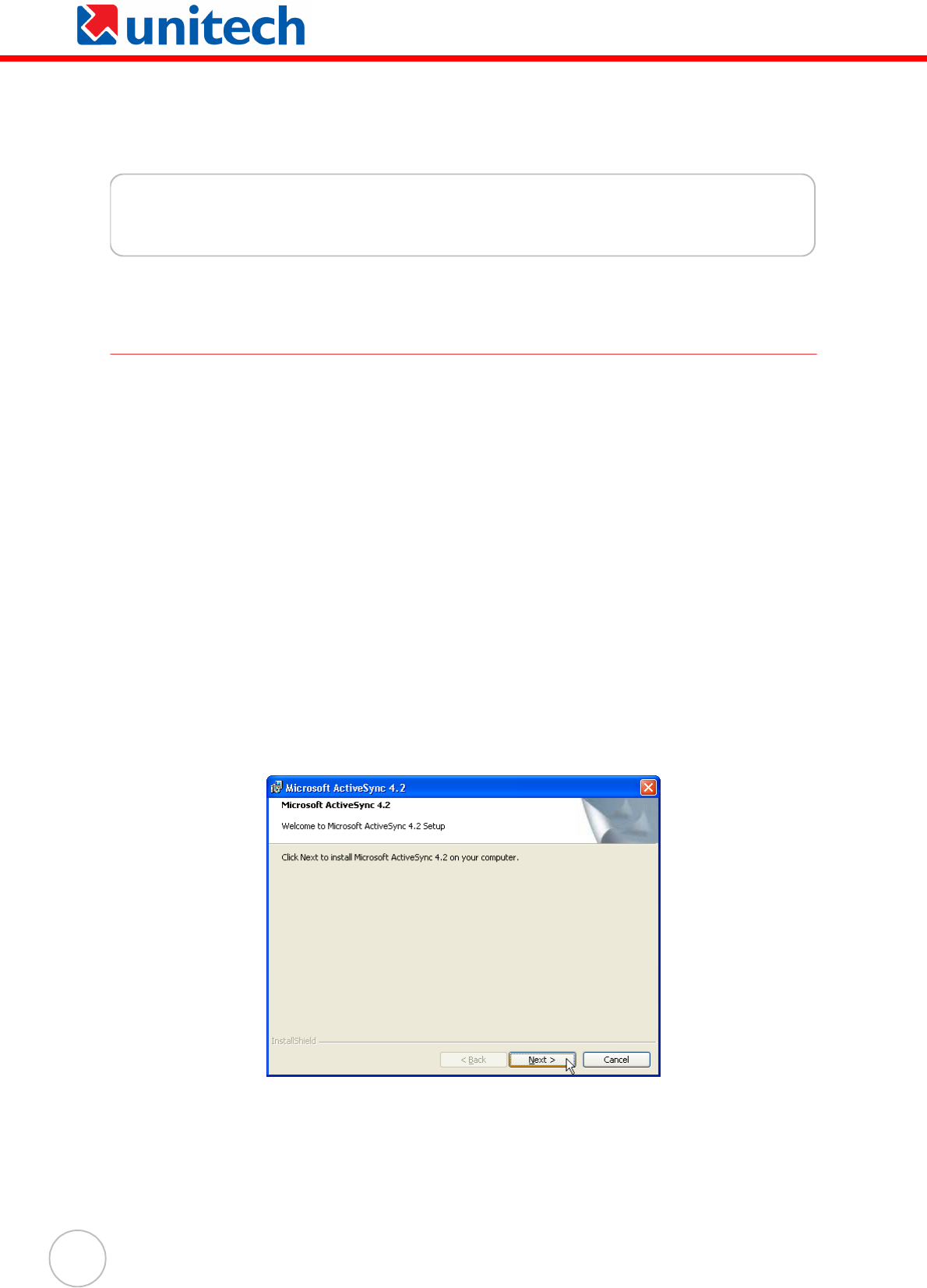

Installing Microsoft ActiveSync ............................................................................................. 20

Connecting the Device to Your Computer ............................................................................ 23

Synchronizing with Your Computer........................................................................... 24

Connection options............................................................................................................... 24

USB Connection .............................................................................................................. 24

Infrared Connection ......................................................................................................... 25

Bluetooth Connection ...................................................................................................... 26

WiFi Connection .............................................................................................................. 29

Synchronizing Information ............................................................................................ 30

Synchronization Options....................................................................................................... 30

Using ActiveSync to Exchange Files ........................................................................ 30

Chapter 4

Barcode Scanner Programs 32

Scan2Key .............................................................................................................................. 32

Scanner Setting.................................................................................................................. 32

Barcode Symbologies........................................................................................................... 33

Chapter 5

Advance settings 34

Adjusting Settings............................................................................................................. 34

Checking the Main and Backup Battery Status..................................................... 35

Extending Battery Life..................................................................................................... 36

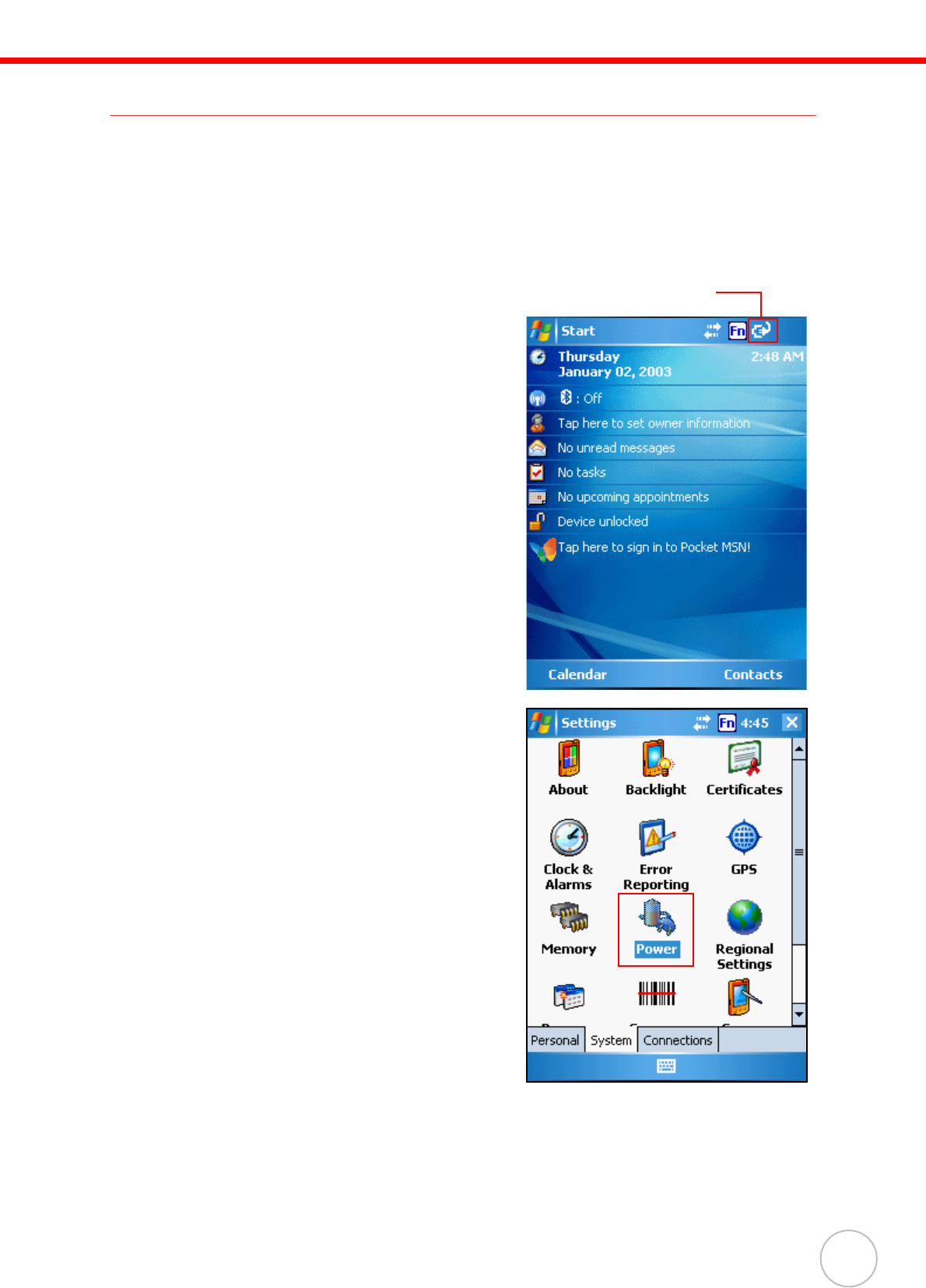

Changing the Automatic Power Settings .............................................................................. 36

Adjusting Backlight Setting ................................................................................................... 37

Viewing Flash Memory Files ......................................................................................... 38

Performing a hardware reset ........................................................................................ 39

Performing a Warm Boot ...................................................................................................... 39

Preforming a Cool Boot ........................................................................................................ 40

Method 1.......................................................................................................................... 40

Method 2.......................................................................................................................... 41

Appendix

System Specifications 42

Chapter 1

Getting Started

Introducing the PA600

Thank you for purchasing the PA600 PDA Barcode Scanner.

Your PA600 was designed for user who need a compact and

durable PDA for data collection and real time transactions.

The PA600 is a rugged, compact and lightweight palm-size com-

puter using the Windows Mobile 5.0 operating system, and incor-

porating an integral bar code scanning laser device, color LCD

with touchscreen, keypad, IrDA interface, and wireless communi-

cation capability. It provides users with a standard Windows-

based environment for customizing and operating the device.

To reduce TCO, the PA600 is sealed to meet IP54 standards and

has undergone multiple drop tests to prevent downtime.

Features

Powerful system

• Microsoft Windows Mobile 5.0 /

Windows CE NET 5.0 operating

system

• Intel PXA270 processor with speed

of up to 520 MHz

System memory

• 64 MB SDRAM

• 128 MB Flash ROM

Display

• 3.5-inch QVGA LCD touch-sensi-

tive screen

• 320 x 240 resolution

Barcode scanner

• Built-in Bar Code Scan Engine

• Built-in vibrator for scanning indi-

cation

• CCD scan engine (optional)

• Symbol SE950 support

• UNITECH HAMSTER barcode

decoder

Communication

• USB Host & Client

• IrDA 1.2 (SIR)

• VOIP support

• 802.11b/g for power saving

• Bluetooth version 1.2

(supports Bluetooth Printer,

Bluetooth Modem, Bluetooth

ActiveSync)

Audio

• Voice recording and playback

•MIC

• Speaker

• Headset Connector

• Receiver

Wireless connectivity

• 802.11b + g with diversity antenna

• Bluetooth wireless technology

• Serial infrared port

Expansion slot

SDIO slot

Battery life

• Normal usage: 6 hours

• Charging time: 3.5 hours

• Embedded backup battery cell

User-friendly interface

• Quick launch hot keys for enabling

backlight, calibration, software key-

board, and other device manage-

ment tasks

• Trigger keys for barcode scanning

Chapter 1 Getting Started

Package Contents

After opening the box, ensure the following accessories for the PA600 are present:

If anything is missing or appear damaged in any way, contact your dealer.

PA600 Terminal AC Adapter

Battery Pack Stylus

USB Charging

Cables Elastic Stylus String CD-ROM

Quick

Reference

Guide

A Tour of the PA600

The following sections describe the main components and features of the PA600.

Front Left View

No. Component Description

1. Status indicator Indicates the battery charging and barcode scanning status.

Green - Battery is fully charged, the device is

running on battery power, or barcode scanning

process is completed without error.

Red - Battery is charging, barcode scanner is

activated and processing.

2. Left scanner

trigger button

Press to activate the barcode laser scanner.

3. Power button If the device is off, press this button to turn it on.

Alternatively, when the unit is on, this key must be

pressed and held down for about two seconds in order

to turn the device off.

4. Microphone Enables you to record voice audio.

5. Universal

connector

Connects your device to a USB charging cable, which

in turn connects to the computer’s USB port and

through the AC adapter to an electrical outlet.

This allows you to recharge your device and perform

an ActiveSync operation.

You can also use it to connect a peripheral hardware,

such as an docking station, to your device.

6. Keypad Keypad interface for controlling the PA600. See Keypads

and Function Buttons on page 14 for more information.

7. LCD Touch screen Displays the applications and data stored on your device. It

is touch-sensitive and responds to the stylus or finger.

8. Speaker Enables you to hear audio from the PA600.

Chapter 1 Getting Started

Back View

No. Component Description

9. Battery compartment Houses the Removable and rechargeable 3.7

V, 1950 mAH battery pack

10. Battery compartment

release latch

Opens the battery compartment.

11. Reset button Press the end of the stylus into the button to

reset your device.

12. Handstrap Enables you to securely hold the PA600 while

using it.

13. Speaker Enables you to hear audio from the PA600.

14. Strap holder Attachment location for holding hand strap,

carrying strap, and stylus.

15. Memory card slot Accommodates Secure Digital memory cards.

16. Barcode scanner window Used to scan barcodes.

17. Earphone jack Connects to audio line-out devices (earphones

or headphones) for use in noisy environments.

18. Stylus Enables you to interact with the operating system.

To use the stylus, remove it from its holder and

hold it the same way you hold a pen or pencil.

19. Right scanner trigger

button

Press to activate the barcode laser scanner.

20. Infrared (IR) port Uses infrared technology to transmit and

receive data from other IR-enabled devices.

Getting Started

This section explains how to install and charge the battery, how to check battery sta-

tus, how to turn on the PA600, and how to calibrate the screen.

Installing the Battery

WARNING! There is a risk of fire and burns if the battery pack is handled improp-

erly. DO NOT disassemble, crush, puncture, short external contacts,

or dispose the battery pack in fire or water. DO NOT attempt to open

or service the battery pack. Dispose of used batteries according to

local recycling guidelines in your area.

A backup battery cell is embedded into your device to prevent data loss in instances

when the removable battery pack is removed or completely discharged. This backup

battery cell will only support the system for a maximum of 60 minutes.

NOTE: To enable the internal battery cell to provide backup power supply,

charge your device with the main battery pack for at least 12 hours.

1. Open the battery compartment by pushing the latch in the direction of the arrow

and lifting up.

The battery compartment is displayed:

NOTE: The plastic battery tab makes it easy to remove the battery.

Compartment contacts

Plastic battery tab

Battery securing clip

Chapter 1 Getting Started

2. Position the battery pack, making sure the battery contacts are aligned with the

contacts in the compartment and the battery is placed on top of the plastic tab,

as shown in the following illustration.

3. Slide the battery pack into the battery bay while simultaneously pulling the plas-

tic tab and securing clip until the battery clicks into place.

4. Replace the battery compartment cover.

Contacts

Plastic tab

Securing clip

Charging the Battery

Before using the PA600 for the first time, you need to charge it for about 16 hours.

After that, you can charge the PA600 every day to recharge the battery to full capacity.

Charge the PA600 using the USB charging cable or the docking station.

CAUTION! Operating the PA600 for the first time without the AC adapter, and

without fully charging the backup battery may result in loss of data

stored in RAM memory. When the main battery is removed, the

backup battery retains RAM data in memory for 2 hours, please

charge the battery for the period to avoid the data loss in RAM mem-

ory.

NOTE: Data you enter may not be properly stored until the built-in backup bat-

tery has been adequately charged.

Charging the Battery using the USB Cable

1. Press and hold the connector button on the USB charging cable and connect it

to the PA600 (1).

2. Plug the AC adapter cable into the power jack on the USB charging cable (2).

3. Connect the AC adapter into an electrical outlet (3).

Chapter 1 Getting Started

Charging the Battery with the Docking Station

1. Plug the AC adapter cable into the power jack on the docking station, then con-

nect the AC adapter into an electrical outlet.

2. Slide the device into the docking station until it clicks

into place.

3. The connection is secure when the bottom edge of the

device is aligned with the docking station, and the LED

indicator on the device lights up red.

Checking the Battery Status

If the battery level becomes low in the course of normal use, a status icon appears on the

device screen indicating low or very low battery status. In both cases, perform an Active-

Sync operation to back up your data, then recharge your device as soon as possible.

If the battery level reaches low status, the device will enter sleep mode; if the battery

level reaches very low status, the device will enter deep sleep mode. In this case, you

have about 72 hours to recharge your device after which you risk losing all data on

your device’s internal memory.

LED Status

LED Meaning

PA600 Solid Red Charging

Solid Green Charging complete

Docking

Station

Power LED Power is on

Charging LED: Charging

Sync LED Synchronization is taking place

Connecting the PA600 to a PC

Use the USB cable to connect the PA600 to a PC to use with ActiveSync.

1. Press and hold the connector button on the USB charging cable and connect it

to the PA600 (1).

2. Plug the USB connector into the USB port on the PC and connect the AC

adapter into the USB connector (2).

3. Connect the AC adapter into an electrical outlet (3).

Chapter 1 Getting Started

Turning the PA600 on for the First Time

After you have initially charged your device for about 12 hours, the device is ready to

be used. You can now start up your device where you’ll calibrate the display, learn

some basic stylus usage, and set up the system time zone, date and time.

Powering On

1. Turn on your device by pressing

the power button on the front panel.

NOTE: The PA600 screen ships

with a protective plastic film.

You may remove this if

desired by peeling from one

corner. The screen will be

more susceptible to scratch-

ing without the film, but will

be more readable.

2. The Unitech PA600 welcome

screen appears for a moment fol-

lowed by the Windows CE screen.

Power Button

Calibrating the PA600 Screen

The calibrate screen automatically appears when the unit is powered-on for the first

time or after the system is reset.

To calibrate the screen at any time, follow these instructions.

1. Tap Start → Settings, and then click the System tab.

2. Tap the Screen icon.

Chapter 1 Getting Started

The Screen Settings window appears.

This window enables you to customize the screen

settings.

3. Tap Align Screen to calibrate the screen.

The align screen window appears.

4. Tap the cross hair firmly and accurately.

The cross hair moves to the next location.

5. Continue tapping the cross hairs until the screen

has been calibrated.

Chapter 2

Using the Hardware

Keypads and Function Buttons

The keypad enables you to both enter information and interact with the PDA operating

system and also operate secondary functions using the function button. When the

green function button is pressed, the green icon functions on the keypad become

available.

When the Function button is pressed, an icon

appears in the operating system:

The following table describes the keypad keys.

Key Main Function Secondary Function

Turns the PA600 on and off. —

Number 1 Left soft key - activates function

above in LCD screen.

Alphanumeric 2, a, b, c Up navigation key

Alphanumeric 3, d, e, f Right soft key - activates function

above in LCD screen.

Function activated icon

Chapter 2 Using the Hardware

Enter key OK

Back space Escape key

Alphanumeric 4, g, h, i Left navigation key

Alphanumeric 5, j, k, l —

Alphanumeric 6, m, n, o Right navigation key

—Enables disables secondary

function keys

Tab Windows key opens Start menu

Alphanumeric 7, p, q, r, s Decreases screen brightness

Alphanumeric 8, t, u, v Down navigation key

Alphanumeric 9, w, x, y, z Increases screen brightness

Alpha —

Asterisk Illuminates keypad

Number 0, space —

Period Pound

Key Main Function Secondary Function

Adjusting the Screen Brightness

Adjust the screen brightness by pressing

the Function button to enable the soft

keys and pressing the 7 (decrease bright-

ness) or 9 (increase brightness) buttons.

Using the Stylus

CAUTION! Never use anything other than the PA600 stylus on the screen. Using

another object as a stylus could cause permanent damage.

1. Remove the stylus from its holder.

2. Hold the stylus as you would a pencil.

3. To make a choice from a menu, lightly tap the tip of the stylus on that choice.

4. To write data into a field on a form, use the stylus to print the letters or numbers.

Use very light pressure.

Function Button

Increase

Brightness

Decrease

Brightness

Chapter 2 Using the Hardware

Using the SD/MMC memory card

Your device has an expansion slot compatible with a range of SD and MMC storage

cards, which are primarily used to back up or transfer files and data. The slot also sup-

ports SDIO cards for added connectivity options.

Inserting a Storage Card

1. Remove the two screws from the SD compartment cover and remove the cover.

2. Insert the SD card with the notched corner as shown by the icon on the case.

3. Push the card into the slot until you hear an audible system sound; this will sig-

nal that the card is already properly seated within the slot.

The card is secure when it is not protruding from the slot.

Removing a Storage Card

1. Remove the two screws from the SD compartment cover and remove the cover.

2. Press the card in and release.

The card pops out. An audible system sound will signal that the card has been

released.

3. Remove the card from the slot.

Using the Laser Scanner

The PA600 has an integrated laser scanner which reads all major bar code labels with

excellent performance.

NOTE: Reading software must be enabled in order to operate the scanner. This

can be a user-loaded application or a pre-loaded utility such as Scanner

Setting.

Activate the laser scanner by pressing either

one of the trigger keys located on the left and

right side of the unit.

The PA600 has a built-in Scanner Setting util-

ity that allows you to test the device’s barcode

scan function.

1. To launch Scanner Settings, tap Start →

Settings → System → Scanner Settings.

2. The Scanner Control Panel opens.

From here you can configure barcode scanner parameters such as enabling or

disabling barcode symbologies, setting data transmission options, configuring

magnetic and proximity reading options, and setting power management

options.

Scan button

Chapter 2 Using the Hardware

3. To test the barcode scanner, tap the Test

tab and press one of the scanner buttons

on a barcode. The screen will display the

results of the scan.

Chapter 3

Getting Connected

Establishing Device-PC Connection

Installing Microsoft ActiveSync

In order to exchange data between your computer and PA600, Microsoft ActiveSync

must be installed on your computer. Use the USB charging cable that comes with your

device to connect the device to your computer.

NOTE: If you have a previous version of the Microsoft ActiveSync installed in

your computer, uninstall it first before installing the latest version of

Microsoft ActiveSync.

To install Microsoft ActiveSync on your computer:

1. Close any open programs, including those that run at startup, and disable any

virus-scanning software.

2. Download the ActiveSync software from the Microsoft ActiveSync Download

page at

http://www.microsoft.com/windowsmobile/ downloads/activesync42.mspx.

3. Browse to the location of the downloaded file, and double-click it.

The installation wizard begins.

Chapter 3 Getting Connected

4. Click Next.

You are prompted to read the End User License Agreement (EULA).

5. Accept the license agreement terms and click Next.

You are prompted for user information.

6. Type the user name and organization and click Next.

You are prompted for the destination folder.

7. Select a drive to install the program to and click Next.

The installation wizard has gathered the information it needs to install Active-

Sync and prompts you to begin installation.

8. Click Install.

The program begins installation

After the program has finished installing you see the following screen.

Chapter 3 Getting Connected

9. Click Finish.

You may be prompted to restart your computer.

After you have installed ActiveSync and restarted your computer, the ActiveSync icon

appears in your computer’s system tray as shown and ActiveSync Connection

Wizard starts. For detailed information on how to use ActiveSync on your computer,

start ActiveSync then click Help → Microsoft ActiveSync Help.

Connecting the Device to Your Computer

1. After ActiveSync has been installed, connect the USB charging cable to the uni-

versal connector on the bottom of your device. If necessary, connect an

adapter. Refer to Connecting the PA600 to a PC on page 10.

2. Plug the other end of the USB charging cable into a USB port on your com-

puter.

3. Turn the device on.

4. ActiveSync starts automatically and configure the USB port to work with the

PA600. The New Partnership setup wizard will automatically start.

NOTE: If ActiveSync doesn’t start automatically, click Start → Programs →

Microsoft ActiveSync.

If a message appears indicating that it is unable to detect a connection,

click the Cancel button and manually configure the communication set-

tings.

5. Follow the onscreen instructions.

6. When the configuration

process is complete, the

ActiveSync window

appears.

7. Synchronization will be initialized and will take place if you’ve chosen to syn-

chronize periodically or upon connection.

NOTE: Your computer can create a partnership with multiple PA600s. Also, a

PA600 can create a partnership with up to two computers.

Synchronizing with Your Computer

Synchronization takes place according to the options you choose while setting up

ActiveSync on your computer. If you accept the default (On Connect) synchronization

option in the Microsoft ActiveSync Setup Wizard, you’ll be able to simply connect your

PA600 to your desktop computer and synchronization will take place.

If you have not enabled the On Connect feature in Active Sync, you can start Active-

Sync in either of the following ways:

• On your computer, double-click My Computer → Mobile Devices folder.

• Connect the USB cable between the computer and PA600.

• Execute “Rellpog.exe” from the PA600 Windows directory

Connection options

You can set remote synchronization with your computer using the following connec-

tion options:

• USB connection

• Infrared connection

• Bluetooth connection

• WiFi connection

USB Connection

To synchronize with your computer using a USB connection:

1. Open ActiveSync.

2. Connect your device to your computer using the USB charging cable.

3. Initiate connection by tapping Start →

Programs → ActiveSync.

4. Tap Menu → Connections.

5. Select Synchronize all PCs using this con-

nection check box.

6. Select a baud rate or cable type connec-

tion.

7. Tap OK.

Chapter 3 Getting Connected

Infrared Connection

The infrared port allows you to synchronize information with an infrared enabled com-

puter. Align the infrared port of your device with the infrared port on the computer.

This method is ideal for quickly switching between multiple devices since there are no

cables or adapters to change.

1. Perform the steps below on your computer:

a. Configure an infrared port on your computer following the manufacturer’s

instructions.

b. Once your computer’s IR port is ready, open ActiveSync.

c. Click File →

Connection Settings.

d. Check Allow connec-

tions to one of the fol-

lowing and select

Infrared Port (IR) from

the drop-down list.

e. Click OK.

2. Perform the steps below on your device:

a. Align the IR port of your PA600 with that on your computer so that they are

unobstructed and within close range.

b. Initiate connection by tapping Start →

ActiveSync → Menu → Connect via

IR.

c. Tap Sync.

Bluetooth Connection

Your device is equipped with Bluetooth wireless technology that you can use to syn-

chronize information with a computer equipped with a Bluetooth adapter or access

point. Bluetooth wireless technology allows you to communicate with the computer

whenever it is within range.

Follow these instructions to set up a Bluetooth connection.

1. Tap Start → Settings → Connections →

Bluetooth → Mode and check Turn on

Bluetooth.

Chapter 3 Getting Connected

2. Tap Devices → New Partnership…

3. Select a device from the list and tap Next.

You are prompted for a passkey.

4. Enter the Passkey.

On the PC screen, you

are prompted to enter

the Bluetooth PIN

Code Request.

5. Enter the same Blue-

tooth PIN Code you

entered in step 4.

6. On the PA600 tap Partnership Settings →

Check Serial Port → Finish.

7. On your PC, click Active-

Sync → Connection Set-

ting → Select COM Port

(COM 14) → OK

8. On the PA6008 tap Start →

Programs → ActiveSync →

Menu → Connect via

Bluetooth.

Chapter 3 Getting Connected

WiFi Connection

With the device’s embedded WLAN module, you can send and receive signals to a

WiFi network then synchronize files.

NOTE: WiFi access requires a separate purchase of a service contract with a

wireless service provider. Contact a wireless service provider for more

information.

A wireless network can be added either when the network is detected or by manually

entering settings information. Before doing these steps, determine if authentication

information is needed.

1. Tap Start → Settings, then tap the Connections tab.

2. Tap Network Cards.

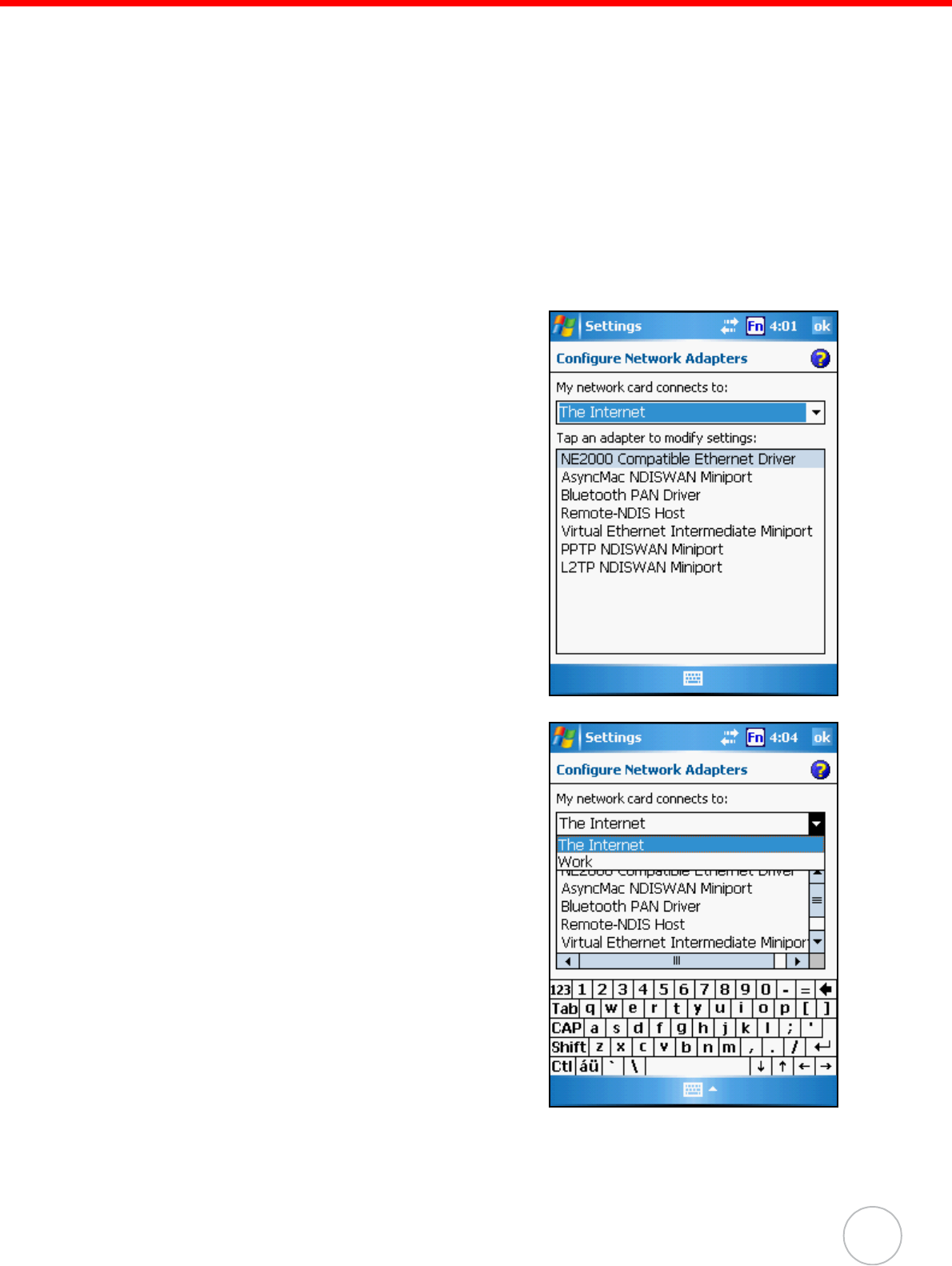

The Configure Network Adapters screen

appears.

3. Select whether the network card connects

to the Internet or your work LAN from the

drop-down list.

4. If there are networks already detected, tap

and hold network name, then select

Connect.

5. Under the Network to access, select from

the following network connection options:

– All available

– Only access points

– Only computer-to-computer

6. When finished, tap OK.

For more information on how to configure the

wireless network settings, tap Start → Help.

Synchronizing Information

All files created on the device are stored in My Document/PA600 My Document folder

(if the designated device name is PA600). You can view files by double-clicking the

PA600 My Documents icon on your computer.

If you have enabled file synchronization, your PA600 files are automatically synchro-

nized in the My Documents folder on your computer, unless a different name was cho-

sen for PA600.

Synchronization Options

Synchronization options can be modified, including when you synchronize and what

gets synchronized. In the Mobile Device window, click Tools → Sync Options.

For each type of information, the synchronization process can be hastened by limiting

the amount of data to be synchronized. To do this, select a service and click the Set-

tings button. After enabling a service, you must close and reopen the ActiveSync.

Using ActiveSync to Exchange Files

You can use ActiveSync to exchange information from your device your computer and

vice versa. Changes you make to the information on one location will not affect the

information on the other one. If you want to automatically update information on both

your device and computer, synchronize the information instead.

You can copy two types of information to your device: files and Pocket Access Win-

dows CE Store information.

The procedure below only applies to copying files. Refer to the ActiveSync Help on

your computer for instructions on how to copy Pocket Access Windows CE Store

information.

NOTE: Files created on your computer may need to be converted by Active-

Sync so that they can be viewed and edited on your device, and vice

versa.

To copy files:

1. Connect your device to your computer.

2. In ActiveSync on your computer,

click Explore.

Chapter 3 Getting Connected

Windows Explorer opens the Mobile Device window for your device.

3. Locate the file that you want to copy on your device or computer.

4. Do either one of the following:

– To copy the file to your device, right-click the file and click Copy. Place the

cursor in the desired folder for your device, right-click, then click Paste.

– To copy the file to your computer, right-click the file and click Copy. Place the

cursor in the desired folder for your computer, right click, then click Paste.

Chapter 4

Barcode Scanner Programs

Scan2Key

The Scan2Key application routes input from a scanner port to a keypad buffer, making

all input from the scanner emulate input from the keypad. Using Scan2Key, scanned

data can be directly input into a scanner port aware application such as MS Mobile

Word.

Scanner Setting

When it is necessary for the user to change the default barcode symbology for a differ-

ent application, the Scanner Control Panel provides the ability to change default sym-

bology, place delimiter characters behind scanned data, and save the settings.

Tap Start → Settings → System → Scanner

Settings to display the Scanner Control Panel.

Chapter 4 Barcode Scanner Programs

Barcode Symbologies

Note: *Value Adjustable Scanner Control Pannel V3.0

Barcode

Symbology

Enable/

Disable

Check

Char/Digit

verification

Transmit

Check

Char/digit

Max/

Min

Length

Transmit

Leading

Digit

Other

Lookland EAN YES

Codabar YES YES YES Transmet Start/

Stop bits, CLSI

format, *data length

Code 11 YES YES * check digits, *data

length

Code 128 YES *data length

Code 32 YES YES Transmit Tailing digit

Code 39 YES YES For ASCII,

Transmit Start/Stop

bits, Function

Code, Double label

decoding,*data

length, *double

labels separator

Code 93 YES Yes *data length

Deta Code YES YES YES

EAN 128 YES Yes Transmit Code ID,

* Field separator

EAN 13 YES YES YES

EAN 8 YES YES YES * Not suppress first

or last digit, *data

length

Interleaved 2

of 5

YES YES YES Fixed Length, * Not

suppress first or last

digit, *data length

Label Code

IV&V

YES YES

MSI/Plessey YES YES * Check digit

double module 10,

* data length

Standard 2

of 5

YES YES YES Fixed Length,

*Data Length

Telepen YES *Standard

Character Set

UPC A YES YES YES

UPC E YES YES YES Zero Expension,NSC

UPC/EAN

Group

Supplement 2,

Supplement 5,Insert

Space before

supplement, most

have supplement,

*Add-on code try level

Chapter 5

Advance settings

Adjusting Settings

This section describes how to adjust the settings of your device to accommodate your

work habits.

To access Settings, tap Start → Settings.

The Settings screen appears.

From here can adjust such user configurable

items as the backlight, auto power off timer, sys-

tem volume, and processor speed. You can also

assign functions to buttons, configure menus,

enter owner information, and set up connec-

tions.

Checking the Main and Backup Battery Status

This section describes how to view the power level for both the main and backup bat-

tery. To minimize power consumption, you can define settings for the auto-off function

and the processor’s operation speed.

To check the main and backup battery status:

1. Open Power Properties. Do either of the following:

– If the Plug or Battery icon appears on

your device, double-tap the icon to

bring the Power Properties screen.

– Tap Start → Settings → System →

Power.

Plug icon

Chapter 5 Advance settings

The Power screen appears.

2. The battery menu item displays the status

of the main and backup batteries.

On the screen shown here, both batteries

are at almost 100% charge.

NOTE: It is necessary to charge the bat-

tery when the battery charge

reaches below 10%. If the battery

does not accept a charge, contact

Unitech Technical Support.

Extending Battery Life

You can extend the PA600 battery life by doing either of the following:

• Change the automatic power settings

• Minimize the use of backlight

Changing the Automatic Power Settings

The PA600 will enter idle mode when there is no task, or all tasks are waiting for input.

In default setting, the PA600 automatically turns itself off if it remains idle for 3 minutes

and when there is no external charging power connected. Pressing the power button

returns the PA600 to the same point at the time of automatic shutdown.

To change the automatic power settings:

1. In the Power screen tap the Advanced tab.

2. Tap the automatic shut off time arrow to

select from a list of time periods. The

available time periods are 1, 2, 3, 4, and 5

minutes.

3. This function can also be activated when

the PA600 is plugged into the power

adapter or placed in its docking station by

tapping the On external power check

box and then tapping the arrow to select

from a list of time periods. The available

time periods are 1, 2, 5,10, 15 and 30

minutes.

Adjusting Backlight Setting

The power consumption of the LCD backlight is high, turn off the backlight function if it

is not necessary.

If a backlight is required, set “automatically turn off the backlight” function.

To change backlight settings:

1. Tap Start → Settings → System.

2. Tap Backlight.

The Backlight screen appears.

3. Do any of the following:

– In the Battery Power tab, tap the Turn

off backlight if device is not used for

check box and select the amount of

time before the unit turns off the back-

light while running in battery power

mode from the drop-down list.

– In the External Power tab, tap the Turn

off backlight if device is not used for

check box and select the amount of

time before the unit turns off the back-

light while running in battery power

mode from the drop-down list.

– Tap the Turn on the backlight key...

checkbox to activate the backlight when

the software keyboard is enabled.

Chapter 5 Advance settings

– In the Brightness tab, tap and drag the

slider to choose a dimmer backlight

when operating on battery power.

Viewing Flash Memory Files

Flash memory is rewritable location for programs and data files. The benefit of this

feature is that files and programs saved in Flash Memory are unaffected by the PA600

power status.

To access the Flash Memory files:

1. Connect the device to your computer. See page 24.

2. On your computer, click My Computer > Flash Storage.

To transfer files to Device’s Flash Memory:

1. Connect the device to your computer. See page 24.

2. On your computer, click My Computer > Flash Storage.

3. Select the file that you want to save.

4. Click File > Save To and select Flash Storage.

Chapter 5 Advance settings

Performing a hardware reset

You may have to perform a reset if the device freezes (i.e., device no longer responds

to the buttons on the screen).

A soft reset allows your device to get a fresh start, similar to rebooting a computer.

This will restart your device and adjust memory allocation. All records and entries are

retained after a soft reset. Unsaved data in open programs may in some cases be lost.

Performing a Warm Boot

1. Remove the stylus from its holder.

2. Lightly press the tip of the stylus to the reset button located on the rear of the

PA600.

Reset button

Chapter 5 Advance settings

Preforming a Cool Boot

A hard reset cuts off power to your device, erasing all records and entries, deleting all

programs you have added, and restoring the device to default factory settings.

Never perform a hard reset unless a soft reset does not correct your problem. When

you perform your next ActiveSync operation, you can restore any data that you previ-

ously synchronized to your computer or you can restore data that you backed up to a

storage card.

NOTE: When you perform a hard reset, the date and time settings are not be

retained. Formats, preferences, and other settings are restored to their

default factory settings.

Method 1

Follow these instructions to perform a cool boot.

1. Press and hold the Backspace

key.

2. While holding the Backspace key,

insert the tip of the stylus into the

reset hole on the back of the

PA600 and press and hold the

reset button until you see the

Unitech splash logo screen appear

and then release the Backspace

and reset buttons.

NOTE: The system is returned to the default settings. All registry settings and all

files (include the hidden files) are returned to their original factory

defaults

Chapter 5 Advance settings

Method 2

1. Press and hold the TAB key.

2. While holding the TAB key, insert

the tip of the stylus into the reset

hole on the back of the PA600 and

press and hold the reset button

until you see the Unitech splash

logo screen appear and then

release the TAB and reset buttons.

NOTE: All registry settings are returned to default settings. You must reinstall all

software. All files in flash memory are retained.

Appendix

System Specifications

Processing/Memory CPU Intel PXA270 520MHz

Memory SDRAM:64MB

Flash ROM:128MB

OS Window Mobile 5.0 / Windows CE.NET 5.0

Keypad 18-Key, including numeric key, alpha key

and function key

Display 240x320 QVGA, Color Transflective TFT,

with Touch Screen & backlight

Scanner Laser Scan Engine, CCD Scan Engine as

optional

Indicator Led, Vibrator

Communication USB Host & Client

IrDA 1.2(SIR)

802.11b/g for power saving

Bluetooth

Bluetooth supports Bluetooth Printer,

Bluetooth Modem,

Bluetooth ActiveSync

Audio MIC

Speaker

Headset Connector

Receiver

Expansion Slot SDIO slot

Power Source Main 3.7V 1950mAH Li-ion battery pack

Backup One rechargeable Ni-MH backup

battery

Enclosure Weight Under 300g with battery & scan

engine

Dimension Approximately L149.5 X H26.6 X

W85mm

Environmental Operating temperature 0 C~ 50 C

Storage temperature -20 C~ 60 C

Relative Humidity 5% ~ 95%(non-condensing)

Drop test to Concrete 4 feet

Environmental Sealing IP54

Models

802.11b/g + BT

BT Only

Certification CE, FCC, BSMI, VCCI, RoHS compliant

Accessories Desktop Cradle

4 slot Battery Charger

Vehicle Quick Charging Cable

Holster

Software Microsoft Visual Studio 2005

Microsoft Windows Mobile 5.0 SDK

Unitech PA600 SDK

VOIP (via 3rd party)

Unitech Electronics PA600BTG PDA Scanner User Manual PDA PA600 UM EN

Unitech Electronics Co., Ltd. PDA Scanner PDA PA600 UM EN

Users Manual

Navigation menu

Namespaces

Views

Navigation
