Unitech Electronics PA692BTNP Rugged Handheld Computer User Manual

Unitech Electronics Co., Ltd. Rugged Handheld Computer

Contents

user manual

Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
PA692 Rugged Handheld Computer
- PA692 -
Users Manual
400979G_Version 1.0
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
i
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Preface
About This Manual
This manual explains how to install, operate and maintain the PA692 Rugged
Handheld Computer.
No part of this publication may be reproduced or used in any form, or by any
electrical or mechanical means, such as photocopying, recording, or
information storage and retrieval systems, without permission in writing from
the manufacturer. The material in this manual is subject to change without
notice.
© Copyright 2011 Unitech Electronics Co., Ltd. All rights reserved.
Unitech global website address: http:\\www.unitech-adc.com
Microsoft, Windows and ActiveSync are either
registered trademarks or trademarks of Microsoft
Corporation. Other product names mentioned in
this manual may be trademarks or registered
trademarks of their respective companies and are
hereby acknowledged.
Unitech is a member of Oracle Embedded
Software Licensing Program.
Bluetooth
®
is a registered trademark of Bluetooth
SIG, Inc.
ii
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Regulatory Compliance Statements
FCC Warning Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference with radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference with radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
1. This Transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth
for an uncontrolled environment. To maintain compliance with FCC RF
exposure requirements, avoid direct contact to the transmitting antenna
during transmitting.
3. Any changes or modifications (including the antennas) made to this device
that are not expressly approved by the manufacturer may void the user’s
authority to operate the equipment.
Operation on the 5.15 - 5.25GHz frequency band is restricted to indoor use
only. The FCC requires indoor use for the 5.15-5.25GHz band to reduce the
potential for harmful interference to co-channel Mobile Satellite Systems.
Therefore, it will only transmit on the 5.25-5.35 GHz, 5.47-5.725 GHz and
5.725 –5.850 GHz band when associated with an access point (AP).
iii
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
FCC Label Statement
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference
that may cause undesired operation.
RF Radiation Exposure Statement
For body contact during operation, this phone has been tested and meets FCC
RF exposure guidelines when used with an accessory that contains no metal
and that positions the handset a minimum of 1.5 cm from the body. Use of
other accessories may not ensure compliance with FCC RF exposure
guidelines.
Canadian Compliance Statement
This Class B Digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Cet appareil numerique de la classe B respecte les exigences du Reglement
sur le material broilleur du Canada.
European Conformity Statement
Declaration of Conformity with regards to the R&TTE 1999/5/EC and EMC
89/336/ EEC directives.
RoHS Statement
This device conforms to RoHS (Reduction Of
Hazardous Substance
s) European Union regulations
that set maximum concentration limits on hazardous
materials used in electrical and electronic
equipment.
iv
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
TaiwanNCC Warning Statement
交通部電信總局低功率電波輻射性電機管理辦法 (930322)
根據交通部低功率管理辦法規定:
第十二條 經型式認證合格之低功率射頻電機非經許可公司商號或使用者
均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信經發現有
干擾現象時應立即停用並改善至無干擾時方得繼續使用前項合
法通信,指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業科學及醫療用電波輻射性電
機設備之干擾。
Laser Information
The Unitech PA692 series is certified in the U.S. to conform to the
requirements of DHHS/CDRH 21CFR Subchapter J and to the requirements of
IEC 825-1. Class II and Class 2 products are not considered to be hazardous.
The PA692 series contains internally a Visible Laser Diode (VLD) whose
emissions do not exceed the maximum limits as set forth in the above
regulations. The scanner is designed so that there is no human access to
harmful laser light during normal operation, user maintenance or prescribed
service operations.
The laser safety warning label required by the DHHS/IEC for the PA692 series'
optional laser scanner module is located on the memory compartment cover,
on the back of the unit.
CAUTION! Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous laser light.
Use of optical instruments with the scanner, including binoculars,
microscopes, and magnifying glasses, with will increase eye
damage.
This does not include eyeglasses worn by the user.
v
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Battery Notices
The PA692 is equipped with a Lithium-Ion battery pack and a Ni-Mh backup
battery. Both batteries will discharge after an extended period of no use.
When both batteries are discharged, recharge the unit for 12 hours in order to
fully charge the main battery and backup battery. Recharge the PA692 battery
by doing the following:

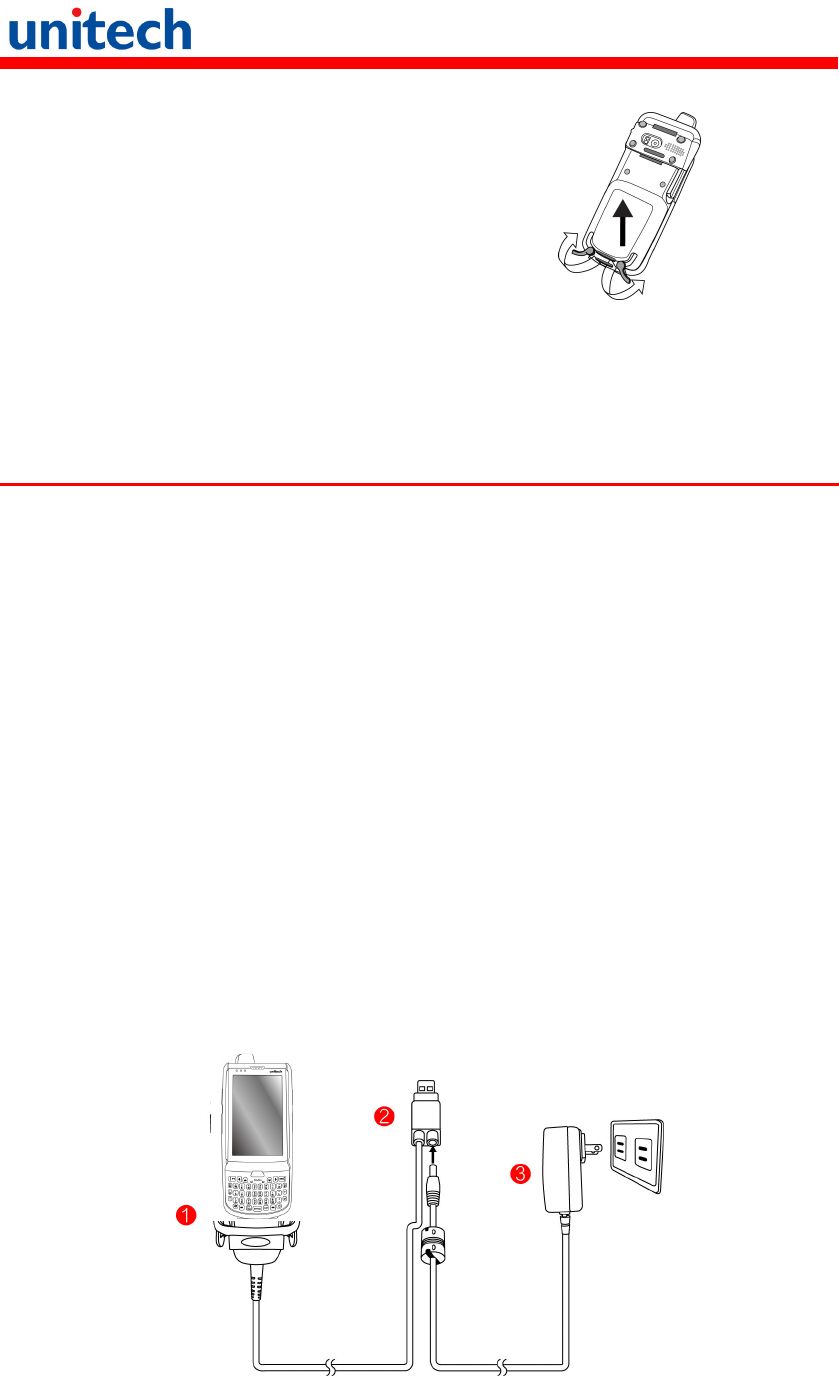

1. Plug the USB charging cable into the PA692 and plug the 5V/3A AC-DC
adapter into the power jack of the USB charging cable.
2. Place the PA692 into the docking station and plug the 5V/3A AC-DC
adapter into the power jack of the docking station.
If the main battery is removed, the backup battery ensures the data on SDRAM
is safe for up to 2 hours. To prevent data loss, do not leave the PA692
uncharged with the main battery removed for an extended period. See the
Charging the Battery unit on for more details.
Note: To guarantee optimal performance, it is advised that rechargeable
batteries be replaced every year, or when 500 charge/discharge cycles
are achieved. It is normal that the battery balloons or expands beyond
one year or the maximum of 500 cycles. Although it does not cause
harm, it cannot be used again and must be disposed of according to the
location's safe battery disposal procedures.
If the performance decrease is greater than 20% in a Lithium-Ion battery,
the battery is at the end of its life cycle. Do not continue to use, and
ensure the battery is disposed of properly.
The length of time that a battery lasts depends on the battery type and how the
device is used. Conserve the battery life by doing the following:
Avoid frequent full discharges because this places additional strain on the
battery. Several partial discharges with frequent recharges are better than
a full discharge. Recharging a partially charged lithium-Ion battery does
not cause harm because there is no memory.
Keep the lithium-Ion battery cool. Avoid a hot car. For prolonged storage,
keep the battery at a 40% charge level.
Do not leave the lithium-Ion battery discharged and unused for an
extended period because the battery will wear out and the longevity of the
battery will be at least half of the one with frequent recharges.
vi
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Battery charge notice
It is important to consider the environment temperature when the Lithium-Ion
battery pack is charged. Charging is most efficient at normal room temperature
or in a slightly cooler environment. It is essential that batteries are charged
within the stated range of 0°C to 40°C. Charging batteries outside of the
specified range could damage the batteries and shorten their charging life
cycle.
CAUTION! Do not charge batteries at a temperature lower than 0°C. This will
increase the internal resistance to cause heat and make the
batteries unstable and unsafe. Please use a battery temperature
detecting device for a charger to ensure a safe charging
temperature range.
Storage and safety notice
Although charged Lithium-Ion batteries may be left unused for several months,
their capacity may be depleted due to build up of internal resistance. If this
happens they will require recharging prior to use. Lithium-Ion batteries may be
stored at temperatures between -20°C to 60°C, however they may deplete
more rapidly at higher temperatures. It is recommended to store batteries at
room temperature.
Warranty
The following items covered under the Unitech Limited Warranty are free from
defects during normal use:
PA692 – 1-year limited warranty.
Lithium-Ion battery – 6-month limited warranty.
Warranty becomes void if equipment is modified, improperly installed or used,
damaged by accident or neglect, or if any parts are improperly installed or
replaced by the user.
Use only the adapter supplied. Using the wrong adapter may damage the unit
and will void the warranty.
vii
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Table of Contents
Preface
About This Manual ............................................................................................ i
Regulatory Compliance Statements ............................................................. ii
FCC Warning Statement........................................................................... ii
FCC Label Statement .............................................................................. iii
RF Radiation Exposure Statement........................................................... iii
Canadian Compliance Statement ............................................................ iii
European Conformity Statement.............................................................. iii
RoHS Statement ...................................................................................... iii
TaiwanNCC Warning Statement .............................................................. iv
Laser Information ........................................................................................ iv
Battery Notices............................................................................................. v
Battery charge notice............................................................................... vi
Storage and safety notice ........................................................................ vi
Warranty...................................................................................................... vi
Chapter 1
Getting Started .................................................................................................1
Introducing the PA692 ..................................................................................1
Features .......................................................................................................2

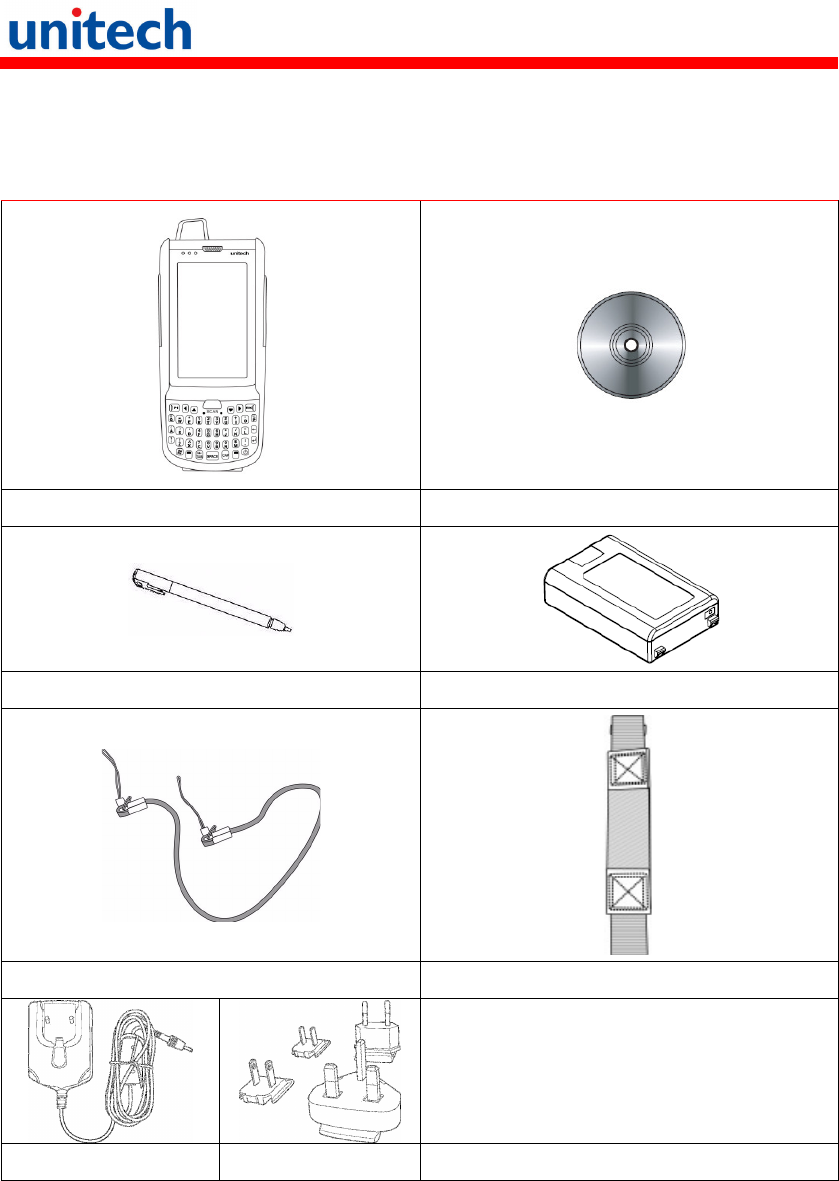

What’s Included............................................................................................3
Tour of the PA692.........................................................................................4

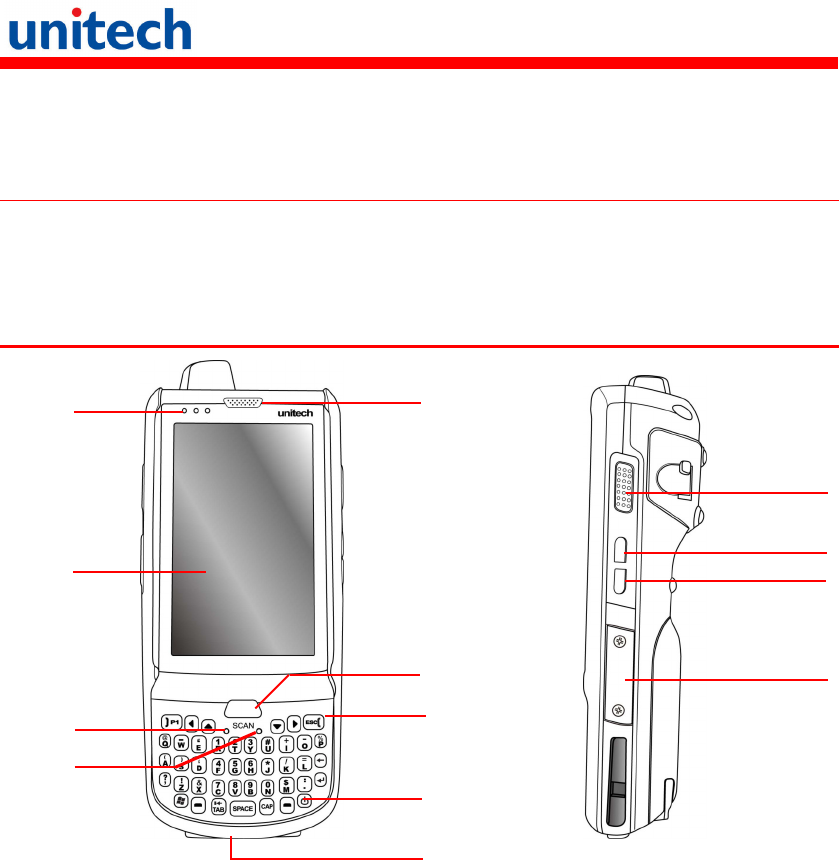

PA692 Front and Right View ........................................................................4
PA692 Rear and Left View............................................................................5
viii
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
PA692 HF Rear and Left View......................................................................6
Turning ON the PA692 for the First Time......................................................6
Installing the Battery .....................................................................................7
Charging the Battery ....................................................................................8
Keypads and Function Buttons.....................................................................9
Using Function keys ...............................................................................10
Using Alpha keys .................................................................................... 11
Chapter 2
Using the Hardware .......................................................................................13
Using the MicroSD Memory Card...............................................................13
Inserting a Memory Card ........................................................................13
Removing the Memory Card...................................................................13
Using the SIM Card ....................................................................................13

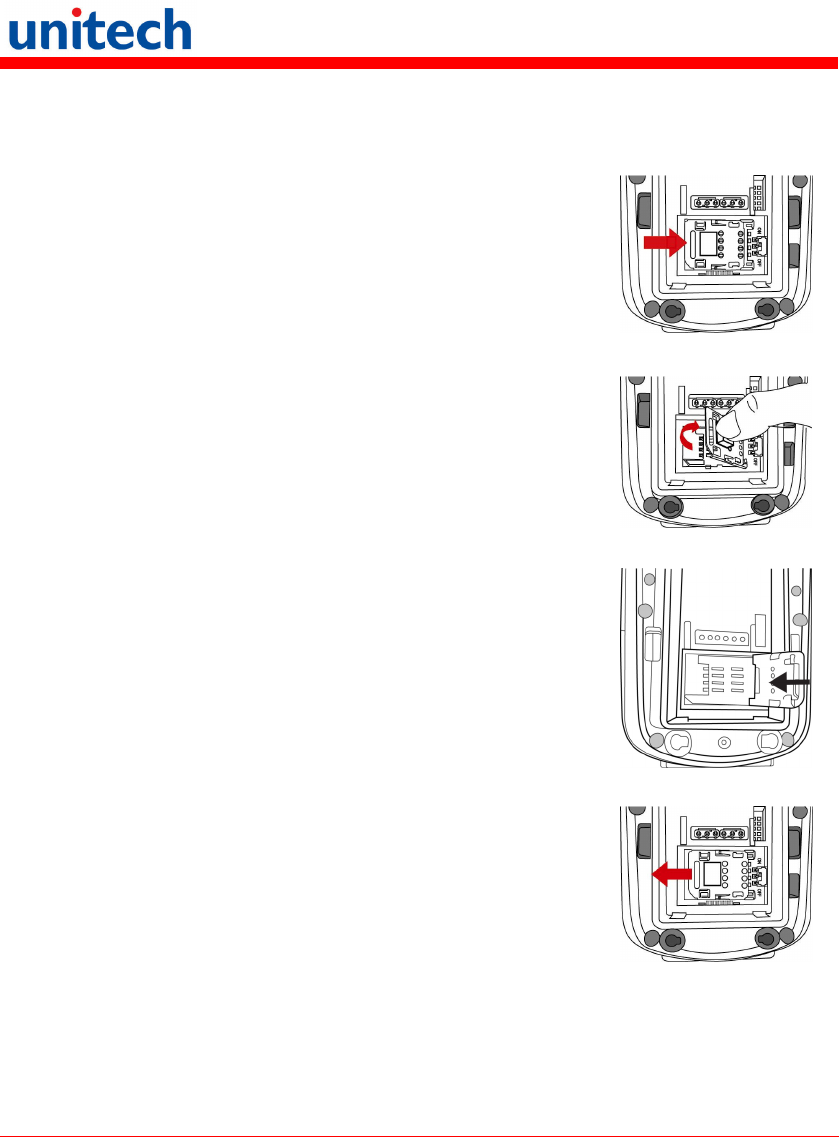

Inserting the SIM card.............................................................................14
Using the Barcode Laser Scanner..............................................................14
Chapter 3
Getting Connected.........................................................................................17
Establishing Device-PC Connection...........................................................17
Installing Microsoft ActiveSync................................................................17
Connecting the Device to Your Computer...............................................18

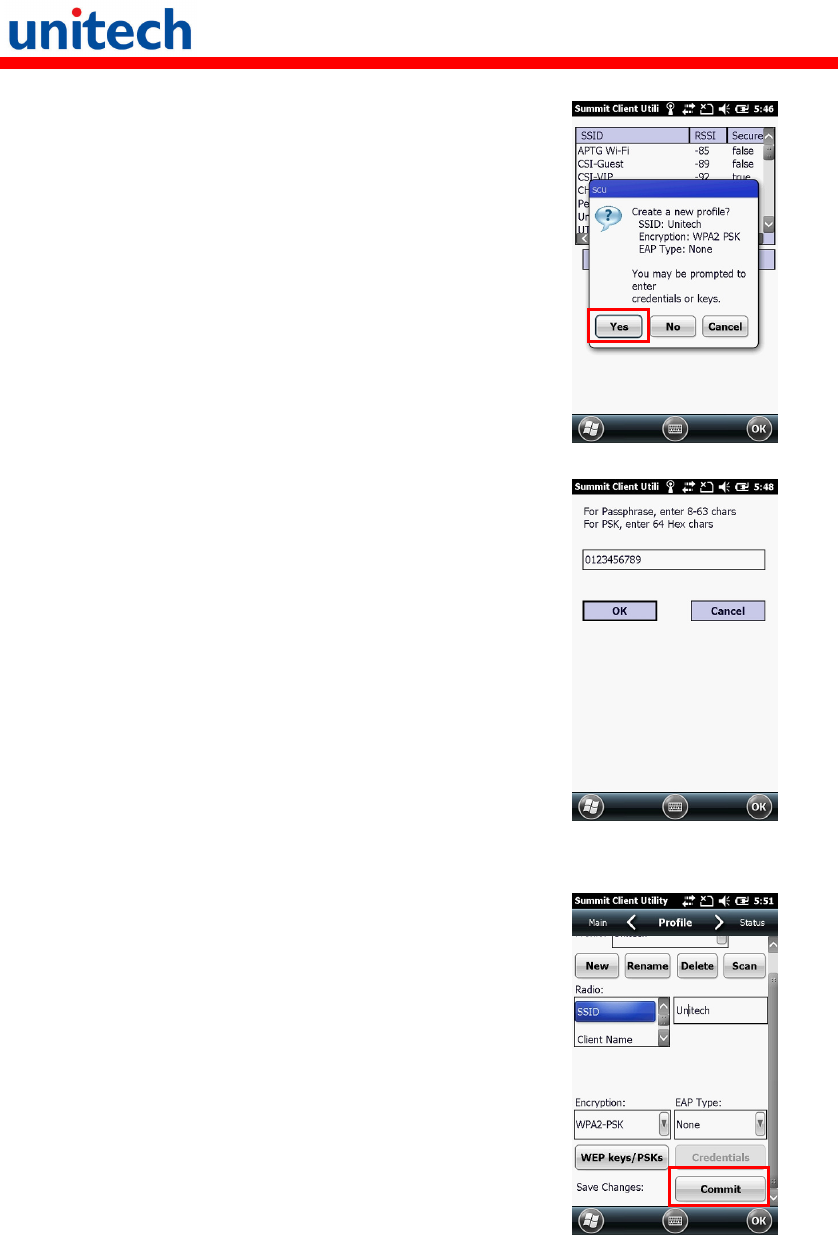

WiFi Connection .........................................................................................19

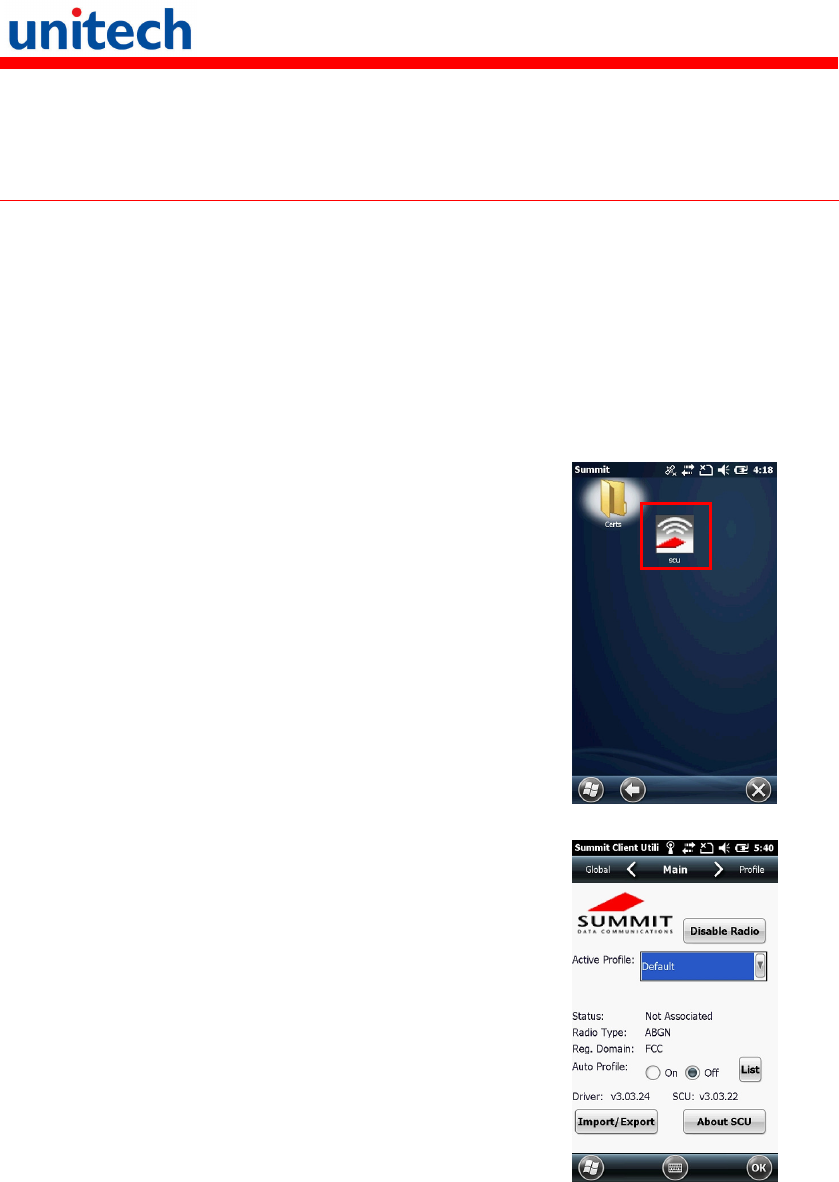

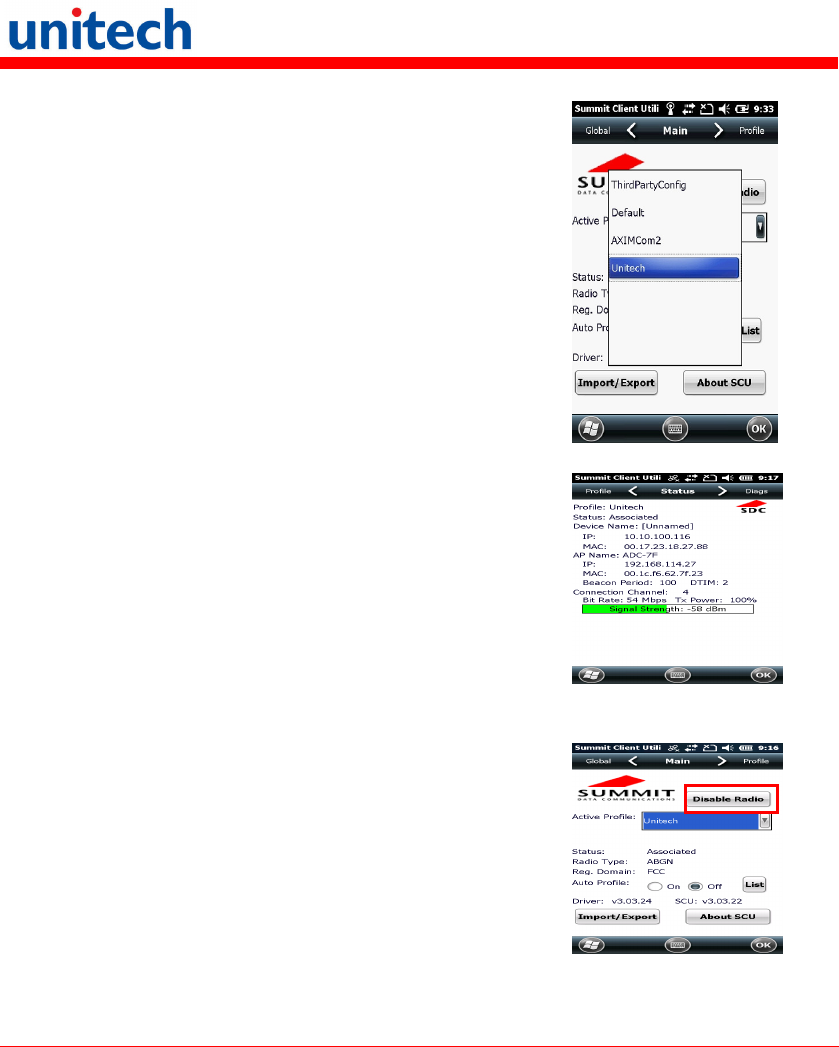

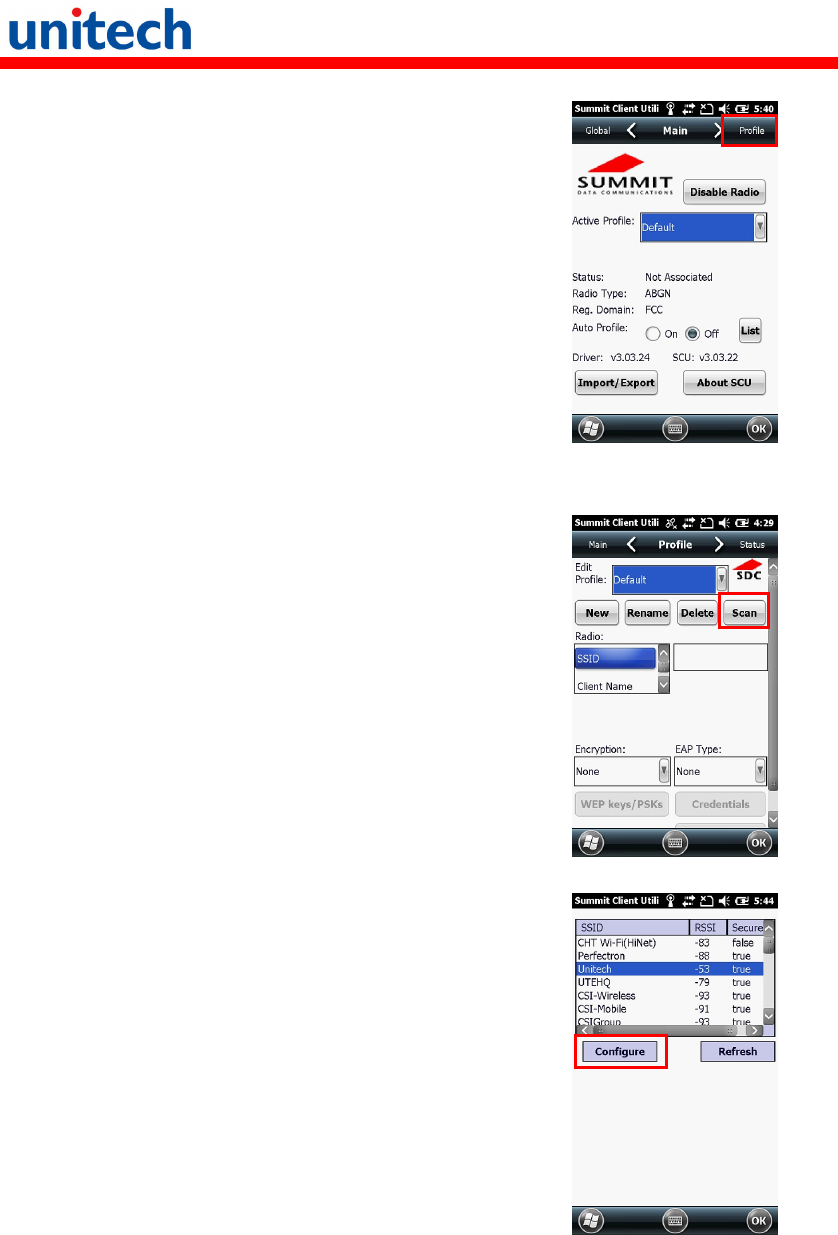

Using the Summit Utilities.......................................................................19

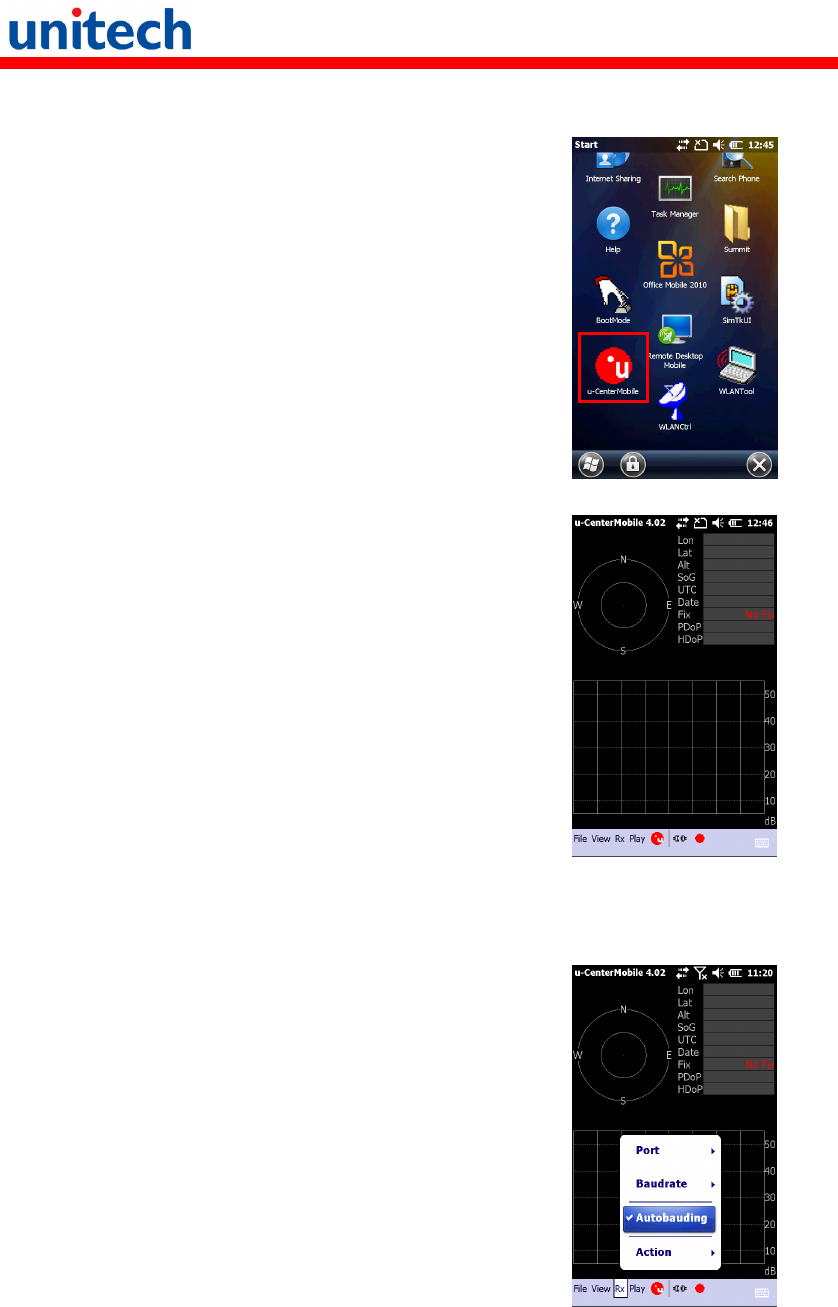

u-CenterMobile for Quick GPS Connection................................................22
To Open u-CenterMobile.........................................................................23

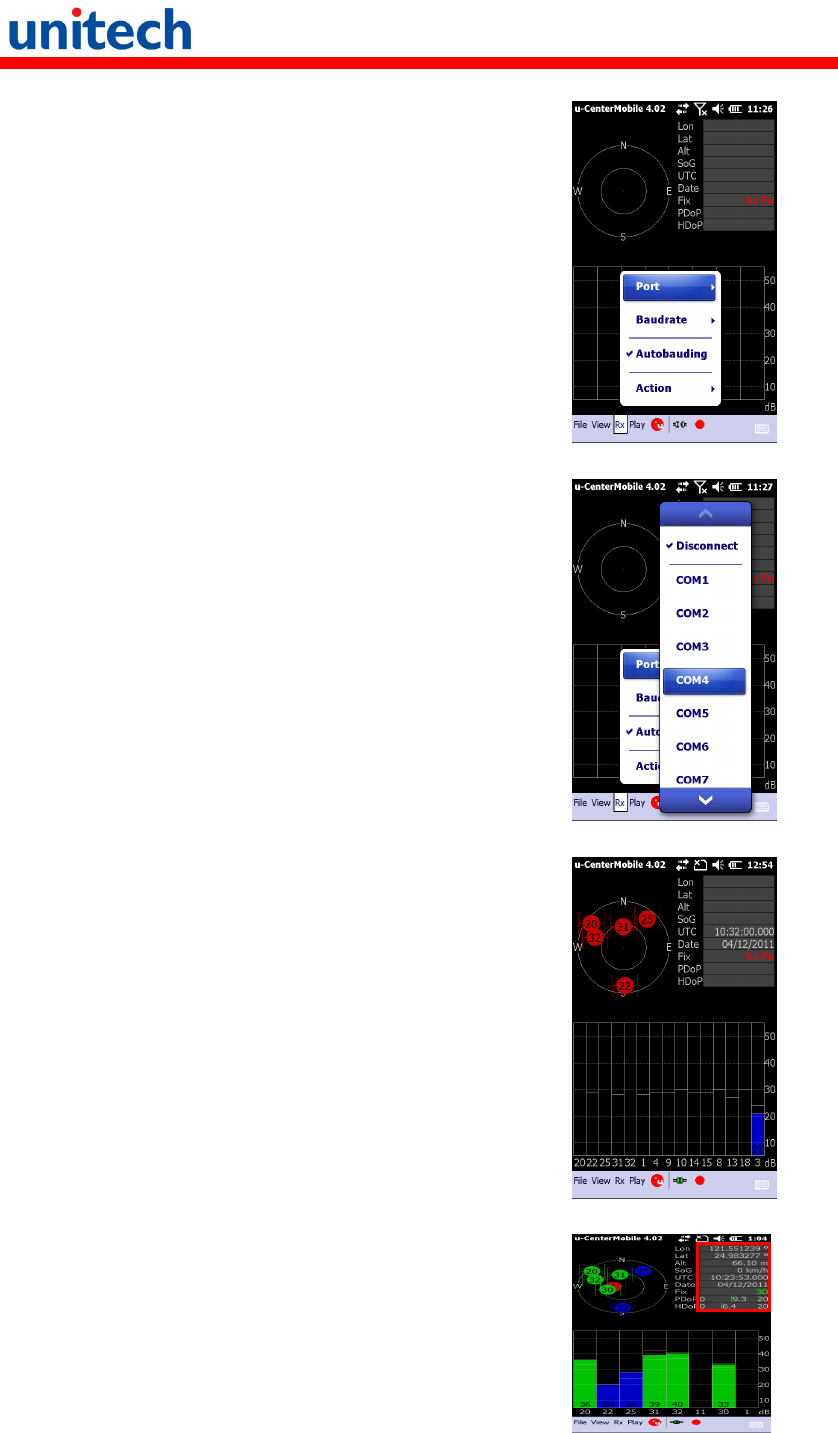

To Download Data ..................................................................................23
ix
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Chapter 4
Barcode Scanner Programs...........................................................................25

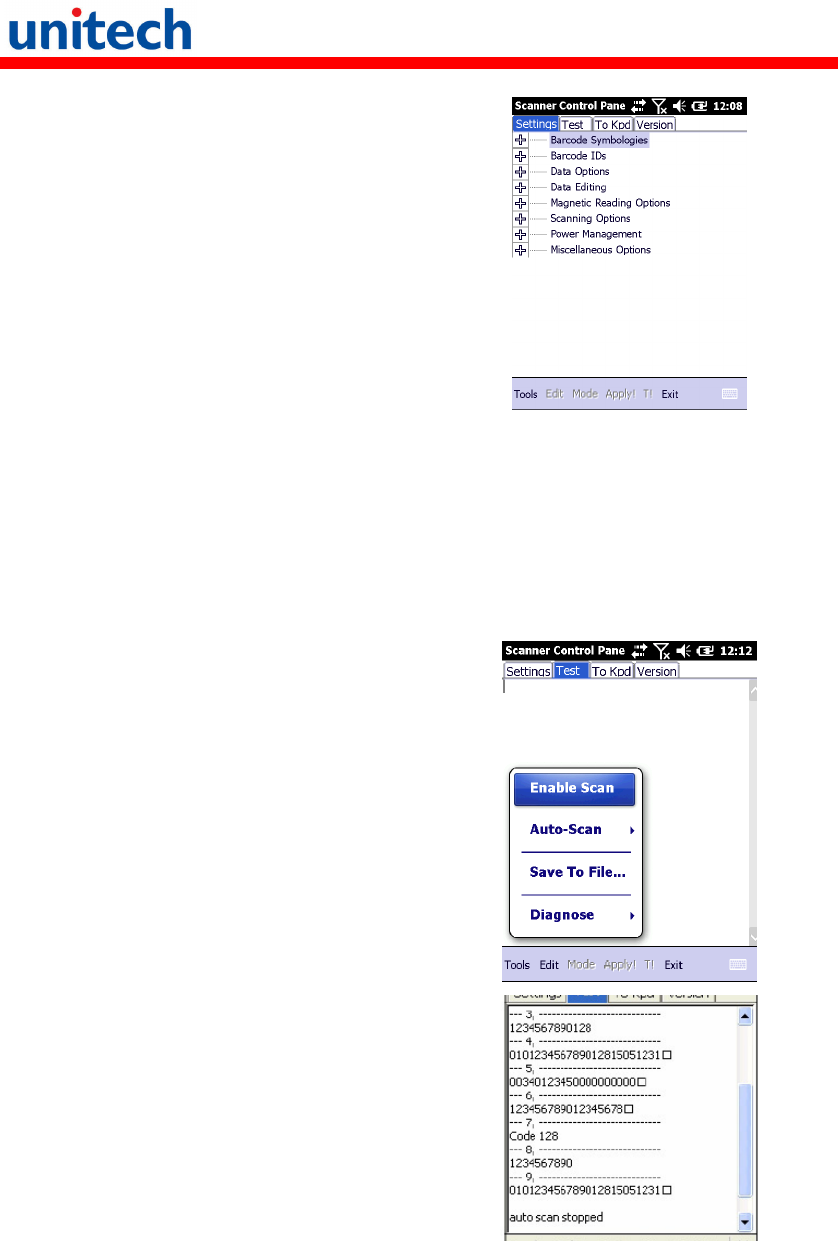

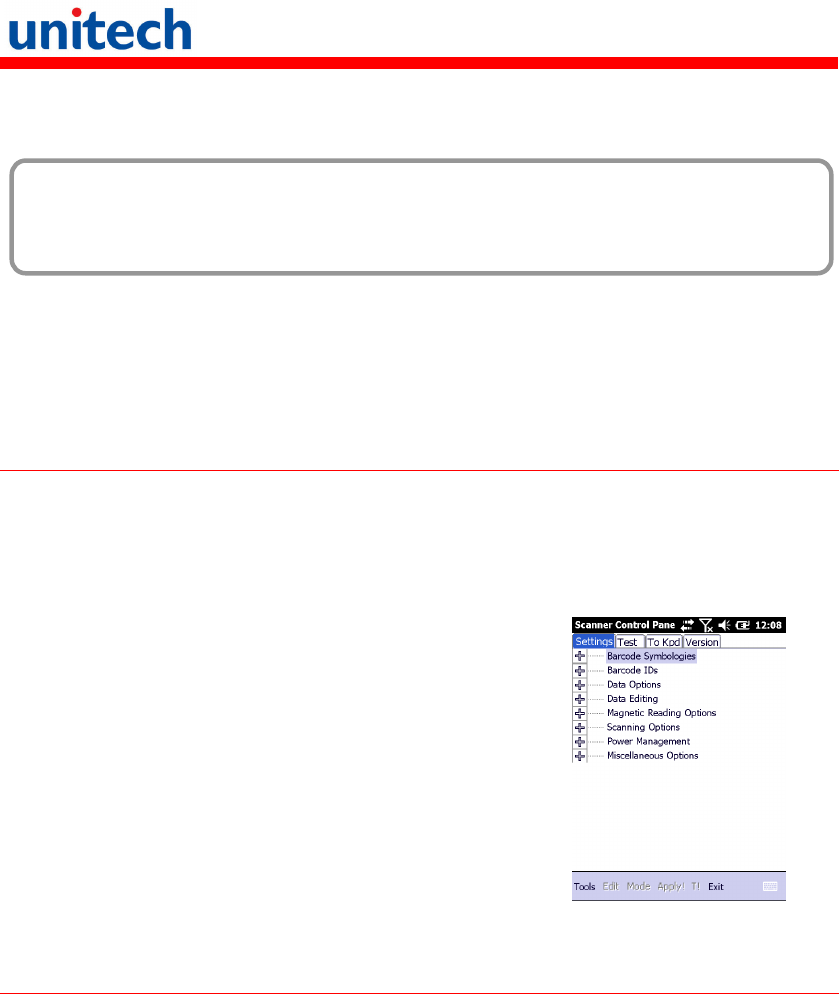

Scanner Setting..........................................................................................25
Scan2Key...................................................................................................25
Barcode Symbologies.............................................................................26
Barcode Symbologies 2D .......................................................................27
Chapter 5
Advanced Settings .........................................................................................29

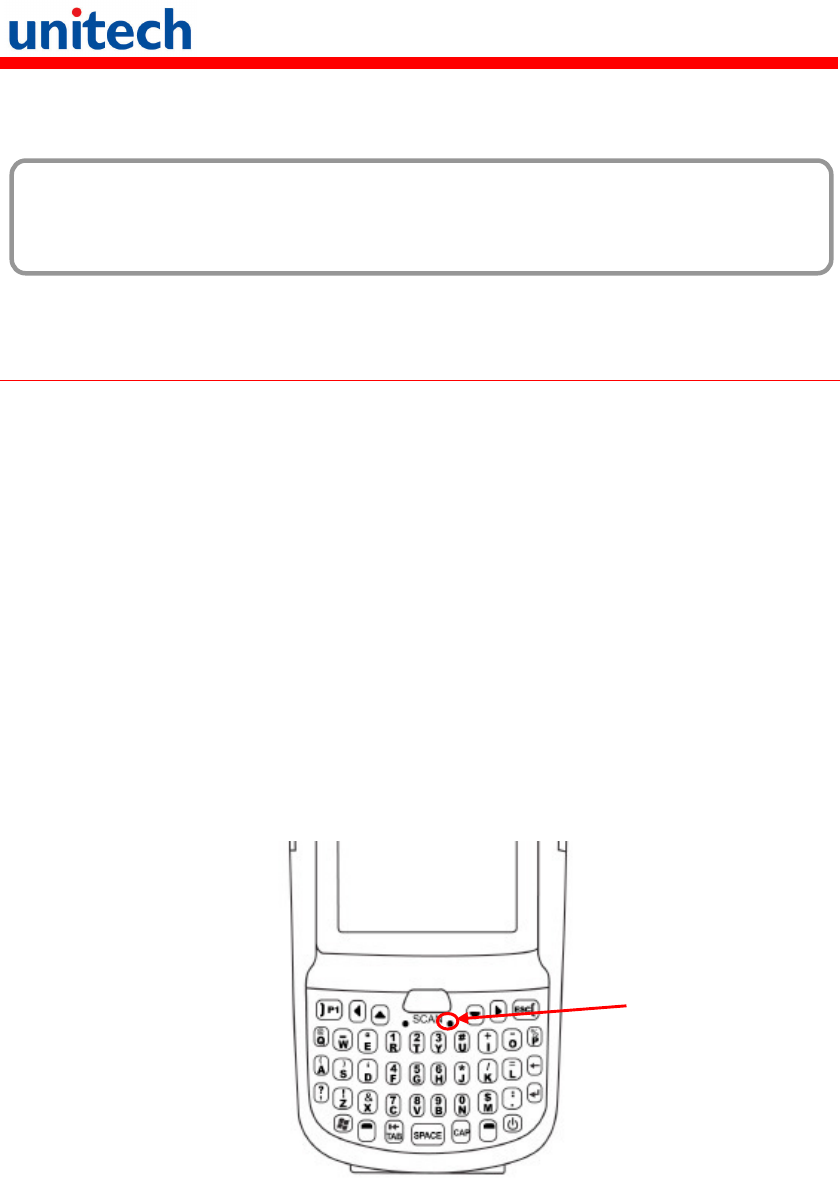

Performing a Hardware Reset....................................................................29

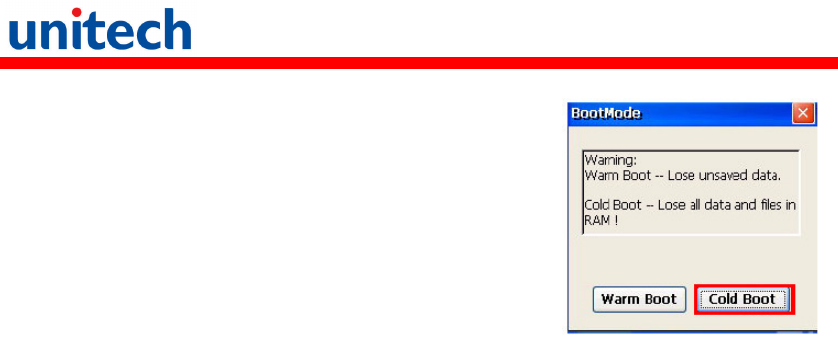

Performing a Warm Boot ........................................................................29
Performing a Cold Boot ..........................................................................30
Performing a Clean Boot ........................................................................31
Appendix I
System Specification......................................................................................33
Appendix II
Disinfecting and Cleaning MCA Models .........................................................35
Appendix
Worldwide Support.........................................................................................39
x
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
1
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Chapter 1
Getting Started
Introducing the PA692
Thank you for purchasing the PA692 Rugged Handheld
Computer.
The Unitech PA692 is a rugged handheld computer
designed to empower your mobile workforce in today’s
aggressive business environment. As productivity and
efficiency define the benchmark for success, the PA692
provides field-based workers with a host of data collection
tools and a comprehensive wireless communication
platform, all in a compact, durable and ergonomic form
factor.
2
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Features
Powerful system
Microsoft Windows Embedded
Handheld 6.5 operating system
TI OMAP3 AM3715 processor
with speed of up to 806 MHz
System memory
512MB Mobile DDR
512MB NaNDFlash
Display
3.8” TFT LCD touch screen
480 (W) x 800 (H) resolution
(WVGA)
Supports display rotation
Communication
USB 1.1 Host & Client
Bluetooth 2.1 EDR (supports
Bluetooth Printer, Bluetooth
Modem, Bluetooth ActiveSync,
and Bluetooth Headset)
Camera
Built-in 5M/AF camera with
2 flash LEDs
Audio
MIC
Speaker
Receiver (Headphone)
Expansion slot
MicroSD memory card slot,
supporting up to 32GB
Wireless connectivity
WLAN, 802.11a/b/g/n
WWAN, GSM/GPRS/EDGE :
UMTS/HSDPA/HSUPA (DL
14.4Mbps, UL 5.7Mbps)
WPAN, Class II, Bluetooth
2.1+EDR
GPS/AGPS
RFID/HF (Optional)
G-Sensor
User-friendly interface
Special keys to launch particular
applications and display the
on-screen keyboard
Keys for barcode scanning
Barcode scanner engine
1D Engine (Optional)
2D Engine (Optional)
RFID Reader (Optional)
Frequency: 13.56MHz
Tag Support: ISO15693,
ISO14443A, ISO14443, and
NFC
3
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
What’s Included
PA692 Terminal Manual CD
Stylus Battery
Elastic Stylus String Hand Strap
Power Adaptor Plugs
4
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Tour of the PA692
The following sections describe the main components and features of the
PA692.
PA692 Front and Right View
1 LED indicators 7 Power button
2 LCD touch screen 8 Universal connector
3A
Microphone
3B
Reset button
9 Scanner trigger button
4 Receiver 10
Mute / vibration button*
5 Scan button 11
Camera button
6 Keypad 12
Memory card slot
*Note: If you just want Mute, hit the “+ -“ button on the left side of the unit, and then
select “OFF”. The unit will not mute, nor will it vibrate when you scan.
4
1
2
3A
5
6
7
9
10
11
12
8
3B
5
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

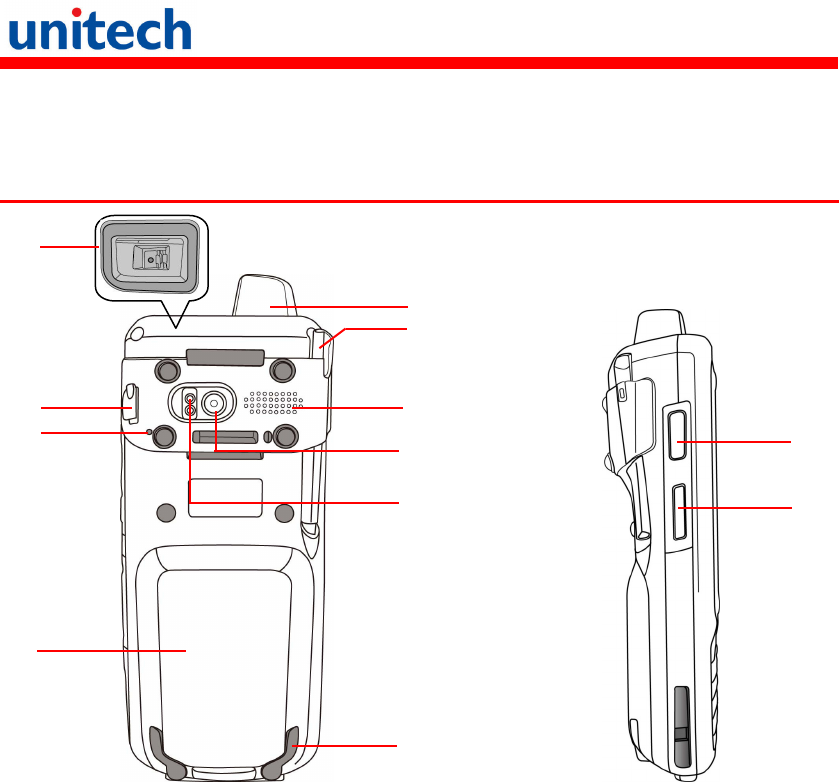

PA692 Rear and Left View
1 Barcode scanner window 7 Speaker
2 Earphone jack 8 5M/AF camera
3 Microphone 9 LED flash light
4 Battery compartment 10
Battery compartment tab
5 Antenna 11
Scanner trigger button
6 Stylus 12
Volume up/down
1
2
3
4
5
6
7
8
9
10
11
12
6
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

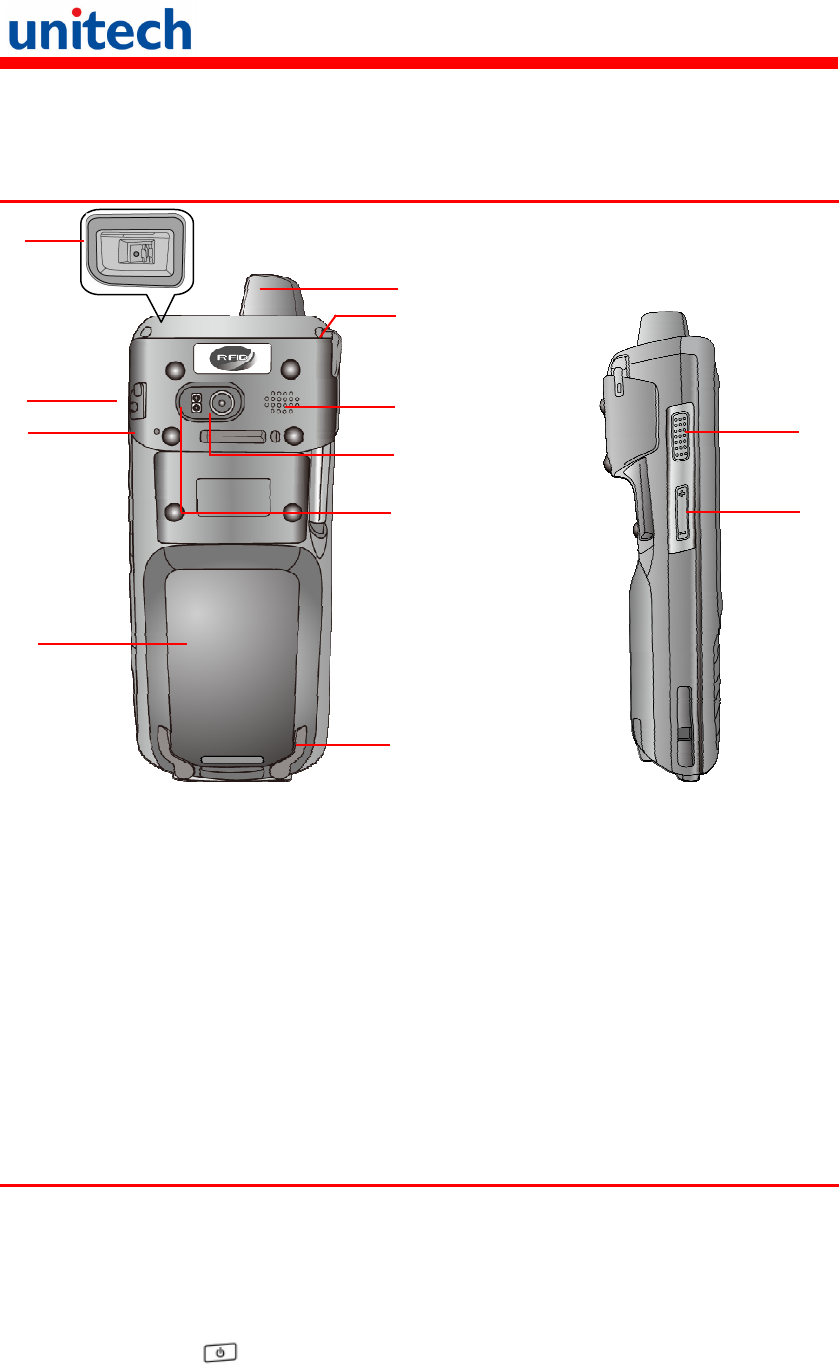

PA692 HF Rear and Left View
1 Barcode scanner window 7 Speaker
2 Earphone jack 8 5M/AF camera
3 Microphone 9 LED flash light
4 Battery compartment 10
Battery compartment tab
5 Antenna 11
Scanner trigger button
6 Stylus 12
Volume up/down
Turning
ON
the PA692 for the First Time
After you have initially charged your device for about 16 hours, the device is
ready to be used. You can now start up your device. You can then calibrate the
display, learn some basic stylus usage, and set up the system time zone, date
and time.
Power-On Button
Turn ON your device by pressing the power button on the front panel.
1
2
3
4
5
6
7
8
9
10
11
12
7
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

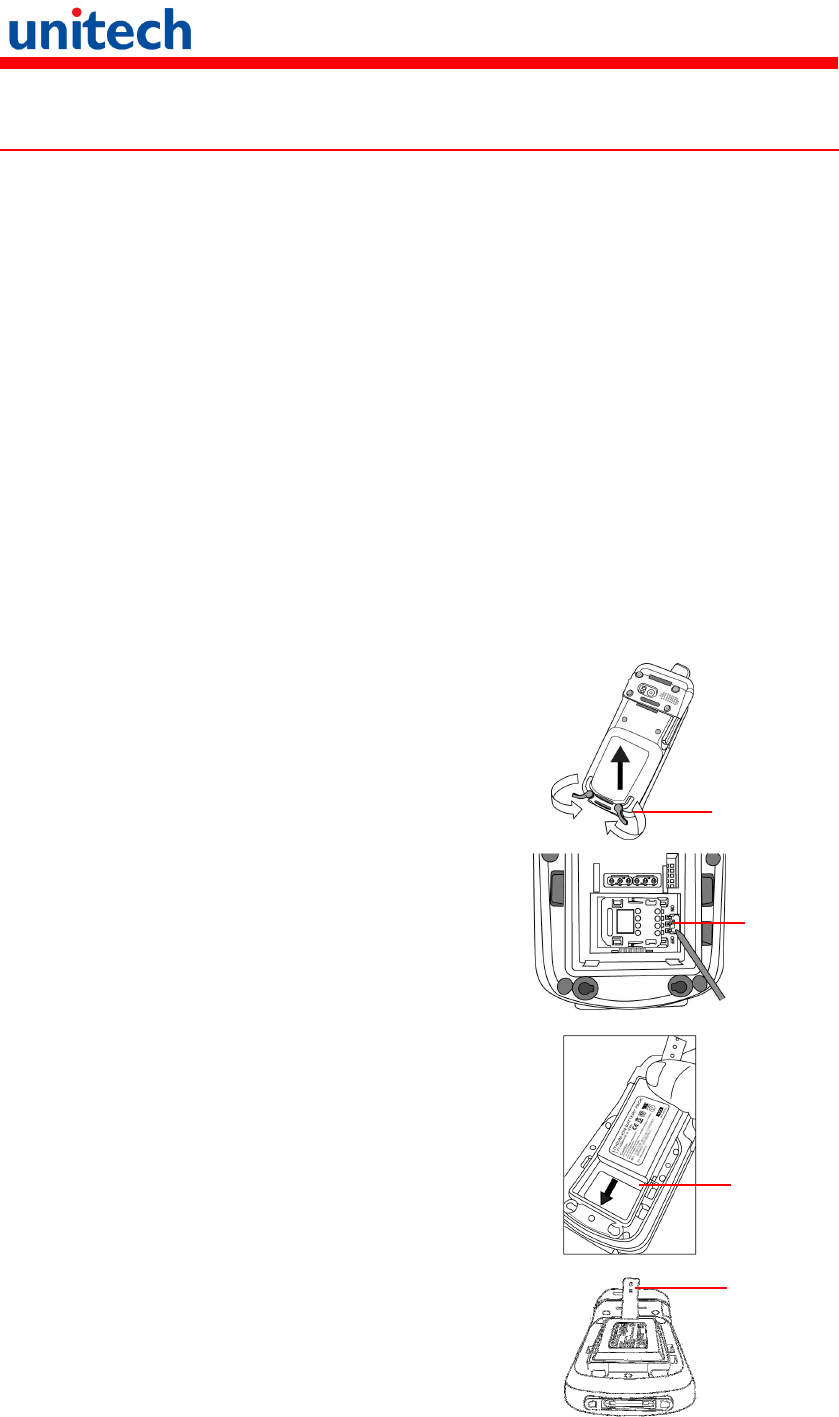

Installing the Battery
WARNING! There is a risk of fire and burns if the battery pack is handled
improperly. DO NOT disassemble, crush, puncture, short external
contacts, or dispose the battery pack in fire or water. DO NOT
attempt to open or service the battery pack. Dispose of used
batteries according to local recycling guidelines in your area.
A backup battery cell is embedded into your device to prevent data loss when
the main battery pack is removed or completely discharged. This backup
battery will keep the data and system setting for up to 2 hours if the main
battery is removed.
NOTE: To enable the backup battery cell to provide backup power supply,
charge your device with the main battery pack for at least 16 hours.
NOTE: To power on the device properly, make sure to replace the battery
compartment cover after installing the battery.
1. Open the battery compartment
cover by sliding the tabs on both
sides in the direction of the arrows
shown and lift the cover up.
2. Push up the b
ackup battery switch
to the “ON position by using a
stylus to turn on the backup
battery.
3. Slide and position the battery
pack, making sure the battery
contacts are aligned with the
contacts in the compartment.
4. Use your thumb to snap the
battery in place.
Battery Compartment Tab
Backup Battery
Switch
Battery
Compartment
Contacts
Plastic Tab
8
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
5. Replace the battery compartment
cover by pushing down on the
tabs and sliding them back into
place as shown.
NOTE: Make sure the battery compartment cover is securely closed, or you
may be unable to turn ON the terminal.
Charging the Battery
Before using the terminal for the first time, you need to charge it for about 16
hours. After that, you can charge the terminal for 4 hours to recharge the
battery to full capacity. Charge the terminal using the USB charging cable or
the docking station.
CAUTION: Turn ON the backup battery switch before charging the battery.
Data you entered may not be properly stored until the built-in
backup battery has been adequately charged.
CAUTION! Operating the terminal for the first time without the AC adapter, and
without fully charging the backup battery may result in loss of data
stored in RAM memory. When the main battery is removed, the
backup battery retains RAM data in memory for 2 hours. Please
fully charge the backup battery to avoid data loss in RAM memory.
1. Press and hold the release button on both sides of the USB charging
cable and connect it to the PA692 (1).
2. Plug the AC adapter cable into the power jack of the USB charging cable
(2). Plug the AC adapter cord into an electrical outlet (3).
9
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

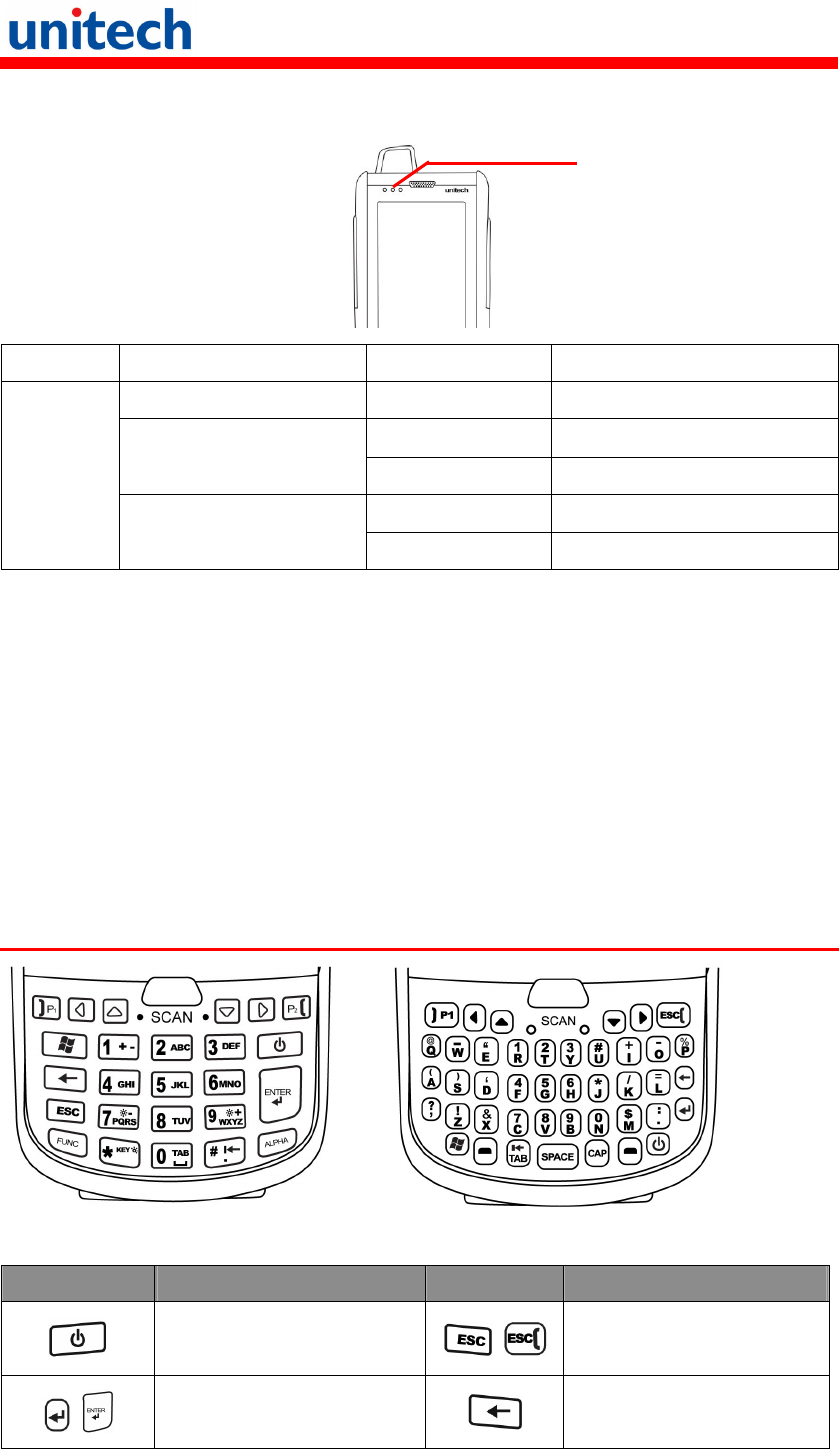

Checking the LED status
LED Status Description
GPRS Flashing Yellow
GPRS module is enabled.
Solid Red Ready for Reading Scan
Solid Green Successful reading
Solid Red Being charged
Terminal
Power
Solid Green Fully charged
Checking the Battery Status
If the battery level becomes low in the course of normal use, a status icon
appears on the device screen indicating low or very low battery status. In both
cases, perform an ActiveSync operation to back up your data, and then
recharge your device as soon as possible.
CAUTION! Once the device is shut down, you should recharge the device
within 48 hours. Otherwise you will lose all data including files
stored in the RAM memory.
Keypads and Function Buttons
Numeric Keypad Qwerty Keypad
Key Description Key Description
Power key
Escape key
Enter key Backspace key
Terminal LED indicators
from left to right:
-- GPRS Communication
-- Scan
-- Power
10
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

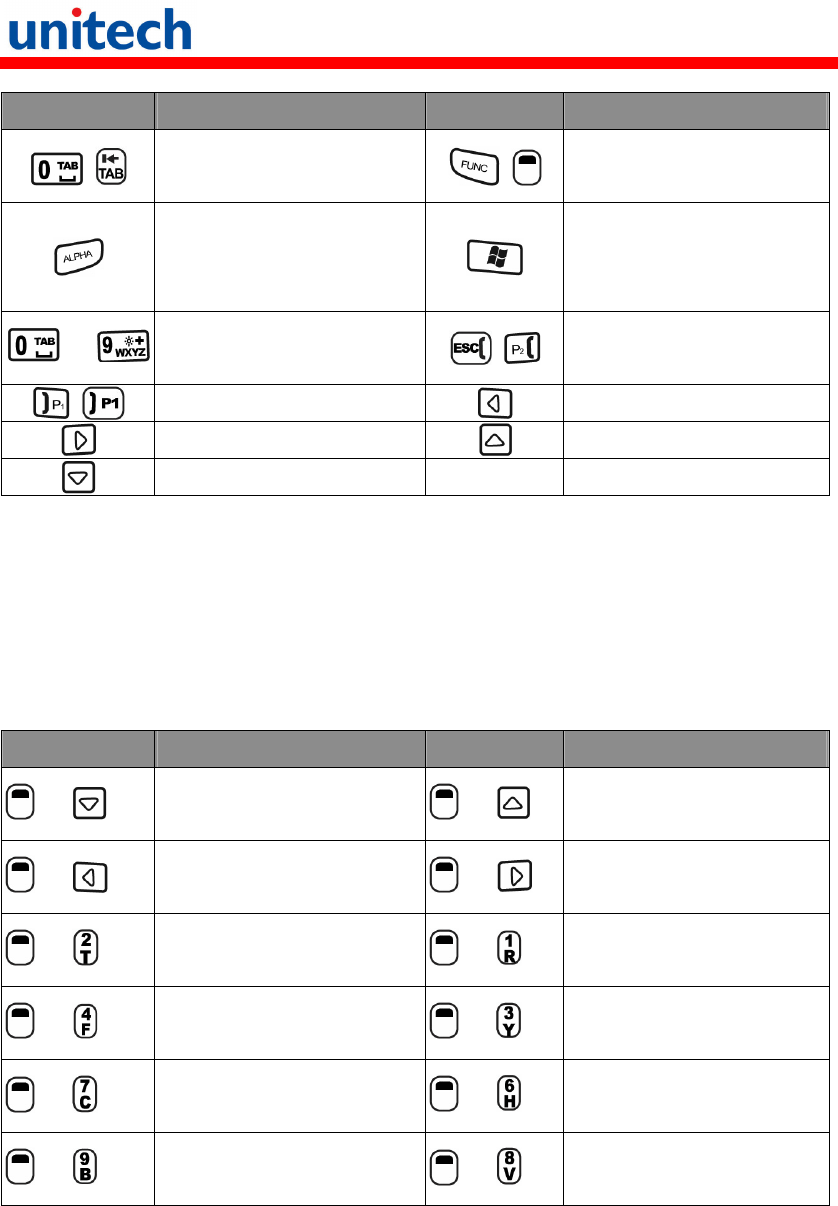

Key Description Key Description
Tab key Function key
Alpha key, toggle between
numeric and alphabetic
entry modes
Windows key
~
Alphanumeric keys Hang-off key
Answer key Left cursor key
Right cursor key Up cursor key
Down cursor key
When the PA692 turns on, the numeric mode is on by default. When you
toggle to alpha mode, the CAPS mode is off by default. Use the Alpha key to
toggle to CAPS.

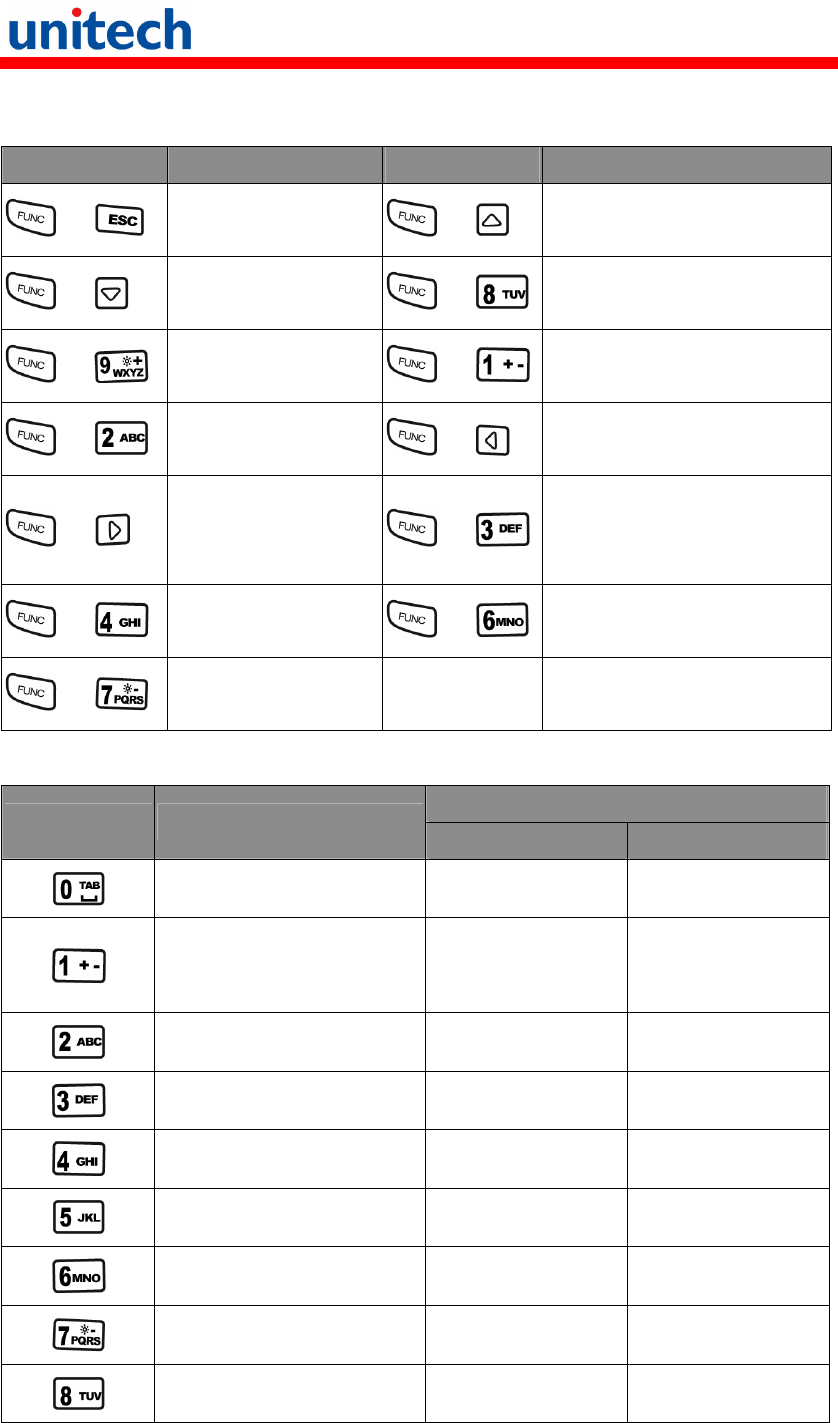

Using Function keys
For Qwerty Keypad
Key Description Key Description
+
Keypad backlight
toggling +
Screen backlight
toggling
+
Decrease screen
backlight brightness +
Increase screen
backlight brightness
+ Softkey 2 + Softkey 1
+ END TALK + TALK
+ Scanner setting + Task manager execution
+ Device information + Power management
11
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
For Numeric Keypad
Key Description Key Description
+ Calibration + Screen backlight toggling
+
Keypad backlight
toggling +
Power management
+ Device information
+
Softkey 1
+ Softkey 2 +
Decrease s
creen backlight
brightness
+
Increase screen
backlight
brightness
+
TALK
+ END TALK +
Task manager execution
+ Scanner setting
Using Alpha keys
Alpha On
Key Alpha Off CAPS Off CAPS On
0 Space, @, $, “, 0 Space, @, $, “, 0
1 +, -, \, %, 1 +, -, \, %, 1
2 a, b, c, 2 A, B, C, 2
3 d, e, f, 3 D, E, F, 3
4 g, h, i, 4 G, H, I, 4
5 j, k, l, 5 J, K, L, 5
6 m, n, o, 6 M, N, O, 6
7 p, q, r, 7 P, Q, R, 7
8 t, u, v, 8 T, U, V, 8
12
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Alpha On
Key Alpha Off CAPS Off CAPS On
9 w, x, y, z, 9 W, X, Y, Z, 9
# , ; ! . / , ; ! . /
13
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Chapter 2
Using the Hardware
Using the MicroSD Memory Card
The PA692 has an expansion slot compatible with a range of MicroSD memory
cards, which are primarily used to back up or transfer files and data.

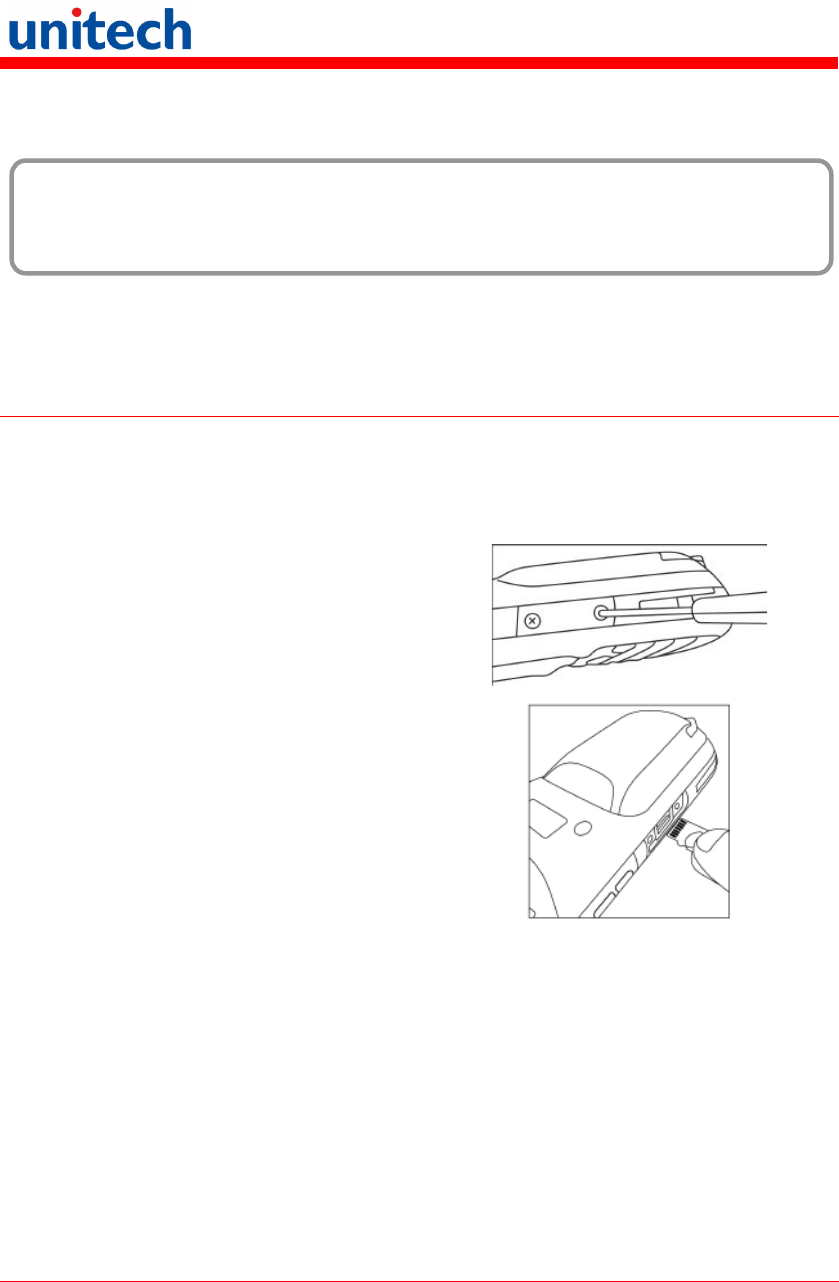

Inserting a Memory Card
1. Remove the two screws on the
MicroSD slot shield and remove
the shield.
2. Insert the MicroSD card with the
notched corner as shown.
3. Push the card into the slot until you feel the MicroSD card click into place.
4. Screw the MicroSD compartment cover back into place.
Removing the Memory Card
1. Remove the two screws from the MicroSD compartment shield and
remove the shield.
2. Press the card in and release. The card pops out.
3. Remove the card from the slot.
Using the SIM Card
The PA692 has a slot for a GPRS SIM card inside the battery compartment.
CAUTION! Before installing the SIM card, please backup your data to prevent
data loss because of a low backup battery.
14
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Inserting the SIM card
1. Remove the battery compartment cover and the main battery.
2. Slide the cover of the SIM card slot to the right to
release the latch.
3. Pull open the cover with thumb.
4. Insert the SIM card into the cover with the notched
corner up, and the contact side of the SIM card
faces down.
5. Close the cover over the slot, and then slide the
cover to the left to lock the SIM card.
6. Put the battery back into the battery compartment and replace the battery
compartment cover.
Using the Barcode Laser Scanner
The PA692 has an integrated laser scanner, which reads all major 1D barcode
labels with excellent performance.
NOTE: The reading software must be enabled in order to operate the scanner.
This can be a user-loaded application or a pre-loaded utility such as
Scanner Settings or Scan2Key.
To launch the Scanner Control Panel, follow these instructions:
15
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
1. Tap Start Settings System
2. Tap the Scanner icon. The
Scanner Control Panel appears.
NOTE: Or press Func key and “7”
simultaneously to bring up the
Scanner Control Panel screen.
In the Scanner Control Panel screen, you can configure barcode scanner
parameters such as enabling or disabling barcode symbologies, setting data
transmission options, configuring magnetic and proximity reading options, and
setting power management options. See the section of Barcode Symbologies.
To test the barcode laser scanner, follow these instructions.
1. Tap the Test tab to activate the demo program.
2. Tap Tools Enable Scan.
Or tap Tools Auto-Scan
Start Auto-Scan.
Define the scan interval. Tap Start.
3. Aim the laser scanner at the
selected barcode, and press
either one of the scanner trigger
buttons on the device.
If you enable Auto-Scan, you don
’t
have to press any button. Aim the
laser scanner at the selected
barcode while the laser emits light at regular intervals. The scanned
barcode data appears on the screen.
4. Tap Tools Auto-Scan Stop Auto-Scan.
16
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
17
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Chapter 3
Getting Connected
The PA692 enables users to link to a host computer using an RS-232 cable, or
Bluetooth, WiFi, or GPRS connection for data communication. This chapter
provides an overview of the PA692 communication options.
Establishing Device-PC Connection
Installing Microsoft ActiveSync
In order to exchange data between your computer and the PA692, Microsoft
Active-Sync must be installed on your computer. Use the USB/RS232 charging
cable that comes with your device or the docking station to connect the device
to your computer.
NOTE: If you have a previous version of the Microsoft ActiveSync installed in
your computer, uninstall it first before installing the latest version of
Microsoft ActiveSync.
To install Microsoft ActiveSync on your computer:
1. Close any open programs, including those that run at startup, and disable
any virus-scanning software.
2. Download the ActiveSync software from the Microsoft ActiveSync
Download page at
http://www.microsoft.com/downloads/details.aspx?Fami-lyID=7269173a-2
8bf-4cac-a682-58d3233efb4c&DisplayLang=en.
3. Browse to the location of the downloaded file, and double-click it. The
installation wizard begins.
4. Follow the instructions on the screen to install Microsoft ActiveSync.
18
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

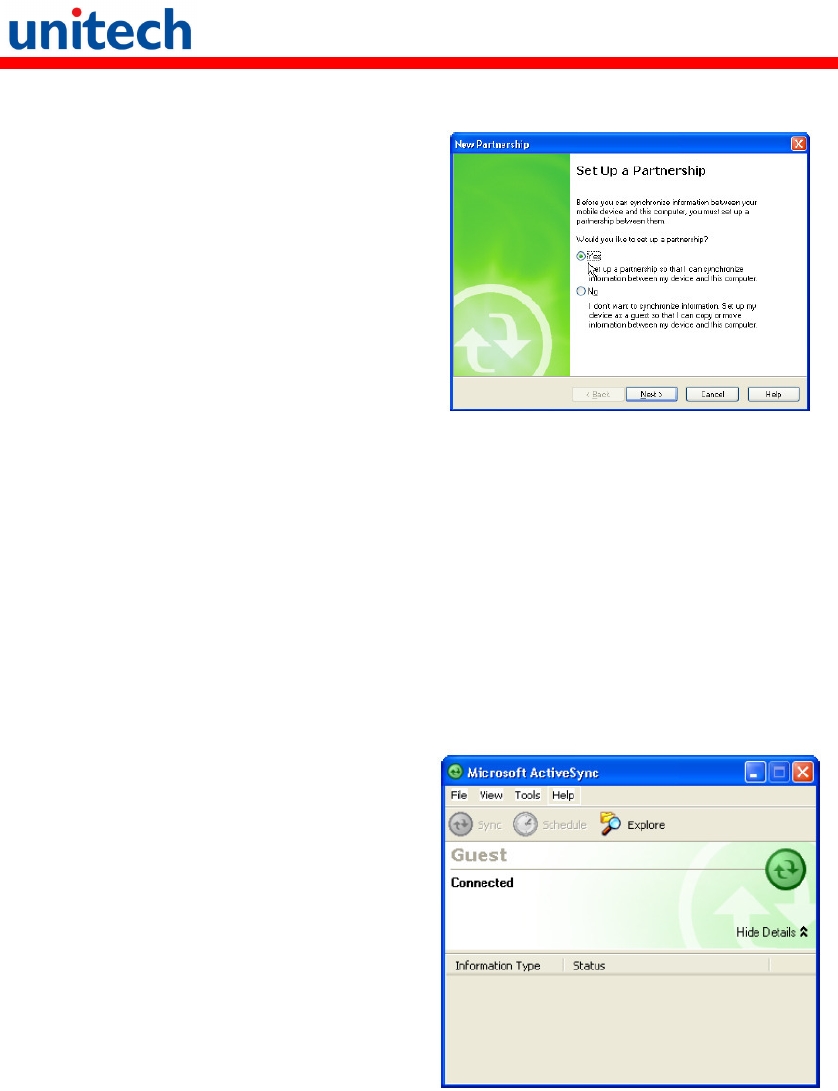

Connecting the Device to Your Computer
1. After ActiveSync has been
installed, connect the PA692 to
your PC as described in
Connecting the terminal to a host
(PC/Notebook).
2. Turn the PA692 on.
3. ActiveSync starts automatically
and configures the USB port to
work with the PA692. The New
Partnership setup wizard
automatically starts.
NOTE: If ActiveSync doesn’t start automatically, click Start Programs
Microsoft ActiveSync.
NOTE: If a message appears indicating that it is unable to detect a connection,
click the Cancel button and manually configure the communication
settings.
4. Follow the on-screen instructions.
5.
When the configuration process is
complete, the Active-
Sync window
appears.
6. Synchronization will be initialized and will take place if you’ve chosen to
synchronize periodically or upon connection.
NOTE: Your computer can create a partnership with multiple PA692s. Also, a
PA692 can create a partnership with up to two computers.
19
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
WiFi Connection
A wireless network can be added either when the network is detected or by
manually entering network settings. Before following these instructions, make
sure if authentication information is needed.
Using the Summit Utilities
You can use the Summit Client Utility tool to setup or change the WiFi settings.
Admin Login
1. Tap Start Summit folder scu.
The Summit Client Utility window appears.
2. You are led to the main page.
20
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
3. Tap Profile to scan available APs
Scan Available AP
1. Under Profile tab, tap Scan for available AP.
2. You may select a desired AP to create a new
profile. Tap Configure.
21
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
3. Tap Yes to create the new profile.
4. Enter the WEP key or network key. Tap OK.
Commit and Activate
1. Tap Commit to activate the setting.
22
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
2. Under the Main tab, select the profile you want
to activate from the drop-down menu of the
Active Profile.
3. Under the Status tab, you can see the IP
address, signal strength and quality.
4. Tap OK to exit the Summit Client Utility.
5. If you want to disconnect the AP, tap Disable
Radio.
u-CenterMobile for Quick GPS Connection
Before you start to use your device for GPS navigation, use the
u-CenterMobile program first to download ephemeris data (current satellite
position and timing information) onto your device. This data is needed to
accelerate GPS positioning.
u-CenterMobile allows you to download ephemeris data from a specified Web
server or satellite; you may use the Internet connection on your device, which
can be via ActiveSync, WIFI, or GPRS to download from the server. This
download significantly speeds up GPS positioning.
23
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
To Open u-CenterMobile
1. Tap Start u-CenterMobile.
2. The u-CenterMobile program appears.
To Download Data
Please follow the following steps to download the ephemeris data.
1. Tap Rx Autobauding.
24
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
2. Tap Rx Port.
3. Select COM4.
4. The tool starts to download the ephemeris data
(current satellite position and timing information).
5. When the download is finished, you will see the
data shown in the upper right corner.
25
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Chapter 4
Barcode Scanner Programs
The PA692 provides an option for the barcode scanner, allowing you to scan
and decode various types of 1D/2D barcodes.
Scanner Setting
When it is necessary for the user to change the default barcode symbology for
a different application, the Scanner Control Panel provides the ability to
change default symbology, place delimiter characters behind scanned data,
and save the settings.
Tap Start Settings System Scanner.
The Scanner Control Panel appears.
NOTE: Press Func key and “7”.
Scan2Key
The Scan2Key application routes input from a scanner port to a keypad buffer,
making all input from the scanner emulate input from the keypad. Using the
Scan2Key, scanned data will be directed from the scanner port to any waiting
(active/focused) text editor such as MS Mobile Word or a text box in an
application.
26
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Barcode Symbologies
Barcode
Symbology
Enable /
Disable
Char Check
/ Digit
verification
Transmit
Check
Char/digit
Others
Australian
Post
YES Send bar width data
British Post
YES
Canadian
Post
YES
Codabar YES YES YES Transmit start & stop char, *data length
Code 11 YES YES *data length
Code
128/EAN
128
YES *data length
Code 39 YES YES YES For ASCII, Transmit start & stop char,
Append mode, *data length
Code 93 YES *data length
Dutch (KIX)
Post
YES
EAN 13 YES YES 2 digit addenda, 5 digit addenda,
Addenda required, Include addenda
separator
EAN 8 YES YES 2 digit addenda, 5 digit addenda,
Addenda required, Include addenda
separator
IATA 2 of 5 YES *data length
Interleaved
2 of 5
YES YES YES *data length
ISBT YES
Japanese
Post
YES
Korean Post
YES *data length
Matrix 2 of 5
YES *data length
MSI YES YES *data length
Planet YES YES
Postnet YES YES
27
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Barcode
Symbology
Enable /
Disable
Char Check
/ Digit
verification
Transmit
Check
Char/digit
Others
RSS
(Databar)
YES *data length
UPC A YES YES 2 digit addenda, 5 digit addenda,
Addenda required, Include addenda
separator, Send number system
UPC E YES YES 2 digit addenda, 5 digit addenda,
Addenda required, Include addenda
separator, Send number system,
Expanded UPC-E
UPC E1 YES YES 2 digit addenda, 5 digit addenda,
Addenda required, Include addenda
separator, Send number system,
Expanded UPC-E
NOTE: *Value Adjustable Scanner Control Panel Version 5.14
Barcode Symbologies 2D
Barcode Symbology
Enable /
Disable
Char Check
/ Digit
verification
Transmit
Check
Char/digit
Others
Aztec YES Runes, *data length
Codablock F YES *data length
Code 49 YES *data length
Data Matrix YES *data length
EAN-UCC Composite
YES UPC composite, *data
length
MaxiCode YES *data length
MicroPDF417 YES *data length
OCR YES
OCR mode, OCR direction,
Template, Group G, Group
H, Check character
PDF-417 YES *data length
QR Code YES
TLC-39 (TCIF Linked
Code 39)
YES
NOTE: *Value Adjustable Scanner Control Panel Version 5.14
28
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
29
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Chapter 5
Advanced Settings
Performing a Hardware Reset
You may have to perform a reset if the device freezes (i.e., the device no
longer responds to the buttons or tapping on the screen).
A soft reset allows your device to get a fresh start, similar to rebooting a
computer.
This will restart your device and adjust memory allocation. All records and
entries are retained after a soft reset. Unsaved data in open programs may be
lost.
Performing a Warm Boot
Method 1: From Hardware
1. Remove the stylus from its holder.
2. Lightly press the tip of the stylus to the reset button located at the right
side of the scan button.
Warm boot button
30
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

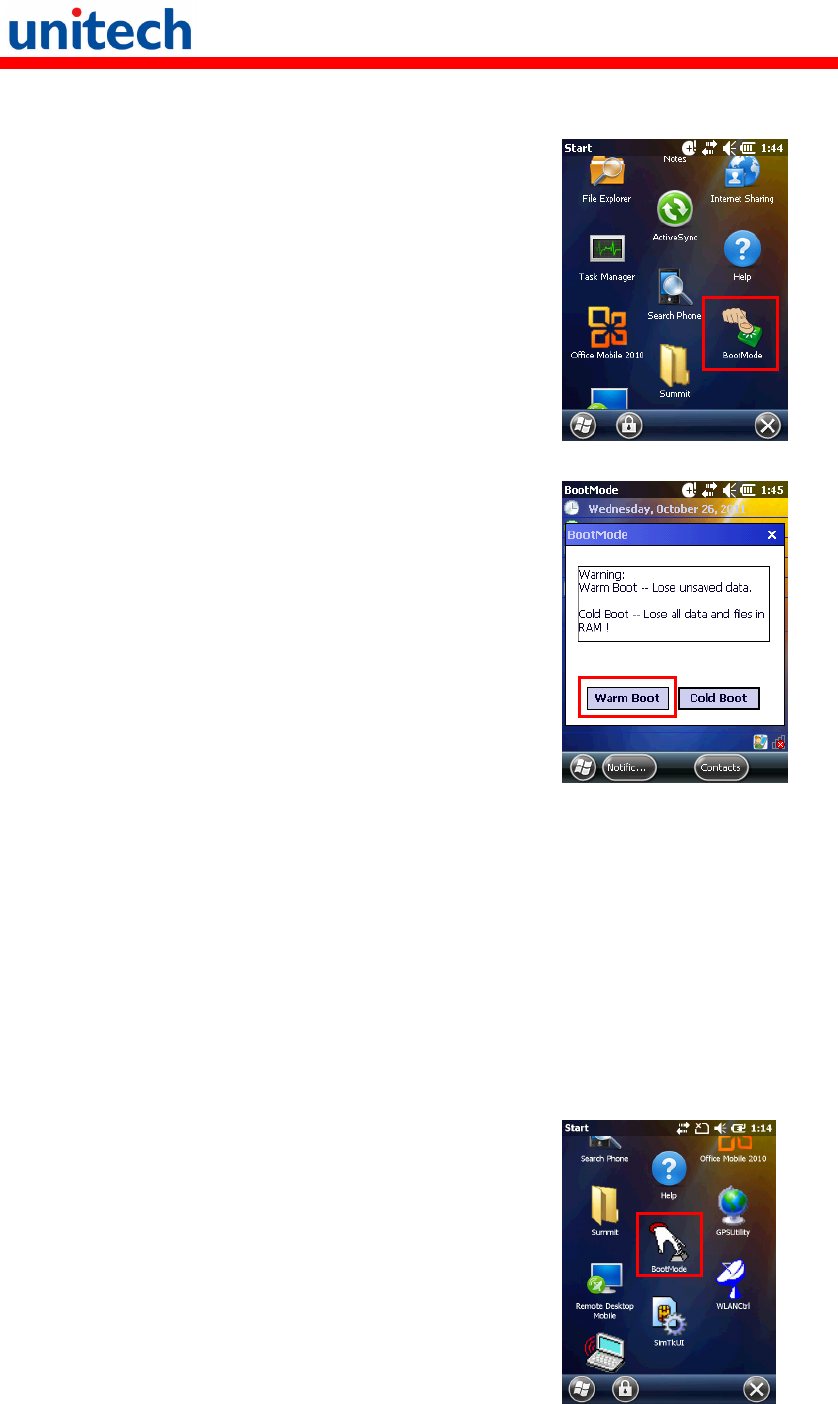

Method 2: From Windows Embedded
1. Tap Start BootMode.
The BootMode Screen appears.
2. Tap Warm Boot.
The system is reset and you will lose unsaved
data.
Performing a Cold Boot
A cold boot will erase all data and all programs you have added, and will
restore the device to the default factory settings.
Never perform a cold boot unless a warm boot does not correct your problem.
When you perform your next ActiveSync operation, you can restore any data
that you previously synchronized to your computer or you can restore data that
you backed up to a storage card.
Method 1: From Windows Embedded
1. Tap Start BootMode.
The BootMode Screen appears.
31
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
2. Tap Cold Boot.
The system is reset and you will lose all data
including all files in the RAM memory.
NOTE: When you perform hard reset, the data and time settings will not be
retained. Formats, preferences and other settings are restored to their default
factory settings.
Performing a Clean Boot
Performing clean boot will set the terminal to the factory default settings.
To perform the clean boot, press the hard reset button with a stylus and press
the left trigger button and backspace key; alternatively, tap software coldboot
and press the left trigger.
32
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
33
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Appendix I
System Specification
CPU TI OMAP3 AM3715 1GHz
Memory Mobile DDR: 512MB
NaNDFlash: 512MB
OS
Phone version --
Windows Embedded Handheld 6.5 professional version
Without phone version --
Windows Embedded Handheld 6.5 classic version
Keypad Numeric keypad -- Total 26 keys (including power key)
QWERTY keypad -- Total 44 keys (including power Key)
Display WVGA, 3.8’’ Color Tranmissive TFT-
LCD with touch screen &
backlight
Barcode
Scanner
1D Laser scan engine (Optional)
2D Imager (Optional)
RFID Reader
(Optional)
Frequency: 13.56MHz
Tag Support: ISO15693, ISO14443A , ISO14443B, and NFC
Camera 5.0M Pixel, 15 pix/sec
Flash Light LED
Indicator LEDs
Vibrator
Audio MIC, speaker, headset connector, receiver
Address
Locating GPS
Expansion Slot
MicroSD memory card slot
Main battery (Li-ion) 2200mAh / 3.7V, 3.5 hrs. for full
charge
Power Source
Backup battery
One Ni-MH backup battery
rechargeable_11mAh / 3V
Backup 2 hours
Enclosure Weight 390g with 2200mAh Battery
34
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Dimension
Approximately 177.66mm (L) x
40.41mm (H) x 74.58mm (W)
(Antenna length included)
Operating temperature -10 °C ~ 50 °C
Charging temperature 0 °C ~ 40 °C
Storage temperature -20 °C ~ 60 °C
Relative humidity 5% ~ 95% (non-condensing)
Drop test to concrete 1.5 Meter
Environmental
Environmental sealing IP65
BT + WIFI + Camera
Models BT + WIFI + Camera + GPS + 3.5G
Regulatory
Approvals CE, FCC, VCCI, CCC, NCC
Software Microsoft Visual Studio 2005
Microsoft Windows Embedded Handheld 6.5 SDK
What’s
included
Manual CD
Stylus
Battery
Elastic Stylus String
Hand Strap
Power Adaptor & plugs
35
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Appendix II
Disinfecting and Cleaning MCA Models
Introduction
Whether you are using Unitech MCA models in healthcare environments and
need to disinfect after every patient or in a factory warehouse where the device
is routinely exposed to dust, dirt or grease, your device will need regular
cleaning. This document details how you can safely clean your Unitech MCA
models daily, as well as the monthly maintenance routine that will help keep
your devices up and running.
Approved Cleaning Agents
The cleaning agent you select must contain active ingredients from the
following list:
lsopropyl alcohol
Bleach/sodium hypochlorite
Hydrogen peroxide
Mild dish soap
Ammonium Chloride
Cleansers that contain any active ingredients not listed above should not be
utilized.
Known harmful ingredients
The following chemicals are known to damage the plastics on Unitech MCA
models and should not come in contact with the device:
Ammonia solutions
Compounds of amines or ammonia
Acetone
Ketones
Ethers
Aromatic and chlorinated hydrocarbons
Aqueous or alcoholic alkaline solutions
Ethanolamine
Toluene
trichloroethylene
36
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Benzene
Carbolic acid
TB-lysoform
Special notes regarding the use of vinyl gloves in the work
environment
Many vinyl gloves contain phthalate additives, which are often not
recommended for medical use and may harm the housings. Our MCA models
should not be handled:
While wearing vinyl gloves containing phthalates, or
After vinyl gloves containing phthalates are removed and before hands
are washed to remove contaminant residue
Special notes on hand sanitizers utilized in the work
environment
Some hand sanitizers commonly used in the healthcare environment may
contain the harmful ingredients listed above, such as ethanolamine. Hands
must be completely dry before handling the MCA models to prevent
inadvertent contamination with known harmful ingredients and damage to the
plastics.
Daily Cleaning and Disinfecting
Following are the cleaning and disinfecting instructions for environments that
require daily or more frequent cleaning to prevent the spread of germs,
including healthcare workers who need to disinfect their MCA models after
each patient visit and retail and other shift workers who share devices.
1.) Dampen a soft cloth with one of the approved cleaning agents listed above
or use pre-moistened wipes:
a. Never apply liquid directly to the MCA models.
b. Do not let liquid pool around the display window or any other area on
the device.
2.) Gently wipe all surfaces, including the front, back, sides, top and bottom --
do not wrap the device in the cloth or pre-moistened wipe.
a. Special instructions when cleaning the front of the device:
Be sure to clean the keys and between the keys (use a
cotton-tipped applicator to reach between the keys).
After cleaning, immediately dry the display with a soft
non-abrasive cloth to prevent streaking.
3.) Allow the unit to air dry before use.
37
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
MONTHLY ‘DEEP CLEANING MAINTENANCE
Keep your Unitech MCA models and cradle in good working order with a
regular comprehensive cleaning routine to remove the natural build-up of dirt
that occurs with everyday use on connectors and the scanner exit window as
well as the main surfaces of the device.
1.) Housing: Follow the instructions for daily cleaning and disinfecting above
to give the housing a general cleaning.
2) Scanner exit window: Wipe the scanner exit window with a lens tissue or
other material suitable for cleaning optical materials such as eyeglasses.
3.) MCA model connector:
a. Remove the main battery from MCA model and close the battery door.
b. Dip the cotton portion of a cotton-tipped applicator in isopropyl alcohol.
c. Rub the cotton portion of the cotton-tipped applicator back-and-forth
across the connector on the Unitech MCA model. Do not leave any
cotton residue on the connector.
d. Repeat at least 3 times.
e. Use the cotton-tipped applicator dipped in alcohol to remove any
grease and dirt near the connector area.
f. Use a dry cotton tipped applicator and repeat steps c, d and e. (Note:
use dry swab only, no alcohol.)
4.) Cradle connector:
a. Remove the DC power cable from the cradle.
b. Dip the cotton portion of a cotton-tipped applicator in isopropyl alcohol.
c. Rub the cotton portion of the cotton-tipped applicator along the pins of
the connector. Slowly move the applicator back-and-forth from one
side of the connector to the other. Do not let any cotton residue remain
on the connector.
d. Rub all sides of the connector with the cotton-lipped applicator.
e. Spray compressed air in the connector area by pointing the
tube/nozzle about 1/2 inch away from t the surface. (Caution: When
using compressed air, always wear eye protection, do riot point nozzle
at yourself and others make sure the nozzle or tube is pointing away
from your face: and read warning label on compressed air product.)
f. Remove any lint left by the cotton-tipped applicator.
g. If grease and other dirt are found on other areas of the cradle, use a
lint free cloth and isopropyl alcohol to remove.
38
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
h. Allow at least 10 to 30 minutes (depending on ambient temperature
and humidity) for the isopropyl alcohol to air dry before applying power
to cradle.
Note on drying time: If the temperature is low and humidity is high, longer drying time is
required. Warm temperature and dry humidity require less drying time.
39
Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Appendix III
Worldwide Support
Unitech’s professional support team is available to quickly answer questions or
assist with technical-related issues. Should an equipment problem occur,
please contact the nearest Unitech regional service representative. For
complete contact information please visit the Web sites listed below:
Region Web Site
Global Operation Center http://www.ute.com
Unitech Taiwan http://tw.ute.com
Unitech Asia Pacific & Middle East http://apac.ute.com
;
http://india.ute.com
Greater China Division http://cn.ute.com
Unitech Japan http://jp.ute.com
Unitech America http://us.ute.com ; http://can.ute.com
Unitech Latin America http://latin.ute.com
Unitech Europe http://eu.ute.com
