PA700 Rugged Handheld Computer
User’s Manual
Version 1.0
Table of content
Table of content..............................................................................................2
1. Package Contents......................................................................................3
2. Getting started ...........................................................................................4
2.1 Device overview ...................................................................................4
2.2 Assembly..............................................................................................6
Accessing battery, Micro SD card and SIM card.....................................6
2.3 Charging the battery.............................................................................7
2.4 Data Communicating with PC Device...................................................8
2.5 LED status............................................................................................9
2.6 To check the battery level and to access the battery usage menu .......9
3. Basic Operation ....................................................................................... 11
3.1 Accessing and using applications....................................................... 11
To open the Application screen.............................................................11
To browse the Application screen ......................................................... 11
To create a shortcut to an application on the Home screen .................. 11
To Remove a shortcut of an application on the Home screen...............12
Calling ......................................................................................................12
Call handling.........................................................................................12
To make a call by dialing.......................................................................12
To end a call .........................................................................................12
3.2 Barcode Scanning (For Imager Version only).....................................12
3.3 RFID Sensing.....................................................................................13
4. Specification.............................................................................................15
Camera and Flash Light .......................................................................15
Appendix Worldwide Support.......................................................................17

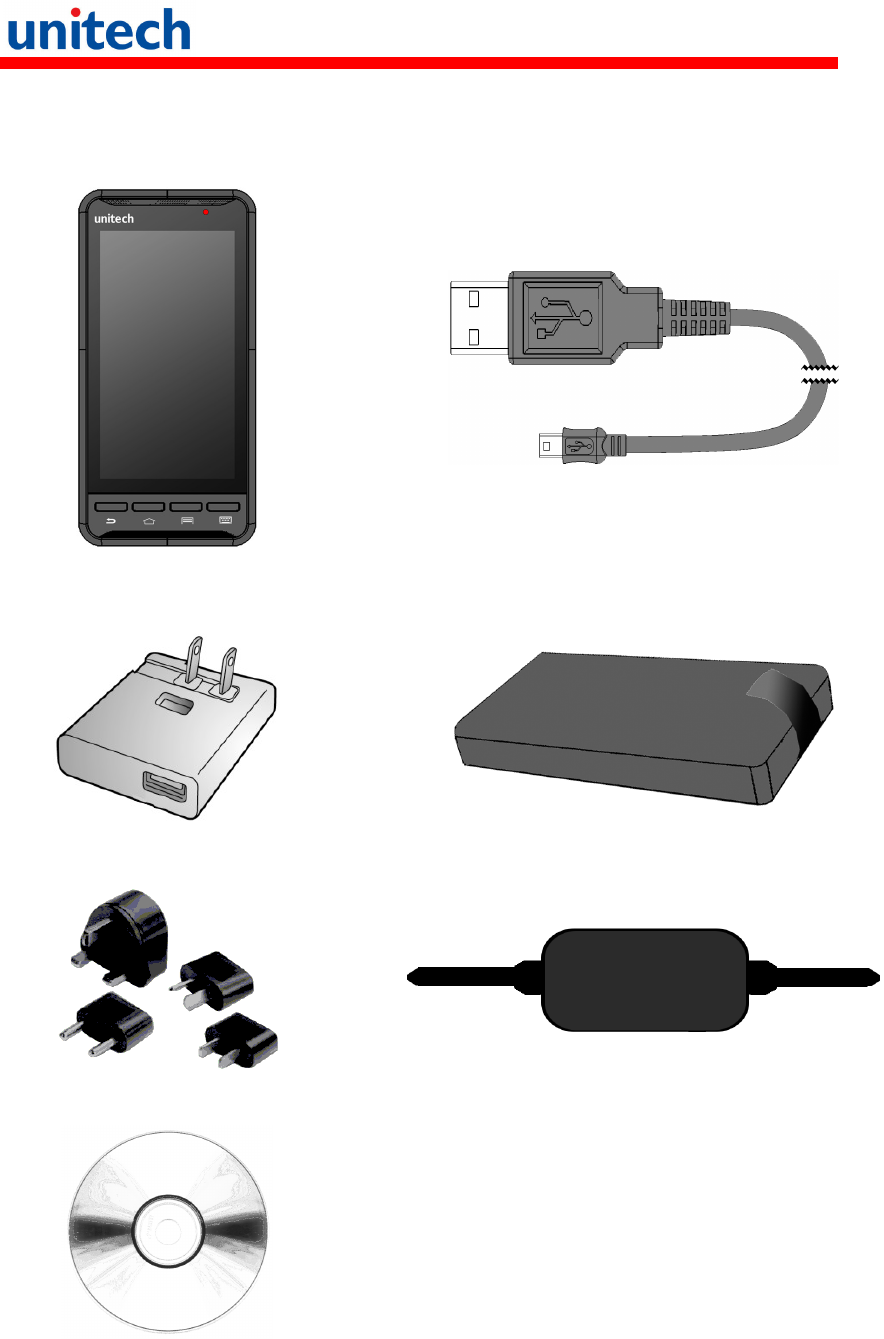

1. Package Contents
PA700 USB cable
(Standard USB to Micro USB)
Charger Battery
Power Plug Adapter Hand Strap
Utility DVD
2. Getting started
Unitech PA700 is an Android platform device. Android platform device has
great flexibility that allows you to make customized configurations and
enhancements by install and remove Apps.
With Android operation system, your device has limitless possibilities to update
to latest features and improvements.
2.1 Device overview

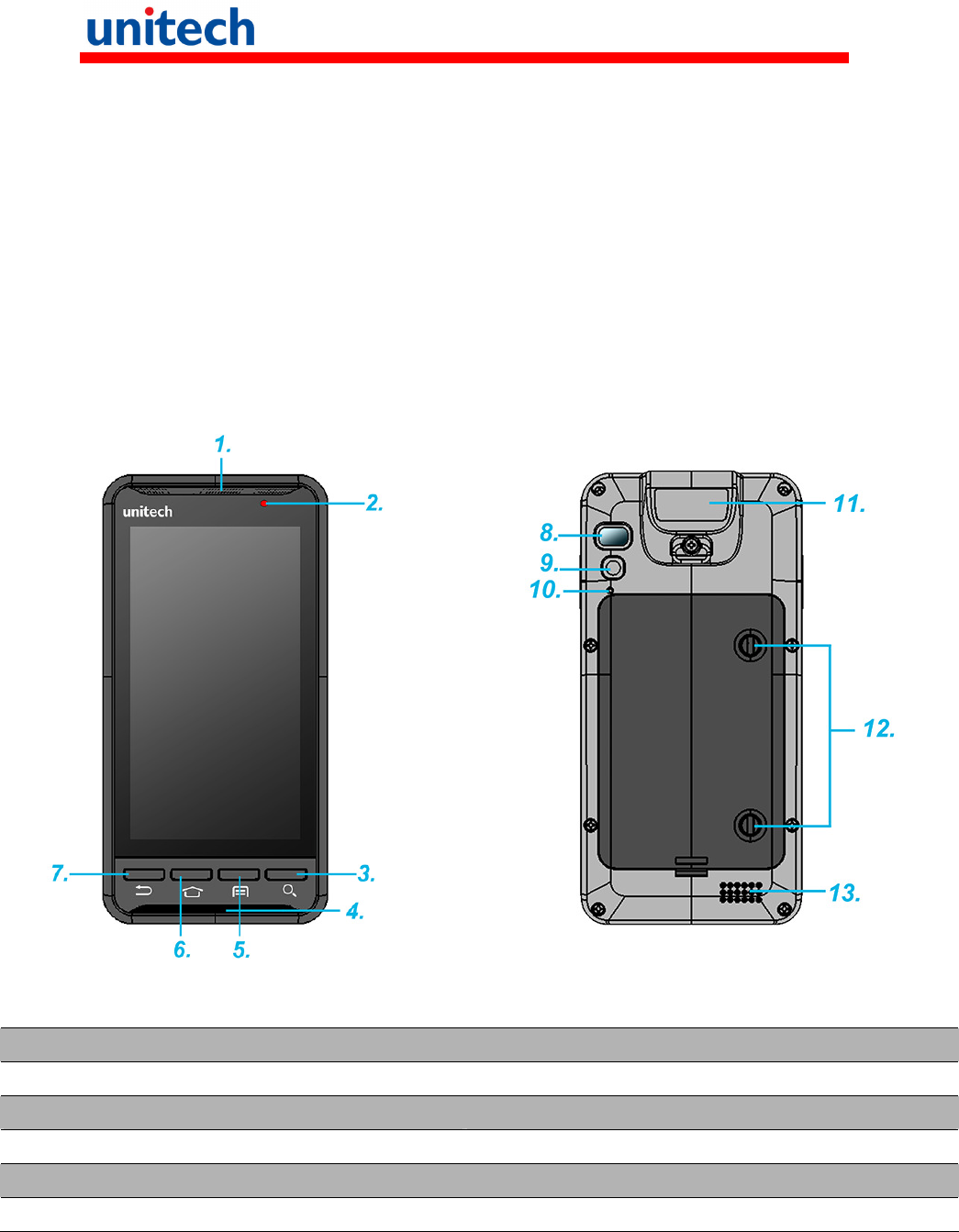

1. Receiver 7. Back button
2. LED indicator 8. Flash LED
3. Search button 9. 5M Camera with AF
4. Microphone. 10. Reset button
5. Menu button 11. Mounting screw for battery cover
6. Home screen button 12. Receiver

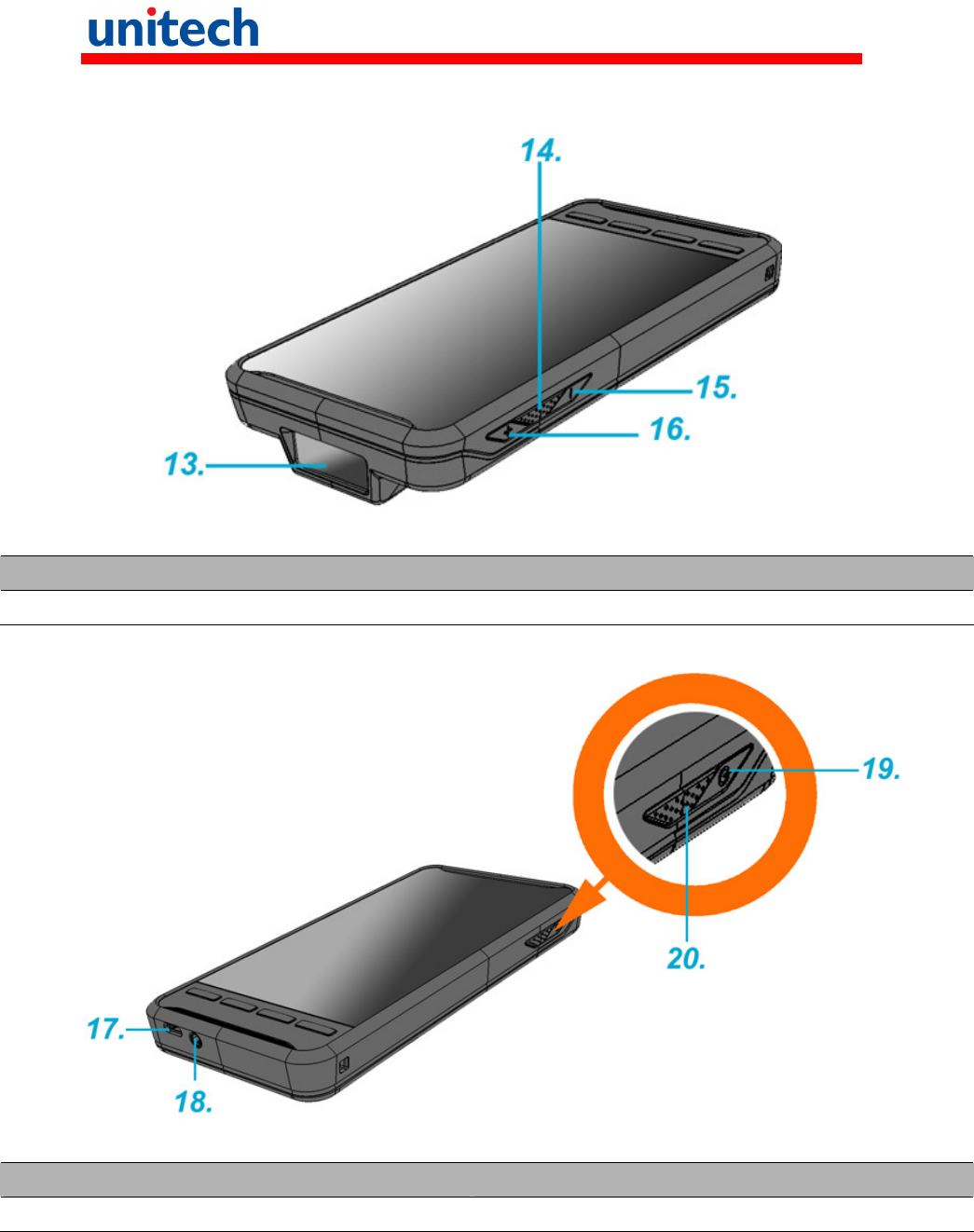

13. Bar code Scan Engine 15. Volume Down button
14. Scan button 16. Volume Up button
17. Micro USB port 19. Power button
18. Phone jack 20. Scan button
2.2 Assembly

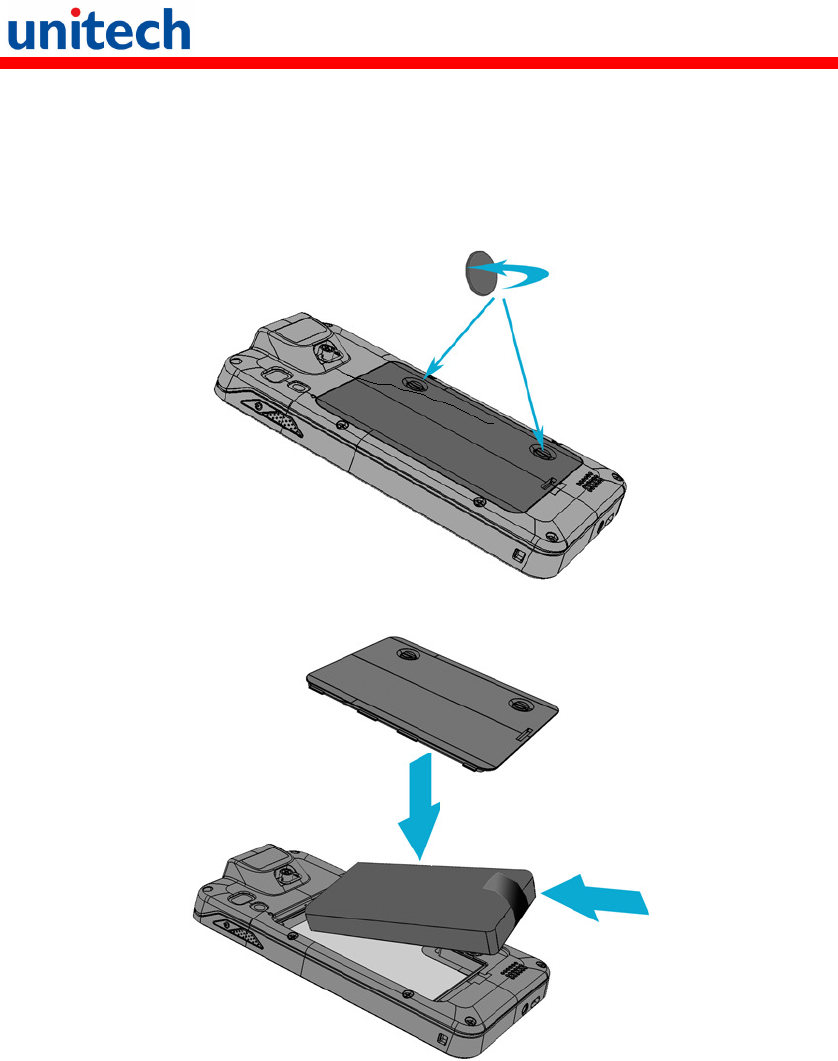

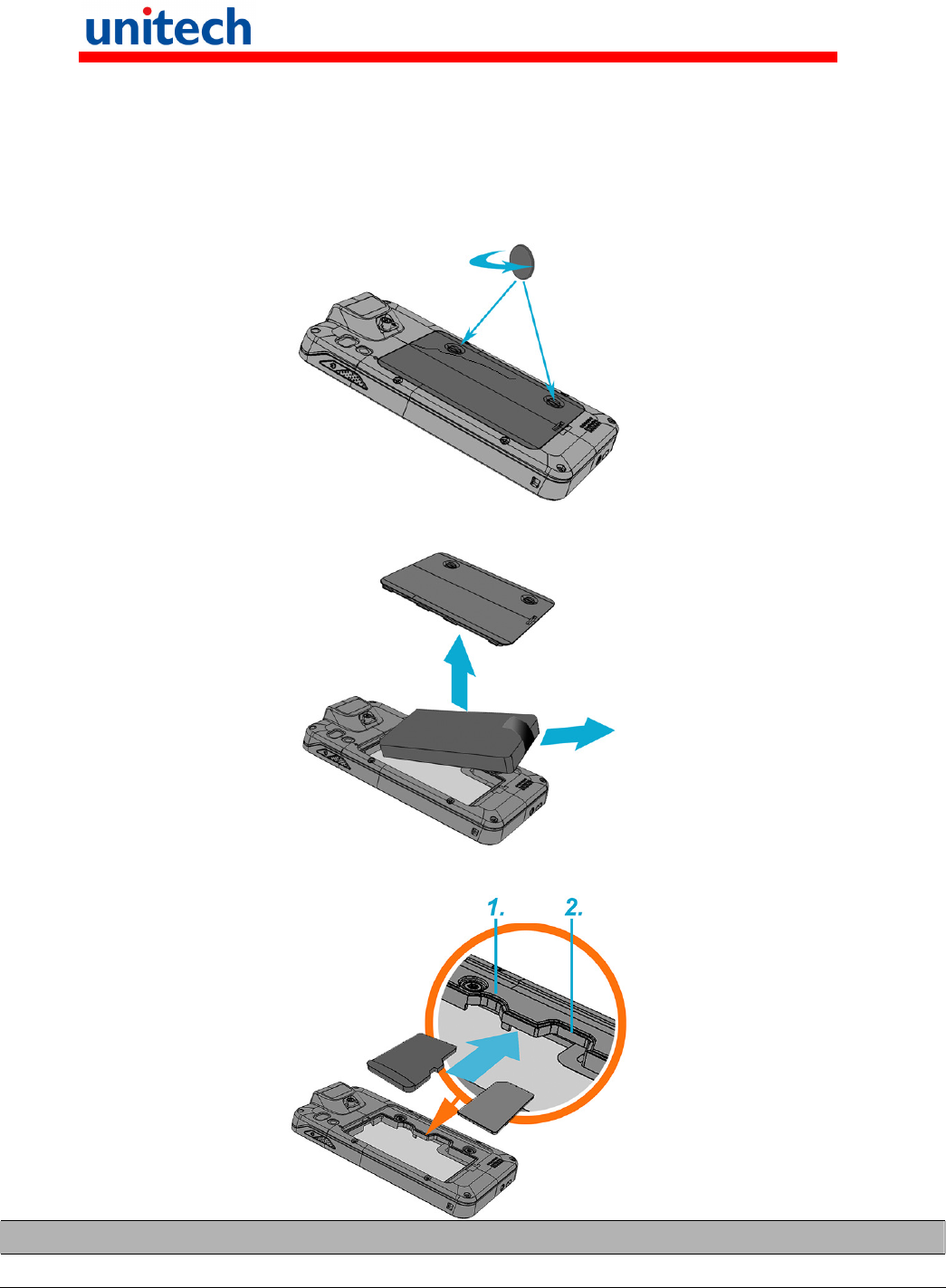

Accessing battery, Micro SD card and SIM card
1. Using a proper tool (ex. a coin) to loosen the two screws on the battery
cover by turning anticlockwise.
2. Remove the back cover and pull the battery out.
3. Now you can access the micro SD card slot and SIM card slot.
1. Micro SD card slot
2. SIM card slot
Put battery back to PA700
1. Using a proper tool (ex. a coin) to loosen the two screws on the battery
cover by turning clockwise.
2. Put battery into battery compartment and put back cover .
2.3 Charging the battery
Connect PA700 to the charger, it will be charged automatically.
1. Connect the standard USB connector to the charger.
2. Connect the micro USB connector to the micro USB port at the bottom.
3. Plug the AC charger into a wall outlet. If needed, attach a plug converter
onto the AC charger.

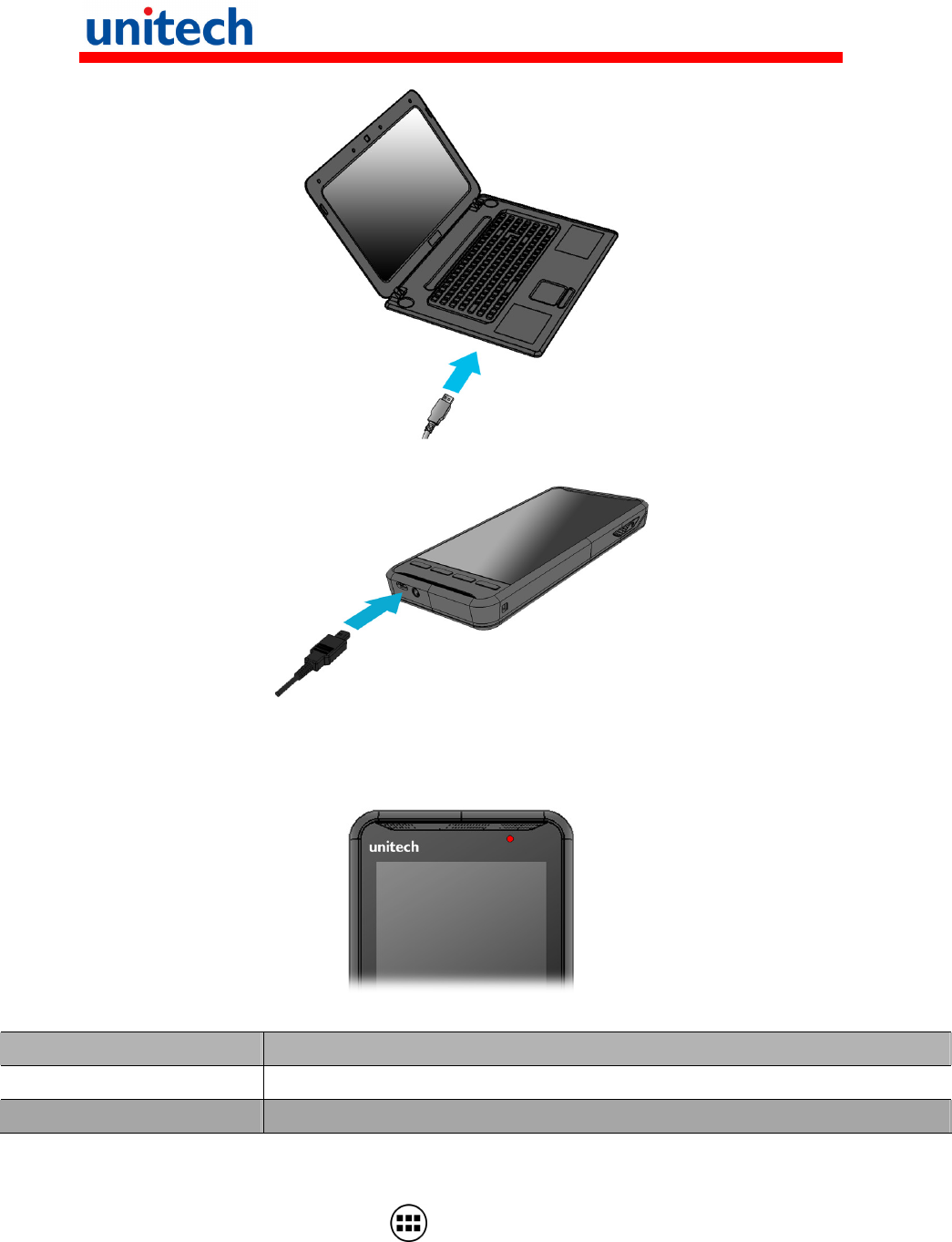

2.4 Data Communicating with PC Device
1. Connect the standard USB connector to the USB port of the PC device.
2. Connect the micro USB connector to the micro USB port at the bottom.
2.5 LED status
Green The battery is fully charged
Lights Red The battery is charging. The battery level is between low and full
Blue Message is received.

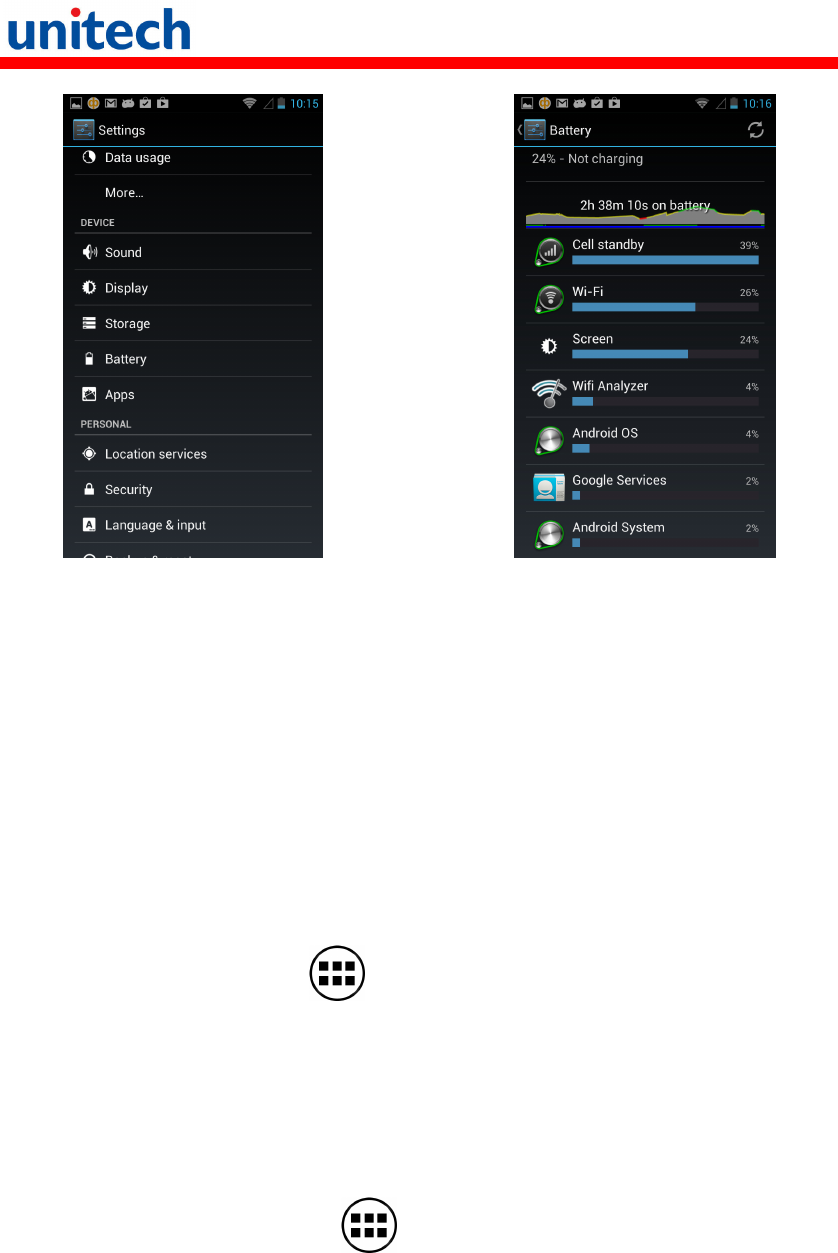

2.6 To check the battery level and to access the battery usage
menu
1 From your Home screen, tap .
2 Find and tap Settings.
3 Find and tap Battery.
3. Basic Operation
3.1 Accessing and using applications

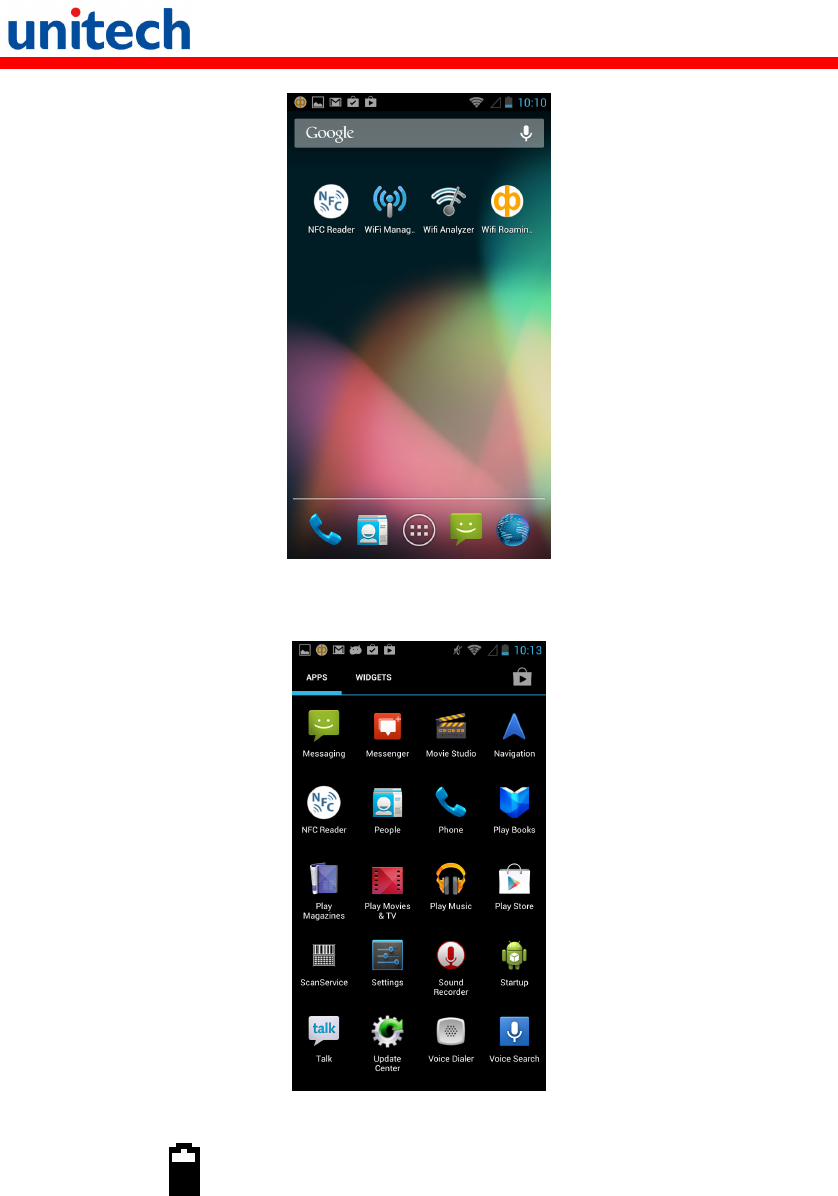

To open the Application screen
From your Home screen, tap .
To browse the Application screen
From the Application screen, flick right or left.
To create a shortcut to an application on the Home screen
1 From your Home screen, tap .
2 Touch and hold an application icon and then the Home screen opens.
3 Drag the icon to the desired page on the Home screen by flicking left or rught,
then release your finger.
To Remove a shortcut of an application on the Home screen
1 From your Home screen, touch and hold the icon of the desired application
you want to remove
2 “X Remove” shows on the top of the home screen.
3 Drag the icon to be removed to the “X Remove”.
Calling
Call handling
To make a call by dialing
1 From your Home screen, tap .
2 Find and tap Phone.
3 Enter the number of the recipient and tap Call. To delete a number, tap .
To end a call
• Tap .
3.2 Barcode Scanning (For Imager Version only)

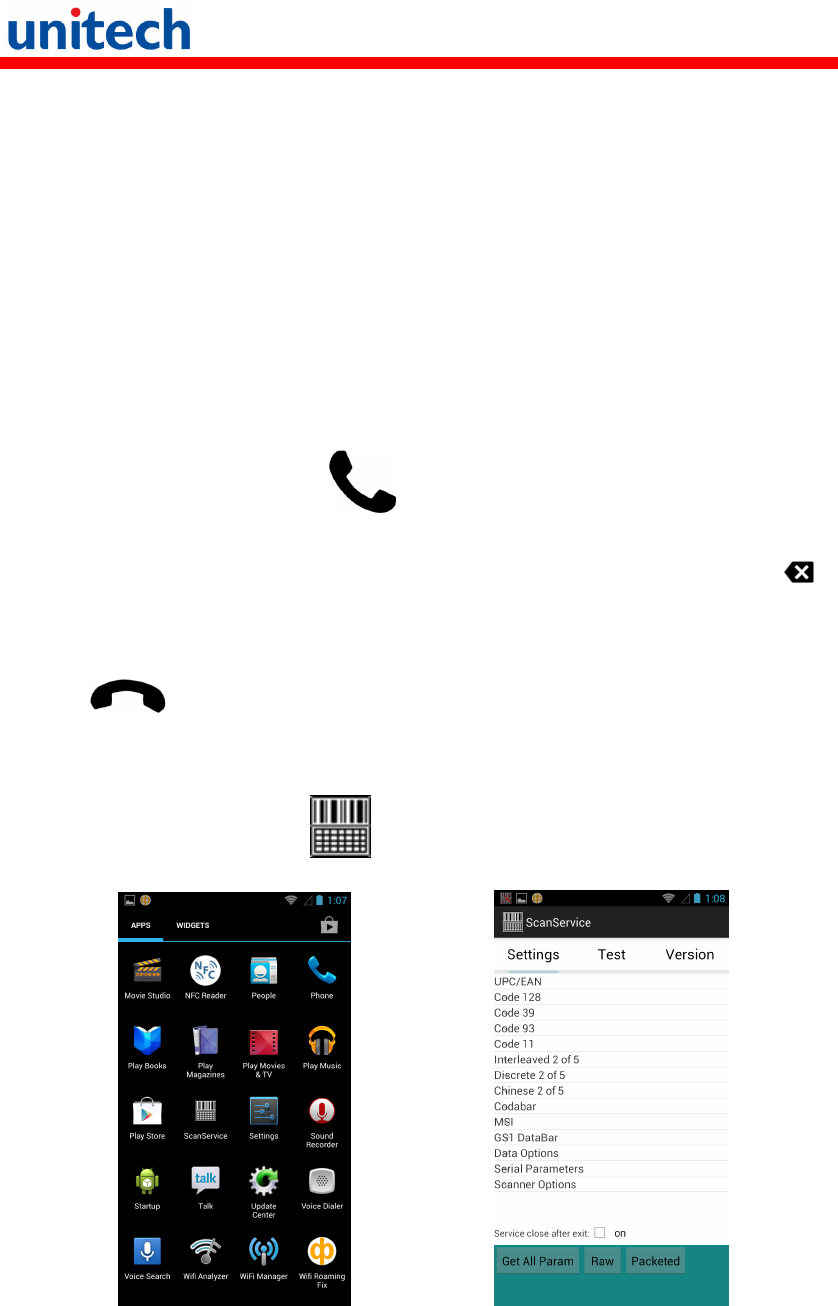

1. Tap the ScanService .
2. Aim the Bar code Scan Engine to the barcode and press one of two scan
buttons.

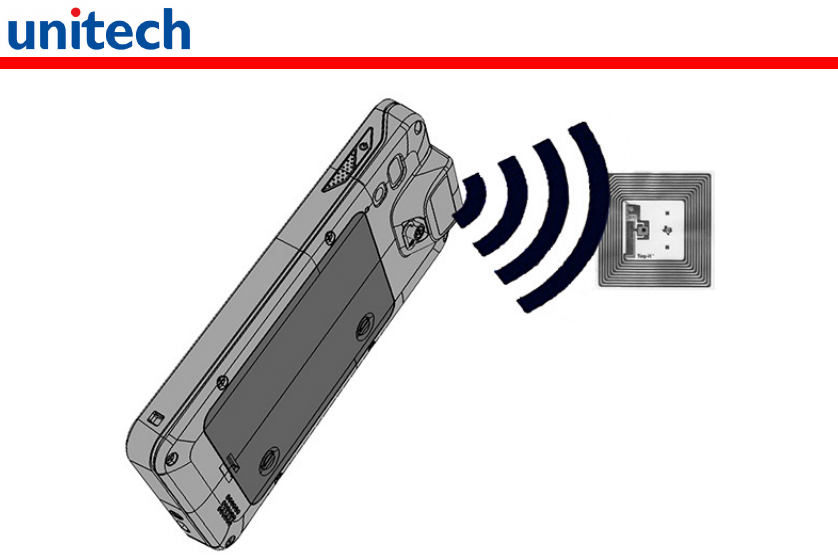

3.3 RFID Sensing

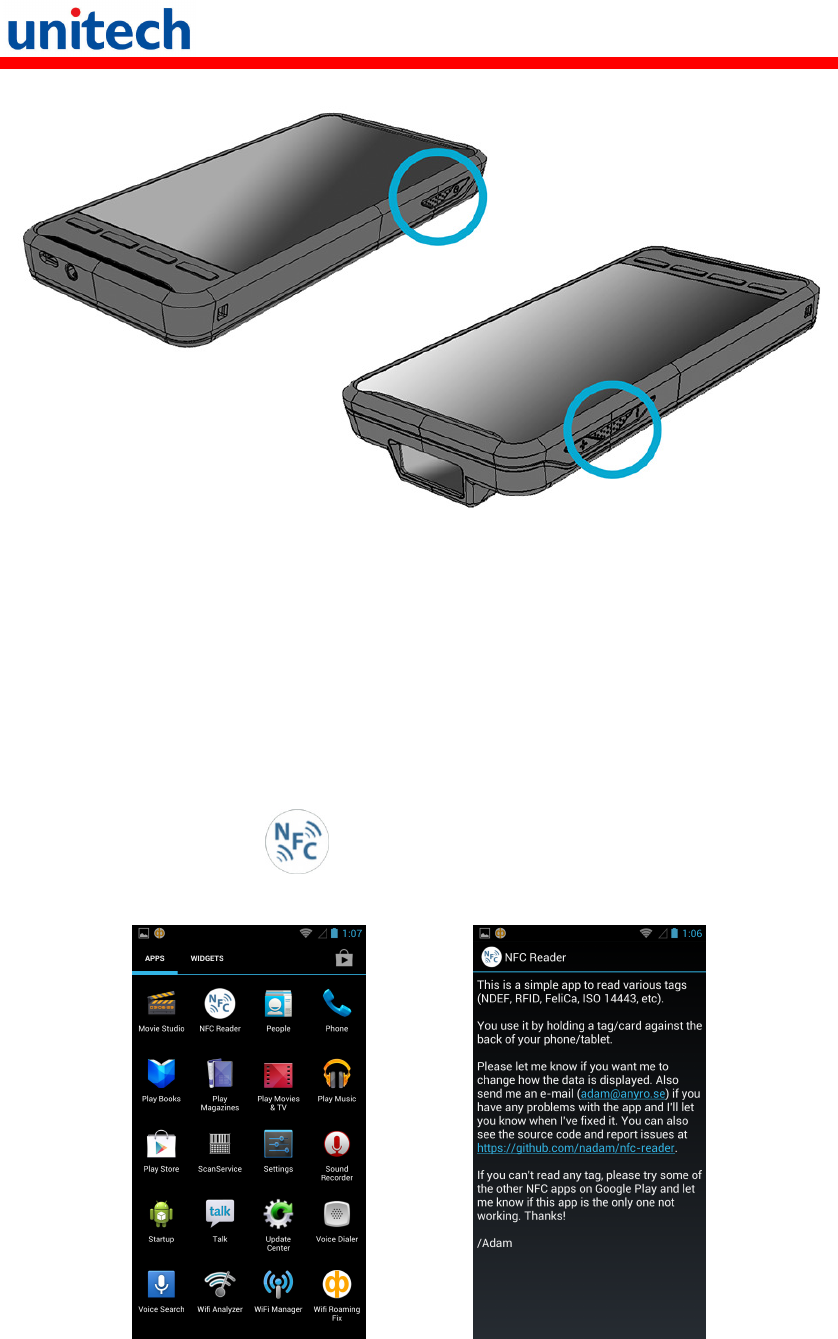

1. Tap the NFC Reader .
4. Specification
System Features
CPU
TI OMAP 4470 1.5Ghz Dual Core Processor
Memory 1GB Mobile DDR RAM
8GB eMMC Flash
OS Android 4.1.1 Jelly Bean
Languages support English, Simp. Chinese, Traditional Chinese, Japanese,
Spanish, German, French
Display
Gorilla Glass II with 5-point capacitive touch panel
4.7" Color 450nits High Brightness TFT 720x1280 dots IPS LCD
Keypad
4 x Function key 1 x Power key
2 x Scan Key 2 x Volume key
Indicator
1 LED indicate charge/Message
Vibrator
Symbologies
1D CCD Barcode scanner UPC-A/E, EAN-8/13, Codabar, Code 39, Code 39 full
ASCI, Code 93,Code 32, Interleaved & Std. 2 of 5, EAN
128, Code 11, Delta, MSI/Plessey,Code 128,
Toshiba, RSS
expended, RSS Limited, RSS14.
Audio
1W speaker 85 dB at 10cm , 3.5mm Audio Jack, Receiver, Microphone
Regulatory Approvals
CE, NCC, FCC, BSMI, VCCI, CCC, RoHS compliance
Communication
Camera and Flash Light 5MP CMOS Sensor Camera with dual Auto focus LED
flash light
External storage Support MicroSD memory card up to 32GB
USB USB 2.0 OTG
WLAN IIEEE 802.11 b/g/n
Bluetooth Bluetooth 4.0
WWAN GSM/GPRS/EDGE 850/900/1800/1900 MHzUMTS
850/900/1700/1900/2100 MHz WCDMA modem, HSPA+,
DL: 21Mbps/ UL: 5.76Mbps
Other Sensors GPS
eCompass
Light & Proximity sensor
G-sensor
RFID/HF (Optional) Frequency: 13.56MHz
Tag Support: ISO15693, ISO14443A , ISO14443B
Support NFC
GPS 12 x 12 mm patch antenna
Power Source
Main Battery 11.9Wh 3.7V @3220mAh Li-Polymer battery pack
Backup Battery capacity 1 hour
Enclosure
Weight 285g (with battery)
Dimension 160mm x17.4mm x 80mm ( without engine )
Environmental
Operating temperature 14°F to 122°F (-10°C to 50°C)
Storage temperature -4°F to 140°F (-20°C to 60°C)
Charging Temperature 32°F to 104°F (0°C to 40°C)
Relative Humidity 5% ~ 95% ( non-condensing )
Drop test to Concrete 1.2 meter
Environmental Sealing IP65
Vibration and Shock test MIL-STD-810F, 514.4 process II
Software
Android 4.1.1 API level 16
Accessories
Single Slot USB Client/on the go Cradle with Single Slot Battery Charger
Handstrap
3220mAH standard Battery
USB Communication Cable
Power adaptor with universal plugs
Appendix Worldwide Support
Unitech’s professional support team is available to quickly answer questions or
assist with technical-related issues. Should an equipment problem occur,
please contact the nearest Unitech regional service representative. For
complete contact information please visit the Web sites listed below:
Unitech America
Los Angeles, Houston
http://us.ute.com e-mail: info@us.ute.com
http://can.ute.com info@can.ute.com
Mexico
http://latin.ute.com e-mail: info@latin.ute.com
Unitech Asia Pacific & Middle East
Taipei
http://apac.ute.com info@apac.ute.com / info@india.ute.com
http://mideast.ute.com info@mideast.ute.com
Unitech Japan
Tokyo
http://jp.ute.com e-mail: info@jp.ute.com
Unitech Europe
Tilburg / Netherlands
http://eu.ute.com e-mail: info@eu.ute.com
Unitech Greater China
Beijing, Shanghai, Guang Zhou, Xiamen
http://cn.ute.com info@cn.ute.com
Taipei http://tw.ute.com info@tw.ute.com
Head Office
Taipei
http://www.ute.com e-mail: info@hq.ute.com
