Users Manual

User’s Manual

RH767 RFID Handheld Reader

Esc

alpha

Func

Enter

fgh

Del

BkSp

uvw

“

(

[

400558G Rev. A

Preface

This manual explains how to install, operate and maintain the RH767.

No part of this publication may be reproduced or used in any form, or by any electrical

or mechanical means, without permission in writing from the manufacturer. This includes

electronic or mechanical means, such as photocopying, recording, or information storage and

retrieval systems. The material in this manual is subject to change without notice.

unitech global website address: http:\\www.unitech-adc.com

Bluetooth is a registered trademark of Bluetooth SIG.

Microsoft, Windows and ActiveSync are either registered trademarks or

trademarks of Microsoft Corporation. Other product names mentioned

in this manual may be trademarks or registered trademarks of their

respective companies and are hereby acknowledged.

Regulatory Compliance Statements

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:

Any changes or modications not expressly approved by the party responsible for compliance

could void the user’s authority to operate this equipment.

●

About This Manual

unitech is a member of Oracle Embedded Software Licensing Program

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

This device and its antenna(s) must not be co-located or operating in conjunction with any

other antenna or transmitter.

RoHS Statement

This device conforms to RoHS (Reduction Of Hazardous Substances)

European Union regulations that set maximum concentration limits on

hazardous materials used in electrical and electronic equipment.

Laser Information

The unitech RH767 series is certied in the U.S. to conform to the requirements of DHHS/

CDRH 21CFR Subchapter J and to the requirements of IEC 825-1. Class II and Class 2

products are not considered to be hazardous. The RH767 series contains internally a Visible

Laser Diode (VLD) whose emissions do not exceed the maximum limits as set forth in the

above regulations. The scanner is designed so that there is no human access to harmful laser

light during normal operation, user maintenance or during prescribed service operations.

The laser safety warning label required by the DHHS/IEC for the RH767 series’s optional

laser scanner module is located on the memory compartment cover, on the back of the unit.

CAUTION!

Use of controls or adjustments or performance of procedures other than those

specied herein may result in hazardous laser light. Use of optical instruments

with the scanner will increase eye hazard. Optical instruments include

binoculars, microscopes, and magnifying glasses. This does not include eye

glasses worn by the user.

Notices

This unit is equipped with battery packs and backup battery. It is possible that the unitech

RH767 may not power-on due to battery discharge as a result of storage.

In the above situation, plug the RH767 to the USB charging cable which is with DC in port,

and recharge the unit for 16 hours in order to fully charge its backup battery.

The backup battery will charge from external power or the main battery (if the main battery

still has enough power to turn on). In the event the main battery is fully charged, refrain from

using the RH767 for 16 hours in order for the main battery to fully charge the backup battery.

Backing-up data by backup battery only without the main battery installed in battery

compartment may take as long as 6 hours. Therefore, in order to prevent data protection

failure due to backup battery failure, do not leave the RH767 without the rechargeable battery

pack installed, or without connection to AC power for an extended period of time.

NOTE:

The rst time you use the RH767, you must turn on the backup battery switch. See turn

on the backup battery & grip battery switch on page 6 for more information.

●

iii

Battery Charge Notice

It is important to consider the environment temperature whenever you are charging the

Lithium-Ion battery pack. The process is most efficient at normal room temperature or

slightly cooler. It is essential that you charge batteries within the stated range of 0°C to 40°

C. Charging batteries outside of the specied range could damage the batteries and shorten

their charging life cycle.

Storage and Safety Notice

Although charged Lithium-Ion batteries may be left unused for several months, their capacity

may be depleted due to build up of internal resistance. If this happens they will require

recharging prior to use. Lithium-Ion batteries may be stored at temperatures between -20°

C to 60°C, however they may be depleted more rapidly at the high end of this range. It is

recommended to store batteries within normal room temperature ranges.

IMPORTANT NOTE

FCC Radiation Exposure Statement:This equipment complies with FCC radiation exposure

limits set forth for an uncontrolled environment. This equipment should be installed and

operated with minimum distance 20cm between the radiator & your body.

Table of Contents

Preface .............................................................................................................................i

About This Manual .....................................................................................................i

Regulatory Compliance Statements ..............................................................i

FCC Statement .......................................................................................................i

RoHS Statement .....................................................................................................i

Laser Information ....................................................................................................i

Notices .......................................................................................................................ii

Battery Charge Notice ............................................................................................ii

Storage and Safety Notice ......................................................................................ii

Chapter 1 ........................................................................................................................1

Getting Started ............................................................................................................1

Introducing the RH767............................................................................................1

Features ..................................................................................................................1

Package Contents ...................................................................................................2

A Tour of the RH767 ................................................................................................3

Back View ...............................................................................................................4

Bottom View ............................................................................................................5

Setting up the RH767 ..............................................................................................5

Installing the Battery ...............................................................................................5

Charging the Battery ...............................................................................................8

Charging the Battery using the Synchronization Power Cable .........................8

Checking the Battery Status ..............................................................................9

Connecting the RH767 to a PC ..............................................................................9

Turning the RH767 on for the First Time ...............................................................10

Powering On .................................................................................................. 10

Calibrating the RH767 Screen ....................................................................... 11

Setting the Time and Date ............................................................................. 12

Adjusting the Screen Brightness .................................................................... 12

Chapter 2 ..................................................................................................................... 13

Using the Hardware ............................................................................................... 13

Using Function keys ............................................................................................ 13

Toggle to Alpha Mode and CAPS ........................................................................ 14

Adjusting Settings ................................................................................................ 15

Checking the Main and Backup Battery Status ............................................. 16

Using the Stylus .................................................................................................... 17

Using the Laser Scanner .................................................................................... 17

Scanner Settings .................................................................................................. 18

Scan2Key ................................................................................................................ 19

Using the RFID ...................................................................................................... 19

Launching UHF RFID Demo Program ................................................................. 19

Chapter 3 ..................................................................................................................... 21

Getting Connected .................................................................................................. 21

Establishing Device-PC Connection ................................................................ 21

Installing Microsoft ActiveSync ............................................................................ 21

Connecting the Device to Your Computer ............................................................ 21

Using ActiveSync to Exchange Files ............................................................... 22

Using the WLAN .................................................................................................... 23

Setting up the Wireless Local Area Network Card ............................................... 23

Obtaining an IP Address via DHCP Server .................................................... 23

Specifying an IP Address ............................................................................... 24

WiFi Connection ............................................................................................. 25

Using the WiFi Tool .............................................................................................. 25

Appendix

System Specications ........................................................................................... 27

Chapter 1

Introducing the RH767

Thank you for purchasing the RH767 handheld terminal. Your RH767 was

designed for RFID mobile application.

RH767 UHF

Unitech’s RH767 UHF handheld terminal is a rugged dual technology multi-tag UHF RFID

and barcode reader. It can read both EPC Gen 1 and Gen 2 RFID tags and comes with

embedded RFID middleware and Windows CE 5.0 for easy integration. The RH767 has

a battery life of up to 12 hours – long enough for operation. Connectivity options include

WLAN 802.11b/g and Bluetooth. It has an IP54 rated and 1.2 meter drop tested rugged PDA

construction.

Features

Dual technology barcode scanner & RFID (UHF) reader

Embedded RFID Middleware

Built in Barcode Scanner

IP54 rated and 1.2m drop tested

Lightest in its class

Windows WinCE 5.0 Professional Plus operating system

WLAN 802.11b/g and Bluetooth connectivity built–in

●

Getting Started

Package Contents

After opening the box, ensure the following accessories for the RH767 are present:

RH767 Terminal Power Adapter and Cable Battery Pack

Stylus Synchronization and Power

Cable

CD-ROM

Quick Reference Guide

If anything is missing or appears damaged in any way, please contact your unitech service

team.

Esc

alpha

Func

Enter

fgh

Del

BkSp

uvw

“

(

[

Chapter 1 Getting Started

A Tour of the PA982

The following sections describe the main components and features of the RH767.

Front Right View

Esc

alpha

Func

Enter

fgh

Del

BkSp

uvw

“

(

[

No. Component Description

1. Status Indicator Indicates the battery charging and barcode scanning

status.

Green - Battery is fully charged or barcode scanning

process is completed without error.

Red - Battery is charging, barcode scanner is activated

and processing.

2. LCD Touch Screen Displays the applications and data stored on your

device. It is touch-sensitive and responds to the stylus

or nger.

3. Alpha Mode Indicator Indicates the Alpha Mode status.

4. Keypad Keypad interface for controlling the RH767. See Using

the Hardware on page 13 for more information.

5. Power Button If the device is off, press this button to turn it on.

Alternatively, when the unit is on, this key must be

pressed and held down for about two seconds in order

to turn the device off.

6. Microphone Used to receive sound.

7. Right scanner trigger button Press to activate the barcode laser scanner.

Back View

RESET

No. Component Description

8. Stylus Enables you to interact with the operating system. To

use the stylus, remove it from its holder and hold it the

same way you hold a pen or pencil.

9. Barcode Scanner Window Used to scan barcodes.

10. Infrared (IR) Port Uses infrared technology to transmit and receive data

from other IR-enabled devices.

11. Left Scanner Trigger Button Press to activate the barcode laser scanner.

12. Reset Button Uses paper clip press into the button to reset your

device.

13. Bar Code Scanner Trigger Press to activate the barcode scanner.

14. Battery Compartment Houses the removable and rechargeable 7.4V

4050mAh lithium-ion battery pack

15. Strap Lug Attach the strap with the termial.

16. RFID Antenna Used to receive data from RFID tag.

Chapter 1 Getting Started

Bottom View

No. Component Description

17. Battery Pack Houses the rechargeable lithium-ion battery pack

18. Universal connector Connects your device to a synchronization power cable,

which in turn connects to the computer’s USB port and

through the AC adapter to an electrical outlet.

This allows you to recharge your device and perform an

ActiveSync operation.

Setting up the RH767

This section explains how to install and charge the battery, how to check battery status, how

to connect the RH767 to a PC, how to turn on the RH767 for the rst time, how to install an

optional Wireless Local Area Network PCMCIA card, and how to calibrate the screen.

Installing the Battery

WARNING!

There is a risk of fire and burns if the battery pack is handled improperly. DO

NOT disassemble, crush, puncture, short external contacts, or dispose the

battery pack in re or water. DO NOT attempt to open or service the battery pack.

Dispose of used batteries according to local recycling guidelines in your area.

A backup battery cell is embedded into your device to prevent data loss in instances when

the removable battery pack is removed or completely discharged. This backup battery cell

will only support the system for a maximum of 72 hours.

NOTE:

To enable the internal battery cell to provide backup power supply, charge your device

with the main battery pack for at least 16 hours.

The rst time you use the RH767, you must turn on the backup battery switch. See turn

on the backup battery & grip battery switch on page 6 for more information.

The first time you use the RH767, you must activate the LCD heater switch. When

activated, LCD heater will turn on automatically when the temperature is lower than -10°C.

1. Open the battery compartment using the slide tabs in the direction shown in the illustration.

●

2. Locate the backup battery and grip battery switch and turn left to power on.

ONOFF

3. Position the battery pack, making sure the battery contacts are aligned with the contacts in

the compartment, as shown in the following illustration.

4. Place the battery pack into the battery bay and press the battery securely into the

compartment.

Backup battery & grip

battery switch

Battery contacts

Chapter 1 Getting Started

5. Replace the battery compartment cover, push down the tabs and slide them back into

place as shown in the illustration.

Charging the Battery

Before using the RH767 for the rst time, you need to charge it for about 16 hours. After that,

you can charge the RH767 every day to recharge the battery to full capacity. Charge the

RH767 using the synchronization power cable.

CAUTION!

Operating the RH767 for the rst time without the AC adapter, and without fully

charging the backup battery may result in loss of data stored in RAM memory.

When the main battery is removed, the backup battery retains RAM data in

memory for 72 hours; charge the battery as soon as possible to avoid the data

loss in RAM memory.

Charging the Battery using the Synchronization Power Cable

1. Connect the synchronization power cable connector to the RH767 (1).

2. Plug the AC adapter cable into the power jack on the USB connector (2).

3. Connect the AC adapter into an electrical outlet (3).

Esc

alpha Func

Enter

123

(

[

Del

“

Bksp

Chapter 1 Getting Started

Checking the Battery Status

If the main battery level becomes low in the

course of normal use, a status icon appears

on the device screen system tray indicating

low or very low battery status. In both cases,

perform an ActiveSync operation to back up

your data, then recharge your device as soon

as possible. If the battery level reaches low

status, the device will enter suspend mode;

if the battery level reaches very low status,

the device will enter deep sleep mode. In this

case, you have about 72 hours to recharge

your device after which you risk losing all data

on your device’s internal memory.

When the backup battery charge is low, an icon

appears in the system tray indicating that

you should replace the backup battery as soon

as possible.

Connecting the RH767 to a PC

Use the synchronization power cable to connect the RH767 to a PC to use with ActiveSync.

1. Connect the USB connector jack to the RH767 (1).

2. Plug the USB connector into a serial port on the PC and connect the AC adapter into the

USB connector (2).

3. Connect the AC adapter into an electrical outlet (3).

Esc

alpha Func

Enter

123

(

[

Del

“

Bksp

Turning the RH767 on for the First Time

After you have initially charged your device for about 16 hours, the device is ready to be

used. You can now start up your device where you’ll adjust the screen brightness, calibrate

the display, and set up the system time zone, date and time.

Powering On

1. Turn on your device by pressing the power buttonon the front panel.

2. The unitech RH767 welcome screen appears for a moment followed by the calibration

screen.

Esc

alpha Func

Enter

123

(

[

Del

“

Bksp

Power Button

Chapter 1 Getting Started

Calibrating the RH767 Screen

The calibrate screen automatically appears when the unit is powered-on for the rst time or

after the system is reset.

This screen will automatically appear

when the unit is powered-on for the

rst time or after the system is reset.

This screen can also be accessed

at any time by pressing the hot key

[FUNC] and the [ESC] key.

The RH767 prompts you to calibrate the unit

by tapping a sequence of screen locations. Tap

gently but rmly.

When you have completed the series of taps,

press the [ENT] key to confirm calibration

or press the [ESC] key to cancel it. After

conrming calibration, the Date/Time Properties

screen appears prompting you to set the date

and time.

Esc

alpha Func

Enter

123

(

[

Del

“

Bksp

Function Kay

ESC key

Setting the Time and Date

In the Date/Time Properties window, use the stylus

to select the current date and time, time zone, and

daylight saving time option.

Adjusting the Screen Brightness

Adjust the screen brightness by pressing the

Function button [FUNC] to enable the soft keys

and pressing the left (decrease brightness) or

right (increase brightness) cursor buttons.

Esc

alpha Func

Enter

123

(

[

Del

“

Bksp

Function Button

Increase Brightness

Decrease Brightness

Chapter 2 Using the Hardware

Chapter 2

The following table describes the main keypad keys.

Key Main Function

Press this button to turn the RH767 on. Press and hold this button

for two seconds to turn the RH767 off.

Pressing this button corresponds to tapping the cancel or X button

on the screen.

Press the backspace key to erase characters.

Press the function key to perform alternative key functions. This key

is also used to toggle between upper and lower case alphabetic

characters. Refer to Using Hotkeys on page 13.

Use the tab key to toggle between elds or to tab forward in word

processing applications.

Press the enter key to conrm an action or entry by the user.

Use the cursor keys to navigate in applications. Press and hold the

Function key and then press the right and left arrows to raise and

lower the screen brightness.

Press the alpha key to toggle between numeric and alphabetic entry

modes.

Press these keys to enter numbers or characters depending on

whether the Alpha key has been pressed. Press the 0 key to enter a

space.

Press this key to add punctuation.

Using Function keys

The RH767 provides many combination hot keys to activate specied screen setting functions

or programs. These hotkeys are useful for calibrating the touch screen, toggling the backlight,

and adjusting screen contrast when the menu-driven operation is disabled. Below is the list of

hotkeys. To use them, Press and hold the [FUNC] key in combination with the corresponding

second key.

Key Function

[FUNC]+ Toggle Display Backlight

[FUNC]+ Toggle Keypad LED Backlight

[FUNC]+ Increase screen brightness

[FUNC]+ Decrease screen brightness

Using the Hardware

Toggle to Alpha Mode and CAPS

When the RH767 boots, the default condition is Numeric Mode on. When you toggle to Alpha

Mode, the default condition is CAPS mode off. Please use the alpha Key and Function key to

toggle to CAPS.

Key Alpha OFF Alpha ON

FUNC UP FUNC DOWN FUNC UP FUNC DOWN

ESC ESC ESC ESC ESC

Backspace Backspace Backspace Backspace Backspace

Enter Enter Enter Enter Enter

1/F1/a 1 F1 a A

2/F2/b 2 F2 b B

3/F3/c 3 F3 c C

TAB/d TAB ` d D

4/F4/e 4 F4 e E

5/F5/f 5 F5 f F

6/F6/g 6 F6 g G

+/^/h + ^ h H

%/BL/i % Backlight i I

7/F7/j 7 F7 j J

8/F8/k 8 F8 k K

9/F9/l 9 F9 l L

-/_/m - _ m M

./;/n . ; n N

@/!/o @ ! o O

0/$/p 0 $ p P

(/)/q ( ) q Q

*/#/r * # r R

SPACE/s SPACE SPACE s S

“/’/t “ ‘ t T

,/?/u , ? u U

[/]/v [ ] v V

//\/w / \ w W

</>/x < > x X

=/&/y = & y Y

DEL/z DEL ~ z Z

Chapter 2 Using the Hardware

Adjusting Settings

This section describes how to adjust the settings of your device to accommodate your work

habits.

To access Settings, tap

Start → Settings→ Control Panel

The Control Panel appears.

From here you can adjust such user congurable items

as the backlight, auto power off timer, system volume,

and processor speed. You can also assign functions to

buttons, congure menus, enter owner information, and

set up connections.

Checking the Main and Backup Battery Status

This section describes how to view the power level for

both the main and backup battery. To minimize power

consumption, you can define settings for the auto-off

function and the processor’s operation speed.

To check the main and backup battery status:

1. Tap Start → Settings → Control Panel → Power:

The Power Properties screen appears.

2. The battery menu item displays the status of the

main and backup batteries.

On the screen shown here, the main battery is good,

but the backup battery charge is very low. You should

charge the backup battery as soon as possible in this

case.

NOTE:

It is necessary to charge the battery when

the battery charge reaches below 10%. If the

battery does not accept a charge, contact

unitech Technical Support.

Main battery voltage

Chapter 2 Using the Hardware

Using the Stylus

CAUTION!

Never use anything other than the RH767 stylus on the screen. Otherwise this

could cause a permanent damage.

1. Remove the stylus from its holder.

2. Hold the stylus as you would a pencil.

3. To make a choice from a menu, lightly

tap the tip of the stylus on that choice.

4. To write data into a field on a form,

use the stylus to print the letters or

numbers. Use very light pressure.

Using the Laser Scanner

The RH767 has an integrated laser scanner which reads all major bar code labels with

excellent performance.

NOTE:

Reading software must be enabled in order to operate the scanner. This can be a

userloaded application or a pre-loaded utility such as Scanner Setting.

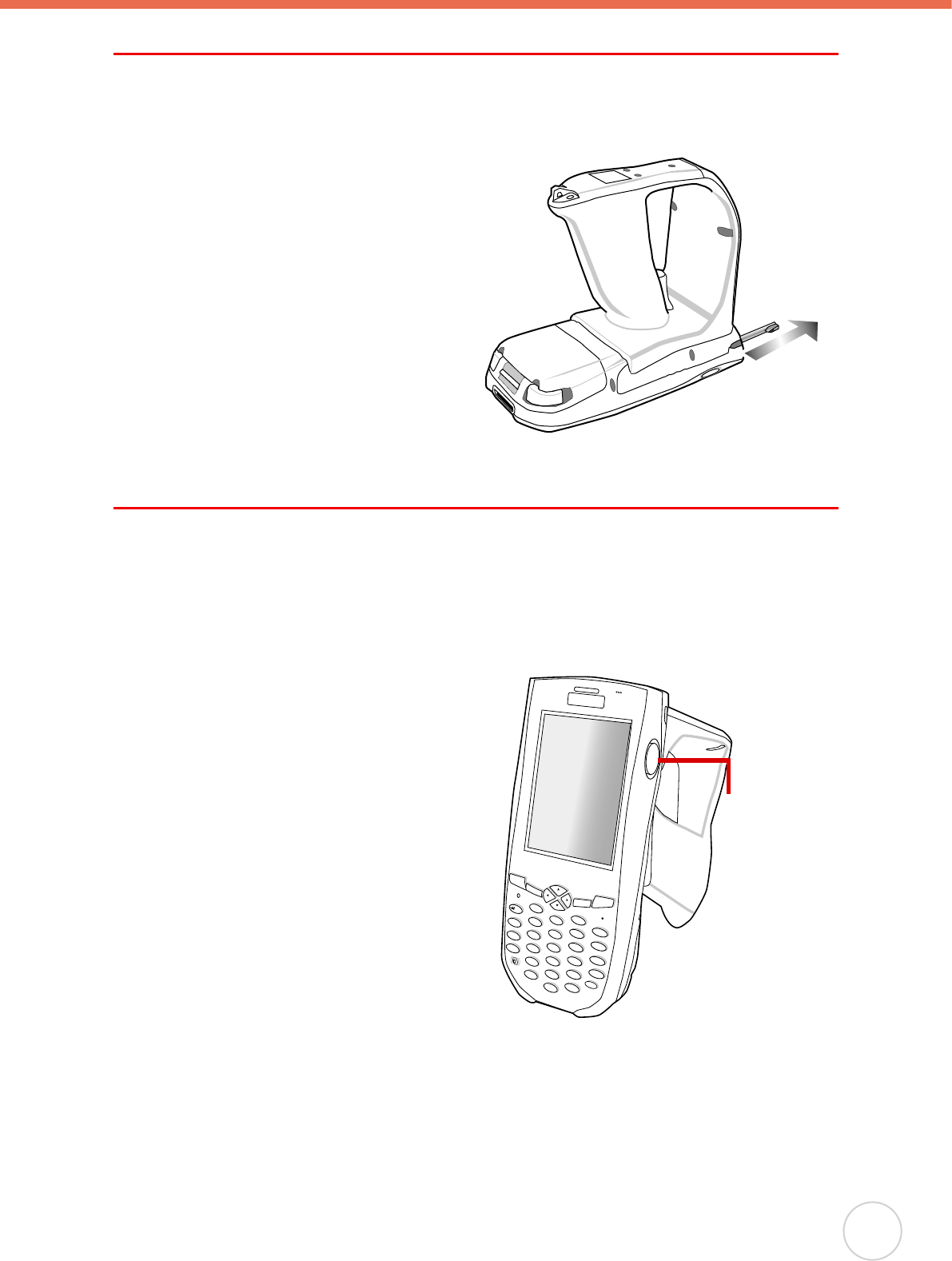

Activate the laser scanner by pressing either

one of the trigger keys located on the left and

right side of the unit.

The RH767 has a built-in Scanner Setting

utility that allows you to test the device’s

barcode scan function.

1. To launch Scanner Settings, press

[FUNC] + [7].

NOTE:

Alternatively, tap Start → Settings →

System →Scanner Settings.

Esc

alpha

Func

Enter

fgh

Del

BkSp

uvw

“

(

[

Scan button

2. The Scanner Control Panel opens.

From here you can configure barcode

scanner parameters such as enabling or

disabling barcode symbologies, setting data

transmission options, conguring magnetic and

proximity reading options, and setting power

management options.

3. To test the barcode scanner, tap the Test tab

and press one of the scanner buttons on a

barcode. The screen will display the results of

the scan.

Scanner Settings

When it is necessary for the user to change

the default barcode symbology for a different

application, the Scanner Control Panel provides the

ability to change default symbology, place delimiter

characters behind scanned data, and save the

settings.

Press [FUNC] + 7 to display the Scanner Control

Panel.

NOTE:

Alternatively, tap Start → Settings →

System → Scanner Settings to display

the Scanner Control Panel.

Chapter 2 Using the Hardware

Scan2Key

The Scan2Key application routes input from a scanner

port to a keypad buffer, making all input from the scanner

emulate input from the keypad. Using Scan2Key,

scanned data can be directly input into a scanner port

aware application such as MS Mobile Word.

Press [FUNC] + [7] to display the Scanner Control Panel,

then tap To Kpd to access Scan2Key settings.

Using the RFID

The RH767 RFID sample application is provided for

reading RFID Class 0 and Class 1 Gen2 RFID tags.

The RFID demo program is pre-loaded in the Flash

Storage.

Launching UHF RFID Demo Program

To launch the UHF RFID sample application,

1. Double-tap My Device, then double-tap Flash

Storge.

2. Double-tap the RFID&Scanner folder, then double-

tap the UnitechRFID Demo icon.

3. Tap the RFID tab, tap the Setting button.

4. Select the Antenna A,

5. Select the Tag tpye check box to enable reading of

Class0, Class1 and UHF Gen2 tags.

6. Set the RF Power by moving the slide bar to 27db

(1W). Then close the setting window.

7. Select the Start Inventory button, The counter

indicates incidents of continuous reading by the

reader.

Chapter 3 Getting Connected

Chapter 3

The unitech RH767 enables users to link to a host computer using an RS-232, IrDA, or

WLAN connection for data communication. This chapter provides an overview of RH767

communication options.

Establishing Device-PC Connection

Installing Microsoft ActiveSync

In order to exchange data between your computer and the RH767, Microsoft ActiveSync

must be installed on your computer. Use the RS232 serial/charging cable that comes with

your device to connect the device to your computer.

NOTE:

If you have a previous version of the Microsoft ActiveSync installed in your computer,

uninstall it first before installing the latest version of Microsoft ActiveSync. The

RH767 Ultra Rugged Mobile Computer requires ActiveSync version 4.2 or higher.

To install Microsoft ActiveSync on your computer:

1. Close any open programs, including those that run at startup, and disable any virus-

scanning software.

2. Download the ActiveSync software from the Microsoft ActiveSync Download page at

http://www.microsoft.com/windowsmobile/ downloads/activesync42.mspx.

3. Browse to the location of the downloaded le, and double-click it. The installation wizard

begins.

4. Follow the instructions on the screen to install Microsoft ActiveSync.

Connecting the Device to Your Computer

1. After ActiveSync has been installed,

connect the RH767 to your PC as

described in Connecting the RH767 to

a PC on page 9.

2. Turn the RH767 on.

3. ActiveSync starts automatically and

configure the USB port to work with

the RH767. The New Partnership

setup wizard automatically starts.

Getting Connected

NOTE:

If ActiveSync doesn’t start automatically, click Start → Programs → Microsoft

ActiveSync.

If a message appears indicating that it is unable to detect a connection, click the

Cancel button and manually congure the communication settings.

4. Follow the onscreen instructions.

5. When the configuration process is

complete, the ActiveSync window

appears.

6. Synchronization will be initialized and will take place if you’ve chosen to synchronize

periodically or upon connection.

NOTE:

Your computer can create a partnership with multiple RH767s. Also, a RH767 can

create a partnership with up to two computers.

Using ActiveSync to Exchange Files

You can use ActiveSync to exchange information from your device your computer and vice

versa. Changes you make to the information on one location will not affect the information

on the other one. If you want to automatically update information on both your device and

computer, synchronize the information instead.

You can copy two types of information to your device: les and Pocket Access Windows CE

Store information.

The following procedure only applies to

copying files. Refer to the ActiveSync

Help on your computer for instructions on

how to copy Pocket Access Windows CE

Store information.

NOTE:

Files created on your computer

may need to be converted by

ActiveSync so that they can

be viewed and edited on your

device, and vice versa.

To copy les:

1. Connect your device to your computer.

2. In ActiveSync on your computer, click

Explore.

Chapter 3 Getting Connected

Windows Explorer opens the Mobile Device window for your device.

3. Locate the le that you want to copy on your device or computer.

4. Do either one of the following:

– To copy the le to your device, right-click the le and click Copy. Place the cursor in the

desired folder for your device, right-click, then click Paste.

– To copy the le to your computer, right-click the le and click Copy. Place the cursor in

the desired folder for your computer, right click, then click Paste.

Using the WLAN

Setting up the Wireless Local Area Network Card

The RH767 is pre-loaded with connection software.

The RH767 automatically detects RF cards and then

displays this screen during the rst-time installation.

Note that you can use one of the following two ways

to set the IP address:

Obtaining an IP Address via DHCP Server

Specifying an IP Address

Obtaining an IP Address via DHCP

Server

Check with your MIS department to determine

whether a DHCP server is available in your LAN

environment. If available, tap the radio button next

to Obtain an IP address via DHCP, and then tap the

OK button.

●

Specifying an IP Address

If there is no DHCP server in your LAN environment,

assign IP addresses to each RH767 as follows:

1. Tap Start → Settings → Control Panel and then

double-tap Network and Dial-up Connections.

2. Tap the BCMCF1 icon next to Specify IP Address.

3. Input the proper IP address, Subnet Mask, and

Default Gateway.

4. Tap the Name Servers tab, and then input the

proper Primary DNS, Secondary DNS, Primary

WINS, and Secondary WINS.

To avoid conflict with your LAN environment,

consult with your MIS department for the correct

TCP/IP setting.

Chapter 3 Getting Connected

WiFi Connection

With the embedded WLAN module, you can send and receive signals to a WiFi network then

synchronize les.

NOTE:

WiFi access requires a separate purchase

of a service contract with a wireless service

provider. Contact a wireless service provider

for more information.

A wireless network can be added either when the

network is detected or by manually entering settings

information. Before doing these steps, determine if

authentication information is needed.

1. If present, double-tap the WIFI icon in the

notication area to open the WIFI Properties screen.

2. Select the Wireless Information Tab.

3. If there are networks already detected, double-tap

the network name to open the Wireless Properties

dialog.

4. Type the SSID in the Network Name text box. An

SSID (Service Set IDentier) is the name assigned

to a wireless (Wi-Fi) network. All devices must use

the same case-sensitive name to communicate. The

name is a text string up to 32 bytes long.

5. Configure the remaining Wireless Properties, and

tap OK.

6. Tap and hold the network name, then tap Connect.

7. When nished, tap OK.

For more information on how to congure the wireless

network settings, tap Start ¨ Help.

Using the WiFi Tool

The WiFi tool enables you to get, renew, and release

IP addresses, monitor the WiFi signal strength, and

enable RF power saving mode.

1. Tap Start → Programs → Communications →

WiFiTool.

The WiFiTool screen appears.

WiFi icon

The following tools are available in the utility.

Info Tab: displays the wireless card’s signal

strength, and enables you to enable logging at

specied intervals.

IP Tab: enables you to assign an IP address to

the RH767, renew an IP address, or release the

RH767’s IP address.

AP List: shows AP information.

RF Power Tab: enables you to set the wireless

card’s power saving mode:

– CAM

– MAX_PSP

– Fast_PSP (*)

– MAX

Ping: allows you to use the ping function to test

the network.

●

Appendix System Specications

Appendix

Middleware Supporting List

• Oracle Sensor Edge Server

• Oracle Sensor Edge Mobile

• Oracle Database Lite

• Microsoft BizTalk R2

** Please contact your unitech service team for detailed information of middleware supporting.

Hardware

Memory: 64 MB ROM / 64MB SDRAM

Microprocessor: Intel X-Scale 400MHz

Display: NEC 240*320 Transflective TFT Color LCD, support 256K

color, with backlight, with touch screen.

Operating System

Microsoft Windows CE.NET5.0 Professional Plus

Power

Battery Type: Rechargeable Lithium-Ion

Battery System: 7.4V 4050mAh (double cell)

Battery Life: RH767 UHF: Up to 16 hours

Recharging Time: Within 6 hours when power status is very low

Keypad with LED backlight

36 key keypad with numeric key, alpha key and function key

Standard Communications

Bluetooth, 802.11b/g, USB 1.0, IrDA

Scanner Engine Integrated SE950 laser scanner

RFID Reader UHF 902~928MHz, EPCG1C0,C1, Gen 2

Physical

Characteristics

Lx W x H: 7.17”3.46”5.91”

Weight: RH767 UHF 26.81oz

Environment

Operating Temp -5º to 50ºC

Storage Temp -20º to 60ºC

Relative Humidity: 5% to 95% (non-condensing)

System Specications

Key Accessories 2 Slot Battery Charger

4 Slot Battery Charger

4 Slot Multi-bay

Charging & Communication Cable

Software

Development Kit

Unitech RH767SDK, RFID middleware SDK

Microsoft Embedded Visual Tool

Software Unitech RFID Middleware support Oracle Sensor Edge Server,

Microsoft BizTalk RFID, IBM WebSphere

Regulatory CE, FCC, VCCI, NCC, CCC

Unitech Electronics RH767BTGD Portable Data Collection Terminal User Manual

Unitech Electronics Co., Ltd. Portable Data Collection Terminal Users Manual

Users Manual

Navigation menu

Namespaces

Views

Navigation
