United Integrated Services WCS-110 WIRELESS CONTACT SENSOR User Manual
United Integrated Services CO., LTD. WIRELESS CONTACT SENSOR Users Manual
USERS MANUAL
Wireless Contact Sensor User's Manual
Product Name: Wireless Contact Sensor
Model No: WCS-110
Input Power: 3V DC
Features Description:
1. Wireless transmission to the reed switch (opens / closes) the signal to the repeater, we can
see that the doors and windows open and close the current state, to prevent thieves
invasive.
2. Use CR2032 type Li-ion batteries, battery power is insufficient to inform the host will
automatically operate a very low power; the battery can be used for more than two years.
3. Easy link, when install at the first time to press the set button on the side of product
binding with repeater.

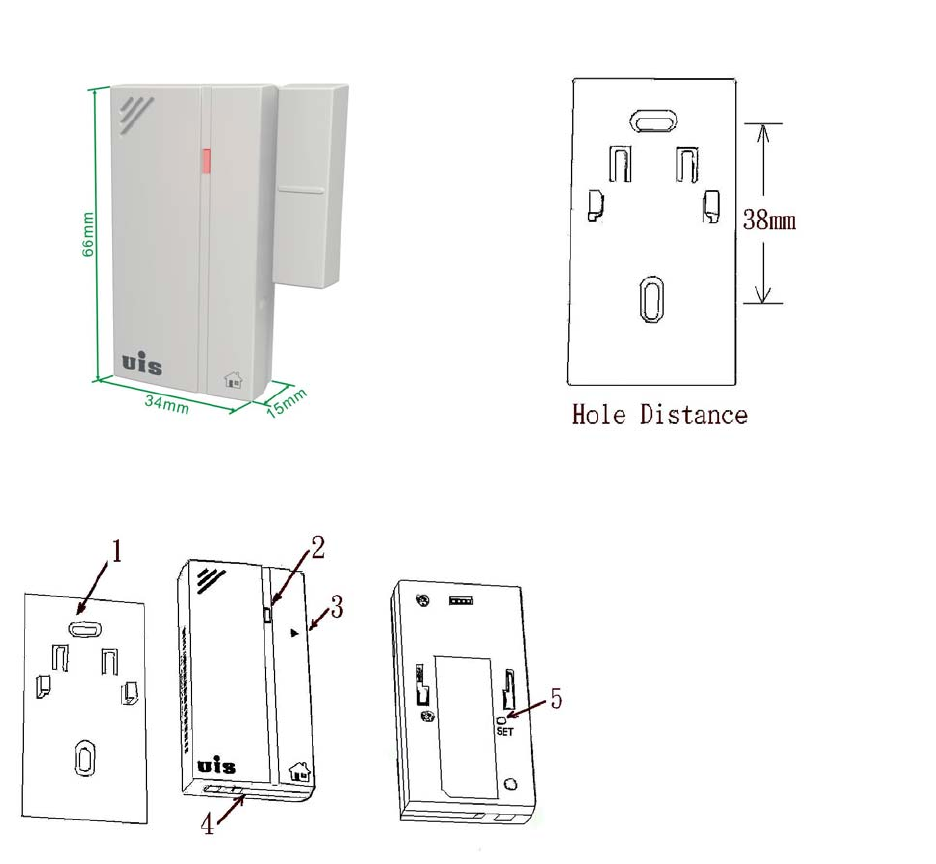

Outline Dimensions:
Feature Locator:
Installation Hints:
1. Foundation stop plate
2. State of LED window
3. reed switch location
4. battery holder
5. (SET) Setting button
1. Need to WCS-110 (Wireless Contact Sensor) Foundation stop plate and the magnet block
to be installed on the doors or windows to detect in order to start using.

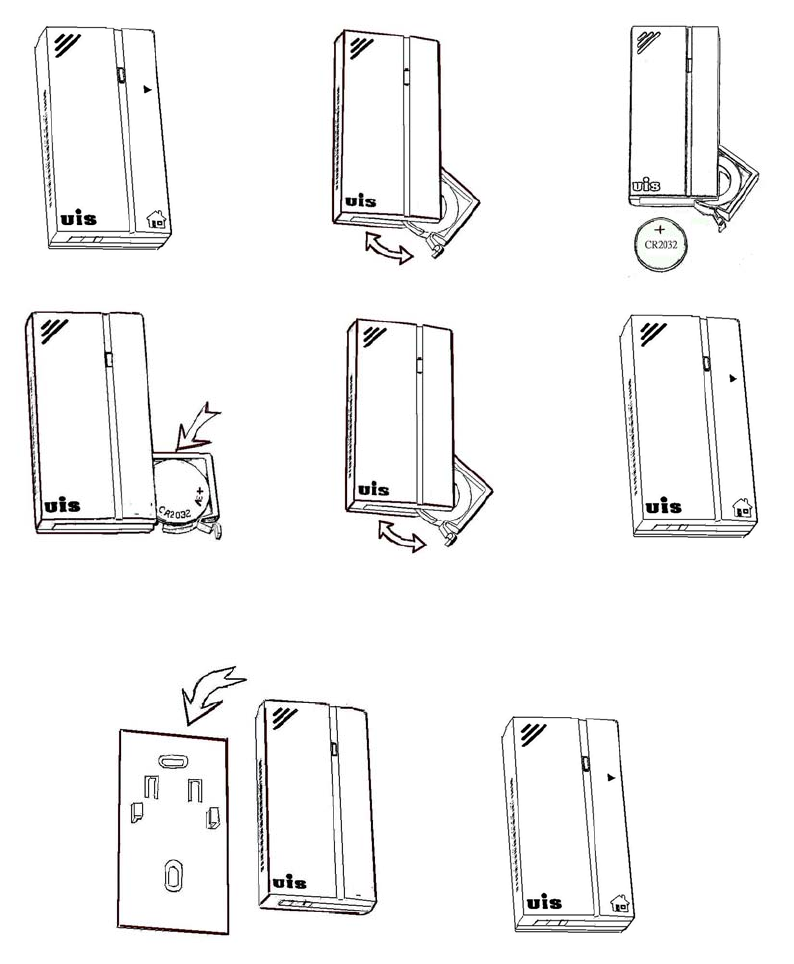

2. WCS-110 (Wireless Contact Sensor) Battery installation instructions are as follows maps,
Add spin to open the battery holder, and then can be closed.
(Attention: CR2032 Battery Positive side up)
3. WCS-110 (Wireless Contact Sensor) mounted to the Foundation stop plate described
below map, linked to the drop of a good position to.
4. WCS-110 (Wireless Contact Sensor) by pressing the SET button at the bottom, and then
press the WR-110 (wireless repeater) at the bottom of the SET button, Wait for 30 seconds
to 1 minute. If LED indicator light flash three times that means linking success. If LED
indicator light flash two times that means fail.
5. Join to link with Gateway, please reference user manual of WCC-110 (Wireless console
controller).

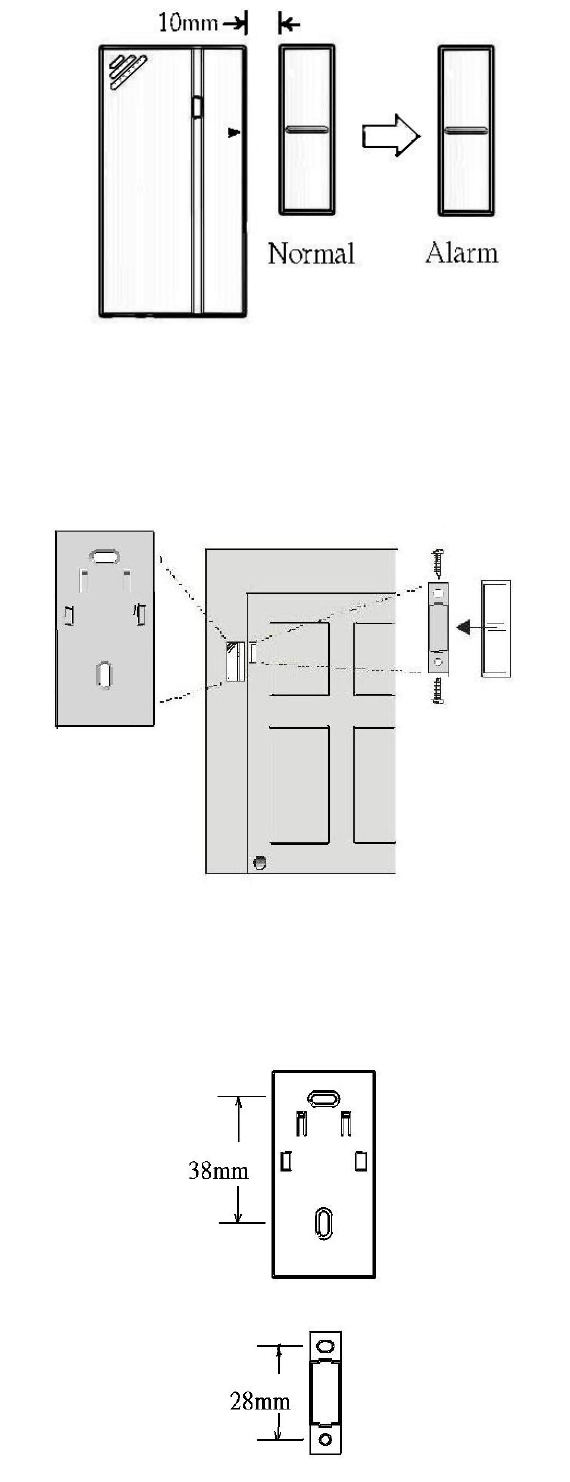

6. WCS-110 (Wireless Contact Sensor) Ontology positive signs at the top right of the arrow,
there is a need to align with the magnet above the center line, when the interval between
the two for less than 10mm away from the normal state, if the interval between the two left
more than 20mm Police will send radio.
7. WCS-110 (Wireless Contact Sensor) Foundation stop plate can as shown below, doors or
window frames placed in a static position, the magnet body in the door or window frame
fixed movable parts.
8. Under the Foundation stop plate can map the location of locking screw holes in order to
pay Gum adhesive or screw fixed way, Easy DIY installation of WCS-110(Wireless
Contact Sensor) Ontology and Ontology magnet fixed on the door or window frame.
Troubleshooting:
1. Problem : When link with WR-110 (Wireless repeater), there is no display of LED
indicator light for WCS-110 (Wireless Contact Sensor) to flash two or
three times.
Solution : a. Need to make sure the battery is good there is electricity, the installation of
the battery positive and negative direction is correct.
b. May be not press set button, need to link with repeater again.
c. If the above handles are invalid, please contact with agency.
2. Problem : Unable to link with WR-110 (wireless repeater).
Solution : a. It needs to confirm the distance between WCS-110 (Wireless Contact Sensor)
and WR-110 (Wireless repeater). Wireless connects in non-camouflage straight
line effective range 10 meters. May pull closer between booth's distance tests
to have a look first, whether to have the improvement segment condition
Specification:
Wireless Contact Sensor
Model No. WCS-110
Electrical Specification
Transmit Frequency 2.4GHz
Modulation GFSK
Transmit Power 0 dBm
Channel spacing 1 MHz
Channel NO. 81 Channel(2401~2481Mhz)
Range of operation 10 meters
Operating voltage 3.0V DC
Current (typical) Working: 14mA Peak
Standby: 1 uA Max
Battery Type CR2032
Battery Quantity (PCS) 1
Sensor Type Reed Switch
Display Type Red LED indicator
Operation Interface Push button switch for setting
Environmental Requirement
Operating temperature -20°C to 60°C
Storage temperature -20°C to 70°C
Humidity 90% RH Max. Non-Condensing
Mechanical Specification
Dimension (WxHxD, mm) 34x66x15
Weight (No Battery) 22 g
Weight (Include Battery) 25 g
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Canada Warning
"Industry Canada regulatory information Operation is subject to the following two conditions:
(1)
this device may not cause interference, and (2) this device must accept any interference,
including
interference that may cause undesired operation of the device.""The user is cautioned that
this
device should be used only as specified within this manual to meet RF exposure
requirements. Use of this device in a manner inconsistent with this manual could lead to
excessive RF exposure conditions."
