Wireless Lock Controller User's Manual
Product Name: Wireless Lock Controller
Model No: WLC-110
Input Power: 12V DC
Features Description:
1. WR-110 (Wireless repeater) use wireless way to dispatch signal to WLC-110 (Wireless Lock
Controller) which can open the lock and send back the state of open to repeater
2. Framework of WLC-110 (Wireless Lock Controller) is one for DO output and two for DI input
interface.
3. WLC-110(Wireless Lock Controller) needs to collocate with lock equipment for 12V DC
Power.
4. It is east to link with Gateway. Lock equipment and lock controller wires link together. Then
need to press the back of setting button and Binding with repeater.
5. Be able to use cell phone to control and open the door. That provides more convenience for user.

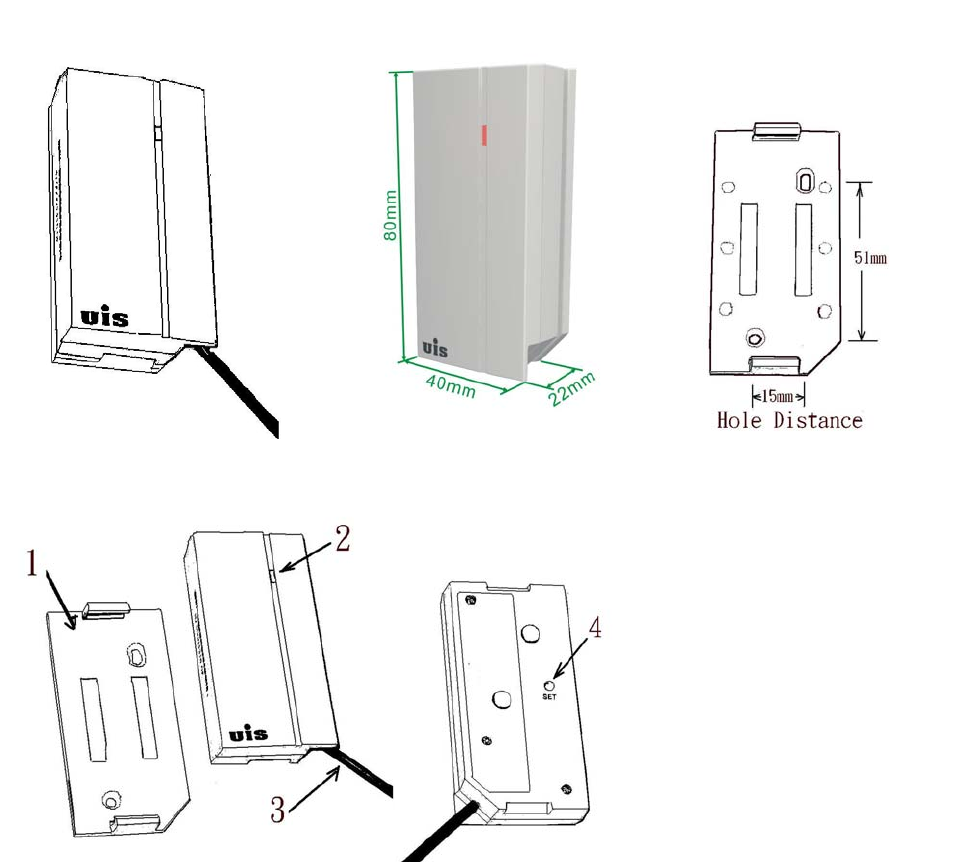

Outline Dimensions:
Feature Locator:
Installation Hints:
1. Foundation stop plate
2. State of LED window
3. Outlet wires
4. (SET) Setting button
1. Circuit of lock equipment needs to link with WLC-110 (Wireless lock controller)
that is able to use.

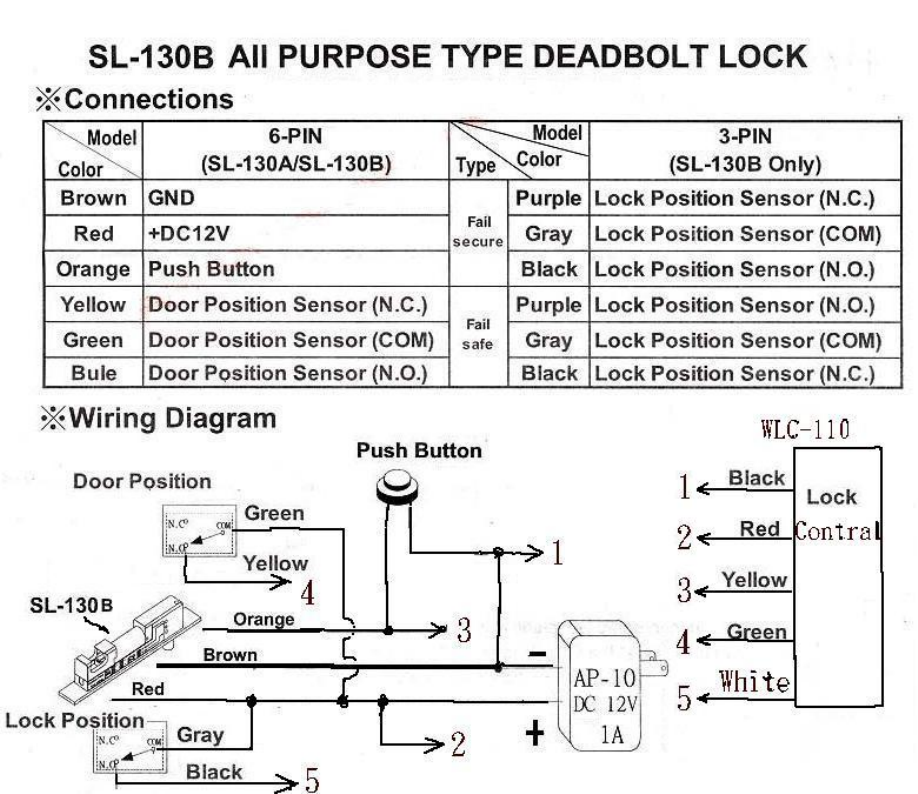

2. Such as collocation with SL-130B lock equipment. Illustration of circuit is as below.:
3. WLC-110 (Wireless lock controller) has five wires, color wire function as below.
a. Black wire Power input 0V(negative)
b. Red wire Power input 12V(positive)
c. Yellow wire Lock open control output
d. Green wire Door Position status input
e. White wire Lock Position status input
4. To provide 12V power supply to WLC-110 (Wireless lock controller) and press the setting
button of the bottom. Then press the setting button of WR-110 (Wireless repeater) bottom. Wait
for 30 seconds to 1 minute. If LED indicator light flash three times that means linking success.
If LED indicator light flash two times that means fail.
5. Join to link with Gateway, please reference user manual of WCC-110 (Wireless console
controller).

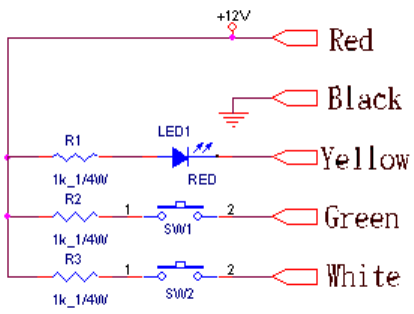

6. If WLC-110 (Wireless lock controller) would like to confirm the function alone, circuit of
external linking way is as below.
Troubleshooting:
Problem: When link with WR-110 (Wireless repeater), there is no display of LED indicator
light for WLC-110 (Wireless lock controller) to flash two or three times.
Solution: a. Need to confirm with circuit of lock controller whether it is good and there is
power for 12V DC.
b. May be not press set button, need to link with repeater again.
c. If the above handles are invalid, please contact with agency.
Problem: Unable to link with WR-110 (wireless repeater).
Solution: a. It needs to confirm the distance between WLC-110 (Wireless lock controller)
and WR-110 (Wireless repeater). Wireless connects in non-camouflage straight
line effective range 10 meters. May pull closer between both distance tests to
have a look first, whether to have the improvement segment condition.
Specification:
Wireless Lock Controller
Model No. WLC-110
Electrical Specification
Transmit Frequency 2.4GHz
Modulation GFSK
Transmit Power 0 dBm
Channel spacing 1 MHz
Channel NO. 81 Channel(2401~2481Mhz)
Range of operation 10 meters
Operating voltage 12V DC
Current (typical) 20mA Max.
Input Signal Dry Connect *2
Output Signal 15V 120mA Max.
Display Type Red LED indicator
Operation Interface Push button switch for setting
Environmental Requirement
Operating temperature -20°C to 60°C
Storage temperature -20°C to 70°C
Humidity 90% RH Max. Non-Condensing
Mechanical Specification
Dimension (WxHxD, mm) 40x80x22
Weight 40g
Pin Assignment
Pin 1- (Red ) DC +12V Power Input
Pin 2- (Black) Common
Pin 3- (Yellow) Open Collect Digital Output
Pin 4- (Green) -- Door open/close status
0V,12V DC Level input (active high)
Pin 5- (White)-- Lock/unlock status 0V,12V DC Level input (active high)
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Canada Warning
"Industry Canada regulatory information Operation is subject to the following two conditions: (1)
this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.""The user is cautioned that this
device should be used only as specified within this manual to meet RF exposure
requirements. Use of this device in a manner inconsistent with this manual could lead to
excessive RF exposure conditions."
