User Manual Vista N R10 english
Vista N RIC
behind-the-ear (BTE)
hearing aid guide
Your hearing aids
Hearing healthcare professional: ________________
____________________________________________
Telephone: __________________________________
Model: _____________________________________
Serial number: _______________________________
Replacement batteries:
Size 13 Size 312 Size 10A
Warranty: ___________________________________
Program 1 is for: _____________________________
Program 2 is for: _____________________________
Program 3 is for: _____________________________
Program 4 is for: _____________________________
Date of purchase: _____________________________

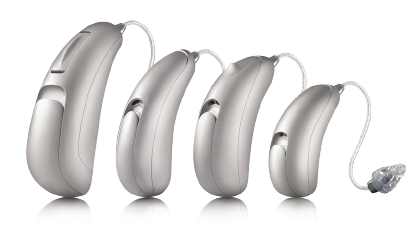

This user guide applies to the following models:
Year of introduction: 2015
Vista N 910 R 13
Vista N 810 R 13
Vista N 710 R 13
Vista N 610 R 13
Vista N 510 R 13
Vista N 910 R 312
Vista N 810 R 312
Vista N 710 R 312
Vista N 610 R 312
Vista N 510 R 312
Vista N 910 Rm 312
Vista N 810 Rm 312
Vista N 710 Rm 312
Vista N 610 Rm 312
Vista N 510 Rm 312
Year of introduction: 2016
Vista N 910 R 10
Vista N 810 R 10
Vista N 710 R 10
Vista N 610 R 10
Vista N 510 R 10
Quick reference
2 beeps
every
30 minutes
Table of contents
Your hearing aids at a glance ...........................................................2
Warnings ...........................................................................................7
Putting your hearing aids on your ears...........................................11
Turning your hearing aids on and off ............................................ 13
Battery information ........................................................................ 14
Tinnitus masker .............................................................................. 17
Operating instructions ...................................................................20
Using the telephone ...................................................................... 28
Protecting your hearing aids .......................................................... 31
Cleaning your hearing aids .............................................................32
Accessories .....................................................................................34
Assistive listening devices .............................................................35
Troubleshooting guide ................................................................... 36
Warning to hearing aid dispensers (to comply with the U.S. Food
and Drug Administration (FDA) regulations) ................................ 41
Information and explanation of symbols ......................................44
Compliance information .................................................................46
Patient feedback ............................................................................ 48
Additional notes ..............................................................................49
Changing batteries Push button
Vista N R 13 Vista N R 312
Vista N Rm 312 Vista N R 10
s w i t c h i n g
programs
volume
control
Battery indicator Battery indicator
Battery indicatorBattery indicator
Off
On
Low battery
warning
Battery size On/Off
10
312
13
2 3
Your hearing aids at a glance
1 W i r e - connects the speaker unit to your
hearing aids
2 Microphone - sound enters your hearing aids
through the microphones
3 Push button - switches between listening
programs or changes the volume level, depending
on your customized fitting
4 Battery door (on & off) - close the door to turn on
your hearing aid, open the door all the way to turn
off your hearing aid or to change the battery
5 D o m e - holds the wire in place in your ear canal
6 Retention piece - helps prevent the dome and wire
from moving out of the ear canal
7 Speaker unit - amplifies the sound and sends it
directly into the ear canal
8 Custom mold - holds the hearing aids in place and
contains the speaker unit
Vista N R 10 BTE hearing aids
2
2
4
4
5
1
1
6
8
7
7
4 5
Vista N Rm 312 BTE hearing aids
2
2
4
4
5
1
1
6
8
7
7
Vista N R 312 BTE hearing aids
2
2
3
4
5
1
6
7
2
2
3
4
8
7
1
6 7
Warnings
The intended use of hearing aids is to
amplify and transmit sound to the ears and
hereby compensate for impaired hearing.
The hearing aids (specially programmed for
each hearing loss) must only be used by the
intended person. They should not be used
by any other person as they could damage
hearing.
Hearing aids should only be used as directed
by your physician or hearing healthcare
professional.
Hearing aids will not restore normal hearing
and will not prevent or improve a hearing
impairment resulting from organic conditions.
Do not use your hearing aids in explosion
hazard areas.
Allergic reactions to hearing aids are
unlikely. However, if you experience itching,
redness, soreness, inflammation or a burning
sensation in or around your ears, inform your
hearing healthcare professional and contact
your physician.
2
2
2
2
3
3
4
4
5
1
6
8
7
7
1
Vista N R 13 BTE hearing aids
8 9
In the unlikely case that any parts remain in
the ear canal after the removal of the hearing
aid, contact a physician immediately.
Remove your hearing aids for CT and
MRI scans or for other electromagnetic
procedures.
Special care should be exercised in wearing
hearing aids when maximum sound
pressure levels exceed 132 decibels. There
may be a risk of impairing your remaining
hearing. Speak with your hearing healthcare
professional to ensure the maximum output
of your hearing aids is suitable for your
particular hearing loss.
Magnet and battery warnings
Never leave hearing aids, batteries or
magnets where small children and pets
can reach them. Never put hearing aids or
batteries in your mouth. If a hearing aid
or battery is swallowed, call a physician
immediately.
The magnet may affect some medical
devices or electronic systems. Always keep
the magnet (or the telephone equipped
with the magnet) at least 30 cm (12”) away
from pacemakers, credit cards or other
magnetically sensitive devices.
Precautions
The use of hearing aids is only part of hearing
rehabilitation; auditory training and lip
reading instruction may be required as well.
In most cases, infrequent use of hearing aids
does not provide full benefit. Once you have
become accustomed to your hearing aids,
wear your hearing aids everyday all day.
Your hearing aids use the most modern
components to provide the best possible
sound quality in every listening situation.
However, communication devices such as
digital cell phones can create interference
(a buzzing sound) in hearing aids. If you
experience interference from a cell phone
being used close by, you can minimize this
interference in a number of ways. Switch your
hearing aids to another program, turn your
10 11
head in a different direction or locate the cell
phone and move away from it.
Too high distortion during dialing or phoning
may mean that the phone handset is stressed
by the magnet. To avoid any damage, please
move the magnet to another place on the
telephone receiver.
Note to hearing healthcare professional
Domes should never be fitted on patients
with perforated eardrums, exposed middle
ear cavities, or surgically altered ear canals. In
the case of such a condition, we recommend
to use a customized earmold.
Labeling
The serial number and year of manufacture are
located inside the battery door.
Putting your hearing aids on your ears
Your hearing aids may be color-coded with an
indicator on the battery door: red = right ear;
blue = left ear.
Hearing aids with domes
1. Hold the wire where it
attaches to the dome and
gently push the dome into
your ear canal.
2. Place the hearing aid
over the top of your ear.
The wire should lie flush
against your head and not
stick out.
3. If there is a retention piece,
place it in your ear so it
rests at the bottom of the
opening of your ear canal.
1.
3.
2.
12 13
Hearing aids with custom shells
1. Hold the custom shell
between your thumb and
index finger. The opening
should be pointing in
towards your ear canal
with the hearing aid resting
above your ear.
2. Carefully insert the custom
shell into your ear. The
shell should fit into your ear
snugly and comfortably.
3. Place the hearing aid over
the top of your ear.
Turning your hearing aids on and off
The battery door acts as an on and off switch.
1. On: Close the battery door
fully.
Note: It may take five seconds
before the hearing aid turns
on. Your hearing healthcare
professional can increase the
start up delay if required.
2. Off: Open the battery door.
Note: When turning your hearing
aid on and off while it is on the
ear, grasp the top and bottom of
the device with your index finger
and thumb. Use your thumb to
open and close the battery door.
1.
2.
1.
2.
3.
14 15
Battery information
Low battery warning
Two long beeps indicate the hearing aid battery
is low. After the low battery warning, sounds may
not be as clear. This is normal and can be fixed by
changing the batteries.
If you can’t hear the low battery warning, your
hearing healthcare professional can change its
pitch or loudness. If you prefer, it can be turned
off entirely.
Your hearing aids are designed to generate a
low battery warning every 30 minutes until you
change the batteries, but depending on the
condition of the batteries, they may die before
another low battery warning occurs. Therefore, it
is recommended that the batteries are replaced
as soon as possible once you hear the low
battery warning.
Replacing the battery
1. Gently swing out the battery
door with your fingernail.
2. Push the battery with your
thumb and index finger towards
the open side, and remove or
pull the battery straight out,
depending on your style of
hearing aid.
3. Insert the new battery into the
battery compartment with the
plus (+) sign on the battery
facing the same way as the
battery indicator on the battery
door. This will ensure that the
battery door closes properly.
Note: If the battery is inserted
incorrectly, the hearing aid will not
turn on.
4. Close the battery door.
Note: There is a tamper-proof battery door
option for Vista N R 13 hearing aids. Please see
your hearing healthcare professional for further
information.
1.
2.
3.
4.
16 17
Caring for batteries
• Always discard batteries in a safe and
environmentally friendly way.
• To prolong battery life, remember to turn your
hearing aids off when not in use, especially
when asleep.
• Remove the batteries and keep the battery
door open while hearing aids are not being
worn, especially when asleep. This will allow
internal moisture to evaporate.
Tinnitus masker
Tinnitus masker uses broadband noise to provide
temporary relief of tinnitus.
Tinnitus masker warnings
The tinnitus masker is a broadband sound
generator. It provides a means of sound
enrichment therapy that can be used as
part of a personalized tinnitus management
program to provide temporary relief from
tinnitus.
The underlying principle of sound enrichment
is to provide supplementary noise stimulation
which can help defocus your attention from
your tinnitus and avoid negative reactions.
Sound enrichment, coupled with instructional
counseling, is an established approach to
managing tinnitus.
Air conduction hearing aids with the
tinnitus masker are to be fitted by a hearing
healthcare professional familiar with the
diagnosis and management of tinnitus.
18 19
Should you develop any side effects while
using the tinnitus masker, such as headaches,
nausea, dizziness or heart palpitations or
experience a decrease in auditory function
such as decreased loudness tolerance,
worsening of tinnitus, or speech not as clear,
you should discontinue use of the device and
seek medical attention.
The volume of the tinnitus masker can be
set to a level which could lead to permanent
hearing damage when used for a prolonged
period of time. Should the tinnitus masker
be set to such a level in your hearing aid,
your hearing healthcare professional will
advise you of the maximum amount of time
per day you should use the tinnitus masker.
The tinnitus masker should never be used at
uncomfortable levels.
Important information
The tinnitus masker generates sounds that are
used as part of your personalized temporary
tinnitus management program to provide relief
from tinnitus. It should always be used as
prescribed by a hearing healthcare professional
who is familiar with the diagnosis and treatment
of tinnitus.
Good health practice requires that a person
reporting tinnitus have a medical evaluation by
a licensed ear physician before using a sound
generator. The purpose of such an evaluation
is to ensure that medically treatable conditions,
which may be causing tinnitus, are identified and
treated prior to using a sound generator.
The tinnitus masker is intended for adults 18
years of age or older who have both hearing loss
and tinnitus.
20 21
Operating instructions
Your hearing aids may come with a push button
that allows you to further adjust them. You may
also be able to adjust your hearing aids with the
use of an optional remote.
Push button
The push button on your hearing
aids can be either a program
control, a volume control or a
combination of both.
Program control
If your push button is a program control, each
time you push the button, you will move to a new
hearing aid program.
Your hearing aids beep to indicate which program
you are in.
Program setting Beeps
Program 1 (e.g. automatic program) 1 beep
Program 2 (e.g. speech in noise) 2 beeps
Program 3 (e.g. easy telephone/
telephone)
3 beeps
Program 4 (e.g. music) 4 beeps
Easy telephone/telephone short melody
Wireless synchronization
(if enabled)
Opposite ear beeps
the same as side
being adjusted
Please see the front of this booklet for a listing of
your personalized programs.
22 23
Volume control
If your push button has been configured as a
volume control, either:
• Push the button on your right hearing aid to
increase the volume, and
• Push the button on your left hearing aid to
decrease the volume
or:
• Push the button to step through your volume
levels
As you change the volume control, your hearing
aids will beep.
Volume setting Beeps
Suggested volume level 1 beep
Turning volume up short beep
Turning volume down short beep
Maximum volume level 2 beeps
Minimum volume level 2 beeps
Program/volume control push button
If your hearing healthcare professional has
configured one hearing aid to be a program
control and the other hearing aid to be a volume
control:
• Push the button on your right / left
hearing aid to access your different programs,
and
• Push the button on your right / left
hearing aid to step through your volume levels
24 25
Remote control
The optional remote control allows you to switch
between different listening programs and change
your volume settings.
Program control
Each time you push the button, you will move to
a new program.
Your hearing aids beep to indicate which program
you are in.
Program setting Beeps
Program 1 (e.g. automatic program) 1 beep
Program 2 (e.g. speech in noise) 2 beeps
Program 3 (e.g. easy telephone/
telephone)
3 beeps
Program 4 (e.g. music) 4 beeps
Easy telephone/telephone short melody
Please see the front of this booklet for a listing of
your personalized programs.
Volume control
If your remote control has been configured to
adjust volume, you can adjust the volume level
by pushing the + or – button.
As you change the volume, your hearing aids will
beep.
Volume setting Beeps
Suggested volume level 1 beep
Turning volume up short beep
Turning volume down short beep
Maximum volume level 2 beeps
Minimum volume level 2 beeps
26 27
Wireless synchronization
If wireless synchronization is enabled, when you
change the volume or program settings on one
hearing aid, the other one changes as well.
For example, if your push button is configured as
a program control and wireless synchronization
is enabled, when you push the button on one
hearing aid, the program will change on both
hearing aids.
Tinnitus masker
If your hearing healthcare professional has
configured both a tinnitus masker program and
a volume control, you can adjust the tinnitus
masker level while you are in the tinnitus masker
program. To adjust the noise level, either:
Push button (right/left)
• Push the button on your right hearing aid to
increase the tinnitus masker, and
• Push the button on your left hearing aid to
decrease the tinnitus masker
Push button (steps)
• Push the button to step through your
tinnitus masker volume levels
Remote control
• Push the + button on your remote control to
increase the tinnitus masker, and
• Push the – button on your remote control to
decrease the tinnitus masker
As you change the level, your hearing aids will
beep.
28 29
Using the telephone
Push button
Your hearing healthcare professional may have
set up a phone program on your hearing aids that
you can access using the push button or optional
remote control.
Easy telephone
Your hearing aids may also have a telephone
feature, which automatically switches to a
dedicated telephone program when a receiver
is brought close to one of your hearing aids. You
will hear a short melody when you switch to
the easy telephone program. When the receiver
is moved away from the hearing aid it will
automatically return to the previous listening
program.
If your hearing aid doesn’t automatically switch
to the easy telephone program when a receiver
is held to your ear, you may need to attach an
easy telephone magnet to your telephone. The
magnet is designed to strengthen the magnetic
field at the earpiece of the telephone.
To attach the optional magnet:
1. Clean the telephone receiver.
Hold the magnet near
the “listening end” of your
telephone receiver and release
it. The magnet will flip to the
appropriate side and seek
the optimal position on the
telephone receiver.
2. Place the double-sided tape
in this optimal position on the
telephone receiver.
3. Attach the magnet to the tape.
Your hearing healthcare professional may also
have set up a phone program that you can access
through your optional remote control.
1.
2.
3.
30 31
Binaural Phone
The Binaural Phone feature allows you to hold a
phone to one ear and hear the sound clearly in
both ears. No accessories are required.
Binaural Phone is available in your hearing aids
through:
Push button
Easy telephone
If your hearing aids are configured to work with
the wireless uDirect™ or uStream streamers, you
might benefit from a Bluetooth® hands-free
option. Refer to the uDirect or uStream user
guide for more information.
Protecting your hearing aids
• Open the battery door when not in use.
• Always remove your hearing aids when using
hair care products. The hearing aids can become
clogged and cease to function properly.
• Do not wear your hearing aids in the bath or
shower or immerse them in water.
• If your hearing aids do become wet, do not
attempt to dry them in an oven or microwave. Do
not adjust any controls. Open the battery doors
immediately, and allow your hearing aids to dry
naturally for 24 hours.
• Protect your hearing aids from excessive heat
(hair dryer, vehicle glove box or dashboard).
• Ensure you do not twist or squeeze the wire
when your hearing aids are placed in their case.
• Regular use of a dehumidifier, such as a Dri-Aid
kit, can help prevent corrosion and prolong the
life of your hearing aids.
• Do not drop your hearing aids or knock them
against hard surfaces.
32 33
Cleaning your hearing aids
Use a soft cloth to clean your hearing aid at the
end of each day, and place it in its case with the
battery door open to allow moisture to evaporate.
Regular cleaning of the microphone ports with
the supplied cleaning brush will ensure that
your hearing instrument will maintain its sound
quality. Your hearing healthcare professional can
demonstrate this for you.
Ear wax is natural and common. Ensuring your
hearing aids are free of ear wax is an important
step in your daily cleaning and maintenance
routine.
Never use alcohol to clean your hearing aids,
earmolds or domes.
Do not use sharp tools to dislodge ear wax.
Sticking household items into your hearing aids
or earmolds can seriously damage them.
Cleaning your custom shells and domes
Clean the domes and shells on the
outside daily with a damp cloth. Avoid
getting any water in and around the
speaker units (microphone shields)
and custom shells.
Note: The wires, speakers, domes or custom
shells should never be rinsed or submerged
in water as water drops may block sound or
damage the electrical components of the hearing
aids.
Domes should be replaced by your hearing
healthcare professional every 3-6 months or
when they become stiff, brittle, or discolored.
If your shells require further cleaning, the speaker
waxguard may be plugged and require replacing.
See your hearing healthcare professional.
34 35
Accessories
The uDirect, uStream, uMic,
™ uTV™ and a remote
control are optional accessories that may be
available for your hearing aids.
uDirect 3, uStream and uTV 3
uDirect and uStream are streamers that provide
easy, hands-free access to Bluetooth enabled
devices, such as mobile phones. They can
provide remote control functions to adjust your
hearing aids for increased listening comfort.
uDirect also has a wired audio jack to plug in
devices like MP3 players.
uTV is used with a streamer (uDirect or uStream)
to send sound from your TV directly to your
hearing aids. The uTV can also transmit sound
from stereo systems, computers and other audio
sources.
For more information on using the uDirect,
uStream or uTV, please see the user guide for
that accessory. For information on how to get a
streamer or uTV accessory, please contact your
hearing healthcare professional.
uMic
uMic is a personal wireless microphone system
that lets you hear conversations better in noisy
environments, through either uStream or uDirect.
Remote control
Your hearing aids may also come with an optional
remote control which allows you to switch
between different listening programs, and
change your volume settings.
Assistive listening devices
Listening in public places
Telecoils pick up electromagnetic energy and
convert it into sound. Your hearing aids may
have a telecoil option can help you listen in
public places equipped with telecoil compatible
assistive listening devices such as a loop system.
When you see this symbol, a loop system is
present and may be compatible with your
hearing aids. Please contact your hearing
healthcare professional for more information on
loop systems.
36 37
Cause Possible remedy
No sound
Not turned on Turn on
Low/dead battery Replace battery
Poor battery contact Consult your hearing
healthcare professional
Battery upside down Insert battery according to
battery symbol inside battery
door
Custom shells/domes
blocked with ear wax
Clean custom shells/ domes.
See “Cleaning your hearing
aids.” Consult your hearing
healthcare professional
Plugged microphone
shield
Consult your hearing
healthcare professional
Troubleshooting guide Cause Possible remedy
Not loud enough
Low volume Turn up volume; see hearing
healthcare professional for
models without a manual
volume control or if problem
persists
Low battery Replace battery
Custom shells/domes
not inserted properly
See “Putting your hearing
aids on your ears.” Remove
and reinsert carefully
Change in hearing Consult your hearing
healthcare professional
Custom shells/domes
blocked with ear wax
Clean custom shells/domes.
See “Cleaning your hearing
aids.” Consult your hearing
healthcare professional
Plugged microphone
shield
Consult your hearing
healthcare professional
38 39
Cause Possible remedy
Intermittent
Low battery Replace battery
Dirty battery contact Consult your hearing
healthcare professional
Two long beeps
Low battery Replace battery
Whistling
Custom shells/domes
not inserted properly
See “Putting your hearing
aids on your ears.” Remove
and reinsert carefully
Hand/clothing near ear Move hand/clothing away
from ear
Poorly fitting custom
shells/domes
Consult your hearing
healthcare professional
Cause Possible remedy
Not clear, distorted
Poorly fitting custom
shells/domes
Consult your hearing
healthcare professional
Custom shells/ domes
blocked with ear wax
Clean custom shells/domes.
See “Cleaning your hearing
aids.” Consult your hearing
healthcare professional
Low battery Replace battery
Plugged microphone
shield
Consult your hearing
healthcare professional
Custom shells/domes falling out of ear
Poorly fitting custom
shells/domes
Consult your hearing
healthcare professional
Custom shells/domes
not inserted properly
See “Putting your hearing
aids on your ears.” Remove
and reinsert carefully
40 41
Cause Possible remedy
Weak on the telephone
Telephone not
positioned properly
Move telephone receiver
around ear for clearer signal.
See “Using the telephone”
Hearing aid requires
adjustment
Consult your hearing
healthcare professional
For any problems not listed in the guide, contact your
hearing healthcare professional.
Warning to hearing aid dispensers
(to comply with the U.S. Food and Drug
Administration (FDA) regulations)
A hearing aid dispenser should advise a prospective hearing aid
user to consult promptly with a licensed physician (preferably
an ear specialist) before dispensing a hearing aid if the hearing
aid dispenser determines through inquiry, actual observation,
or review of any other available information concerning the
prospective user, that the prospective user has any of the following
conditions: (i) Visible congenital or traumatic deformity of the
ear. (ii) History of active drainage from the ear within the previous
90 days. (iii) History of sudden or rapidly progressive hearing
loss within the previous 90 days. (iv) Acute or chronic dizziness.
(v) Unilateral hearing loss of sudden or recent onset within the
previous 90 days. (vi) Audiometric air-bone gap equal to or greater
than 15 decibels at 500 hertz (Hz), 1,000 Hz, and 2,000 Hz. (vii)
Visible evidence of significant cerumen accumulation or a foreign
body in the ear canal. (viii) Pain or discomfort in the ear. Special
care should be exercised in selecting and fitting a hearing aid
whose maximum sound pressure level exceeds 132 decibels
because there may be risk of impairing the remaining hearing
of the hearing aid user. [This provision is required only for those
hearing aids with a maximum sound pressure capability greater
than 132 decibels (dB).]
Important notice for prospective hearing aid users
Good health practice requires that a person with a hearing loss
have a medical evaluation by a licensed physician (preferably a
physician who specializes in diseases of the ear) before purchasing
a hearing aid.
42 43
Licensed physicians who specialize in diseases of the ear
are often referred to as otolaryngologists, otologists or
otorhinolaryngologists. The purpose of medical evaluation is
to assure that all medically treatable conditions that may affect
hearing are identified and treated before the hearing aid is
purchased. Following the medical evaluation, the physician will
give you a written statement that states that your hearing loss
has been medically evaluated and that you may be considered
a candidate for a hearing aid. The physician will refer you to an
audiologist or a hearing aid dispenser, as appropriate, for a hearing
aid evaluation. The audiologist or hearing aid dispenser will
conduct a hearing aid evaluation to assess your ability to hear with
and without a hearing aid. The hearing aid evaluation will enable
the audiologist or dispenser to select and fit a hearing aid to your
individual needs. If you have reservations about your ability to
adapt to amplification, you should inquire about the availability
of a trial-rental or purchase-option program. Many hearing aid
dispensers now offer programs that permit you to wear a hearing
aid for a period of time for a nominal fee after which you may
decide if you want to purchase the hearing aid. Federal law restricts
the sale of hearing aids to those individuals who have obtained a
medical evaluation from a licensed physician. Federal law permits
a fully informed adult to sign a waiver statement declining the
medical evaluation for religious or personal beliefs that preclude
consultation with a physician. The exercise of such a waiver is not
in your best health interest and its use is strongly discouraged.
Children with hearing loss
In addition to seeing a physician for a medical evaluation, a
child with a hearing loss should be directed to an audiologist
for evaluation and rehabilitation since hearing loss may cause
problems in language development and the educational and
social growth of a child. An audiologist is qualified by training and
experience to assist in the evaluation and rehabilitation of a child
with a hearing loss.
Cell phone
Some hearing aid users have reported a buzzing sound in their
hearing aids when they are using cell phones, indicating that the
cell phone and hearing aid may not be compatible. According to
the ANSI C63.19 standard (ANSI C63.19-2011 American National
Standard Methods of Measurement of Compatibility Between
Wireless Communications Devices and Hearing Aids), the
compatibility of a particular hearing aid and cell phone can be
predicted by adding the rating for the hearing aid immunity to the
rating for the cell phone emissions. For example, the sum of the
hearing aid rating of 2 (M2) and a telephone rating of 3 (M3) would
result in a combined rating of 5. Any combined rating that equals
at least 5 would provide “normal use”; a combined rating of 6 or
greater would indicate “excellent performance.”
The immunity of this hearing aid is at least M2/T2. The equipment
performance measurements, categories and system classifications
are based upon the best information available but cannot
guarantee that all users will be satisfied.
Note: The performance of the individual hearing aids may
vary with individual cell phones. Therefore, please try this
hearing aid with your cell phone or, if you are purchasing a
new phone, please be sure to try it with your hearing aid prior
to purchase. For additional guidance, please ask your hearing
healthcare professional for the booklet entitled “Hearing aid
compatibility with digital wireless cell phones.”
44 45
Information and explanation of symbols
xxxx
With the CE symbol, Unitron confirms that this
Unitron product – including accessories – meets the
requirements of the Medical Devices Directive 93/42/
EEC as well as the Radio Equipment Directive 2014/53/
EU on radio and telecommunications transmitters.
The numbers after the CE symbol correspond to the code
of certified institutions that were consulted under the
above-mentioned directives.
This symbol indicates that it is important for the user to
read and take into account the relevant information in
this user guide.
This symbol indicates that it is important for the user to
pay attention to the relevant warning notices in this user
guide.
Important information for handling and effective use of
the product.
Australia and New Zealand EMC and
Radiocommunications compliance label.
This symbol indicates that the products described in
these user instructions adhere to the requirements for an
application part of Type B of EN 60601-1. The surface of
the hearing aid is specified as applicated part of Type B.
©Copyright symbol
This symbol shall be accompanied by the name and the
address of the authorised representative in the European
Community.
This symbol shall be accompanied by the name and the
address of the manufacturer (who are placing this device
on the market).
Operating conditions:
This device is designed such that it functions without problems or
restrictions if used as intended, unless otherwise noted in these
user guides.
Transport conditions:
Temperature: –20° to +60° Celsius (–4° to +140° Fahrenheit).
Humidity: Up to 90% (non condensing).
The symbol with the crossed-out garbage bin is to make
you aware that this device may not be thrown away
as normal household waste. Please dispose of old or
unused devices, at waste disposal sites intended for
electronic waste, or give your device to your hearing
healthcare professional for disposal. Proper disposal
protects the environment and health.
The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any
use of such marks by Unitron is under license. Other
trademarks and trade names are those of their
respective owners.
46 47
Compliance information
Declaration of conformity
Hereby, Unitron Hearing declares that this product meets the
requirements of the Medical Device Directive 93/42/EEC and
complies with Radio Equipment Directive 2014/53/EU. The full
text of the Declarations of Conformity can be obtained from the
manufacturer.
The hearing aid described in this user guide is certified under:
Standard hearing system
USA - FCC ID: Canada - IC:
Vista N R 10 VMY-UWNB5 2756A-UWNB5
Vista N Rm 312 VMY-UWNB0 2756A-UWNB0
Vista N R 312 VMY-UWNB2 2756A-UWNB2
Vista N R 13 VMY-UWNB1 2756A-UWNB1
Notice 1
This device complies with Part 15 of the FCC Rules and with RSS-
210 of Industry Canada. Operation is subject to the following two
conditions:
1) this device may not cause harmful interference, and
2) this device must accept any interference received, including
interference that may cause undesirable operation.
Notice 2
Changes or modifications made to this device not expressly
approved by Unitron may void the FCC authorization to operate this
device.
Notice 3
This device has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules
and ICES-003 of Industry Canada. These limits are designed to
provide reasonable protection against harmful interference in a
residential installation. This device generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this device does cause
harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the device into an outlet on a circuit different from that
to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for
help
Australia: Supplier Code Number N15398
New Zealand: Supplier Code Number Z1285
48 49
Patient feedback
Record your specific needs or concerns and bring to
your first office visit after getting your hearing aids.
This will help your hearing healthcare professional to
address your needs.
_________________________________________
_________________________________________
_________________________________________
_________________________________________
_________________________________________
_________________________________________
_________________________________________
_________________________________________
_________________________________________
_________________________________________
Additional notes
____________________________________________
____________________________________________
____________________________________________
____________________________________________
____________________________________________
____________________________________________
____________________________________________
____________________________________________
____________________________________________
____________________________________________
____________________________________________
Unitron Hearing, a division of
National Hearing Services Inc.
20 Beasley Drive, P.O. Box 9017,
Kitchener, ON N2G 4X1 Canada
Sonova AG
Laubisrütistrasse 28
CH-8712 Stäfa, Switzerland
Distributor
16-027 029-6083-02
7
630034 307672
