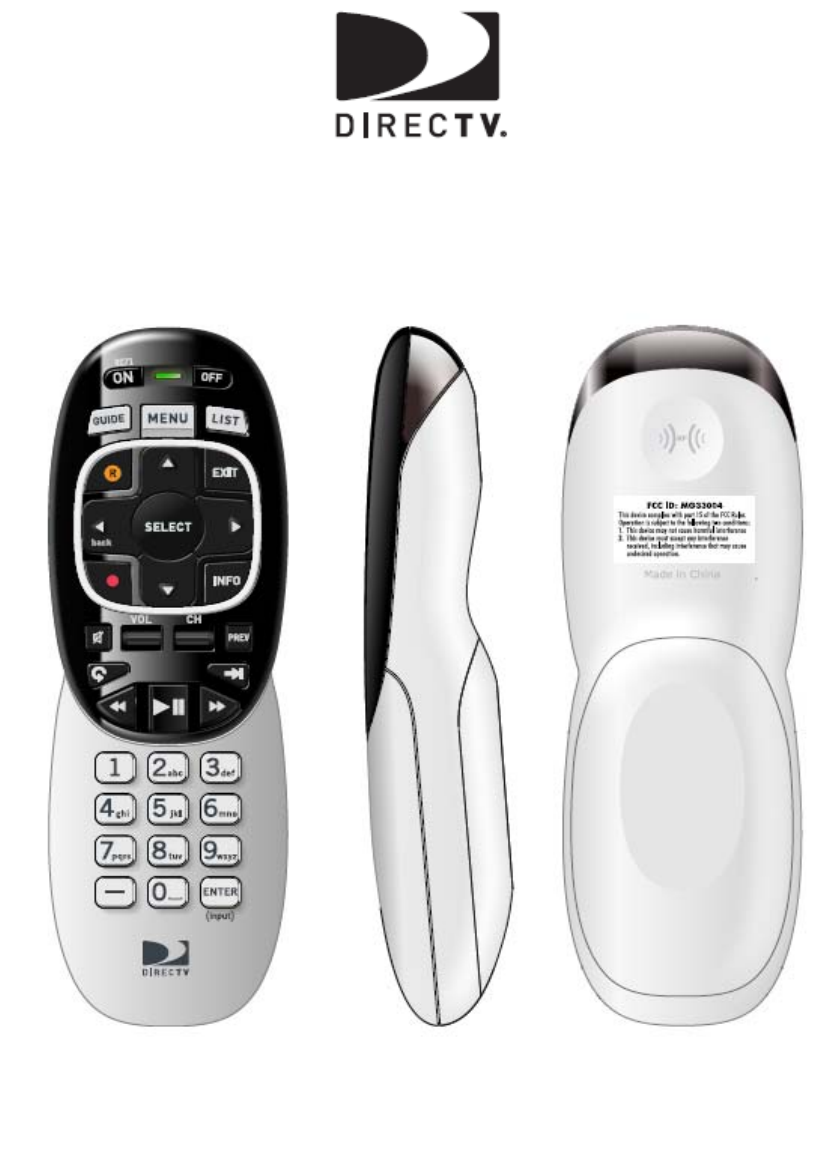

DIRECTV®

UniversalRemoteControl

QuickReferenceGuide

CONTROLLINGYOURTV

1. TurnontheTV.

2. Locatethe5‐digitcodeforyourTV.

3. TurnontheTV.

4. PressandholdMUTEandSELECTatthesametimeuntilthegreenlightflashestwice.

5. Usingthenumberkeysenterthe5‐digitcodeforyourbrandofTV.Ifperformed

correctly,thegreenlightundertheTVflashestwice.

6. AimtheremoteatyourTVandpressVOLorMUTEkeyonce.YourTVshouldrampupor

downorMUTE.IfVolumedoesnotchange,repeatsteps3and5,tryingeachcodefor

yourbranduntilyoufindthecorrectcode.



ActivatingRF

TopairtheDIRECTVremotecontroltotheSTB,performthefollowingsteps:



1. PressandHOLDMUTEandSELECTatthesametimeuntilthegreenlightflashestwice.

2. Enterdigits961followbyCHupkey.

3. UsingthenumberkeysenterthelastsixdigitsoftheRIDnumberlocatedbehindtheSTB.

4. PressandreleaseENTERkey(thegreenlightflashestwice).



DeactivatingRF

TodeactivatetheRFTransmitterontheDIRECTVremotecontrol,performthefollowingsteps:



1. PressandholdMUTEandSELECTatthesametimeuntilthegreenlightflashestwice.

2. Usingthenumberkeysenter961

3. PressandReleaseCHDown.(GreenLEDflashesfourtimes)



RESTORINGFACTORYDEFAULTSETTINGS

Toresetallthefunctionsoftheremotecontroltothefactorydefaultsettingsfollowingthese

steps:



4. PressandholdMUTEandSELECTatthesametimeuntilthegreenlightflashestwice.

5. Usingthenumberkeys,enter9‐8‐1.(Thegreenlightflashes4times).



COMPLIANCEWITHFCCRULESANDREGULATIONS

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,

pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotection

againstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcan

radiateradiofrequencyenergyandifnotusedinaccordancewiththeinstructions,may

causeharmfulinterferencetoradiocommunications.



However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthis

equipmentdoescauseharmfulinterferencetoradioortelevisionreception,theuseris

encouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:

• Increaseordecreasetheseparationbetweentheequipmentandreceiver.

 Consultthedealeroranexperiencedremotecontrol/TVtechnicianforhelp.

Thisequipmenthasbeenverifiedtocomplywiththelimitsfora

ClassBcomputingdevice,pursuanttoFCCRules.Theuseris

cautionedthatchangesandmodificationsmadetotheequipment

withouttheapprovalofmanufacturercouldvoidtheuser's

authoritytooperatethisequipment.

FCCAuthorizationLabel

Thisdevicecomplieswithpart15oftheFCCRules.Operationis

subjecttothefollowingtwoconditions:

1.Thisdevicemaynotcauseharmfulinterference.

2Thisdevicemustacceptanyinterferencereceived,including

interferencethatmaycauseundesiredoperation.

ResponsibleParty:

DIRECTV,Inc.

2230E.ImperialHwy.

ElSegundo,CA90245

1‐800‐531‐5000



SETUPCODESFORTV’s



Toresetallthefunctionsoftheremotecontroltothefactorydefaultsettingsfollowingthese

steps



AOC 1365, 2402

Apex Digital 2397

Audiovox 1564

Aventura 0171

Coby 2306, 2314, 2315, 2344, 2348, 3478

Commercial Solutions 1447

Curtis 2397

Durabrand 0178, 0171

Dynex 2049

Element 1886

Emerson 1394, 1886, 0178, 0171

Envision 1365

ESA 0171

Funai 0171

GE 1447, 0178

GFM 1886, 0171

GoldStar 0178

Haier 2293

Hallmark 0178

Hitachi 1643

iLo 1394

Insignia 2049, 1423, 1564, 0171, 1517, 2751

LG 1423, 1447, 0178

LXI 0156, 0178

Magnavox 1867, 1454, 2372, 0171, 1365

Marantz 1454

Matsushita 0250

Megatron 0178

Memorex 0178, 0150

MGA 0178, 0150

Mitsubishi 1250, 0178, 0150, 1797

NAD 0156, 0178

NEC 1797

Nikko 0178

Norcent 1365

Optimus 0250

Panasonic 1480, 0250, 1291

Penney 0156, 0178

Philco 1394, 0171

Philips 1867, 1454, 2372, 1394, 0171, 0690

Pioneer 1457

Proscan 1447

Proton 0178

Quasar 0250, 1291

RadioShack 0178

RCA 1447, 2434, 2746

Realistic 0178

Samsung 2051, 0178

Sansui 0171

Sanyo 1142

Scotch 0178

Scott 0178

Sears 0156, 0178, 0171

Seiki 0178

Sharp 0818, 2402

Sony 0810

Soundesign 0178

Squareview 0171

Sylvania 1394, 1886, 0171

Symphonic 1394, 0171

TCL 2434

Technics 0250

Teknika 0150

TMK 0178

Toshiba 1524, 0156

Vidtech 0178

Viewsonic 2049, 1564, 0885, 1365

Vizio 1758, 2757, 0885

Wards 0156, 0178

Waycon 0156

Westinghouse 0885, 2195, 2293, 2499

Wyse 1365

Zenith 1423, 0178, 1365
