Users Manual
Jasco Z-Wave Remote Control
Model 45600
USER GUIDE
INTRODUCTION
Thank you for purchasing a Jasco Z-wave
Remote. Your remote lets you control up to
18 individual Z-wave devices with one easy-
to-use, compact unit. You can also set up
and control up to 18 different groups and
scenes. Each group can include up to 232 Z-
Wave nodes and each scene can include up
to 32 nodes.
You can control your electric lights, turning
them on or off, or making them brighter or
dimmer.
After installing batteries (see next section),
you must use the Jasco Z-wave remote to
create your control network.
For best results, please read and perform all
the remaining instructions. Also, keep this
guide for future reference.
INSTALLING BATTERIES
Your Jasco Z-wave Remote requires three
AAA batteries (not supplied) for power.
Battery Use And Safety
• Use only fresh batteries of the required
size and recommended type.
• Do not mix old and new batteries,
different types of batteries (that is,
standard, alkaline, or rechargeable), or
rechargeable batteries of different
capacities.
CAUTION: If you do not plan to use the
remote for an extended period,
remove the batteries. They can leak
chemicals that can destroy electronic
parts.
WARNING: Dispose of old batteries
promptly and properly. Do not burn or
bury them.
To Install Batteries:
1. Open the battery compartment cover
(located on the back of the remote).
2. Place the AAA batteries in the
compartment and match the + and -
polarity symbols inside.
3. Replace the cover.
NOTE: When the red LED on the Jasco Z-
wave Remote starts to blink 5 times
after a key press, you must replace the
batteries. The remote retains all its
user settings while replacing the bat-
teries.

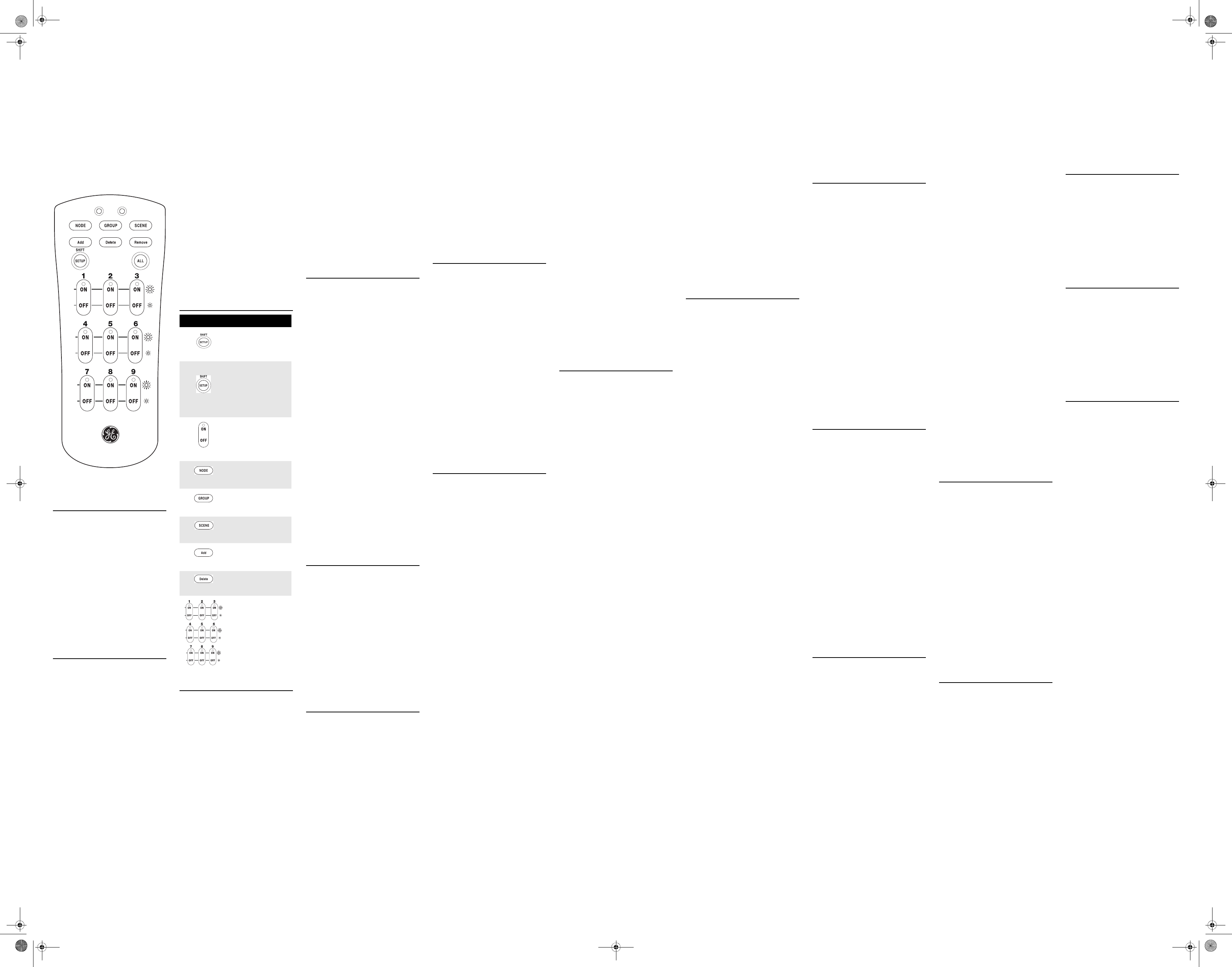

A QUICK LOOK AT THE CONTROLS
ADDING A NODE TO THE NETWORK
The Jasco Z-wave Remote allows you to
control lights around your home. In order
to control the lights, they must be Z-wave
compatible and you must first add them to
your home network. To add a node to your
home network, perform the following steps:
1. Press and hold SETUP until both the
red and green LEDs blink twice.
2. Press ADD once.
3. Press NODE once.
4. Press NODE again.
5. Press the button on the node so that it
sends its information to the remote
and receives information from the
remote.
6. The green LED blinks twice. You have
successfully added the node to your
home network.
NOTE: If the red LED emits one long, steady
blink, you have pressed an invalid key
or the node has not been successfully
added the node to your home network.
Please make sure the remote is close to
the node and try again.
ADDING A NODE TO YOUR REMOTE
You can add a node to your remote control
so that it can control an individual node.
Adding a node to your remote also adds it
to your network. If the node number you
are trying to add is already associated with
another node, the previous node
information is lost.
To add a node to your remote, perform the
following steps:
1. Press and hold SETUP until both the
red and green LEDs blink twice.
2. Press ADD once.
3. Press NODE once.
4. Press a digit (1-9) for the node
location you wish to add. Press SHIFT
and the digit (1-9) if you are adding
nodes 10 through 18.
5. Press the button on the node so that it
sends its information to the remote
and receives information from the
remote.
6. The green LED blinks twice. You have
successfully added the node to your
remote control.
NOTE: If the red LED emits one long, steady
blink, you have pressed an invalid key
or the node has not been successfully
added to your remote. Please make
sure the remote is close to the node
and try again.
NOTE: You can only add a maximum of 18
nodes to your remote.
REMOVING AN INDIVIDUAL NODE
FROM YOUR REMOTE
(DISASSOCIATING FROM REMOTE)
1. Press and hold SETUP until both the
red and green LEDs blink twice.
2. Press REMOVE once.
3. Press NODE once.
4. Press a digit (1-9) for the node
location you wish to remove. Press
SHIFT and the digit (1-9) if you are
adding nodes 10 through 18.
5. The green LED blinks twice. You have
successfully removed the node from
your remote control.
NOTE: If the red LED emits one long, steady
blink, you have pressed an invalid key
or the node has not been successfully
removed from your remote control.
DELETING A NODE FROM YOUR
NETWORK
To remove a node from your home network,
you must delete it from the network. To
delete the node from your network,
perform the following steps:
1. Press and hold SETUP until both the
red and green LEDs blink twice.
2. Press DELETE once.
3. Press NODE once.
4. Press the button on the node so that it
sends its information to the remote
and receives information from the
remote.
5. The green LED blinks twice. You have
successfully deleted the node from
your home network.
NOTE: If the red LED emits one long, steady
blink, you have pressed an invalid key
or the node has not been successfully
deleted from your home network.
CONTROLLING NODES
You can control a node to turn it on or off,
or change its brightness level. The
operation of a specific node varies by
product. Refer to the manual for that node
to learn its specific operation.
Turning a Node On or Off (Assuming the
user is in the Node mode already)
1. To turn a node on, press and release
the ON key for less than one second.
The green LED blinks once.
2. To turn a node off, press and release
the OFF key for less than one second.
The green LED blinks once.
Setting a Node’s Brightness Level
1. To make a node brighter, press and
hold the ON key for more than one
second. The green LED blinks once.
2. To make a node dimmer, press and
hold the OFF key for more than one
second. The green LED blinks once.
NOTE: If the red LED emits one long, steady
blink the remote has not successfully
communicated with the node.
SETTING UP AND CONTROLLING A
GROUP
You can create a collection of nodes that you
can control as a group. You can set up a
maximum of 18 groups. Each group can
contain up to 232 nodes.
Adding a Node to a Group
To add a node to a group, perform the
following steps:
1. Press and hold SETUP until both the
red and green LEDs blink twice.
2. Press ADD once.
3. Press GROUP once.
4. Press a digit (1-9) for group you wish
to add the node to. Press SHIFT and the
digit (1-9) if you are adding nodes 10
through 18.
5. Put the node into programming mode,
so that it sends its information to the
remote and receives information from
the remote.
6. The green LED blinks twice. You have
successfully added the node to your
group.
NOTE: If the red LED emits one long, steady
blink, you have pressed an invalid key
or the node has not been successfully
added to your group.
Removing a Node from a Group
1. Press and hold SETUP until both the
red and green LEDs blink twice.
2. Press REMOVE once.
3. Press GROUP once.
4. Press a digit (1-9) for the group you
wish to remove the node from. Press
SHIFT and the digit (1-9) if you are
removing nodes 10 through 18.
5. Press the button on the node you wish
to remove.
6. The green LED blinks twice. You have
successfully removed the node from
your group.
NOTE: If the red LED emits one long, steady
blink, you have pressed an invalid key
or the node has not been successfully
removed from your group.
Deleting a Group
1. Press and hold SETUP until both the
red and green LEDs blink twice.
2. Press DELETE once.
3. Press GROUP once.
4. Press a digit (1-9) for the group you
wish to delete. Press SHIFT and the
digit (1-9) if you are deleting groups
10 through 18.
5. The green LED blinks twice. You have
successfully deleted the group from
your home network.
NOTE: If the red LED emits one long, steady
blink, you have pressed an invalid key
or the group has not been successfully
removed from your home network.
SETTING UP SCENES
A scene is a single node or group of nodes
that can be preset to turn to a previously
specified setting (brightness level). You can
set up a maximum of 18 scenes, containing
up to 32 Nodes per scene.
Adding a Node to a Scene
1. Press and hold SETUP until both the
red and green LEDs blink twice.
2. Press ADD once.
3. Press SCENE once.
4. Press a digit (1-9) for the scene you
wish to add the node to. Press SHIFT
and the digit (1-9) if you are adding
nodes to scenes 10 through 18.
5. Press the button on the node that you
are adding. Adjust the brightness on
the actual node within 30 seconds
(refer to the manual for the node).
Both the green and red LEDs blink
rapidly, indicating the remote is
pending the setup of the bright/dim
setting on the node.
6. Press SCENE. The green and red LEDs
stop blinking.
7. The green LED blinks twice. You have
successfully added the node to a scene.
NOTE: If the red LED emits one long, steady
blink, you have pressed an invalid key
or the node has not been successfully
added to the scene.
Removing a Node from a Scene
1. Press and hold SETUP until both the
red and green LEDs blink twice.
2. Press REMOVE once.
3. Press SCENE once.
4. Press a digit (1-9) for the node
location you wish to remove. Press
SHIFT and the digit (1-9) if you are
removing nodes 10 through 18.
5. Press the button on the node that you
wish to remove.
6. The green LED blinks twice. You have
successfully removed the node from
the scene.
NOTE: If the red LED emits one long, steady
blink, you have pressed an invalid key
or the node has not been successfully
removed from the scene.
Deleting a Scene
1. Press and hold SETUP until both the
red and green LEDs blink twice.
2. Press DELETE once.
3. Press SCENE once.
4. Press a digit (1-9) for the scene you
wish to remove. Press SHIFT and the
digit (1-9) if you are removing nodes
10 through 18.
5. The green LED blinks twice. You have
successfully deleted the scene from
your home network.
NOTE: If the red LED emits one long, steady
blink, you have pressed an invalid key
or the scene has not been successfully
deleted.
CONTROLLING SCENES
To control a scene, perform the following
steps:
1. Press SCENE once.
2. Press the digit key for the scene you
wish to control (1-9). Press SHIFT and
the digit (1-9) if you are controlling
nodes 10 through 18. The green LED
blinks once.
NOTE: If the red LED emits one long, steady
blink, the remote has not successfully
communicated with the node.
Turning All Nodes On or Off
To turn all nodes either on or off, perform
the following steps:
1. Press ALL once.
2. Press either ON to turn the nodes on,
or OFF to turn the nodes off. Any ON or
OFF can be pressed. The green LED
blinks once.
NOTE: If the red LED emits one long, steady
blink, you have pressed an invalid key
or the All-On/All-Off command was
not successful. Repeat the steps above
to try again.
The factory default setting for GE Z-Wave
devices is to be included in All-On and All-
Off control. The following section on
"Adding Nodes to All Control" should only
be needed if the node has previously been
deleted from All Control.
Adding Nodes to All Control
1. Press and hold SETUP until both the
red and green LEDs blink twice.
2. Press ADD once.
3. Press ALL once.
4. Press the button on the node you wish
to include.
5. The green LED blinks twice. You have
successfully added the node to All
Control.
NOTE: If the red LED emits one long, steady
blink, the node has not been success-
fully added to the group.
Deleting Nodes from All Control
1. Press and hold SETUP until both the
red and green LEDs blink twice.
2. Press DELETE once.
3. Press ALL once.
4. Press the button on the node that you
wish to remove from All Control.
5. The green LED blinks twice. You have
successfully deled the node from All
Control.
NOTE: If the red LED emits one long, steady
blink, the node has not been success-
fully deleted from the group.
TRANSFERRING NODE AND NETWORK
INFORMATION TO A SECONDARY
REMOTE
You can add a secondary remote to your
network, and transfer your primary
remote’s node and network information to
it. To transfer node and network
information to a secondary remote,
perform the following steps:
1. Place the two remotes near each other.
2. Press and hold SETUP until both the
red and green LEDs blink twice.
3. Enter 9 6 6 1 on the numeric keypad.
4. Put the target (secondary) remote into
programming mode so that it sends its
information to the primary remote, as
well as receives information from the
remote. The remote then transfers the
network and node information to the
new secondary remote. Refer to the
user manual for the secondary remote
for more information.
5. The green LED blinks twice. You have
successfully transferred the
information.
NOTE: If the red LED emits one long, steady
blink, the information has not been
successfully transferred.
6. Add nodes, groups, and scenes to the
new secondary remote as needed.
TRANSFERRING NETWORK
INFORMATION TO A SECONDARY
REMOTE
You can add a secondary remote to your
network, and transfer your primary
remote’s network information to it. To
transfer network information to a
secondary remote, perform the following
steps:
1. Place the two remotes near each other.
2. Press and hold SETUP until both the
red and green LEDs blink twice.
3. Enter 9 6 6 2 on the numeric keypad.
4. Put the target (secondary) remote into
programming mode so that it sends its
information to the primary remote, as
well as receives information from the
remote. The remote then transfers the
network and node information to the
new secondary remote. Refer to the
user manual for the secondary remote
for more information..
5. The green LED blinks twice. You have
successfully transferred the
information.
NOTE: If the red LED emits one long, steady
blink, the information has not been
successfully transferred.
6. Add nodes, groups, and scenes to the
new secondary remote as needed.
PRIMARY CONTROLLER SHIFT
You can transfer all of your remote’s
information to another remote, so it
becomes the new primary remote. You can
do this in two ways: either transferring all
information, or just transferring network
information.
Transferring All Network and Remote
Information
1. Place the two remotes near each other.
2. Press and hold SETUP until both the
red and green LEDs blink twice.
3. Enter 9 6 8 1 on the numeric keypad.
4. Put the target (new primary) remote
into programming mode so that it
sends its information to the primary
remote, as well as receives information
from the remote. The remote then
transfers the network and node
information to the new primary
remote. Refer to the user manual for
the new primary remote for more
information.
5. The green LED blinks twice. You have
successfully transferred the
information.
NOTE: If the red LED emits one long, steady
blink, the information has not been
successfully transferred.
6. Add nodes, groups, and scenes to the
new primary remote as needed.
Transferring Only Network Information
1. Place the two remotes near each other.
2. Press and hold SETUP until both the
red and green LEDs blink twice.
3. Enter 9 6 8 2 on the numeric keypad.
4. Put the target (new primary) remote
into programming mode so that it
sends its information to the primary
remote, as well as receives information
from the remote. The remote then
transfers the network information to
the new primary remote. Refer to the
user manual for the new primary
remote for more information.
5. The green LED blinks twice. You have
successfully transferred the
information.
NOTE: If the red LED emits one long, steady
blink, the information has not been
successfully transferred.
6. Add nodes, groups, and scenes to the
new primary remote as needed.
USING CONTROLLER COPY RECEIPT
Controller copy receipt allows the remote to
receive information from another remote.
This allows the unit that received the
information to become a new primary or
secondary remote.
1. Place the two remotes near each other.
2. Press and hold SETUP until both the
red and green LEDs blink twice.
3. Enter 9 6 7 on the numeric keypad.
4. Put the target remote into
programming mode so that it sends its
information to the Jasco 45600
remote, as well as receives information
from the remote.
5. The green LED blinks twice. You have
successfully transferred the
information.
NOTE: If the red LED emits one long, steady
blink, the information has not been
successfully transferred.
6. Add nodes, groups, and scenes to the
new remote as needed
RECOVERING NETWORK
INFORMATION
To have your remote recover network
information, perform the following steps:
1. Press and hold SETUP until both the
red and green LEDs blink twice.
2. Enter 9 6 1 on the numeric keypad.
3. The green LED blinks twice. You have
successfully recovered network
information.
NOTE: If the red LED emits one long, steady
blink, the information has not been
successfully recovered.
RESTORING YOUR REMOTE TO
MANUFACTURER’S SETTINGS
To restore your remote to its original
manufacturer’s settings, perform the
following steps:
1. Press and hold SETUP until both the
red and green LEDs blink twice.
2. Enter 9 8 1 on the numeric keypad.
3. The green LED blinks twice. You have
successfully recovered network
information.
NOTE: If the red LED emits one long, steady
blink, the remote’s settings have not
been successfully restored.
RESETTING YOUR NETWORK
You can reset your network to clear all node
and Z-wave network information. To reset
your network, perform the following steps:
1. Press and hold SETUP until both the
red and green LEDs blink twice.
2. Enter 9 6 9 on the numeric keypad.
3. The green LED blinks twice. You have
successfully reset network
information.
NOTE: If the red LED emits one long, steady
blink, the network has not been suc-
cessfully reset.
FCC NOTICE
This equipment has been tested and found
to comply with the limits for a class B
digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to
provide reasonable protection against
harmful interference in a residential
installation. This equipment generates,
uses and can radiate radio frequency
energy and if not installed and used in
accordance with the instructions, may
cause harmful interference to radio
communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by
turning the equipment off and on, the user
is encouraged to try to correct the
interference by one or more of the following
measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an
outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.
This equipment has been verified to comply
with the limits for a class B computing
device, pursuant to FCC Rules. In order to
maintain compliance with FCC regulations,
shielded cables must be used with this
equipment. Operation with non-approved
equipment or unshielded cables is likely to
result in interference to radio and TV
reception. The user is cautioned that
changes and modifications made to the
equipment without the approval of
manufacturer could void the user’s
authority to operate this equipment.
FCC ID: MG345600
Press this key… To…
Program sequences. .
Use SHIFT to enter
numbers higher than 9
on the numeric
keypad (e.g., SHIFT 1
for 10 or SHIFT 9 for
18).
Turn the selected node
on or off. Also, adjust
the brightness of a
node, group, or scene.
Control the selected
node.
Control the selected
group.
Control the selected
scene.
Add a group, node, or
scene to control.
Delete a group, node,
or scene.
Directly enter a node,
group, or scene to
control (for example, 1
or 5).
Jasco Zwave Remote 2006.fm Page 1 Friday, November 10, 2006 4:09 PM
