TPMC-4XG provides fully-customizable control of all of your home theater,
home automation and digital media content. Its touch-sensitive screen is
software-based, so your installer/integrator can include just those controls
you actually use.
Before You Use TPMC-4XG
Please ensure your TPMC-4XG is fully charged before use.
To charge your TPMC-4XG:
1. Connect the power adapter to the
charging cradle and plug the adapter
into a wall outlet.
2. Plug in the battery, power on (On is to
the left), and dock TPMC-4XG to
begin charging the battery. If it has not already been charged, it will take 3-
4 hours to fully charge the battery the first time.
Recharging TPMC-4XG
TPMC-4XG includes a Lithium-ion rechargeable battery. TPMC-4XG beeps
and displays a warning message when the battery is running low. You should
dock TPMC-4XG at this time to charge the battery
.
You can dismiss the warning message by clicking OK; if you do so and the
battery power becomes critically low,
TPMC-4XG will beep and display a
critical low battery warning message. You cannot dismiss this message and
should dock TPMC-4XG immediately.
To dock TPMC-4XG, simply set the controller in the charging cradle. When
it is correctly docked, the blue light will appear on the cradle.
About Battery Life
As with all battery-operated devices, battery life will vary depending on
use. It is a good practice to keep TPMC-4XG in its charging cradle when
you are not using it.

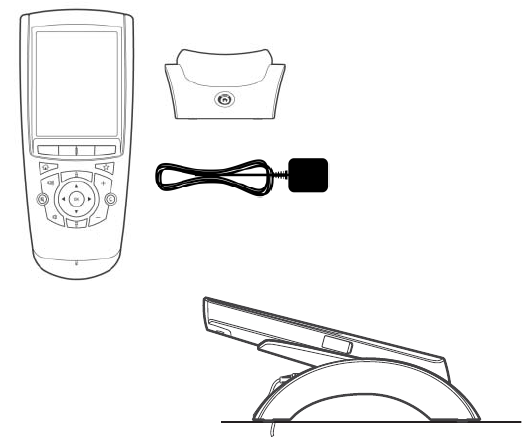

TPMC-4XG Universal
Controller Charging Cradle
AC Power
Adapter; varies
by country
Getting to Know TPMC-4XG
TPMC-4XG offers the following types of controls:
TOUCHSCREEN. To use the touchscreen, gently touch the buttons that
appear on it. If you prefer, slide the stylus from its storage port on the
bottom of TPMC-4XG:
Using the stylus, gently tap buttons on the
touchscreen to control your home theater, home
automation and digital media devices. You may
prefer to always use the stylus when you are
configuring settings. Talk with your installer/
integrator for more information on these settings.
TPMC-4XG KEYS. The keys on
TPMC-4XG have been customized to
your preference by your installer/
integrator. An additional set of
unlabeled keys (function keys) appear
immediately below the touchscreen,
above the hard buttons. A label
appears on the touchscreen above them
to indicate the functions assigned to
those keys.
Scroll the jog wheel up and down to move between the screens. Press the
jog wheel in to return to the first page of the current page collection.
If your installer/integrator has enabled it, TPMC-4XG provides Media
Zones to control digital media located on a PC with installed media
software or on 3rd party hardware-based digital media servers and
renderers.
If your installer/integrator has enabled it, TPMC-4XG provides an IP
Browser to view web-based devices or sites. Examples include internet
cameras for home monitoring and audio/video servers.
Stylus
Hard
Keys
Function
Keys
LEFT SIDE RIGHT SIDE
Jog
Wheel
USB Port
On/Off
Switch
Reset
Switch
Speaker
Caring for TPMC-4XG
Use only the stylus or your finger to switch TPMC-4XG on or off. Avoid
using sharp objects. C
lean your controller with a soft, damp cloth using a
gentle, non-caustic cleaner
.
CAUTION: Do not use a caustic or abrasive cleaner. This may damage the
surface of your controller.
For more information, contact
your installer/integrator:
NOTICE: FCC NOTICE: This equipment has been tested and found to comply with the limits
for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide a reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy if not installed and
used in accordance with the instructions, and may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet or a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been verified to comply with the limits for a class B computing device,
pursuant to FCC Rules. In order to maintain compliance with FCC regulations, shielded
cables must be used with this equipment. Operation with non-approved equipment or
unshielded cables is likely to result in interference to radio and TV reception.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits,
human’s body proximity to the device should not be less than 20 cm during normal operation.
WARNING: Changes or modifications of this equipment not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
FCC ID: MG372400C
IC ID: 2575A-URC7240C
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
The socket-outlet shall be installed near the equipment and shall be easily accessible.
The equipment is to be supplied from an identified USB port complying with the
requirements of Limited Power Source.
Copyright © 2008 Universal Electronics Inc
