UNI-335
LCD Display 2-Way Alarm & Starter
OPERATION MANUAL
UNI1:1-Way Remote Control
UNI2: LCD REMOTE CONTROL TRANSCEIVER
2
THIS PRODUCT IS DESIGNED FOR PROFESSIONAL INSTALLATION ONLY
WARNINGS:
As with any product that performs automatic functions, there are certain safety
precautions that you must practice and be aware of.
1. Keep the transmitter out of children’s reach.
2. Do not leave anyone in the vehicle while running on remote control.
3. Alert servicing personnel that the vehicle can be started automatically.
4. Do not start the vehicle by remote while it’s in an enclosed area or garage.
5. Always apply the parking brake and lock the vehicle as you exit the vehicle.
6. The vehicle windows must be rolled up.
7. Should the unit malfunction, disconnect the fuse until the problem is corrected.
8. The use and operations of this system isthe sole responsibility of the operator.
9. Some areas may have local ordinances that prohibit leaving a vehicle running on
public streets.
10.It is not safe to remote start the vehicle if the vehicle is parked on a steep incline.
1-Way Remote Control: UNI1
LCD REMOTE CONTROL TRANSCEIVER: UNI2
3

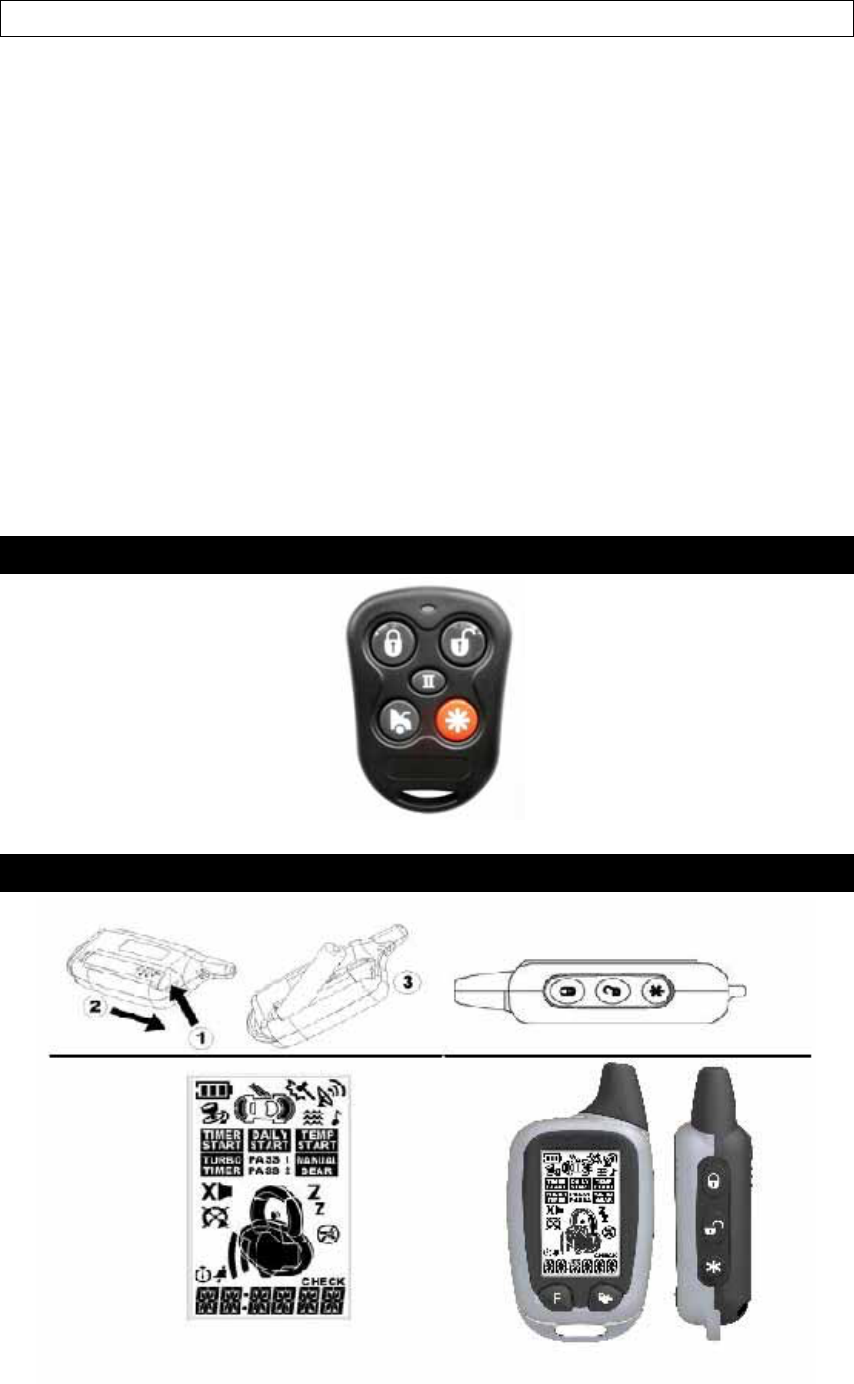

A. BATTERY REPLACEMENT:
This system needs no specific maintenance beyond remote control battery replacement.
The 2-way remote is powered by a 1.5V AAA battery. The 1-way remote is powered by
a pair of 3V, CR2016 batteries.
Battery Level Indicator (2-way remote)
The Battery Level indicator has three level indicators that serve as a visual indication of
battery charge. When the battery reaches a low charge level that requires replacement,
the remote control will generate a single notification chirp, and the Battery Level
indicator will flash continuously.
Gently pull the end of the battery door away from the top of the remote control then slide
the door up to expose the battery and remove the expired battery. Place the new battery
into the remote. When power is returned the rem ote control will display all icons in the
LCD and generate all beeper tones once. Press any button on the remote to terminate
the beeper tone review.

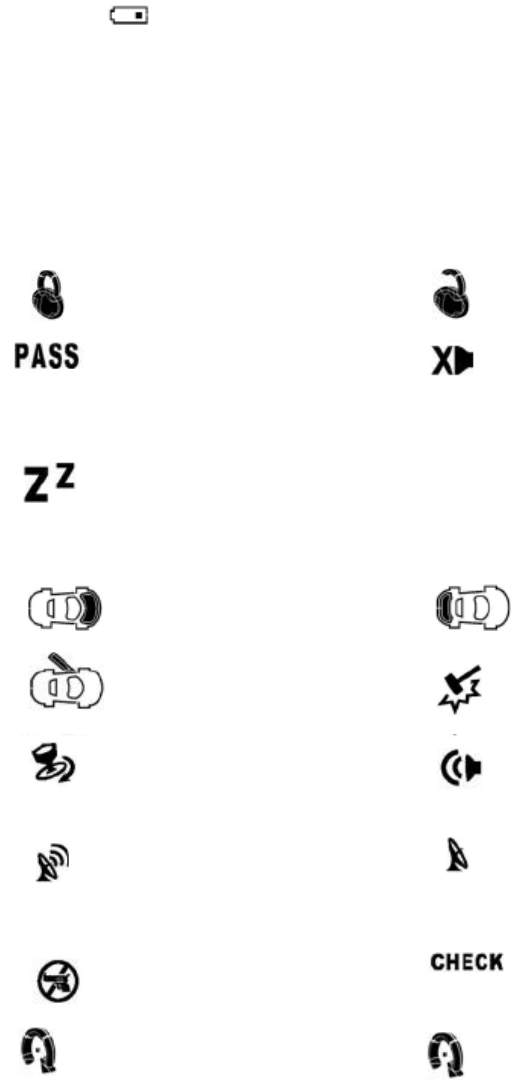

B. STANDARD LCD ICON CONFIGURATIONS:
The lock icon will be displayed
when the door locked.
The unlock icon will be displayed
when the door unlock
Sensor Bypass
Sensor 1 bypass under Arm
mode
Hidden Alarm Mode
The security system arm with
hidden
alarm function (silent alarm)
Valet Mode
Remote start and alarm
functions shall
be temporarily on hold.
Hood Trigger
Hood is illegally opened (Zone
1)
Trunk Trigger
Trunk is illegally opened (Zone 2)
Door Open Warning
Doors are illegally opened
(Zone 3)
Sensor Trigger
Trigger on Sensor 1 (Zone 4)
Ignition Trigger
Ignition switch is illegally
turned on (Zone5)
System trigger
Remote Transmission
You are transmitting the
signal to control
unit
In – Range Indicator
You are within the range of
the remote
control.
Anti Car-Jack Mode
Activate the anti car-jacking
mode
Icon flash under check mode
Engine Cranking
Your vehicle engine
Engine Running
Your vehicle's engine is
4
Cranking by remote
control
running

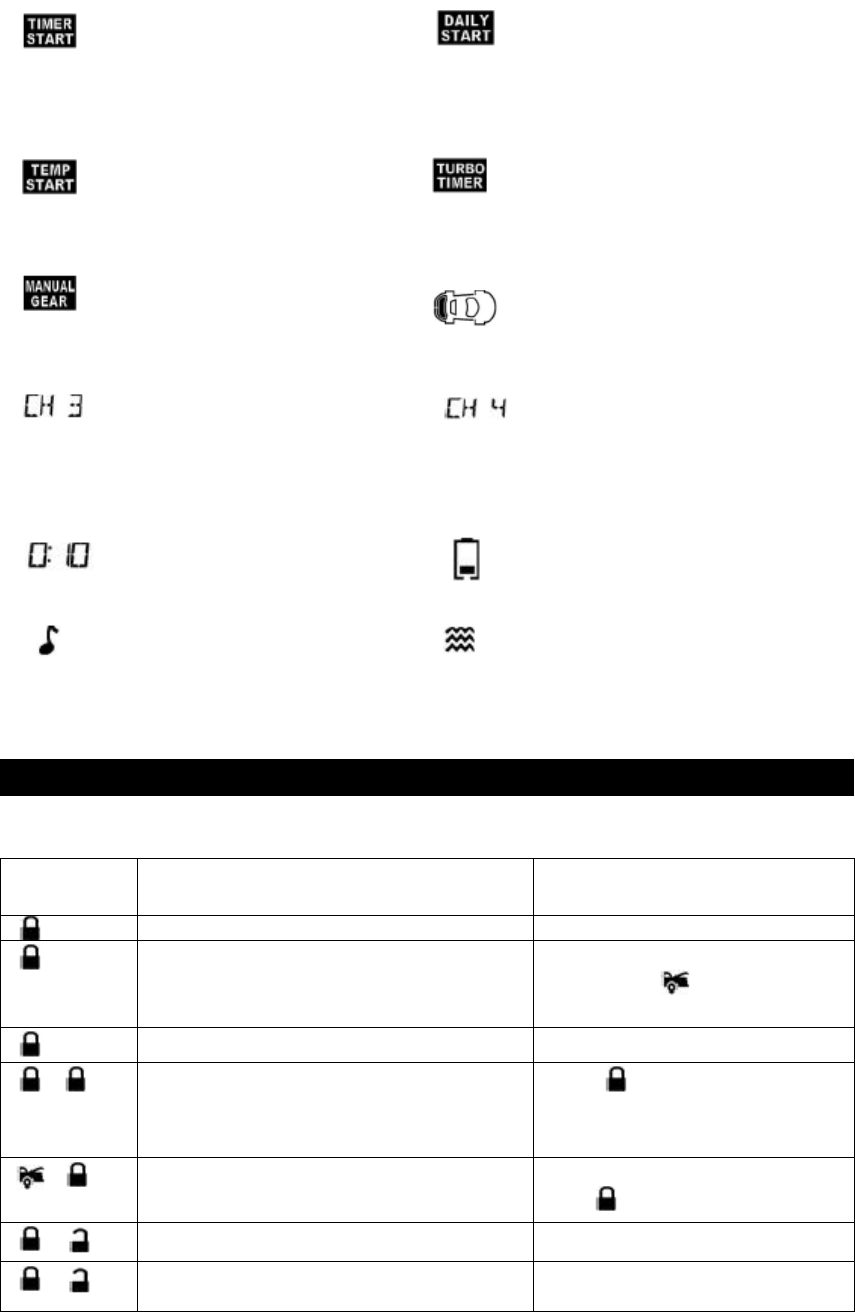

Timer Control Start
Engine start automatically
every 2 or 3
hours.
Daily Start
Engine start automatically at
the same
time next day
Temperature Start
Engine start automatically
when reach
programmed temperature.
Turbo Timer
Turbo timer was set up
Manual Gear
Engine Start Memorizing for the
car with
manual gear was set up
Activate Channel 3 (Trunk
Release).
Activate Channel 3
Activate Channel 4
12:00 Time Monitor 12:00 Alarm Clock
You have set morning call
alarm
Parking Meter
Reminder when time is up
for parking
Low Battery
You have to replace the
battery of remote control.
Melody Mode
Remote Control alert user
through
melody sound
Vibration Mode
Remote Control vibrates
when the
system is triggered
OPERATION:
C: REMOTE TRANSMITTER OPERATION:
Transmitter
Button
System Function Remark
Lock Doors & Arm System
Panic function Press and Hold for 3 seconds .
Press Trunk button to stop
panic function
Car Locator Press when in armed mode
- Arm and Delete The 2 Stage Shock
Sensor Press twice within 3
seconds. Pass will appear
on the remote
- Arm System and Hidden Alarm Function Press within 3 seconds and
Hold button for 2 seconds
+ Silent Arming / Disarming Ignition in "off" position.
+ Active Anti Car-Jacking Mode Ignition in "on" position press
and hold for 2 seconds
5
Unlock Doors & Disarm System
- Two Steps Door Unlock & Disarm
System(optional)
Press twice within 3 seconds.
-
Trunk Release (Channel 3) Passive
Arming By-pass Press and Hold for 2 seconds
While the system Disarmed.
Activate or Turn Off The Remote Start Press button once.
Press Twice if set to
start safety mode
+ Channel # 4 Timer Output (4) Optional
D CHIRP INDICATORS: PARKING LIGHT:
Chirp Function Parking Function
1 chirp Arm 1 flash Arm
2 chirps Disarm 2 flashes Disarm
3 chirps Defective Reminder 3 flashes Disarm / Triggered
4 chirps Disarm/ Triggered 6 flashes Car Locator
6 chirps Car Locator Constant On Under Remote Start
ALARM OPERATING CONDITION:
Siren/ Horn Parking Light LED Doors Starter Dome
1. Arming 1 or 3 Chirps 1 Flash Slow Flash Locking Disable
2.Disarming 2 or 4 Chirps 2or 3 Flashes Unlocking Turns on for
30-second
3. Trigger Alarming Flashes Slow Flash Disable Flashes
4. Passive
Starter
Disable
Fast Flash Disable
5. Panic Alarming Flashes Flashes
6.Car-Jacking Alarming Flashes Disable Flashes
7. Car Locator 6 Chirps 6 Flashes Locking
E. ACTIVE ARMING – LOCK & ARM:
1.Press button on the transmitter.
2.The siren will chirp once and parking light will flash once indicating that the system is
now armed. The vehicle’s doors will lock upon arming if interfaced with the security
system.
DEFECTIVE SENSOR REMINDER: If the siren sounds 3 chirps, then you have left a door,
trunk, or hood lid ajar.
SILENT ARMING / DISARMING: Press the transmitter and buttons at the same
time. This will arm or disarm your security system, No chirp sound will be heard, arm /
disarm confirmation will be through thevehicles parking lights only.
SENSOR BY-PASS:
The sensor bypass feature is programmed to activate for one arming cycle only. The
6
security system will return to normal operation during the next arming cycle.
Sensor By-Pass :Press the button two times within 3 seconds will arm the security
system and by-pass the shock sensor.
HIDDEN ALARM FUNCTION:Silent Alarm
Press the button first; within 3 seconds press the button to activate the hidden
alarm function. The security system will arm and with “Hidden Alarm Function” The siren /
horn will be silenced even if the sensor is triggered in the armed status. Alarm indication
will only appear on the LCD Transmitter.
F. PASSIVE ARMING (Programmable)
Active arming / disarming is controlled by your security system via the remote transmitter.
This security system is equipped with an optional Passive Arming feature which allows the
security system to arm 30 seconds after the last door is closed. Operation is as follows.
1. Turn the ignition to the “OFF” position and exit the vehicle.
2. After all entrances are closed, the security system LED will flash fast for 30 seconds. If
you reopen anydoor / hood / trunk, the security system LED will stop flashing. It will
begin flashing again once all vehicleentrances are closed.
3. After the 30-second time has elapsed, the security system will automatically “ARM”.
The siren will chirp [1]time and the parking lights will flash [1] time.
PASSIVE ARMING WITH PASSIVE DOOR LOCKING
The vehicle doors will automatically lock after the passive arming cycle has been
completed.
PASSIVE ARMING BY -PASS: While the system is disarmed, Press the button twice,
the system will respond with [1] chirp and LED will turn “ON”. The security system will
remain in this temporary state for as long as you wish.
To exit passive by-pass, press the transmitter or buttons and the system will return
to normal status.
G. ACTIVE DISARMING – UNLOCK & DISARM:
1. Press button on the transmitter.
2. The siren will chirp twice and the parking lights will flash twice indicating that the
security system is now disarmed. The vehicle’s doors will unlock and the dome light
will turn on for 30 seconds upon disarming. (Note: Power door locks and dome light
must be installed with the security system.)
TAMPER DISARMING : If the alarm is triggered, upon disarm the system’s siren will chirp
4 times, and the parking lights will flash 4 times telling you the alarm has been triggered
during the last armed state.
PATHWAY ILLUMINATION: When receiving an unlock /disarm signal, this feature will turn
the parking lights“ON” for 30 seconds and for 10 seconds upon the lock signal.
(Programmable)
TWO STEPS DOOR UNLOCK (Optional): This feature will independently unlock the
7
driver’s door only when disarming the security system. Pushing the button a second
time within 3 seconds will unlock the other doors.
AUTOMATIC RE-ARM: If this feature is selected, the security system will automatically
re-arm itself in 60 seconds after disarming with remote transmitter. Automatic rearm will
cancel if any door is opened before the 60 seconds timer has elapsed.
H. DISARMING WITHOUT A TRANSMITTER
OVERRIDES THE ALARM WITHOUT PASSWORD PIN CODE: (Factory Default
Setting)
The Override function may be used if the remote transmitter is lost or inoperative.
1. Enter the vehicle and turn the ignition switch to the 'ON’ position.
2. (Alarm will sound.)
3. Within 10 seconds push and release the valet switch. The alarm will stop sounding and
enter the disarm mode. You can now start and operate the vehicle normally.
OVERRIDE THE ALARM WITH PASSWORD PIN CODE:
Unlike valet switch that can easily be found and defeated, this security system allows
the consumer to program a password pin code offering a higher level of security.
1. Enter the vehicle and turn the ignition switch to 'ON’ position. (Alarm will sound.)
2. Within 5 seconds, enter your chosen first digit code by pressing and releasing the Valet
Switch. 3. Within 15 seconds of the last digit code enter (the 1st code), then turn the
Ignition Switch “OFF” and then“ON”.
4. Within 15 seconds, enter your chosen second digit code by pressing and releasing the
Valet Switch.
5. Turn the ignition switch “OFF” position. 4 Chirps from siren/horn and 4 flashes from the
parking light indicate the system has disarmed.(When finished above procedures,
system's siren will stop alarming, lights will stop flashing, but the vehicle can’t be
started.)
Note:You must override the alarm within 60 seconds. If not, the system will automatically
re-arm.
EXAMPLE: To Override the System with the Password Code 83,
1. Enter the vehicle and turn the ignition switch to the 'ON’ position.(Alarm will sound.)
2. Within 5 seconds, Press and Release the Valet Switch 8 times,
3. Within 15 seconds of entering the last digit code enter (the 1st code), turn the Ignition
Switch “Off” and then“ON”.
4. Within 15 seconds, Press and Release the Valet Switch 3 times.
5. Turn the Ignition Switch to the “Off” position. 4 Chirps form siren/horn and 4 flashes
from the parking lights will indicate the system has disarmed.
I. VALET MODE:
VALET MODE: (System is in Disarm Mode )
The valet switch allows you to temporarily bypass all alarm function, eliminating the
need to hand your transmitter to parking attendants or garage mechanics. When the
8
system is in valet mode, all alarm functions and remote start functions are bypassed,
however, the remote panic feature and remote door locks will remain operational. To
use the valet mode, the system must first be disarmed either by using your remote
transmitter, or by operating the Manual Override sequence.
Get into/out valet mode using the ignition key.
Enter Valet Mode:
a). Under disarm mode, turn the ignition to “ON” position.
b). Press and hold valet switch for 2 seconds until the LED turns ON solid. The LED will
remain on as long as the system is in 'valet mode'.
Exit Valet Mode:
a). Turn ignition 'ON'.
b). Push and hold valet switch for 2 seconds, The LED will turn off indicate the system
are exiting the valet mode.
J. CAR LOCATOR
Under armed mode, press the button to active car locator function. The siren will
chirp 6 times. The parking light will flash 6 times, for you to easily locate your car.
K. PANIC FUNCTION:
The transmitter can be used as a remote panic switch to manually trigger the alarm in
case of emergency.
1. Press and hold the button for 3 second. The alarm will immediately sound.
2. During panic mode, the normal function of this transmitter button will be disabled. The
transmitter and buttons can be used to lock and unlock the door (if the option is
installed)
3. To stop the alarm, press the trunk button on the remote control
4. If the button is not pressed, the alarm will automatically stop after 30 seconds.
L. TRIGGER THE SYSTEM
When armed, your vehicle is protected as follows:
Light impact will trigger the warn-away signal.
Heavy impacts / Doors open /(if installed) Hood open / (if installed) Trunk open / Turning
on the ignition key will trigger the programmed sequence.
The starter disable relay (if installed) prevents the vehicle’s starter from cranking. The
siren, horn, parking lights, and dome light will turn on alerting of an intrusion for 30
seconds. Then it will stop and automatic reset and re-arm. If the any one of the sensors
or detectors is still active, the alarm system will sound a maximum of 8 times of 30
seconds cycles.
9
NOISE ABATEMENT CIRCUIT: Your system has a “Noise Abatement Circuit”. It
prevents annoying repetitive trigger sequences due to faulty door pin switches or
environmental conditions such as thunder, jackhammers airport noise, etc. Here’s how
“Noise Abatement Circuit” works: The alarm triggers 8 times. Each time, the same
sensor or switch has triggered the alarm; the “Noise Abatement Circuit” will interpret this
pattern of triggers as a false alarm. After the third trigger, the “Noise Abatement Circuit”
ignores, or bypasses, that sensor or switch until a different sensor or switch is trigger.
“Noise Abatement Circuit” covers doors (Hood/Trunk) differently: If the alarm is
triggered by an open door for 8 full cycles, the doors will be bypassed until the trigger
ceases.
M. ANTI CAR- JACKING (Programmable)
Warning: If you don't need the carjacking function in this alarm system, be sure to set
carjacking feature“OFF”. This systems default setting is “OFF” for all carjacking modes.
ACTIVE ANTI CAR JACKING:
1.When the Ignition is ON press F buttonfour times while “CAR JACK” is flashing in the
text area,Under ignition ON, then press button to activate Anti Car-Jacking mode or
press and hold the and buttons at the same time for 2 seconds. The parking lights
will flash to indicate the system has entered the anti car-jacking mode.
2. Once the system in anti car-jacking mode, the system will be triggered when any door is
opened and closed while the ignition is “ON”.
PASSIVE ANTI CAR- JACKING:(Programmable)
It will operate as noted below:
1.Turn the ignition switch to the “ON” position and the system will arm.
2.Once the system is armed, if you are forced from the vehicle, the system will trigger
when the door is opened and closed while the ignition is “ON”.
TRIGGERING THE ANTI CAR -JACKING MODE:
A). The parking light s will flash 30 seconds..
B). The parking lights continuance flash,and the siren will chirp (non-continuous sounding)
30 seconds.
c). 60 seconds after the system has been triggered,
1. The siren will sound and the parking lights will flash, and
2. The starter disable will activate to prevent the vehicle from starting.
3. It will remain active until the vehicle's battery power is exhausted.
OVERRIDE THE SYSTEM TO TURN OFF ANTI CAR- JACKING:
Turn the ignition switch from OFF to ON, and within 10 seconds push valet switch, the
10
siren will stop and the system disarmed
Note: If you use password pin code to doubl e protect the vehicle security, you will need to
use it to completely disarm the system.
N. SYSTEM’S TRIGGER CHECK (For two-way transceiver operation only)
Press and hold F button of LCD remote until 3 beeps sound , release and re-press F
button again, the LCD remote will show “ALARM ”icon flash on text area (see
advanced users mode), then press button to activate system trigger check.
Note: If the system has no response then you are out of range.
O. SYSTEM’S STATUS CHECK (For two-way transceiver operation only)
Press F button of LCD remote until 3 beeps sound , the LCD remote will show
STATUSicon flashing in the text area (see advanced users mode), then press
button to activate system status check .It responds with one melody sound and all
vehicles’ status records will immediately displayed on the LCD screen.
Note: If it has no response then you are out of range.
P. DRIVER PAGING / LOST & FOUND (For two-way transceiver operation only)
This feature is useful the event that someone wants to page the driver of the parked
vehicle or someone can not find his LCD remote transceiver.
Under the ignition switch “OFF” condition, press and hold the valet switch for 5 seconds
to page the driver, one chirp sound shall be emitted from the vehicle and the paging
melody sound continues sounding from the Remote LCD transceiver.
Q. DOME LIGHT CONVENIENCE SUPERVISION (Optional Feature)
The alarm has a unique feature that will turn on your vehicle dome light as follows:
1.Upon disarming, the interior light will remain on for 30 seconds.
2.If the vehicle is intruded, the interior light will flash for the same duration as the siren.
Note: Turning on the ignition switch or arming the alarm will turn off the dome light.
R. IGNITION CONTROL DOOR LOCK/UNLOCK. (Programmable Feature)
If the vehicles door locks have been interfaced to the security system, the system will
automatically lock the vehicle's doors when the ignition is turned “ON” and /or unlock
the vehicle’s doors when the ignition is turned “OFF”. (Default setting is “OFF”)
S. TRUNK RELEASE (CHANNEL 3) OUTPUT.
11
Press and hold button on the transmitter for two seconds to remote control the trunk
release.
T. CHANNEL 4 TIMER CONTROL OUTPUT.
Press the transmitter and buttons at the same time to acti ve Channel 4 function.
Or Press and hold F button of LCD remote until 2 beeps sound , release and re-press F
button the LCD remote will show “CH 4” icon flash, then press button to activate
channel 4 function.
Channel 4 is user-programmable timer output. You may program the built-in timer to
send a ground signal for any time duration from 1 second to 120 seconds. For instance,
this timer output may be used to turn on the headlight, power window or sunroof.
(Factory defaults setting at momentary output.)
U. POWER SAVER MODE (Default OFF) * See advanced user mode
Under Menu mode press button while “POWER SAVE” icon flash, press button
Power save ON, while the power save mode, the LCD remote transceiver use “0”
current to save the battery power. Press button Power save OFF
Exit: Press any button of the LCD remote transmitter to exit “Power Save Mode”.
V. POWER ON MEMORY:
This security system is equipped with circuitry that will allow the unit to remember its
alarm state if the power is lost and then reconnected.
W. SECOND VEHICLE SECURITY OPERATION:
Your 5-button remote transmitter can be utilized to control a second vehicles security
system, To program the remote control transmitter to a second vehicle, follow the
instructions for Transmitter programming.
* For the standard transmitter ( II) is shift button.
Standard Transmitter
1. Prior to pushing any button on the transmitter. Press the Select II button first on the
transmitter.
2. Once II button is pressed the LED on the transmitter will illuminate for 3 seconds to
indicate the second transmitter pin code has built-in.
3. While the LED is illuminated, press any button on the remote control transmitter to
control a second vehicle security system.
For LCD trans ceiver – 2nd car operation :
12
a. Press and hold F button of LCD remote for 1 second until 2beeps sound and then
release the F button.
b. The text will flash on the LCD screen, press button to enter the menu.
c. Press or button to move upor down in the menu, find CAR SELECT on the
menu.
d. Press button to select the option you would like to adjust CAR 1 or CAR 2 for
further operation.
Caution: If the LCD transmitter does not function. Please insure it is set to operate
car #1
X. Clear the Flash Icon and Melody Sound: The Transmitter will reset
the flashing icons the next time the Ignition is cycled to the ON position.
Y. Stop The Trigger Melody Sound: While triggering the alarm the LCD
screen will alert the user through a melody sound and a flashing trigger icon. Press any
button on the LCD remote transmitter to stop melody sound only.
Z. Vibration / Melody Mode: (see advanced users menu for more info)
Press and hold the F button until 2 beeps are heard. You will see the word
.Press the trunk button to scroll through the menu. Scroll to the
word Vibrate”. When you see the word “Buzzer Vibrate”, press the
trunk button once to enter programming . Press the button to change the setting.
(Buzzer, BZ VIB, Vibrate). Once a setting is chosen. Press the button to confirm.
REMOTE START OPERATION:
A. TO REMOTE START THE VEHICLE:
When you want to start your vehicle,
1. Press button once on the transmitter.
2. The parking light will flashes one time to indicate the remote start received the signal.
3. The engine will start in approximately 5 seconds.
4. Once the engine is running, after couple seconds the parking lights will turn on and the
elimate controls will activate and adjust the vehicle’s interior time to your preset setting.
13
(While the vehicle is running, the “minutes” digit on the LCD screen will flash and the will
indicate countdown timer based on the 5, 10, 20 or 30 minute run time set up by your
installation center.)
5. The vehicle will run for a programmable 5 to 30 minute cycle before shutting down.
(When the unit shuts off the countdown timer will turn off and the transmitter will play a
melody.)
NOTE: The Remote Start Unit will not start the vehicle if any one of the following
conditions exists:
1. The hood is opened.
2. The brake pedal is pressed.
3. The optional remote start enable toggle is switched to the “OFF” position. (If installed)
4. The gear selector is in any gear other then “PARK” or “NEUTRAL”.
SAFE START (Child safety mode)
Factory default is set to press the button once on the transmitter to start the vehicle.
You can program this feature to eliminate an accidental remote start:
1. The user presses the transmitter buttons twice within 3 seconds to start the vehicle.
Or 2. The user presses the transmitter and buttons at the same ti me to start the
vehicle.
NOTE: Contact your installing dealer to activate this feature.
B. OPERATE THE VEHICLE WHILE RUNNING FROM THE REMOTE
START:
To operate the vehicle while the engine is running from the remote start,
1. Insert the ignition key and turn it to “ON” (not the start) position.
2. Press the brake pedal.
Note: If the brake pedal is pressed before the key is in the ON position, the engine will
shut down.
C. TEMPORARY STOP FEATURE:
This feature allows the vehicle to remain running after the key has been removed from
the ignition. This feature is useful for occasions when you wish to exit and lock the
vehicle for short periods of time, but would like to leave the motor running and the
climate control on.
1. Before turning off the engine, press the button once on the transmitter and the
Siren chirp 1 times to confirm enter.
2. Turn the ignition key to OFF position. (The engine will stay running.)
14
3. The engine will run until the pre-programmed time elapsed or shutdown input is
received.
D. TURBO CHARGE MODE:
Turbo charger mode keeps the engine running after arriving at you r destination for a
programmable period of 1, 3 or 5 minutes, This allows the vehicle’s engine time to
conveniently cool down the turbo after you have left the vehicle.
To activate:
1. While the engine is running, pull up the hand brake and place the transmission gear in
the park position.
2. Before turning off the engine, press and release and buttons at the same time.
-- The LED will flash indicating the remote start has entered the turbo charger mode
appear on LCD remote .
3. Take the “Ignition Key” from the key cylinder.
-- Engine keeps running. --
4. Exit and secure the vehicle.
-- Engine continues running until the pre-programmed time elapsed. --
NOTE: This feature only applies to vehicles with Turbo Charged Engines.
E. TIMER START:
This unit can be programmed to start and run the engine every 3 hours or punctually at
the same time next morning, the engine will run for the programmed running time and
then shut down.
IMPORTANT: Timer Start should be used only in open areas, never start and run
the vehicle in on enclosed space as a garage or carport.
Daily Timer Start: The feature is very useful for the driver who wants to run the vehicle
punctually at the same time next morning. Before set-up of the “Daily Timer Start”, you
should set you time for engine start.( see Timer Setting / Timer set-up for “Daily Timer
Start, in Advanced users Mode)
ENTER:
A 3 Hours Timer Start:
1. Press the button once to remote start the vehicle. As soon as the vehicle is running
and the parking lights flash one time.
2. Immediately depress the button once, within 2 seconds
The parking light will flash (1) times / icon appear. The siren or horn chirps (1) times.
The vehicle is now programmed to start every 3 hours.
B: Daily Timer Start: Follow programmed Daily Start Timer on LCD remote in Advanced
user mode.Press button of LCD remote transceiver to activate or cancel Daily Start
15
feature.The parking light will flash (1) times. The siren chirps (1) times. The vehicle is now
programmed to start at the same time of the next day. Your set time for the next day
engine start flashes for approx. 3 seconds on the LCD screen. After 3 seconds icon
stays displayed on the LCD screen.
4. Please insure that you fully understand this feature before programming the
timer start mode.
F. TEMPERATURE CHECK
With the built in temperature sensor you can monitor, Through the LCD screen, the
present indoor temperature of the passenger compartment of your vehicle.
Press and hold the transmitter “F” button first until 3 chirps are heard. Then press the F
Button three more times so that TEMP appears on the remote. Within 3 seconds press
button; the in-door temperature will be shown on the LCD screen. This reading may
be higher than actual ambient temperature due to the greenhouse effect and is relative
only to the inside vehicle temperature.
G. TO TURN OFF THE REMOTE START:
When the engine is running (by remote start), if you want to stop it,
1. Press button once on the remote transmitter under the remote start mode.
2. Move the optional remote start enable toggle switch to OFF position. (If installed)
3. Press the brake pedal
The vehicle will shut down and turn off the parking light to indicate the engine has
stopped.
H. SHUT-DOWN INPUT FOR REMOTE STARTER:
If any of the following conditions exist while the system is operating, the engine will not
start or will shut down immediately:
1. The hood is opened.
2. The brake pedal is pressed.
3. The parking (hand) brake is released (For Turbo Timer Mode)
4. Engine is over-revved. {“Tachometer checking type” only}
5. The pre-programmed run time (5 /10 / 20 / 30 minutes) has elapsed.
6. Press button on the remote transmitter under remote start mode.
7. The system trigger.
8. The vehicle refused to start running after {3} unsuccessful attempts.
I. DISABLING THE REMOTE START SYSTEM: (If installed)
16
This feature allows your system’s remote start unit to be temporarily disabled to prevent
the vehicle from being remote started accidentally. This feature is useful if the vehicle is
being serviced or stored in an enclosed area. To disable the remote start, move the
optional remote start enable toggle switch to the OFF position.
ADVANCED USER’S MODE:
C. LCD REMOTE CONTROL TRANSCEIVER OPERATION:
Enter: Press and hold F Button until beep sound respond from LCD transceiver
indicate into table 1 – 5 as below.
Exit: Press the , or button to exit this mode.
Table 1: ONE beep to confirm (Press and hold until ONE Beep is heard)
F Button LCD Display Button
Press once Backlight turns on for 5
seconds
Press twice within 5 seconds PASS and PASS icon
flashing Press button to arm the alarm
and bypass the sensor 1.
Press three times within 5
seconds HIDDEN ALARM and
icon flashing
Press button to a rm system and
with Hidden Alarm Function.
Press four times within 5
seconds CAR JACK and
icon flashing
Ignition in "on" position press and
hold button for 2 seconds to
activate anti carjacking functions.
Table 2: TWO beeps to confirm (Press and hold until TWO Beeps are heard)
F Button LCD Display Button
Press and hold the F Button for
2 second until 2 beeps sounded MENU flashing Press button to enter the menu
mode
Press one more time within 5
seconds CH 4 flashing Press button to activate channel
4 function
Table 3:THREE beeps to confirm(Press and hold until THREE Beeps are heard)
F Button LCD Display Button
Press and hold the F Button for
3 second until 3 beeps sounded STATUS and
CHECK icon flashing Press button to check the
Vehicle Status
Press ONE more time within 5
seconds ALARM and
CHECK Press button to check the
system trigger condition.
Press TWO more times within 5
seconds Voltage and
Check Press button to check the
Vehicle Battery condition.
17
Press THREE more
times within 5 seconds TEMP and
CHECK icon flashing Press button to check the
Interior
Temperature of the vehicle
Press FOUR more times within
5 seconds Start timer and
icon flashing
Press button to activate or
cancel daily start.
Table 4: FOUR beeps to confirm (Press and hold until FOUR Beeps are heard)
F Button LCD Display Button
Press and hold the F Button for
4 second until 4 beeps sounded Version Press any button to operation
end.
Table 5: Do-Re-Mi sounds to confirm
F Button LCD Display Button
Press and hold the F Button for
6 second until Do-Re-Mi
sounded
DEFLT flashing Press & hold button for 2
seconds to back to default setting
and 1 chip for confirm
D. PROGRAMMING LCD REMOTE:
Selecting and Adjusting Menu options:
Press and hold F button for 1 second until 2 beeps sound, then release the F button.
The text will flash on the LCD screen, press button to enter the menu.
Press button to move up in the menu or button to move down in the menu.
Press button to select the option you would like to adjust.
Press button to increase the value, to activate or deactivate a function or to toggle
through the selection.
Press button to decrease the value, to activate or deactivate a function or to
toggle through the selection.
Press button to move to the next sub-option or go back to the main menu.
EXIT: Press button to exit the menu mode.
Order Menu Option LCD display Functions
1 Parking Menu PARK METER Default is
18
- Parking hours 0:30
0 is flashing
, - Adjusts parking hour (value
from 0 to 2).
- Parking
minutes
0:30
30 is flashing
, - Adjusts parking minute
(value from 0 to 59).
- Toggle Parking
countdown
+
or
- Enables parking countdown.
There is a beep 5 min. before the
Parking countdown reaches 0.
- Disables parking countdown.
2 Illumination Menu Default is
- Toggle
Illumination
Mode
3 SEC. or
5 SEC. or
OFF
, Basic operation with backlight
Illumination 3 SEC. or 5 SEC.;
OFF – basic operation without
backlight Illumination.
3
Second Vehicle
Security Operation
Menu
Default is CAR 1
- Car Select CAR 1 or
CAR 2
-CAR 1 operation.
- CAR 2 operation.
4 Clock Menu Default is
- Clock hours 12:00AM
12 is flashing
, - Adjusts clock hour from 0 to 12
- Clock minutes 12:00AM
00 is flashing
, - Adjusts clock minute from 0 to
59
5 Alarm Clock Menu Default is
- Alarm hours 12:00AM
12 is flashing
, - Adjusts alarm clock hour from
0 to 12
- Alarm minutes 12:00AM
00 is flashing
, - Adjusts alarm clock minute
from 0 to 59
- Toggle alarm ON + or
OFF
-Enable alarm clock or
-Disable alarm clock
19
6 Back Light Color COLOR Default is COLOR 7
COLOR 1- 7 , - Adjusts color from Color 1 to
Color 7
7 Confirmation Menu
VIBRTE Default is
- Toggle BZ VIB + or
VIBRTE + or
+ +
, - Buzzer or Vibration
8 Button Lock Default is
- Toggle button
lock
- button lock / Disable the
transmission function temporarily
- button unlock / Enable the
transmission
9 Power Save Default is
- Toggle power
save
- While the power save mode, the
LCD remote transceiver uses “0”
current to save the battery power.
- Power save OFF
Exit: Press any button of the LCD
remote transmitter to exit the “Power
Save Mode”.
10
Daily Start Timer
Setting
Daily Start Time Adjust Only (ex.
7:30AM)
- Daily Start Hour 7:30AM
7 is flashing
,- Adjusts clock hour from 0 to 12
- Daily Start
Minute
7:30AM
30 is flashing
,-Adjusts clock minute from 0 to
59
11 24H/12H Setting RTC24H Default is
20
- Toggle power
save
12H
24H
- 12H
-24H
12 PAGER Tone
ON/OFF
PAGER Default is
- Pager check on.
-Pager check off.
To Exit: Do not push any buttons for 20 seconds
21
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.

Navigation menu
