SL-8000
Operating
Manual
Home Theater Master
Home Theater Master
Universal Remote Contr
Universal Remote Control
ol
Page
Introduction 2
Battery Installation 3
A. To Open and Close Battery Compartment Cover 3
B. Low Battery Message 3
Using Your Remote Control 4
A. Function Table Reference 4
Function Tables 5
B. Preprogrammed Set Up 8
Three Digit Code Method 8
Recalling the Set Up Code Number 12
C. Operation 13
Device Buttons 14
Main Device Mode 15
Automatic Audio Mode 15
Backlighting 16
Advanced Features 17
A. Punch Through Controls 17
Volume “Punch Through” 17
Channel “Punch Through” 18
Transport “Punch Through” 20
B. Memory Buttons 22
Programming Memory Buttons 24
Erasing Memory Buttons 25
C. Changing the LCD Display 26
D. Programming a Second TV, VCR, etc. to other Device Buttons 27
Warranty and Specifications 29
Glossary 30
Appendix 32
Assignment of Audio/Video Equipment 32
Set Up Code Tables 33
Audio 33
Satellite 36
TV 38
VCR 41
Cable 44
CD 46
DVD 48
AUX 49
1
1
Table of Contents
The

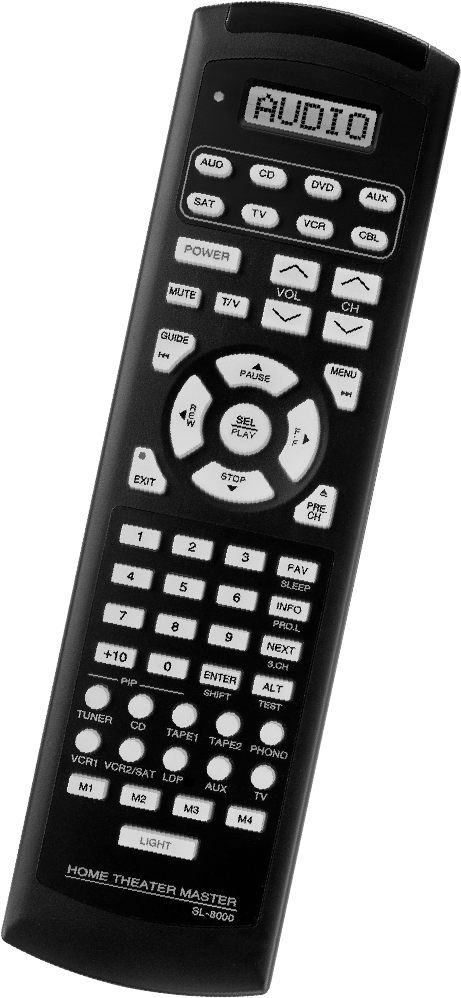

Home Theater Master SL-8000
remote control is
preprogrammed to operate over 1,000 Audio and Video
components so that you can set it up by simply punching
in a three digit code number that matches your equipment.
The Home Theater Master SL-8000 remote control operates
up to eight different audio and video devices in your home
entertainment system. They are listed below:
1 TVs, Monitors, Video/LCD Projectors
2 VCRs, TV/VCR combination units
3 Cable boxes, Internet set-tops
4 Satellite receivers - DSS, Primestar, Dish, DBS,
C-Band
5 Audio receivers, Preamplifiers, Surround processors
6 Compact disc players, Multi-Disc changers
7 DVD, Laser disc players, Cassette decks
8 Cassette Tape Players, DAT, MiniDisc, Switchers,
Lighting, Home Control Devices, and Line Doublers
Setting up the remote control to work with your equipment
is simple. The remote control also has many advanced
features that can add ease and enjoyment to the operation
of your home
entertainment system. Please follow the
instructions in this manual, and retain the manual
for future
reference.
For any questions or comments about this remote control,
please contact Universal Remote Control, Inc., 271 North
Avenue, New Rochelle, NY 10801, or call (914) 235-2610.
Service hours are 9:00 AM to 6:00 PM EST, Monday- Friday.
2
2
Introduction
This remote control uses four AAA 1.5 V batteries. Please
be sure to match the batteries with the (+) and (–) markings
inside the battery compartment during installation.
A: To Open and Close the Battery
Compartment Cover
1To open the battery cover, push the latch forward toward
the top of the remote control, and lift the latch up.
2To close the battery cover, slide the battery cover straight
back in (toward the top of the remote) and push down
until it “clicks” into place.
B: Low Battery Message
When the Liquid Crystal Display (LCD) flashes L__BAT,
the batteries should be replaced.
Note: Batteries should last about 6 months under normal condi-
tions. The SL-8000 remote control will retain its programmed
memory for up to one year after the batteries are removed and up
to ten years after the batteries go “dead”.
3
3
Battery Installation
A: Function Table Reference
4
4
1
10
12
13
14
15
11
21
23
22
24
16
17
18
19 20
9
234
25 26 27 37
51 52 53 54
38
28 29 30
31 32 33 39
40
35
41 43 44 454241 43 44 4542
46 48 49 5047
34
55
36
5678
Using Your Remote
POWER
MUTE
T/ V
VOL CH
PAUSE
STOP
PLAY
SEL
F
.
F
R
E
W
GUIDE MENU
EXIT
PRE.
CH CH
123
456
789
0
+
10
SLEEP
PRO.L
3.CH
TESTSHIFT
FAV
INFO
NEXT
ALT
ENTER
PIP
TUNERTUNER CDCD TAPE1TAPE1 TAPE2TAPE2 PHONOPHONO
TV
VCR1VCR1 LDPLDP AUXAUXVCR2/SATVCR2/SAT
M1 M2 M3 M4
LIGHT
HOME THEATER MASTER
SL-8000SL-8000
AUD CD
DVDDVD
AUX
CBL
VCR
T VSAT
Function Table
5
5
Using Your Remote
SAT Functions
SAT (ON)
On/Off (OFF)
Mute
TV/SAT
Vol Up
Vol Down
Ch. Up
Ch. Down
Up
Down
Right
Left
Select
Guide
Menu
Exit/Cancel
Prev. Ch.
1—0
Enter
Fav
Info/Fetch
Next Prog.
Alt. Audio
Rec.
TV Functions
TV (ON)
On/Off (OFF)
Mute
TV/Video
Vol Up
Vol Down
Ch. Up
Ch. Down
Up
Down
Right/Picture
Left/Audio
Select/Enter
Display/Recall
Menu
Exit/Clear
Q. View/Last Ch.
1—0
100/Ch. Scan
Ch. Scan
Sleep
Caption
Ant
Reset
PIP On/Auto Ch.
PIP Swap, Add
PIP Freeze/Delete
PIP Off/Position
TV/CATV
Auto
Add
Delete
Audio Functions
AUDIO (ON)
On/Off (OFF)
Mute
Band/FM
Vol Up
Vol Down
Preset +
Preset -
Center +
Center
-
Rear +
Rear
-
Select/Sub.Bass
Display
Surround
Delay
-
Delay+
1—0
Plus 10
Shift
Sleep
Pro. Logic
3 Ch.
Test Tone
Tuner/AM/FM
CD
Tape 1
Tape 2
Phono
VCR1
VCR2
LD/DVD
Aux
TV
No. Button Name
1-8 Device Name
9 Power
10 Mute
11 T/V Input
12 VOL Up
13 VOL Down
14 CH Up
15 CH Down
16 Up/Pause
17 Down/Stop
18 Right/F.F.
19 Left/Rew
20 Sel/Play
21 Guide/I<<
22 Menu/>>I
23 Exit/Rec
24 Pre. Ch./Eject
25-34 1—0
35 10+
36 Enter/Shift
37 Fav/Sleep
38 Info/Pro. L.
39 Next/3 Ch.
40 Alt/Test
41 Tuner
42 CD
43 Tape 1
44 Tape 2
45 Phono
46 VCR1
47 VCR2/SAT
48 LD/DVD
49 Aux
50 TV
51 M1
52 M2
53 M3
54 M4
55 Light
Function Table
6
6
No. Button Name
1-8 Device Name
9 Power
10 Mute
11 T/V Input
12 VOL Up
13 VOL Down
14 CH Up
15 CH Down
16 Up/Pause
17 Down/Stop
18 Right/F.F.
19 Left/Rew
20 Sel/Play
21 Guide/I<<
22 Menu/>>I
23 Exit/Rec
24 Pre. Ch./Eject
25-34
1—0
35 10+
36 Enter/Shift
37 Fav/Sleep
38 Info/Pro. L.
39 Next/3 Ch.
40 Alt/Test
41 Tuner
42 CD
43 Tape 1
44 Tape 2
45 Phono
46 VCR1
47 VCR2/SAT
48 LD/DVD
49 Aux
50 TV
51 M1
52 M2
53 M3
54 M4
55 Light
VCR Functions
VCR (ON)
On/Off (OFF)
Mute
VCR/TV
Vol Up
Vol Down
Ch Up
Ch Down
Pause
Stop
Fast Forward
Rewind
Play
F. Adv./Slow<
X2/Intro/Slow>
Record
Eject
1—0
1—100
Enter
Program
Display
C-Counter
Reset
Auto Ch
Add +
Delete -
Tape Speed
VCR Plus
Tracking +
Tracking -
Auto Tracking
Slow -
Slow +
Index
QTR On
QTR Off
Edit
Cable Functions
CABLE (ON)
On/Off (OFF)
Mute
Switch/A/B
Vol Up
Vol Down
Ch Up
Ch Down
Up/Fine +
Down/Fine -
Right/Fine R
Left/Fine L
Select
Guide/Recall
Menu
Exit
Prev. Ch
1—0
*/Help
Enter/Memory
Fav
Info
PPV/Buy
P/Delete
Page -
Page +
Day -.
Day +
Record
Using Your Remote
Function Table
7
7
CD Functions
CD (ON)
On/Off (OFF)
Mute/Fader
Random
Vol Up
Vol Down
Track +/Skip +
Track-/Skip -
Pause
Stop
FF/Search +
REW/Search -
Play
Search -
Search +
Eject/Intro
1—0
Plus 10
Disc
Program
Display
Repeat
Clear
Disc 1
Disc 2
Disc 3
Disc 4
Disc 5
A-B
Time
Intro
Edit
DVD Functions
DVD (ON)
On/Off (OFF)
Skip >>I
Skip I<<
Pause
Stop
F.F.
REW
Play
Set Up
Menu
Clear
Open/Close
1—0
10+
Enter
Return
Display
Sub. On/Off
Audio
Up
Down
Select
Angle
Slow
Left
Right
Subtitle
Repeat
Random
A/B Repeat
T
Title
Memory
AUX Functions
TAPE (ON)
On/Off (OFF)
Mute/Rec Mute
Pause
Stop
F.F.
REW
Play
Deck A
Deck B
Record
Rev. Play
Deck A
Deck B
REW
For. Play
F.F.
Stop
REV. Play
Pause
Record
No. Button Name
1-8 Device Name
9 Power
10 Mute
11 T/V Input
12 VOL Up
13 VOL Down
14 CH Up
15 CH Down
16 Up/Pause
17 Down/Stop
18 Right/F.F.
19 Left/Rew
20 Sel/Play
21 Guide/I<<
22 Menu/>>I
23 Exit/Rec
24 Pre. Ch./Eject
25-34 1—0
35 10+
36 Enter/Shift
37 Fav/Sleep
38 Info/Pro. L.
39 Next/3 Ch.
40 Alt/Test
41 Tuner
42 CD
43 Tape 1
44 Tape 2
45 Phono
46 VCR1
47 VCR2/SAT
48 LD/DVD
49 Aux
50 TV
51 M1
52 M2
53 M3
54 M4
55 Light
Using Your Remote
B: Preprogrammed Set Up
The
Home Theater Master
universal remote control can
operate up to eight separate audio and video devices
(equipment). To program the remote control for your
devices, please use the following steps:
Three Digit Code Method
1Turn on the device you would like the remote control to
operate, either manually or with your original remote
control.
2Find the three digit Set-Up Code number for your
device from the tables on pages (33~50).
3Press the corresponding Device Button (TV, VCR, SAT,
CBL, AUD, CD, DVD, or AUX) and the MUTE button
on the remote control simultaneously. SET will appear
in the LCD.
8
8
Example: To set up the remote to operate with a ZENITH
TV, go to the TV Set-Up Code table found on pages (38 -
40) and look for ZENITH under the Manufacturer/Brand
column. You will find that the Set-Up Code numbers for
ZENITH TVs are 072, 073, 095, 103 and 157.
POWER
MUTE
T/ V
VOLVOL CHCH
PAUSE
STOP
PLAY
SEL
F
.
F
R
E
W
GUIDE MENU
EXIT
PRE.
CH
123
456
789
0
+
10
SLEEP
PRO.L
3.CH
TESTSHIFT
FAV
INFO
NEXT
ALT
ENTER
PIP
TUNER CD TAPE1 TAPE2 PHONO
TV
VCR1 LDP AUXVCR2/SAT
M1 M2 M3 M4
LIGHT
HOME THEATER MASTER
LEARNING REMOTE CONTROL
AUD CD
DVDDVD
AUX
CBL
VCR
T VSAT
POWER
MUTE
T/ V
VOL CH
PAUSE
STOP
PLAY
SEL
F
.
F
R
E
W
GUIDE MENU
EXIT
PRE.
CH
123
456
789
0
+
10
SLEEP
PRO.L
3.CH
TESTSHIFT
FAV
INFO
NEXT
ALT
ENTER
PIP
TUNER CD TAPE1 TAPE2 PHONO
TV
VCR1 LDP AUXVCR2/SAT
M1 M2 M3 M4
LIGHT
HOME THEATER MASTER
LEARNING REMOTE CONTROL
AUD CD
DVD
AUX
CBL
VCR
TVSAT
AUD CD
DVD
AUX
CBL
VCR
T VSAT
Example: To set-up the remote to operate a TV, press the
TV Device Button and the Mute button, simultaneously.
Device Buttons
Mute Button
Using Your Remote
Note: SET appears in the LCD for 20 seconds to indicate that
the remote control is ready to be programmed. The following
steps must be entered while SET appears in the LCD.
4Point the remote control toward the device that was
turned on in Step 1 and press in the first three-digit Set-
Up Code number for that device using the number buttons
(0-9) on the remote control. SET followed by the number
will appear in the LCD.
Your device will turn off when the correct Set-Up Code
number has been selected. If the device does not turn
off, press in the next Set-Up Code number from the listing.
Continue to select Set-Up Code numbers until your
device turns off, before you proceed to Step 5.
Note: If you have tried all of the three digit Set-Up Code
numbers listed for your device and it still did not turn off, please
proceed to the Auto Search Method on page (10) to
program your remote control.
5Once your device turns off, press the Device Button
selected in Step 3 once again to store the Set-Up Code
number. PASS will flash in the LCD.
6Test the remote control for your device. Try the POWER,
CHANNEL UP AND DOWN, VOLUME UP AND DOWN
buttons, etc. If any of the buttons do not perform as they
should, please repeat the set-up from Step 1 using the
next Set-Up Code number for your device.
Note: Some audio/video devices have separate buttons for
POWER ON and POWER OFF. To operate these devices on
the remote, press the corresponding DEVICE Button to turn the
equipment ON and press the POWER button to turn the
equipment OFF.
7Please repeat the above steps to program the remote
control for each of your other devices.
9
9
Using Your Remote
12
12
Recalling the Set-Up Code Number
To display the three digit Set-Up Code number that was
stored for a device.
1Press the Device Button and the MUTE button, simultane-
ously. SET will appear in the LCD.
2Press the T/V button. The LCD will quickly flash the
three digit Set-Up Code number that was stored for your
device in that mode.
3Please write your Set-Up Code numbers in the chart
below, for future reference.
Set-Up Code Numbers:
Using Your Remote
Audio
SAT
TV
VCR
Cable
CD
DVD
AUX
C: Operation
After you have programmed the remote control for your
equipment, use the following procedures to operate your
home entertainment system:
1Press the Device Button that you wish to operate: e.g. to
operate a TV, press the TV Device Button; to operate a
VCR, press the VCR Device Button, etc.
2Aim the remote control at the device and press the
POWER button to turn on the device.
3Press the buttons that send out the commands you
desire.
Note: Some audio/video devices have separate buttons for
POWER ON and POWER OFF. To operate these devices on
the remote, press the corresponding DEVICE Button to turn the
equipment ON and press the POWER button to turn the
equipment OFF.
Please try all the functions of this remote control with your
equipment. The most common functions are labeled on the
remote. However, some of the secondary functions might
be stored under a button that has a different name from the
one on your original remote control. Please refer to the
Function Tables on pages (5 - 7) for details.
13
13
Using Your Remote
Device Buttons
Any press of a Device button at the top of the remote control
can perform the following functions:
1
Changes the Device mode on the SL-8000 remote control.
2Sends out a preprogrammed POWER ON command for a
Device, if applicable.
3Sends out a joined selection.
4Toggles between the Main Device mode and the Automatic
Audio mode if the Automatic Audio Mode is active.
Joining to Device Buttons
The 10 preprogrammed Audio input selects and the key-
pad buttons 0-9 found on the SL-8000 in the AUDIO Device
mode can be joined to individual Device buttons. Once
joined, any press of the Device button will also emit the
joined command.
Setting Up:
1Press the AUDIO and ENTER buttons simultaneously on
the remote control. JOIN will appear in the LCD.
2Press the Device button that you would like to assign a
joined function. CLEAR will flash and INPUT will then
appear in the LCD.
3 Select a button to be joined from the remote control, e.g. ,
VCR1, VCR2, CD, etc. or 1, 1, 2 etc.). The LCD will display
IN_XX indicating the Audio input selected (IN_V1,
IN_V2, IN_CD, etc. or IN_0, IN_1, IN_2 etc.) and then JOIN.
14
14
Using Your Remote
POWER
MUTE
T/ V
VOL CH
PAUSE
STOP
PLAY
SEL
F
.
F
R
E
W
GUIDE MENU
EXIT
PRE.
CH
123
456
789
0
+
10
SLEEP
PRO.L
3.CH
TESTSHIFT
FAV
INFO
NEXT
ALT
ENTER
PIP
TUNER CD TAPE1 TAPE2 PHONO
TV
VCR1 LDP AUXVCR2/SAT
M1 M2 M3 M4
LIGHT
HOME THEATER MASTER
LEARNING REMOTE CONTROL
AUD CD
DVDDVD
AUX
CBL
VCR
T VSAT
POWER
MUTE
T/ V
VOL CH
PAUSE
STOP
PLAY
SEL
F
.
F
R
E
W
GUIDE MENU
EXIT
PRE.
CH
123
456
789
0
+
10
SLEEP
PRO.L
3.CH
TESTSHIFT
FAV
INFO
NEXT
ALT
ENTER
PIP
TUNER CD TAPE1 TAPE2 PHONO
TV
VCR1 LDP AUXVCR2/SAT
M1 M2 M3 M4
LIGHT
HOME THEATER MASTER
LEARNING REMOTE CONTROL
AUD CD
DVD
AUX
CBL
VCR
TVSAT
POWER
MUTE
T/ V
VOL CH
PAUSE
STOP
PLAY
SEL
F
.
F
R
E
W
GUIDE MENU
EXIT
PRE.
CH
123
456
789
0
+
10
SLEEP
PRO.L
3.CH
TESTSHIFT
FAV
INFO
NEXT
ALT
ENTER
PIP
TUNER CD TAPE1 TAPE2 PHONO
PHONO
TV
VCR1 LDP AUXVCR2/SAT
M1 M2 M3 M4
LIGHT
HOME THEATER MASTER
LEARNING REMOTE CONTROL
AUD CD
DVD
AUX
CBL
VCR
TVSAT
POWER
MUTE
T/ V
VOL CH
PAUSE
STOP
PLAY
SEL
F
.
F
R
E
W
GUIDE MENU
EXIT
PRE.
CH
123
456
789
0
+
10
SLEEP
PRO.L
3.CH
TESTSHIFT
FAV
INFO
NEXT
ALT
ENTER
PIP
TUNER CD TAPE1 TAPE2 PHONO
TV
VCR1 LDP AUXVCR2/SAT
M1 M2 M3 M4
LIGHT
HOME THEATER MASTER
LEARNING REMOTE CONTROL
AUD CD
DVD
DVD
AUX
CBL
VCR
T VSAT
Device Buttons
Audio Input Buttons
A: Assignment of Audio/Video
Equipment
Please use the following listing to locate the correct Set-Up
Code Tables for your equipment:
AUDIO Set-Up Code Table:
Audio Receivers, Preamplifiers, Surround Processors
Satellite Set-Up Code Table:
DSS, Primestar, DBS, Echostar, C Band receivers
TV Set-Up Code Table:
TVs, Monitors, Video/LCD Projectors
VCR Set-Up Code Table:
VCRs, TV/VCR combination units
CABLE Set-Up Code Table:
Cable Boxes, Internet/TV Set-Tops
CD Set-Up Code Table:
CD Players, CD Changers
DVD Set-Up Code Table:
DVD Players, Laser Disc
AUX Set-Up Code Table:
Cassette Tape Players, DAT systems, MiniDisc,
Switchers, Lighting, Home Control Devices,
and Line Doublers
32
32
Appendix
Punch Through
Advanced feature that enables you to operate Volume,
Channel or Transport Control functions of one device
while in another mode.
Set-Up Code Number
The three-digit number that is used to program the remote
control for your particular manufacturer or brand of audio/
video equipment. Set-Up Code numbers are located in
tables in the appendix on pages 33 - 50 of the instruction
manual. Set-Up Code numbers are categorized by type of
device, e.g. TV, VCR, Audio, CD, DVD, Cable, AUX and
Satellite.
More than one Set-Up Code number may work with your
device. You should test the functions for each of the Set-Up
Code numbers that work with your device to determine the
best Set-Up Code number for your particular device.
Note: Some devices, such as CD players and DVD Decks that
do not have POWER buttons on their original remote controls,
may not shut off during programming. For these devices, it may
be necessary to first store the Set-Up Codenumber and then test
functions like PLAY, STOP, etc., to determine if the correct Set-
Up Code number has been selected.
Transport Control
Buttons that correspond to the PLAY, STOP, REWIND,
FAST FORWARD, PAUSE, SEARCH/SKIP and RECORD
functions on your audio/video equipment.
31
31
Glossary
Example: Audio Volume Control “Punch Through” gives
you the ability to raise, lower and mute your Audio
receiver volume while operating the remote control in the
TV mode.
4 Press the ENTER button. SAVE will flash twice and the
LCD will return to AUDIO indicating that the joined
function has been stored.
Every time that the
Device button
is pressed it will also emit
the
joined
function.
To erase a
joined
function from a
Device button:
1 Press the AUDIO and ENTER buttons simultaneously on
the remote control. JOIN will appear in the LCD.
2 Press the Device button that you would like to erase a
joined function. CLEAR will flash and INPUT will then
appear in the LCD.
3 Press the ENTER button. The LCD will flash SAVE twice
and return to AUDIO indicating that the join has been
erased.
Main Device Mode
When the main device is displayed in the LCD, the
SL-8000 will perform all of the preprogrammed, joined and
punch through features for that device mode.
Automatic Audio Mode
The remote is defaulted to the Automatic Audio. When the
remote control is in this mode, pressing a Device button a
second time will display A_XXX in the LCD indicating that
the Volume and Mute controls of the device programmed
into the Audio mode of the SL-8000 is active, while full
function control of all other buttons of the current Device
mode is maintained.
15
15
Using Your Remote
Main Device Mode Automatic Audio Mode
After you set-up the remote control to operate your
equipment, you can also program advanced features on
the remote control. The advanced features are designed
to enhance the use of the remote control with your home
entertainment system.
A: Punch Throughs
Volume Control “Punch Through”
You can program the remote control so that either the
AUDIO or TV Volume Control (VOLUME UP, DOWN AND
MUTE) will also operate in other modes on the remote control.
Note: When this feature is active, the AUDIO or TV VOLUME
and MUTE will override any existing volume controls in that
mode.
To Set-Up:
1Select the mode that you wish to program for Volume
Control “Punch Through.”
2Press the corresponding Device Button and the MUTE
button simultaneously. SET will appear in the LCD.
3Press the VOLUME UP button. PUNCH will appear
in the LCD.
4Press either the AUDIO Device Button to set-up for Audio
Volume Control or the TV Device Button to set-up for TV
Volume Control. AUDIO or TV will flash in
the LCD,
depending on which Device Button was selected.
AUDIO or TV Volume Control will now override the
original VOLUME and MUTE in this mode.
17
17
Example: Raise, lower and mute the VOLUME of your
Audio receiver while the remote control is in the Satellite
mode.
Advanced Features
Cursor Control
Buttons that correspond to the UP, DOWN, LEFT, RIGHT,
SELECT, GUIDE, MENU and EXIT functions of your
audio/video equipment.
Device
Audio or video equipment, e.g. Television, VCR, Cable
box, Audio receiver, Satellite receiver, etc.
Device Button
Any of the eight buttons located at the top of the remote
control labeled AUD, CD, DVD, AUX, SAT, TV, VCR and
CBL. Device Buttons are used to select modes of operation
and to program the remote control.
Joining
Transfer of a function from the AUDIO input selects and
keypad(0-9) on the SL-8000 to a Device button at the top of
the remote control.
LCD
Liquid crystal display window located at the top of the
remote control. During normal operation the LCD
indicates the mode. The LCD also indicates the remote’s
programming status.
Memory Buttons
Buttons labeled M1, M2, M3, M4, and POWER. These but-
tons can be programmed to store Favorite Channels, Macro
Commands, or to “relocate” functions from one mode to
another.
Modes
Modes correspond to Device Button selections. Modes are
displayed in the LCD as AUDIO, CD, DVD, AUX, SAT, TV,
VCR and CABLE. Modes indicate the type of device the
remote control is currently operating.
30
30
Glossary
Model
SL-8000, infrared remote control.
Power
Four 1.5 V AAA Batteries.
Dimensions (h/w/d)
8.88 x 2.5 x 1.25 inches
Weight
6.5 oz. (with batteries)
29
29
The
Home Theater Master SL-8000
remote control comes
with a one-year warranty from the date of purchase.
Warranty
Specifications
To Return to the Original Setting:
1Select the mode that you want to turn off the Volume
Control “Punch Through.”
2Press the corresponding Device Button and the MUTE
button simultaneously. SET will appear in the LCD.
3Press the VOLUME UP button. PUNCH will appear in
the LCD.
4Press the Device Button again. The DEVICE Mode will
flash in the LCD.
The AUDIO or TV Volume Control “Punch Through” is
now turned off. The VOLUME and MUTE of the original
device will operate on the remote control.
Channel Control “Punch Through”
You can program the remote so that either the SAT or Cable
Channel Controls (CHANNEL UP and DOWN) will also
operate in other modes on the remote control.
Note: When this feature is active, SAT or Cable CHANNEL
UP and DOWN will override any existing channel controls in
that mode.
To Set-Up:
1Select the mode that you wish to program for Channel
Control “Punch Through.”
2Press the corresponding Device Button and the MUTE
button simultaneously. SET will appear in the LCD.
3Press the VOLUME DOWN button. PUNCH will appear
in the LCD.
18
18
Example: Change CHANNELS UP and DOWN on your
cable box while the remote is in the TV mode.
Advanced Features
4Press either the SAT Device Button to set-up for SAT
Channel Control or the CBL Device Button to set-up for
Cable Channel Control. Either SAT or CBL will
flash
in the LCD, depending on the Device Button selected.
SAT or Cable Channel Controls will now override the
original CHANNEL UP and DOWN in this mode.
To Return to the Original Setting:
1Select the mode that you want to turn off the Channel
Control “Punch Through.”
2Press the corresponding Device Button and the MUTE
button, simultaneously. SET will appear in the LCD.
3Press the VOLUME DOWN button. PUNCH will appear
in the LCD.
4Press the same Device Button again. The DEVICE Mode
will flash in the LCD.
The SAT or Cable Channel Control “Punch Through” is
now turned off. The CHANNEL UP and DOWN of the
original device will now operate on the remote control.
19
19
Advanced Features
28
28
Advanced Features
Your device will turn off when the correct Set-Up Code
number has been selected. If it does not turn off, select the
next Set-Up Code number from the table, and press in that
code number. When your device turns off, proceed to Step 6.
6Press the Device Button that was selected in Step 2.
to store the Set-Up Code number. PASS will flash in the
LCD to confirm the programming.
The second device can now be operated by pressing the
assigned Device Button and using the buttons within this
mode.
LCD Displays in the Automatic Audio Mode
A_TV A_VCR A_CAB A_SAT AUDIO A_CD
A_DVD A_AUX A_TV2 A_VC2 A_TUN A_AM1
A_AM2 A_TA1 A_TA2 A_WEB A_SUR A_DAT
A_PRJ A_AX2 A_LD A_A2 A_LIT A_DSS
A_AV A_TAP A_DAB
D: Programming a Second TV, VCR, etc.
to Other Device Buttons.
This feature is used to program the remote control for two
or more TVs, VCRs, etc., or to program a device into a
mode with a different Device Button name. You can store
the three-digit Set-Up Code number for any device into any
other unused Device Button.
1Turn on the device.
2On the remote control, press the Device Button that
you will assign for the device and the
MUTE button,
simultaneously. SET will appear in the LCD.
3Press the Device Button that corresponds to the original
device. SET will still appear in the LCD.
4Locate the Set-Up Code number for the device from the
tables found on pages (33 - 50).
5Point the remote toward the device and press
in the first Set-Up Code number. SET, followed by the
Set-Up Code number will appear in the LCD.
27
27
Example: If your home entertainment system contains
two VCRs. First, using the VCR Device button, program
the remote via standard set-up to operate the first VCR.
Then, program your second VCR into a Device Button that
is not being used, e.g., AUX using this method.
Advanced Features
Transport Control “Punch Through”
You can set-up your remote control so that VCR or CD
Transport Controls (PLAY, STOP, FAST FORWARD,
REWIND, PAUSE, and RECORD) will also operate in other
modes on the remote control.
Note: When this feature is active, the VCR or CD functions
(PLAY, STOP, FAST FORWARD, REWIND, PAUSE, and
RECORD) will override any existing functions pre-assigned to
these buttons in that mode.
To Set-Up:
1Select the mode into which you want to program
Transport Control “Punch Through.”
2Press the corresponding Device Button and the MUTE
button simultaneously. SET will appear in the LCD.
3Press the SELECT/PLAY button. PUNCH will appear in
the LCD.
4Press either the VCR Device Button to set-up for VCR
Transport Control or the CD Device Button to set-up for
CD Transport Control. VCR or CD will flash in the LCD,
depending on the Device Button selected.
20
20
POWER
MUTE
T/ V
VOL CH
PAUSEPAUSE
STOPSTOP
PLPLAYAY
SEL
F
.
F
R
E
W
GUIDE MENU
EXIT
PRE.PRE.
CH CH
123
456
789
0
+
10
SLEEP
PRO.L
3.CH
TESTSHIFT
FAV
INFO
NEXT
ALT
ENTER
PIP
TUNER CD TAPE1 TAPE2 PHONO
TV
VCR1 LDP AUXVCR2/SAT
M1 M2 M3 M4
LIGHT
HOME THEATER MASTER
SL-8000
AUD CD
DVD
AUX
CBL
VCR
TVSAT
POWER
MUTE
T/ V
VOL CH
PAUSE
PAUSE
STOP
STOP
PL
PL
AY
AY
SEL
F
.
F
R
E
W
GUIDE MENU
EXIT
PRE.
PRE.
CH
CH
123
456
789
0
+
10
SLEEP
PRO.L
3.CH
TESTSHIFT
FAV
INFO
NEXT
ALT
ENTER
PIP
TUNER CD TAPE1 TAPE2 PHONO
TV
VCR1 LDP AUXVCR2/SAT
M1 M2 M3 M4
LIGHT
HOME THEATER MASTER
SL-8000
AUD CD
DVD
AUX
CBL
VCR
TVSAT
Transport Controls
Advanced Features
Example: Control VCR functions while operating the
remote control in the TV mode.
The VCR or CD Transport Controls (PLAY, STOP, FAST
FORWARD, REWIND, PAUSE, and RECORD) will now
override the original
functions of the buttons in this mode.
To Return to the Original Setting:
1Select the mode that you want to turn off the Transport
Control “Punch Through.”
2Press the corresponding Device Button and the MUTE
button simultaneously. SET will appear in the LCD.
3Press the SELECT/PLAY button. PUNCH will appear
in the LCD.
4Press the Device Button again. The Device Mode will
flash in the LCD.
The VCR or CD Transport Control “Punch Through”
feature is now turned off. The original functions
assigned to these buttons are restored.
21
21
Advanced Features
C. Changing the LCD Display
Twenty-seven different LCD displays can be selected for
each Device
mode of the remote control. To select an alter-
nate LCD display, please use the following procedure:
1Press and hold the Device button for which you would
like to change the LCD setting.
2While pressing the Device button, press and release the
MENU button. Each time the MENU button is pressed,
the LCD will show one of twenty-seven displays.
3Release the Device button when you find the new LCD
display you wish to assign to the Device mode.
Choice of LCD Displays
TV VCR CABLE SAT AUDIO CD
DVD AUX TV2 VCR2 TUNER AMP1
AMP2 TAPE1 TAPE2 WEBTV SURR DAT
PROJE AUX2 LD AUD2 LIGHT DSS
AV TAPE DAB
26
26
Using Your Remote
POWER
MUTE
T/ V
VOLVOL CHCH
PAUSEPAUSE
STOP
PLPLAYAY
SEL
F
.
F
R
E
W
GUIDE MENU
EXIT
PRE.
CH
123
456
789
0
+
10
SLEEP
PRO.L
3.CH
TESTSHIFT
FAV
INFO
NEXT
ALT
ENTER
PIP
TUNER CD TAPE1 TAPE2 PHONO
TV
VCR1 LDP AUXVCR2/SAT
M1 M2 M3 M4
LIGHT
HOME THEATER MASTER
SL-8000
AUD CD
DVDDVD
AUX
CBL
VCR
T VSAT
POWER
MUTE
T/ V
VOL CH
PAUSE
STOP
PLAY
SEL
F
.
F
R
E
W
GUIDE
MENU
EXIT
PRE.
CH
123
456
789
0
+
10
SLEEP
PRO.L
3.CH
TESTSHIFT
FAV
INFO
NEXT
ALT
ENTER
PIP
TUNER CD TAPE1 TAPE2 PHONO
TV
VCR1 LDP AUXVCR2/SAT
M1 M2 M3 M4
LIGHT
HOME THEATER MASTER
SL-8000
AUD CD
DVD
AUX
CBL
VCR
TVSAT
POWER
MUTE
T/ V
VOL CH
PAUSE
STOP
PLAY
SEL
F
.
F
R
E
W
GUIDE MENU
EXIT
PRE.
CH
123
456
789
0
+
10
SLEEP
PRO.L
3.CH
TESTSHIFT
FAV
INFO
NEXT
ALT
ENTER
PIP
TUNER CD TAPE1 TAPE2 PHONO
TV
VCR1 LDP AUXVCR2/SAT
M1 M2 M3 M4
LIGHT
HOME THEATER MASTER
SL-8000
AUD CD
DVD
DVD
AUX
CBL
VCR
T VSAT
Erasing Memory Buttons
1Select the mode (AUD or SAT) in which you want to
erase the Memory Button.
2Press the corresponding Device Button (AUD or SAT) and
MUTE button, simultaneously. SET will appear in the
LCD. Press the Memory Button to be erased. M(1-5)_# #
will appear in the LCD.
3Press the CHANNEL UP button. SAVE will flash in the
LCD. The Memory Button is now erased.
Note: Any previously stored commands on a Memory Button
will be erased when new commands are stored on the same
Memory Button.
25
25
Advanced Features
1Press the Audio Device Button and the MUTE button
simultaneously. SET will appear in the LCD.
2Press Memory Button M2. M2_ # # will appear in the LCD.
3Press the MUTE button (to turn on the Audio receiver)
M2__01 will appear in the LCD.
Press the TV Device Button (to change to the TV mode)
M2__02 will appear in the LCD.
Press the MUTE button (to turn on the TV)
M2__03 will appear in the LCD.
Press the VCR Device Button (to change to the VCR mode)
M2__04 will appear in the LCD.
Press the MUTE button (to turn on the VCR)
M2__05 will appear in the LCD.
Press the SAT Device Button (to change to SAT mode)
M2__06 will appear in the LCD.
Press the MUTE button (to turn on the Satellite receiver)
M2__07 will appear in the LCD.
Power On/Off is located on the MUTE button during the
programming mode.
4Press the CHANNEL UP button. SAVE will flash in
the
LCD, and the remote will return to the AUDIO mode.
B: Memory Buttons
There are five memory buttons (M1~M4, Power) that are
designed to store up to 15 commands in each button.
Pressing any one of the memory button will send out the
series of commands that are stored in the button.
You can either turn on or off up to eight devices by storing
Power on/off commands or use it to select the favorite
channels by storing channel numbers into the button. You
can also combine Power on/off, select favorite channel and
any of the features in the remote control to these buttons.
You can program any of the memory buttons (M1~M4,
Power) in AUD mode and it will send out the stored com-
mands in Audio, CD, DVD and AUX modes. You can also
program the memory buttons in SAT mode and it will
send out the stored commands in Satellite, TV, VCR and
CBL modes.
22
22
Advanced Features
POWER
MUTE
T/ V
VOLVOL CHCH
PAUSE
STOP
PLAY
SEL
F
.
F
R
E
W
GUIDE MENU
EXIT
PRE.
CH
123
456
789
0
+
10
SLEEP
PRO.L
3.CH
TESTSHIFT
FAV
INFO
NEXT
ALT
ENTER
PIP
TUNER CD TAPE1 TAPE2 PHONO
TV
VCR1 LDP AUXVCR2/SAT
M1 M2 M3 M4
LIGHT
HOME THEATER MASTER
LEARNING REMOTE CONTROL
AUD CD
DVD
AUX
CBL
VCR
TVSAT
POWER
MUTE
T/ V
VOL CH
PAUSE
STOP
PLAY
SEL
F
.
F
R
E
W
GUIDE MENU
EXIT
PRE.
CH
123
456
789
0
+
10
SLEEP
PRO.L
3.CH
TESTSHIFT
FAV
INFO
NEXT
ALT
ENTER
PIP
TUNER CD TAPE1 TAPE2 PHONO
TV
VCR1 LDP AUXVCR2/SAT
M1 M2 M3 M4
LIGHT
HOME THEATER MASTER
LEARNING REMOTE CONTROL
AUD CD
DVD
AUX
CBL
VCR
TVSAT
Power Button
POWER
MUTE
T/ V
VOL CH
PAUSE
STOP
PLAY
SEL
F
.
F
R
E
W
GUIDE MENU
EXIT
PRE.
CH
123
456
789
0
+
10
SLEEP
PRO.L
3.CH
TESTSHIFT
FAV
INFO
NEXT
ALT
ENTER
PIP
TUNER CD TAPE1 TAPE2 PHONO
TV
VCR1 LDP AUXVCR2/SAT
M1 M2 M3 M4
LIGHT
HOME THEATER MASTER
LEARNING REMOTE CONTROL
AUD CD
DVD
AUX
CBL
VCR
TVSAT
POWER
MUTE
T/ V
VOL CH
PAUSE
STOP
PLAY
SEL
F
.
F
R
E
W
GUIDE MENU
EXIT
PRE.
CH
123
456
789
0
+
10
SLEEP
PRO.L
3.CH
TESTSHIFT
FAV
INFO
NEXT
ALT
ENTER
PIP
TUNER CD TAPE1 TAPE2 PHONO
TV
VCR1 LDP AUXVCR2/SAT
M1 M2 M3 M4
LIGHT
HOME THEATER MASTER
LEARNING REMOTE CONTROL
AUD CD
DVD
AUX
CBL
VCR
TVSAT
M1~M4 Buttons
Memory Buttons
•Macro Commands:
Memory Buttons can store and emit up 15 commands
including multiple Power On/Off sequences.
Note: The MUTE buttons is used to designate POWER com-
mands during Memory Button programming. See the Example:
Memory Button Programming for further description.
•Favorite Channels:
Memory Buttons can provide direct access to your chan-
nels with one button push.
23
23
Advanced Features
Example: In the Audio mode, the POWER Memory Button
can be programmed to turn on the TV, turn on the Audio
receiver, turn on the VCR and turn on the Satellite receiver
with one button push.
Example: In the SAT device mode each of the Memory
Buttons M1, M2, M3, M4 can provide direct access to a
different satellite channel by sending out the three digit
channel number for that channel to your satellite receiv-
er with one button push.
Programming Memory Buttons:
1Select the section that you wish to program the Memory
Button in by pressing the corresponding Device Button
(AUD, or SAT) and MUTE button, simultaneously. SET
will appear in the LCD.
2Press one of the Memory Buttons (M1, M2, M3, M4, or
POWER) into which you wish to store the functions.
M(1-5)_# # will appear in the LCD.
3Press in up to fifteen commands that you want stored in
that Memory button. Each successive button selection
will appear as M(1-5)__(01-15) in the LCD.
You can select functions from another mode by first
pressing the corresponding Device Button and then the
buttons where those functions are located in that mode.
The pressing a Device Button also counts as one com-
mand.
Note: Each insertion of a Device Button adds a 1/2 second
delay to the command sequence.
4Press the CHANNEL UP button to store your selections.
SAVE will flash three times in the LCD to confirm the
programming.
Note: It can take up to 15 seconds to send out 15
commands from a memory button. Please continue to point
the remote control at the device(s) until all the commands on the
Memory Button have been sent out. This will ensure that all the
commands are received by the device(s).
24
24
Advanced Features
Example: Memory Button Programming.
To program Memory Button M2 in the Audio mode to send
the following commands: turn on the Audio receiver, turn
on the TV, turn on the VCR, and turn on the satellite
receiver.
No IR commands are emitted during the second press of a
Device button
when the remote is in the Automatic Audio
mode. Pressing the
Device button
again will return the
remote to the Main Device Mode.
To Delete the Automatic Audio for a
Device mode:
1Press and hold the AUDIO Device button and the LIGHT
button simultaneously. A_SET will appear in the LCD.
2Press the Device button corresponding to the Device mode
to be deleted for Automatic Audio. E.g. VCR, CD etc.
A_OFF will appear in the LCD indicating the deleted
status of the automatic Audio mode for the Device mode.
3Press the ENTER button to store the programming.
SAVE will flash in the LCD and then return to AUDIO.
To Return to Automatic Audio for a
Device mode:
1Press and hold the AUDIO Device button and the LIGHT
button simultaneously. A_SET will appear in the LCD.
2Press the Device button corresponding to the Device mode
to be added for Automatic Audio. E.g. VCR, CD etc.
A_ON will appear in the LCD indicating the active
status of the Automatic Audio mode for the Device mode.
3Press ENTER to store the programming. SAVE will flash
in the LCD and then return to AUDIO.
Backlighting
All the buttons and the LCD on the
SL-8000
are back-lit
for 7
seconds when the LIGHT button is pressed. The back-
light is extended
an additional 7 seconds with any button
press while the backlight is on.
16
16
Using Y
Using Your Remote
our Remote
Manufacturer/Brand Set-Up Code Number
3M 152
AIWA 015 071 100 114 164
ARCHER 155
AUTON 191
CARVER 006 008 027 024 036
DENON 105 227 229
DMX 156
DRAPER SCREEN 204
DWIN 080
EVERQUEST 206
EXTRON 151
FAROUDJA 184
FISHER 064
FUJI 209
GOLDSTAR 011
HARMAN KARDON 233
JERROLD 153
JVC 106 116 239 240 185
KENWOOD 005 013 023 026 064 145 146 181 190 185
LINN 124
LITE-TECH 208
LUTRON 158 159 077
LUXMAN 035 137 139
MAGNAVOX 027
MAKITA 186 201
MARANTZ 014 027 056 065 087
MCINTOSH 238
MINDPATH 205
MITSUBISHI 242 243
NAD 029 048
NAKAMICHI 244 245 025
NILES 160 187
NSM 161
ONKYO 002 012 016 017 018 019 115
OPTIMUS 026 054 055
PANASONIC 007 010 032 088 195
PHILIPS 027 087
PIONEER 003 039 047 050 066 098 222
POLKAUDIO 162
QUASAR 007 088
REPLAY 075
49
Set-Up Code Tables
AUX
Manufacturer/Brand Set-Up Code Number
REGAL 049 050
REGENCY 057
SAMSUNG 030
SCIENTIFIC ATLANTA
003 011 041 042 043 045 046
SIGNAL 030
SIGNATURE 103
SL MARX 030
SONY 096
SPRUCER 047 078
STARCOM 002 004 008 009
STARGATE 008 030 097 104
TADIRAN 030
TOCOM 039 040 056
TOSHIBA 052
UNIKA 007 014
UNITED CABLE 004 053
UNIVERSAL 005 007 014 032 035
VIEWSTAR 012 015 018 086 087 088 089
ZENITH 052 060 093 100
45
Set-Up Code Tables
Cable
Manufacturer/Brand Set-Up Code Number
ABC 103 003 004 039 042 046 053
AMERICAST 099
ANTRONIX 014
ARCHER 005 007 014
BELL SOUTH 099
CENTURION 092
CENTURY 007
CITIZEN 007
COMBANO 080 081
COMSAT 074
COMTRONICS 030
DIGICABLE 101
EAGLE 020 030 040
EASTERN 057 066
ECHOSTAR 106
ELECTRICORD 032
GEMINI 008 054
GENERAL ELECTRIC 072
GENERAL INSTRUMENT
103 074 104
GNC 099
GOLDEN CHANNEL 030
HAMLIN 049 050 055
HITACHI 103 055
JERROLD 103 002 003 004 008 009 010 069 074
MAGNAVOX 010 012 064 079 095 094
MEMOREX 052
MITSUBISHI 102
M-NET 037
MOVIE TIME 028 032
NOVAPLEX 092
NSC 015 028 038 071
OAK 031 037 053
PANASONIC 044 047
PARAGON 052
PHILIPS 006 012 013 020 085 095
PIONEER 103 034 051 063 076 105
PRUCER 059
PTS 011 071 074
PULSAR 052
RCA 047
RECOTON 098
44
Set-Up Code Tables
Cable
Manufacturer/Brand Set-Up Code Number
THOMAS 034
TMK 006
TOSHIBA 008 013 042 047 059 079 082 112 131 081
TOTEVISION 040 101
UNITECH 040
VECTOR RESEARCH 012
VICTOR 048
VIDEO CONCEPTS 012 034 046 141
VIDEOSONIC 040
WARDS 003 013 017 024 031 034 040 053 054 131
YAMAHA 012 034 039 043
ZENITH 034 048 056 058 072 080 101
43
Set-Up Code Tables
VCR
Manufacturer/Brand Set-Up Code Number
MITSUBISHI 013 020 045 046 051 059 061 142 151 049
MTC 034 040
MULTITECH 024 034
NEC 012 023 039 043 048
NORDMENDE 043
OPTONICA 053 054
ORION 025
PANASONIC 066 070 083 133 140 145 157 163 074
PENTAX 013 020 031 063
PHILCO 031 034 067
PHILIPS 031 034 054 067 071 101
PILOT 101
PIONEER 013 021 048
PORTLAND 108
PULSAR 072
QUARTZ 002 014
QUASAR 066 145 075
RADIO SHACK 123
RCA 013 020 041 107 109 140 144 145 147 034 040 158
REALISTIC 003 008 010 014 031 034 040 053 054 101
RICO 058
RUNCO 148
SALORA 014
SAMSUNG 032 040 066 102 104 107 109 112 113 115 120 122 125
SANSUI 022 043 048 135
SANYO 003 007 010 014 134 102
SCOTT 017 037 112 129 131
SEARS 003 008 009 010 013 014 081 101 017 073 112
SHARP 031 054 149 159 165
SHINTOM 024
SIGNATURE 034
SONY 003 031 052 056 057 058 076 077 078 149 154
SOUNDESIGN 034
STS 013
SYLVANIA 031 034 059 067
SYMPHONIC 034
TANDY 010 034
TATUNG 039 043
TEAC 034 039 043
TECHNICS 031 070
TEKNIKA 019 031 034 101
42
Set-Up Code Tables
VCR
Manufacturer/Brand Set-Up Code Number
AIWA 034 161
AKAI 016 043 046 124 125 142 146
AMPRO 072
ANAM 031
AUDIO DYNAMICS 012 023 039 043
BROOKSONIC 035 037 129
CANON 028 031
CAPEHART 108
CRAIG 003 040 135
CURTIS MATHES 031 041
DAEWOO 005 007 010 065 108 110 111 112 116 117 119
DAYTRON 108
DBX 012 023 039 043
DYNATECH 034 053
ELECTROHOME 059
EMERSON 006 017 025 027 029 031 034 035 036 037 046 101 129
131 138 153 162 116
FISHER 003 008 009 010
FUNAI 034
GE 031 063 072 107 109 144 147
GO VIDEO 132 136 155 040 115
GOLDSTAR 012 013 020 101 106 114 123
HARMAN KARDON 012 045
HITACHI 004 018 026 034 043 063 137 150 160 013
INSTANTREPLAY 031
JCL 031
JCPENNY 012 013 015 040 066 101
JENSEN 043
JVC 012 031 043 048 050 055 060 130 150 152
KENWOOD 014 048 034 047
LLOYD 034
LXI 003 009 017 034 106
MAGIN 040
MAGNAVOX 031 034 041 067 068 156 164
MARANTZ 012 031 067 069
MARTA 101
MATSUI 027 030
MEI 031
MEMOREX 003 010 014 031 034 053 072 101 102 134 139
MGA 045 046 059
MINOLTA 013 020
41
Set-Up Code Tables
VCR
Manufacturer/Brand Set-Up Code Number
SAMPO 197 058 004
SAMSUNG 004 050 089 101 105 127 143 160
SANYO 166 007 020 053 057 082 187
SCOTT 004 028 043 048 143
SEARS 015 030 004 007 028 057 143 094 160 082 165 166
SELECO 189
SHARP 170 081 019 028 029 014 004 022 143 175
SIEMENS 088
SIGNATURE 072
SONY 070 085 139 147 126 185 194
SOUNDESIGN 004 028 003 043
SPECTRICON 112
SSS 004 043
SUPRE MACY 002
SYLVANIA 197 003 059 060 063 064 164 044 160 127
TANDY 081
TATUNG 056 062
TECHNICS 034 080
TECHWOOD 004
TEKNIKA 002 003 004 024 028 043 072 101 143
TELEFUNKEN 037 046 086 087
TELERENT 072
TERA 172
TMK 004
TOSHIBA 007 015 030 040 062 101 138
TOTEVISION 143
UNIVERSAL 008 009
VIDEO CONCEPTS 146
VIDIKRON 174 184 188 192
VIDTECH 004
WARDS 004 008 009 019 028 060 061 063 064 072 074 143 164
034
WESTING HOUSE 076
YAMAHA 197 004
YORK 004
YUPITERU 043
ZENITH 072 073 095 103 157
ZONDA 112
40
Set-Up Code Tables
TV
Manufacturer/Brand Set-Up Code Number
JCPENNY 197 004 008 009 024 030 065 101 143 156 160
JENSEN 013
JVC 034 038 070 083 145 199
KEC 043
KENWOOD 197 070
KLOSS 002 059
KMC 143
KTV 197 043 143 154
LODGENET 072
LOGIK 072
LUXMAN 004
LXI 166 007 015 052 081 160 164
MAGNAVOX 197 003 004 022 059 060 061 063 064 127 160 164 094
MARANTZ 197 164
MATSUI 164
MEMOREX 007 072 004
METZ 088
MGA 197 004 024 028 042
MINERVA 088
MITSUBISHI 004 024 028 040 042 109 124 146 191
MTC 197 004 062 101
NAD 015 025
NEC 132 130 134 197 040 016 024 056 019
NIKEI 043
ONKING 043
ONWA 043
OPTONICA 019 081
ORION 096
PANASONIC 034 056 080 092 164
PHILCO 197 003 024 056 059 060 063 064 164 004
PHILIPS 197 003 004 005 038 059 093 164 127
PIONEER 197 018 023 025 116 135 190
PORTLAND 004 143
PROSCAN 144 160 161 165 167
PROTON 004 058 131 143 171 173 193
QUASAR 034 056 092
RADIO SHACK 019 043 143 004 127
RCA 160 161 165 065 156 144 197 004 023 024 056 074 152
REALISTIC 007 019 043 047
ROCTEC 186
RUNCO 168 169 178 179 180 181 182 183
39
Set-Up Code Tables
TV
Manufacturer/Brand Set-Up Code Number
38
Set-Up Code Tables
TV
ADMIRAL 072 081 161 160
AKAI 197 146
AMARK 112 143
AMPRO 073 167
AMSTRAD 052
ANAM 043 054 056 080 112 131
AOC 197 004 112 058
AUDIOVOX 076
BLAUPUNKT 088
CANDLE 197 002 003 004
CAPEHART 058
CETRONIC 043
CITIZEN 197 002 003 004 043 101 103 143
CLASSIC 043
CONCERTO 004
CONTEC 043 050 051
CORONADO 143
CRAIG 043 054
CROWN 043 143
CURTIS MATHES 197 101 004 143
CXC 043
DAEWOO 004 016 043 044 076 103 114 125 127 143
DAYTRON 004 143
DWIN 177
DYNASTY 043
DYNATECH 062
EIKI 187
ELECTROHOME 024 076 143 196
EMERSON 197 004 005 028 043 047 048 050 051 076 096 143 151
153 154 155
FISHER 007 057
FUJITSU 198
FUNAI 028 043
FUTURETECH 043
GE 197 008 009 034 056 073 074 130 144 155 160 161 165
004 091
GOLDSTAR 004 102 106 112 113 116 119 127 143
HALL MARK 004
HITACHI 004 009 010 011 012 023 075 143 158 163 166 072
INFINITY 164
JBL 164
Manufacturer/Brand Set-Up Code Number
PROSAT 072
PROSCAN 151 106 150
RCA 151 106 150
REALISTIC 043 074
SAMSUNG 123
SATELLITE SERVICE 028 035 047 085
SONY 103
STARCAST 041
SUPERGUIDE 020 124 125
TEECOM 023 026 075 087 088 090 107 130 137
TOSHIBA 002 127
TOWN & COUNTRY 023 026
UNIDEN 016 025 042 043 044 045 048 049 078 079 080 086 101
135 136
VIEWSTAR 115
WINEGARD 128 146
ZENITH 081 082 083 084 091 120
37
Set-Up Code Tables
Satellite
Manufacturer/Brand Set-Up Code Number
ALPHASTAR 123
AMPLICA 050
BIRDVIEW 129 113 051 126
BSR 053
CAPETRONICS 053
CHANNEL MASTER 013 014 015 018 036 055
CHAPARRAL 008 009 012 077
CITOH 054
CURTIS MATHES 050
DRAKE 005 006 007 010 011 112 116 141 052
DX ANTENNA 024 046 056 076
ECHOSTAR 038 040 057 058 093 094 095 096 097 098 099 100 122
ELECTROHOME 089
EUROSAT 114
FUJITSU 017 021 022 027 133 134
GENERAL ELECTRIC 151 106 150
GENERAL INSTRUMENT
003 004 016 029 031 059 101 148
HITACHI 139 140
HOME CABLE 080 044 029
HOUSTON TRACKER 033 037 039 104 057 051
HUGHES 068
HYTEK 053
HYUNDAI 149
ICR 023
JANIEL 060 147
KATHREIN 108
LEGEND 057
LUTRON 132
LUXOR 144 062
MACOM 010 059 063 064 065
MEMOREX 057
NEXTWAVE 028 124 125
NORSAT 069 070
PACE 143
PANASONIC 142 060
PANSAT 121
PERSONAL CABLE 117
PHILIPS 071
PL 023 026
PRESIDENT 019 102
PRIMESTAR 110 030
36
Set-Up Code Tables
Satellite
Manufacturer/Brand Set-Up Code Number
33
Set-Up Code Tables
Audio
ADC 007
ADCOM 082 092 225 161 269
AIWA 018 104 170 202 203 213 211 188
AKAI 138 189
AMC 125 126 127 128 258
AMEND 054
AMX 196
ANGSTROM 142
ARCAM 141
AUDIO ACCESS 147
AUDIO ALCHEMY 135
AUDIO DESIGN 194 221 011
AUDIO EASE 021 196 207
AUDIO FILE 071
AUDIO MATRIX 167
AUDIO SOURCE 273
AUDIO TECHNICA 134
B & K 096 097
BOSE 070 170 224
BRYSTON 023
CARVER 006 028 061 071 201 214 226 180 185 022 029 077
CASIO 076
CHIRO 140
CINEMA SOUND 034 134
CITATION 148 272
CLARION 026
CURTIS MATHES 076
DENON 002 034 109 215 229 230 027 037 234 259
EIGER 149
ELAN 057
ENLIGHTENED AUDIO 099 098
FISHER 047 214 180 182
FOSGATE 062 231
GE 056 260
GOLDSTAR 008
HAFLER 174
HARMAN KARDON 231 233 254 153 154 118 121 227
HITACHI 020
INKEL 197
JBL 263
JCPENNY 076 216
Manufacturer/Brand Set-Up Code Number
34
Set-Up Code Tables
Audio
JEFF ROWLAND 206
JENSEN 058
JVC 240 163 191 114 266
KENWOOD 026 066 145 146 181 190 197 192 182 199 151 222 180
005
KINERGETICS 220
KOSS 216
KRELL 150 072
KYOCERA 007
LEXICON 120 235 236 237
LINN 124
LUXMAN 137 139 052 165 115 004 009
LXI 076 056
MAGNAVOX 086 164 152 208
MARANTZ 006 028 031 040 063 185 186 251 265
MCINTOSH 238
MCS 076
MERIDIAN 100 012 013
MITSUBISHI 242 243 204
MONDIAL 157 158 042 043 081 112
NAD 186 113
NAKAMICHI 111 244 245 172 183
NEC 176
ONKYO 017 046 064 107 108 187 079 080 090 179 209 270
OPTIMUS 026 041 138
PANASONIC 032 195 219 177
PARASOUND 129 130 132 261
PHAST 196
PHILIPS 249 250 251 063
PIONEER 014 033 039 044 045 050 069 159 168 116 035 078 198
PROCEED 144 268
RCA 010 048 117 156 067
REALISTIC 019 056 073 075 095
REVOX 162
ROTEL 074 083 085
SAMSUNG 016
SANSUI 040 048 110 119 065 228
SANYO 047 059
SCOTT 019 091
SEARS 076
SHARP 026 094 131 175 181
Manufacturer/Brand Set-Up Code Number
46
Set-Up Code Tables
CD
ADCOM 062 042
AIWA 059 065 088 089 105 122 170 187
AKAI 085 195 202
AMC 231 232
AMEND 118
ARCAM 238
AUDIO ACCESS 119 147
AUDIO EASE 165
AUDIO TECHNICA 046
BSR 037 057
CALIFORNIA AUDIO 103 008
CAPETRONIC 063
CARRERA 057 080
CARVER 185 041 044 050 086 107 130 134 135 138 139 203 204
167
CASIO 111 182
CLARINETTE 182
CREEK 159
CROWN 035
DENON 002 123
EMERSON 042 069 102
FISHER 050 185 134 008
FRABA 111
GENEXXA 010 069 102
GOLDSTAR 080
HAITAI 093
HARMAN KARDON 018 033 047 208
HITACHI 042 175
INKEL 130 143 144
JC PENNY 014 061 092 141
JENSEN 158
JVC 004 022 136 163 213 214 242
KENWOOD 185 007 023 055 071 072 142 137
KOSS 061
KRELL 241
KYOCERA 005
LOTTE 102
LUXMAN 011 028 070 076
LXI 059
MAGNAVOX 044 107
MARANTZ 027 041 044 051 077 107 209
MCINTOSH 212
MCS 014 073 092
MEMOREX 010
MISSION 044 107
MITSUBISHI 179
Manufacturer/Brand Set-Up Code Number
47
Set-Up Code Tables
CD
MITSUMI 153
MODULAIRE 182
MONDIAL 147
NAD 006 005 067 178
NAKAMICHI 217 218 219 095
NEC 014 062
NIKKO 046
NSM 044 107
ONKYO 030 038 039 168 169
OPTIMUS 010 050 057 058 081 082 083 085 093 195
PANASONIC 103 201 172 008 068
PARASOUND 233
PHILIPS 041 044
PIONEER 010 020 025 056 174 175 176
PROCEED 239
PROTON 044 107 228
QUASAR 103 008
RADIO SHACK 182
RCA 017 042 150
REALISTIC 042 050 051 102 181 182 187
ROTEL 044 107 161 178
SAE 044 107
SANSUI 044 069 107 128 171 190 125
SANYO 050
SCOTT 069 102
SHARP 026 031 051 066
SHERWOOD 003 019 051 096 112 115 119 166
SIGNATURE 033
SONY 048 081 097 126 133 177 225 226 164
SOUNDESIGN 251
SUMO 155
SYLVANIA 044 107
SYMPHONIC 052 181
TAEKWANG 195 085
TANDY 010
TEAC 015 034 036 051 052 101 131 140 079
TECHNICS 060 103 200 172 184 008 068
TECHWOOD 076
THETA DIGITAL 234 235
TOSHIBA 006 067 091 160 148
VECTOR RESEARCH 080
VICTOR 004 022 114 124
WARDS 185 033
YAMAHA 024 046 054 186 183
YORX 182
Manufacturer/Brand Set-Up Code Number
50
Set-Up Code Tables
AUX
RUSSOUND 081
SANSUI 027 113 119 224
SCIENTIFIC ATLANTA 163 156
SHARP 026 057 131 175 181
SHERWOOD 038 004 028 030 033 034
SIMA 082
SOLO ELECTRONICS 207
SOMFY 078 079
SONY 020 022 052 084 089 164 165 166
STARCOM 153
TEAC 009 059 212
TECHNICS 007 010 076 088 109 122 193
TOSHIBA 112
TURBOSCAN 167
VELODYNE 203
VICTOR 106
X-10 183
XANTECH 168 169 170 171 172 188 189
YAMAHA 021 026 031 067
Manufacturer/Brand Set-Up Code Number
48
Set-Up Code Tables
DVD
DENON 007 206 207 080
FUNAI 120
GE 026 027
GOLDSTAR 057
JVC 012
KENWOOD 152 013
MAGNAVOX 066 032 121
MARANTZ 211
MITSUBISHI 017 121
NAD 121
ONKYO 076 035
OPTIMUS 049 013
PANASONIC 021 113 042
PHILIPS 066 032
PIONEER 023 106 117 121
PROSCAN 026 027
RADIO SHACK 120
RCA 026 027 002
REALISTIC 049
RUNCO 127
SAMSUNG 056 070
SANYO 075
SHARP 152 013
SONY 033 053 110
TECHNICS 113
THETA DIGITAL 032
THOMPSON 026 027
TOSHIBA 035 152 106
YAMAHA 042 129 043
ZENITH 057 074
Manufacturer/Brand Set-Up Code Number
35
Set-Up Code Tables
Audio
SHERWOOD 024 038 055 102 103 105 106 051 030
SONY 018 093 223 247 248 160 166 015 101 184 218 271
SOUNDESIGN 036
SOUNDSTREAM 084 088
SSI 068
SUMO 171
TAEKWANG 138
TEAC 005 019 049 111 212 217
TECHNICS 122 176 193 219 178 177 200 257 262
THETA DIGITAL 136
TOSHIBA 060 087 198
WARDS 180
YAMAHA 026 253 169 067 173 205 264 232 089 264
ZENITH 143 210
OEE-0031V
Rev. 1

Navigation menu
