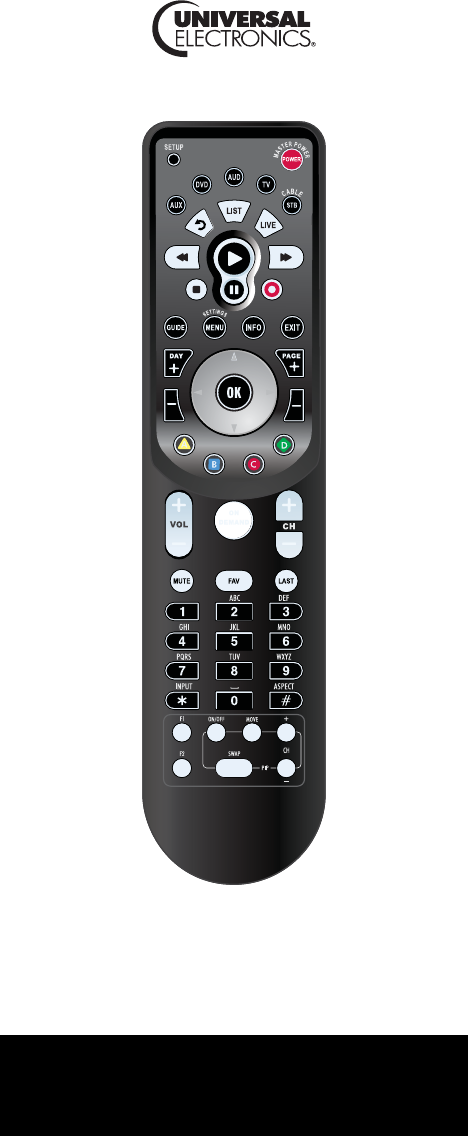

Titan Remote Control
Users Guide
Pour les instructions en français, veuillez
consulter www.urcsupport.com
Para instrucciones en español, por favor
consulte www.urcsupport.com
PREPROGRAMMED FOR YOUR SET-TOP BOX
Titan OCAP Remote Control.fm Page 1 Tuesday, May 27, 2008 1:55 PM
![](asset-2.png)
www.urcsupport.com
2
TABLE OF CONTENTS
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Features and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Key Charts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Basic Setup: Programming Device Control . . . . . . . . . . . . . . . . . . . . 8
Searching for Your Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Checking the Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Using Learning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Learning Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Programming a Learned Key . . . . . . . . . . . . . . . . . . . . . . . . . 12
Deleting a Single Learning Key. . . . . . . . . . . . . . . . . . . . . . . . 13
Deleting All Learned Keys in a Specific Mode . . . . . . . . . . . . 13
Programming Channel Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Locking All Channel Control to One Device . . . . . . . . . . . . . . 15
Locking Channel Control for Specific Device Modes. . . . . . . 16
Unlocking Channel Control. . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Programming Macro Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Programming a Macro Key. . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Clearing a Macro Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Using the Master Power Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Programming the Master Power Key . . . . . . . . . . . . . . . . . . . 19
Using the Master Power Key. . . . . . . . . . . . . . . . . . . . . . . . . . 20
Clearing the Master Power Key . . . . . . . . . . . . . . . . . . . . . . . 20
Clearing Custom Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Re-Programming Set-Top Box Control . . . . . . . . . . . . . . . . . . . . . . . 22
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
FCC Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Manufacturer’s Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Setup Codes for Audio Amplifiers. . . . . . . . . . . . . . . . . . . . . . 25
Setup Codes for Audio Receivers. . . . . . . . . . . . . . . . . . . . . . 25
Setup Codes for Audio Accessories . . . . . . . . . . . . . . . . . . . . 28
Setup Codes for Cable Boxes/Converters . . . . . . . . . . . . . . . 28
Setup Codes for DVD Players . . . . . . . . . . . . . . . . . . . . . . . . . 29
Setup Codes for DVR/PVR. . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Setup Codes for Satellite Set-Top Boxes . . . . . . . . . . . . . . . . 34
Setup Codes for TVs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Setup Codes for TVs (LCD) . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Setup Codes for TVs (Plasma) . . . . . . . . . . . . . . . . . . . . . . . . 45
Setup Codes for TV/DVD Combos . . . . . . . . . . . . . . . . . . . . . . 46
Setup Codes for TV/VCR Combos . . . . . . . . . . . . . . . . . . . . . . 48
Setup Codes for VCRs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Setup Codes for Video Accessories . . . . . . . . . . . . . . . . . . . . 53
Titan OCAP Remote Control.fm Page 2 Tuesday, May 27, 2008 1:55 PM
![](asset-3.png)
www.urcsupport.com
3
FEATURES
Control Your Home Theater Equipment
The Titan universal remote control comes pre-
programmed to operate the set-top box that is supplied
by your service provider. In addition, Titan can be
programmed to control 4 additional home theater
equipment devices.
Learning
If you would like to add certain control functions to
Titan that exist on another remote control, you can copy
those functions from the original remote to Titan by
following the steps in the LEARNING section of this
Users Guide.
Backlighting
The Titan universal remote control includes a keypad
backlight. This allows for easy key navigation in dark
ambient light conditions. If you wish to disable this
feature, please refer to the BACKLIGHTING section of
this Users Guide.
Volume Lock
You can use the Titan remote control to control your
home theater volume through one designated device,
regardless of the operating mode of the remote. The
default setting for VOLUME LOCK is for the remote to
use the TV to control volume and mute functions.
Channel Lock
You can use the Titan remote control to control your
home theater channel changing through one designated
device, regardless of the operating mode of the remote.
The default setting for Channel Lock is for the STB that
is supplied by your service provider to be used for
channel changing.
Macros
Titan supports the creation of macros, which allow you
to record a sequence of key-presses and store them on
one key. Once a macro is recorded, anytime that key is
pressed, the remote will send out the whole series of
key-press commands relating to the macro. Example:
Once key-press could turn TV on, turn DVD on, turn
audio receiver on, and put receiver in DVD input mode
so your home theater is ready for DVD viewing.
Master Power Macro
The Master Power Macro is a special feature that can be
enabled so that Titan remote control can turn all of your
home theater devices ON or OFF with a single key-press.
Refer to the MASTER POWER MACRO section of the
users guide for instructions to enable this feature.
Titan OCAP Remote Control.fm Page 3 Tuesday, May 27, 2008 1:55 PM
![](asset-4.png)
www.urcsupport.com
4
FEATURES AND FUNCTIONS

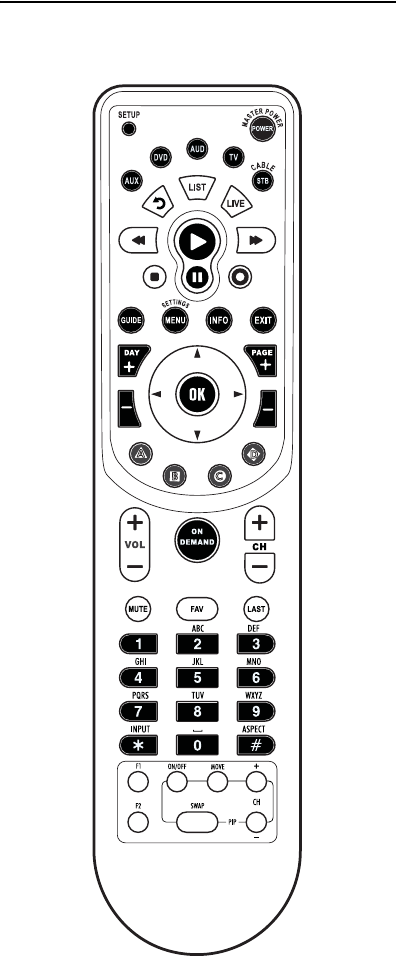

Use the illustration below to locate features on the Titan
Remote Control and then study the Key Charts (on the
next three pages) to learn how they function.
Titan OCAP Remote Control.fm Page 4 Tuesday, May 27, 2008 1:55 PM
![](asset-5.png)
www.urcsupport.com
5
Key Charts
Key Function
Use SETUP for all programming
sequences.
Press POWER once to turn on or off a
home theater device. For MASTER
POWER control, see “Using the Master
Power Key” on page 19.
Press AUX, DVD, AUD, TV, or STB once to
select a home entertainment device to
control. Each key has a red LED that
blinks each time a key is pressed to
indicate the current operating mode.
Press SKIP BACK to instantly replay the
last 7 seconds of the program you are
watching.
Press LIST once to display a list of
recorded programming on your
DVR/PVR.
Press LIVE to return to watching LIVE
TV.
Use these keys to control playback of
video or audio files relating to
DVR/PVR, DVD, VCR, or CD devices.
Use GUIDE to display the program guide
available from your service provider.
Use MENU to display the options menu
of the home theater device you are
controlling.
Use INFO to display the current channel
and program information.
Use EXIT to directly exit menus, guides,
and applications.
Use DAY+ (or DAY-) to move a day
forward (or back) on your program
guide.
Use the Cursor keys to move the cursor
in the program guide and menu screens
and to navigate within the interactive
service.
Use OK to choose options, PPV events,
and to tune to programs from the
program guide.
SETUP
Titan OCAP Remote Control.fm Page 5 Tuesday, May 27, 2008 1:55 PM
![](asset-6.png)
www.urcsupport.com
6
Use PAGE+ (or PAGE-) to page up (or
page down) through menu screens and
the program guide.
Use A, B, C, or D as shortcuts to access
additional features available honour
set-top box menu screens, program
guide, and interactive applications.
.
Use VOL+ (or VOL-) to raise (or lower)
the audio volume.
Press ON DEMAND for direct access to
On-Demand programming and other
interactive services.
Use CH+ (or CH-) to select the next
higher (or lower) channel.
For DVD players, use these keys to skip
forward (or reverse) through chapters.
For amplifiers/receivers, use these keys
to select the next higher (or lower)
preset station.
Press MUTE once to turn sound off;
press again to turn sound back on.
Use FAV to cycle through your favorite
channels stored on your service
provider’s set-top box.
Use the keypad numbers (1-9, and 0) to
directly tune channels (e.g., 09).
For amplifiers/receivers, use the keypad
numbers to select inputs 1 through 10.
In CBL mode, press INPUT to view other
video sources (A or B) instead of cable.
In all other modes, use INPUT to select
an input source for that device.
P
ress
ASPECT
once to
change the aspect
ratio (4:3 or 16:9) on your STB or TV.
These are macro keys that can be
customized by you or your service
provider.
Key Function
Titan OCAP Remote Control.fm Page 6 Tuesday, May 27, 2008 1:55 PM
![](asset-7.png)
www.urcsupport.com
7
INSTALLING BATTERIES
1. On the back of the remote control, press your
thumb on the indentation on the battery door
and slide the battery door off.
2. Locate the two (2) enclosed AA batteries.
Match the + and - marks with those in the
battery case, then insert them.
Use PIP ON/OFF to open or close PIP
window.
Use SWAP to swap the primary viewing
channel with the PIP channel. For a
DVR/PVR, SWAP can be used to switch
the active channel tuner.
U
se
MOVE
to
move the PIP window
location.
Press PIP+/PIP- to change the PIP
channel.
Key Function
2
1
3
Titan OCAP Remote Control.fm Page 7 Tuesday, May 27, 2008 1:55 PM
![](asset-8.png)
www.urcsupport.com
8
3. Slide the battery door back into place. It
should securely fasten to the remote.
NOTE: When batteries need replacement, the active
mode LED will blink 5 times upon each key-
press. Replace the batteries and the unit will
be restored to its full functionality, complete
with your favorite settings.
BASIC SETUP: PROGRAMMING DEVICE
CONTROL
The Titan universal remote control comes pre-
programmed to operate the set-top box that is supplied
by your service provider. In addition, Titan can be
programmed to control four (4) additional home theater
equipment devices.
NOTE: If you have another brand of set-top box that
you wish to control with the STB key, you'll
need to refer to “Re-Programming Set-Top
Box Control” on page 22 of this manual.
NOTE: Please read steps 2 through 5 completely
before proceeding. Highlight or write down
the codes and device you wish to program
before moving on to step 2.
1. Turn on all of the devices that you wish to
control.
4. Use the “Manufacturer’s Codes” starting on
page 25 to locate device type and brand name
for the device you wish to control. Enter the
first five-digit code for your device. If
performed correctly, the mode LED blinks
twice.
4. Test the remote control by pressing any mode
key (e.g., TV). If the batteries are inserted
correctly, the LED (red light) will blink once.
2. On the remote control, press the mode key
that you wish to program once (AUX, DVD,
AUD,or TV, ); it blinks once.
3. Press and hold SETUP until the mode LED
blinks twice.
SETUP
Titan OCAP Remote Control.fm Page 8 Tuesday, May 27, 2008 1:55 PM
![](asset-9.png)
www.urcsupport.com
9
NOTE: If the selected mode LED emits a long blink,
the entry is invalid. Repeat steps 2 through 4
and try entering the same code again.
NOTE: If the device does not have a POWER key, press
the(Play) key.
Repeat steps 2 through 5 for another mode
and/or key or press and hold SETUP to exit
programming. TV Code
Device Type:___________________
AUD Co de
Device Type:___________________
DVD Code
Device Type:___________________
AUX Co de
6. Device Type:___________________
SEARCHING FOR YOUR CODE
If your home entertainment device does not respond to
the Titan Remote Control after trying all of the codes
listed for your brand, or if your brand is not listed at all,
try searching for your code.
For example, to search for a code for your TV:
5. Aim the remote control at the device and
press POWER once. The device should turn
off. If it does not, repeat steps 2 through 3,
trying each code for your brand until you find
one that works. If it still does not respond, try
searching for the code (“Searching for Your
Code” starting on page 9).
Titan OCAP Remote Control.fm Page 9 Tuesday, May 27, 2008 1:55 PM
![](asset-a.png)
www.urcsupport.com
10
1. Turn on your TV.
4. Enter one of the following four digits:
8. To search for the codes of your other devices,
repeat steps 1 through 6, but substitute the
appropriate key (e.g., AUX, DVD, AUD, or STB)
for the device you are searching for.
2. On the remote control, press TV once; it blinks
once. Then press and hold SETUP until the TV
key blinks twice.
3. Enter 9 9 1. The TV key blinks twice.
COMPONENT TYPE COMPONENT ID #
Set-Top Boxes (Cable, Sat, etc.)
0
TV 1
DVD/VCR/DVR 2
Audio Devices 3
5. Aim the remote control at the TV and press
POWER once.
6. Press and release the CH+ key continuously,
then stop when the TV turns off.
NOTE: In the search mode, the remote control sends
IR codes from its library to the selected
device, starting with the most popular code
first.
7. Press POWER. The TV should turn on, then
press SETUP to lock in the code.
NOTE: If the TV does not turn on during step 6, then
slowly press and release CH- to go back
through the codes. Press SETUP when the TV
turns on.
SETUP
Titan OCAP Remote Control.fm Page 10 Tuesday, May 27, 2008 1:55 PM
![](asset-b.png)
www.urcsupport.com
11
CHECKING THE CODES
If you have programmed one of your Titan remote's
mode keys by searching for your device code (on the
previous page), you may need to find out which five-
digit code is operating your equipment.
F
or example, to find out which code is operating your TV
:
5. To check for other device codes, repeat steps 1
through 4, but substitute the appropriate key
(e.g., AUX, DVD, AUD, or STB) for the device
you are checking. Write down the codes in the
appropriate boxes on page 9.
USING LEARNING
The Titan Remote Control includes a Learning feature so
you can add functions that are unique to your home
entertainment devices (e.g.,VCR T
racking Up or Down).
However, there are some considerations
.
Learning Precautions
• Your original remote controls must be in working
order for learning to work properly.
• Learned keys are mode-specific, so each one can
store a unique function for each mode.
• Do not use the following keys for learning: Mode
Keys, SETUP, Record (•), Tune-In Keys.
1. On the remote control, press TV once; it blinks
once. Then press and hold SETUP until the TV
key blinks twice.
2. Enter 9 9 0. The TV key blinks twice.
3. To view the code for the first digit, press 1
once. Count the number of times the TV key
blinks (e.g., 3 blinks = 3) and write down the
number in the leftmost TV Code box on
page 9.
NOTE: If a code digit is 0, the selected mode key does
not blink.
4. Repeat step 3 four more times for the
remaining digits. Use 2 for the second digit, 3
for the third digit, 4 for the fourth digit, and 5
for the fifth digit. Finish writing down the
code in the TV Code boxes on page 9.
SETUP
Titan OCAP Remote Control.fm Page 11 Tuesday, May 27, 2008 1:55 PM
![](asset-c.png)
www.urcsupport.com
12
• Learning capacity is approximately 16 to 25 keys,
depending on the code being learned.
• Certain device functions are not learnable including
multi-frequency types, some high frequency ones,
and other unusual formats.
• For optimum learning, avoid high levels of ambient
light such as natural sunlight or energy-efficient
fluorescent lights.
NOTE: Please have your original remote controls
handy before programming learning.
Programming a Learned Key
NOTE: If more than 10 seconds pass between key
presses, the remote exits programming.
3. Place the Titan Remote Control head-to-head
(about 2" apart) from your original remote
control.
4. Press the key on your Titan remote control
that is supposed to learn the new code. The
mode LED begins blinking rapidly. On the
original remote, press and hold the key to be
learned. Continue holding the key on the
original remote until the Titan Remote
Control’s LED blinks twice.
NOTE: If the LED on the Titan remote displays one
long blink, a learning error has occurred. Try
repeating this step again until a successful
capture occurs. If the function is still not
captured, press and hold SETUP to exit pro-
gramming and review the “Learning Precau-
1. Press and hold SETUP until the last-selected
mode key blinks twice, then press 9 7 5.
NOTE: If the LED displays one long flash instead,
either your batteries are low, or the Titan
Remote Control has a memory fault.
2. Press a mode key once (i.e., AUX, DVD, AUD,
TV, or STB) to assign a mode for learning.
SETUP
2"
Titan OCAP Remote Control.fm Page 12 Tuesday, May 27, 2008 1:55 PM
![](asset-d.png)
www.urcsupport.com
13
tions” on the previous page. If needed, also
see “Troubleshooting” on page 23. After
review, start programming again at step 1.
Deleting a Single Learning Key
T
his process returns the key to its original programmin
g
for the mode you select. You can also delete learned
programming by teaching a different function to the key
(see “Programming a Learned Key” on page 12)
NOTE: If more than 10 seconds pass between key
presses, the remote exits programming.
3. Press the key containing the learned function
to be deleted twice. The mode LED blinks
once.
Deleting All Learned Keys in a Specific Mode
NOTE: If more than 10 seconds pass between key
presses, the remote exits programming.
5. Repeat steps 2 through 4 for another mode
and/or key or press and hold SETUP to exit
programming.
1. Press and hold SETUP until the last-selected
mode key blinks twice, then press 9 7 6.
2. Press a mode key once (i.e., AUX, DVD, AUD,
TV, or STB).
4. Repeat steps 2 through 3 for another key or
press and hold SETUP to exit programming.
1. Press and hold SETUP until the last-selected
mode key blinks twice, then press 9 7 6.
2. Press a mode key twice (i.e., AUX, DVD, AUD,
TV, or STB) to clear all the learned keys for that
mode. The LED blinks twice.
3. Repeat step 2 through 3 for another mode
and/or key or press and hold SETUP to exit
programming.
SETUP
SETUP
SETUP
SETUP
SETUP
Titan OCAP Remote Control.fm Page 13 Tuesday, May 27, 2008 1:55 PM
![](asset-e.png)
www.urcsupport.com
14
PROGRAMMING VOLUME LOCK
Volume Lock allows you to set your remote to direct all
volume commands to whichever home theater device
you designate as your audio source. By default, Global
(All) Volume Lock is set to TV, so you can control TV
volume while in any mode on your remote. You can also
perform Volume Lock on a selected device or set of
devices to set Volume Lock to function on some modes,
but not on others.
Locking All Volume Control to a Single Device
To change the Global Volume Lock setting from TV
(default) to another device, follow these steps:
Now pressing VOL+, VOL-,or MUTE controls only that
device's volume, regardless of operating mode.
Locking Volume Controls for Specific Device Modes
To set Volume Lock to occur for some device modes, but
not others, you must first follow the steps under
“Unlocking All Volume Locks” on page 15. Then
proceed to the steps below:
1. Press and hold SETUP until the mode LED
blinks twice.
2. Enter 9 9 3. The mode LED blinks twice.
3. Press VOL+ once. The mode LED blinks once.
4. Press the mode key for the device that you
wish volume functions to control. The mode
LED blinks twice.
1. Press the mode key for the device that you
wish volume functions to control.
2. On the remote control, press and hold SETUP
until the last-selected device key blinks twice.
3. Enter 9 9 3. The mode key LED blinks twice.
SETUP
SETUP
Titan OCAP Remote Control.fm Page 14 Tuesday, May 27, 2008 1:55 PM
![](asset-f.png)
www.urcsupport.com
15
Unlocking All Volume Locks
Performing these instructions sets independent volume
control for all programmed devices (e.g., when in DVD
mode, the VOL and MUTE keys send commands to the
DVD player).
PROGRAMMING CHANNEL LOCK
By default, the remote control’s channel-control
capabilities are locked to the set-top box supplied by
your service provider. The affected keys* are 1 through
0, CH+, CH-, and LAST. This will guarantee that you do
not inadvertently change a channel on your TV or VCR
while watching broadcast programming on your set-top
box. However, you can de-activate this feature to allow
full access to these keys to control the device associated
with the active mode.
Locking All Channel Control to One Device
To lock all channel-control functions to a specific device,
follow these steps:
4. Press each mode key that relates to the devices
that you do not use for volume control. These
will be the modes in which the volume
functions control the device related to the
mode key you pressed in step 1. Any mode
omitted from this step will have all volume
controls assigned to that mode's device.
5. Press SETUP to save. The mode LED blinks
twice.
1. 1.On the remote control, press and hold
SETUP until the mode key LED blinks twice.
2. Enter 9 9 3. The last-selected device key
blinks twice.
3. Press VOL- once. The mode LED blinks four
times. Now, volume functions are controlled
through whichever device mode is active on
the remote control.
1. Press and hold SETUP until the mode LED
blinks (e.g., TV) twice.
SETUP
SETUP
SETUP
Titan OCAP Remote Control.fm Page 15 Tuesday, May 27, 2008 1:55 PM
![](asset-10.png)
www.urcsupport.com
16
Now, regardless of what mode you select, the channel
keys will only change channels on the assigned device.
Locking Channel Control for Specific Device Modes
To set Channel Lock for some device modes, but not
others, you must first follow the steps under “Unlocking
Channel Control” on page 17. Then follow the steps
below:
1. Press the mode key that corresponds to the
device you wish with to command for
channel-changing functions. The mode LED
(e.g., TV) blinks once.
2. Enter 9 7 3. The mode LED (e.g., TV) blinks
twice.
3. Press CH+ once. The mode LED (e.g., TV)
blinks once.
4. Press the mode key for the device that you
want to use for channel-changing. The mode
LED blinks twice.
2. Press and hold SETUP until the mode LED
(e.g., TV) blinks twice.
3. Enter 9 7 3. The mode LED (e.g., TV) blinks
twice.
4. Press each mode key that you do not use for
channel-changing functions. These are the
modes in which the channel-changing
functions will control the device related to the
mode key you pressed in step 1. Any mode
omitted from this step has all channel controls
assigned to that mode's device.
5. Press SETUP to save. The mode LED blinks
twice.
SETUP
SETUP
Titan OCAP Remote Control.fm Page 16 Tuesday, May 27, 2008 1:55 PM
![](asset-11.png)
www.urcsupport.com
17
Unlocking Channel Control
To unlock Channel Lock and thus allow the channel
control functions to work with the device associated to
the active operating mode, follow these steps:
Now the channel functions correspond to the active
mode (e.g., press CH+ in TV mode and the TV changes
channel accordingly).
PROGRAMMING MACRO KEYS
The Titan Remote Control includes two macro keys (F1
and F2, located directly below the INPUT key at the
bottom of the remote). Macros allow you to record a
series of key-presses and have the whole series of
functions execute each time the related Macro key is
pressed. For example, you can set up a key macro to
power on your TV and DVD player, change inputs on the
TV, and go to the main menu on the DVD player all with
the touch of one macro key. Quite often, your service
provider will assign macros to these keys and will
provide tune-in labels that describe the assigned key
function.
If you want to change the macros stored in a previously-
programmed macro key, you'll need to clear the key first
(See “Clearing a Macro Key” on page 18.).
1. Press and hold SETUP until the mode LED
blinks twice.
2. Enter 9 7 3. The mode LED blinks twice.
3. Press CH- once. The mode LED blinks four
times.
SETUP
Titan OCAP Remote Control.fm Page 17 Tuesday, May 27, 2008 1:55 PM
![](asset-12.png)
www.urcsupport.com
18
Programming a Macro Key
3. Select a macro key (for example, F1) and
press it once. The mode LED blinks once.
NOTE: You can program up to 15 key presses into one
macro.
6. To add another macro, repeat steps 1 through
5 for the other macro key and the new key
sequence that you wish to assign to that
macro key.
NOTE: Programming more than five macros on the
same macro key overwrites previous settings.
Clearing a Macro Key
3. Press the macro key you want to clear once.
This macro key is now clear and ready for
reprogramming (see “Programming a Macro Key” on
1. On the remote control, press and hold SETUP
until the mode LED blinks twice.
2. Enter 9 9 5. The mode LED blinks twice.
4. Press the key sequence you want to program
into the macro. For example, to turn on your
TV and raise its volume, press TV, POWER,
VOL+, VOL+, VOL+....
5. Press and hold SETUP until it blinks twice.
Now the macro is saved to the assigned macro
key.
1. On the remote control, press and hold SETUP
until it blinks twice.
2. Enter 9 9 5. The mode LED blinks twice.
4. Press and hold SETUP until the mode LED
blinks twice.
SETUP
SETUP
SETUP
SETUP
Titan OCAP Remote Control.fm Page 18 Tuesday, May 27, 2008 1:55 PM
![](asset-13.png)
www.urcsupport.com
19
page 18). If desired, repeat these to clear another Tune-
In key.
USING THE MASTER POWER KEY
The Titan Remote Control has a unique feature that
allows you to sequentially turn up to five of your home
entertainment devices on or off with a single key press.
NOTE: MASTER POWER only works in the STB mode.
In any other mode, pressing MASTER POWER
once will turn the selected device on or off.
Programming the Master Power Key
7. Press another mode key (AUX, DVD, AUD, or
TV) to add that device to the Master Power
Macro.
1. Press the STB key.
2. Press and hold SETUP. The mode LED blinks
twice.
3. Enter 9 9 5. The mode LED blinks twice.
4. Press POWER once.
5. Press STB once.
6. Press POWER once.
8. Press POWER once.
9. Repeat steps 7 and 8 until you have added
each device you wish to be part of the Master
Power macro.
10. Press and hold SETUP until the mode LED
blinks twice.
SETUP
SETUP
Titan OCAP Remote Control.fm Page 19 Tuesday, May 27, 2008 1:55 PM
![](asset-14.png)
www.urcsupport.com
20
Using the Master Power Key
Clearing the Master Power Key
1. Press STB once.
2.
Press
POWER
. The remote sends a power
command to each device that was included in
the Master Power Macro.
1. On the remote control, press STB once.
2. Press and hold SETUP until the mode LED
blinks twice.
3. Enter 9 9 5. The mode LED blinks twice.
4. Press POWER once.
5. Press and hold SETUP until the mode LED
blinks twice.
SETUP
SETUP
Titan OCAP Remote Control.fm Page 20 Tuesday, May 27, 2008 1:55 PM
![](asset-15.png)
www.urcsupport.com
21
BACKLIGHTING
The Titan Remote Control is equipped with backlit keys
to make it easy to use in dark ambient lighting. By
default, Titan's backlighting is enabled to light after keys
are pressed (other than the OK key). You can disable the
backlighting by following the steps below:
Disabling Backlight
Enabling Backlight
CLEARING CUSTOM PROGRAMMING
If you have a problem with your remote, you may want
to clear its custom programming by resetting the
functions to their default setting.
IMPORTANT: Executing this program will erase all cus-
tom settings for Volume Lock, Channel Lock,
macros, and Learned Keys. However, your
device programming remains.
1. Press and hold SETUP until the mode LED
blinks twice.
2. Enter 9 7 2. The mode LED blinks four times.
3. Backlighting is now disabled.
1. Press and hold SETUP until the mode LED
blinks twice.
2. Enter 9 7 2. The mode LED blinks twice.
3. Backlighting is now enabled.
1. On the remote control, press and hold SETUP
until the mode LED blinks twice.
2. Enter 9 8 0. The mode LED blinks four times
and all custom programming is cleared.
SETUP
SETUP
SETUP
Titan OCAP Remote Control.fm Page 21 Tuesday, May 27, 2008 1:55 PM
![](asset-16.png)
www.urcsupport.com
22
RE-PROGRAMMING SET-TOP BOX CONTROL
The Titan Remote Control comes pre-programmed to
control the set-top box supplied by your service
provider. In addition, it is locked to prevent inadvertent
deletion or change of set-top box control. In the event
that you need to change the STB key to control a
different brand/model of set-top box, follow these steps:
1. Using the list of Manufacturer's Codes in the
back of this manual, locate the brand of set-
top box that you have and be prepared to enter
and test codes for step 5.
2. Press STB once. It blinks once.
3. Press and hold SETUP until the STB key blinks
twice
4. Enter 9 8 2. The STB key blinks four times.
5. Press and hold SETUP until the STB key blinks
twice.
6. Enter the first code for your brand and type of
set-top box. The mode LED blinks twice.
7. Test the code by pressing the POWER button
on the remote. If the set-top box responds,
you have the correct code and are finished.
8. If the remote cannot control the set-top box,
follow steps 5-8, trying each code for your
brand until the remote can control the set-top
box.
SETUP
SETUP
Titan OCAP Remote Control.fm Page 22 Tuesday, May 27, 2008 1:55 PM
![](asset-17.png)
www.urcsupport.com
23
TROUBLESHOOTING
PROBLEM: Device mode key does not blink when you
press a key.
SOLUTION: Replace the batteries with two (2) new AA
batteries (see “Installing Batteries” on page 7).
PROBLEM: Device key blinks when you press a key, but
home entertainment device does not respond.
SOLUTION: Make sure you are aiming the remote control
at your home entertainment device and that you are
within 15 feet of the device you are trying to control.
PROBLEM: The remote control does not control home
entertainment devices or commands are not performing
properly.
SOLUTION: Try all listed codes for the device brand
being set up. Make sure all devices can be operated with
an infrared remote control.
PROBLEM: PLAY and STOP keys do not work on a
Motorola DCT-2000 cable converter.
SOLUTION: Re-program the CBL key for cable code 0476
(see “Basic Setup: Programming Device Control” on
page 8).
PROBLEM: Tried Search Method and still could not find
a working code.
SOLUTION: Try the Search Method again after clearing
out the device key as follows:
a. Press and hold SETUP until device key blinks twice.
b. Enter 9 9 2.
c. Press and release the device key to be cleared twice.
PROBLEM: Remote control does not turn on Sony or
Sharp TV/VCR Combo.
SOLUTION: For power on, these products require
programming TV codes on the remote control. For Sony,
use TV code 0000 and VCR code 0032. For Sharp, use
TV code 0093 and VCR code 0048.
Titan OCAP Remote Control.fm Page 23 Tuesday, May 27, 2008 1:55 PM
![](asset-18.png)
www.urcsupport.com
24
FCC NOTICE
This equipment has been tested and found to comply
with the limits for a class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy
and if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
This equipment has been verified to comply with the
limits for a class B computing device, pursuant to FCC
Rules. In order to maintain compliance with FCC
regulations, shielded cables must be used with this
equipment. Operation with non-approved equipment or
unshielded cables is likely to result in interference to
radio and TV reception. The user is cautioned that
changes and modifications made to the equipment
without the approval of manufacturer could void the
user’s authority to operate this equipment.
ADDITIONAL INFORMATION
This product does not have any user-serviceable parts.
Opening the case, except for the battery cover, may cause
permanent damage to your Titan Remote Control.
• For help via the Internet, visit us at:
www.urcsupport.com
©Copyright 2006 by Universal Electronics Inc. No part of this
publication may be reproduced, transmitted, transcribed,
stored in any retrieval system, or translated to any language, in
any form or by any means, electronic, mechanical, magnetic,
optical, manual, or otherwise, without prior written
permission of Universal Electronics Inc.
M2056-C 5/08
Titan OCAP Remote Control.fm Page 24 Tuesday, May 27, 2008 1:55 PM
![](asset-19.png)
www.urcsupport.com
25
MANUFACTURER’S CODES
Setup Codes for Audio Amplifiers
Setup Codes for Audio Receivers
Bose 30674
Carver 30892
Durabrand 31561
GE 30078
Harman/Kardon 30892
JVC 30331
Left Coast 30892
Lenoxx 31561
Marantz 30892
McIntosh 30251
Optimus 30395, 30823
Philips 30892
Pioneer 30823
Polk Audio 30892
RCA 30823
Realistic 30395
Soundesign 30078
Victor 30331
Wards 30078
Yamaha 30354
ADC 30531
Aiwa 31405, 30189, 30121,
31243, 31388, 31641
Alco 31390
AMC 31077
Amphion Media Works 31563
AMW 31563
Anam 31609, 31074
Apex Digital 31257, 31430, 31774
Arcam 31189, 31212
Audio Control 31212
Audiotronic 31189
Audiovox 31390
B & K 30820
BK 30702
Titan OCAP Remote Control.fm Page 25 Tuesday, May 27, 2008 1:55 PM
![](asset-1a.png)
www.urcsupport.com
26
Bose 30639, 31253, 31629,
31841, 31933
Cambridge Soundworks 31370
Capetronic 30531
Carver 31189, 30189, 30121, 31289
Coby 31389
Daewoo 31250
Denon 31360, 30121, 31142,
31306, 32857
Fisher 31801
Garrard 30463
Harman/Kardon 30110, 30189, 30891,
31289, 31306, 32241
Hitachi 31273, 31801
Insignia 31030, 31077, 31893,
32169, 32175
Integra 31298, 31320, 31805
JBL 30110, 31306
JVC 31058, 30074, 31374,
31495, 31871
Kenwood 31313, 30186, 31670
KLH 31390, 31428
Koss 31366
LG 31293, 32197
Linn 30189
Magnavox 31189, 31269, 30189,
30391, 30531, 31514
Marantz 31189, 31269, 30189, 31289
McIntosh 31289
Micromega 31189
Mitsubishi 31393
Myryad 31189
NAD 30320
Nakamichi 31313
Norcent 31389
Nova 31389
Onkyo 30842, 31298, 31320,
31531, 31805, 31905
Optimus 31023, 30186, 30531,
30670, 31074
Oritron 31366
Titan OCAP Remote Control.fm Page 26 Tuesday, May 27, 2008 1:55 PM
![](asset-1b.png)
www.urcsupport.com
27
Panasonic 31308, 31518, 30367,
31288, 31316, 31548,
31633, 31763
Philips 31189, 31269, 30189,
30391, 31266
Pioneer 31023, 30014, 30150,
30244, 30531, 30630,
31123, 31384
Polaroid 31508
Polk Audio 30189, 31289
Proscan 31254
RCA 31023, 31609, 31254,
30531, 31074, 31123,
31390, 31511
Rio 31869
Rotel 30793
Samsung 31295
Sansui 31189, 30189
Sanyo 31251, 31469, 31801
Sharp 30186, 31286
Sharper Image 31556
Sherwood 30491, 30502, 31077,
31423, 31653, 31905, 32169
Sherwood Newcastle 32169
Sonic Blue 31869
Sony 31759, 31058, 31258,
30793, 31558, 31658,
31758, 31822, 31858
Soundesign 30670
Stereophonics 31023
Sunfire 31313
Teac 30463, 31074, 31390, 31528
Technics 31308, 31518, 31633
Thorens 31189
Toshiba 31123, 31788
Venturer 31390
Victor 30074
Wards 30189, 30014
Yamaha 30176, 30186, 30376,
31176, 31276, 31331,
31375, 31376, 31476,
31815, 32061
Zenith 30857, 31293
Titan OCAP Remote Control.fm Page 27 Tuesday, May 27, 2008 1:55 PM
![](asset-1c.png)
www.urcsupport.com
28
Setup Codes for Audio Accessories
Setup Codes for Cable Boxes/Converters
Accurian 31106
Altec Lansing 30607, 31056
Apple 31115
DLO 31155
GPX 32113
Griffin 31891
iDeck 31106
iHome 32152
iLive 32113
Monitor Audio 31106
ABC 00003, 00008
ADB 02586
Amino 01602, 01822
Cisco 01877, 00877
Comcast 01982
Digeo 01187
Director 00476
General Instrument 00476, 00810, 00276, 00003
GoldStar 00144
i3 Micro 01602
Jerrold 00476, 00810, 00276, 00003
Memorex 00000
Motorola 01376, 00476, 00810,
00276, 01187, 01106
Myrio 01602, 01822
Pace 01877, 00237, 00008
Panasonic 00000, 00107, 01982
Paragon 00000
Philips 01305, 00317
Pioneer 01877, 00877, 00144, 00533
Pulsar 00000
Quasar 00000
Runco 00000
Samsung 00144
Scientific Atlanta 01877, 00877, 00477, 00008
Sejin 01602
Sony 01006
Starcom 00003
Titan OCAP Remote Control.fm Page 28 Tuesday, May 27, 2008 1:55 PM
![](asset-1d.png)
www.urcsupport.com
29
Setup Codes for Cable/DVR/PVR Combos
Setup Codes for DVD Players
Supercable 00276
Torx 00003
Toshiba 00000
Zenith 00000, 00525
Amino 01822
Cisco 01877
Comcast 01982
Digeo 01187
General Instrument 00810
Jerrold 00810
Motorola 01376, 00810, 01187, 01106
Myrio 01822
Pace 01877, 00237
Panasonic 01982
Pioneer 01877
Scientific Atlanta 01877
Sony 01006
Supercable 00276
Accurian 20675
Advent 21016
Aiwa 20641
Akai 20695, 20899, 21089
Alco 20790
Allegro 20869
Amphion Media Works 20872
AMW 20872
Apex Digital 20672, 20794, 20796, 20797,
20830, 21004, 21056, 21061
Arrgo 21023
Aspire Digital 21168, 21407
Astar 21489, 21678
Audiovox 20790, 21121
B & K 20662
BBK 21224
Blue Parade 20571
Titan OCAP Remote Control.fm Page 29 Tuesday, May 27, 2008 1:55 PM
![](asset-1e.png)
www.urcsupport.com
30
Bose 22023
Broksonic 20695, 20868
California Audio Labs 20490
Cinea 20831
CineVision 20876, 20833, 20869
Citizen 20695, 21277
Coby 20778, 20852, 21086, 21107,
21177, 21351
Craig 20831
CyberHome 20816, 20874, 21023, 21024,
21129, 21502, 21537
D-Vision 21173
Daewoo 20784, 20705, 20833, 20869,
21169, 21172, 21234, 21242,
21443
Daytek 20872
Denon 20490, 20634
Desay 21407
DigitalMax 21738
Disney 20675, 21270
Durabrand 21127
DVD2000 20521
Emerson 20591, 20675, 20821, 21268
Enterprise 20591
ESA 20821, 21268, 21443
Fisher 20670
Funai 20675, 21268
Gateway 21158
GE 20522, 20815
Go Video 20744, 20715, 20741, 20783,
20833, 20869, 21075, 21099,
21144, 21148, 21158, 21304,
21443, 21730
GoldStar 20741
GPX 20769
Gradiente 20490
Grundig 20539
Harman/Kardon 20582, 20702
Hello Kitty 20831
Hitachi 20573, 20664, 21247
Hiteker 20672
Humax 21588
Titan OCAP Remote Control.fm Page 30 Tuesday, May 27, 2008 1:55 PM
![](asset-1f.png)
www.urcsupport.com
31
iLo 21348, 21472
Initial 21472
Insignia 21268
Integra 20571, 20627, 21769
JBL 20702
Jensen 21016
JSI 21423
JVC 20558, 20623, 20867, 21164,
21275, 21550, 21602
jWin 21049
Kawasaki 20790
Kenwood 20490, 20534
KLH 20790, 21149
Koss 21423
Lasonic 21173
Lecson 21533
Lenoxx 21127
LG 20591, 20741, 20869
LiteOn 21058, 21158, 21440, 21656,
21738
Loewe 20511
Magnavox 20503, 20539, 20646, 20675,
20821, 21268, 21354, 21472,
21506
Marantz 20539
McIntosh 21533, 21273
Memorex 20695, 20831, 21270
Microsoft 20522, 22083
Mintek 21472
Mitsubishi 21521, 20521
NAD 20741
NEC 20785
NexxTech 21402
Norcent 21003, 20872, 21107, 21265
Onkyo 20503, 20627, 21769
Oppo 20575, 21224
Panasonic 20503, 20490, 20632, 20703,
21362, 21462, 21490, 21641,
21762
Philco 20675
Titan OCAP Remote Control.fm Page 31 Tuesday, May 27, 2008 1:55 PM
![](asset-20.png)
www.urcsupport.com
32
Philips 20503, 20539, 22056, 20646,
20675, 20854, 21260, 21267,
21340, 21354, 22084
PianoDisc 21024
Pioneer 20525, 20571, 20142, 20631,
20632, 21460
Polaroid 21061, 21086
Polk Audio 20539
Presidian 20675, 21738
Prima 21016
Proceed 20672
Proscan 20522
ProVision 20778
RCA 20522, 20571, 20790, 20822,
21022, 21132, 21193, 21769
Rio 20869
RJTech 21360
Rotel 20623, 21178
Sampo 20698, 20752
Samsung 20490, 20573, 20744, 20199,
20899, 21075
Sansui 20695
Sanyo 20670, 20695, 20873
Sensory Science 21158
Sharp 20630, 20675, 20752, 21256,
22250
Sherwood 20633, 21043, 21889
Shinsonic 20533
Sonic Blue 20869, 21099
Sony 20533, 21533, 20864, 21033,
21070, 21431, 21516, 22043
Sungale 21074
Superscan 20821
SVA 20860, 21105
Sylvania 20675, 20821, 21268
Symphonic 20675, 20821, 21268
Teac 20790
Technics 20490, 20703
Theta Digital 20571
Tivo 21503, 21588
Toshiba 20503, 20695, 21045, 21154,
21503, 21588, 21769
Titan OCAP Remote Control.fm Page 32 Tuesday, May 27, 2008 1:55 PM
![](asset-21.png)
www.urcsupport.com
33
Setup Codes for DVR/PVR
Tredex 20803, 20804
Urban Concepts 20503
Venturer 20790
Vizio 21064, 21226
Vocopro 21360
Xbox 20522, 22083
Yamaha 20490, 20539, 20545
Yamakawa 20872
Zenith 20503, 20591, 20741, 20869
Zoece 21265
ABS 21972
Alienware 21972
CyberPower 21972
Dell 21972
DirecTV 20739
Gateway 21972
Go Video 20614
Hewlett Packard 21972
Howard Computers 21972
HP 21972
Hughes Network Systems 20739
Humax 20739
Hush 21972
iBUYPOWER 21972
Linksys 21972
Media Center PC 21972
Microsoft 21972
Mind 21972
Niveus Media 21972
Northgate 21972
Panasonic 20614, 20616
Philips 20739, 20618
Pioneer 21337
RCA 20880
ReplayTV 20614, 20616
Samsung 20739
Sonic Blue 20614, 20616
Sony 20636, 21972
Titan OCAP Remote Control.fm Page 33 Tuesday, May 27, 2008 1:55 PM
![](asset-22.png)
www.urcsupport.com
34
Setup Codes for Satellite Set-Top Boxes
Stack 9 21972
Systemax 21972
Tagar Systems 21972
Tivo 20739, 20618, 20636, 21337
Toshiba 21008, 21972, 21996
Touch 21972
Viewsonic 21972
Voodoo 21972
ZT Group 21972
Bell ExpressVu 00775
Chaparral 00216
DirecTV 01377, 00566, 00639,
01639, 01142, 00247,
00749, 01749, 01856,
01076, 01442, 01640
Dish Network System 00775, 01505, 01775
Dishpro 00775, 01505, 01775
Echostar 00775, 01505, 01775
Expressvu 00775, 01775
GE 00566
General Instrument 00869
GOI 00775, 01775
Hitachi 01250
HTS 00775, 01775
Hughes Network Systems 01142, 00749, 01749, 01442
Jerrold 00869
JVC 00775, 01775
Mitsubishi 00749
Motorola 00869
Next Level 00869
Panasonic 00247, 00701
Philips 01142, 00749, 01749,
01076, 01442
Proscan 00566
RadioShack 00869
RCA 00566
Samsung 01377, 01142, 01276, 01442
Sony 00639, 01639, 01640
Star Choice 00869
Titan OCAP Remote Control.fm Page 34 Tuesday, May 27, 2008 1:55 PM
![](asset-23.png)
www.urcsupport.com
35
Setup Codes for TVs
Tivo 01142, 01442
Toshiba 00749, 01749
UltimateTV 01640
Voom 00869
Zenith 01856
3M 11616
Accurian 11803
Action 10873
Admiral 10093, 10463
Advent 10761, 10783, 10815,
10817, 10842, 11933
Aiko 10092
Akai 10812, 11675, 10060,
10702, 10030, 10672,
11207, 11676, 11903, 11935
Alaron 10179
Albatron 10700, 10843
Ambassador 10177
America Action 10180
Anam 10180
AOC 10030, 10185, 11365, 11590
Aomni 11623
Apex Digital 10156, 10748, 10879,
10765, 10767, 10890,
11217, 11943, 11991
Astar 11531, 11738
Audiovox 10451, 10180, 10092,
10623, 10802, 10846,
10875, 11937, 11951, 11952
Aventura 10171
Axion 11937
Bell & Howell 10154
BenQ 11032, 11212, 11315
Boxlight 10893
Bradford 10180
Broksonic 10236, 10463, 10180,
11911, 11929, 11935, 11938
Byd:sign 11309
Candle 10030, 10056
Carnivale 10030
Titan OCAP Remote Control.fm Page 35 Tuesday, May 27, 2008 1:55 PM
![](asset-24.png)
www.urcsupport.com
36
Carver 10054
Celebrity 10000
Celera 10765
Changhong 10765
Citizen 10060, 10030, 10092,
10056, 11935
Clairtone 10185
Clarion 10180
Commercial Solutions 11447, 10047
Concerto 10056
Contec 10180, 10185
Craig 10180
Crosley 10054
Crown 10180
Curtis Mathes 10047, 10054, 10154,
10451, 10093, 10060,
10702, 10030, 10145,
10166, 10056, 10466,
11147, 11347
CXC 10180
Cytron 11326
Daewoo 10451, 10092, 11661,
10623, 10661, 10672
Dell 11264, 11080, 11403, 11863
Denon 10145
Denstar 10628
Diamond Vision 11996, 11997
Digital Lifestyles 11765
Digital Projection Inc. 11482
Dumont 10017
Durabrand 10463, 10180, 10178,
10171, 11034
Dwin 10093
Dynex 11463, 11785, 11810
Electroband 10000, 10185
Electrograph 11755, 11623
Electrohome 10463
Emerson 10154, 10451, 10236,
10463, 10180, 10178,
10171, 11963, 11944,
11929, 11911, 11394,
10623, 10282, 10185,
10179, 10177
Titan OCAP Remote Control.fm Page 36 Tuesday, May 27, 2008 1:55 PM
![](asset-25.png)
www.urcsupport.com
37
Emprex 11422, 11546, 11765
Envision 10030, 10813, 11365
Epson 10833, 10840, 11122,
11290, 11735
ESA 10812, 10171, 11944, 11963
Fisher 10154
Fujitsu 10809, 10179, 10683, 10853
Funai 10180, 10171, 10179,
11271, 11904, 11963
Futuretech 10180
Gateway 11755, 11756
GE 11447, 10047, 10051,
10451, 10178, 10021,
10282, 11347, 11917, 11922
Gibralter 10017, 10030
Go Video 10886
GoldStar 10178, 10030, 11926
Grundig 10683
Grunpy 10180, 10179
H & B 11366
Haier 11034, 10768, 11748
Hallmark 10178
Hannspree 11348, 11745
Harley Davidson 10179, 11904
Harman/Kardon 10054
Harvard 10180
Havermy 10093
Helios 10865
Hello Kitty 10451
Hewlett Packard 11642, 11494, 11089,
11101, 11502
Hisense 10748
Hitachi 11643, 11145, 10145,
10056, 10797, 11345,
11904, 11960
HP 11642, 11494, 11089,
11101, 11502
Hyundai 11219, 11294
iLo 11286, 11603, 11684, 11990
Infinity 10054
InFocus 10752, 11430
Initial 11603, 11990
Titan OCAP Remote Control.fm Page 37 Tuesday, May 27, 2008 1:55 PM
![](asset-26.png)
www.urcsupport.com
38
Insignia 11564, 10171, 11204,
11326, 11517, 11641,
11710, 11963, 12002
Inteq 10017
IX 10877
JBL 10054
JCB 10000
Jensen 10761, 10815, 10817,
11299, 11933
JVC 10053, 10650, 10731,
11253, 11302, 11633,
11774, 11923
KDS 11498
KEC 10180
Kenwood 10030
KLH 10765, 10767, 11962
Konka 10628, 10707, 11939, 11940
Kost 11483
Kreisen 10876
KTV 10180, 10030, 10185
LG 11423, 10178, 10700,
10829, 10856, 11325,
11663, 11993
Lloyd's 11904
Luxman 10056
LXI 10047, 10054, 10154,
10156, 10178
MAG 11498
Magnavox 11454, 11866, 10054,
10030, 10706, 11990,
11963, 11944, 11931,
11904, 11525, 11365,
11254, 11198, 10802,
10386, 10179
Marantz 11454, 10054, 10030,
10704, 10854, 10855,
11154, 11398
Matsushita 10250, 10650
Maxent 11755, 10762, 11211,
11714, 11757
Megapower 10700
Megatron 10178, 10145
MEI 10185
Titan OCAP Remote Control.fm Page 38 Tuesday, May 27, 2008 1:55 PM
![](asset-27.png)
www.urcsupport.com
39
Memorex 10154, 10463, 10150,
10178, 10179, 10877,
11911, 11926
MGA 10150, 10178, 10030
Micro 11436
Midland 10047, 10017, 10051
Mintek 11603, 11990
Minutz 10021
Mitsubishi 11250, 10093, 10150,
10178, 10836, 10868,
11522, 11917
Monivision 10700, 10843
Motorola 10093, 10835
Moxell 10835
MTC 10060, 10030, 10056, 10185
Multitech 10180
NAD 10156, 10178, 10056,
10866, 11156
NEC 10030, 10056, 10497,
10882, 11398, 11704
NetTV 11755, 10762
Nikko 10178, 10030, 10092
Niko 11581, 11618
Norcent 10748, 10824, 11089,
11365, 11590, 11591
Norwood Micro 11286, 11296, 11303
NTC 10092
Olevia 11610, 11144, 11240, 11331
Olympus 11342
Onwa 10180
Optimus 10250, 10154, 10166, 10650
Optoma 10887, 11348, 11674
Optonica 10093, 10165
Orion 10236, 10463, 11463,
10179, 11911, 11929
Panasonic 10250, 11480, 10051,
10650, 11291, 11310,
11410, 11941, 11946, 11947
Penney 10047, 10156, 10051,
10060, 10178, 10030,
10021, 11347, 11926
Petters 11523
Philco 10054, 10030
Titan OCAP Remote Control.fm Page 39 Tuesday, May 27, 2008 1:55 PM
![](asset-28.png)
www.urcsupport.com
40
Philips 11454, 10054, 10690,
11154, 11483, 11744, 11961
Pilot 10030
Pioneer 11457, 10166, 10679,
10866, 11260, 11398, 11717
Planar 11496
Polaroid 11523, 10765, 10865,
11276, 11314, 11316,
11326, 11341, 11498,
11766, 11962, 11991,
11992, 12002
Portland 10092
Prima 10761, 10783, 10815,
10817, 11785, 11933
Princeton 10700, 10717
Prism 10051
Proscan 11447, 10047, 10466,
11347, 11922
Proton 10178, 10466
Protron 11320
Proview 10835, 11401, 11498
Pulsar 10017
Puneet 11546
Quasar 10250, 10051, 10165, 10650
RadioShack 10047, 10154, 10180,
10178, 10030, 10056,
10165, 11904
RCA 11547, 11447, 10047,
10090, 10679, 11047,
11147, 11247, 11347,
11781, 11917, 11922,
11948, 11953, 11958, 12002
Realistic 10154, 10180, 10178,
10030, 10056, 10165
RevolutionHD 11623
Rhapsody 10185
Runco 10017, 10030, 10497,
10603, 11292, 11397,
11398, 11628, 11629,
11639, 11679, 11717
Sampo 11755, 10030, 10762
Samsung 10812, 10060, 10702,
10178, 10030, 10056,
10766, 10814, 11060,
11312, 11575, 11903, 11959
Titan OCAP Remote Control.fm Page 40 Tuesday, May 27, 2008 1:55 PM
![](asset-29.png)
www.urcsupport.com
41
Sansui 10463, 11409, 11904,
11911, 11929, 11935
Sanyo 10154, 10088, 10799,
10893, 11142
Sceptre 10878, 11217, 11360, 11599
Scotch 10178
Scott 10236, 10180, 10178,
10179, 11711
Sears 10047, 10054, 10154,
10156, 10178, 10171,
10056, 10179, 11904, 11926
Sharp 10818, 10093, 10165,
10386, 10491, 10688,
10851, 11602, 11917
Sheng Chia 10093
Sherwood 11399
Sole 10813, 11366, 11483, 11623
Sony 11100, 10000, 10834,
11317, 11685, 11904, 11925
Soundesign 10180, 10178, 10179
Sova 11320, 11952
Soyo 11520, 11546, 11826
Spectroniq 11498
Squareview 10171
SSS 10180
Starlite 10180
Studio Experience 10843
Superscan 10093, 10864
Supreme 10000
SVA 10748, 10768, 10865,
10870, 10872
Sylvania 11864, 10054, 10030,
10171, 11271, 11314,
11394, 11931, 11944, 11963
Symphonic 10180, 10171, 11904, 11944
Syntax 11610, 11144, 11240, 11331
Tandy 10093
Tatung 11101, 11285, 11286,
11361, 11756
Technics 10250, 10051
Technol Ace 10179
Techview 12004
Techwood 10051, 10056
Titan OCAP Remote Control.fm Page 41 Tuesday, May 27, 2008 1:55 PM
![](asset-2a.png)
www.urcsupport.com
42
Teco 11040
Teknika 10054, 10180, 10150,
10060, 10092, 10056, 10179
Telefunken 10702, 10056
Thomas 11904
TMK 10178, 10056, 10177
TNCi 10017
Toshiba 11524, 10154, 10156,
11256, 10060, 12006,
11945, 11936, 11935,
11918, 11704, 11656,
11635, 11356, 11325,
11306, 11156, 10845,
10832, 10822, 10650
Tosonic 10185
TruTech 11723
TVS 10463
US Logic 11286, 11303
Vector Research 10030
Victor 10053
Vidikron 10054, 11292, 11302,
11397, 11398, 11628,
11629, 11633
Vidtech 10178
Viewsonic 11755, 10797, 10857,
10864, 10885, 11330,
11342, 11542, 11578,
11627, 11640, 12014
Viore 11207, 11684
Vizio 11758, 10864, 10885,
11499, 11756
Wards 10054, 10178, 10030,
10021, 10056, 10165,
10179, 10866, 11156
Waycon 10156
Westinghouse 10000, 11712, 10451,
10885, 10889, 10890,
11092, 11282, 11577
White Westinghouse 10463, 10623
Wyse 11365
Yamaha 10030, 10769, 10797,
10833, 10839, 11526
Zenith 10017, 10463, 10178,
11145, 10092, 11904,
11911, 11929
Titan OCAP Remote Control.fm Page 42 Tuesday, May 27, 2008 1:55 PM
![](asset-2b.png)
www.urcsupport.com
43
Setup Codes for TVs (LCD)
Accurian 11803
Action 10873
Akai 11675, 11676, 11935
AOC 11365
Aomni 11623
Apex Digital 10890, 11217
Astar 11531, 11738
Audiovox 10180, 10802, 10846,
10875, 11937, 11951, 11952
BenQ 11315
Byd:sign 11309
Citizen 11935
Dell 11264, 11080, 11863
Digital Lifestyles 11765
Emerson 11394, 11963
Emprex 11422, 11546, 11765
Envision 10813, 11365
Funai 10171
Go Video 10886
H & B 11366
Haier 11748
Hannspree 11348, 11745
Hewlett Packard 11642
Hitachi 11643
HP 11642
Hyundai 11219, 11294
iLo 11286, 11603, 11684, 11990
Initial 11603, 11990
Insignia 11564, 11204, 11517,
11710, 12002
IX 10877
Jensen 11299
JVC 11774
Kreisen 10876
LG 11423, 10856, 11993
Magnavox 11866, 10802, 11198,
11365, 11990
Marantz 10855
Maxent 11755, 10762, 11211,
11714, 11757
Titan OCAP Remote Control.fm Page 43 Tuesday, May 27, 2008 1:55 PM
![](asset-2c.png)
www.urcsupport.com
44
Micro 11436
Mintek 11603, 11990
Mitsubishi 11250
NetTV 10762
Niko 11581, 11618
Norcent 11365, 11591
Norwood Micro 11286, 11296
Olevia 11610, 11144, 11240, 11331
Panasonic 11480, 10650, 11941
Petters 11523
Philips 11454, 11483, 11744
Pioneer 11260
Planar 11496
Polaroid 11523, 11276, 11316,
11341, 11498, 11766
Prima 11785
Protron 11320
Proview 11401
Puneet 11546
RCA 10047, 11781, 11958
RevolutionHD 11623
Runco 11629
Sampo 11755, 10762
Samsung 10812, 10766, 10814, 11575
Sansui 11409
Sanyo 11142
Sceptre 10878, 11217, 11360, 11599
Scott 11711
Sharp 10818, 10093, 11602
Sherwood 11399
Sole 11366, 11483, 11623
Sony 11685
Sova 11320
Soyo 11520, 11546, 11826
Superscan 10864
SVA 10870
Sylvania 11864, 10171, 11271,
11314, 11394
Symphonic 10171
Syntax 11610, 11144, 11240, 11331
Tatung 11286
Titan OCAP Remote Control.fm Page 44 Tuesday, May 27, 2008 1:55 PM
![](asset-2d.png)
www.urcsupport.com
45
Setup Codes for TVs (Plasma)
Techview 12004
Teco 11040
Toshiba 11524, 10822, 10845,
11635, 11656, 12006
TruTech 11723
US Logic 11286
Vidikron 11398, 11629
Viewsonic 10857, 10864, 10885,
11330, 11578, 11627,
11640, 12014
Viore 11684
Vizio 11758, 10864, 10885, 11756
Westinghouse 11712, 10885, 10889,
10890, 11282, 11577
Wyse 11365
Akai 10812, 11675, 11207
Albatron 10843
AOC 11590
Aomni 11623
BenQ 11032
Daewoo 10661
Dell 11264, 11863
Electrograph 11755, 11623
ESA 10812
Fujitsu 10809, 10683, 10853
Funai 11271
Gateway 11755, 11756
H & B 11366
Haier 11748
Helios 10865
Hewlett Packard 11642, 11089, 11502
Hitachi 11643, 10797
HP 11642, 11089, 11502
iLo 11684
Insignia 11564
JVC 10731
LG 11423, 10178, 10829, 10856
Magnavox 11866
Marantz 10704, 11398
Titan OCAP Remote Control.fm Page 45 Tuesday, May 27, 2008 1:55 PM
![](asset-2e.png)
www.urcsupport.com
46
Setup Codes for TV/DVD Combos
Controlled by the TV
Maxent 11755, 11757
Mitsubishi 10836
Monivision 10843
Motorola 10835
Moxell 10835
NEC 11398, 11704
NetTV 11755
Norcent 10824, 11089, 11590
Norwood Micro 11303
Panasonic 10250, 11480, 10650
Philips 10690, 11744
Pioneer 11457, 10679, 11260,
11398, 11717
Polaroid 10865, 11276
Prima 11785
Proview 10835
Puneet 11546
RevolutionHD 11623
Runco 11398, 11679, 11717
Sampo 11755
Samsung 10812, 11312
Sole 11623
Sony 10000, 11317
Studio Experience 10843
SVA 10865
Sylvania 11271, 11394
Tatung 11101, 11285, 11756
Toshiba 10650, 11704
US Logic 11303
Viewsonic 11755, 10797
Viore 11207, 11684
Vizio 11758, 11756
Yamaha 10797
Zenith 10178
Accurian 11803
Advent 11933
Akai 11675, 11935
Titan OCAP Remote Control.fm Page 46 Tuesday, May 27, 2008 1:55 PM
![](asset-2f.png)
www.urcsupport.com
47
Controlled by the DVD
Apex Digital 11943, 11991
Audiovox 11937, 11951, 11952
Axion 11937
Broksonic 11935
Citizen 11935
Diamond Vision 11997
Dynex 11810
Emerson 11394, 11963
ESA 11963
Funai 11963
Hitachi 11960
iLo 11990
Initial 11990
Insignia 11963, 12002
Jensen 11933
KLH 11962
Konka 11939, 11940
LG 11993
Magnavox 11866, 11963, 11990
Maxent 11714
Mintek 11990
Panasonic 11941
Philips 11961
Polaroid 11523, 11766, 11962, 11991,
12002
Prima 11933
RCA 11948, 11958, 12002
Samsung 11903
Sansui 11935
Sova 11952
Sylvania 11864, 11394, 11963
Techview 12004
Toshiba 11524, 11635, 11935, 12006
Advent 21016
Akai 20695
Apex Digital 20830
Audiovox 21121
Broksonic 20695
Citizen 20695
Titan OCAP Remote Control.fm Page 47 Tuesday, May 27, 2008 1:55 PM
![](asset-30.png)
www.urcsupport.com
48
Setup Codes for TV/VCR Combos
Controlled by the TV
Emerson 20675, 21268
ESA 21268
Funai 21268
Hitachi 21247
iLo 21472
Initial 21472
Insignia 21268
Jensen 21016
Magnavox 21268, 21472
Mintek 21472
Panasonic 21490
Philips 20854, 21260
Prima 21016
RCA 21022, 21193
Samsung 20899
Sansui 20695
Sylvania 20675, 21268
Toshiba 20695
America Action 10180
Audiovox 10180
Broksonic 11911, 11929
Emerson 10236, 11911, 11929
Funai 11904
GE 11917, 11922
GoldStar 11926
Harley Davidson 11904
Hitachi 11904
JVC 11923
Lloyd's 11904
Magnavox 11904, 11931
Memorex 11926
Mitsubishi 11917
Orion 11911, 11929
Penney 11926
RadioShack 11904
RCA 11917, 11922
Samsung 11959
Titan OCAP Remote Control.fm Page 48 Tuesday, May 27, 2008 1:55 PM
![](asset-31.png)
www.urcsupport.com
49
Setup Codes for TV/VCR Combos
Controlled by the VCR
Sansui 11904, 11911, 11929
Sears 11904, 11926
Sony 11904, 11925
Sylvania 11931
Symphonic 11904
Thomas 11904
Toshiba 11918, 11936
Zenith 11904, 11911, 11929
Broksonic 21479
Citizen 21278
Curtis Mathes 21035
Daewoo 21278
Emerson 20593, 21278, 21479
Funai 20000
GE 20807, 21035, 21060
GoldStar 21237
Harley Davidson 20000
Hitachi 20000
Lloyd's 20000
Magnasonic 20593, 21278
Magnavox 20000, 20593, 21781
Memorex 21237
Mitsubishi 20807
Optimus 20593
Orion 21479
Panasonic 21035
Penney 21035, 21237
Quasar 21035
RadioShack 20000
RCA 20807, 21035, 21060
Samsung 21014
Sansui 20000, 21479
Sears 20000, 21237
Sony 20000, 21232
Sylvania 21781
Symphonic 20000, 20593
Thomas 20000
Titan OCAP Remote Control.fm Page 49 Tuesday, May 27, 2008 1:55 PM
![](asset-32.png)
www.urcsupport.com
50
Setup Codes for VCRs
Toshiba 20845, 21145
Zenith 20000, 21479
ABS 21972
Accurian 20000
Adventura 20000
Aiwa 20037, 20000, 20124
Alienware 21972
American High 20035
Audiovox 20037
Broksonic 20184, 21479
Calix 20037
Canon 20035
Carver 20081
Citizen 20037, 21278
Craig 20037
Curtis Mathes 20060, 20035, 21035
CyberPower 21972
Daewoo 20045, 21278
Dell 21972
DirecTV 20739
Dynatech 20000
Electrohome 20037, 20043
Electrophonic 20037
Emerex 20032
Emerson 20037, 20184, 20000,
20043, 20593, 21278,
21479, 21593
Fuji 20035, 20033
Funai 20000, 20593, 21593
Garrard 20000
Gateway 21972
GE 20060, 20035, 20807,
21035, 21060
Go Video 20614
GoldStar 20037, 21237
Gradiente 20000
Harley Davidson 20000
Harman/Kardon 20081
Hewlett Packard 21972
Titan OCAP Remote Control.fm Page 50 Tuesday, May 27, 2008 1:55 PM
![](asset-33.png)
www.urcsupport.com
51
Hitachi 20000, 20089
Howard Computers 21972
HP 21972
Hughes Network Systems 20739
Humax 20739
Hush 21972
iBUYPOWER 21972
Instant Replay 20035
JVC 20067
KEC 20037
Kenwood 20067
Kodak 20035, 20037
Linksys 21972
Lloyd's 20000
LXI 20037
Magnasonic 20593, 21278
Magnavox 20035, 20081, 20000,
20593, 21593, 21781
Marantz 20035, 20081
Marta 20037
Matsushita 20035
Media Center PC 21972
MEI 20035
Memorex 20035, 20037, 20000, 21237
MGA 20043
Microsoft 21972
Mind 21972
Mitsubishi 20067, 20043, 20807
Motorola 20035
MTC 20000
Multitech 20000
NEC 20067
Nikko 20037
Niveus Media 21972
Northgate 21972
Olympus 20035
Optimus 20037, 20593
Orion 20184, 21479
Panasonic 20035, 20225, 20614,
20616, 21035
Penney 20035, 20037, 21035, 21237
Titan OCAP Remote Control.fm Page 51 Tuesday, May 27, 2008 1:55 PM
![](asset-34.png)
www.urcsupport.com
52
Philco 20035
Philips 20739, 20035, 20081, 20618
Pilot 20037
Pioneer 20067, 21337
Polk Audio 20081
Presidian 21593
Proscan 20060, 21060
Quasar 20035, 21035
RadioShack 20000
Radix 20037
Randex 20037
RCA 20060, 20807, 20880,
21035, 21060
Realistic 20035, 20037, 20000
ReplayTV 20614, 20616
Ricavision 21972
Samsung 20739, 20045, 21014
Sansui 20000, 20067, 21479
Scott 20184, 20045, 20043
Sears 20035, 20037, 20000, 21237
Sharp 20807
Sonic Blue 20614, 20616
Sony 20035, 20032, 20033,
20000, 20636, 21232, 21972
Stack 9 21972
Sylvania 20035, 20081, 20000,
20043, 20593, 21593, 21781
Symphonic 20000, 20593, 21593
Systemax 21972
Tagar Systems 21972
Tashiko 20037
Teac 20000
Technics 20035
Teknika 20035, 20037, 20000
Thomas 20000
Tivo 20739, 20618, 20636,
21337, 21996
Toshiba 20045, 20043, 20845,
21008, 21145, 21972, 21996
Totevision 20037
Touch 21972
Titan OCAP Remote Control.fm Page 52 Tuesday, May 27, 2008 1:55 PM
![](asset-35.png)
www.urcsupport.com
53
Setup Codes for Video Accessories
Vector 20045
Video Concepts 20045
Videomagic 20037
Viewsonic 21972
Villain 20000
Voodoo 21972
Wards 20060, 20035, 20081, 20000
XR-1000 20035, 20000
Zenith 20033, 20000, 21479
ZT Group 21972
ABS 01272
Alienware 01272
Amino 01481, 02482
AT&T 00858
Buffalo 01739
CyberPower 01272
D-Link 01554
Gateway 01272
Hewlett Packard 01272, 01267
Howard Computers 01272
HP 01272
Hush 01272
iBUYPOWER 01272
KoolConnect 01481
Linksys 01272, 01365
Media Center PC 01272
Microsoft 02049, 01272
Mind 01272
Motorola 01998, 00858
Niveus Media 01272
Northgate 01272
Ricavision 01272
Roku 01486
Scientific Atlanta 00858
SMC 01456
Sony 01272, 01324, 01364
Stack 9 01272
SureWest 01481
Titan OCAP Remote Control.fm Page 53 Tuesday, May 27, 2008 1:55 PM
![](asset-36.png)
www.urcsupport.com
54
Systemax 01272
Tagar Systems 01272
Toshiba 01272
Touch 01272
Viewsonic 01272
Voodoo 01272
Xbox 02049
ZT Group 01272
Titan OCAP Remote Control.fm Page 54 Tuesday, May 27, 2008 1:55 PM
www.urcsupport.com
55
NOTES
Titan OCAP Remote Control.fm Page 55 Tuesday, May 27, 2008 1:55 PM
![](asset-38.png)
M2056-C
Revision 1.0
Titan OCAP Remote Control.fm Page 56 Tuesday, May 27, 2008 1:55 PM
