Unixtar Technology USB0861 PCI TO USB CARD User Manual

Unixtar Technology PCI TO USB CARD

USER MANUAL

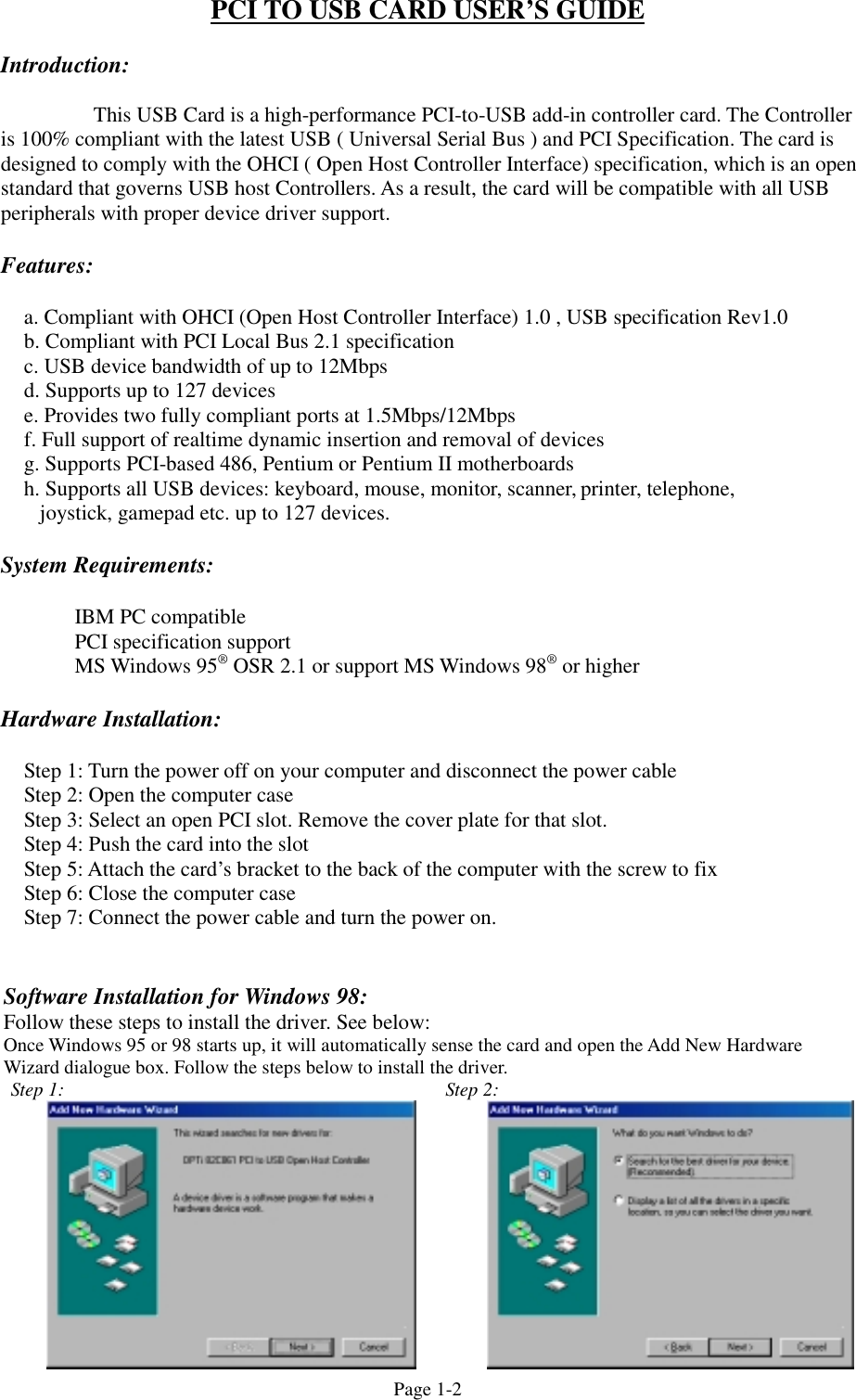

Page 1-2PCI TO USB CARD USER’S GUIDEIntroduction:This USB Card is a high-performance PCI-to-USB add-in controller card. The Controlleris 100% compliant with the latest USB ( Universal Serial Bus ) and PCI Specification. The card isdesigned to comply with the OHCI ( Open Host Controller Interface) specification, which is an openstandard that governs USB host Controllers. As a result, the card will be compatible with all USBperipherals with proper device driver support.Features:a. Compliant with OHCI (Open Host Controller Interface) 1.0 , USB specification Rev1.0b. Compliant with PCI Local Bus 2.1 specificationc. USB device bandwidth of up to 12Mbpsd. Supports up to 127 devicese. Provides two fully compliant ports at 1.5Mbps/12Mbpsf. Full support of realtime dynamic insertion and removal of devicesg. Supports PCI-based 486, Pentium or Pentium II motherboardsh. Supports all USB devices: keyboard, mouse, monitor, scanner, printer, telephone, joystick, gamepad etc. up to 127 devices.System Requirements:IBM PC compatiblePCI specification supportMS Windows 95® OSR 2.1 or support MS Windows 98® or higherHardware Installation:Step 1: Turn the power off on your computer and disconnect the power cableStep 2: Open the computer caseStep 3: Select an open PCI slot. Remove the cover plate for that slot.Step 4: Push the card into the slotStep 5: Attach the card’s bracket to the back of the computer with the screw to fixStep 6: Close the computer caseStep 7: Connect the power cable and turn the power on.Software Installation for Windows 98:Follow these steps to install the driver. See below:Once Windows 95 or 98 starts up, it will automatically sense the card and open the Add New HardwareWizard dialogue box. Follow the steps below to install the driver.Step 1: Step 2:
Page 2-2Click “Next” to continue Click “Next” to continueStep 3 : Step 4 :Select “Specify a Location”, path “A:\” for yourdisk drive. Click “Next” to continue Click “Next” to continueStep 5 : Step 6 :Click “Next” to continue Install completed. Click “Finish” to completeinstallationStep 7 :
