usr5461 & usr805461

wireless maxg router

with USB Print Server

The U.S.Robotics Wireless

MAX

g Router provides the simplest

installation process anywhere, while delivering the performance you

have come to expect from U.S.Robotics. Featuring exclusive

MAX

g™

Technology, this router delivers a 50% range improvement over

standard 802.11g — for total home/small business coverage while

providing a MAXimum performance of 125 Mbps.

MAXg Technology

• MAXimum Range – 50% greater than standard 802.11g

• MAXimum Speed – 125 Mbps performance

• MAXimum Security – industry leading security protects your network from hackers and

unauthorized access from the Internet and from wireless interlopers

Complete Suite of Security Measures

• Wi-Fi Protected Access (WPA) and WPA2/802.11i

• 802.1x Authentication

• 64/128-bit WEP encryption

• Stateful Packet Inspection (SPI) firewall to prevent network intrusions

• Support for VPN pass through (PPTP, IPSec and L2TP)

• MAC address authentication and SSID disable

MAXimum simplicity

In one seamless operation the SureStart installation wizard helps you easily install the

MAXg PC Card, PCI or USB Adapter and your U.S. Robotics MAXg Router, validates

your wireless connection and makes your security set up nearly effortless

Share USB Printers Integrated print server turns any USB printer into a network printer which can be shared

among all network users

Excellent Compatibility Complete compatibility with standard 802.11b, 802.11g and accelerated wireless technologies

wir eless net wor king

Wireless connectivity for your home or small business

G en er a l

• MAXg Technology for up to 125 Mbps performance

• SureStart installation wizard

• Support for Universal Plug and Play (UPnP)

• Supports up to 253 users (with additional hubs/switches)

• DHCP server (LAN) and client (WAN)

• Static and Dynamic IP addressing

• PPP over Ethernet (PPPoE) and PPTP support

• DMZ host support

Secu r i t y Fe at ur es

• 802.11i (WPA2)

• Wi-Fi Protected Access (WPA), TKIP

• AES Encryption

• 64/128-bit Wired Equivalent Privacy (WEP) encryption

• 802.1x authentication

• SSID disable

• VPN Pass-through (IPSec, PPTP, L2TP)

• Stateful Packet Inspection (SPI) firewall

• MAC address authentication

• MAC address blacklist (64)

• Syslog Alerts

P h ysic a l

• 2 dBi swivel dipole removable antenna with reverse polarity

SMA connector

• One RJ-45, 10/100 auto-sensing/auto-switching Ethernet

WAN port

• Four RJ-45, 10/100 auto-sensing/auto-switching Ethernet

LAN ports

• One USB 2.0 Port

Fr equ enc y Ba n d

• 2400 ~ 2462 MHz for North America

• 2400 ~ 2483.5 MHz for ETSI

• 2454 ~ 2483.5 MHz for France, Outdoor 10mW

• RF Output Power: 19.5 dBm EIRP Average

Oper at ing Ch a n n el s

• 11 channels for North America

• 13 channels for ETSI

R e gu l atory

• EMI - FCC Class B

• Safety - UL, CUL

• EMI & Safety - CE Class B

Pack age Di me nsions / We ight

• 12.65 x 7.24 x 3.37 in. (32.15 x 18.4 x 8.58 cm)

• 2.16 lb (0.98kg)

Product Di me nsions / We ight

• 4.3 x 7.1 x 1.7 in. (10.9 x 18 x 4.3 cm)

• 0.61 lb (0.27 kg)

L a nguage Su pport

• Retail box: English, French, German, Spanish, Italian, Dutch

• Installation guide: English, French, German, Spanish, Italian, Dutch

• CD ROM User Guide: English, French, German, Spanish, Italian,

Dutch, Portuguese, Czech, Polish, Russian, Hungarian, Turkish

Mi ni mu m Syst ems R equ ir em en ts

• HTML configuration is supported by any computer that

supports TCP/IP and HTML Web browser (5.5 or greater)

• Ethernet networking requires computers with installed network

interface card (NIC)

• Print Server supports all USB printers that support a page

description language (eg. PostScript, PCL, etc.)

Oper at ing Syst e m Support

• Ethernet interface: Windows 95/98/ME/2000/XP/NT4.0,

MacOS, UNIX, Linux and any computer supporting TCP/IP

over Ethernet

• USB Interface: Conforms to Internet Printer Protocol (IPP) for

the sharing of printer resources over routed network

Pack age C on te nt s

• U.S. Robotics Wireless MAXg Router

• Ethernet Cable

• Power Adapter

• Quick Installation Guide

• Installation CD-ROM

• Swivel Antenna

Wa r r a n t y

• 2-year limited manufacturer warranty from date of purchase

IC Approved

Approuvé par IC

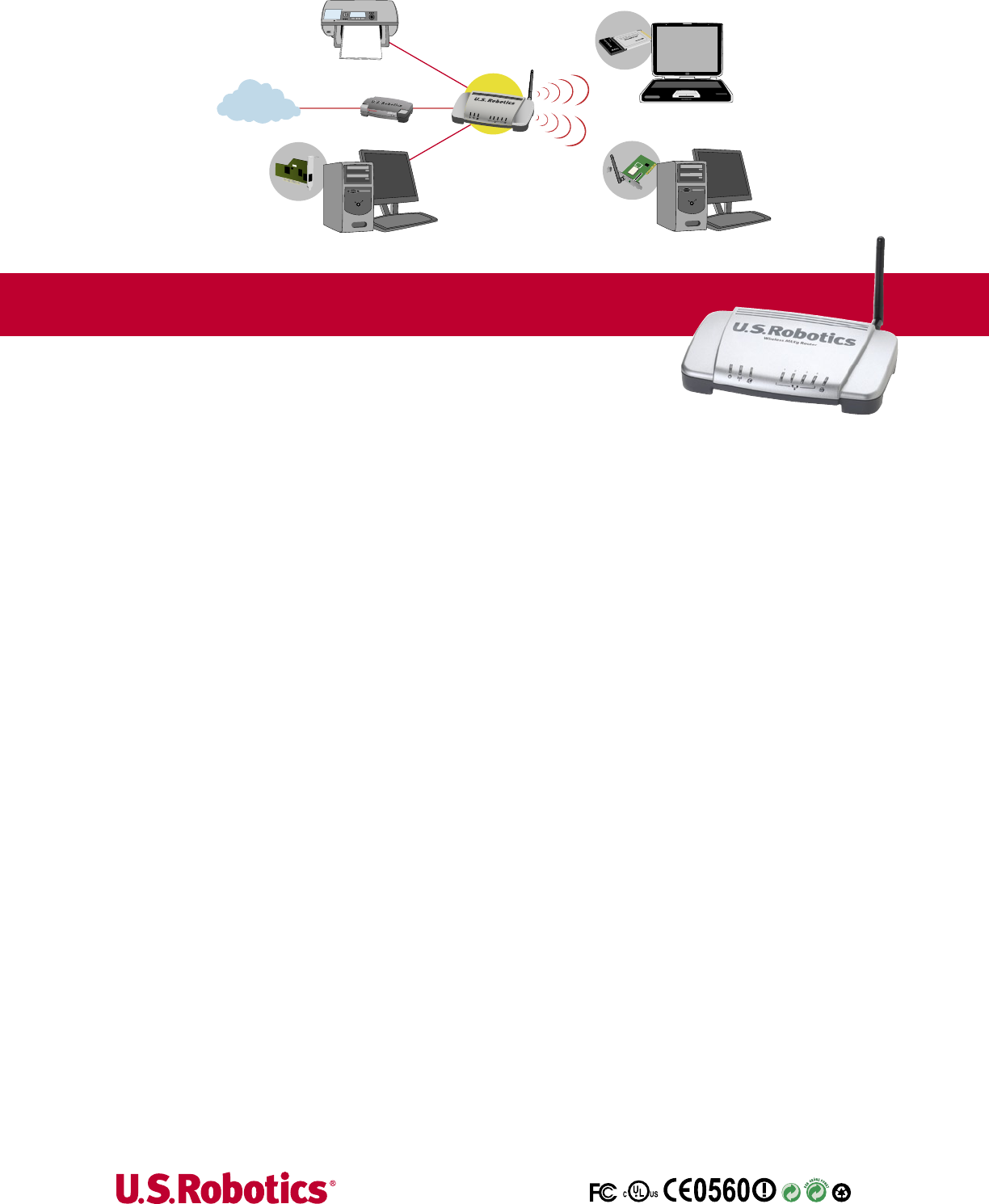

Model-5461

Wireless MAXg Router

Broadband Modem

USB Printer

Internet

Wireless MAXg Router

1

234

Model-5411

Wireless MAXg PC Card

Model-5417

Wireless MAXg PCI Adapter

Model-7900

10/100 Ethernet PCI Adapter

usr5461 & usr805461

specifications & standards

wireless maxg router
