WALL MOUNTED

GAS BOILER

PARTS, KITS &

OPTIONAL ACCESSORIES

P/N# 240008846, Rev. J [03/2015]

Manufactured by:

ECR International

2201 Dwyer Avenue, Utica NY 13501

web site: www.ecrinternational.com

Models

UBSSC-050

UBSSC-075

UBSSC-100

UBSSC-150

UBSSC-200

UBSSC-299

Ordering Instructions

Order Parts through your nearest supplier.

When ordering parts, obtain Model Number and Serial Number

from data plate on your boiler.

Include following information when ordering.

Part Number

Part Description

Boiler Model Number

Boiler Serial Number

2

TABLE OF CONTENTS

Additional Heating Device Kit ........................................................................................ 23

Blower Kit - 050/075/100/150/200 Mbh .......................................................................... 12

Blower Kit High Altitude - 200 Mbh ................................................................................. 12

Blower Kit - 299 Mbh .................................................................................................... 13

Burner Inspection Kit ..................................................................................................... 6

Burner Replacement Kits ................................................................................................. 6

Concentric Vent Kits ...................................................................................................... 23

Condensate Collector Kit 050/075/100 ............................................................................ 16

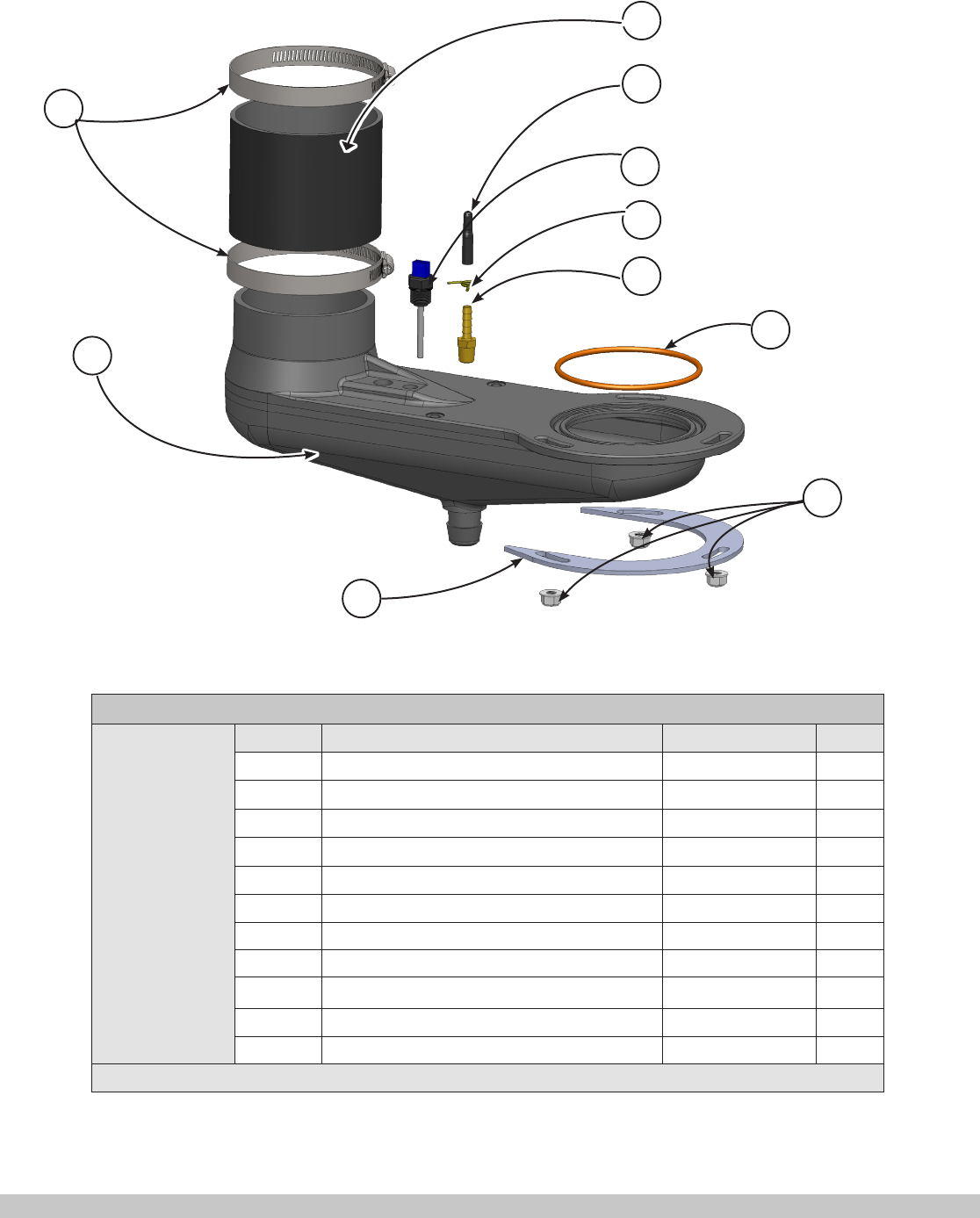

Condensate Collector Kit 150/200 ................................................................................... 17

Condensate Trap Kits ................................................................................................... 15

Control Module Kit ....................................................................................................... 18

Flame Sensor Kits ........................................................................................................... 9

Flexible Gas Line Kits ................................................................................................... 14

Floor Stand Kit ............................................................................................................ 22

Gas Conversion Kits ...................................................................................................... 21

Gas Valve Kit - 299 Mbh ................................................................................................ 11

Gas Valve Kits - 050/075/100/150/200 Mbh ..................................................................... 10

Heat Exchanger Kits ........................................................................................................ 4

Heat Exchanger Kits ........................................................................................................ 5

Heat Exchanger Surface Temperature Switch Kits .............................................................. 20

High Altitude Kit .......................................................................................................... 22

Igniter Kits .................................................................................................................... 8

Jacket Kits ..................................................................................................................... 3

Misc. Replacement Parts ................................................................................................ 24

Misc. Replacement Parts - Conti. ..................................................................................... 25

Multi Boiler Sensor Kit .................................................................................................. 23

User Interface Kit ......................................................................................................... 18

Wire Harness Kits ......................................................................................................... 19

QUICK INDEX .............................................................................................................26

3

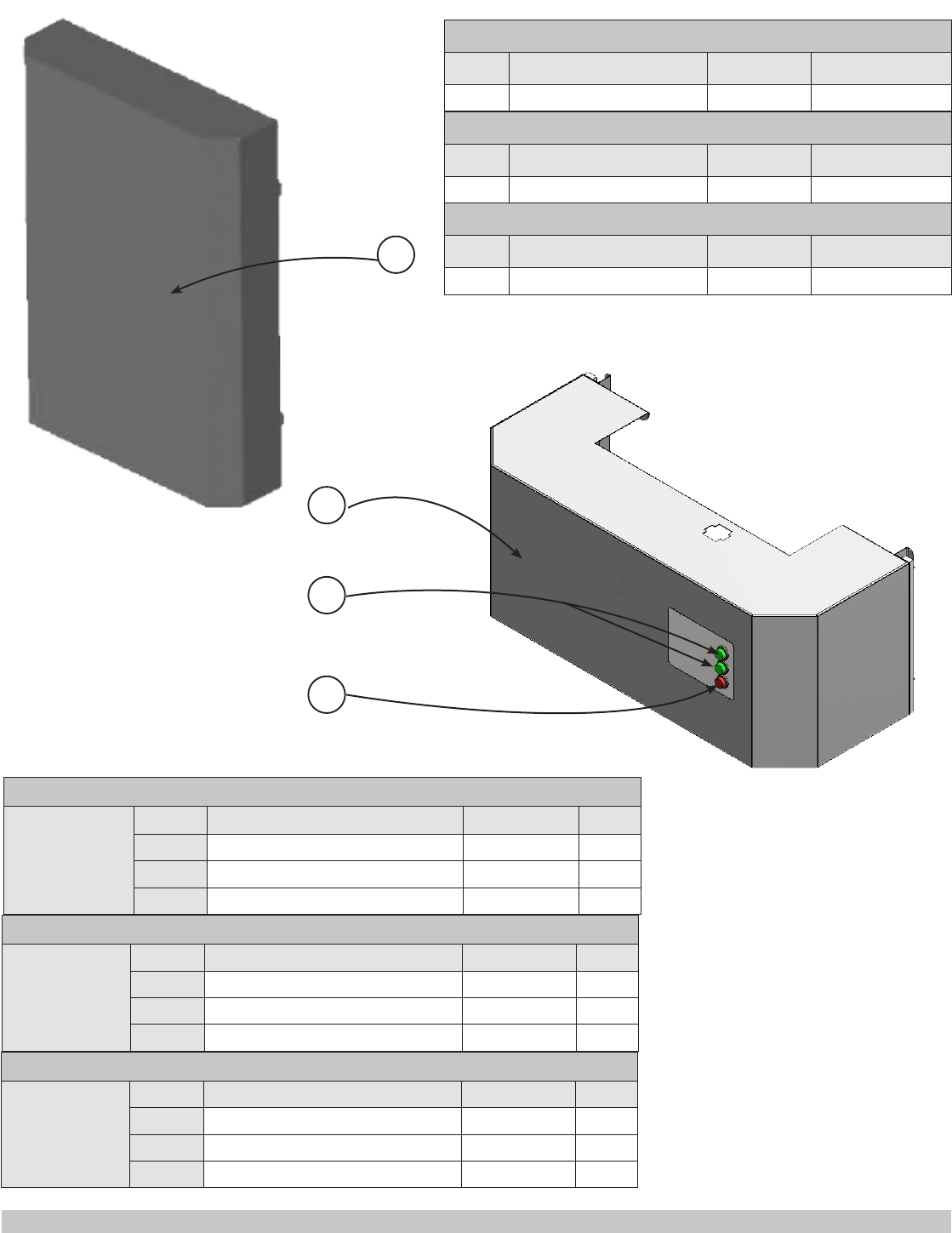

JACKET KITS

50/75/100 Lower Jacket Kit # 550002322

Jacket Kit

#550002322

includes all

items listed

ITEM DESCRIPTION PART # QTY

A Lower Jacket w/gasket - 1

B Light,Indicator,Green,120vac 240008874 2

C Light,Indicator,Red,120vac 240008873 1

150/200 Lower Jacket Kit # 550002323

Jacket Kit

#550002323

includes all

items listed

ITEM DESCRIPTION PART # QTY

A Lower Jacket w/gasket - 1

B Light,Indicator,Green,120vac 240008874 2

C Light,Indicator,Red,120vac 240008873 1

050/075/100 Upper Jacket Kit # 550002320

Item DESCRIPTION PART # QTY

A Upper Jacket w/Gasket - 1

150/200 Upper Jacket Kit # 550002321

Item DESCRIPTION PART # QTY

A Upper Jacket w/Gasket - 1

A

A

B

C

299 Lower Jacket Kit # 550002806

Jacket Kit

#550002806

includes all

items listed

ITEM DESCRIPTION PART # QTY

A Lower Jacket w/gasket - 1

B Light,Indicator,Green,120vac 240008874 2

C Light,Indicator,Red,120vac 240008873 1

299 Upper Jacket Kit # 550002805

Item DESCRIPTION PART # QTY

A Upper Jacket w/Gasket - 1

4

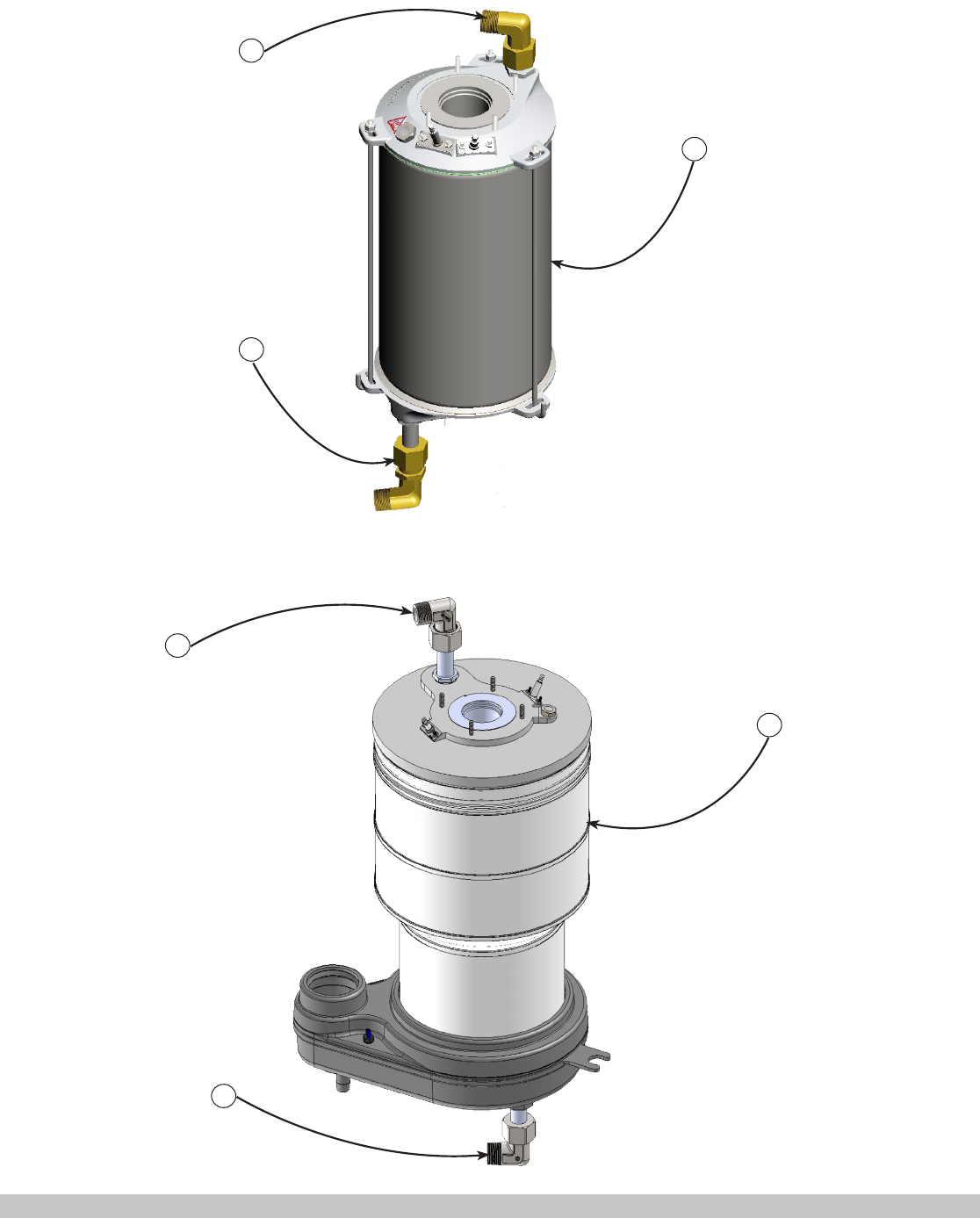

HEAT EXCHANGER KITS

A

B

B

Heat Exchanger Kit - 050, 075, 100, 150, 200 MBH

Heat Exchanger Kit with Integrated Flue Collector - 299 MBH

A

B

B

5

HEAT EXCHANGER KITS

075 Heat Exchanger Kit # 550002272

Heat

Exchanger Kit

#550002272

includes all

items listed

AHeat Exchanger Module (includes: Igniter, Flame Sensor) - 1

BFitting, Compression 90°, 20 mm tube x 3/4 NPT - 2

*Instructions 240008928 1

100 Heat Exchanger Kit # 550002273

Heat

Exchanger Kit

#550002273

includes all

items listed

AHeat Exchanger Module (includes: Igniter, Flame Sensor) - 1

B Fitting, Compression 90°, 20 mm tube x 3/4 NPT - 2

*Instructions 240008928 1

150 Heat Exchanger Kit # 550002274

Heat

Exchanger Kit

#550002274

includes all

items listed

ITEM DESCRIPTION PART # QTY

A Heat Exchanger Module (includes: Igniter, Flame Sensor) - 1

BFitting, Compression 90°, 25 mm tube x 1 NPT - 2

* Instructions 240008928 1

200 Heat Exchanger Kit # 550002275

Heat

Exchanger Kit

#550002275

includes all

items listed

A Heat Exchanger Module (includes: Igniter, Flame Sensor) - 1

BFitting, Compression 90°, 25 mm tube x 1 NPT - 2

*Instructions 240008928 1

* Not Shown

050 Heat Exchanger Kit # 550002271

Heat

Exchanger Kit

#550002271

includes all

items listed

ITEM DESCRIPTION PART # QTY

A Heat Exchanger Module (includes: Igniter, Flame Sensor) - 1

B Fitting, Compression 90°, 20 mm tube x 3/4 NPT - 2

* Instructions 240008928 1

299 Heat Exchanger Kit # 550002808

Heat

Exchanger Kit

#550002808

includes all

items listed

AHeat Exchanger Module (includes: Heat Exchanger Coil, Top Cap,

Igniter, Flame Sensor with Flue Collector Installed)

- 1

B Fitting, Compression 90°, 25 mm tube x 1 NPT - 2

*Instructions 240010108 1

* Not Shown

6

BURNER REPLACEMENT KITS

A

B

C

D

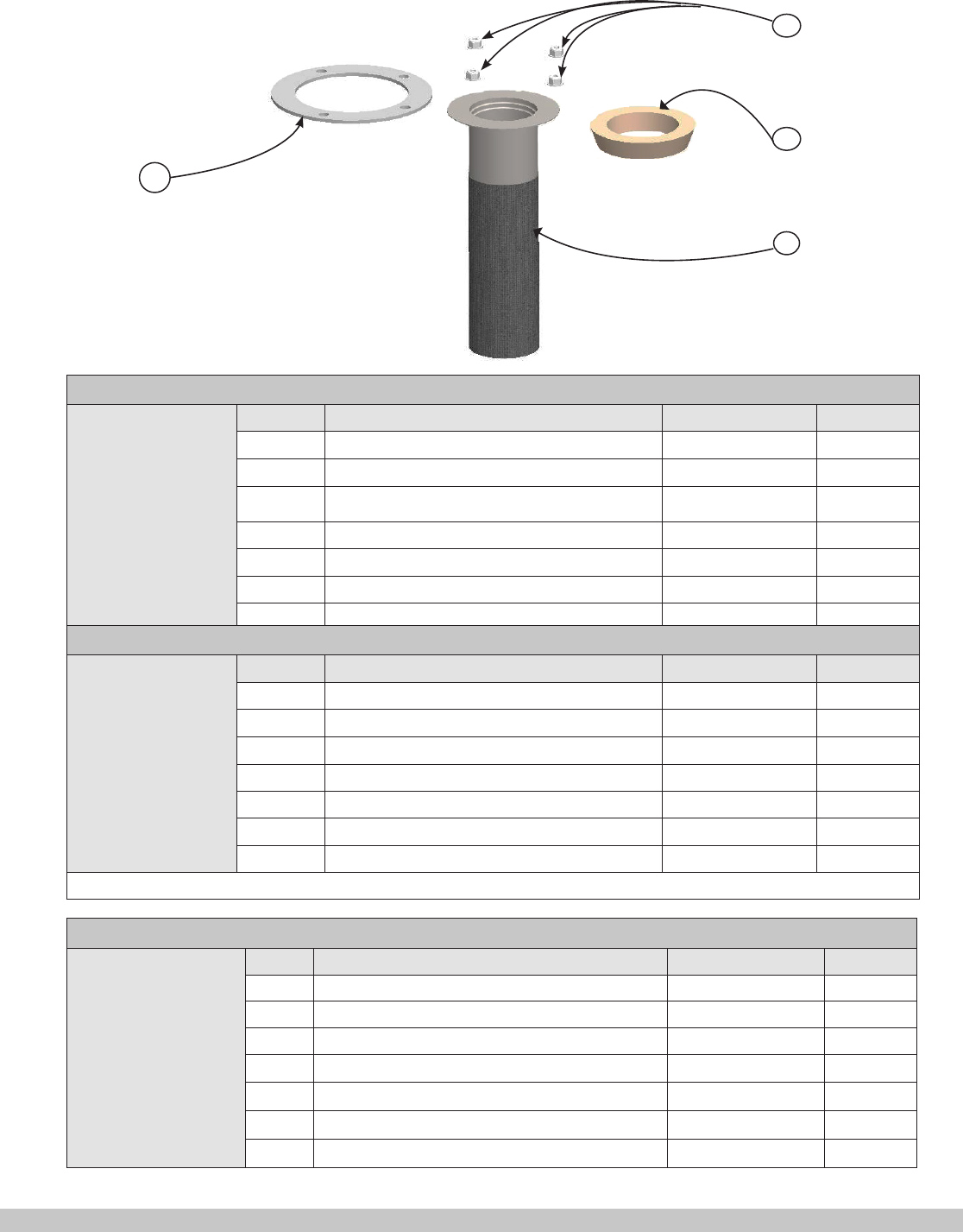

050 Replacement Burner Kit # 550002276

Replacement

Burner Kit

#550002276

includes all

items listed

ITEM DESCRIPTION PART # QTY

A1/4-20 Nut - 4

BBurner Sleeve, Refractory - 1

CBurner 50K BTU - 1

DFiber Gasket - 1

*Igniter Gasket - 1

*8-32 Hex Nut - 2

*Instructions 240008933 1

50/075/100/150/200 Burner Inspection Kit # 550002280

Replacement

Inspection Kit

#550002280

includes all

items listed

ITEM DESCRIPTION PART # QTY

A1/4-20 Nut - 8

BBurner Sleeve, Refractory - 1

DGasket, Air/Fuel Inlet - 1

*Fiber Gasket - 1

*Igniter Gasket - 1

*8-32 Hex Nut - 4

*Instructions 240008931 1

* Not Shown 299 Burner Inspection Kit # 550002818

Replacement

Inspection Kit

#550002818

includes all

items listed

ITEM DESCRIPTION PART # QTY

A1/4-20 Nut - 8

BBurner Sleeve, Refractory - 1

DGasket, Air/Fuel Inlet - 1

*Fiber Gasket - 1

*Igniter Gasket - 1

*8-32 Hex Nut - 4

*Instructions 240010107 1

* Not Shown

7

075 Replacement Burner Kit # 550002277

Replacement

Burner Kit

#550002277

includes all

items listed

A1/4-20 Nut - 4

BBurner Sleeve, Refractory - 1

CBurner 75K BTU - 1

DFiber Gasket - 1

*Igniter Gasket - 1

*8-32 Hex Nut - 2

*Instructions 240008933 1

100 Replacement Burner Kit # 550002278

Replacement

Burner Kit

#550002278

includes all

items listed

A1/4-20 Nut - 4

BBurner Sleeve, Refractory - 1

CBurner 100K BTU - 1

DFiber Gasket - 1

*Igniter Gasket - 1

*8-32 Hex Nut - 2

*Instructions 240008933 1

150/200 Replacement Burner Kit # 550002279

Replacement

Burner Kit

#550002279

includes all

items listed

A1/4-20 Nut - 4

BBurner Sleeve, Refractory - 1

CBurner 150K BTU - 1

DFiber Gasket - 1

*Igniter Gasket - 1

*8-32 Hex Nut - 2

*Instructions 240008933 1

BURNER REPLACEMENT KITS

299 Replacement Burner Kit # 550002809

Replacement

Burner Kit

#550002809

includes all

items listed

A1/4-20 Nut - 4

BBurner Sleeve, Refractory 299 MBH - 1

CBurner 299K BTU - 1

DFiber Gasket - 1

*Igniter Gasket - 1

*8-32 Hex Nut - 2

*Instructions 240010106 1

Burner Replacement Kits - Conti.

8

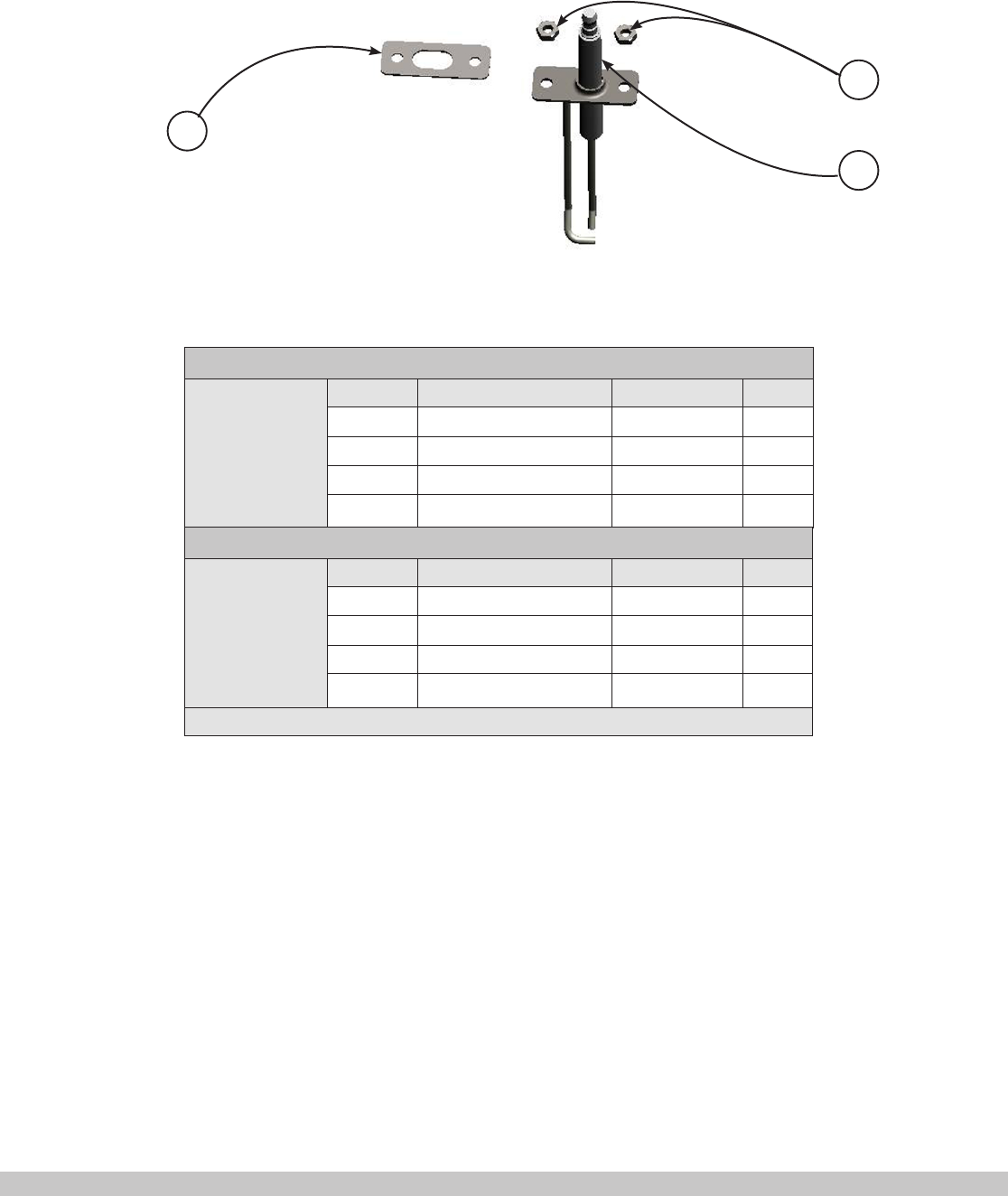

050/075/100 Igniter Kit # 550002190

Igniter Kit

#550002190

includes all

items listed

ITEM DESCRIPTION PART # QTY

A 8-32, Hex Nut - 2

B Igniter - 1

C Igniter Gasket - 1

*Instructions 240008592 1

IGNITER KITS

B

C

A

150/200/299 Igniter Kit # 550002282

Igniter Kit

#550002282

includes all

items listed

ITEM DESCRIPTION PART # QTY

A 8-32 Hex Nut - 2

B Igniter - 1

C Igniter Gasket - 1

*Instructions 240008592 1

* Not Shown

9

B

A

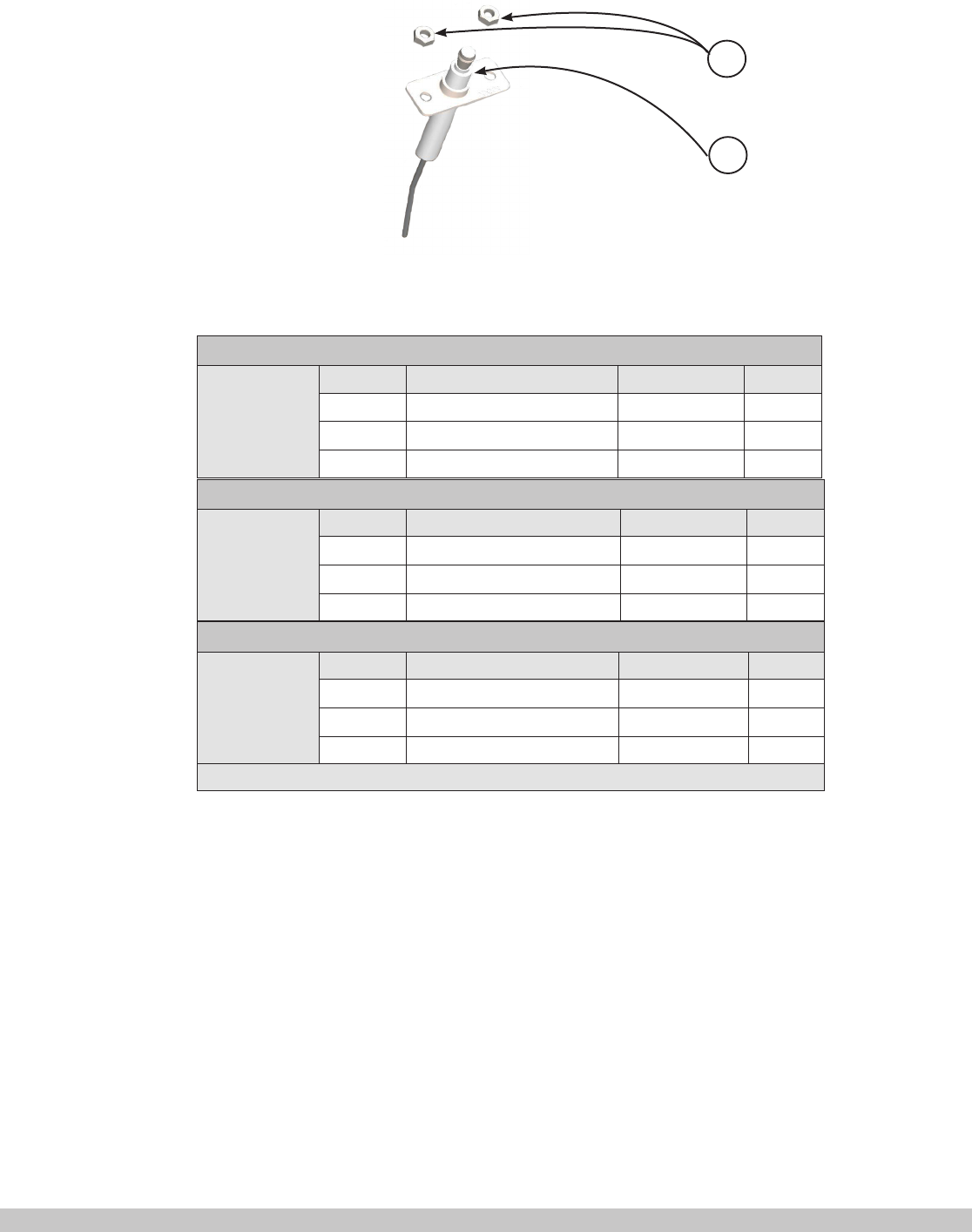

050/075/100 Flame Sensor Kit #550002283

Flame

Sensor Kit

#550002283

includes all

items listed

ITEM DESCRIPTION PART # QTY

A8-32 Hex Nut - 2

BSensor Flame - 1

* Instructions 240008593 1

150/200 Flame Sensor Kit #550002284

Flame

Sensor Kit

#550002284

includes all

items listed

ITEM DESCRIPTION PART # QTY

A8-32 Hex Nut - 2

BSensor Flame - 1

*Instructions 240008593 1

* Not Shown

FLAME SENSOR KITS

299 Flame Sensor Kit #550002810

Flame

Sensor Kit

#550002810

includes all

items listed

ITEM DESCRIPTION PART # QTY

A8-32 Hex Nut - 2

BSensor Flame 299 MBH - 1

*Instructions 240008593 1

* Not Shown

10

D

C

A

B

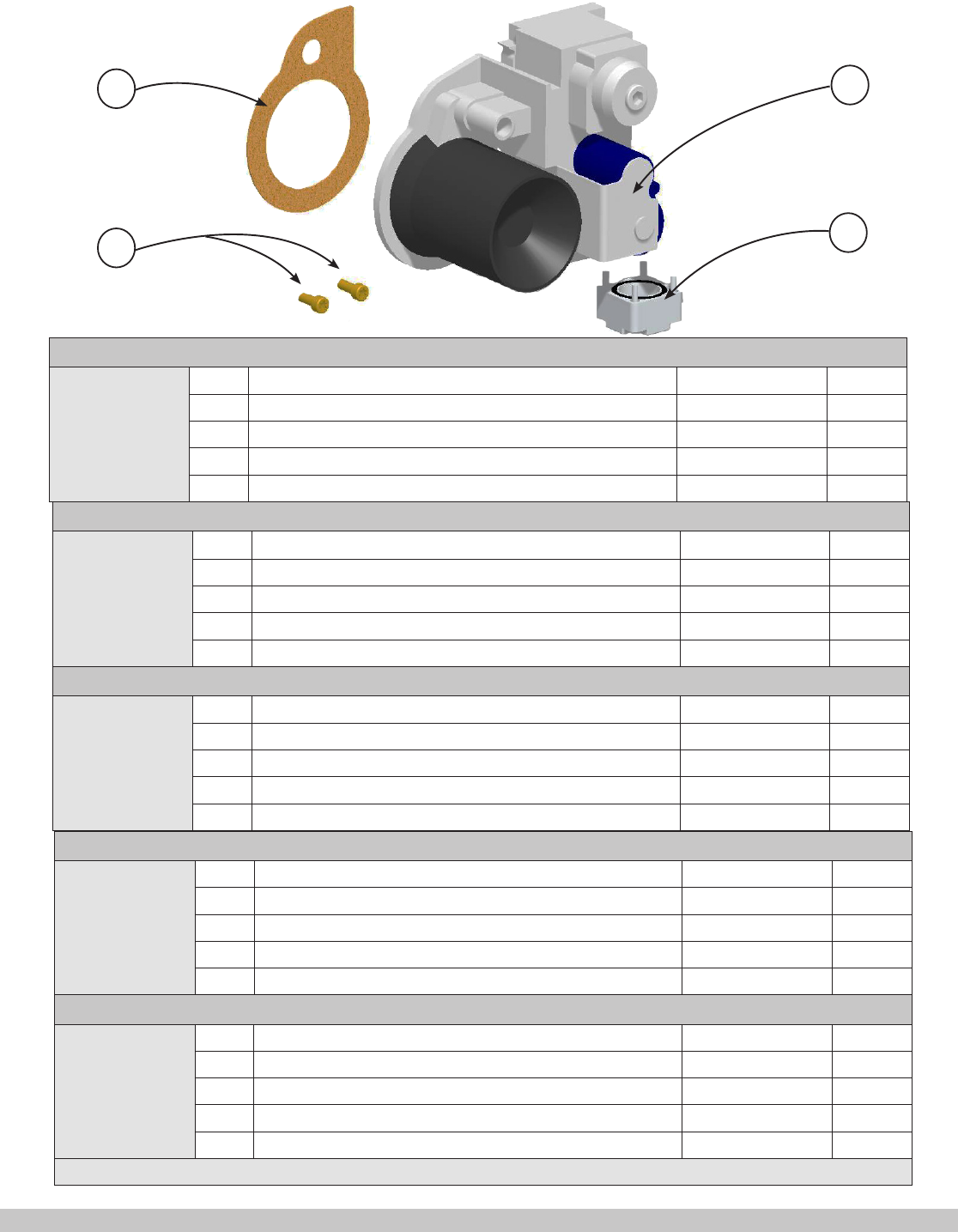

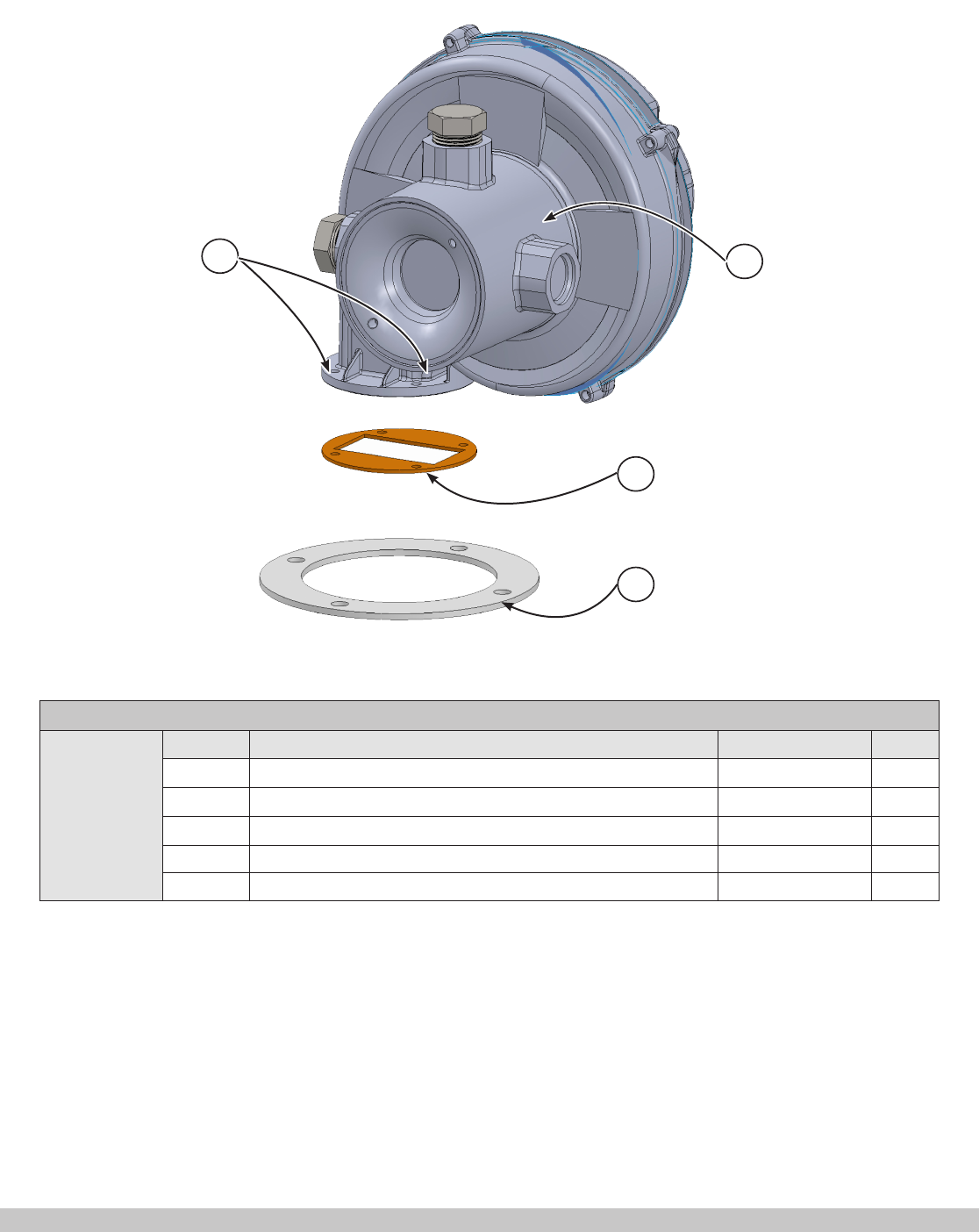

075 Gas Valve Kit # 550002285

Gas Valve Kit

#550002285

includes all

items listed

A Gas Valve, 075, VK4115V, Venturi Included -1

B Gas Valve Flange Kit 1235008 1

C Screw, T25 Torx - 2

D Gasket, Cork 1250021 1

* Instructions 240008939 1

100 Gas Valve Kit # 550002286

Gas Valve Kit

#550002286

includes all

items listed

A Gas Valve, 100, VK4115V, Venturi Included - 1

B Gas Valve Flange Kit 1235008 1

C Screw, T25 Torx - 2

D Gasket, Cork 1250021 1

* Instructions 240008939 1

150 Gas Valve Kit # 550002287

Gas Valve Kit

#550002287

includes all

items listed

A Gas Valve, 150, VK4115F, Venturi Included - 1

B Gas Valve Flange Kit 1235008 1

C Screw, T25 Torx - 2

D Gasket, Cork 1250021 1

* Instructions 240008939 1

200 Gas Valve Kit # 550002288

Gas Valve Kit

#550002288

includes all

items listed

A Gas Valve, 200, VK4115F, Venturi Included - 1

B Gas Valve Flange Kit 1235008 1

C Screw, T25 Torx - 2

D Gasket, Cork 1250021 1

* Instructions 240008939 1

* Not Shown

050 Gas Valve Kit # 550002329

Gas Valve Kit

#550002329

includes all

items listed

A Gas Valve, 050, VK4115V, Venturi Included - 1

B Gas Valve Flange Kit 1235008 1

C Screw, T25 Torx - 2

D Gasket, Cork 1250021 1

* Instructions 240008939 1

GAS VALVE KITS - 050/075/100/150/200 MBH

11

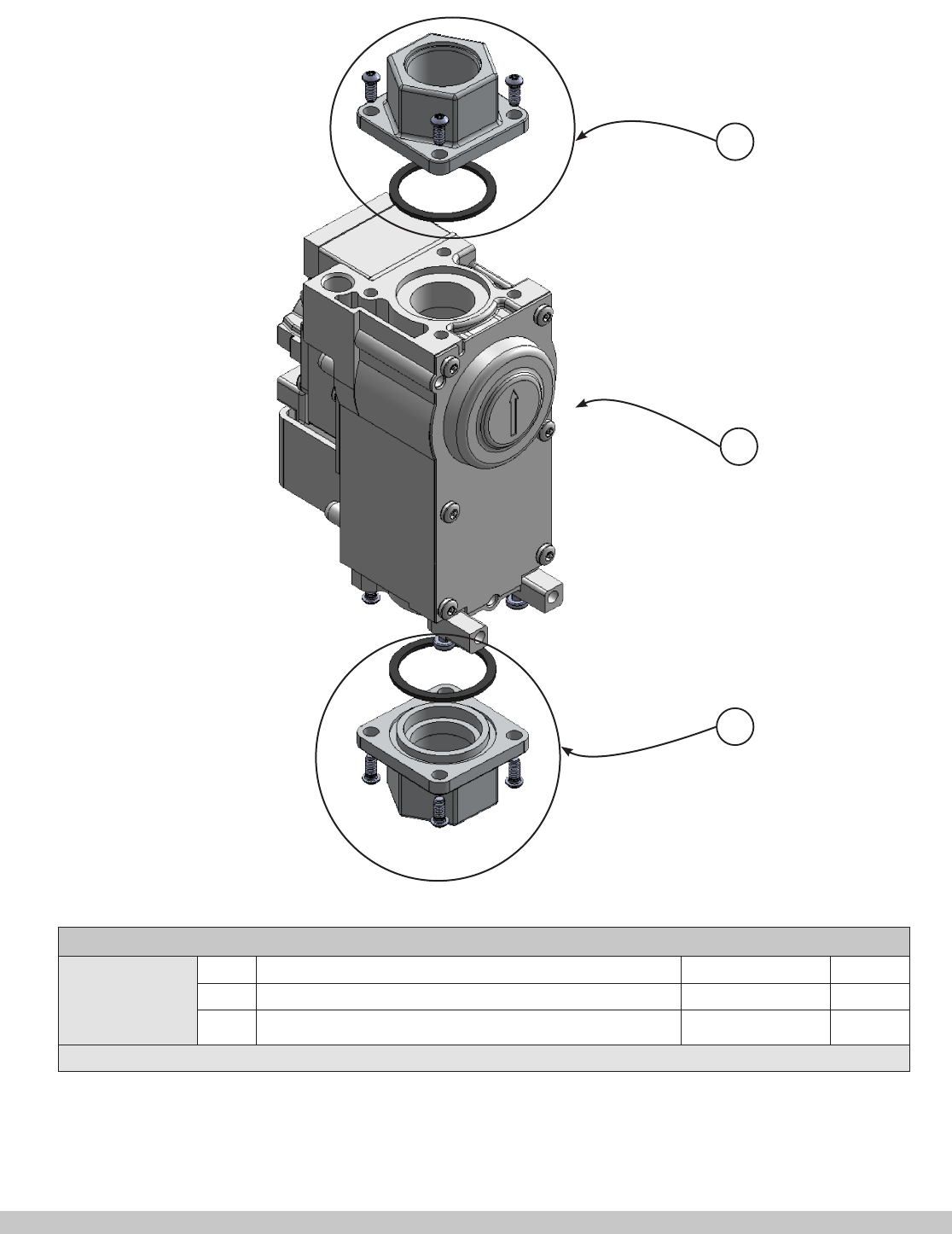

299 Gas Valve Kit # 550002811

Gas Valve Kit

#550002811

includes all

items listed

A Gas Valve, 299, VR4615 - 1

B Gas Valve Flange Kit - 1

* Instructions 240010104 1

* Not Shown

GAS VALVE KIT - 299 MBH

B

A

B

12

A

B

C

D

E

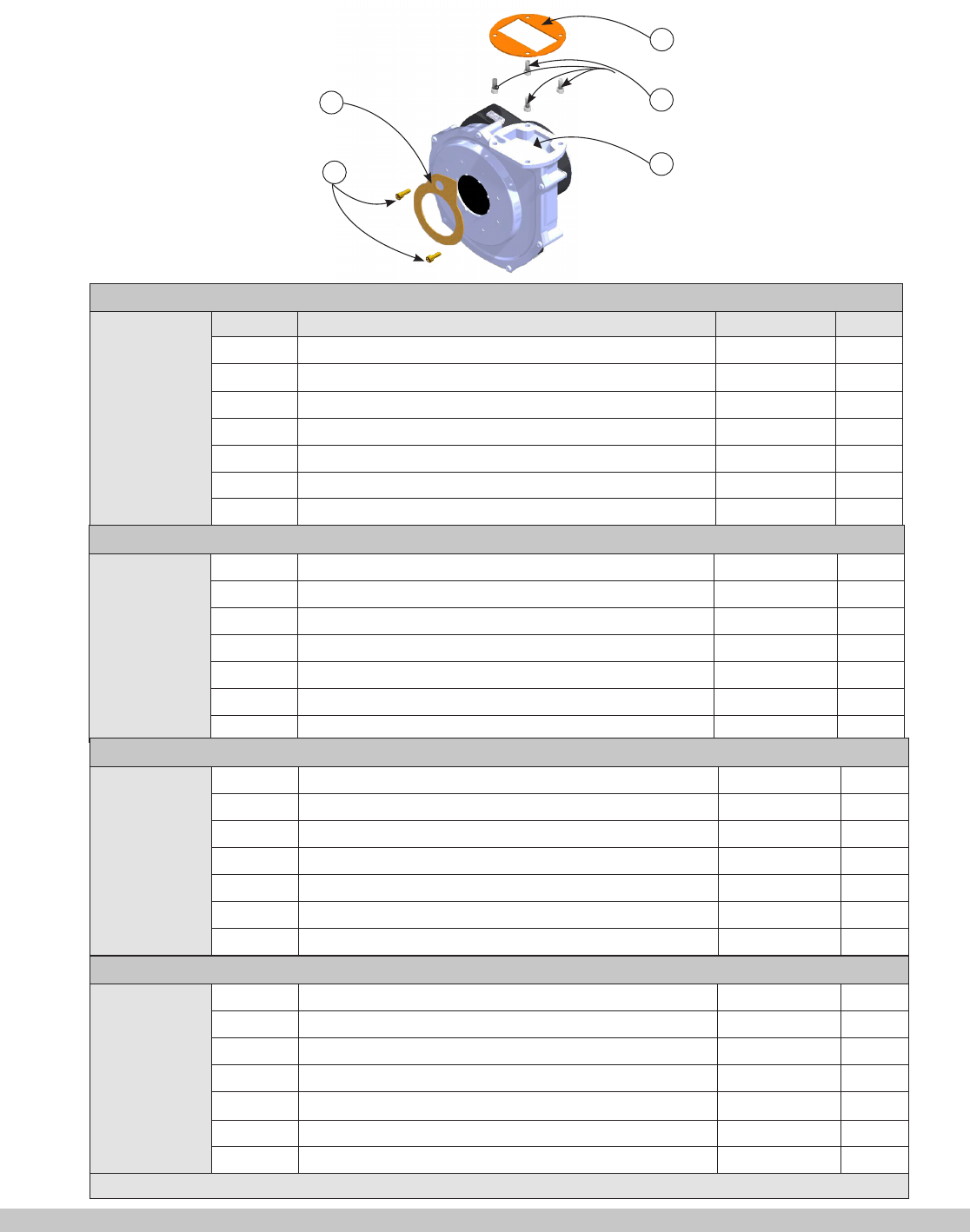

050/075/100 Blower Kit # 550002291

Blower

Motor Kit

#550002291

includes all

items listed

ITEM DESCRIPTION PART # QTY

A Red Gasket, Fan/Transition Piece 1250007 1

B Screw,10-24 X 1/2" Socket Head Cap - 4

C Blower, 120 V 50/60 HZ, RG130/0800-3612 - 1

D Screw, T25 Torx - 4

E Gasket, Cork 1250021 1

* ¼-20 Hex Flange Nut - 4

* Instructions 240008943 1

150 Blower Kit # 550002292

Blower

Motor Kit

#550002292

includes all

items listed

A Red Gasket, Fan/Transition Piece 1250007 1

B Screw,10-24 X 1/2" Socket Head Cap - 4

C Blower, 120 V 50/60 HZ, RG148/1200-3612 - 1

D Screw, T25 Torx - 4

E Gasket, Cork 1250021 1

* ¼-20 Hex Flange Nut - 4

* Instructions 240008943 1

200 Blower Kit # 550002293

Blower

Motor Kit

#550002293

includes all

items listed

A Red Gasket, Fan/Transition Piece 1250007 1

B Screw,10-24 X 1/2" SS Socket Head Cap - 4

C Blower, 120 V 50/60 HZ, RG148/1200-3633 - 1

D Screw, T25 Torx - 4

E Gasket, Cork 1250021 1

* ¼-20 Hex Flange Nut - 4

* Instructions 240008943 1

* Not Shown

BLOWER KIT - 050/075/100/150/200 MBH

200 Blower Kit # 550003058 - High Altitude

Blower

Motor Kit

#550003058

includes all

items listed

A Red Gasket, Fan/Transition Piece 1250007 1

B Screw,10-24 X 1/2" SS Socket Head Cap - 4

C Blower, 120 V 50/60 HZ,130 W RG148/1200-3633 - 1

D Screw, T25 Torx - 4

E Gasket, Cork 1250021 1

* ¼-20 Hex Flange Nut - 4

* Instructions 240008943 1

* Not Shown

13

BLOWER KIT - 299 MBH

299 Blower Kit # 550002812

Blower

Motor Kit

#550002812

includes all

items listed

ITEM DESCRIPTION PART # QTY

A Blower, 120 V 50/60 HZ, NRG137, Venturi Intergrated

B Red Gasket, Fan/Transition Piece 1250007 1

C Fiber Gasket 240009969 1

D ¼-20 Hex Flange Nut - 4

* Instructions 240010105 1

A

B

D

C

14

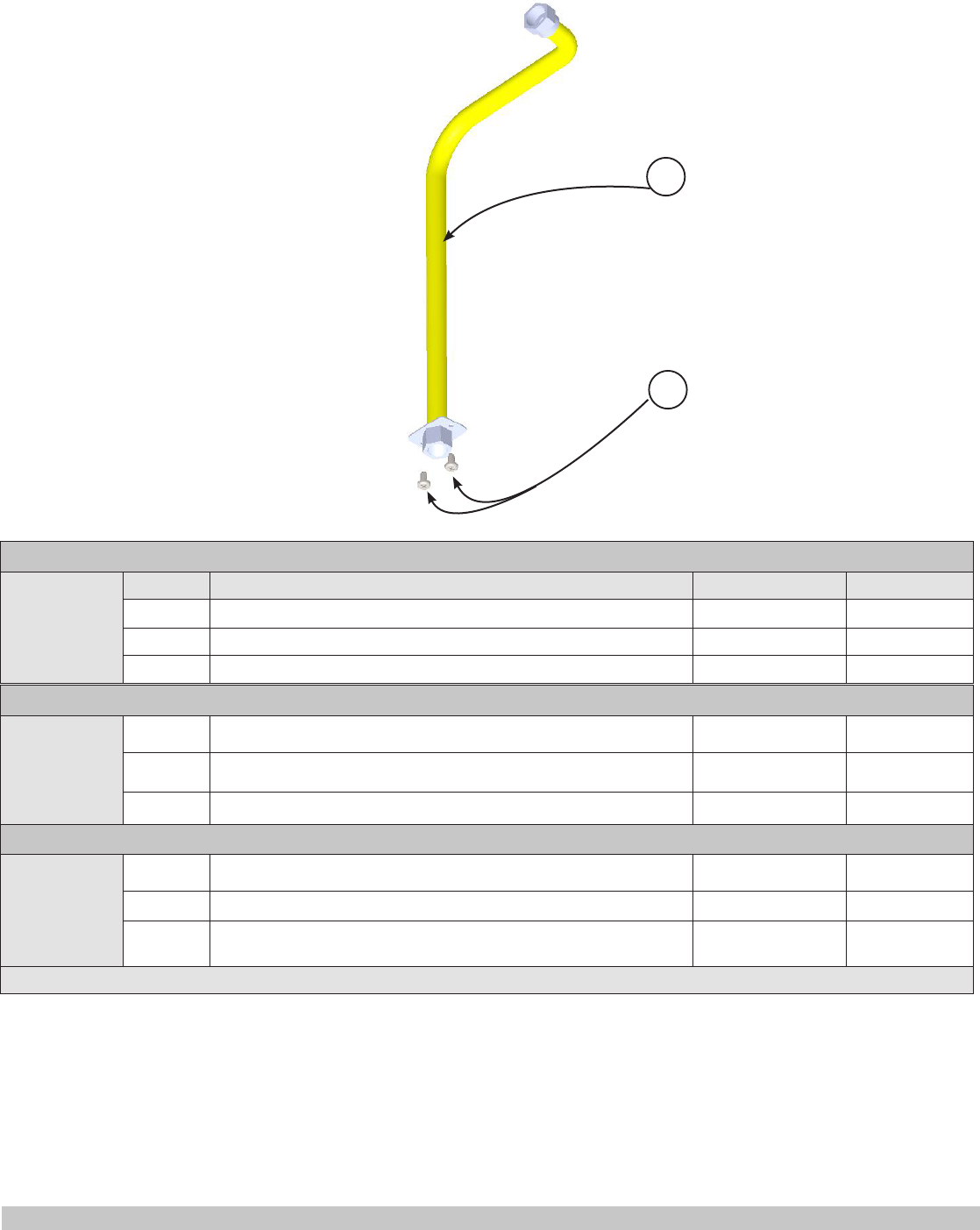

050/075/100 Flexible Gas Line Kit # 550002289

Flexible

Gas Line Kit

#550002289

includes all

items listed

ITEM DESCRIPTION PART # QTY

A Flexible Gas Line 23½" - 1

B Screw, 12-24x1/2 Type F - 2

*Instructions 240008941 1

150/200 Flexible Gas Line Kit # 550002290

Flexible

Gas Line Kit

#550002290

includes all

items listed

A Flexible Gas Line 28" - 1

B Screw, 12-24x1/2 Type F - 2

*Instructions 240008941 1

A

B

299 Flexible Gas Line Kit # 550002813

Flexible

Gas Line Kit

#550002813

includes all

items listed

A Flexible Gas Line 15" - 1

B Screw, 12-24x1/2 Type F - 2

* Instructions 240008941 1

* Not Shown

FLEXIBLE GAS LINE KITS

15

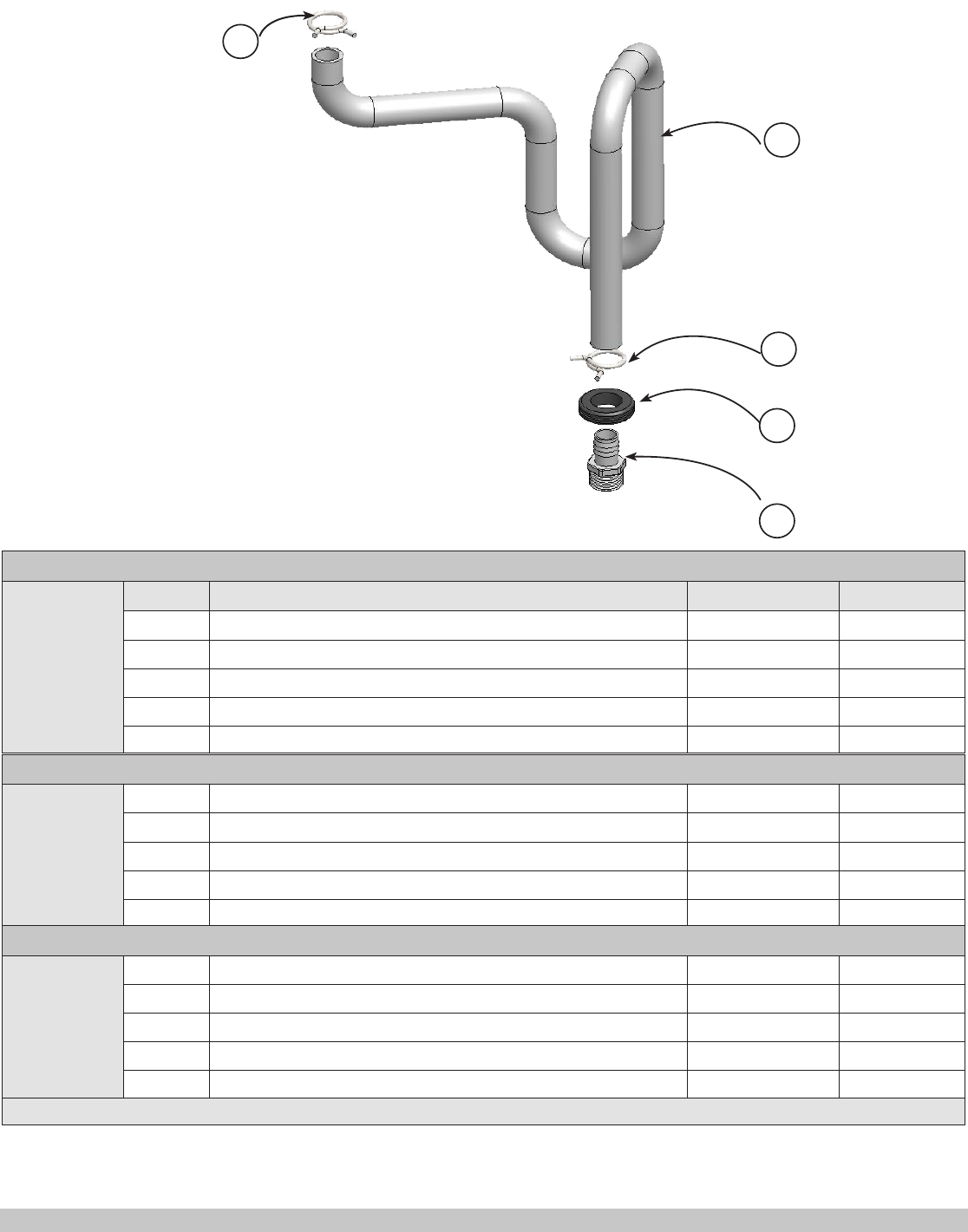

050/075/100 Condensate Trap Kit # 550002296

Condensate

Trap Kit

#550002296

includes all

items listed

ITEM DESCRIPTION PART # QTY

A Collet Clip, 1-1/8" 240008406 2

B Condensate Trap - 1

C Grommet, Heyco 1" ID x 1.75" OD - 1

D Coupling, Barbed 3/4" - 1

* Instructions 240008948 1

150/200 Condensate Trap Kit #550002297

Condensate

Trap Kit

#550002297

includes all

items listed

A Collet Clip, 1-1/8" 240008406 2

B Condensate Trap - 1

C Grommet, Heyco 1" ID x 1.75" OD - 1

D Coupling, Barbed 3/4" - 1

* Instructions 240008948 1

* Not Shown

D

A

B

A

C

CONDENSATE TRAP KITS

299 Condensate Trap Kit #550002814

Condensate

Trap Kit

#550002814

includes all

items listed

A Collet Clip, 1-1/8" 240008406 2

B Condensate Trap - 1

C Grommet, Heyco 1" ID x 1.75" OD - 1

D Coupling, Barbed 3/4" - 1

* Instructions 240008948 1

* Not Shown

16

CONDENSATE COLLECTOR KIT 050/075/100

B

A

I

E

C

F

D

H

J

G

050/075/100 Condensate Collector Kit # 550002294

Condensate

Collector Kit

#550002294

includes all

items listed

ITEM DESCRIPTION PART # QTY

A Flexible Coupling - 1

B Cap black vinyl 3/16" 1230006 1

C Clamp, Spring Tension 1110001 1

D Hose Barb 1230010 1

E O-Ring for Condensate Collector 240008261 1

F 1/4-20 Hex Flange Nut - 4

G Flue Collector Bracket 109008777 1

H Condensate Collector Plastic - 1

I Sensor, Vent Temperature 240008227 1

J Hose Clamp - 2

* Instructions 240008946 1

* Not Shown

17

CONDENSATE COLLECTOR KIT 150/200

NOTE: 299 CONDENSATE COLLECTOR SOLD WITH HEAT EXCHANGER (SEE PAGES 4 & 5)

B

A

E

F

C

G

D

I

J

H

150/200 Condensate Collector Kit # 550002295

Condensate

Collector Kit

#550002295

includes all

items listed

ITEM DESCRIPTION PART # QTY

A Flexible Coupling - 1

B Cap black vinyl 3/16" 1230006 1

C Clamp, Spring Tension 1110001 1

D Sensor, Vent Temperature 240008227 1

E Hose Barb 1230010 1

F O-Ring for Condensate Collector 240008699 1

G 1/4-20 Hex Flange Nut - 3

H Flue Collector Bracket 109008776 1

I Condensate Collector Plastic - 1

J Hose Clamp - 2

* Instructions 240008946 1

* Not Shown

18

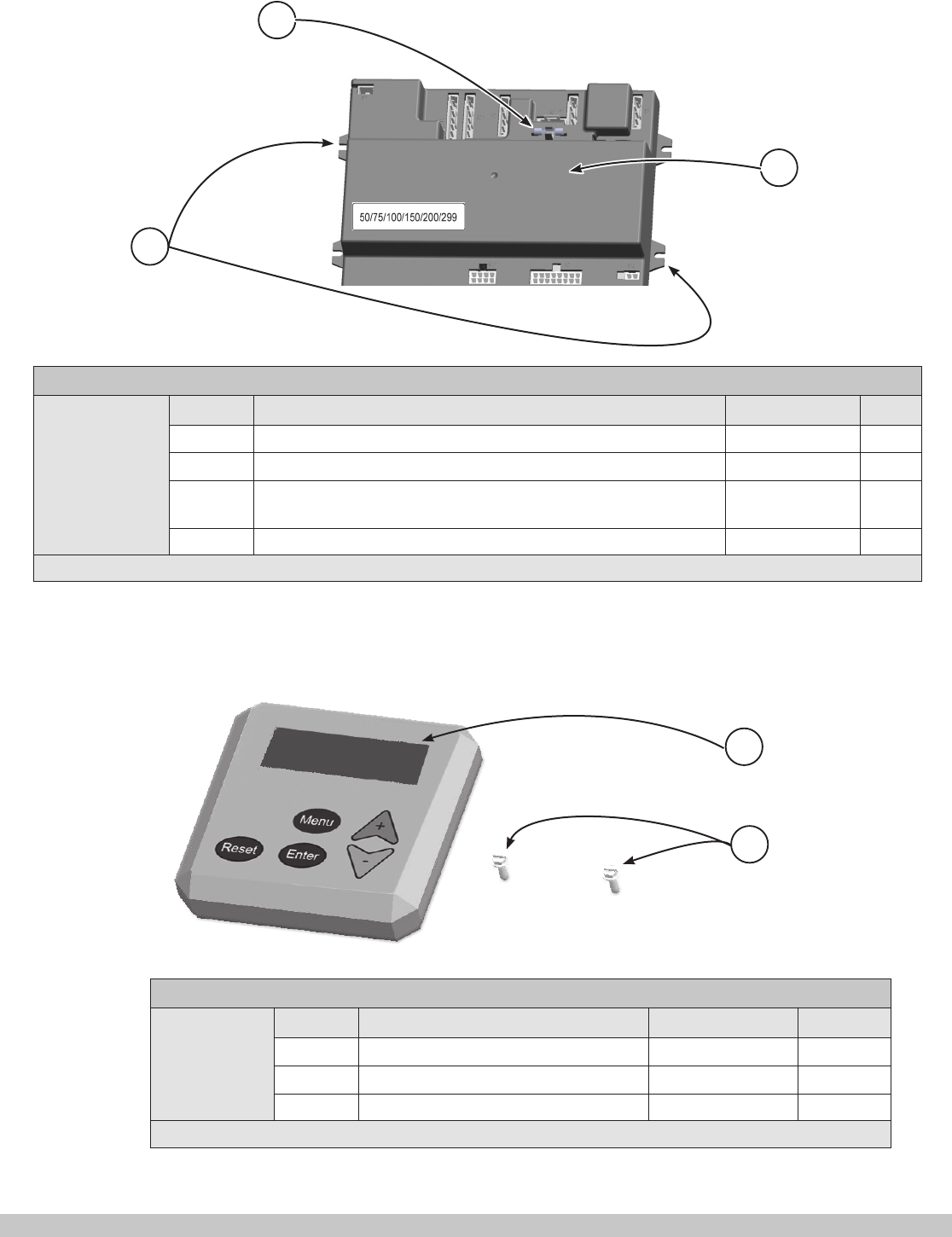

050/075/100/150/200/299 Control Module Kit # 550002583

Control

Board Kit

#550002583

includes all

items listed

ITEM DESCRIPTION PART # QTY

A Control Module - 1

B Screw, 8-32x3/8, HWH, Slot Self Tapping - 4

CFuse, 3.15A ac, 250V, Slo-Blo Glass 5x20mm

(Additional fuse is included with control module on Boiler) 240008665 1

* Instructions 240009314 1

* Not Shown

050/075/100/150/200/299 User Interface Kit # 550002299

User

Interface Kit

#550002299

includes all

items listed

ITEM DESCRIPTION PART # QTY

A User Interface Control - 1

B Screw, 8-32 x 1/2" Type B - 2

* Instructions 240008930 1

* Not Shown

A

B

CONTROL MODULE KIT

NOTE: IF BOILER HAS BEEN CONVERTED TO HIGH ALTITUDE - REPLACE EXISTING

CONTROL WITH HIGH ALTITUDE KIT ONLY. SEE PAGE 25.

USER INTERFACE KIT

A

B

C

19

050/075/100 Wire Harness Kit # 550002300

Wire

Harness Kit

#550002300

includes all

items listed

DESCRIPTION PART # QTY

Main Boiler Wiring Assembly Harness - 1

User Interface Wiring Harness - 1

Lower Jacket Wiring Harness - 1

Bushing Standard Heyco #1240 - 1

Screw, 6x3/8, Type B HPH, SZN - 2

Screw, 8-32x5/16, Self Tapping, Ground, Green - 1

Instructions 240008953 1

WIRE HARNESS KITS

150/200 Wire Harness Kit # 550002315

Wire

Harness Kit

#550002315

includes all

items listed

Main Boiler Wiring Assembly Harness - 1

User Interface Wiring Harness - 1

Lower Jacket Wiring Harness - 1

Cord Grip, 1/2 NPT - 1

Screw, 6x3/8, Type B HPH, SZN - 2

Screw, 8-32x5/16, Self Tapping, Ground, Green - 1

Instructions 240008953 1

150/200 Wire Harness Kit # 550002835 W/ Pump Relay Terminals

Wire

Harness Kit

#550002835

includes all

items listed

Main Boiler Wiring Assembly Harness with Pump Relay Terminals - 1

User Interface Wiring Harness - 1

Lower Jacket Wiring Harness - 1

Cord Grip, 1/2 NPT - 1

Screw, 6x3/8, Type B HPH, SZN - 2

Screw, 8-32x5/16, Self Tapping, Ground, Green - 1

Instructions 240008953 1

299 Wire Harness Kit # 550002815

Wire

Harness Kit

#550002815

includes all

items listed

Main Boiler Wiring Assembly Harness - 1

User Interface Wiring Harness - 1

Lower Jacket Wiring Harness - 1

Cord Grip, 1/2 NPT - 1

Screw, 6x3/8, Type B HPH, SZN - 2

Screw, 8-32x5/16, Self Tapping, Ground, Green - 1

Instructions 240008953 1

20

Heat Exchanger Surface Temperature Switch 50/75/100 Kit #550002554

Wire

Harness Kit

#550002554

includes all

items listed

DESCRIPTION PART # QTY

Temperature Switch Bracket 50/75/100 - 1

Temperature Switch L300-40F 240009508 1

Wire Harness, Temperature Switch - 1

Instructions 240009568 1

Heat Exchanger Surface Temperature Switch 150/200 Kit #550002555

Wire

Harness Kit

#550002555

includes all

items listed

Temperature Switch Bracket 150/200 - 1

Temperature Switch L300-40F 240009508 1

Wire Harness, Temperature Switch - 1

Instructions 240009568 1

Heat Exchanger Surface Temperature Switch 299 Kit #550002820

Wire

Harness Kit

#550002820

includes all

items listed

Temperature Switch Bracket 299 - 1

Temperature Switch L300-40F 240009508 1

Wire Harness, Temperature Switch - 1

Instructions 240009568 1

HEAT EXCHANGER SURFACE TEMPERATURE SWITCH KITS

21

GAS CONVERSION KITS

100 Gas Conversion Kit # 550002305

Conversion

Kit

#550002305

includes all

items listed

DESCRIPTION PART # QTY

Orice, LP, 4.6mm - 1

Label, "Converted By" - 2

Label, "Nat to LP" conversion plate - 1

Label, "LP to Nat" conversion plate - 1

Instructions 240008957 1

075 Gas Conversion Kit # 550002304

Conversion

Kit

#550002304

includes all

items listed

DESCRIPTION PART # QTY

Orice, LP, 3.9mm - 1

Label, "Converted By" - 2

Label, "Nat to LP" conversion plate - 1

Label, "LP to Nat" conversion plate - 1

Instructions 240008957 1

050 Gas Conversion Kit # 550002303

Conversion

Kit

#550002303

includes all

items listed

DESCRIPTION PART # QTY

Orice, LP, 3.8mm - 1

Label, "Converted By" - 2

Label, "Nat to LP" conversion plate - 1

Label, "LP to Nat" conversion plate - 1

Instructions 240008957 1

150 Gas Conversion Kit # 550002306

Conversion

Kit

#550002306

includes all

items listed

DESCRIPTION PART # QTY

Orice, LP, 5.4mm - 1

Label, "Converted By" - 2

Label, "Nat to LP" conversion plate - 1

Label, "LP to Nat" conversion plate - 1

Instructions 240008957 1

200 Gas Conversion Kit # 550002307

Conversion

Kit

#550002307

includes all

items listed

DESCRIPTION PART # QTY

Orice, LP,5.9mm - 1

Label, "Converted By" - 2

Label, "Nat to LP" conversion plate - 1

Label, "LP to Nat" conversion plate - 1

Instructions 240008957 1

299 Gas Conversion Kit # 550002799

Conversion

Kit

#550002799

includes all

items listed

DESCRIPTION PART # QTY

Orice, LP,9.6mm - 1

Label, "Converted By" - 2

Label, "Nat to LP" conversion plate - 1

Label, "LP to Nat" conversion plate - 1

Instructions 240008957 1

22

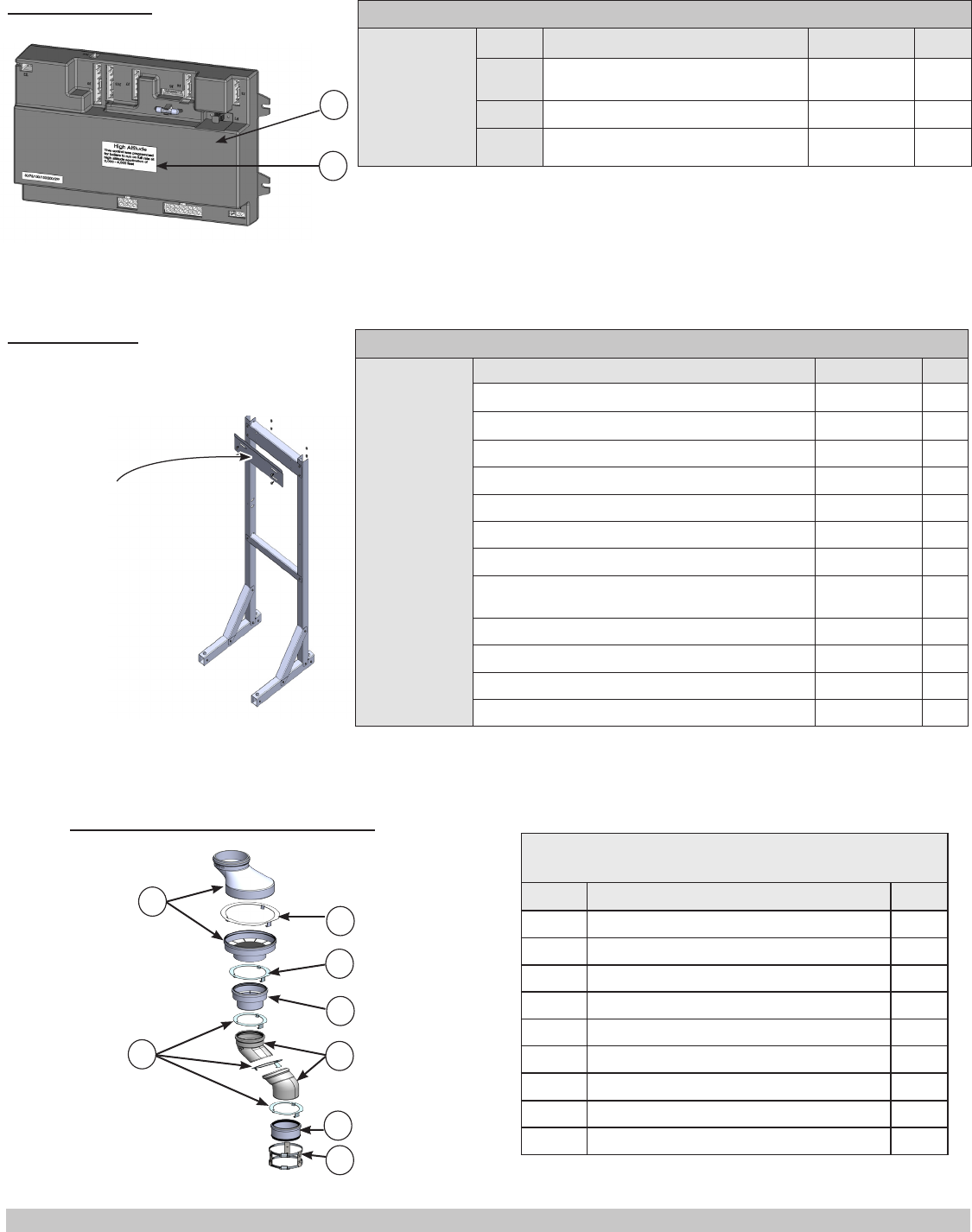

OPTIONAL ACCESSORIES

WALL MOUNT

BRACKET NOT

INCLUDED

WITH FLOOR

STAND KIT

150/200/299 Common Vent Flue Check

Valve Kit 240010299

ITEM DESCRIPTION QTY

A 2 Piece Back Flow Valve 1

B 6" Locking Band 1

C 4 " Locking Band 1

D 3" to 4" Increaser 1

E 3" Locking Band 3

F 3" 45° Elbow 2

G 3" Adapter for PVC Coupler 1

H Adapter Connector 1

- Instructions 1

050/075/100/150/299 High Altitude Kit # 550002819

High

Altitude Kit

#550002819

includes all

items listed

ITEM DESCRIPTION PART # QTY

AControl Module - High Altitude

2000 - 4500 ft. - 1

BHigh Altitude label - 1

NOT

SHOWN Instructions, High Altitude 240010113 1

Floor Stand Kit # 240010266

Floor

Stand Kit

#240010266

includes all

items listed

DESCRIPTION PART # QTY

Left Upright - not interchangeable - 1

Right Upright - not interchangeable - 1

Base Leg - 2

Brace - 2

Upper Cross Member - 1

Lower Cross Member - 1

Base Foot - 4

1/4 - 20 x ⅝ Serrated Hex Flange Head

Bolt - 26

1/4 - 20 Serrated Hex Flange Head Nut - 26

5/16 - 18 x ¾ Serrated Hex Head Bolt - 4

5/16 - 18 Serrated Flange Head Nut - 4

Instructions, Floor Stand 240010265 1

Common Vent Flue Check Valve Kit

A

B

C

D

EF

G

H

Floor Stand Kit

High Altitude Kit

A

B

23

Concentric Vent Kits

DESCRIPTION PART #

2" Concentric Vent Kit (1) 29570

3" Concentric Vent Kit (2) 29571

(1) 2" For use with 050/075/100

(2) 3" For use with 075-299 only

Multi Boiler Sensor Kit # 550002186

Multi Boiler

Sensor Kit

#550002186

includes all

items listed

DESCRIPTION PART # QTY

Sensor, 12K, NTC, 6x45MM 240008465 1

Well, 1/2 NPT Copper/Brass 240008466 1

Sensor Well Lock Clip 240008467 1

Instructions, Multi Boiler Sensor 240008959 1

OPTIONAL ACCESSORIES

Additional Heating Device Connection Kit

(ie. Solar, Wood, etc.)

Kit # 550002875

Kit

# 550002875

includes all items

listed

DESCRIPTION PART # QTY

AR822 Control Z140C 2

System Sensor 240008465 1

System Sensor Well 240008466 1

Well Clip 240008467 1

Kit Instructions 240010355 1

Stainless Boiler Alarm Signal Output Kit

#550002997

Alarm Signal

Output Kit

#550002997

includes all

items listed

Description Part # Qty

Alarm Output Wire

Harness 240010829 1

Kit Instructions 240010830 1

050/075/100 Condensate Neutralizer

Kit # 550003006

DESCRIPTION PART # QTY

Condensate Neutralizer 240010862 includes:

Single Neutralizer Tube - 1

3/4" Barbed Y - 1

3/4" Union - 2

10Ft 3/4" Hose - 1

3/4" Hose Clamp - 6

3/4" NPT to 3/4" Barb - 3

Neutralizing Material 240010871 2.5

lbs

Base/Wall Mounting Clamp - 2

Instructions 240010861 1

200/299 Condensate Neutralizer

Kit # 550003005

DESCRIPTION PART # QTY

Condensate Neutralizer 240010863 includes:

Double Neutralizer Tube - 2

3/4" Barbed Y - 1

3/4" Union - 2

10Ft 3/4" Hose - 1

3/4" Hose Clamp - 6

3/4" NPT to 3/4" Barb - 3

Neutralizing Material 240010871 2.5

lbs

Base/Wall Mounting Clamp - 2

Instructions 240010861 1

24

Sensor, Return Water

(050/075/100) 240008226

Sensor, Return Water

(150/200/299) 240008703

Sensor, Flue 240008227

Clamp, 1-1/8"

Spring Tension for

Condensate Trap

240008406

Ball Valve 1/2" Female

NPT x 5/8", FLR

(Gas Shutoff valve)

(050/075/100/150/200/299)

240008297

Ball Valve 3/4" Female

(Gas Shutoff valve)

(299)

14657001

***Safety Relief Valve

(30 PSI) Conbraco

10-407-05

VR-001.01

Air Vent, Watts

FV-4M1, 1/4 NPT 240008458

Wall Bracket Sizes

050/075/100 109008079

Wall Bracket Sizes

150/200/299 109008347

Cap Black Vinyl 3/16" 1230006

Clamp, Spring Tension

for Black Vinyl Cap 1110001

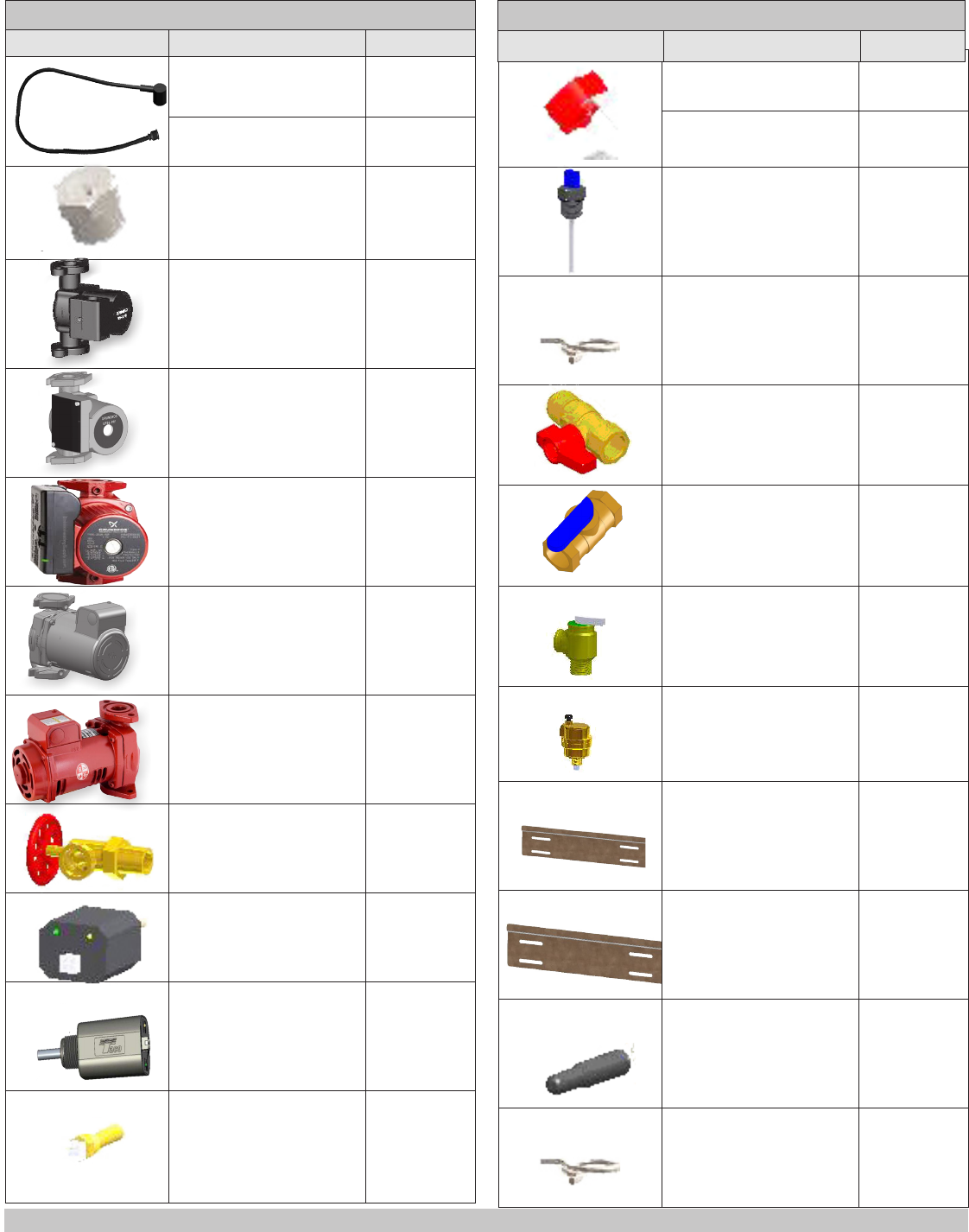

MISC. REPLACEMENT PARTS

Replacement Parts

DESCRIPTION PART #

Igniter Cable

050/075/100/150/200 240008844

Ignitor Cable 299 240009888

Sight Glass 240008235

Pump, Grundfos

UP15-42F

(050/075/100)

240008246

Pump, Grundfos

UP26-99

(150/200)

240008701

* Pump, Grundfos

UPS26-150 FC

(299)

240010188

*Pump, Taco 1/2 HP,

(299) 240009836

*Pump, B & G 1/2 HP,

(299) 240009971

Boiler Drain Valve 240009323

LWCO, Hydrolevel

Safeguard 1100 MINI,

24 VAC

240008250

LWCO, Taco 1100

(299) 240009838

High Temperature

Supply Switch 240008290

Replacement Parts

DESCRIPTION PART #

25

Temperature Switch

L300-40F 240009508

Sensor, Outdoor 240008225

** Gauge,

Temperature

Pressure, 2" shank

(0 ~ 75 psi)

1260006

** Gauge,

Temperature

Pressure, 2" shank

(0 ~ 200 psi)

GA00501

Fuse, 3.15A AC, 250V,

Slo-Blo Glass 5x20mm 240008665

Relay, 120 VAC, 10 A 240008410

MISC. REPLACEMENT PARTS - CONTI.

Replacement Parts

DESCRIPTION PART #

* When ordering an optional pump other than factory supplied, 4 eld sourced proper length bolts may be

required.

** For low pressure system , use 0~75 psi factory supplied pressure temperature gauge.

For system pressure higher than 60 psi, use optional or eld sourced 0~200 psi pressure temperature

gauge.

*** For heating system with system pressure high than 25 psi, eld source proper Safety relief valve.

26

QUICK INDEX

KIT

NAME

KIT

NO.

APPLIED ON MODELS INSTRUCTION

NO.

50 75 100 150 200 299

Additional Heating

Device Connection Kit

550002875 ü ü ü ü ü ü 240010355

Alarm Signal Output Kit

550002997 ü ü ü ü ü ü 240010830

Blower

Replacement Kit

550002291 ü ü ü

240008943

550002292 ü

550002293 ü

550002812 ü240010105

Blower

High Altitude Replacement Kit

550003058 ü240008943

Burner

Replacement Kit

550002276 ü

240008933

550002277 ü

550002278 ü

550002279 ü ü

550002809 ü240010106

Burner Inspection

Kit

550002280 ü ü ü ü ü 240008931

550002818 ü240010107

Common Vent Flue Check Valve

Kit

240010299 ü ü ü N/A

Condensate Neutralizer

Kit

550003006 ü ü ü ü

240010861

550003005 ü ü

Concentric Vent

Kit

29570 (2") ü ü ü N/A

29571 (3") ü ü ü ü ü ü

Condensate Collector

Replacement Kit

550002294 ü ü ü

240008946

550002295 ü ü

Condensate Trap

Replacement Kit

550002296 ü ü ü

240008948

550002297 ü ü

550002814 ü

Control Module

Replacement Kit

550002583 ü ü ü ü ü ü 240009314

Flame Sensor

Replacement Kit

550002283 ü ü ü

240008593

550002284 ü ü

550002810 ü

Flexible Gas Line

Replacement Kit

550002289 ü ü ü

240008941

550002290 ü ü

550002813 ü

Floor Stand Kit

240010266 ü ü ü ü ü ü 240010265

27

QUICK INDEX - CONTI.

KIT

NAME

KIT

NO.

APPLIED ON MODELS INSTRUCTION

NO.

50 75 100 150 200 299

Gas Valve (Automatic)

Replacement Kit

550002329 ü

240008939

550002285 ü

550002286 ü

550002287 ü

550002288 ü

550002811 ü240010104

Heat Exchanger Surface

Temperature Switch

Kit

550002554 ü ü ü

240009568

550002555 ü ü

550002820 ü

Heat Exchanger

Replacement Kit

550002271 ü

240008928

550002272 ü

550002273 ü

550002274 ü

550002275 ü

550002808 ü240010108

High Altitude

Kit

550002819 ü ü ü ü ü 240010113

Igniter

Replacement Kit

550002190 ü ü ü

240008592

550002282 ü ü ü

Lower Jacket

Replacement Kit

550002322 ü ü ü

550002323 ü ü

550002806 ü

LP Gas Conversion

Kit

550002303 ü

240008957

550002304 ü

550002305 ü

550002306 ü

550002307 ü

550002799 ü

Multi Boiler Sensor

Kit

550002186 ü ü ü ü ü ü 240008959

Upper Jacket

Replacement Kit

550002320 ü ü ü

N/A

550002321 ü ü

550002805 ü

User Interface

Replacement Kit

550002299 ü ü ü ü ü ü 240009314

Wire Harness

Replacement Kit

550002300 ü ü ü

240008953

550002315 ü ü

550002815 ü

UTICA BOILERS

2201 Dwyer Avenue

Utica NY 13501

web site: www.ecrinternational.com
