Utica Boilers Ub90 100 Parts List

2015-05-15

: Utica-Boilers Utica-Boilers-Ub90-100-Parts-List-719481 utica-boilers-ub90-100-parts-list-719481 utica-boilers pdf

Open the PDF directly: View PDF PDF.
Page Count: 12

GAS-FIRED, DIRECT VENT,
CONDENSING, HOT WATER
BOILER
PARTS, KITS
AND OPTIONAL ACCESSORIES
P/N# 240010136 Rev. E [01/2015]
An ISO 9001-2008 Certified Company
Models
UB90-50
UB90-75
UB90-100
Ordering Instructions
Order Parts through your nearest supplier.
When ordering parts, obtain Model Number and Serial Number from data plate
on your boiler.
Include following information when ordering.
Part Number
Part Description
Boiler Model Number
Boiler Serial Number
Manufactured by:
ECR International, Inc.
2201 Dwyer Avenue, Utica NY 13501
web site: www.ecrinternational.com
UB90-50/75/100 Series 4
2

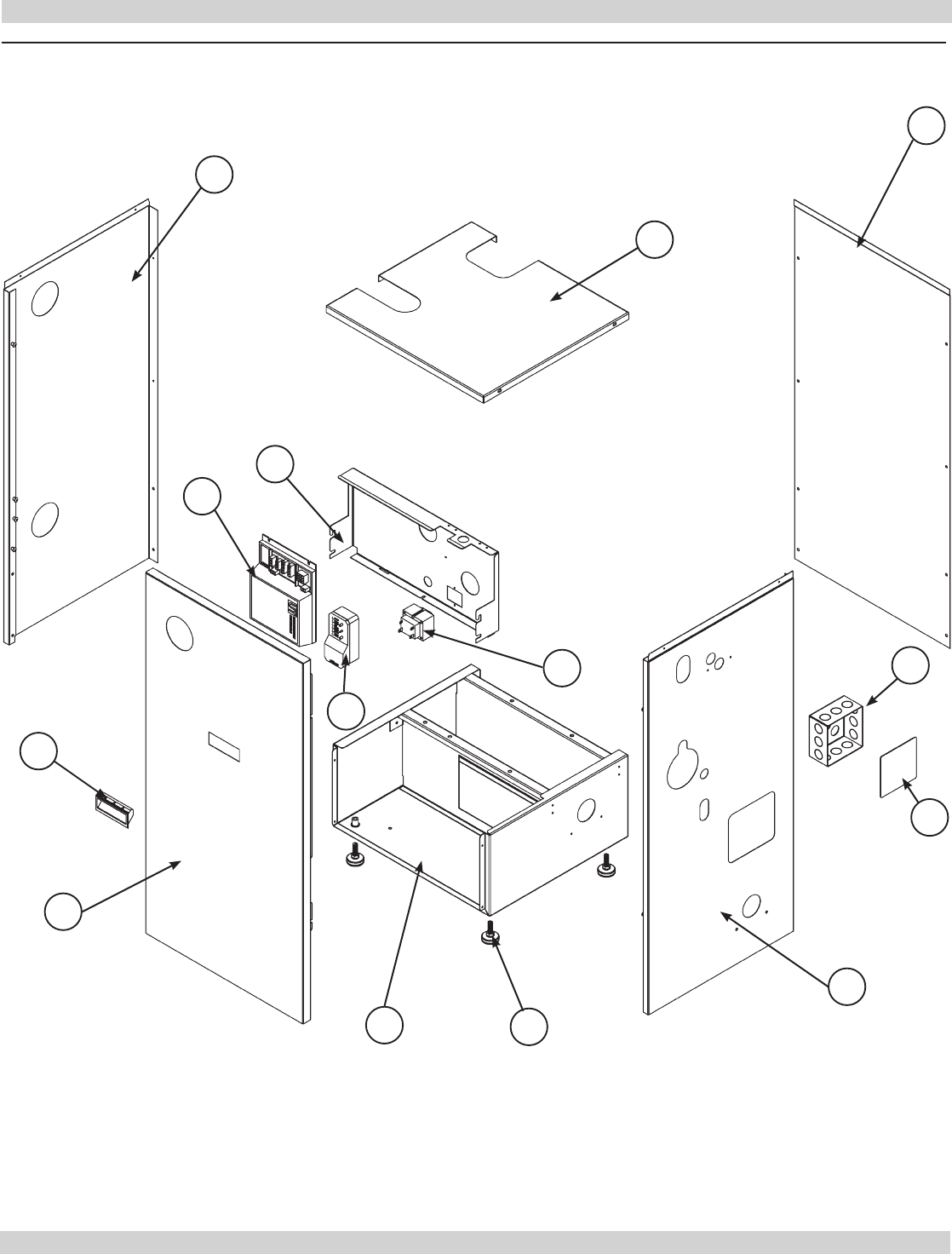

Jacket and Base Assembly
REPAIR PARTS
1
3
4
5
7
13
12
10
9
2
11
6
8
14
3
KEY # DESCRIPTION QUANTITY ITEM
NUMBER
1 BACK PANEL 1 109008720CT
2 RACO 232 4x4x2⅛ BOX 1 14631316
3 COVER PLATE BLANK 4" SQUARE 1 212000009
4 RIGHT PANEL 1 109008718CT
5 CO-2366 GLIDE 4 14631091
6
REPLACEMENT BASE ASSEMBLY (Includes item 5)
1 550002650
7 FRONT PANEL 1 109008717CT
8 DOOR PULL 1 28673
9 LEFT PANEL 1 109008719CT
10 CONTROL PANEL 1 109009096
11 120VAC/24VAC 40VA TRANSFORMER 1 240005330
12 UT CONTROL 1 14662803
13 TOP PANEL 1 109008732CT
14 HYDROLEVEL CONTROL 1 240010103
TACO CIRCULATING PUMP 1 CI-001.03
GRUNDFOS CIRCULATING PUMP 1 C1-006.01
CIRCULATING PUMP HARNESS 1 240009427
JACKET COMPLETE (Includes 1, 4, 8, 9, 13) - - - - 550003025
3” CONCENTRIC VENT KIT 1 29571
2” CONCENTRIC VENT KIT 1 29570
‡ - Not Shown
REPAIR PARTS
Jacket And Base Assembly
4

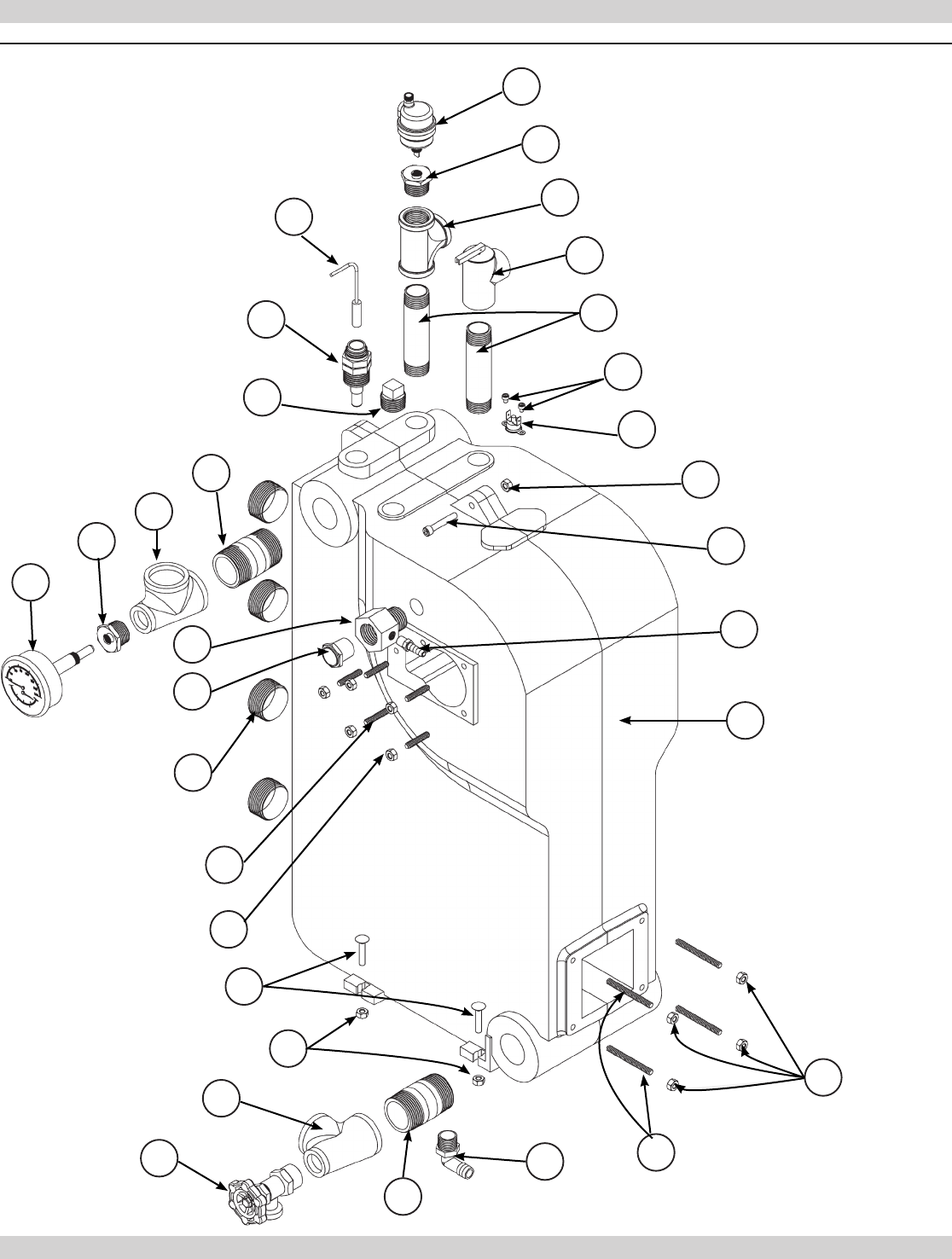

Boiler Block and Piping Assembly
REPAIR PARTS
1
2
3
4
5
6
8
7
9
28
11
12a
13
14
15
16
17
18
23
22
21
20
17
24
25
16
14
29
30
10
12b
5
KEY # ITEM NUMBER DESCRIPTION QTY
550002627
INCLUDES
ITEMS
LISTED HERE
11 550002627 KIT BLOCK REPLACEMENT 1
5 14607202 NPL,3/4X4½,BI,STD 2
6 14695802 SCR,8-32 X 3/16,RH,ALH,CAP 2
7 14631000 SWITCH CASTING TEMP Q90 36T26-42930 300 1
10 14631005 FITTING, 125HBL-4-2
1
/
8"
X 1/4" BR.B+ 1
12a 14695810
NUT, ¼-20,HWS
4
12b
240009021
STUD, THREADED, ¼-20 X 2-¼
4
13 240009285 ELB,TBE, ½"NPT X 5/8" ID,HB, 62044 1
14 14607044 NPL,1-1/4X2-1/2,BI,STD 2
16 1510001 TEE,RDCR,1-1/4” X 3/4” X 1-1/4” 2
17
14695810 NUT, 1/4-20, HWS 13
18 14695040 BOLT, 1/4-20 X 1-1/4”, CARRIAGE 4
20 14695805 STUD, THREADED, 1/4-20 X 1 1/4” 5
22 14619002 OBSERVATION GLASS, 3/4” 1
23 14631004 ADAPTER, SIGHT GLASS 1
** 240009284 EXHAUST SPACER BUSHING 1/4X3/8X7/8 LONG 4
** 240009583 GASKET, EXHAUST SPACER 4
** 1250010 GASKET IGNITER 1
** 14631023 GASKET BURNER 1
** 14631025 GASKET MIXER 1
** 14695809 SCREW, 10-32 X 3/8" 2
--- * NOTE: #8, 9, 21, AND 28 INSTALLED IN HEAT EXCHANGER ---
8* 14695810 NUT, 1/4-20,HWS 5
9* 14695801 SCR, 1/4-20 X 1-1/2”,RH,ALH,CAP 5
21* 1395002 1-1/4 HEX SOCKET PLUG 8
28* 1395001 3/4” SQ HD PLUG 1
1 1580006 VENT AIR PURGE Q SERIES 1
2 14693001 BSHG, 3/4” X 1/8”,BLK 1
3 14693076 TEE,BLK, 3/4” 1
4 14622011 VLV,SAFETY,RLF,30PSI,3/4,10-408-05 1
15 240009323 VLV,DRN,3/4, 1
24 1260006SP GAUGE,TEMP/PRESS,2” SHANK 1
25 1060002 BUSHING, 3/4" x 1/4" BLK 1
29 240009283 WELL, SHORT, 1½" INSRT, HL, 48-205 1
30 240007708 SENSOR, HIGH LIMIT, 48" 1
** 240008013 SENSOR MOUNTING CLIP, HW 32002656 1
** Not Shown
REPAIR PARTS
Boiler Block and Piping Assembly
6
KEY # DESCRIPTION QUANTITY ITEM NUMBER
1BURNER GASKET 1 14631023
2BURNER KIT, 90-50/75/100 NAT/LP, 0’-10,000’ (Contains: 1, 2, 4, ) 1 550002632
3
RESTRICTOR PLATE 90-50 1 109006405
RESTRICTOR PLATE 90-75 NATURAL GAS 1 109006406
RESTRICTOR PLATE 90-75 PROPANE 1 109009107
RESTRICTOR PLATE 90-100 1 109009105
REPAIR PARTS

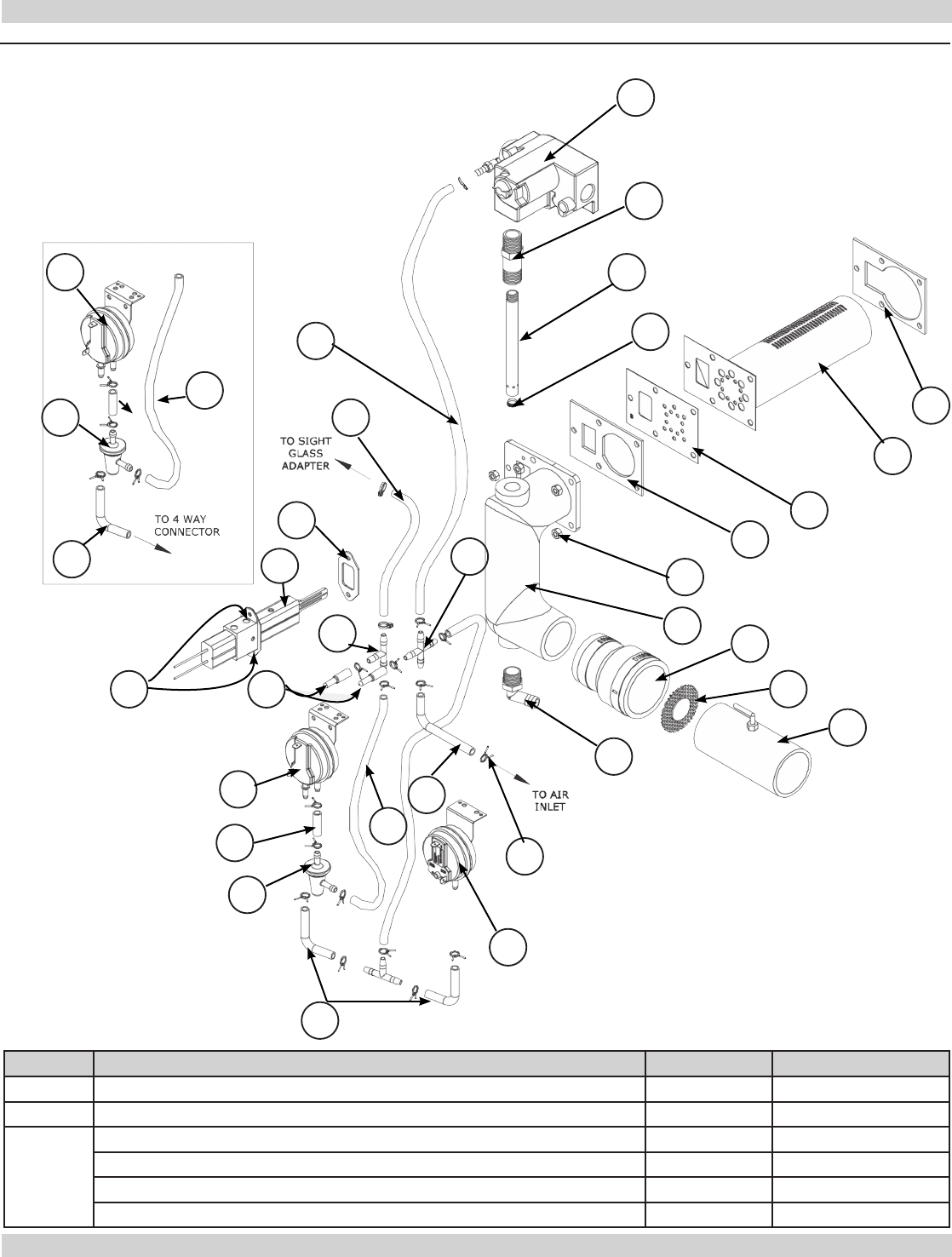

Mixer and Air Pressure Switch Assembly
1
27
2
3
4
5
6
9
7
8
11
12
20
21
29
14
18
25
29
17
22
13
24
26
15
10
28
12
15
13
12
13
12
15A
7
MIXER AND AIR PRESSURE SWITCH ASSEMBLY - CONTINUED
KEY # DESCRIPTION QUANTITY ITEM NUMBER
4MIXER GASKET 1 14631025
5¼”-20 HEX NUT W/SERRATED WASHER HEAD 5 14695810
6MIXER CASTING MACHINED 1 12101008
72”´x 1½” FLEXIBLE COUPLING 1 14631311
8
90-100 AIR BAFFLE 1.00" DISC 1 109008977
90-75 AIR BAFFLE 1.17" DISC 1 109008915
90-50 AIR BAFFLE 1.55" DISC 1 109008916
9 AIR INLET 1 43800007
10 62043 ½’’ NPT´1/2”ID TUBE ELBOW 1 14631103
11 3/8” HOSE CLAMP HC-6ST AS REQUIRED 14631143
12 59006 1/4" ID X 3/8" OD VINYL TUBING AS REQUIRED 14631033
13 1/4’’ID´3/8”OD VINYL TUBING (RED) AS REQUIRED 14631314
14 ¼”ID TUBE 4-WAY CONNECTOR 1 14631313
15 075/100 DIFFERENTIAL AIR PRESSURE SWITCH 1.80" 1 240010151
50 DIFFERENTIAL AIR PRESSURE SWITCH 2.10" 1 240009613
15A 075/100 NEGATIVE PRESSURE SWITCH -0.50" 1 240009793
17 PC250-12 VINYL CAP 2 14631151
18 62064 ¼”ID TUBE TEE AS REQUIRED 14631104
20 10-32”x 3/8” MACHINE SCREW 2 14695809
21* HOT SURFACE IGNITER KIT 1 43800013
22 IGNITER GASKET 1 1250010
24 3/16” ID SILICONE TUBING AS REQUIRED 1552014
25 1/8’’ NPT BRASS PLUG – 3/16’’ HEX SOCKET 1 14693805
26**
GAS ORIFICE NATURAL, 100N (0.0860, #44) 0-10,000' 1 43331090
GAS ORIFICE NATURAL, 75N (0.0760, #48) 0-10,000' 1 43331092
GAS ORIFICE NATURAL, 50N (0.0615) 0-10,000' 1 43331094
GAS ORIFICE PROPANE, 100P (0.0670, #51) 0-10,000' 1 43331091
GAS ORIFICE PROPANE, 75P (0.0531) 5,000-10,000' 1 43331096
GAS ORIFICE PROPANE, 75P (0.0605) 0-5,000' 1 43331093
GAS ORIFICE PROPANE, 50P (0.0492) 0-10,000' 1 43331095
27 BUSHING WITH HEX, Q90 MIXER 1 240009289
28 HONEYWELL GAS VALVE VR8205 1 14631307
29 WATER TRAP 1 240010139
Not Shown
NATURAL TO PROPANE CONVERSION KIT, 90-50, 0’-10,000’ 1 550002631
NATURAL TO PROPANE CONVERSION KIT, 90-75, 0’-5,000’ 1 550002630
NATURAL TO PROPANE CONVERSION KIT, 90-75, 5,000’-10,000’ 1 550002629
NATURAL TO PROPANE CONVERSION KIT, 90-100, 0’-10,000’ 1 550002700
PROPANE TO NATURAL CONVERSION KIT, 90-50, 0-10,000' 1 550002635
PROPANE TO NATURAL CONVERSION KIT, 90-75, 0-10,000' 1 550002634
PROPANE TO NATURAL CONVERSION KIT, 90-100, 0-10,000' 1 550002701
* - Includes item numbers 20, 21 & 22. ** - Includes item number 25
8

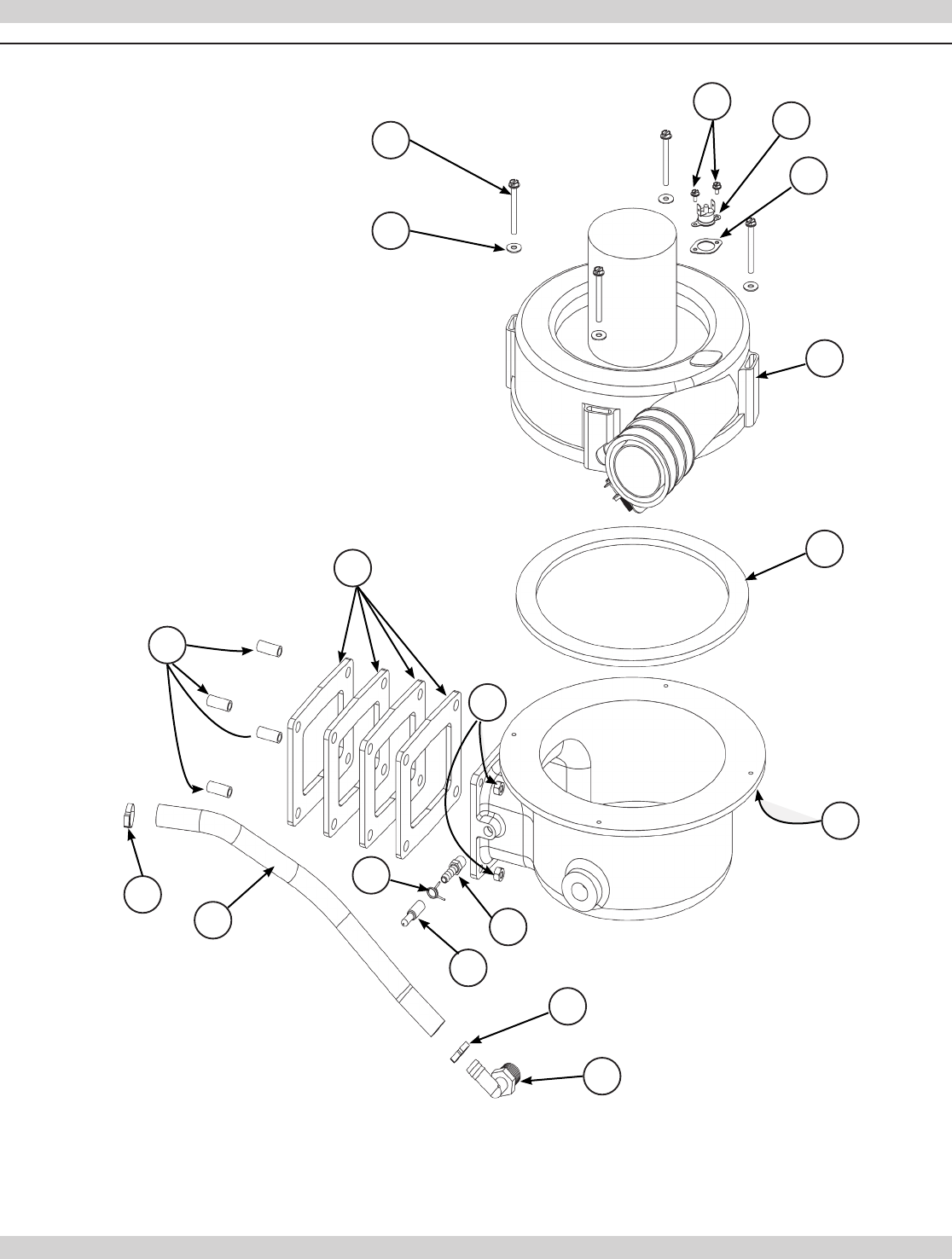

Flue Adapter and Exhaust Assembly
REPAIR PARTS
7
11
12
3
4
5
8
12
10
9
6
15
14
9
13
17
16
9
KEY
#DESCRIPTION QTY. ITEM
NUMBER
Kit
550002628
Includes
INDUCED DRAFT BLOWER KIT FOR MODELS 50/75
[INCLUDES items 1,2,3,4,5,16,17]
1
550002628
1SCREW, 6 X 1/4, SLT, HH 2 HW06501
236T X 11-22491 INDUCER TEMP SAFETY SWITCH 1 14631303
3 VENT SWITCH GASKET 1 14631028
4 FLUE GAS BLOWER WITH VENT PIPE CONNECTOR 1 240009288
5 BLOWER GASKET 1 14631026
16 WASHER, #10 X ½" OD 4 240006203
17 SCREW, 10-24X3" SLT HWH SZN 4 240007745
Kit
550002699
Includes
INDUCED DRAFT BLOWER KIT FOR MODEL 100
[INCLUDES items 1,2,3,4,5,16,17] 1 550002699
1SCREW, 6 X 1/4, SLT, HH 1 HW06501
236T X 11-22491 INDUCER TEMP SAFETY SWITCH 1 14631303
3 VENT SWITCH GASKET 1 14631028
4 FLUE GAS BLOWER WITH VENT PIPE CONNECTOR 1 240009791
5 BLOWER GASKET 1 14631026
16 WASHER, #10 X ½" OD 4 240006203
17 SCREW, 10-24X3" SLT HWH SZN 4 240007745
6
FLUE ADAPTER 1 12101021
7*
1/8” NPT 1/4” HOSE ID BRASS BARB FITTING 1 14631005
8
PC250-12 VINYL CAP 1 14631151
9
57134 3/4’’ SNAP GRIP CLAMP 2 14631141
10
62043 1/2’’ NPT´ x 1/2’’ ID TUBE ELBOW 1 14631103
11
59019 ½’’ ID´ x 1/8" THK VINYL TUBE 22" 14631035
12
3/8" HOSE CLAMP HC-6ST 1 14631143
13
EXHAUST SPACER BUSHING 1/4 ID X 3/8 OD X 7/8 LONG 4 240009284
14
GASKET, EXHAUST SPACER 4 240009583
15
1/4”-20 HEX NUT W/SERRATED WASHER HEAD 4 14695810
**
VENT PIPE 2” CPVC SCH-40 X 29½” LONG S636 2 240006820
**
VENT PIPE COUPLING 2" CPVC SCH-80 S636 1 240006822
**
VENT PIPE ELBOW 2" CPVC SCH 40 S636 1 240009663
**
VENT PIPE 2" CPVC SCH-40 X 2 ½" LONG S636 1 240006821
*
- Combustion Test Port
** - Not shown
Flue Adapter and Exhaust Assembly
REPAIR PARTS
10

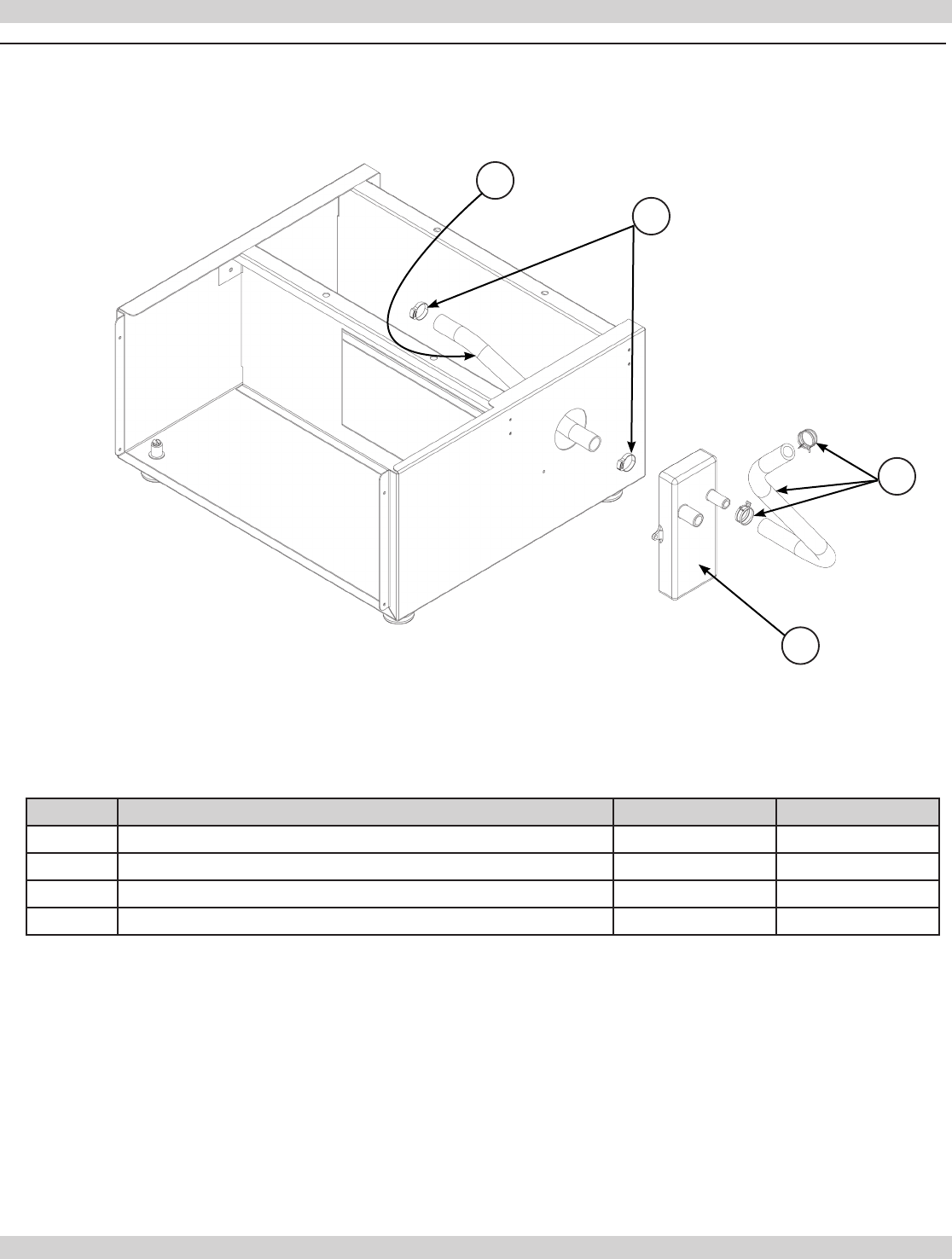

Condensate Drain Trap Assembly
REPAIR PARTS
3
4
1
2
KEY # DESCRIPTION QUANTITY ITEM NUMBER
1 59020 TUBE, VINYL, 5/8” ID x 13/16” OD 9.5" 240009291
2 57134 ¾” SNAP GRIP CLAMP 2 14631141
3 CONDENSATE TRAP ASSEMBLY 1 240009287
4 TUBE 1/2" ID EPDM60 WITH CLAMPS 1 240010489
11
REPAIR PARTS
DESCRIPTION QUANTITY ITEM NUMBER
WIRING HARNESS Q90-100 1 240010102
WIRING HARNESS Q90-50, Q90-75 1 240010101
Wiring Harness
UTICA BOILERS
2201 Dwyer Avenue
Utica NY 13501
web site: www.ecrinternational.com
