VALEO Telematik und Akustik ATM-T-622 Advanced Telecommunication Module (ATM) Trunk Version User Manual
Peiker acustic GmbH & Co. KG Advanced Telecommunication Module (ATM) Trunk Version
atm_trunk_user_manual_statement_-atm-01-t2-us-4gw-2
________________________________________________________________________________________________________________________________________ page 1
peiker acustic GmbH & Co. KG, Max-Planck-Straße 28-32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: Valeo Peiker Telematik GmbH, Vorsitzender der Geschäftsführung: Reinhard Kromer-von Baerle, Geschäftsführer: Mathias Köhler, Amtsgericht Coburg HRB 5735
Vorsitzender des Aufsichtsrates: Marc Vrecko Ein Unternehmen der Valeo Firmengruppe

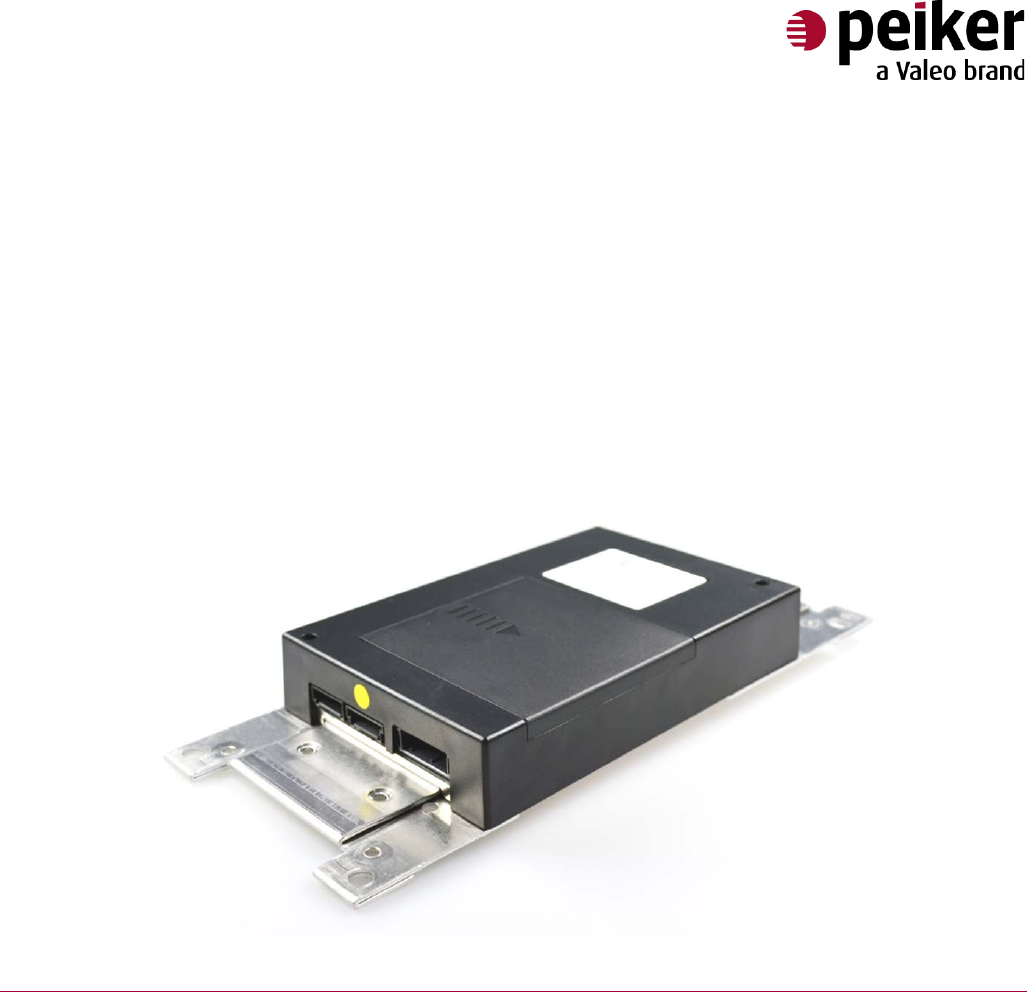

Statement for User Manual
Advanced Telecommunication Module (ATM)
ATM-01 T2-US-4GW
Rev. 2.2
Release
PEIKER acustic Confidential and Proprietary
Name of model:
ATM-01 T2-US-4GW
Internal peiker product ID:
2609-078-166-51
Status:
Release
Revision:
2.2
Date:
30.05.2016
page 2
The copyright protection of this original document remains with Peiker acustic GmbH & Co. KG. Without prior written authorization it shall not be copied or otherwise
reproduced by a third party and shall not be disclosed to competitors. The infringement shall be strictly enforced by applicable civil and criminal legal proceedings.
1 Change documentation
Date
Revision
Name
Changes / Comment
05.08.2015
Rev 1.0
M. Fleckenstein
Initial version
03.05.2016
Rev 2.0
M. Fleckenstein
Update to new model ATM-01 T2-US-4GW
25.05.2016
Rev 2.1
P. Seguret
Correction of the supported frequency bands & maximum
antenna gain values
30.05.2016
Rev 2.2
M. Fleckenstein
Update WLAN frequency range, Editorial update of antenna
installation
page 3
The copyright protection of this original document remains with Peiker acustic GmbH & Co. KG. Without prior written authorization it shall not be copied or otherwise
reproduced by a third party and shall not be disclosed to competitors. The infringement shall be strictly enforced by applicable civil and criminal legal proceedings.
1 Change documentation ..................................................................................................... 2
2 Introduction ..................................................................................................................... 4
2.1. Scope ............................................................................................................................... 4
2.1.1. Purpose of the document ............................................................................................. 4
2.1.2. General information ..................................................................................................... 4
2.1.3. Contact information ..................................................................................................... 4
3 Antenna installation ......................................................................................................... 5
4 Wireless LAN ..................................................................................................................... 6
5 Warning Statements for the User Manual......................................................................... 7
5.1. US /Canada ....................................................................................................................... 7
6 Battery replacement ......................................................................................................... 8
page 4
The copyright protection of this original document remains with Peiker acustic GmbH & Co. KG. Without prior written authorization it shall not be copied or otherwise
reproduced by a third party and shall not be disclosed to competitors. The infringement shall be strictly enforced by applicable civil and criminal legal proceedings.
2 Introduction
2.1. Scope
2.1.1. Purpose of the document
The Advanced Telecommunication Module (ATM) trunk version is manufactured by peiker acustic GmbH
& Co. KG (grantee) and sold as an OEM product.
According to the US Code of Federal Regulations (47 CFR 2.909, 2.927, 2.931, 2.1033, 15.15(b) etc.),
the grantee must ensure the end-user has the applicable and appropriate operating instructions for the
device. In the case of this product the grantee must notify the OEM to notify the end-user.
Peiker acustic GmbH & Co. KG will supply this document to the reseller or distributor to inform him what
must be included in the end user’s manual for the commercial product and which installations guidelines
for the antenna are applicable.
2.1.2. General information
The ATM is assembled in the car during production. There are no other distribution channels than
assembly in the cars production line or spare part replacement within car service. Please be advised that
this product will need special trained professionals in configuring and installing the product. The product
will be distributed through controlled distribution channel which has special trained professionals to
install this product and will not be sold directly to the general public through retail stores.
The ATM is mounted invisible to the driver in the car in the trunk compartment. The external car
antenna is connected to the ATM. The only direct interface of the ATM to the driver or passenger is a
dedicated push button and LED (i.e. Mayday_LED) to trigger an emergency call and signal the call
status. Except this button and the LED, there are no direct interfaces of the ATM to the driver or
passengers.
The ATM is connected to the internal bus and control systems of the car. The ATM uses the external
antenna of the car and also contains an internal WLAN antenna. The ATM uses a factory mounted
embedded SIM module (MFF2).
2.1.3. Contact information
peiker acustic GmbH & Co. KG
Max-Planck-Straße 28-32
D-61381 Friedrichsdorf
Germany
http://www.peiker.de
info@peiker.de
page 5
The copyright protection of this original document remains with Peiker acustic GmbH & Co. KG. Without prior written authorization it shall not be copied or otherwise
reproduced by a third party and shall not be disclosed to competitors. The infringement shall be strictly enforced by applicable civil and criminal legal proceedings.
3 Antenna installation
To comply with the RF exposure requirements of the FCC following requirements have to be fulfilled:
The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20
cm from all persons. This device is to be used in mobile or fixed applications only.
Following technologies and frequency bands are supported by the device ATM-01 T2-US-4GW:
Radio Access
Technology
Supported Frequency Bands
GSM/GPRS/EDGE GDM850, GSM1900
WCDMA FDD2, FDD5
LTE eFDD2, eFDD4, eFDD5, eFDD17
For mobile and fixed operating configurations the antenna gain, including cable loss, must not exceed
-1.15 dBd
at 700MHz & 850MHz
1 dBi
at 1700MHz & 1900MHz
for satisfying RF exposure compliance.
It must be ensured by the OEM that the end user has no manual instructions to remove or install the RF
unit of the device.
page 6
The copyright protection of this original document remains with Peiker acustic GmbH & Co. KG. Without prior written authorization it shall not be copied or otherwise
reproduced by a third party and shall not be disclosed to competitors. The infringement shall be strictly enforced by applicable civil and criminal legal proceedings.
4 Wireless LAN
The device contains an internal antenna for WLAN operation.
Wireless LAN standards IEEE 802.11 b,g,n
Frequency 2,4 GHz (2412MHz – 2472MHz)
Channels 1 – 11
Channel bandwidth 20 MHz
Modulation Depending on data rate: BPSK, QPSK, 16-QAM, 64-QAM, DBPSK,
DQPSK, CCK, PBCC, ERP-PBCC
Max transmitter power
(output of chip) 1 mW (0dbm)
Path loss on PCB
(chip to internal antenna) -0,7 dbi
Maximum antenna gain
(internal WLAN antenna) +5 dbi
page 7
The copyright protection of this original document remains with Peiker acustic GmbH & Co. KG. Without prior written authorization it shall not be copied or otherwise
reproduced by a third party and shall not be disclosed to competitors. The infringement shall be strictly enforced by applicable civil and criminal legal proceedings.
5 Warning Statements for the User Manual
The following certification markings and hints should be printed in the end user’s manual:
5.1. US /Canada
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS
standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts
de licence. L'exploitation est autorisée aux deux conditions suivantes:
(1)
l'appareil ne doit pas produire de brouillage, et
(2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
Radiofrequency radiation exposure Information:
This equipment complies with FCC and IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance of 20 cm
between the radiator and your body. This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
Information sur l’exposition au rayonnement électromagnétique :
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de
distance entre la source de rayonnement et votre corps.
Modifications
The FCC requires the user to be notified that any changes or modifications made to this device that are
not expressly approved by peiker acustic GmbH & Co. KG could void the user's authority to operate the
equipment.
page 8
The copyright protection of this original document remains with Peiker acustic GmbH & Co. KG. Without prior written authorization it shall not be copied or otherwise
reproduced by a third party and shall not be disclosed to competitors. The infringement shall be strictly enforced by applicable civil and criminal legal proceedings.
6 Battery replacement
Please be advised that this product will need special trained professionals in configuring and installing
the product within the car.
To open the battery compartment, push down the battery lid at the front of the device and shift the lid
sideward.
Disconnect the battery connector in order to push the locking lever and pull the connector at the same
time. Release the battery and replace it with the replacement part. Push the battery connector and close
the battery compartment by shifting the lid towards the housing.
