VALEO Telematik und Akustik BTHFCK2 Bluetooth Handsfree Carkit User Manual PubTeX output 2007 02 21 1454

Peiker acustic GmbH & Co. KG Bluetooth Handsfree Carkit PubTeX output 2007 02 21 1454

Contents

User Manual

SECTION TABLE OF CONTENTS PAGE
1PARTIAL SECTION ........................................................................................................... 3
2INDEX.........................................................................................................................29
PARTIAL SECTION
CONTENTS
HANDS–FREE COMMUNICATION (UConnect™) —
IF EQUIPPED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Phone Call Features. . . . . . . . . . . . . . . . . . . . . . . . . 11
UConnect™ System Features . . . . . . . . . . . . . . . . . 14
Advanced Phone Connectivity . . . . . . . . . . . . . . . . 18
Things You Should Know About Your UConnect™
System................................... 20
General Information . . . . . . . . . . . . . . . . . . . . . . . . 27
4 PARTIAL SECTION
HANDS–FREE COMMUNICATION (UConnect™) — IF
EQUIPPED
NOTE: The sales code RER radio contains an integrated
Hands-Free Communication (UConnect™) system. Refer
to your “Navigation User’s Manual” for UConnect™ sys-
tem operating instructions for this radio.
UConnect™ is a voice-activated, hands-free, in- vehicle
communications system. UConnect™ allows you to dial a
phone number with your cellular phone using simple voice
commands (e.g., "Call” … “Mike” …”Work" or "Dial” …
“248-555-1212"). Your cellular phone’s audio is transmitted
through your vehicle’s audio system; the system will
automatically mute your radio when using the UConnect™
system.
NOTE: The UConnect™ system use requires a cellular
phone equipped with the Bluetooth "Hands-Free Profile,"
version 0.96 or higher. See UConnect™ website for sup-
ported phones.
NOTE: ForUConnect™customer support,visitthefollow-
ing web sites:
•www.chrysler.com/uconnect
•www.dodge.com/uconnect
•www.jeep.com/uconnect
•or call 1–877–855–8400
UConnect™allows youtotransfercallsbetweenthe system
and your cellular phone as you enter or exit your vehicle,
and enables you to mute the system’s microphone for pri-
vate conversation.
The UConnect™ phone book enables you to store up to
32 names and four numbers per name. Each language
has a separate 32-name phone book accessible only in that
language. This system is driven through your Bluetooth™
Hands-Free profile cellular phone. UConnect™ features
Bluetooth™ technology - the global standard that enables
differentelectronic devices to connect to each other without
wires or a docking station, so UConnect works no matter
where you stow your cellular phone (be it your purse,
pocket, or briefcase), as long as your phone is turned on
PARTIAL SECTION 5
and has been paired to the vehicle’s UConnect™ system.
The UConnect™ system allows up to seven cellular phones
to be linked to system. Only one linked (or paired) cellular
phone can be used with the system at a time. The system
is available in English, Spanish, or French languages (as
equipped).
The rearview mirror contains the microphone for
the system (depending on the type of mirror and
radio equipped), eitherthe radio or the mirrorhas
the two control buttons that will enable you to ac-
cess the system.
Actual button location may vary with radio. The
individual buttons are described in the “Opera-
tion” section.
The UConnect™ system can be used with any Hands-Free
Profile certified Bluetooth™ cellular phone. See UCon-
nect™ website for supported phones. If your cellular
phone supports a different profile (e.g., Headset Profile)
you may not be able to use any UConnect™ features. Refer
to your cellular service provideror the phone manufacturer
for details.
The UConnect™ system is fully integrated with the vehi-
cle’s audio system. The volume of the UConnect™ system
can be adjusted either from the radio volume control knob
or from the steering wheel radio control (right switch), if so
equipped.
The radio display will be used for visual prompts from the
UConnect™ system such as "CELL" or caller ID on certain
radios.
Operation
Voice commands can be used to operate the UConnect™
system and to navigate through the UConnect™ menu
structure. Voice commands are required after most UCon-
nect™ system prompts. You will be promptedfor a specific
command and then guided through the available options.
6 PARTIAL SECTION
•Prior to giving a voice command, one must wait for
the beep, which follows the "Ready" prompt or another
prompt.
•For certain operations, compound commands can be
used. For example, instead of saying "Setup" and then
"Phone Pairing," the following compound command can
be said: "Setup Phone Pairing."
•For each feature explanation in this section, only the
combined form of the voice command is given. You
can also break the commands into parts and say each
part of the command, when you are asked for it.
For example, you can use the combined form voice
command "Phonebook New Entry," or you can break the
combined form command into two voice commands:
"Phonebook" and "New Entry." Please remember, the
UConnect™ system works best when you talk in a
normal conversational tone, as if speaking to some one
sitting eight feet away from you.

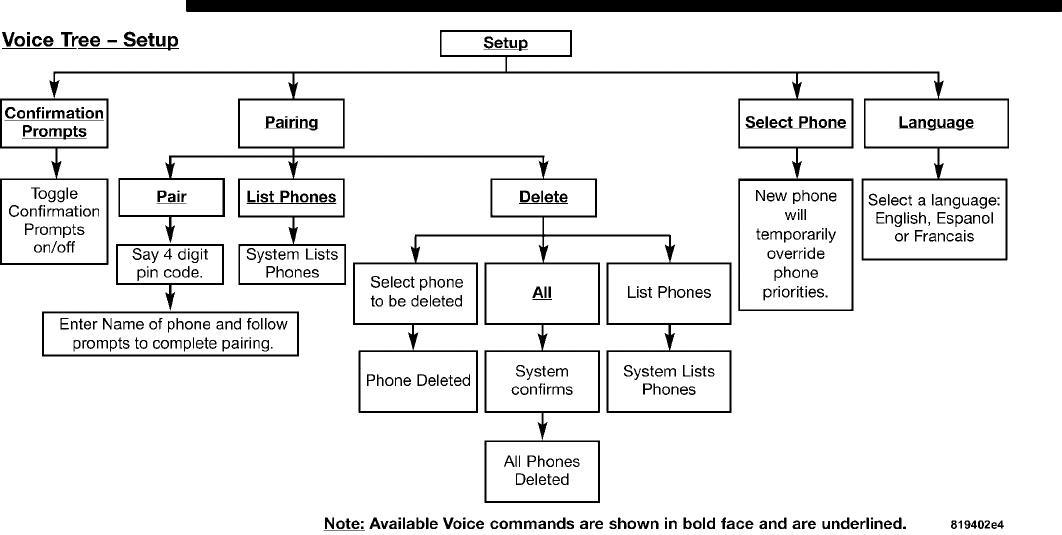

Voice Command Tree
Refer to “Voice Tree” at the end of this section.
Help Command
If you need assistance at any prompt, or if you want to
know your options at any prompt, say "Help" following the
beep. The UConnect™ system will play all the options at
any prompt if you ask for help.
To activate the UConnect™ system from idle, simply press
the “Phone” button and follow audible prompts for direc-
tions. AllUConnect™system sessions begin withapressof
the “Phone” button on the radio control head.
Cancel Command
Atanyprompt,afterthebeep,youcansay"Cancel"andyou
will be returned to the main menu. However, in a few in-
stances the system will takeyou back to the previous menu.
Pair (Link) UConnect™ System to a Cellular Phone
To begin using your UConnect™ system, you must pair
your compatible Bluetooth™ enabled cellular phone .
PARTIAL SECTION 7
To complete the pairing process, you will need to reference
yourcellularphoneowner’smanual. TheUConnect™web-
site may also provide detailed instructions for pairing.
The following are general phone to UConnect™ System
pairing instructions:
•Press the “Phone” button to begin.
•After the "Ready" prompt and the following beep, say
"Setup Phone Pairing."
•When prompted, after the beep, say "Pair a Phone" and
follow the audible prompts.
•You will be asked to say a four-digit pin number, which
you will later need to enter into your cellular. You can
enter any four-digit pin number. You will not need
to remember this pin number after the initial pairing
process.
•For identification purposes, you will be prompted to
give the UConnect™ system a name for your cellular
phone. Each cellular phone that is paired should be
given a unique phone name.
•You will then be asked to give your cellular phone
a priority level between 1 and 7, 1 being the highest
priority. You can pair up to seven cellular phones
to your UConnect™ system. However, at any given
time, only one cellular phone can be in use, connected
to your UConnect™ System. The priority allows the
UConnect™ system to know which cellular phone to use
if multiple cellular phones are in the vehicle at the same
time. For example, if priority 3 and priority 5 phones are
present in the vehicle, the UConnect™ system will use
the priority 3 cellular phone when you make a call. You
can select to use a lower priority cellular phone at any
time (refer to "Advanced Phone Connectivity").
Dial by Saying a Number
•Press the “Phone” button to begin.
•After the "Ready" prompt and the following beep, say
"Dial."
•System will promptyou to say the number you want call.
8 PARTIAL SECTION
•For example, you can say "234-567-8901." The phone
number that you enter must be of valid length and
combination. Based on the country in which the vehicle
was purchased, the UConnect™ limits the user from
dialing invalid combination of numbers. For example, in
USA, 234-567-890 is nine digits long, which is not a valid
USA phone number - the closest valid phone number
has ten digits.
•The UConnect™ system will confirm the phone number
and then dial. The number will appear in the display
of certain radios.
Call by Saying a Name
•Press the “Phone” button to begin.
•After the "Ready" prompt and the following beep, say
“Call."
•System will prompt you to say the name of the person
you want call.
•After the "Ready" prompt and the following beep, say
the name of the person you want to call. For example,
you can say "John Doe," where John Doe is a previously
stored name entry in the UConnect™ phone book. Refer
to "Add Names to Your UConnect™ Phonebook," to
learn how to store a name in the phone book.
•The UConnect™ system will confirm the name and
then dial the corresponding phone number, which may
appear in the display of certain radios.
Add Names to Your UConnect™ Phonebook
NOTE: Adding names to phone book is recommended
when vehicle is not in motion.
•Press the “Phone” button to begin.
•After the "Ready" prompt and the following beep, say
"Phonebook New Entry."
•When prompted, say the name of the new entry. Use
of long names helps the voice recognition and it is
recommended. For example, say "Robert Smith" or
"Robert" instead of "Bob."
•When prompted, enter the number designation (e.g.,
"Home," "Work," "Mobile," or "Pager"). This will allow
PARTIAL SECTION 9
you to store multiple numbers for each phone book
entry, if desired.
•When prompted, recite the phone number for the phone
book entry that you are adding.
After you arefinished adding an entry into the phone book,
you will be given the opportunity to add more phone num-
bers to the current entry or to return to the main menu.
The UConnect™ system will allow you to enter up to 32
names in the phone book with each name having up to
fourassociatedphonenumbers and designations. Eachlan-
guagehasaseparate 32-namephonebookaccessibleonlyin
that language.
Phonebook Download
UConnect™ allows the user to download entries from their
phone via Bluetooth. To use this feature, press the “Phone”
button and say “Phonebook Download.” System prompts
“Ready to accept vcard entry via Bluetooth…” The system
is now ready to accept phonebook entries from your phone
using the Bluetooth Object Exchange Profile (OBEX).Please
see your phone owners’ manual for specific instructions on
how to send these entries from your phone.
NOTE:
•Phone handset must support Bluetooth OBEX transfers
of phonebook entries to use this feature.
•Some phones cannot send phonebook entries if they
are already connected to any system via Bluetooth,
and you may see a message on the phone display that
the Bluetooth link is busy. In this case, the user must
first disconnect or drop the Bluetooth connection to
the UConnect™ and then send the address book entry
via Bluetooth. Please see your phone owners’ manual
for specific instructions on how to drop the Bluetooth
connection.
•If the phonebook entry is longer than 24 characters it
will be use only the first 24 characters.
Edit Entries in the UConnect™ Phonebook
NOTE: Editing names in the phone book is recommended
when vehicle is not in motion.
10 PARTIAL SECTION
•Press the “Phone” button to begin.
•After the "Ready" prompt and the following beep, say
"Phonebook Edit."
•You will then be asked for the name of the phone book
entry that you wish to edit.
•Next, choose the number designation (home, work,
mobile, or pager) that you wish to edit.
•When prompted, recite the new phone number for the
phone book entry that you are editing.
After you are finished editing an entry in the phone book,
you will be given the opportunities to edit another entry in
the phonebook, call thenumber you just edited, orreturn to
the main menu.
"Phonebook Edit" can be used to add another phone num-
ber to a name entry that already exists in the phonebook.
For example, the entry John Doe may have a mobile and a
home number, but you can add John Doe’s work number
later using the "Phonebook Edit" feature.
Delete Entries in the UConnect™ Phonebook
NOTE: Editing phone book entries is recommended when
vehicle is not in motion.
•Press the “Phone” button to begin.
•After the "Ready" prompt and the following beep, say
"Phonebook Delete."
•After you enter the Phonebook Delete menu, you will
then be asked for the name of the entry that you wish
to delete. You can either say the name of a phone
book entry that you wish to delete or you can say "List
Names" to hear a list of the entries in the phone book
from which you choose. To select one of the entries from
the list, press the "Voice Recognition" button while the
UConnect™ system is playing the desired entry and say
"Delete."
•After you enter the name, the UConnect™ system will
ask you which designation you wish to delete, home,
work, mobile, pager, or all. Say the designation you
wish to delete.
PARTIAL SECTION 11
•Note that only the phone book entry in the current
language is deleted.
Delete All Entries in the UConnect™ Phonebook
•Press the “Phone” button to begin.
•After the "Ready" prompt and the following beep, say
"Phonebook Erase All."
•The UConnect™ system will ask you to verify that you
wish to delete all the entries from the phonebook.
•After confirmation, the phone book entries will be
deleted.
•Note that only the phone book in the current language is
deleted.
List All Names in the UConnect™ Phonebook
•Press the “Phone” button to begin.
•After the "Ready" prompt and the following beep, say
"Phonebook List Names."
•The UConnect™ system will play the names of all the
phone book entries.
•To call one of the names in the list, press the "Voice
Recognition’ button during the playing of the desired
name, and say "Call."
NOTE: The user can also exercise "Edit" or "Delete"
operations at this point.
•The UConnect™ system will then prompt you as to the
number designation you wish to call.
•The selected number will be dialed.
Phone Call Features
The following features can be accessed through the UCon-
nect™ system if the feature(s) are available on your cellular
service plan. For example, if your cellular service plan
provides three-way calling, this feature can be accessed
through the UConnect™ system. Check with your cellular
service provider for the features that you have.
12 PARTIAL SECTION
Answer or Reject an Incoming Call - No Call Currently
in Progress
When you receive a call on your cellular phone, the UCon-
nect™ system will interrupt the vehicle audio system, if on,
and will ask if you would like to answer the call. Press
’Phone’ button to accept the call. To reject the call, press
and hold the ’Phone’ button until you hear a single beep in-
dicating that the incoming call was rejected.
Answer or Reject an Incoming Call - Call Currently in
Progress
If a call is currently in progress and you have another in-
coming call, you will hear the same network tones for call
waitingthatyounormallyhearwhenusingyourcellphone.
Pressthe’Phone’buttontoplacethecurrentcallonholdand
answer the incoming call.
NOTE: TheUConnect™systemcompatiblephonesinmar-
ket today do not support rejecting an incoming call when
another call is in progress. Therefore, the user can only ei-
ther answer an incoming call or ignore it.
Making a Second Call while Current Call in Progress
Tomakeasecondcallwhileyouarecurrentlyinacall,press
the ’Voice Recognition’ button and say "Dial" or "Call" fol-
lowed by the phone number or phone book entry you wish
to call. The first call will be on hold while the second call
is in progress. To go back to the first call, refer to "Toggling
Between Calls." To combine two calls, refer to "Conference
Call."
Place/Retrieve a Call from Hold
Toputacallonhold, pressthe‘Phone’buttonuntilyouhear
asinglebeep. Thisindicatesthatthecallisonhold. Tobring
the call back from hold, press and hold the “Phone” button
until you hear a single beep.
Toggling Between Calls
If two calls are in progress (one active and one on hold),
press the “Phone” button until you hear a single beep indi-
cating that the active and hold status of the two calls have
switched. Only one call can be placed on hold at one time.
PARTIAL SECTION 13
Conference Call
Whentwo calls arein progress(oneactiveandoneon hold),
press and hold the “Phone” button until you hear a double
beep indicating that the two calls have been joined into one
conference call.
Three-Way Calling
To initiate three-way calling, press the “Voice Recognition”
button while a call is in progressand make a second phone
call as described under "Making a Second Call while Cur-
rent Call in Progress." After the second call has established,
press and hold the “Phone” button until you hear a double
beep indicating that the two calls have been joined into one
conference call.
Call Termination
To end a call in progress, momentarily press the “Phone”
button. Onlytheactivecall(s)willbeterminatedandifthere
is a call on hold, it will become the newactive call. If the ac-
tive call is terminated by the far end, a call on hold may not
become active automatically. This is cell phone dependent.
Tobringthecallbackfromhold,pressandholdthe“Phone”
button until you hear a single beep.
Redial
•Press the “Phone” button to begin.
•After the "Ready" prompt and the following beep, say
"Redial."
•The UConnect™ system will call the last number that
was dialed on your cellular phone.
NOTE: This may not be the last number dialed from the
UConnect™ system.
Call Continuation
Call continuation is progression of a phone call on UCon-
nect™ system after the vehicle ignition key has been
switched to off. Call continuation functionality available
on the vehicle can be any one of three types:
•After ignition key is switched off, a call can continue
on the UConnect™ system either until the call ends or
14 PARTIAL SECTION
until the vehicle battery condition dictates cessation of
the call on the UConnect™ system and transfer of the
call to the mobile phone.
•After ignition key is switched to off, a call can continue
on the UConnect™ system for certain duration, after
which the call is automatically transferred from the
UConnect™ system to the mobile phone.
•An active call is automatically transferred to the mobile
phone after ignition key is switched to off.
UConnect™ System Features
Language Selection
To change the language that the UConnect™ system is us-
ing,
•Press the “Phone” button to begin.
•After the "Ready" prompt and the following beep, say
the name of the language you wish to switch to (English,
Espanol, or Francais, if so equipped).
•Continue to follow the system prompts to complete
language selection.
After selecting one of the languages, all prompts and voice
commands will be in that language.
NOTE: After every UConnect™ language change opera-
tion, only the language specific 32-name phone book is us-
able. The paired phone name is not language specific and
usable across all languages.
Emergency Assistance
If you are in an emergency and the mobile phone is reach-
able:
•Pick up the phone and manually dial the emergency
number for your area.
If the phone is not reachable and the UConnect™ system is
operational, you may reach the emergency number as fol-
lows:
•Press the “Phone” button to begin.
•After the "Ready" prompt and the following beep, say
"Emergency" and the UConnect™ system will instruct
PARTIAL SECTION 15
the paired cellular phone to call the emergency number.
This feature is only supported in the USA.
NOTE:
The emergency number dialed is based on the Country
where the vehicle is purchased (911 for USA and Canada
and 060 for Mexico). The number dialed may not be
applicable with the available cellular service and area.
TheUConnect™systemdoesslightlyloweryourchancesof
successfullymakingaphonecallastothatfor thecellphone
directly.
Your phone must be turned on and paired to the UCon-
nect™ system to allow use of this vehicle feature in emer-
gency situations when the cell phone hasnetwork coverage
and stays paired to the UConnect™ system.
Towing Assistance
If you need towing assistance,
•Press the “Phone” button to begin.
•After the "Ready" prompt and the following beep, say
"Towing Assistance."
NOTE: The Towing Assistance number dialed is based on
the Country where thevehicle is purchased (1-800-528-2069
for USA, 1-877-213-4525 for Canada, 55-14-3454 for Mexico
Cityand1-800-712-3040for outside Mexico City in Mexico).
Please refer to the 24-Hour “Towing Assistance” coverage
details in the Warranty information booklet and on the
24–Hour Towing Assistance Card.
Paging
Tolearnhowtopagereferto"WorkingwithAutomatedSys-
tems." Paging works properly except for pagers of certain
companies which time-out a little too soon to work prop-
erly with the UConnect™ system.
Voice Mail Calling
To learn how to access your voice mail, refer to "Working
with Automated Systems."
16 PARTIAL SECTION
Working with Automated Systems
This method is designed to be used in instances where one
generally has to press numbers on the cellular phone key-
pad while navigating through an automated telephone sys-
tem.
You can use your UConnect™ system to access a voicemail
system or an automated service, such as, paging service or
automated customer service. Some services require imme-
diate response selection, in some instances, that may be too
quick for use of UConnect™ system.
When calling a number with your UConnect™ system that
normally requires you to enter in a touch-tone sequence on
yourcellularphonekeypad,youcanpushthe“VoiceRecog-
nition” button and say the sequence you wish to enter fol-
lowed by the word "Send." For example, if required to en-
ter your pin number followed with a pound 3 746#,you
can press the “Voice Recognition” button and say "3 746#
Send." Saying a number, or sequence of numbers, followed
by "Send" is also to be used to navigate through an auto-
mated customer service center menu structure and to leave
a number on a pager.
You can also send stored UConnect™ phonebookentries as
tonesforfastandeasyaccesstovoicemailandpagerentries.
To use this feature, dial the number you wish to call and
then press the “Voice Recognition” button and say “Send.”
The system will prompt you to enter the name or number,
say the name ofthe phonebook entry you wish to send. The
UConnect™ will then send the corresponding phone num-
ber associated with the phonebook entry as tones over the
phone.
NOTE:
•You may not hear all of the tones due to cellular phone
network configurations, this is normal.
•Some paging and voicemail systems have system
timeout settings too short that may not allow the use
of this feature.
PARTIAL SECTION 17
Barge In - Overriding Prompts
The“VoiceRecognition”buttoncanbe used whenyouwish
to skip part of a prompt and issue your voice recognition
command immediately. For example, if a prompt is playing
"Would you like to pair a phone, clear a…," you could press
the “Voice Recognition” button and say "Pair a Phone" to
select that option without having to listen to the rest of the
voice prompt.
Turning Confirmation Prompts On/Off
Turningconfirmationpromptsoffwillstopthesystemfrom
confirming your choices (e.g., the UConnect™ system will
not repeat a phone number before you dial it).
•Press the “Phone” button to begin.
•After the "Ready" prompt and the following beep, say
"Setup Confirmations." The UConnect™ system will
play the current confirmation prompt status and you
will be given the choice to change it.
Phone and Network Status Indicators
If available on the radio and/or on a premium displaysuch
as the instrument panel cluster, and supported by your cell
phone, the UConnect™ system will provide notification to
informyouofyourphone and network status when youare
attempting to make a phone call using UConnect™. The
status is given for roaming, network signal strength, phone
battery strength, etc.
Dialing Using the Cellular Phone Keypad
You can dial a phone number with your cellular phone key-
pad and still use the UConnect™ system (while dialing via
the cell phone keypad, the user must exercise caution and
take precautionary safety measures). By dialing a number
with your paired Bluetooth™ cellular phone, the audio will
be played through your vehicle’s audio system. The UCon-
nect™ system will work the same as if you dial the number
using voice recognition.
18 PARTIAL SECTION
NOTE: Certain brands of mobile phones do not send the
dial ring to the UConnect™ system to play it on the vehi-
cle audio system, so you will not hear it. Under this situa-
tion, after successfully dialing a number, the user may feel
that the call did not go through even though the call is in
progress. Once your call is answered, you will hear the au-
dio.
Mute/Un-Mute (Mute Off)
When you mute the UConnect™ system, you will still be
able to hear the conversation coming from the other party,
but the other party will not be able to hear you. In order to
mute the UConnect™ system:
•Press the “Voice Recognition” button.
•Following the beep, say "Mute."
In order to un-mute the UConnect™ system:
•Press the “Voice Recognition” button.
•Following the beep, say "Mute-off."
Advanced Phone Connectivity
Transfer Call to and from Cellular Phone
The UConnect™ system allows on going calls to be trans-
ferred from your cellular phone to the UConnect™ system
without terminating the call. To transfer an ongoing call
from your UConnect™ paired cellular phone to the UCon-
nect™ system or vice-versa, press the “Voice Recognition”
button and say "Transfer Call."
Connect or Disconnect Link Between the UConnect™
System and Cellular Phone
Your cellular phone can be paired with many different elec-
tronicdevices,butcanonlybeactively"connected"withone
electronic device at a time.
If you would like to connect or disconnect the Bluetooth™
connection between a UConnect™ paired cellular phone
and the UConnect™ system, then follow the instruction
described in your cellular phone user’s manual.
PARTIAL SECTION 19
List Paired Cellular Phone Names
•Press the “Phone” button to begin.
•After the “Ready” prompt and the following beep, say
“Setup Phone Pairing.”
•When prompted, say "List Phones."
•The UConnect™ system will play the phone names
of all paired cellular phones in order from the highest
to the lowest priority. To “select” or “delete” a paired
phone being announced, press the “Voice Recognition”
button and say “Select” or “Delete.” Also, see the next
two sections for an alternate way to “select” or “delete”
a paired phone.
Select another Cellular Phone
This feature allows you to select and start using another
phone with the UConnect™ system. The phone must have
been previously paired to the UConnect™ system that you
want to use it with.
•Press the “Phone” button to begin.
•After the "Ready" prompt and the following beep, say
"Setup Select Phone" and follow the prompts.
•You can also press the “Voice Recognition” button
anytime while the list is being played, and then choose
the phone that you wish to select.
•The selected phone will be used for the next phone call.
If the selected phone is not available, the UConnect™
system will return to using the highest priority phone
present in or near (approximately within 30 feet) the
vehicle.
Delete UConnect™ Paired Cellular Phones
•Press the “Phone” button to begin.
•After the "Ready" prompt and the following beep, say
"Setup Phone Pairing."
•At the next prompt, say "Delete" and follow the prompts.
•You can also press the “Voice Recognition” button
anytime while the list is being played, and then choose
the phone you wish to delete.
20 PARTIAL SECTION
Things You Should Know About Your UConnect™
System
UConnect™ Tutorial
To hear a brief tutorial of the system features, press the
“Phone” button and say “UConnect™ Tutorial.”
Voice Training
For users experiencing difficulty with the system recogniz-
ing their voice commands ornumbers, the UConnect™ sys-
tem Voice Training feature may be used. To enter this train-
ing mode, follow one of the two procedures:
From outside the UConnect™ mode (e.g. from radio mode)
•Press and hold the “Voice Recognition” button for 5
seconds until the session begins, or,
•Press the “Voice Recognition” button and say "Setup,
Voice Training" command.
Repeat the words and phrases when prompted by the
UConnect™ system. For best results, the Voice Training
session should be completed when the vehicle is parked,
engine running, all windows closed, and the blower fan
switched off.
This procedure may be repeated with a new user. The sys-
tem will adapt to the last trained voice only.
To restore the Voice Recognition system to factory default
settings, enter the Voice Training session via the above pro-
cedure and follow the prompts.
Voice Recognition (VR)
•For best performance adjust the rear view mirror to
provide at least inch (1 cm) gap between the overhead
console (if equipped) and the mirror.
•Always wait for the beep before speaking.
•Speak normally, without pausing, just as you would
speak to a person sitting approximately eight (8) feet
away from you.
•Make sure that no one other than you is speaking during
a voice recognition period.
PARTIAL SECTION 21
•Performance is maximized under:
•low-to-medium blower setting,
•low-to-medium vehicle speed,
•low road noise,
•smooth road surface,
•fully closed windows,
•dry weather condition.
•Even though the system is designed for users speaking
in North American English, French, and Spanish accents,
the system may not always work for some.
•When navigating through an automated system, such
as voice mail, or when sending a page, at the end of
speaking the digit string, make sure to say "Send."
•Storing names in phone book when vehicle is not in
motion is recommended.
•It is not recommended to store similar sounding names
in the UConnect™ phone book.
•UConnect™ phone book nametag recognition rate is
optimized for the person who stored the name in the
phone book.
•You can say "O" (letter "O") for "0" (zero). "800" must be
spoken "eight-zero-zero."
•Even though international dialing for most number
combinations is supported, some shortcut dialing
number combinations may not be supported.
•In a convertible vehicle, system performance may be
compromised with the convertible top down.
Far End Audio Performance
•Audio quality is maximized under:
•low-to-medium blower setting,
•low-to-medium vehicle speed,
•low road noise,
•smooth road surface,
•fully closed windows, and
•dry weather condition.
•operation from driver seat.
•Performance, such as audio clarity, echo, and loudness
to a large degree rely on the phone and network, and
not the UConnect™ system.
22 PARTIAL SECTION
•Echo at far end can sometime be reduced by lowering
the in-vehicle audio volume.
•In a convertible vehicle, system performance may be
compromised with the convertible top down.
Bluetooth Communication Link
Cellular phones have been found to lose connection to the
UConnect™ system. When this happens, the connection
can generally be re-established by switching the phone
off/on. Your cell phone is recommended to remain in
Bluetooth "on" mode.
Power-Up
After switching the ignition key from OFF to either ON or
ACC position, or after a language change, you must wait at
least five (5) seconds prior to using the system.
PARTIAL SECTION 23
24 PARTIAL SECTION
PARTIAL SECTION 25
Voice Commands
Primary Alternate(s)
zero
one
two
three
four
five
six
seven
eight
nine
star (*)
plus (+)
pound (#)
Voice Commands
Primary Alternate(s)
add location
all
call
cancel
confirmation prompts.
continue
delete
dial
download
edit
emergency
English
26 PARTIAL SECTION
Voice Commands
Primary Alternate(s)
erase all
Espanol
Francais
help
home
language
list names
list phones
mobile
mute
mute off
new entry
Voice Commands
Primary Alternate(s)
no
pager
pair a phone
phone pairing pairing
phonebook phone book
previous
record again
redial
return to main menu return or main menu
select phone select
send
set up phone settings or phone
set up
PARTIAL SECTION 27
Voice Commands
Primary Alternate(s)
towing assistance
transfer call
UConnect™ Tutorial
try again
voice training
work
yes
General Information
Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
This device complies with part 15 of the FCC rules and RSS
210 of Industry Canada. Operation is subject to the follow-
ing conditions:
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired
operation.
INDEX
30 INDEX
HANDS–FREE COMMUNICATION (UConnect™) — IF
EQUIPPED..................................4
Advanced Phone Connectivity . . . . . . . . . . . . . . . . . . 18
Connect or Disconnect Link Between the UConnect™
System and Cellular Phone . . . . . . . . . . . . . . . . . 18
Delete UConnect™ Paired Cellular Phones. . . . . . . 19
List Paired Cellular Phone Names. . . . . . . . . . . . . . 19
Select another Cellular Phone . . . . . . . . . . . . . . . . . 19
Transfer Call to and from Cellular Phone . . . . . . . . 18
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Operation ...................................5
Add Names to Your UConnect™ Phonebook . . . . . . 8
Call by Saying a Name . . . . . . . . . . . . . . . . . . . . . . . 8
Cancel Command . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Delete All Entries in the UConnect™ Phonebook. . 11
Delete Entries in the UConnect™ Phonebook. . . . . 10
Dial by Saying a Number . . . . . . . . . . . . . . . . . . . . . 7
Edit Entries in the UConnect™ Phonebook. . . . . . . . 9
Help Command. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
List All Names in the UConnect™ Phonebook . . . . 11
Pair (Link) UConnect™ System to a Cellular Phone. 6
Phonebook Download. . . . . . . . . . . . . . . . . . . . . . . . 9
Voice Command Tree. . . . . . . . . . . . . . . . . . . . . . . . . 6
Phone Call Features. . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Answer or Reject an Incoming Call - Call Currently in
Progress................................ 12
Answer or Reject an Incoming Call - No Call Currently
inProgress.............................. 12
Call Continuation . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Call Termination . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Conference Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Making a Second Call while Current Call in
Progress................................ 12
Place/Retrieve a Call from Hold. . . . . . . . . . . . . . . 12
Redial.................................... 13
Three-Way Calling. . . . . . . . . . . . . . . . . . . . . . . . . . 13
Toggling Between Calls . . . . . . . . . . . . . . . . . . . . . . 12
Things You Should Know About Your UConnect™
System................................... 20
Bluetooth Communication Link . . . . . . . . . . . . . . . 22
Far End Audio Performance . . . . . . . . . . . . . . . . . . 21
Power-Up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
INDEX 31
UConnect™ Tutorial . . . . . . . . . . . . . . . . . . . . . . . . 20
Voice Recognition (VR) . . . . . . . . . . . . . . . . . . . . . . 20
Voice Training . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
UConnect™ System Features . . . . . . . . . . . . . . . . . . . 14
Barge In - Overriding Prompts . . . . . . . . . . . . . . . . 17
Dialing Using the Cellular Phone Keypad . . . . . . . 17
Emergency Assistance . . . . . . . . . . . . . . . . . . . . . . . 14
Language Selection . . . . . . . . . . . . . . . . . . . . . . . . . 14
Mute/Un-Mute (Mute Off) . . . . . . . . . . . . . . . . . . . 18
Paging................................... 15
Phone and Network Status Indicators. . . . . . . . . . . 17
Towing Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Turning Confirmation Prompts On/Off . . . . . . . . . 17
Voice Mail Calling . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Working with Automated Systems . . . . . . . . . . . . . 16

Navigation menu
