VALEO Telematik und Akustik CEECOACH CEECOACH User Manual Manual GB Stand 20 04 15 editierbar indd
Peiker acustic GmbH & Co. KG CEECOACH Manual GB Stand 20 04 15 editierbar indd
User manual revised
P 03
P 04
P 05
P 06
P 07 - 09
P 09
P 10
P 11
P 12
P 13
P 14
P 15
Table of contents
Scope of delivery, explanation of symbols
Illustrated device overview
Before getting started
Assigning roles (pairing)
Possible connection modes
Mute Moderator
Connecting to a smartphone (pairing)
Function tables (short overview), range,
setting the volume & resetting
Technical features and update function
Information on usage, protection,
radio communication
Battery maintenance, disposal &
currentness
FCC- Notes & ID
Please contact your distributor for any questions and
warranty issues:
Purchased on:
At:
This product is labeled with the CE marking according
to the provisions of the R&TTE Directives (99/5/EC).
Hereby, peiker declares that this product is in compliance
with the essential and other relevant provisions of
Directives 1995/5/EC.
For more detailed information please go to:
http://www.ceecoach.com
CE Declaration of Conformity
2

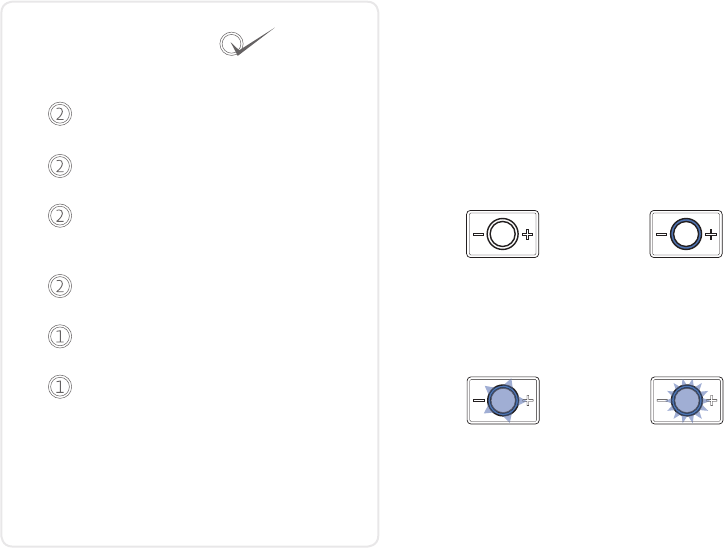

Scope of delivery
CEECOACH devices
clip mounts
premium headsets* 3.5mm jack
USB charging cables
charging plug
instruction manual
The light ring around the Talk button (o) indicates the
operating modes. The ring can be illuminated in various
colors (green, blue, red, yellow and white), continuously
and fl ashing.
Examples:
Fast
fl ashing
Continuous
light
Light
off
Slow
fl ashing
Explanation of symbols
If applicable, please observe the instructions of
the separately delivered headset. You can also
make use of your own headset.
*
3
Rotating clip mount
snaps in at a 90° angle
Plus key (+)
Headset-
connection
(3.5 mm jack)
Headset
Micro-USB
cable
Talk button (o)
Light ring
Micro-USB-
connection
Minus key (-)
Device overview
4
Audio cue when
switching on:
"Battery good /
battery low"
Depending on the status of the battery, the device is fully charged in max. 4 hours, once the continuous yellow light
has switched to green. For charging: Plug the included charging cable into the micro-USB connection and connect it
to the included power supply or a computer.
Connect the micro-
USB charging cable
Charge
Green permanent
light = Device is fully
charged
Unplug micro-USB
cable
1.
2.
3.
4.
Before getting started
Connect
headset
Switch on
(white light = role
assignment has
to be performed)
Switch off. (Light
ring briefl y lights
up in red)
5.
6.
7.
All CEECOACH functions are only available after removing the USB plug!
sec. = off
max. 4 hours
5
To assign the role of the participant to the device, switch on and press the Minus button (-) and the Talk button (o)
simultaneously for 2 seconds.
To do so, after switching on the prospective moderator, please press the Plus button (+) and the Talk button (o)
simultaneously for 2 seconds.
The devices have not been assigned roles upon delivery (all devices are identical). This is done when the devices are
switched on for the rst time. If you wish to switch on the devices without changing the prede ned role assignments,
press the Talk button (o) for one second. Role assignment only needs to be performed once when switched on for
the rst time. If you would like to change the role of a device, you can repeat the process at any time (following
a reset). If you would like to increase the number of participants, the connected devices have to be reset rst..
2 sec. (o) & (-) Ready for us and / found by
moderator after approx. 30 sec., when
fl ashing slowly.
2 sec. (o) & (+) Ready for use and/or maximum
number of participants found, after
approx. 30 sec., when fl ashing slowly.
.

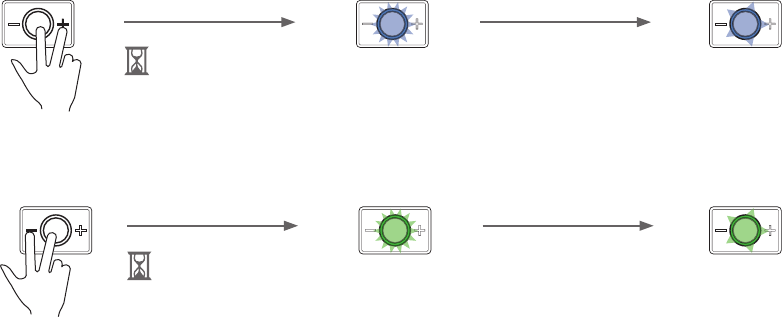

Role assignment (pairing)
Assigning the moderator
Assigning participants
6
The moderator speaks – up to 5 participants listen. This connection is already established after role assignment, without
the moderator having to press the Talk button (o).
Connection modes: 1st Moderator Mode
Moderator
Participant
7
Participant and moderator can speak to one another; all other participants can only eavesdrop. Voice communication
with the moderator is established when the participant briefl y presses the Talk button (o) 1 time. The conversation is
stopped by the moderator by double clicking the Talk button (o).
Connection modes: 2nd Participant Mode
Moderator
Participant
8
The moderator can switch an active conversation to
private mode, i.e. the moderator speaks to one participant
privately. The remaining participants are unable to
listen in. To do so, the moderator presses the Talk
button (o) once. If the moderator would like to end
the private mode, he/she briefly presses the Talk
button (o) twice.
In participant mode as well as private mode, the
individual conversation can only be interrupted
after 10 seconds. By pressing the Talk button (o),
another participant may speak and the other
participants can listen (see participant mode).
Connection modes: 3rd Private Mode Mute Moderator
As a Moderator you can mute yourself independent
from the current connection mode. The continuous
transmission can be interrupted by doing a long press
on the minus (-) or the plus (+) button or the mic button
until the audio signal “mute on” is heard.
While the moderator is muted a reminder signal rings
out regularly if a participant tries to establish a con-
nection with the moderator.
By pressing the minus (-) or plus (+) button you get back to
the previous connection mode.
Moderator
Participant
9
To connect the device to a smart phone, press the Plus button (+) and the Minus button (-) simultaneously. CEECOACH
will now emit a continuous yellow light. Activate Bluetooth® on your smartphone and scan for Bluetooth devices.
The device is shown on the mobile phone as CEECOACH incl. the last 4 characters of the serial number, which can be found
on the back side of the device. Click or tap the device to establish a connection.
An incoming call is announced by CEECOACH and accepted by pressing the Talk button (o) once. Double clicking the Talk
button (o) terminates the call. Pressing the Talk button (o) again puts the device back into participant mode. If you do not
wish to accept a call, click the Talk button (o) twice - and the participant mode will be retained.
CEECOACH
Made in Germany
CEECOACH
XXXXXXX
SN: xxxxx 2D53
xxxxxxxx
2D53
3. Turn CEECOACH
device
CEECOACH
4. Select CEECOACH
device
Connecting to a smartphone (pairing)
1. Press until
yellow continuous
light appears
2. Activate Buetooth®
on the smartphone
10

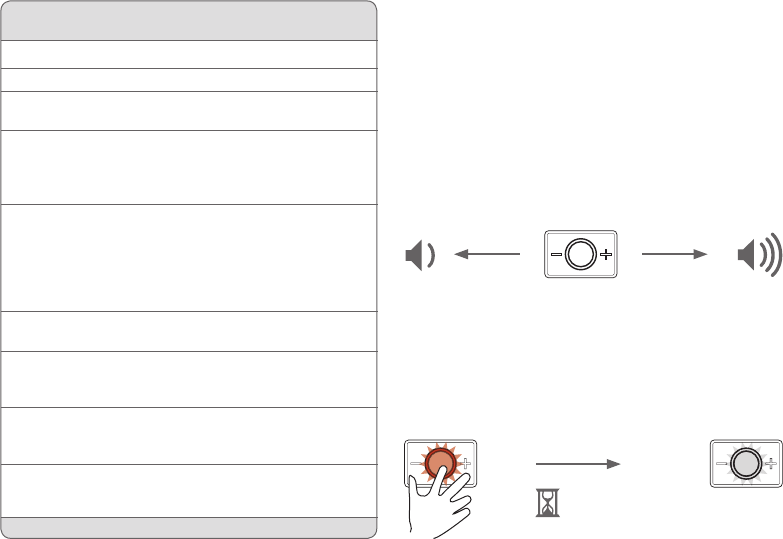

Function table
Please adjust the volume by pressing the (+) or (-) buttons
several times until you have set the desired volume.
Maximum range is reached when visual contact is given.
Depending on the location, the range extends up to 500
meters (1600ft). If a participant is out of range, two short
deep tones will be played. Once the participant is back in
range, the participant hears a deep tone followed by a high
one.
Range
Adjusting the volume
>2 sec.
If you would like to reset your CEECOACH device to factory
settings, press all three buttons (-), (o) and (+) until the
devices switches off. During this process, the light ring
briefl y fl ashes red and then white again (factory settings).
Reset
Activate (o) (o) 1 second
Deactivate (o) > 3 seconds
Volume: Increase volume (+)
Decrease volume: (-)
Establish connection
e.g.:
-Participant: Right to speak
- Accept telephone calls
(o) Press once
Disconnect
e.g.:
– Moderator: End participant
mode
- End or reject telephone
calls
(o) Press twice
Connection with
smartphone
(-) & (+) simultaneously,
2 seconds
Reset to factory settings
(+), (o) & (-)
simultaneously,
2 seconds
Role assignment:
Moderator
(+) & (o)
simultaneously,
2 seconds
Role assignment:
Participant
(-) & (o) simultaneously,
2 seconds
11
Number of users up to 6 people
simultaneously
Dimensions (WxHxD) 75 x 50 x 24 mm
(2.95 x 2 x 0.95 inches)
Mount clip that snaps in 90° levels
Illumination multi-colored LEDs
Talk time up to 10 hours*
Stand-by time up to 3 days*
Operating temperature -10°C to 45° C (14°F to 113°F)
Storage -20°C to 60°C (-4°F to 140°F)
Protection class splash-proof, dust-proof,
shock-proof
Range up to 500 m (1600 ft)**
Data transfer Bluetooth® 4.0
Power supply Lithium-ion battery
Charging time max. 4 hours*
Headset connection 3.5 mm jack plug
Charger connection standard micro-USB
* Deviations possible depending on method of use.
** Maximum range is reached when visual contact is given.
Updates are used to keep CEECOACH functions current and
up to date. The latest software version can be downloaded
at www.ceecoach.com at any time. Use the USB cable
included in the delivery to connect your CEECOACH device
to a computer to which you have downloaded the update
and press all three buttons (+), (o) and (-) simultaneously
for more than 2 seconds.
Now, run the le on your computer. The light ring fl ashes
white while the update is being imported and yellow
when it is done. Then you can safely disconnect the device.
Our website contains further information on the update
procedure.
Update functionTechnical features
> 2 sec.
Run the le on the
computer
Update is
imported
Update is
completed
12
CEECOACH transmits close-range signals in the license-
free ISM band (2.4 GHz/Bluetooth®). The maximum
range depends on various factors and operating modes
(direct view, no antenna coverage, etc.) Bluetooth®is a
registered trademark of Bluetooth® SIG Inc.
Although Bluetooth® is designed to establish stable
connections at short range, like with any radio technology,
interruptions are possible. Connections can malfunction,
be faulty or even shut down entirely. Particularly if several
devices are operated in a Bluetooth® network, faultless
connections cannot be ensured in all situations.
According to current knowledge, there is no indication
that the use of Bluetooth® devices has any negative effects
on humans. The transmission power of the CEECOACH
communication system is max. 100mW. In comparison:
the transmission power of a mobile phone is 2W. The
ISM frequency range used by Bluetooth® has been
classied as uncritical in terms of potential health risks
for worldwide use in the elds of industry, science and
medical technology.
To prevent damage to hearing, the device
should not be applied at high volumes over
longer periods of time.
Reduce the volume when using a headset if you cannot
hear the voices of the people in your direct vicinity or
when people next to you hear echo from your headset.
Store CEECOACH with all its accessories in a secure
place and keep out of reach of children and animals.
The device contains small parts that can be swallowed
or inhaled.
• Use CEECOACH at ambient temperatures between
-10 °C and 45 °C (14°F to 113°F).
• Protect batteries and chargers against damage
• Protect batteries against extreme cold and heat. Extreme
temperatures may impair the charging capacity and
service life of your batteries.
• Batteries may not come into contact with metal objects
as this may cause them to short circuit, which in turn
damages the battery temporarily or even permanently.
• Never make use of damaged batteries or chargers
Bluetooth®
Radio contact
Health notice
Avoiding hearing damage
Secure temperature range
Information
13
The CEECOACH communication system is equipped with
a Li-Ion battery with an overall capacity of 530mAh. Li-Ion
batteries do not have a memory effect, which means they
can be recharged at all times. The charging technology
prevents the batteries from being overcharged. Once
the battery is charged, its mode switches to charge
conservation. To ensure that the battery retains maximum
capacity, it should be fully charged at least 20 times and
then be discharged again. The average charging time of
an empty battery is max. 4 hours. A charged battery allows
for talk times of up to 10 hours depending on operating
mode. When not in use, CEECOACH should be recharged
once every 3 months.
The battery is equipped for 400 charging cycles at min. 80
percent charging capacity.
This can damage the battery:
• When charging the battery, only use the charging cable
provided in the delivery
• Immediately discontinue use if the product overheats,
the charging cable is damaged or the product itself is
damaged.
• Immediately discontinue use if the product or the
charging cable comes into contact with liquid.
• Never charge a battery in an environment in which the
temperature can fall to below 0°C (32°F) or rise above
+ 45°C (113°F).
• Never charge batteries unsupervised.
If you would like to dispose of your communication system
at a later time, please observe the following:
This product is subject to European regulation 2002/96/EC.
All electric and electronic appliances must be disposed
of separately from normal household waste and taken
to state or municipal-approved disposal center for this
purpose.
Proper disposal of used appliances prevents potential
damages to humans and the environment.
Detailed information on the disposal of used appliances
can be obtained from local authorities, disposal centers
and the specialist dealership from which you have
purchased the device.
•
•
•
•
Battery care
Improper charging
Our high level of safety and quality is ensured by the
constant further development of our products. This may
result in deviations between this instruction manual
and the device and accessories you have purchased.
Errors can also not be fully excluded. Please understand
that no claims can be made on the basis of information,
illustration and descriptions.
We reserve the right to make changes and updates to all
performance features and specications unannounced.
Currentness
Disposal of the product
14
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the
following measures:
•
•
•
•
Reorient or relocate the receiving antenna.
Increase the separation between the equipment
and receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio / TV
technician for help.
QWY-CEECOACH
FCC- ID
FCC- Note
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation
Note regarding FCC 15.19
Warning: Changes or modications not expressly
approved by peiker void user’s authority to operate
equipment.
Note regarding FCC 15.21
15
peiker acustic GmbH & Co.KG
Max-Planck-Straße 28-32
61381 Friedrichsdorf / TS.
www.ceecoach.com
www.ceecoach.de
