Mercedes-Benz Cradle adaptor
with Bluetooth® wireless
technology
Bluetooth
R
1
M+P-03F-6662
Cradle_USA.fm Seite 0 Montag, 12. Juli 2010 10:14 10
- 1 -
Mercedes-Benz approved/recommended
Bluetooth® Phones can be utilized inside
Mercedes-Benz vehicles, in conjunction
with this Cradle adaptor.
Application
These installation instructions are valid for
vehicles with an MHI hands-free
communications systems and a
Mercedes-Benz-approved Bluetooth®
mobile telephone.
Parts included
• (1) Mercedes-Benz Cradle adaptor
with Bluetooth® wireless
technology
Notes
Please contact your local Mercedes-Benz
Center if you encounter difficulties when
operating the Mercedes-Benz Hands-Free
Communication System.
GWarning
For safety reasons, the driver should
not use the mobile telephone while
the vehicle is in motion. We
encourage the driver to stop the
vehicle in a safe location before
answering or placing a call.
USA
Cradle_USA.fm Seite 1 Montag, 12. Juli 2010 10:14 10
- 2 -
Notes
The manufacturer reserves the right to
change technical details from those shown
in the illustrations contained in these
installation instructions.
These installation instructions also refer to
the vehicle Operator's Manual, COMAND
Operator's Manual, and mobile telephone
manual. Please refer to them for reference.
A mobile telephone other than a
Mercedes-Benz approved/recommend
model may not operate properly in
conjunction with the Mercedes-Benz Cradle
adaptor with Bluetooth® and may not be
serviceable by your authorized Mercedes-
Benz dealer.
Installing the Mercedes-Benz Cradle
adaptor with Bluetooth®

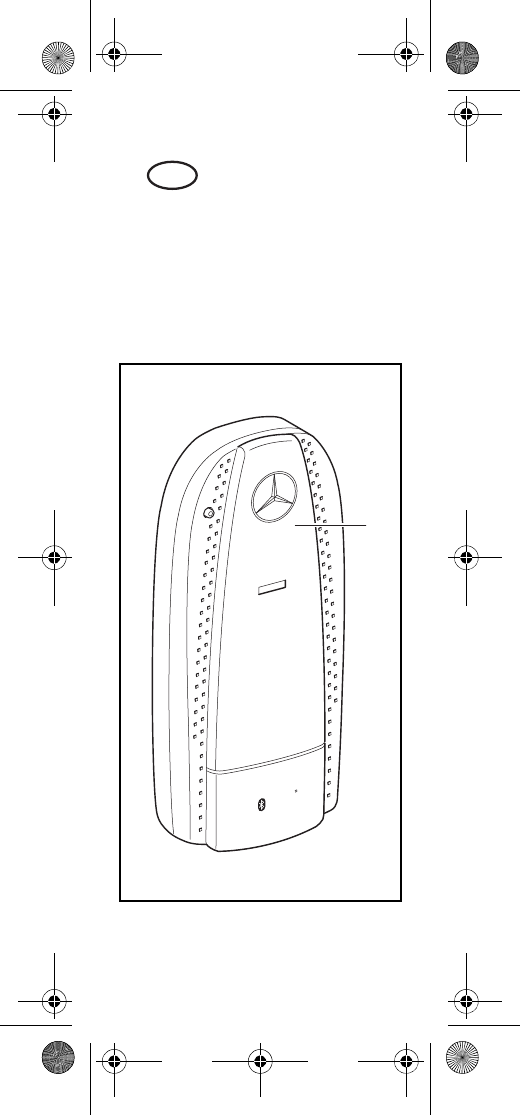

Insert the Mercedes-Benz Cradle adaptor
with Bluetooth®(1) into the latches on the
pre-installed contact plate (2), located in the
center console. To insert the Mercedes-Benz
Cradle adaptor with Bluetooth®(1), slide it
upwards until it clicks into place.
2
1
M+P-03F-6663
Cradle_USA.fm Seite 2 Montag, 12. Juli 2010 10:14 10
- 3 -
Pairing the mobile telephone with the
Mercedes-Benz Cradle adaptor with
Bluetooth®
Make sure that the ignition switch is in
position 1 or 2 (see the vehicle Operator's
Manual).

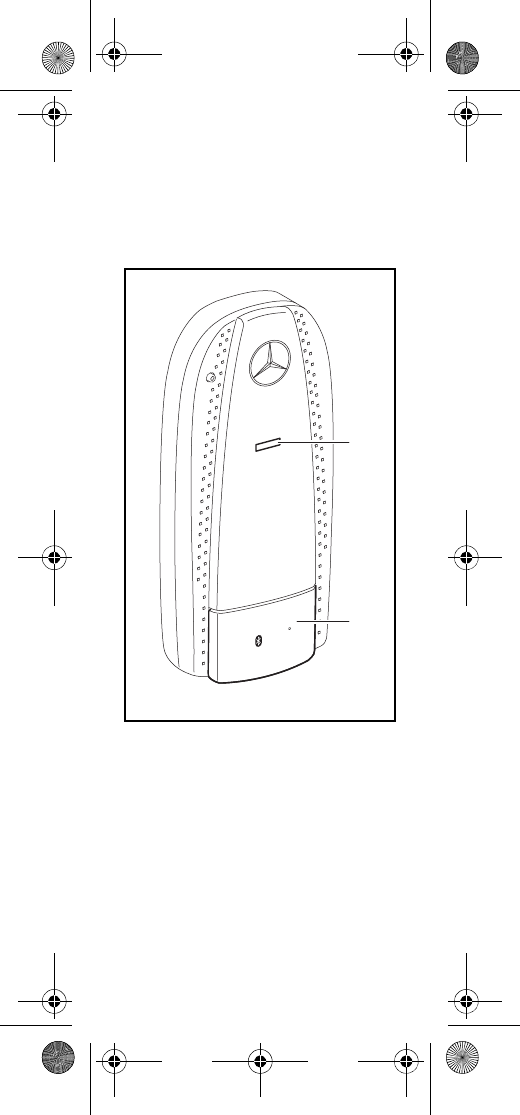

1. With Mercedes-Benz Cradle adaptor
with Bluetooth® connected to the vehicle
press button (3) for approx. 2-3 seconds.
The LED (4) will begin to flash rapidly. The
Mercedes-Benz Cradle adaptor with
Bluetooth® is in Discovery Mode and can be
detected by a Bluetooth® mobile telephone.
Bluetooth
R
4
3
M+P-03F-6664
Cradle_USA.fm Seite 3 Montag, 12. Juli 2010 10:14 10
- 4 -
The Mercedes-Benz Cradle adaptor with
Bluetooth® will appear as "MB
PhoneSystem" on a recommended
compatible mobile telephone with Bluetooth
capability.
2. For instructions on how to get the
mobile telephone ready for pairing, see the
mobile telephone manual. Once the mobile
telephone and Mercedes-Benz Cradle
adaptor with Bluetooth® find each other the
mobile telephone will prompt the user to
enter a Pass-Key.
3. When prompted, enter the Pass-Key
"62872" (MBUSA) into the mobile
telephone. Depending on the type of mobile
telephone being used, it may be necessary
to confirm a connection request (see the
mobile telephone manual).
4. Once the Pass-Key has been entered
and accepted the LED (4) will be lit
continuously. This confirms that the mobile
telephone is paired and connected and the
mobile telephone information has been
stored in the Mercedes-Benz Cradle adaptor
with Bluetooth®.
5. The mobile telephone is now ready for
use with the Mercedes-Benz Hands-Free
Communication System.
Cradle_USA.fm Seite 4 Montag, 12. Juli 2010 10:14 10
- 5 -
Establishing a Bluetooth® Connection
Notes
A maximum of 4 mobile telephones can be
paired with the Mercedes-Benz Cradle
adaptor with Bluetooth®. However, only one
mobile telephone is connected to the
Mercedes-Benz Cradle adaptor with
Bluetooth® at a time. If a fifth mobile
telephone is paired with the Mercedes-Benz
Cradle adaptor with Bluetooth®, then the
information stored from the first mobile
telephone which was paired with the
Mercedes-Benz Cradle adaptor with
Bluetooth® will be replaced.
When the ignition switch is in position 1 or 2
(see the vehicle Operator's Manual), the
Mercedes-Benz Cradle adaptor with
Bluetooth® will search for the last
connected mobile telephone and reconnect.
The Mercedes-Benz Cradle adaptor with
Bluetooth® will automatically begin a
continuous search for a previous paired
mobile phone after startup.
If the last connected mobile telephone is not
found the Mercedes-Benz Cradle adaptor
with Bluetooth® will search for one of the
previously paired phones and connect to it.
If the connection between the
Mercedes-Benz Cradle adaptor with
Bluetooth® and mobile telephone is not
established automatically, it is possible to
establish a connection manually (see
page 7).
Cradle_USA.fm Seite 5 Montag, 12. Juli 2010 10:14 10
- 6 -
Note
When employing a Bluetooth® connection
the mobile telephone uses more power than
usually. Since Bluetooth® connection does
not charge the mobile telephone, please
make sure the phone has a sufficient charge
before use.
SMS messages can not be accessed via the
COMAND or radio while the Bluetooth®
connection is established.
Not every ring-tone available in your mobile
telephone will be reproduced by the
vehicle's COMAND system or radio.
3-way-calling and call waiting are not
available through the Mercedes-Benz Cradle
adaptor with Bluetooth®. An audible peep
will signal a waiting call.
The roaming indicator may not be displayed
by the vehicle's COMAND system or radio.
The Tele Aid System (emergency call
system) will continue to function
independently of the hands-free phone
system as designed as long as there is a
valid service contract, telephone service and
a GPS coverage.
Cradle_USA.fm Seite 6 Montag, 12. Juli 2010 10:14 10
- 7 -
Connecting the mobile telephone and
Mercedes-Benz Cradle adaptor with
Bluetooth® manually
Valid for all Mercedes-Benz vehicles with the
exception of the model year 2007 S-Class:
• Press button on the COMAND or
radio.
Model year 2007 S-Class vehicles:
• Using the COMAND Controller, select
"Telephone" 씮 "Telephone" 씮
"Telephone on".
Note
Before manual connection, the mobile
telephone must previously be paired with
the Mercedes-Benz Cradle adaptor with
Bluetooth® (see pairing procedure on
page 3).
When the mobile telephone is within the
range (approx. 30 ft) of the Mercedes-Benz
Cradle adaptor with Bluetooth®, the
connection between the mobile telephone
and the Mercedes-Benz Cradle adaptor with
Bluetooth® remains active, and phone calls
made with the mobile telephone use the
vehicle’s hands-free system. For this reason,
the connection between the mobile
telephone and the Mercedes-Benz Cradle
adaptor with Bluetooth® should be
disconnected manually if the mobile
telephone is taken out of the vehicle (see
page 8).
Cradle_USA.fm Seite 7 Montag, 12. Juli 2010 10:14 10
- 8 -
Disconnecting the Bluetooth®
connection automatically
The connection between the Mercedes-Benz
Cradle adaptor with Bluetooth® and the
mobile telephone is automatically
disconnected when the mobile telephone
travels outside of the range (approx. 30 ft) of
the Mercedes-Benz Cradle adaptor with
Bluetooth®.
Disconnecting the Bluetooth®-
connection manually
The connection between the mobile
telephone and the Mercedes-Benz Cradle
adaptor with Bluetooth® can be
disconnected at any time by using the
mobile telephone (see the mobile telephone
manual).
To disconnect the paired mobile telephone
from Mercedes-Benz Cradle adaptor with
Bluetooth® using the COMAND or radio.
Valid for all Mercedes-Benz vehicles with the
exception of the model year 2007 S-Class:
• Press and hold button on the
COMAND or radio for approx.
3 seconds.
Model year 2007 S-Class vehicles:
• Using the COMAND Controller, select
"Telephone" 씮 "Telephone" 씮
"Telephone off".
Note
If a phone call is in progress, the connection
can only be manually disconnected directly
on the mobile telephone (see the mobile
telephone manual).
Cradle_USA.fm Seite 8 Montag, 12. Juli 2010 10:14 10
- 9 -
Detaching the Mercedes-Benz Cradle
adaptor with Bluetooth®

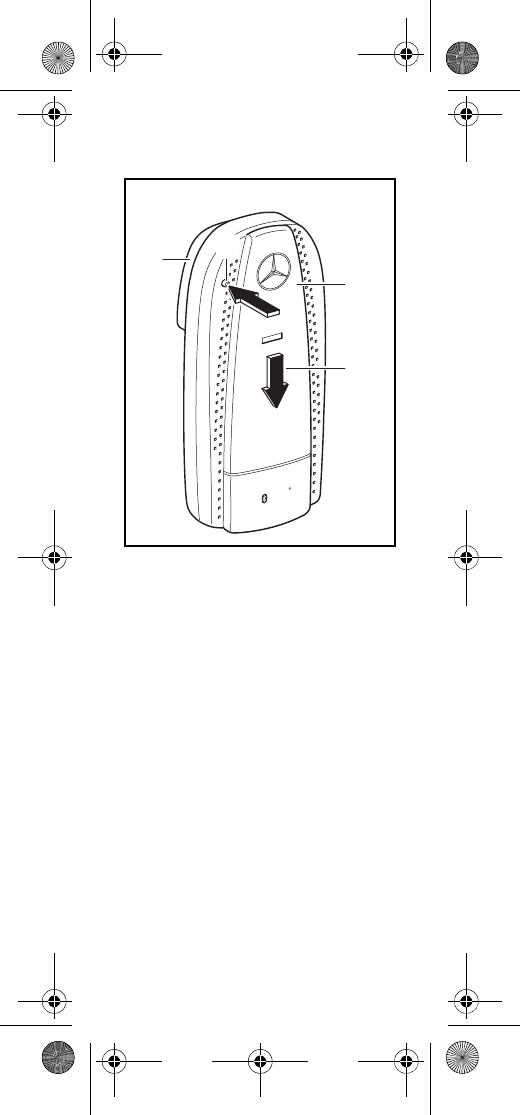

Press and hold the release button (5). Slide
the Mercedes-Benz Cradle adaptor with
Bluetooth® (1) in direction of arrow (6) and
remove it from the pre-installed contact
plate (2).
Note
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
• This device may not cause harmful
interference.
• This device must accept any
interference received, including
interference that may cause
undesired operation.
Bluetooth
R
1
6
5
2
M+P-03F-6666
Cradle_USA.fm Seite 9 Montag, 12. Juli 2010 10:14 10
© 2008, Mercedes-Benz Accessories Inc.
Not to be reprinted, translated or otherwise
reproduced, either wholly or in part.
Mercedes-Benz Accessories Inc., Stuttgart ·
A Daimler AG Company
03/08
03F014-08
