V123x-0 (LTE-NAD-A)
User manual
Peiker product IDs: 2189-230-042-00 (V1230-0)
2189-231-042-00 (V1231-0)
2189-232-042-00 (V1232-0)
2189-233-042-00 (V1233-0)
Revision: 1.4
Date: August 2017
_______________________________________________________________________________________________________________ Seite 2
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
Revision History
Date
Revision
Name
Comment
28.02.2017
1.0
mgi
Initial document based on V123x-1 documents
01.03.2017
1.1
phse
Some rewording as well as some corrections
06.03.2017
1.2
mgi
Model name changed to V123x-0
08.08.2017
1.3
phse
Renumbering of some sections
Added new section called “Maximum TX Output Power”
04.09.2017
1.4
phse
Updated the temp range table from section 2.12.1
Reworked section 6
Updated the pin-out table
_______________________________________________________________________________________________________________ Seite 3
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
Content
1 Introduction .......................................................................................................................................... 4
1.1 Scope .................................................................................................................................................. 4
1.2 Audience ............................................................................................................................................ 4
1.3 Contact information, Support ......................................................................................................... 4
2 Product Overview ................................................................................................................................ 5
2.1 Product Variants ................................................................................................................................ 5
2.2 Supported Technology/Frequency Bands ..................................................................................... 5
2.3 Maximum TX Output Power ............................................................................................................ 5
2.5 Features ............................................................................................................................................. 6
2.6 Certifications / Approvals................................................................................................................. 7
2.8 Connectors ......................................................................................................................................... 7
2.8.1 Module Signal and RF Connectors .......................................................................................... 7
2.8.2 Ground and Heat Dissipation Connectors .............................................................................. 7
2.9 Main Interfaces ................................................................................................................................. 8
2.9.1 USB .............................................................................................................................................. 8
2.9.2 SIM Interface ............................................................................................................................. 8
2.9.3 Power on ..................................................................................................................................... 8
2.9.4 Reset ........................................................................................................................................... 8
2.9.5 GPIOs .......................................................................................................................................... 9
2.9.6 GSBIs ........................................................................................................................................... 9
2.9.7 Module Pin-out ......................................................................................................................... 10
2.10 Supply Voltage .............................................................................................................................. 15
2.11 Power Consumption ..................................................................................................................... 15
2.12 Environmental Specification ........................................................................................................ 16
2.12.1 Temperature Range .............................................................................................................. 16
3 Evaluation Kit ..................................................................................................................................... 17
4 AT Command interface ..................................................................................................................... 20
5 Safety Recommendations according to EN60950-1 ..................................................................... 22
6 RED/FCC/IC Regulatory Notices ...................................................................................................... 23
6.1 Modifications .............................................................................................................................. 23
6.2 Interference ................................................................................................................................ 23
6.3 FCC Class B Digital Device ....................................................................................................... 23
6.3 OEM Responsibilities ................................................................................................................. 24
7 List of Acronyms ................................................................................................................................ 25
_______________________________________________________________________________________________________________ Seite 4
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
1 Introduction
1.1 Scope
This document gives an overview about electrical, mechanical and functional details of the peiker LTE-
NAD-A V123x-0 modules.
1.2 Audience
Information to integrate the module in some other applications.
1.3 Contact information, Support
peiker acustic GmbH & Co KG
Max-Planck Street 32
D-61381 Friedrichsdorf / Ts.
Germany
http://www.peiker.de
info@peiker.de
_______________________________________________________________________________________________________________ Seite 5
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
2 Product Overview
2.1 Product Variants
The LTE-NAD-A module family consists of four regional variants:
Peiker product # Module configuration
2189-230-042-00 (V1230-0) ECE configuration
2189-231-042-00 (V1231-0) NA configuration
2189-232-042-00 (V1232-0) CHN configuration
2189-233-042-00 (V1233-0) RoW configuration
2.2 Supported Technology/Frequency Bands
V1230-0
GSM Bands 900MHz and 1800MHz
WCDMA Bands FDD1, FDD3 and FDD8
LTE Bands eFDD1, eFDD3, eFDD7, eFDD20, eFDD28A, eFDD32 and eTTD38
V1231-0
GSM Bands 850MHz and 1900MHz
WCDMA Bands FDD2, FDD4 and FDD5
LTE Bands eFDD2, eFDD4, eFDD5, eFDD7, eFDD12 and eFDD29
V1232-0
GSM Bands 900MHz and 1800MHz
WCDMA Bands FDD1 and FDD8
LTE Bands eFDD1, eFDD3, eFDD7, eTTD38, eTTD40 and eTTD41
V1233-0
GSM Bands 850MHz, 900MHz, 1800MHz and 1900MHz
WCDMA Bands FDD1, FDD2, FDD3, FDD5, FDD6, FDD8 and FDD19
LTE Bands eFDD1, eFDD3, eFDD5, eFDD7, eFDD8, eFDD9, eFDD19, eFDD21,
eFDD28B and eTTD40
2.3 Maximum TX Output Power
GSM 850 and GSM 900 (PCL=5, 1 UL TS): 34,5 dBm
GSM 1800 and GSM 1900 (PCL=5, 1 UL TS): 31,5 dBm
GPRS 850 and GPRS 900 (PCL=5, 4 UL TS): 29 dBm
GPRS 1800 and GPRS 1900 (PCL=0, 4 UL TS): 26 dBm
EDGE 850 and EDGE 900 (PCL=8, 4 UL TS): 23 dBm
_______________________________________________________________________________________________________________ Seite 6
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
EDGE 1800 and EDGE 1900 (PCL=2, 4 UL TS): 22 dBm
WCDMA (all supported frequency bands): 25 dBm
LTE (all supported frequency bands): 25 dBm
2.4 Module to Hosts Mapping
The below table shows the mapping between the module variants and the host/ATM-02 devices:
Module
Host devices embedding this module variant
V1230-0
ATM-02-ECE-R1 and ATM-02-ECE-T1
V1231-0
ATM-02-US-R1 and ATM-02-US-T1
V1232-0
ATM-02-CHN-R1 and ATM-02-CHN-T1
V1233-0
ATM-02-ROW-R1 and ATM-02-ROW-T1
2.5 Features
Features
- Same footprint and pin-out (all modules)
- Voice and data calls (all modules)
- IMS/VoLTE
- 4G: Rel-11, 3G/3G+: Rel-9, 2G: Rel-9
- DTM/eDTM (all modules)
- Standalone GPS, GLONASS, Galileo, SBAS, QZSS and BeiDou
Data rates
- GPRS/EDGE: Multislot class 33
- WCDMA: DL /UL up to 384kbps
HSPA+:
Category 24 in DL using 64 QAM and Dual-Cell; Up to 42 Mbps (All modules except
V1231-0)
Category 14 in DL using 64 QAM; Up to 21 Mbps (V1231-0)
Category 6 in UL using 16 QAM; Up to 5.76 Mbps (All modules)
- LTE Category 11: Up to 450 Mbps in DL using 3 CCs, up to 75 Mbps in UL (All modules)
Power Classes
- LTE: All supported bands, Power Class 3
- WCDMA: All supported bands, Power Class 3
- EDGE: 850/900/1800/1900, Power Class E2
- GSM/GPRS: 850/900, Power Class 4
- GSM/GPRS: 1800/1900, Power Class 1
Dimension and Weight
- Dimensions: 35mm x 38mm x 4,35mm
- Weight < 10 grams
_______________________________________________________________________________________________________________ Seite 7
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
2.6 Certifications / Approvals
GCF
RED
PTCRB
FCC/IC
AT&T
V1230-0
Planned
Planned
V1231-0
Planned
Planned
Planned
V1232-0
Planned
V1233-0
Planned
Planned
2.7 HW Features
- Qualcomm X12 LTE, 20nmSoC
- MDM9240 Baseband / PMIC: PMD9645 / WTR3925 WTR4905
- Cortex-A7 up to 1.2 GHz
- Modem and low power audio sub systems: QDSP6 processor at up to 850 MHz (turbo)
- RPM Resource and power manager: Cortex M3 up to 100 MHz
- 4Gb NAND Flash
- 2Gb LPDDR2 SDRAM
- 19.2MHz clock reference
- GPS, GLONASS, BeiDou, and Galileo
2.8 Connectors
2.8.1 Module Signal and RF Connectors
LTE-NAD-A has 172 signal pins (2xAA and 2xBB) connector pads with 1.0mm pitch. The signal pads are
located close to the board edges.
There are three antenna pads, each collocated by RF GND connectors
- Main transmit and receive antenna – pin LGA_PRX_ANT
- Diversity antenna for WCDMA respective MIMO antenna for LTE – pin LGA_DRX_ANT_IN
- GNSS antenna for both GPS and GLONASS – pin LGA_GPS_DRX_ANT
2.8.2 Ground and Heat Dissipation Connectors
To support the usage of module under complicated thermal conditions, there are a number of large
grounded pads in the center of PCB. These pads are dedicated ground pads to transfer heat dissipation
to a carrier board.
This should be especially considered by customer designs. A reference design showing landing patterns
and PCB stack-up is available on request.
_______________________________________________________________________________________________________________ Seite 8
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
2.9 Main Interfaces
2.9.1 USB
LTE-NAD-A has one USB2.0 OTG high speed (480MBit) compliant interface including the PHY. This IF
consists of four signals:
- USB_HS_DP: USB Data Plus signal
- USB_HS_DM USB Data Minus signal
- USB_HS_ID: USB high-speed data - ID
- MDM_VBUS_DET: USB Voltage Supply
LTE-NAD-A has one USB3.0 high speed (480MBit) compliant interface including the PHY. This IF consists
of four signals:
- MDM_USB_SS_RX_P: USB 3.0 receive – plus
- MDM_USB_SS_RX_M USB 3.0 receive – minus
- MDM_USB_SS_TX_P: USB 3.0 transmit – plus
- MDM_USB_SS_TX_M: USB 3.0 transmit – minus
A dynamic reconfiguration between USB-Host or USB-Device is not foreseen. LTE-NAD-A can be
configured to USB-Host or USB-Device by insertion of a resistor on the USB_ID line.
2.9.2 SIM Interface
LTE-NAD-A has two SIM interfaces that are compatible for both 1.8V and 3V SIM Cards. Those IFs
consist of the following signals:
VREF_UIM1 / VREF_UIM2
UIM1_CLK / UIM2_CLK
UIM1_DETECT / UIM2_DETECT
UIM1_DATA / UIM2_DATA
UIM1_RESET / UIM2_RESET
The data rate of the SIM IF is up to 4 Mbps, so HW designers should take care of the length and routing
of the SIM IF to prevent potential EMC problems.
2.9.3 Power on
The signal PON_1 is used to switch on LTE-NAD-A. As PON_1 is pulled against VMAIN internally, it is
recommended to pull this input against GND using an open collector or open drain output only.
2.9.4 Reset
PMD_RESIN_N is used to reset LTE-NAD-A. As PMD_RES_IN is pulled against VMAIN internally, it is
recommended to pull this input against GND using an open collector or open drain output only.
_______________________________________________________________________________________________________________ Seite 9
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
2.9.5 GPIOs
There are 51 GPIOs available on LTE-NAD-A, some of them being part of the five GSBIs (see next
section). They are used for different interfaces (see Table 1 and the following sections). For allocation of
GPIOs/GSBIs to different configurations, please contact us.
GPIOs and GSBIs share the same output pins and may not available when used as GSBI configuration.
The following GPIOs do not belong to a GSBI bundle:
GPIO 47, 72, 82, 25, 28, 26, 27, 84, 80, 21, 23, 22, 24, 20, 1, 78, 79, 85, 86, 69, 0, 77, 65, 61, 68, 51,
54, 73, 48, 49, 53.
The following GPIOs belongs to a GSBI bundle:
GPIO 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 29, 30.
2.9.6 GSBIs
Five GSBIs (General Serial Bus Interfaces) are available in total, each of them consisting of four GPIOs.
The reference voltage of the GSBIs is 1.8V.
Available signals on GSBI bundles at the board to board connector:
- GSBI1: GSBI1_0, GSBI1_1, GSBI1_2, GSBI1_3 (GPIO_29, 30, 2, 3)
- GSBI2: GSBI2_0, GSBI2_1, GSBI2_2, GSBI2_3 (GPIO_4, 5, 6, 7)
- GSBI3: GSBI3_0, GSBI3_1, GSBI3_2, GSBI3_3 (GPIO_8, 9, 10, 11)
- GSBI4: GSBI4_0, GSBI4_1, GSBI4_2, GSBI4_3 (GPIO_12, 13, 14, 15)
- GSBI5: GSBI5_0, GSBI5_1, GSBI5_2, GSBI5_3 (GPIO_16, 17, 18, 19)
_______________________________________________________________________________________________________________ Seite 10
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
2.9.7 Module Pin-out
Table 1 Module Pin-out
Pin
numbe
r
Category
9x40 Pin name
Description
1
GND
GND
Ground
2
USB3.0
MDM_USB_SS_TX_M
USB 3.0 transmit – minus
105
USB3.0
MDM_USB_SS_TX_P
USB 3.0 transmit – plus
3
GND
GND
Ground
106
GND
GND
Ground
4
USB3.0 (9x40)
MDM_USB_SS_RX_M
USB 3.0 receive – minus
107
USB3.0 (9x40)
MDM_USB_SS_RX_P
USB 3.0 receive – plus
5
GND
GND
Ground
108
GND
GND
Ground
6
PCIE/WLAN IF
PCIE_REFCLK_M
PCIe reference clock – minus
109
PCIE/WLAN IF
PCIE_REFCLK_P
PCIe reference clock – plus
7
GND
GND
Ground
110
GND
GND
Ground
8
PCIE/WLAN IF
PCIE_TX_M
PCIe transmit – minus
111
PCIE/WLAN IF
PCIE_TX_P
PCIe transmit – plus
9
GND
GND
Ground
112
GND
GND
Ground
10
PCIE/WLAN IF
PCIE_RX_M
PCIe receive – minus
113
PCIE/WLAN IF
PCIE_RX_P
PCIe receive – plus
11
GND
GND
Ground
114
GND
GND
Ground
12
USB
PMD_USB_ID
USB high-speed data – ID
115
USB
USB2_EXT_VBUS_DET
External USB Vbus detection
13
GND
GND
Ground
116
GPIO
GPIO_86
Configurable I/O
14
Reserved
Reserved
Inter-chip communication
117
GND
GND
Ground
15
Reserved
Reserved
Inter-chip communication
118
GND
GND
Ground
16
USB
MDM_USB_HS_DP
USB high-speed data – plus
119
USB
MDM_USB_HS_DM
USB high-speed data – minus
17
GND
GND
Ground
_______________________________________________________________________________________________________________ Seite 11
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
120
SDIO IF/eMMC
GPIO_96 / MDM_SDC1_DATA_4
Secure digital controller data bit 4
18
SDIO IF/eMMC
GPIO_97 / MDM_SDC1_DATA_5
Secure digital controller data bit 5
121
SDIO IF/eMMC
GPIO_98 / MDM_SDC1_DATA_6
Secure digital controller data bit 6
19
SDIO IF/eMMC
GPIO_99 / MDM_SDC1_DATA_7
Secure digital controller data bit 7
122
SDIO IF
GPIO_81 / SD_CARD_DET_N
Secure digital card detection
20
SDIO IF
MDM_SDC1_DATA_0
Secure digital controller data bit 0
123
SDIO IF
MDM_SDC1_DATA_1
Secure digital controller data bit 1
21
SDIO IF
MDM_SDC1_DATA_2
Secure digital controller data bit 2
124
SDIO IF
MDM_SDC1_DATA_3
Secure digital controller data bit 3
22
GND
GND
Ground
125
SDIO IF
MDM_SDC1_CMD
Secure digital controller 2 command
23
SDIO IF
MDM_SDC1_CLK
Secure digital controller 2 clock
126
SIM1
VREG_L11_UIM1
Reference for UIM I/O pads
24
GND
Ground
127
SIM1
GPIO_79 / MDM_UIM1_CLK
UIM1 clock
25
SIM1
GPIO_78 /MDM_UIM1_RESET
UIM1 reset
128
SIM1
GPIO_77 / MDM_UIM1_DETECT
UIM1 detect (non dual voltage)
26
SIM1
GPIO_76 /MDM_UIM1_DATA
UIM1 data
27
GND
GND
Ground
28
I2S
GPIO_15 / I2S_CLK
I2S Data Clock
129
GND
GND
Ground
29
I2S
MDM_MCLK
Audio Master clock
130
GND
GND
Ground
30
I2S
GPIO_12 / I2S_WS
I2S word select
131
I2S
GPIO_13 / I2S_DO
I2S Data Output
31
I2S
GPIO_14 / I2S_DI
I2S Data Input
132
GND
GND
Ground
32
GPIO_19 / ANT_SW_2
Antenna switch 2
133
GPIO_18 / ANT_SW_1
Antenna switch 1
33
UART4
GPIO_17 / UART4_RX
UART4 receive data
134
UART4
GPIO_16 / UART4_TX
UART4 transmit data
34
GND
GND
Ground
135
GND
GND
Ground
35
GPIO
GPIO_50
Configurable I/O
136
GPIO_23 / ANT_SW_4
Antenna switch 4
36
GND
GND
Ground
137
GND
GND
Ground
37
MDM_RESOUT_N
138
GPIO_22 / ANT_SW_3
Antenna switch 3
_______________________________________________________________________________________________________________ Seite 12
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
38
UART1
GPIO_21 / UART1_RX
UART1 receive data
139
UART1
UART1_TX
UART2 transmit data
39
GND
GND
Ground
140
SPI
GPIO_7 / SPI_CLK
SPI clock
40
SPI
GPIO_6 / SPI_CS_N
SPI chip select
141
SPI
GPIO_5 / SPI_MISO
SPI master-in slave-out
41
SPI
GPIO_4 / SPI_MOSI
SPI master-out slave-in
142
SIM2
GPIO_2 / MDM_UIM2_RESET
UIM2 reset
42
SIM2
GPIO_1 /MDM_UIM2_DETECT
UIM2 detect (non dual voltage)
143
SIM2
GPIO_0 /MDM_UIM2_DATA
UIM2 data
43
GND
GND
Ground
144
SIM2
VREG_L13_UIM2
Reference for UIM I/O pads
44
SIM2
GPIO_3 / MDM_UIM2_CLK
UIM2 clock
145
GND
GND
Ground
45
GND
GND
Ground
146
GPIO
GPIO_94
Configurable I/O
46
GPIO
GPIO_80
Configurable I/O
147
GPIO
GPIO_90
Configurable I/O
47
GPIO
GPIO_82
Configurable I/O
148
GPIO
GPIO_91
Configurable I/O
48
GPIO
GPIO_87
Configurable I/O
149
GPIO
GPIO_92
Configurable I/O
49
GPIO
GPIO_88
Configurable I/O
150
GPIO
GPIO_93
Configurable I/O
50
GPIO
GPIO_89
Configurable I/O
151
I2C
GPIO_85 / I2C_SCL
I2C clock
51
I2C
GPIO_84 / I2C_SDA
I2C data
152
GND
GND
Ground
52
GND
GND
Ground
53
GND
GND
Ground
54
GND
GND
Ground
153
GND
GND
Ground
55
RF
ANT_PTRX1
Primary cellular signal input/output
154
GND
GND
Ground
56
GND
GND
Ground
155
GND
GND
Ground
57
GND
GND
Ground
156
GND
GND
Ground
58
GND
GND
Ground
_______________________________________________________________________________________________________________ Seite 13
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
157
GND
GND
Ground
59
MIPI
GPIO_46 / RFFE4_DATA
RF front end 4 interface data
158
GND
GND
Ground
60
GND
GND
Ground
159
GND
GND
Ground
61
MIPI
GPIO_47 /RFFE4_CLK
RF front end 4 interface clock
160
GND
GND
Ground
62
GND
GND
Ground
63
GND
GND
Ground
162
JTAG
MDM_JTAG_TDI
JTAG data input
64
GND
GND
Ground
163
JTAG
MDM_JTAG_TDO
JTAG data output
65
GND
GND
Ground
164
JTAG
MDM_JTAG_TMS
JTAG mode select input
66
GND
GND
Ground
165
JTAG
MDM_JTAG_TRST_N
JTAG reset
67
GND
GND
Ground
166
JTAG
MDM_JTAG_TCK
JTAG clock input
68
GND
GND
Ground
167
JTAG
MDM_JTAG_SRST_N
JTAG reset for debug
69
GND
GND
Ground
168
JTAG
MDM_JTAG_PS_HOLD
Power supply hold signal to PMIC
70
GND
GND
Ground
169
POWER
VREG_L6_1P8
1.8V output
71
GND
GND
Ground
170
GND
GND
Ground
72
RF
ANT_DRX1
Diversity cellular signal input/output
171
GND
GND
Ground
73
GND
GND
Ground
172
GND
GND
Ground
74
Reserved
Reserved
Reserved
173
GND
GND
Ground
75
GND
GND
Ground
174
GND
GND
Ground
76
GND
GND
Ground
175
GND
GND
Ground
77
GND
GND
Ground
176
GND
GND
Ground
78
RF
ANT_GNSS
GNSS signal input/output
_______________________________________________________________________________________________________________ Seite 14
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
79
GND
GND
Ground
80
GPIO_38 / GRFC12
177
GND
GND
Ground
81
GPIO
GPIO_69
Configurable I/O
178
GPIO_67 / EBI2_AD2/FBS_1
82
GND
GND
Ground
179
BOOT CONFIG
GPIO_36 / FORCED_USB_BOOT
Force USB boot control
83
GPIO
GPIO_8
Configurable I/O
180
GPIO
GPIO_83
Configurable I/O
84
GPIO
GPIO_9
Configurable I/O
181
GPIO_59 / NC
85
GND
GND
Ground
182
GPIO_24 / EBI2_AD1/FBS_0
86
GPIO
GPIO_10
Configurable I/O
183
MDM_MODE_0
TBD
87
GPIO
GPIO_11
Configurable I/O
184
MDM_MODE_1
TBD
88
GND
GND
Ground
185
PCIE
GPIO_65 / MDM_PCIE_WAKE_N
PCIe host wake
89
Reserved
Reserved
Reserved
186
PCIE
GPIO_61 / MDM_PCIE_RESET_N
PCIe host reset
90
GND
GND
Ground
187
PCIE
GPIO_64 / MDM_PCIE_CLKREQ_N
PCIe clock request
91
GND
GND
Ground
188
WLAN IF
WLAN_PWR_REQ
92
GND
GND
Ground
189
GPIO
GPIO_60
Configurable I/O
93
WLAN IF
WLAN_PWR_EN
Enable WLAN Power
190
GPIO
GPIO_68
Configurable I/O
94
WLAN IF
WLAN_SLP_CLK
191
BT IF
BT_RESET_N
Enable Bluetooth
95
Power-reset
PMIC (active
low)
PMD_RESIN_N
Reset module
192
GND
GND
Ground
96
Power-on PMIC
(active high)
PON_1
Turn on module
193
WLAN IF
GPIO_95 / WLAN_EN
Enable WLAN
97
CBL_PWR_N
194
WLAN IF
GPIO_52 / COEX_UART_TX
UART transmit data
_______________________________________________________________________________________________________________ Seite 15
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
98
MPP
PMIC_MPP_4
Multipurpose Pin
195
WLAN IF
GPIO_53 / COEX_UART_RX
UART receive data
99
MPP
PMIC_MPP_2
Multipurpose Pin
196
MPP
PMIC_MPP_6
Multipurpose Pin
100
GND
GND_TO_VPH
Ground
197
GND
GND_TO_VPH
Ground
101
POWER
VPH_POWER
External supply voltage
198
POWER
VPH_POWER
External supply voltage
102
POWER
VPH_POWER
External supply voltage
199
POWER
VPH_POWER
External supply voltage
103
POWER
GND_TO_VPH
Ground
200
GND
GND
Ground
104
HW_REV_RESISTOR
Note: Pins should be grounded when not used in design.
2.10 Supply Voltage
Absolute minimum/maximum supply voltages
3.9V ~ 4.1V
Nominal supply voltage
4V
Recommended supply voltage
4V
Voltage drop @ GSM power burst (33dBm)
<100mV
During Hi RF Power GSM bursts the power amplifier can draw peak currents > 2Amps at VMAIN. The
voltage drop during the GSM burst shall not exceed 100mV.
2.11 Power Consumption
TA = +25°C, VPH_PWR =3.8V
Output Power
Output Power
max. (typ. 23dBm)
0 dBm
Voice call WCDMA BC1
~530mA
~145mA
Voice call WCDMA BC2
~570mA
~145mA
Voice call WCDMA BC5
~630mA
~140mA
Voice call WCDMA BC8
~580mA
~140mA
PCL 5 (typ. 32.5 dBm)
PCL 19 (typ. 5dBm)
Voice call GSM850
~260mA
~65mA
Voice call GSM900
~270mA
~65mA
PCL 0 (typ.30.5dBm)
PCL 15 (typ.0dBm)
Voice call GSM1800
~165mA
~65mA
Voice call GSM1900
~165mA
~65mA
_______________________________________________________________________________________________________________ Seite 16
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
Output Power
Output Power
Standby current GSM
DRX = 5
Tbd mA
Standby current WCDMA
DRX = 7
Tbd mA
Standby current LTE
DRX = 7
LTE data call B3
LTE data call B7
LTE data call B20
2.12 Environmental Specification
2.12.1 Temperature Range
Range
Operating temp. range
-25°C … +70°C
3GPP spec. conform
Extended operating temp. range
-40°C … +85°C Note 1
Operational
Performance might slightly
deviate from 3GPP spec.
Storage temp. range
-40°C … +85°C
Note 1: Due to temperature specification of the chipset, the temperature of the power manager and the
temperature of the modem chip shall not exceed +85°C.
_______________________________________________________________________________________________________________ Seite 17
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
3 Evaluation Kit
There are two types of evaluation boards fitted with the NAD V123x-0 modules:
The IFB-1 board allows to power-supply the module directly with external 4V along with sense
signals. This 4V power-supply should be able to deliver 3.5A max.
The IFB-4 board type takes 12V as input voltage, down-converted to 4V by on-board circuitry.
Features:
- USB 2.0 (micro USB) for USB to UART
- USB 3.0 (micro b)
- 2*SIM card slot
- Audio support with microphone and loudspeaker connectors
- JTAG connector for debug and programming
- 5 RF Antenna connector (PTRX,DRX,GNSS,WL,BT)
- 2* RS232 for UART 1 & 4
_______________________________________________________________________________________________________________ Seite 18
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
RF Connectors
- For Cellular RF measurements, use the PTRX and DRX antenna ports
Figure 1 Evaluation Kit for V123x-0.
GNSS
DRX
PTRX
BT
WLAN
_______________________________________________________________________________________________________________ Seite 19
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe

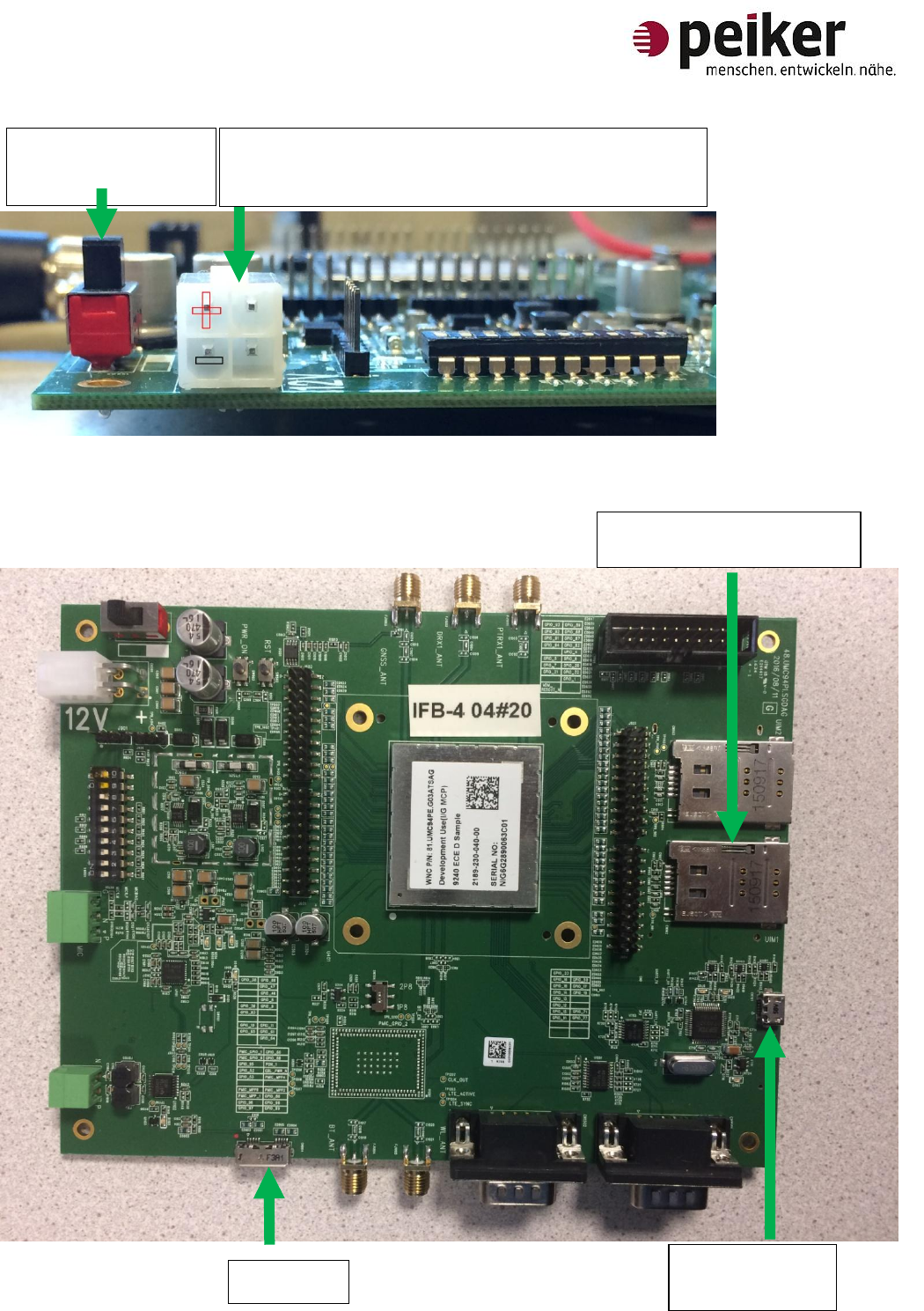

Figure 2 Power supply for Evaluation Kit for V123x-0.
Figure 3 SIM card and USB interfaces for Evaluation Kit for V123x-0.
12 V DC Supply
(Top Connector positive, bottom connector ground)
ON/OFF switch
Only for 12 V supply
USB 3port
Micro USB 2.0
USB to UART
SIM slot 1(bottom)/2(Up)
_______________________________________________________________________________________________________________ Seite 20
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
4 AT Command interface
The modules supports standard AT command as listed below. Commands are compliant to 3GPP TS
27.007 and TS 27.005
Command
Description
Comment
AT+CMGF
Message Format
AT+CSCA
Service Centre Address
AT+CMGS
Send Message
AT+CGMI
Manufacturer Identification
AT+CGMM
Request model identification
AT+CGMR
Request revision identification
AT+CGSN
Request product serial number
AT+CIMI
Request international mobile subscriber
identification
AT+CMOD
Call mode
Only one Parameter is supported by the
device.
AT+CHUP
Hang up call
ATD
Initiate a CS or PS call or supplementary service
ATA
Answer incoming CS call command
ATH
Hangup CS call command
AT+CBST
Select bearer service type
AT+CEER
Extended error report
AT+CVHU
Voice hangup control
AT+CREG
Network registration
AT+COPS
PLMN selection
AT+CLCK
Facility lock
AT+CPWD
Change password
AT+CLIP
Calling line identification presentation
AT+CLIR
Calling line identification restriction
AT+CCWA
Call waiting
AT+CHLD
Call related supplementary services
AT+CUSD
Unstructured supplementary service data
AT+CLCC
List current calls
AT+CPOL
Preferred PLMN list
AT+CPAS
Phone active status
AT+CFUN
Set phone functionality
AT+CPIN
Enter PIN
AT+CSQ
Signal quality
AT+CMER
Mobile termination event reporting
AT+CSIM
Generic SIM access
AT+CRSM
Restricted SIM access
AT+CMEE
Report mobile termination error
AT+CGDCONT
Define PDP context
AT+CGEQREQ
Request 3G quality of service profile
AT-CGATT
PS attach or detach
AT+CGACT
PDP context activate or deactivate
AT+CGPADDR
Show PDP address
AT+CGSMS
Select service for MO SMS messages
ATE
Character Echo ON/OFF
_______________________________________________________________________________________________________________ Seite 21
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
Command
Description
Comment
AT+CSMS
Check Message Service support
AT+CSMP
Set Text Mode Parameters
AT+CSDH
Show Text Mode Parameters
AT+CSCB
Select Cell Broadcast Message Types
AT+CSAS
Save Settings
Only one Parameter is supported by the
device.
AT+CRES
Restore Settings
Only one Parameter is supported by the
device.
AT+CMGL
List messages
AT+CNMA
New message acknowledgement
AT+CMGC
Send Command
AT+CMMS
More Messages to Send
AT+ATV
DCE response format
AT+ATX
Result code selection and call progress
monitoring control
AT+CNMI
New Message Indications to TE
AT+CPMS
Preferred Message Storage
AT+CMGW
Write Message to Memory
AT+CMSS
Send Message from Storage
AT+CMGD
Delete Messages
AT+CNUM
Get MSISDN
AT+CPBS
Select phonebook memory storage
AT+CPBR
Read phonebook entries
AT+CPBW
Writephonebook entry
_______________________________________________________________________________________________________________ Seite 22
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
5 Safety Recommendations according to EN60950-1
The V123x-0 devices must be supplied by a limited power source according to EN 60950-1.
The clearance and creepage distances required by the end product must be withheld when the module
is installed.
The cooling of the end product shall not negatively be influenced by the installation of the module.
_______________________________________________________________________________________________________________ Seite 23
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
6 RED/FCC/IC Regulatory Notices
6.1 Modifications
WARNING:
peiker acustic GmbH & Co. KG has not approved any changes or modifications to
the V123x-0 device by the user. Any changes or modifications could void the user’s authority to
operate the equipment.
6.2 Interference
V1231-0 and V1233-0 devices comply with Part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) Those devices may not cause harmful interference, and
(2) Those devices must accept any interference received, including interference that may cause
undesired operation.
V1231-0 is a Class b digital apparatus compliant with Canadian ICES-003.
V1231-0 est un appareil numérique de la classe b conforme à la norme NMB-003 du Canada.
V1231-0 est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas
produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
6.3 FCC Class B Digital Device
V1231-0 has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/TV technician for help.
_______________________________________________________________________________________________________________ Seite 24
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
6.3 OEM Responsibilities
Antenna
- The systems antenna(s) must be installed such that 20 cm is maintained between the
antenna(s) and the body of the user or nearby persons.
- The V123x-0 transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter. The preceding statement must be included as a Caution
statement in OEM product manuals in order to alert users of FCC RF Exposure
compliance.
- Maximum authorized antenna gain: refer to the MPE test reports
Power Supply
- The power supply of the host device embedding a V123x-0 module must fulfill the
following requirements:
o Nominal supply voltage: 4V
o Operating voltage range: 3.9V – 4.1V
o The above operating voltage range MUST never, under any circumstances
(including overshoot voltage and voltage drop), be exceeded.
FCC Labeling
Labeling requirements for a host device embedding V1231-0:
V1231-0 is labeled with its own FCC ID Number. If the FCC ID is not visible when V1231-
0 is installed inside another device, then the host device must contain the FCC ID number
with the statement such as the following: "Contains Transmitter Module FCC ID: QWY-
V1231-0" or "Contains FCC ID: QWY-V1231-0"
Labeling requirements for a host device embedding V1233-0:
V1233-0 is labeled with its own FCC ID Number. If the FCC ID is not visible when V1233-
0 is installed inside another device, then the host device must contain the FCC ID number
with the statement such as the following: "Contains Transmitter Module FCC ID: QWY-
V1233-0" or "Contains FCC ID: QWY-V1233-0"
IC Labeling
Labeling requirements for a host device embedding V1231-0:
V1231-0 is labeled with its own IC ID Number. If the IC ID is not visible when V1231-0 is
installed inside another device, then the host device must contain the IC ID number with
the statement such as the following: "Contains Transmitter Module IC 6588A- V12310" or
"Contains IC 6588A- V12310".
_______________________________________________________________________________________________________________ Seite 25
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
7 List of Acronyms
3GPP
3 rd Generation Partnership Project
ADC
Analog Digital Converter
ADN
Abbreviated Dialing Number
A-GPS CP
Assisted GPS Control Plane
AMR
Adaptive Multi Rate
AT
Attention Command
AWS
Advanced Wireless Services
BER
Bit Error Rate
CLIP
Calling Line Identification Presentation
CLIR
Calling Line Identification Restriction
CSD
Circuit Switch Data
DARP
Downlink Advanced Receiver Performance
EDGE
Enhanced Data rates for GSM Evolution
DTMF
Dual Tone Multi Frequency
FCC
Federal Communications Commission
FDN
Fixed Dialing Number
FTP
File Transfer Protocol
GCF
Global Certification Forum
GSM
Global System for Mobile communication
GPIO
General Purpose Input Output
GPRS
General Packet Radio Service
GPS
Global Positioning System
HSPA
High Speed Uplink Packet Access
HW
Hardware
IC
Industry Canada
LED
Led Emitting Diode
LTE
Long-Term Evolution
MO
Mobile Originated
MT
Mobile Terminated
OEM
Original Equipment Manufacturer
PCB
Printed Circuit Board
PCM
Pulse Code Modulation
PDU
Protocol Data Unit
PIN
Personal Identification Number
PTCRB
PCS Type Certification Review Board
RF
Radio Frequency
RoHs
Restriction of Hazardous Substances
UART
Universal Asynchronous Receiver and Transmitter
USB
Universal Serial Bus
USIM
Universal Subscriber Identity Module
UMTS
Universal Mobile Telecommunications System
WCDMA
Wideband Code Division Multiple Access
