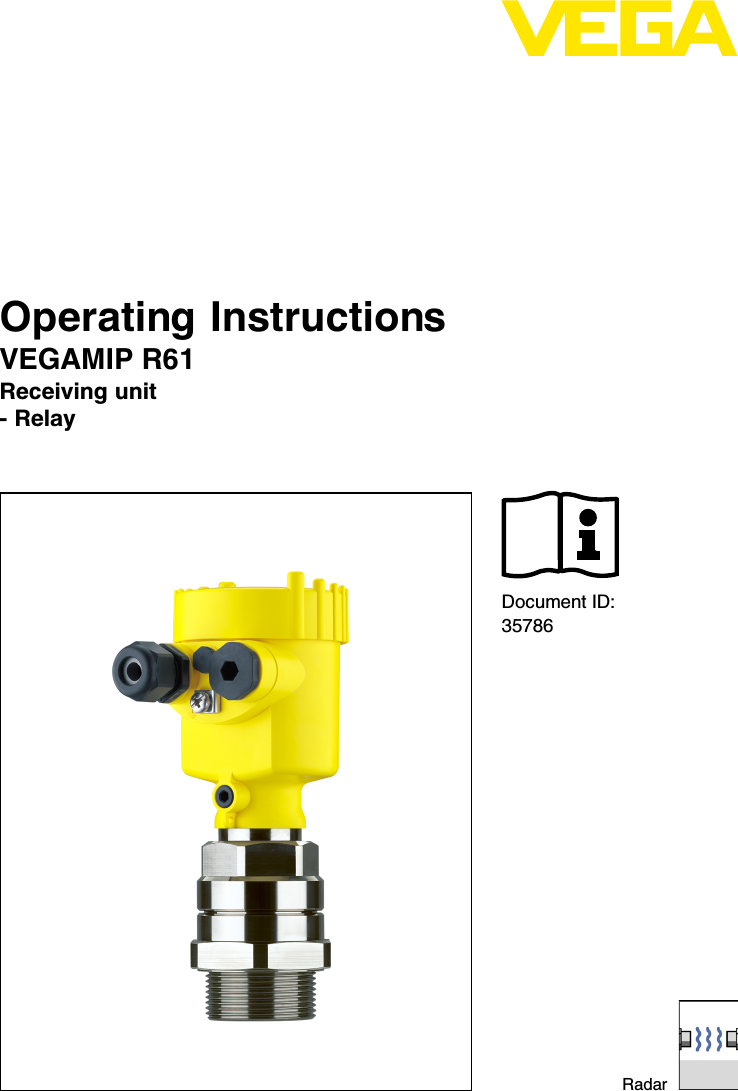

Operating InstructionsVEGAMIP R61Receiving unit-RelayDocument ID:35786Radar

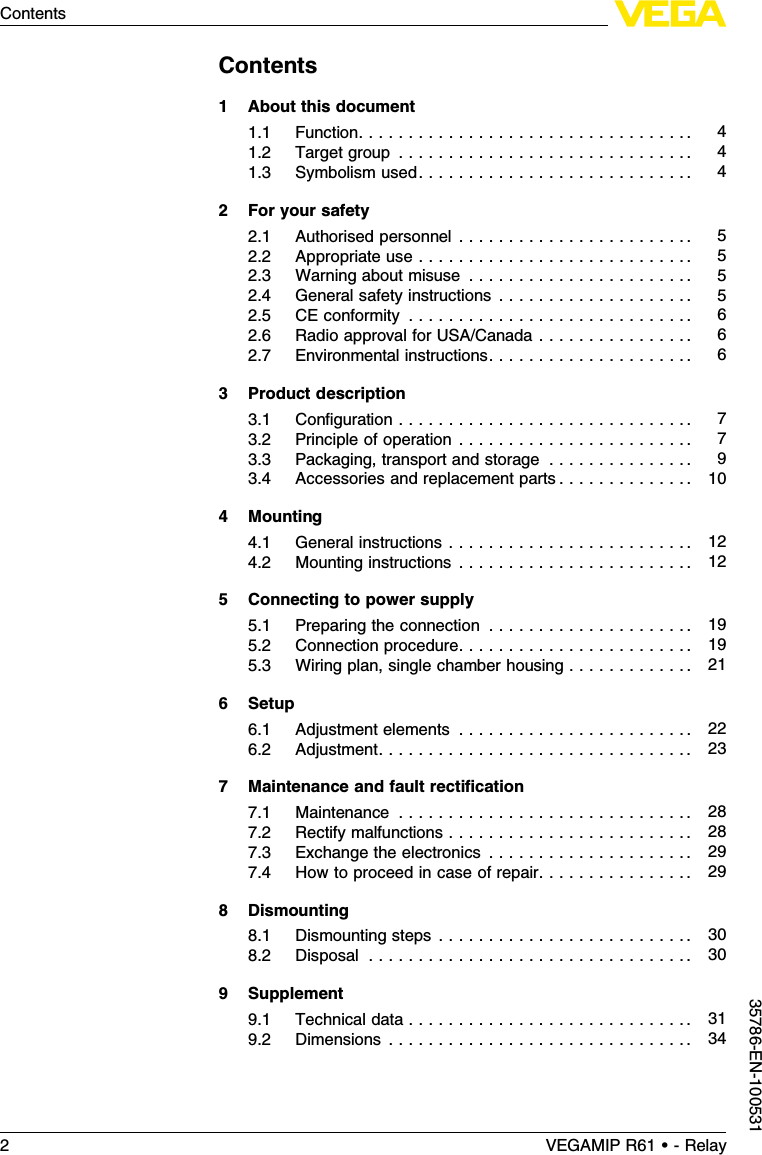

Contents1About this document1.1Function.................................. 41.2Target group .............................. 41.3Symbolism used............................ 42For your safety2.1Authorised personnel ........................ 52.2Appropriate use ............................ 52.3Warning about misuse ....................... 52.4General safety instructions . . . . . . . . . . . . . . . . . . . . 52.5CE conformity ............................. 62.6Radio approval for USA/Canada . . . . . . . . . . . . . . . . 62.7Environmental instructions..................... 63Product description3.1Configuration .............................. 73.2Principle of operation ........................ 73.3Packaging,transport and storage ............... 93.4Accessories and replacement parts . . . . . . . . . . . . . . 104Mounting4.1General instructions ......................... 124.2Mounting instructions ........................ 125Connecting to power supply5.1Preparing the connection ..................... 195.2Connection procedure........................ 195.3Wiring plan,single chamber housing . . . . . . . . . . . . . 216Setup6.1Adjustment elements ........................ 226.2Adjustment................................ 237Maintenance and fault rectification7.1Maintenance .............................. 287.2Rectify malfunctions ......................... 287.3Exchange the electronics ..................... 297.4How to proceed in case of repair. . . . . . . . . . . . . . . . 298Dismounting8.1Dismounting steps .......................... 308.2Disposal ................................. 309Supplement9.1Technical data ............................. 319.2Dimensions ............................... 342VEGAMIP R61 • - RelayContents35786-EN-100531

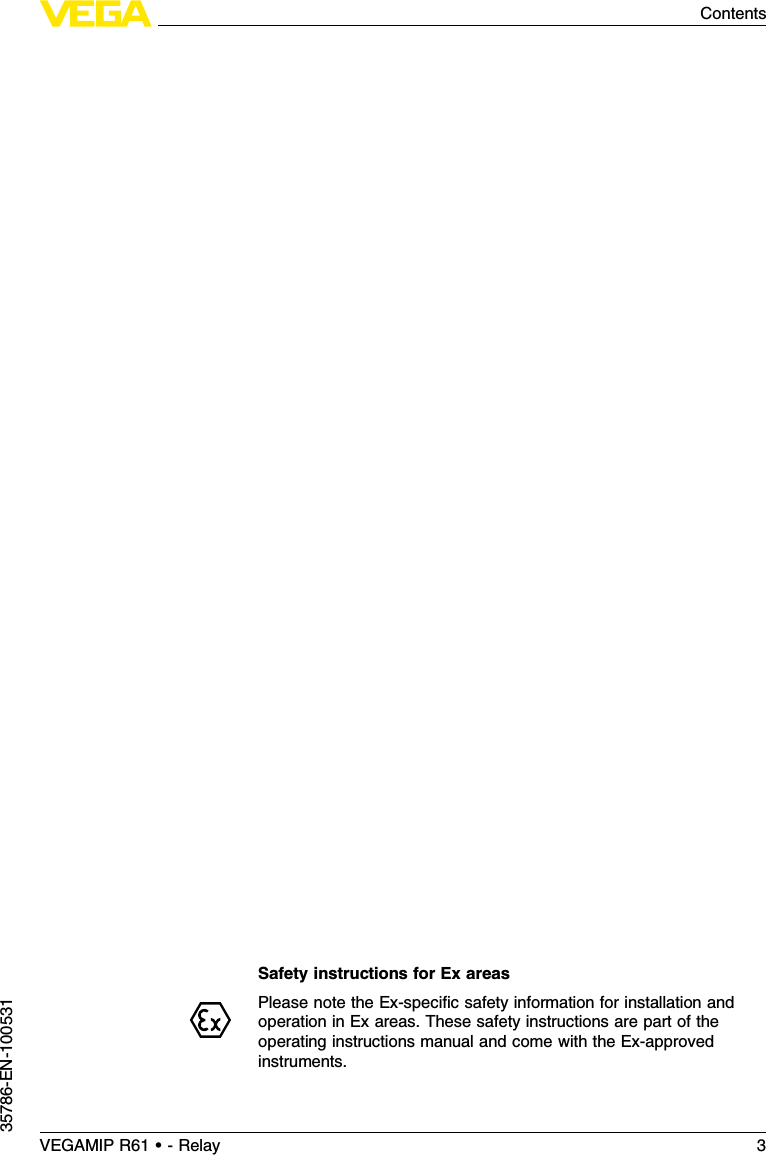

Safety instructions for Ex areasPlease note the Ex-specific safety information for installation andoperation in Ex areas.These safety instructions are part of theoperating instructions manual and come with the Ex-approvedinstruments.VEGAMIP R61 • - Relay 3Contents35786-EN-100531

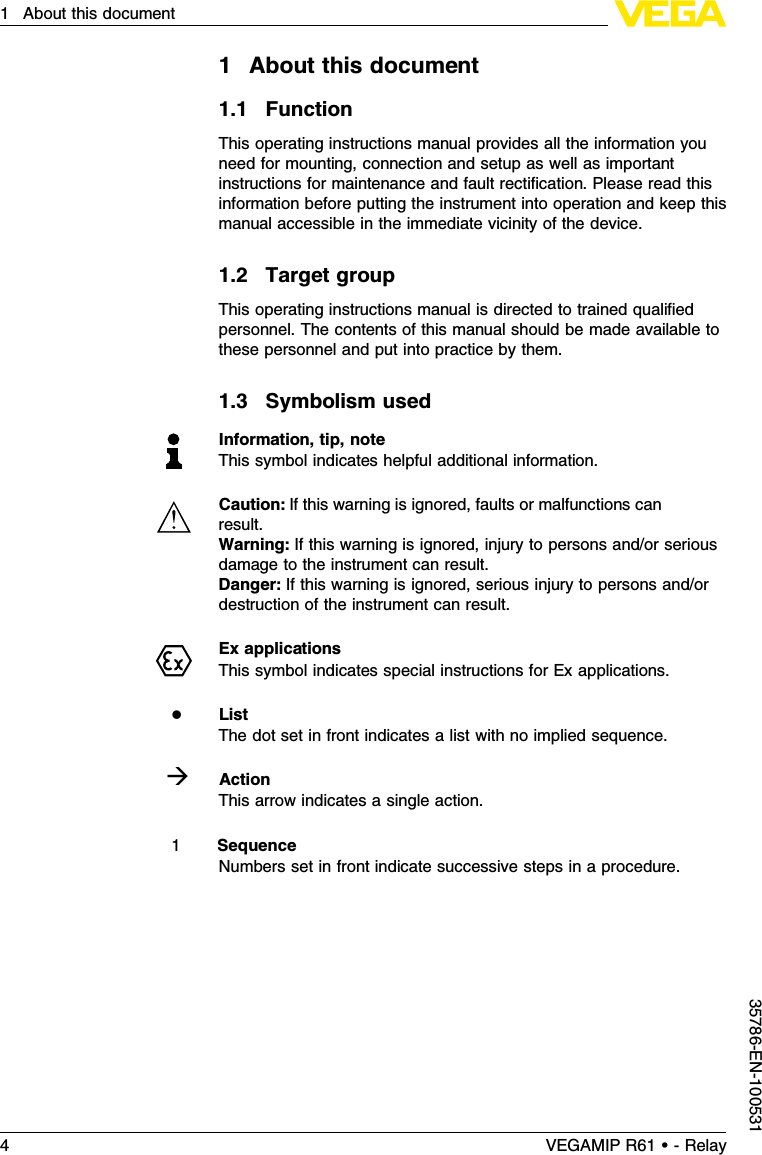

1About this document1.1FunctionThis operating instructions manual provides all the information youneed for mounting,connection and setup as well as importantinstructions for maintenance and fault rectification.Please read thisinformation before putting the instrument into operation and keep thismanual accessible in the immediate vicinity of the device.1.2Target groupThis operating instructions manual is directed to trained qualifiedpersonnel.The contents of this manual should be made available tothese personnel and put into practice by them.1.3Symbolism usedInformation,tip,noteThis symbol indicates helpful additional information.Caution:If this warning is ignored,faults or malfunctions canresult.Warning:If this warning is ignored,injury to persons and/or seriousdamage to the instrument can result.Danger:If this warning is ignored,serious injury to persons and/ordestruction of the instrument can result.Ex applicationsThis symbol indicates special instructions for Ex applications.lListThe dot set in front indicates a list with no implied sequence.àActionThis arrow indicates a single action.1SequenceNumbers set in front indicate successive steps in a procedure.4VEGAMIP R61 • - Relay1About this document35786-EN-100531

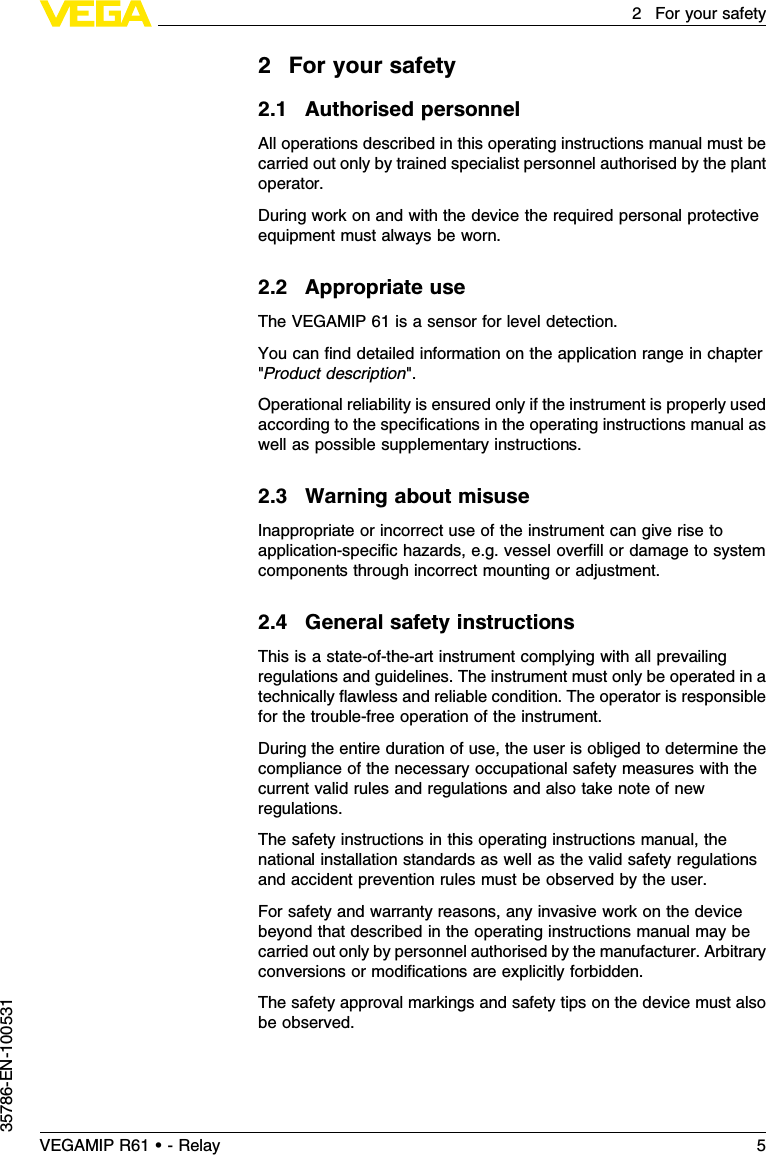

2For your safety2.1Authorised personnelAll operations described in this operating instructions manual must becarried out only by trained specialist personnel authorised by the plantoperator.During work on and with the device the required personal protectiveequipment must always be worn.2.2Appropriate useThe VEGAMIP 61 is a sensor for level detection.You can find detailed information on the application range in chapter"Product description".Operational reliability is ensured only if the instrument is properly usedaccording to the specifications in the operating instructions manual aswell as possible supplementary instructions.2.3Warning about misuseInappropriate or incorrect use of the instrument can give rise toapplication-specific hazards,e.g.vessel overfill or damage to systemcomponents through incorrect mounting or adjustment.2.4General safety instructionsThis is a state-of-the-art instrument complying with all prevailingregulations and guidelines.The instrument must only be operated in atechnically flawless and reliable condition.The operator is responsiblefor the trouble-free operation of the instrument.During the entire duration of use,the user is obliged to determine thecompliance of the necessary occupational safety measures with thecurrent valid rules and regulations and also take note of newregulations.The safety instructions in this operating instructions manual,thenational installation standards as well as the valid safety regulationsand accident prevention rules must be observed by the user.For safety and warranty reasons,any invasive work on the devicebeyond that described in the operating instructions manual may becarried out only by personnel authorised by the manufacturer.Arbitraryconversions or modifications are explicitly forbidden.The safety approval markings and safety tips on the device must alsobe observed.VEGAMIP R61 • - Relay 52For your safety35786-EN-100531

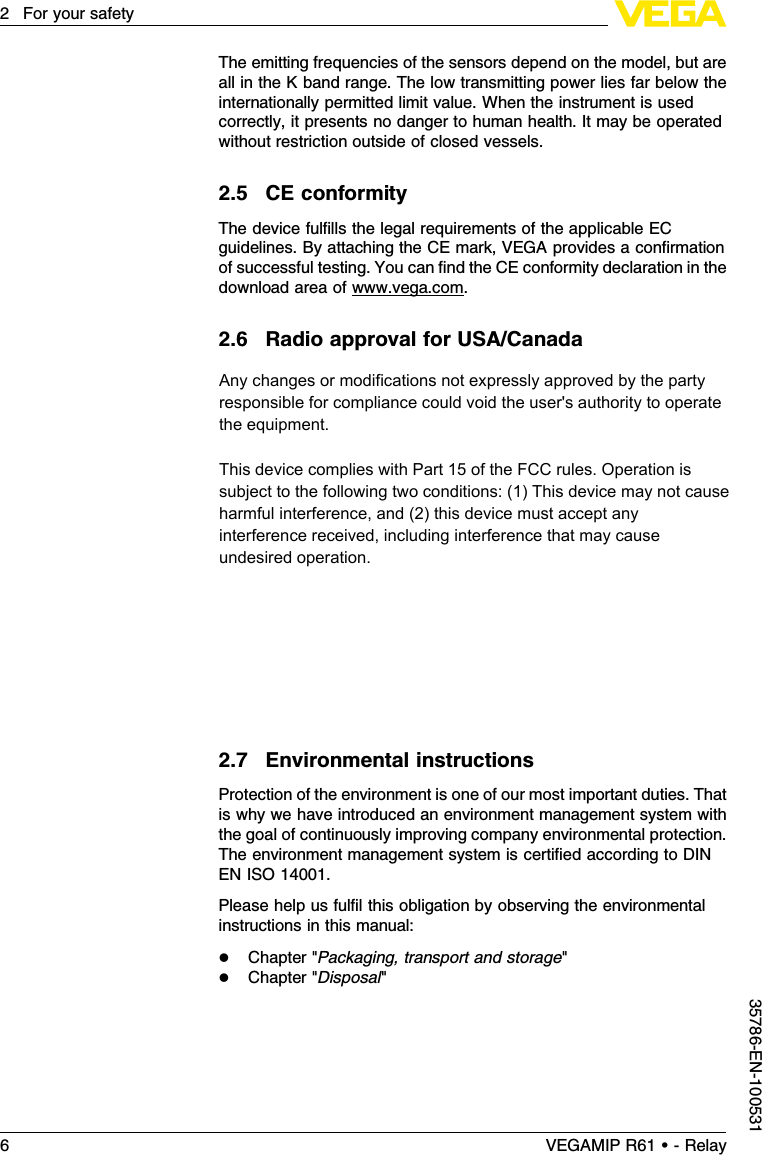

The emitting frequencies of the sensors depend on the model,but areall in the Kband range.The low transmitting power lies far below theinternationally permitted limit value.When the instrument is usedcorrectly,it presents no danger to human health.It may be operatedwithout restriction outside of closed vessels.2.5CE conformityThe device fulfills the legal requirements of the applicable ECguidelines.By attaching the CE mark,VEGA provides a confirmationof successful testing.You can find the CE conformity declaration in thedownload area of www.vega.com.2.6Radio approval for USA/CanadaFCC Note according to 15.21:Any changes or modifications notexpressly approved by the party responsible for compliance could voidthe user's authority to operate the equipment.FCC Statement for Part 15 (FCC allows the placement in themanual only when the label is too small to place the statement):this device complies with Part 15 of the FCC rules.Operation issubject to the following two conditions: (1)This device may not causeharmful interference,and (2)this device must accept any interferencereceived,including interference that may cause undesired operation.IF Class Aor Class Bdigital device or peripheral FCC ComplianceStatement §15.105,Class Aor Bmust be included in the manual .FCC-Statement for Part 15:This device complies with Part 15 of theFCC rules.Operation is subject to the following two conditions: (1)This device may not cause harmful interference,and (2)this devicemust accept any interference received,including interference that maycause undesired operation.2.7Environmental instructionsProtection of the environment is one of our most important duties.Thatis why we have introduced an environment management system withthe goal of continuously improving company environmental protection.The environment management system is certified according to DINEN ISO 14001.Please help us fulfil this obligation by observing the environmentalinstructions in this manual:lChapter "Packaging,transport and storage"lChapter "Disposal"6VEGAMIP R61 • - Relay2For your safety35786-EN-100531Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

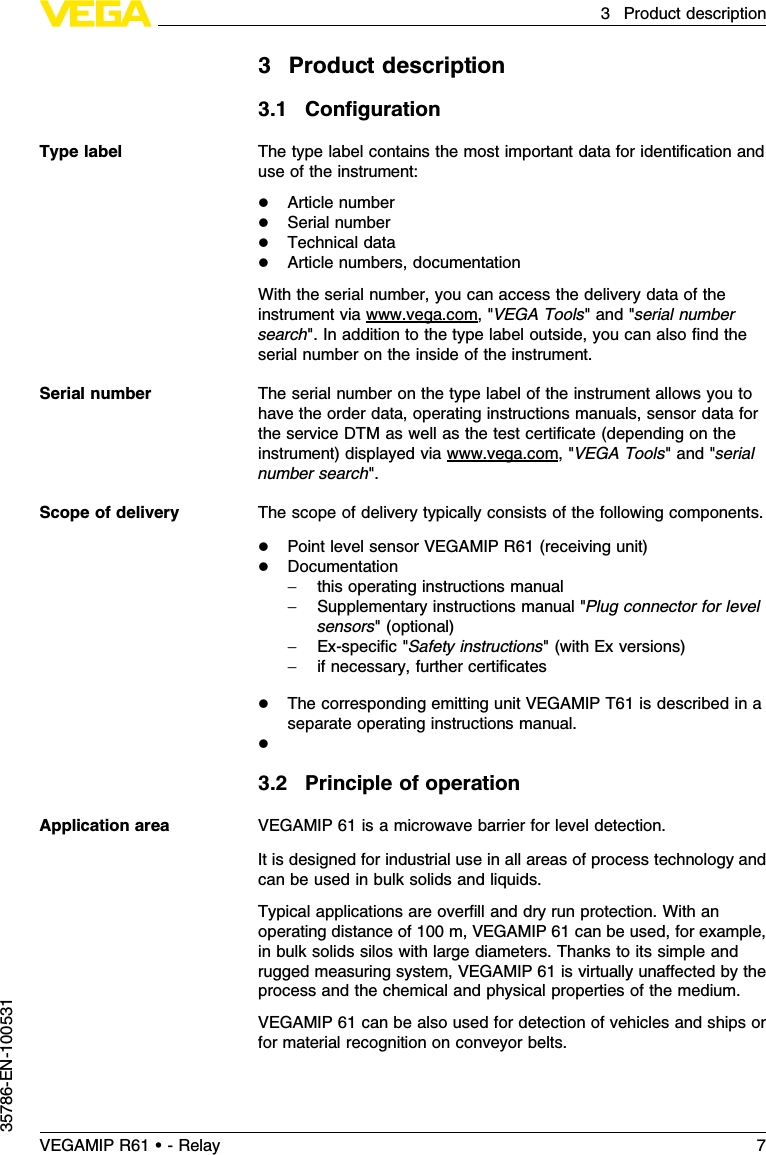

3Product description3.1ConfigurationThe type label contains the most important data for identification anduse of the instrument:lArticle numberlSerial numberlTechnical datalArticle numbers,documentationWith the serial number,you can access the delivery data of theinstrument via www.vega.com,"VEGA Tools"and "serial numbersearch".In addition to the type label outside,you can also find theserial number on the inside of the instrument.The serial number on the type label of the instrument allows you tohave the order data,operating instructions manuals,sensor data forthe service DTM as well as the test certificate (depending on theinstrument)displayed via www.vega.com,"VEGA Tools"and "serialnumber search".The scope of delivery typically consists of the following components.lPoint level sensor VEGAMIP R61 (receiving unit)lDocumentation-this operating instructions manual-Supplementary instructions manual "Plug connector for levelsensors"(optional)-Ex-specific"Safety instructions"(with Ex versions)-if necessary,further certificateslThe corresponding emitting unit VEGAMIP T61 is described in aseparate operating instructions manual.l3.2Principle of operationVEGAMIP 61 is a microwave barrier for level detection.It is designed for industrial use in all areas of process technology andcan be used in bulk solids and liquids.Typical applications are overfill and dry run protection.With anoperating distance of 100 m,VEGAMIP 61 can be used,for example,in bulk solids silos with large diameters.Thanks to its simple andrugged measuring system,VEGAMIP 61 is virtually unaffected by theprocess and the chemical and physical properties of the medium.VEGAMIP 61 can be also used for detection of vehicles and ships orfor material recognition on conveyor belts.Type labelSerial numberScope of deliveryApplication areaVEGAMIP R61 • - Relay 73Product description35786-EN-100531

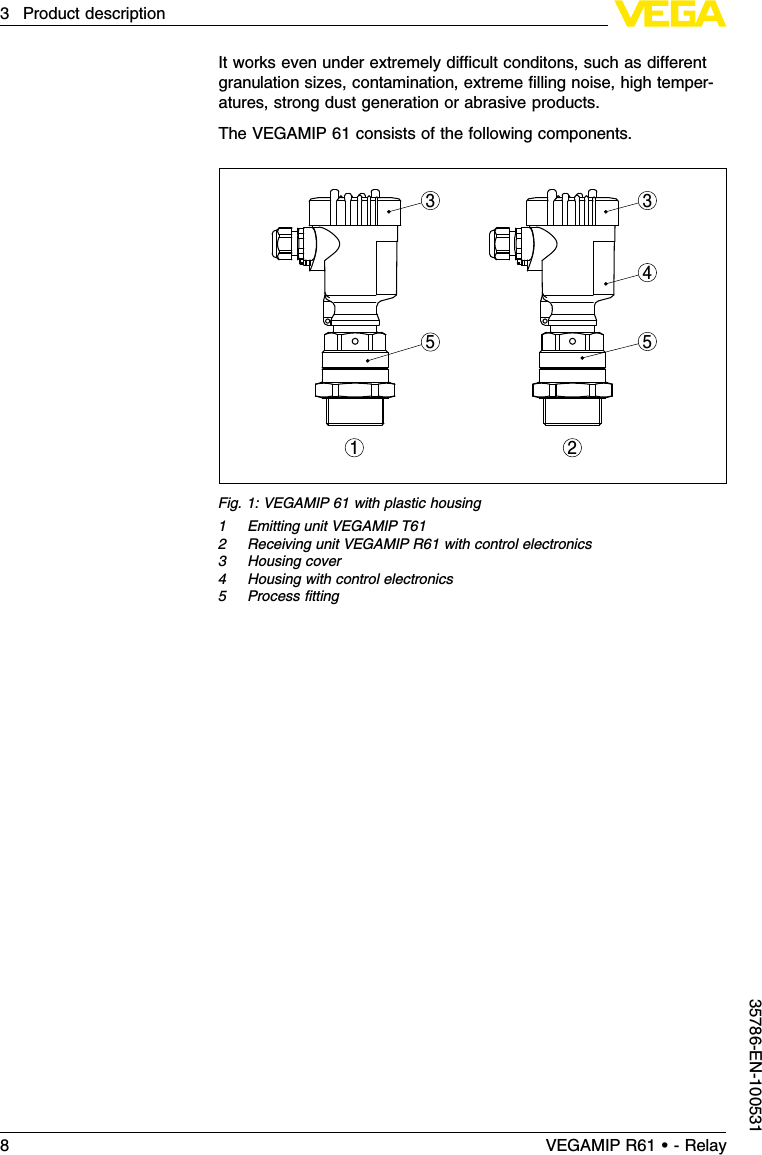

It works even under extremely difficult conditons,such as differentgranulation sizes,contamination,extreme filling noise,high temper-atures,strong dust generation or abrasive products.The VEGAMIP 61 consists of the following components.3354521Fig.1:VEGAMIP 61 with plastic housing1Emitting unit VEGAMIP T612Receiving unit VEGAMIP R61 with control electronics3Housing cover4Housing with control electronics5Process fitting8VEGAMIP R61 • - Relay3Product description35786-EN-100531

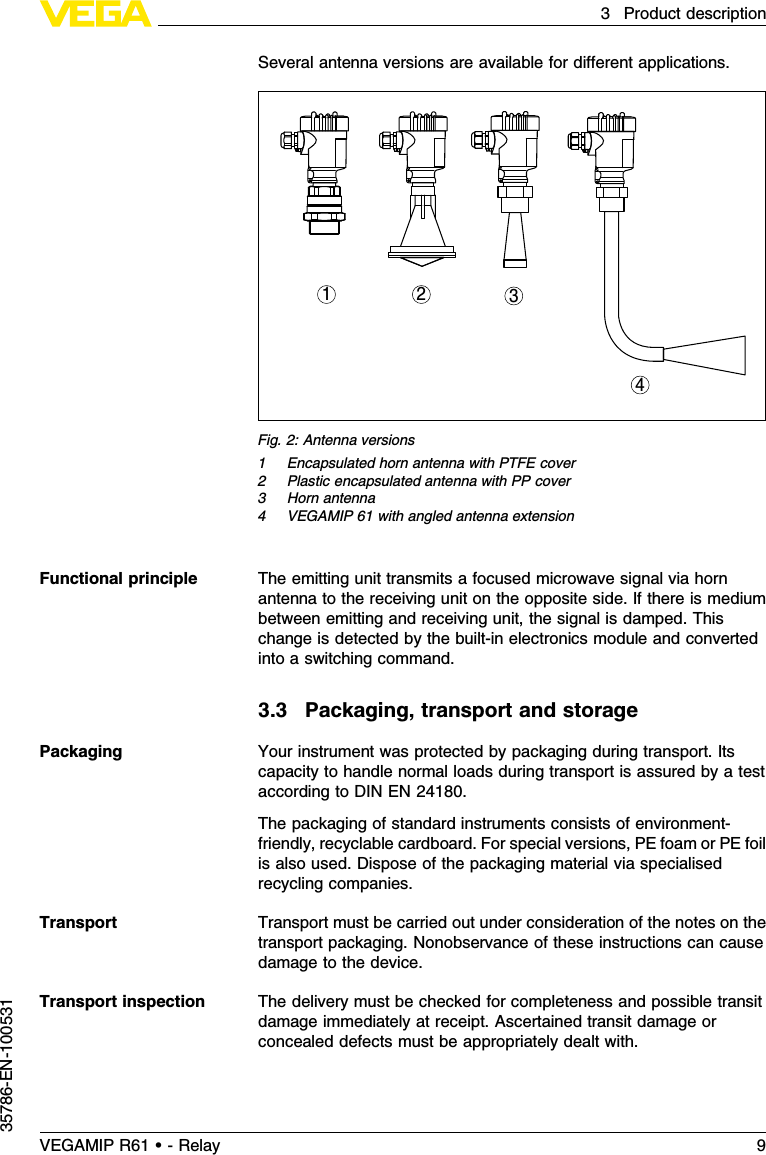

Several antenna versions are available for different applications.1 2 34Fig.2:Antenna versions1Encapsulated horn antenna with PTFE cover2Plastic encapsulated antenna with PP cover3Horn antenna4VEGAMIP 61 with angled antenna extensionThe emitting unit transmits a focused microwave signal via hornantenna to the receiving unit on the opposite side.If there is mediumbetween emitting and receiving unit,the signal is damped.Thischange is detected by the built-in electronics module and convertedinto a switching command.3.3Packaging,transport and storageYour instrument was protected by packaging during transport.Itscapacity to handle normal loads during transport is assured by a testaccording to DIN EN 24180.The packaging of standard instruments consists of environment-friendly,recyclable cardboard.For special versions,PE foam or PE foilis also used.Dispose of the packaging material via specialisedrecycling companies.Transport must be carried out under consideration of the notes on thetransport packaging.Nonobservance of these instructions can causedamage to the device.The delivery must be checked for completeness and possible transitdamage immediately at receipt.Ascertained transit damage orconcealed defects must be appropriately dealt with.Functional principlePackagingTransportTransport inspectionVEGAMIP R61 • - Relay 93Product description35786-EN-100531

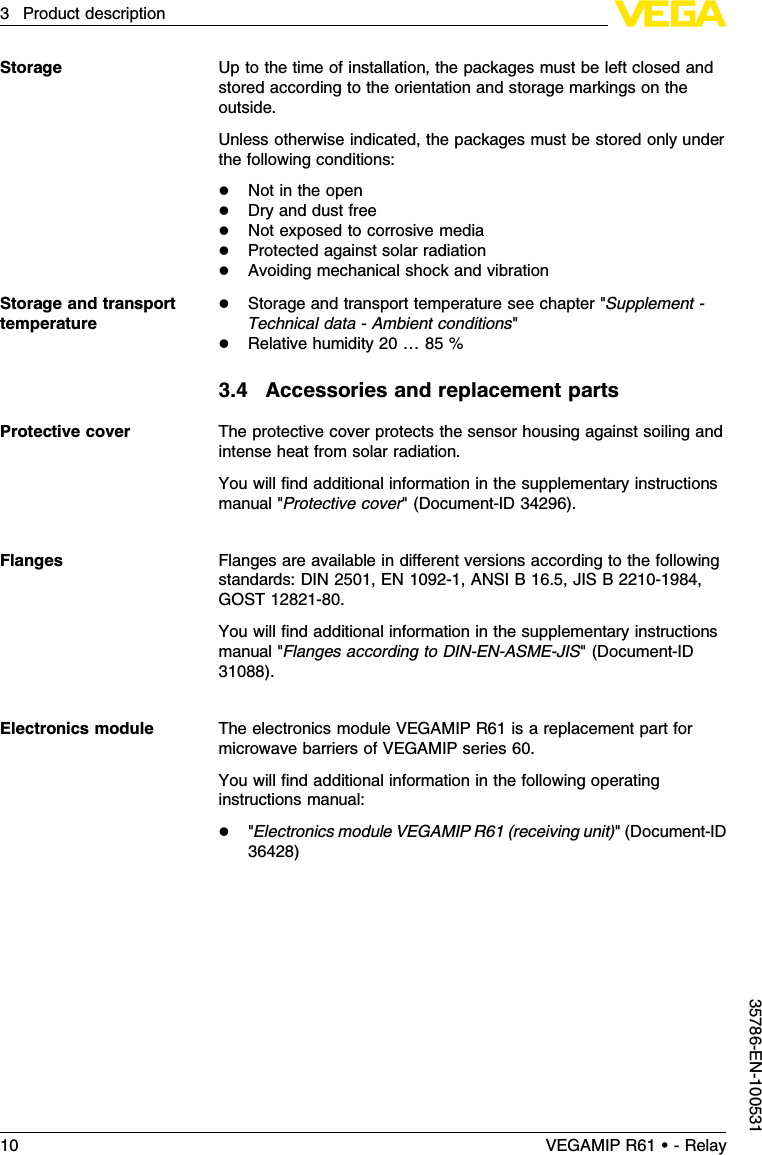

Up to the time of installation,the packages must be left closed andstored according to the orientation and storage markings on theoutside.Unless otherwise indicated,the packages must be stored only underthe following conditions:lNot in the openlDry and dust freelNot exposed to corrosive medialProtected against solar radiationlAvoiding mechanical shock and vibrationlStorage and transport temperature see chapter "Supplement -Technical data -Ambient conditions"lRelative humidity 20 …85 %3.4Accessories and replacement partsThe protective cover protects the sensor housing against soiling andintense heat from solar radiation.You will find additional information in the supplementary instructionsmanual "Protective cover"(Document-ID 34296).Flanges are available in different versions according to the followingstandards:DIN 2501,EN 1092-1,ANSI B 16.5,JIS B 2210-1984,GOST 12821-80.You will find additional information in the supplementary instructionsmanual "Flanges according to DIN-EN-ASME-JIS"(Document-ID31088).The electronics module VEGAMIP R61 is a replacement part formicrowave barriers of VEGAMIP series 60.You will find additional information in the following operatinginstructions manual:l"Electronics module VEGAMIP R61 (receiving unit)"(Document-ID36428)StorageStorage and transporttemperatureProtective coverFlangesElectronics module10 VEGAMIP R61 • - Relay3Product description35786-EN-100531

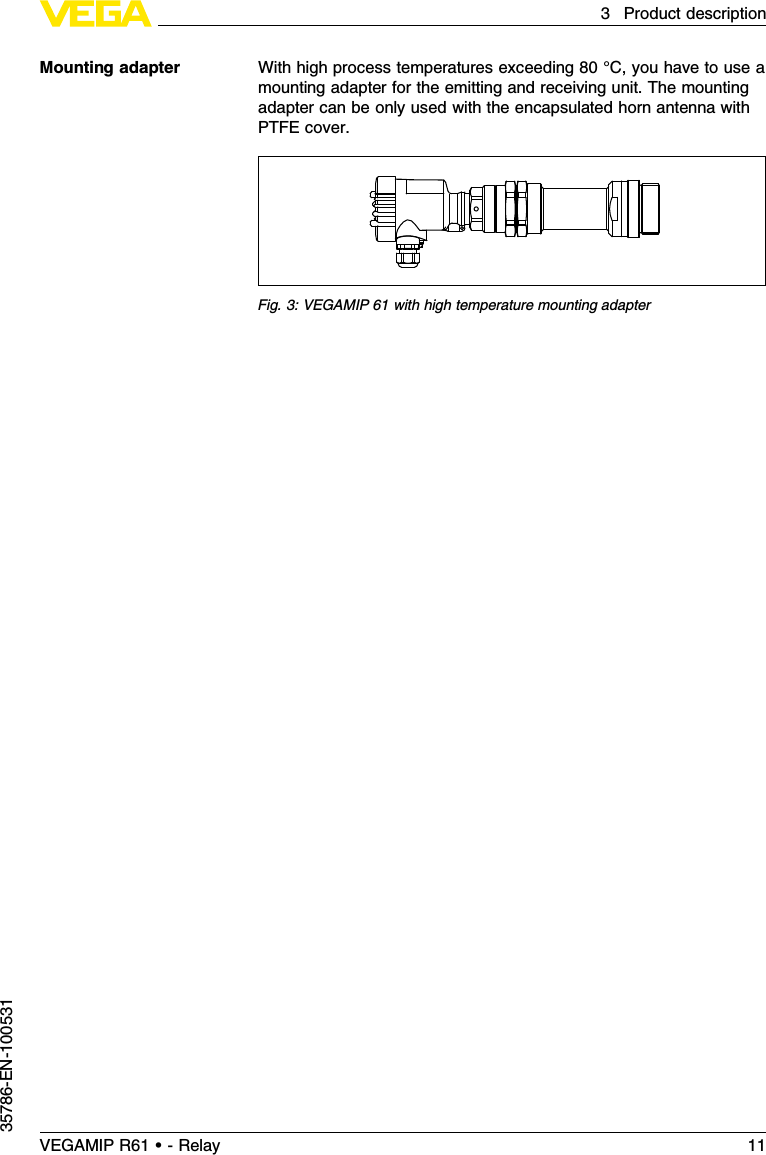

With high process temperatures exceeding 80 °C,you have to use amounting adapter for the emitting and receiving unit.The mountingadapter can be only used with the encapsulated horn antenna withPTFE cover.Fig.3:VEGAMIP 61 with high temperature mounting adapterMounting adapterVEGAMIP R61 • - Relay 113Product description35786-EN-100531

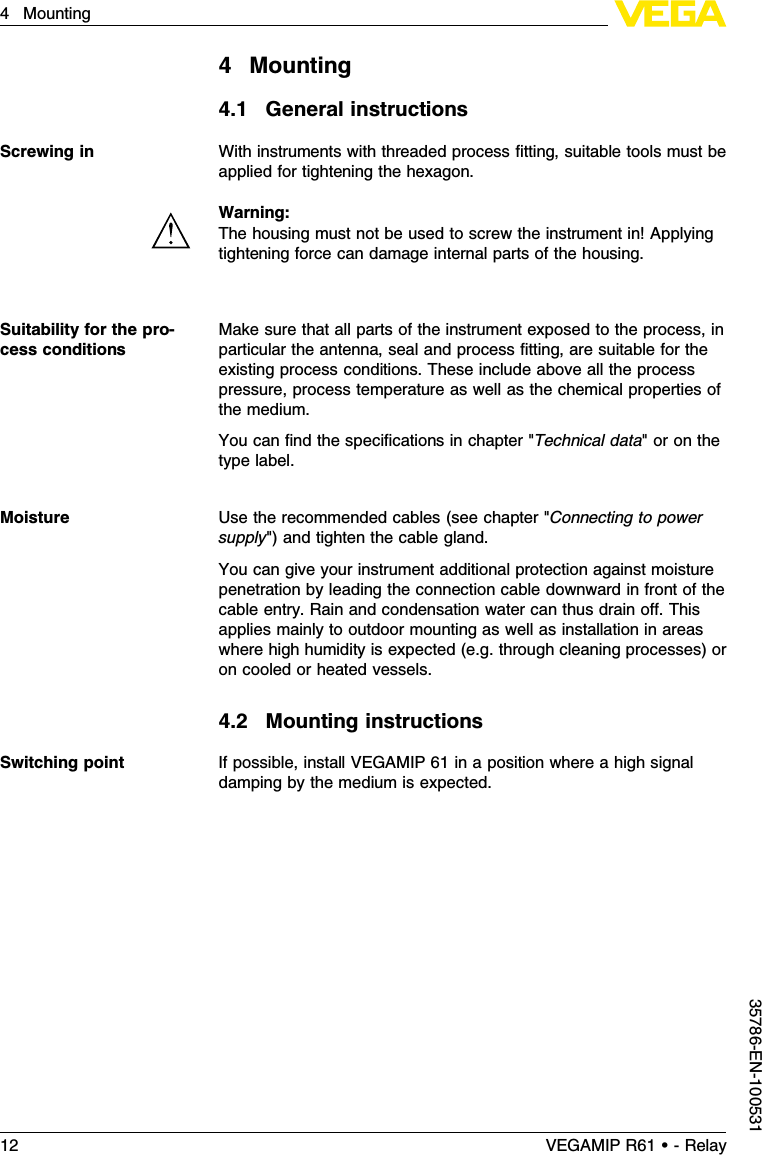

4Mounting4.1General instructionsWith instruments with threaded process fitting,suitable tools must beapplied for tightening the hexagon.Warning:The housing must not be used to screw the instrument in!Applyingtightening force can damage internal parts of the housing.Make sure that all parts of the instrument exposed to the process,inparticular the antenna,seal and process fitting,are suitable for theexisting process conditions.These include above all the processpressure,process temperature as well as the chemical properties ofthe medium.You can find the specifications in chapter "Technical data"or on thetype label.Use the recommended cables (see chapter "Connecting to powersupply")and tighten the cable gland.You can give your instrument additional protection against moisturepenetration by leading the connection cable downward in front of thecable entry.Rain and condensation water can thus drain off.Thisapplies mainly to outdoor mounting as well as installation in areaswhere high humidity is expected (e.g.through cleaning processes)oron cooled or heated vessels.4.2Mounting instructionsIf possible,install VEGAMIP 61 in a position where a high signaldamping by the medium is expected.Screwing inSuitability for the pro-cess conditionsMoistureSwitching point12 VEGAMIP R61 • - Relay4Mounting35786-EN-100531

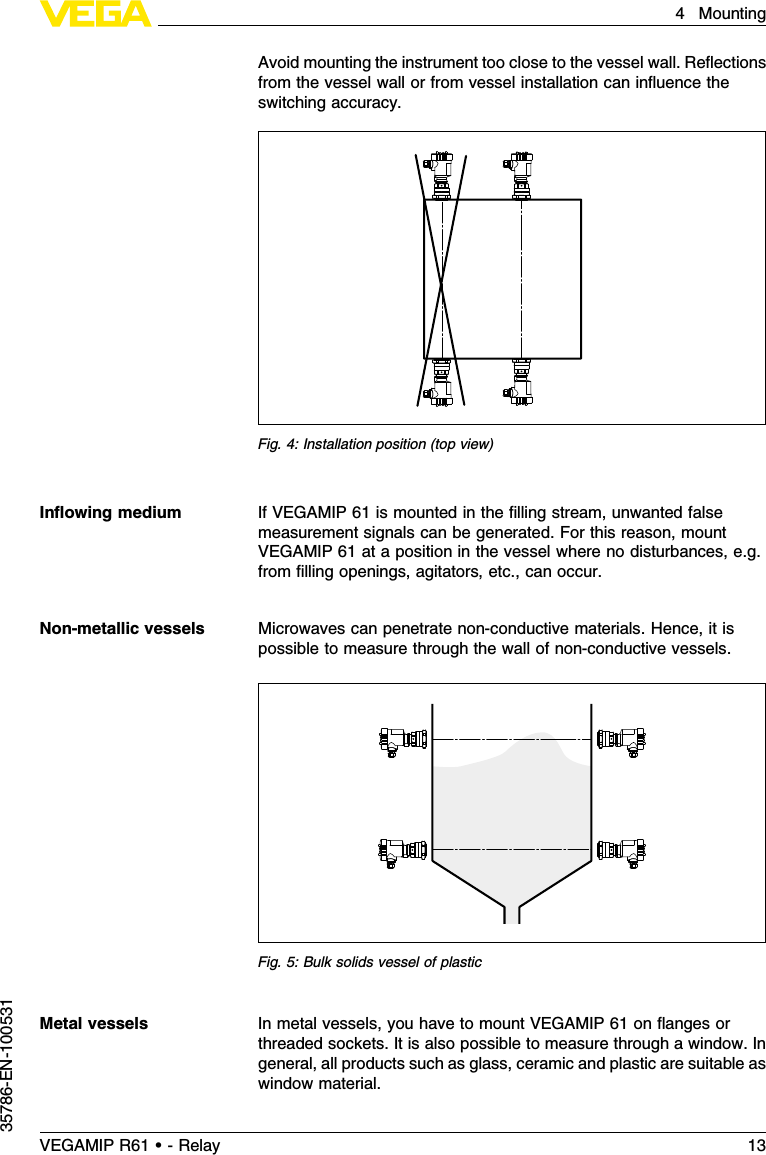

Avoid mounting the instrument too close to the vessel wall.Reflectionsfrom the vessel wall or from vessel installation can influence theswitching accuracy.Fig.4:Installation position (top view)IfVEGAMIP 61 is mounted in the filling stream,unwanted falsemeasurement signals can be generated.For this reason,mountVEGAMIP 61 at a position in the vessel where no disturbances,e.g.from filling openings,agitators,etc., can occur.Microwaves can penetrate non-conductive materials.Hence,it ispossible to measure through the wall of non-conductive vessels.Fig.5:Bulk solids vessel of plasticIn metal vessels,you have to mount VEGAMIP 61 on flanges orthreaded sockets.It is also possible to measure through a window.Ingeneral,all products such as glass,ceramic and plastic are suitable aswindow material.Inflowing mediumNon-metallic vesselsMetal vesselsVEGAMIP R61 • - Relay 134Mounting35786-EN-100531

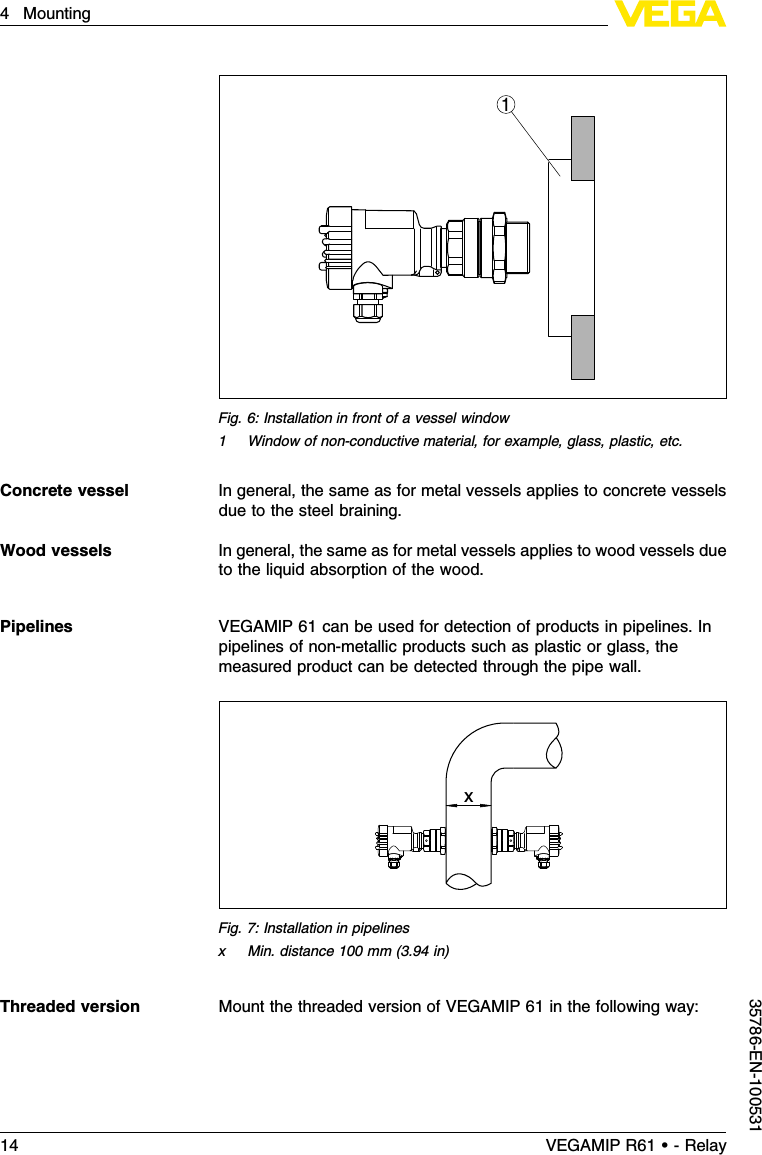

1Fig.6:Installation in front of a vessel window1Window of non-conductive material,for example,glass,plastic,etc.In general,the same as for metal vessels applies to concrete vesselsdue to the steel braining.In general,the same as for metal vessels applies to wood vessels dueto the liquid absorption of the wood.VEGAMIP 61 can be used for detection of products in pipelines.Inpipelines of non-metallic products such as plastic or glass,themeasured product can be detected through the pipe wall.xFig.7:Installation in pipelinesxMin.distance 100 mm (3.94 in)Mount the threaded version of VEGAMIP 61 in the following way:Concrete vesselWood vesselsPipelinesThreaded version14 VEGAMIP R61 • - Relay4Mounting35786-EN-100531

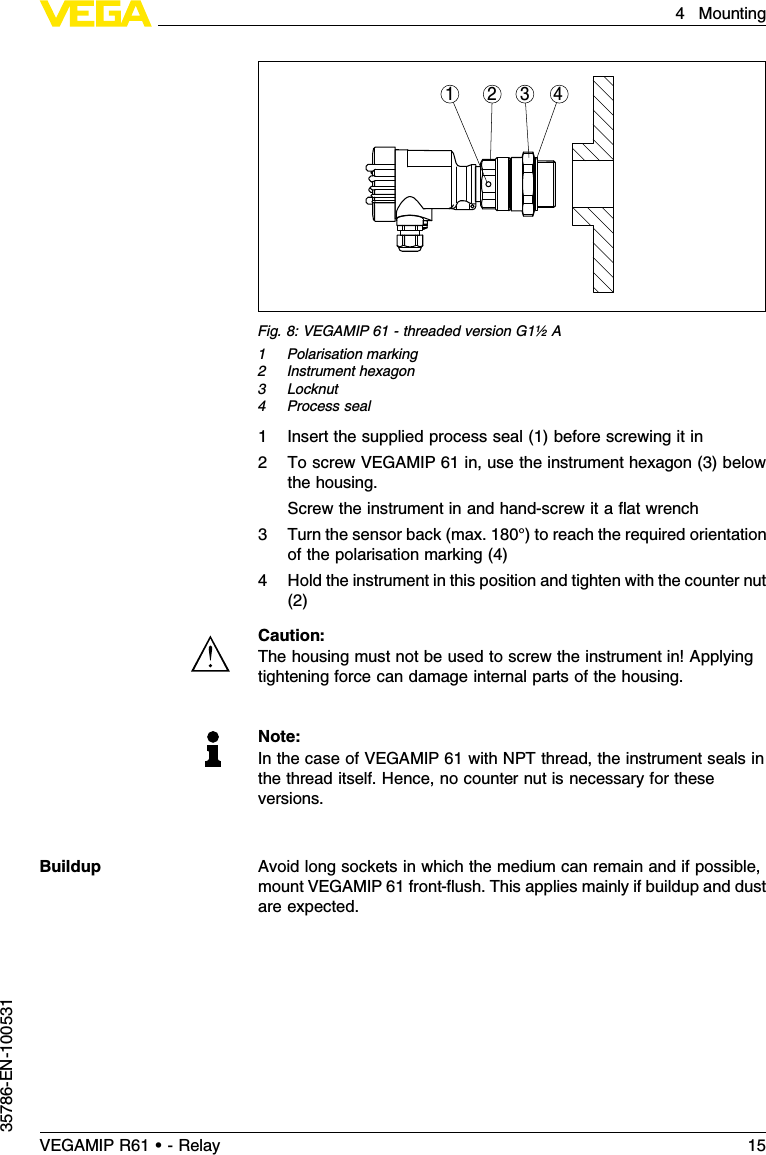

1 2 34Fig.8:VEGAMIP 61 -threaded version G1½A1Polarisation marking2Instrument hexagon3Locknut4Process seal1Insert the supplied process seal (1)before screwing it in2To screw VEGAMIP 61 in,use the instrument hexagon (3)belowthe housing.Screw the instrument in and hand-screw it a flat wrench3Turn the sensor back (max.180°)to reach the required orientationof the polarisation marking (4)4Hold the instrument in this position and tighten with the counter nut(2)Caution:The housing must not be used to screw the instrument in!Applyingtightening force can damage internal parts of the housing.Note:In the case of VEGAMIP 61 with NPT thread,the instrument seals inthe thread itself.Hence,no counter nut is necessary for theseversions.Avoid long sockets in which the medium can remain and if possible,mount VEGAMIP 61 front-flush.This applies mainly if buildup and dustare expected.BuildupVEGAMIP R61 • - Relay 154Mounting35786-EN-100531

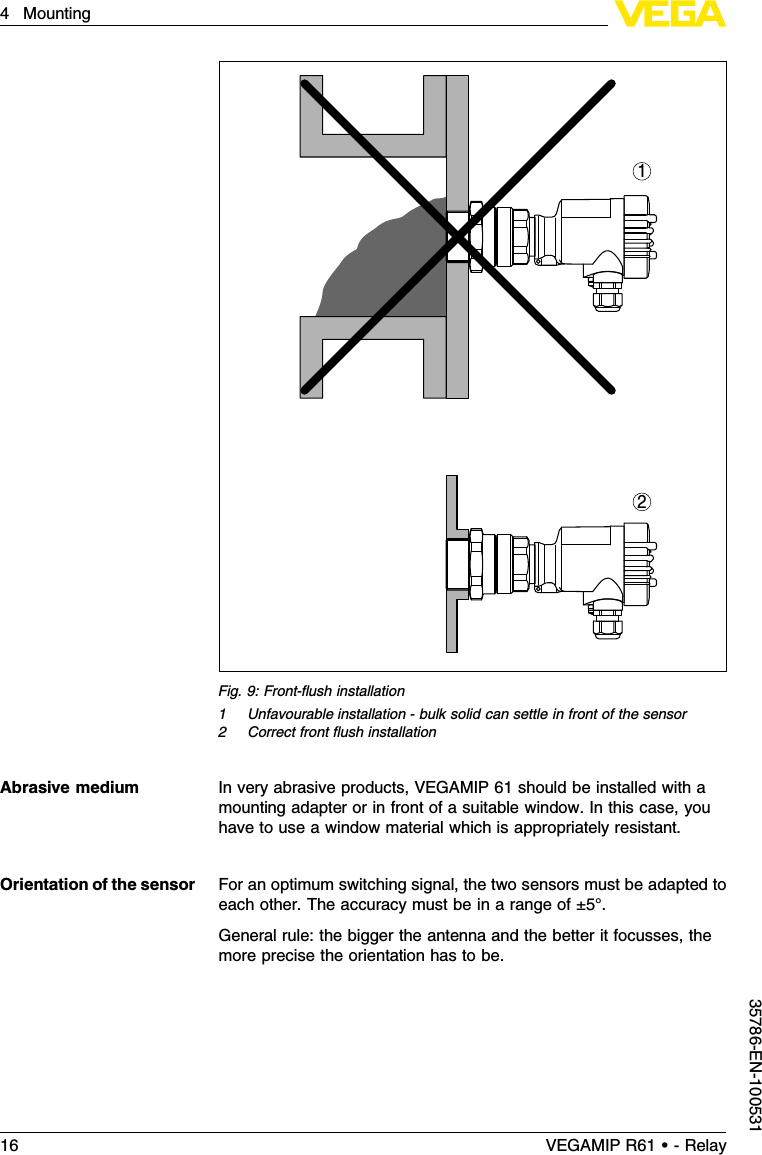

21Fig.9:Front-flush installation1Unfavourable installation -bulk solid can settle in front of the sensor2Correct front flush installationIn very abrasive products,VEGAMIP 61 should be installed with amounting adapter or in front of a suitable window.In this case,youhave to use a window material which is appropriately resistant.For an optimum switching signal,the two sensors must be adapted toeach other.The accuracy must be in a range of ±5°.General rule:the bigger the antenna and the better it focusses,themore precise the orientation has to be.Abrasive mediumOrientation of the sensor16 VEGAMIP R61 • - Relay4Mounting35786-EN-100531

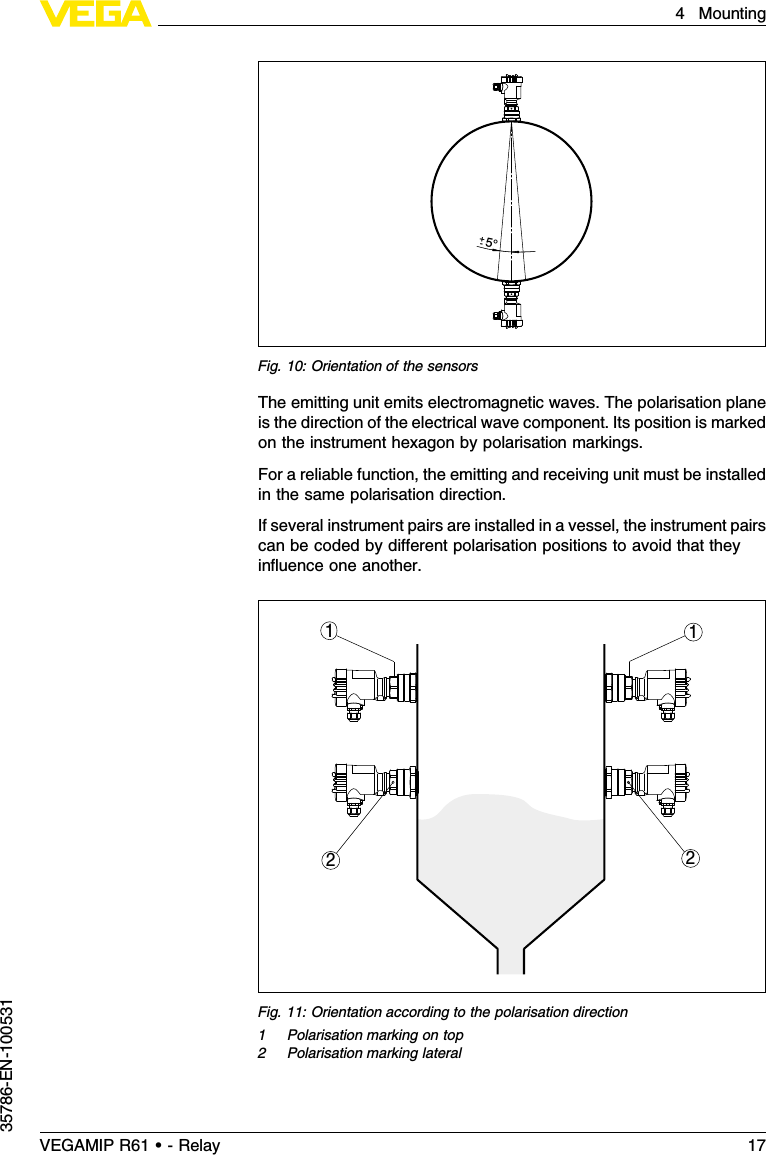

5°+-Fig.10:Orientation of the sensorsThe emitting unit emits electromagnetic waves.The polarisation planeis the direction of the electrical wave component.Its position is markedon the instrument hexagon by polarisation markings.For a reliable function,the emitting and receiving unit must be installedin the same polarisation direction.If several instrument pairs are installed in a vessel,the instrument pairscan be coded by different polarisation positions to avoid that theyinfluence one another.2112Fig.11:Orientation according to the polarisation direction1Polarisation marking on top2Polarisation marking lateralVEGAMIP R61 • - Relay 174Mounting35786-EN-100531

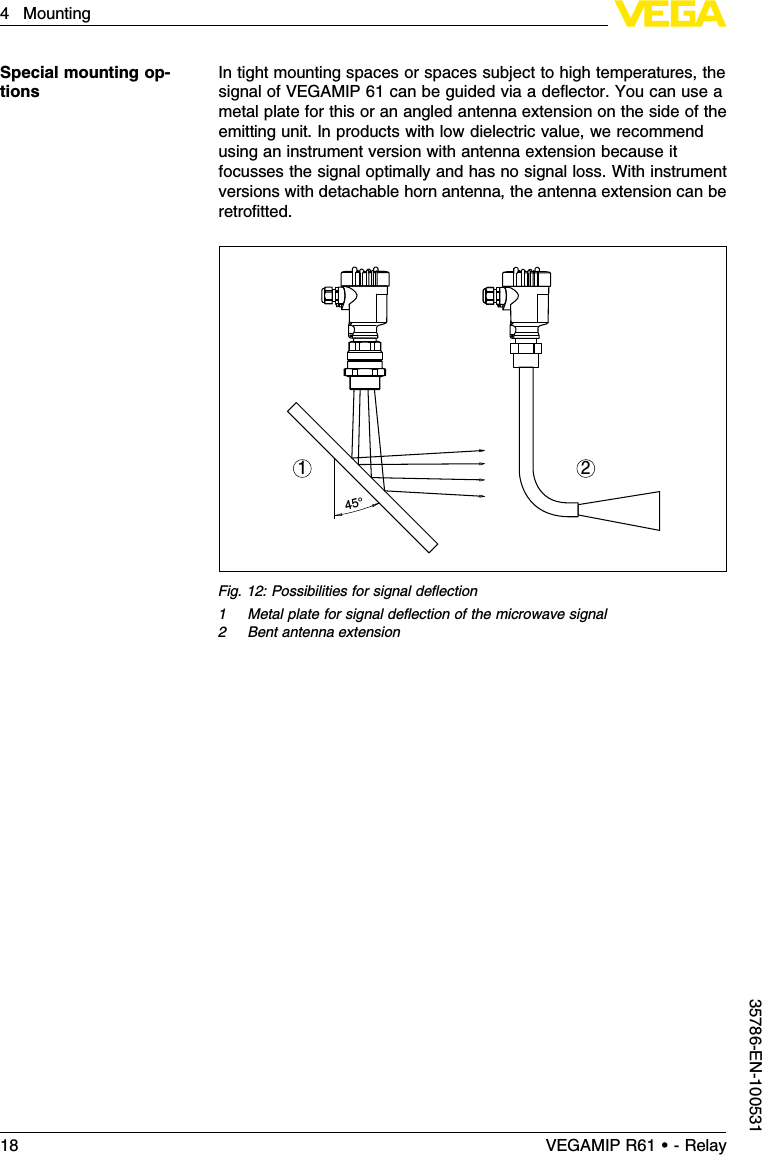

In tight mounting spaces or spaces subject to high temperatures,thesignal of VEGAMIP 61 can be guided via a deflector.You can use ametal plate for this or an angled antenna extension on the side of theemitting unit.In products with low dielectric value,we recommendusing an instrument version with antenna extension because itfocusses the signal optimally and has no signal loss.With instrumentversions with detachable horn antenna,the antenna extension can beretrofitted.45°1 2Fig.12:Possibilities for signal deflection1Metal plate for signal deflection of the microwave signal2Bent antenna extensionSpecial mounting op-tions18 VEGAMIP R61 • - Relay4Mounting35786-EN-100531

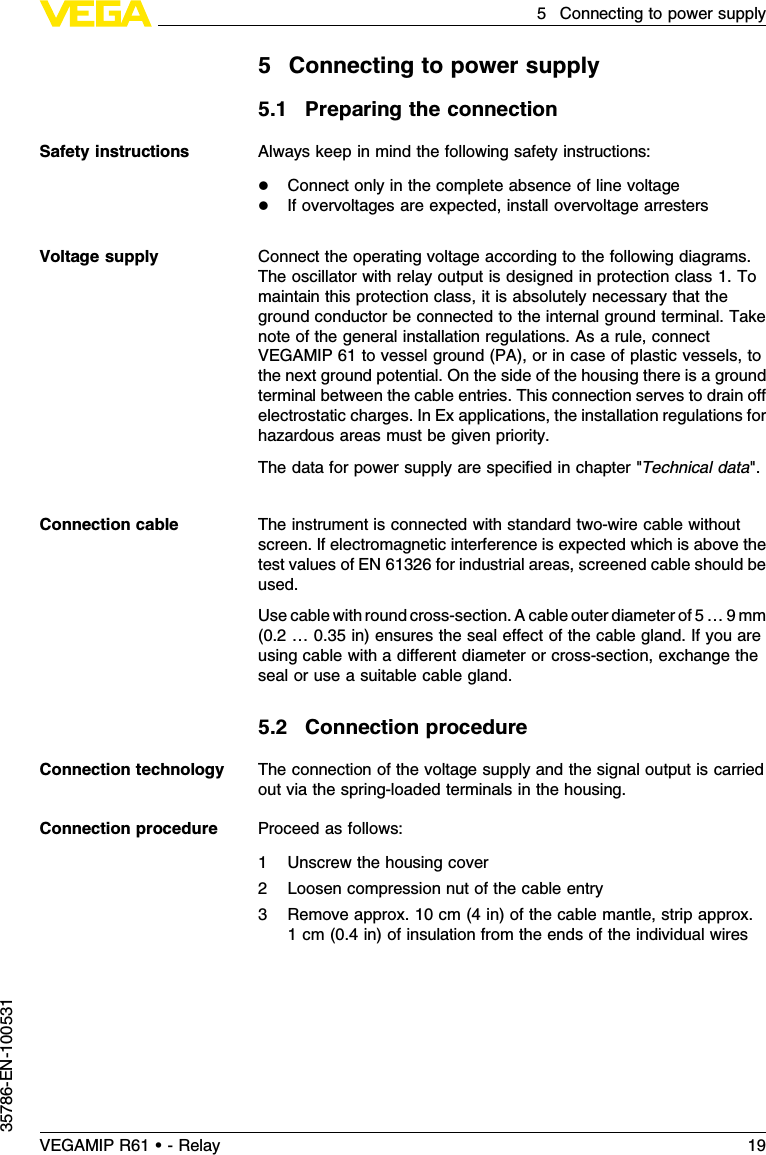

5Connecting to power supply5.1Preparing the connectionAlways keep in mind the following safety instructions:lConnect only in the complete absence of line voltagelIf overvoltages are expected,install overvoltage arrestersConnect the operating voltage according to the following diagrams.The oscillator with relay output is designed in protection class 1.Tomaintain this protection class,it is absolutely necessary that theground conductor be connected to the internal ground terminal.Takenote of the general installation regulations.As a rule,connectVEGAMIP 61 to vessel ground (PA), or in case of plastic vessels,tothe next ground potential.On the side of the housing there is a groundterminal between the cable entries.This connection serves to drain offelectrostatic charges.InEx applications,the installation regulations forhazardous areas must be given priority.The data for power supply are specified in chapter "Technical data".The instrument is connected with standard two-wire cable withoutscreen.If electromagnetic interference is expected which is above thetest values of EN 61326 for industrial areas,screened cable should beused.Use cable with round cross-section.Acable outer diameter of 5…9mm(0.2…0.35 in)ensures the seal effect of the cable gland.If you areusing cable with a different diameter or cross-section,exchange theseal or use a suitable cable gland.5.2Connection procedureThe connection of the voltage supply and the signal output is carriedout via the spring-loaded terminals in the housing.Proceed as follows:1Unscrew the housing cover2Loosen compression nut of the cable entry3Remove approx.10 cm (4in)of the cable mantle,strip approx.1cm (0.4in)of insulation from the ends of the individual wiresSafety instructionsVoltage supplyConnection cableConnection technologyConnection procedureVEGAMIP R61 • - Relay 195Connecting to power supply35786-EN-100531

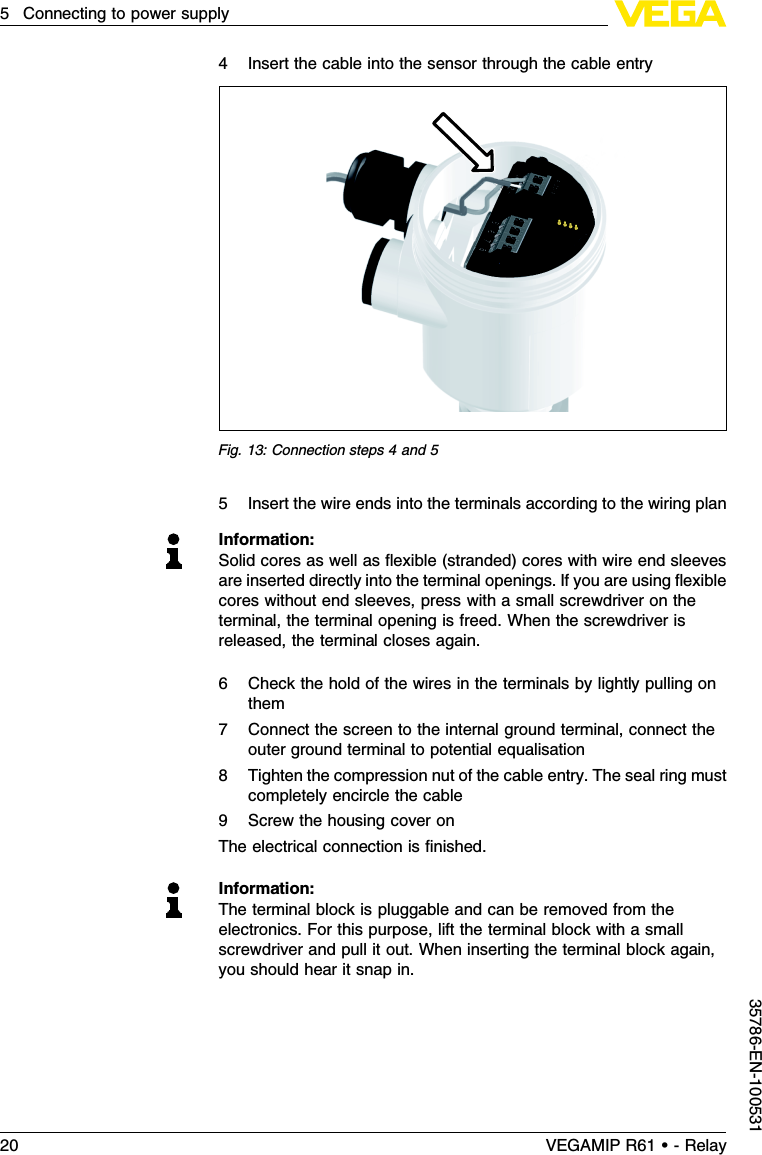

4Insert the cable into the sensor through the cable entryFig.13:Connection steps 4and 55Insert the wire ends into the terminals according to the wiring planInformation:Solid cores as well as flexible (stranded)cores with wire end sleevesare inserted directly into the terminal openings.If you are using flexiblecores without end sleeves,press with a small screwdriver on theterminal,the terminal opening is freed.When the screwdriver isreleased,the terminal closes again.6Check the hold of the wires in the terminals by lightly pulling onthem7Connect the screen to the internal ground terminal,connect theouter ground terminal to potential equalisation8Tighten the compression nut of the cable entry.The seal ring mustcompletely encircle the cable9Screw the housing cover onThe electrical connection is finished.Information:The terminal block is pluggable and can be removed from theelectronics.For this purpose,lift the terminal block with a smallscrewdriver and pull it out.When inserting the terminal block again,you should hear it snap in.20 VEGAMIP R61 • - Relay5Connecting to power supply35786-EN-100531

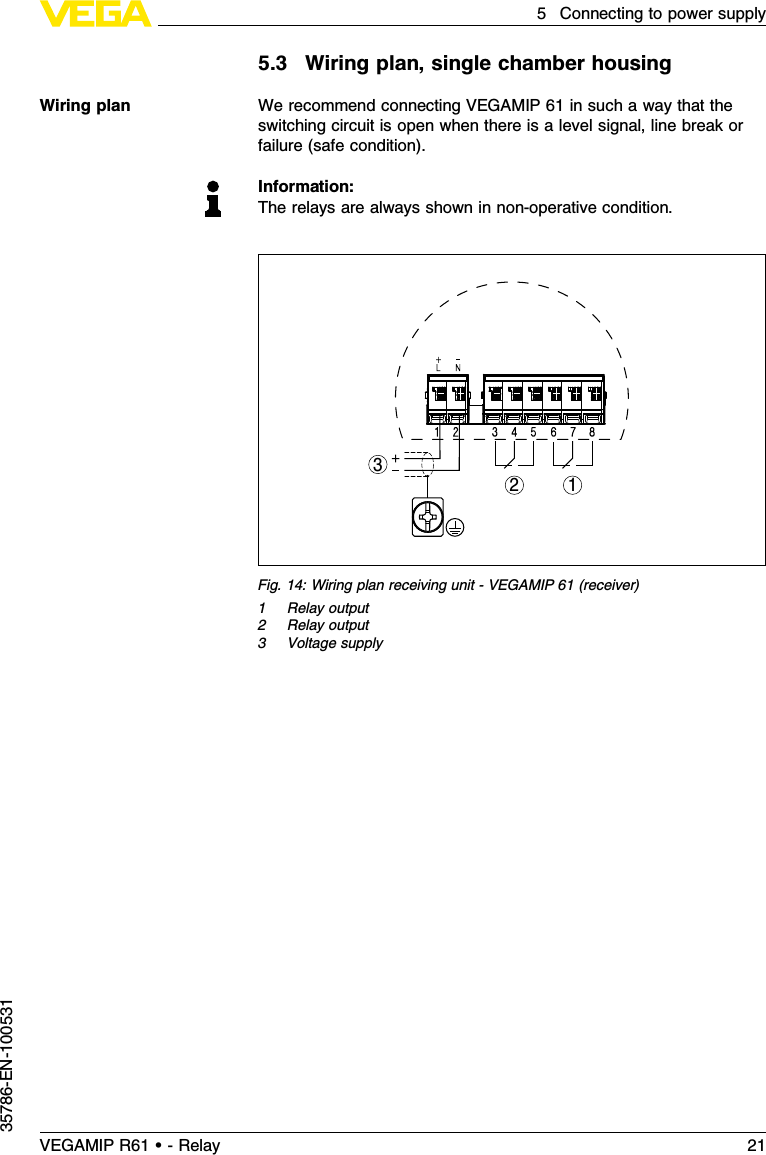

5.3Wiring plan,single chamber housingWe recommend connecting VEGAMIP 61 in such a way that theswitching circuit is open when there is a level signal,line break orfailure (safe condition).Information:The relays are always shown in non-operative condition.32 1Fig.14:Wiring plan receiving unit -VEGAMIP 61 (receiver)1Relay output2Relay output3Voltage supplyWiring planVEGAMIP R61 • - Relay 215Connecting to power supply35786-EN-100531

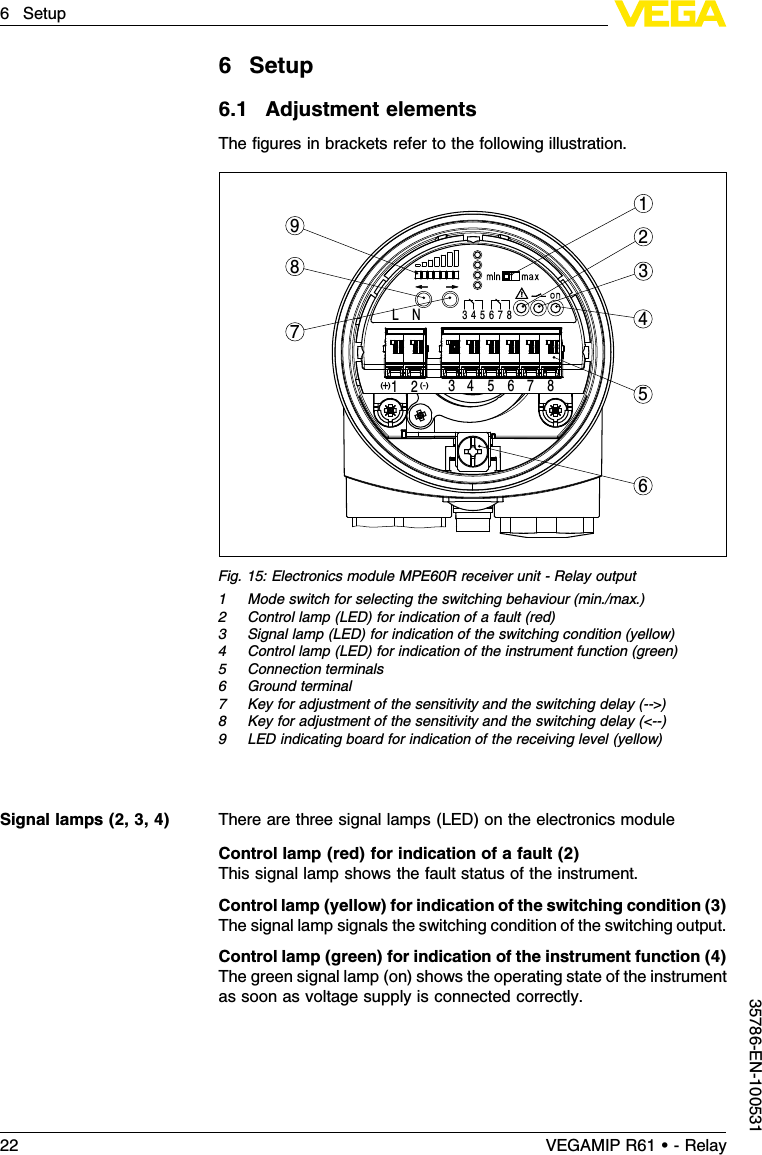

6Setup6.1Adjustment elementsThe figures in brackets refer to the following illustration.6798451231L N 3(-)( )4 5 6 7 82+34 5 6 7 8Fig.15:Electronics module MPE60Rreceiver unit -Relay output1Mode switch for selecting the switching behaviour (min./max.)2Control lamp (LED)for indication of a fault (red)3Signal lamp (LED)for indication of the switching condition (yellow)4Control lamp (LED)for indication of the instrument function (green)5Connection terminals6Ground terminal7Key for adjustment of the sensitivity and the switching delay (-->)8Key for adjustment of the sensitivity and the switching delay (<--)9LED indicating board for indication of the receiving level (yellow)There are three signal lamps (LED)on the electronics moduleControl lamp (red)for indication of a fault (2)This signal lamp shows the fault status of the instrument.Control lamp (yellow)for indication of the switching condition (3)The signal lamp signals the switching condition of the switching output.Control lamp (green)for indication of the instrument function (4)The green signal lamp (on)shows the operating state of the instrumentas soon as voltage supply is connected correctly.Signal lamps (2,3,4)22 VEGAMIP R61 • - Relay6Setup35786-EN-100531

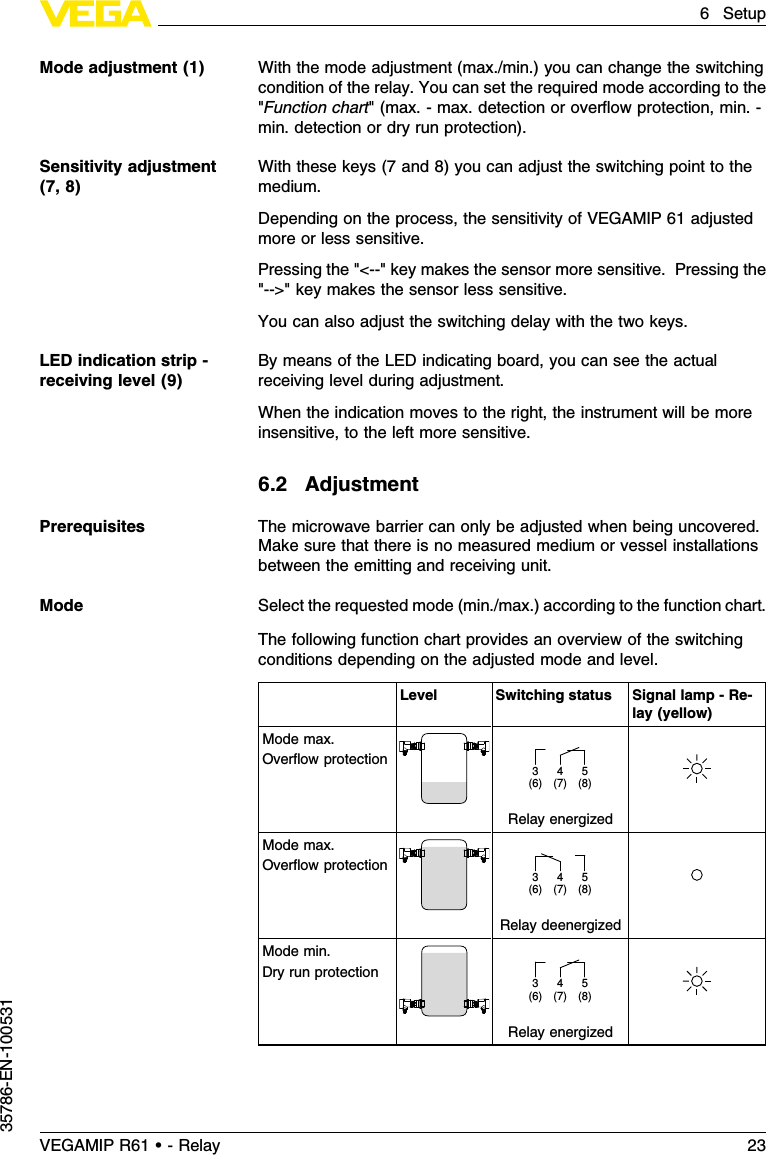

With the mode adjustment (max./min.) you can change the switchingcondition of the relay.You can set the required mode according to the"Function chart"(max. - max.detection or overflow protection,min. -min.detection or dry run protection).With these keys (7and 8)you can adjust the switching point to themedium.Depending on the process,the sensitivity of VEGAMIP 61 adjustedmore or less sensitive.Pressing the "<--"key makes the sensor more sensitive.Pressing the"-->" key makes the sensor less sensitive.You can also adjust the switching delay with the two keys.By means of the LED indicating board,you can see the actualreceiving level during adjustment.When the indication moves to the right,the instrument will be moreinsensitive,to the left more sensitive.6.2AdjustmentThe microwave barrier can only be adjusted when being uncovered.Make sure that there is no measured medium or vessel installationsbetween the emitting and receiving unit.Select the requested mode (min./max.) according to the function chart.The following function chart provides an overview of the switchingconditions depending on the adjusted mode and level.Level Switching status Signal lamp -Re-lay (yellow)Mode max.Overflow protection53 4(8)(6) (7)Relay energizedMode max.Overflow protection53 4(8)(6) (7)Relay deenergizedMode min.Dry run protection53 4(8)(6) (7)Relay energizedMode adjustment (1)Sensitivity adjustment(7,8)LED indication strip -receiving level (9)PrerequisitesModeVEGAMIP R61 • - Relay 236Setup35786-EN-100531
Level Switching status Signal lamp -Re-lay (yellow)Mode min.Dry run protection53 4(8)(6) (7)Relay deenergizedFailure of the supplyvoltage(max./min.mode)any53 4(8)(6) (7)Relay deenergizedFailure any53 4(8)(6) (7)Relay deenergized Red failure LEDlightsDepending on the switching function your relay output should carryout,you can determine the switching direction by means of the slideswitch.lFor max.indication or overfill protection set the slide switch toposition max.lFor min.indication or dry run protection,set the slide switch toposition min.The relay is energized if the yellow relay control lamp lights.With the two keys you can change the LED indication strip and adjustthe switching point to the medium.The keys are lowered to avoid unintentional changes of the setting.Foradjustment,use for example,a small screwdriver.If you press one of the keys for more than two seconds,the adjustmentrange shifts automatically in the respective direction.The greater thedistance between emitting and receiving unit,the greater the adjust-ment range of the indication.The LED indication strip always shows asmall section of the actual measuring range.Pressing the "<--"key makes the sensor more sensitive.Pressing the"-->" key makes the sensor less sensitive.Sensitivity adjustment24 VEGAMIP R61 • - Relay6Setup35786-EN-100531

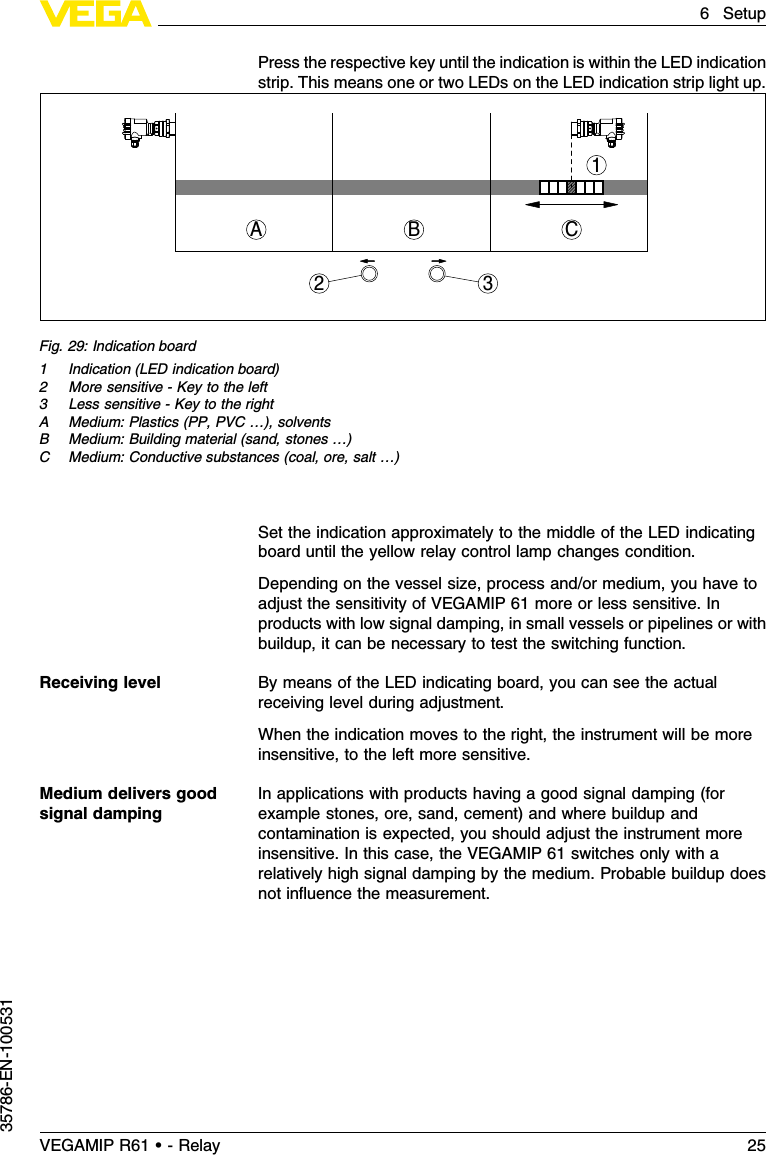

Press the respective key until the indication is within the LED indicationstrip.This means one or two LEDs on the LED indication strip light up.1CBA23Fig.29:Indication board1Indication (LED indication board)2More sensitive -Key to the left3Less sensitive -Key to the rightA Medium:Plastics (PP,PVC …), solventsB Medium:Building material (sand,stones …)C Medium:Conductive substances (coal,ore,salt …)Set the indication approximately to the middle of the LED indicatingboard until the yellow relay control lamp changes condition.Depending on the vessel size,process and/or medium,you have toadjust the sensitivity of VEGAMIP 61 more or less sensitive.Inproducts with low signal damping,in small vessels or pipelines or withbuildup,it can be necessary to test the switching function.By means of the LED indicating board,you can see the actualreceiving level during adjustment.When the indication moves to the right,the instrument will be moreinsensitive,to the left more sensitive.In applications with products having a good signal damping (forexample stones,ore,sand,cement)and where buildup andcontamination is expected,you should adjust the instrument moreinsensitive.In this case,the VEGAMIP 61 switches only with arelatively high signal damping by the medium.Probable buildup doesnot influence the measurement.Receiving levelMedium delivers goodsignal dampingVEGAMIP R61 • - Relay 256Setup35786-EN-100531

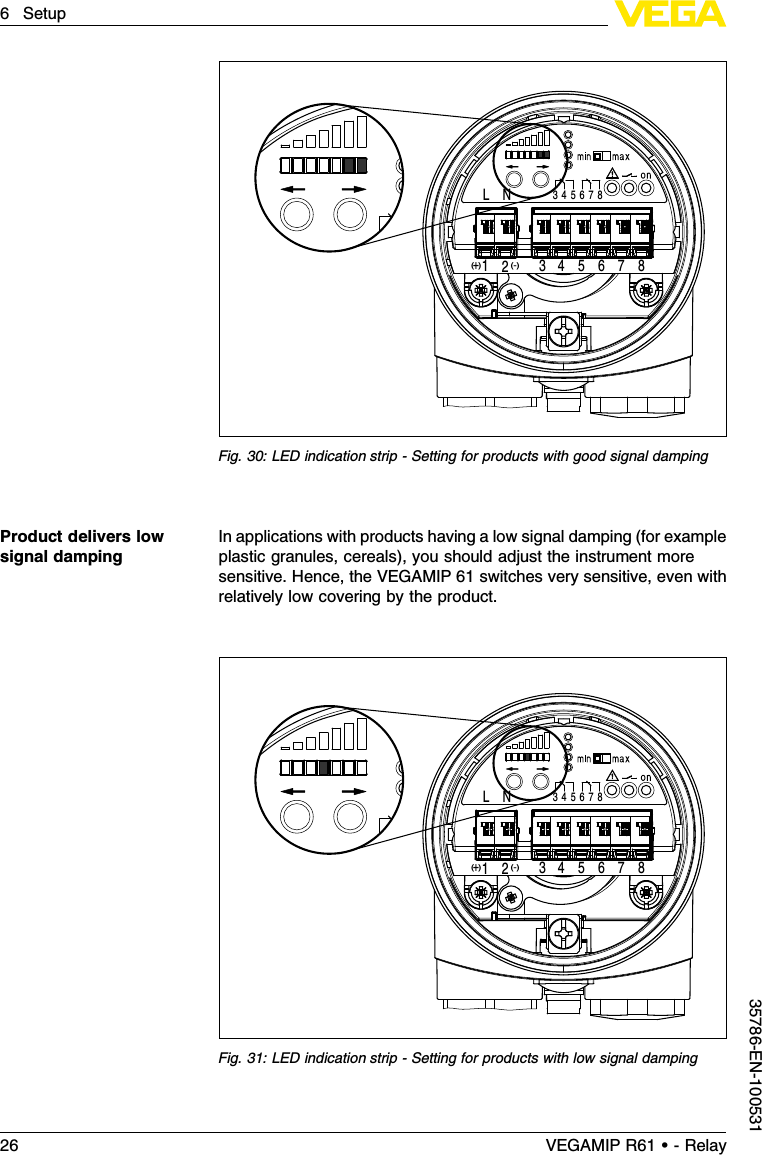

1L N 3(-)( )4 5 6 7 82+34 5 6 7 8Fig.30:LED indication strip -Setting for products with good signal dampingIn applications with products having a low signal damping (for exampleplastic granules,cereals), you should adjust the instrument moresensitive.Hence,the VEGAMIP 61 switches very sensitive,even withrelatively low covering by the product.1L N 3(-)( )4 5 6 7 82+34 5 6 7 8Fig.31:LED indication strip -Setting for products with low signal dampingProduct delivers lowsignal damping26 VEGAMIP R61 • - Relay6Setup35786-EN-100531

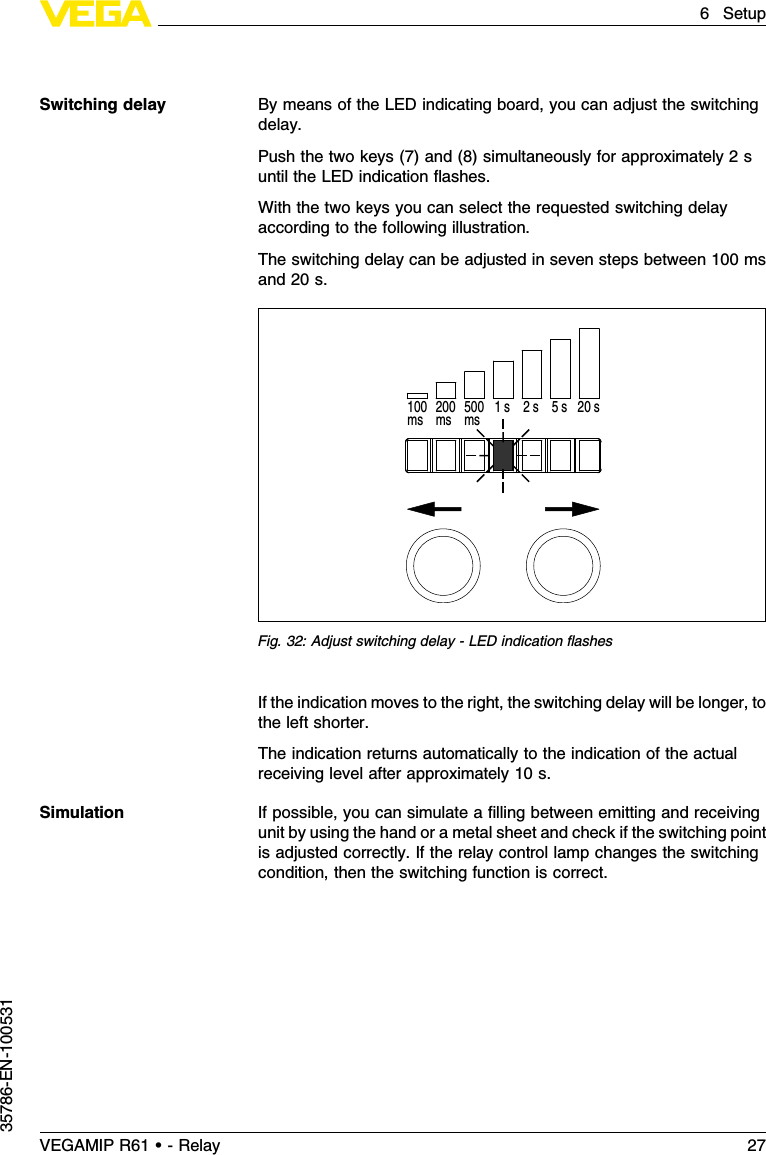

By means of the LED indicating board,you can adjust the switchingdelay.Push the two keys (7)and (8)simultaneously for approximately 2suntil the LED indication flashes.With the two keys you can select the requested switching delayaccording to the following illustration.The switching delay can be adjusted in seven steps between 100 msand 20 s.200ms100ms 500ms 1 s 2 s 5 s 20 sFig.32:Adjust switching delay -LED indication flashesIf the indication moves to the right,the switching delay will be longer,tothe left shorter.The indication returns automatically to the indication of the actualreceiving level after approximately 10 s.If possible,you can simulate a filling between emitting and receivingunit by using the hand or a metal sheet and check if the switching pointis adjusted correctly.If the relay control lamp changes the switchingcondition,then the switching function is correct.Switching delaySimulationVEGAMIP R61 • - Relay 276Setup35786-EN-100531

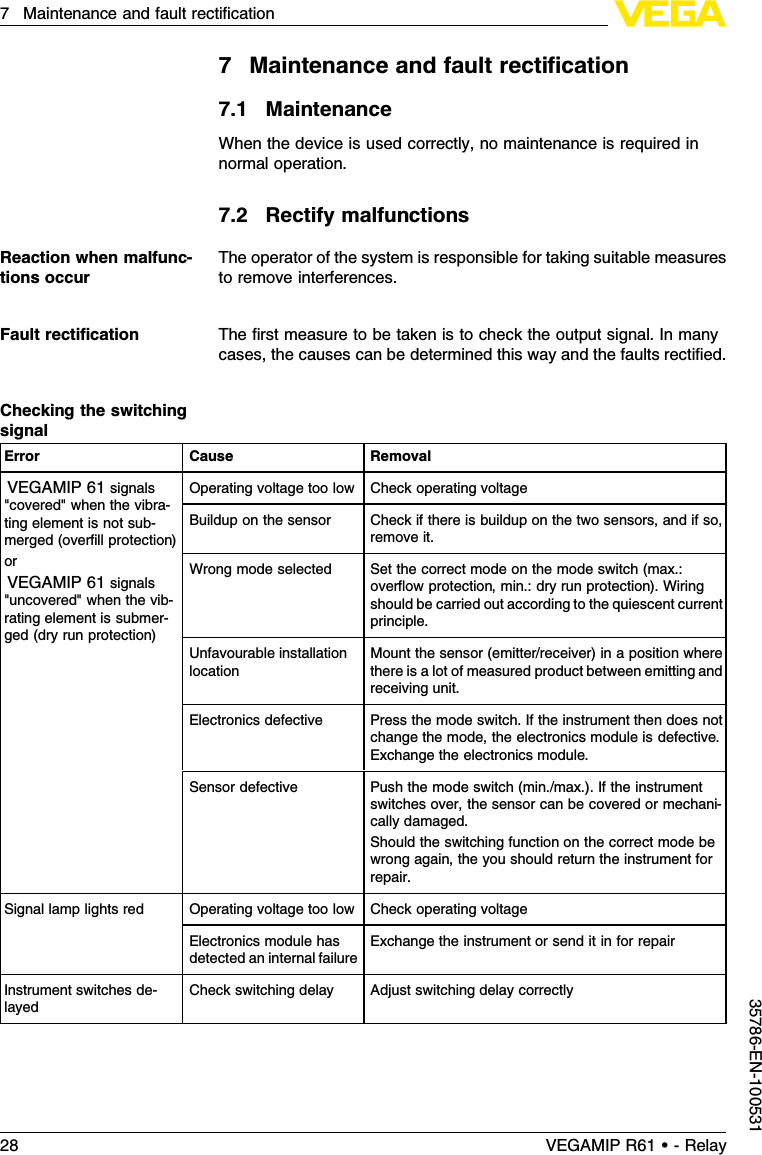

7Maintenance and fault rectification7.1MaintenanceWhen the device is used correctly,no maintenance is required innormal operation.7.2Rectify malfunctionsThe operator of the system is responsible for taking suitable measuresto remove interferences.The first measure to be taken is to check the output signal.In manycases,the causes can be determined this way and the faults rectified.Error Cause RemovalVEGAMIP 61 signals"covered"when the vibra-ting element is not sub-merged (overfill protection)orVEGAMIP 61 signals"uncovered"when the vib-rating element is submer-ged (dry run protection)Operating voltage too low Check operating voltageBuildup on the sensor Check if there is buildup on the two sensors,and if so,remove it.Wrong mode selected Set the correct mode on the mode switch (max.:overflow protection,min.: dry run protection). Wiringshould be carried out according to the quiescent currentprinciple.Unfavourable installationlocationMount the sensor (emitter/receiver)in a position wherethere is a lot of measured product between emitting andreceiving unit.Electronics defective Press the mode switch.If the instrument then does notchange the mode,the electronics module is defective.Exchange the electronics module.Sensor defective Push the mode switch (min./max.). If the instrumentswitches over,the sensor can be covered or mechani-cally damaged.Should the switching function on the correct mode bewrong again,the you should return the instrument forrepair.Signal lamp lights red Operating voltage too low Check operating voltageElectronics module hasdetected an internal failureExchange the instrument or send it in for repairInstrument switches de-layedCheck switching delay Adjust switching delay correctlyReaction when malfunc-tions occurFault rectificationChecking the switchingsignal28 VEGAMIP R61 • - Relay7Maintenance and fault rectification35786-EN-100531

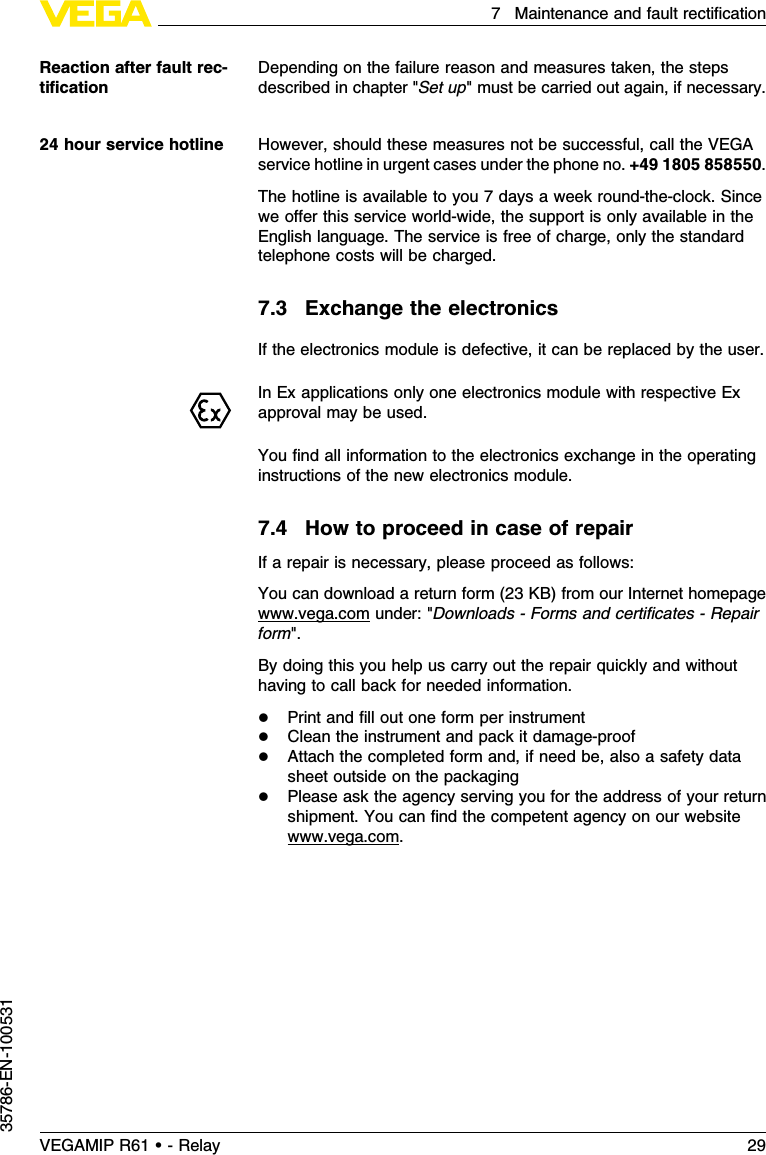

Depending on the failure reason and measures taken,the stepsdescribed in chapter "Set up"must be carried out again,if necessary.However,should these measures not be successful,call the VEGAservice hotline in urgent cases under the phone no.+49 1805 858550.The hotline is available to you 7days a week round-the-clock.Sincewe offer this service world-wide,the support is only available in theEnglish language.The service is free of charge,only the standardtelephone costs will be charged.7.3Exchange the electronicsIf the electronics module is defective,it can be replaced by the user.InEx applications only one electronics module with respective Exapproval may be used.You find all information to the electronics exchange in the operatinginstructions of the new electronics module.7.4How to proceed in case of repairIf a repair is necessary,please proceed as follows:You can download a return form (23 KB)from our Internet homepagewww.vega.com under:"Downloads -Forms and certificates -Repairform".By doing this you help us carry out the repair quickly and withouthaving to call back for needed information.lPrint and fill out one form per instrumentlClean the instrument and pack it damage-prooflAttach the completed form and,if need be,also a safety datasheet outside on the packaginglPlease ask the agency serving you for the address of your returnshipment.You can find the competent agency on our websitewww.vega.com.Reaction after fault rec-tification24 hour service hotlineVEGAMIP R61 • - Relay 297Maintenance and fault rectification35786-EN-100531

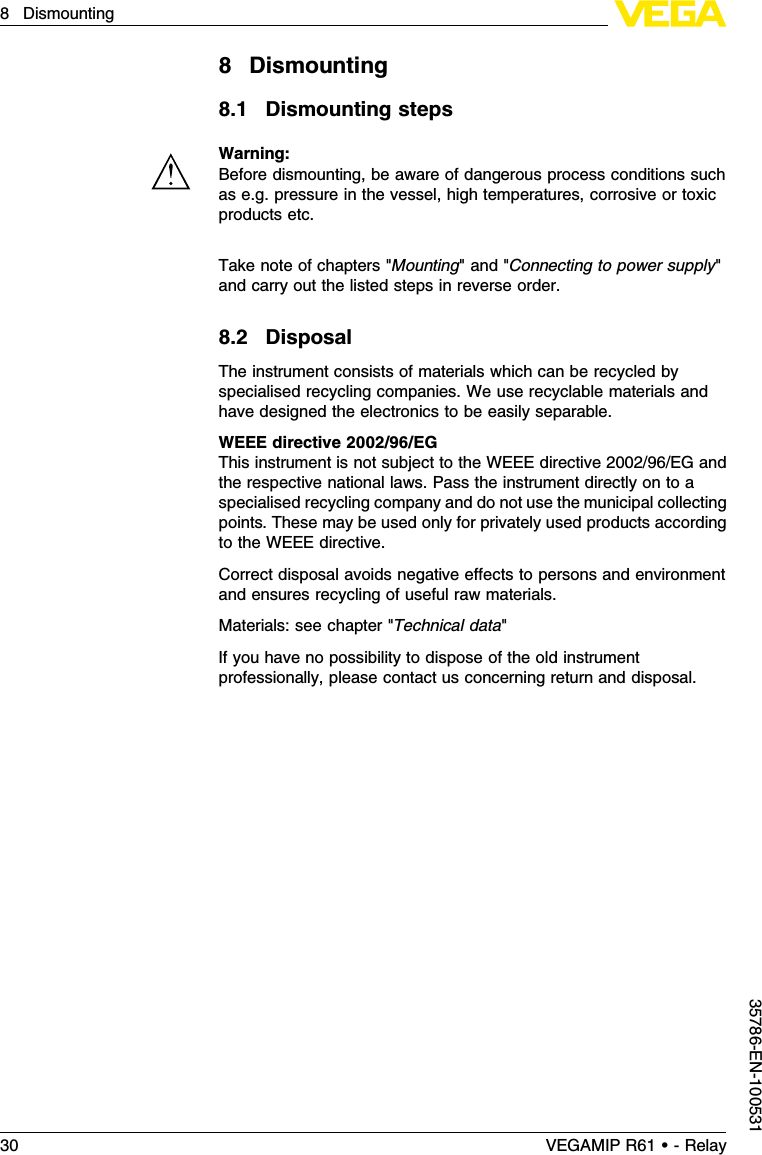

8Dismounting8.1Dismounting stepsWarning:Before dismounting,be aware of dangerous process conditions suchas e.g.pressure in the vessel,high temperatures,corrosive or toxicproducts etc.Take note of chapters "Mounting"and "Connecting to power supply"and carry out the listed steps in reverse order.8.2DisposalThe instrument consists of materials which can be recycled byspecialised recycling companies.We use recyclable materials andhave designed the electronics to be easily separable.WEEE directive 2002/96/EGThis instrument is not subject to the WEEE directive 2002/96/EG andthe respective national laws.Pass the instrument directly on to aspecialised recycling company and do not use the municipal collectingpoints.These may be used only for privately used products accordingto the WEEE directive.Correct disposal avoids negative effects to persons and environmentand ensures recycling of useful raw materials.Materials:see chapter "Technical data"If you have no possibility to dispose of the old instrumentprofessionally,please contact us concerning return and disposal.30 VEGAMIP R61 • - Relay8Dismounting35786-EN-100531

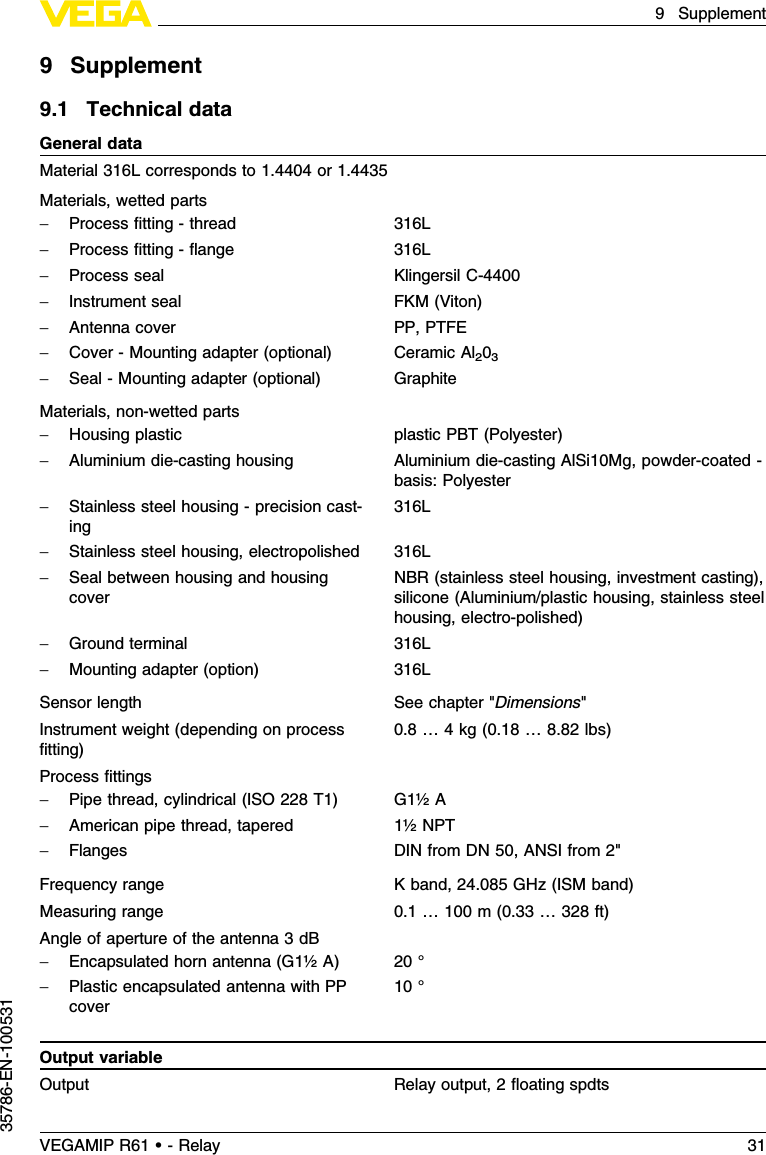

9Supplement9.1Technical dataGeneral dataMaterial 316Lcorresponds to 1.4404 or 1.4435Materials,wetted parts-Process fitting -thread 316L-Process fitting -flange 316L-Process seal Klingersil C-4400-Instrument seal FKM (Viton)-Antenna cover PP,PTFE-Cover -Mounting adapter (optional)Ceramic Al203-Seal -Mounting adapter (optional)GraphiteMaterials,non-wetted parts-Housing plastic plastic PBT (Polyester)-Aluminium die-casting housing Aluminium die-casting AlSi10Mg,powder-coated -basis:Polyester-Stainless steel housing -precision cast-ing316L-Stainless steel housing,electropolished 316L-Seal between housing and housingcoverNBR (stainless steel housing,investment casting),silicone (Aluminium/plastic housing,stainless steelhousing,electro-polished)-Ground terminal 316L-Mounting adapter (option)316LSensor length See chapter "Dimensions"Instrument weight (depending on processfitting)0.8…4kg (0.18 …8.82 lbs)Process fittings-Pipe thread,cylindrical (ISO 228 T1)G1½A-American pipe thread,tapered 1½NPT-Flanges DIN from DN 50,ANSI from 2"Frequency range Kband,24.085 GHz(ISM band)Measuring range 0.1…100 m(0.33 …328 ft)Angle of aperture of the antenna 3dB-Encapsulated horn antenna (G1½A)20 °-Plastic encapsulated antenna with PPcover10 °Output variableOutput Relay output,2floating spdtsVEGAMIP R61 • - Relay 319Supplement35786-EN-100531

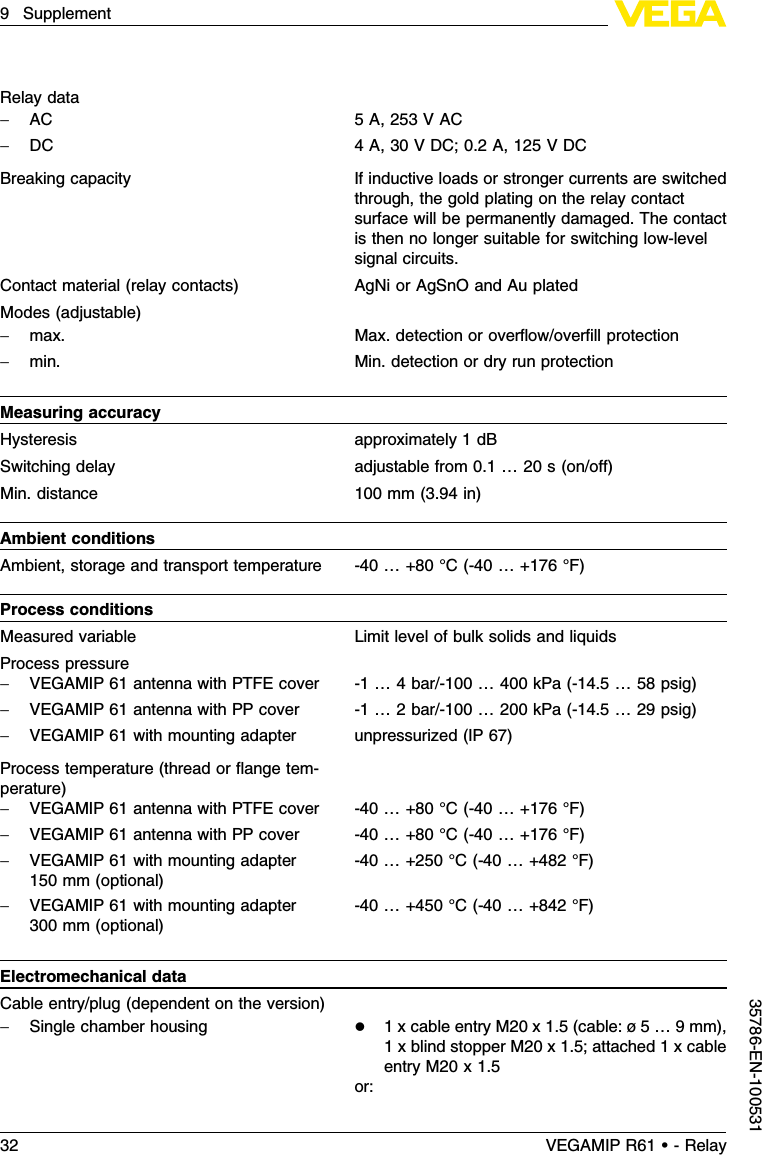

Relay data-AC 5A,253 V AC-DC 4A,30 V DC;0.2A,125 V DCBreaking capacity If inductive loads or stronger currents are switchedthrough,the gold plating on the relay contactsurface will be permanently damaged.The contactis then no longer suitable for switching low-levelsignal circuits.Contact material (relay contacts)AgNi or AgSnOand Au platedModes (adjustable)-max.Max.detection or overflow/overfill protection-min.Min.detection or dry run protectionMeasuring accuracyHysteresis approximately 1dBSwitching delay adjustable from 0.1…20 s(on/off)Min.distance 100 mm (3.94 in)Ambient conditionsAmbient,storage and transport temperature -40 …+80 °C(-40 …+176 °F)Process conditionsMeasured variable Limit level of bulk solids and liquidsProcess pressure-VEGAMIP 61 antenna with PTFE cover -1…4bar/-100 …400 kPa(-14.5…58 psig)-VEGAMIP 61 antenna with PP cover -1…2bar/-100 …200 kPa(-14.5…29 psig)-VEGAMIP 61 with mounting adapter unpressurized (IP 67)Process temperature (thread or flange tem-perature)-VEGAMIP 61 antenna with PTFE cover -40 …+80 °C(-40 …+176 °F)-VEGAMIP 61 antenna with PP cover -40 …+80 °C(-40 …+176 °F)-VEGAMIP 61 with mounting adapter150 mm (optional)-40 …+250 °C(-40 …+482 °F)-VEGAMIP 61 with mounting adapter300 mm (optional)-40 …+450 °C(-40 …+842 °F)Electromechanical dataCable entry/plug (dependent on the version)-Single chamber housing l1x cable entry M20 x1.5(cable:ø5…9mm),1x blind stopper M20 x1.5;attached 1x cableentry M20 x1.5or:32 VEGAMIP R61 • - Relay9Supplement35786-EN-100531
l1x cable entry ½NPT,1x blind stopper ½NPT,1x cable entry ½NPTor:l1x plug M12 x1;1x blind stopper M20 x1.5Screw terminals for wire cross-section up to 1.5mm²(AWG 16)Voltage supplyOperating voltage 20 …253 V AC,50/60 Hz,20 …72 V DC (atU>60 V DC,the ambient temperature can be max.50 °C/122 °F)Power consumption 1…8VA (AC), approximately 1.3W(DC)Electrical protective measuresProtection rating IP 66/IP 67Overvoltage category IIIProtection class IApprovalsDepending on the version,instruments with approvals can have different technical data.For these instruments,the corresponding approval documents have to be taken into account.These are part of the delivery or can be downloaded under www.vega.com via "VEGA Tools"and"serial number search"as well as via "Downloads"and "Approvals".VEGAMIP R61 • - Relay 339Supplement35786-EN-100531

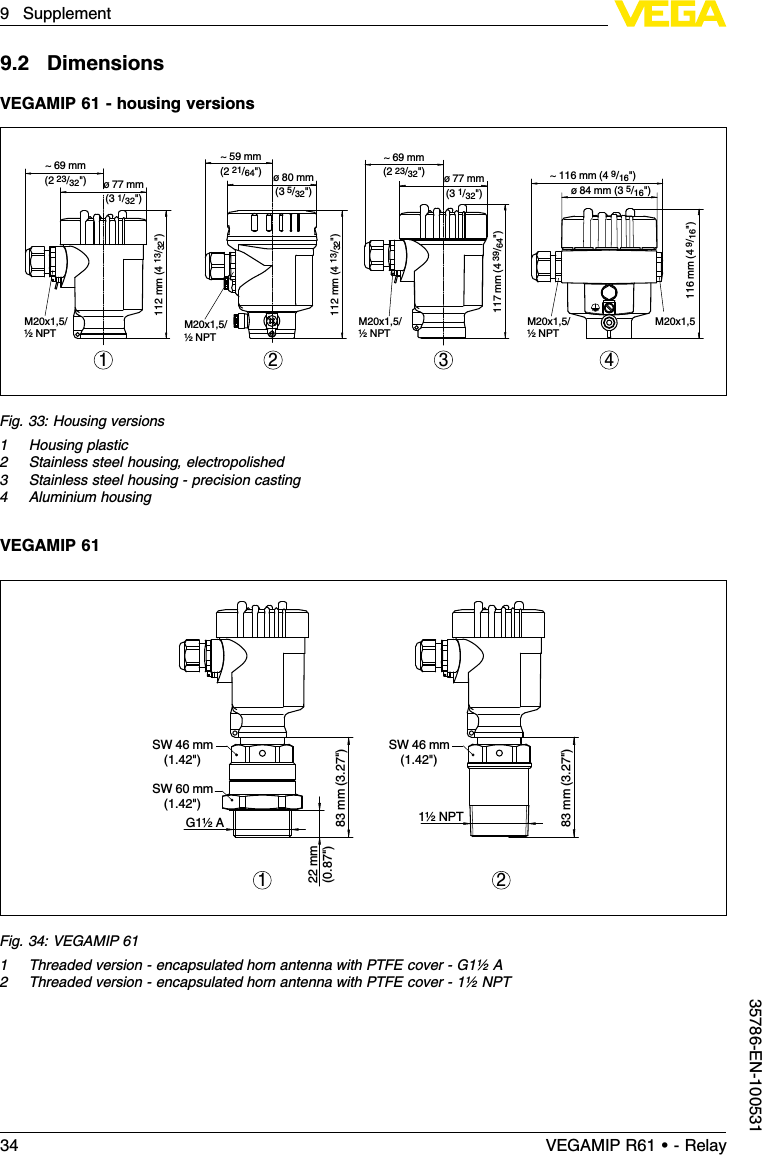

9.2DimensionsVEGAMIP 61 -housing versions~ 69 mm(2 23/32") ø 77 mm(3 1/32")112 mm (4 13/32")M20x1,5/½ NPT~ 69 mm(2 23/32") ø 77 mm(3 1/32")117 mm (4 39/64")M20x1,5/½ NPT~ 116 mm (4 9/16")ø 84 mm (3 5/16")116 mm (4 9/16")M20x1,5M20x1,5/½ NPT~ 59 mm(2 21/64") ø 80 mm(3 5/32")112 mm (4 13/32")M20x1,5/½ NPT1 3 42Fig.33:Housing versions1Housing plastic2Stainless steel housing,electropolished3Stainless steel housing -precision casting4Aluminium housingVEGAMIP 6122mm(0.87")83mm (3.27") SW 46 mm(1.42") SW 46 mm(1.42") SW 60 mm(1.42") G1½ A 1½ NPT83mm (3.27")1 2Fig.34:VEGAMIP 611Threaded version -encapsulated horn antenna with PTFE cover -G1½A2Threaded version -encapsulated horn antenna with PTFE cover -1½NPT34 VEGAMIP R61 • - Relay9Supplement35786-EN-100531

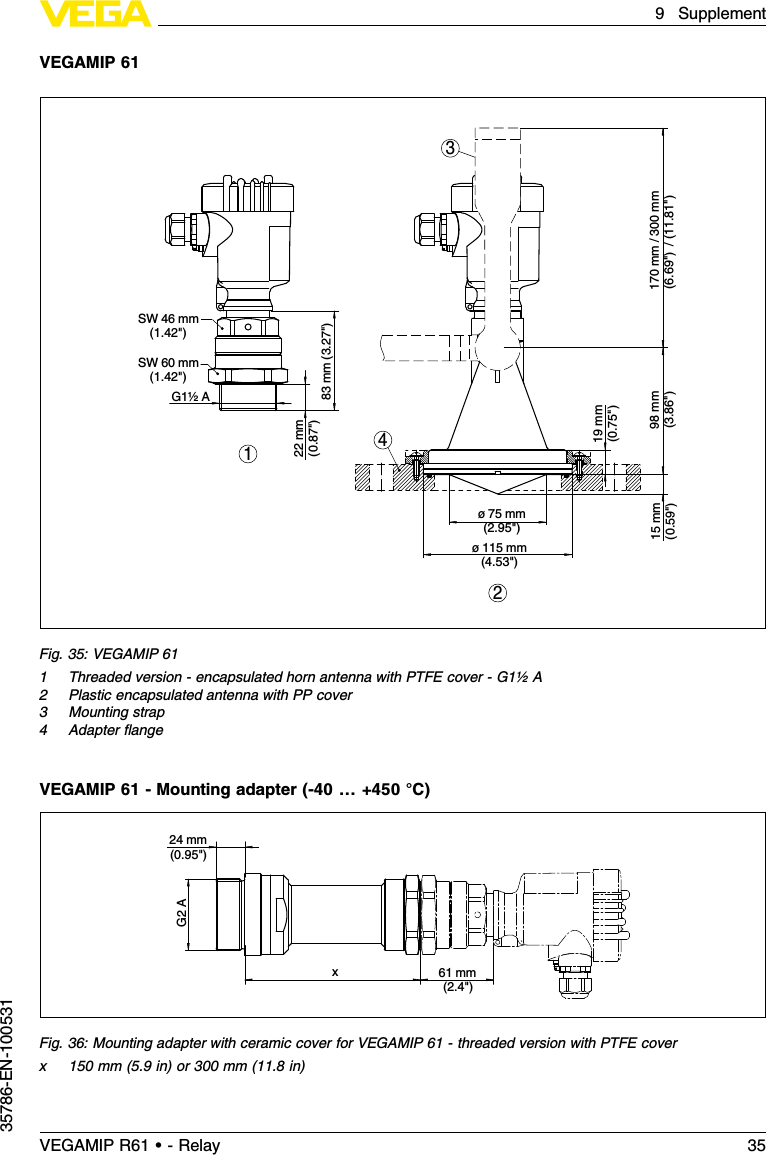

VEGAMIP 6122mm(0.87")83mm (3.27") SW 46 mm(1.42") SW 60 mm(1.42") G1½ A214315 mm(0.59")98 mm(3.86")170 mm / 300 mm(6.69") / (11.81") 19 mm(0.75")ø 75 mm(2.95")ø 115 mm(4.53")Fig.35:VEGAMIP 611Threaded version -encapsulated horn antenna with PTFE cover -G1½A2Plastic encapsulated antenna with PP cover3Mounting strap4Adapter flangeVEGAMIP 61 -Mounting adapter (-40 …+450 °C)24mm(0.95")x 61 mm(2.4") G2 AFig.36:Mounting adapter with ceramic cover for VEGAMIP 61 -threaded version with PTFE coverx150 mm (5.9in)or 300 mm (11.8in)VEGAMIP R61 • - Relay 359Supplement35786-EN-100531

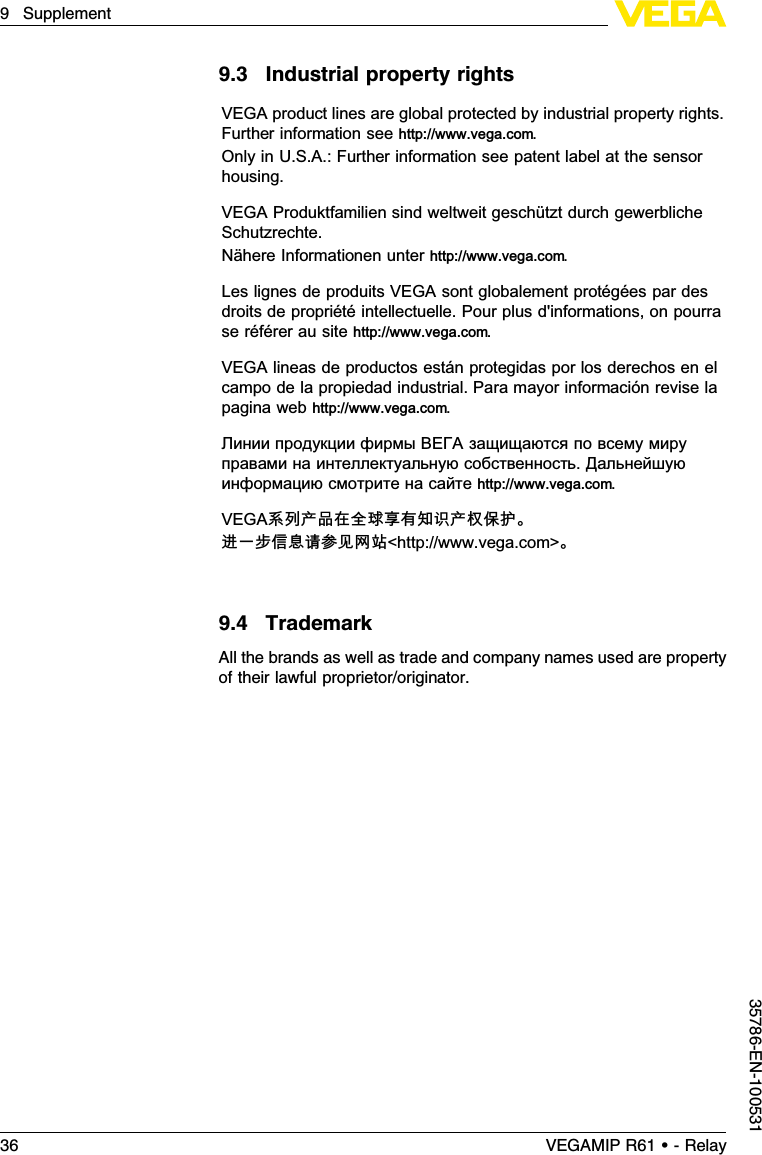

9.3Industrial property rightsVEGA product lines are global protected by industrial property rights.Further information see http://www.vega.com.Only in U.S.A.: Further information see patent label at the sensorhousing.VEGA Produktfamilien sind weltweit geschützt durch gewerblicheSchutzrechte.Nähere Informationen unter http://www.vega.com.Les lignes de produits VEGA sont globalement protégées par desdroits de propriétéintellectuelle. Pour plus d'informations, on pourrase référer au site http://www.vega.com.VEGA lineas de productos están protegidas por los derechos en elcampo de la propiedad industrial. Para mayor información revise lapagina web http://www.vega.com.Линии продукции фирмы ВЕГА защищаются по всему мируправами на интеллектуальную собственность.Дальнейшуюинформацию смотрите на сайте http://www.vega.com.VEGA系列产品在全球享有知识产权保护。进一步信息请参见网站<http://www.vega.com>。9.4TrademarkAll the brands as well as trade and company names used are propertyof their lawful proprietor/originator.36 VEGAMIP R61 • - Relay9Supplement35786-EN-100531

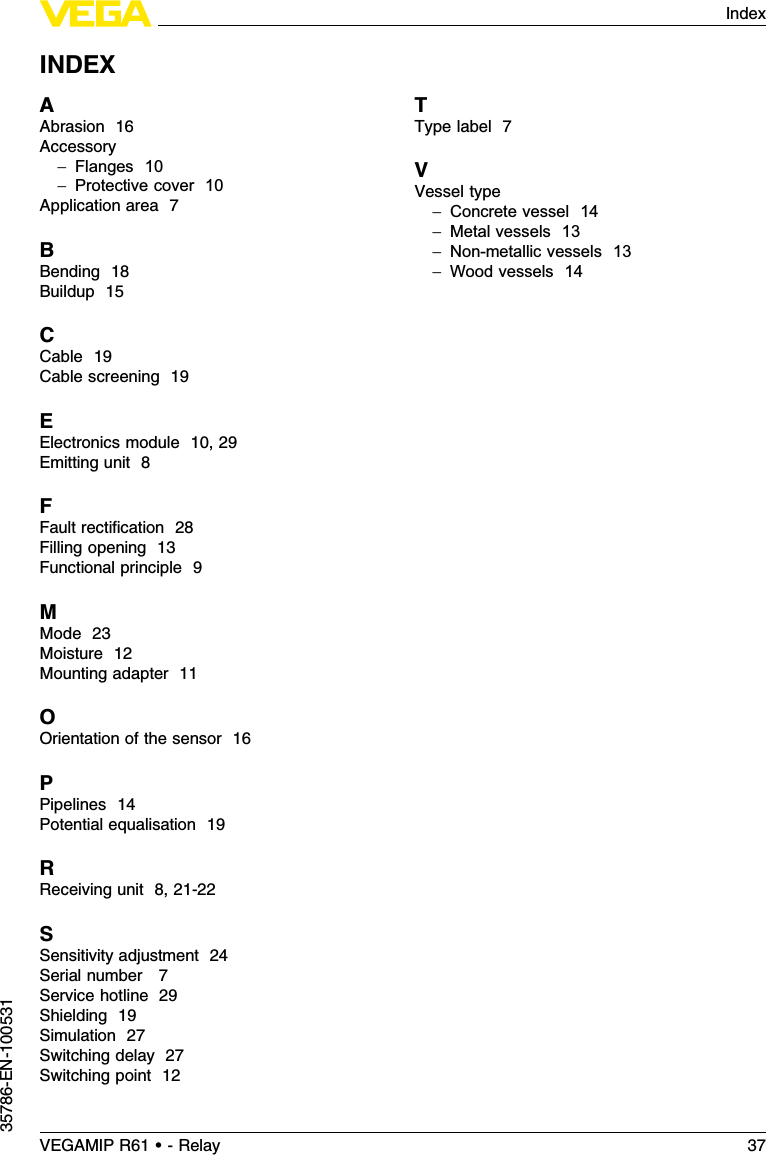

INDEXAAbrasion 16Accessory-Flanges 10-Protective cover 10Application area 7BBending 18Buildup 15CCable 19Cable screening 19EElectronics module 10,29Emitting unit 8FFault rectification 28Filling opening 13Functional principle 9MMode 23Moisture 12Mounting adapter 11OOrientation of the sensor 16PPipelines 14Potential equalisation 19RReceiving unit 8,21-22SSensitivity adjustment 24Serial number 7Service hotline 29Shielding 19Simulation 27Switching delay 27Switching point 12TType label 7VVessel type-Concrete vessel 14-Metal vessels 13-Non-metallic vessels 13-Wood vessels 14VEGAMIP R61 • - Relay 37Index35786-EN-100531
38 VEGAMIP R61 • - RelayIndex35786-EN-100531
VEGAMIP R61 • - Relay 39Index35786-EN-100531

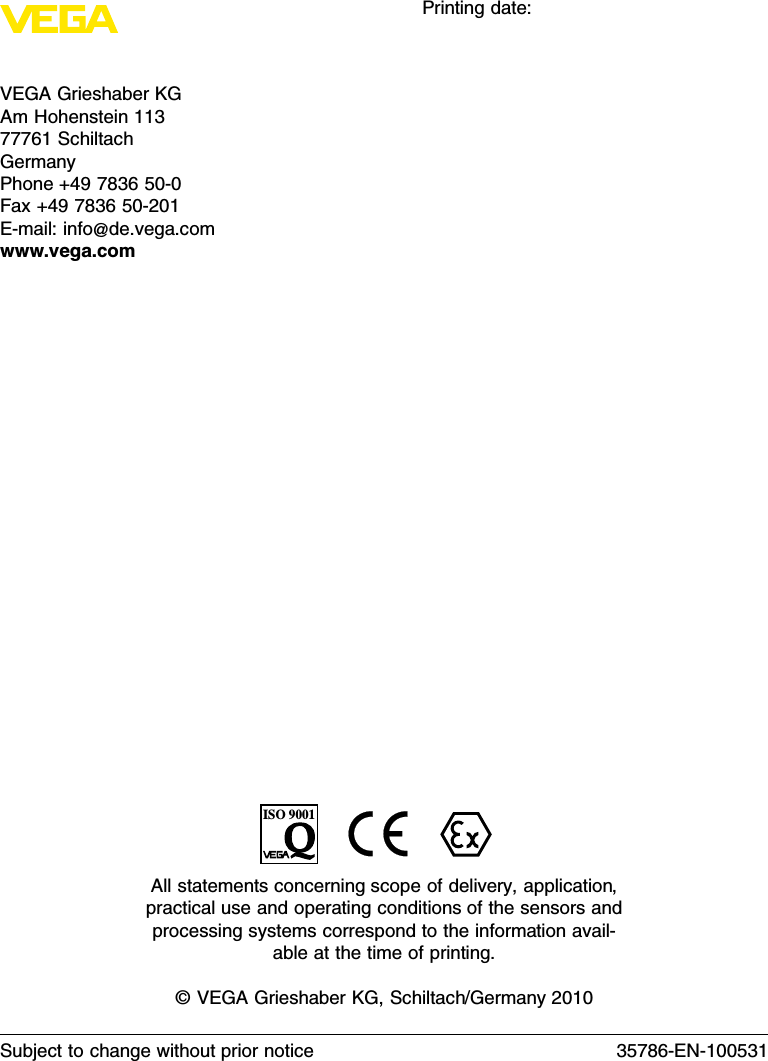

VEGA Grieshaber KGAmHohenstein 11377761 SchiltachGermanyPhone +49 7836 50-0Fax +49 7836 50-201E-mail:info@de.vega.comwww.vega.comPrinting date:ISO 9001All statements concerning scope of delivery,application,practical use and operating conditions of the sensors andprocessing systems correspond to the information avail-able at the time of printing.©VEGA Grieshaber KG,Schiltach/Germany 2010Subject to change without prior notice 35786-EN-100531
