1About this document
1.1Function
This operating instructions manual provides all the information you
need for mounting,connection and setup as well as important
instructions for maintenance and fault rectification.Please read this
information before putting the instrument into operation and keep this
manual accessible in the immediate vicinity of the device.
1.2Target group
This operating instructions manual is directed to trained qualified
personnel.The contents of this manual should be made available to
these personnel and put into practice by them.
1.3Symbolism used
Information,tip,note
This symbol indicates helpful additional information.
Caution:If this warning is ignored,faults or malfunctions can
result.
Warning:If this warning is ignored,injury to persons and/or serious
damage to the instrument can result.
Danger:If this warning is ignored,serious injury to persons and/or
destruction of the instrument can result.
Ex applications
This symbol indicates special instructions for Ex applications.
lList
The dot set in front indicates a list with no implied sequence.
àAction
This arrow indicates a single action.
1Sequence
Numbers set in front indicate successive steps in a procedure.
4VEGAPULS 62 •4…20 mA/HART two-wire
1About this document
36503-EN-100607
2For your safety
2.1Authorised personnel
All operations described in this operating instructions manual must be
carried out only by trained specialist personnel authorised by the plant
operator.
During work on and with the device the required personal protective
equipment must always be worn.
2.2Appropriate use
VEGAPULS 62 is a sensor for continuous level measurement.
You can find detailed information on the application range in chapter
"Product description".
Operational reliability is ensured only if the instrument is properly used
according to the specifications in the operating instructions manual as
well as possible supplementary instructions.
2.3Warning about misuse
Inappropriate or incorrect use of the instrument can give rise to
application-specific hazards,e.g.vessel overfill or damage to system
components through incorrect mounting or adjustment.
2.4General safety instructions
This is a state-of-the-art instrument complying with all prevailing
regulations and guidelines.The instrument must only be operated in a
technically flawless and reliable condition.The operator is responsible
for the trouble-free operation of the instrument.
During the entire duration of use,the user is obliged to determine the
compliance of the required occupational safety measures with the
current valid rules and regulations and also take note of new
regulations.
The safety instructions in this operating instructions manual,the
national installation standards as well as the valid safety regulations
and accident prevention rules must be observed by the user.
For safety and warranty reasons,any invasive work on the device
beyond that described in the operating instructions manual may be
carried out only by personnel authorised by the manufacturer.Arbitrary
conversions or modifications are explicitly forbidden.
The safety approval markings and safety tips on the device must also
be observed.
VEGAPULS 62 •4…20 mA/HART two-wire 5
2For your safety
36503-EN-100607
Depending on the instrument version,the emitting frequencies are in
the Cor Kband range.The low emitting frequencies are far below the
internationally approved limit values.When used correctly,there is no
danger to health.
2.5CE conformity
The device fulfills the legal requirements of the applicable EC
guidelines.By attaching the CE mark,VEGA provides a confirmation
of successful testing.You can find the CE conformity declaration in the
download area of www.vega.com.
2.6Fulfillment of NAMUR recommendations
The device fulfils the requirements of the concerned NAMUR
recommendation.You can find detailed information in the download
section under www.vega.com.
2.7Radio approval for Europe
The instrument is approved according to EN 302372-2:2006-08 for
use in closed vessels.
2.8Radio approval for USA/Canada
This device complies with Part 15 of the FCC Rules.Operation is
subject to the following two conditions:
lthis device may not cause harmful interference,and
lthis device must accept any interference received,including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the manufacturer
could void the user`s authority to operate the equipment.
This device complies with IC RSS-210.
This device is only allowed to operate within closed tanks or containers
made of metal,concrete or glass-fiber reinforced plastic.
2.9Environmental instructions
Protection of the environment is one of our most important duties.That
is why we have introduced an environment management system with
the goal of continuously improving company environmental protection.
The environment management system is certified according to DIN
EN ISO 14001.
Please help us fulfil this obligation by observing the environmental
instructions in this manual:
lChapter "Packaging,transport and storage"
lChapter "Disposal"
6VEGAPULS 62 •4…20 mA/HART two-wire
2For your safety
36503-EN-100607
3Product description
3.1Configuration
The type label contains the most important data for identification and
use of the instrument:
2
1
12
11
5
3
6
4
7
8
9
10

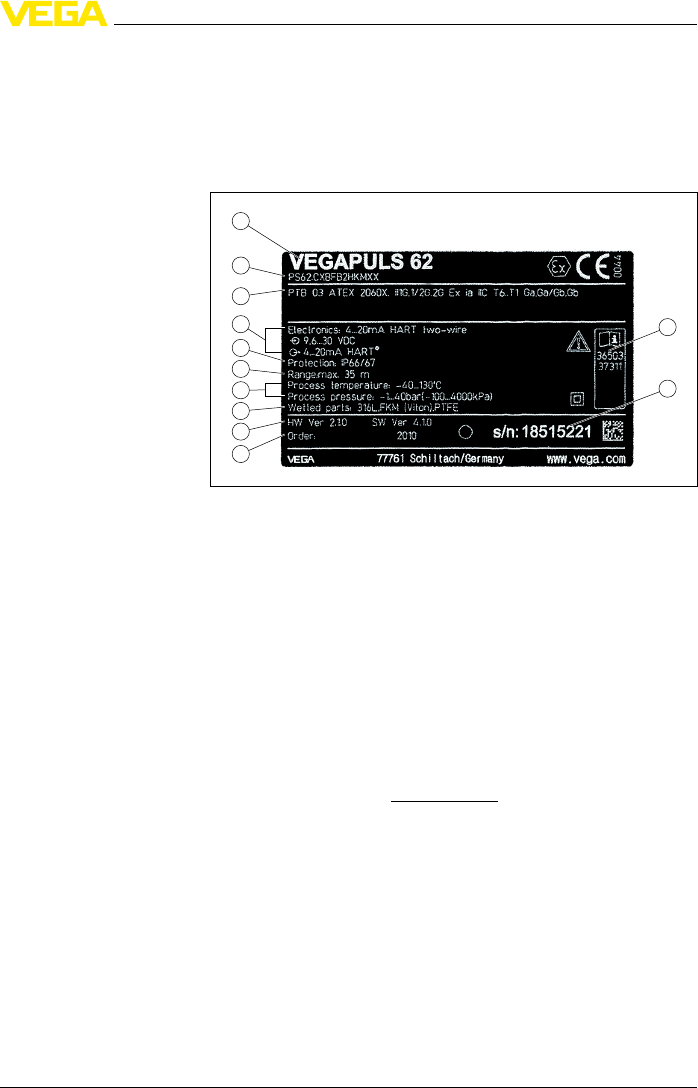

Fig.1:Structure of the type label (example)
1Instrument type
2Product code
3Approvals
4Electronics
5Protection rating
6Measuring range
7Process temperature,process pressure
8Material,wetted parts
9Hardware and software version
10 Order number
11 Serial number of the instrument
12 ID numbers,instrument documentation
The serial number on the type label of the instrument allows you to
have the order data,operating instructions manuals,sensor data for
the service DTM as well as the test certificate (depending on the
instrument)displayed via www.vega.com,"VEGA Tools"and "serial
number search".
This operating instructions manual applies to the following instrument
versions:
lHardware from 2.0.1
lSoftware from 4.1.0
The instrument is available in two different electronics versions:
The version in hand can be determined via the product code on the
type label as well as on the electronics.
lStandard electronics type PS60HK,modification status ≥22
Type label
Serial number
Scope of the operating
instructions manual
Versions
VEGAPULS 62 •4…20 mA/HART two-wire 7
3Product description
36503-EN-100607
lElectronics with increased sensitivity type PS60HS,modification
status ≥22
The scope of delivery encompasses:
lRadar sensor
lDocumentation
-this operating instructions manual
-Safety Manual (SIL)VEGAPULS 62 (optional)
-Operating instructions manual "Indicating and adjustment
module"(optional)
-Operating instructions "Radio module"(optional)
-Supplementary instructions manual "Heating for indicating and
adjustment module"(optional)
-Supplementary instructions manual "Plug connector for con-
tinuously measuring sensors"(optional)
-Ex-specific"Safety instructions"(with Ex versions)
-if necessary,further certificates
3.2Principle of operation

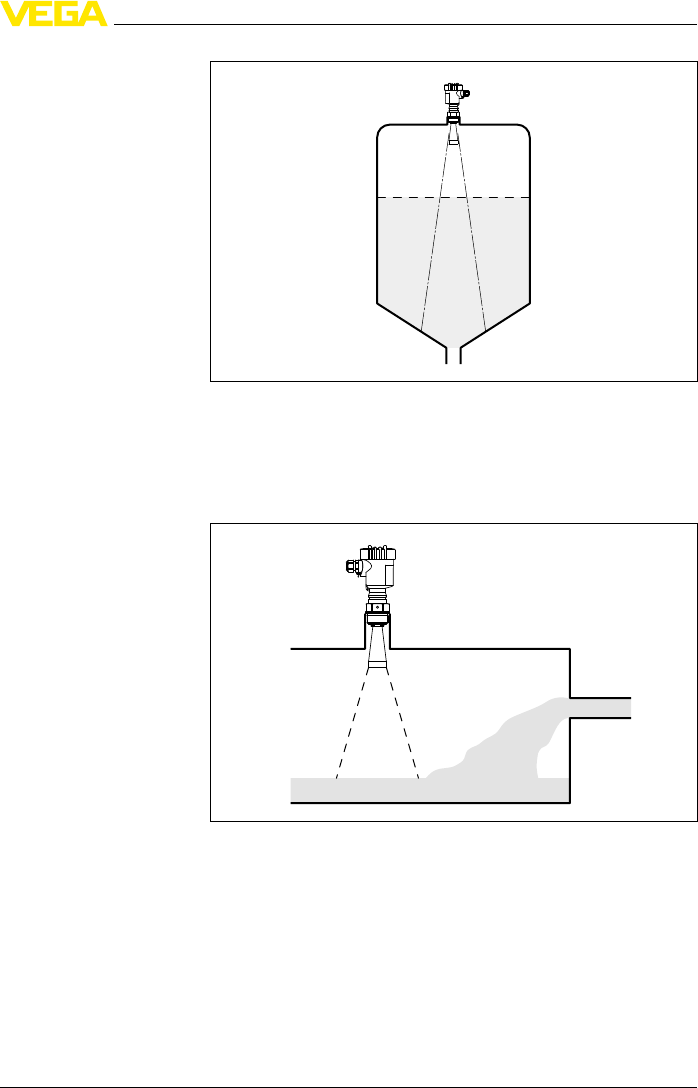

The version with "Horn antenna ø40 mm (1.575 in)"is particularly
suitable for small tanks and process vessels for measurement of
virtually all products.
The version with "Horn antenna ø48 …95 mm (1.89 …3.74 in)"is
particularly suitable for storage tanks and process vessels,for
measurement of products such as solvents,hydrocarbons and fuels
under most difficult process conditions.
The version with Parabolic antenna is particularly suitable for
measurement of products with low ε
r
value at great measuring
distances.
The electronics version with increased sensitivity enables the use of
the instrument also in applications with very poor reflective properties
or products with low ε
r
value.
The antenna of the radar sensor emits short radar pulses with a
duration of approx.1ns.These pulses are reflected by the product
and received by the antenna as echoes.The running time of the radar
pulses from emission to reception is proportional to the distance and
hence to the level.The determined level is converted into an
appropriate output signal and outputted as measured value.
3.3Packaging,transport and storage
Your instrument was protected by packaging during transport.Its
capacity to handle normal loads during transport is assured by a test
according to DIN EN 24180.
Scope of delivery
Application area
Functional principle
Packaging
8VEGAPULS 62 •4…20 mA/HART two-wire
3Product description
36503-EN-100607
The packaging of standard instruments consists of environment-
friendly,recyclable cardboard.For special versions,PE foam or PE foil
is also used.Dispose of the packaging material via specialised
recycling companies.
Transport must be carried out under consideration of the notes on the
transport packaging.Nonobservance of these instructions can cause
damage to the device.
The delivery must be checked for completeness and possible transit
damage immediately at receipt.Ascertained transit damage or
concealed defects must be reported.
Up to the time of installation,the packages must be left closed and
stored according to the orientation and storage markings on the
outside.
Unless otherwise indicated,the packages must be stored only under
the following conditions:
lNot in the open
lDry and dust free
lNot exposed to corrosive media
lProtected against solar radiation
lAvoiding mechanical shock and vibration
lStorage and transport temperature see chapter "Supplement -
Technical data -Ambient conditions"
lRelative humidity 20 …85 %
3.4Accessories and replacement parts
The indicating and adjustment module PLICSCOM is used for
measured value indication,adjustment and diagnosis.It can be
inserted into the sensor and removed at any time.
You can find further information in the operating instructions "Indicating
and adjustment module PLICSCOM"(Document-ID 27835).
The interface adapter VEGACONNECT enables the connection of
communication-capable instruments to the USB interface of a PC.For
parameter adjustment of these instruments,an adjustment software
such as PACTware with VEGA-DTM is required.
You can find further information in the operating instructions "Interface
adapter VEGACONNECT"(Document-ID 32628).
VEGADIS 61 is an external indicating and adjustment unit for sensors
with single chamber housing and double chamber housing Ex d.
Transport
Transport inspection
Storage
Storage and transport
temperature
Indicating and adjust-
ment module
Interface adapter
External indicating and
adjustment unit
VEGAPULS 62 •4…20 mA/HART two-wire 9
3Product description
36503-EN-100607
It is suitable for measured value indication and adjustment of plics®
sensors and is connected to the sensor with an up to 50 m long,four-
wire,screened standard cable.
You can find further information in the operating instructions
"VEGADIS 61"(Document-ID 27720).
VEGADIS 62 is suitable for measured value indication and adjustment
of sensors with HART protocol.It is looped into the 4…20 mA/HART
signal cable.
You can find further information in the operating instructions
"VEGADIS 62"(Document-ID 36469).
The PLICSMOBILE T 61 is an external GSM/GPRS radio unit for
transmission of measured values and for remote parameter adjust-
ment of plics®sensors.The adjustment is carried out via PACTware/
DTM by using the integrated USB connection.
You can find further information in the operating instructions
"PLICSMOBILE T 61"(Document-ID 32865).
The protective cover protects the sensor housing against soiling and
intense heat from solar radiation.
You will find additional information in the supplementary instructions
manual "Protective cover"(Document-ID 34296).
The electronics module VEGAPULS series 60 is a replacement part
for radar sensors of VEGAPULS series 60.Aseparate version is
available for each type of signal output.
You can find further information in the operating instructions
"Electronics module VEGAPULS series 60 "(Document-ID 36801).
The antenna impedance cone is used for optimum transmission of
microwaves and for sealing against the process.
You find further information in the operating instructions "Antenna
impedance cone VEGAPULS 62 and 68"(Document-ID 31381).
External indicating and
adjustment unit with
HART protocol
External radio unit
Protective cover
Electronics module
Antenna impedance co-
ne
10 VEGAPULS 62 •4…20 mA/HART two-wire
3Product description
36503-EN-100607
4Mounting
4.1General instructions
With instruments with threaded process fitting,suitable tools must be
applied for tightening the hexagon.
Warning:
The housing must not be used to screw the instrument in!Applying
tightening force can damage internal parts of the housing.
Use the recommended cables (see chapter "Connecting to power
supply")and tighten the cable gland.
You can give your instrument additional protection against moisture
penetration by leading the connection cable downward in front of the
cable entry.Rain and condensation water can thus drain off.This
applies mainly to outdoor mounting as well as installation in areas
where high humidity is expected (e.g.through cleaning processes)or
on cooled or heated vessels.
Make sure that all parts of the instrument exposed to the process,in
particular the antenna,seal and process fitting,are suitable for the
existing process conditions.These include above all the process
pressure,process temperature as well as the chemical properties of
the medium.
You can find the specifications in chapter "Technical data"or on the
type label.
4.2Mounting preparations -Horn antenna
The instrument is also available in versions where the antenna has a
bigger diameter than the process fitting (thread,flange). The antenna
must therefore be disconnected from the process fitting before
mounting.Proceed as follows:
1Loosen the hexagon screws (3)on the antenna socket with an
Allen wrench (size 3)
2Remove the antenna (4)
Note:
The plastic conemust not be pulled out of the antenna socket.
3Insert the antenna from below into the vessel socket and secure it
against falling off
4Retighten the antenna with hexagon screws to the antenna socket;
torque max.10 Nm(7.5lbf ft)
Screwing in
Moisture
Suitability for the pro-
cess conditions
VEGAPULS 62 •4…20 mA/HART two-wire 11
4Mounting
36503-EN-100607
Note:
The radar sensor with rinsing air connection or antenna extension is
provided with a notch on the antenna socket.This notch must
correspond to the marking on the hexagon of the process fitting (the
marking specifies the position of the polarisation level of the radar
signal).
3
4
1
2

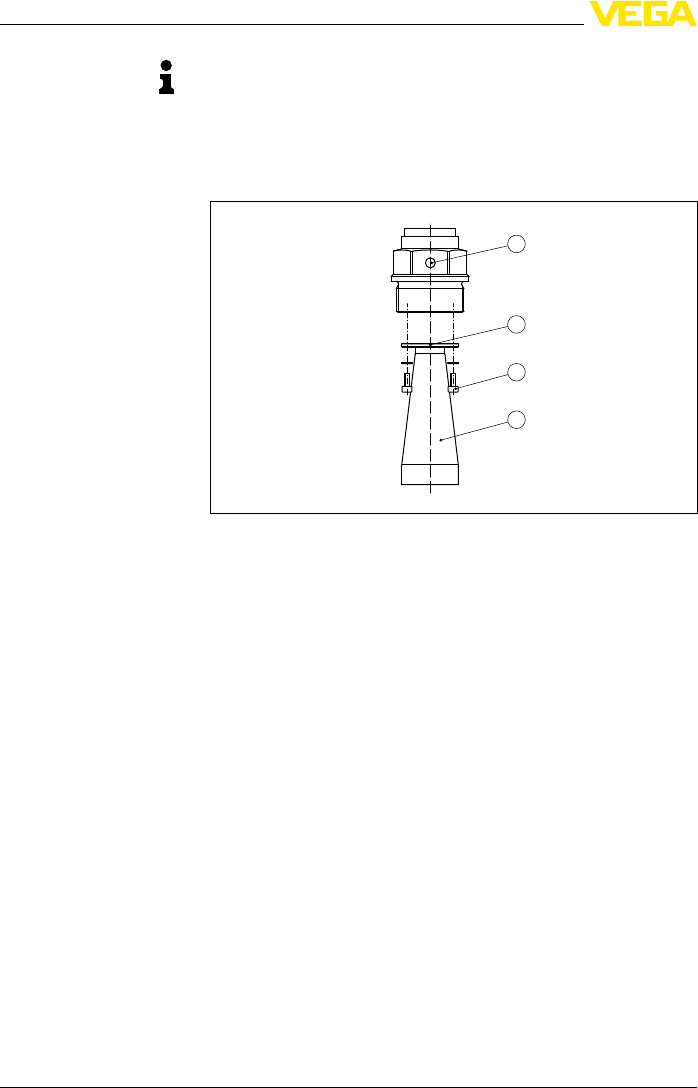

Fig.2:Dismounting of the horn antenna
1Marking of the polarisation plane
2Notch at the antenna socket
3Hexagon screws on the antenna socket
4Antenna
4.3Mounting preparations -Parabolic antenna
The instrument is also available in versions where the antenna has a
diameter larger than the process fitting (thread,flange). With such
versions the antenna must be disconnected from the process fitting
before mounting.Proceed as follows:
1Clamp VEGAPULS 62 with the flange,e.g.in a bench vice
2Hold the connection piece (3)with a wrench (width across flats 22)
on the flattenings
3Loosen counter nut (2)completely with a wrench (width across
flats 36)in the antenna direction
4Loosen compression nut (1)completely with a wrench (width
across flats 41)in the antenna direction
5Remove the parabolic antenna (4)axially
6Mount sensor flange to the adapter flange and clamp it
7Check,if the O-ring seal is available on the connection piece and if
it is not damaged.
12 VEGAPULS 62 •4…20 mA/HART two-wire
4Mounting
36503-EN-100607
Note:
Adamaged O-ring seal must be replaced:FKM (Viton)article no.
2.28248,FFKM (Kalrez 6375)article no.2.27351
8Remount the parabolic antenna (4)
9Fasten compression nut (1)with a wrench (width across flats 41),
torque max.50 Nm
10 Fasten counter nut (2)with a wrench (width across flats 36), torque
max.40 Nm
Note:
Take note for the version with rinsing air connection that the holes in
the antenna and in the process fitting correspond.This ensures a
sufficient air flow (the air is led through the holes to the feed system.A
rinsing of the parabolic antenna in total is not intended).
1
2
3
4

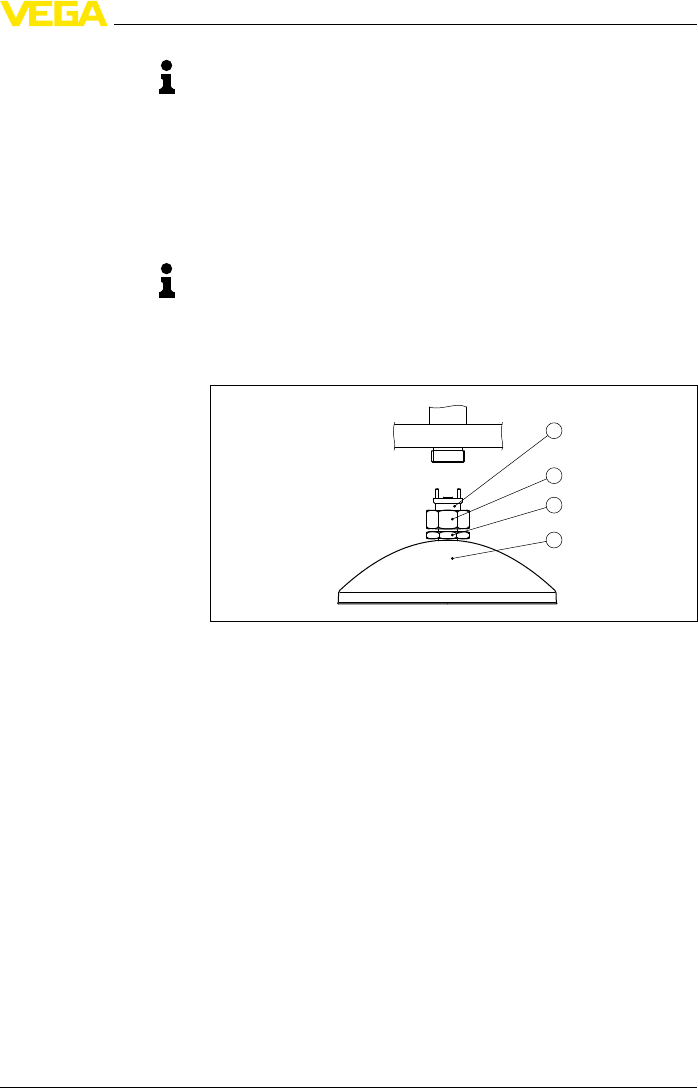

Fig.3:Dismounting,parabolic antenna
1Compression nut
2Locknut
3Connection piece
4Parabolic antenna
4.4Mounting instructions
The illustrations with the following mounting instructions show a radar
sensor with horn antenna.The mounting instructions apply analo-
gously also to the version with parabolic antenna.
The emitted radar impulses of the radar sensor are electromagnetic
waves.The polarisation level is the direction of the electrical wave
component.By turning the instrument in the connection flange or
mounting boss,the polarisation can be used to reduce the effects of
false echoes.
The position of the polarisation plane is marked on the process fitting
of the instrument.
Horn and parabolic an-
tenna
Polarisation plane
VEGAPULS 62 •4…20 mA/HART two-wire 13
4Mounting
36503-EN-100607
1
1
Fig.4:Position of the polarisation level
1Marking hole
When mounting the sensor,keep a distance of at least 200 mm
(7.874 in)from the vessel wall.If the sensor is installed in the center of
dished or round vessel tops,multiple echoes can arise.However,
these can be suppressed by an appropriate adjustment (see chapter
"Setup").
If you cannot keep this distance you should carry out a false echo
storage before setup.This applies mainly if buildup on the vessel wall
is expected.In this case,we recommend repeating a false echo
storage later with existing buildup.
> 200 mm
(7.87
")

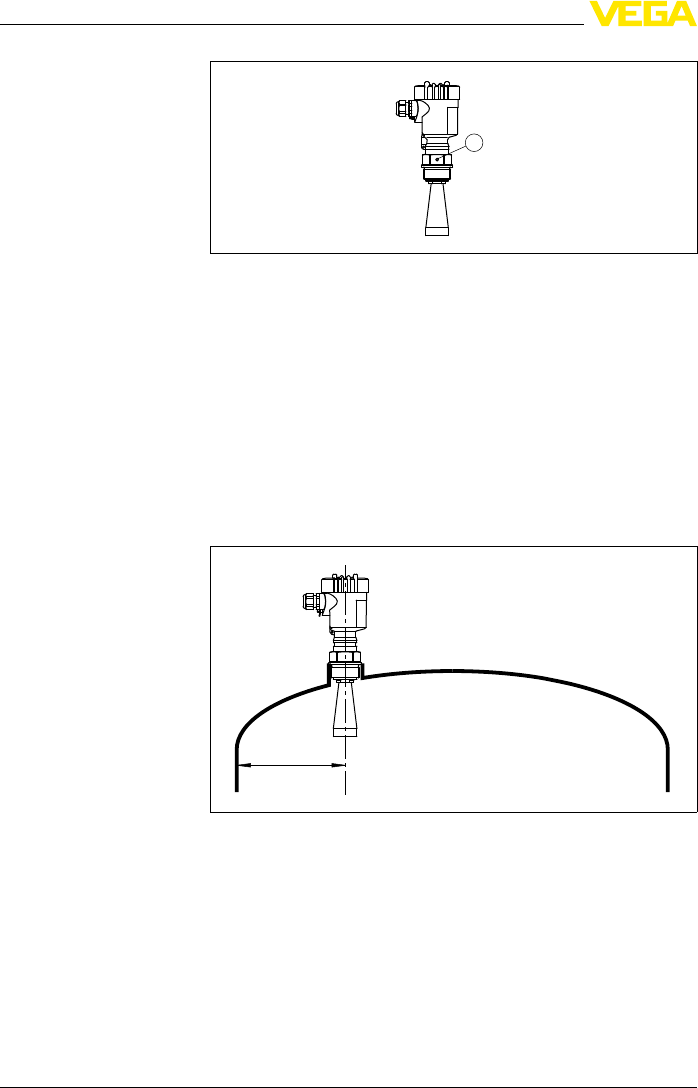

Fig.5:Mounting of the radar sensor on round vessel tops
In vessels with conical bottom it can be advantageous to mount the
sensor in the center of the vessel,as measurement is then possible
down to the lowest point of the vessel bottom.
Mounting position
14 VEGAPULS 62 •4…20 mA/HART two-wire
4Mounting
36503-EN-100607
Fig.6:Mounting of the radar sensor on vessels with conical bottom
Do not mount the instruments in or above the filling stream.Make sure
that you detect the product surface,not the inflowing product.
Fig.7:Mounting of the radar sensor with inflowing medium
The socket piece should be dimensioned in such a way that the
antenna end protrudes at least 10 mm (0.4in)out of the socket.
Inflowing medium
Socket
VEGAPULS 62 •4…20 mA/HART two-wire 15
4Mounting
36503-EN-100607
10 mm
>

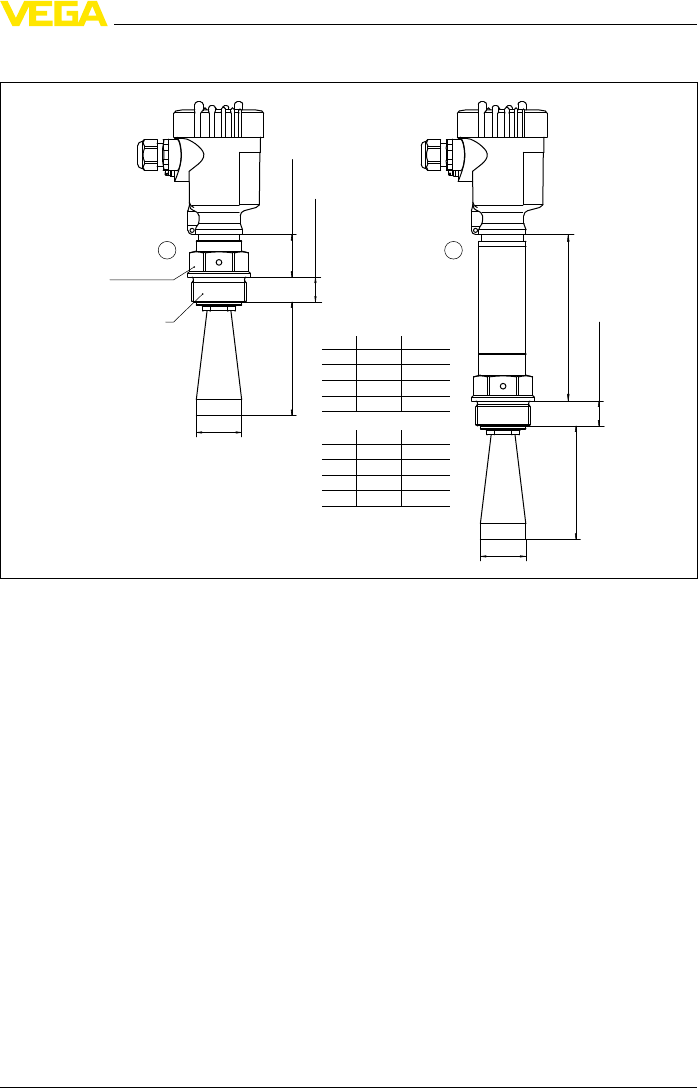

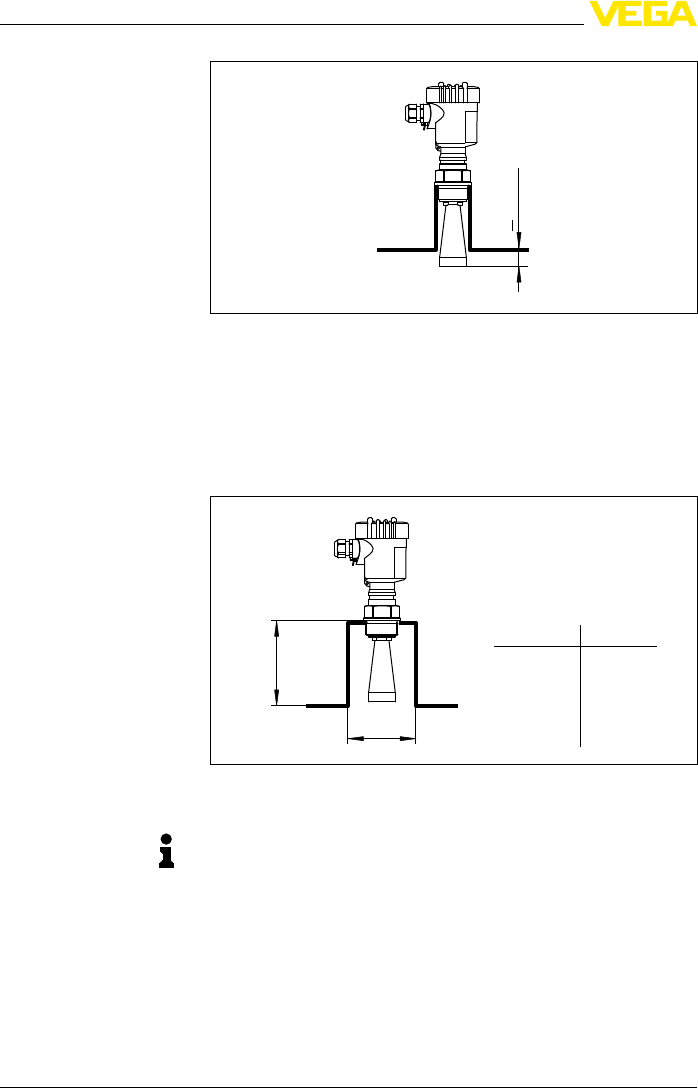

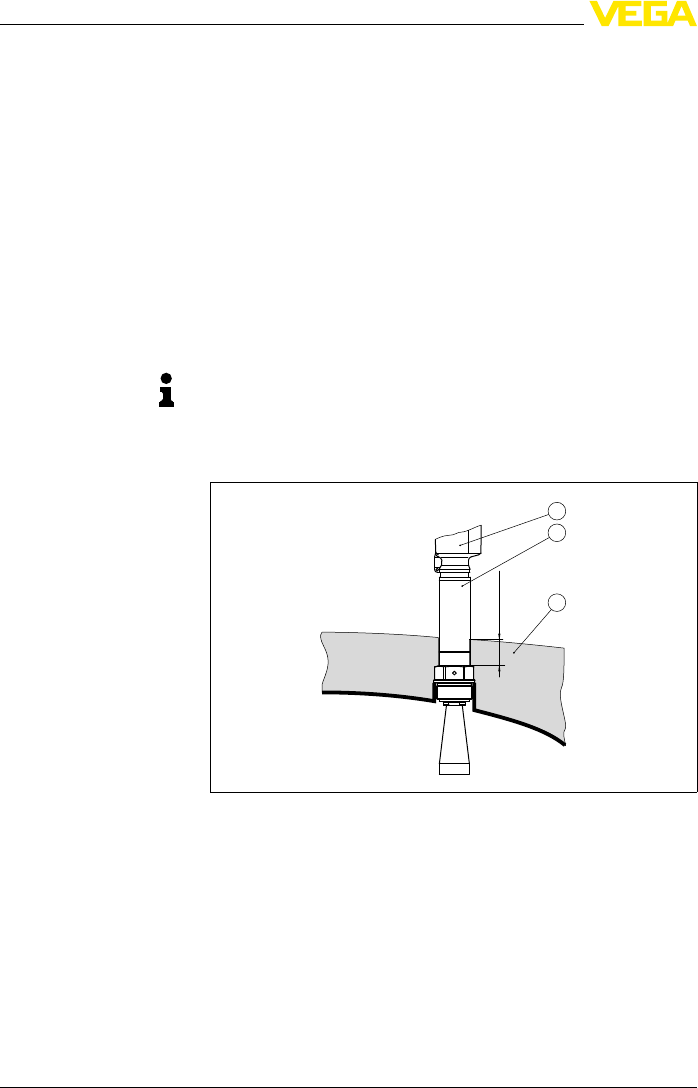

Fig.8:Recommended socket mounting
If the reflective properties of the medium are good,you can mount
radar sensor on sockets which are higher than the length of the
antenna.You will find recommended values for socket heights in the
following illustration.The socket end should be smooth and burr-free,if
possible also rounded.After installation you must carry out a false
echo storage.
d
hmax.
d
1½"
50 mm/2"
80 mm/3"
100 mm/4"
150 mm/6"
200 mm
250 mm
300 mm
500 mm
800 mm
hmax.
Fig.9:Deviating socket dimensions
Tip:
The instrument is optionally also available with antenna extension.
Hence the antenna length can be selected such that the antenna end
protrudes 10 mm (0.4in)out of the socket.
In liquids,align the sensor as vertical as possible to the product
surface to achieve optimum measuring results.
Orientation of the sensor
16 VEGAPULS 62 •4…20 mA/HART two-wire
4Mounting
36503-EN-100607
Fig.10:Alignment in liquids
The mounting location of the radar sensor should be a place where no
other equipment or fixtures cross the path of the microwave signals.
Vessel installations,such as e.g.ladders,limit switches,heating
spirals,struts,etc., can cause false echoes and impair the useful echo.
Make sure when planning your measuring site that the radar sensor
has a "clear view"to the measured product.
In case of existing vessel installations,a false echo storage should be
carried out during setup.
If large vessel installations such as struts or supports cause false
echoes,these can be attenuated through supplementary measures.

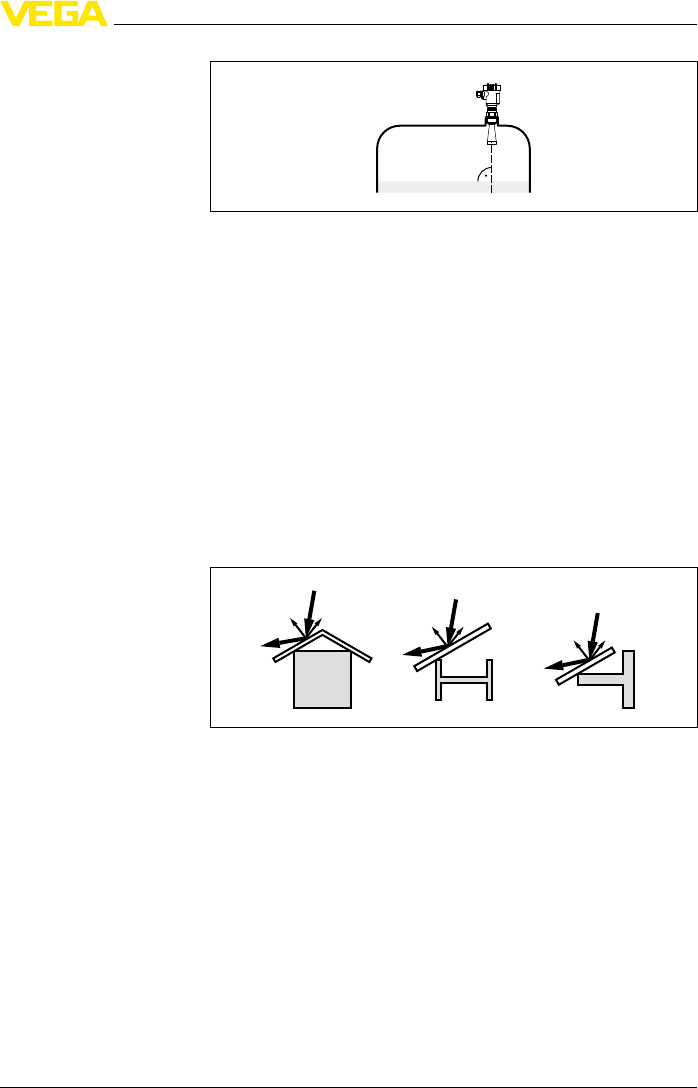

Small,inclined sheet metal baffles above the installations scatter the
radar signals and prevent direct interfering reflections.
Fig.11:Cover smooth profiles with deflectors
If there are agitators in the vessel,a false signal suppression should be
carried out with the agitators in motion.This ensures that the interfering
reflections from the agitators are saved with the blades in different
positions.
Vessel installations
Agitators
VEGAPULS 62 •4…20 mA/HART two-wire 17
4Mounting
36503-EN-100607

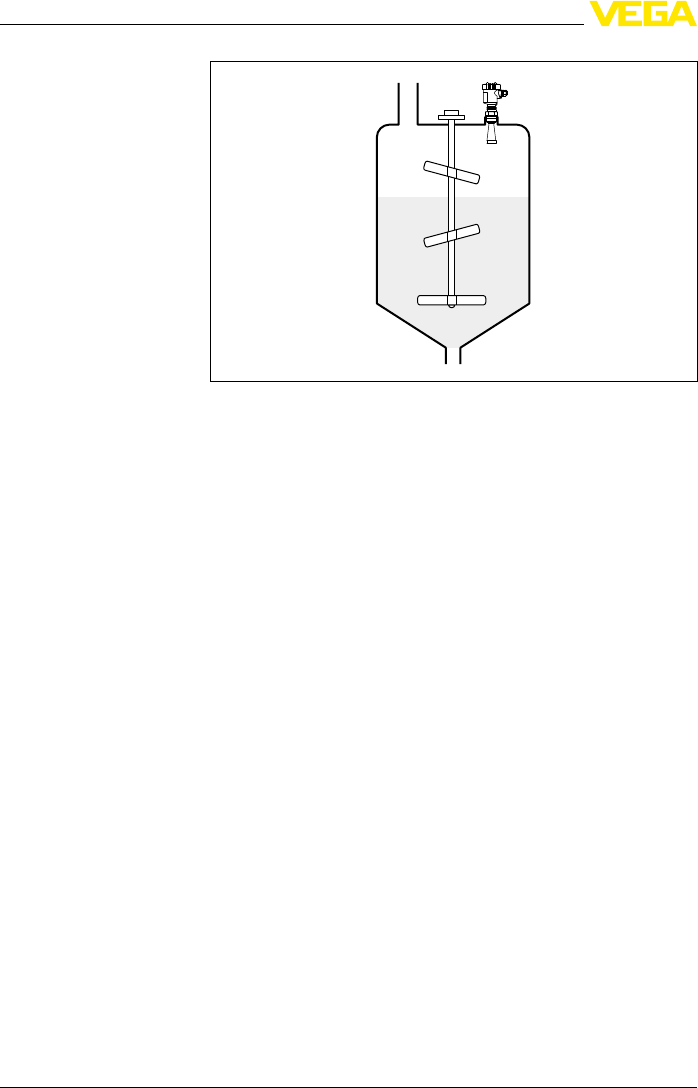

Fig.12:Agitators
Through the action of filling,stirring and other processes in the vessel,
compact foams that damp the emitted signals considerably may form
on the product surface.
If foams are causing measurement errors,the biggest possible radar
antennas,the electronics with increased sensitivity or low frequency
radar sensors (Cband)should be used.
As an alternative,sensors with guided microwave can be used.These
are unaffected by foam generation and are best suited for such
applications.
When using a surge pipe in a vessel,influences from vessel
installations and turbulences can be excluded.Under these prereq-
uisites,the measurement of products with low dielectric values (ε
r
value ≥1.6)is possible.In very adhesive products,measurement in a
surge pipe is not recommended.
Foam generation
Measurement in a surge
pipe
18 VEGAPULS 62 •4…20 mA/HART two-wire
4Mounting
36503-EN-100607
0%
100%
1
2
3
1
2
3
4
5
8
6
7
9

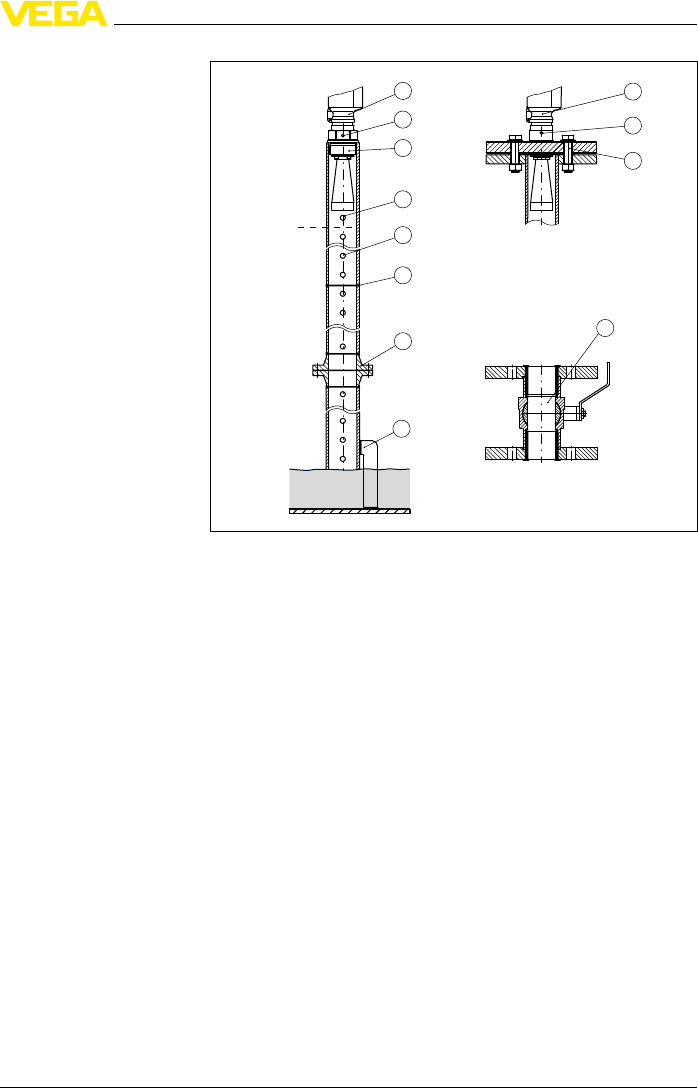

Fig.13:Configuration surge pipe
1Radar sensor
2Marking of the polarisation plane
3Thread or flange on the instrument
4Vent hole
5Holes
6Weld joint
7Welding neck flange
8Ball valve with complete opening
9Fastening of the surge pipe
Instructions for orientation:
lNote marking of the polarisation plane on the sensor
lWith threaded fitting,the marking is on the hexagon,with flange
connection between the two flange holes
lThe marking must show to the direction of the holes in the surge
pipe
Instructions for the measurement:
lThe 100 %point must be below the upper vent hole and the
antenna edge
lThe 0%point is the end of the surge pipe
lFor the parameter adjustment,select "Application standpipe"and
enter the tube diameter to compensate errors due to running time
shift
lAfalse signal suppression with integrated sensor is recommended
but not mandatory
VEGAPULS 62 •4…20 mA/HART two-wire 19
4Mounting
36503-EN-100607
lThe measurement through a ball valve with complete run is
possible
Constructional requirements on the surge pipe:
lMaterial metal,smoother inner tube
lPreferably pultruded or straight beaded stainless steel tube
lWelded joint should be straight and lie in one axis with the holes
lFlanges are welded to the tube according to the orientation of the
polarisation level
lIn case of a extension with a welding neck flange or pipe collar as
well as when a ball valve is used,the inner surfaces should be
aligned and accurately joined together
lGap size with junctions ≤0.1mm
lDo not weld through the pipe wall.The surge pipe must remain
smooth inside.Roughness and beads on the inside caused by
unintentional penetration should be removed since they cause
strong false echoes and encourage buildup
lSurge pipes must extend all the way down to the requested min.
level,as measurement is only possible within the tube.
lDiameter of holes ≤5mm,any number OK,on one side or
completely through
lThe antenna diameter of the sensor should correspond to the
inner diameter of the tube
lDiameter should be constant over the complete length
An alternative to measurement in a surge pipe is measurement in a
bypass tube outside of the vessel.
Measurement in the by-
pass
20 VEGAPULS 62 •4…20 mA/HART two-wire
4Mounting
36503-EN-100607
0 %
100 %
1
2
5
4
3
6
Fig.14:Configuration bypass
1Radar sensor
2Marking of the polarisation plane
3Instrument flange
4Distance sensor reference plane to upper tube connection
5Distance of the tube connections
6Ball valve with complete opening
Instructions for orientation:
lNote marking of the polarisation plane on the sensor
lWith threaded fitting,the marking is on the hexagon,with flange
connection between the two flange holes
lThe marking must show to the direction of the tube connections to
the vessel
Instructions for the measurement:
lThe 100 %point must not be above the upper tube connection to
the vessel
lThe 0%point must not be below the lower tube connection to the
vessel
lMin.distance sensor reference plane to the upper edge upper
tube connection >300 mm
lFor the parameter adjustment,select "Application standpipe"and
enter the tube diameter to compensate errors due to running time
shift
lAfalse signal suppression with integrated sensor is recommended
but not mandatory
lThe measurement through a ball valve with complete run is
possible
Constructional requirements on the bypass pipe:
VEGAPULS 62 •4…20 mA/HART two-wire 21
4Mounting
36503-EN-100607
lMaterial metal,smoother inner tube
lIn case of an extremely rough tube inner surface,use an inserted
tube (tube in tube)or a radar sensor with tube antenna
lFlanges are welded to the tube according to the orientation of the
polarisation level
lGap size with junctions ≤0.1mm,for example,when using a ball
valve or intermediate flanges with single pipe sections
lThe antenna diameter of the sensor should correspond to the
inner diameter of the tube
lDiameter should be constant over the complete length
Instruments for a temperature range up to 250 °Cor up to 450 °Chave
a distance piece between process fitting and electronics housing.Ths
distance piece is used for thermal decoupling of the electronics
against high process temperatures.
Information:
The distance piece must only be incorporaed up to max.50 mm in the
vessel installation.Only then,a reliable temperature decoupling is
guaranteed.
max. 50 mm
(1.97")
1
2
3
Fig.15:Mounting of the instrument with insulated vessels.
1Electronics housing
2Distance piece
3Vessel insulation
The short examples give you introductory information on the flow
measurement.Detailed planning information is available from flume
manufacturers and in special literature.
Mounting in the vessel
insulation
Flow measurement with
rectangular flume
22 VEGAPULS 62 •4…20 mA/HART two-wire
4Mounting
36503-EN-100607
3 ... 4 hmax
≥ 50 mm
90°
2 3
1
hmax dmin
≥ 2 mm x hmax
90°
42 3

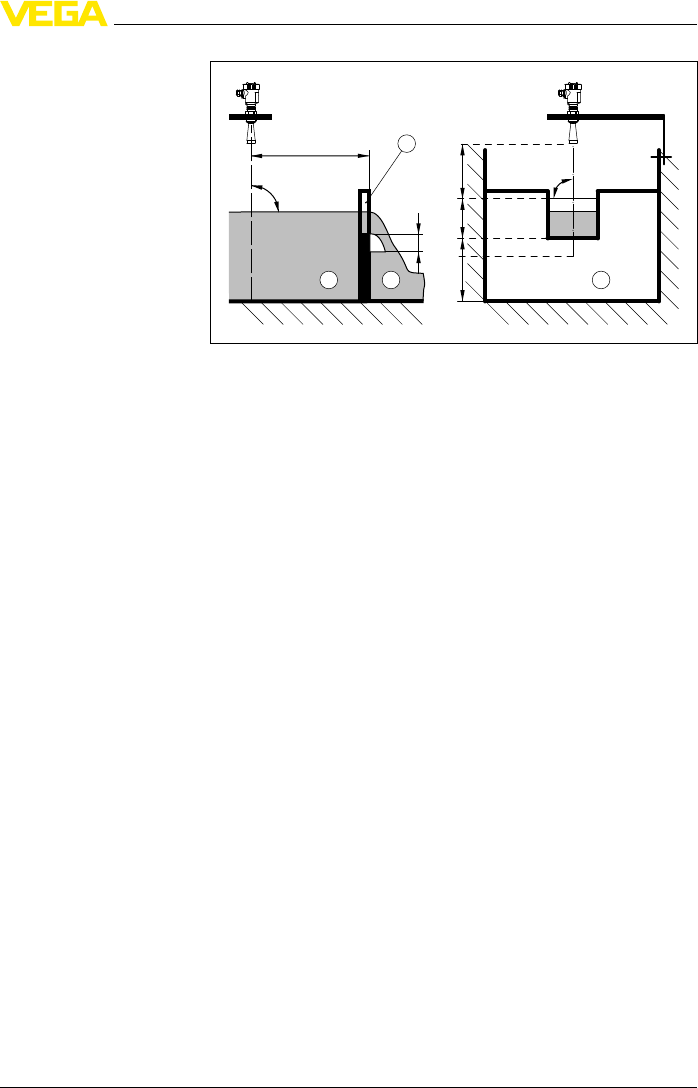

Fig.16:Flow measurement with rectangular flume:d
min.
=min.distance of the
sensor (see chapter "Technical data"); h
max.
=max.filling of the rectangular
flume
1Overflow orifice (side view)
2Headwater
3Tail water
4Overfall orifice (view from bottom water)
In general,the following points must be observed:
lInstall the sensor on the headwater side
lInstallation in the centre of the flume and vertical to the liquid
surface
lDistance to the overfall orifice
lDistance of orifice opening above ground
lMin.distance of the orifice opening to bottom water
lMin.distance of the sensor to max.storage level
VEGAPULS 62 •4…20 mA/HART two-wire 23
4Mounting
36503-EN-100607
2
3 ... 4 x hmax
90°
hmax
d
B
1

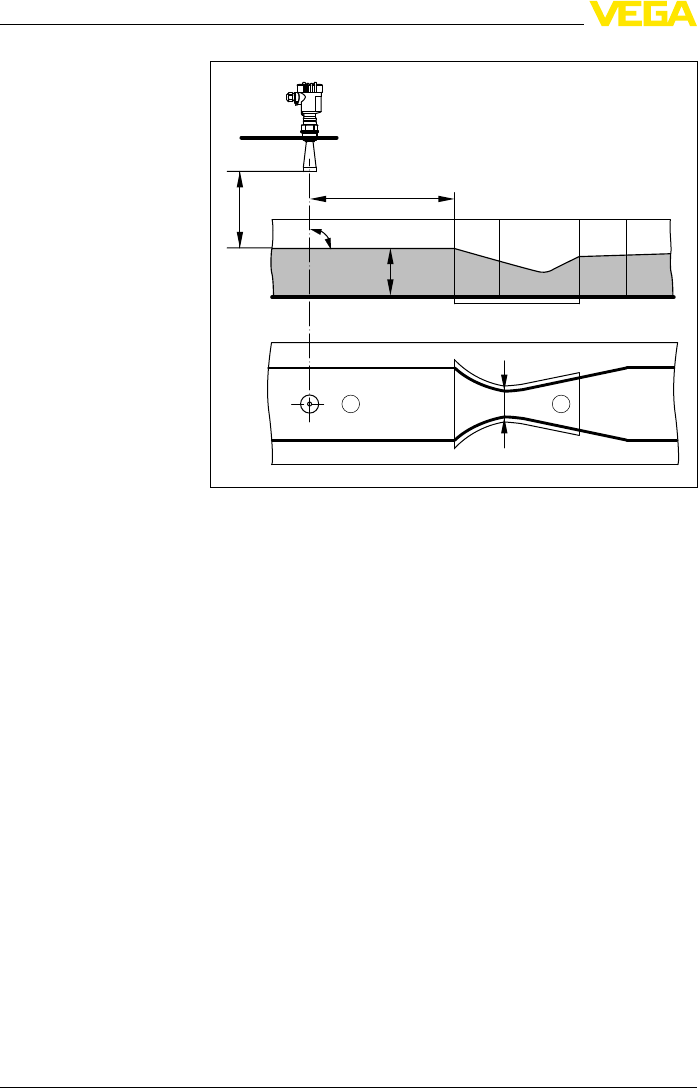

Fig.17:Flow measurement with Khafagi-Venturi flume:d=Min.distance to
sensor;h
max.
=max.filling of the flume;B=tightest constriction in the flume
1Position sensor
2Venturi flume
In general,the following points must be observed:
lInstallation of the sensor at the inlet side
lInstallation in the centre of the flume and vertical to the liquid
surface
lDistance to the Venturi flume
lMin.distance of the sensor to max.storage level
Flow measurement with
Khafagi Venturi flume
24 VEGAPULS 62 •4…20 mA/HART two-wire
4Mounting
36503-EN-100607
5Connecting to power supply
5.1Preparing the connection
Always keep in mind the following safety instructions:
lConnect only in the complete absence of line voltage
lIf overvoltages are expected,install overvoltage arresters
Power supply and current signal are carried on the same two-wire
cable.The voltage supply range can differ depending on the
instrument version.
The data for power supply are specified in chapter "Technical data".
Provide a reliable separation between the supply circuit and the mains
circuits according to DIN VDE 0106 part 101.
Keep in mind the following additional influences on the operating
voltage:
lOutput voltage of the power supply unit can be lower under
nominal load (with a sensor current of 20.5mAor 22 mAin case of
fault message)
lInfluence of additional instruments in the circuit (see load values in
chapter "Technical data")
The signal conditioning instruments VEGAMET and VEGASCAN have
digital sensor recognition.When connecting VEGAPULS 62,an up-to-
date software version of the signal conditioning instrument is required
for the signal conditioning instrument.For a software update go to
"Software"under "www.vega.com/downloads".
The instrument is connected with standard two-wire cable without
screen.If electromagnetic interference is expected which is above the
test values of EN 61326 for industrial areas,screened cable should be
used.
Use cable with round cross-section.Acable outer diameter of 5…9mm
(0.2…0.35 in)ensures the seal effect of the cable gland.If you are
using cable with a different diameter or cross-section,exchange the
seal or use a suitable cable gland.
We generally recommend the use of screened cable for HART
multidrop mode.
With plastic housing,the NPT cable gland or the Conduit steel tube
must be screwed without grease into the threaded insert.
Max.torque for all housings see chapter "Technical data"
Safety instructions
Voltage supply
Connection to signal
conditioning instru-
ments
Connection cable
Cable gland ½NPT
VEGAPULS 62 •4…20 mA/HART two-wire 25
5Connecting to power supply
36503-EN-100607
If screened cable is necessary,connect the cable screen on both ends
to ground potential.In the sensor,the screen must be connected
directly to the internal ground terminal.The ground terminal on the
outside of the housing must be connected to the potential equalisation
(low impedance).
If potential equalisation currents are expected,the connection on the
processing side must be made via a ceramic capacitor (e.g.1nF,
1500 V). The low frequency potential equalisation currents are thus
suppressed,but the protective effect against high frequency interfer-
ence signals remains.
Warning:
Within galvanic plants as well as vessels with cathodic corrosion
protection there are considerable potential differences.Considerably
equalisation currents can be caused via the cable scrren when the
screen is earthed on both ends.To avoid this,the cable screen must
only connected to ground potential on one side of the switching
cabinet in such applications.The cable screen must not be connected
to the internal ground terminal in the sensor and the outer ground
terminal on the housing not to the potential equalisation!
Information:
The metal parts of the instrument (antenna,transmitter,concentric
tube,etc.) are conductive connected with the inner and outer ground
terminal on the housing.This connection exists either directly metallic
or with instruments with external electronics via the screen of the
special connection cable.You can find specifications to the potential
connections within the instrument in chapter "Technical data".
5.2Connection
The connection of the voltage supply and the signal output is carried
out via the spring-loaded terminals in the housing.
The connection to the indicating and adjustment module or to the
interface adapter is carried out via contact pins in the housing.
Proceed as follows:
1Unscrew the housing cover
2If an indicating and adjustment module is installed,remove it by
turning it slightly to the left.
3Loosen compression nut of the cable entry
4Remove approx.10 cm (4in)of the cable mantle,strip approx.
1cm (0.4in)of insulation from the ends of the individual wires
Cable screening and
grounding
Connection technology
Connection procedure
26 VEGAPULS 62 •4…20 mA/HART two-wire
5Connecting to power supply
36503-EN-100607
5Insert the cable into the sensor through the cable entry
Fig.18:Connection steps 5and 6
6Insert the wire ends into the terminals according to the wiring plan
Information:
Solid cores as well as flexible cores with cable end sleeves are
inserted directly into the terminal openings.In case of flexible cores
without end sleeves,press the terminal head with a small screwdriver;
the terminal opening is freed.When the screwdriver is released,the
terminal closes again.
7Check the hold of the wires in the terminals by lightly pulling on
them
8Connect the screen to the internal ground terminal,connect the
outer ground terminal to potential equalisation
9Tighten the compression nut of the cable entry.The seal ring must
completely encircle the cable
10 Screw the housing cover on
The electrical connection is finished.
Information:
The terminal block is pluggable and can be removed from the
electronics.For this purpose,lift the terminal block with a small
screwdriver and pull it out.When inserting the terminal block again,
you should hear it snap in.
VEGAPULS 62 •4…20 mA/HART two-wire 27
5Connecting to power supply
36503-EN-100607
5.3Wiring plan,single chamber housing
The following illustration applies to the non-Ex as well as to the Ex-ia
version.
5
12
+
( ) (-)
6 7 8
4...20mA
2
3
4
1

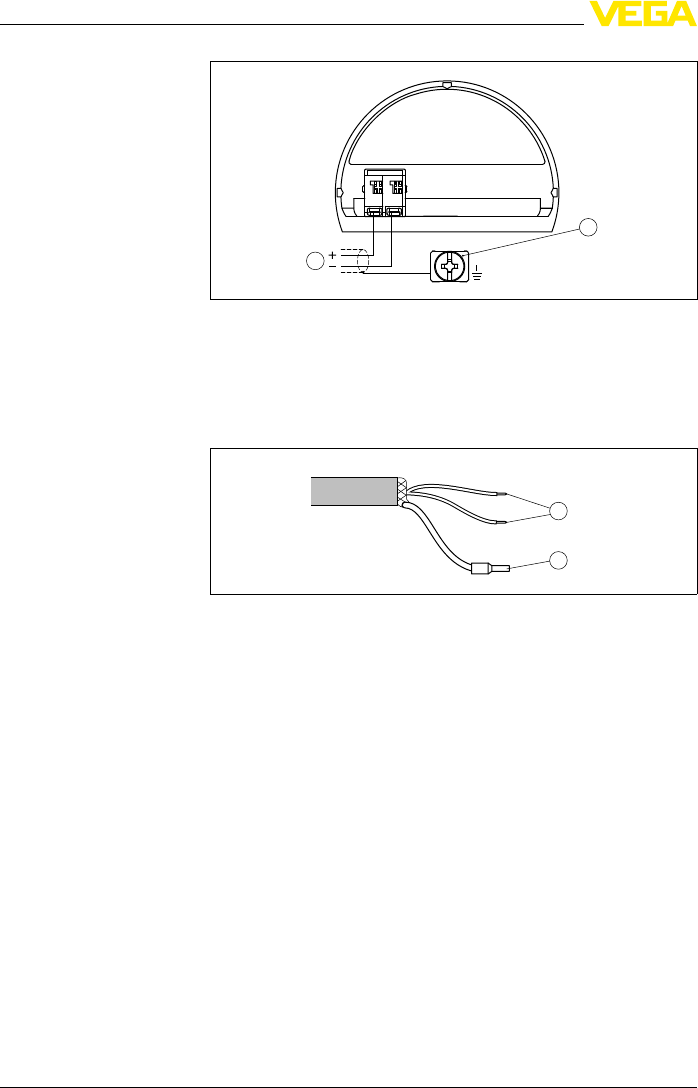

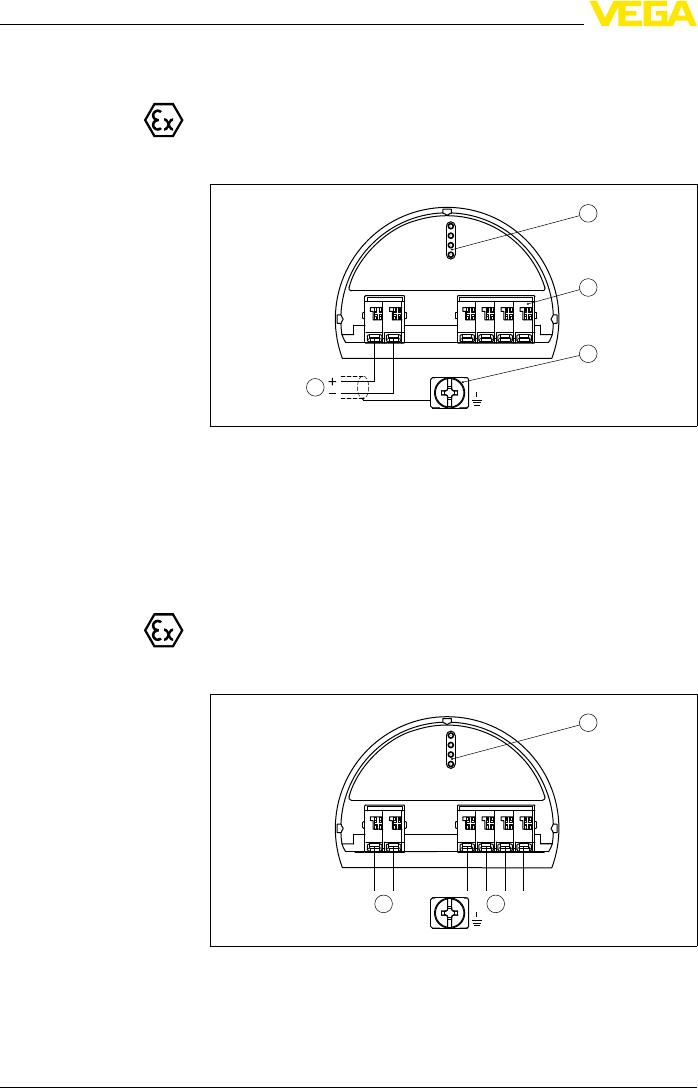

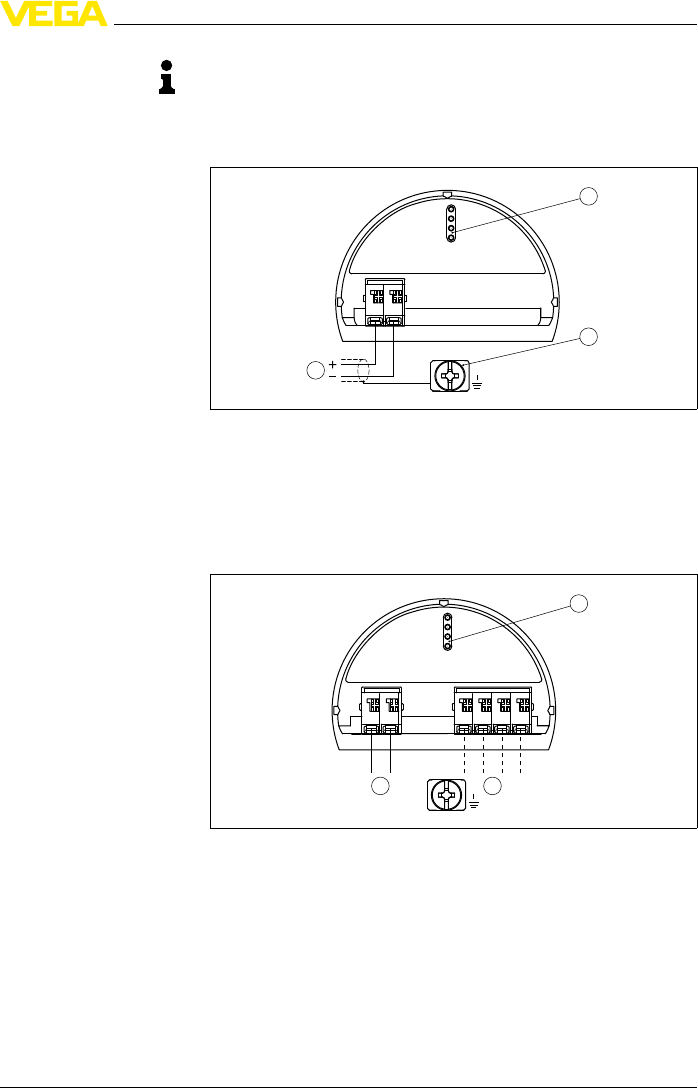

Fig.19:Electronics and connection compartment with single chamber housing
1Voltage supply/Signal output
2For indicating and adjustment module or interface adapter
3For external indicating and adjustment unit
4Ground terminal for connection of the cable screen
5.4Wiring plan,double chamber housing
The following illustrations apply to the non-Ex as well as to the Ex-ia
version.
5 6 7 8
4...20mA
2
12
+
( ) (-)
11
Fig.20:Electronics compartment,double chamber housing
1Internal connection to the connection compartment
2For indicating and adjustment module or interface adapter
Electronics and connec-
tion compartment
Electronics compart-
ment
28 VEGAPULS 62 •4…20 mA/HART two-wire
5Connecting to power supply
36503-EN-100607
Information:
The connection of an external indicating and adjustment unit is not
possible with this double chamber housing.
4...20mA
2
3
12
+
( ) (-)
1
Fig.21:Connection compartment,double chamber housing
1Voltage supply/Signal output
2For indicating and adjustment module or interface adapter
3Ground terminal for connection of the cable screen
5.5Wiring plan with double chamber housing Ex d
5 6 7 8
12
+
( ) (-)
31
2
4...20mA
Fig.22:Electronics compartment,double chamber housing
1Internal connection to the connection compartment
2For indicating and adjustment module or interface adapter
3Internal connection to the plug connector for external indicating and
adjustment unit (optional)
Connection compart-
ment
Electronics compart-
ment
VEGAPULS 62 •4…20 mA/HART two-wire 29
5Connecting to power supply
36503-EN-100607
4...20mA
2
12
+
( ) (-)
1
Fig.23:Connection compartment double chamber housing Ex d
1Voltage supply/Signal output
2Ground terminal for connection of the cable screen
5.6Wiring plan -version IP 66/IP 68,1bar
+
-
1
2
Fig.24:Wire assignment fix connected connection cable
1brown (+)and blue (-) to power supply or to the processing system
2Shielding
5.7Switch on phase
After connecting the instrument to power supply or after a voltage
recurrence,the instrument carries out a self-check for approx.30
seconds:
lInternal check of the electronics
lIndication of the instrument type,the software version as well as
the measurement loop name
lOutput signal jumps to the adjusted error current until a plausible
measured value is found
Then the corresponding current is outputted to the signal cable.The
value corresponds to the actual level as well as the settings already
carried out,e.g.factory setting.
Connection compart-
ment
Wire assignment con-
nection cable
30 VEGAPULS 62 •4…20 mA/HART two-wire
5Connecting to power supply
36503-EN-100607
6Set up with the indicating and adjustment
module
6.1Insert indicating and adjustment module
The indicating and adjustment module can be inserted into the sensor
and removed again at any time.It is not necessary to interrupt the
power supply.
Proceed as follows:
1Unscrew the housing cover
2Place the indicating and adjustment module in the desired position
on the electronics (you can choose any one of four different
positions -each displaced by 90°)
3Press the indicating and adjustment module onto the electronics
and turn it to the right until it snaps in.
4Screw housing cover with inspection window tightly back on
Removal is carried out in reverse order.
The indicating and adjustment module is powered by the sensor,an
additional connection is not necessary.

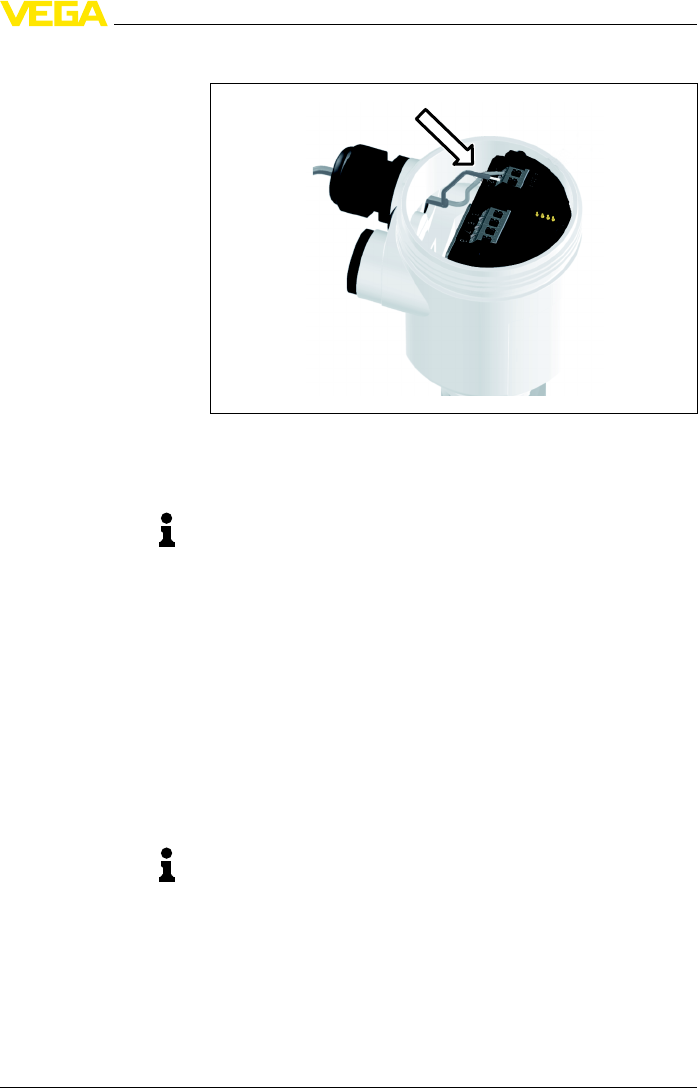

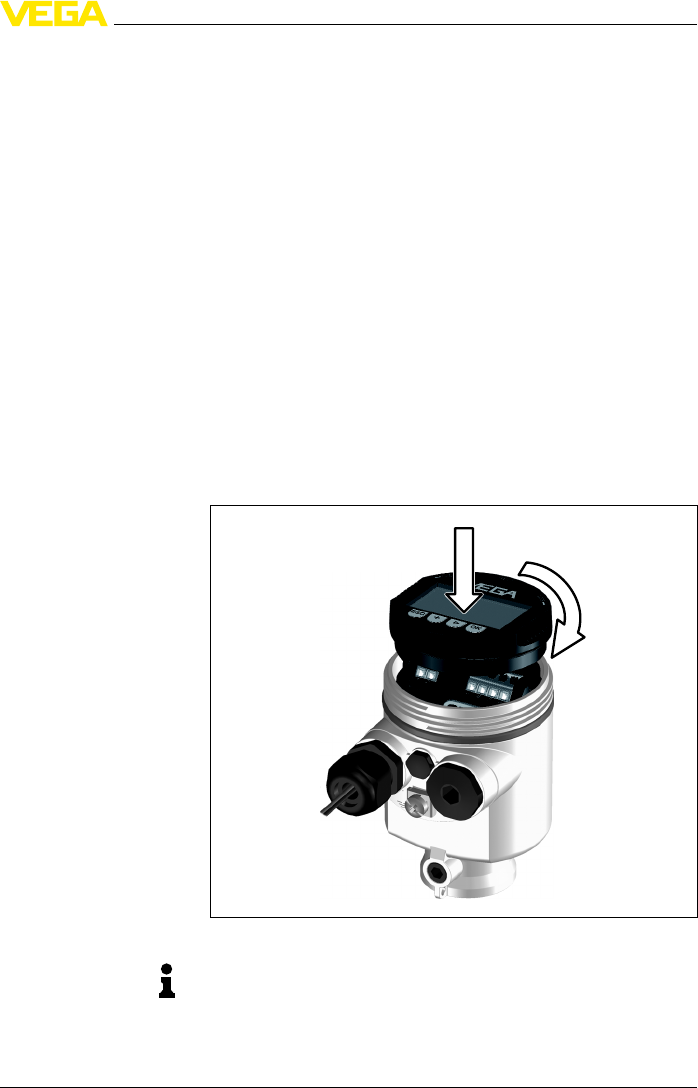

Fig.25:Insert indicating and adjustment module
Note:
If you intend to retrofit the instrument with an indicating and adjustment
module for continuous measured value indication,a higher cover with
an inspection glass is required.
Mount/Dismount indica-
ting and adjustment mo-
dule
VEGAPULS 62 •4…20 mA/HART two-wire 31
6Set up with the indicating and adjustment module
36503-EN-100607
6.2Adjustment system
1
2

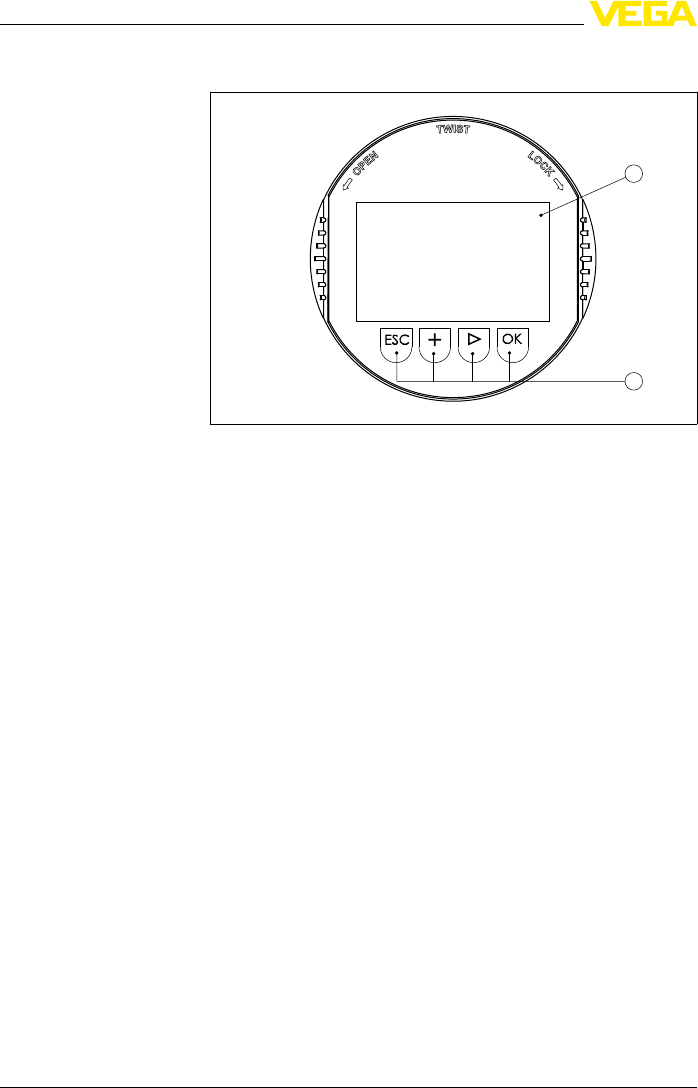

Fig.26:Indicating and adjustment elements
1LC display
2Adjustment keys
l[OK]key:
-Move to the menu overview
-Confirm selected menu
-Edit parameter
-Save value
l[->]key:
-Presentation change measured value
-Select list entry
-Select editing position
l[+]key:
-Change value of the parameter
l[ESC]key:
-interrupt input
-Jump to next higher menu
The sensor is adjusted via the four keys of the indicating and
adjustment module.The LC display indicates the individual menu
items.The functions of the individual keys are shown in the above
illustration.Approx.10 minutes after the last pressing of a key,an
automatic reset to measured value indication is triggered.Any values
not confirmed with [OK]will not be saved.
Key functions
Adjustment system
32 VEGAPULS 62 •4…20 mA/HART two-wire
6Set up with the indicating and adjustment module
36503-EN-100607
6.3Parameter adjustment
With the parameter adjustment,the instrument is adapted to the
application conditions.The parameter adjustment is carried out via an
adjustment menu.
Information:
In this operating instructions manual,the instrument-specific param-
eters are described.Further general parameters are described in the
operating instructions manual "Indicating and adjustment module".

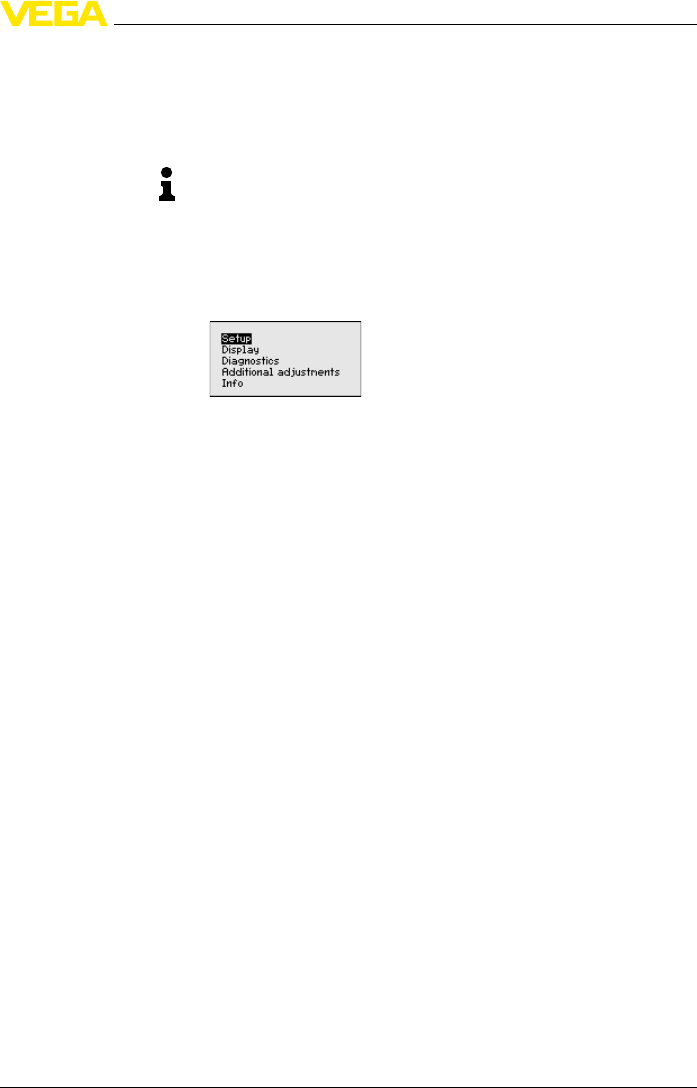

The main menu is divided into five areas with the following functions:
Setup:Settings,for example,to measurement loop name,medium,
application,vessel,adjustment,signal output
Display:Language setting,settings for the measured value indication
as well as lighting
Diagnosis:Information,for example to the instrument status,pointer,
reliability,simulation,echo curve
Further settings:Unit,false signal suppression,linearisation curve,
reset,date/time,reset,HART mode
Info:Instrument name,hardware and software version,calibration
date,instrument features
In the main menu point "Setup",the individual submenu points should
be selected subsequently and provided with the correct parameters to
ensure the optimum adjustment of the measurement.The procedure is
described in the following.
Setup

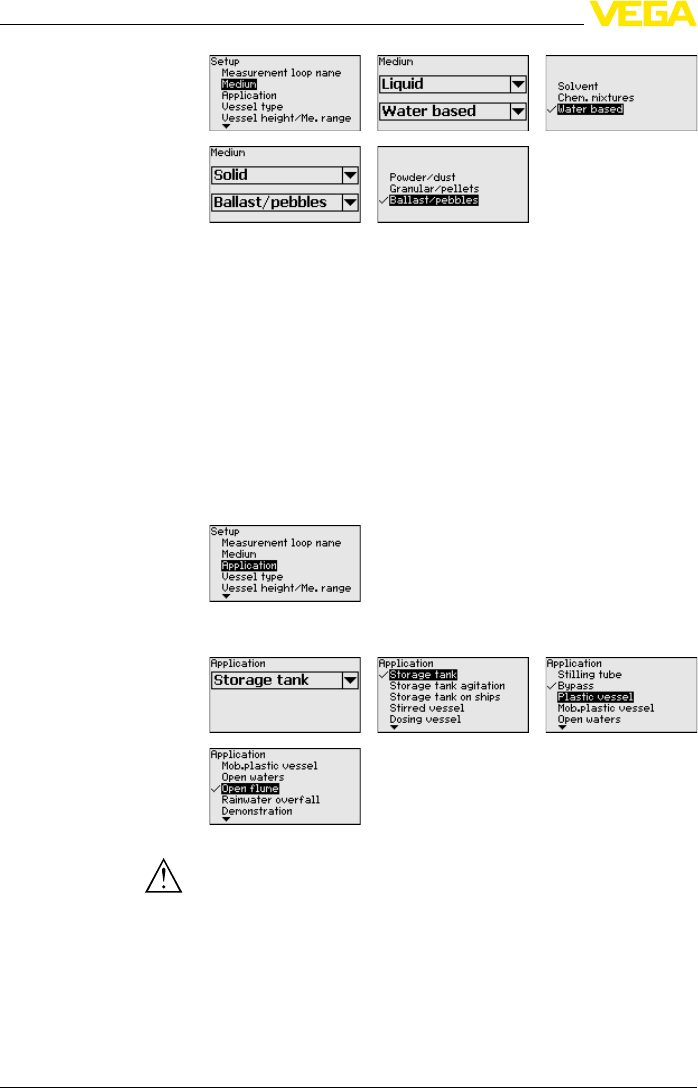

Each medium has different reflection properties.With liquids,further
interfering factors are fluctuation product surface and foam generation.
With bulk solids,these are dust generation,material cone and
additional echoes from the vessel wall.
To adapt the sensor to these different measuring conditions,the
selection "Liquid"or "Bulk solid"should be made in this menu item.
Main menu
Setup/Medium
VEGAPULS 62 •4…20 mA/HART two-wire 33
6Set up with the indicating and adjustment module
36503-EN-100607
Through this selection,the sensor is adapted perfectly to the product
and measurement reliability,particularly in products with poor
reflective properties,is considerably increased.
Enter the requested parameters via the appropriate keys,save your
settings with [OK]and jump to the next menu item with the [ESC]and
the [->]key.
In addition to the medium,also the application or the application place
can influence the measurement.
With this menu item,the sensor can be adapted to the applications.
The adjustment possibilities depend on the selection "Liquid"or "Bulk
solid"under "Medium".
The following options are available when "Liquid"was selected:
Caution:
If in the vessel,there is a separation of liquids with different ε
r
value,for
example by condensation,the radar sensor can detect under certain
circumstances only the medium with the higher dielectric value.Keep
in mind that interfaces can cause faulty measurements.
If you want to measure the total height of both liquids reliably,please
contact our service department or use an instrument specially
designed for interface measurement.
Setup/Application
34 VEGAPULS 62 •4…20 mA/HART two-wire
6Set up with the indicating and adjustment module
36503-EN-100607

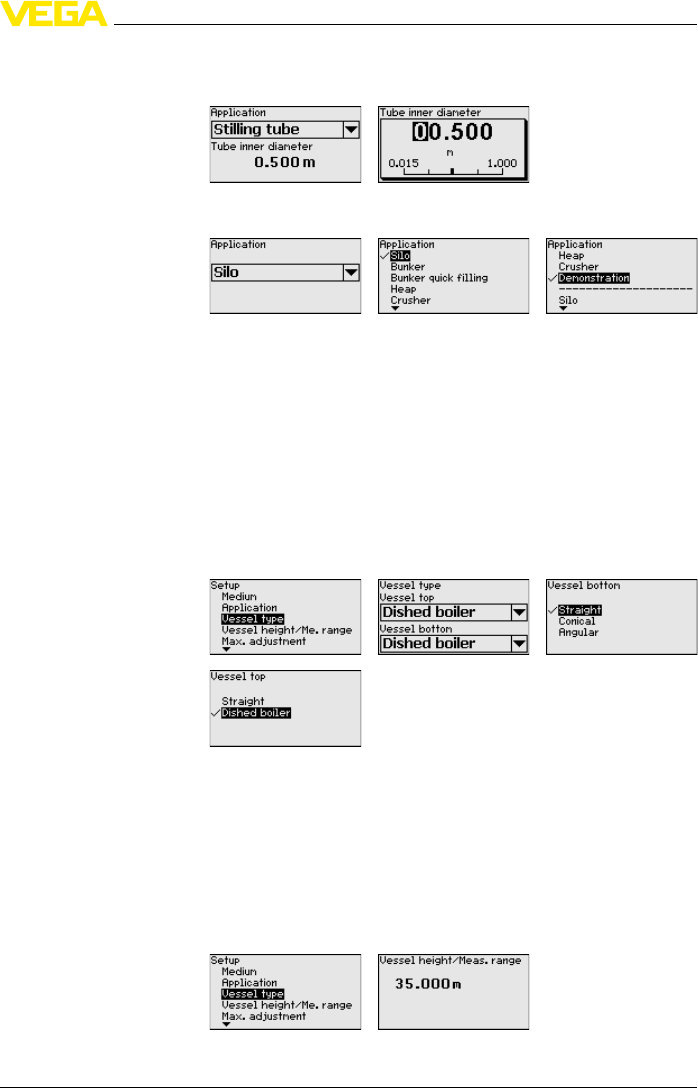

The selection "Standpipe"opens a new window in which the inner
diameter of the applied standpipe is entered.
The following options are available when "Bulk solid"is selected:
Through this selection,the sensor is adapted optimally to the
application or the location and measurement reliability under the
various basic conditions is increased considerably.
Enter the requested parameters via the appropriate keys,save your
settings with [OK]and jump to the next menu item with the [ESC]and
the [->]key.
Also the vessel form can influence the measurement apart from the
medium and the application.To adapt the sensor to these measure-
ment conditions,this menu item offers you different options for vessel
bottom and ceiling in case of certain applications.
Enter the requested parameters via the appropriate keys,save your
settings with [OK]and jump to the next menu item with the [ESC]and
the [->]key.
With this selection,the operating range of the sensor is adapted to the
vessel height and the reliability with different frame conditions is
increased considerably.
Independent from this,the min.adjustment must be carried out.
Setup/Vessel form
Setup/Vessel height,
measuring range
VEGAPULS 62 •4…20 mA/HART two-wire 35
6Set up with the indicating and adjustment module
36503-EN-100607
Enter the requested parameters via the appropriate keys,save your
settings with [OK]and jump to the next menu item with the [ESC]and
the [->]key.
As a radar sensor is a distance measuring instrument,the distance
from the sensor to the product surface is measured.To have the real
product level displayed,an allocation of the measured distance to the
percentage height must be made.To carry out this adjustment,the
distance is entered with full and empty vessel.If these values are not
known,an adjustment with the distance values,e.g.10 %and 90 %is
also possible.Starting point for these distance specifications is always
the seal surface of the thread or flange.By means of these settings,
the real level is calculated.
The real product level during this adjustment is not important,because
the min./max.adjustment is always carried out without changing the
product level.These settings can be made ahead of time without the
instrument having to be installed.
Proceed as follows:

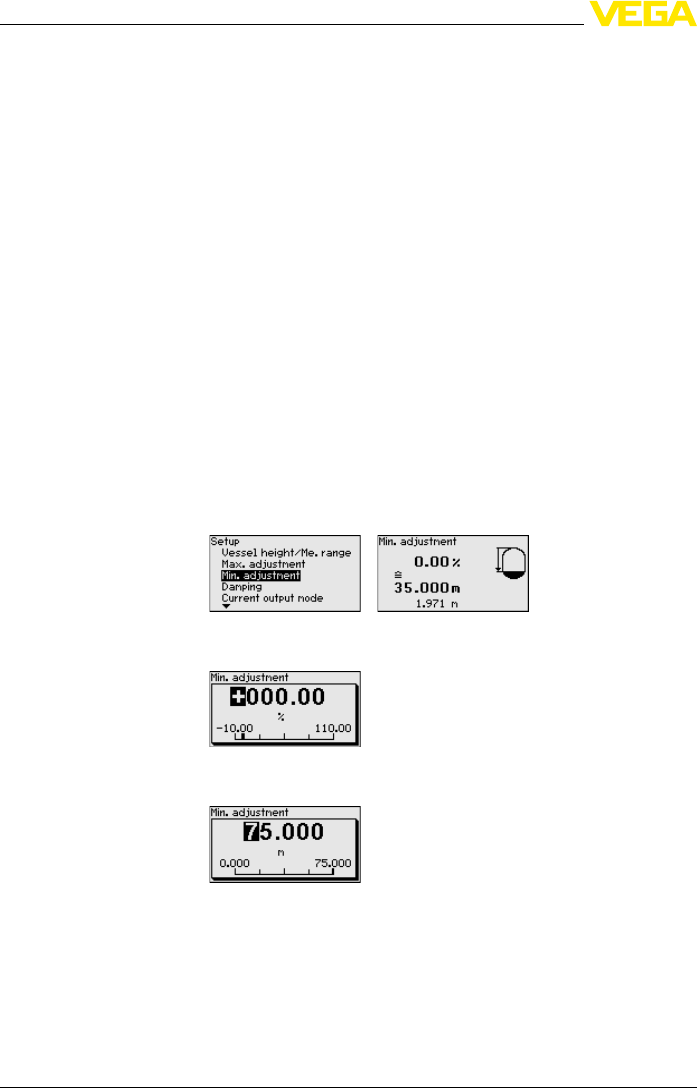

1Select the menu item "Setup"with [->]and confirm with [OK].Now
select with [->]the menu item "Min.adjustment"and confirm with
[OK].
2Edit the percentage value with [OK]and set the cursor to the
requested position with [->].
3Set the requested percentage value with [+]and save with [OK].
The cursor jumps now to the distance value.
4Enter the suitable distance value in m for the empty vessel (e.g.
distance from the sensor to the vessel bottom)corresponding to
the percentage value.
5Save settings with [OK]and move with [ESC]and [->]to the max.
adjustment.
Setup/Adjustment
Setup/Min.adjustment
36 VEGAPULS 62 •4…20 mA/HART two-wire
6Set up with the indicating and adjustment module
36503-EN-100607

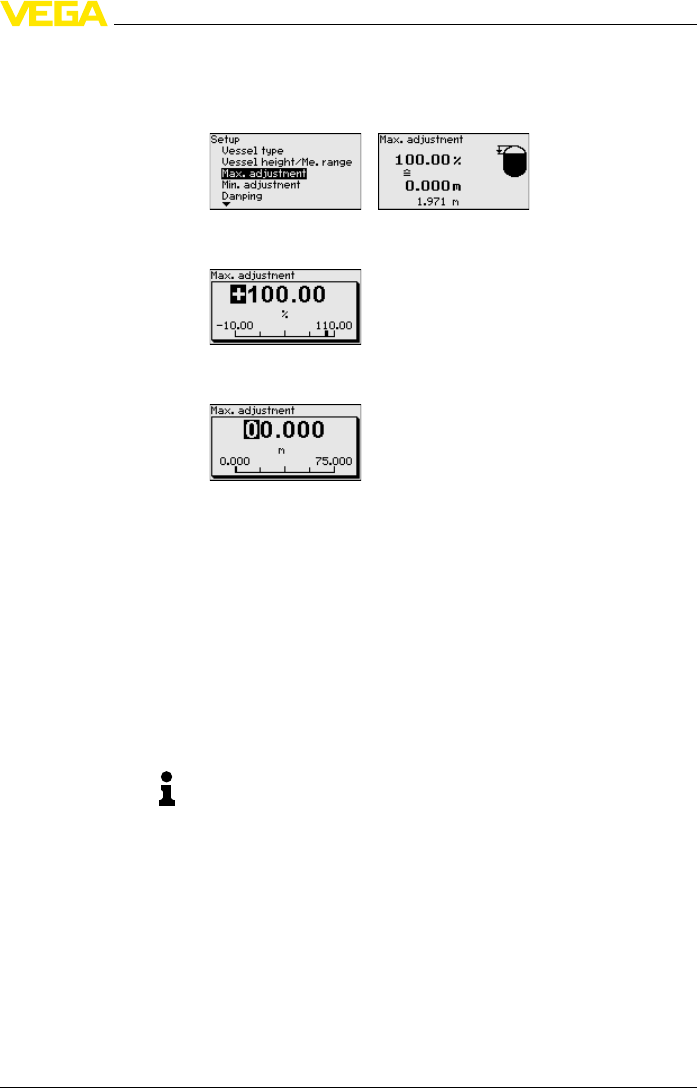

Proceed as follows:
1Select with [->]the menu item max.adjustment and confirm with
[OK].
2Prepare the percentage value for editing with [OK]and set the
cursor to the requested position with [->].
3Set the requested percentage value with [+]and save with [OK].
The cursor jumps now to the distance value.
4Enter the appropriate distance value in m (corresponding to the
percentage value)for the full vessel.Keep in mind that the max.
level must lie below the min.distance to the antenna edge.
5Save settings with [OK]
Further settings
The following circumstances cause interfering reflections and can
influence the measurement:
lHigh sockets
lVessel installations such as struts
lAgitators
lBuildup or welded joints on vessel walls
Note:
Afalse signal suppression detects,marks and saves these false
signals so that they are no longer taken into account for level
measurement.
This should be done with a low level so that possible interfering
reflections can be detected.
Proceed as follows:
1Select the menu item "Additional settins"with [->]and confirm with
[OK].With [->]you have to select the menu item "False signal
suppression"and confirm with [OK].
Setup/Max.adjustment
Further set-
tings/False sig-
nal suppression
VEGAPULS 62 •4…20 mA/HART two-wire 37
6Set up with the indicating and adjustment module
36503-EN-100607

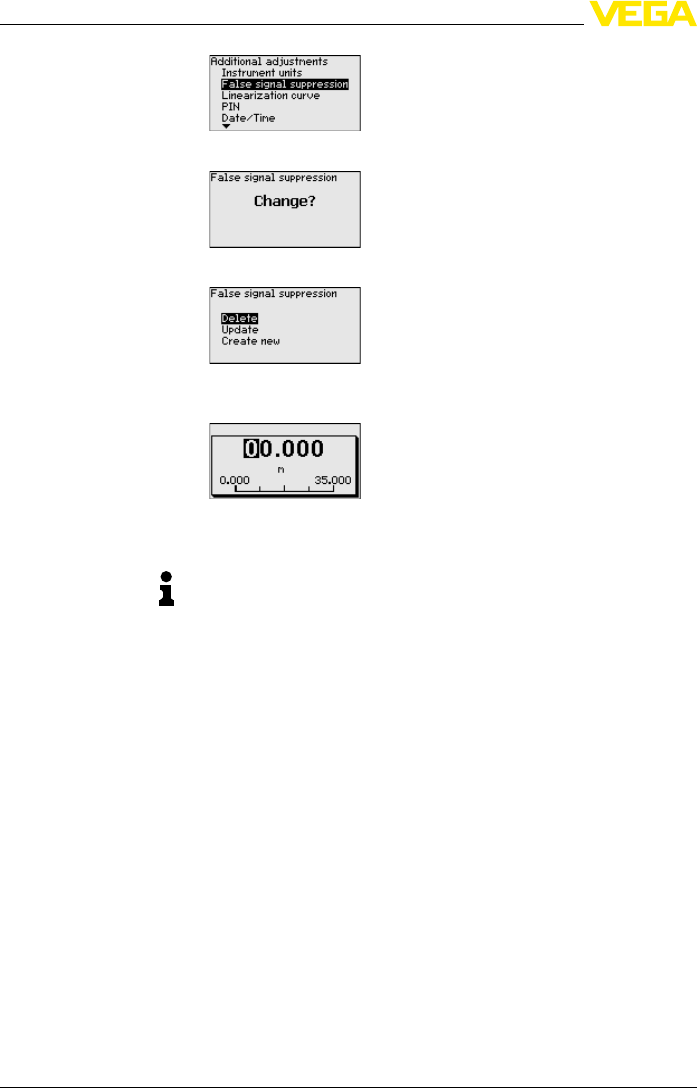

2Confirm again with [OK].
3Confirm again with [OK]and select with [->]"Create new".
4Confirm again with [OK]and enter the actual distance from the
sensor to the product surface.
5All interfering signals in this section are detected by the sensor
and stored after confirming with [OK].
Note:
Check the distance to the product surface,because if an incorrect (too
large)value is entered,the existing level will be saved as false signal.
The filling level would then no longer be detectable in this area.
Alinearization is necessary for all vessels in which the vessel volume
does not increase linearly with the level -e.g.in a horizontal cylindrical
or spherical tank -and the indication or output of the volume is
required.Corresponding linearization curves are preprogrammed for
these vessels.They represent the correlation between the level
percentage and vessel volume.By activating the appropriate curve,
the volume percentage of the vessel is displayed correctly.If the
volume should not be displayed in percent but e.g.in l or kg,a scaling
can be also set in the menu item "Display".
Further settings/Linear-
ization curve
38 VEGAPULS 62 •4…20 mA/HART two-wire
6Set up with the indicating and adjustment module
36503-EN-100607

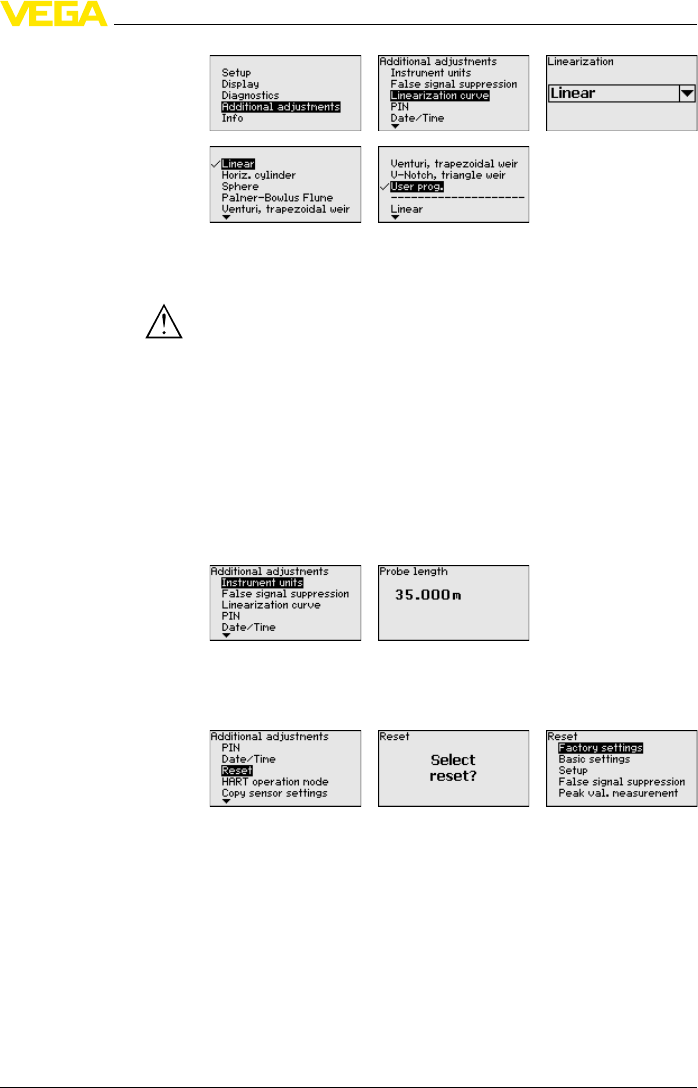

Enter the requested parameters via the appropriate keys,save your
settings and jump to the next menu item with the [ESC]and [->]key.
Caution:
If the instrument is used as part of an overfill protection system
according to WHG (Water Resources Act), please note the following:
If a linearisation curve is selected,the measuring signal is no longer
compulsorily linear proportional to the level.This must be taken into
consideration by the user,particularly when adjusting the switching
point on the level switch.
With radar sensors with standpipe antenna,the sensor length is
already preset in this menu item.When shortening the standpipe
antenna afterwards,this value must be corrected respectively.
With a reset,all settings despite a few exceptions will be reset.The
exceptions are:PIN,language,lighting,SIL and HART mode.
The following reset functions are available:
Delivery status:Restoring the parameter settings at the time of
shipment from the factory incl.the order-specific settings.Acreated
false signal suppression,user-programmable linearization curve as
well as the measured value memory will be deleted.
Basic settings:Resetting the parameter settings incl.special and
laboratory parameters to the default values of the respective instru-
ment.Acreated false signal suppression,user programmable
linearization curve as well as the measured value memory will be
deleted.
Additonal settings/Sen-
sor length
Additional settings -Re-
set
VEGAPULS 62 •4…20 mA/HART two-wire 39
6Set up with the indicating and adjustment module
36503-EN-100607
Setup:Resetting of the parameter settings to the default values of the
respective instrument in the menu item Setup.Order-related settings
remain but are not taken over into the current parameters.User-
generated false signal suppression,user-programmed linearization
curve,measured value memory as well as event memory remain
untouched.The linearization is set to linear.
False signal suppression:Deleting a previously created false signal
suppression.The false signal suppression created in the factory
remains active.
Peak values distance:Resetting the measured min.and max.
distances to the actual measured value.
The following table shows the default values of the instrument.
Depending on the instrument version,not all menu items are available
or differently assigned:
Menu Menu item Default value
Setup Measurement
loop name
Sensor
Medium Liquid/Water
Bulk solids/Crushed stones,gravel
Application Storage tank
Silo
Vessel form Vessel bottom,dished boiler end
Vessel top,dished boiler end
Vesell height/
Measuring range
Recommended measuring range,see
"Technical data"in the supplement
Min.adjustment Recommended measuring range,see
"Technical data"in the supplement
Max.adjustment 0,000 m(d)
Damping 0.0s
Current output
mode
4…20 mA,<3.6mA
Current output
Min./Max.
Min.current 3.8mA,max.current
20.5mA
Lock operation Released
Display Language According to order
Displayed value Distance
Display unit m
Scaling size Volume
l
40 VEGAPULS 62 •4…20 mA/HART two-wire
6Set up with the indicating and adjustment module
36503-EN-100607
Menu Menu item Default value
Scaling 0.00 lin %,0l
100.00 lin %,100 l
Lighting Switched off
Further settings Distance unit m
Temperature unit °C
Probe length Length of the standpipe Ex factory
Linearisation cur-
ve
linear
HART mode Standard
Address 0
6.4Saving the parameter adjustment data
It is recommended noting the adjusted data,e.g.in this operating
instructions manual and archive them afterwards.They are hence
available for multiple use or service purposes.
If the instrument is equipped with an indicating and adjustment
module,the data in the sensor can be saved in the indicating and
adjustment module.The procedure is described in the operating
instructions manual "Indicating and adjustment module"in the menu
item "Copy sensor data".The data remain there permanently even if
the sensor power supply fails.
The following data or settings for adjustment of the indicating and
adjustment module are saved:
lAll data of the menu "Setup"and "Display"
lIn the menu "Additional settings"the items "Distance unit,
temperature unit and linearization"
lThe values of the user programmable linearization curve
The function can be also used to transfer settings from one instrument
to another instrument of the same type.If it is necessary to exchange a
sensor,then the indicating and adjustment module is inserted into the
replacement instrument and the data are also written into the sensor
via the menu item "Copy sensor data".
VEGAPULS 62 •4…20 mA/HART two-wire 41
6Set up with the indicating and adjustment module
36503-EN-100607
7Setup with PACTware
7.1Connecting the PC
3
1
2

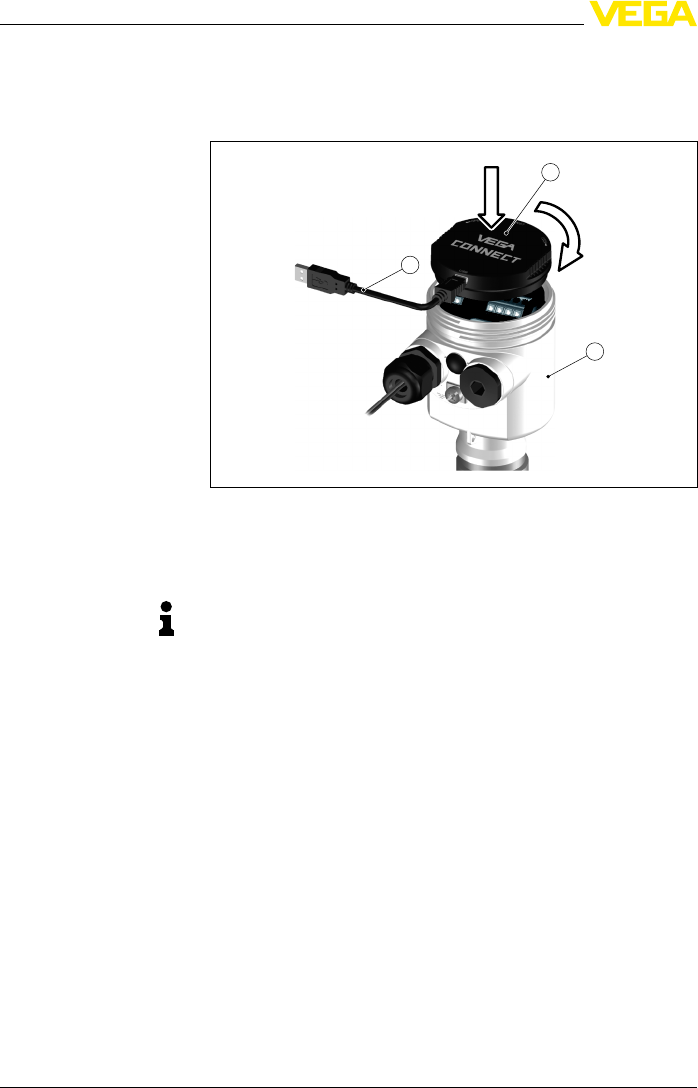

Fig.27:Connection of the PC directly to the sensor via the interface adapter
1USB cable to the PC
2Interface adapter VEGACONNECT 4
3Sensor
Information:
The interface adapter VEGACONNECT 3or additional previous
versions are not suitable for connection to the sensor.
Via the interface adapter
directly on the sensor
42 VEGAPULS 62 •4…20 mA/HART two-wire
7Setup with PACTware
36503-EN-100607
1
2 4
3
OPEN
TWIST
USB
LOCK

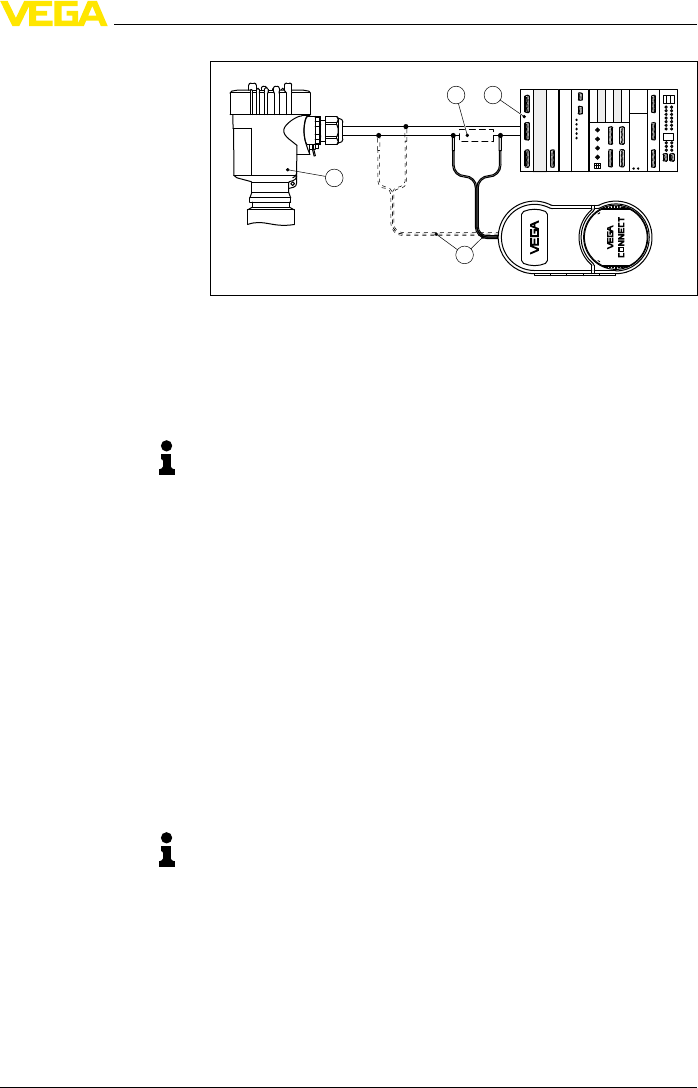

Fig.28:Connecting the PC via HART to the signal cable
1Sensor
2HART resistance 250 Ω (optional depending on processing)
3Connection cable with 2mm pins and terminals
4Processing system/PLC/Voltage supply
5Interface adapter,for example VEGACONNECT 4
Note:
With power supply units with integrated HART resistance (internal
resistance approx.250 Ω), an additional external resistance is not
necessary.This applies,e.g.to the VEGA instruments VEGATRENN
149A,VEGAMET 381,VEGAMET 391.Common Ex separators are
also usually equipped with a sufficient current limitation resistance.In
such cases,the interface converter can be connected parallel to the
4…20 mAcable (in the previous illustration dashed).
7.2Parameter adjustment with PACTware
As an alternative to the indicating and adjustment module,the sensor
can also be configured via a Windows PC.For this purpose,the
configuration software PACTware and a suitable instrument driver
(DTM)according to the FDT standard are required.The actual
PACTware version as well as all available DTMs are compiled in a
DTM Collection.Furthermore the DTMs can be integrated in other
frame applications according to the FDT standard.
Note:
To ensure that all instrument functions are supported,you should
always use the latest DTM Collection.Furthermore,not all described
functions are included in older firmware versions.The latest instrument
software can be also downloaded from our homepage.Adescription of
the update procedure is also available in the Internet.
Further setup steps are described in the operating instructions manual
"DTM Collection/PACTware"attached to each DTM Collection and
which can also be downloaded from the Internet.Detailed descriptions
are available in the online help of PACTware and the DTMs.
Via the interface adapter
and HART
Prerequisites
VEGAPULS 62 •4…20 mA/HART two-wire 43
7Setup with PACTware
36503-EN-100607

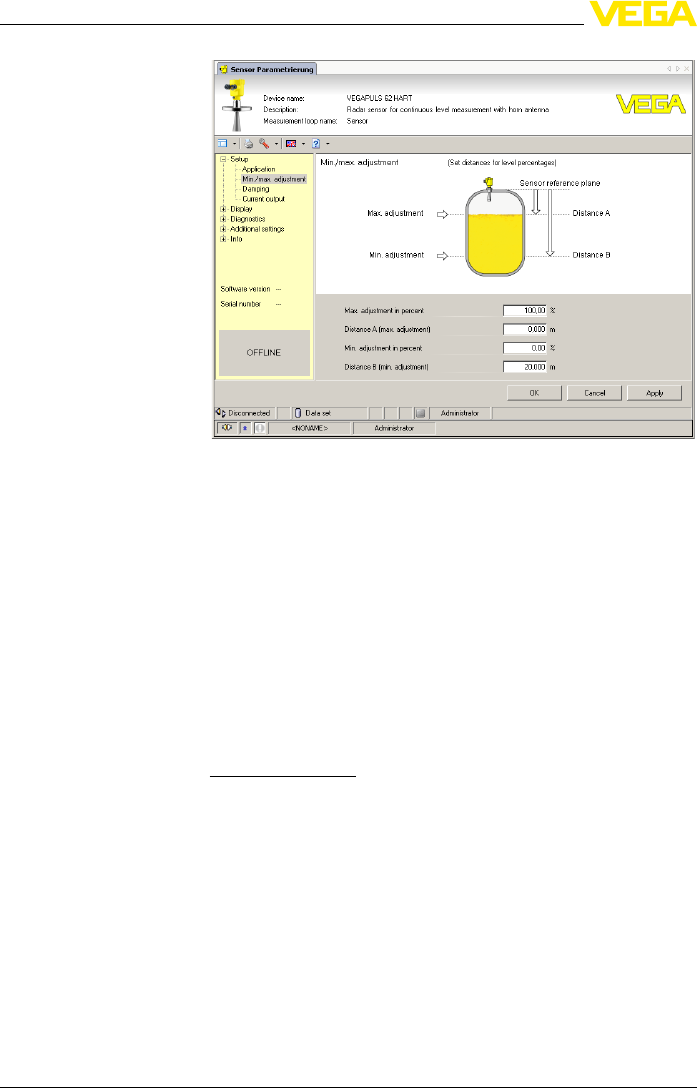

Fig.29:Example of a DTM view
All device DTMs are available as a free-of-charge standard version
and as a full version that must be purchased.In the standard version,
all functions for complete setup are already included.An assistent for
simple project configuration simplifies the adjustment considerably.
Saving/printing the project as well as import/export functions are also
part of the standard version.
In the full version there is also an extended print function for complete
project documentation as well as a save function for measured value
and echo curves.In addition,there is a tank calculation program as
well as a multiviewer for display and analysis of the saved measured
value and echo curves.
The standard version is available as a free-of-charge download under
http://www.vega.com.The full version is available on CD from the
agency serving you.
7.3Saving the parameter adjustment data
We recommend documenting or saving the parameter adjustment data
via PACTware.That way they are available for multiple use or service
purposes.
Standard/Full version
44 VEGAPULS 62 •4…20 mA/HART two-wire
7Setup with PACTware
36503-EN-100607
8Set up with other systems
8.1DD adjustment programs
Device descriptions as Enhanced Device Description (EDD)are
available for DD adjustment programs such as for example AMS™
and PDM.
Afree-of-charge download of these files is available via Internet.Move
via www.vega.com and "Downloads"to "Software".
8.2Communicator 375,475
Device descriptions for the instrument are available as DD or EDD for
parameter adjustment with the Field Communicator 375 or 475.
Afree-of-charge download of these files is available via Internet.Move
via www.vega.com and "Downloads"to "Software".
VEGAPULS 62 •4…20 mA/HART two-wire 45
8Set up with other systems
36503-EN-100607
9Diagnosis and service
9.1Maintenance
When the device is used correctly,no maintenance is required in
normal operation.
9.2Measured value and event memory
The instrument has an integrated measured value memory with time
stamp.Up to 100,000 measured values can be saved in the sensor in
a ringing memory.Each entry contains date/time as well as the
respective measured value.
Stored values are for exmaple sensor value,level,current value,
reliability and electronics temperature.The data remain even in case of
voltage interruption.
Via a PC with PACTware/DTM or the control system with EDD,the
requested values and recording conditions are stipulated.Data are
also read our or reset.
The instrument has an integrated event memory with time stamp.Up to
500 events which cannot be deleted are stored in the sensor.Each
entry contains date/time,event time,event description and value.
Event types are for example modification of a parameter,status and
error messages as well as switch on and switch offtimes.The data
remain also in case of voltage interruption.
The data are read out via a PC with PACTware/DTM or the control
system with EDD.
The instrument has an integrated echo curve memory in which echo
curves can be stored for diagnosis purposes.The echo curves are
stored with date and time as well as the corresponding echo data.The
data remain even in case of voltage interruption.The memory is
divided ito two sections:
Echo curve of the setup:here you can store the echo curve as a
reference during setup.This echo curve can be used for example to
detect changes of the installation conditions or buildup on the antenna.
Echo curve memory:in this memory section up to 10 echo curves
can be stored in the sensor in a ring buffer.
Via a PC with PACTware/DTM or the control system with EDD,the
requested values and recording conditions are stipulated.Data are
also read out or reset.The echo curve during the setup can be stored
alternatively also via the indicating and adjustment module.
Measured value memory
Event memory
Echo curve memory
46 VEGAPULS 62 •4…20 mA/HART two-wire
9Diagnosis and service
36503-EN-100607
9.3Status messages
The instrument has a self-monitoring and diagnosis according to
NE 107 and VDI/VDE 2650.The following status messages can be
outputted:
Failure:Due to a malfunction in the instrument,a failure message is
outpuuted.This status message is activated in the delivery status and
cannot be deactivated by the user.
Function check:The instrument is in operation,the measured value is
temporarily invalid (for example during simulation). This status
message is activatedin the delivery status and cannot be deactivated
by the user.
Out of specification:The measured value is unstable because the
instrument specification was exceeded (for example electronics
temperature). This status messae is deactivated in the delivery status
and must be activated via PACTware/DTM and PC.
Maintenance:Due to external influences,the instrument function is
limited.The measurement is influence,however the measured value is
still valid.Plan instrument for maintenance because failure must be
expected in the near future (for example due to buildup). This status
message is activated in the delivery status and must be activated via
PACTware/DTM and PC.
Error codes and text messages are dispayed via the indicating and
adjustment module,PACTware/DTM as well as EDD in the control
system.Information to the error statstics is displayed in the menu
diagnosis under Device status"in the indicating and adjustment
module as well as PACTware/DTM.
The following table shows the codes and text messages of the status
message "Failure"and provides information on causes as well as
corrective measures.
Code
Text mes-
sage
Cause Removal
F013
no measured
value availab-
le
lSensor does not detect an
echo during operation
lAntenna system contami-
nated or defective
lCheck or correct installa-
tion and/or parameter ad-
justment
lClean or exchange process
component or antenna
F017
Adjustment
span too small
lAdjustment not within spe-
cification
lChange adjustment accor-
ding to the limit values
(difference between min.
and max.≥10 mm)
Failure (failure)
VEGAPULS 62 •4…20 mA/HART two-wire 47
9Diagnosis and service
36503-EN-100607
Code
Text mes-
sage
Cause Removal
F025
Error in the li-
nearization
table
lIndex markers are not
continuously rising,for
examle unlogical value
pairs
lCheck linearization table
lDelete table/Create new
F036
No operable
software
lFailed or interrupted soft-
ware update
lRepeat software update
lCheck electronics version
lExchange the electronics
lSend instrument for repair
F040
Error in the
electronics
lHardware defect lExchange the electronics
lSend instrument for repair
F080 lGeneral software error lSeparate operating voltage
briefly
F105
Determine
measured va-
lue
lThe instrument is still in the
start phase,the measured
value could not yet be
determined
lWait for the warm-up phase
lDuration depending on the
version and parameter ad-
justment up to approxima-
tely 3min.
F125
Unpermissible
electronics
temperature
lTemperature of the elect-
ronics in the not specified
section
lCheck ambient temperatu-
re
lIsolate electronics
lUse instrument with higher
temperature range
F260
Error in the
calibration
lError in the calibration car-
ried out in the factory
lError in the EEPROM
lExchange the electronics
lSend instrument for repair
F261
Error in the
configuration
lError during setup
lFalse signal suppression
faulty
lError when carrying out a
reset
lRepeat setup
lRepeat reset
F264
Installation/S-
etup error
lAdjustment not within the
vessel height/measuring
range
lMax.measuring range of
the instrument not suffici-
ent
lCheck or correct installa-
tion and/or parameter ad-
justment
lUse an instrument with
bigger measuring range
F265
Measurement
function dis-
turbed
lSensor does no longer
carry out a measurement
lOperating voltage too low
lCheck operating voltage
lCarry out a reset
lSeparate operating voltage
briefly
48 VEGAPULS 62 •4…20 mA/HART two-wire
9Diagnosis and service
36503-EN-100607
The following table shows the codes and text messages of the status
message "Function check"and provides information on causes as well
as corrective measures.
Code
Text mes-
sage
Cause Removal
C700
Simulation
lSimulation active lFinish simulation
lWait for the automatic end
after 60 mins.
The following table shows the codes and text messages of the status
message "Out of specification"and gives instructions for the reason
and removal.
Code
Text mes-
sage
Cause Removal
S600
Unpermissible
electronics
temperature
lTemperature of the elect-
ronics in the not specified
section
lCheck ambient temperatu-
re
lIsolate electronics
lUse instrument with higher
temperature range
The following table shows the codes and text messages of the status
message "Maintenance"and provides information on causes as well
as corrective measures.
Code
Text mes-
sage
Cause Removal
M500
Error with the
reset delivery
status
lWith the reset to delivery
status,the data could not
be restored
lRepeat reset
lLoad XML file with sensor
data into the sensor
M501
Error in the
non-active li-
nearization
table
lHardware error EEPROM lExchange the electronics
lSend instrument for repair
M502
Error in the
diagnosis me-
mory
lHardware error EEPROM lExchange the electronics
lSend instrument for repair
Function check
Out of specification
Maintenance (mainte-
nance requirement)
VEGAPULS 62 •4…20 mA/HART two-wire 49
9Diagnosis and service
36503-EN-100607
Code
Text mes-
sage
Cause Removal
M503
Reliability too
low
lThe echot/noise ratio is the
small for a reliable measu-
rement
lCheck installation and pro-
cess conditions
lClean the antenna
lChange polarisation direc-
tion
lUse instrument with higher
sensitivity
M504
Error on an
device inter-
face
lHardware defect lCheck connections
lExchange the electronics
lSend instrument for repair
9.4Rectify malfunctions
The operator of the system is responsible for taking suitable measures
to remove interferences.
The first measures to be taken are to check the output signal as well as
to evaluate the error messages via the indicating and adjustment
module.Further comprehensive diagnostics can be carried out on a
PC with the software PACTware and the suitable DTM.In many cases,
the causes can be determined this way and faults rectified.
Connect a handmultimeter in the suitable measuring range according
to the wiring plan.The following table describes possible errors in the
current signal and helps to remove them:
Error Cause Removal
4…20 mAsignal
not stable
Level fluctuations Set damping via the indicating and
adjustment module
4…20 mAsignal
missing
Electrical con-
nection faulty
Check connection according to chap-
ter "Connection steps"and if ne-
cessary,correct according to chapter
"Wiring plan"
Voltage supply
missing
Check cables for breaks;repair if
necessary
Operating voltage
too low or load
resistance too
high
Check,adapt if necessary
Reaction when malfunc-
tions occur
Fault rectification
Checking the 4…20 mA
signal
50 VEGAPULS 62 •4…20 mA/HART two-wire
9Diagnosis and service
36503-EN-100607
Error Cause Removal
Current signal
greater than 22 mA
or less than
3.6mA
Oscillator in the
sensor defective
Exchange the instrument or send it in
for repair
Depending on the failure reason and measures taken,the steps
described in chapter "Set up"must be carried out again,if necessary.
However,should these measures not be successful,call the VEGA
service hotline in urgent cases under the phone no.+49 1805 858550.
The hotline is available to you 7days a week round-the-clock.Since
we offer this service world-wide,the support is only available in the
English language.The service is free of charge,only the standard
telephone costs will be charged.
9.5Exchanging the electronics module
If the electronics module is defective,it can be replaced by the user.
InEx applications only one instrument and one electronics module with
respective Ex approval may be used.
If there is no electronics module available on site,the electronics
module can be ordered via the agent serving you.The electronics
modules are adapted to the respective sensor and differ in the signal
output or the voltage supply.
The new electronics module must be loaded with the default settings
of the sensor.These are the options:
lIn the factory
lOr on site by the user
In both cases,the serial number of the sensor is needed.The serial
numbers are stated on the type label of the instrument,inside the
housing as well as on the delivery note.
When loading on site,first of all the order data must be downloaded
from the Internet (see operating instructions manual "Oscillator").
9.6Software update
The following components are required to update the sensor software:
lSensor
lVoltage supply
lInterface adapter VEGACONNECT 4
lPC with PACTware
Reaction after fault rec-
tification
24 hour service hotline
VEGAPULS 62 •4…20 mA/HART two-wire 51
9Diagnosis and service
36503-EN-100607
lCurrent sensor software as file
Caution:
Keep in mind that a software update can lead to expiry of the
approvals.You can find detailed information on our homepage www.
vega.com.
At"www.vega.com/downloads"go to "Software".Select under "plics
sensors and instruments"the respective instrument series and
software version.Load the zip file via the right mouse key with "Save
target as"e.g.on the desktop of your PC.Extract all files available in
the zip file,e.g.to the desktop.
Connect the sensor to power supply and provide connection from the
PC to the instrument via the interface adapter.Start PACTware and
move via the menu Project to the VEGA project assistant.Select
"USB"and "Set instruments online".Provide connection to the sensor
via "Start"until the message "Search complete"is displayed.
Move in the PACTware menu bar to "Instrument data","Additional
functions"and "Software update".PACTware now checks the actual
hardware and software version of the sensor and displays the data.
This process takes approx.60 s.
Push the button "Update software"and select the previously extracted
XML file.Then the software update can be started.The additional files
are installed automatically.Depending on the sensor,this procedure
lasts approximately 15 min.
9.7How to proceed in case of repair
If a repair is necessary,please proceed as follows:
You can download a return form (23 KB)from our Internet homepage
www.vega.com under:"Downloads -Forms and certificates -Repair
form".
By doing this you help us carry out the repair quickly and without
having to call back for needed information.
lPrint and fill out one form per instrument
lClean the instrument and pack it damage-proof
lAttach the completed form and,if need be,also a safety data
sheet outside on the packaging
lPlease ask the agency serving you for the address of your return
shipment.You can find the competent agency on our website
www.vega.com.
Load sensor software to
PC
Prepare update
Load software into sen-
sor
52 VEGAPULS 62 •4…20 mA/HART two-wire
9Diagnosis and service
36503-EN-100607
10 Dismounting
10.1Dismounting steps
Warning:
Before dismounting,be aware of dangerous process conditions such
as e.g.pressure in the vessel,high temperatures,corrosive or toxic
products etc.
Take note of chapters "Mounting"and "Connecting to power supply"
and carry out the listed steps in reverse order.
10.2Disposal
The instrument consists of materials which can be recycled by
specialised recycling companies.We use recyclable materials and
have designed the electronics to be easily separable.
WEEE directive 2002/96/EG
This instrument is not subject to the WEEE directive 2002/96/EG and
the respective national laws.Pass the instrument directly on to a
specialised recycling company and do not use the municipal collecting
points.These may be used only for privately used products according
to the WEEE directive.
Correct disposal avoids negative effects to persons and environment
and ensures recycling of useful raw materials.
Materials:see chapter "Technical data"
If you have no possibility to dispose of the old instrument
professionally,please contact us concerning return and disposal.
VEGAPULS 62 •4…20 mA/HART two-wire 53
10 Dismounting
36503-EN-100607
11 Supplement
11.1Technical data
General data
316Lcorresponds to 1.4404 or 1.4435
Materials,wetted parts
-Process fitting 316L,Hastelloy C22,Monell Alloy
-Process seal On site (instruments with thread:Klingersil C-4400
is attached)
-Antenna 316L,Hastelloy C22,Tantalum,316Lelectropol-
ished,stainless steel investment casting 1.4848,
Monell Alloy,316L Safecoat coated
-Antenna impedance cone PTFE (TFM 1600 PTFE), PP,PEEK,ceramic
(99.7%Al
2
O
3
)
-seal,antenna system FKM (Viton), FFKM (Kalrez 6375), FFKM (Kal-
rez 2035), FFKM (Kalrez 6230 -FDA), graphite
(99.9%)
Materials,non-wetted parts
-Housing plastic plastic PBT (Polyester)
-Aluminium die-casting housing Aluminium die-casting AlSi10Mg,powder-coated -
basis:Polyester
-Stainless steel housing 316L
-Seal between housing and housing
cover
NBR (stainless steel housing,investment casting),
silicone (Aluminium/plastic housing,stainless steel
housing,electro-polished)
-Inspection window in housing cover
(optional)
Polycarbonate
-Ground terminal (metallic connection to
process fitting and antenna)
316L
Process fittings
-Pipe thread,cylindrical (ISO 228 T1)G¾A,G1½A,G2A
-American pipe thread,tapered 1½NPT,2NPT
-Flanges DIN from DN 25,ANSI from 1"
Weights
-Instrument (depending on housing,
process fitting and antenna)
approx.2…17.2kg (4.409 …37.92 lbs)
-Antenna extension 1.6kg/m(1.1lbs/ft)
Length antenna extension max.5.85 m(19.19 ft)
Torque for NPT cable glands and Conduit tubes
-Housing plastic max.10 Nm(7.376 lbf ft)
-Aluminium/Stainless steel housing max.50 Nm(36.88 lbf ft)
54 VEGAPULS 62 •4…20 mA/HART two-wire
11 Supplement
36503-EN-100607
Input variable
Measured variable The measured quantity is the distance between
process fitting of the sensor and product surface.
The reference plane is the seal surface on the
hexagon or the lower side of the flange.
3
42
1

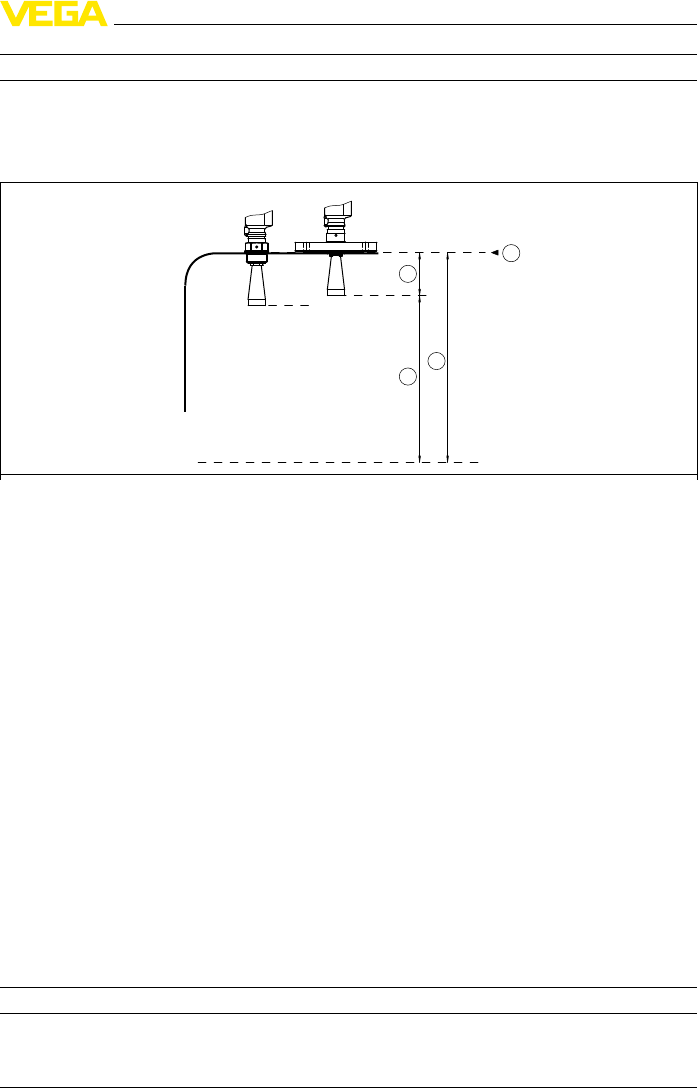

Fig.30:Data of the input variable
1Reference plane
2Measured variable,max.measuring range
3Antenna length
4Useful measuring range
Standard electronics
Max.measuring range 35 m(114.83 ft)
Recommended measuring range
-Antenna ø40 mm (1.575 in)up to 15 m(49.21 ft)
-Antenna ø48 mm (1.89 in)up to 20 m(65.62 ft)
-Antenna ø75 mm (2.953 in), ø95 mm
(3.74 in), parabolic antenna
up to 35 m(114.83 ft)
Electronics with increased sensitivity
Max.measuring range 75 m(246.1ft)
Recommended measuring range
-Antenna ø40 mm (1.575 in)up to 15 m(49.21 ft)
-Antenna ø48 mm (1.89 in)up to 20 m(65.62 ft)
-Antenna ø75 mm (2.953 in)up to 40 m(131.2ft)
-Antenna ø95 mm (3.74 in)up to 50 m(164 ft)
-Parabolic antenna up to 75 m(246.1ft)
Output variable
Output signal 4…20 mA/HART
VEGAPULS 62 •4…20 mA/HART two-wire 55
11 Supplement
36503-EN-100607
Cycle time measuring cycle approx.
-Standard electronics 0.5s
-Electronics with increased sensitivity 1s
Signal resolution 0.3µA
Residual ripple ±0.4µA
Failure signal current output (adjustable)mA-value unchanged 20.5mA,22 mA,<3.6mA
Max.output current 22 mA
Starting current ≤3.6mA;≤10 mAfor 5ms after switching on
Load see load diagram under Power supply
Damping (63 %of the input variable)0…999 s,adjustable
HART output values according to HART 7.01)
-PV (Primary Value)Distance to the level
-SV (Secondary Value)Level as percentage value
-TV (Third Value)Linearised percentage value
-QV (Fourth Value)Scaled measured value
Resolution,digital <1mm (0.039 in)
Accuracy (similar to DIN EN 60770-1)
Process reference conditions according to DIN EN 61298-1
-Temperature +18 …+30 °C(+64 …+86 °F)
-Relative humidity 45 …75 %
-Air pressure 860 …1060 mbar/86 …106 kPa(12.5…15.4psig)
Installation reference conditions
-Min.distance to installations >200 mm (7.874 in)
-Reflector Corner reflector
-False reflections Largest false echo 20 dBsmaller than the useful
echo
Deviation with liquids See following diagrams
1)Default values,can be assigned individually
56 VEGAPULS 62 •4…20 mA/HART two-wire
11 Supplement
36503-EN-100607
0,5 m (1.6 ft)
10 mm (0.394 in)
2 mm (0.079 in)
- 2 mm (- 0.079 in)
- 10 mm (- 0.394 in)
0
1 2 3

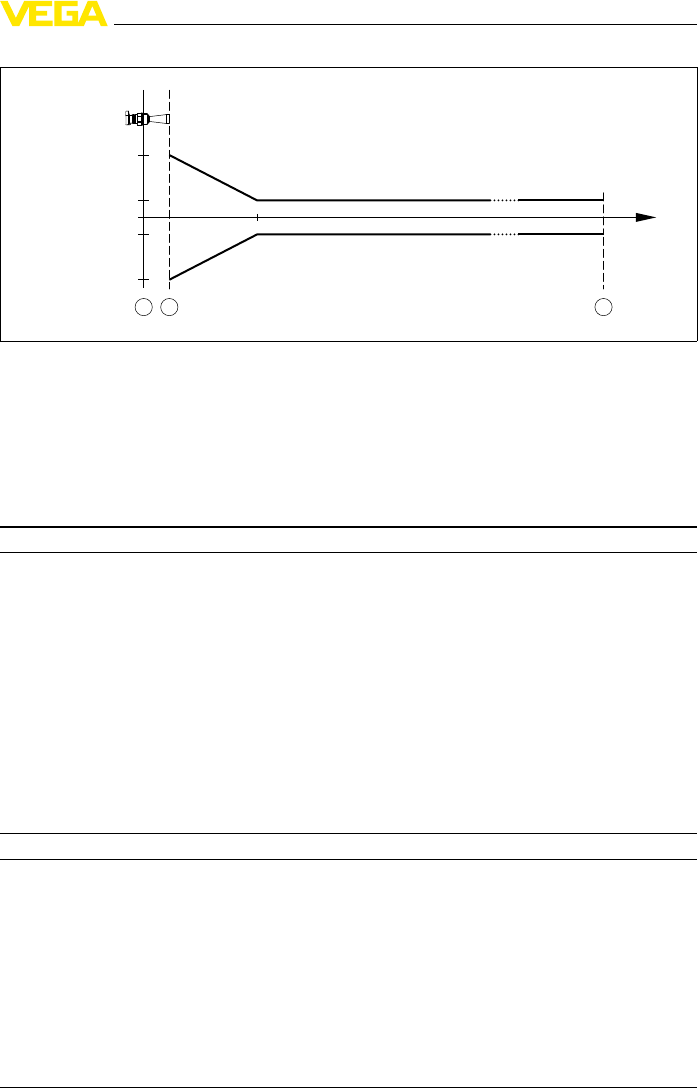

Fig.31:Deviation under reference conditions
1Reference plane
2Antenna edge
3Recommended measuring range
Reproducibility ≤ ±1mm
Deviation with bulk solids The values are considerably application-depend-
ent.Firm specifications are hence not possible.
Variables influencing measurement accuracy
Temperature drift ±0.03 %/10 Krelating to the 16 mAspan max.
±0.3%
Temperature drift -Digital output ±3mm/10 Krelating to the max.measuring range
or max.10 mm
Deviation on the current output by analogue/
digital conversion
<±15 µA
Deviation on the current output by strong,
high frequency electromagnetic fields within
EN 61326
<±100 µA
Additional deviation through strong,high
frequency electromagnetic fields acc.to EN
61326
<±50 mm
Influence of the superimposed gas and pressure to the accuracy
The spreading speed of the radar impulses in gas or vapour above the medium is reduced by high
pressures.This effect depends on the superimposed gas or vapour and is especially large at low
temperatures.
The following table shows the resulting deviation for some typical gases and vapours.The
specified values refer to the distance.Positive values mean that the measured distance is too high,
negative values that the measured distance is too small.
VEGAPULS 62 •4…20 mA/HART two-wire 57
11 Supplement
36503-EN-100607
Gas phase Temperature Pressure
1bar/
14.5psig
10 bar/
145 psig
50 bar/
725 psig
100 bar/
1450 psig
200 bar/
2900 psig
Air 20 °C/68 °F0.00 %0.22 %1.2%2.4%4.9%
200 °C/392 °F-0.01 %0.13 %0.74 %1.5%3.0%
400 °C/752 °F-0.02 %0.08 %0.52 %1.1%2.1%
Hydrogen 20 °C/68 °F-0.01 %0.10 %0.61 %1.2%2.5%
200 °C/392 °F-0.02 %0.05 %0.37 %0.76 %1.6%
400 °C/752 °F-0.02 %0.03 %0.25 %0.53 %1.1%
Steam (satura-
ted steam)
100 °C/212 °F0.26 %- - - -
180 °C/356 °F0.17 %2.1%---
264 °C/507 °F0.12 %1.44 %9.2%- -
366 °C/691 °F0.07 %1.01 %5.7%13.2%76.0%
Characteristics and performance data
Frequency K-band (26 GHz technology)
Beam angle2)
-Horn antenna ø40 mm (1.575 in)22°
-Horn antenna ø48 mm (1.89 in)18°
-Horn antenna ø75 mm (2.953 in)10°
-Horn antenna ø95 mm (3.74 in)8°
-Parabolic antenna 4°
Step response time3)>1s(dependent on the parameter setting)
Max.level change 1m/min.
Emitted HF power of the antenna system
-Pulse peak power <10 mW
-Pulse duration <1ns
-Pulse duration electronics with increased
sensitivity
<2ns
-Average power <25 µW
-Average power with 1m distance <1µW/cm²
2)Outside the specified beam angle,the energy of the radar signal has a level
of -3dB(50 %).
3)Time span after a sudden level change until the output signal has taken for
the first time 90 %of the final value (IEC 61298-2).
58 VEGAPULS 62 •4…20 mA/HART two-wire
11 Supplement
36503-EN-100607
Ambient conditions
Ambient,storage and transport temperature -40 …+80 °C(-40 …+176 °F)
Process conditions
For the process conditions,you also have to note the specifications on the type label.Always the
lowest value is applicable.
Seal Antenna impedance co-
ne
Process temperature (measured on the process
fitting)
FKM (Viton)PTFE -40 …+130 °C(-40 …+266 °F)
PTFE -20 …+200 °C(-4…+392 °F)
PP -40 …+80 °C(-40 …+176 °F)
PEEK -40 …+200 °C(-40 …+392 °F)
FFKM (Kalrez 6375)PFFE -20 …+130 °C(-4…+266 °F)
PFFE -20 …+200 °C(-4…+392 °F)
PP -15 …+80 °C(+5…+176 °F)
PEEK -20 …+250 °C(-4…+482 °F)
FFKM (Kalrez 2035)PFFE -15 …+130 °C(5…+266 °F)
PTFE -15 …+200 °C(5…+392 °F)
PEEK -15 …+210 °C(5…+410 °F)
FFKM (Kalrez 6230)PFFE -15 …+130 °C(5…+266 °F)
PTFE -15 …+200 °C(5…+392 °F)
PEEK -15 …+250 °C(5…+482 °F)
Graphite Ceramic -200 …+450 °C(-328 …+842 °F)
Vessel pressure -horn antenna
-Antenna impedance cone PTFE -1…40 bar (-100 …4000 kPa/-14.5…580 psig)
-Antenna impedance cone PP -1…3bar (-100 …300 kPa/-14.5…43.5psig)
-Antenna impedance cone PEEK -1…100 bar (-100 …10000 kPa/-14.5…1450 psig)
-Antenna impedance cone ceramic -1…160 bar (-100 …16000 kPa/-14.5…2320 psig)
Vessel pressure -parabolic antenna -1…6bar (-100 …6000 kPa/-14.5…870 psig)
Vessel pressure relating to the flange nom-
inal stage
see supplementary instructions manual "Flanges
according to DIN-EN-ASME-JIS"
Vibration resistance4)
-Horn antenna mechanical vibrations with 4g at 5…100 Hz
-Parabolic antenna mechanical vibrations with 1g at 5…100 Hz
4)Tested according to the guidelines of German Lloyd,GL directive 2.
VEGAPULS 62 •4…20 mA/HART two-wire 59
11 Supplement
36503-EN-100607
Data on rinsing air connection
Pressure max.6bar (87.02 psig)
Air quantity without reflux valve
-0.2bar (2.9psig)2.0m
3
/h
-0.5bar (7.25 psig)3.5m
3
/h
-1bar (14.5psig)4.5m
3
/h
-1.5bar (21.76 psig)5m
3
/h
-2bar (29.0psig)5.5m
3
/h
Thread G⅛A
Catch
-with non-ExDust protection cover of PE
-with ExThreaded plug of 316Ti
Reflux valve -unmounted (as option with non-Ex version,included in the scope of delivery with Ex
version)
-Material 316Ti
-Seal FKM (Viton), FFKM (Kalrez 6375)
-for tube diameter 6mm
-opening pressure 0.5bar (7.25 psig)
-Nominal pressure stage PN 250
Electromechanical data -version IP 66/IP 67 and IP 66/IP 68;0.2bar
Cable entry/plug5)
-Single chamber housing l1x cable gland M20 x1.5(cable:ø5…9mm),
1x blind stopper M20 x1.5
or:
l1x closing cap M20 x1.5;1x blind stopper
M20 x1.5
or:
l1x closing cap ½NPT,1x blind plug ½NPT
or:
l1x plug (depending on the version), 1x blind
stopper M20 x1.5
-Double chamber housing l1x cable entry M20 x1.5(cable:ø5…9mm),
1x blind stopper M20 x1.5;1x blind stopper
M16 x1.5or optional6)1x plug M12 x1for
external indicating and adjustment unit
or:
5)Depending on the version M12 x1,according to ISO 4400,Harting,7/8"FF.
6)Only with Ex d version
60 VEGAPULS 62 •4…20 mA/HART two-wire
11 Supplement
36503-EN-100607
l1x closing cap ½NPT,1x blind stopper
½NPT,1x blind stopper M16 x1.5or
optionally7)1x plug M12 x1for external
indicating and adjustment unit
or:
l1x plug (depending on the version), 1x blind
stopper M20 x1.5;1x blind stopper M16 x1.5
or optionally8)1x plug M12 x1for external
indicating and adjustment unit
Spring-loaded terminals for wire cross-section
-Massive wire,cord 0.2…2.5mm²(AWG 24 …14)
-Cord with cable end sleeve 0.2…1.5mm²(AWG 24 …16)
Electromechanical data -version IP 66/IP 68 (1bar)
Cable entry
-Single chamber housing 1xIP 68 cable gland M20 x1.5;1x blind stopper
M20 x1.5
-Double chamber housing 1xIP 68 cable gland M20 x1.5;1x blind stopper
M20 x1.5;1x blind stopper M16 x1.5
Connection cable
-Wire cross-section 0.5mm²(AWG 20)
-Wire resistance <0.036 Ω/m
-Tensile strength <1200 N(270 lbf)
-Standard length 5m(16.4ft)
-Max.length 1000 m(3280 ft)
-Min.bending radius 25 mm (0.984 in)with 25 °C(77 °F)
-Diameter approx.8mm (0.315 in)
-Colour -standard PE Black
-Colour -standard PUR Blue
-Colour -Ex-version Blue
Indicating and adjustment module
Voltage supply and data transmission through the sensor
Indication LC display in dot matrix
Adjustment elements 4keys
Protection rating
-unassembled IP 20
-mounted into the sensor without cover IP 40
Materials
7)Only with Ex d version
8)Only with Ex d version
VEGAPULS 62 •4…20 mA/HART two-wire 61
11 Supplement
36503-EN-100607
-Housing ABS
-Inspection window Polyester foil
Integrated clock
Date format Day.Month.Year
Time format 12 h/24 h
Time zone Ex factory CET
Electronics temperature measurement
Resolution 1°C(1.8°F)
Accuracy ±1°C(1.8°F)
Voltage supply
Operating voltage
-Non-Ex instrument 9.6…36 V DC
-Ex-ia instrument 9.6…30 V DC
-Ex-d-ia instrument 14 …36 V DC
Operating voltage with lighted indicating and adjustment module
-Non-Ex instrument 16 …36 V DC
-Ex-ia instrument 16 …30 V DC
-Ex-d-ia instrument 20 …36 V DC
Interpolation protection Available
Permissible residual ripple -Non-Ex,Ex-ia instrument
-for 9.6V
<UN
<14 V≤0.7V
eff
(16 …400 Hz)
-for 18 V
<UN
<36 V≤1.0V
eff
(16 …400 Hz)
Permissible residual ripple -Ex-d-ia instrument
-for 18 V
<UN
<36 V≤1V
eff
(16 …400 Hz)
Load see diagram
62 VEGAPULS 62 •4…20 mA/HART two-wire
11 Supplement
36503-EN-100607
1200
927
500
750
250
12 18
16
9,6 14 2015,1 22 24 26 28 30 32 34 36
Ω
V
1
4
2
3

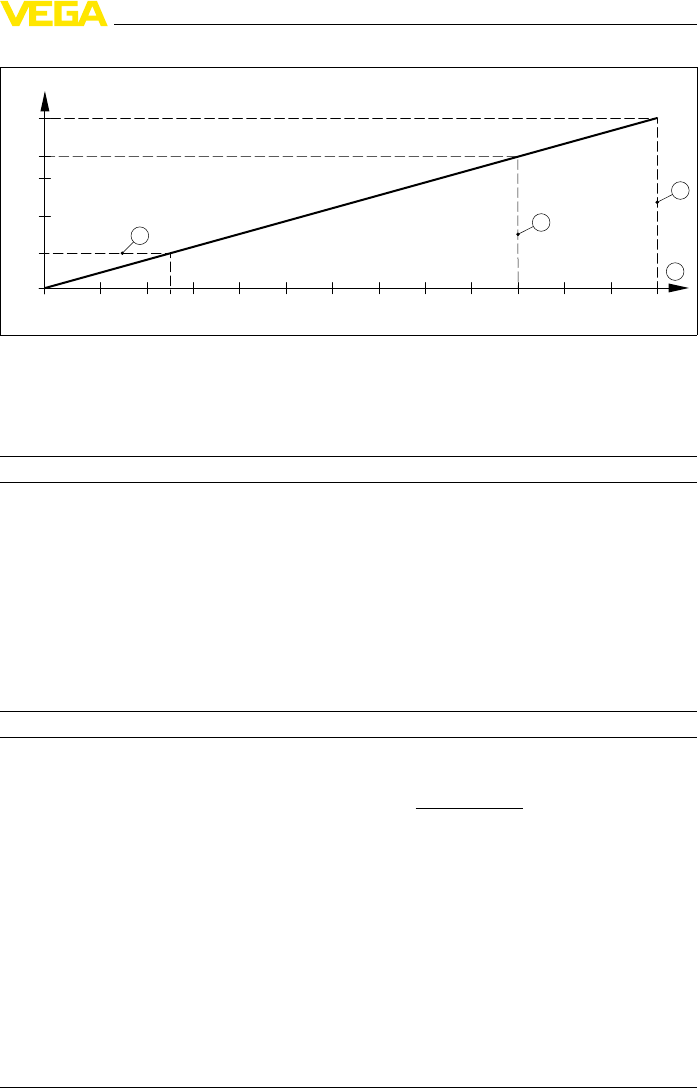

Fig.32:Voltage diagram
1HART load
2Voltage limit Ex-ia instrument
3Voltage limit non-Ex/Ex-d instrument
4Operating voltage
Electrical protective measures
Protection,depending on housing version
-Plastic housing IP 66/IP 67
-Aluminium housing,stainless steel
housing -investment casting,stainless
steel housing -electro-polished
IP 66/IP 68 (0.2bar)9)
-Aluminium and stainless housing,in-
vestment casting (optionally available)
IP 66/IP 68 (1bar)
Overvoltage category III
Protection class II
Approvals
Depending on the version,instruments with approvals can have different technical data.
For these instruments,the corresponding approval documents have to be taken into account.
These are part of the delivery or can be downloaded under www.vega.com via "VEGA Tools"and
"serial number search"as well as via "Downloads"and "Approvals".
9)The prerequisites for maintaining the protection rating are a suitable cable
as well as correct mounting.
VEGAPULS 62 •4…20 mA/HART two-wire 63
11 Supplement
36503-EN-100607
11.2Dimensions
The following dimensional drawings represent only an extract of the
possible versions.Detailed dimensional drawings can be downloaded
on www.vega.com under "Downloads"and "Drawings".

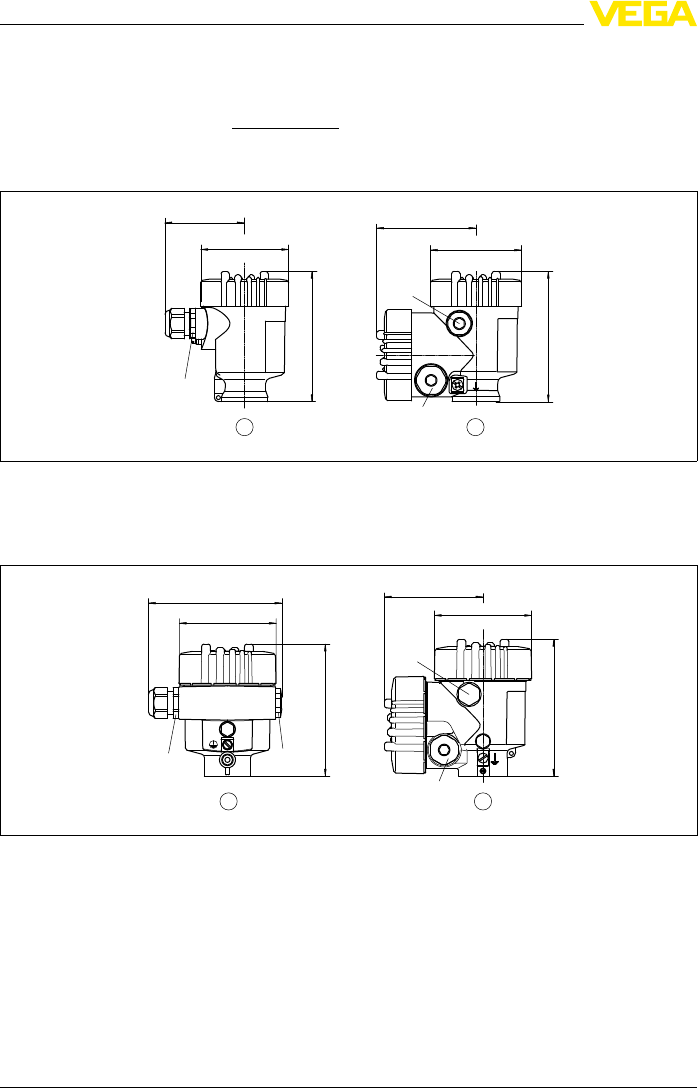

Housing plastic
~ 69 mm
(2.72")
ø 79 mm
(3.03")
112 mm (4.41")
M20x1,5/
½ NPT
~ 84 mm (3.31")
M16x1,5
112 mm (4.41")
M20x1,5/
½ NPT
12
ø 79 mm
(3.31")
1Single chamber version
2Double chamber version
Aluminium housing
21
ø 86 mm (3.39")
~ 116 mm (4.57")
116 mm (4.57")
M20x1,5
M20x1,5/
½ NPT
~ 87 mm (3.43")
M16x1,5
ø 86 mm
(3.39")
120 mm (4.72")
M20x1,5/
½ NPT
1Single chamber version
2Double chamber version
64 VEGAPULS 62 •4…20 mA/HART two-wire
11 Supplement
36503-EN-100607

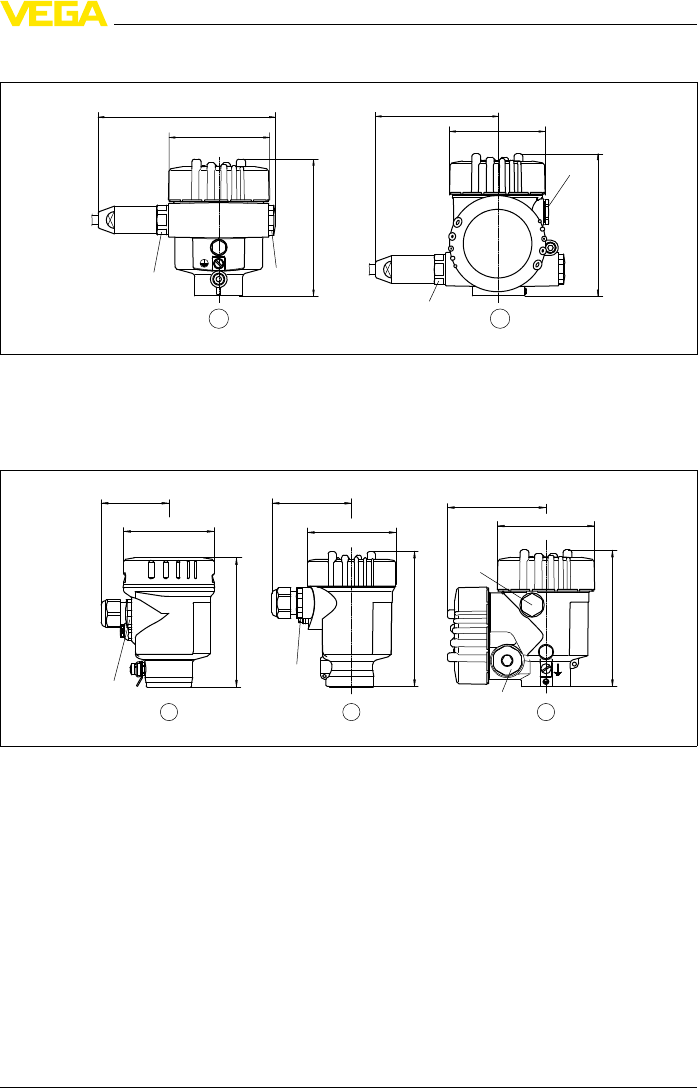

Aluminium housing in protection rating IP 66/IP 68 (1bar)
120 mm (4.72")
~ 105 mm (4.13")
116 mm (4.57")
~ 150 mm (5.91")
ø 84 mm (3.31") ø 84 mm
(3.31")
M20x1,5/
½ NPT
M16x1,5
2
M20x1,5M20x1,5
1
1Single chamber version
2Double chamber version
Stainless steel housing
~ 69 mm
(2.72")
ø 79 mm
(3.11")
117 mm (4.61")
M20x1,5/
½ NPT
~ 59 mm
(2.32")
ø 80 mm
(3.15")
112 mm (4.41")
M20x1,5/
½ NPT
~ 87 mm (3.43")
ø 86 mm
(3.39")
120 mm (4.72")
M20x1,5/
½ NPT
M16x1,5
321
1Single chamber version,electropolished
2Single chamber version,precision casting
2Double chamber version,precision casting
VEGAPULS 62 •4…20 mA/HART two-wire 65
11 Supplement
36503-EN-100607

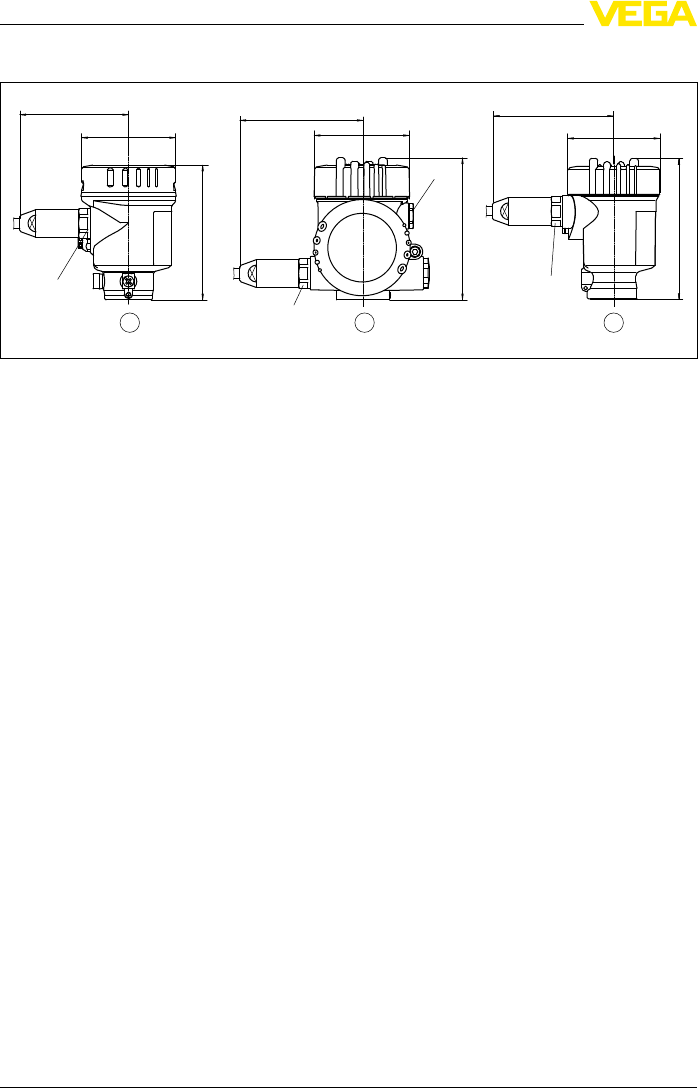

Stainless steel housing in protection rating IP 66/IP 68,1bar
117 mm (4.61")
~ 103 mm
(4.06") ø 77 mm
(3.03")
120 mm (4.72")
~ 105 mm (4.13")
ø 84 mm
(3.31")
~ 93 mm
(3.66") ø 80 mm
(3.15")
112 mm (4.41")
M20x1,5/
½ NPT
M20x1,5
3
M20x1,5/
½ NPT
M16x1,5
21
1Single chamber version,electropolished
2Single chamber version,precision casting
2Double chamber version,precision casting
66 VEGAPULS 62 •4…20 mA/HART two-wire
11 Supplement
36503-EN-100607
VEGAPULS 62 -horn antenna in threaded version
mm
inch
38 mm (1.50")
22 mm (0.87")
22 mm (0.87")
SW 46 mm
(1.81")
8.50"
16.93"
3.94" ø1.58"
ø1.89"
ø2.95"
ø3.74"
4.72"
x y
100 ø40
120 ø48
216 ø75
430 ø95
1½"
2"
3"
4"
x y
1½"
2"
3"
4"
x
y
G1½A / 1½ NPT
x
y
2 1
144 mm (5.67")
Fig.38:Radar sensor with horn antenna in threaded version
1Standard
2With temperature adapter up to 250 °C
VEGAPULS 62 •4…20 mA/HART two-wire 67
11 Supplement
36503-EN-100607
VEGAPULS 62 -horn antenna in flange version
x
y
21
165 mm (6.5")
260 mm (10.24")
60 mm
(2.36")
mm inch
8.50"
16.93"
3.94" ø1.58"
ø1.89"
ø2.95"
ø3.74"
4.72"
xy
100 ø40
120 ø48
216 ø75
430 ø95
1½"
2"
3"
4"
xy
1½"
2"
3"
4"

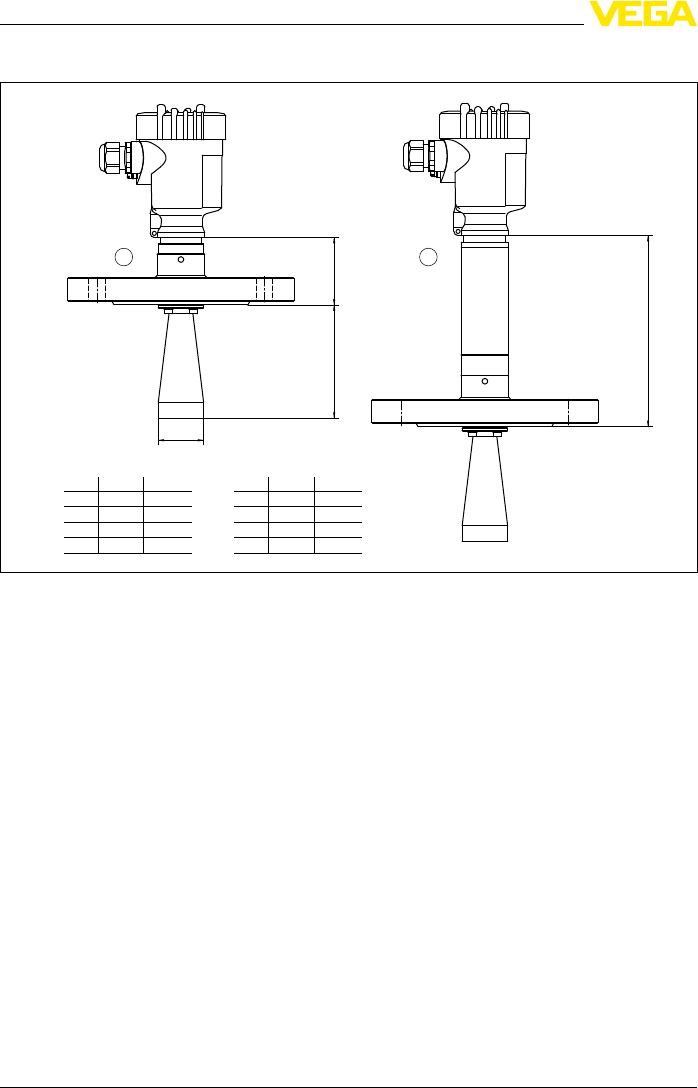

Fig.39:Radar sensor with horn antenna in flange version
1Standard
2With temperature adapter up to 250 °C/450 °C
68 VEGAPULS 62 •4…20 mA/HART two-wire
11 Supplement
36503-EN-100607
VEGAPULS 62 -horn antenna and swivelling holder
mm
inch
20 mm
(0.79")
20 mm
(0.79")
3.94" ø 1.58"
ø 1.89"
ø 2.95"
ø 3.74"
4.72"
8.50"
16.93"
x
y
x
y
1
x y
100 ø 40
120 ø 48
216 ø 75
430 ø 95
1½"
2"
3"
4"
x y
1½"
2"
3"
4"
40 mm
(1.58")
146 mm (5.75")
2
max. 15°
(0.59")
Fig.40:Radar sensor with horn antenna and swivelling holder
1Standard
2With temperature adapter up to 250 °C
VEGAPULS 62 •4…20 mA/HART two-wire 69
11 Supplement
36503-EN-100607
VEGAPULS 62 -parabolic antenna and swivelling holder
130 mm (5.12")
ø 243 mm (9.57")
1
40 mm
(1.58")
max. 15°
(0.59")
120 mm (4.72")
2
Fig.41:Radar sensor with parabolic antenna and swivelling holder
1Standard
2With temperature adapter up to 200 °C
70 VEGAPULS 62 •4…20 mA/HART two-wire
11 Supplement
36503-EN-100607
11.3Industrial property rights
VEGA product lines are global protected by industrial property rights.
Further information see http://www.vega.com.
Only in U.S.A.: Further information see patent label at the sensor
housing.
VEGA Produktfamilien sind weltweit geschützt durch gewerbliche
Schutzrechte.
Nähere Informationen unter http://www.vega.com.
Les lignes de produits VEGA sont globalement protégées par des
droits de propriétéintellectuelle. Pour plus d'informations, on pourra
se référer au site http://www.vega.com.
VEGA lineas de productos están protegidas por los derechos en el
campo de la propiedad industrial. Para mayor información revise la
pagina web http://www.vega.com.
Линии продукции фирмы ВЕГА защищаются по всему миру
правами на интеллектуальную собственность.Дальнейшую
информацию смотрите на сайте http://www.vega.com.
VEGA系列产品在全球享有知识产权保护。
进一步信息请参见网站<http://www.vega.com>。
11.4Trademark
All the brands as well as trade and company names used are property
of their lawful proprietor/originator.
VEGAPULS 62 •4…20 mA/HART two-wire 71
11 Supplement
36503-EN-100607
INDEX
A
Accessory
-External indicating and adjustment unit 9-
10
-External radio unit 10
-Indicating and adjustment module 9
-Interface adapter 9
-Protective cover 10
Adjustment 36
-Max. adjustment 37
-Min. adjustment 36
Adjustment system 32
Agitator 17
Antenna versions
-Horn antenna 8
-Parabolic antenna 8
Application
-Bulk solid 35
-Liquid 34
-Standpipe 35
Application area 8
C
Cable entry 25
Check signal 50
Connection cable 25
Connection procedure 26
Connection technology 26
D
DD (Device Description)45
Default values 40
E
Echo curve memory 46
EDD (Enhanced Device Description)45
Electronics and connection compartment with
single chamber housing 28
Electronics compartment,double chamber hou-
sing 28-29
Electronics versions 8
Event memory 46
F
Fault rectification 50
Flow measurement
-Khafagi-Venturi ume 24
-Rectangular ume 22
Foam generation 18
Functional principle 8
G
Gating out of false signals 37
Grounding 26
H
HART resistor 43
I
Inflowing medium 15
K
Key function 32
L
Linearisation curve 38
M
Main menu 33
Measured value memory 46
Measurement in a surge pipe 18
Measurement in the bypass 20
Medium
-Bulk solid 33
Moisture 11
Mounting position 14
N
NAMUR NE 107
-Failure 47
-Function check 49
-Maintenance 49
-Out of specication 49
O
Orientation of the sensor 16
Overfill protection according to WHG 39
P
Polarisation plane 13
Potential equalisation 26
R
Reflection properties 34
Replacement parts
-Antenna impedance cone 10
72 VEGAPULS 62 •4…20 mA/HART two-wire
Index
36503-EN-100607
-Electronics module 10
Reset 39
S
Serial number 7
Service hotline 51
Shielding 26
Socket mounting 15
Status messages 47
T
Type label 7
V
Vessel form 35
Vessel height 35
Vessel installations 17
Vessel insulation 22
Voltage supply 25
VEGAPULS 62 •4…20 mA/HART two-wire 73
Index
36503-EN-100607
74 VEGAPULS 62 •4…20 mA/HART two-wire
Index
36503-EN-100607
VEGAPULS 62 •4…20 mA/HART two-wire 75
Index
36503-EN-100607
VEGA Grieshaber KG
AmHohenstein 113
77761 Schiltach
Germany
Phone +49 7836 50-0
Fax +49 7836 50-201
E-mail:info@de.vega.com
www.vega.com
Printing date:
ISO 9001
All statements concerning scope of delivery,application,
practical use and operating conditions of the sensors and
processing systems correspond to the information avail-
able at the time of printing.
©VEGA Grieshaber KG,Schiltach/Germany 2010
Subject to change without prior notice 36503-EN-100607
