Operating Instructions

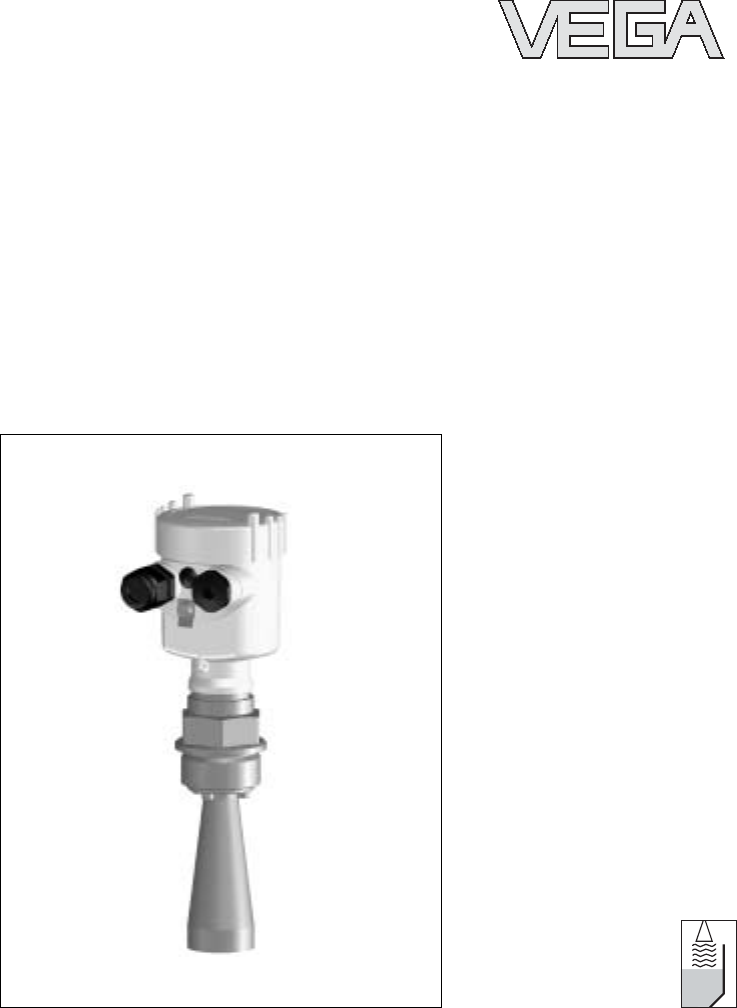

VEGAPULS 62
4... 20 mA/HART
Contents
1About this document
1.1Function ............................. 5
1.2Target group .......................... 5
1.3Symbolism used ....................... 5
2For your safety
2.1Authorised personnel.................... 6
2.2Appropriate use........................ 6
2.3Warning about misuse ................... 6
2.4CE conformity ......................... 6
2.5Compatibility acc.to NAMUR NE 53......... 7
2.6FCC/IC-Conformity (only for USA/Canada).... 7
2.7Safety information for Ex areas............. 8
2.8Manufacturer declaration ................. 8
2.9Environmental instructions ................ 9
3Product description
3.1Configuration.......................... 10
3.2Principle of operation.................... 11
3.3Adjustment ........................... 12
3.4Storage and transport ................... 12
4Mounting
4.1General instructions..................... 14
4.2Mounting preparations -Horn antenna ....... 15
4.3Mounting preparations -Parabolic antenna .... 16
4.4Mounting information .................... 17
4.5Mounting information .................... 18
5Connecting to power supply
5.1Preparing the connection ................. 25
5.2Connection procedure -Instrument housing.... 26
5.3Wiring plans,single chamber housing........ 27
5.4Wiring plans,double chamber housing ....... 29
5.5Wiring plans,double chamber housing Exd.... 31
5.6Wiring plans,version IP 66/IP 68,1bar ...... 33
5.7Switch-on phase ....................... 33
6Setup with the indicating and adjustment module
PLICSCOM
6.1Short description ....................... 34
6.2Installing the indicating and adjustment module
PLICSCOM ........................... 34
2VEGAPULS 62 -4... 20 mA/HART
Contents
28435-EN-060317
6.3Adjustment system ..................... 35
6.4Adjustment system ..................... 36
6.5Setup procedure ....................... 37
6.6Menu schematic ....................... 43
6.7Saving the parameter adjustment data ....... 46
7Setup with PACTware™and other adjustment
programs
7.1Connecting the PC ..................... 47
7.2Parameter adjustment with PACTware™...... 48
7.3Parameter adjustment with AMS™and PDM .. 49
7.4Saving the parameter adjustment data ....... 49
8Maintenance and fault rectification
8.1Maintenance .......................... 50
8.2Fault rectification ....................... 50
8.3Exchange of the electronics module ......... 51
8.4Instrument repair ....................... 52
9Dismounting
9.1Dismounting procedure .................. 54
9.2Disposal ............................. 54
10 Supplement
10.1Technical data......................... 55
10.2Dimensions ........................... 70
10.3Industrial property rights.................. 78
VEGAPULS 62 -4... 20 mA/HART 3
Contents
28435-EN-060317
Supplementary operating instructions manuals
Information:
VEGAPULS 62 is available in different versions and is
supplied specifically acc.to the order.Depending on the
selected version,supplementary operating instructions man-
uals come with the shipment.The supplementary operating
instructions are stated in paragraph "Product description".
Operating instructions manuals for accessories and
replacement parts
Tip:
To ensure reliable setup and operation of your VEGAPULS 62,
VEGA offers accessories and replacement parts.The corre-
sponding documentations are:
lOperating instructions manual "External indicating and
adjustment unit VEGADIS 61"
lOperating instructions manual "Oscillator VEGAPULS
series 60"
lSupplementary instructions manual "Antenna impedance
cone VEGAPULS 62 and 68"
lSupplementary instructions manual "Flanges acc.to DIN-
EN-ASME-JIS"
4VEGAPULS 62 -4... 20 mA/HART
Contents
28435-EN-060317
1About this document
1.1Function
This operating instructions manual has all the information you
need for quick setup and safe operation.Please read this
manual before you start setup.
1.2Target group
This operating instructions manual is directed to trained,
qualified personnel.The contents of this manual should be
made available to these personnel and put into practice by
them.
1.3Symbolism used
Information,tip,note
This symbol indicates helpful additional information.
Caution:If this warning is ignored,faults or
malfunctions can result.
Warning:If this warning is ignored,injury to persons and/or
serious damage to the instrument can result.
Danger:If this warning is ignored,serious injury to persons
and/or destruction of the instrument can result.
Ex applications
This symbol indicates special instructions for Ex applications.
lList
The dot set in front indicates a list with no implied sequence.
àAction
This arrow indicates a single action.
1Sequence
Numbers set in front indicate successive steps in a procedure.
VEGAPULS 62 -4... 20 mA/HART 5
About this document
28435-EN-060317
2For your safety
2.1Authorised personnel
All operations described in this operating instructions manual
must be carried out only by trained specialist personnel
authorised by the operator.For safety and warranty reasons,
any internal work on the instruments must be carried out only
by personnel authorised by the manufacturer.
2.2Appropriate use
VEGAPULS 62 is a sensor for continuous level measurement.
Detailed information on the application range of VEGAPULS
62 is available in chapter "Product description".
2.3Warning about misuse
Inappropriate or incorrect use of the instrument can give rise to
application-specific hazards,e.g.vessel overfill or damage to
system components through incorrect mounting or adjustment.
2.4General safety instructions
VEGAPULS 62 is a high-tech instrument requiring the strict
observance of standard regulations and guidelines.The
emitting frequencies of all radar sensors are in the Cor K-band
range (depending on the instrument version). The low trans-
mitting power is far below the internationally permitted limit
values,and when used correctly,no health-endangering
effects are to be expected.The instrument can also be used
without restriction on the side of metallic,closed vessels.The
user must take note of the safety instructions in this operating
instructions manual,the country-specific installation standards
(e.g.the VDE regulations in Germany)as well as all prevailing
safety regulations and accident prevention rules.
2.5CE conformity
VEGAPULS 62 is in CE conformity with EMVG (89/336/EWG),
R&TTE directive (1999/5/EC), fulfils NAMUR recommenda-
tion NE 21 and is in CE conformity with LVD (73/23/EWG).1)
Conformity has been judged acc.to the following standards:
1)R&TTE-Richtlinie (1999/5/EC): Not with version with increased sensitivity.
6VEGAPULS 62 -4... 20 mA/HART
For your safety
28435-EN-060317
lEMC:EN 61326:2004
-Emission:Class B
-Susceptibility:Industrial areas
lR&TTE directive:I-ETS 300-440 Expert opinion No.
0043052-02/SEE,Notified Body No.0499
lLVD:EN 61010-1:2002
2.6Compatibility acc.to NAMUR NE 53
VEGAPULS 62 meets NAMUR recommendation NE 53.
VEGA instruments are generally upward and downward
compatible:
lSensor software for DTM VEGAPULS 62 HART,PA or FF
lDTM VEGAPULS 62 for adjustment software PACTware™
ladjustment module PLICSCOM for sensor software
The parameter adjustment of the basic sensor functions is
independent of the software version.The range of available
functions depends on the respective software version of the
individual components.
The software version of VEGAPULS 62 can be determined as
follows:
lvia PACTware™
lon the type label of the electronics
lvia the indicating and adjustment module PLICSCOM
You can view all software histories on our website www.vega.
com.Make use of this advantage and get registered for update
information via e-mail.
2.7FCC/IC-Conformity (only for USA/Canada)
VEGAPULS with all antenna versions are FCC/IC approved
Unauthorized modifications could invalidate the FCC/IC
approval.Modifications must be expressly agreed to by VEGA.
The VEGAPULS 62 complies with Part 15 and RSS-210 rules.
Operation ist subject to the following conditions:
lThis device may not cause harmful interference
lThis device must accept any interference received,
including interference that may cause undesired operation.
This device has been designed to operate with the antennas
listed in the chapter "Dimensions"or without antenna and
having a maximum gain of 33 dB.Antennas not included in this
VEGAPULS 62 -4... 20 mA/HART 7
For your safety
28435-EN-060317
list or having a gain greater than 33 dBare strictly prohibited
for use with this device.The required antenna impedance is 50
Ohm.

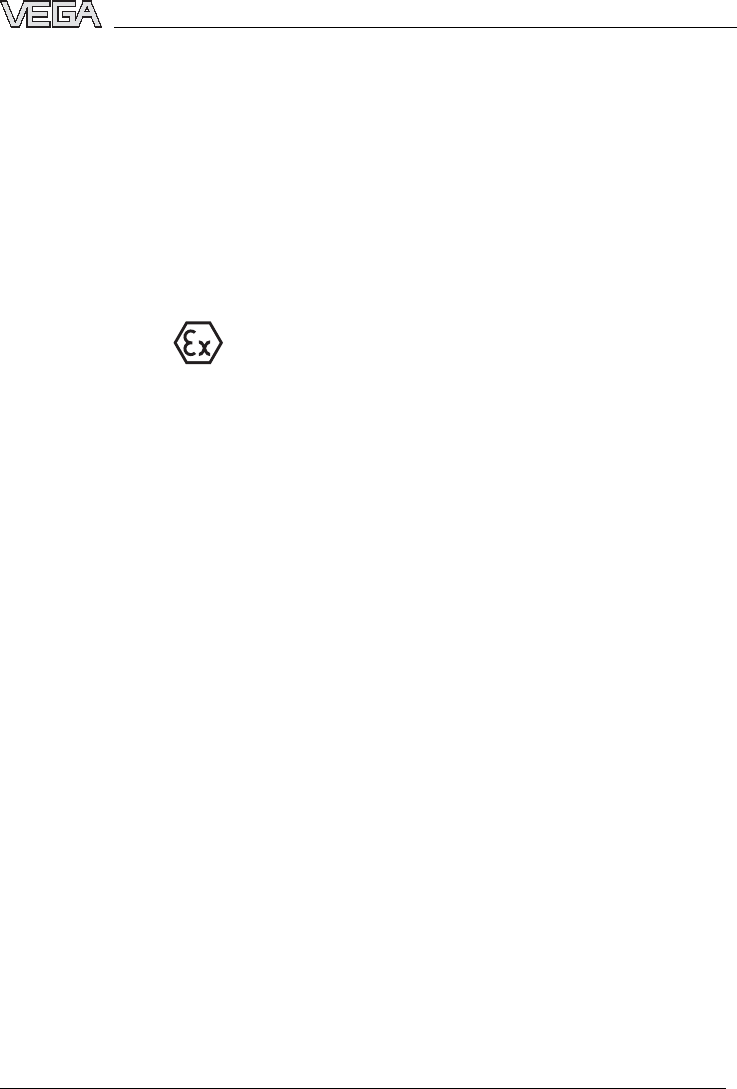

2.8Safety information for Ex areas
Please note the Ex-specific safety information for installation
and operation in Ex areas.These safety instructions are part of
the operating instructions manual and come with the Ex-
approved instruments.
2.9Manufacturer declaration
In conformity with DIN EN 60079-14/2004,para.5.2.3,point
c1,the VEGAPULS 62 radar sensor is suitable for use in zone
2.
The operator must use the instrument correctly and follow the
specifications of the following documents:
lthis operating instructions manual
lthis manufacturer declaration (24626)
lthe corresponding installation regulations
Max.increase of the surface temperature during operation:
27 K(individual components in the instrument)
With an ambient temperature of +70°C(+158°F)on the
housing and a process temperature of +70°C(+158°F), the
max.ambient temperature during operation is +97°C(+207°F).
Measures for maintaining explosion protection during oper-
ation:
lOperate the instrument in the range of the specified
electrical limit values.Permissible supply voltage:see
"Technical data"
lMount and operate the instrument in such a way that no
danger of ignition by electrostatic charges is to be
expected.Antenna,process fitting and housing (as the
case may be depending on instrument version)are made
of electrically non-conductive plastic.
lMake sure that the seal is mounted correctly between
lower part of the housing and cover.Screw the cover on
tightly.
lMake sure there is no explosive atmosphere present if you
want to operate the instrument with opened cover
8VEGAPULS 62 -4... 20 mA/HART
For your safety
28435-EN-060317
lMake sure that the cable gland is tight and strain-relieved.
The outer diameter of the connection cable must be
adapted to the cable gland.Tighten the pressure screw of
the cable gland carefully.
lCover unused openings for cable glands tightly
lMount the instrument in such a position that the sensor
cannot touch the vessel wall or vessel installations.Keep
the influence of product movements in the vessel in mind.
lThe surface temperature of the housing must not exceed
the ignition temperature of the surrounding explosive
atmosphere
This instrument was assessed by a person fulfilling the
requirements acc.to DIN EN 60079-14.
2.10 Environmental instructions
Protection of the environment is one of our most important
duties.That is why we have introduced an environment
management system with the goal of continuously improving
company environmental protection.The environment man-
agement system is certified acc.to DIN EN ISO 14001.
Please help us fulfil this obligation by observing the environ-
mental instructions in this manual:
lChapter "Storage and transport"
lChapter "Disposal"
VEGAPULS 62 -4... 20 mA/HART 9
For your safety
28435-EN-060317
3Product description
3.1Configuration
The VEGAPULS 62 radar sensor is available in two electronics
versions:
lStandard electronics type PS60K
lElectronics with increased sensitivity type PS60S
The respective version can be determined by means of the
type label on the electronics.
The electronics version influences the CE conformity,the
functional safety (SIL), the factory setting for the product
selection and vessel,form,the accuracy,the voltage supply as
well as the approvals of VEGAPULS 62.The differences are
specified in this operating instructions manual in the respective
paragraphs.
The scope of delivery encompasses:
lVEGAPULS 62 radar sensor
ldocumentation
-this operating instructions manual
-Supplementary instructions manual "Safety Manual -
Functional safety acc.to IEC 61508 (SIL)"2)
-Operating instructions manual "Indicating and adjust-
ment module PLICSCOM"(optional)
-Supplementary instructions manual "Heating for indi-
cating and adjustment module PLICSCOM"(optional)
-Supplementary instructions manual "Plug connector for
continuously measuring sensors"(optional)
-Ex-specific"Safety instructions"(with Ex versions)
-if necessary,further certificates
VEGAPULS 62 consists of the following components:
lHorn or parabolic antenna
lprocess fitting (depending on the version flange or thread)
loptionally available with purging air connection,reflux valve
lHousing with electronics,optionally available with plug
connector,optionally available with connection cable
lHousing cover,optionally available with indicating and
adjustment module PLICSCOM
The components are available in different versions.
2)Not with electronics version with increased sensitivity
Versions
Scope of delivery
Components
10 VEGAPULS 62 -4... 20 mA/HART
Product description
28435-EN-060317
2
1
3

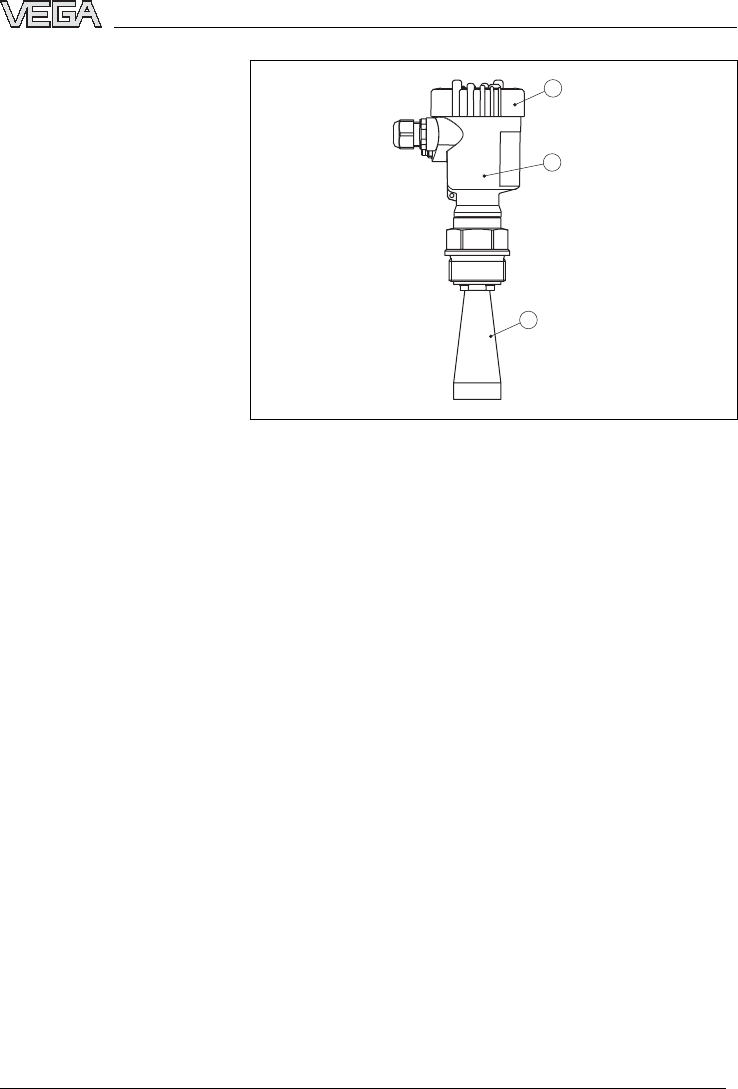

Fig.1:VEGAPULS 62,threaded version with plastic housing
1Housing cover with integrated PLICSCOM (optional)
2Housing with electronics
3Process fitting with horn antenna
3.2Principle of operation
VEGAPULS 62 is a radar sensor in K-band (emitting frequency
approx.26 GHz)for continuous level measurement.
Aversion of VEGAPULS 62 is available for the respective
application.
The version with "thread and horn antenna with ø40 mm
(1.6in)"is particularly suitable for small tanks and process
vessels for measurement of virtually all products.
The version with "flange and horn antenna with
ø48 …95 mm (ø1.9…3.7in)"is particularly suitable for
storage tanks and process vessels,for measurement of
solvents,hydrocarbons and fuels under most difficult process
conditions.
The version with "parabolic antenna"is particularly suitable
for precise measurement of products with small dielectric
value.
The antenna of the radar sensor emits short radar pulses with
a duration of approx.1ns.These pulses are reflected by the
product and received by the antenna as echoes.The running
time of the radar pulses from emission to reception is
Area of application
Physical principle
VEGAPULS 62 -4... 20 mA/HART 11
Product description
28435-EN-060317
proportional to the distance and hence to the level.The
determined level is converted into an appropriate output signal
and outputted as measured value.
Two-wire electronics 4…20 mA/HART for power supply and
measured value transmission on the same cable.
The voltage supply range can differ depending on the
instrument version.The exact range is stated in the "Technical
data"in the "Supplement".
The backlight of the indicating and adjustment module
PLICSCOM is powered by the sensor.Prerequisite for this is a
supply voltage at a certain level.The exact voltage specifica-
tions are stated in the "Technical data"in the "Supplement".
This function is for instruments with StEx,WHG or ship
approval as well as country-specific approvals such as those
acc.to FM or CSA,available at a later date.
The optional heating requires its own power supply.Details
can be found in the supplementary instructions manual
"Heating for indicating and adjustment module PLICSCOM".
This function is generally not available for approved instru-
ments.
3.3Adjustment
VEGAPULS 62 can be adjusted with four different adjustment
media:
lthe indicating and adjustment module PLICSCOM
lthe suitable VEGA DTM in conjunction with an adjustment
software acc.to the FDT/DTM standard,e.g.PACTware™
and PC
lthe manufacturer-specific adjustment programs AMS™or
PDM
laHART handheld
The entered parameters are generally saved in VEGAPULS
62,optionally also in PLICSCOM or in PACTware™.
3.4Storage and transport
Your instrument was protected by packaging during transport.
Its capacity to handle normal loads during transport is assured
by a test acc.to DIN EN 24180.
Supply
Packaging
12 VEGAPULS 62 -4... 20 mA/HART
Product description
28435-EN-060317
The packaging of standard instruments consists of environ-
ment-friendly,recyclable cardboard.For special versions,PE
foam or PE foil is also used.Dispose of the packaging material
via specialised recycling companies.
lStorage and transport temperature see "Supplement -
Technical data -Ambient conditions"
lRelative humidity 20 …85 %
Storage and transport tem-
perature
VEGAPULS 62 -4... 20 mA/HART 13
Product description
28435-EN-060317
4Mounting
4.1General instructions
Select an installation position you can easily reach for
mounting and connecting as well as later retrofitting of an
indicating and adjustment module.The housing can be rotated
by 330°without the use of any tools.You can also install the
indicating and adjustment module in four different positions
(each displaced by 90°).

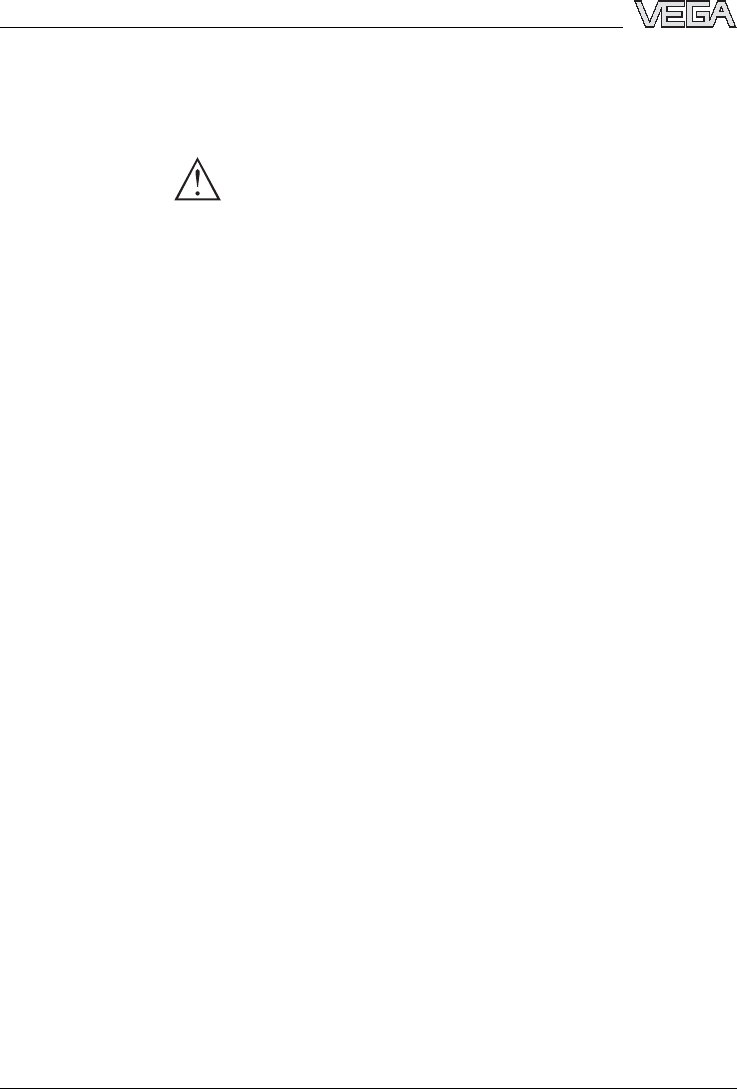

Warning:
The housing must not be used to screw in the instrument!
Applying tightening force on the housing can damage its
internal mechanical parts.
Use the recommended cables (see chapter "Connecting to
power supply")and tighten the cable gland.
You can give your VEGAPULS 62 additional protection against
moisture penetration by leading the connection cable down-
ward in front of the cable entry.Rain and condensation water
can thus drain off.This applies mainly to mounting outdoors,in
areas where moisture is expected (e.g.by cleaning processes)
or on cooled or heated vessels.

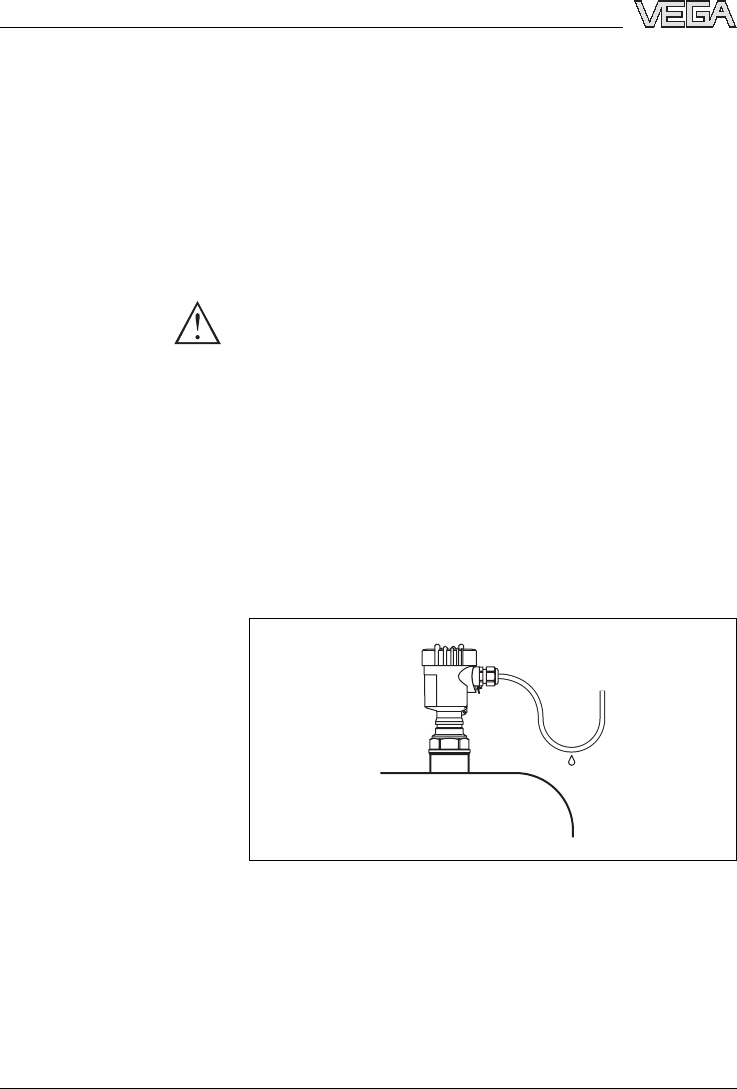

Fig.2:Measures against moisture penetration
The reference plane for the measuring range is the lower edge
of the flange or the seal surface of the thread.
Installation position
Screwing in
Moisture
Measuring range
14 VEGAPULS 62 -4... 20 mA/HART
Mounting
28435-EN-060317
Information:
If the medium reaches the antenna,buildup can be caused
which can lead to faulty measurements later on.

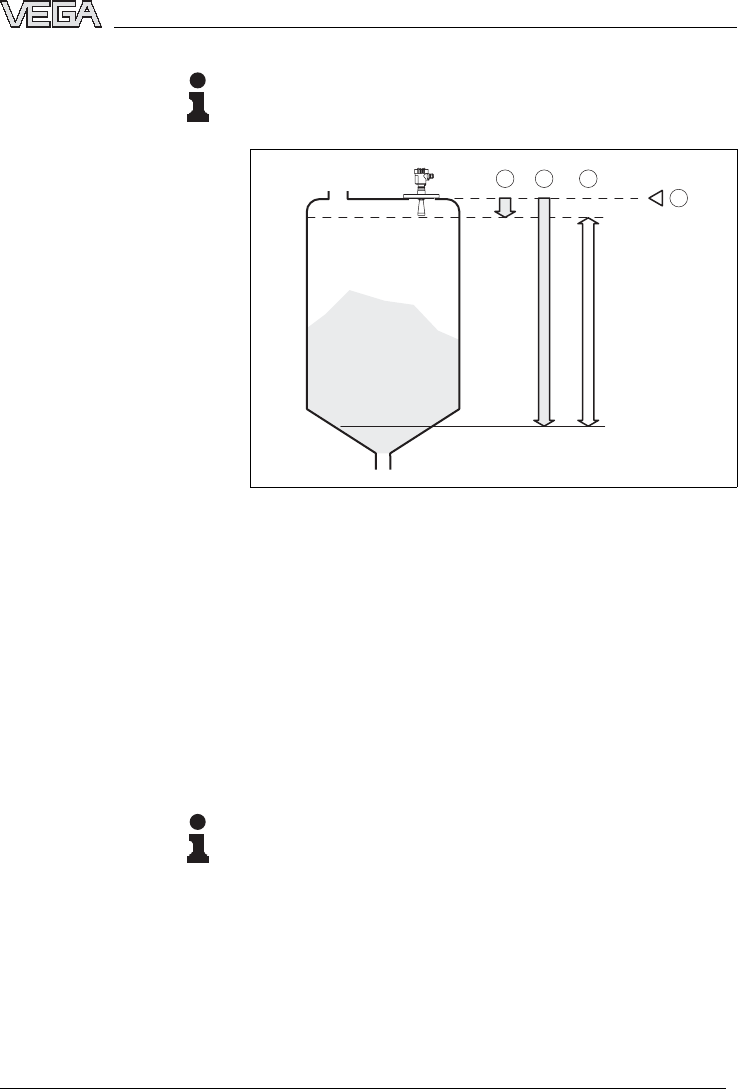

Fig.3:Measuring range (operating range)and max.measuring distance
1full
2empty (max.measuring distance)
3Measuring range
The process fitting must be sealed if there is gauge or low
pressure in the vessel.Before use,check if the seal material is
resistant against the measured product and the process
temperature.
The max.permissible pressure is stated in the "Technical
data"in the "Supplement"or on the type label of the sensor.
4.2Mounting preparations -Horn antenna
Information:
This information applies only to special versions!
VEGAPULS 62 is also available in versions where the
"antenna has a bigger diameter"than the process fitting
(thread,flange). The antenna must therefore be disconnected
from the process fitting before mounting.Proceed as follows:
1Loosen the hexagon screws (3)on the antenna socket with
an Allan key (size 3)
2Remove the antenna (4)
Pressure
VEGAPULS 62 -4... 20 mA/HART 15
Mounting
28435-EN-060317
3Insert the antenna from below into the vessel socket and
secure it against falling off
4Retighten the antenna with hexagon screws to the antenna
socket;torque max.10 Nm(7.5lbf ft)
Note:
VEGAPULS 62 with purging air connection or with antenna
extension has a notch on the antenna socket.This notch must
fit with the marking on the hexagon of the process fitting.3)
3
4
1
2
Fig.4:Dismounting of the horn antenna
1Marking
2Notch
3Hexagon screws on the antenna socket
4Antenna
4.3Mounting preparations -Parabolic antenna
Information:
This information applies only to special versions!
VEGAPULS 62 is also available in versions where the
"antenna has a bigger diameter"than the process fitting
(thread,flange). The antenna must therefore be disconnected
from the flange before mounting.Proceed as follows:
1Clamp VEGAPULS 62 with the flange,e.g.in a bench vice
3)
3)The marking indicates the orientation of the polarisation plane of the radar
signal.
16 VEGAPULS 62 -4... 20 mA/HART
Mounting
28435-EN-060317
2Hold the connection piece (3)with a wrench SW 22 on the
flattenings
3Unscrew the locknut (2)with SW 36 against the antenna
4Unscrew the compression nut (1)with a wrench SW 41
against the antenna
5Remove the parabolic antenna (4)axially
6Mount sensor flange to the adapter flange and clamp it
7Check if the O-ring is available on the adapter and if it is
undamaged.If necessary,replace:FKM (Viton)article no.
2.28248;Kalrez 6375 article no.2.27351
8Remount the parabolic antenna (4)
9Tighten compression nut (3)with SW 41,torque max.
50 Nm
10 Tighten locknut (2)with SW 36,torque max.40 Nm.
Note:
Make sure when using VEGAPULS 62 with purging air
connection that the holes in the antenna and in the process
fitting match.This ensures sufficient air flow.4)
1
2
3
4
Fig.5:Dismounting,parabolic antenna
1Compression nut
2Locknut
3Connection piece
4Parabolic antenna
4)
4)The air is lead through the holes to a feed system.Purging of the complete
antenna is not planned.
VEGAPULS 62 -4... 20 mA/HART 17
Mounting
28435-EN-060317
4.4Mounting information
The illustrations on the mounting instructions show a VEGA-
PULS 62 with horn antenna.The mounting instructions also
apply to VEGAPULS 62 with parabolic antenna.
When mounting VEGAPULS 62,keep a distance of at least
200 mm (7.9in)to the vessel wall.If the sensor is installed in
the center of concave or arched vessel tops,multiple echoes
can arise.These can,however,be faded out by an appropriate
adjustment (see "Setup").
If this distance cannot be maintained,a false echo storage
should be carried out during setup.This applies particularly if
buildup on the vessel wall is expected.In such case,we
recommend repeating the false echo storage later on with
existing buildup.
12
> 200 mm

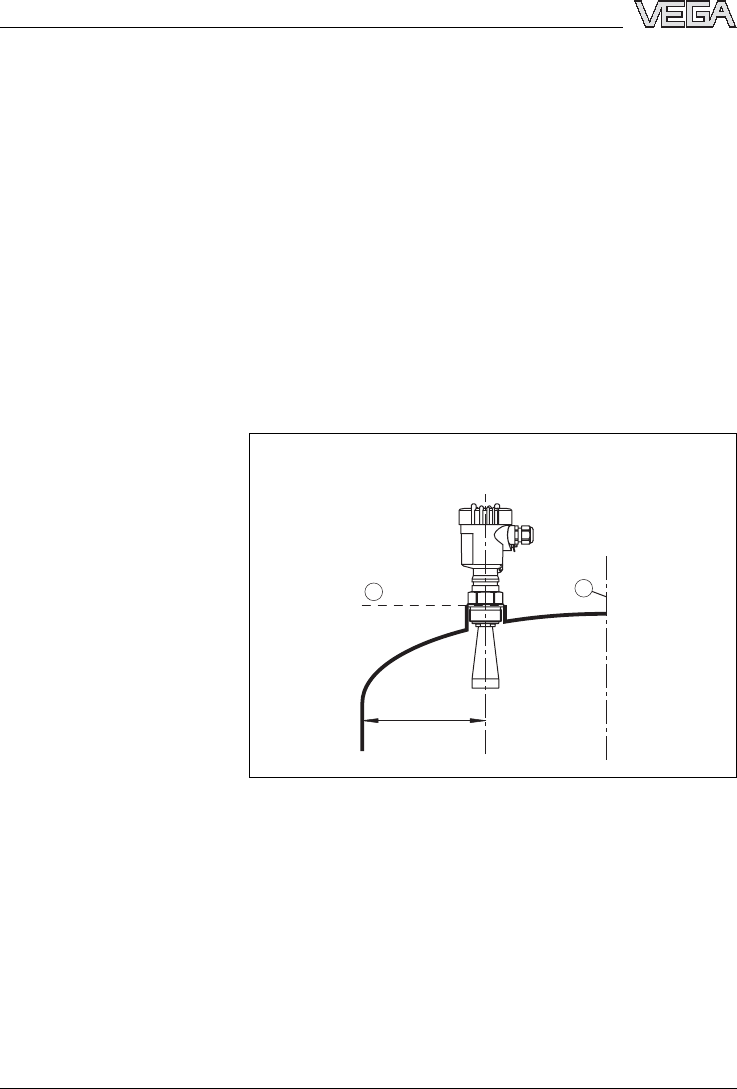

Fig.6:Mounting on dished vessel tops
1Reference plane
2Vessel center or symmetry axis

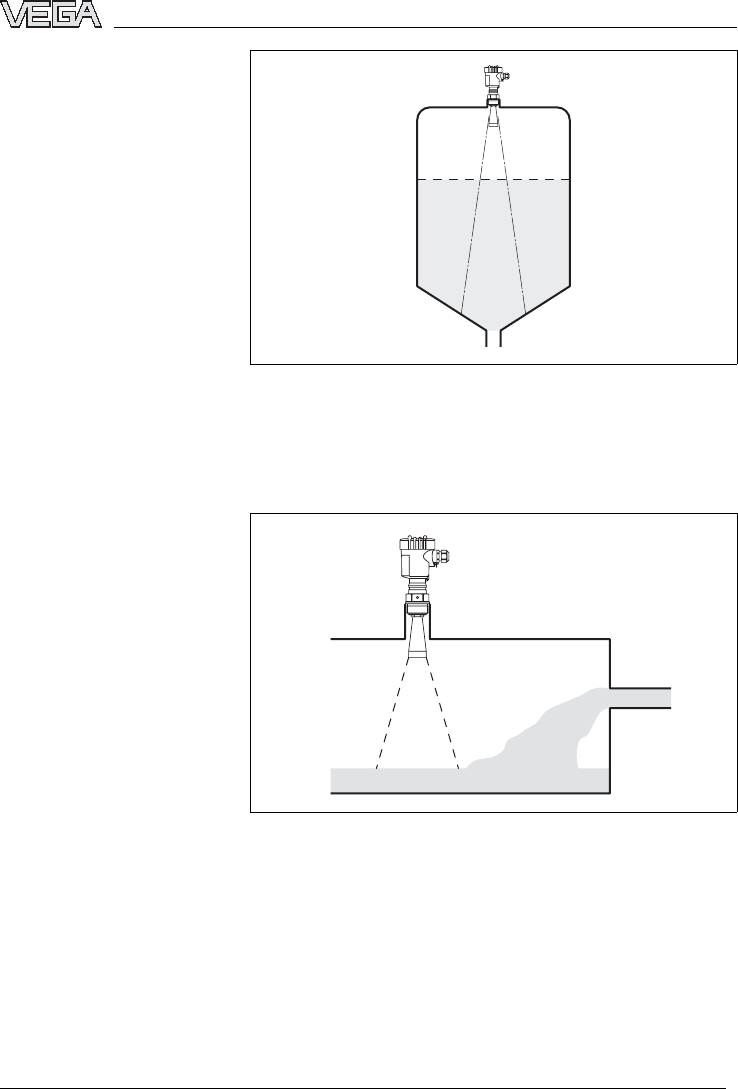

In vessels with conical bottom it can be advantageous to
mount the sensor in the center of the vessel,as measurement
is then possible down to the lowest point of the vessel bottom.
Horn and parabolic antenna
Installation position
18 VEGAPULS 62 -4... 20 mA/HART
Mounting
28435-EN-060317
Fig.7:Vessel with conical bottom
Do not mount the instruments in or above the filling stream.
Make sure that you detect the product surface and not the
inflowing product.
Fig.8:Inflowing material
Socket pieces should be dimensioned such that the antenna
end protrudes at least 10 mm (0.4in)out of the socket.
Inflowing material
Socket
VEGAPULS 62 -4... 20 mA/HART 19
Mounting
28435-EN-060317
ca. 10 mm

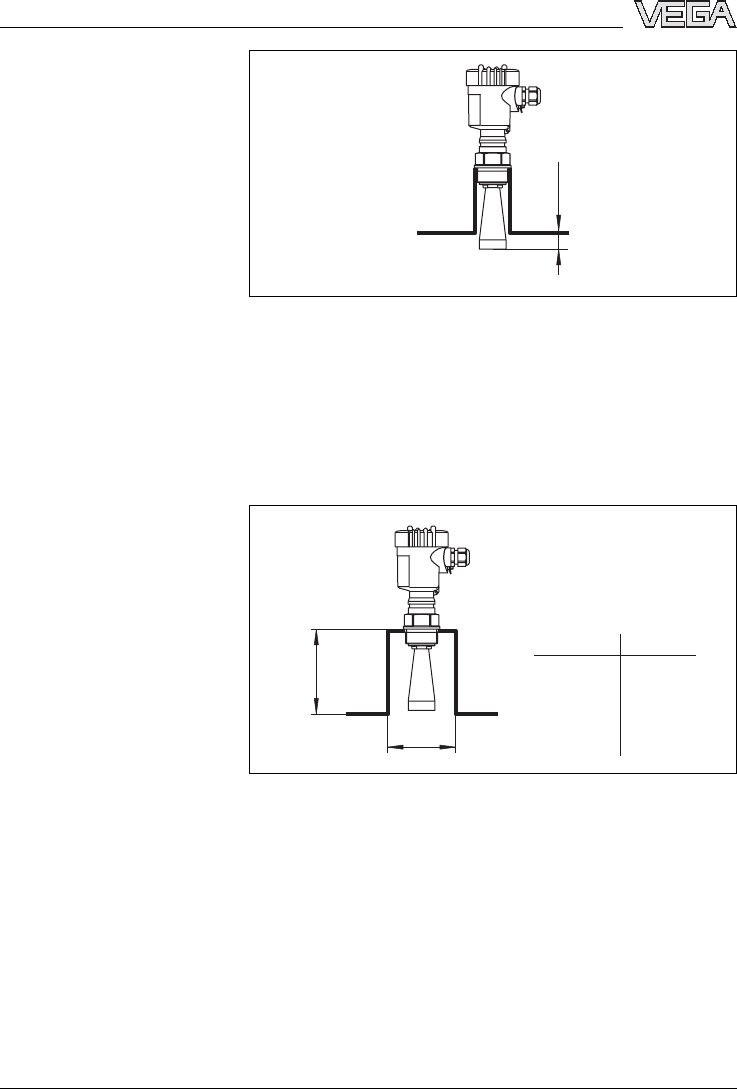

Fig.9:Recommended socket mounting
If the reflective properties of the medium are good,you can
mount VEGAPULS 62 on sockets higher than the antenna
length.You will find recommended values for socket heights in
the following illustration.The socket end should be smooth and
burr-free,if possible also rounded.Then carry out a false echo
storage.
d
hmax.
d
1½"
50 mm/2"
80 mm/3"
100 mm/4"
150 mm/6"
200 mm
250 mm
300 mm
500 mm
800 mm
hmax.
Fig.10:Deviating socket dimensions
With liquids,align the sensor directly towards the product
surface (as vertical as possible)to achieve optimum meas-
urement.
Sensor orientation
20 VEGAPULS 62 -4... 20 mA/HART
Mounting
28435-EN-060317

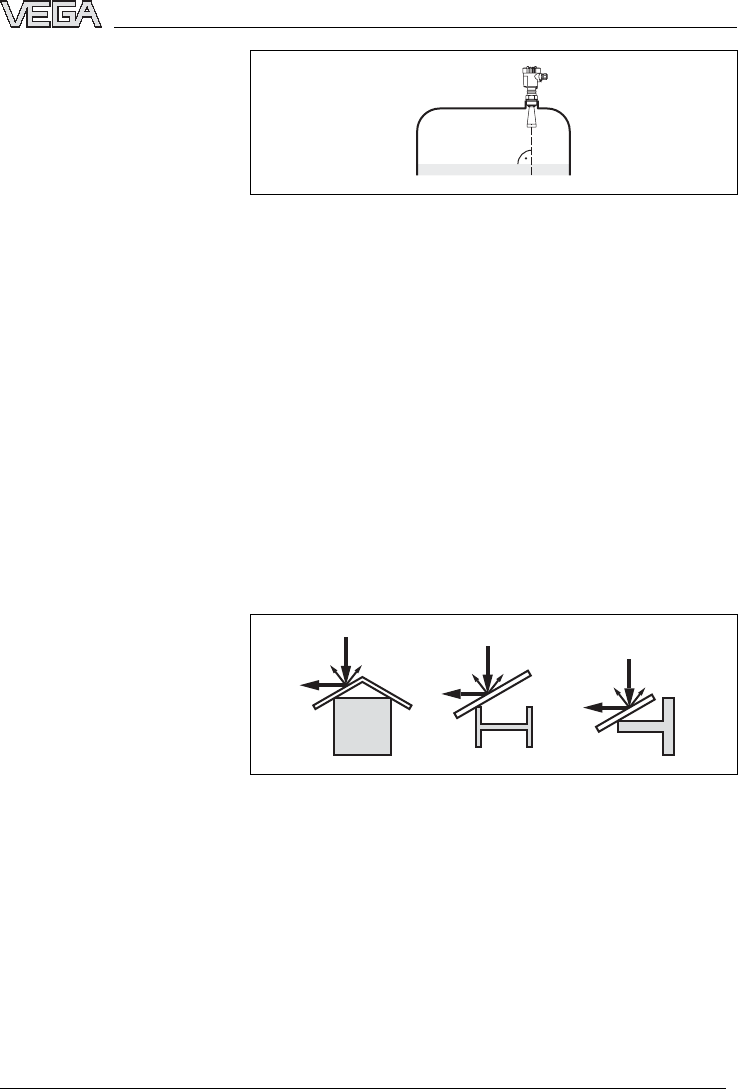

Fig.11:Orientation in liquids
The radar sensor should be installed at a location where no
installations cross the microwave signals.
Vessel installations such as,for example,ladders,limit
switches,heating spirals,struts,etc.can cause false echoes
that get superimposed on the useful echo.Make sure when
planning your measuring site that the radar sensor has a "clear
view"to the measured product.
If there are existing vessel installations,a false echo storage
should be carried out during setup.
If large vessel installations such as struts or supports cause
false echoes,these can be attenuated through supplementary
measures.Small,inclined sheet metal baffles above the
installations scatter the radar signals and avoid a direct false
echo reflection.
Fig.12:Cover smooth profiles with deflectors
If there are agitators in the vessel,a false echo storage should
be carried out with the agitators in motion.This ensures that
the interfering reflections from the agitators are saved with the
blades in different positions.
Vessel installations
Agitators
VEGAPULS 62 -4... 20 mA/HART 21
Mounting
28435-EN-060317

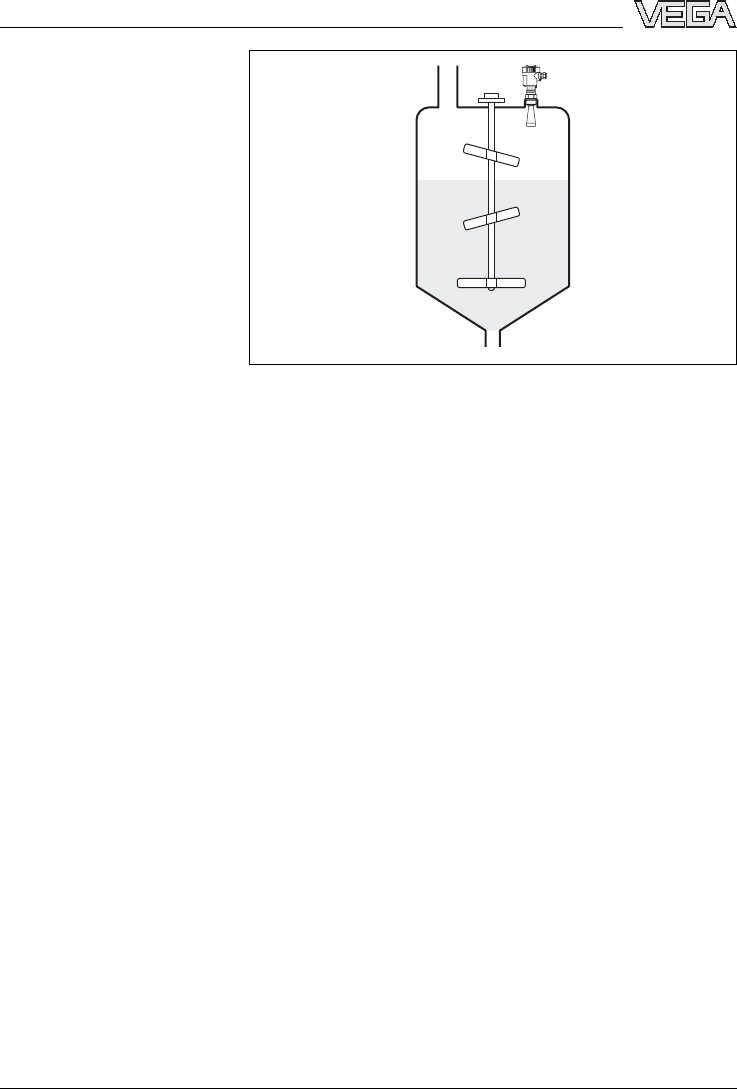

Fig.13:Agitators
Through the action of filling,stirring and other processes in the
vessel,dense foams which considerably damp the emitted
signals may form on the product surface.
If foams lead to measurement errors,you should use the
biggest possible radar antennas and low frequency radar
sensors,e.g.VEGAPULS 65,66 (C-band).
VEGAFLEX sensors with guided microwaves are not influ-
enced by foam generation and are particularly suitable for such
applications.
By the use of a standpipe,influences of vessel installations
and turbulence can be excluded.Under these requirements,
the measurement of products with low dielectric values (from
DK value 1.6)is possible.
Surge or bypass tubes must extend all the way down to the
requested min.level,as measurement is only possible within
the tube.
Foam generation
Measurement in the stand-
pipe (surge or bypass tube)
22 VEGAPULS 62 -4... 20 mA/HART
Mounting
28435-EN-060317
max.
min.
2
1

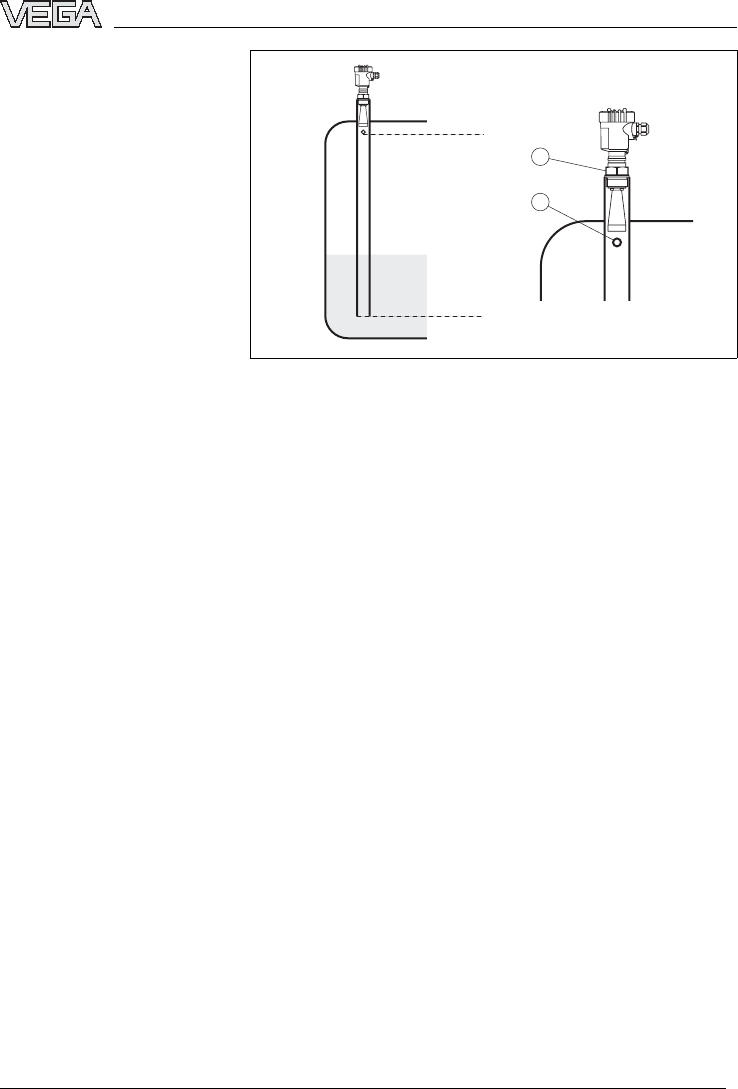

Fig.14:Pipe antenna systems in a tank
1Marking of the polarisation direction
2Vent holde max.ø5mm (0.2in)
If possible,the antenna diameter of the sensor should
correspond to the inner diameter of the tube.With VEGAPULS
62 this is approx.40 mm (1.6in). The sensor can be used with
tube diameters between 40 …80 mm (1.6…3.2in).
Make sure you provide the necessary upper vent hole in the
surge pipe,which must by displaced by 90°to the polarisation
marking on the sensor (see illustration:"Pipe antenna system
in a tank").
As an alternative to the surge pipe in the vessel,a pipe system
can be mounted outside of the vessel as a bypass tube.For
setup,select the function "Bypass tube".
Align the sensor in such a way that the polarisation marking on
the process fitting is displaced by 90°to the tube holes or the
tube connection openings (see illustration:"VEGAPULS in a
bypass tube").
VEGAPULS 62 -4... 20 mA/HART 23
Mounting
28435-EN-060317
100%
0%
1
> 300 mm

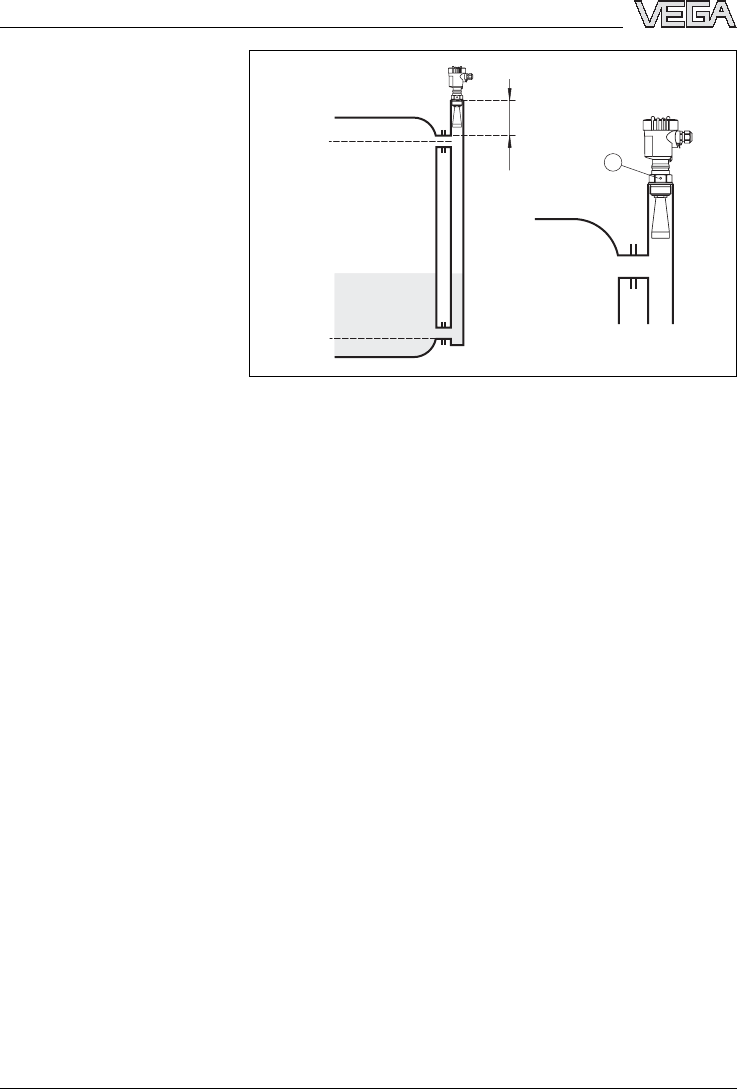

Fig.15:VEGAPULS in a bypass tube
1Marking of the polarisation direction
When mounting the sensor on a bypass tube,the distance of
VEGAPULS 62 to the upper tube connection should be
approx.300 mm (12 in)or more.In case of extremely rough
tube inner walls,you should use an inserted tube (tube within
tube)or a radar sensor with tube antenna.
24 VEGAPULS 62 -4... 20 mA/HART
Mounting
28435-EN-060317
5Connecting to power supply
5.1Preparing the connection
Always observe the following safety instructions:
lConnect only in the complete absence of line voltage
lIf overvoltages are expected,overvoltage arresters should
be installed
Tip:
We recommend using VEGA overvoltage arresters ÜS-F-LB-I
and ÜSB 62-36G.X.
In hazardous areas you should take note of the appropriate
regulations,conformity and type approval certificates of the
sensors and power supply units.
Power supply and current signal are transmitted via the same
two-wire connection cable.The supply voltage range can differ
depending on the instrument version.The exact range is
stated in the "Technical data"in the "Supplement".
Provide a reliable separation between the supply circuit and
the mains circuits acc.to DIN VDE 0106 part 101.The VEGA
power supply units VEGATRENN 149AEx,VEGASTAB 690,
VEGADIS 371 as well as all VEGAMETs meet this require-
ment.
Bear in mind the following factors regarding supply voltage:
lthe reduction of the output voltage of the power supply unit
under nominal load (with a sensor current of 20.5mAor
22 mAin case of fault signal)
lThe influence of additional instruments in the circuit (see
load values in "Technical data").
VEGAPULS 62 is connected with standard two-wire cable
without screen.Aouter cable diameter of 5…9mm ensures
the seal effect of the cable gland.If electromagnetic
interference is expected which is above the test values of
EN 61326 for industrial areas,screened cable should be used.
For HART multidrop operation we recommend as standard
practice the use of screened cable.
OnVEGAPULS 62 with cable gland ½NPT and plastic
housing,a metal ½" threaded insert is moulded in the plastic
housing.
Note safety instructions
Take note of safety
instructions for Ex
applications
Select power supply
Select connection cable
Cable gland ½NPT
VEGAPULS 62 -4... 20 mA/HART 25
Connecting to power supply
28435-EN-060317
Caution:
No grease should be used when screwing the NPT cable
gland or steel tube into the threaded insert.Standard grease
can contain additives affecting the connection between
threaded insert and housing.This will influence the stability of
the connection and the tightness of the housing.
If screened cable is necessary,connect the cable screen on
both ends to ground potential.In the sensor,the screen must
be connected directly to the internal ground terminal.The
ground terminal on the outside of the housing must be
connected to the potential equalisation (low impedance).
If potential equalisation currents are expected,the connection
on the evaluation side must be made via the ceramic capacitor
(e.g.1nF,1500 V). The low frequency potential equalisation
currents are thus suppressed,but the protective effect against
high frequency interference signals remains.
Take note of the corresponding installation regulations for Ex
applications.In particular,make sure that no potential equal-
isation currents flow over the cable screen.In case of
grounding on both sides this can be achieved by the use of a
capacitor or a separate potential equalisation.
5.2Connection procedure -Instrument housing
Proceed as follows:
1Unscrew the housing cover
2If an indicating and adjustment module is installed,remove
it by turning it slightly to the left.
3Loosen compression nut of the cable entry
4Remove approx.10 cm (4in)of the cable mantle,strip
approx.1cm (0.4in)insulation from the ends of the
individual wires
5Insert the cable into the sensor through the cable entry
6Lift the opening levers of the terminals with a screwdriver
(see following illustration)
7Insert the wire ends into the open terminals according to
the wiring plan
Cable screening and ground-
ing
Select connection
cable for Ex applica-
tions
26 VEGAPULS 62 -4... 20 mA/HART
Connecting to power supply
28435-EN-060317

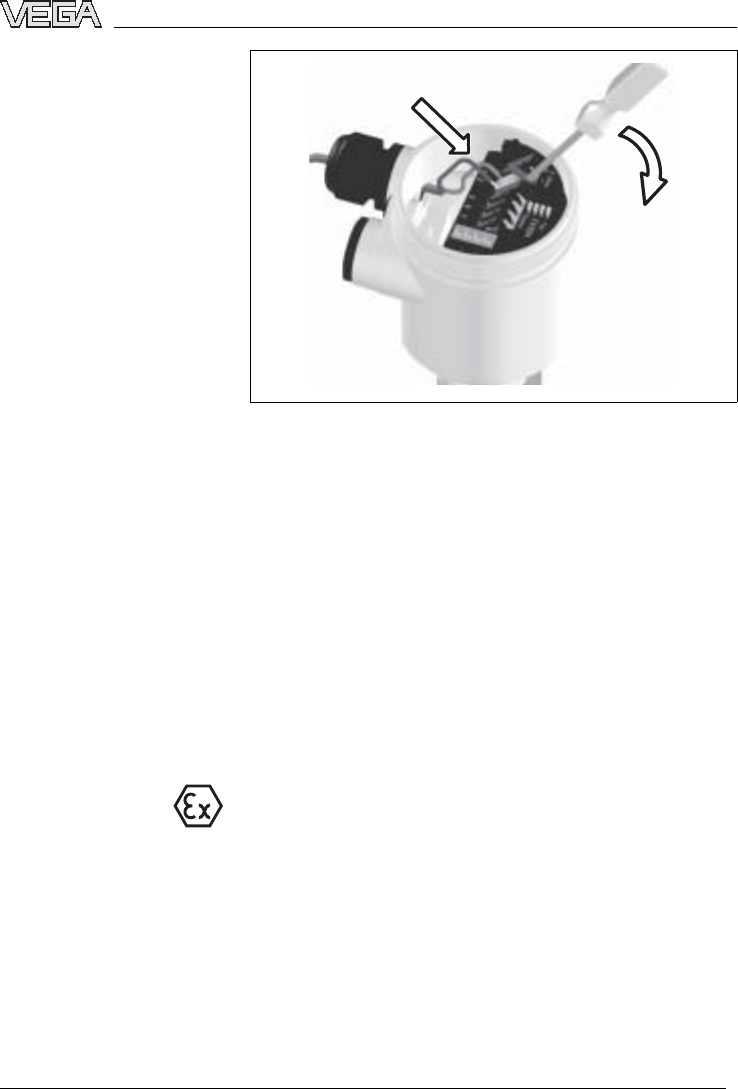

Fig.16:Connection steps 6and 7
8Press the opening lever of the terminals downward,you will
hear the terminal spring closing
9Check the hold of the wires in the terminals by lightly
pulling on them
10 Connect the screen to the internal ground terminal and the
external ground terminal to potential equalisation
11 Tighten the compression nut of the cable entry.The seal
ring must completely encircle the cable.
12 Screw the housing cover back on
The electrical connection is finished.
5.3Wiring plans,single chamber housing
The following illustrations apply to the non-Ex as well as to the
Ex ia version.
VEGAPULS 62 -4... 20 mA/HART 27
Connecting to power supply
28435-EN-060317
1
4
44
2 3
Fig.17:Material versions,single chamber housing
1Plastic
2Aluminium
3Stainless steel
4Filter element for pressure compensation or blind stopper with version IP 66/
IP 68,1bar
I2C
Display
12 5678
3
4
1
2
Fig.18:Electronics and connection compartment,single chamber housing
1Plug connector for VEGACONNECT (I²Cinterface)
2Spring-loaded terminals for connection of the external indication VEGADIS
61
3Ground terminal for connection of the cable screen
4Spring-loaded terminals for power supply
Housing overview
Electronics and connection
compartment
Connecting to power supply
28 VEGAPULS 62 -4... 20 mA/HART
28435-EN-060317
I2C
Display
1
12 5678

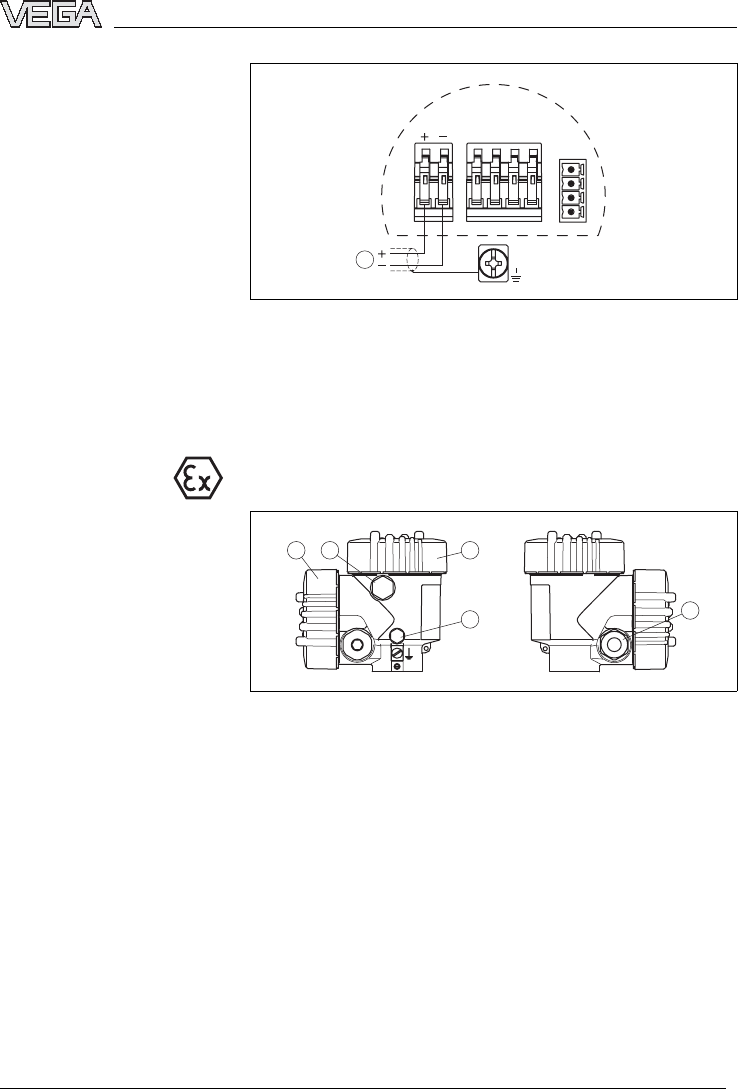

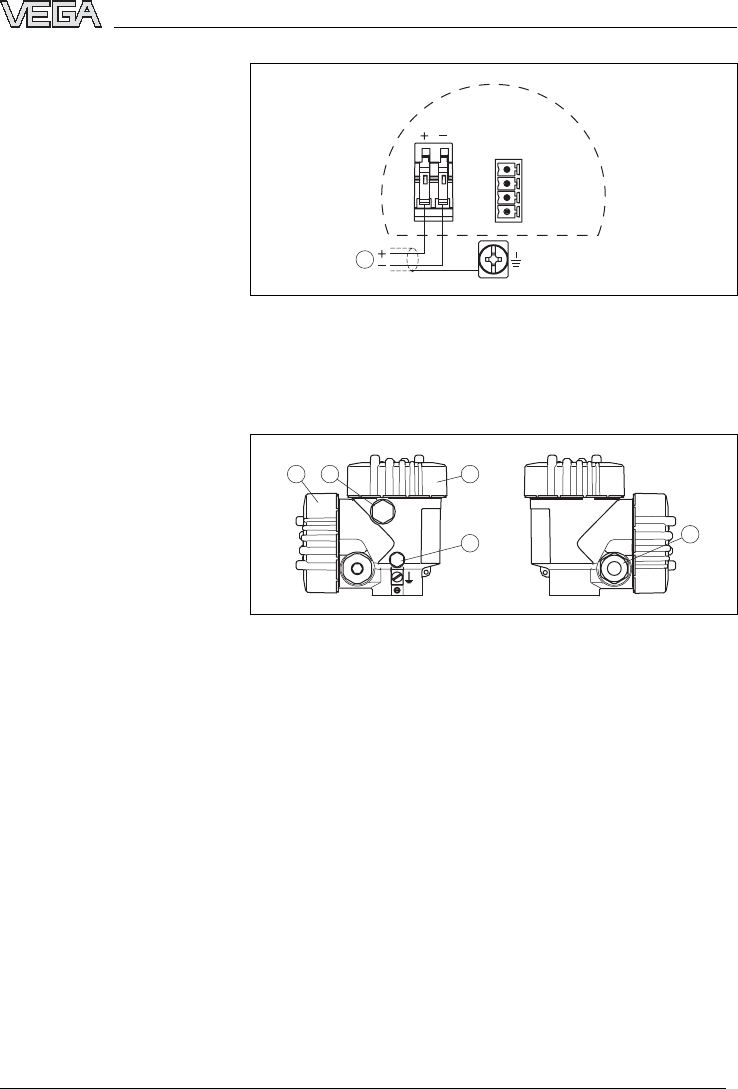

Fig.19:Wiring plan,single chamber housing
1Power supply/Signal output
5.4Wiring plans,double chamber housing
The following illustration apply to non-Ex as well as Exia
versions.The Exd version is described in the next subchapter.
1 2 3
45
Fig.20:Double chamber housing
1Housing cover,connection compartment
2Blind stopper or plug M12x1for VEGADIS 61 (option)
3Housing cover,electronics compartment
4Filter element for pressure compensation or blind stopper with version IP 66/
IP 68,1bar5)
5Cable entry or plug
5)
5)Version IP 66/IP 68,1bar not with four-wire instruments.
Wiring plan
Housing overview
Connecting to power supply
VEGAPULS 62 -4... 20 mA/HART 29
28435-EN-060317
1
32
Display
12 5678
I2C
Fig.21:Electronics compartment,double chamber housing
1Plug connector for VEGACONNECT (I²Cinterface)
2Internal connection cable to the connection compartment
3Terminals for VEGADIS 61
3
1
2
Display
12
I2C
Fig.22:Connection compartment,double chamber housing
1Plug connector for VEGACONNECT (I²Cinterface)
2Ground terminal for connection of the cable screen
3Spring-loaded terminals for power supply
Electronics compartment
Connection compartment
Connecting to power supply
30 VEGAPULS 62 -4... 20 mA/HART
28435-EN-060317
I2C
1
12
Fig.23:Wiring plan,double chamber housing
1Power supply/Signal output
5.5Wiring plans,double chamber housing Exd
1 2 3
45
Fig.24:Double chamber housing
1Housing cover,connection compartment
2Blind stopper or plug M12x1for VEGADIS 61 (option)
3Housing cover,electronics compartment
4Filter element for pressure compensation or blind stopper with version IP 66/
IP 68,1bar6)
5Cable entry or plug
6)
6)Version IP 66/IP 68,1bar not with four-wire instruments.
Wiring plan
Housing overview
Connecting to power supply
VEGAPULS 62 -4... 20 mA/HART 31
28435-EN-060317
1
32
Display
12 5678
I2C
Fig.25:Electronics compartment,double chamber housing
1Plug connector for VEGACONNECT (I²Cinterface)
2Internal connection cable to the connection compartment
3Terminals for VEGADIS 61
1
2
12
Fig.26:Connection compartment,double chamber housing Exd
1Spring-loaded terminals for power supply and cable screen
2Ground terminal for connection of the cable screen
Electronics compartment
Connection compartment
Connecting to power supply
32 VEGAPULS 62 -4... 20 mA/HART
28435-EN-060317
1
12

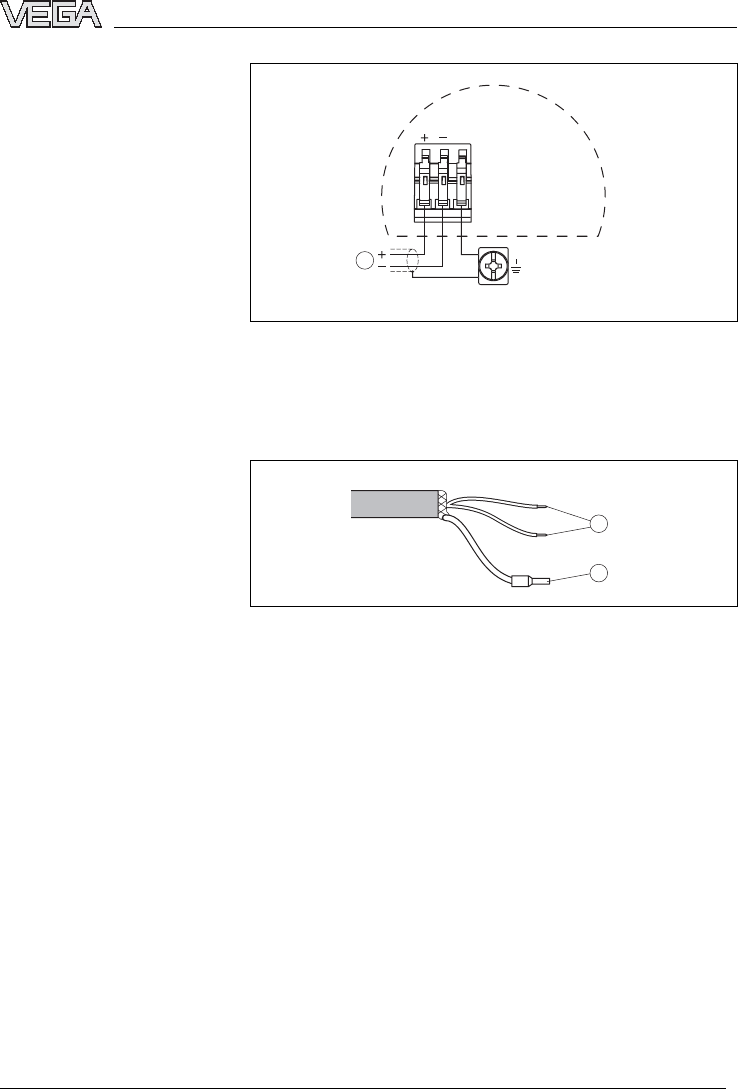

Fig.27:Wiring plan,double chamber housing Exd
1Power supply/Signal output
5.6Wiring plans,version IP 66/IP 68,1bar
+
-
1
2
Fig.28:Wire assignment,connection cable
1br (+)and bl (-) for power supply or to the processing system
2Screen
5.7Switch-on phase
After VEGAPULS 62 is connected to power supply or after a
voltage recurrence,the instrument carries out a self-test for
approx.30 seconds.The following steps are carried out:
lInternal check of the electronics
lIndication of the instrument type,the firmware version as
well as the sensor TAGs(sensor name)
lOutput signal jumps briefly(approx.10 seconds)to the set
fault current
Then the corresponding current is transmitted to the cable.7)
7)
7)The value corresponds to the actual level as well as to the settings already
carried out,e.g.default setting.
Wiring plan
Wire assignment,connection
cable
Switch-on phase
Connecting to power supply
VEGAPULS 62 -4... 20 mA/HART 33
28435-EN-060317
6Setup with the indicating and
adjustment module PLICSCOM
6.1Short description
The indicating and adjustment module PLICSCOM is used for
measured value display,adjustment and diagnosis.It can be
mounted in the following housing versions and instruments:
lAll sensors of the plics
®
instrument family,in the single as
well as in the double chamber housing (optionally in the
electronics or connection compartment)
lExternal indicating and adjustment unit VEGADIS 61
From a hardware revision …- 01 or higher of PLICSCOM as
well as the corresponding sensor,an integrated backlight can
be switched via the adjustment menu.The hardware revision is
stated on the type label of the PLICSCOM or the sensor
electronics.
Information:
This function is for instruments with StEx,WHG or ship
approval as well as country-specific approvals such as those
acc.to FM or CSA,available at a later date.
Note:
You will find detailed information on the adjustment in the
operating instructions manual of the indicating and adjustment
module PLICSCOM.
6.2Installing the indicating and adjustment
module PLICSCOM
PLICSCOM can be inserted or removed at any time.Itisnot
necessary to interrupt the power supply.
Proceed as follows:
1Unscrew the housing cover
2Place PLICSCOM in the desired position on the electronics
(you can choose any one of four different positions -each
displaced by 90°)
3Press PLICSCOM lightly onto the electronics and turn it to
the right until it snaps in.
Function/Configuration
Insert/remove PLICSCOM
Setup with the indicating and adjustment module PLICSCOM
34 VEGAPULS 62 -4... 20 mA/HART
28435-EN-060317
4Screw housing cover with inspection window tightly back
on
Removal is carried out in reverse order.
PLICSCOM is powered by the sensor,an additional con-
nection is not necessary.
Fig.29:Installation of PLICSCOM
Note:
If you intend to retrofitVEGAPULS 62 with a PLICSCOM for
continuous measured value indication,a higher cover with an
inspection glass is required.
Setup with the indicating and adjustment module PLICSCOM
VEGAPULS 62 -4... 20 mA/HART 35
28435-EN-060317
6.3Adjustment system
1.1
2
3
1

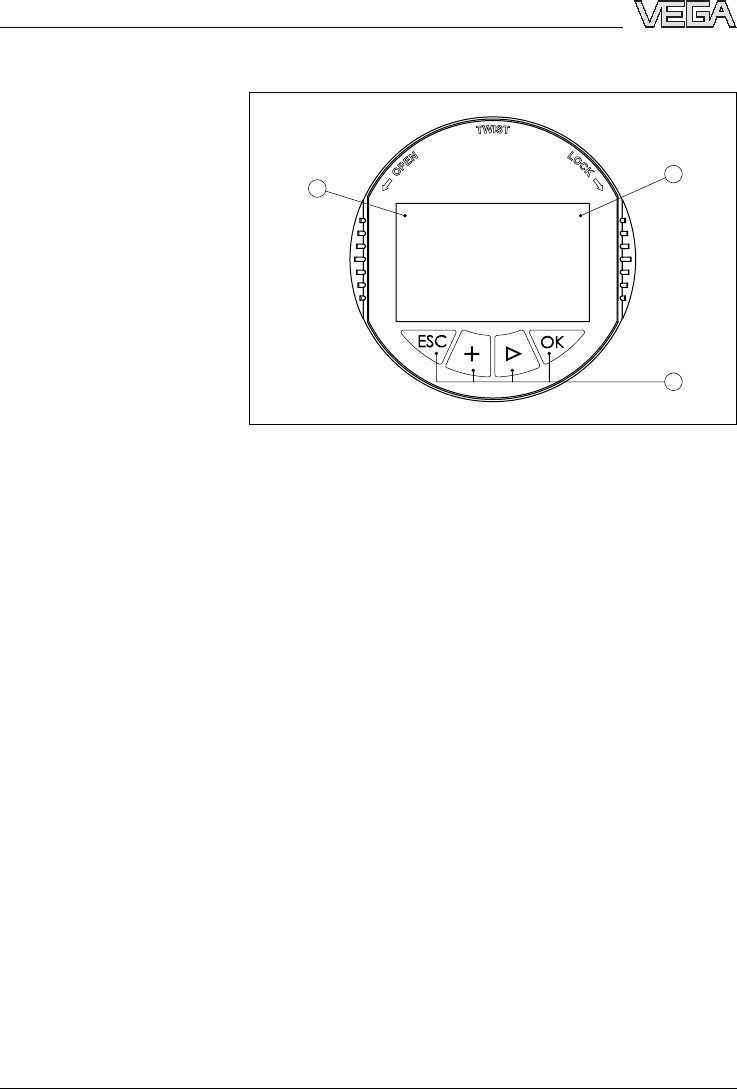

Fig.30:Indicating and adjustment elements
1LC display
2Indication of the menu item number
3Adjustment keys
l[OK]key:
-move to the menu overview
-confirm selected menu
-edit parameter
-save value
l[->]key to select:
-menu change
-list entry
-editing position
l[+]key:
-modify value of a parameter
l[ESC]key:
-interrupt input
-jump to the next higher menu
The sensor is adjusted via the four keys of the indicating and
adjustment module.The LC display indicates the individual
menu items.The functions of the individual keys are shown in
the above illustration.Approx.10 minutes after the last
pressing of a key,an automatic reset to measured value
indication is triggered.Any values not confirmed with [OK]will
not be saved.
Key functions
Adjustment system
Setup with the indicating and adjustment module PLICSCOM
36 VEGAPULS 62 -4... 20 mA/HART
28435-EN-060317
6.4Setup procedure
InHART-Multidrop mode (several sensors on one input)the
address must be set before continuing with the parameter
adjustment.You will find a detailed description in the operating
instructions manual of PLICSCOM or in the online help of
PACTware™or DTM.
HART mode
Standard
Address 0
AsVEGAPULS 62 is a distance measuring instrument,the
distance from the sensor to the product surface is measured.
To have the real product level displayed,an allocation of the
measured distance to the percentage height must be made.To
carry out this adjustment,the distance is entered with full and
empty vessel.If these values are not known,an adjustment
with the distance values,e.g.10 %and 90 %is also possible.
Starting point for this distance specifications is always the seal
surface of the thread or flange.With these settings the real
level is calculated.Furthermore the operating range of the
sensor is limited from maximum to the required range.
The real product level during this adjustment is not important,
because the min./max.adjustment is always carried out
without changing the product level.These settings can be
made ahead of time without the instrument having to be
installed.
In the main menu item "Basic adjustment",the individual
submenu items should be selected one after the other and
provided with the correct parameter values.
Start your parameter adjustment with the following menu items
of the basic adjustment:
Proceed as follows:
1Move from the measured value display to the main menu
by pushing [OK].
▶
Basic adjustment
Display
Diagnostics
Service
Info
Address setting HART-Multi-
drop
Parameter adjustment
Carrying out min.adjustment
Setup with the indicating and adjustment module PLICSCOM
VEGAPULS 62 -4... 20 mA/HART 37
28435-EN-060317
2Select the menu item "Basic adjustment"with [->]and
confirm with [OK].Now the menu item "Min.adjustment"is
displayed.
Min.adjustment
0.00 %
=
5.000 m(d)
4.000 m(d)
3Prepare the %value for editing with [OK]and set the
cursor to the requested position with [->].Set the
requested percentage value with [+]and save with [OK].
The cursor jumps now to the distance value.
4Enter the appropriate distance value in m (corresponding
to the percentage value)for the empty vessel (e.g.distance
from the sensor to the vessel bottom).
5Save the settings with [OK]and move to "Max.adjustment"
with [->].
Proceed as follows:
Max.adjustment
100.00 %
=
1.000 m(d)
2.000 m(d)
1Prepare the %value for editing with [OK]and set the
cursor to the requested position with [->].Set the
requested percentage value with [+]and save with [OK].
The cursor jumps now to the distance value.
2Enter the appropriate distance value in m (corresponding
to the percentage value)for the full vessel.Keep in mind
that the max.level must lie below the dead band.
3Save the settings with [OK]and move to "Medium
selection"with [->].
Each product has different reflective properties.In addition,
there are various interfering factors which have to be taken into
account:agitated product surfaces and foam generation (with
liquids); dust generation,material cones and echoes from the
vessel wall (with solids). To adapt the sensor to these different
conditions,you should first select in this menu item "Liquid"or
"Solid".
Setup with the indicating and adjustment module PLICSCOM
38 VEGAPULS 62 -4... 20 mA/HART
28435-EN-060317
Medium
Liquid
According to the conductivity and the dielectric value of liquids,
the reflection properties can differ considerably.Therefore
additional options such as "Solvent","Chem.mixture"and
"Water based"are offered below the menu item Liquid.
With solids,you can choose between "Powder/Dust","Gran-
ular/Pellets"or "Ballast/Pebbels".
Through this additional selection,the sensor is adapted
perfectly to the product and measurement reliability,partic-
ularly in products with bad reflective properties,is considerably
increased.
Enter the requested parameter via the appropriate keys,save
your settings and jump to the next menu item with the [->]key.
Apart from the medium,the vessel shape can also influence
the measurement.To adapt the sensor to the measuring
conditions,this menu item offers different options depending
on whether liquid or solid.With "Liquid"these are "Storage
tank","Stilling tube","Open vessel"or "Stirred vessel",with
"Solid","Silo"or "Bunker".
Vessel form
Storage tank
Information:
With VEGAPULS 62 with electronics version "Increased
safety","Solid"is preset as factory setting.However,the
instrument should be used preferably in liquids.In such cases,
the vessel form should be set to "Storage tank"during setup.
Enter the requested parameter via the appropriate keys,save
your settings and jump to the next menu item with the [->]key.
To suppress fluctuation in the measured value display,e.g.
caused by a turbulent product surface,an integration time can
be set.This time can be between 0and 999 seconds.Please
note that the reaction time of the entire measurement will be
longer and the sensor will react to quick changes of the
Vessel form
Damping
Setup with the indicating and adjustment module PLICSCOM
VEGAPULS 62 -4... 20 mA/HART 39
28435-EN-060317
measured value with a corresponding delay.In general,a time
of a few seconds is sufficient to smooth the measured value
display.
Damping
0s
Enter the requested parameter via the appropriate keys,save
your settings and jump to the next menu item with the [->]key.
Alinearization is necessary for all vessels in which the vessel
volume does not increase linearly with the level -e.g.with a
cylindrical or spherical tank -and the indication or output of the
volume is required.Corresponding linearization curves are
preprogrammed for these vessels.They represent the
correlation between the level percentage and vessel volume.
By activating the appropriate curve,the volume percentage of
the vessel is displayed correctly.If the volume should not be
displayed in percent but e.g.in l or kg,a scaling can be also
set in the menu item "Display".
Linearization curve
Linear
Enter the requested parameter via the appropriate keys,save
your settings and jump to the next menu item with the [->]key.
In this menu item you can enter an unambiguous designation
for the sensor,e.g.the measurement loop name or the tank or
product designation.In digital systems and in the documen-
tation of larger plants,a singular designation should be entered
for exact identification of individual measuring sites.
Sensor-TAG
Sensor
With this menu item,the Basic adjustment is finished and you
can now jump to the main menu with the [ESC]key.
High sockets or vessel installations,such as e.g.struts or
agitators as well as buildup and weld joints on the vessel walls
cause interfering reflections which can impair the measure-
Linearization curve
Sensor-TAG
False signal suppression
Setup with the indicating and adjustment module PLICSCOM
40 VEGAPULS 62 -4... 20 mA/HART
28435-EN-060317
ment.Afalse echo storage detects and marks these false
echoes,so that they are no longer taken into account for the
level measurement.Afalse echo memory should be created
with empty vessel so that all potential interfering reflections will
be detected.
False signal suppression
Change now?
Proceed as follows:
1Move from the measured value display to the main menu
by pushing [OK].
2Select the menu item "Service"with [->]and confirm with
[OK].Now the menu item "False signal suppression"is
displayed.
3Confirm "False signal suppression -Change now"with
[OK]and select in the below menu "Create new".Enter the
actual distance from the sensor to the product surface.All
false signals in this area are detected by the sensor and
saved after confirming with [OK].
Note:
Check the distance to the product surface,because if an
incorrect (too large)value is entered,the existing level will be
saved as false signal.The filling level would then no longer be
detectable in this area.
This function enables to read out parameter adjustment data
as well as write parameter adjustment data into the sensor via
the indicating and adjustment module PLICSCOM.Adescrip-
tion of the function is available in the operating instructions
manual "Indicating and adjustment module PLICSCOM".
The following data are read out or written with this function:
lMeasured value presentation
lAdjustment
lMedium
lStandpipe inner diameter8)
lVessel form
lDamping
lLinearization curve
lSensor-TAG
8)
8)With standpipe versions.
Copy sensor data
Setup with the indicating and adjustment module PLICSCOM
VEGAPULS 62 -4... 20 mA/HART 41
28435-EN-060317
lDisplayed value
lDisplay unit
lScaling
lCurrent output
lUnits of measurement
lLanguage
The following safety-relevant data are not read out or written:
lHART mode
lPIN
lSIL
Copy sensor data
Copy sensor data?
Basic adjustment
If the "Reset"is carried out,the sensor resets the values of the
following functions to the reset vales (see chart):9)
Function Reset value
Max.adjustment 0m(d)
Min.adjustment 30 m(d)(VEGAPULS 61 …65)
35 m(d)(VEGAPULS 66)
70 m(d)(VEGAPULS 68)
Medium Liquid
Vessel form not known
Damping 0s
Linearization Linear
Sensor-TAG Sensor
Displayed value Distance
Current output -characteristics 4…20 mA
Current output -max.current 20.0mA
Current output -min.current 4mA
Current output -failure <3.6mA
Units of measurement m(d)
The values of the following functions are not reset to the reset
values (see chart)with "Reset":
9)
9)Sensor-specific basic adjustment.
Setup with the indicating and adjustment module PLICSCOM
42 VEGAPULS 62 -4... 20 mA/HART
28435-EN-060317
Function Reset value
Lighting no reset
Language no reset
SIL no reset
HART mode no reset
Factory setting
Like basic setting,in addition special parameters are reset to
default values.10)
Peak values
The min.and max.distance values are reset to the current
value.
Additional adjustment and diagnosis options such as e.g.
scaling,simulation or trend curve presentation are shown in
the following menu schematic.You will find a detailed
description of these menu items in the operating instructions
manual of the indicating and adjustment module.
10)
10)Special parameters are parameters which are set customer-specifically on
the service level with the adjustment software PACTware™.
Optional settings
Setup with the indicating and adjustment module PLICSCOM
VEGAPULS 62 -4... 20 mA/HART 43
28435-EN-060317
6.5Menu schematic
Information:
Depending on the version and application,the highlighted
menu windows are not always available.
Basic adjustment
1
▶
Basic adjustment
Display
Diagnostics
Service
Info
1.1
Min.adjustment
0.00 %
=
10.000 m(d)
8.000 m(d)
1.2
Max.adjustment
100.00 %
=
1.000 m(d)
2.000 m(d)
1.3
Medium
Liquid
Water based
(DK>10)
1.4
Vessel form
Storage tank
1.5
Damping
0s
1.6
Linearization curve
Linear
1.7
Sensor-TAG
Sensor
Display
2
Basic adjustment
▶
Display
Diagnostics
Service
Info
2.1
Displayed value
Scaled
2.2
Display unit
Volume
m³
2.3
Scaling
0%=0.0m³
100 %=100 m³
2.4
Lighting
Switched off
▼
Diagnostics
3
Basic adjustment
Display
▶
Diagnostics
Service
Info
Setup with the indicating and adjustment module PLICSCOM
44 VEGAPULS 62 -4... 20 mA/HART
28435-EN-060317
3.1
Peak values
Distance-min.: 0.234 m(d)
Distance-max.: 5.385 m(d)
3.2
Meas.reliability
8db
Sensor status
OK
3.3
Choose curve
Echo curve
3.4
Echo curve
Presentation of the echo
curve
Service
4
Basic adjustment
Display
Diagnostics
▶
Service
Info
4.1
False signal suppression
Change now?
4.2
Extended settings
None
4.3
Current output
Output mode:4-20 mA
Fail.mode <3.6mA
min.curr.3.8mA
4.4
Simulation
Start simulation?
4.5
Reset
Reset?
4.6
Units of measurement
m(d)
select?
4.7
Language
Deutsch
4.7
SIL
Not activated
▼
4.8
HART mode
Standard
Address 0
4.9
Copy sensor data
Copy sensor data?
4.10
PIN
Enable?
Info
5
Basic adjustment
Display
Diagnostics
Service
▶
Info
5.1
Device type
VEGAPULS 6x
Serial number
12345678
5.2
Date of manufacture
14.December 2005
Software version
3.30
5.3
Last change using PC
14.December 2005
5.4
Sensor characteristics
Display now?
Setup with the indicating and adjustment module PLICSCOM
VEGAPULS 62 -4... 20 mA/HART 45
28435-EN-060317
6.6Saving the parameter adjustment data
It is recommended noting the adjusted data,e.g.in this
operating instructions manual and archive them afterwards.
They are hence available for multiple use or service purposes.
IfVEGAPULS 62 is equipped with an indicating and adjust-
ment module PLICSCOM,the most important data can be read
out of the sensor into PLICSCOM.The procedure is described
in the operating instructions manual "Indicating and adjustment
module PLICSCOM"in the menu item "Copy sensor data".
The data remain there permanently even if the sensor power
supply fails.
If it is necessary to exchange VEGAPULS 62,PLICSCOM is
inserted into the replacement instrument and the data are
written into the sensor under the menu item "Copy sensor
data".
Setup with the indicating and adjustment module PLICSCOM
46 VEGAPULS 62 -4... 20 mA/HART
28435-EN-060317
7Setup with PACTware™and other
adjustment programs
7.1Connecting the PC
~
=
Power supply
VE
G
A
CO
NNE
C
T
3
PACTware /
TM
>PA<
2
31

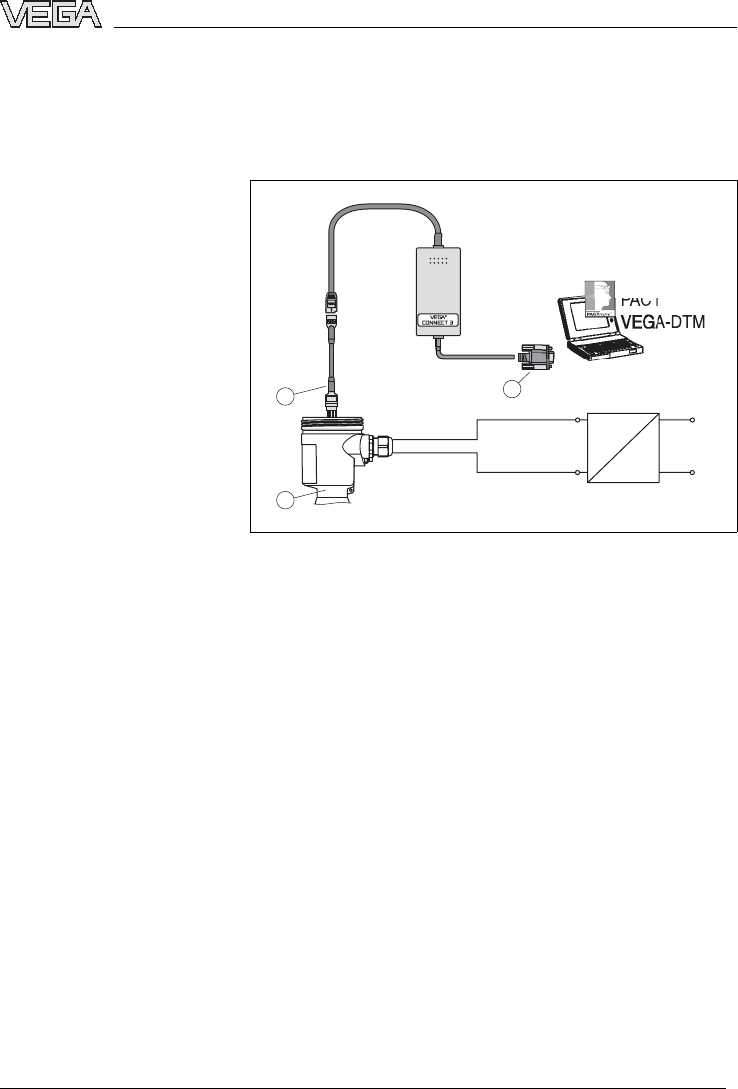

Fig.31:PC connected directly to the sensor
1RS232 connection
2VEGAPULS 62
3I²Cadapter cable for VEGACONNECT 3
Necessary components:
lVEGAPULS 62
lPC with PACTware™and suitable VEGA-DTM
lVEGACONNECT 3with I²Cadapter cable (article no.
2.27323)
lPower supply unit
Connecting the PC directly to
the sensor
Setup with PACTware™and other adjustment programs
VEGAPULS 62 -4... 20 mA/HART 47
28435-EN-060317
2
3
1
4
~
=
Power supply
VEGACONNECT 3
PACTware /
TM

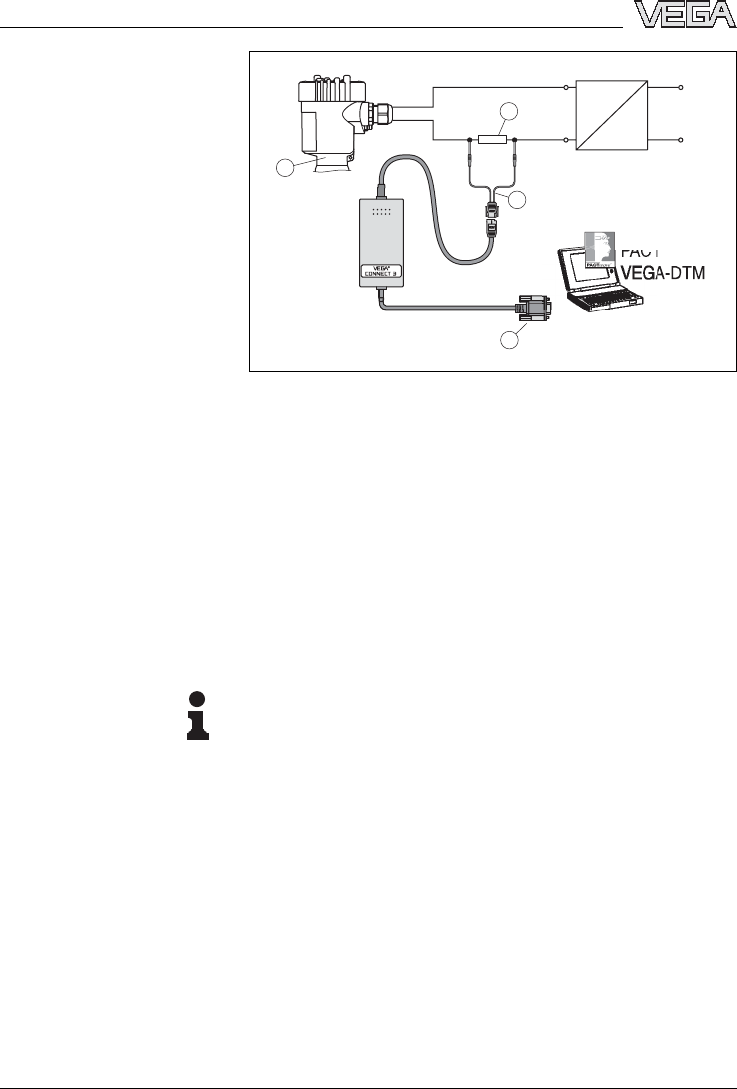

Fig.32:Connecting the PC to the signal cable
1RS232 connection
2VEGAPULS 62
3HART adapter cable for VEGACONNECT 3
4HART resistance 250 Ohm
Necessary components:
lVEGAPULS 62
lPC with PACTware™and suitable VEGA-DTM
lVEGACONNECT 3with HART adapter cable (art.no.
2.25397)
lHART resistance approx.250 Ohm
lPower supply unit
Note:
With power supply units with integrated HART resistance
(internal resistance approx.250 Ohm), an additional external
resistance is not necessary.This applies,e.g.to the VEGA
instruments VEGATRENN 149A,VEGADIS 371,VEGAMET
381.Also standard Ex separators are most of the time
equipped with a sufficiently high current limitation resistor.In
such cases,VEGACONNECT 3can be connected in parallel
to the 4…20 mAcable.
7.2Parameter adjustment with PACTware™
Further setup steps are described in the operating instructions
manual "DTM Collection/PACTware™"attached to each CD
and which can also be downloaded from our homepage.A
Connecting the PC to the
signal cable
Setup with PACTware™and other adjustment programs
48 VEGAPULS 62 -4... 20 mA/HART
28435-EN-060317
detailed description is available in the online help of
PACTware™and the VEGA-DTMs.
Note:
Keep in mind that for setup of VEGAPULS 62,DTM-Collection
06/2003 or a newer version must be used.
All currently available VEGA-DTMs are provided in the DTM
Collection on CD and can be obtained from the responsible
VEGA agency for a token fee.This CD includes also the up-to-
date PACTware™version.The basic version of this DTM
Collection incl.PACTware™is also available as a free-of-
charge download from the Internet.
Go via www.vega.com and "Downloads"to the item "Soft-
ware".
7.3Parameter adjustment with AMS™and PDM
For VEGA sensors,instrument descriptions for the adjustment
programs AMS™and PDM are available as DD or EDD.The
instrument descriptions are already implemented in the current
versions of AMS™and PDM.For older versions of AMS™and
PDM,a free-of-charge download is available via Internet.
Go via www.vega.com and "Downloads"to the item "Soft-
ware".
7.4Saving the parameter adjustment data
It is recommended to document or save the parameter
adjustment data.They are hence available for multiple use or
service purposes.
The VEGA DTM Collection and PACTware™in the licensed,
professional version provide suitable tools for systematic
project documentation and storage.
Setup with PACTware™and other adjustment programs
VEGAPULS 62 -4... 20 mA/HART 49
28435-EN-060317
8Maintenance and fault rectification
8.1Maintenance
When used as directed in normal operation,VEGAPULS 62 is
completely maintenance-free.
8.2Fault rectification
VEGAPULS 62 offers maximum reliability.Nevertheless faults
can occur during operation.These may be caused by the
following,e.g.:
lSensor
lProcess
lSupply
lSignal processing
The first measures to be taken are to check the output signals
as well as to evaluate the error messages via the indicating
and adjustment module PLICSCOM.The procedure is
described below.Further comprehensive diagnostics can be
carried out on a laptop with the software PACTware™and the
suitable DTM.In many cases,the causes can be determined in
this way and faults can be rectified.
Should the following measures not be successful,please call
in urgent cases the VEGA service hotline under the phone
number +49 1805 858550.
The hotline is available to you 7days a week round-the-clock.
Since we offer this service world-wide,the support is only
available in the English language.The service is free of
charge,only the standard telephone costs will be charged.
Connect a hand-held multimeter with a suitable measuring
range acc.to the wiring plan.
?4…20 mAsignal not stable
llevel fluctuations
àset integration time via PLICSCOM or PACTware™
?4…20 mAsignal missing
lincorrect connection to power supply
àCheck connection acc.to chapter "Connection proce-
dure"and correct,if necessary,acc.to chapter "Wiring
plans"
Causes of malfunction
Fault rectification
24 hour service hotline
Checking the 4…20 mAsig-
nal
Maintenance and fault rectification
50 VEGAPULS 62 -4... 20 mA/HART
28435-EN-060317
lNo voltage supply
àcheck cables for line break,repair,if necessary
lsupply voltage too low or load resistance too high
àcheck and adapt,if necessary
?Current signal greater than 22 mAor less than 3.6mA
lElectronics defective
àExchange instrument or return it for repair
InEx applications,the regulations for the wiring of intrinsically
safe circuits must be observed.
?E013
lno measured value available
àsensor in boot phase
àsensor does not find an echo,e.g.because of faulty
installation or incorrect parameter adjustment
?E017
lAdjustment span too small
àCarry out a fresh adjustment and increase the distance
between min.and max.adjustment
?E036
lNo operable sensor software
àCarry out software update or send instrument for repair
?E041,E042,E043
lHardware error,electronics defective
àExchange instrument or return it for repair
8.3Exchange of the electronics module
If the electronics module is defective,it can be replaced by the
user.
Error message via PLICSCOM
Maintenance and fault rectification
VEGAPULS 62 -4... 20 mA/HART 51
28435-EN-060317
InEx applications,only an instrument and an electronics
module with appropriate Ex approval may be used.
If there is no electronics module available on site,one can be
ordered from the VEGA agency serving you.
The order data of the sensor must be downloaded into the new
electronics module.This can be done:
lat the factory by VEGA personnel
lor on site by the user
In both cases,the sensor serial number is necessary.The
serial numbers are stated on the type label of the instrument or
on the delivery note.
Information:
When loading on site,the order data must be downloaded from
the Internet (see Operating Instructions manual of the
oscillator).
The oscillators are adapted to the respective sensor and differ
in their signal output or in their power supply.You can find a
suitable oscillator in the following overview.
Oscillator PS-E.60KH.is suitable for K-band VEGAPULS 61,
62,63 -4…20mA/HART:
lPS-E.60KHX(X=without approvals)
lPS-E.60KHA(A=approvals CA,DA,EA acc.to VEGA
product list)
lPS-E.60KHD(D=approvals XM,CM,CK,CI,DM,DK,DI,
EX,GX,UX,UF acc.to VEGA product list)
lPS-E.60KHE(E=approvals CX,DX acc.to VEGA product
list)
Oscillator PS-E.60SH.is suitable for VEGAPULS 61,62,63 -
4…20 mA/HART:
lPS-E.60SHX(X=without approvals)
lPS-E.60SHD(D=approvals CK,GX acc.to VEGA product
list)
lPS-E.60SHE(E=approvals CX,DX acc.to VEGA product
list)
8.4Instrument repair
If a repair is necessary,please proceed as follows:
You can download a return form (23 KB)from our homepage
Sensor serial number
Assignment
4…20 mA/HART
4…20 mA/HART with in-
creased sensitivity
Maintenance and fault rectification
52 VEGAPULS 62 -4... 20 mA/HART
28435-EN-060317
www.vega.com under:"Services –Downloads –Forms and
Certificates –Repair form".
By doing this you help us carry out the repair quickly and
without having to call back for needed information.
lPrint and fill out one form per instrument
lClean the instrument and pack it damage-proof
lAttach the completed form and possibly also a safety data
sheet to the instrument
lPlease ask the agency serving you for the address of the
return shipment
Maintenance and fault rectification
VEGAPULS 62 -4... 20 mA/HART 53
28435-EN-060317
9Dismounting
9.1Dismounting procedure
Warning:
Before dismounting,be aware of dangerous process con-
ditions such as e.g.pressure in the vessel,high temperatures,
corrosive or toxic products etc.
Take note of the instructions in chapters "Mounting"and
"Connecting to power supply"and carry out the listed steps in
reverse order.
9.2Disposal
The instrument consists of materials which can be recycled by
specialised recycling companies.We use recyclable materials
and have designed the electronic modules to be easily
separable.
WEEE directive 2002/96/EG
This instrument is not subject to the WEEE directive 2002/96/
EG and the respective national laws (in Germany,e.g.
ElektroG). Pass the instrument directly on to a specialised
recycling company and do not use the municipal collecting
points.These may be used only for privately used products
acc.to the WEEE directive.
Correct disposal avoids negative effects to persons and
environment and ensures recycling of useful raw materials.
Materials:see "Technical data"
If you cannot dispose of the instrument properly,please
contact us about disposal methods or return.
Dismounting
54 VEGAPULS 62 -4... 20 mA/HART
28435-EN-060317
10 Supplement
10.1Technical data
General data
316Lcorresponds to 1.4404 or 1.4435
Materials,non-wetted parts
-Housing plastic PBT (Polyester), Alu-die casting pow-
der-coated,316L
-Seal ring between housing and
housing cover
NBR (stainless steel housing), silicone (Alu/
plastic housing)
-Inspection window in housing cover
for PLICSCOM
Polycarbonate (UL746-Clisted)
-Ground terminal 316Ti/316L(1.4571/1.4435)
Materials,wetted parts
-Process fitting 316L,Hastelloy C22,Hastelloy C22 plated,
Monell Alloy
-Antenna 316L,Hastelloy C22,Monell Alloy
-Antenna cone PTFE (TFM 1600 PTFE), PP
-seal,antenna system FKM (Viton), Kalrez 2035,6230 (FDA), 6375
Weight with horn antenna
-Process fitting -Thread 2.0…2.8kg (4.4…6.2lbs), depending on
thread size and housing
-Process fitting -Flange 4.2…15.4kg (9.3…34 lbs), depending on
flange size and housing
Weight with parabolic antenna
-Process fitting -Thread 2.8…3.6kg (6.2…13.7lbs), depending on
thread size and housing
-Process fitting -Flange 5.0…16.2kg (11 …35.7lbs), depending on
the flange size and housing
Supplement
VEGAPULS 62 -4... 20 mA/HART 55
28435-EN-060317
Output variable
Output signal 4…20 mA/HART
Resolution 1.6µA
Fault signal current output unchanged;20.5mA;22 mA;
<3.6mA(adjustable)
Current limitation 22 mA
Load see load diagram in Power supply
Integration time (63 %of the input
variable)
0…999 s,adjustable
Fulfilled NAMUR recommendation NE 43
Input variable
Parameter distance between process fitting and product
surface
Min.distance from antenna end 50 mm (2in)
Recommended meas.range depending on the antenna diameter
-ø40 mm (1.6in)up to 10 m(33 ft)
-ø48 mm (1.9in)up to 15 m(50 ft)
-ø75 mm (3in), ø95 mm (3.7in),
parabolic antenna
up to 30 m(98.4ft)
Accuracy (similar to DIN EN 60770-1)
Reference conditions acc.to DIN EN 61298-1
-Temperature +18 …+30°C(+64 …+86°F)
-Relative humidity 45 …75 %
-Atmospheric pressure 860 …1060 mbar/86 …106 kPa
(12.5…15.4psi)
Supplement
56 VEGAPULS 62 -4... 20 mA/HART
28435-EN-060317
Characteristic curve deviation and measurement characteristics11)
Average temperature coefficient of the
zero signal (temperature error)
0.03 %/10 K
Resolution,general max.1mm
Frequency K-band (26 GHz technology)
Interval approx.1s
Adjustment time12)>1s(dependent on the parameter adjustment)
Received average emitted power reaching an object directly in front of the antenna
-Distance 1m108 nWper cm²(108x10
-9
W/cm²)
-Distance 5m4.3nWper cm²(4.3x10
-9
W/cm²)
Beam angle with horn antenna,depending on the antenna diameter
-ø40 mm 22°
-ø48 mm 18°
-ø75 mm 10°
-ø95 mm 8°
Accuracy see diagram
0,5 m 30 m
10 mm
3 mm
-3 mm
-10 mm

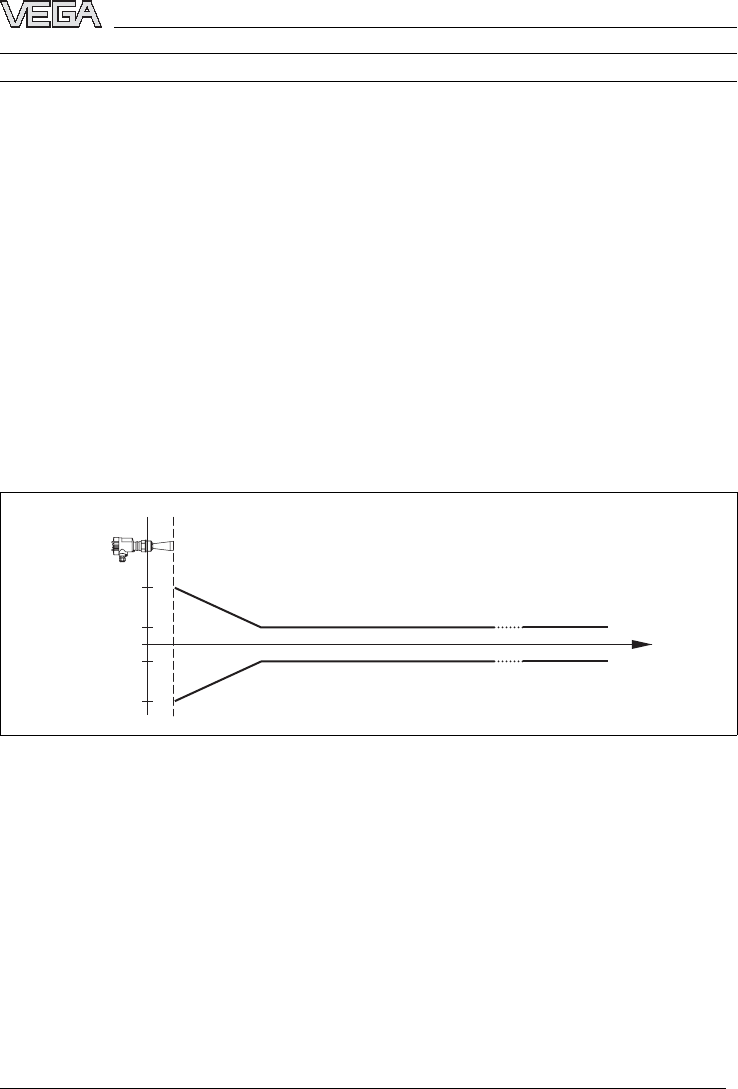

Fig.33:Accuracy VEGAPULS 62 with horn antenna
11)Relating to the nominal range,incl.hysteresis and repeatability,determined
acc.to the limit point method.
12)Time to output the correct level (with max.10 %deviation)after a sudden
level change.
Supplement
VEGAPULS 62 -4... 20 mA/HART 57
28435-EN-060317

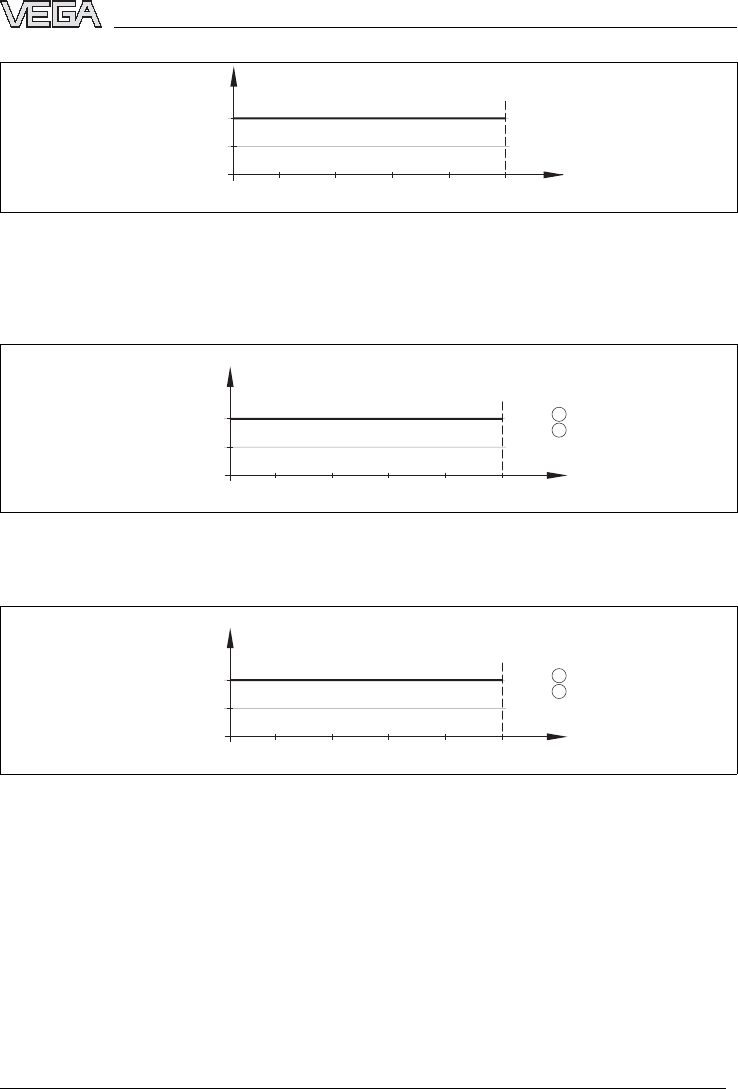

1,0 m 30 m
30 mm
15 mm
-15 mm
-30 mm

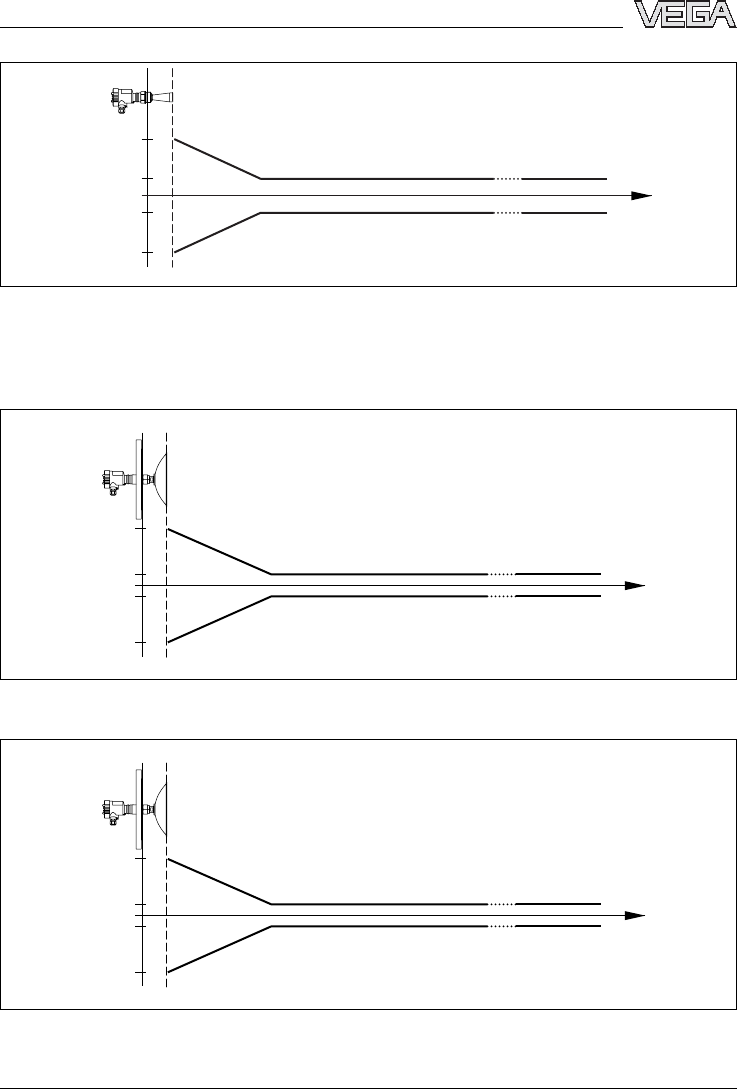

Fig.34:Accuracy VEGAPULS 62 with horn antenna and increased sensitivity
Beam angle with parabolic antenna 4°
Accuracy with parabolic antenna see diagram
2,0 m 30 m
40 mm
3 mm
-3 mm
-40 mm
Fig.35:Accuracy VEGAPULS 62 with parabolic antenna
2,0 m 30 m
40 mm
15 mm
-15 mm
-40 mm
Fig.36:Accuracy VEGAPULS 62 with parabolic antenna and increased sensitivity
Supplement
58 VEGAPULS 62 -4... 20 mA/HART
28435-EN-060317
Ambient conditions
Ambient,storage and transport temperature
-without indicating and adjustment
module
-40 …+80°C(-40 …+176°F)
-with indicating and adjustment
module
-20 …+70°C(-4…+158°F)
Process conditions
Process temperature (measured on the process fitting), depending on the seal of the
antenna system
-FKM (Viton)-40 …+130°C(-40 …+266°F)
-FKM (Viton)with impedance cone
PP
-40 …+80°C(-40 …+176°F)
-FKM (Viton)with temperature
adapter
-40 …+200°C(-40 …+392°F)
-Kalrez 2035,6230 (FDA)-15 …+130°C(+5…+266°F)
-Kalrez 2035,6230 (FDA)with tem-
perature adapter
-15 …+200°C(+5…+392°F)
-Kalrez 6375 -20 …+130°C(-4…+266°F)
-Kalrez 6375 with impedance cone
PP
-20 …+80°C(-4…+176°F)
-Kalrez 6375 with temperature
adapter
-20 …+200°C(-4…+392°F)
Vessel pressure horn antenna -1…40 bar/-100 …4000 kPa(-14.5…580 psi)
Vessel pressure parabolic antenna -1…6bar/-100 …6000 kPa(-14.5…87 psi)

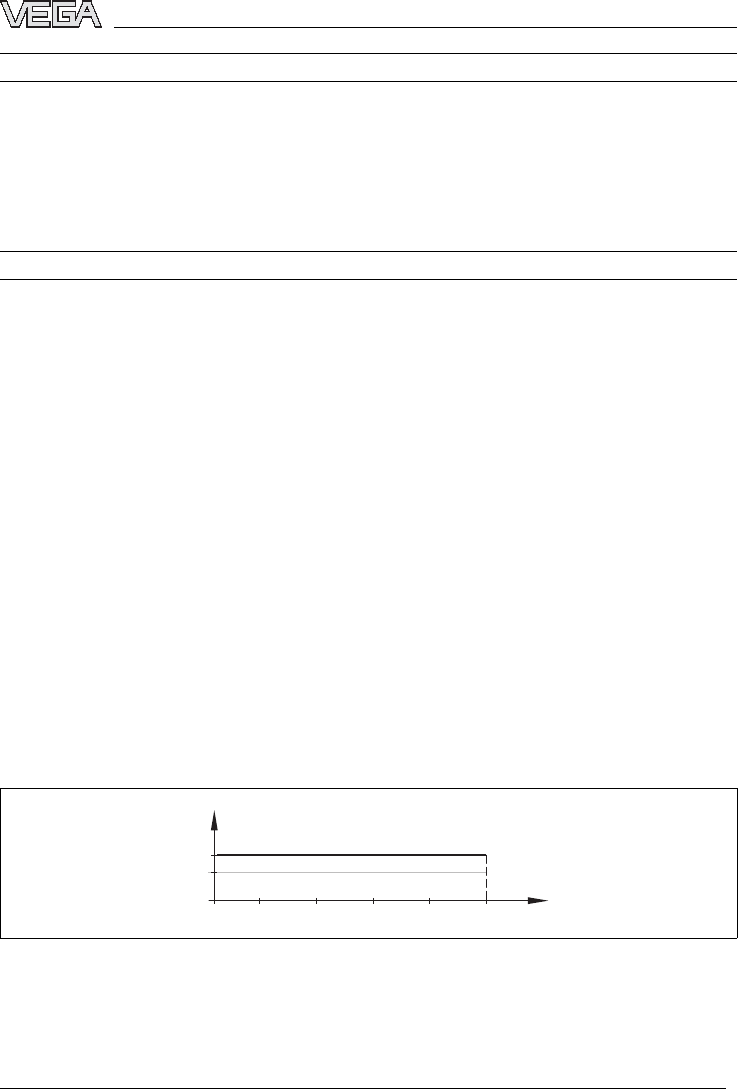

Vessel pressure relating to DIN flange PN 16 (note nominal pressure stage of the flange and
temperature derating!)
0
10
16
bar
50
-40 100 150 200 ˚C
Fig.37:DIN flange PN 16 temperature derating in bar/°C
Supplement
VEGAPULS 62 -4... 20 mA/HART 59

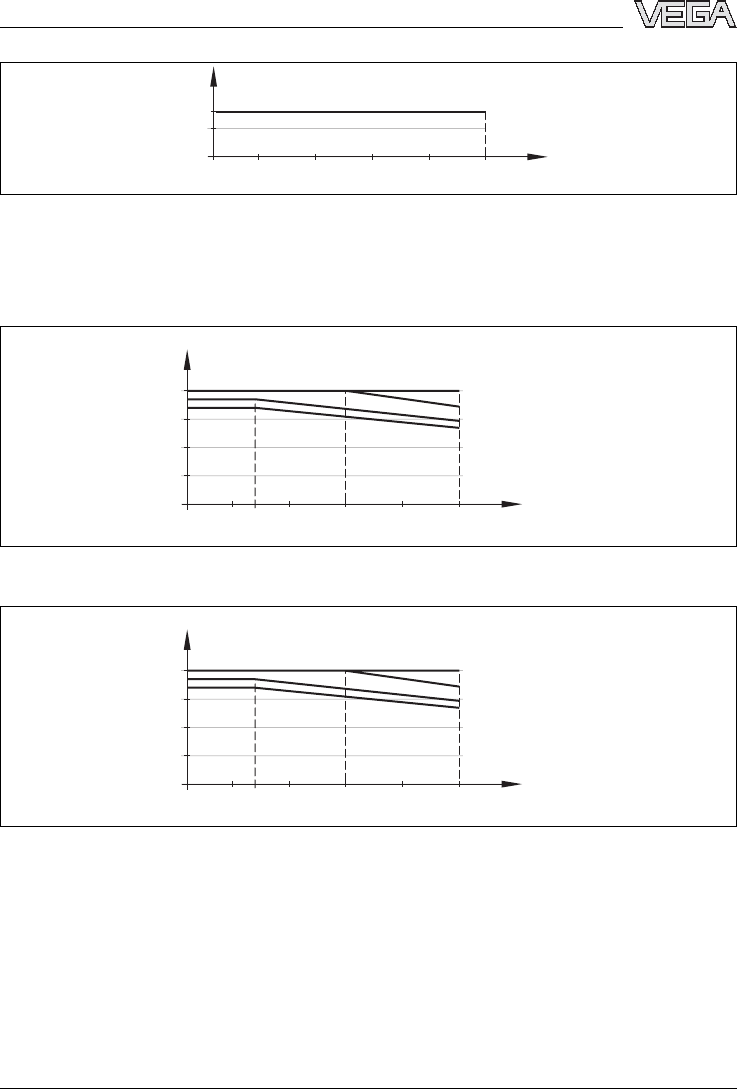

28435-EN-060317
32
145
232
psi
122
-40 212 302 392 ˚F
Fig.38:DIN flange PN 16 temperature derating in psi/°F
Vessel pressure relating to DIN flange PN 40 (note nominal pressure stage of the flange and
temperature derating!)
0-40
20
bar
34,4bar DN150
29,4bar DN200
26,4bar DN250
50 100 150 200 ˚C
30
40
10
37
34
40,0bar DN80, DN100
Fig.39:DIN flange PN 40 temperature derating in bar/°C
290
psi
498,9psi DN150
426,4psi DN200
382,9psi DN250
435
580
145
537
493
580,2psi DN80, DN100
32 122-40 212 302 392 ˚F
Fig.40:DIN flange PN 40 temperature derating in psi/°F
Vessel pressure relating to DIN flange PN 64 (note nominal pressure stage of the flange and
temperature derating!)
Supplement
60 VEGAPULS 62 -4... 20 mA/HART

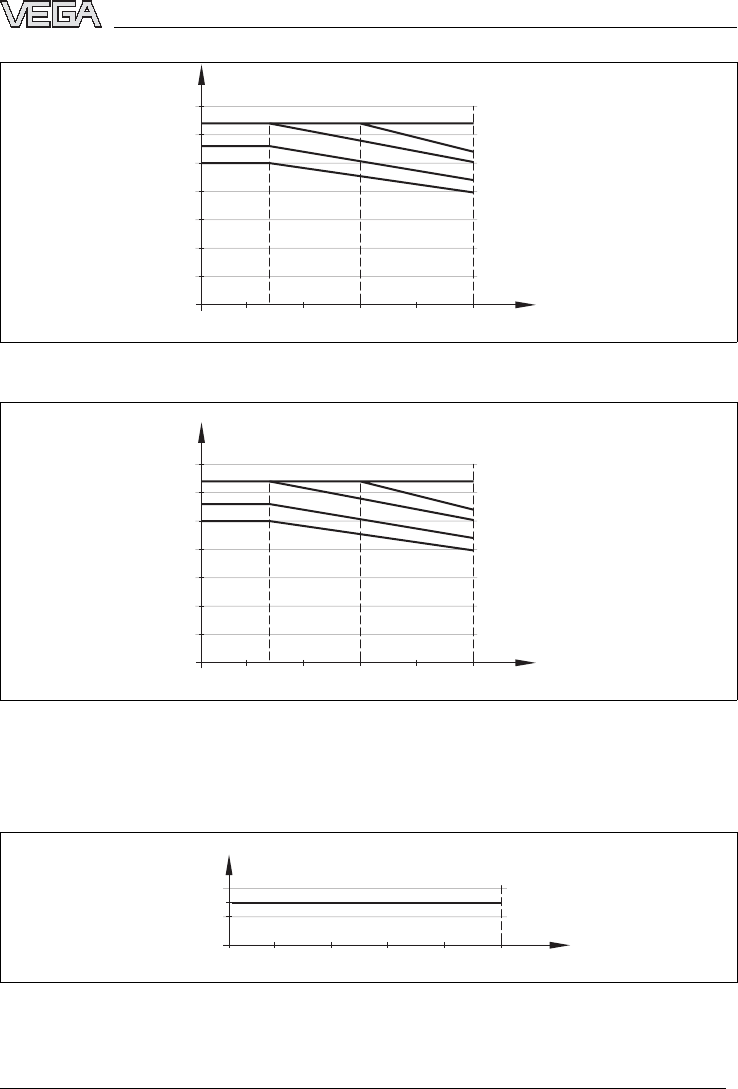

28435-EN-060317
56
64
0-40
50
bar
54,0bar DN100
64,0bar DN80
50,4bar DN150
44,0bar DN200
39,6bar DN250
50 100 150 200 ˚C
60
70
40
10
20
30
Fig.41:DIN flange PN 64 temperature derating in bar/°C
290
435
580
145
812
928
-40
725
psi
783,2psi DN100
928,2psi DN80
731,0psi DN150
638,2psi DN200
574,4psi DN250
870
1015
32 122 212 302 392 ˚F
Fig.42:DIN flange PN 64 temperature derating in psi/°F
Vessel pressure relating to ANSI flange 150 lbs (note nominal pressure stage of the flange
and temperature derating!)
0-40
150
lbs./sq.in.
50 100 150 200 ˚C
2"…10"
Fig.43:ANSI flange 150 lbs temperature derating based on °C
Supplement
VEGAPULS 62 -4... 20 mA/HART 61
28435-EN-060317

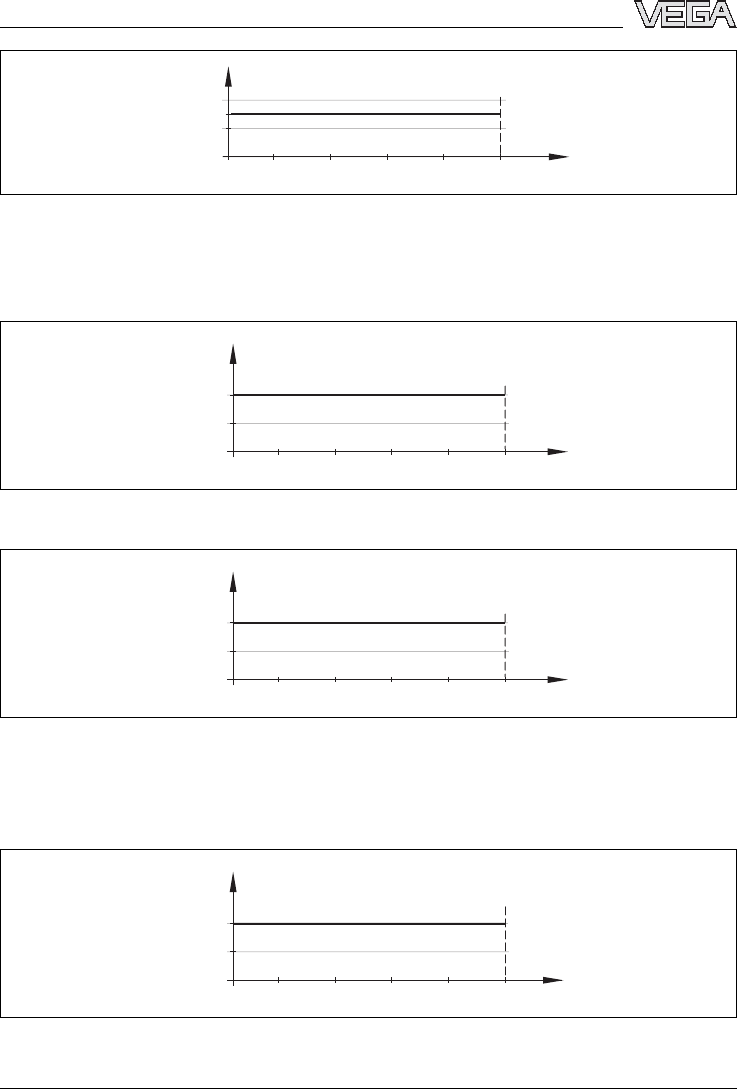

-40
150
lbs./sq.in.
2"…10"
32 122 212 302 392 ˚F
Fig.44:ANSI flange 150 lbs temperature derating based on °F
Vessel pressure relating to ANSI flange 300 lbs (note nominal pressure stage of the flange
and temperature derating!)
0-40
200
lbs./sq.in.
50 100 150 200 ˚C
300
100
2"…10"
Fig.45:ANSI flange 300 lbs temperature derating based on °C
-40
200
lbs./sq.in.
300
100
2"…10"
32 122 212 302 392 ˚F
Fig.46:ANSI flange 300 lbs temperature derating based on °F
Vessel pressure relating to ANSI flange 600 lbs (note nominal pressure stage of the flange
and temperature derating!)
0-40
500
lbs./sq.in.
2"…10"
50 100 150 200 ˚C
600
400
Fig.47:ANSI flange 600 lbs temperature derating based on °C
Supplement
62 VEGAPULS 62 -4... 20 mA/HART
28435-EN-060317
-40
500
lbs./sq.in.
2"…10"
600
400
32 122 212 302 392 ˚F
Fig.48:ANSI flange 600 lbs temperature derating based on °F
Vessel pressure relating to ANSI flange 900 lbs (note nominal pressure stage of the flange
and temperature derating!)
0-40
lbs./sq.in.
2"… 6"
50 100 150 200 ˚C
700
800
900 8"…10"
1
2
Fig.49:ANSI flange 900 lbs temperature derating based on °C
1RF
2TG small/large
-40
lbs./sq.in.
2"… 6"
700
800
900 8"…10"
1
2
32 122 212 302 392 ˚F
Fig.50:ANSI flange 900 lbs temperature derating based on °F
1RF
2TG small/large
Vibrating resistance mechanicalvibrations with 4g and 5…100 Hz13)
13)Tested acc.to the regulations of German Lloyd,GL directive 2
Supplement
VEGAPULS 62 -4... 20 mA/HART 63
28435-EN-060317
Data on rinsing air connection
Pressure max.6bar (87 psi)
Air flow
-with 0.5bar (7.3psi)approx.50 l/min
-with 3.0bar (43.5psi)approx.100 l/min
Air flow with reflux valve
-with 0.55 bar (8.0psi)approx.20 l/min
-with 3.0bar (43.5psi)approx.85 l/min
Thread G⅛A
Catch
-with non-ExDust protection cover of PE
-with ExPlug of 316Ti(1.4571)
Reflux valve -attached (with non-Ex option,with Ex in the scope of delivery)
-Material 316Ti(1.4571)
-Seal FKM (Viton)
-for tube diameter 6mm
-opening pressure 0.5bar (7.3psi)
-nominal pressure stage PN 250
Supplement
64 VEGAPULS 62 -4... 20 mA/HART
28435-EN-060317
Electromechanical data -version IP 66/IP 67 and IP 66/IP 68;0.2bar
Cable entry/plug 14)
-Single chamber housing l1x cable entry M20x1.5(cable-ø5…9mm),
1x blind stopper M20x1.5
or:
l1x closing cap ½NPT,1x blind plug ½NPT
or:
l1x plug (depending on the version), 1x blind
plug M20x1.5
-Double chamber housing l1x cable entry M20x1.5(cable-ø5…9mm),
1x blind stopper M20x1.5;plug M12x1for
VEGADIS 61 (optional)
or:
l1x closing cap ½NPT,1x blind stopper
½NPT,plug M12x1for VEGADIS 61
(optional)
or:
l1x plug (depending on the version), 1x blind
stopper M20x1.5;plug M12x1for VEGADIS
61 (optional)
Spring-loaded terminals for wire cross sections up to 2.5mm²
Electromechanical data -version IP 66/IP 68,1bar
Cable gland
-Single chamber housing l1xIP 68 cable entry M20x1.5;1x blind
stopper M20x1.5
or:
l1x closing cap ½NPT,1x blind plug ½NPT
-Double chamber housing l1xIP 68 cable entry M20x1.5;1x blind
stopper M20x1.5;plug M12x1for VEGADIS
61 (option)
or:
l1x closing cap ½NPT,1x blind stopper
½NPT,plug M12x1for VEGADIS 61
(optional)
14)Depending on the version M12x1,acc.to DIN 43650,Harting,Amphenol-
Tuchel,7/8"FF
Supplement
VEGAPULS 62 -4... 20 mA/HART 65
28435-EN-060317
Connection cable
-Configuration four cores,one suspension cable,one breather
capillary,screen braiding,foil,mantle
-wire cross section 0.5mm²
-wire resistance <0.036 Ohm/m
-tensile load >1200 N(270 pounds force)
-Standard length 5m(16.4ft)
-Max.length 1000 m(3280 ft)
-Min.bending radius 25 mm (at +25°C/+77°F)
-Diameter approx.8mm
-Colour -standard PE Black
-Colour -standard PUR Blue
-Colour -Ex-version Blue
Indicating and adjustment module
Power supply and data transmission through sensor via gold-plated sliding contacts
(I²Cbus)
Display LC display in full dot matrix
Adjustment elements 4keys
Protection
-unassembled IP 20
-mounted into the sensor without
cover
IP 40
Materials
-Housing ABS
-Inspection window Polyester foil
Voltage supply
Voltage supply
-non-Ex instrument 14 …36 VDC
-EEx ia instrument 14 …30 VDC
-EExd ia instrument 20 …36 VDC
Supply voltage with lighted indicating and adjustment module
-non-Ex instrument 20 …36 VDC
-EEx ia instrument 20 …30 VDC
-EExd ia instrument 20 …36 VDC
Supplement
66 VEGAPULS 62 -4... 20 mA/HART
28435-EN-060317
Permissible residual ripple
-<100 HzU
ss
<1V
-100 Hz…10 kHzU
ss
<10 mV
Load see diagram
1000
750
500
250
14 1816 20 22 24 26 28 30 32 34 36
Ω
V
4
12
3
Fig.51:Voltage diagram
1HART load
2Voltage limit EEx ia instrument
3Voltage limit non-Ex/Exd instrument
4Voltage supply
Voltage supply -Version with increased sensitivity
Supply voltage
-non-Ex instrument 15 …36 VDC
-EEx ia instrument 15 …30 VDC
-EExd ia instrument 20 …36 VDC
Supply voltage with lighted indicating and adjustment module
-non-Ex instrument 20 …36 VDC
-EEx ia instrument 20 …30 VDC
-EExd ia instrument 20 …36 VDC
Permissible residual ripple
-<100 HzU
ss
<1V
-100 Hz…10 kHzU
ss
<10 mV
Load see diagram
Supplement
VEGAPULS 62 -4... 20 mA/HART 67
28435-EN-060317

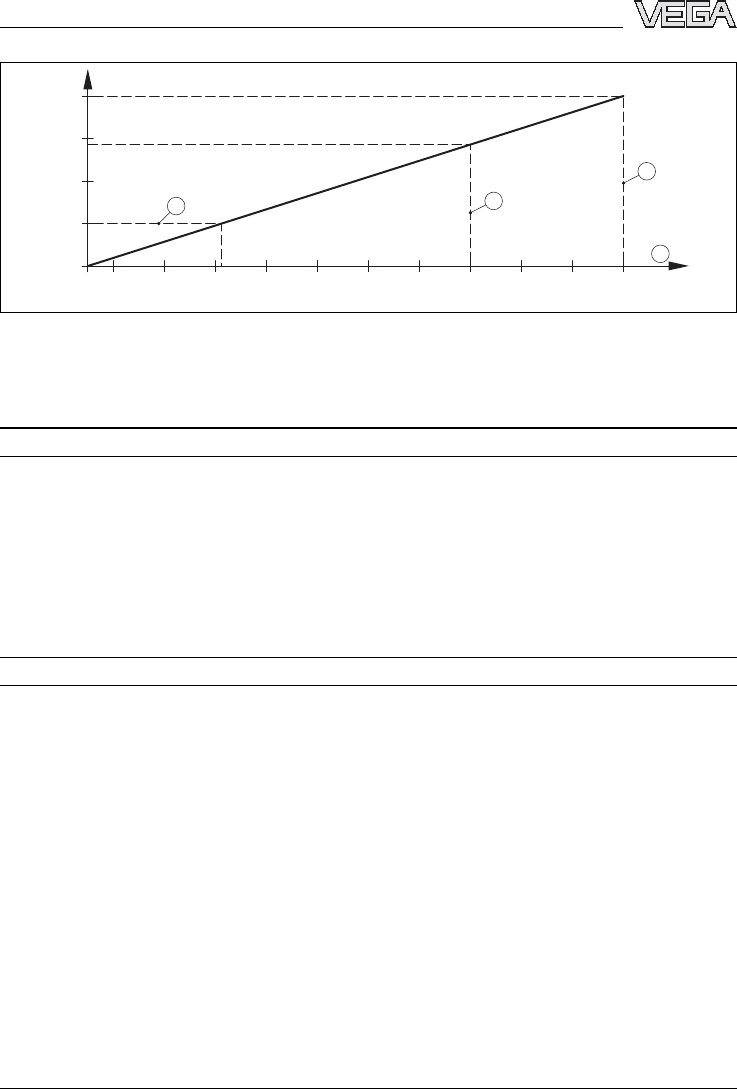

1000
750
500
250
15 1816 20 22 24 26 28 30 32 34 36
Ω
V
4
12
3
Fig.52:Voltage diagram for version with increased sensitivity
1HART load
2Voltage limit EEx ia instrument
3Voltage limit non-Ex/Exd instrument
4Supply voltage
Electrical protective measures
Protection
-Plastic housing IP 66/IP 67
-Alu and stainless steel standard IP 66/IP 68 (0.2bar)15)
-Alu and stainless housing,optionally
available
IP 66/IP 68 (1bar)
Overvoltage category III
Protection class II
Functional safety (SIL)16)
Functional safety acc.to IEC 61508-4
-Single channel architecture (1oo1
D)
up to SIL2
-double channel diversitary redun-
dant architecture (1oo2D)
up to SIL3
15)Requirement to maintain the protection is the suitable cable.
16)Not with increased sensitivity.
Supplement
68 VEGAPULS 62 -4... 20 mA/HART
28435-EN-060317
Approvals17)
ATEX ia ATEX II 1G,1/2G,2GEExiaIIC T6;ATEX II
1G,1/2G,2GEExiaIIC T5+ATEX II 1/2DIP6X
T6
ATEX D ATEX II 1/2DIP6XT
ATEX ia +D ATEX II 1G,1/2G,2GEExiaIIC T5+ATEX II 1/
2DIP6XT6
ATEX dATEX II 1/2G,2GEExd ia IIC T6
ATEX d+D ATEX II 1/2G,2GEExd ia IIC T5+ATEX II 1/2D
IP6XT6
IEC ia IEC ExiaIIC T6
IEC dIEC Exd ia IIC T6
IECExExtDA20/A21 IP66 T,A21
FM FM CI.I,Div2(NI)+CI.II,III,Div1(DIP); FM CI.I-
III,Div 1(IS); FM Cl.I-III,Div 1(IS)+Cl.I-III,Div 1
Gr.C-G(XP)
CSA CSA CI.I,Div2(NI)+CI.II,III,Div1(DIP); CSA
CI.I-III,Div 1(IS); CSA Cl.I-III,Div 1(IS)+Cl.I-III,
Div 1Gr.C-G(XP)
Ship approvals GL,LRS,ABS,CCS,RINA
Others WHG
17)Available or applied for,depending on the order specification.Deviating
data with Ex applications:see separate safety instructions.
Supplement
VEGAPULS 62 -4... 20 mA/HART 69
28435-EN-060317
10.2Dimensions

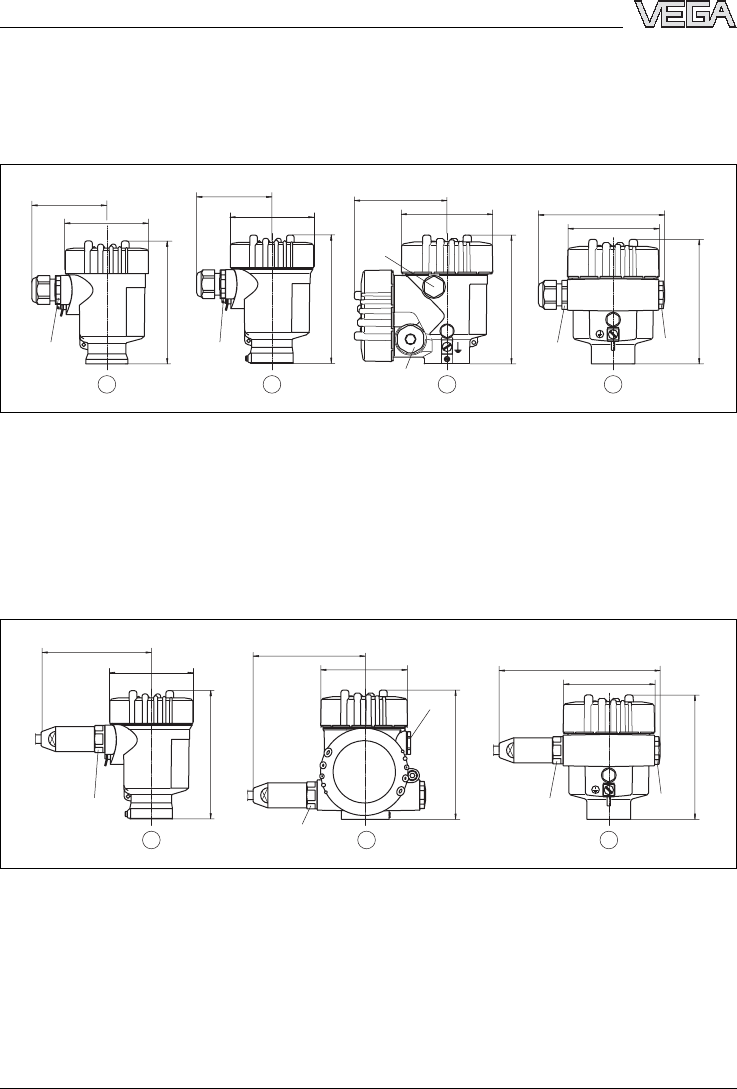

Housing versions in protection IP 66/IP67 and IP 66/IP 68,0.2bar
112mm (4 13/32")
117mm (4 39/64")
116mm (4 9/16")
120mm (4 23/32")
~ 69mm
(2 23/32") ø 77mm
(3 1/32")
~ 69mm
(2 23/32") ~ 116mm (4 9/16")
~ 87mm (3 27/64")
ø 77mm
(3 1/32") ø 84mm (3 5/16")
ø 84mm
(3 5/16")
M20x1,5M20x1,5/
½ NPT
M20x1,5/
½ NPT
M20x1,5/
½ NPT
M20x1,5/
½ NPT
M16x1,5
1 2 3 4
Fig.53:Housing versions in protection IP 66/IP 67 and IP 66/IP 68,0.2bar (with integrated PLICSCOM the housing is
9mm/0.35 in higher)
1Plastic housing
2Stainless steel housing
3Aluminium double chamber housing
4Aluminium housing
Housing in protection IP 66/IP 68,1bar
117mm (4 39/64")
116mm (4 9/16")
120mm (4 23/32")
~ 103mm
(4 1/16") ~ 150mm (5 29/32")
~ 105mm (4 9/64")
ø 77mm
(3 1/32") ø 84mm (3 5/16")
ø 84mm
(3 5/16")
M20x1,5M20x1,5 M20x1,5
M20x1,5/
½ NPT
M16x1,5
1 2 3
Fig.54:Housing versions in protection IP 66/IP 68,1bar (with integrated PLICSCOM the housing is 9mm/0.35 in higher)
1Stainless steel housing
2Aluminium double chamber housing
3Aluminium housing
Supplement
70 VEGAPULS 62 -4... 20 mA/HART
28435-EN-060317

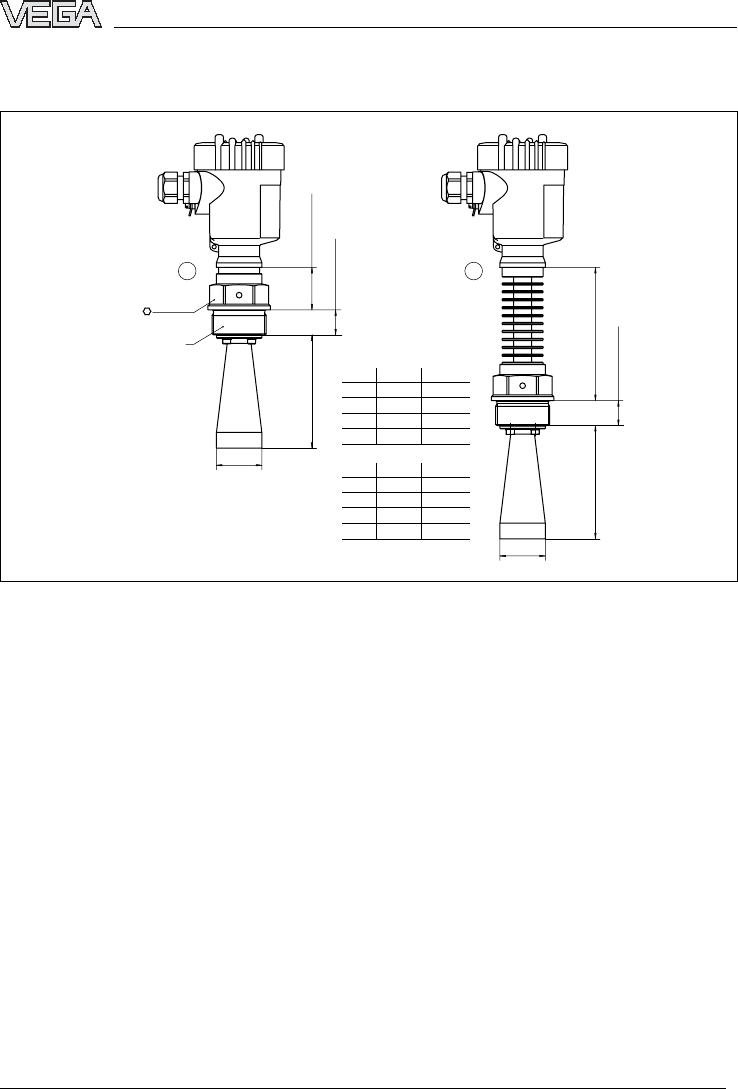

VEGAPULS 62 -horn antenna in threaded version
mm
inch
38mm (1 1/2")
22mm (55/64")
22mm (55/64")
118mm (4 41/64")
46mm
(1 13/16")
3 15/16" ø1 37/64"
ø1 57/64"
ø2 61/64"
ø3 47/64"
4 23/32"
8 1/2"
16 59/64"
xy
100 ø40
120 ø48
216 ø75
430 ø95
1½"
2"
3"
4"
xy
1½"
2"
3"
4"
x
y
G1½A / 1½ NPT
x
y
21
Fig.55:VEGAPULS 62 -horn antenna in threaded version
1Standard
2with temperature adapter
Supplement
VEGAPULS 62 -4... 20 mA/HART 71
28435-EN-060317

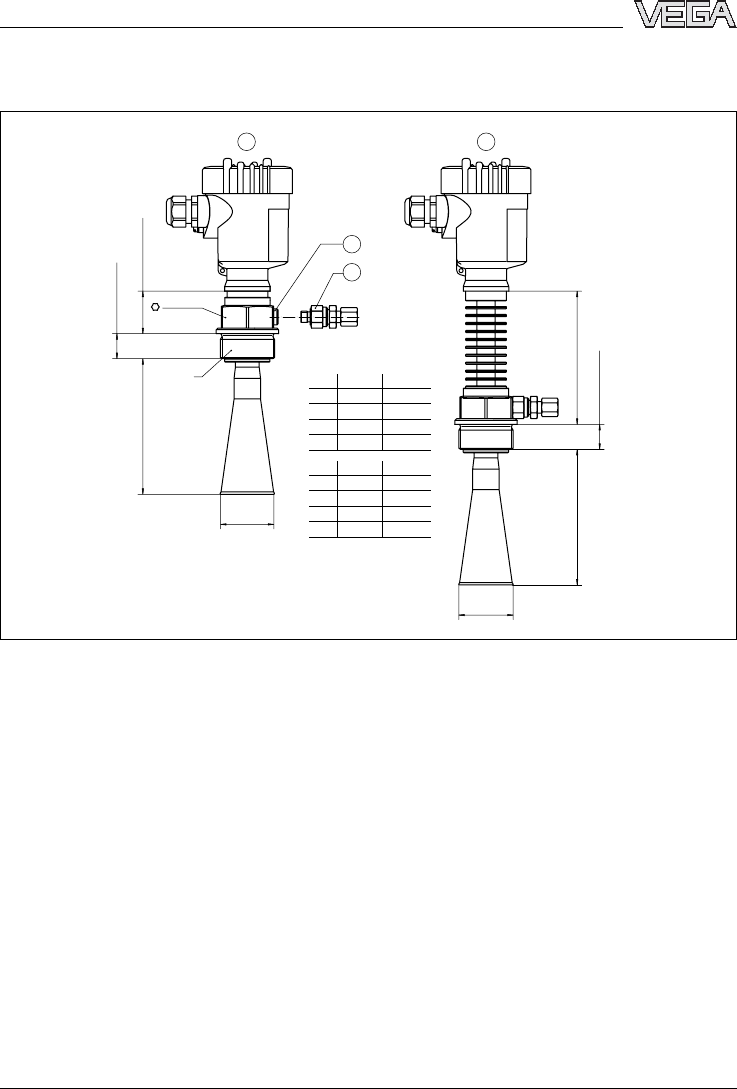

VEGAPULS 62 -horn antenna in threaded version with rinsing air connection
mm
inch
3 15/16"
4 23/32"
8 1/2"
16 59/64"
ø1 37/64"
ø1 57/64"
ø2 61/64"
ø3 47/64"
xy
100 ø40
120 ø48
216 ø75
430 ø95
1½"
2"
3"
4"
xy
1½"
2"
3"
4"
38mm (1 1/2")
22mm (55/64")
22mm (55/64")
118mm (4 41/64")
46mm
(1 13/16")
x
y
x
y
G1½A/
1½ NPT
3
4
1 2
Fig.56:VEGAPULS 62 -horn antenna in threaded version with rinsing air connection
1Standard
2with temperature adapter
3Purging air connection G⅛Afor mounting a suitable fitting
4Reflux valve -attached (with non-Ex option,with Ex in the scope of delivery)
Supplement
72 VEGAPULS 62 -4... 20 mA/HART
28435-EN-060317

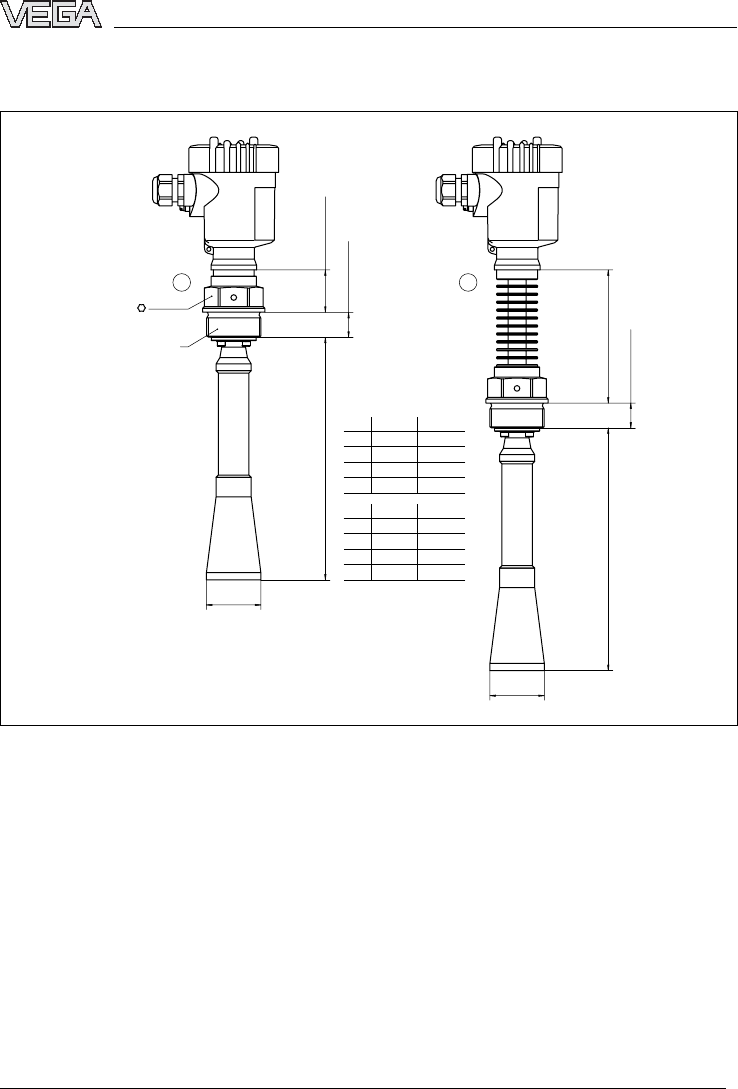

VEGAPULS 62 -horn antenna in threaded version with antenna extension
mm
inch
38mm (1 1/2")
22mm (55/64")
22mm (55/64")
118mm (4 41/64")
7 7/8" ø1 37/64"
ø1 57/64"
ø2 61/64"
ø3 47/64"
8 21/32"
12 7/16"
20 55/64"
46mm
(1 13/16")
x
y
G1½A / 1½ NPT
xy
> 200 ø40
> 220 ø48
> 316 ø75
> 530 ø95
1½"
2"
3"
4"
xy
1½"
2"
3"
4"
x
y
21
Fig.57:VEGAPULS 62 -horn antenna in threaded version with purging air connection and antenna extension18)
1Standard
2with temperature adapter
18)Depending on the product properties,an antenna extension causes a re-
duction of the sensitivity in the narrow range.Depending on the length,a
suitable support of the antenna extensions must be provided.
Supplement
VEGAPULS 62 -4... 20 mA/HART 73
28435-EN-060317

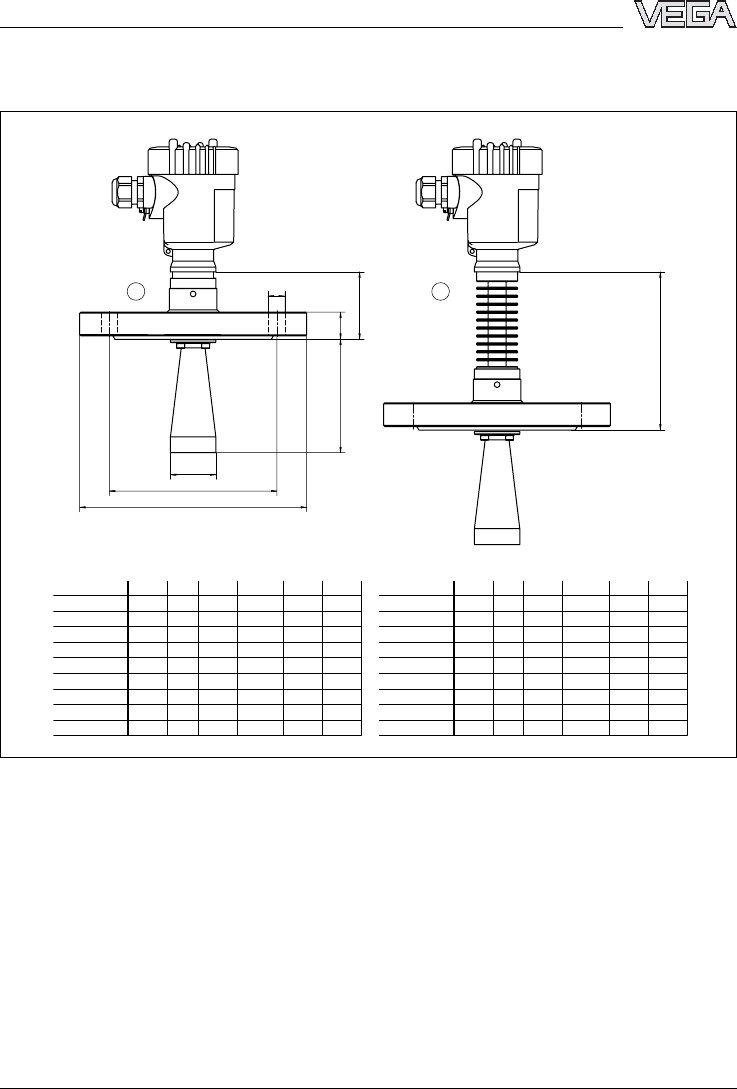

VEGAPULS 62 -horn antenna in flange version
60mm
(2 23/64")
140mm (5 33/64")
4xø3/4"
4xø3/4"
8xø55/64"
8xø3/4"
8xø7/8"
4xø45/64"
8xø45/64"
8xø45/64"
4 3/4"
4 59/64"
6 19/64"2
61/64"
3 47/64"
3 47/64"
16 59/64"
16 59/64"
1 57/64"4
23/32"
8 1/2"
1 37/64"
1 57/64"4
23/32"
3 15/16"
2 61/64"
3 47/64"
3 47/64"
16 59/64"
16 59/64"
8 1/2"
7 3/32"
9 29/64"
25/32"
25/32"
55/64"
15/16"
3/4"
15/16"
15/16"
6 1/2"
4xø45/64"4 21/64"
45/64"5 29/32"
7 7/8"
8 21/32"
11 7/32"
7 1/2"
7 1/2"
9 1/2"
6"
6"
9"
11" 1"
D
mm
bk dx
DN 50 PN 40 165 20 125 4xø18
DN 80 PN 40 200 24 160 8xø18
DN 100 PN 16 220 20 180 8xø18
DN 150 PN 16 285 22 240 8xø22
2" 150 lb 152,4 19,1 120,7 4xø19,1
3" 150 lb 190,5 23,9 152,4 4xø19,1
4" 150 lb 228,6 23,9 190,5 8xø19,1
6" 150 lb 279,4 25,4 241,3 8xø22,4
y
48 120
75 216
95 430
95 430
48 120
xy
75 216
95 430
95 430
D
inch
bk d
DN 50 PN 40
DN 40 PN 40 150 18 110 4xø18 40 100 DN 40PN 40
DN 80 PN 40
DN 100 PN 16
DN 150 PN 16
2" 150 lb
3" 150 lb
4" 150 lb
6" 150 lb
D
k
x
d
b
y
21
Fig.58:VEGAPULS 62 -horn antenna in flange version
1Standard
2with temperature adapter
Supplement
74 VEGAPULS 62 -4... 20 mA/HART
28435-EN-060317

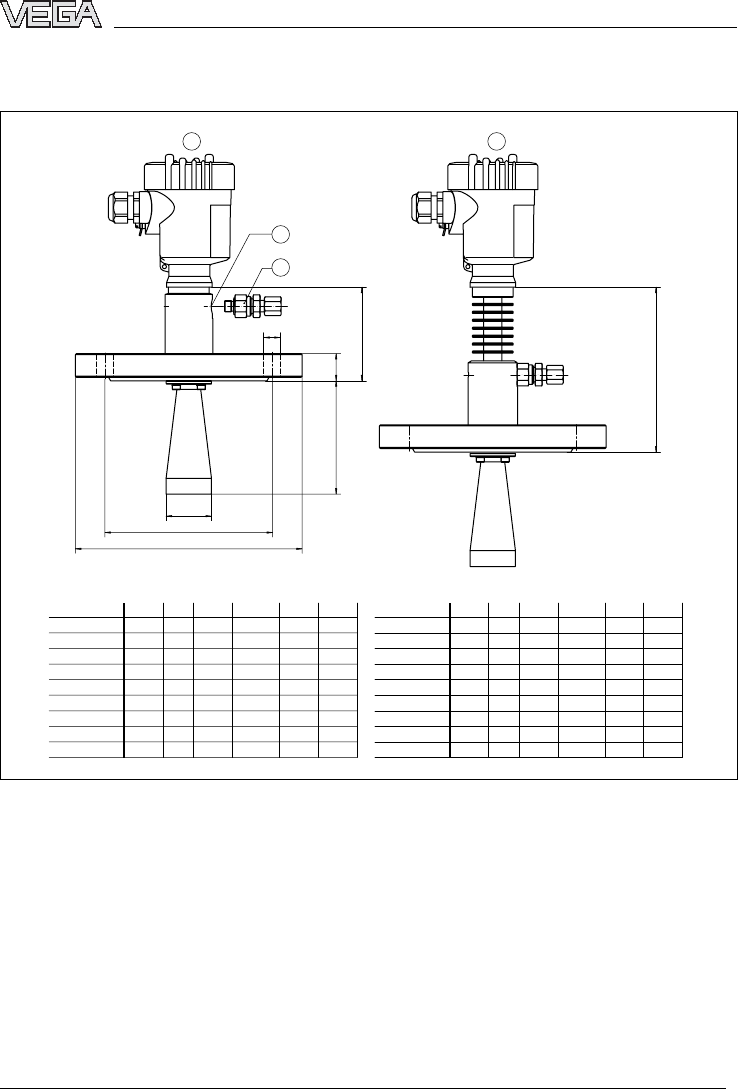

VEGAPULS 62 -horn antenna in flange version with rinsing air connection
D
k
x
d
b
y
1 2
140mm (5 33/64")
4xø3/4"
4xø3/4"
8xø55/64"
8xø3/4"
8xø7/8"
4xø45/64"
8xø45/64"
8xø45/64"
4 3/4"
4 59/64"
6 19/64"2
61/64"
3 47/64"
3 47/64"
16 59/64"
16 59/64"
1 57/64"4
23/32"
8 1/2"
1 37/64"
1 57/64"4
23/32"
3 15/16"
2 61/64"
3 47/64"
3 47/64"
16 59/64"
16 59/64"
8 1/2"
7 3/32"
9 29/64"
25/32"
25/32"
55/64"
15/16"
3/4"
15/16"
15/16"
6 1/2"
4xø45/64"4 21/64"
45/64"5 29/32"
7 7/8"
8 21/32"
11 7/32"
7 1/2"
7 1/2"
9 1/2"
6"
6"
9"
11" 1"
3
4
82,5mm
(3 1/4")
D
mm
bk dx
DN 50 PN 40 165 20 125 4xø18
DN 80 PN 40 200 24 160 8xø18
DN 100 PN 16 220 20 180 8xø18
DN 150 PN 16 285 22 240 8xø22
2" 150 lb 152,4 19,1 120,7 4xø19,1
3" 150 lb 190,5 23,9 152,4 4xø19,1
4" 150 lb 228,6 23,9 190,5 8xø19,1
6" 150 lb 279,4 25,4 241,3 8xø22,4
y
48 120
75 216
95 430
95 430
48 120
xy
75 216
95 430
95 430
D
inch
bk d
DN 50 PN 40
DN 40 PN 40 150 18 110 4xø18 40 100 DN 40PN 40
DN 80 PN 40
DN 100 PN 16
DN 150 PN 16
2" 150 lb
3" 150 lb
4" 150 lb
6" 150 lb
Fig.59:VEGAPULS 62 -horn antenna in flange version with rinsing air connection
1Standard
2with temperature adapter
3Purging air connection G⅛Afor mounting a suitable fitting
4Reflux valve -attached (with non-Ex option,with Ex in the scope of delivery)
Supplement
VEGAPULS 62 -4... 20 mA/HART 75
28435-EN-060317

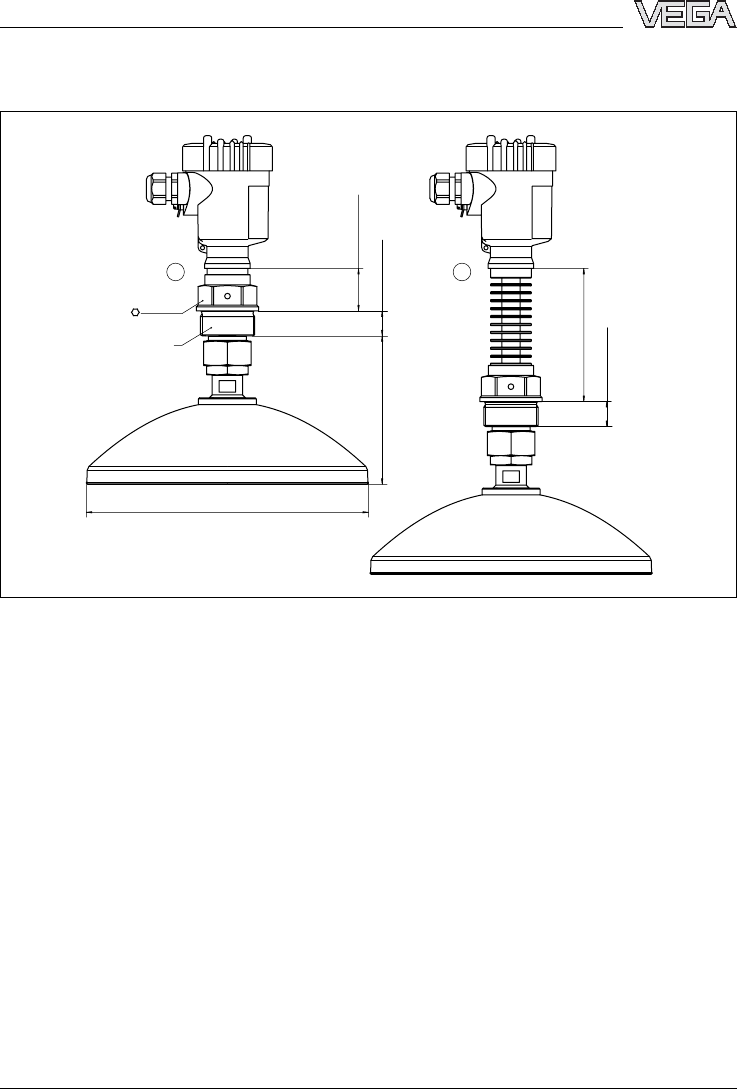

VEGAPULS 62 -parabolic antenna in threaded version
38mm (1 1/2")
22mm (55/64")
22mm (55/64")
118mm (4 41/64")
128mm
(5 3/64")
ø 243mm (9 9/16")
46mm
(1 13/16")
G1½A / 1½ NPT
21
Fig.60:VEGAPULS 62 -parabolic antenna in threaded version
1Standard
2with temperature adapter
Supplement
76 VEGAPULS 62 -4... 20 mA/HART
28435-EN-060317

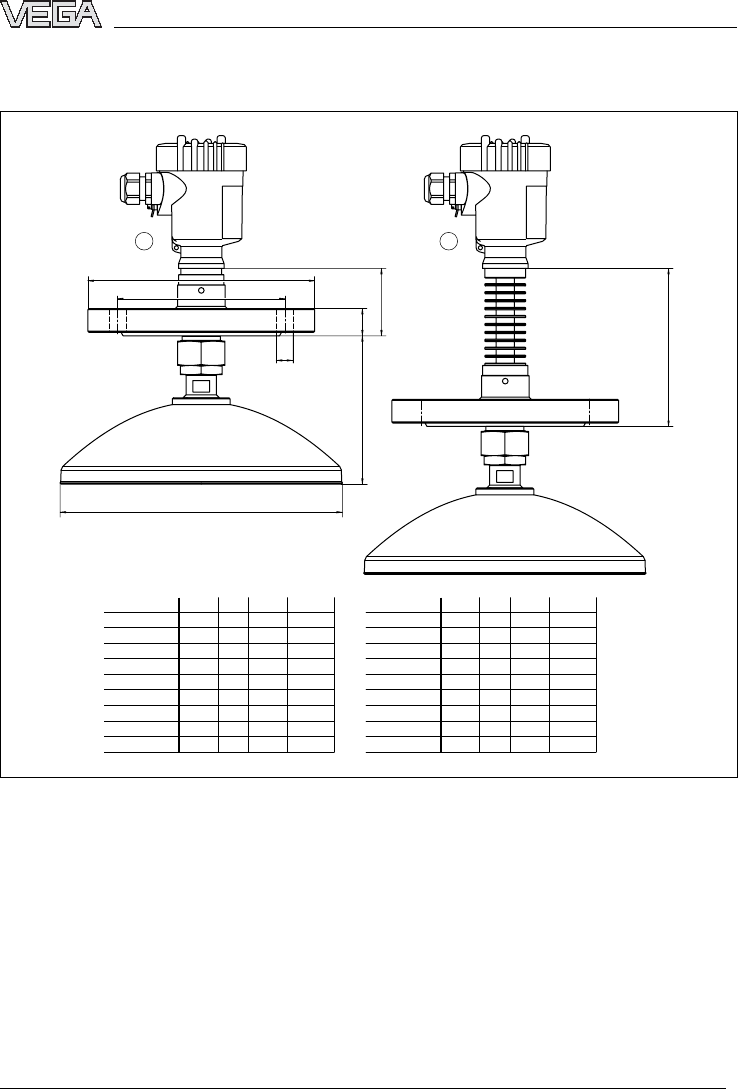

VEGAPULS 62 -parabolic antenna in flange version
D
mm
bk d
DN 50 PN 40 165 20 125 4xø18
DN 80 PN 40 200 24 160 8xø18
DN 100 PN 16 220 20 180 8xø18
DN 150 PN 16 285 22 240 8xø22
2" 150 lb 152,4 19,1 120,7 4xø19,1
3" 150 lb 190,5 23,9 152,4 4xø19,1
4" 150 lb 228,6 23,9 190,5 8xø19,1
6" 150 lb 279,4 25,4 241,3 8xø22,4
D
inch
bk d
DN 50 PN 40
DN 40 PN 40 150 18 110 4xø18 DN 40PN 40
DN 80 PN 40
DN 100 PN 16
DN 150 PN 16
2" 150 lb
3" 150 lb
4" 150 lb
6" 150 lb
21
D
k
b
60mm
(2 23/64")
128mm
(5 3/64")
140mm (5 33/64")
4xø3/4"
4xø3/4"
8xø55/64"
8xø3/4"
8xø7/8"
4xø45/64"
8xø45/64"
8xø45/64"
4 3/4"
4 59/64"
6 19/64"
7 3/32"
9 29/64"
25/32"
25/32"
55/64"
15/16"
3/4"
15/16"
15/16"
6 1/2"
4xø45/64"4 21/64"
45/64"5 29/32"
7 7/8"
8 21/32"
11 7/32"
7 1/2"
7 1/2"
9 1/2"
6"
6"
9"
11" 1"
d
ø 243mm (9 9/16")
Fig.61:VEGAPULS 62 -parabolic antenna in flange version
1Standard
2with temperature adapter
Supplement
VEGAPULS 62 -4... 20 mA/HART 77
28435-EN-060317
10.3Industrial property rights
VEGA product lines are global protected by industrial property rights.
Further information see http://www.vega.com.
Only in U.S.A.: Further information see patent label at the sensor housing.
VEGA Produktfamilien sind weltweit geschützt durch gewerbliche Schutzrechte.
Detailed information under http://www.vega.com.
Les lignes de produits VEGA sont globalement protégées par des droits de
propriété intellectuelle.
Pour plus d'informations,on pourra se référer au site http://www.vega.com.
VEGA lineas de productos están protegidas por los derechos en el campo de la
propiedad industrial.
Para mayor información revise la pagina web http://www.vega.com.
Линии продукции фирмы ВЕГА защищаются повсему миру правами на
интеллектуальную собственность.
Дальнейшую информациюсмотрите на сайте http://www.vega.com.
À德（VEGA）系列À品在全球享有知ÀÀÀ保À。
À一步信息ÀÀÀ网站<http://www.vega.com>。
Supplement
78 VEGAPULS 62 -4... 20 mA/HART
28435-EN-060317
Supplement
VEGAPULS 62 -4... 20 mA/HART 79
28435-EN-060317
VEGA Grieshaber KG
AmHohenstein 113
77761 Schiltach
Germany
Phone +49 7836 50-0
Fax +49 7836 50-201
E-mail:info@de.vega.com
www.vega.com
ISO 9001
All statements concerning scope of delivery,application,
practical use and operating conditions of the sensors and
processing systems correspond to the information avail-
able at the time of printing.
©VEGA Grieshaber KG,Schiltach/Germany 2006
Technical data subject to alterations 28435-EN-060317
