VIA Telecom ORCA-PCIE01 Orca CDMA2000 PCIe Data Card User Manual
VIA Telecom Inc. Orca CDMA2000 PCIe Data Card Users Manual
Users Manual
Orca Mini PCI Express Card
User Manual
z USB Driver Installation
1. To install the VIA USB Windows device driver, you must first start the Setup
application, VIA USB Drivers 2.1.5 (32-Bit).exe, by double-clicking the
associated icon.
2. Choose the directory for the application to be installed.

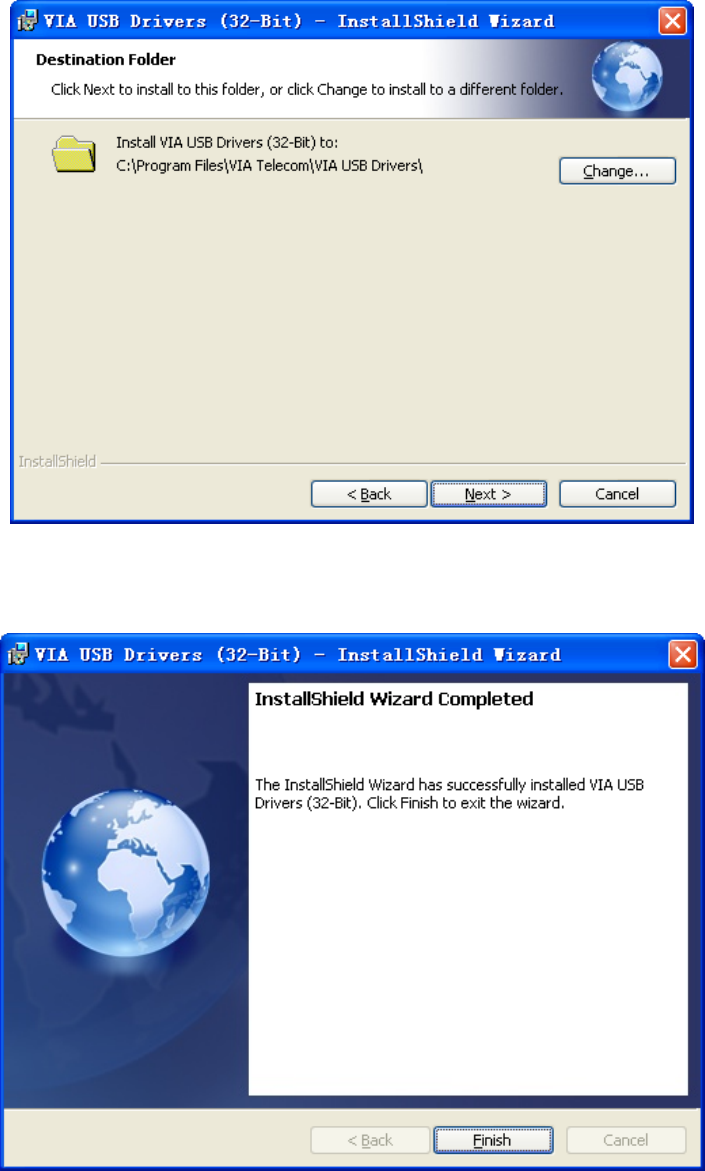

3. Click Install, then this setup program will copy all the files into the
directories on the local system drive of your PC. The following dialog box
will appear upon execution.
4. Click Finish when this action has been completed.
5. Power up the notebook which has Shamu PCIe data card installed inside.

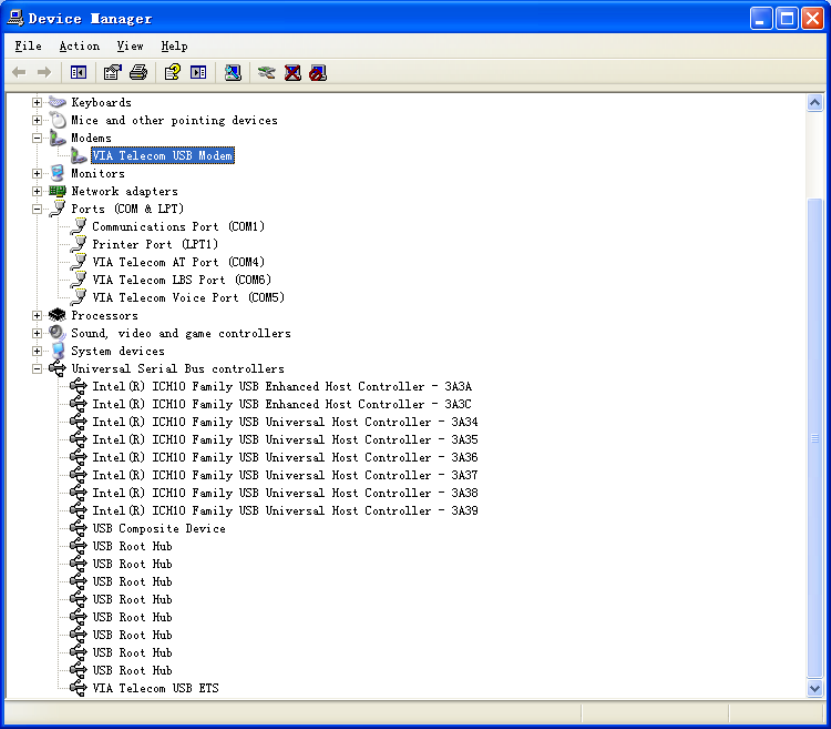

Then Windows will install all the related drivers automatically. You can find
“VIA Telecom USB Modem”, “VIA Telecom AT Port”, “VIA Telecom LBS
Port”, “VIA Telecom Voice Port” and “VIA Telecom USB ETS” in Device
Manager.
z Dial up Application Setup

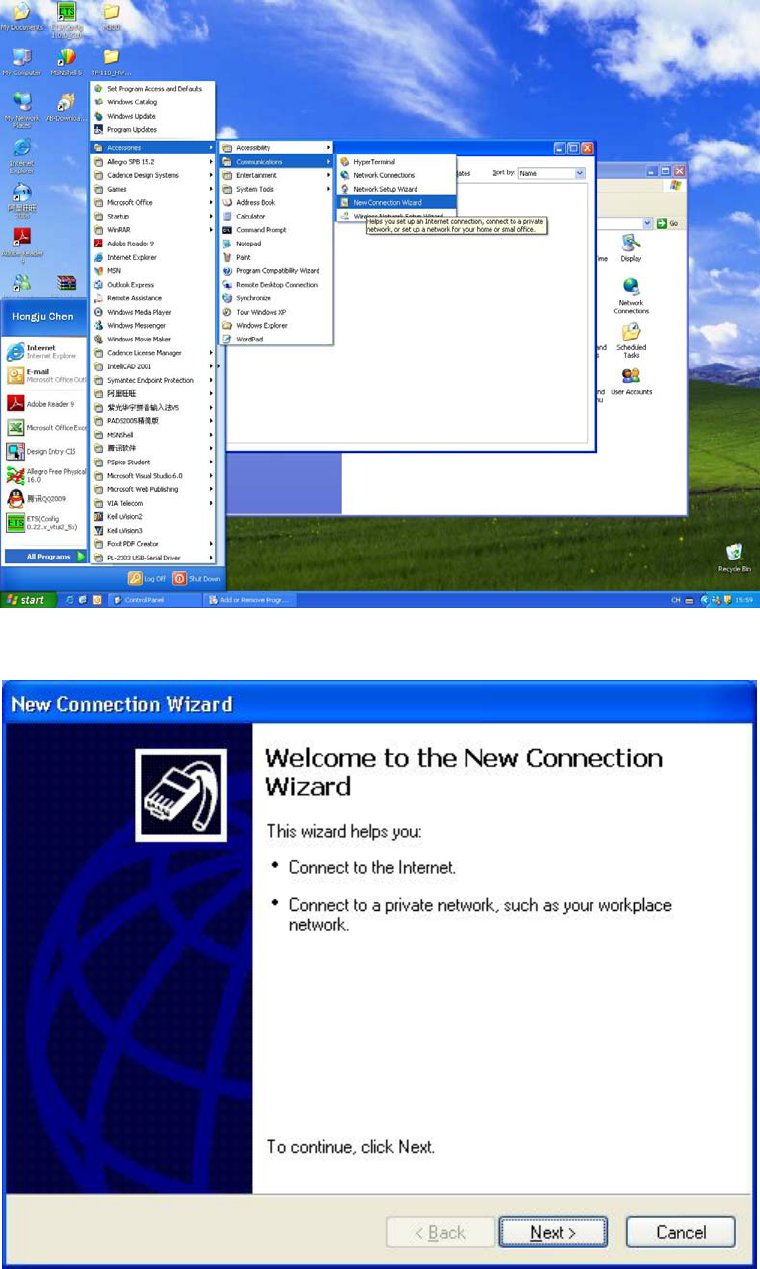

1. Select “New Connection Wizard”

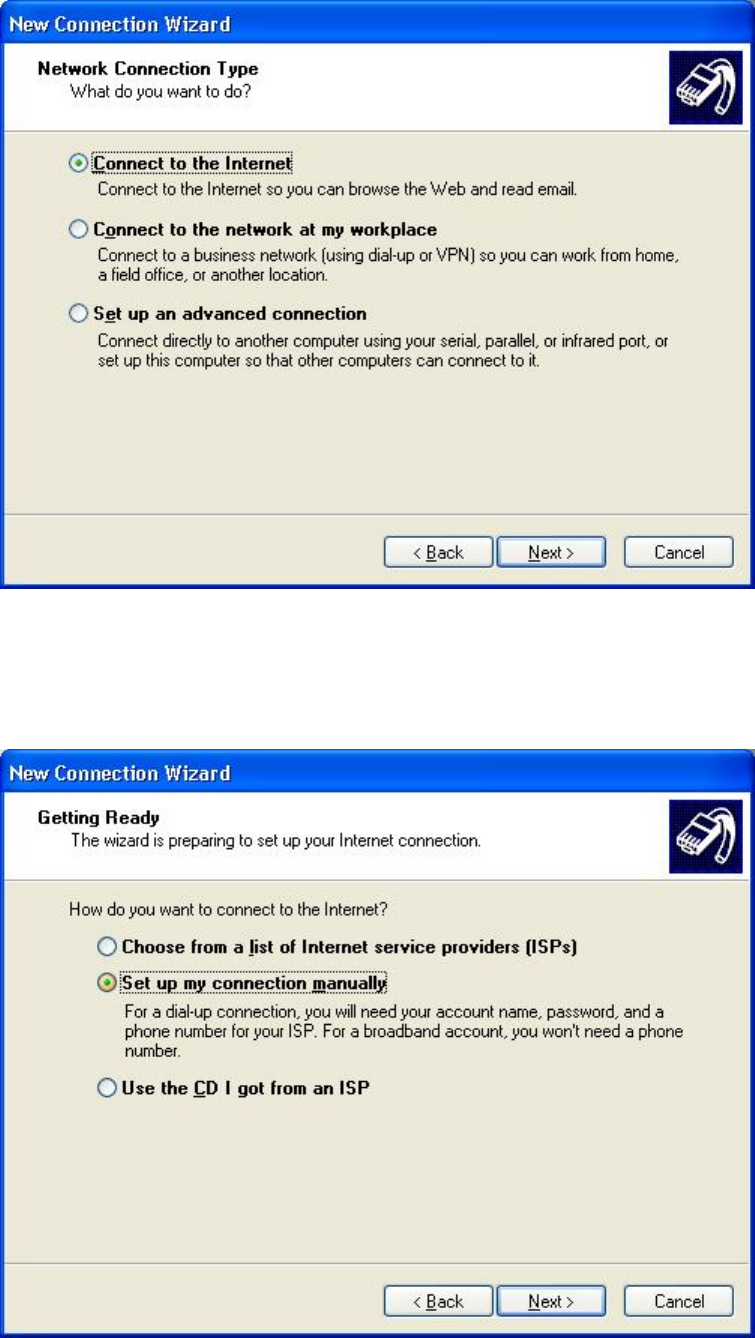

2. Select Connect to the Internet
3. Select “Set up my connection manually”

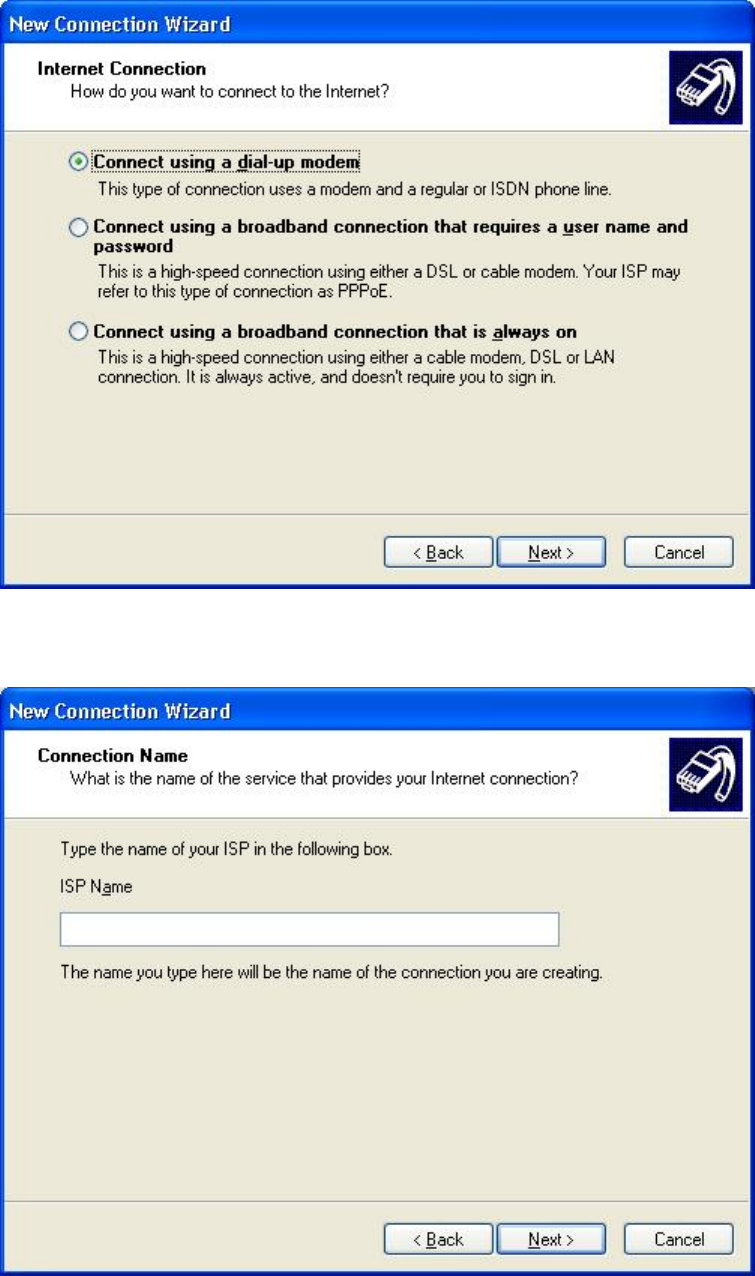

4. Select” Connect using a dial- up modem”
5. Enter your ISP name

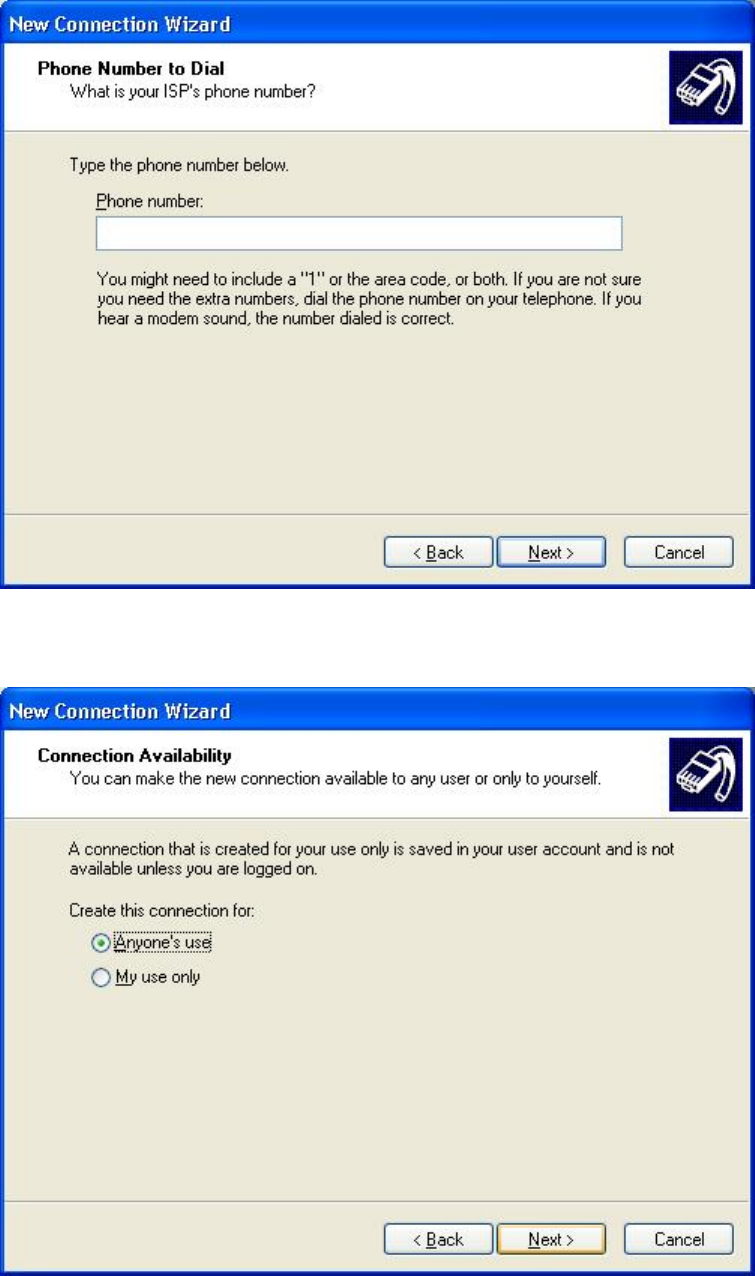

6. Enter your Number to Dial
7. Select Anyone’s use

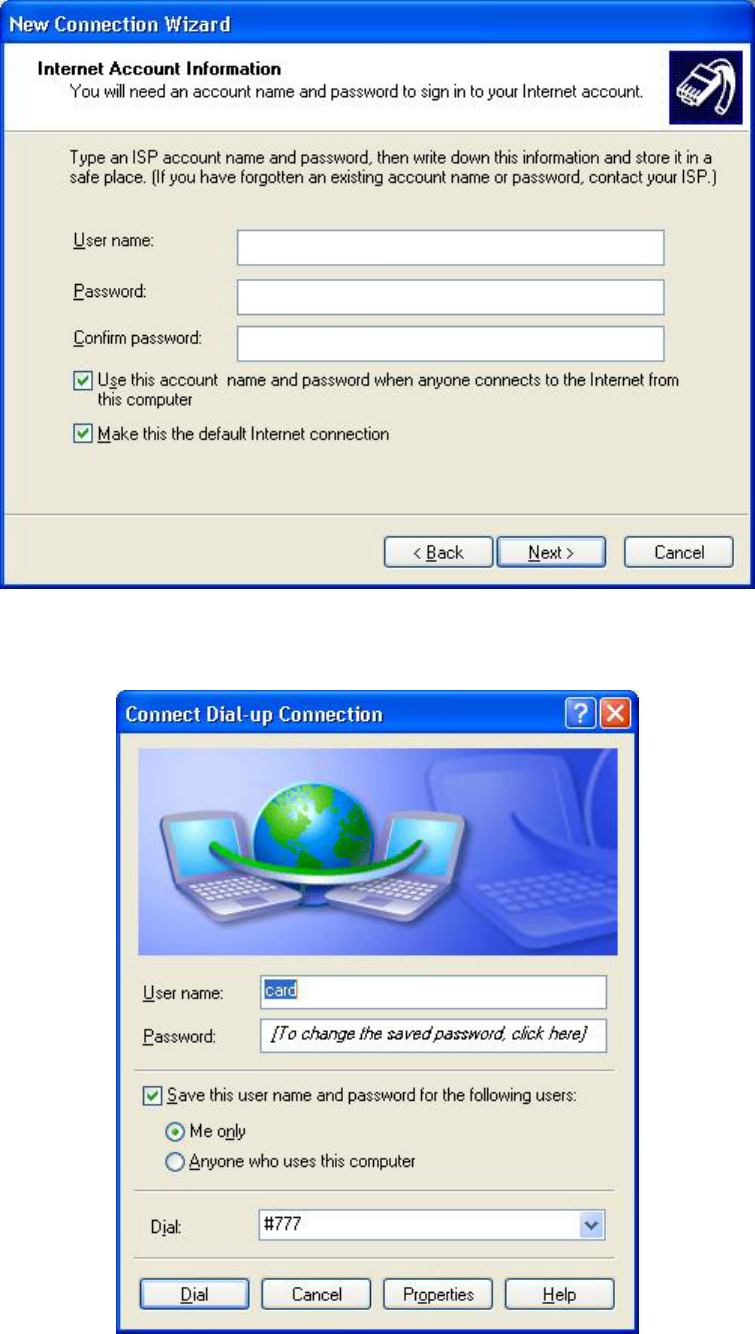

8. Enter user name and password
9. After finishing the configuration, you can set up a connection

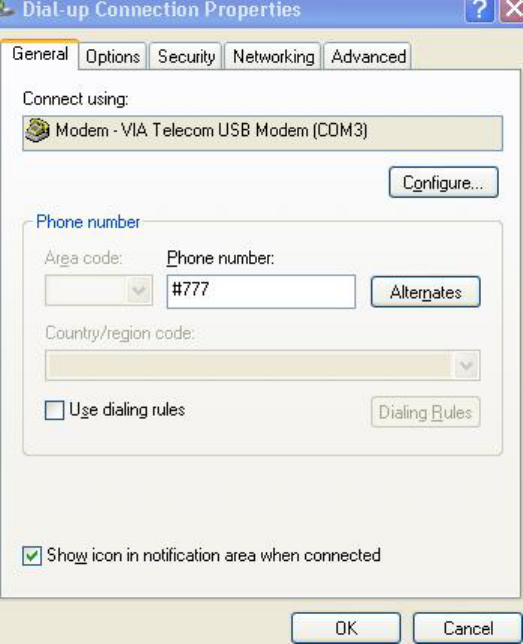

If Driver is properly installed, you can see “VIA Telecom USB Modem” in the properties
menu.
z IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter As long as these
conditions above are met, further transmitter test will not be required. However, the
OEM integrator is still responsible for testing their end-product for any additional
compliance requirements required with this module installed (for example, digital
device emissions, PC peripheral requirements, etc.).
In the event that these conditions can not be met (for example certain laptop
configurations or co-location with another transmitter), then the FCC authorization is
no longer considered valid and the FCC ID can not be used on the final product. In
these circumstances, the OEM integrator will be responsible for re-evaluating the end
product (including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be
installed such that 20 cm may be maintained between the antenna and users. The final
end product must be labeled in a visible area with the following: “Contains FCC ID:
X2U-ORCA-PCIE01”.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/ TV technician for help.
