VIA Telecom ORCA-USBD Orca USB Dongle Data Card User Manual

VIA Telecom Inc. Orca USB Dongle Data Card Users Manual

Users Manual

Orca USB Dongle User Manual

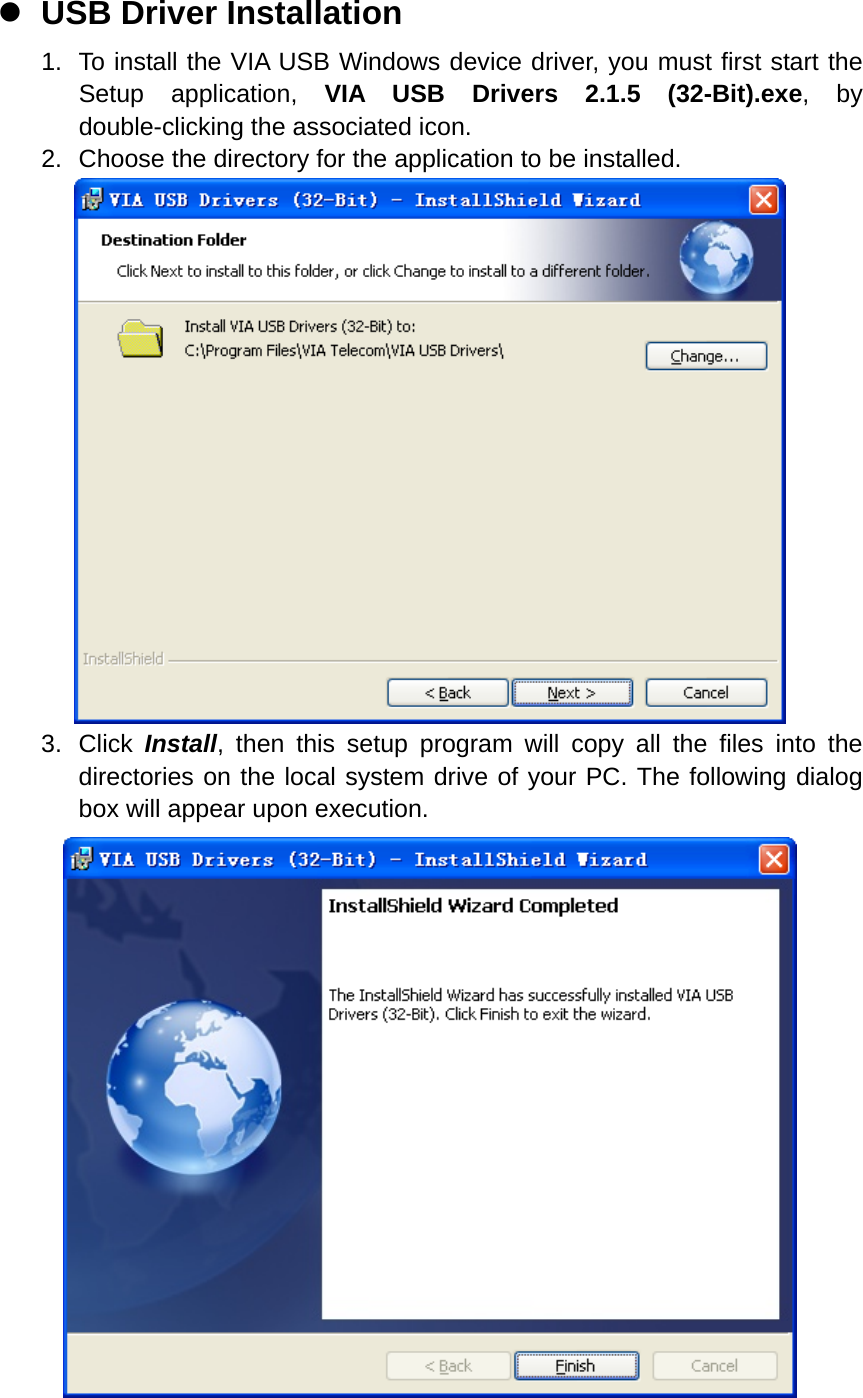

z USB Driver Installation 1. To install the VIA USB Windows device driver, you must first start the Setup application, VIA USB Drivers 2.1.5 (32-Bit).exe, by double-clicking the associated icon. 2. Choose the directory for the application to be installed. 3. Click Install, then this setup program will copy all the files into the directories on the local system drive of your PC. The following dialog box will appear upon execution.

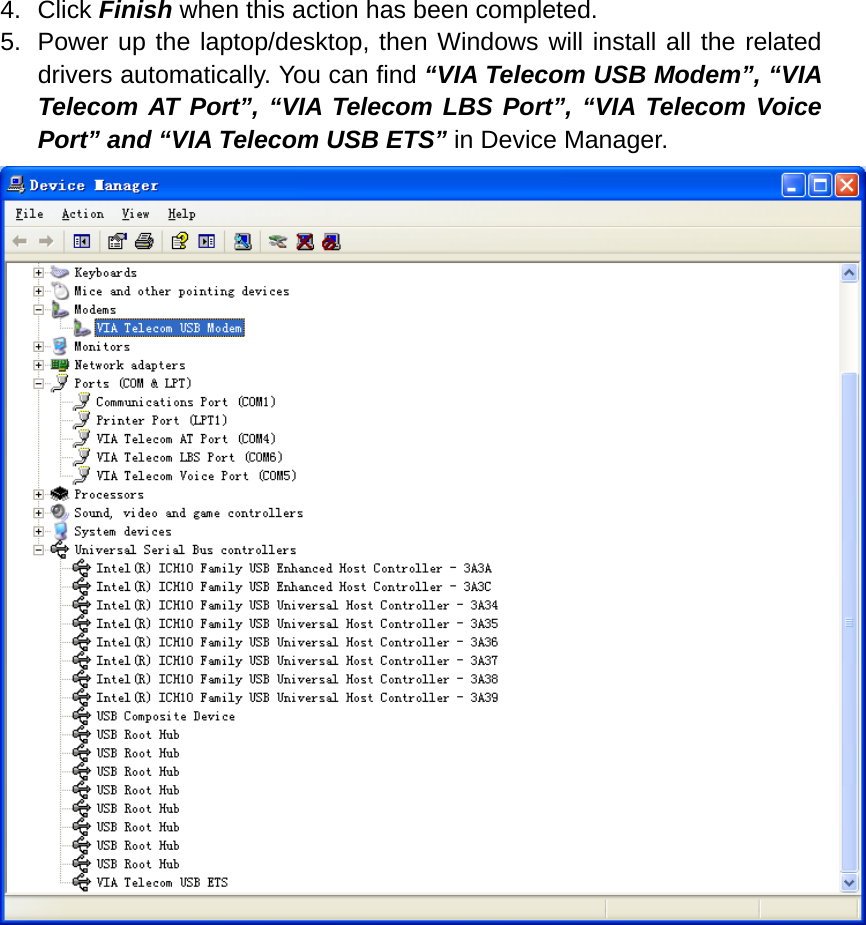

4. Click Finish when this action has been completed. 5. Power up the laptop/desktop, then Windows will install all the related drivers automatically. You can find “VIA Telecom USB Modem”, “VIA Telecom AT Port”, “VIA Telecom LBS Port”, “VIA Telecom Voice Port” and “VIA Telecom USB ETS” in Device Manager.

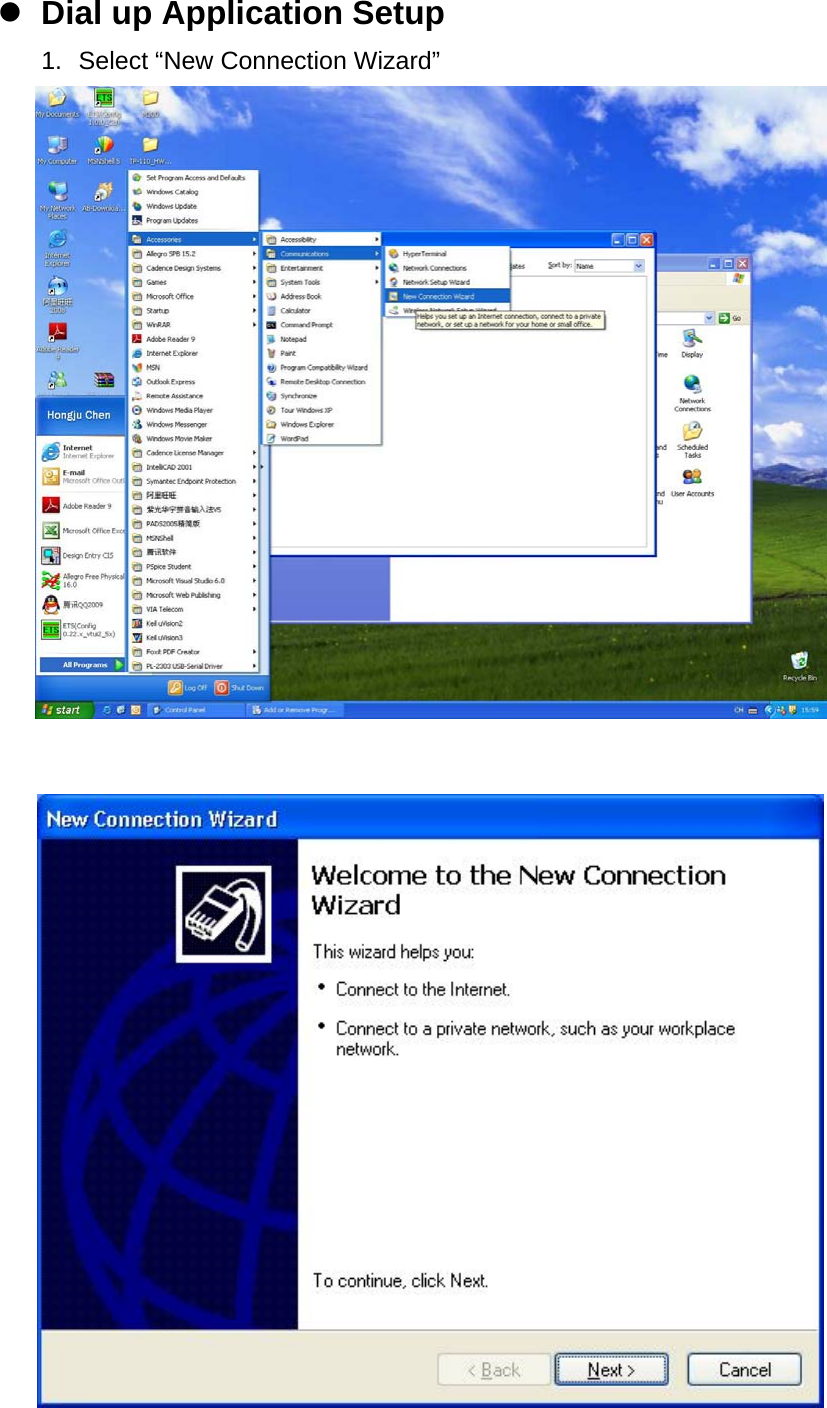

z Dial up Application Setup 1. Select “New Connection Wizard”

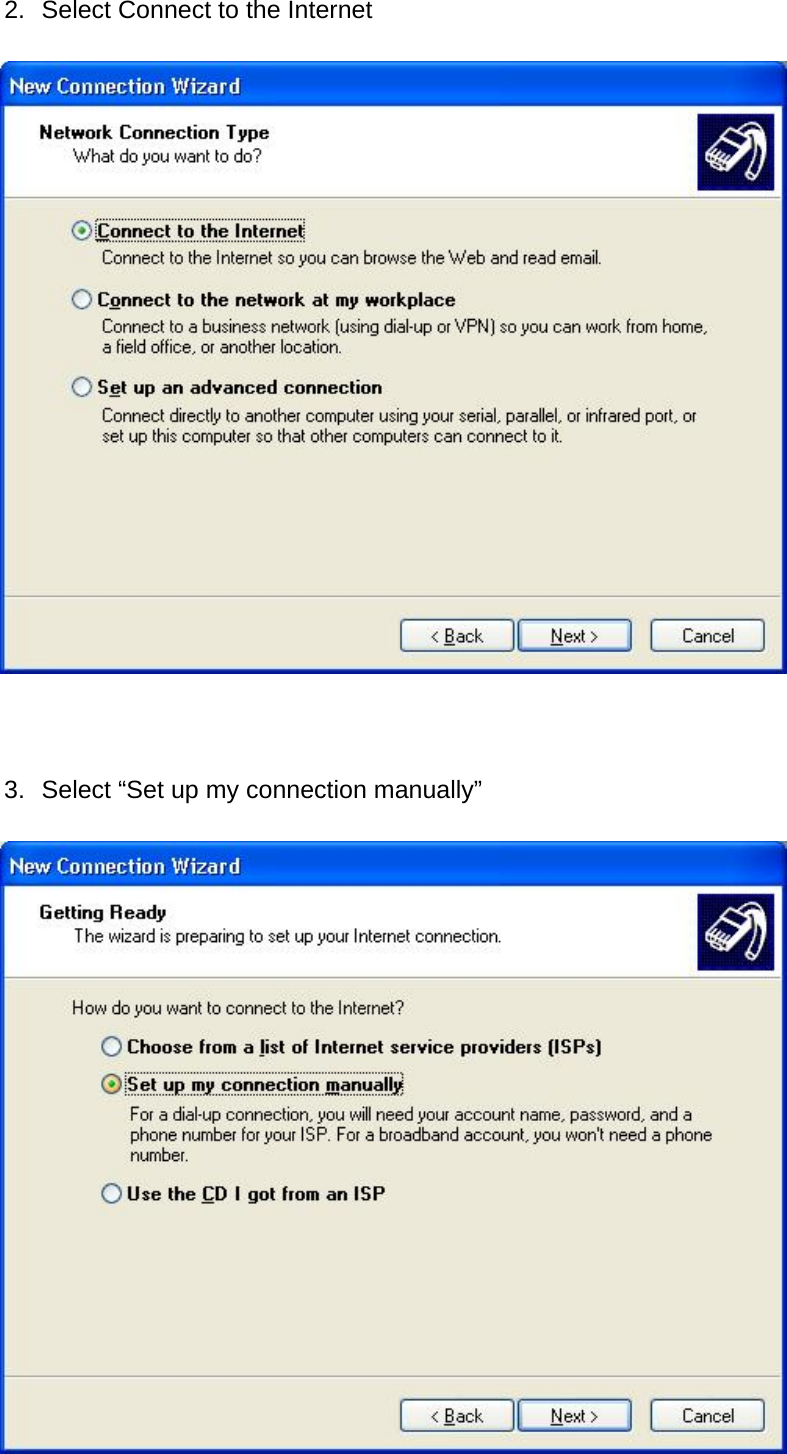

2. Select Connect to the Internet 3. Select “Set up my connection manually”

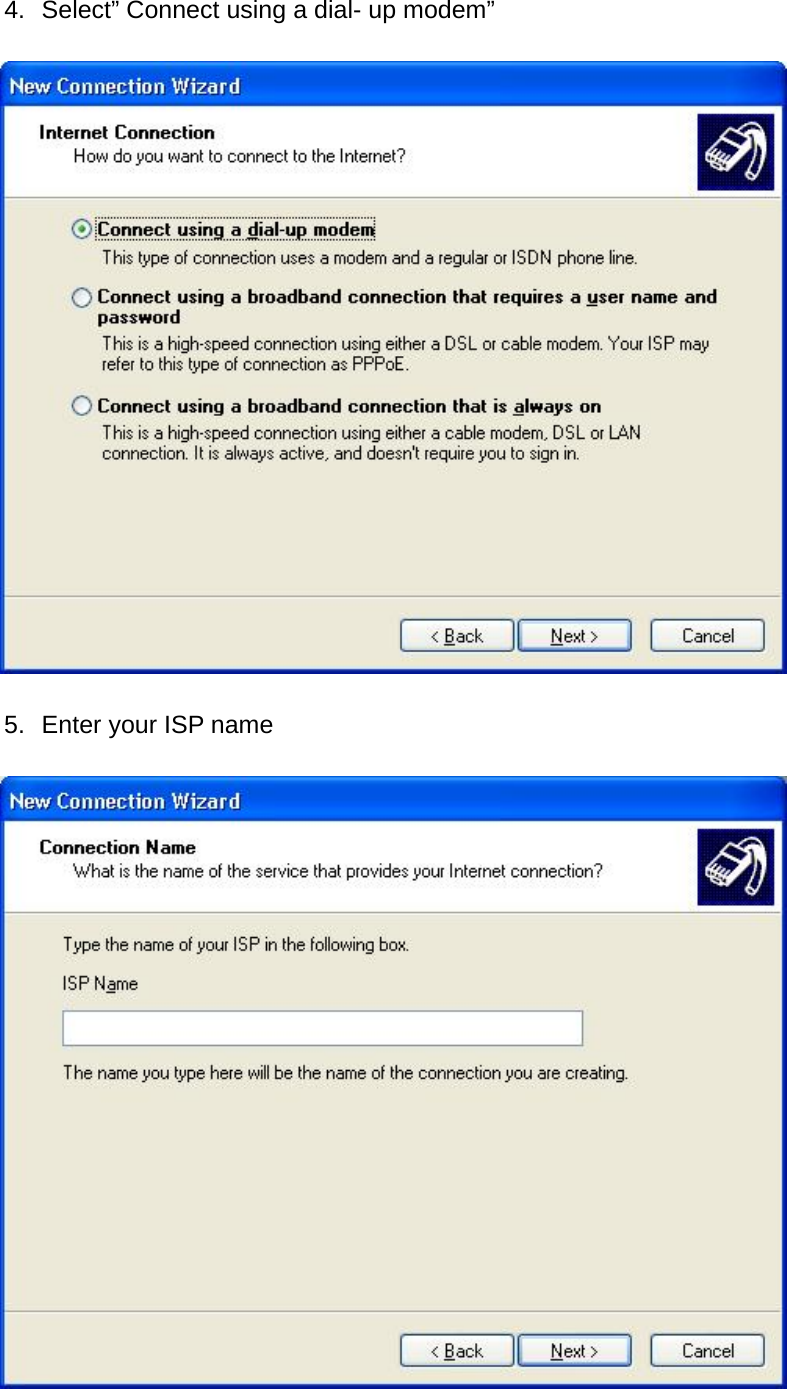

4. Select” Connect using a dial- up modem” 5. Enter your ISP name

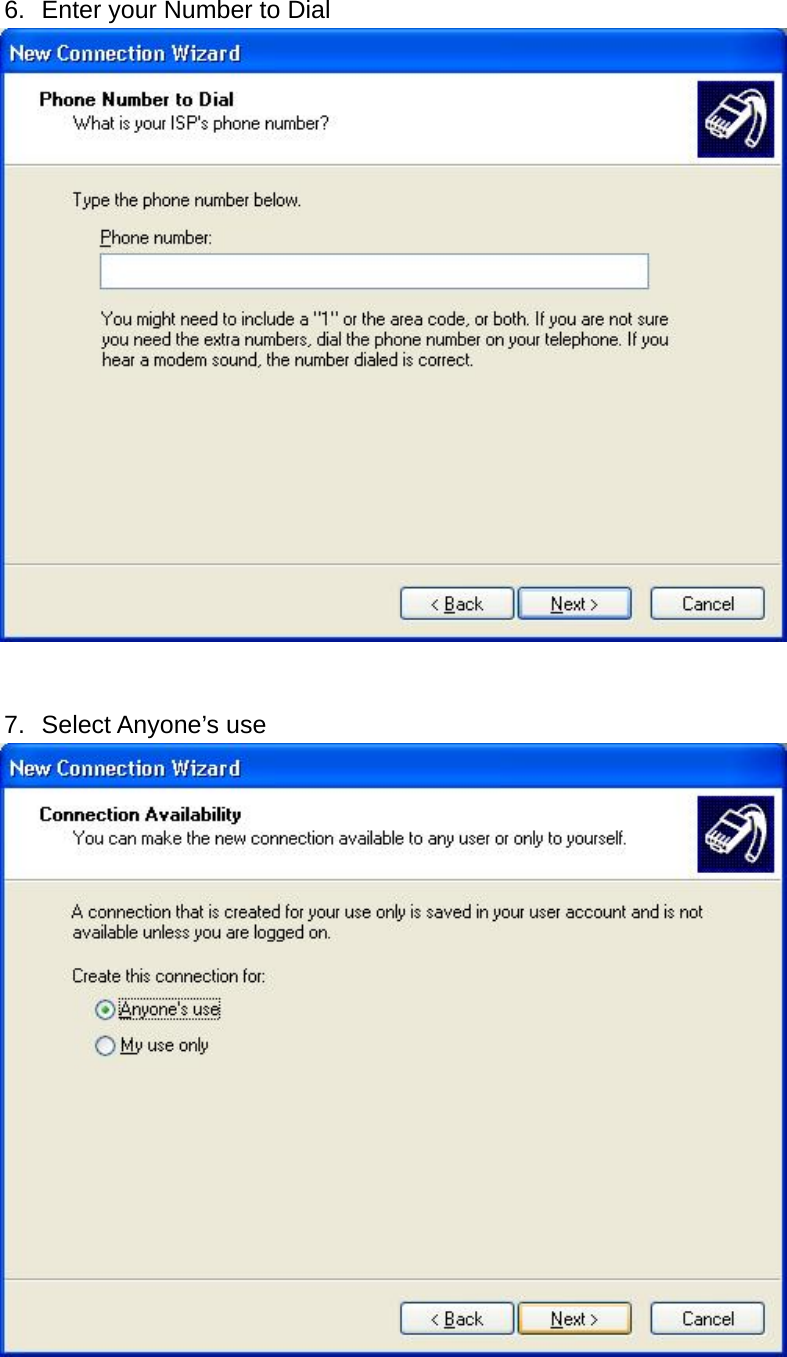

6. Enter your Number to Dial 7. Select Anyone’s use

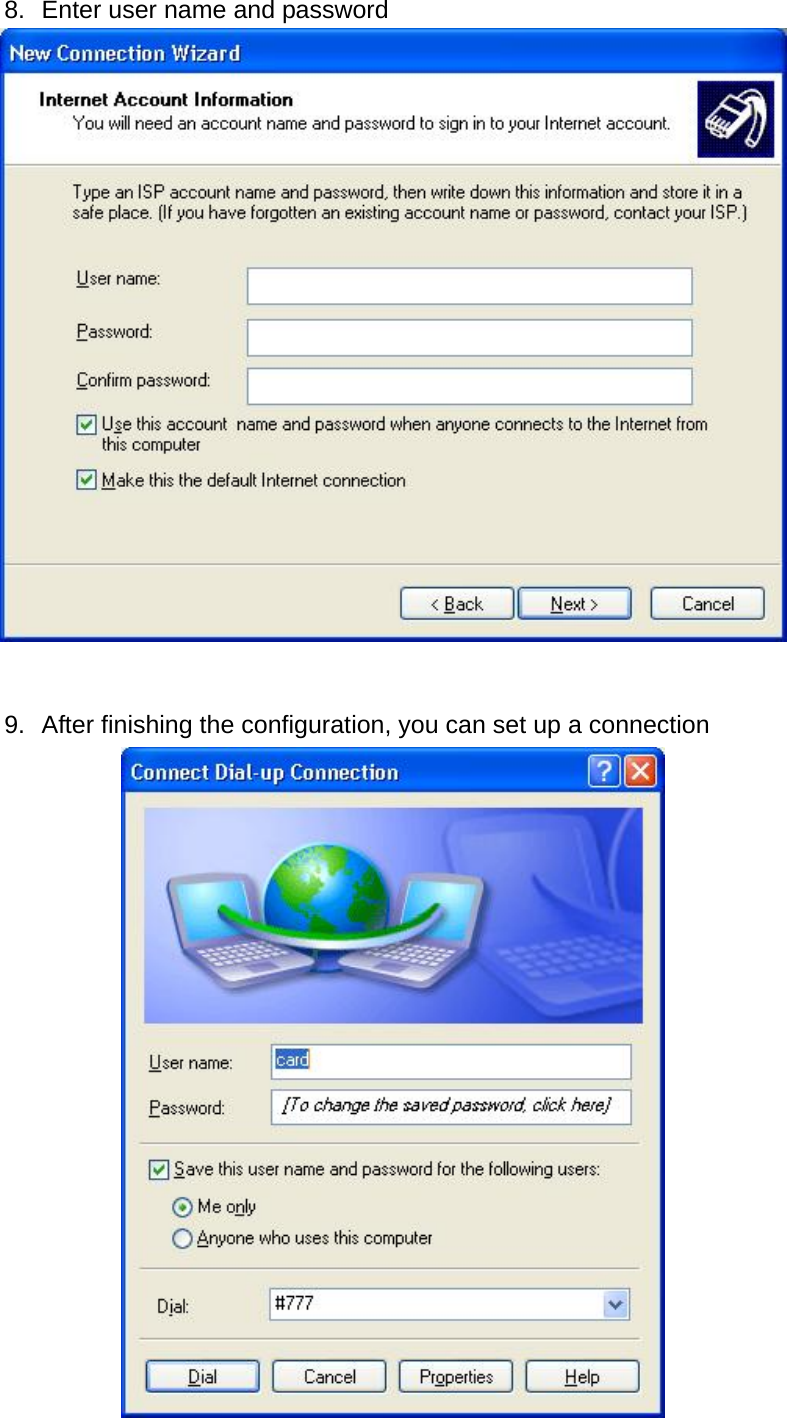

8. Enter user name and password 9. After finishing the configuration, you can set up a connection

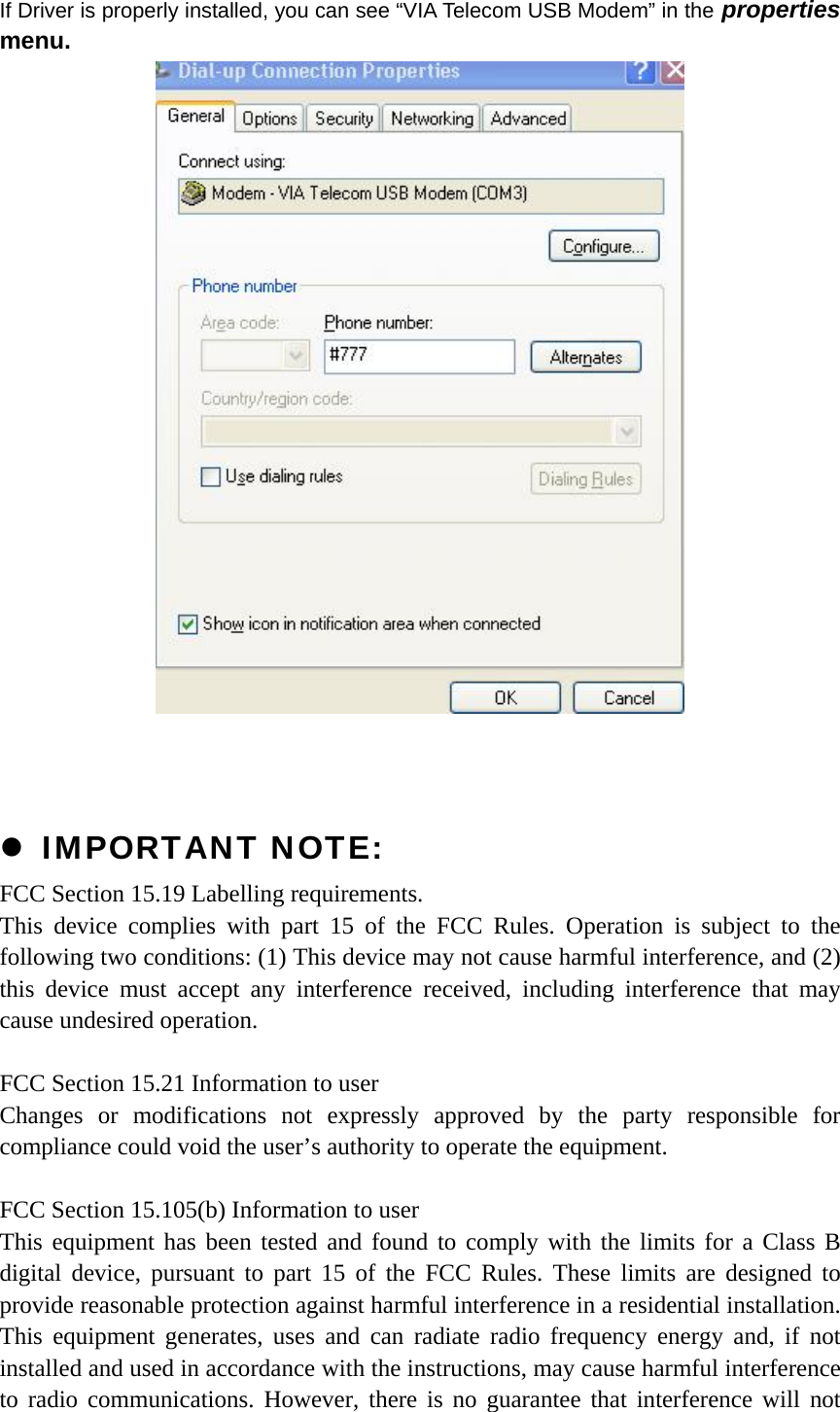

If Driver is properly installed, you can see “VIA Telecom USB Modem” in the properties menu. z IMPORTANT NOTE: FCC Section 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Section 15.21 Information to user Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Section 15.105(b) Information to user This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

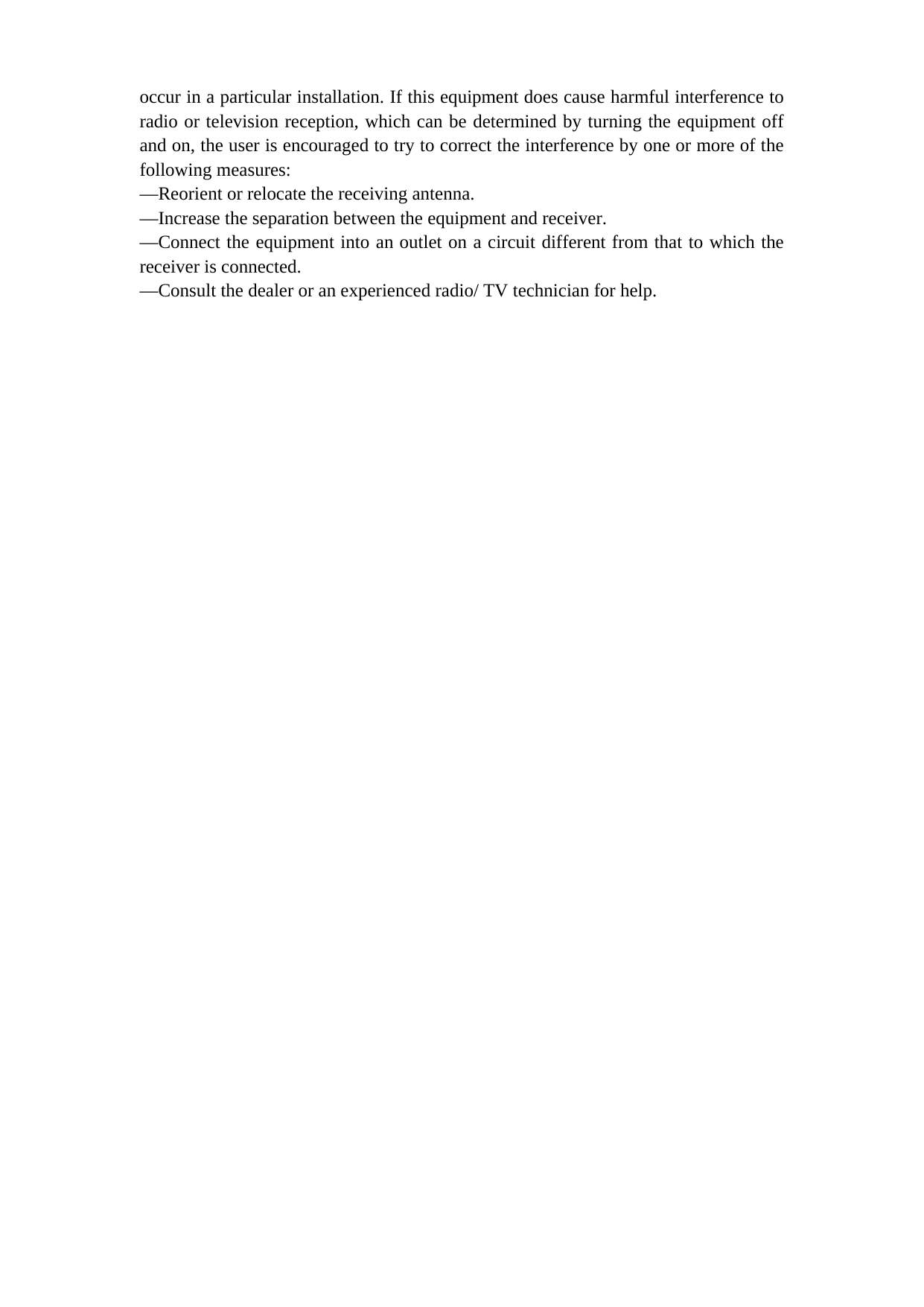

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/ TV technician for help.
