VIDEOTEK VT-9512RX Wireless Camera Panner User Manual
VIDEOTEK COMPANY LIMITED Wireless Camera Panner
VIDEOTEK >
User Manual
Wireless PannerOperating Instructions
Wireless Panner Specs
1. Distance:Up to 10 meters
2. Charging power: 5V/500mA
3. Power consumption: 0.2W
4. Battery: 3.7V/2200mA
5. Remote battery
FCC ID:2ABFHVT-9512RX

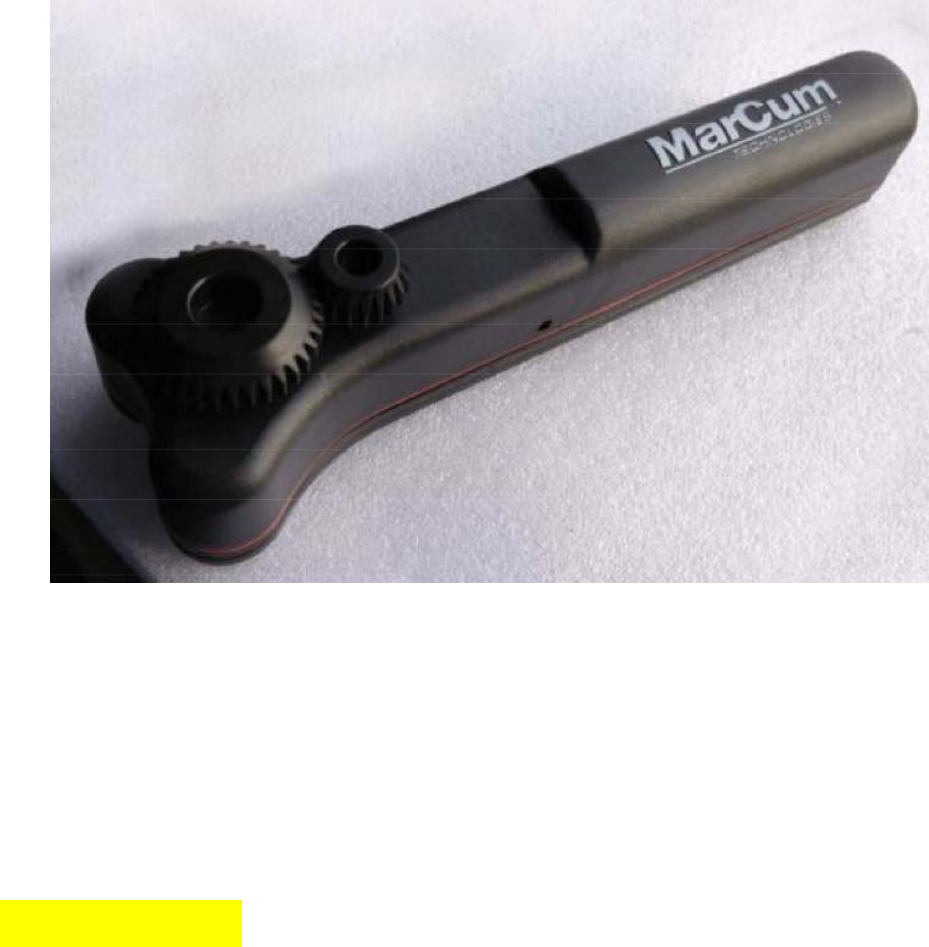

VT-9512RX

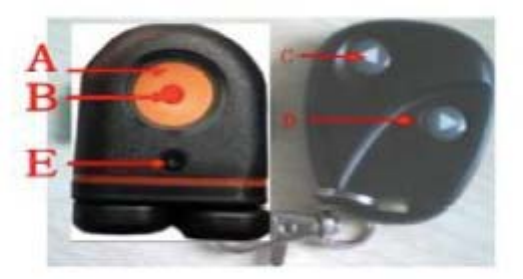

Diagram of features:
A: Power button [on panner]
B: LED light [on panner]
C: Left control button: pans to the
left [on remote]
D: Right control button: pans to the
right [on remote]
E: Charging port [on panner]
Operation:
Deploy the camera:
Lower your camera to the desired depth, then position the cable in the
u-shaped channel on the bottom of the panner. Use the retainer clip to
anchor the camera cable in place. Open the legs of the panner and
position it above the hole in the ice.
Turn on and operate the panner:
Press and hold the power button (A) about 3-4 secondsuntil the light is on.
Press the C or D button to pan left or right.
Turn off the panner:
Press and hold the power button (A) for about 3-4 secondsuntil the light is
off.
FCC ID:2ABFHVT-9512TX
VT-9512TX
TROUBLE SHOOTING:
1. Pairing:
Turn on the wireless panner, and quickly press the power button (A) 3 times
in 3 seconds.
Next, pressand hold either button(C or D) on the remoteuntilthe motor is
rotating to left or right. This means that the pairing is OK,and the wireless
panner can be controlled by this remote.
2. Using a new remote:
If the remote is lost, you first must order a new remote. Once you have a
new remote:
Step 1: Turn on the wireless panner, and quickly press the power button (A)
6 times in 6 seconds, the LED light will turn off automatically in 10 seconds.
Step 2: Turn the wireless panner back on and quickly press the power button
(A) 3 times in 3 seconds;
Step 3: Press and hold either button(C or D) of the new remoteuntil the
motor is rotating to left or right. This means that thepairing is OK, and the
wireless panner can be controlled by this remote.
3. Charging instruction:
1. When the panner is charging, the LED light will be pulsing slowly.
2. When it hasfully charged, the LED light will stop pulsing andalwaysbe on.
3. If the charger is disconnected during the charging process, the panner
will be turned offautomatically.
4. When the panner is working, a steadyLED light means a fully charged
battery. If the light is flickering in a pattern, the number of flickers indicates
the battery strength out of a possible 4 levels. [Example: the light
flickering in a repeating pattern of 2 indicates battery strength is 2 out of
4.
5. The LED lightflickeringvery quickly indicates the battery does not have
sufficient power.
