Virtium TuffDriveTM U25PE – eUSB Tuff Drive
eUSB Key Product Manual
____________________________________________________________________________________
1.0 Introduction
Virtium TuffDrive™ eUSB Tuff Drive are ideal solutions for server, networking, embedded and industrial
applications that require a modest amount of storage and require a widely supported USB2.0 and USB3.0
interfaces. Typical applications include software distribution, loads and updates, system level
diagnostics, backup repository for data in DRAM in the event of a system-level power-down or as a
portable storage device for service technicians.
1.1 Features
• Capacities: 8GB, 16GB, 32GB
• Industrial SLC
• Sustained Performance
o Read: Up to 160MB/s(1)
o Write: Up to 125MB/s(1)
• Temperature
o Commercial operating: 0oC to 70oC
o Industrial operating: -40oC to 85oC
o Non-operating: -55oC to 95oC
• Power: 5V
o Maximum: 530mW
o Idle: 145mW
• Reliability
o MTBF: 4,000,000 hours
o ECC algorithm corrects up to 72-bit per
1Kbytes
o SLC NAND endurance 100K @ 550C
• Compliance
o USB 2.0 & 3.0 specification
o USB Mass Storage Class Bulk-Only
Transport Protocol
o RoHS, CE, FCC, UL and WEEE
certified
• Operating Systems supported: Windows 7,
Vista, XP, 200, ME, 98/98SE, and Mac OS
9.x and above, Linux Kernel 2.4 and above
• Supports unique VID, PID, and serial number
• Form Factor: USB Type-A connector
• Mechanical Dimensions - L x W x H mm (inches)
o 71.40 (2.811) x 17.50 (0.689) x 8.00 (0.315)
• Weight
o 8.2 +/- 0.1 g
• Environmental (Operating/non-operating):
o IEC 68-2-27, IEC 68-2-6
o Shock: 50g, 10ms duration
o Vibration: 5g (500 Hz maximum)
(1) For 32GB, USB 3.0
Product Specification
eUSB Tuff Drive
eUSB Key Rev: 1.1
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 2
2.0 Ordering Information and Part Numbering System
Capacity
008G: 8GB
016G: 16GB
032G: 32GB
Operating Temperature
C: 0oC to 70oC
I: -40oC to 85oC
V TD U25 P X XXXG – XXX
Interface/Form Factor
U25: eUSB Key
(Length: 71.40mm)
TuffDrive
Virtium
Class
P = PE
Virtium proprietary
Product Specification
eUSB Tuff Drive
eUSB Key Rev: 1.1
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 3
3.0 Table of Contents
1.0 Introduction ...................................................................................................................................................... 1
2.0 Ordering Information and Part Numbering System ...................................................................................... 2
3.0 Table of Contents ............................................................................................................................................. 3
4.0 Specifications ................................................................................................................................................... 4
4.1 Capacity ............................................................................................................................................................ 4
4.2 Performance(1) .................................................................................................................................................. 4
4.3 Environmental Specifications ......................................................................................................................... 4
Temperature and Humidity ............................................................................................................................ 4 4.3.1
Shock and Vibration ....................................................................................................................................... 4 4.3.2
4.4 Mean Time Between Failures (MTBF)............................................................................................................. 5
4.5 Power Requirements ....................................................................................................................................... 5
4.6 Certifications and Compliance ....................................................................................................................... 5
5.0 Physical Specification ..................................................................................................................................... 6
5.1 Pin Assignments .............................................................................................................................................. 6
5.2 Mechanical Dimensions .................................................................................................................................. 7
6.0 Revision History ............................................................................................................................................... 8
List of Tables
TABLE 1: TUFFDRIVE 25PE CAPACITY ....................................................................................................................... 4
TABLE 2: READ/WRITE PERFORMANCE .................................................................................................................... 4
TABLE 3: TEMPERATURE AND HUMIDITY ................................................................................................................. 4
TABLE 4: SHOCK AND VIBRATION .............................................................................................................................. 4
TABLE 5: POWER CONSUMPTION .............................................................................................................................. 5
TABLE 6: CERTIFICATIONS AND COMPLIANCE ........................................................................................................ 5
TABLE 7: PIN ASSIGNMENTS ....................................................................................................................................... 6
List of Figures
FIGURE 1: THE STANDARD USB TYPE-A PLUG PINOUT.......................................................................................... 6
FIGURE 2: MECHANICAL DIMENSIONS ...................................................................................................................... 7
Product Specification
eUSB Tuff Drive
eUSB Key Rev: 1.1
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 4
4.0 Specifications
4.1 Capacity
Table 1: TuffDrive 25PE capacity
4.2 Performance(1)
Table 2: Read/Write Performance
Transfer Rate USB 2.0 USB 3.0 Units
Sustained Read (max) 37 160 MB/s
Sustained Write (max) 35 125 MB/s
(1) Performance of 32GB
4.3 Environmental Specifications
Temperature and Humidity 4.3.1
Table 3: Temperature and Humidity
P/N Operating Temperature (oC) Non-Operating Temperature (oC)
& Moisture Sensitivity
VTDU25PCxxxG-xxx 0°C to 70°C -65°C to +95°C
5% to 95% (non-condensing)
VTDU25PIxxxG-xxx -40°C to 85°C
Shock and Vibration 4.3.2
Table 4: Shock and Vibration
Reliability Test Conditions
Shock(1) Duration: 10ms, 50g, 3 axes, 20 times
Vibration(2) 10 Hz to 500 Hz, 5g, 3 axes, 1 hour
(1) IEC 68-2-27
(2) IEC 68-2-6
Unformatted
Capacity
(GB)
(1)
User-Addressable
LBA(2) User-Addressable Capacity
Bytes
8 16,236,544 8,313,110,528
16 32,473,088 16,626,221,056
32 64,946,176 33,252,442,112
(1) 1GB = 1,000,000,000 bytes
(2) LBA: Logical Block Address. Logical block size of 512 bytes (1 sector)
Product Specification
eUSB Tuff Drive
eUSB Key Rev: 1.1
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 5
4.4 Mean Time Between Failures (MTBF)
Virtium’s TuffDrive achieves a MTBF of 4,000,000 hours predicted based on the component reliability
data using Telcordia SR-332 methods at 40oC.
4.5 Power Requirements
5V (±10%) single power supply operation.
Table 5: Power Consumption
Voltage Maximum(1) Typical(2) Idle
5V 530 mW 404 mW 145 mW
(1) Max power consumption measured on 32GB TuffDrive eUSB, 100% 64KB sequential
writes
(2) 70/30 read/write workload
4.6 Certifications and Compliance
Table 6: Certifications and Compliance
Compliance/Certification Description
CE and FCC Compliant
Class: FCC Part 15 Subpart B Class B:2011
Declaration of Conformity registration No. STE120607699
RoHS Compliant Restriction of Hazardous Substance Directive
UL Certified Underwriters Laboratories, Inc. 94V-0
WEEE Certified Waste, Electrical and Electronic Equipment Directive
Product Specification
eUSB Tuff Drive
eUSB Key Rev: 1.1
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 6
5.0 Physical Specification
5.1 Pin Assignments
Table 7: Pin Assignments
Pins Type Description
1 VBUS (+5V) Input Power
2 D - Differential Data (-)
3 D + Differential Data (+)
4 GND Ground
5 StdA_SSRX- Superspeed Receiver Differential Data (-)
6 StdA_SSRX+ Superspeed Receiver Differential Data (+)
7 GND_DRAIN Ground For Signal Return
8 StdA_SSTX- Superspeed Transmitter Differential Data (-)
9 StdA_SSTX+ Superspeed Transmitter Differential Data (+)

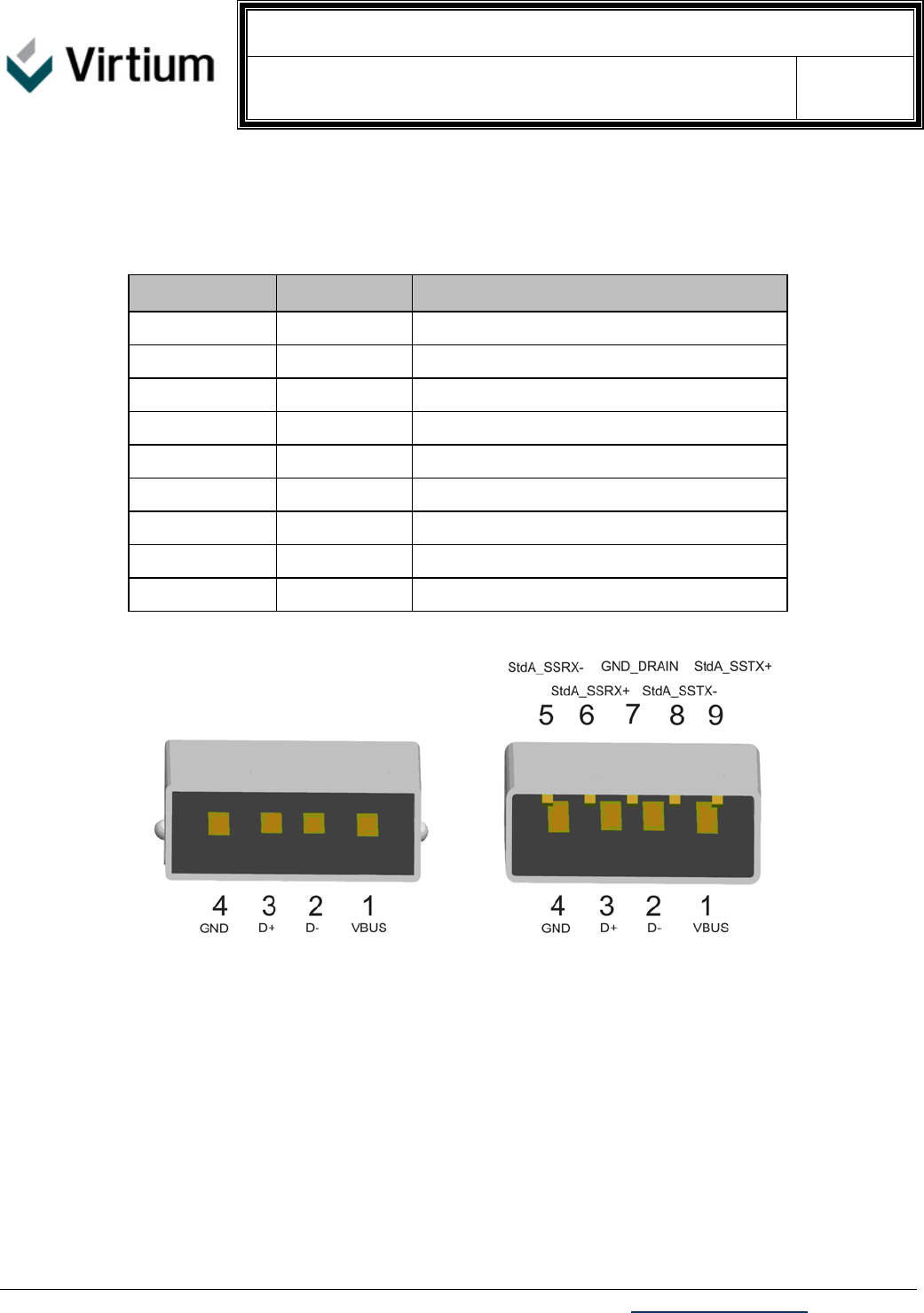

Figure 1: The standard USB type-A plug pinout
USB 2.0 pinout
USB 3.0 pinout
Product Specification
eUSB Tuff Drive
eUSB Key Rev: 1.1
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 7
5.2 Mechanical Dimensions

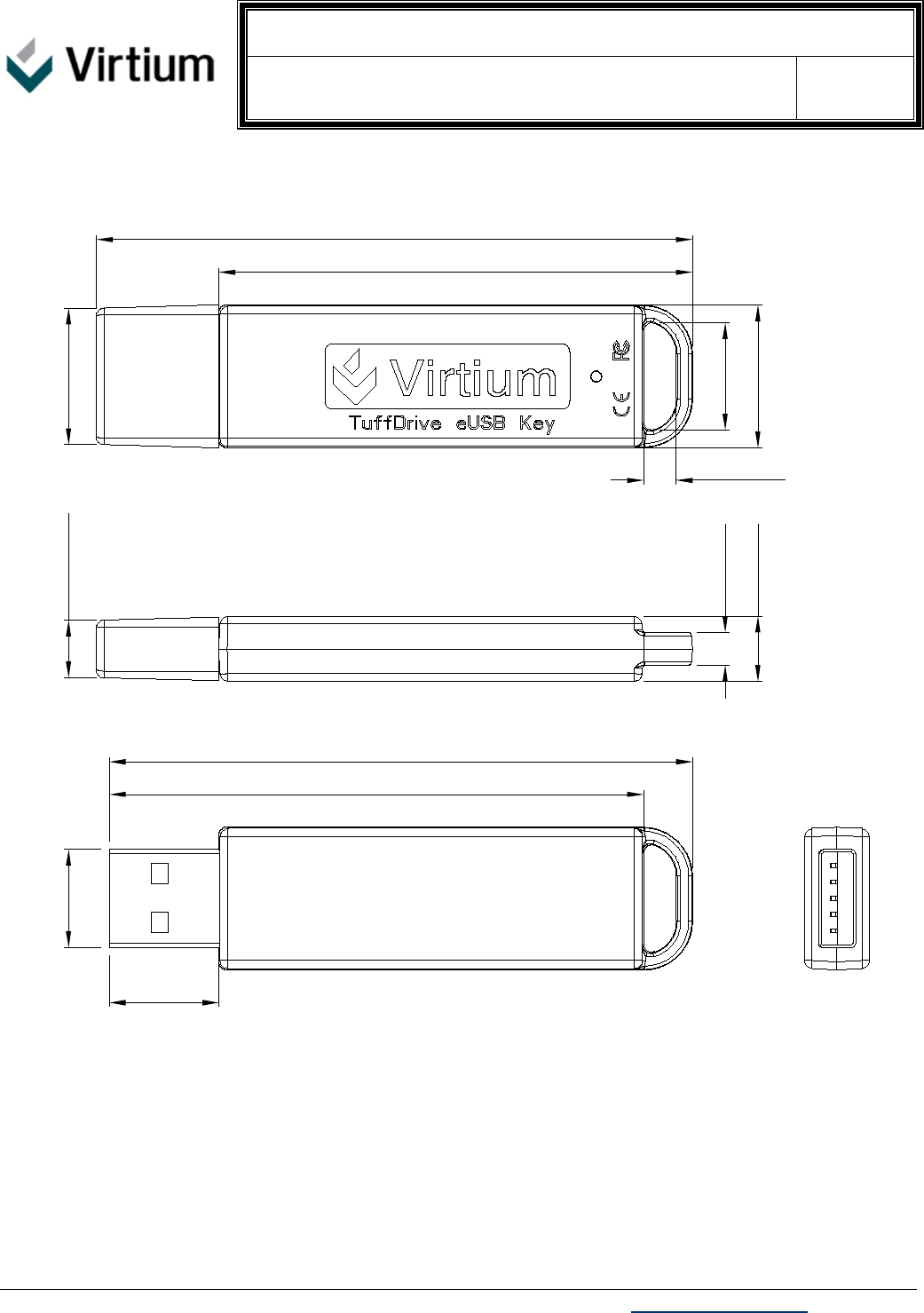

Figure 2: Mechanical Dimensions
7.1 [0.278"]
4 [0.157"]
8 [0.315"]
12 [0.472"]
71.4 [2.811"]
13.4 [0.528"]
13.2 [0.518"]
17.5 [0.689"]
4 [0.157"]
65.4 [2.575"]
73 [2.874"]
58 [2.283"]
16.8 [0.660"]
Product Specification
eUSB Tuff Drive
eUSB Key Rev: 1.1
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 8
6.0 Revision History
Date Rev. Page Changes
10/11/2013 1.0 All First release
10/31/2013 1.1 1, 2, 4, 5, 7 Update dimensions, reliability, vibration & shock and MTBF
