Virtium StorFly™ 25PE – 2.5” SATA 3Gbps SSD
VSFA25 Product Manual
____________________________________________________________________________________
1.0 Introduction
Virtium’s StorFly™ 25 is solid state drive (SSD) technology designed for the unique capacity, workload
and product lifecycle requirements of a broad range of embedded systems including networking,
industrial automation, medical and gaming equipment as well as point-of-sale terminals, military data
recorders and wearable computers. StorFly™ 25 SSDs deliver stable configuration for long product life
and eliminate the need for frequent product re-qualifications. StorFly™ 25PE SSDs are designed for
optimum performance at low to moderate capacity points and are excellent solutions for write intensive
applications.
1.1 Features
• Capacities: 8, 16, 32, 64, 128GB
• Sequential performance (128GB)
o Read/write: 270.220 MB/s
• Random Performance (128GB)
o Read/write IOPS: 15K/4K
• Latency:
o Read/write (μs): TBD/TBD
• Temperature
o Commercial operating: 0oC to 70oC
o Industrial operating: -40oC to +85oC
o Non-operating: -55oC to +95oC
• Power(1) (128GB; 5V)
o Typical: 1.2W
o Idle: 1.07W
• Reliability
o UBER: 1 error per 1014 bits read
o MTBF: 2,000,000 hours
o Endurance: Upto 600 TBW (128GB)
• S.M.A.R.T. attribute reporting
• Compliance
o SAT revision 2.6 (SATA 3Gbps and
1.5Gbps)
o ATA/ATAPI-7
o FCC, CE, UL, RoHS
• Mechanical Dimensions - L x W x H mm (in.)
o 100.5 (3.96) x 69.85 (2.75) x 9.5 (0.37)
• Weight
o 87 +/- 2 g (128GB)
• Environmental (Operating/non-operating):
o Shock: 50G (11ms/Axis) x 3 Axes
o Vibration: 10 to 2000 Hz, 16.4G, 3 Axes
o Altitude: 40000 feet
o Humidity: 95%
(1) Measured based on 70/30 random read/write. Power is vary depending upon capacities, see section 4.5 for completed
typical and maximum power measurement per capacities
Product Specification
StorFly 25
VSFA25PxxxxG-xxx Rev: 1.0
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 2
2.0 Ordering Information and Part Numbering System
Capacity
008G: 8GB
016G: 16GB
032G: 32GB
064G: 64GB
128G: 128GB
Operating Temperature
C: 0oC to 70oC
I: -40oC to 85oC
V SF A25 P X XXXG – XXX
Interface/Form Factor
25: 2.5”, 9.5mm SSD
StorFly
Virtium
Class
P = PE
Virtium proprietary
Product Specification
StorFly 25
VSFA25PxxxxG-xxx Rev: 1.0
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 3
3.0 Table of Contents
1.0 INTRODUCTION................................................................................................................................................1
2.0 ORDERING INFORMATION AND PART NUMBERING SYSTEM....................................................................2
3.0 TABLE OF CONTENTS......................................................................................................................................3
4.0 SPECIFICATIONS..............................................................................................................................................5
4.1 Capacity..............................................................................................................................................................5
4.2 Performance.......................................................................................................................................................5
4.3 Environmental Specifications..............................................................................................................................5
4.3.1 Temperature Range.......................................................................................................................................5
4.3.2 Humidity..........................................................................................................................................................6
4.3.3 Shock and Vibration.......................................................................................................................................6
4.4 System Reliability...............................................................................................................................................6
4.4.1 Power Consumption.......................................................................................................................................7
4.5 Power Requirements..........................................................................................................................................7
4.6 FCC and CE Requirements................................................................................................................................7
4.7 ROHS COMPLIANCE.........................................................................................................................................7
5.0 PHYSICAL SPECIFICATION.............................................................................................................................8
5.1 Pin Assignments.................................................................................................................................................8
5.2 MECHANICAL DIMENSIONS..........................................................................................................................10
6.0 ATA COMMANDS............................................................................................................................................11
6.1 Supported Commands......................................................................................................................................11
6.2 Identify Device Data..........................................................................................................................................14
6.3 Device Overlay Data Structure.........................................................................................................................21
6.4 S.M.A.R.T. ATTRIBUTES.................................................................................................................................22
7.0 REFERENCES.................................................................................................................................................28
8.0 REVISION HISTORY........................................................................................................................................29
Product Specification
StorFly 25
VSFA25PxxxxG-xxx Rev: 1.0
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 4
List of Tables
TABLE 1: PRODUCT CAPACITY....................................................................................................................................5
TABLE 2: PERFORMANCE............................................................................................................................................5
TABLE 3: TEMPRATURE RANGE..................................................................................................................................5
TABLE 4: SHOCK AND VIBRATION...............................................................................................................................6
TABLE 5: SYSTEM RELIABILITY...................................................................................................................................6
TABLE 6: MEAN TIME BETWEEN FAILURES (MTBF)..................................................................................................7
TABLE 7: POWER CONSUMPTION...............................................................................................................................7
TABLE 8: PIN ASSIGNMENTS.......................................................................................................................................8
TABLE 9: SUPPORTED ATA COMMANDS.................................................................................................................11
TABLE 10: POWER MANAGEMENT COMMANDS.....................................................................................................11
TABLE 11: SECURITY COMMANDS............................................................................................................................12
TABLE 12: SMART COMMANDS.................................................................................................................................12
TABLE 13: _____ COMMANDS....................................................................................................................................12
TABLE 14: 48-BIT ADDRESS FEATURE SET COMMANDS.......................................................................................13
TABLE 15: NATIVE COMMAND QUEUING.................................................................................................................13
TABLE 16: OTHER COMMAND....................................................................................................................................13
TABLE 17: EXECUTE DEVICE DIAGNOSTIC COMMAND INPUTS...........................................................................14
TABLE 18: EXECUTE DEVICE DIAGNOSTIC COMMAND INPUTS...........................................................................21
TABLE 19: SMART FEATURE REGISTER VALUES...................................................................................................22
TABLE 20: SMART DATA STRUCTURE......................................................................................................................23
TABLE 21: SMART ATTRIBUTE DEFINATIONS.........................................................................................................24
TABLE 22: BYTES 2-361 INDIVIDUAL ATTRIBUTE DATA.........................................................................................25
TABLE 23: SMART READ ATTRIBUTE THRESHOLD COMMAND............................................................................26
TABLE 24: THRESHOLD VALUES...............................................................................................................................26
TABLE 25: SMART EXECUTE OFF-LINE IMMEDIATE LBA LOW REGISTER VALUES...........................................27
List of Figures
FIGURE 1: SIGNAL SEGMENT AND POWER SEGMENT............................................................................................8

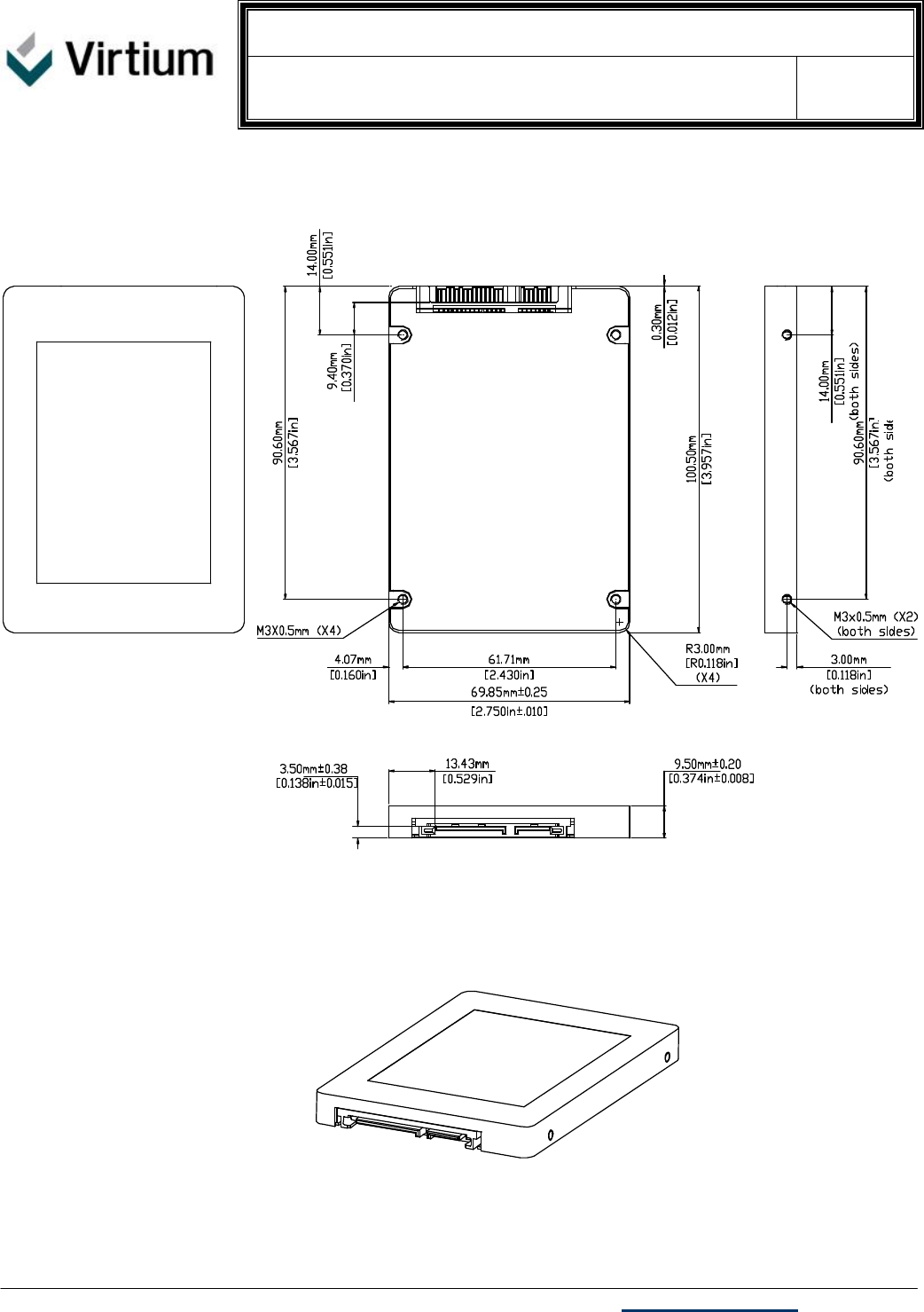

FIGURE 2: MECHANICAL DIMENSIONS.....................................................................................................................10
Product Specification
StorFly 25
VSFA25PxxxxG-xxx Rev: 1.0
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 5
4.0 Specifications
4.1 Capacity
Table 1: Product capacity
User-Addressable Capacities
Advertised
Capacities
(GB)
User-Addressable
LBA(1) Bytes GBytes
8 15,458,304 7,914,651,648 7.37
16 31,358,976 16,055,795,712 14.95
32 62,717,952 32,111,591,424 29.90
64 125,435,904 64,223,182,848 59.81
128 250,871,808 128,446,365,696 119.63
(1) LBA: Logical Block Address. Logical block size of 512 bytes
4.2 Performance
Table 2: Performance
THROUGH-PUT
64KB file, QD=32
IOPS
4KB file, Queue Depth=32,
100% Random
IOPS
4KB file, Queue Depth=32,
70% Read, 30% Write
Capacities
(GB)
Read Seq Write Seq Read Random
Write Random
Read
Random Write
Random
8
16
32
64
128
4.3 Environmental Specifications
4.3.1 Temperature Range
Table 3: Temprature range
P/N Operating Temparature (0C) Storage Temperature (0C)
VSFA25PCxxxG-xxx 0°C to 70oC -55°C to +95°C
Product Specification
StorFly 25
VSFA25PxxxxG-xxx Rev: 1.0
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 6
VSFA25PIxxxG-xxx -40°C to 85oC -55°C to +95°C
4.3.2 Humidity
Relative Humidity: 5-95%, non-condensing
4.3.3 Shock and Vibration
Table 4: Shock and Vibration
Reliability Test Conditions
Vibration ???G, ??? MIL-STD-810F, Method ???, Procedure ?
Mechanical Shock ???G, ??? MIL-STD-810F, Method ???, Procedure ?
Altitude ???G, ??? MIL-STD-810F, Method ???, Procedure ?
4.4 System Reliability
Table 5: System Reliability
Capacities (GB) TBW(1) GB/day for 5 yrs. Services Life
8
16
32
64
128
(1) TBW specifications are in accordance with JEDEC SSD standard JESD218, JESD219. The values measured at 250C
ambient temperature. Actual resulte will vary depending application usage model
Product Specification
StorFly 25
VSFA25PxxxxG-xxx Rev: 1.0
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 7
4.4.1 Power Consumption
Table 6: Mean Time Between Failures (MTBF)
Capacities (GB) MTBF(1)
8
16
32
64
128
(1) MTBF specification is in accordance with Telcordia SR-332. The
values estimated at 250C ambient temperature.
4.5 Power Requirements
5V (±10%) single power supply operation
Table 7: Power Consumption
Capacties (GB) Sustained Write
(Watts) Sustained Read
(Watts) Typical(1)
(Watts) Idle
(Watts)
8
16
32
64
128
(1) Power measured based on 70/30 random R/W workload (IOMeter 2006)
4.6 FCC and CE Requirements
StorFly 25 products conform to CE and FCC requirements. Class: FCC Part 15 Subpart B Class B:2011
4.7 RoHS Compliance
StorFly 25 products are compliant with the ROHS directive.
Product Specification
StorFly 25
VSFA25PxxxxG-xxx Rev: 1.0
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 8
5.0 Physical Specification
5.1 Pin Assignments
Table 8: Pin Assignments
Name Type Description
S1 GND Ground
S2 Rx+
S3 Rx- Differential Receive Signal
S4 GND Ground
S5 Tx-
S6 Tx+ Differential Transmit Signal
S7 GND Ground
Key Key Key
Power Pin Assignments
Key Key Key
P1 V33 No Connect
P2 V33 No Connect
P3 V33 No Connect
P4 GND Ground
P5 GND Ground
P6 GND Ground
P7 V5 5V Power, Pre-Charge
P8 V5 5V Power
P9 V5 5V Power
P10 GND Ground
P11 DAS/DSS Device Active Signal/Disable Staggered Spinup
P12 GND Ground
P13 V12 No Connect
P14 V12 No Connect
P15 V12 No Connect

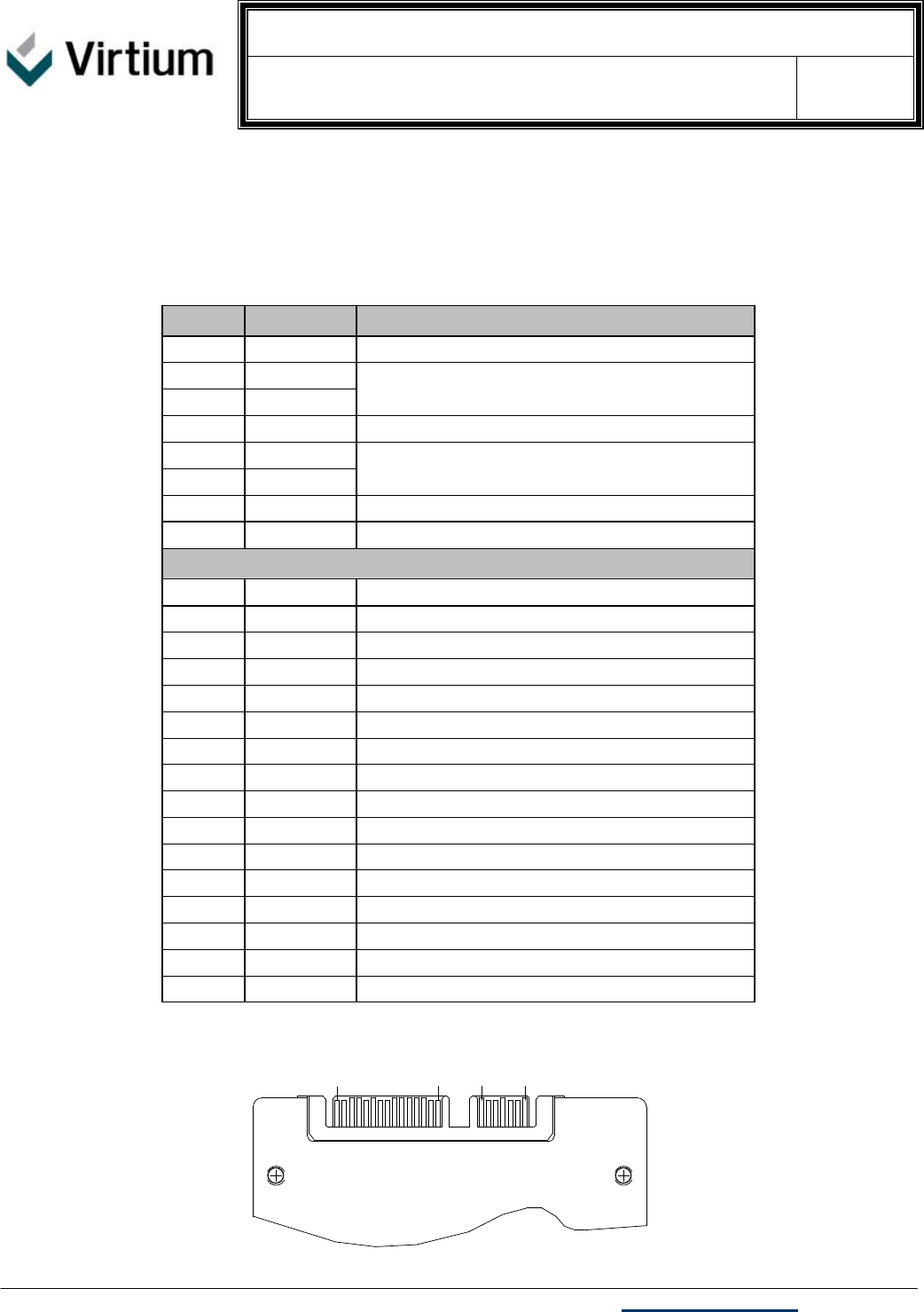

Figure 1: Signal Segment and Power Segment
S1S7
P15 P1
Product Specification
StorFly 25
VSFA25PxxxxG-xxx Rev: 1.0
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 11
6.0 ATA Commands
Virtium StorFly 25PE SSDs support all mandatory ATA commands defined in the ATA/ATAPI-7 specification.
6.1 Supported Commands
General
Table 9: Supported ATA Commands
Command Code Protocol
Execute Drive Diagnostic 90h Device diagnostic
Flush Cache E7h Non-data
Identify Device ECh PIO data-in
Read DMA C8h DMA
Read Multiple C4h PIO data-in
Read Sector(s) 20h PIO data-in
Read Verify Sector(s) 40h or 41h Non-data
Set Feature EFh Non-data
Set Multiple Mode C6h Non-data
Write DMA CAh DMA
Write Multiple C5h PIO data-out
Write Sector(s) 30h PIO data-out
NOP OOh Non-data
Read Buffer E4h PIO data-in
Write Buffer E8h PIO data-out
Power Management
Table 10: Power Management Commands
Command Code Protocol
Check Power Mode E5h or98h Non-data
Idle E3h or97h Non-data
Idle Immediate E1 h or 95h Non-data
Sleep E6h or99h Non-data
Standby E2h or96h Non-data
Standby Immediate EOh or94h Non-data
Product Specification
StorFly 25
VSFA25PxxxxG-xxx Rev: 1.0
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 12
Security Mode
Table 11: Security Commands
Command Code Protocol
Security Set Password F1h PIO data-out
Security Unlock F2h PIO data-out
Security Erase Prepare F3h Non-data
Security Erase Unit F4h PIO data-out
Security Freeze Lock F5h Non-data
Security Disable Password F6h PIO data-out
S.M.A.R.T.
Table 12: SMART Commands
Command Code Protocol
SMART Disable Operations B0h Non-data
SMART Enable/Disable Autosave B0h Non-data
SMART Enable Operations B0h Non-data
SMART Return Status B0h Non-data
SMART Read Data B0h PIO data-in
Host Protected Area
Table 13: _____ Commands
Command Code Protocol
Read Native Max Address F8h Non-data
Set Max Address F9h Non-data
Set Max Set Password F9h PIO data-out
Set Max Lock F9h Non-data
Set Max Freeze Lock F9h Non-data
Set Max Unlock F9h PIO data-out
Product Specification
StorFly 25
VSFA25PxxxxG-xxx Rev: 1.0
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 13
48-bit Address Feature Set
Table 14: 48-bit Address Feature Set Commands
Command Code Protocol
Flush Cache Ext EAh Non-data
Read Sector(s) Ext 24 h PIO data-in
Read DMA Ext 25h DMA
Read Multiple Ext 29h PIO data-in
Read Native Max Address Ext 27h Non-data
Read Verify Sector(s) Ext 42h Non-data
Set Max Address Ext 37h Non-data
Write DMA Ext 35h DMA
Write Multiple Ext 39h PIO data-out
Write Sector(s) Ext 34h PIO data-out
NCQ
Table 15: Native Command Queuing
Command Code Protocol
Read FPDMA Queued 60h DMA Queued
Write FPDMA Queued 61h DMA Queued
Other
Table 16: Other Command
Command Code Protocol
Data Set Management 06h DMA
Product Specification
StorFly 25
VSFA25PxxxxG-xxx Rev: 1.0
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 14
6.2 Identify Device Data
Table 17: Execute Device Diagnostic Command Inputs
Word O/M F/V Value Description
0
M
F
X
F
X
X
V
X
F
0040h
General configuration bit-significant
information:
15 0=ATA
device
14-8
Retired
7 1=removable media
device
6
Obsolete
5-3
Retired
2 Response incomplete
1
Retired
0
Reserved
1
X 3FFFh
Obsolete
2 O V C837h Specific configuration
3 X 0010h Obsolete
4-5 X 2400000h
Retired
6 X 003Fh Obsolete
7-8 O V 0000h Reserved for assignment by the CompactFlash¥ Association
9 X 0000h Retired
10-19 M F P1T0xx Serial number (20 ASCII characters)
20-21 X 0000h Retired
22 X 0004h Obsolete
23-26 M F L0213A Firmware revision (8 ASCII characters)
27-46 M F StorFly -
Model number (40 ASCII characters)
47
M F
F
F 8001h
15-8
80h
7-0 00h=
Reserved
01h-FFh=Maximum number of sectors that shall be transferred
per interrupt on READ/WRITE MULTIPLE commands
48 0000h
Reserved
49
M
F
F
F
F
F
F
F
X
0F00h
Capabilities
15-14 Reserved for the IDENTIFY PACKET DEVICE
command.
13 1 = Standby timer values as specified in this standard are
supported
0 = Standby timer values shall be managed by the
device
12 Reserved for the IDENTIFY PACKET DEVICE
command.
11 1 = IORDY
supported
0 = IORDY may be
supported
10 1 = IORDY may be
disabled
9 1 = LBA
supported
8 1 = DMA
supported.
7-0
Retired
50
M
F
F
F
X
4000h
Capabilities
15 Shall be cleared to zero.
14 Shall be set to one.
13-2 Reserved.
1 Obsolete
Product Specification
StorFly 25
VSFA25PxxxxG-xxx Rev: 1.0
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 15
Word O/M F/V Value Description
F 0 Shall be set to one to indicate a device specific Standby timer value
minimum.
51-52
X XXXXh Obsolete
53
M F
F
F
X
0007h
15-3 Reserved
2 1 = the fields reported in word 88 are valid
0 = the fields reported in word 88 are not valid
1 1 = the fields reported in words 70:64 are valid
0 = the fields reported in words 70:64 are not valid
0 Obsolete
54-58
XXXXh Obsolete
59
M F
V
V 0101h
15-9 Reserved
8 1 = Multiple sector setting is valid
7-0 xxh =
Current setting for number of sectors that shall be
transferred per interrupt on R/W Multiple command
60-61
M F XXXXh Total number of user addressable sectors
62
0000h Obsolete
63
M F
V
V
V
F
F
F
F
0007h
15-11 Reserved
10 1=MultiwordDMAmode2isselected
0=MultiwordDMAmode2isnotselected
9 1=MultiwordDMAmode1isselected
0=MultiwordDMAmode1isnotselected
8 1=MultiwordDMAmode0isselected
0=MultiwordDMAmode0isnotselected
7-3 Reserved
2 1=MultiwordDMAmode2andbelowaresupported
1 1=MultiwordDMAmode1andbelowaresupported
0 1=MultiwordDMAmode0issupported
64
M F
F 0003h 15-8 Reserved
7-0 Advanced PIO modes supported
65
M F 0078h
Minimum Multiword DMA transfer cycle time per word
15-0 Cycle time in nanoseconds
66
M F 0078h
Manufacturer’s recommended Multiword DMA transfer cycle time
15-0 Cycle time in nanoseconds
67
M F 0078h
Minimum PIO transfer cycle time without flow control
15-0 Cycle time in nanoseconds
68
M F 0078h
Minimum PIO transfer cycle time with IORDY flow control
15-0 Cycle time in nanoseconds
69-70
F 0000h
Reserved (for future command overlap and queuing)
71-74
F 4000h
Reserved for the IDENTIFY PACKET DEVICE command
75
O
F
F
001Fh
Queue depth
15-5 Reserved
4-0 Maximum queue depth – 1
76-79
F 0306h Reserved for Serial ATA
80
M
F
F
F
03F0h
Major version number
0000horFFFFh=device does not report version
15 Reserved
14 Reserved for ATA/ATAPI-14
13 Reserved for ATA/ATAPI-13
Product Specification
StorFly 25
VSFA25PxxxxG-xxx Rev: 1.0
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 16
Word O/M F/V Value Description
F
F
F
F
F
F
F
F
F
F
X
X
F
12 Reserved for ATA/ATAPI-12
11 Reserved for ATA/ATAPI-11
10 Reserved for ATA/ATAPI-10
9 Reserved for ATA/ATAPI-9
8 Reserved for ATA/ATAPI-8
7 1 = supports ATA/ATAPI-7
6 1 = supports ATA/ATAPI-6
5 1 = supports ATA/ATAPI-5
4 1 = supports ATA/ATAPI-4
3 Obsolete
2 Obsolete
1 Obsolete
0 Reserved
81
M F
0000h
Minor version number
0000h or FFFFh = device does not report version
0001h-FFFEh
82
M
X
F
F
F
X
F
F
F
F
F
F
F
F
F
F
F
742Bh
Command set
supported.
15
Obsolete
14 1 = NOP command
supported
13 1 = READ BUFFER command
supported
12 1 = WRITE BUFFER command
supported
11
Obsolete
10 1 = Host Protected Area feature set
supported
9 1 = DEVICE RESET command
supported
8 1 = SERVICE interrupt
supported
7 1 = release interrupt
supported
6 1 = look-ahead
supported
5 1 = write cache
supported
4 Shall be cleared to zero to indicate that the PACKET Command feature
set is
not supported.
3 1 = mandatory Power Management feature set
supported
2 1 = Removable Media feature set
supported
1 1 = Security Mode feature set
supported
0 1 = SMART feature set
supported
83
M
F
F
F
F
F
F
F
F
F
F
F
F
7500h
Command set s
supported.
15 Shall be cleared to
zero
14 Shall be set to
one
13-9
Reserved
8 1 = SET MAX security extension
supported
7
Reserved
6 1 = SET FEATURES subcommand required to spinup after
power-up
5 1 = Power-Up In Standby feature set
supported
4 1 = Removable Media Status Notification feature set
supported
3 1 = Advanced Power Management feature set
supported
2 1 = CFA feature set
supported
1 1 = READ/WRITE DMA QUEUED
supported
0 1 = DOWNLOAD MICROCODE command
supported
Product Specification
StorFly 25
VSFA25PxxxxG-xxx Rev: 1.0
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 17
Word O/M F/V Value Description
84
M
F
F
F
F
F
F
F
F
F
4020h
Command set/feature supported
extension.
15 Shall be cleared to
zero
14 Shall be set to one
13-6 Reserved
5 0 = General Purpose Logging feature set not supported
4 Reserved
3 0 = Media Card Pass Through Command feature set not supported
2 0 = Media Serial Number not supported
1 0 = SMART self-test not supported
0 1 = SMART Error Logging not supported
85
M
X
F
F
F
X
V
F
V
V
V
V
F
F
F
V
V
7429h
Command set/feature enabled.
15 Obsolete
14 1 = NOP command enabled
13 1 = READ BUFFER command enabled F
12 1 = WRITE BUFFER command enabled
11 Obsolete
10 1 = Host Protected Area feature set enabled
9 1 = DEVICE RESET command enabled
8 1 = SERVICE interrupt enabled
7 1 = release interrupt enabled
6 1 = look-ahead enabled
5 1 = write cache enabled
4 Shall be cleared to zero to indicate that the PACKET Command feature
set is not supported.
3 1 = Power Management feature set enabled
2 1 = Removable Media feature set enabled
1 1 = Security Mode feature set enabled
0 1 = SMART feature set enabled
86
M
F
F
F
F
F
V
F
F
F
V
V
V
F
F
F
3400h
Command set/feature enabled.
15-14 Reserved
13 1 = FLUSH CACHE EXT command supported
12 1 = FLUSH CACHE command supported
11 1 = Device Configuration Overlay supported
10 1 = 48-bit Address features set supported
9 1 = Automatic Acoustic Management feature set enabled
8 1 = SET MAX security extension enabled by SET MAX SET
PASSWORD
7 See Address Offset Reserved Area Boot, INCITS TR27:2001
6 1 = SET FEATURES subcommand required to spin-up after power-up
5 1 = Power-Up In Standby feature set enabled
4 1 = Removable Media Status Notification feature set enabled
3 1 = Advanced Power Management feature set enabled
2 1 = CFA feature set enabled
1 1 = READ/WRITE DMA QUEUED command supported
0 1 = DOWNLOAD MICROCODE command supported
87
M
F
F
F
4022h
Command set/feature default.
15 Shall be cleared to zero
14 Shall be set to one
13 1 = IDLE IMMEDIATE with UNLOAD FEATURE supported
12 Reserved for technical report-
Product Specification
StorFly 25
VSFA25PxxxxG-xxx Rev: 1.0
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 18
Word O/M F/V Value Description
V
V
F
F
F
F
F
F
F
V
V
V
F
F
11 Reserved for technical report-
10 1 = URG bit supported for WRITE STREAM DMA EXT and WRITE
STREAM EXT
9 1 = URG bit supported for READ STREAM DMA EXT and READ
STREAM EXT
8 1 = 64 bit World wide name supported
7 1 = WRITE DMA QUEUED FUA EXT command supported
6 1 = WRITE DMA FUA EXT and WRITE MULTIPLE FUA EXT commands
supported
5 1 = General Purpose Logging feature set supported
4 1 = Valid CONFIGURE STREAM command has been executed
3 1 = Media Card Pass Through Command feature set enabled
2 1 = Media serial number is valid
1 1 = SMART self-test supported
0 1 = SMART error logging supported
88
O F
V
V
V
V
V
V
V
F
F
F
F
F
F
F
F
047Fh
15-13 Reserved
14 1 = Ultra DMA mode 6 is selected
0 = Ultra DMA mode 6 is not selected
13 1 = Ultra DMA mode 5 is selected
0 = Ultra DMA mode 5 is not selected
12 1 = Ultra DMA mode 4 is selected
0 = Ultra DMA mode 4 is not selected
11 1 = Ultra DMA mode 3 is selected
0 = Ultra DMA mode 3 is not selected
10 1 = Ultra DMA mode 2 is selected
0 = Ultra DMA mode 2 is not selected
9 1 = Ultra DMA mode 1 is selected
0 = Ultra DMA mode 1 is not selected
8 1 = Ultra DMA mode 0 is selected
0 = Ultra DMA mode 0 is not selected
7 Reserved
6 1 = Ultra DMA mode 6 and below are supported
5 1 = Ultra DMA mode 5 and below are supported
4 1 = Ultra DMA mode 4 and below are supported
3 1 = Ultra DMA mode 3 and below are supported
2 1 = Ultra DMA mode 2 and below are supported
1 1 = Ultra DMA mode 1 and below are supported
0 1 = Ultra DMA mode 0 is supported
89 O F 0003h Time required for security erase unit
completion
90 O F 0000h Time required for Enhanced security erase
completion
91 O V 0000h Current advanced power management
value
92 O V FFFEh Master Password Revision
Code
93
F
F
V
F
V
0000h
Hardware reset result. The contents of bits (12:0) of this word shall change only
during the execution of a hardware reset.
15 Shall be cleared to zero.
14 Shall be set to one.
13 1 = device detected CBLID-above ViH
0 = device detected CBLID-below ViL
12-8 Device 1 hardware reset result. Device 0 shall clear these bits to zero. Device
1 shall set these bits as follows:
12 Reserved.
Product Specification
StorFly 25
VSFA25PxxxxG-xxx Rev: 1.0
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 19
Word O/M F/V Value Description
V
F
F
V
V
V
V
F
11 0 = Device 1 did not assert PDIAG-.
1 = Device 1 asserted PDIAG-.
10-9 These bits indicate how Device 1 determined the device number:
00 = Reserved.
01 = a jumper was used.
10 = the CSEL signal was used.
11 = some other method was used or the method is unknown.
8 Shall be set to one.
7-0 Device 0 hardware reset result. Device 1 shall clear these bits to zero. Device 0
shall set these bits as follows:
7 Reserved.
6 0 = Device 0 does not respond when Device 1 is selected.
1 = Device 0 responds when Device 1 is selected.
5 0 = Device 0 did not detect the assertion of DASP-.
1 = Device 0 detected the assertion of DASP-.
4 0 = Device 0 did not detect the assertion of PDIAG-.
1 = Device 0 detected the assertion of PDIAG-.
3 0 = Device 0 failed diagnostics.
1 = Device 0 passed diagnostics.
2-1 These bits indicate how Device 0 determined the device number:
00 = Reserved.
01 = a jumper was used.
10 = the CSEL signal was used.
11 = some other method was used or the method is unknown.
0 Shall be set to one
94
O
V
V
0000h
Current automatic acoustic management value
15:
8 Vendor’s recommended acoustic management value.
7:0 Current automatic acoustic management value.
95 F 0000h Stream Minimum Request Size
96 V 0000h
Streaming Transfer Time - DMA
97 V 0000h
Streaming Access Latency - DMA and PIO
98-99 F 0000h
Streaming Performance Granularity
100-103
O V
Maximum user LBA for 48-bit Address feature set.
104 O V 0000h
Streaming Transfer Time - PIO
105 O F 0000h
Reserved
106
O
F
F
F
F
F
F
0000h
Physical sector size / Logical Sector Size
15 Shall be cleared to zero
14 Shall be set to one
13 1 = Device has multiple logical sectors per physical sector.
12 1= Device Logical Sector Longer than 256 Words
11-4 Reserved
3-0 2X logical sectors per physical sector
107 O F 0000h
Inter-seek delay for ISO-7779 acoustic testing in microseconds
108 O F 0000h
15-12 NAA (3:0)
11-0 IEEE OUI (23:12)
109 O F 0000h
15-4 IEEE OUI (11:0)
Product Specification
StorFly 25
VSFA25PxxxxG-xxx Rev: 1.0
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 20
Word O/M F/V Value Description
3-0 Unique ID (35:32)
110 O F 0000h
15-0 Unique ID (31:16)
111 O F 0000h
15-0 Unique ID (15:0)
112-115
O F 0000h
Reserved for worldwide name extension to 128 bits
116 O V 0000h
Reserved for technical report-
117-118
O F 0000h
Words per Logical Sector
119-126
O F 0000h
Reserved
127
O
F
F 0000h
Removable Media Status Notification feature set support
15-2 Reserved
1-0 00 = Removable Media Status Notification feature set not supported
01 = Removable Media Status Notification feature supported
10 = Reserved
11 = Reserved
128
O
F
V
F
F
V
V
V
V
F
0001h
Security status
15-9 Reserved
8 Security level 0 = High, 1 = Maximum
7-6 Reserved
5 1 = Enhanced security erase supported
4 1 = Security count expired
3 1 = Security frozen
2 1 = Security locked
1 1 = Security enabled
0 1 = Security supported
129-159
X Virtium Vendor
specific
160
O
F
F
F
V
F
0000h
CFA power mode 1
15 Word 160 supported
14 Reserved
13 CFA power mode 1 is required for one or more commands implemented by
the device
12 CFA power mode 1 disabled
11-0 Maximum current in ma
161-175
X 0000h Reserved for assignment by the CompactFlash Association
176-205
O V @
Current media serial number
206-254
F 0000h
Reserved
255
M X
XXXXh
Integrity
word
15-8
Checksum
7-0
Signature
Product Specification
StorFly 25
VSFA25PxxxxG-xxx Rev: 1.0
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 21
6.3 Device Overlay Data Structure
Table 18: Execute Device Diagnostic Command Inputs
Word Value Description
0 0002h
Data structure revision number
1 0007h
Multiword DMA modes supported
Bit15:3 Reserved
Bit2 1 = Reporting support for Multiword DMA mode 2 and below is changeable
Bit1 1 =Reporting support for Multiword DMA mode 1 and below is changeable
Bit0 1 =Reporting support for Multiword DMA mode 0 is changeable
2 007Fh
Ultra DMA modes supported
Bit15:7 Reserved
Bit6 1 = Reporting support for Ultra DMA mode 6 and below is changeable
Bit5 1 = Reporting support for Ultra DMA mode 5 and below is changeable
Bit4 1 = Reporting support for Ultra DMA mode 4 and below is changeable
Bit3 1 = Reporting support for Ultra DMA mode 3 and below is changeable
Bit2 1 = Reporting support for Ultra DMA mode 2 and below is changeable
Bit1 1 = Reporting support for Ultra DMA mode 1 and below is changeable
Bit0 1 = Reporting support for Ultra DMA mode 0 is changeable
3-6 Native MAX
LBA
Maximum LBA (QWord)
Bit63:48 Reserved
Bit47:0 Maximum LBA
7 0089h
Command set/feature set supported part 1
Bit15 Reserved
Bit14 1 = Reporting support for the Write-Read-Verify feature set is changeable
Bit13 1 = Reporting support for the SMART Conveyance self-test is changeable
Bit12 1 = Reporting support for the SMART Selective self-test is changeable
Bit11 1 = Reporting support for the Forced Unit Access is changeable
Bit10 Reserved for TLC
Bit9 1 = Reporting support for the Streaming feature set is changeable
Bit8 1 = Reporting support for the 48-bit Addressing feature set is changeable
Bit7 1 = Reporting support for the HPA feature set is changeable
Bit6 1 = Reporting support for the AAM feature set is changeable
Bit5 1 = Reporting support for the TCQ feature set is changeable
Bit4 1 = Reporting support for the PUIS feature set is changeable
Bit3 1 = Reporting support for the Security feature set is changeable
Bit2 1 = Reporting support for the SMART error log is changeable
Bit1 1 = Reporting support for the SMART self-test is changeable
Bit0 1 = Reporting support for the SMART feature set is changeable
8 0000h
Serial ATA Command set/feature set supported
Bit15:5 Reserved for Serial ATA
Bit4 1 = Reporting support for the SSP feature set is changeable
Bit3 1 = Reporting support for asynchronous notification is changeable
Bit2 1 = Reporting support for interface power management is changeable
Bit1 1 = Reporting support for non-zero buffer offsets is changeable
Bit0 1 = Reporting support for the NCQ feature set is changeable
Product Specification
StorFly 25
VSFA25PxxxxG-xxx Rev: 1.0
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 22
Word Value Description
9 0000h
Reserved for Serial ATA
10-20 0000h
Reserved
21 0000h
Command set/feature set supported part 2
Bit15 1 = Reporting support for the NV Cache feature set is changeable
Bit14 1 = Reporting support for the NV Cache Power Management feature set is changeable
Bit13 1 = Reporting support for WRITE UNCORRECTABLE EXT is changeable
Bit12 1 = Reporting support for the Trusted Computing feature set is changeable
Bit11 1 = Reporting support for the Free-fall Control feature set is changeable
Bit10:0 Reserved
22 0000h
Command set/feature set supported part 3
Bit15:0 Reserved
23-207 0000h
Reserved
208-254 0000h
Vender Specific
255 Checksum +
A5h
Integrity word
Bit15:8 Checksum
Bit7:0 Signature
6.4 S.M.A.R.T. Attributes
6.4.1 Introduction
Self-Monitoring, analysis, and reporting technology (SMART) is monitoring system that monitors device
condition based on the indicators reported by the device itself. This system is created to anticipate/predict
any failures that might happen before it actually happens in the hope that there is still time to take action.
This document is only created for the purpose to inform users about the SMART commands and SMART
attributes implemented by Silicon Motion, Inc, including the data structure returned by those command. For
more detail information on how to invoke the SMART command, please refer to the ATA specification since
the topic is outside the scope of this document. For the information, the current implementation is based on
the ATA-7 specification document.
6.4.2 SMART Command
The following table defines the SMART command set that is supported by SM2244/SM2250. Please note
that D1h and D3h are obsolete commands. Although obsolete, the interfaces are still provided to maintain
backward compatibility with the previous ATA specification.
Table 19: SMART Feature register values
Value
Command
D0h SMART Read Data
D1h SMART Read Attribute Threshold (Obsolete).
D2h SMART Enable/Disable Attribute Auto-save.
Product Specification
StorFly 25
VSFA25PxxxxG-xxx Rev: 1.0
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 23
D3h SMART Save Attribute Values (Obsolete).
D4h SMART Execute Off-Line immediate
D8h SMART Enable Operations
D9h SMART Disable Operations
DAh SMART Return Status
6.4.3 SMART Read Data (D0h)
This command retrieves the SMART information from the device. The information is packed into the defined
data structure in the following sub section.
Data Structure
The following table describes the data structure returned by “SMART Read Data” command.
Table 20: SMART Data Structure
Byte F/V/X/R Description
0 -1 X Revision code
2-361 X Vendor specific (see SMART Attributes)
362 V Off-line data collection status
363 X Self-test execution status byte
364 - 365
V Total time in seconds to complete off-line data collection activity
366 X Vendor specific
367 F Off-line data collection capability
368 - 369
F SMART capability
370 F Error logging capability
7-1 Reserved
01= Device error logging supported
371 X Vendor specific
372 F Short self-test routine recommended polling time (in minutes)
373 F Extended self-test routine recommended polling time (in minutes)
374 F Conveyance self-test routine recommended polling time (in
minutes)
375 - 385
Reserved
386 - 395
F Firmware Version/Date Code
396 - 397
F Reserved
398 - 399
F Reserved
400 - 406
F 'SMI2250'
407-415 Vendor specific
416 F Reserved
417 F Program/write the strong page only
418-419 V Number of spare block
420 - 423
V Average Erase Count
Product Specification
StorFly 25
VSFA25PxxxxG-xxx Rev: 1.0
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 24
424-510 X Vendor specific
511 V Data structure checksum
Notes:
1. F = content (byte) is fixed and does not change.
2. V = content (byte) is variable and may change depending on the state of the device or the commands
executed by the device.
3. X = content (byte) is vendor specific and may be fixed or variable.
4. R = content (byte) is reserved and shall be zero.
5. All the offset and data those are highlighted with orange color are SMI proprietary definitions, while the
non-highlighted offset and data are defined in the ATA specification.
6.4.4 SMART Attributes
Definations
The following table defines the current SMI’s SMART data attributes those are currently supported and their
descriptions. These SMART attributes are located at offset 2 of the SMART Data Structure Please note that
this attributes list might be modified as necessary without prior notice.
Table 21: SMART Attribute Definations
Attribute
ID Attribute Name Reset in
Power On
Attribute Description
0x01 Read Error Rate Yes
The rate of the total CRC errors occurred over the
total of LB As read. The total LBAs read will be
reset to 0 after each power-cycle while the CRC
errors are accumulated for the life of the device.
0x05
Reallocated Sectors
Count No Total number of bad blocks those are generated
after the card is initialized by the pretest code.
0x09 Power-On Hours Yes Total hours the device is powered-on.
0xC0 Power-off Retract
Count No Total number of sudden power-off count.
0xC2 Temperature Yes The temperature of the device. This attribute is not
currently supported.
0xC3 Hardware ECC
Recovered N/A Total number of errors those can be corrected by
ECC engine. This attribute is not currently
implemented. The value should be 0.
0xC4 Reallocation Event
Count N/A Total count of remapping operations. This attribute
is not currently implemented. The value should be
0.
0xC6 Uncorrectable
Sector Count Off-
line No Total count of errors those cannot be corrected by
ECC engine.
0xC7 UltraDMA CRC
Error Count No Total count of CRC errors during communication
via the interface cable.
0x0C Power Cycle Count
No Total number of power cycles those have occurred
during the life of the drive.
Product Specification
StorFly 25
VSFA25PxxxxG-xxx Rev: 1.0
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 25
0xF1 Total LBAs Written
No
Total number of 65536-LBAs counts (32
Megabytes data) written to the device. So, a value
of 1 means that there are about 65536 total LBAs
written to the device.
0xF2 Total LBAs Read No
Total number of 65536-LBAs counts (32
Megabytes data) read from the device. So, a value
of 1 means that there are about 65536 total LBAs
read from the device.
0xA0 Uncorrectable
Sector Count when
read/write Yes Total count of uncorrectable errors when device
performing reading/writing operation.
0xA1 Number of Valid
Spare Block No Total number of overall valid spare block
0xA3 Number of Initial
Invalid Block No Total number of bad blocks found during the card
initialization (pretest mode).
0xA4 Total Erase Count No Total number of erase operations those have been
performed.
0xA5 Maximum Erase
Count No The maximum number of erase operations those
have ever been performed on a block.
0xA6 Minimum Erase
Count No The minimum number of erase operations those
have ever been performed on a block.
0xA7 Average Erase
Count No Total number of erase operations over the total
blocks those are actually affected.
Data Structure
The attribute information occupies 12 bytes of data which describes in the following table.
. Table 22: Bytes 2-361 Individual Attribute Data
Byte Comment
0 Attribute ID.
1 -2 Reserved.
3 Contains normalized fixed value ("0x64").
4 Duplicate of byte-3, which is a fixed value ("0x64").
5-11 Raw Data value in little-endian format.
6.4.5 SMART Read Attribute Threshold (D1h)
This command is obsolete starting from ATA-4 Specification. The command interface is still supported to
maintain backward compatibility with older host implementing ATA-4. When invoked, SM2244/SM2250 will
respond to the command by returning normal output (provided the right command and parameters are
entered) together with the fixed threshold data values. However, these threshold values should be ignored
since they don’t have any significant meaning.
Data Structure
Product Specification
StorFly 25
VSFA25PxxxxG-xxx Rev: 1.0
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 26
The following table describes the data structure returned by this SMART Read Attribute Threshold Command.
Table 23: SMART Read Attribute Threshold Command
Byte Comment
0 Attribute ID
1 Threshold value
2-11 Reserved. Set these bytes to 0x00
Threshold Values
The following table describes the fixed values returned by SM2244/SM2250 firmware. These values are
provided here for information only and as mentioned before that they should be ignored.
Table 24: Threshold Values
Attribute ID Attribute Name Threshold Value
0x01 Read Error Rate 0x00
0x05 Reallocated Sectors Count 0x00
0x09 Power-On Hours 0x00
0xC0 Power-off Retract Count 0x00
0xC2 Temperature 0x00
0xC3 Hardware ECC Recovered 0x00
0xC4 Reallocation Event Count 0X10
0xC6 Uncorrectable Sector Count Offline 0x32
0xC7 UltraDMA CRC Error Count 0x32
0x0C Power Cycle Count 0x00
0xF1 Total LBAs Written 0x00
0xF2 Total LBAs Read 0x00
0xA0 Uncorrectable Sector Count when read/write 0x00
0xA1 Number of Valid Spare Block 0x00
0xA3 Number of Initial Invalid Block 0x00
0xA4 Total Erase Count 0x00
0xA5 Maximum Erase Count 0x32
0xA6 Minimum Erase Count 0x32
0xA7 Average Erase Count 0x64
SMART Enable/Disable Attribute Auto-Save (D2h)
The purpose of this command is to enable and disable the optional attribute auto-save feature. In
Product Specification
StorFly 25
VSFA25PxxxxG-xxx Rev: 1.0
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 27
SM2244/SM2250, the auto-save feature is always enabled; regardless the disable function is invoked. This
will prevent SM2244/SM2250 to lose any information those might be critical for the device’s life indicators.
SM2244/SM2250 still responds by returning normal outputs when the command and right parameters are
executed.
SMART Save Attribute Values (D3h)
This command is obsolete starting from ATA-6 specification. The command interface is still supported for
backward compatibility with the older host implementing ATA-6. SM2244/SM2250 responds to the command
by returning normal outputs, provided the command and right parameters are entered. It is currently not
necessary to call this command since SM2244/SM2250 is saving the attributes values automatically. Please
refer to SMART Enable/Disable Attribute Auto-Save (D2h) for the reason of this auto-save.
SMART Execute Off-Line Immediate (D4h)
The purpose of this command is to immediately initiate any activities that collect SMART data or execute
self-diagnostic test routine in off-line mode or captive-mode depending on the given sub commands. The
offline data collection status, self-test execution status, and estimated time of completion for the off-line data
collection activity will be reported in the SMART data structure offset 362, 363, and 364 respectively. Please
refer to SMART Data Structure.
Although the interfaces are supported, however, SM2244/SM2250 does not currently have any off-line data
collection nor self-test defined in the firmware. Calling the off-line data collection sub-command will always
result in status value of 02h, which is “Off-line data collection activity was completed without error”. While
calling self-test sub-commands will always result in status value of 0, which means that “the previous selftest
routine completed without error or no self-test has ever been run”
The following sub command interfaces are currently accepted by SM2244/SM2250. Other sub commands
will result in command aborted error.
Table 25: SMART Execute Off-Line Immediate LBA Low Register Values
Value Description of subcommand to be executed
0 Execute SMART off-line routine immediately in off-line mode
1 Execute SMART Short self-test routine immediately in off-line mode
2 Execute SMART Extended self-test routine immediately in off-line mode
3 Execute SMART Conveyance self-test routine immediately in off-line
mode
4 Execute SMART Selective self-test routine immediately in off-line mode
127 Abort off-line mode self-test routine
129 Execute SMART Short self-test routine immediately in captive mode
130 Execute SMART Extended self-test routine immediately in captive mode
131 Execute SMART Conveyance self-test routine immediately in captive
mode
132 Execute SMART Selective self-test routine immediately in captive mode
SMART Enable Operations (D8h)
This command enables access to all SMART command operation. Without enabling the SMART operations,
all the SMART command above will return command aborted error.
SMART Disable Operations (D9h)
Product Specification
StorFly 25
VSFA25PxxxxG-xxx Rev: 1.0
Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA – www.virtium.com 28
This command disables access to all SMART command operation. When the SMART operation is disabled,
accessing all the other SMART Commands (other than D8h and D9h) will return command aborted error.
SMART Return Status (DAh)
This command returns the reliability status of the device to the host. It will check the device’s attributes
against pre-determined threshold values and return the status result. If the attributes have reached the
threshold values, then the device will set the LBA Mid register to F4h and the LBA High register to 2Ch.
Otherwise, it will keep the original LBA Mid Register value of 4Fh and the LBA High register value of C2h.
Currently, SM2244/SM2250 only checks the total spare block available on the device against the minimum
spare block threshold. This spare block threshold value is set in the CID offset 0x2C.
7.0 References
FCC, CE MIL 810G, ACS-2 references
JESD219, Solid State Drive (SSD) Endurance Workloads
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment。
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for
help.
FCC ID: OET-STORFY
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
