VIZIO XHP100 Wireless Dock for iPod® User Manual

VIZIO Wireless Dock for iPod®

User manual

XVTHP200 – QUICK START GUIDEHIGH DEFINITION HEADPHONES WITH WIRELESS DOCK FOR iPod®ACTIVE NOISE CANCELLING

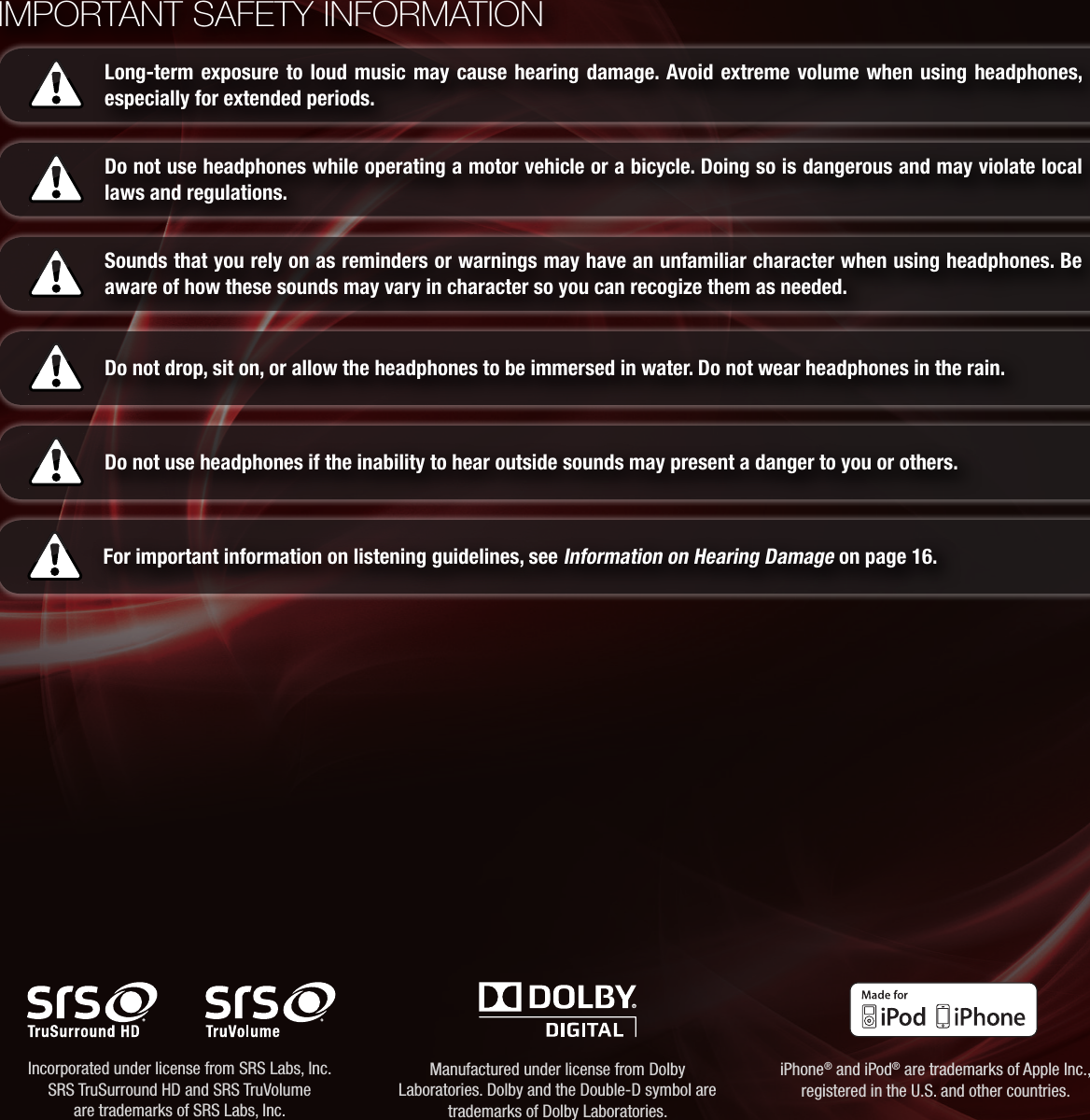

IMPORTANT SAFETY INFORMATIONLong-term exposure to loud music may cause hearing damage. Avoid extreme volume when using headphones, especially for extended periods.Do not use headphones while operating a motor vehicle or a bicycle. Doing so is dangerous and may violate local laws and regulations.Sounds that you rely on as reminders or warnings may have an unfamiliar character when using headphones. Be aware of how these sounds may vary in character so you can recogize them as needed.Do not drop, sit on, or allow the headphones to be immersed in water. Do not wear headphones in the rain.Do not use headphones if the inability to hear outside sounds may present a danger to you or others.For important information on listening guidelines, see Information on Hearing Damage on page 16.Incorporated under license from SRS Labs, Inc. SRS TruSurround HD and SRS TruVolume are trademarks of SRS Labs, Inc.Manufactured under license from Dolby Laboratories. Dolby and the Double-D symbol are trademarks of Dolby Laboratories.iPhone® and iPod® are trademarks of Apple Inc., registered in the U.S. and other countries.

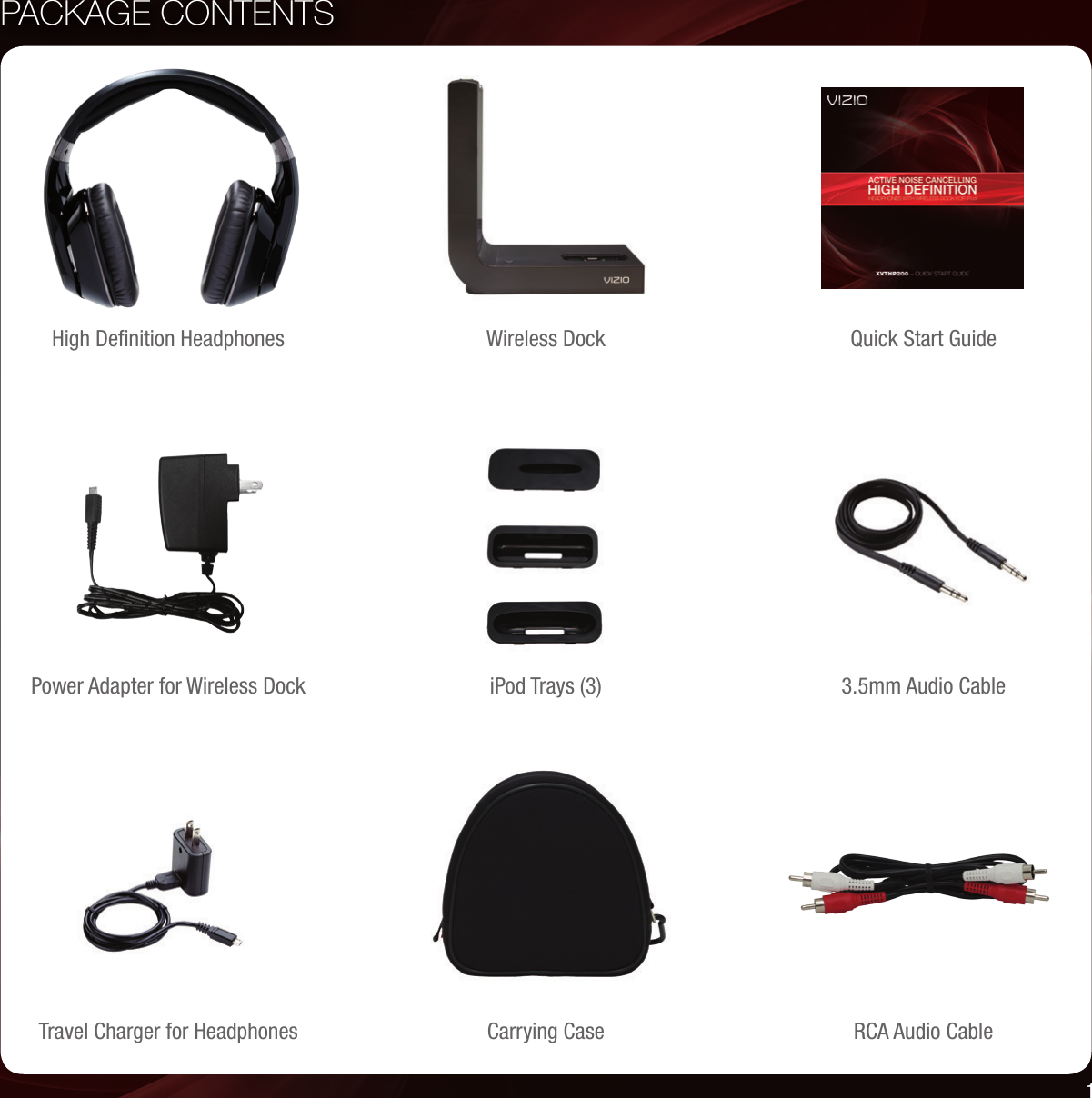

PACKAGE CONTENTSQuick Start GuideHigh Definition Headphones Wireless DockTravel Charger for Headphones Carrying Case RCA Audio Cable3.5mm Audio CablePower Adapter for Wireless Dock iPod Trays (3)1

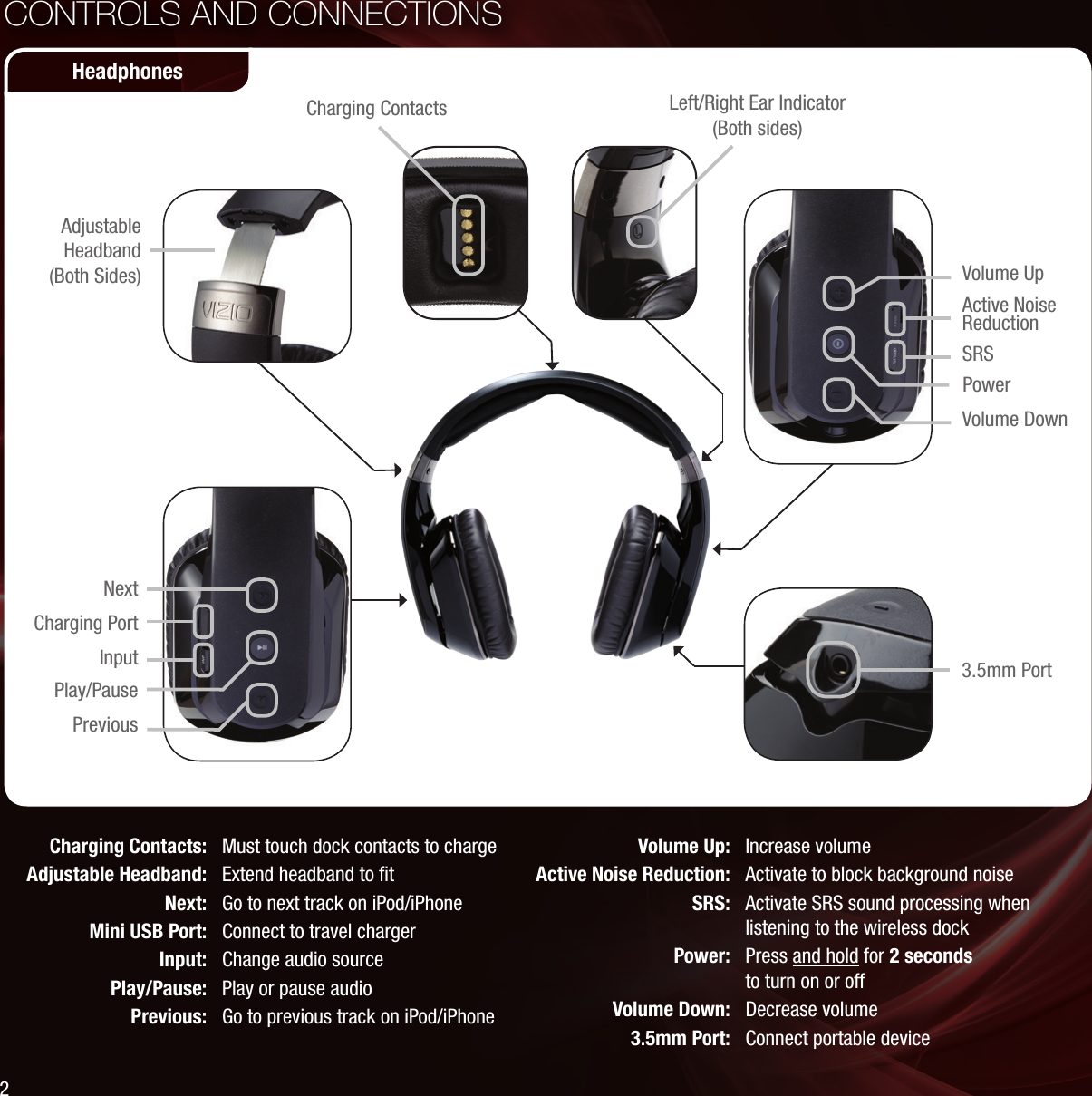

CONTROLS AND CONNECTIONSAdjustable Headband (Both Sides)NextCharging PortInputPlay/PausePreviousVolume UpActive Noise ReductionSRSPowerVolume Down3.5mm PortLeft/Right Ear Indicator (Both sides)Charging ContactsCharging Contacts: Must touch dock contacts to chargeAdjustable Headband: Extend headband to fitNext: Go to next track on iPod/iPhoneMini USB Port: Connect to travel chargerInput: Change audio sourcePlay/Pause: Play or pause audioPrevious: Go to previous track on iPod/iPhoneVolume Up: Increase volumeActive Noise Reduction: Activate to block background noiseSRS: Activate SRS sound processing when listening to the wireless dockPower: Press and hold for 2 seconds to turn on or offVolume Down: Decrease volume3.5mm Port: Connect portable deviceHeadphones2

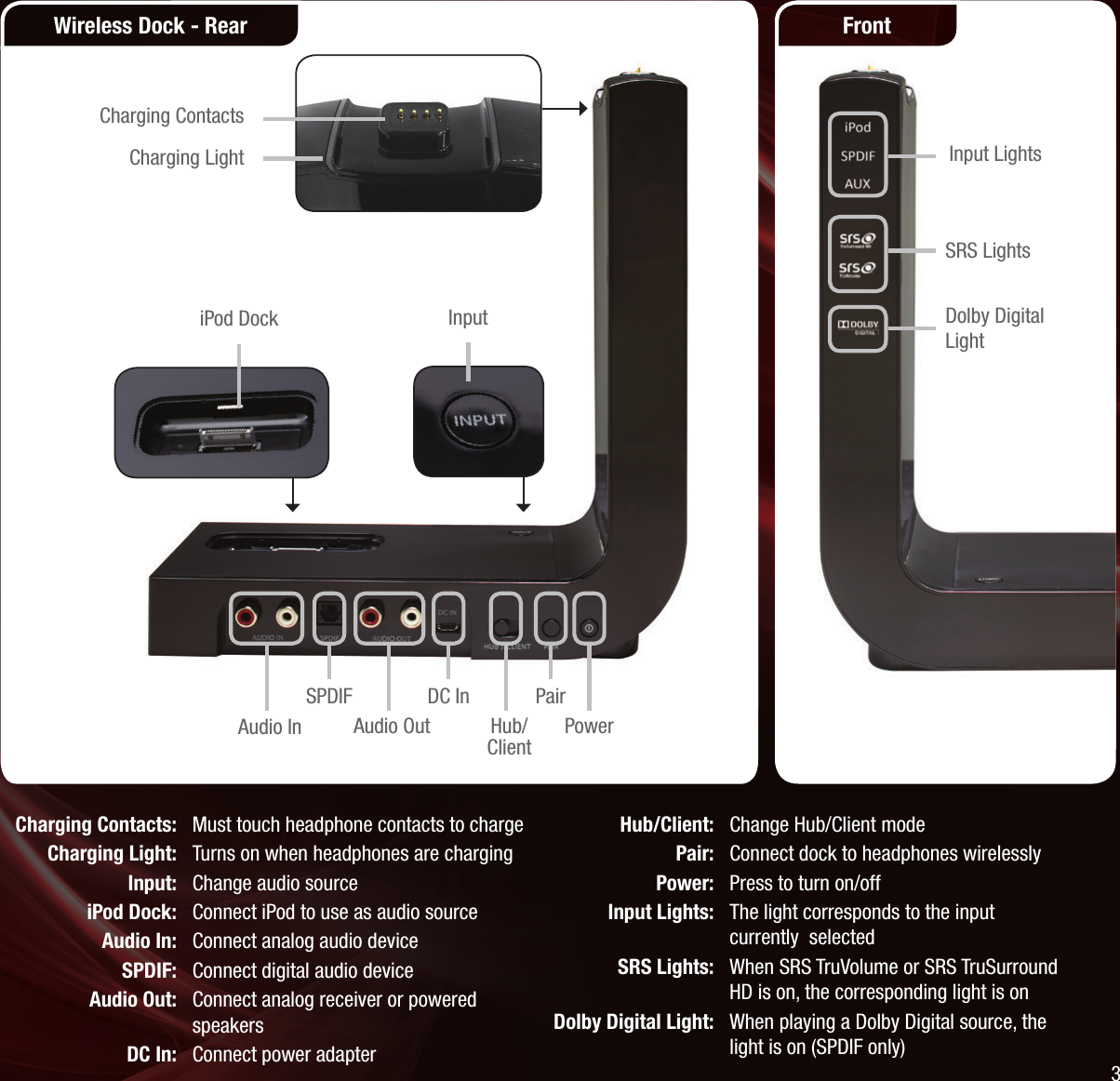

Audio In Audio OutSPDIF DC InHub/ ClientPairPoweriPod Dock InputCharging ContactsCharging LightCharging Contacts: Must touch headphone contacts to chargeCharging Light: Turns on when headphones are chargingInput: Change audio sourceiPod Dock: Connect iPod to use as audio sourceAudio In: Connect analog audio deviceSPDIF: Connect digital audio deviceAudio Out: Connect analog receiver or powered speakersDC In: Connect power adapterHub/Client: Change Hub/Client modePair: Connect dock to headphones wirelesslyPower: Press to turn on/offInput Lights: The light corresponds to the input currently selectedSRS Lights: When SRS TruVolume or SRS TruSurround HD is on, the corresponding light is onDolby Digital Light: When playing a Dolby Digital source, the light is on (SPDIF only)Wireless Dock - Rear FrontInput LightsSRS LightsDolby Digital Light3

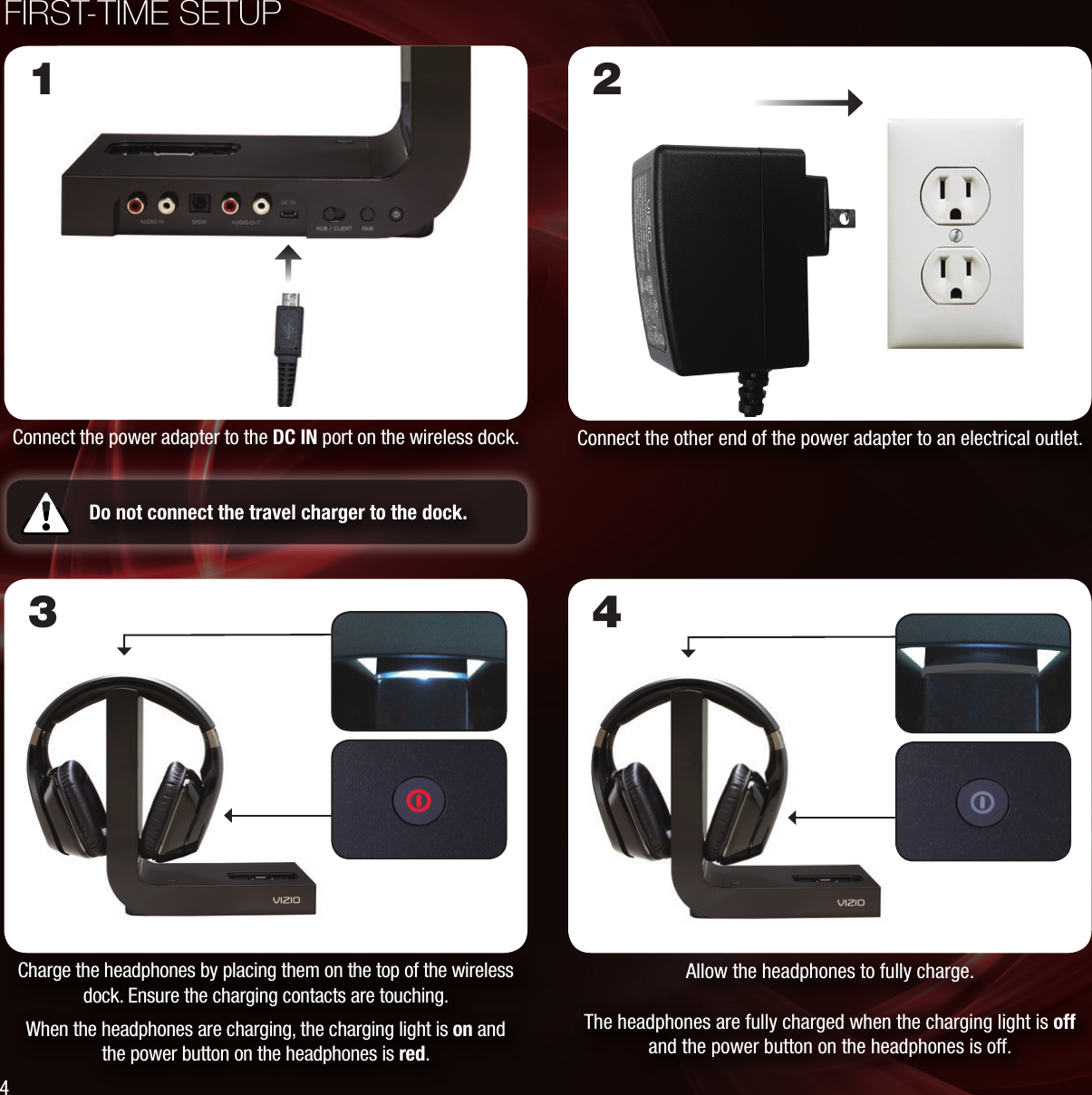

Connect the power adapter to the DC IN port on the wireless dock.FIRST-TIME SETUPConnect the other end of the power adapter to an electrical outlet. 1 2Do not connect the travel charger to the dock. Charge the headphones by placing them on the top of the wireless dock. Ensure the charging contacts are touching.When the headphones are charging, the charging light is on and the power button on the headphones is red.Allow the headphones to fully charge.The headphones are fully charged when the charging light is off and the power button on the headphones is off.3 44

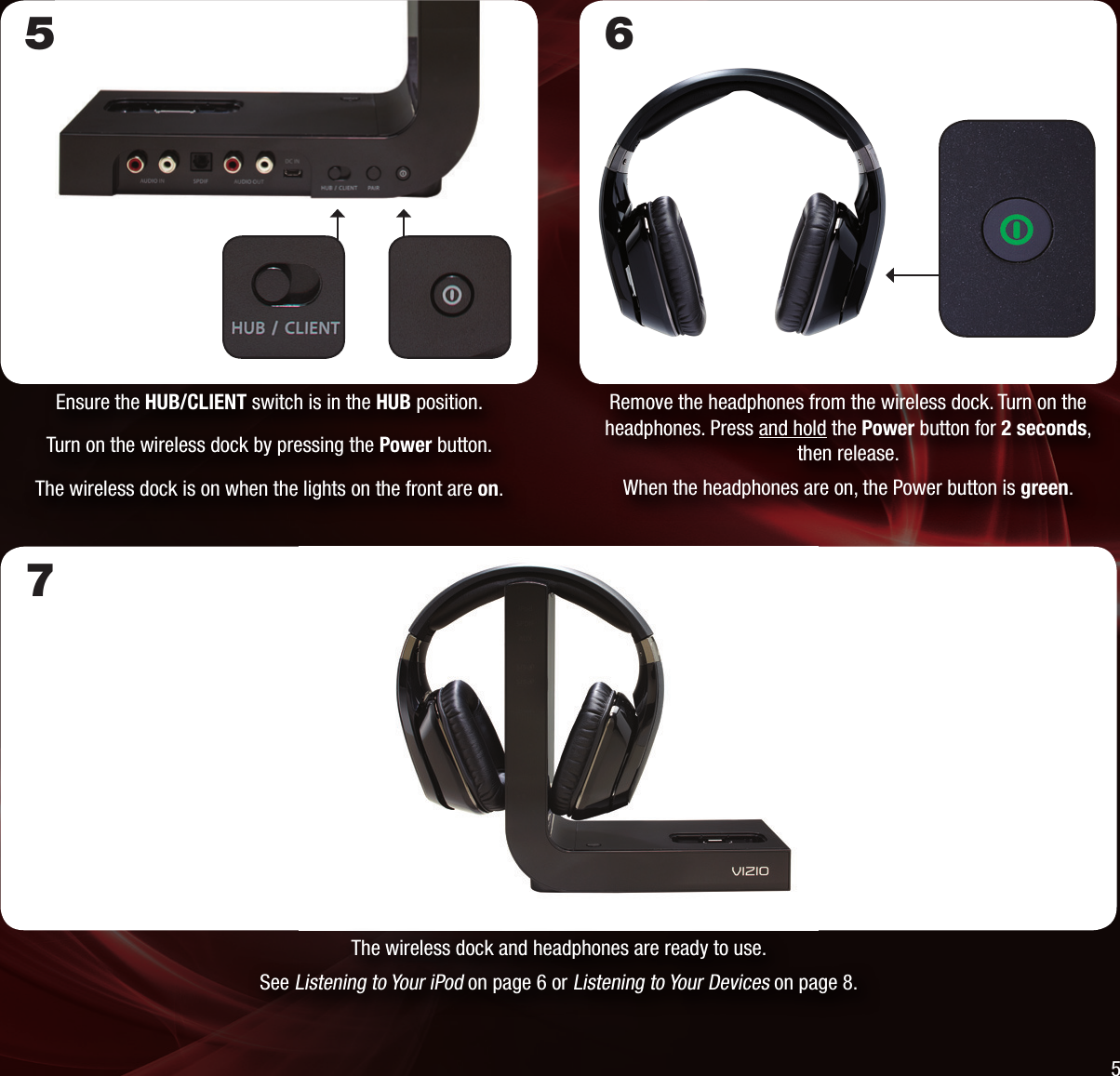

The wireless dock and headphones are ready to use.See Listening to Your iPod on page 6 or Listening to Your Devices on page 8.Remove the headphones from the wireless dock. Turn on the headphones. Press and hold the Power button for 2 seconds, then release.When the headphones are on, the Power button is green.6Ensure the HUB/CLIENT switch is in the HUB position.Turn on the wireless dock by pressing the Power button.The wireless dock is on when the lights on the front are on.575

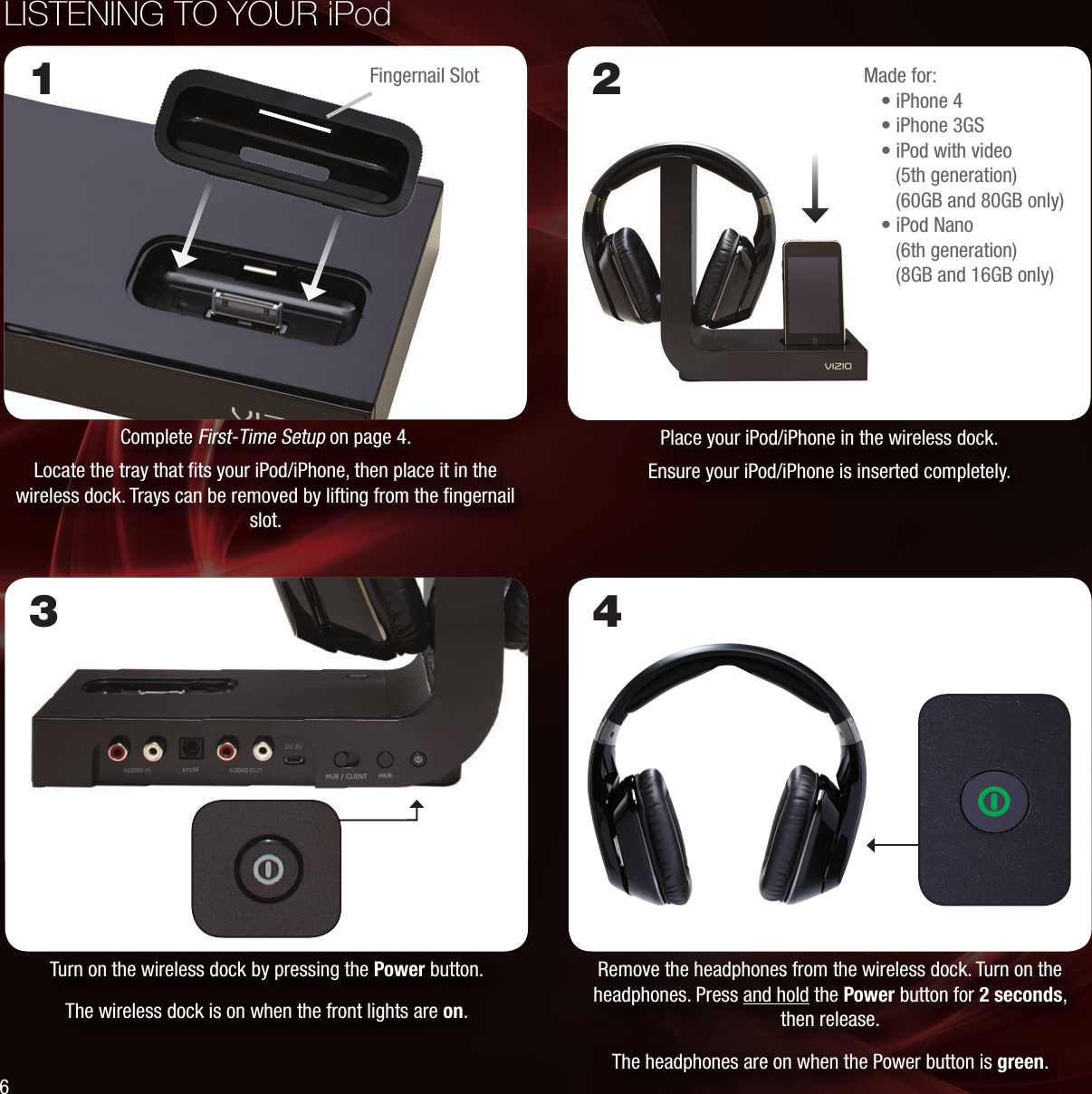

Place your iPod/iPhone in the wireless dock.Ensure your iPod/iPhone is inserted completely.LISTENING TO YOUR iPodComplete First-Time Setup on page 4.Locate the tray that fits your iPod/iPhone, then place it in the wireless dock. Trays can be removed by lifting from the fingernail slot.2Turn on the wireless dock by pressing the Power button.The wireless dock is on when the front lights are on.Remove the headphones from the wireless dock. Turn on the headphones. Press and hold the Power button for 2 seconds, then release.The headphones are on when the Power button is green.3 4Fingernail Slot16Made for:• iPhone 4• iPhone 3GS• iPod with video (5th generation) (60GB and 80GB only)• iPod Nano (6th generation) (8GB and 16GB only)

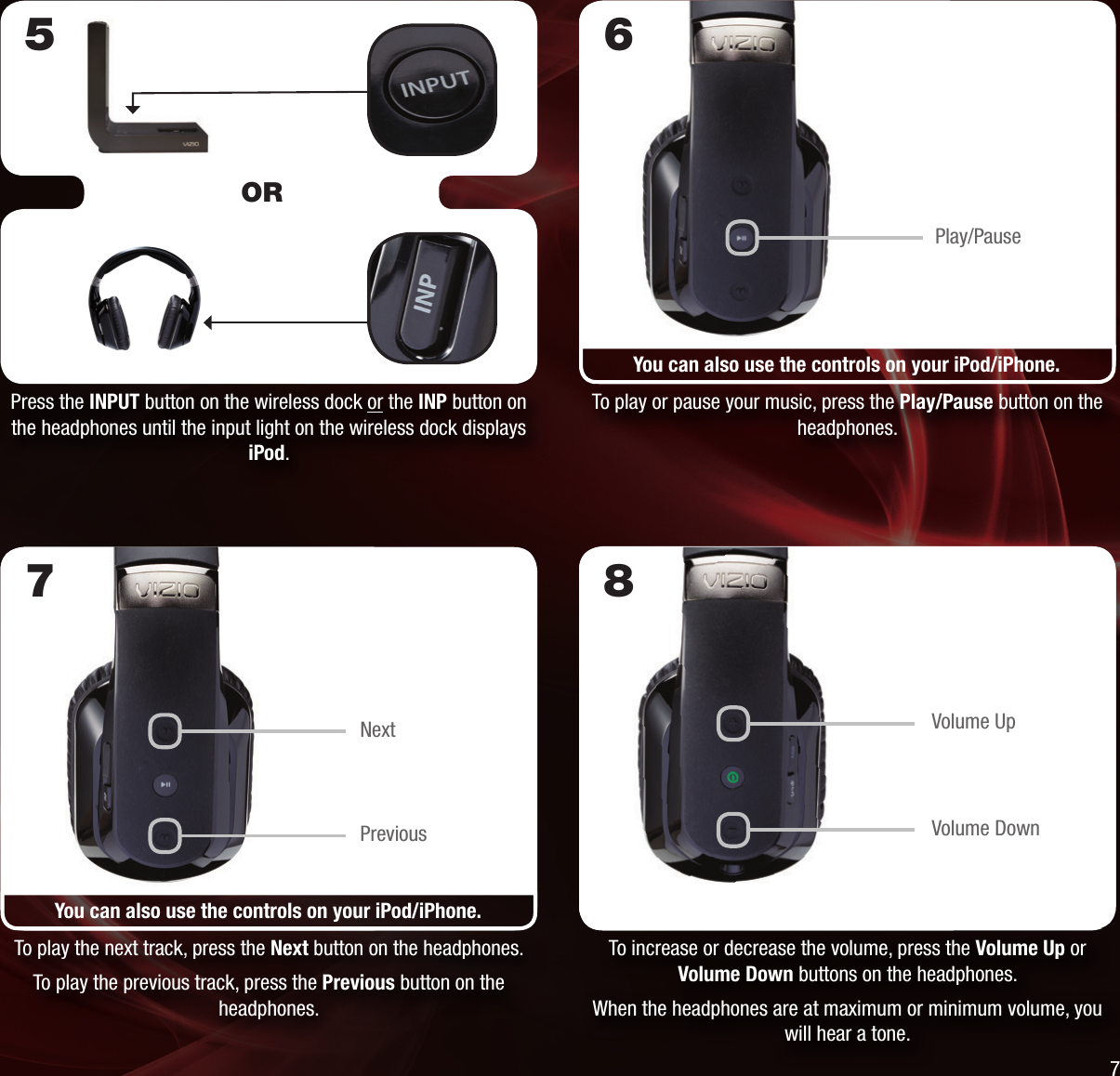

To increase or decrease the volume, press the Volume Up or Volume Down buttons on the headphones.When the headphones are at maximum or minimum volume, you will hear a tone.8Volume UpVolume DownYou can also use the controls on your iPod/iPhone.To play the next track, press the Next button on the headphones.To play the previous track, press the Previous button on the headphones.7NextPreviousPress the INPUT button on the wireless dock or the INP button on the headphones until the input light on the wireless dock displays iPod.To play or pause your music, press the Play/Pause button on the headphones.6You can also use the controls on your iPod/iPhone.5ORPlay/Pause7

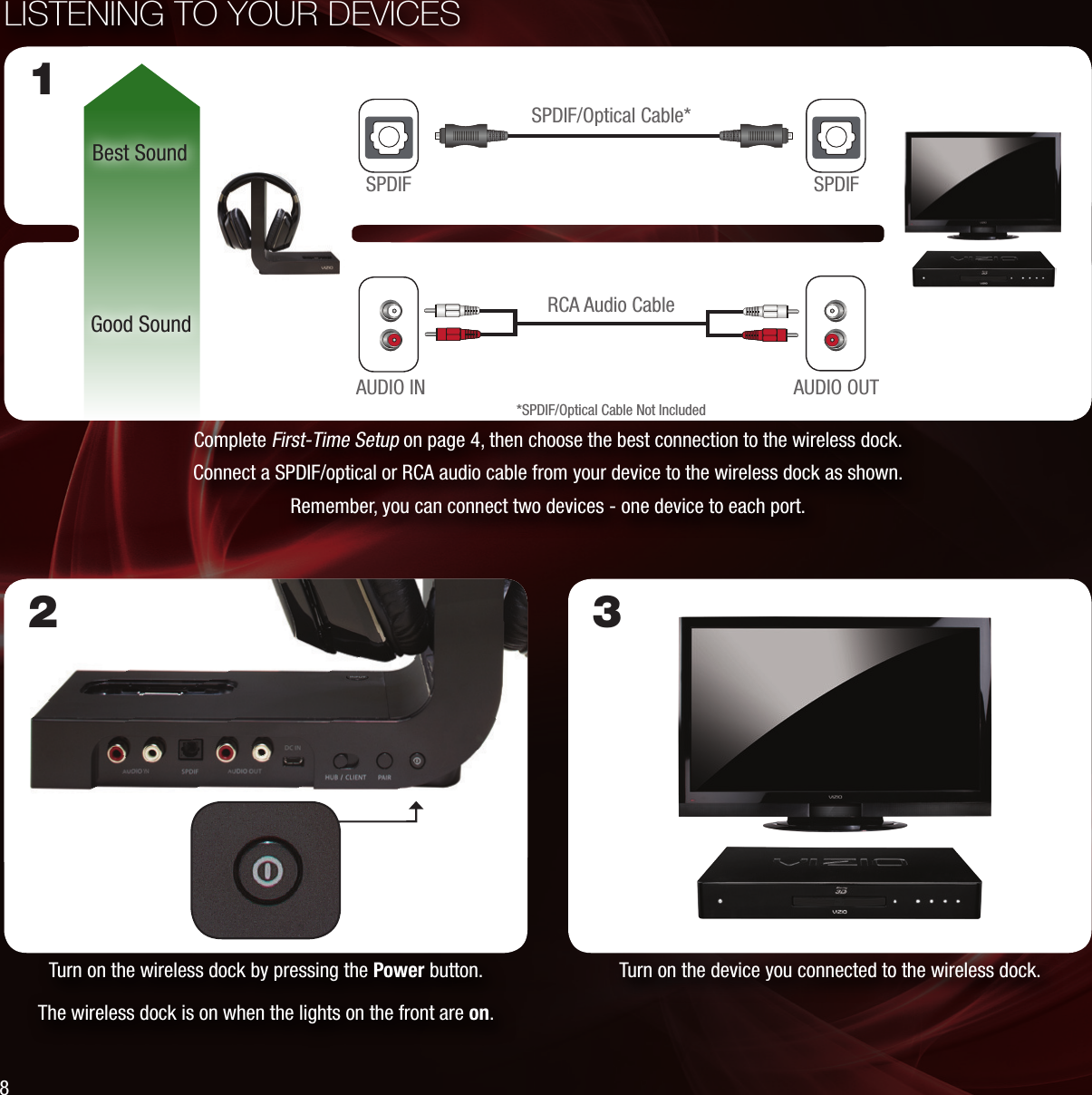

LISTENING TO YOUR DEVICESComplete First-Time Setup on page 4, then choose the best connection to the wireless dock. Connect a SPDIF/optical or RCA audio cable from your device to the wireless dock as shown.Remember, you can connect two devices - one device to each port.Best SoundGood Sound RCA Audio Cable1SPDIFSPDIF/Optical Cable**SPDIF/Optical Cable Not IncludedAUDIO OUTAUDIO INTurn on the wireless dock by pressing the Power button.The wireless dock is on when the lights on the front are on.2Turn on the device you connected to the wireless dock.3SPDIF8

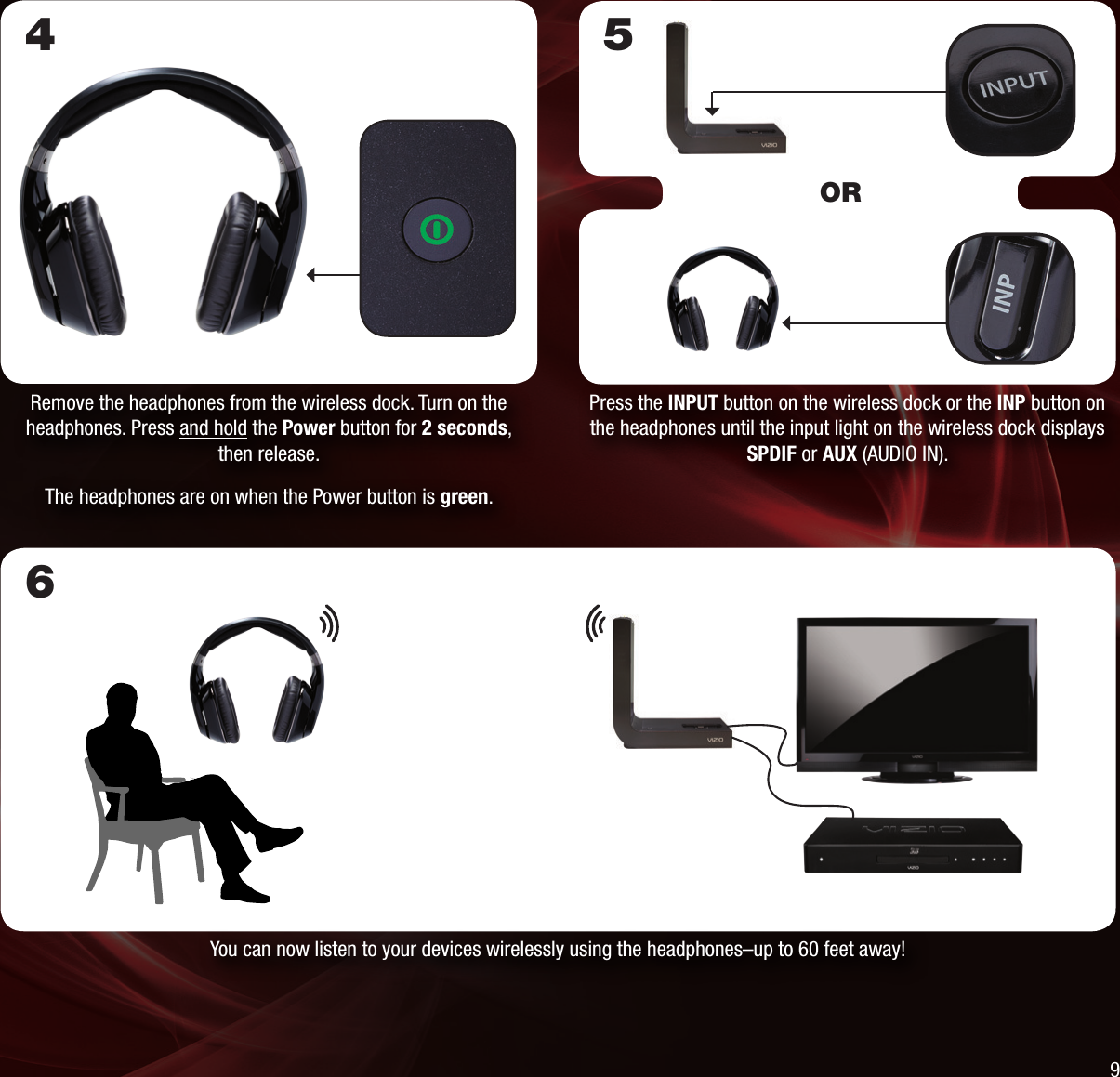

6You can now listen to your devices wirelessly using the headphones–up to 60 feet away!Remove the headphones from the wireless dock. Turn on the headphones. Press and hold the Power button for 2 seconds, then release.The headphones are on when the Power button is green.4Press the INPUT button on the wireless dock or the INP button on the headphones until the input light on the wireless dock displays SPDIF or AUX (AUDIO IN).5OR9
USING THE DOCK TO PLAY YOUR iPod ON YOUR HOME STEREOComplete First-Time Setup on page 4. Connect your home stereo to the wireless dock using an RCA audio cable as shown. (Devices differ–see your home stereo’s user manual for details.)RCA Audio CableAUDIO OUT1AUDIO INTurn on the wireless dock by pressing the Power button.The wireless dock is on when the lights on the front are on.2Turn on your home stereo.Set your home stereo input to the port to which the wireless dock is connected.310

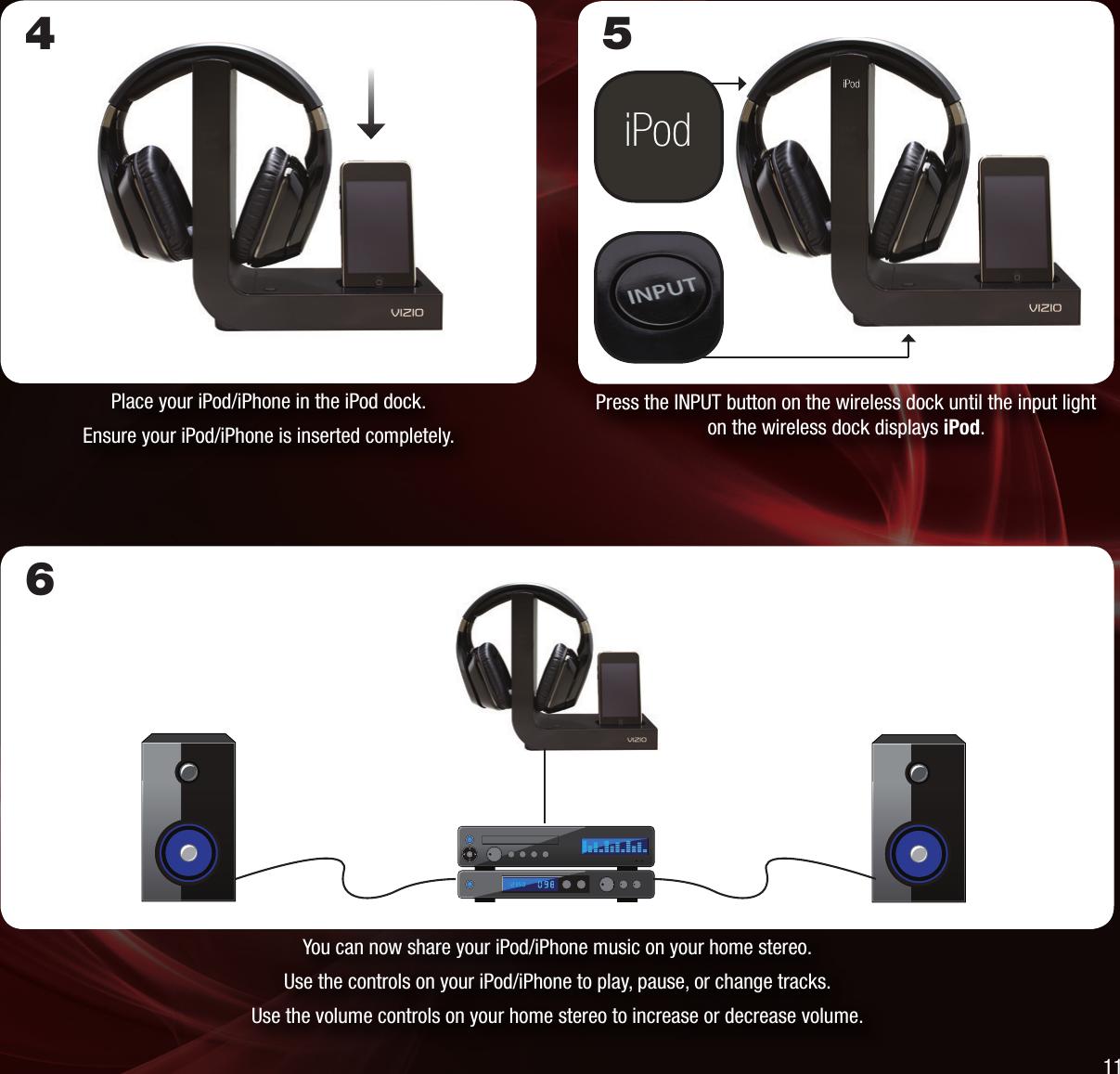

You can now share your iPod/iPhone music on your home stereo.Use the controls on your iPod/iPhone to play, pause, or change tracks.Use the volume controls on your home stereo to increase or decrease volume.6Place your iPod/iPhone in the iPod dock.Ensure your iPod/iPhone is inserted completely.4Press the INPUT button on the wireless dock until the input light on the wireless dock displays iPod.5iPod11

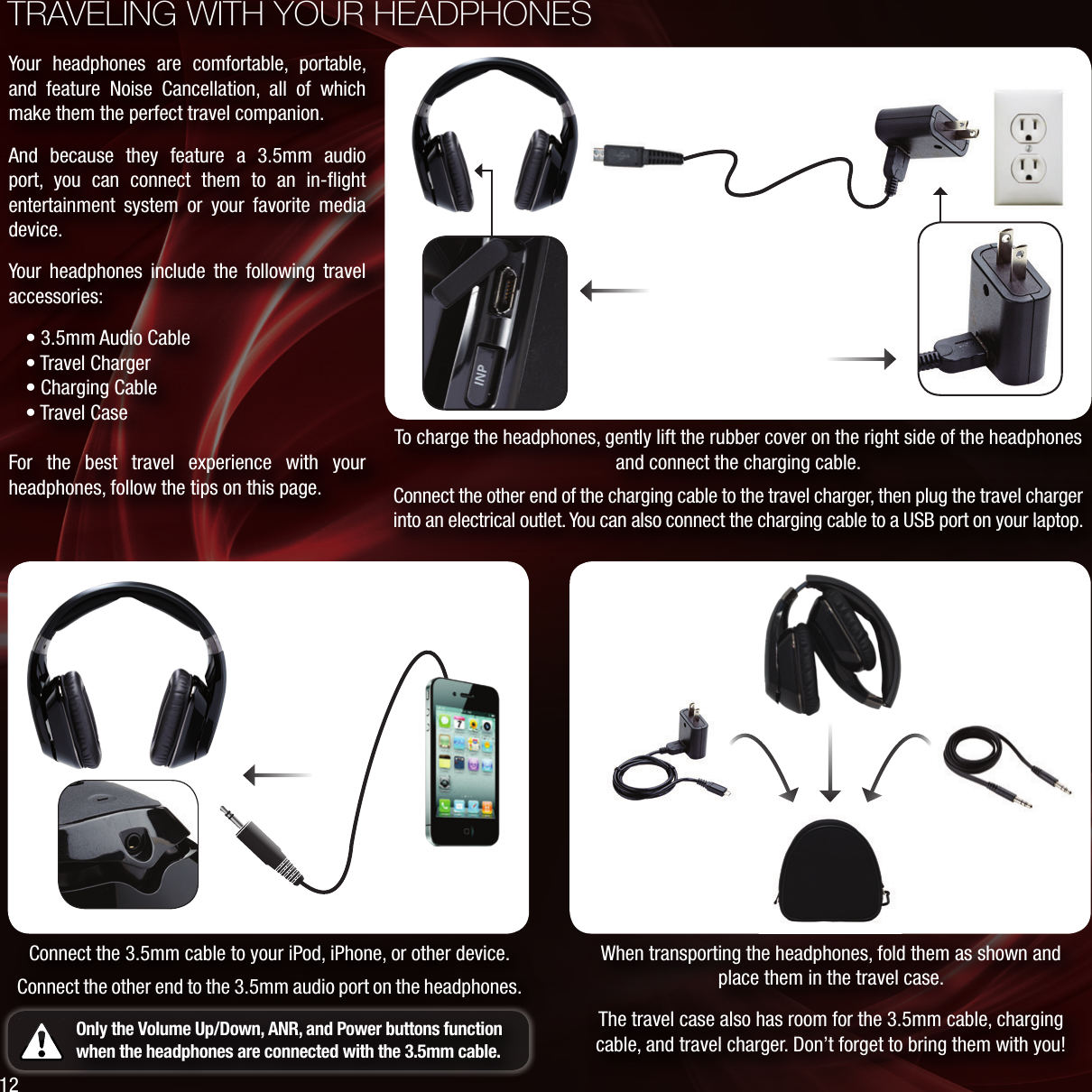

TRAVELING WITH YOUR HEADPHONESWhen transporting the headphones, fold them as shown and place them in the travel case.The travel case also has room for the 3.5mm cable, charging cable, and travel charger. Don’t forget to bring them with you!To charge the headphones, gently lift the rubber cover on the right side of the headphones and connect the charging cable. Connect the other end of the charging cable to the travel charger, then plug the travel charger into an electrical outlet. You can also connect the charging cable to a USB port on your laptop.Connect the 3.5mm cable to your iPod, iPhone, or other device.Connect the other end to the 3.5mm audio port on the headphones.Only the Volume Up/Down, ANR, and Power buttons function when the headphones are connected with the 3.5mm cable.Your headphones are comfortable, portable, and feature Noise Cancellation, all of which make them the perfect travel companion.And because they feature a 3.5mm audio port, you can connect them to an in-flight entertainment system or your favorite media device.Your headphones include the following travel accessories:• 3.5mm Audio Cable • Travel Charger • Charging Cable • Travel CaseFor the best travel experience with your headphones, follow the tips on this page.12

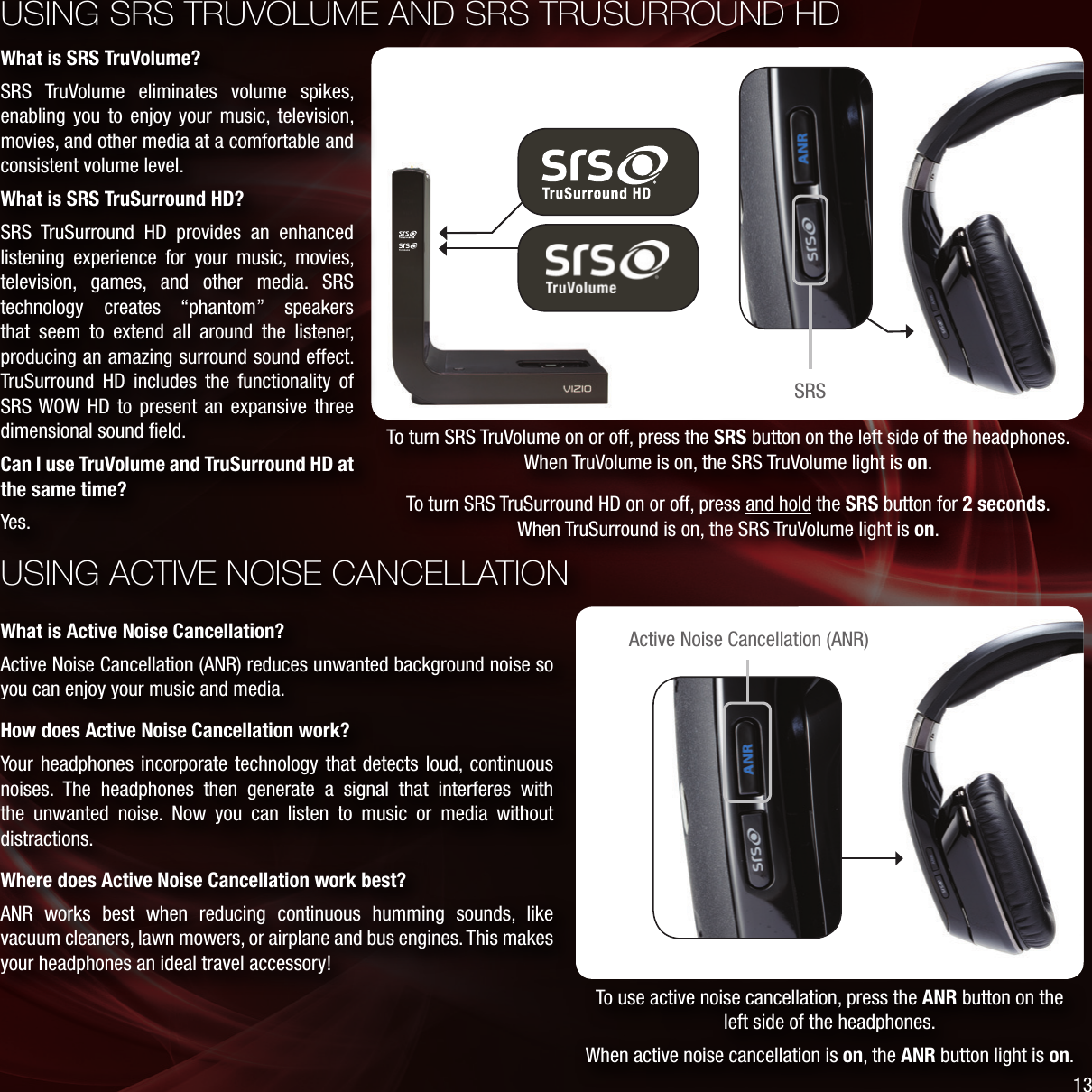

USING SRS TRUVOLUME AND SRS TRUSURROUND HDTo turn SRS TruVolume on or off, press the SRS button on the left side of the headphones. When TruVolume is on, the SRS TruVolume light is on.To turn SRS TruSurround HD on or off, press and hold the SRS button for 2 seconds. When TruSurround is on, the SRS TruVolume light is on.SRSWhat is SRS TruVolume?SRS TruVolume eliminates volume spikes, enabling you to enjoy your music, television, movies, and other media at a comfortable and consistent volume level.What is SRS TruSurround HD?SRS TruSurround HD provides an enhanced listening experience for your music, movies, television, games, and other media. SRS technology creates “phantom” speakers that seem to extend all around the listener, producing an amazing surround sound effect. TruSurround HD includes the functionality of SRS WOW HD to present an expansive three dimensional sound field.Can I use TruVolume and TruSurround HD at the same time?Yes.USING ACTIVE NOISE CANCELLATIONWhat is Active Noise Cancellation?Active Noise Cancellation (ANR) reduces unwanted background noise so you can enjoy your music and media. How does Active Noise Cancellation work?Your headphones incorporate technology that detects loud, continuous noises. The headphones then generate a signal that interferes with the unwanted noise. Now you can listen to music or media without distractions.Where does Active Noise Cancellation work best?ANR works best when reducing continuous humming sounds, like vacuum cleaners, lawn mowers, or airplane and bus engines. This makes your headphones an ideal travel accessory!To use active noise cancellation, press the ANR button on the left side of the headphones.When active noise cancellation is on, the ANR button light is on. Active Noise Cancellation (ANR)13

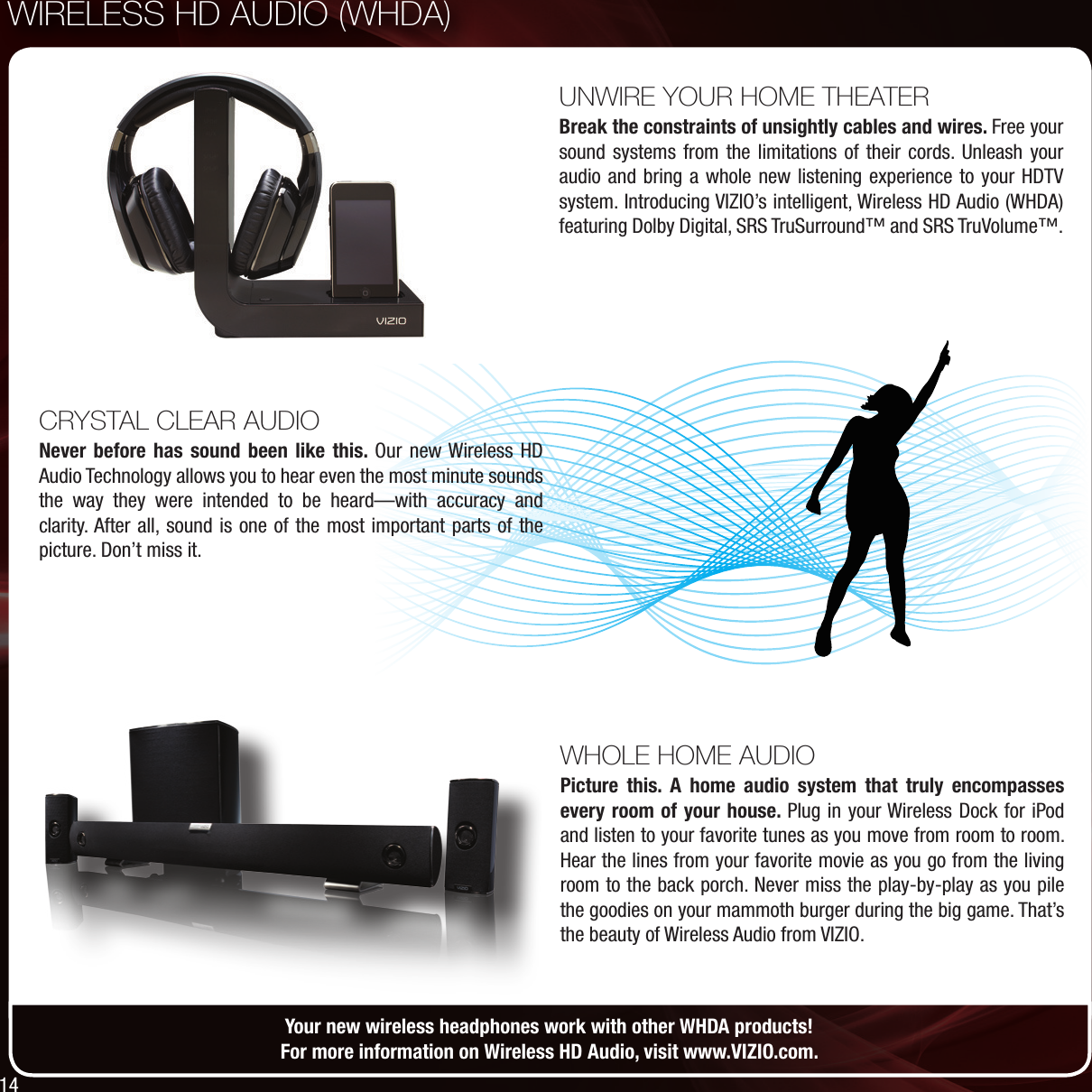

WIRELESS HD AUDIO (WHDA)14Break the constraints of unsightly cables and wires. Free your sound systems from the limitations of their cords. Unleash your audio and bring a whole new listening experience to your HDTV system. Introducing VIZIO’s intelligent, Wireless HD Audio (WHDA) featuring Dolby Digital, SRS TruSurround™ and SRS TruVolume™.UNWIRE YOUR HOME THEATERPicture this. A home audio system that truly encompasses every room of your house. Plug in your Wireless Dock for iPod and listen to your favorite tunes as you move from room to room. Hear the lines from your favorite movie as you go from the living room to the back porch. Never miss the play-by-play as you pile the goodies on your mammoth burger during the big game. That’s the beauty of Wireless Audio from VIZIO.WHOLE HOME AUDIONever before has sound been like this. Our new Wireless HD Audio Technology allows you to hear even the most minute sounds the way they were intended to be heard—with accuracy and clarity. After all, sound is one of the most important parts of the picture. Don’t miss it.CRYSTAL CLEAR AUDIOYour new wireless headphones work with other WHDA products! For more information on Wireless HD Audio, visit www.VIZIO.com.

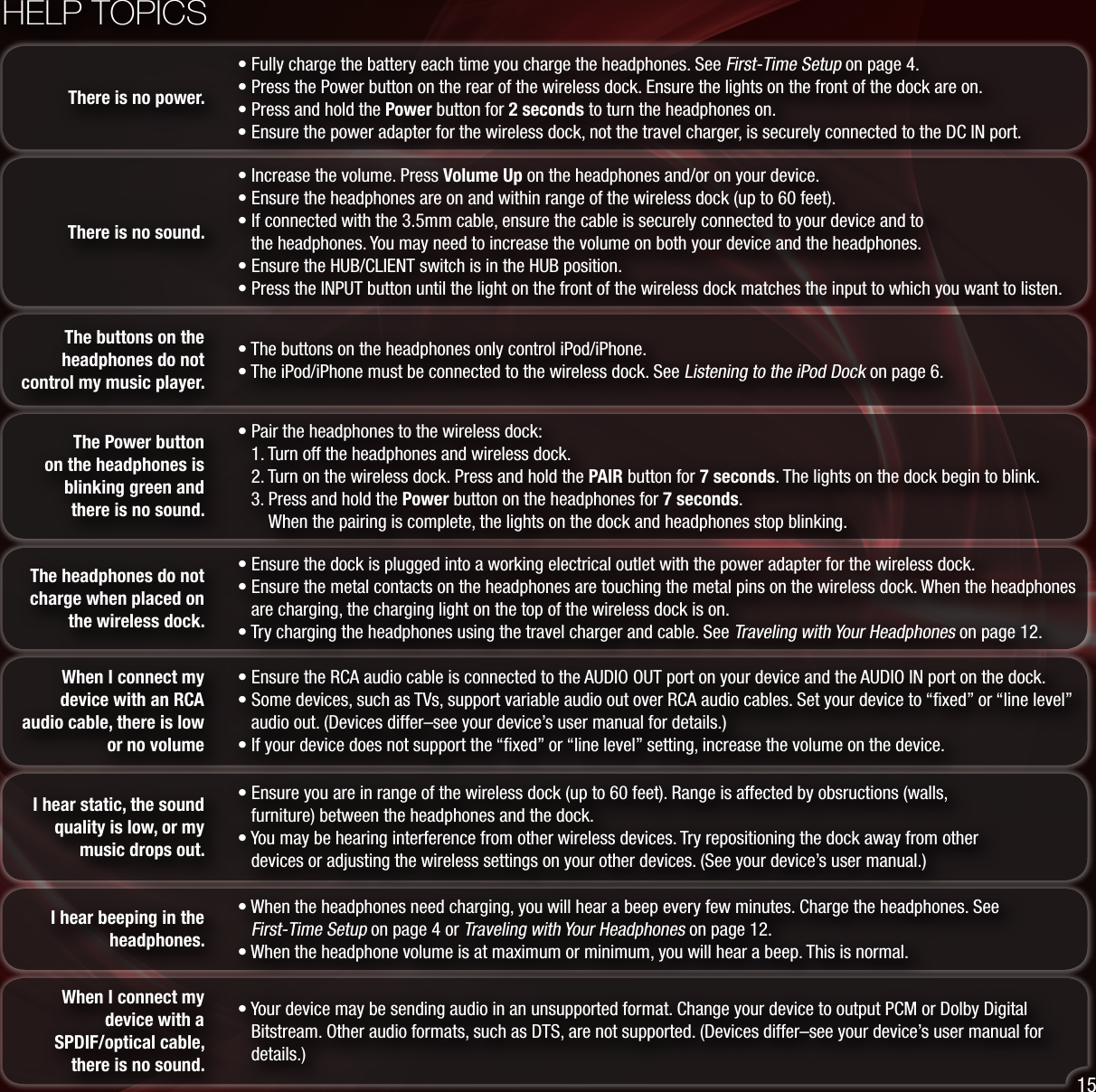

The buttons on the headphones do not control my music player.• The buttons on the headphones only control iPod/iPhone. • The iPod/iPhone must be connected to the wireless dock. See Listening to the iPod Dock on page 6.I hear static, the sound quality is low, or my music drops out.• Ensure you are in range of the wireless dock (up to 60 feet). Range is affected by obsructions (walls, furniture) between the headphones and the dock. • You may be hearing interference from other wireless devices. Try repositioning the dock away from other devices or adjusting the wireless settings on your other devices. (See your device’s user manual.)There is no power.• Fully charge the battery each time you charge the headphones. See First-Time Setup on page 4. • Press the Power button on the rear of the wireless dock. Ensure the lights on the front of the dock are on. • Press and hold the Power button for 2 seconds to turn the headphones on. • Ensure the power adapter for the wireless dock, not the travel charger, is securely connected to the DC IN port.HELP TOPICSI hear beeping in the headphones.• When the headphones need charging, you will hear a beep every few minutes. Charge the headphones. See First-Time Setup on page 4 or Traveling with Your Headphones on page 12. • When the headphone volume is at maximum or minimum, you will hear a beep. This is normal.There is no sound.• Increase the volume. Press Volume Up on the headphones and/or on your device. • Ensure the headphones are on and within range of the wireless dock (up to 60 feet). • If connected with the 3.5mm cable, ensure the cable is securely connected to your device and to the headphones. You may need to increase the volume on both your device and the headphones. • Ensure the HUB/CLIENT switch is in the HUB position. • Press the INPUT button until the light on the front of the wireless dock matches the input to which you want to listen. When I connect my device with a SPDIF/optical cable, there is no sound.• Your device may be sending audio in an unsupported format. Change your device to output PCM or Dolby Digital Bitstream. Other audio formats, such as DTS, are not supported. (Devices differ–see your device’s user manual for details.)When I connect my device with an RCA audio cable, there is low or no volume• Ensure the RCA audio cable is connected to the AUDIO OUT port on your device and the AUDIO IN port on the dock. • Some devices, such as TVs, support variable audio out over RCA audio cables. Set your device to “xed” or “line level” audio out. (Devices differ–see your device’s user manual for details.) • If your device does not support the “xed” or “line level” setting, increase the volume on the device.The headphones do not charge when placed on the wireless dock.• Ensure the dock is plugged into a working electrical outlet with the power adapter for the wireless dock. • Ensure the metal contacts on the headphones are touching the metal pins on the wireless dock. When the headphones are charging, the charging light on the top of the wireless dock is on. • Try charging the headphones using the travel charger and cable. See Traveling with Your Headphones on page 12.15The Power button on the headphones is blinking green and there is no sound.• Pair the headphones to the wireless dock: 1. Turn off the headphones and wireless dock. 2. Turn on the wireless dock. Press and hold the PAIR button for 7 seconds. The lights on the dock begin to blink. 3. Press and hold the Power button on the headphones for 7 seconds. When the pairing is complete, the lights on the dock and headphones stop blinking.

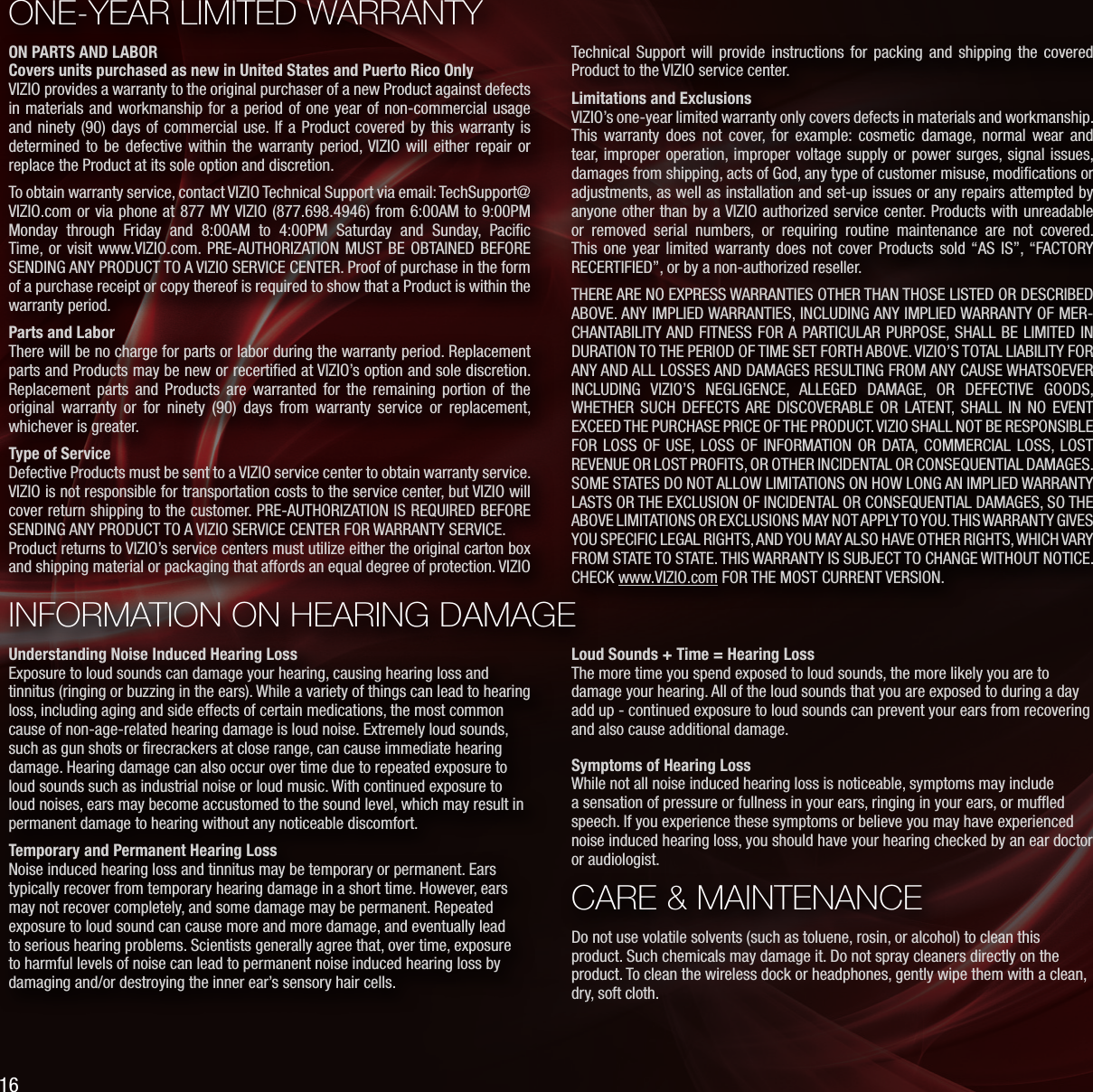

ON PARTS AND LABORCovers units purchased as new in United States and Puerto Rico OnlyVIZIO provides a warranty to the original purchaser of a new Product against defects in materials and workmanship for a period of one year of non-commercial usage and ninety (90) days of commercial use. If a Product covered by this warranty is determined to be defective within the warranty period, VIZIO will either repair or replace the Product at its sole option and discretion.To obtain warranty service, contact VIZIO Technical Support via email: TechSupport@VIZIO.com or via phone at 877 MY VIZIO (877.698.4946) from 6:00AM to 9:00PM Monday through Friday and 8:00AM to 4:00PM Saturday and Sunday, Pacific Time, or visit www.VIZIO.com. PRE-AUTHORIZATION MUST BE OBTAINED BEFORE SENDING ANY PRODUCT TO A VIZIO SERVICE CENTER. Proof of purchase in the form of a purchase receipt or copy thereof is required to show that a Product is within the warranty period.Parts and LaborThere will be no charge for parts or labor during the warranty period. Replacement parts and Products may be new or recertified at VIZIO’s option and sole discretion. Replacement parts and Products are warranted for the remaining portion of the original warranty or for ninety (90) days from warranty service or replacement, whichever is greater.Type of ServiceDefective Products must be sent to a VIZIO service center to obtain warranty service. VIZIO is not responsible for transportation costs to the service center, but VIZIO will cover return shipping to the customer. PRE-AUTHORIZATION IS REQUIRED BEFORE SENDING ANY PRODUCT TO A VIZIO SERVICE CENTER FOR WARRANTY SERVICE.Product returns to VIZIO’s service centers must utilize either the original carton box and shipping material or packaging that affords an equal degree of protection. VIZIO ONE-YEAR LIMITED WARRANTYTechnical Support will provide instructions for packing and shipping the covered Product to the VIZIO service center.Limitations and ExclusionsVIZIO’s one-year limited warranty only covers defects in materials and workmanship. This warranty does not cover, for example: cosmetic damage, normal wear and tear, improper operation, improper voltage supply or power surges, signal issues, damages from shipping, acts of God, any type of customer misuse, modifications or adjustments, as well as installation and set-up issues or any repairs attempted by anyone other than by a VIZIO authorized service center. Products with unreadable or removed serial numbers, or requiring routine maintenance are not covered. This one year limited warranty does not cover Products sold “AS IS”, “FACTORY RECERTIFIED”, or by a non-authorized reseller.THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED OR DESCRIBED ABOVE. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MER-CHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN DURATION TO THE PERIOD OF TIME SET FORTH ABOVE. VIZIO’S TOTAL LIABILITY FOR ANY AND ALL LOSSES AND DAMAGES RESULTING FROM ANY CAUSE WHATSOEVER INCLUDING VIZIO’S NEGLIGENCE, ALLEGED DAMAGE, OR DEFECTIVE GOODS, WHETHER SUCH DEFECTS ARE DISCOVERABLE OR LATENT, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCT. VIZIO SHALL NOT BE RESPONSIBLE FOR LOSS OF USE, LOSS OF INFORMATION OR DATA, COMMERCIAL LOSS, LOST REVENUE OR LOST PROFITS, OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE. THIS WARRANTY IS SUBJECT TO CHANGE WITHOUT NOTICE. CHECK www.VIZIO.com FOR THE MOST CURRENT VERSION.INFORMATION ON HEARING DAMAGEUnderstanding Noise Induced Hearing LossExposure to loud sounds can damage your hearing, causing hearing loss and tinnitus (ringing or buzzing in the ears). While a variety of things can lead to hearing loss, including aging and side effects of certain medications, the most common cause of non-age-related hearing damage is loud noise. Extremely loud sounds, such as gun shots or firecrackers at close range, can cause immediate hearing damage. Hearing damage can also occur over time due to repeated exposure to loud sounds such as industrial noise or loud music. With continued exposure to loud noises, ears may become accustomed to the sound level, which may result in permanent damage to hearing without any noticeable discomfort.Temporary and Permanent Hearing LossNoise induced hearing loss and tinnitus may be temporary or permanent. Ears typically recover from temporary hearing damage in a short time. However, ears may not recover completely, and some damage may be permanent. Repeated exposure to loud sound can cause more and more damage, and eventually lead to serious hearing problems. Scientists generally agree that, over time, exposure to harmful levels of noise can lead to permanent noise induced hearing loss by damaging and/or destroying the inner ear’s sensory hair cells.Loud Sounds + Time = Hearing LossThe more time you spend exposed to loud sounds, the more likely you are to damage your hearing. All of the loud sounds that you are exposed to during a day add up - continued exposure to loud sounds can prevent your ears from recovering and also cause additional damage.Symptoms of Hearing LossWhile not all noise induced hearing loss is noticeable, symptoms may include a sensation of pressure or fullness in your ears, ringing in your ears, or muffled speech. If you experience these symptoms or believe you may have experienced noise induced hearing loss, you should have your hearing checked by an ear doctor or audiologist.16CARE & MAINTENANCEDo not use volatile solvents (such as toluene, rosin, or alcohol) to clean this product. Such chemicals may damage it. Do not spray cleaners directly on the product. To clean the wireless dock or headphones, gently wipe them with a clean, dry, soft cloth.
Products are often returned due to a technical problem rather than a defective product that may result in unnecessary shipping charges billed to you. Our trained support personnel can often resolve the problem over the phone. For more information on warranty service or repair, after the warranty period, please contact our Support Department at the number below.Customer support and quality service are integral parts of VIZIO’s commitment to service excellence. For technical assistance contact our VIZIO Technical Support Department via email or phone. Please have your VIZIO model number, serial number, and date of purchase available before your call. Address: Phone:Fax:Email:Web:39 TeslaIrvine, CA 92618, USA(877) 698-4946(949) 585-9563techsupport@vizio.comwww.vizio.comHours of operation: Monday - Friday: 6 am to 9 pm (PST) Saturday - Sunday: 8 am to 4pm (PST)TECHNICAL SUPPORTFCC Class B Radio Interference StatementNOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:1. Reorient or relocate the receiving antenna.2. Increase the separation between the equipment and receiver.3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.4. Consult the dealer or an experienced radio/TV technician for help.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Notice:1. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference.LEGAL & COMPLIANCERF Exposure InformationThis device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. This device complies with FCC radiation exposure limits set forth for an uncontrolled environment.IC StatementOperation is subject to the following two conditions: 1. This device may not cause interference, and2. This device must accept any interference, including interference that may cause undesired operation of the device.This Class B digital apparatus complies with Canadian ICES-003.Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.IC Radiation Exposure StatementThis equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.Disposal and RecyclingYou must dispose of this product properly, according to local laws and regulations. Because this product contains electronic components and a battery, it must be disposed of separately from household waste. Contact local authorities to learn about disposal and recycling options.Made for iPod and Made for iPhone“Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.SPECIFICATIONSSpeakers: 40mm Neodymium DriversSensitivity 96±3 dB 1mW at 1.5mmDistortion: 1KHz < 10%Impedance: 32 Ohm ± 20% at 1KHzSPL: 110 dB SPL per 1mWBattery Power: Battery - 940mAHVoltage: Adapter - 100V~240VDimensions: Headphones - 7.38” x 7.33” x 2.88” (187.55 x 186.11 x 73.13mm)Dock - 8.64” x 7.82” x 3.58” (219.45 x 198.60 x 90.75mm)Certifications: SRS Circle Surround, SRS TruVolume, Dolby Digital, Made for iPodCompliances: FCC, IC17
TRADEMARKS SHOWN ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS. IMAGES USED ARE FOR ILLUSTRATION PURPOSES ONLY. VIZIO, THE V LOGO, WHERE VISION MEETS VALUE, AND OTHER VIZIO TRADEMARKS ARE THE INTELLECTUAL PROPERTY OF VIZIO INC. PRODUCT FEATURES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.© 2010 VIZIO INC. ALL RIGHTS RESERVED.101012ST-NC
