User Manual
Controls, Instruments 25

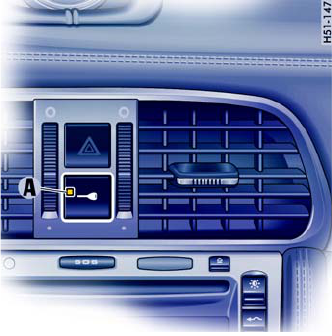

A- Light-emitting diode for alarm system
Alarm System,
Passenger Compartment
Monitoring
This device complies with:
Part 15 of the FCC Rules
RSS-210 of Industry Canada.
Operation is subject to the following two conditi-
ons:
1. This device may not cause harmful interfe-
rence, and
2. this device must accept any interference recei-
ved, including interference that may cause un-
desired operation.
Note
The manufacturer is not responsible for any radio
or TV interference caused by unauthorized modifi-
cations to this equipment.
Such modification could void the user’s authority
to operate the equipment.
The alarm system and passenger compartment
monitoring system are switched on when the
doors are locked with the key or remote control.
fPlease observe the chapter “CENTRAL LO-
CKING” on Page 22.
Unlocking the vehicle by using the key in the
door lock and opening the door may activate
the alarm system within 10 seconds.
Function indication
If the alarm system is activated, light-emitting
diode A in the central locking switch flashes.
If, after locking, the light-emitting diode does not
flash or, after ten seconds, it emits double flas-
hes, then not all alarm contacts are closed.
Additionally, a brief horn signal sounds.
When the doors are unlocked, the alarm system
and infrared passenger compartment monitoring
system are switched off and the light-emitting
diode goes off.
26 Controls, Instruments
When the alarm is armed, the following
areas are monitored
– Doors
– Luggage compartment lid
– Engine compartment lid
– Glove compartment
– Passenger compartment
If one of these alarm contacts is interrupted, the
alarm horn sounds for approximately 3 minutes.
Additionally, the emergency flasher and the pas-
senger compartment light flash for approximately
five minutes.
When the alarm is triggered, the light-emitting
diode changes over to double flashes.
In order not to limit the action range of the infrared
passenger compartment monitoring system:
fMove sun visors to one of the final positions.
fDo not fold the front seat backrests forward.
Deactivating the passenger compartment
monitoring system for one locking
process
If a person or animal remains in the car while it is
locked, the infrared passenger compartment mo-
nitoring system must be switched off.
fQuickly lock car twice.
The doors are locked but can be opened from
the inside:
1. Pull inner door handle once to unlock door
lock.
2. Pull inner door handle again to open door.
Note
fInform any person remaining in the car that the
alarm system will be triggered if the door is
opened.
Fault indication
A double horn signal during locking indicates a
defect in the central locking or alarm system.
fHave the defect remedied at an authorized
Porsche dealer.
