VSON TECHNOLOGY V101 Wireless presenter User Manual 101 Manual

Vson Technology Co.,Ltd. Wireless presenter 101 Manual

User Manual

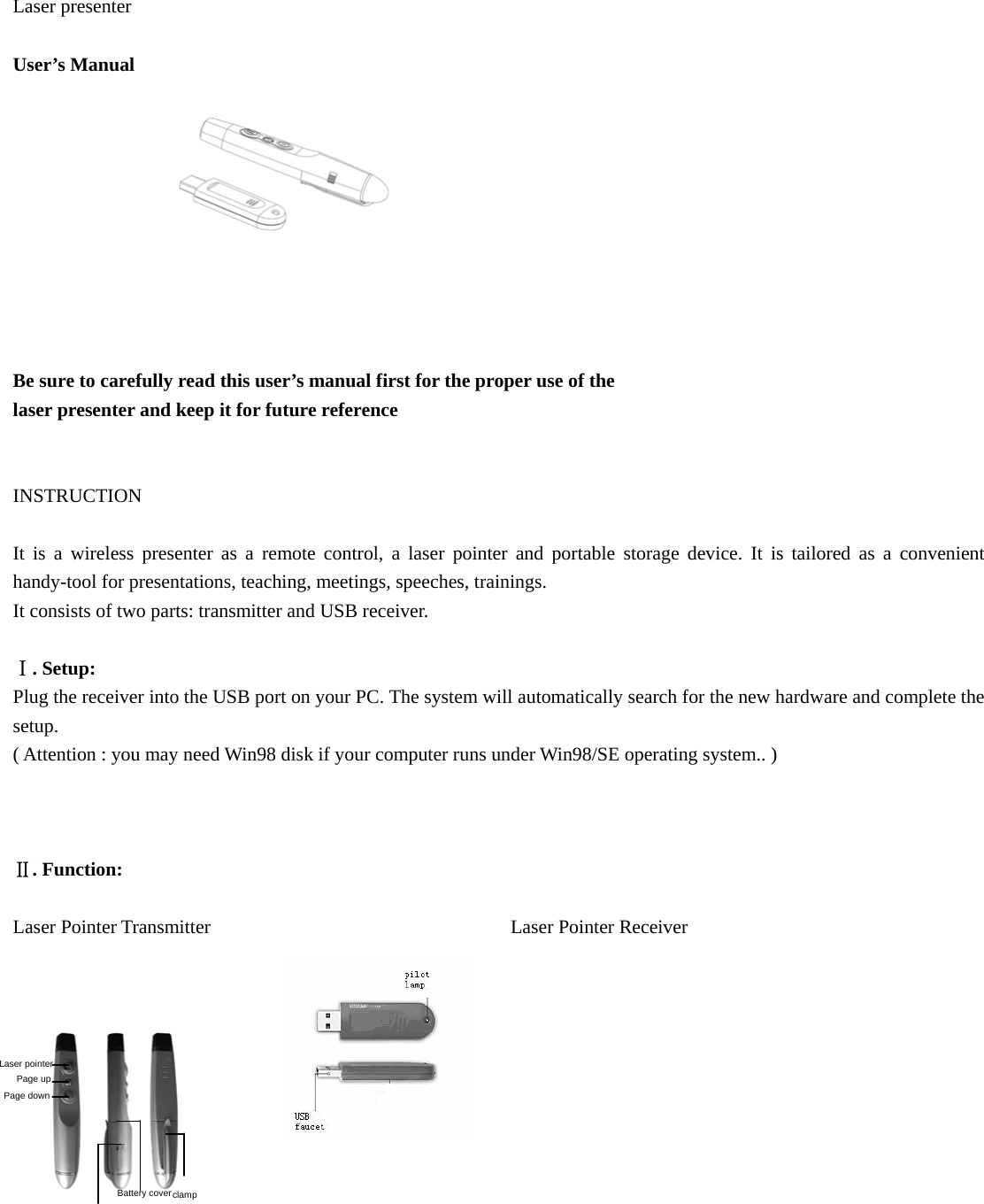

Laser presenter User’s Manual Be sure to carefully read this user’s manual first for the proper use of the laser presenter and keep it for future reference INSTRUCTION It is a wireless presenter as a remote control, a laser pointer and portable storage device. It is tailored as a convenient handy-tool for presentations, teaching, meetings, speeches, trainings. It consists of two parts: transmitter and USB receiver. Ⅰ. Setup: Plug the receiver into the USB port on your PC. The system will automatically search for the new hardware and complete the setup. ( Attention : you may need Win98 disk if your computer runs under Win98/SE operating system.. ) Ⅱ. Function: Laser Pointer Transmitter Laser Pointer Receiver clamp Battery cover Laser pointer Page up Page down

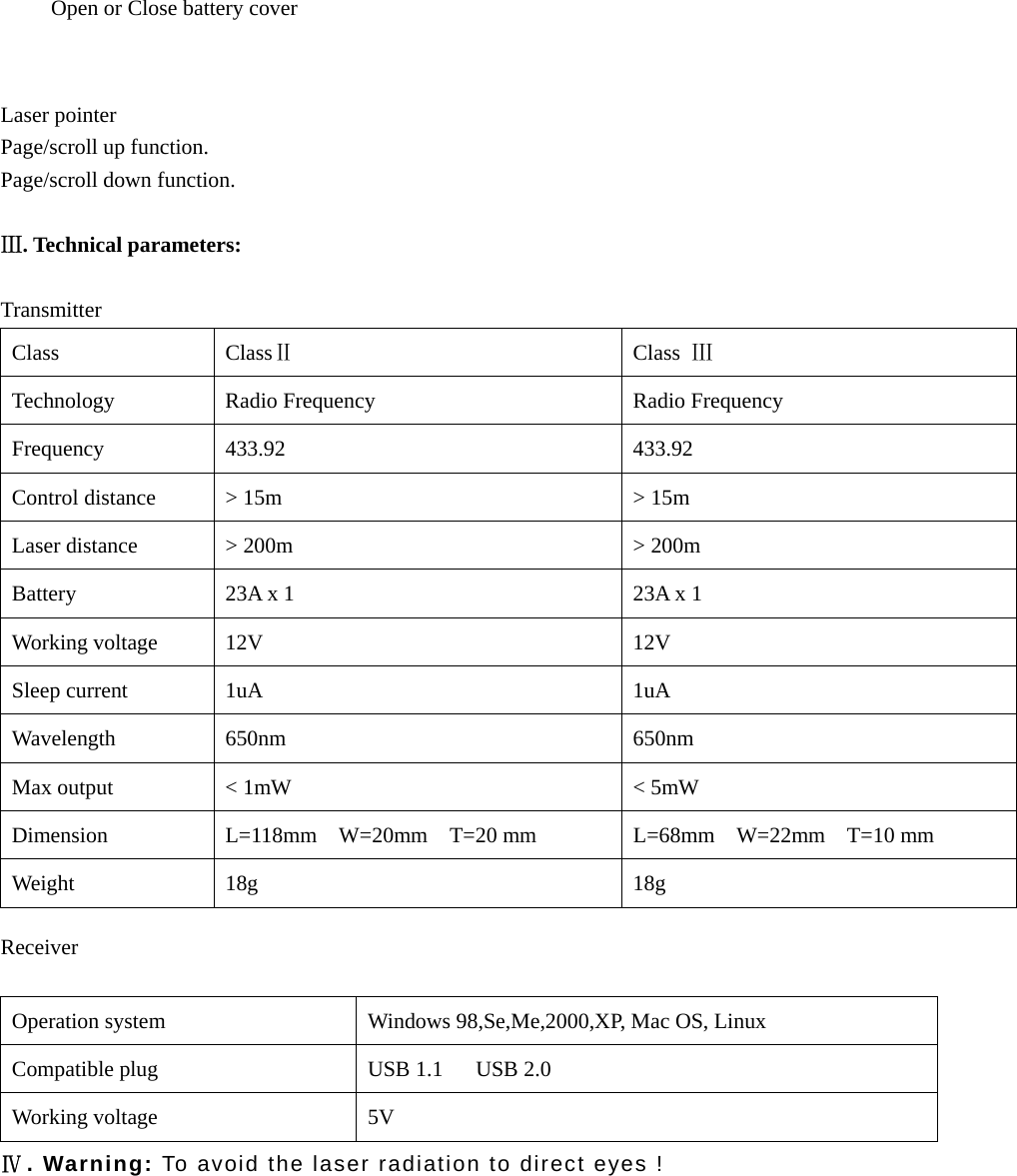

Laser pointer Page/scroll up function. Page/scroll down function. Ⅲ. Technical parameters: Transmitter Class ClassⅡ Class Ⅲ Technology Radio Frequency Radio Frequency Frequency 433.92 433.92 Control distance > 15m > 15m Laser distance > 200m > 200m Battery 23A x 1 23A x 1 Working voltage 12V 12V Sleep current 1uA 1uA Wavelength 650nm 650nm Max output < 1mW < 5mW Dimension L=118mm W=20mm T=20 mm L=68mm W=22mm T=10 mm Weight 18g 18g Receiver Operation system Windows 98,Se,Me,2000,XP, Mac OS, Linux Compatible plug USB 1.1 USB 2.0 Working voltage 5V Ⅳ. Warning: To avoid the laser radiation to direct eyes ! Open or Close battery cover

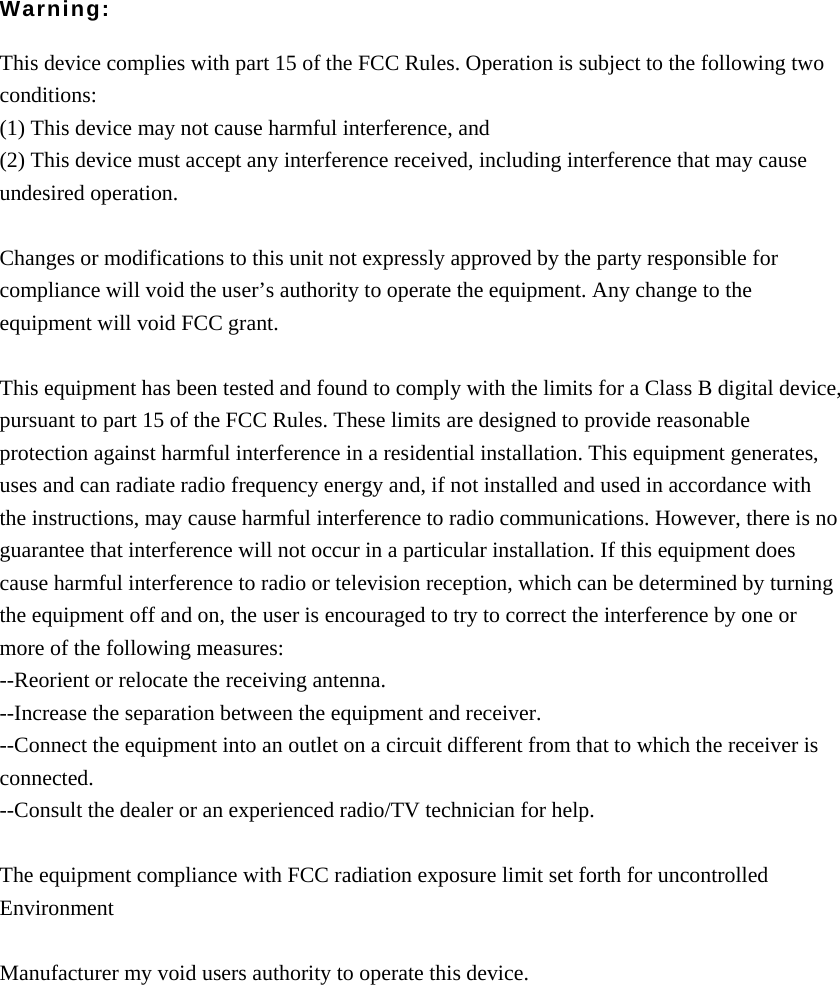

Warning: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance will void the user’s authority to operate the equipment. Any change to the equipment will void FCC grant. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. The equipment compliance with FCC radiation exposure limit set forth for uncontrolled Environment Manufacturer my void users authority to operate this device.
