VSON TECHNOLOGY V610 Wireless Presenter User Manual V610 USER MANUAL

Vson Technology Co.,Ltd. Wireless Presenter V610 USER MANUAL

User Manual

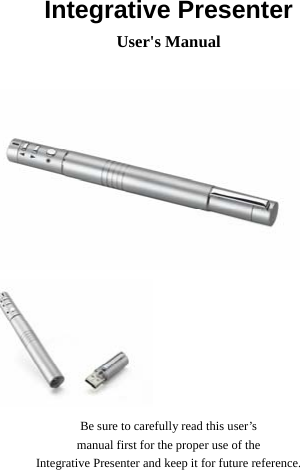

Integrative Presenter User's Manual Be sure to carefully read this user’s manual first for the proper use of the Integrative Presenter and keep it for future reference.

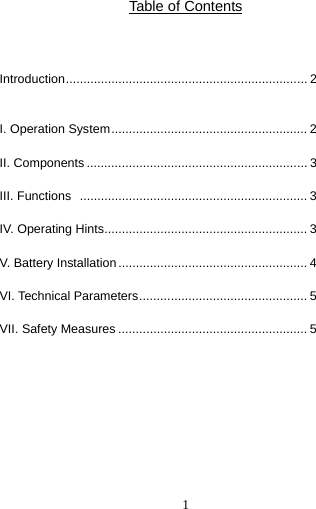

1 Table of Contents Introduction..................................................................... 2 I. Operation System........................................................ 2 II. Components............................................................... 3 III. Functions ................................................................. 3 IV. Operating Hints.......................................................... 3 V. Battery Installation...................................................... 4 VI. Technical Parameters................................................ 5 VII. Safety Measures ...................................................... 5

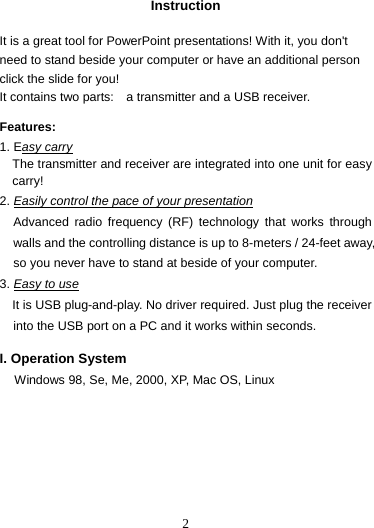

2 Instruction It is a great tool for PowerPoint presentations! With it, you don't need to stand beside your computer or have an additional person click the slide for you! It contains two parts: a transmitter and a USB receiver. Features: 1. Easy carry The transmitter and receiver are integrated into one unit for easy carry! 2. Easily control the pace of your presentation Advanced radio frequency (RF) technology that works through walls and the controlling distance is up to 8-meters / 24-feet away, so you never have to stand at beside of your computer. 3. Easy to use It is USB plug-and-play. No driver required. Just plug the receiver into the USB port on a PC and it works within seconds. I. Operation System Windows 98, Se, Me, 2000, XP, Mac OS, Linux

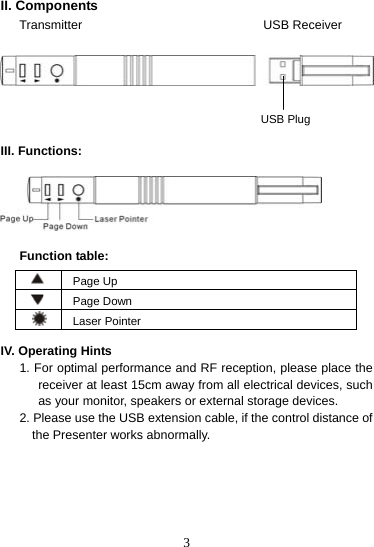

3II. Components Transmitter USB Receiver III. Functions: Function table: Page Up Page Down Laser Pointer IV. Operating Hints 1. For optimal performance and RF reception, please place the receiver at least 15cm away from all electrical devices, such as your monitor, speakers or external storage devices. 2. Please use the USB extension cable, if the control distance of the Presenter works abnormally. USB Plug

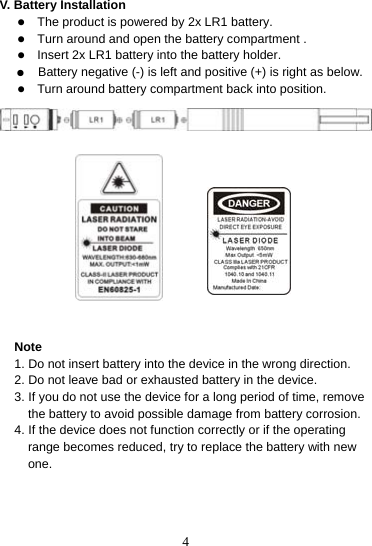

4V. Battery Installation z The product is powered by 2x LR1 battery. z Turn around and open the battery compartment . z Insert 2x LR1 battery into the battery holder. ● Battery negative (-) is left and positive (+) is right as below. z Turn around battery compartment back into position. Note 1. Do not insert battery into the device in the wrong direction. 2. Do not leave bad or exhausted battery in the device. 3. If you do not use the device for a long period of time, remove the battery to avoid possible damage from battery corrosion. 4. If the device does not function correctly or if the operating range becomes reduced, try to replace the battery with new one.

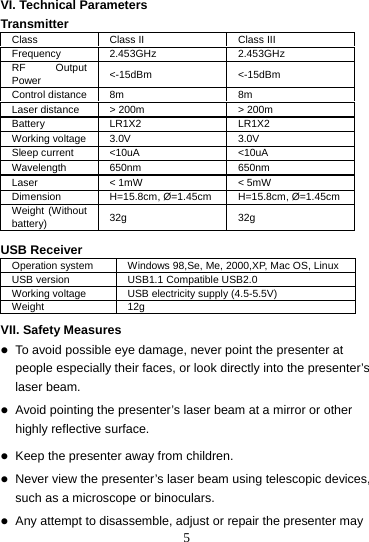

5 VI. Technical Parameters Transmitter Class Class II Class III Frequency 2.453GHz 2.453GHz RF Output Power <-15dBm <-15dBm Control distance 8m 8m Laser distance > 200m > 200m Battery LR1X2 LR1X2 Working voltage 3.0V 3.0V Sleep current <10uA <10uA Wavelength 650nm 650nm Laser < 1mW < 5mW Dimension H=15.8cm, Ø=1.45cm H=15.8cm, Ø=1.45cm Weight (Without battery) 32g 32g USB Receiver Operation system Windows 98,Se, Me, 2000,XP, Mac OS, Linux USB version USB1.1 Compatible USB2.0 Working voltage USB electricity supply (4.5-5.5V) Weight 12g VII. Safety Measures z To avoid possible eye damage, never point the presenter at people especially their faces, or look directly into the presenter’s laser beam. z Avoid pointing the presenter’s laser beam at a mirror or other highly reflective surface. z Keep the presenter away from children. z Never view the presenter’s laser beam using telescopic devices, such as a microscope or binoculars. z Any attempt to disassemble, adjust or repair the presenter may

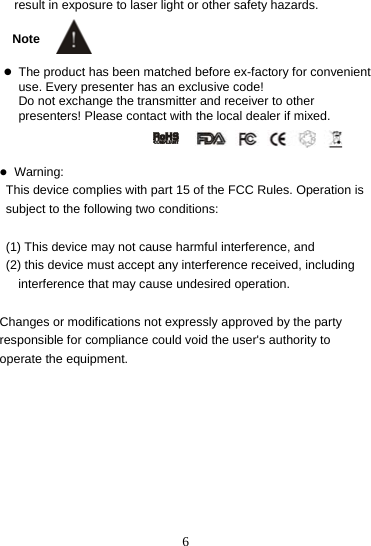

6result in exposure to laser light or other safety hazards. Note z The product has been matched before ex-factory for convenient use. Every presenter has an exclusive code! Do not exchange the transmitter and receiver to other presenters! Please contact with the local dealer if mixed. z Warning: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
