VSON TECHNOLOGY V832 Wireless Presenter User Manual 1

Vson Technology Co.,Ltd. Wireless Presenter 1

Users Manual

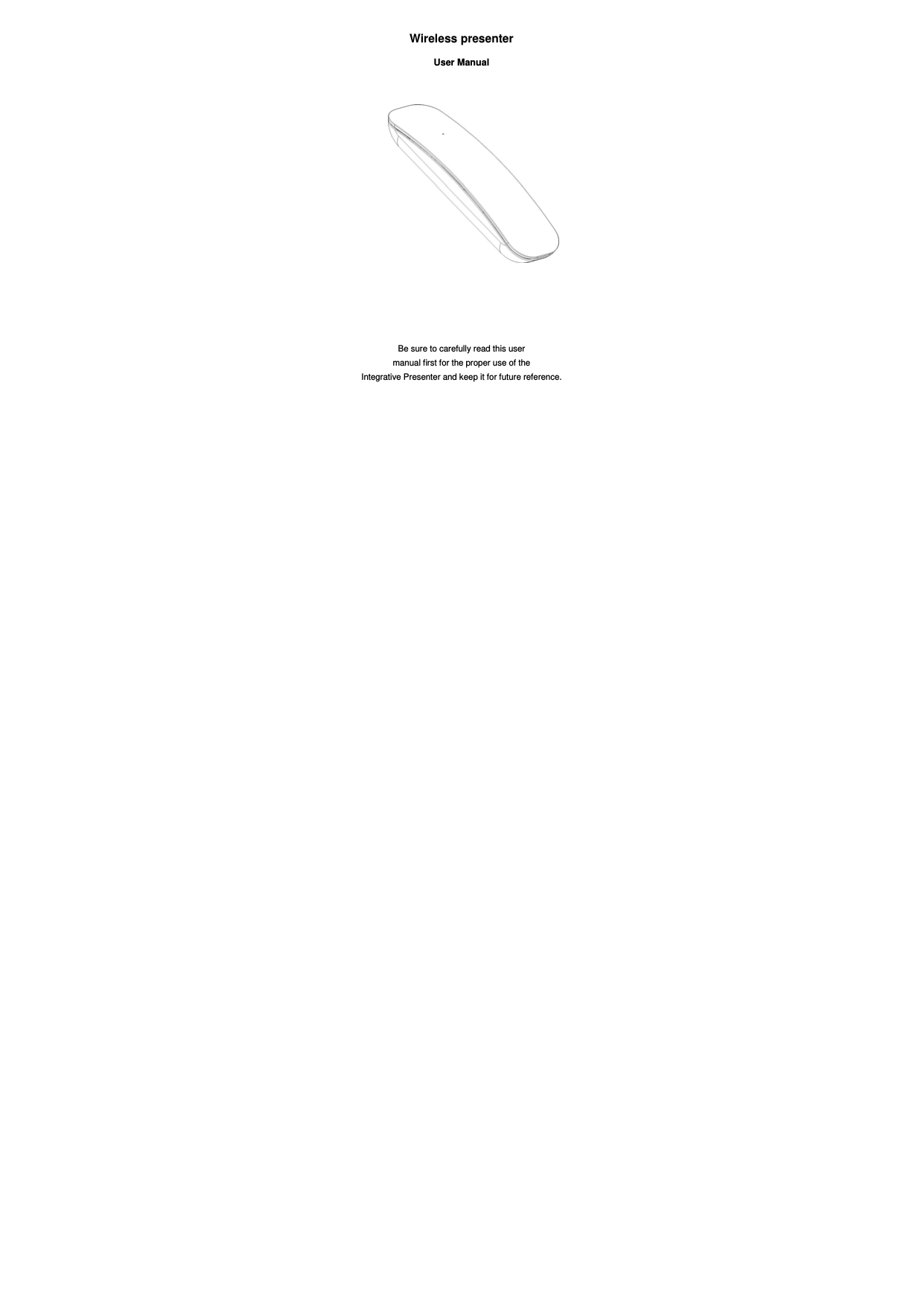

Wireless presenter User Manual Be sure to carefully read this user manual first for the proper use of the Integrative Presenter and keep it for future reference.

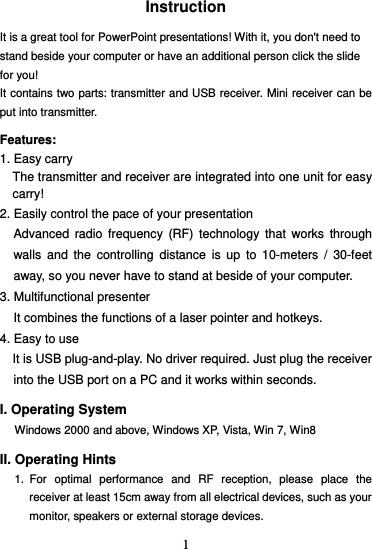

1Instruction It is a great tool for PowerPoint presentations! With it, you don't need to stand beside your computer or have an additional person click the slide for you! It contains two parts: transmitter and USB receiver. Mini receiver can be put into transmitter. Features: 1. Easy carry The transmitter and receiver are integrated into one unit for easy carry! 2. Easily control the pace of your presentation Advanced radio frequency (RF) technology that works through walls and the controlling distance is up to 10-meters / 30-feet away, so you never have to stand at beside of your computer. 3. Multifunctional presenter It combines the functions of a laser pointer and hotkeys. 4. Easy to use It is USB plug-and-play. No driver required. Just plug the receiver into the USB port on a PC and it works within seconds. I. Operating System Windows 2000 and above, Windows XP, Vista, Win 7, Win8 II. Operating Hints 1. For optimal performance and RF reception, please place the receiver at least 15cm away from all electrical devices, such as your monitor, speakers or external storage devices.

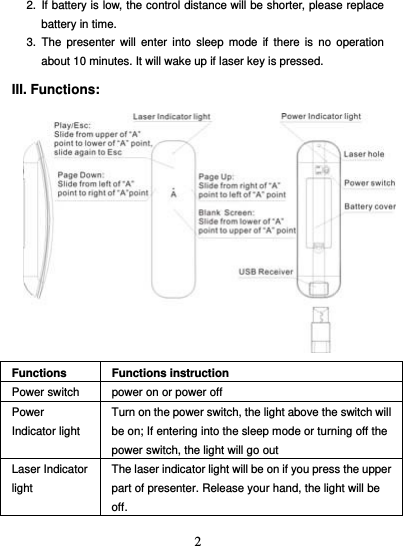

22. If battery is low, the control distance will be shorter, please replace battery in time. 3. The presenter will enter into sleep mode if there is no operation about 10 minutes. It will wake up if laser key is pressed. III. Functions: Functions Functions instruction Power switch power on or power off Power Indicator light Turn on the power switch, the light above the switch will be on; If entering into the sleep mode or turning off the power switch, the light will go out Laser Indicator light The laser indicator light will be on if you press the upper part of presenter. Release your hand, the light will be off.

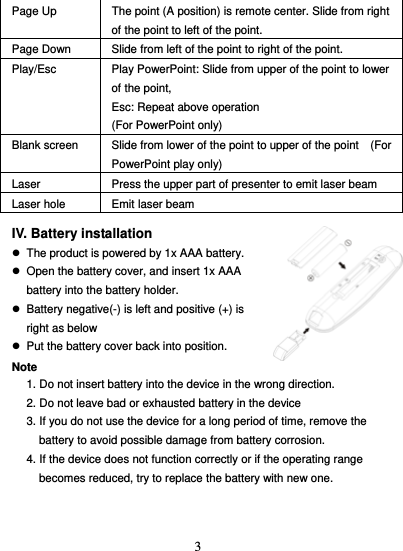

3Page Up The point (A position) is remote center. Slide from right of the point to left of the point. Page Down Slide from left of the point to right of the point. Play/Esc Play PowerPoint: Slide from upper of the point to lower of the point, Esc: Repeat above operation (For PowerPoint only) Blank screen Slide from lower of the point to upper of the point (For PowerPoint play only) Laser Press the upper part of presenter to emit laser beam Laser hole Emit laser beam IV. Battery installation z The product is powered by 1x AAA battery. z Open the battery cover, and insert 1x AAA battery into the battery holder. z Battery negative(-) is left and positive (+) is right as below z Put the battery cover back into position. Note 1. Do not insert battery into the device in the wrong direction. 2. Do not leave bad or exhausted battery in the device 3. If you do not use the device for a long period of time, remove the battery to avoid possible damage from battery corrosion. 4. If the device does not function correctly or if the operating range becomes reduced, try to replace the battery with new one.

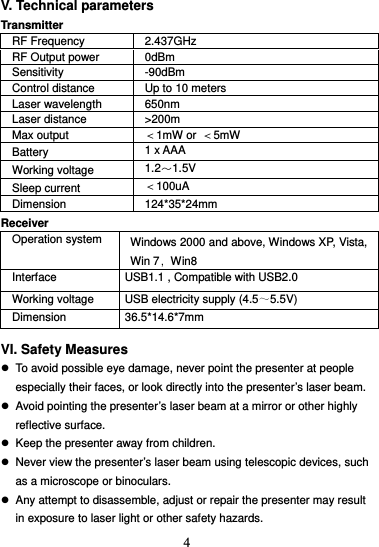

4V. Technical parameters Transmitter RF Frequency 2.437GHz RF Output power 0dBm Sensitivity -90dBm Control distance Up to 10 meters Laser wavelength 650nm Laser distance >200m Max output ＜1mW or ＜5mW Battery 1 x AAA Working voltage 1.2～1.5V Sleep current ＜100uA Dimension 124*35*24mm Receiver Operation system Windows 2000 and above, Windows XP, Vista, Win 7，Win8 Interface USB1.1 , Compatible with USB2.0 Working voltage USB electricity supply (4.5～5.5V) Dimension 36.5*14.6*7mm VI. Safety Measures z To avoid possible eye damage, never point the presenter at people especially their faces, or look directly into the presenter’s laser beam. z Avoid pointing the presenter’s laser beam at a mirror or other highly reflective surface. z Keep the presenter away from children. z Never view the presenter’s laser beam using telescopic devices, such as a microscope or binoculars. z Any attempt to disassemble, adjust or repair the presenter may result in exposure to laser light or other safety hazards.

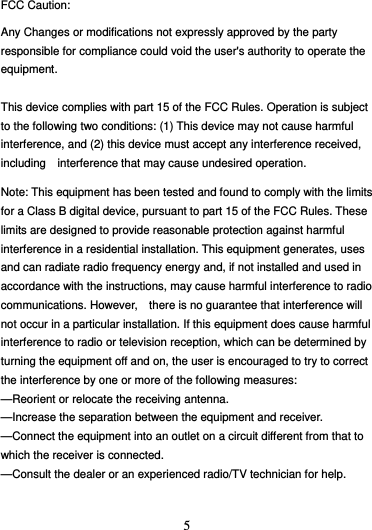

5 FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.

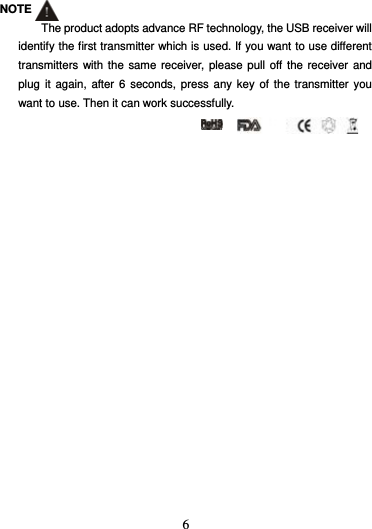

6 NOTE The product adopts advance RF technology, the USB receiver will identify the first transmitter which is used. If you want to use different transmitters with the same receiver, please pull off the receiver and plug it again, after 6 seconds, press any key of the transmitter you want to use. Then it can work successfully.
