车载蓝牙 FM 发射器

使用说明

BluetoothFMTransmitter

UserManual

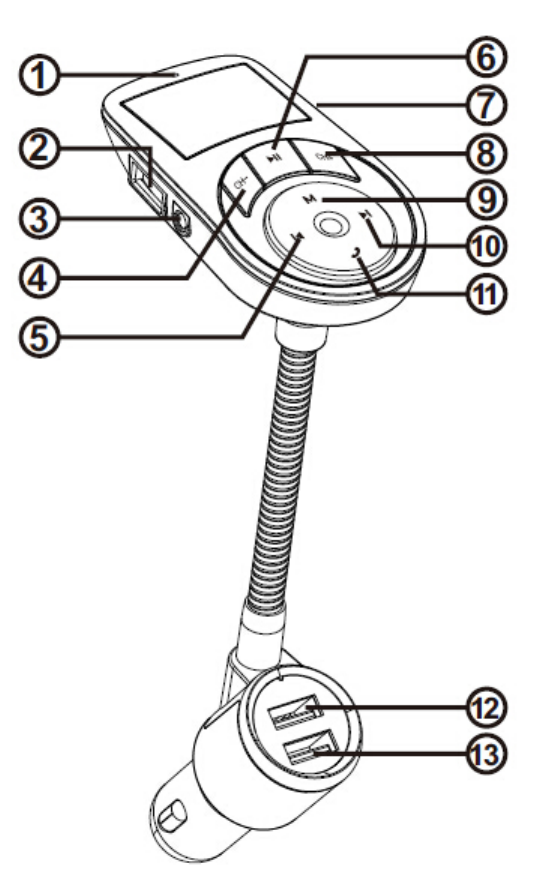

产品示意图



1.麦克风2.U 盘端口(32GMax)3.AUXPort4.频率‐   5.上一曲 6.暂停/播放/确认键

7.TF 卡槽(32GMax)8.频率+9.多功能键10.下一曲11.打电话/结束通话12.

5V/1.0AUSB 充电口 13.5V/2.4AUSB 充电口



Diagram

1.Microphone2.UDiskPort(32GMax.)3.AUXPort4.Frequency‐   5.PreviousTrack

6.Pause/Play/Confirm7.TFCardSlot(32GMax.)8.Frequency+9.MalfunctionButton

10.NextTrack11.Call/End12.5V/1.0AUSBChargingPort13.5V/2.4AUSBChargingPort

规格

连接技术：蓝牙

蓝牙频率：2.402~2.480GHz

蓝牙距离：5米

FM 频率：87.5~108.0MHz

Specifications

ConnectionTechnology:Bluetooth

BluetoothFrequency:2.402~2.480GHz

BluetoothRange:5meters

EffectiveFrequency:87.5MHz~108.0MHz

开机

将产品插入车辆点烟器，FM 发射器会自动开机，并显示汽车点烟口的输入电压。或者在产

品通电状态下，长按电话键 5秒开机。

PowerOn

Plugthetransmitterintothecigarettesocket,thenitwillpoweronautomaticallywithdisplaying

theinputvoltageofthecigarettesocket.

关机

长按电话键 5 秒



FM 模式：

A.长按“M”键，进入“FM”模式

B.按“CH+”/“CH‐”按钮调节 FM 发射器的 FM 频率与汽车 FM 频率为同一空白频率。

C.FM 模式下，通过按“M”键选择 TF 卡或 U盘、蓝牙、linein 作为音频源。

FMMode:

A.Longpress“M”button,anditwillenter“FM”mode.

B.Press“CH+”or“CH‐”totunetheFMfrequencyofthetransmittertoablankfrequency,whichis

consistentwiththatofthecar’s.

C.InFMmode,press“M”buttontoselecttheaudiosourceamongTFcard,Udisk,Bluetoothor

linein.



Auxout 模式：

A.长按“M”键，切换为“Auxout”模式。

B.使用 3.5mm 音频线将音频设备与 FM 发射器产品进行连接。

C.通过按“M”键，选择 TF 卡或 U盘、蓝牙作为音频源。

AuxoutMode

A.SwitchtoAuxoutmodebylongpressing“M”button.

B.ConnecttheaudiodevicetotheFMtransmitterwiththe3.5mmaudiocable.

C.Press“M”buttontoselecttheaudiosourceamongTFcard,Udisk,orBluetooth.



功能：

1.TF 卡或 U盘

在FM模式或者Auxout 模式下，插入 TF 卡或 U盘，产品可自动播放音乐。

A.文件夹选择

当正在从 TF 卡与 U 盘播放音乐时，长按“ ”键，进入功能菜单。通过与键选择“Folder”，

按“ ”键进入歌曲文件夹，通过与键选择你喜欢的歌曲，按“ ”键确认选择。

B.播放模式选择

长按“ ”键，进入功能菜单，通过与键选择“PlayMode”，按“ ”键进入模式选择，通

过与键选择“REPEATALL”（对应标识）、“REPEATONE”（对应标识）、

“RANDOM”（对应标识）、“REPEATFOLDER”（对应标识）模式，按“ ”键确认选

择。

C.音量调节

长按与，调节音量。

D.歌曲选择

通过按与键选择歌曲。

E.暂停/播放

通过按“ ”键，暂停/播放歌曲。

Function:

1.TFcardorUdisk

InFMmodeorAuxoutmode,thetransmitterwillplaymusicautomaticallyiftheTFcardorU

diskisinserted.

A. FolderSelection

Longpress“”buttontoenterthefunctionmenuwhenyouareplayingmusicfromtheTFcard

orUdisk.Pressbuttonorbuttontoselect“Folder”.Press“ ”buttontoenterthemusic

folder,selectyourfavoritesongbypressingorandpress“ ” to confirm.

B. PlayModeSelection

Longpress“”toenterthefunctionmenu,thenpressthebutton or toselectthe“Play

Mode”.Pressthebutton“”

toenterthemodeselection.Pressthebuttonor toselect

“REPEAT ALL”/““REPEAT ONE”/“RANDOM”/“REPEAT FOLDER”andpress“” to

confirm.

C. VolumeAdjustment

Longpressor toadjustthevolume.

D. TrackSelection

Pressor toselectatrack.

E. Pause/Play

Press“”buttontopauseorplaymusic.

2.蓝牙

在FM模式或者Auxout 模式下，将 FM 发射器与智能设备配对：打开智能设备上的蓝牙功

能，搜索“BH163B”，连接并配对，在配对过程中，蓝牙图标会闪烁，配对完成，蓝牙图标

不闪烁，打开智能设备音乐 APP,点击 app 音乐播放或点击 FM 发射器上的“”即可播放音

乐.

A.音量调节

长按 / ，调节音量。

B.歌曲选择

通过按 / 键选择歌曲。

C.暂停/播放

通过按“ ”键，暂停/播放歌曲。

D.蓝牙免提通话

蓝牙条件下蓝牙连接成功后，可使用本产品接听与拨打电话。

1. 接听电话：按“”键。

2. 挂断电话：再次按“”键。

3. 末号重播：双击“”键。

4. 拒接来电：长按“”键两秒。

5. 通话状态下，长按通话键，转为手机私密通话

2.Bluetooth

InFMmodeorAuxoutmode,pairtheFMtransmitterwiththesmartdevice:turnonthe

Bluetoothfunctionofthesmartdevice,andsearchfor“BH163A”toconnectandpair.Duringthe

pairing,theBluetoothiconwillflash.Itdoesn’tflashuntilthepairingiscompleted.Turnonthe

musicAPPofthesmartphonedeviceorpressthe“”buttonoftheFMtransmittertoplay

music.

A. VolumeAdjustment

Longpressor buttontoadjustthevolume.

B. TrackSelection

Selecttracksbypressingor button.

C. Pause/Play

Pauseorplaymusicbypressing“ ”button.

D. Bluetoothhandfreecall

InBluetoothmode,receivecallsordialviathetransmitter.

1.Receivecalls:Press“ ”button.

2.Hangup:Press“”buttonagain.

3.Rediallastnumber:Doublepress“ ”button.

4.Refusecalls:Longpress“”buttonfortwoseconds.

3.Linein

在FM 模式下，通过 3.5mm 音频线将音乐设备（如 Mp3）与 FM 发射器连接，

按“M”键进入“Linein”状态，打开音乐设备（如 Mp3）并点击音乐设备播放音乐。此功能下，

FM 发射器可实现音量调节、暂停/播放。

A.音量调节

长按 /，调节音量。

B.暂停/播放

通过按“”键，暂停/播放歌曲。

3.Linein

InFMmode,connectthemusicdevice(suchasMP3)totheFMtransmitterwith3.5mmaudio

cable.

Press“M”buttontoenter“Linein”state;Turnonthemusicdevice(suchasMP3)andplay

music.Meanwhile,theFMtransmitterhasthefollowingfunctions:volumeadjustmentand

pauseorplay.

A. VolumeAdjustment

Longpressor buttontoadjustthevolume.

B. Pause/Play

Press“”buttontopauseorplaymusic.

4.清除配对列表

长按“”键，进入功能菜单。通过 /键，选择“ClearPairing”。按“”确认清除配对信

息，即可清除配对列表信息。

4.ClearingthePairedLists

Longpress“”toenterthefunctionmenu.Choose“ClearPairing”bypressingor button.

Then,press“”toconfirmthatthepairedinformationhasbeenremoved,sothepairedlistis

deleted.



5.智能充电功能

双USB 智能充电口可以同时充电两台设备，最大输出 5V/2.4A。

5.SmartChargingFunction

TwoUSBsmartchargingportsenableyoutochargefortwodevicesatthesametimeandthe

maximumoutputis5V/2.1A.

6.记忆功能

当FM 发射器断电后，再次开机时恢复断电前状态。

6.MemoryFunction

WhentheFMtransmitteristurnedonagain,itwillrecovertoitspreviousstate.

7.熄屏/唤醒屏

A.双击“M”键可手动熄屏，产品继续工作；

B.5 分钟不操作 FM 发射器后，自动熄屏，产品继续工作。

C.任意键或者来电自动唤醒。

7.ScreenSleep/ScreenWakeup

A.Doublepress“M”buttontomanuallyturnoffthescreenwhilethetransmittercontinues

working.

B.IftheFMtransmitterhasbeenlainidlefor5minutes,itwillautomaticallyturnoffthescreen

whilecontinuingworking.

C.Pressanybuttontowakeituporitwillautomaticallywakeupwithcomingcalls.



NOTE: This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help

Changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment. This device complies with Part

15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may

cause undesired operation.
