VTech Telecommunications 80-0425-01 Baby Monitor - Parent Unit User Manual
VTech Telecommunications Ltd Baby Monitor - Parent Unit
User Manual
Adjust the sound sensitivity of the
baby unit
You can choose to hear sounds from the baby
unit all the time, or to hear sounds that exceed
a certain level. You can use the parent unit to
adjust the microphone sensitivity of your baby
unit. The higher the sensitivity level, the more
sensitive the baby unit is in detecting sounds
for transmitting to the parent unit. The sound
sensitivity is preset to LEVEL 5.
Sound sensitivity table for reference
Display Sensitivity Description
High sensitivity level
The parent unit speaker is
constantly on, and you will
hear all sounds (including
background noises) from
your baby’s room.
Medium high
sensitivity level
The parent unit speaker
turns on for soft babbling
and louder sounds from
your baby. It remains
quiet when your baby
sleeps soundly.
Medium sensitivity level
The parent unit speaker
turns on for loud babbling
and louder sounds from
your baby. It remains quiet
when your baby makes
soft sounds.
Medium low sensitivity
level
The parent unit speaker
turns on for crying and
louder sounds from your
baby. It remains quiet
when your baby makes
soft sounds.
Low sensitivity level
The parent unit speaker
turns on for loud crying or
screeching sounds from
your baby. It remains quiet
when your baby makes
soft sounds.
Press MENU when the parent unit is not
in use.
Press OK to select SENSITIVITY.
Press or to choose the sensitivity level.
Press OK to confirm your selection. The
screen displays SAVED and you hear a
confirmation tone.
1.
2.
3.
4.
Install the battery as shown below.
NOTE
Make sure the supplied rechargeable battery with
the label THIS SIDE UP facing up.
•
User’s manual
DM521/DM521-2
Safe & Sound®
Digital Audio Monitor
BC
The parent unit runs on rechargeable battery or
AC power. To continuously monitor your baby,
make sure you use both battery and AC power
at the same time. With the battery alone, the
parent unit can cordlessly run for a short time
only.
NOTES
Use only the battery supplied with this product.
If the parent unit will not be used for a long time,
disconnect and remove the battery to prevent
possible leakage.
Without AC power charging, the battery gradually
discharges, even when the parent unit is switched
off.
•
•
•
Install the battery
Replace the battery
To replace the battery, unplug the battery
connector from the socket, and then pull the
battery out of the battery compartment. Follow
the steps above to install the battery.
Charge the parent unit battery
Once you have connected the parent unit or
installed its battery, it powers on automatically.
The battery icon indicates the battery status
(see the following table).
NOTES
The parent unit battery is fully charged after 11
hours of continuous charging.
It takes longer to charge the battery when the
parent unit is turned on. To shorten the charging
time, turn the parent unit off while charging.
The standby time varies depending on the
sensitivity level you set, your actual use and the
age of the battery.
Battery
indicators
Battery
status
Action
The battery
icon is off.
No battery is
installed. The
parent unit
can be used
only when it is
connected to
AC power.
Install the
parent unit
battery.
Charge
without
interruption
(at least 30
minutes).
LOW
BATTERY
and flash
on the
screen. The
light
flashes.
The battery
has very little
charge and
may be used
for only a short
time.
Charge
without
interruption
(about 30
minutes).
The battery
icon
becomes
solid .
The battery is
fully charged.
To keep
the battery
charged,
connect it to
AC power
when not in
use.
•
•
•
NOTE
This baby monitor is intended as an aid. It is not a
substitute for proper adult supervision, and should
not be used as such.
Test your audio monitor
You may test the baby monitor before initial use,
and at regular times thereafter.
CAUTION
For hearing protection, make sure the
parent unit is more than 2 meters (6.5 feet)
away from both baby units. If you hear any
high-pitched noise, move the parent unit
further until the noise stops. You can also
press on the parent unit to lower or
mute the noise.
Make sure your baby unit and parent unit
are on.
• If no connection between them, the parent unit
displays NOT LINKED and flashes.
• Move the parent unit closer to the baby unit to
re-link.
2. Speak towards the microphone of the baby
unit.
• You will hear the sound at the parent unit, and
see the visual sound indicators light up.
TIP
Increase the speaker volume of the parent unit if
you cannot hear the sounds transmitted from the
baby units.
•
•
1.
•
Before use

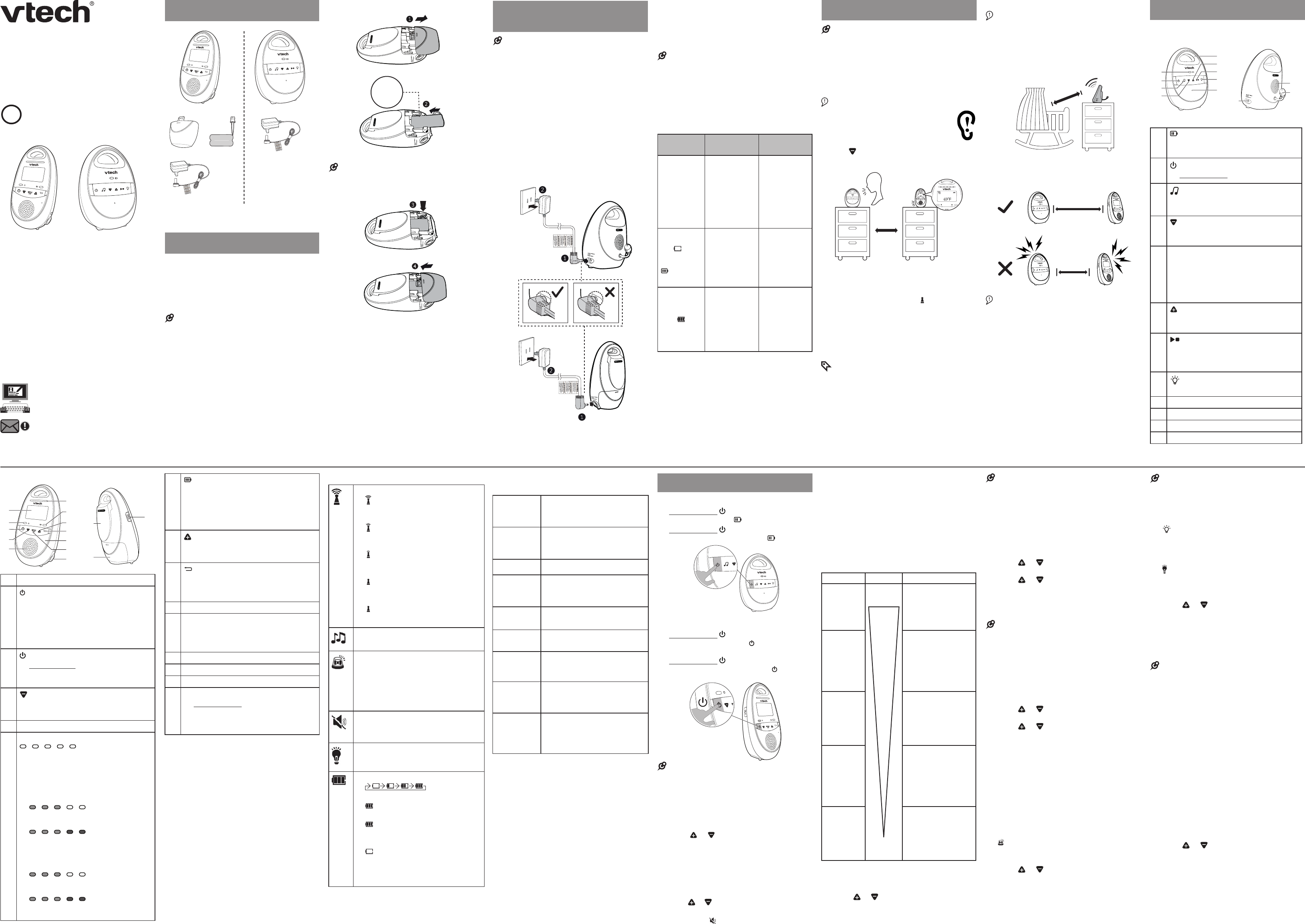

Baby unit overview
1 Power indicator
Light on when the baby unit is turned
on.
•
2 Power on/off
Press and hold to power on or off.•
3 Lullaby
Press to start playing the lullaby.
Press again to skip to the next lullaby.
•
•
4 Volume down
Press to decrease the talkback volume
transmitted from your parent unit.
•
5Night light
On when night light is turned on
manually or triggered by sound.
Off when night light is turned off
manually or after 15 minutes of
silence.
•
•
6 Volume up
Press to increase the talkback volume
transmitted from your parent unit.
•
7 Lullaby
Press to start playing the lullaby.
Press again to stop playing the
lullaby.
•
•
8 Night light on/off
Press to turn the night light on or off.•
9Microphone
10 Power jack
11 Speaker
12 Temperature sensor
Parent unit overview
1LCD display
2 Power indicator
Light on when the parent unit is
powered on.
Light flashes when there is no link
between baby unit and parent unit or
parent unit is out of range from the
baby unit.
•
•
3 Power on/off
Press and hold to power on or off.
While in a menu, press to return to idle
screen.
•
•
4 Volume down
Press to decrease the speaker volume.
While in a menu, press to scroll down.
•
•
5Speaker
6Visual sound indicator
The visual sound indicator has two
functions. One is to show the sound level
detected by the baby unit. The other
one is to show the volume level during
speaker volume setting.
Sound level detected by the baby unit
One to three green
lights indicate a moderate sound level
detected by the baby unit.
Additional red
lights indicate a higher sound level
detected by the baby unit (e.g. baby
crying loudly).
Speaker volume level
One to three green
lights indicate Level 1 to Level 3 of the
speaker volume setting.
Additional red
lights indicate Level 4 to Level 5 of
the speaker volume setting.
•
•
•
•
Overview
7 Battery level indicator
Light on when the battery is being
charged.
Light flashes when the battery is low
and needs charging.
Light off when no battery is installed.
•
•
•
8 Volume up
Press to increase the speaker volume.
While in a menu, press to scroll up.
•
•
9 Back
While in a menu, press to return to the
previous screen.
Press to return to idle screen.
•
•
10 Microphone
11 MENU/OK
Press to enter the menu while idle.
While in a menu, press to choose an
item, or save a setting.
•
•
12 Power jack
13 Belt clip
14 Battery compartment cover
15 TALK
Press and hold to talk to the baby unit;
release to stop talking.
While in a menu, press to return to
idle screen.
•
•
What’s in the box
1 set for DM521;
2 sets for DM521-2
Connect the baby monitor
NOTES
Use only the power adapters supplied with this
product.
Make sure the electrical outlets are not controlled
by wall switches.
The power adapters are intended to be correctly
oriented in a vertical or floor mount position. The
prongs are not designed to hold the plug in place if
it is plugged into a ceiling, under-the-table or cabinet
outlet.
Make sure the parent unit, the baby unit and the
power adapter cords are out of reach of children.
•
•
•
•
Connect and charge the
battery
Parent unit display icons
Connection status
displays when strong signal
strength is detected between the
baby unit and the parent unit.
displays when good signal
strength is detected between the
baby unit and the parent unit.
displays when moderate signal
strength is detected between the
baby unit and the parent unit.
displays when the weak signal
strength is detected between the
baby unit and the parent unit.
flashes when the link between the
baby unit and the parent unit is lost.
•
•
•
•
•
Lullaby
Displays when the lullaby is playing •
Sound alert
Displays when the sound alert of the
parent unit is turned on.
Flashes when there are loud sounds
detected from the baby unit and the
parent unit is in mute.
•
•
Mute
Displays when the volume is turned
off.
•
Night light
Displays when the night light is •
Battery status
animates when
the battery is charging.
displays solid when the battery is
fully charged.
flashes when the battery is
charged with AC adaptor, or charging
failure.
flashes when the battery is in low
level and needs charging.
No battery icon displays when there
is no battery installed.
•
•
•
•
•
Power on or off the baby unit
Press and hold to power on the baby unit.
The power indicator turns on.
Press and hold again to power off the
baby unit. The power indicator turns off.
Power on or off the parent unit
Press and hold to power on the parent
unit. The power indicator and the screen
turns on.
Press and hold again to power off the
parent unit. The power indicator and the
screen turns off.
NOTE
The parent unit powers on automatically once
it is connected to AC power or battery installed.
The baby unit also powers on automatically once
connected to AC power.
Adjust the speaker volume for baby
unit
Press or on the baby unit at any time.
Adjust the speaker volume for
parent unit
You can adjust the speaker volume from
VOLUME 1 toto VOLUME 5, or turn it off. The
speaker volume is preset to VOLUME 3.
Press or when the parent unit is not in use.
When the speaker volume is set to off, the
screen displays .
•
•
•
•
•
•
•
Using the baby monitor
NOTE
The sound alert setting on each parent unit is
independent.
Night light
You can turn on or off the night light by pressing
the button manually on the baby unit. You
can also use the parent unit to set the night light
on the baby unit to automatically turn on when
the baby unit detects a sound.
When the night light auto-on setting is turned
on, displays. The default setting is preset to
OFF.
Press MENU when the parent unit is not in
use.
Press or to choose NIGHTLIGHT,
then press OK.
Press OK to select ON? when the current
night light setting is OFF; or to select OFF?
when the current night light setting is ON.
The screen displays SAVED and you hear a
confirmation tone.
NOTES
To enter the night light menu of the parent unit,
the baby unit must be turned on.
Night light will automatically turn off after
15 minutes of silence.
Temperature
Your baby unit measures the surrounding
temperature. If the detected temperature falls
beyond a desired temperature range, the parent
unit will emit an alert tone, The screen will also
display HI TEMP or LOW TEMP.
You can change the settings for the temperature
format and range, or turn on or off the
temperature alert.
Set the temperature format
You can set the temperature format to celsius
(oC) or Fahrenheit (oF).
Press MENU when the parent unit is not in
use.
Press or to choose TEMPERATURE,
then press OK.
Press OK to select FORMAT.
Press OK to select CELSIUS? when
the current temperature format is
FAHRENHEIT; or to select FAHRENHEIT?
when the current temperature format is
CELSIUS. The screen displays SAVED and
you hear a confirmation tone.
•
1.
2.
3.
•
•
1.
2.
3.
4.
NOTE
To enter the sensitivity menu of the parent unit,
the baby unit must be turned on.
Language
You can select a language (English, French or
Spanish) to be used in all screen displays. The
language is preset to ENGLISH.
Press MENU when the parent unit is not in
use.
Press or to choose LANGUAGE, then
press OK.
Press or to choose ENGLISH,
FRANCAIS or ESPANOL.
Press OK to confirm your selection. The
screen displays SAVED and you hear a
confirmation tone.
NOTE
The language setting on each parent unit is
independent.
Lullaby
You can select your desired lullaby to play on
the baby unit. There are 5 lullabies for you to
choose from.
Press MENU when the parent unit is not in
use.
Press or to choose LULLABY, then
press OK.
Press or to choose your desired
lullaby, the press OK.
Press OK to select PLAY when the lullaby
is not playing, or to select STOP when
the lullaby is playing. The screen displays
SAVED and you hear a confirmation tone.
Sound alert
Sound alert feature works only when the parent
unit is in mute.
If you turn on the sound alert, the parent unit beeps
when the baby unit detects sounds which light up
four sound level indicators on the parent unit.
When the sound alert of the parent unit is turned
on, displays. The sound alert is preset to OFF.
Press MENU when the parent unit is not in
use.
Press or to choose SOUND ALERT,
then press OK.
Press OK to select ON? when the current
sound alert setting is OFF; or to select
OFF? when the current sound alert setting
is ON. The screen displays SAVED and you
hear a confirmation tone.
•
1.
2.
3.
4.
•
1.
2.
3.
4.
1.
2.
3.
Congratulations
on purchasing your new VTech product.
Before using this product, please read
Important safety instructions.
For support, shopping, and everything new at
VTech, visit our website at
www.vtechphones.com.
Register online to get an additional
3-month warranty!
Visit www.vtechphones.com.
Registration
Register your product online for
enhanced warranty support.
Product news
Learn about the latest VTech
products.
Positioning the baby monitor
CAUTIONS
Keep the baby unit out of the reach of the baby.
Never place or mount the baby unit inside the
baby’s crib or playpen.
Place the baby unit more than 1 meter
(3 feet) away from your baby.
2. Place the parent unit more than 2 meters
(6.5 feet) away from the baby unit.
CAUTION
The default volume of your parent unit is
VOLUME 3. If you experience high-pitched
screeching noise from your baby monitor while
positioning:
- Make sure your baby units and parent unit are
more than 2 meters (6.5 feet) apart, OR
- Turn down the volume of your parent unit.
Operating range
The operating range of the baby monitor is up to
300 meters (1,000 feet) outdoors or 50 meters
(160 feet) indoors. The actual operating range
may vary depending on the environmental
conditions, and other interferences such as
walls, doors, and other obstructions.
•
1.
•
Parent unit display screen
messages
LOW
BATTERY
The parent unit uses only the
rechargeable battery pack and it
needs to be recharged.
NOT
LINKED
The link between the parent
unit and the baby unit is lost
continuously for over 10 seconds.
SAVED Your selection has been saved.
SEARCHING The parent unit is out of range of
the baby unit, or the baby unit is
out of power.
TALK The parent unit is talking to the
baby unit.
TALKBACK The other parent unit is talking to
the baby unit.
HI TEMP The temperature detected from
the selected baby unit is above
the set maximum temperature.
LOW TEMP The temperature detected from
the selected baby unit is below
the set minimum temperature.
oF / oCThe real-time temperature
detected by the baby unit in
Celcius (oC) or Fahrenheit (oF)
(e.g. 14oC or 57oF).
High
sensitivity
Low
sensitivity
Level 5
Level 4
Level 3
Level 2
Level 1
i
h
g
c
b
d
f
a
ek
j
l
At least 1 meter
(3 feet)
< 3 feet / <
> 3 feet / >
THIS SIDE UP
c
e
g
h
i
b
a
d
f
j
k
l
mo
n
mo
n
LINKED
LINKED
THIS SIDE UP
At least 1 meter
(3 feet)
< 3 feet / <
> 3 feet / >
< 2 meters
(6.5 feet)
> 2 meters (6.5 feet)
> 1 meter
(3 feet)
At least 1 meter
(3 feet)
< 3 feet / <
> 3 feet / >
< 2 meters
(6.5 feet)
> 2 meters (6.5 feet)
> 1 meter
(3 feet)
What does this limited warranty cover?
The manufacturer of this VTech Product warrants to
the holder of a valid proof of purchase (“Consumer” or
“you”) that the Product and all accessories provided in
the sales package (“Product”) are free from defects in
material and workmanship, pursuant to the following
terms and conditions, when installed and used
normally and in accordance with the Product operating
instructions. This limited warranty extends only to the
Consumer for Products purchased and used in the
United States of America and Canada.
What will VTech do if the Product is not free from
defects in materials and workmanship during
the limited warranty period (“Materially Defective
Product”)?
During the limited warranty period, VTech’s authorized
service representative will repair or replace at
VTech’s option, without charge, a Materially Defective
Product. If we repair the Product, we may use new
or refurbished replacement parts. If we choose to
replace the Product, we may replace it with a new or
refurbished Product of the same or similar design.
We will retain defective parts, modules, or equipment.
Repair or replacement of the Product, at VTech’s
option, is your exclusive remedy. VTech will return the
repaired or replacement Products to you in working
condition. You should expect the repair or replacement
to take approximately 30 days.
How long is the limited warranty period?
The limited warranty period for the Product extends
for ONE (1) YEAR from the date of purchase. If VTech
repairs or replaces a Materially Defective Product under
the terms of this limited warranty, this limited warranty
also applies to the repaired or replacement Product for
a period of either (a) 90 days from the date the repaired
or replacement Product is shipped to you or (b) the time
remaining on the original one-year warranty; whichever
is longer.
What is not covered by this limited warranty?
This limited warranty does not cover:
Product that has been subjected to misuse,
accident, shipping or other physical damage,
improper installation, abnormal operation or
handling, neglect, inundation, fire, water or other
liquid intrusion; or
Product that has been damaged due to repair,
alteration or modification by anyone other than an
authorized service representative of VTech; or
Product to the extent that the problem experienced
is caused by signal conditions, network reliability, or
cable or antenna systems; or
Product to the extent that the problem is caused by
use with non-VTech accessories; or
Product whose warranty/quality stickers, product
1.
2.
3.
4.
5.
The RBRC® seal on the nickel-metal battery indicates
that VTech Communications, Inc. is voluntarily
participating in an industry program to collect and
recycle these batteries at the end of their useful lives,
when taken out of service within the United States and
Canada.
The RBRC® program provides a convenient alternative
to placing used nickel-metal batteries into the trash or
municipal waste, which may be illegal in your area.
VTech’s participation in RBRC® makes it easy for you to
drop off the spent battery at local retailers participating
in the RBRC® program or at authorized VTech product
service centers. Please call
1 (800) 8 BATTERY® for information on Ni-MH battery
recycling and disposal bans/restrictions in your
area. VTech’s involvement in this program is part of
its commitment to protecting our environment and
conserving natural resources.
RBRC® and 1 (800) 8 BATTERY®
are registered trademarks of
Rechargeable Battery Recycling
Corporation.
Frequently asked questions
The RBRC® seal
FCC and IC regulations
Limited warranty serial number plates or electronic serial numbers
have been removed, altered or rendered illegible; or
Product purchased, used, serviced, or shipped for
repair from outside the United States of America
or Canada, or used for commercial or institutional
purposes (including but not limited to Products
used for rental purposes); or
Product returned without a valid proof of purchase
(see item 2 on the next page); or
Charges for installation or set up, adjustment of
customer controls, and installation or repair of
systems outside the unit.
How do you get warranty service?
To obtain warranty service in the USA, please visit our
website at www.vtechphones.com or call
1 (800) 595-9511. In Canada, go to
www.vtechcanada.com or call 1 (800) 267-7377.
NOTE: Before calling for service, please review the
user’s manual - a check of the Product’s controls and
features may save you a service call.
Except as provided by applicable law, you assume the
risk of loss or damage during transit and transportation
and are responsible for delivery or handling charges
incurred in the transport of the Product(s) to the
service location. VTech will return repaired or replaced
Product under this limited warranty. Transportation,
delivery or handling charges are prepaid. VTech
assumes no risk for damage or loss of the Product
in transit. If the Product failure is not covered by this
limited warranty, or proof of purchase does not meet
the terms of this limited warranty, VTech will notify you
and will request that you authorize the cost of repair
prior to any further repair activity. You must pay for
the cost of repair and return shipping costs for the
repair of Products that are not covered by this limited
warranty.
What must you return with the Product to get
warranty service?
Return the entire original package and contents
including the Product to the VTech service location
along with a description of the malfunction or
difficulty; and
Include a “valid proof of purchase” (sales receipt)
identifying the Product purchased (Product model)
and the date of purchase or receipt; and
Provide your name, complete and correct mailing
address, and telephone number.
Other limitations
This warranty is the complete and exclusive
agreement between you and VTech. It supersedes
all other written or oral communications related to this
Product. VTech provides no other warranties for this
Product. The warranty exclusively describes all of
VTech’s responsibilities regarding the Product. There
are no other express warranties. No one is authorized
to make modifications to this limited warranty and you
6.
7.
8.
1.
2.
3.
Frequency
control
Crystal controlled PLL synthesizer
Transmit
frequency
Baby unit: 1921.536-1928.448 MHz
Parent unit: 1921.536-1928.448 MHz
Channels 5
LCD 35 (x) x 20 (y) mm B&W LCD
Nominal
effective
range
Maximum power allowed by FCC
and IC. Actual operating range may
vary according to environmental
conditions at the time of use.
Power
requirement
Parent unit: 2 X AAA 750mAH Ni-MH
rechargeable battery pack
Baby unit power adapter:
Input: 100-120V AC 150mA 60Hz
Output: 6V DC 400mA
Parent unit power adapter:
Input: 100-120V AC 150mA 60Hz
Output: 6V DC 400mA
Specifications are subject to change without notice.
© 2016 VTech Communications, Inc.
All rights reserved. 02/16. DM521_CIB_V1.0
should not rely on any such modification.
State/Provincial Law Rights: This warranty gives you
specific legal rights, and you may also have other rights,
which vary from state to state or province to province.
Limitations: Implied warranties, including those of
fitness for a particular purpose and merchantability (an
unwritten warranty that the Product is fit for ordinary
use) are limited to one year from the date of purchase.
Some states/provinces do not allow limitations on
how long an implied warranty lasts, so the above
limitation may not apply to you. In no event shall
VTech be liable for any indirect, special, incidental,
consequential, or similar damages (including, but
not limited to lost profits or revenue, inability to use
the Product or other associated equipment, the cost
of substitute equipment, and claims by third parties)
resulting from the use of this Product. Some states/
provinces do not allow the exclusion or limitation of
incidental or consequential damages, so the above
limitation or exclusion may not apply to you.
Please retain your original sales receipt as proof
of purchase.
Technical specifications
This baby monitor meets the California Energy
Commission (CEC) regulations for energy consumption.
Your baby monitor is set up to comply with the energy-
conserving standards right out of the box.
Follow the instructions to install and charge the
battery. The CEC battery charging testing mode is
activated while charging.
Even if the parent unit is paired to baby units, the CEC
battery charging testing mode is activated while it is
powered off and charging.
California Energy Commission
battery charging testing mode
Mesures de sécurité importantes
Lorsque vous utilisez votre appareil, vous devriez
toujours suivre certaines mesures de précaution
de base afin de réduire les risques d’incendie,
d’électrocution et de blessures corporelles, dont ceux
qui suivent:
Observez toutes les instructions et mises en garde
inscrites sur l’appareil.
L’installation par un adulte est requise.
Ce produit a été conçu pour être un dispositif
d’appoint seulement. Il n’est pas le remplacement
d’une supervision responsable et adéquate par un
adulte et ne devrait pas être utilisé comme telle.
Ce produit n’est pas conçu pour être utilisé en tant
que moniteur médical.
N’utilisez pas cet appareil près de l’eau ni de toute
autre source d’humidité, par exemple, près d’une
baignoire, cuve à lessive, évier de cuisine, dans
un sous-sol humide ni près d’une piscine, dans un
soussol humide ou une douche.
1.
2.
3.
4.
5.
For cETL compliance only
MISE EN GARDE: Il peut y avoir un risque
d’explosion si vous utilisez le mauvais type de
piles pour l’unité du parent. N’utilisez que le
bloc-piles rechargeable inclus ou le bloc-piles de
rechange (BT186692/BT286692). N’incinérez pas
les piles. Celles-ci risqueraient d’exploser. Jetez
les piles usées selon les renseignements suivant
le sceau du RBRCMD.
N’utilisez que les adaptateurs inclus avec ce
produit. L’utilisation d’un adaptateur dont la
polarité ou la tension serait inadéquate risque
d’endommager sérieusement le produit et mettre
votre sécurité en péril.
Adaptateur de l’unité du bébé: Entrée 100-120V
CA 150 mA 60 Hz; Sortie : 6 V CC 400 mA.
Adaptateur de l’unité du parent: Entrée 100-120V
CA 150 mA 60 Hz; Sortie : 6 V CC 400 mA.
Lorsqu’ils sont branchés dans une prise de
courant, les adaptateurs secteur ont été conçus
pour être orientés correctement, soit à la verticale
ou au plancher. Les broches n’ont pas été conçues
pour supporter le poids du bloc d’alimentation et
le maintenir en place si celuici est branché dans
une prise au plafond, sous une table ou dans un
meuble.
Pour les PRODUITS À BRANCHER À UNE
PRISE DE COURANT, la prise de courant doit
être installée près du produit, afin d’assurer une
accessibilité sécuritaire à la prise de courant.
Débranchez ce produit de la prise de courant
avant de procéder au nettoyage. N’utilisez pas de
nettoyants en aérosols. Utilisez un chiffon humide
pour le nettoyer.
Débranchez les cordons d’alimentation avant de
remplacer le bloc-piles.
Ne coupez pas les cordons d’alimentation pour
remplacer les fiches, car ceci peut présenter un
danger potentiel.
Ne laissez aucun objet reposer ni appuyer sur le
cordon d’alimentation. N’installez pas cet appareil
dans un endroit où l’on risque d’écraser le cordon
d’alimentation ou de le piétiner.
Ne faites fonctionner cet appareil qu’avec le type
d’alimentation indiqué sur l’étiquette. Si vous
ne connaissez pas le type d’alimentation que
vous possédez à votre domicile, consultez votre
marchand ou votre compagnie locale d’électricité.
Ne surchargez pas les prises de courant murales
ni les rallonges électriques.
Ne placez pas cet appareil sur un chariot, meuble,
trépied, support de montage ni table chancelants.
Les trous et ouvertures du boîtier, situés à l’arrière
de l’appareil ou sous celui-ci, servent à aérer
l’appareil. Pour l’empêcher de surchauffer, ne
bloquez sous aucun prétexte ces ouvertures et
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
FCC Part 15
This equipment has been tested and found to comply
with the requirements for a Class B digital device under
Part 15 of the Federal Communications Commission
(FCC) rules. These requirements are intended
to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance
with the instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can
be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by
one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment
and receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
Changes or modifications to this equipment not
expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
To ensure safety of users, the FCC has established
criteria for the amount of radio frequency energy
that can be safely absorbed by a user or bystander
according to the intended usage of the product. This
product has been tested and found to comply with the
FCC criteria. The baby unit shall be installed and used
such that parts of all persons’ body are maintained
at a distance of approximately 8 in (20 cm) or more.
The transmitter and antenna of the parent unit shall be
held at least 1 in (2.5 cm) from your face.
This Class B digital apparatus complies with Canadian
requirement:
CAN ICES-3 (B)/NMB-3(B)
Industry Canada
This device complies with Industry Canada licence-
exempt RSS standard(s).
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and
(2) this device must accept any interference, including
interference that may cause undesired operation.
The term ‘’IC:‘’ before the certification/registration
•
•
•
•
n’empêchez pas l’aération adéquate de l’appareil
en le plaçant sur un lit, divan, tapis ou toute autre
surface similaire. De même, ne le positionnez pas
à proximité ni au-dessus d’une source de chaleur
ou d’un calorifère. De plus, ne placez pas l’appareil
dans un endroit avant de vous assurer qu’il y ait
une bonne circulation d’air.
N’enfoncez jamais d’objets à travers les ouvertures
de cet appareil, car ils pourraient entrer en
contact avec des points de tension dangereux ou
causer des courts-circuits qui peuvent dégénérer
en incendies ou en risques d’électrocution. Ne
renversez jamais de liquide dans ce produit.
Afin de réduire les risques d’électrocution, ne
démontez pas cet appareil, mais apportez-le dans
un centre de service autorisé. L’ouverture du
boîtier ou le retrait de toutes pièces que contient
cet appareil, à l’exception de l’accès autorisé à
certaines portes ou ouvertures, risque de vous
exposer à des points de tension dangereux ou
d’autres dangers. Un remontage incorrect peut par
la suite présenter des risques d’électrocution.
Vous devriez tester la réception chaque fois que
vous mettez l’appareil en fonction.
Examinez les composantes afin de vérifier si
celles-ci ne sont pas endommagées.
Soyez avisé de la perte de la confidentialité
lorsque vous utilisez les ondes publiques. Les
conversations peuvent être entendues par d’autres
moniteurs de bébé, des téléphones sans fil, des
scanneurs, etc.
Les enfants devraient être supervisés afin de vous
assurer qu’ils ne jouent pas avec l’appareil.
Le produit n’est pas conçu pour être utilisé par des
personnes (incluant des enfants) aux capacités
physiques, sensorielles ou mentales réduites ou
qui manquent d’expérience et de connaissances,
à moins qu’on leur ait donné suffisamment
de supervision ou d’instructions relativement
à l’utilisation de l’appareil par une personne
responsable de leur sécurité.
CONSERVEZ CES INSTRUCTIONS
18.
19.
20.
21.
22.
23.
24.
Mises en garde
Utilisez et entreposez le produit à une température
entre 0˚ C (32˚F) et 40˚C (104˚ F).
N’exposez pas cet appareil à des froids ou des
chaleurs extrêmes, ainsi qu’à la lumière directe
du soleil. Ne l’installez pas près d’une source de
chauffage.
Le bloc-piles ne doit pas être exposé à la chaleur
excessive telle que la lumière du soleil ou au feu.
1.
2.
3.
Assurez-vous que le moniteur et le cordon
de l’adaptateur sont toujours hors de portée
des enfants, à au moins 1 mètre (3 pieds) de
l’enfant ou du berceau, pour éviter tout risque de
strangulation.
Ne jamais placer le moniteur à l’intérieur du
berceau ou du parc de bébé. Ne jamais couvrir le
moniteur ou l’unité (s) portative avec un article tel
une serviette ou une couverture.
D’autres équipements électroniques peuvent
produire des interférences sur votre moniteur vidéo
et audio. Tentez d’installer votre moniteur vidéo
ou audio à l’écart des appareils électroniques
tels que des routeurs sans fil, radios, téléphones
cellulaires, interphones, moniteurs, téléphones,
ordinateurs personnels, électroménagers et
téléphones sans fil.
Stimulateurs cardiaques implantés dans
l’organisme
Les simulateurs cardiaques (ne s’applique qu’aux
dispositifs numériques sans fil):
L’organisme ‘Wireless Technology Research, LLC
(WTR)’, une firme de recherche indépendante,
a mené une évaluation pluridisciplinaire des
interférences entre les téléphones sans fil portatifs
et les stimulateurs cardiaques implantés dans
l’organisme. Appuyée par l’Administration des
aliments et drogues (FDA) des États-Unis, la firme
WTR recommande aux médecins:
Avis aux détenteurs de stimulateurs cardiaques
Vous devriez maintenir les dispositifs sans fil à au
moins six pouces du simulateur cardiaque.
Ils ne doivent PAS placer le téléphone sans fil
directement sur le stimulateur cardiaque, tel que
dans une poche de chemise, lorsque celui-ci est
en marche.
L’étude effectuée par l’organisme WRS n’a pas
identifié de risque pour les détenteurs de simulateurs
cardiaques causés par les gens qui utilisent dispositifs
sans fil à proximité de ceux-ci.
Champs électromagnétiques (EMF)
Ce produit de VTech est conforme à toutes les normes
se rapportant aux champs électromagnétiques (EMF)
standard. Si vous le manipulez correctement en
suivant les instructions de ce guide, son utilisation
sera sécuritaire pendant de nombreuses années,
selon les meilleures évidences scientifiques dont nous
disposons aujourd’hui.
4.
5.
6.
•
•
When using your equipment, basic safety
precautions should always be followed to
reduce the risk of fire, electric shock and injury,
including the following:
Follow all warnings and instructions marked
on the product.
Adult setup is required.
This product is intended as an aid. It is not
a substitute for responsible and proper adult
supervision and should not be used as such.
This product is not intended for use as a
medical monitor.
Do not use this product near water. For
example, do not use it next to a bath tub, wash
bowl, kitchen sink, laundry tub or swimming
pool, or in a wet basement or shower.
6. CAUTION: Use only the batteries indicated in
this manual. There may be a risk of explosion
1.
2.
3.
4.
5.
if a wrong type of battery is used for the parent
unit. Use only the supplied rechargeable battery
or replacement battery pack (BT186692/
BT286692) for the parent unit. Do not dispose
of batteries in a fire. They may explode.
Dispose of used battery according to the
information in The RBRC® seal.
7. Use only the adapters included with this
product. Incorrect adapter polarity or voltage
can seriously damage the product.
Baby unit power adapter: Input 100-120V AC
150mA 60Hz; Output: 6V DC 400mA;
Parent unit power adapter: Input 100-120V
AC 150mA 60Hz; Output: 6V DC 400mA.
8. The power adapters are intended to be
correctly oriented in a vertical or floor mount
position. The prongs are not designed to hold
the plug in place if it is plugged into a ceiling,
under-the-table or cabinet outlet.
9. For pluggable equipment, the socket-outlet
shall be installed near the equipment and
shall be easily accessible.
10.Unplug this product from the wall outlet
before cleaning. Do not use liquid or aerosol
cleaners. Use a damp cloth for cleaning.
11.Unplug the power cords before replacing
batteries.
12.Do not cut off the power adapters to replace
them with other plugs, as this causes a
hazardous situation.
13.Do not allow anything to rest on the power
cords. Do not install this product where the
cords may be walked on or crimped.
14.This product should be operated only from
the type of power source indicated on the
marking label. If you are not sure of the type
of power supply in your home, consult your
dealer or local power company.
15.Do not overload wall outlets or use an
extension cord.
16.Do not place this product on an unstable
table, shelf, stand or other unstable surfaces.
17.This product should not be placed in any
area where proper ventilation is not provided.
Slots and openings in the back or bottom
of this product are provided for ventilation.
To protect them from overheating, these
openings must not be blocked by placing the
product on a soft surface such as a bed, sofa
or rug. This product should never be placed
near or over a radiator or heat register.
18.Never push objects of any kind into this
product through the slots because they may
touch dangerous voltage points or create a
short circuit. Never spill liquid of any kind on
the product.
Important safety
instructions
Cautions
Use and store the product at a temperature
between 32oF and 104oF.
Do not expose the product to extreme cold,
heat or direct sunlight. Do not put the product
close to a heating source.
Batteries should not be exposed to excessive
heat such as bright sunshine or fire.
Make sure the baby unit(s) and the adapter
cord(s) are always out of reach of the baby,
at least 3 feet away from the baby or crib, to
avoid a possible strangulation hazard.
Never place the baby unit(s) inside the
baby’s crib or playpen. Never cover the baby
unit(s) or parent unit with anything such as a
towel or a blanket.
Other electronic products may cause
interference with your baby monitor. Try
installing your baby monitor as far away
from these electronic devices as possible:
wireless routers, radios, cellular telephones,
intercoms, room monitors, televisions,
personal computers, kitchen appliances and
cordless telephones.
1.
2.
3.
4.
5.
6.
Below are the questions most frequently asked about
the baby monitor. If you cannot find the answer to your
question, visit our website at www.vtechphones.com
or call 1 (800) 595-9511 for customer service.
Why does the
baby monitor
not respond
normally?
Try the following (in the order
listed) for common cure:
1. Disconnect the power to the
baby unit and the parent units.
2. Remove the batteries in the
parent units. Then, install the
batteries again.
3. Wait a few minutes before
connecting power back to the
baby units and the parent unit.
4. Turn on the baby unit and the
parent units.
5. Wait for the parent units to
synchronize with the baby unit.
Allow up to one minute for this
to take place.
Why doesn’t
the screen of
the parent unit
go on when I
switch on the
unit?
Perhaps the rechargeable battery
of the parent unit is empty and the
parent unit is not connected to the
power. Insert the appliance plug
into the parent unit and put the
adapter in a wall socket.
Why doesn’t the
POWER light
of the baby unit
go on when I
switch on the
unit?
Perhaps the baby unit is not
connected to the power. Connect
the baby unit to the power.
Why does the
baby monitor
produce a
high-pitched
noise?
The units may be too close to
each other.
• Move the parent unit away from
the baby unit until the noise
stops; OR
• Turn down the volume of your
parent unit.
Why does the
parent unit react
too quickly to
other sounds?
The baby unit also detects other
sounds than those of your baby.
Adjust the sensitivity level to a
lower level or adjust the speaker
volume on the parent unit.
Set the temperature range
You can set the desired minimum and maximum
room temperature of the baby unit, so that the
parent unit will alert you when the temperature
is too high or too low.
To set the minimum temperature:
Press MENU when the parent unit is not in
use.
Press or to choose TEMPERATURE,
then press OK.
Press or to choose MINIMUM, then
press OK.
Press or to adjust the minimumadjust the minimum
temperature between 52 F and 69 F
(11 C and 20 C).
Press OK to confirm your selection. The
screen displays Saved and you hear a
confirmation tone.
To set the maximum temperature:
Press MENU when the parent uni:t is not in
use.
Press or to choose TEMPERATURE,
then press OK.
Press or to choose MAXIMUM, then
press OK.
Press or to adjust the maximumadjust the maximum
temperature between 70 F and 86 F
(21 C and 30 C).
Press OK to confirm your selection. The
screen displays Saved and you hear a
confirmation tone.
Set the temperature alert
You can set whether the parent unit beeps
whenever the temperature is out of the preset
temperature range.
Press MENU when the parent unit is not in
use.
Press or to choose TEMPERATURE,
then press OK.
Press or to choose ALERT ON/OFF,
then press OK.
Press OK to select ON? when the current
temperature alert setting is OFF; or to select
OFF? when the current temperature alert
setting is ON. The screen displays SAVED
and you hear a confirmation tone.
1.
2.
3.
4.
5.
1.
2.
3.
4.
5.
1.
2.
3.
4.
Why don’t I
hear a sound/
Why can’t I hear
my baby cry?
The volume of the parent unit
may have set too low. Press
to increase the volume level.
You may have set a low sound
sensitivity level. See Adjust the
sound sensitivity of the baby
unit to change the setting.
Why does the
parent unit
beep?
If the parent unit is in mute and
the sound alert feature is on,
there is sound detected from the
baby unit.
The baby units may be out of
range. Move the parent unit
closer to the baby units (but not
less than 6.5 feet).
If the parent unit is powered
by the provided battery, it may
not have enough charge for the
parent unit to perform normally.
Charge the battery in the parent
unit for up to 11 hours.
Why can’t I
establish a
connection?
Why is the
connection lost
every now and
then? Why are
there sound
interruptions?
The baby units may be out of
range. Move the parent unit
closer to the baby units (but not
less than 6.5 feet).
Other electronic products may
cause interference with your baby
monitor. Try installing your baby
monitor as far away from these
electronic devices as possible.
19.To reduce the risk of electric shock, do
not disassemble this product, but take it to
an authorized service facility. Opening or
removing parts of the product other than
specified access doors may expose you to
dangerous voltages or other risks. Incorrect
reassembling can cause electric shock when
the product is subsequently used.
20.You should test the sound reception every
time you turn on the units or move one of the
components.
21.Periodically examine all components
for damage.
22.Be aware of possible loss of privacy while
using public airwaves. Conversations may
be picked up by other nursery monitors,
cordless phones, scanners, etc.
23.Children should be supervised to ensure that
they do not play with the product.
24.The product is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
SAVE THESE INSTRUCTIONS
Precautions for users of implanted cardiac
pacemakers
Cardiac pacemakers (applies only to digital
cordless devices):
Wireless Technology Research, LLC (WTR),
an independent research entity, led a
multidisciplinary evaluation of the interference
between portable wireless devices and
implanted cardiac pacemakers. Supported by
the U.S. Food and Drug Administration, WTR
recommends to physicians that:
Pacemaker patients
Should keep wireless devices at least six
inches from the pacemaker.
Should NOT place wireless devices directly
over the pacemaker, such as in a breast
pocket, when it is turned ON.
WTR’s evaluation did not identify any risk to
bystanders with pacemakers from other persons
using wireless devices.
Electromagnetic fields (EMF)
This VTech product complies with all standards
regarding electromagnetic fields (EMF). If handled
properly and according to the instructions in this
user’s manual, the product is safe to be used based
on scientific evidence available today.
•
•
number only signifies that the Industry Canada
technical specifications were met.
This product meets the applicable Industry Canada
technical specifications.
RF radiation exposure statement
The baby unit complies with FCC RF radiation
exposure limits set forth for an uncontrolled
environment. The baby unit should be installed and
operated with a minimum distance of 8 in (20 cm)
between the baby unit and all persons’ body. Use of
other accessories may not ensure compliance with
FCC RF exposure guidelines. This transmitter must
not be co-located or operating in conjunction with any
other antenna or transmitter. This equipment complies
also with Industry Canada RSS-102 with respect to
Canada’s Health Code 6 for Exposure of Humans to
RF Fields.
Reset to default
Use this feature to restore to the default
settings. Restoring the default settings on one
parent unit will also reset the shared settings for
sensitivity and night light auto-on feature of the
other parent unit.
Press MENU when the parent unit is not in
use.
Press or to choose RESET, then press
OK.
When the parent unit displays CONFIRM?,
press OK. The screen return to idle and you
hear a confirmation tone.
Talk to the baby unit
You can broadcast messages from a parent unit to
the baby unit and the other parent unit. If you have
two parent units, you can use both of them at the
same time to talk to the baby unit.
Press and hold TALK on the side of the
parent unit. The screen displays TALK when
the voice connection to the baby unit is
made. Speak towards the Microphone on
the parent unit. Your voice is broadcast to the
baby unit and the other parent unit.
NOTE
When a parent unit is talking to the baby unit, it is
also broadcast to the other parent unit. However,
sounds from the baby unit cannot be transmitted
to the parent units at the moment.
1.
2.
3.
•
•
General product care
To keep this product working well and looking good,
follow these guidelines:
Avoid putting it near heating appliances and devices
that generate electrical noise (for example, motors
or fluorescent lamps).
DO NOT expose it to direct sunlight or moisture.
Avoid dropping the product or treating it roughly.
Clean with a soft cloth.
DO NOT immerse the parent unit and the baby
unit in water and do not clean them under the tap.
DO NOT use cleaning spray or liquid cleaners.
Make sure the baby unit and parent unit are dry
before you connect them to the mains again.
Storage
When you are not going to use the baby monitor for
some time, remove the rechargeable battery from the
parent unit. Store the parent unit, the baby unit and
the adapters in a cool and dry place.
•
•
•
•
•
•
•
