Congratulations
on purchasing your new VTech product.
Before using this telephone, please read
the Important safety instructions
on page 32 of this manual.
This manual has all the feature operations and troubleshooting necessary
to install and operate your new VTech telephone. Please review this manual
thoroughly to ensure proper installation and operation of this innovative and
feature rich VTech product. For support, shopping, and everything new at
VTech, visit our website at www.vtechphones.com.
In Canada, please visit www.vtechcanada.com.
www.vtechphones.com
Table of contents
ii
Getting started . . . . . . . . . . . . . . . 1
Parts checklist . . . . . . . . . . . . . . . . 1
Telephone base installation. . . . . . . . . . 2
Battery installation and charging.......
3
Wall mounting. . . . . . . . . . . . . . . . . 4
Handset layout . . . . . . . . . . . . . . . . 5
Telephone base layout............6
Telephone settings . . . . . . . . . . . . . 7
Date and time . . . . . . . . . . . . . . . . . 7
Ringer. . . . . . . . . . . . . . . . . . . . . 8
Ringer volume . . . . . . . . . . . . . . . . 8
Dial mode . . . . . . . . . . . . . . . . . . . 9
Home area code . . . . . . . . . . . . . . . 9
Language . . . . . . . . . . . . . . . . . . 10
Clear voice mail. . . . . . . . . . . . . . . 10
Telephone operation . . . . . . . . . . . 11
Make calls . . . . . . . . . . . . . . . . . 11
Answer calls . . . . . . . . . . . . . . . . 11
End calls . . . . . . . . . . . . . . . . . . 11
Volume...................11
Channel . . . . . . . . . . . . . . . . . . . 11
Call waiting.................12
Temporary tone dialing...........12
Redial . . . . . . . . . . . . . . . . . . . . 13
Find handset . . . . . . . . . . . . . . . . 13
Directory . . . . . . . . . . . . . . . . . . 14
Store a directory entry . . . . . . . . . . . 14
Character chart...............15
Edit a directory entry............16
Delete a directory entry . . . . . . . . . . . 17
Move a directory entry into speed dial . . . 18
Dial a number from the directory......18
Speed dial . . . . . . . . . . . . . . . . . 19
Store a speed dial entry . . . . . . . . . . 19
Edit a speed dial entry . . . . . . . . . . . 20
Delete a speed dial entry . . . . . . . . . . 21
www.vtechphones.com iii
Table of contents
Dial a speed dial number..........21
Reassign speed dial locations . . . . . . . 22
About caller ID . . . . . . . . . . . . . . . 23
Call log . . . . . . . . . . . . . . . . . . . 24
Review the call log.............
25
Make a call log entry ready to dial . . . . . 25
Dial a call log number. . . . . . . . . . . . 26
Save a call log entry to the directory....
27
Delete from the call log...........28
Call log display screen messages . . . . . 29
Appendix . . . . . . . . . . . . . . . . . . 30
Handset display screen messages . . . . . 30
Battery . . . . . . . . . . . . . . . . . . . 31
Important safety instructions ........
32
Troubleshooting. . . . . . . . . . . . . . . 33
Operating range . . . . . . . . . . . . . . 42
Maintenance . . . . . . . . . . . . . . . . 42
About cordless telephones.........43
Warranty . . . . . . . . . . . . . . . . . . 43
FCC, ACTA and IC regulations.......
45
The RBRC® seal . . . . . . . . . . . . . . 46
6GEJPKECNURGEKſECVKQPU . . . . . . . . . . 47
Index . . . . . . . . . . . . . . . . . . . . 48
www.vtechphones.com 1
Getting started Basic operation
Getting started
To purchase
replacement
battery or power
adapter, visit our
website at www.
vtechphones.
com or call
1 (800) 595-9511.
In Canada, go to
www.vtechcanada.
com or call 1 (800)
267-7377.
•
7. User’s manual
1. Handset
6. Telephone base
3. Telephone base
power adapter
2. Telephone line cord
5. Battery
4. Battery compartment
cover

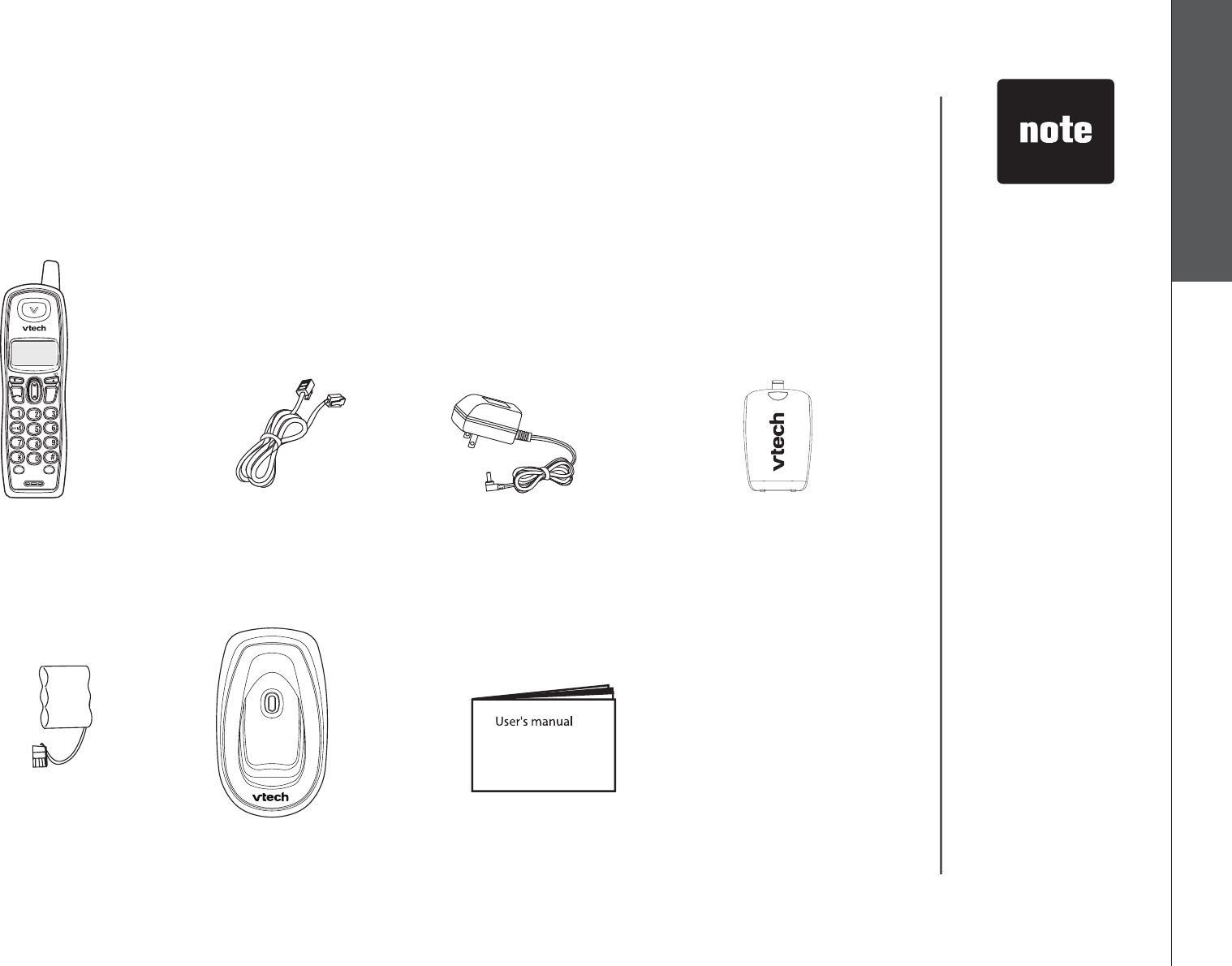

Parts checklist
Your telephone contains the following items. Save your sales receipt and original
packaging in case your telephone needs warranty service.
FLASH
OFF
TALK
PROG
REDIALCHAN
DELE TE PAUSE
DEF
JKL
PQRS
WXYZ
OPER
TUV
MNO
TONE
ABC
VOL-/CID
SELECT
VOL+/
F
I
N
D
H
A
N
D
S
E
T
www.vtechphones.com
2
Getting started
Use only the
power adapter
supplied with this
product. To order
a replacement,
visit our website at
www.vtechphones.
com or call
1 (800) 595-9511.
In Canada, go to
www.vtechcanada.
com or call 1 (800)
267-7377.
The power unit
is intended to be
correctly oriented
in a vertical
QTƀQQTOQWPV
position. The
prongs are not
designed to hold
the plug in place
if it is plugged into
a ceiling or an
under-the-table/
cabinet outlet.
•
•

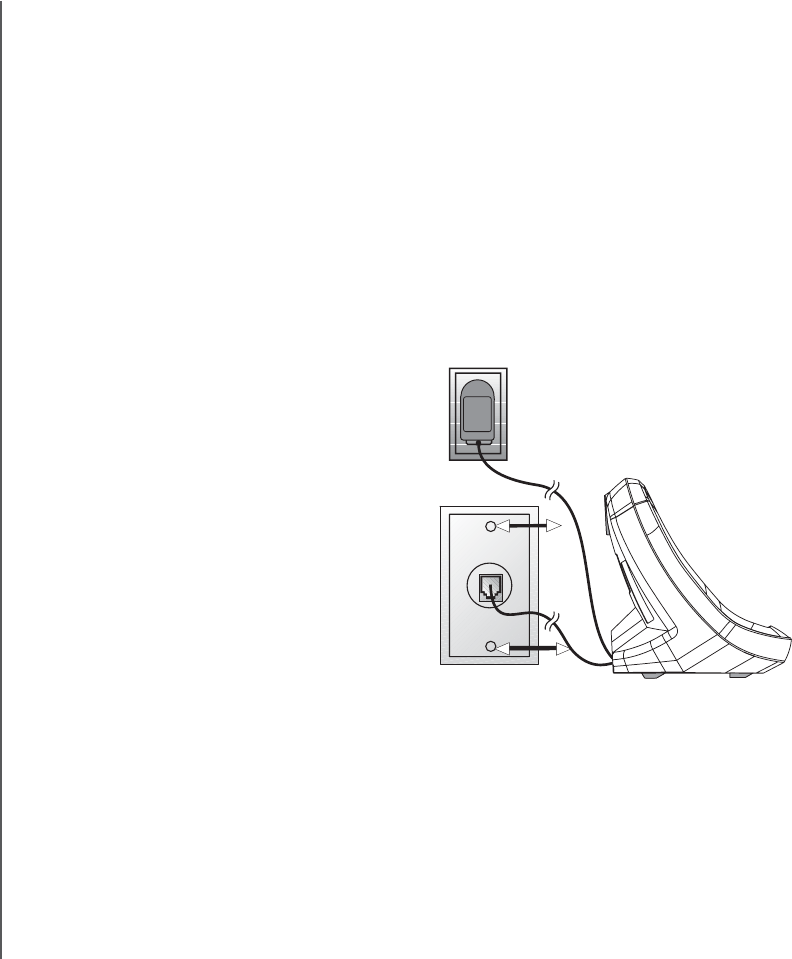

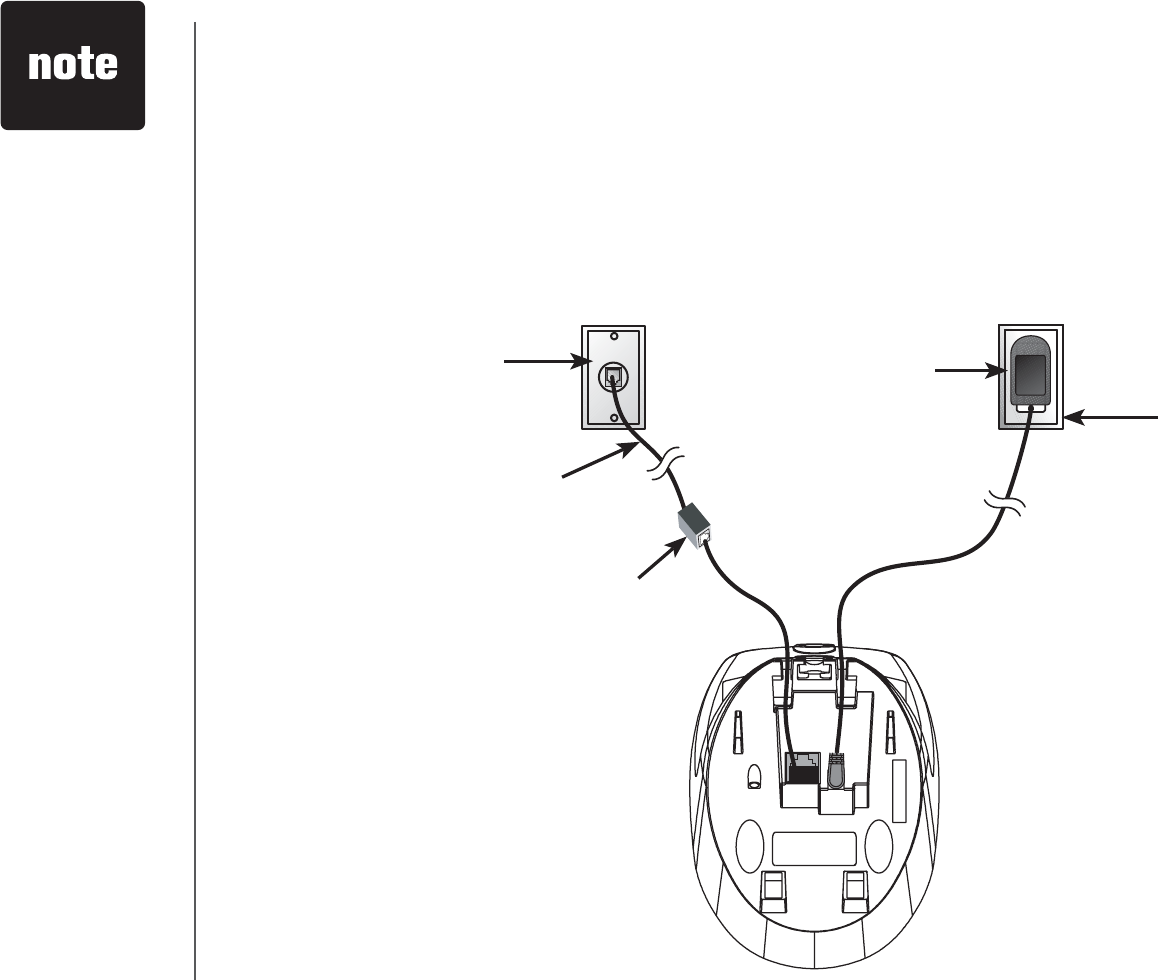

Telephone base
Telephone line cord
Electrical outlet
(not controlled by
a wall switch)
Telephone base
power adapter
Telephone
wall jack
&5.ſNVGTPQVKPENWFGF
for DSL users
Telephone base installation
Install the telephone base as shown below. Make sure that the electrical outlet is
not controlled by a wall switch. Also, if you receive high speed internet through
your telephone line (commonly referred to as DSL), you may need to install a DSL
ſNVGTVQVJGVGNGRJQPGNKPGDGVYGGPVJGVGNGRJQPGDCUGCPFVJGVGNGRJQPGYCNN
LCEM%QPVCEV[QWT&5.UGTXKEGRTQXKFGTHQTOQTGKPHQTOCVKQPCDQWV&5.ſNVGTU
www.vtechphones.com 3
Getting started Basic operation
Getting started
If the handset will
not be used for
a long period of
time, remove the
battery to prevent
possible leakage.
To purchase a
replacement
battery, visit our
website at www.
vtechphones.
com or call
1 (800) 595-9511.
In Canada, go to
www.vtechcanada.
com or call 1 (800)
267-7377.
•
•

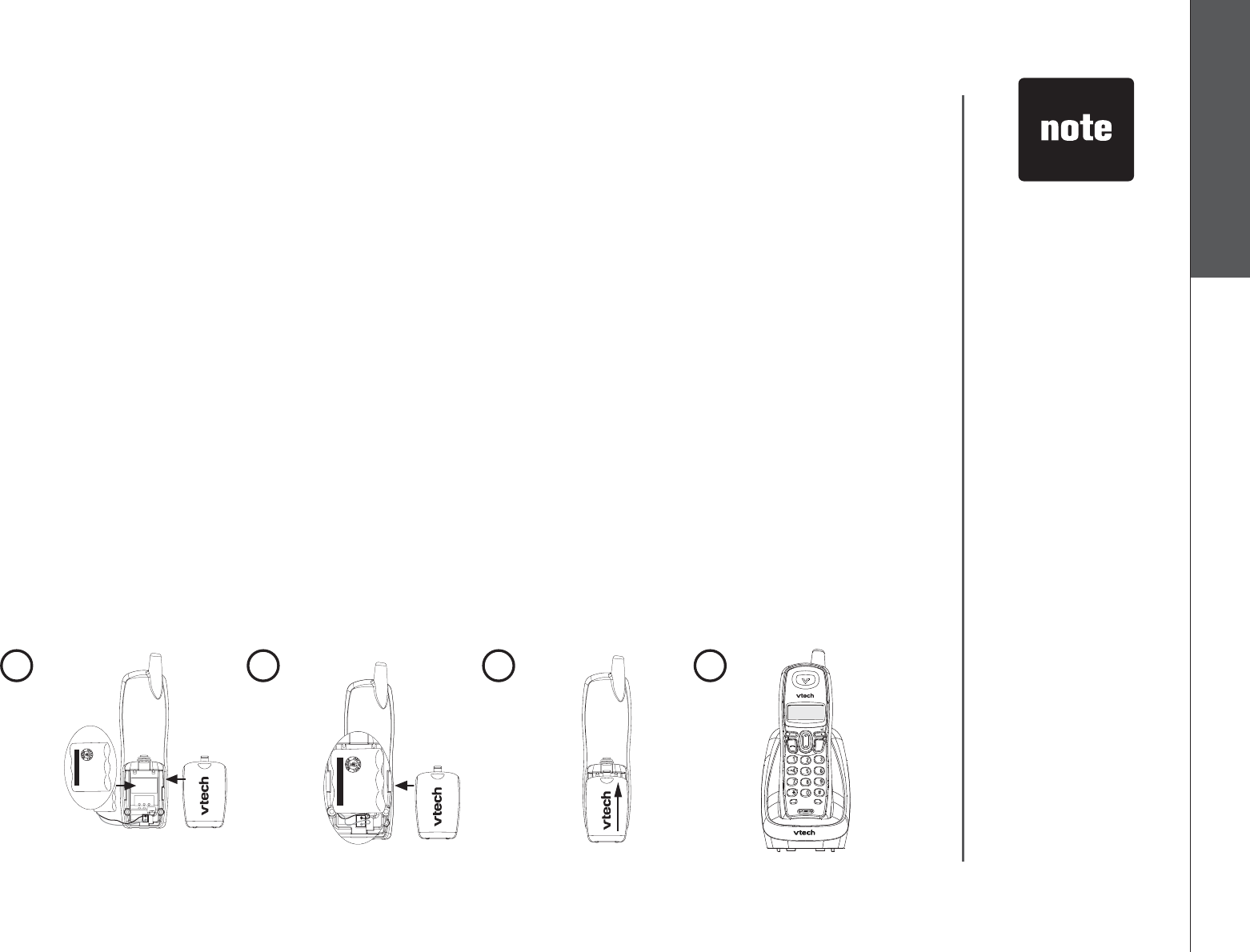

Battery installation and charging
Install the battery as shown below. The battery may have enough charge for short
calls. For best performance, charge the battery for at least 16 hours before use.
When the battery power is low, BATTERY LOW will be displayed on the handset
screen. When fully charged, the handset battery provides approximately three
and a half hours talk time and three and a half days of standby time.
Insert the plug of the battery as indicated. Make sure it is plugged securely
and matches the color-coded label inside the battery compartment.
Place the battery with the label THIS SIDE UP facing up and the wires inside
the battery compartment.
#NKIPVJGEQXGTƀCVCICKPUVVJGDCVVGT[EQORCTVOGPVVJGPUNKFGKVWRYCTFU
until it clicks into place.
Charge the handset by placing it in the telephone base and CHARGING... will
be displayed on the handset screen.
1.
2.
3.
4.
1234
FLASH
OFF
TALK
PROG
REDIAL
CHAN
DELETE PAUSE
DEF
JKL
PQRS
WXYZ
OPER
TUV
MNO
TONE
ABC
VOL-/CID
SELECT
VOL+/
THIS SIDE UP
Battery Pack
BT-17233/BT-27233
3.6V 300mAh Ni-Cd
ARNING: DO NOT BURN OR
PUNCTURE BATTERIES
MADE IN CHINA
THIS SIDE UP
Battery Pack
BT-17233/BT-27233
3.6V 300mAh Ni-Cd
ARNING: DO NOT BURN OR
PUNCTURE BATTERIES
MADE IN CHINA
THIS SIDE UP
Battery Pack
BT-17233/BT-27233
3.6V 300mAh Ni-Cd
ARNING: DO NOT BURN OR
PUNCTURE BATTERIES
MADE IN CHINA
THIS SIDE UP
Battery Pack
BT-17233/BT-27233
3.6V 300mAh Ni-Cd
ARNING: DO NOT BURN OR
PUNCTURE BATTERIES
MADE IN CHINA
www.vtechphones.com
4
Getting started
Wall mounting
Your telephone base is ready for desktop use. If you prefer to mount your
telephone on the wall (optional), it is designed to mount on a standard telephone
wall plate.
You can mount the telephone base on the wall by positioning it so the mounting
UVWFUYKNNſVKPVQVJGJQNGUQPVJGVGNGRJQPGDCUGCPFOQWPVKPIDTCEMGV5NKFG
the telephone base down on the mounting studs until it locks into place.
www.vtechphones.com 5
Getting started Basic operation
Getting started

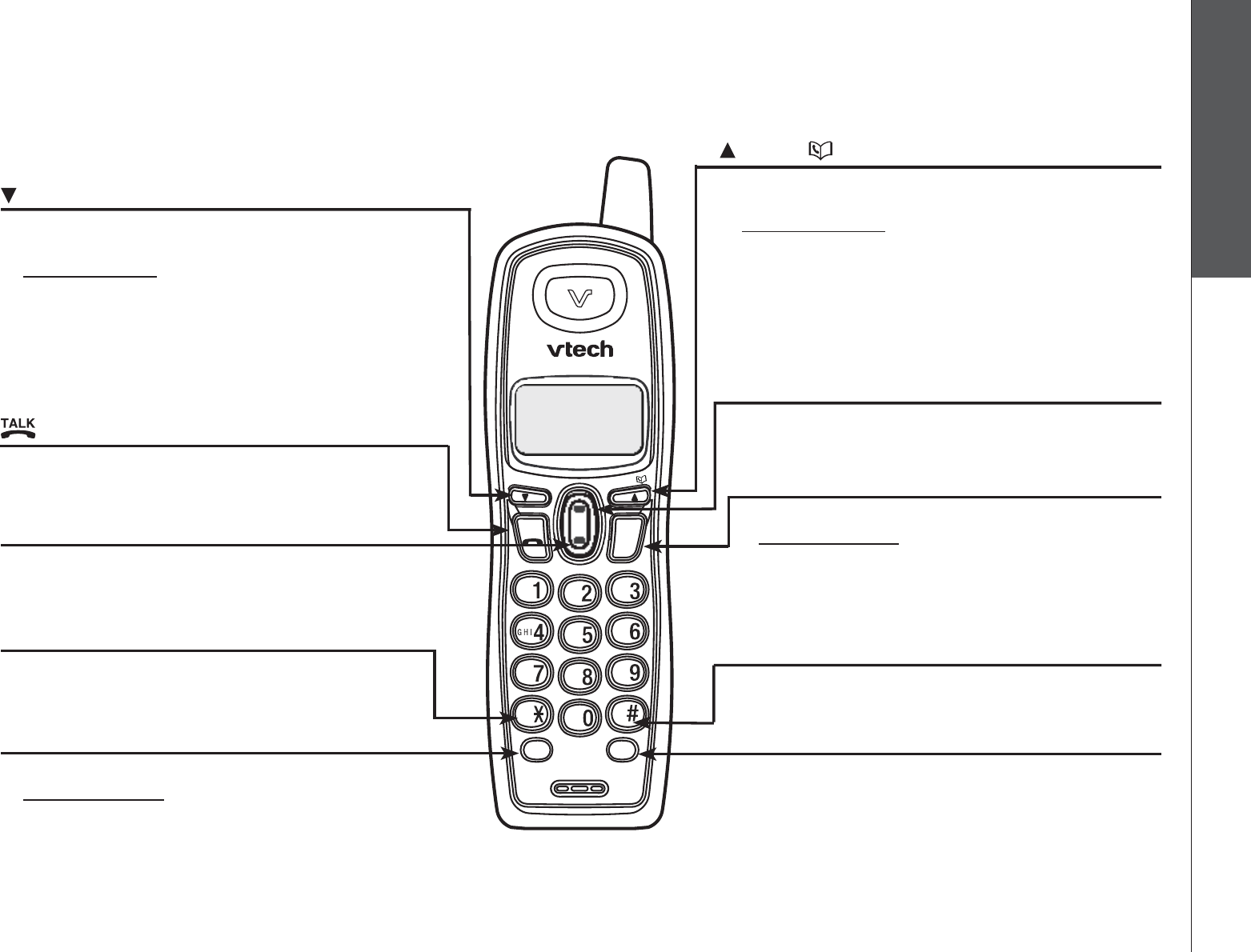

Handset layout
/VOL-/CID
• When the telephone is not in use, press to
review the call log.
•Press and hold to adjust the ringer volume when
in idle mode.
• During a call, press to decrease the listening
volume. A double beep will sound at the
lowest setting.
• Press to scroll down while in programming
mode.
PROG
• Press to enter programming mode while the
telephone is not in use.
/FLASH
• Press to make or answer a call.
• During a call, press to receive an incoming
call when you receive a call waiting alert.
CHAN/DELETE
• Switch to a clearer channel while on a call.
• Press and hold to delete all records in the
call log when in idle mode.
When reviewing the call log or redial list,
press to delete the desired record.
•
/VOL+/
• Press to display the directory when the
telephone is not in use.
• Press and hold to adjust the ringer volume
when the telephone is not in use.
• During a call, press to increase the listening
volume. A double beep will sound when the
highest setting is reached.
Press to scroll up while in programming
mode.
•
FLASH
OFF
TALK
PROG
REDIALCHAN
DEL ETE PAUSE
DEF
JKL
PQRS
WXYZ
OPER
TUV
MNO
TONE
ABC
VOL-/CID
SELECT
VOL+/
SELECT
• Press to store a programming option or a
directory entry.
OFF
• During a call, press to hang up.
• Press and hold for two seconds when
the telephone is not in use to erase the
MISSED CALLS display.
• During programming, press to exit without
making changes.
REDIAL/PAUSE
• Press repeatedly to review the redial list .
• While dialing or entering numbers into the
directory, press to insert a dialing pause.
TONE*
• Press to switch to tone dialing temporarily
when using the pulse service (page 12).
#
•
Press repeatedly to display other dialing
options when reviewing the call log (page 25).
www.vtechphones.com
6
Getting started

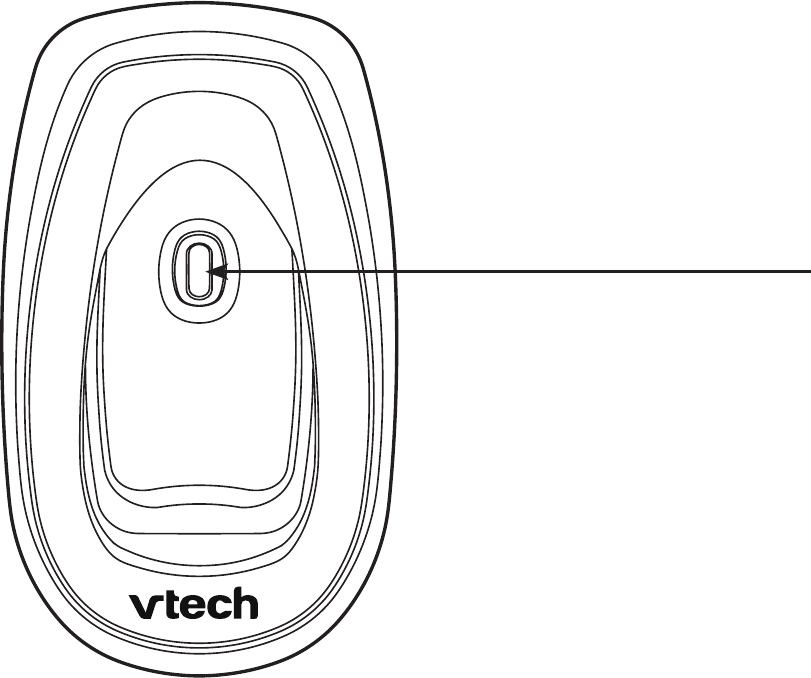

Telephone base layout
F
I
N
D
H
A
N
D
S
E
T
FIND HANDSET
Press to page the handset.•
www.vtechphones.com 7
Basic operation
Telephone settings
Telephone settings
Date and time
If you subscribe to caller ID service, the date and time will be set automatically
with the next incoming call. If you do not have caller ID service, you can set the
date and time manually.
Press PROG when the handset is in idle mode.
Press or until DATE/TIME is displayed. Press SELECT.
9JGPVJGJQWTKUƀCUJKPIRTGUU or until the screen displays the correct
hour and then press SELECT.
9JGPVJGOKPWVGKUƀCUJKPIRTGUU or until the screen displays the correct
minute and then press SELECT.
When AM or PMKUƀCUJKPIRTGUU or to choose AM or PM and then press
SELECT.
9JGPVJGOQPVJKUƀCUJKPIRTGUU or until the screen displays the correct
month and then press SELECT.
9JGPVJGFC[KUƀCUJKPIRTGUU or until the screen displays the correct
day and then press SELECT.
;QWYKNNJGCTCEQPſTOCVKQPVQPG
1.
2.
3.
4.
5.
6.
7.
8.
In the event of a
power failure, the
time may need to
be reset.
•
www.vtechphones.com
8
Telephone settings
Ringer
You can select from the different ringers or turn the ringer off.
Press PROG when the handset is in idle mode.
Press or until the screen displays RINGER: and the current setting.
Press SELECT6JGEWTTGPVUGVVKPIƀCUJGUCPF[QWYKNNJGCTCUCORNGQH
the ringer.
Press or to select RINGER: 1,2,3,4 or OFF. You will hear a sample of
each ring tone.
Press SELECT VQEQPſTO[QWTUGNGEVKQP;QWYKNNJGCTCEQPſTOCVKQPVQPG
Ringer volume
You can change the ringer volume to a comfortable level or turn the ringer off.
When the handset is in idle mode, press and hold or until the screen displays
OFF LOW HI.
6JGEWTTGPVUGVVKPIƀCUJGUCPF[QWYKNNJGCTCUCORNGQHVJGTKPIGTXQNWOG
Press or to select ringer volume from OFF, LOW or HI. You will hear a
sample of the selected volume level.
Press SELECT VQEQPſTO[QWTUGNGEVKQP;QWYKNNJGCTCEQPſTOCVKQPVQPG
1.
2.
3.
4.
5.
1.
2.
3.
If the ringer is set
to off, RINGER
OFF and will
be displayed.
Even if the ringer
is set to off, the
handsets will
still ring when
you press FIND
HANDSET.
•
•
www.vtechphones.com 9
Basic operation
Telephone settings
Telephone settings
Dial mode
If you have touch tone service, the telephone is ready for use as soon as the
battery is charged. If you have pulse (rotary) service, you will need to change
the dial mode.
Press PROG when the handset is in idle mode.
Press or until the screen displays DIAL MODE: and the current setting.
Press SELECT. 6JGEWTTGPVUGVVKPIƀCUJGU
Press or to select TONE or PULSE.
Press SELECTVQEQPſTO[QWTUGNGEVKQP;QWYKNNJGCTCEQPſTOCVKQPVQPG
Home area code
If you dial your local calls using only seven digits (no area code required), program
your home area code, following the steps below. By programming your home area
code, caller ID will display only the phone number without area code when you
receive calls from callers in your local area.
Press PROG when the handset is in idle mode.
Press or until the screen displays HOME AREA CODE.
Press SELECT. The stored area code is displayed with the first digit
ƀCUJKPI
Use the dial key pad to enter the desired home area code.
Press SELECTVQEQPſTO;QWYKNNJGCTCEQPſTOCVKQPVQPG
1.
2.
3.
4.
5.
1.
2.
3.
4.
5.
www.vtechphones.com
10
Telephone settings
Language
Press PROG when the handset is in idle mode.
Press or until LANGUAGE is displayed.
Press SELECT6JGEWTTGPVUGVVKPIƀCUJGU
Press or until the screen displays the desired language (ENGLISH,
ESPANOL or FRANCAIS).
Press SELECTVQEQPſTO[QWTUGNGEVKQP;QWYKNNJGCTCEQPſTOCVKQPVQPG
Clear voice mail
If you subscribe to voicemail services provided by your telephone company, NEW
VOICE MAIL will be displayed on the handset when you have new voicemail
message. Please contact your local telephone company for more information
about voicemail service.
To remove this indicator:
Press PROG when the handset is in idle mode.
Press or until the screen displays NEW VOICE MAIL.
Press SELECT. The screen displays CLR VOICEMAIL: and the current
UGVVKPIƀCUJGU
Press or to select Y(yes).
Press SELECTVQEQPſTO[QWTUGNGEVKQP;QWYKNNJGCTCEQPſTOCVKQPVQPG
1.
2.
3.
4.
5.
1.
2.
3.
4.
5.
The clear voice
mail feature only
removes the
display NEW
VOICE MAIL on
the handset. It
does not delete
your voice mail
message(s).
•
www.vtechphones.com 11
Basic operation
Telephone operation
Telephone operation
Make calls
Press /FLASH and then use the dial pad keys to dial a number.
-OR-
'PVGTVJGRJQPGPWODGTſTUVCPFVJGPRTGUU /FLASH to dial.
Press to backspace and erase digits.
Answer calls
Press any dial pad keys (except /VOL-/CID, /VOL+/ and OFF) to answer
an incoming call.
End calls
Press OFF or put the handset back to the telephone base to end a call.
Volume
Press /VOL-/CID or /VOL+/ to adjust the listening volume during a
conversation.
Channel
Press CHAN/DELETE to switch to a clearer channel while on a call.
•
•
•
•
•
•
The call timer
will be activated
during a call to
show call duration.
•
www.vtechphones.com
12
Telephone operation
Call waiting
If you subscribe to call waiting service and you are on a call when a new call
comes in, you will hear a beep. The caller ID information will be displayed if
you subscribe to combined caller ID with call waiting service from your local
telephone company.
Press /FLASH on the handset to put the current call on hold and answer
the incoming call.
Press /FLASH at anytime to alternate between calls.
Temporary tone dialing
If you have pulse (rotary) service, you can change from pulse to touch tone dialing
during a call by pressing TONE*. This is useful if you need to send touch tone
signals to access telephone banking or long distance services.
Once you have initiated your call by dialing the phone number in pulse (rotary),
press TONE*. Now, all subsequent key presses will be sent as touch tone
signals.
After you hang up, the phone will return to pulse (rotary) dialing for the next
call.
•
•
www.vtechphones.com 13
Basic operation
Telephone operation
Telephone operation
Redial
6JGVGNGRJQPGUVQTGUſXGOQUVTGEGPVN[FKCNGFVGNGRJQPGPWODGTUKPVJGTGFKCN
list. When the list is full, the oldest entry is deleted to make room for the new
entry.
Press REDIAL/PAUSE repeatedly to review the redial list. Press
CHAN/DELETE to delete the displayed number.
Press /FLASH, then press REDIAL/PAUSE to dial the last telephone
number dialed.
-OR-
Press REDIAL/PAUSE repeatedly until the desired entry displays, then press
/FLASH to dial the number.
Find handset
Press FIND HANDSET on the telephone base to locate the handset when the
telephone is not in use and the handset is not placed in the telephone base.
The handset will ring and **PAGING** will be displayed on its screen.
Press FIND HANDSET again or put the handset back on the telephone base
to stop the paging tone.
-OR-
Press OFF on the handset.
•
•
•
•
•
F
I
N
D
H
A
N
D
S
E
T
F
I
N
D
H
A
N
D
S
E
T
www.vtechphones.com
14
Telephone operation
Directory
The directory can store up to 10 entries (including nine speed dial entries). Each
entry may consist of a number up to 24 digits and a name up to 14 characters.
Store a directory entry
Press PROG when in idle mode. The screen displays DIRECTORY.
Press SELECT. The screen displays ENTER NAME.
Use the dial pad keys to enter the name. See the Character chart on page 15.
Press to backspace and erase.
Press to advance.
9JGPſPKUJGFRTGUUSELECT or PROG. The screen displays
ENTER NUMBER.
Use the dial pad keys to enter the telephone number.
Press to backspace and erase.
Press REDIAL/PAUSE to insert a dialing pause (P will be displayed).
Press SELECT or PROG. The screen displays DISTINCT RING? and the
current setting.
Press or to choose Y (yes) if you wish to customize this entry or choose
N (no) for a normal ringer. If you choose Y, a will be displayed with the
directory entry.
Press SELECT or PROGVQEQPſTOCPF[QWYKNNJGCTCEQPſTOCVKQPVQPG
1.
2.
3.
•
•
4.
5.
•
•
6.
7.
8.
www.vtechphones.com 15
Basic operation
Telephone operation
Telephone operation
Dial key Characters by number of key presses
123456
11
2ABC2
3DEF3
4GH I 4
5JKL5
6MNO6
7PQRS7
8TUV8
9WX Y Z 9
00
**
#&,,-.#
Character chart
Use the dial pad keys and the chart below to enter a name (up to 14 characters).
An error tone will sound if you try to enter more than 14 characters. Each press
of a particular key causes the characters to be displayed in the following order:
www.vtechphones.com
16
Telephone operation
Edit a directory entry
Press /VOL+/ when in idle mode. The screen displays DIRECTORY.
Press or to scroll through the entries stored in the directory alphabetically.
- OR -
 2TGUUVJGFKCNRCFMG[HQTVJGſTUVNGVVGTQHVJGGPVT[[QWYCPVVQGFKV+H
necessary, scroll
or VQſPFVJGFGUKTGFGPVT[
When the screen displays the desired entry, press
SELECT. Then press or until EDITƀCUJGU
Press SELECT. The screen displays the name and
number. The cursor appears at the beginning of the name.
• Use the dial pad keys to edit the name.
• Press to backspace and erase.
• Press to advance.
Press SELECT to move on to the phone number.
• Use the dial pad keys to edit the number.
• Press to backspace and erase.
• Press REDIAL/PAUSE to insert a dialing pause (P will be displayed).
Press SELECT. The screen displays DISTINCT RING? and the current setting.
Press or to choose Y (yes) if you wish to customize this entry, or choose
N (no) for a normal ringer. If you choose Y, a will be displayed with the
directory entry.
Press SELECTVQEQPſTOCPF[QWYKNNJGCTCEQPſTOCVKQPVQPG
1.
2.
3.
4.
5.
6.
7.
8.
• When you reach
the end of the list
in the directory,
END OF LIST will
be shown on the
screen and there
will be an error
tone.
• If you press a
dial pad key for
alphabetical
search while in
the directory and
there are no entries
starting with the
letters of that key,
NO DATA will be
displayed on the
screen.
SPEED EDIT DEL
8005959511
www.vtechphones.com 17
Basic operation
Telephone operation
Telephone operation

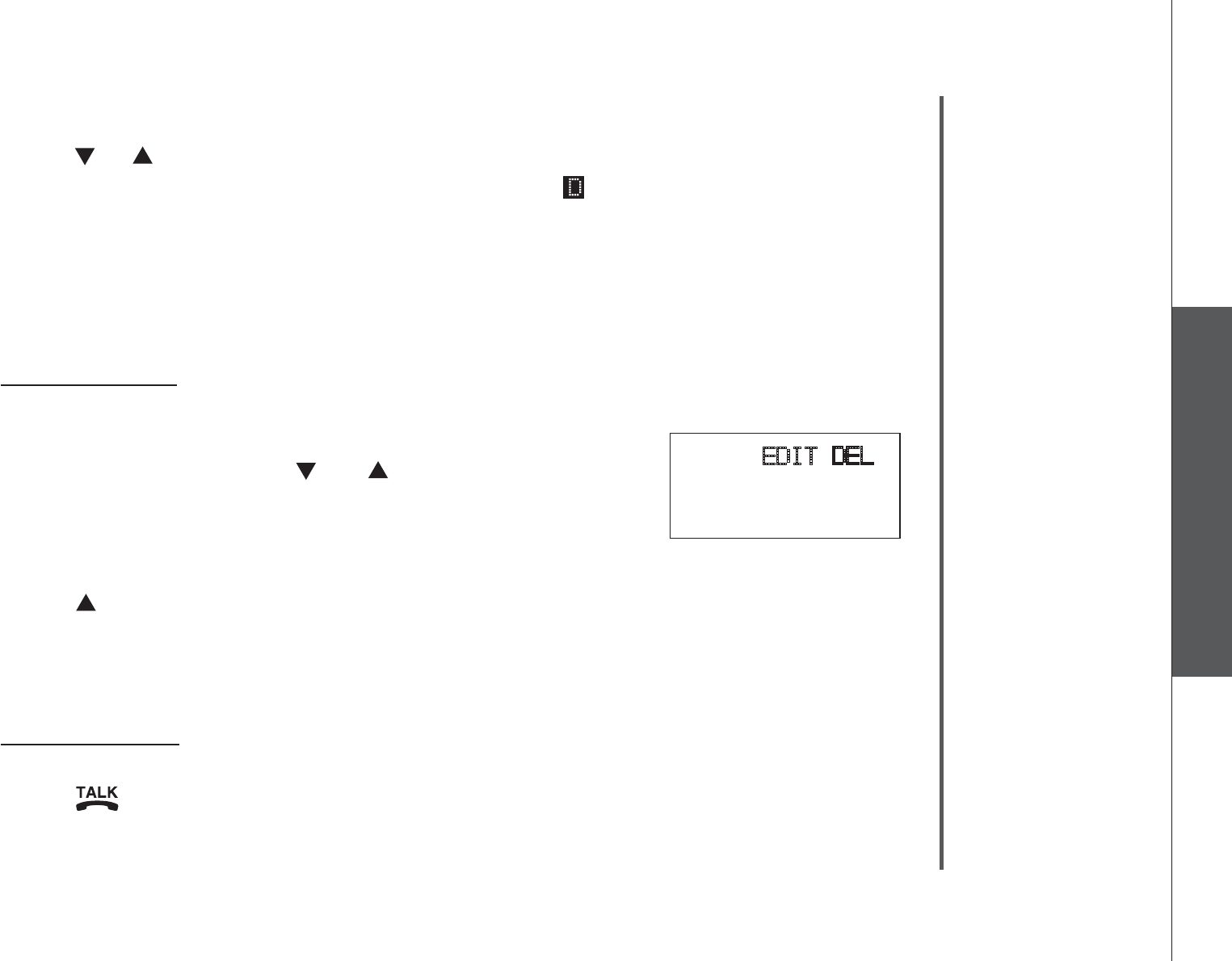

Delete a directory entry
Press /VOL+/ when in idle mode. The screen displays DIRECTORY.
Press or to scroll through the entries stored in the directory
alphabetically.
- OR -
2TGUUVJGFKCNRCFMG[HQTVJGſTUVNGVVGTQHVJGGPVT[[QWYCPVVQFGNGVG+H
necessary, scroll or VQſPFVJGFGUKTGFGPVT[
When the screen displays the desired entry, press
SELECT. Then press or until DEL (delete)
ƀCUJGU
Press SELECT. The screen displays ERASE NO YES
CPFVJGPWODGT6JGEWTTGPVEJQKEGƀCUJGU
Press until YESƀCUJGU
Press SELECT;QWYKNNJGCTCEQPſTOCVKQPDGGR
1.
2.
3.
4.
5.
6.
SPEED EDIT DEL
8005959511
www.vtechphones.com
18
Telephone operation
Copy a directory entry into speed dial
Press /VOL+/ when in idle mode. The screen displays DIRECTORY.
Press
or to scroll through the entries stored in the directory alphabetically.
- OR -
2TGUU VJG FKCN RCF MG[ HQT VJG ſTUV NGVVGT QH VJG GPVT[ [QW YCPV VQ EQR[ +H
necessary, scroll
or VQſPFVJGFGUKTGFGPVT[
When the screen displays the desired entry, press
SELECT. Then press or until SPEEDƀCUJGU
Press SELECT. The screen displays ENTER 1-9.
Press a key (1-9) to copy this entry from the directory
to the speed dial memory and assign the memory location. You will hear a
EQPſTOCVKQPDGGR#OGOQT[NQECVKQPPWODGT01 through 09) will be displayed
with this entry.
Dial a number from the directory
Press /VOL+/ when in idle mode. The screen displays DIRECTORY.
Press or to scroll through the entries stored in the directory alphabetically.
- OR -
2TGUUVJGFKCNRCFMG[HQTVJGſTUVNGVVGTQHVJGFGUKTGFGPVT[+HPGEGUUCT[UETQNN
or VQſPFVJGFGUKTGFGPVT[
When the screen displays the desired entry, press /FLASH.
1.
2.
3.
4.
5.
1.
2.
3.
SPEED EDIT DEL
8005959511
www.vtechphones.com 19
Basic operation
Telephone operation
Telephone operation
Speed dial
Your telephone can store up to nine telephone numbers with names (up to 14
characters and 24 digits in each location) in the speed dial memory locations
you assign in the handset.
Store a speed dial entry
Press PROG when the handset is in idle mode and then press or until the
screen displays SPEED DIAL.
Press SELECT. The screen displays ENTER 1-9.
Press a key (1 through 9) to assign the speed dial location where this number
will be stored. The screen displays ENTER NAME.
Use the dial pad keys to enter the name (see the Character chart on page
15) and then press SELECT or PROG .
Press to backspace and erase.
Press to advance.
The screen displays ENTER NUMBER.
Use the dial pad keys to enter the telephone number, and then press SELECT
or PROG.
Press to backspace and erase.
Press REDIAL/PAUSE to insert a dialing pause (P will be displayed).
The screen displays DISTINCT RING? and the current setting.
1.
2.
3.
4.
•
•
5.
6.
•
•
7.
The entries stored
in the speed
dial memory will
be numbered
01 through 09
and share the
memory in the
directory.
Press OFF at any
time to exit speed
dial mode.
If the location is
not empty, the
new entry will
replace the old
entry and the
old entry will
be moved to a
directory location.
•
•
•
www.vtechphones.com
20
Telephone operation
Press or to choose Y (yes) if you wish to customize this entry, or choose N
(no) for a normal ringer. If you choose Y, a will be displayed with the entry
Press SELECT or PROGVQEQPſTO;QWYKNNJGCTCEQPſTOCVKQPVQPG
Edit a speed dial entry
Press and hold the speed dial location key (1-9) of the desired entry when the
handset is in idle mode.
When the screen displays the entry you want to edit,
press SELECT. Then press or until EDITƀCUJGU
Press SELECT. The screen displays the name and
number. The cursor appears at the beginning of the
name. Use the dial pad keys to edit the name.
Press to backspace and erase.
Press to advance.
Press SELECT to move on to the phone number. Use the dial pad keys to
edit the number.
Press to backspace and erase.
Press REDIAL/PAUSE to insert a dialing pause (P will be displayed).
Press SELECT. The screen displays DISTINCT RING? and the current setting.
8.
9.
1.
2.
3.
•
•
4.
•
•
5.
SPEED EDIT DEL
8005959511
01
www.vtechphones.com 21
Basic operation
Telephone operation
Telephone operation
Delete a speed dial entry
Press and hold the speed dial location key (1-9) of the desired entry when the
handset is idle mode.
When the screen displays the desired entry, press
SELECT. Then press or until DEL (delete)
ƀCUJGU
Press SELECT. The screen displays ERASE NO YES
CPFVJGPWODGT6JGEWTTGPVEJQKEGƀCUJGU
Press until YESƀCUJGU
Press SELECT;QWYKNNJGCTCEQPſTOCVKQPDGGR
Dial a speed dial number
Press and hold a speed dial location key (1-9) of the desired entry when the
handset is in idle mode.
Press /FLASH to dial the displayed number.
1.
2.
3.
4.
5.
1.
2.
SPEED EDIT DEL
8005959511
01
Press or to choose Y (yes) if you wish to customize this entry, or choose
N (no) for a normal ringer. If you choose Y, a will be displayed with the
directory entry.
Press SELECTVQEQPſTO;QWYKNNJGCTCEQPſTOCVKQPVQPG
6.
7.
www.vtechphones.com
22
Telephone operation
Reassign speed dial locations
Press and hold the speed dial location key (1-9) of the desired entry when the
handset is in idle mode.
When the screen displays the desired entry, press
SELECT. Press or until SPEEDƀCUJGU
Press SELECT. The screen displays ENTER 1-9.
Press a key (1-9) to reassign this entry into another memory location. You will
JGCTCEQPſTOCVKQPDGGR
1.
2.
3.
4.
SPEED EDIT DEL
8005959511
01
www.vtechphones.com 23
Basic operation
Telephone operation
Telephone operation
About caller ID
The caller ID with call waiting feature in this telephone lets you see the name
and telephone number of the caller before answering the call, even when already
on a call. These features require services provided by your local telephone
company.
Contact your telephone company if:
you have both caller ID and call waiting, but as separate services (you may need
combined service),
you have only caller ID service, or only call waiting service, or
you do not subscribe to any caller ID or call waiting services but wish to try
these services.
You can use this telephone with regular caller ID service, and you can use its
other features without subscribing to either caller ID or combined caller ID with
call waiting service. There may be fees for these services, and these services
may not be available in all areas.
The caller ID features will work only if both you and the caller are in areas offering
caller ID service, and if both telephone companies use compatible equipment.
•
•
•
www.vtechphones.com
24
Telephone operation
Call log
If you subscribe to caller ID service, information about each caller will be displayed
CHVGTVJGſTUVQTUGEQPFTKPI
The call log can store up to 30 entries.
When the call log is full, the earliest entry will be deleted to make room for new
incoming call information.
CID EMPTY will be displayed if there is no record in the call log.
•
•
•
If you answer
a call before
the information
appears on the
screen, it will not
be stored in the
call log.
The time on the
handset screen is
automatically set
and updated with
incoming caller ID
information if you
subscribe to this
service.
Due to regional
service
differences,
the caller ID
information may
not be available
for every incoming
call. In addition,
the callers may
intentionally
block their names
and/or telephone
numbers.
•
•
•

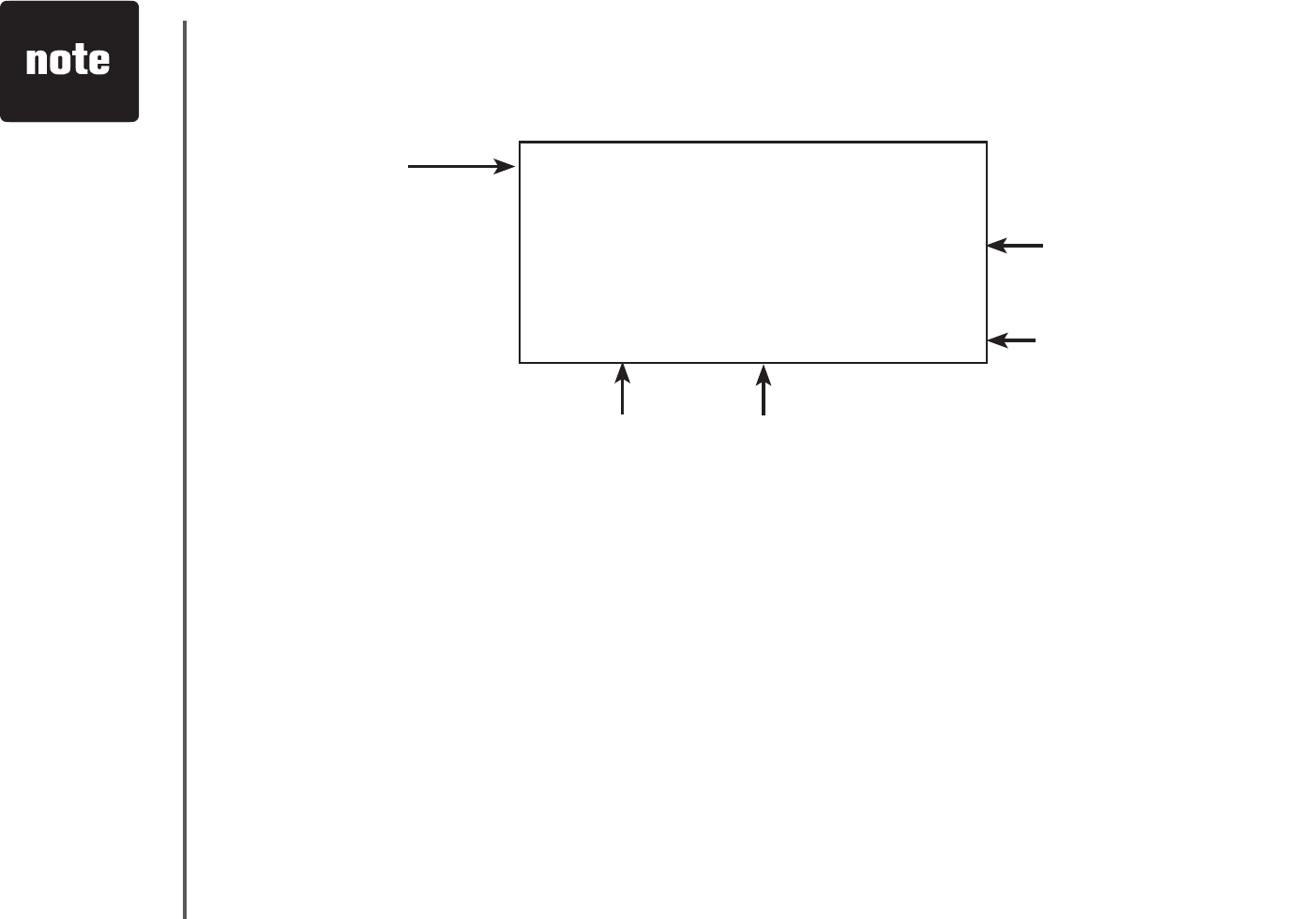

Date of callTime of call
Caller’s telephone
number
Caller’s name
New call log indicator and
location in the call log
VTECH
18005959511
6:10AM 08/17 NEW05
www.vtechphones.com 25
Basic operation
Telephone operation
Telephone operation
Review the call log
Press /VOL-/CID to view the call log when the handset is in idle mode.
Press or to scroll through the entries.
There will be an error tone when you reach the end of the call log list and the
screen will display END OF LIST.
Make a call log entry ready to dial
Although the call log entries received have 10 digits (the area code plus the
seven-digit number), in some areas, you may need to dial only seven digits, or
a 1 plus the seven digits, or a 1 plus the area code plus the seven digits. You can
change the number of digits that you dial or store from the call log.
While reviewing the call log, press # repeatedly to display these dialing options for
local and long distance numbers before dialing or saving the telephone number.
See the example on the right.
1.
2.
8005959511
18005959511
5959511
15959511
www.vtechphones.com
26
Telephone operation
Dial a call log number
Press /VOL-/CID to enter the call log when the handset is in idle mode.
Press or to select the desired entry, then press /FLASH.
-OR-
Press /VOL-/CID to enter the call log when the handset is in idle mode.
Press or to select the desired entry.
Press SELECT, then DIALƀCUJGU
Press SELECT to dial.
1.
2.
1.
2.
3.
4.
www.vtechphones.com 27
Basic operation
Telephone operation
Telephone operation
Save a call log entry to the directory
Press /VOL-/CID to enter the call log when the handset is in idle mode.
Press or to select the desired entry. If you wish to
change how the number is saved, press # repeatedly
until the desired option displays. See the Make a call
log entry ready to dial section on page 25.
Press SELECT, then press or until PROGRAM
ƀCUJGU
Press SELECT again.
Enter or edit the name if necessary. See the Character
chart on page 15.
Press to backspace and erase.
Press to advance.
Press SELECT to move on to the phone number.
Edit the number if necessary.
Press to backspace and erase.
Press REDIAL/PAUSE to insert a dialing pause (P will be displayed).
Press SELECT to continue.
Press or to choose Y (yes) if you wish to customize this entry, or choose
N (no) for a normal ringer. If you choose Y, a will be displayed with the
directory entry.
Press SELECTVQEQPſTO;QWYKNNJGCTCEQPſTOCVKQPVQPG
1.
2.
3.
4.
5.
•
•
6.
•
•
7.
8.
DIAL PROGRAM
8005959511
5:40PM 12/30 NEW28
8005959511
5:40PM 12/30 NEW28
DISTINCT RING? N
8005959511
www.vtechphones.com
28
Telephone operation
Delete from the call log
Delete an entry:
Press /VOL-/CID to enter the call log when the handset is in idle mode.
Press or to select the entry to be deleted.
Press CHAN/DELETE;QWYKNNJGCTCEQPſTOCVKQPDGGR
Delete all entries:
Press and hold CHAN/DELETE when the handset is in idle mode. The screen
displays ERASE ALL NO YES6JGEWTTGPVEJQKEGƀCUJGU
Press until Y[GUƀCUJGU
Press SELECT;QWYKNNJGCTCEQPſTOCVKQPDGGR
1.
2.
3.
1.
2.
3.
www.vtechphones.com 29
Basic operation
Telephone operation
Telephone operation
Displays: When:
PRIVATE NAME The caller is blocking the name information.
PRIVATE NUMBER The caller is blocking the telephone number
information.
PRIVATE CALLER The caller is blocking the name and number
information.
UNKNOWN NAME This caller’s name is unavailable.
UNKNOWN NUMBER This caller’s number is unavailable.
UNKNOWN CALLER No call information is available about this caller.
Call log display screen messages
www.vtechphones.com
30
Displays: When:
BATTERY LOW The battery needs to be recharged.
CID EMPTY There are no call log entries.
CONNECTING... The cordless handset is searching for the telephone base.
DIRECTORY EMPTY There are no directory entries.
MEMORY FULL The directory is full.
XX MISSED CALLS There are unreviewed calls in the call log.
NEEDS CHARGING The battery is not installed or not installed properly in the
handset.
NEW VOICE MAIL There are new voice mail message(s) from the local telephone
company.
**PAGING** The cordless handset locator has been activated.
PHONE ON The handset is in use.
REDIAL EMPTY There are no phone numbers in redial memory.
**RINGING** There is an incoming call.
RINGER OFF The handset ringer is turned off.
SCANNING... The telephone base is searching for another available
channel.
Handset display screen messages
www.vtechphones.com 31
Appendix
Battery
After the battery is fully charged for 16 hours, you can expect the following performance:
Operation Operating time
While in use (talking) 3.5 hours
While not in use (standby*) 3.5 days
*Handset is off the telephone base but not in use.
The battery needs charging when:
A new battery is installed in the handset.
The handset beeps when taken off the telephone base.
BATTERY LOWKUFKURNC[GFCPFVJGDCVVGT[KEQPQPVJGJCPFUGVUETGGPKUƀCUJKPI
CAUTION:
6QTGFWEGVJGTKUMQHſTGQTKPLWT[VQRGTUQPUTGCFCPFHQNNQYVJGUGKPUVTWEVKQPU
Use only the battery(ies) provided or equivalent. To order a replacement, visit our website at www.vtechphones.com or
call 1 (800) 595-9511. In Canada, go to www.vtechcanada.com or call 1 (800) 267-7377.
&QPQVFKURQUGQHVJGDCVVGT[KGUKPCſTG%JGEMYKVJNQECNYCUVGOCPCIGOGPVEQFGUHQTURGEKCNFKURQUCNKPUVTWEVKQPU
Do not open or mutilate the battery(ies). Released electrolyte is corrosive and may cause burns or injury to the eyes or
skin. The electrolyte may be toxic if swallowed.
Exercise care in handling batteries in order not to create a short circuit with conductive materials such as rings, bracelets,
and keys. The battery and/or conductor may overheat and cause burns.
%JCTIGVJGDCVVGT[KGURTQXKFGFYKVJQTKFGPVKſGFHQTWUGYKVJVJKURTQFWEVQPN[KPCEEQTFCPEGYKVJVJGKPUVTWEVKQPUCPF
NKOKVCVKQPUURGEKſGFKPVJKUOCPWCN
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO WATER OR ANY TYPE OF MOISTURE
.
•
•
•
•
•
•
•
•
www.vtechphones.com
32
Important safety instructions
9JGPWUKPI[QWTVGNGRJQPGGSWKROGPVDCUKEUCHGV[RTGECWVKQPUUJQWNFCNYC[UDGHQNNQYGFVQTGFWEGVJGTKUMQHſTGGNGEVTKEUJQEMCPFKPLWT[KPENWFKPIVJGHQNNQYKPI
Read and understand all instructions.
Follow all warnings and instructions marked on the product.
Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
Do not use this product near water (for example, near a bathtub, kitchen sink, or swimming pool).
Do not place this product on an unstable table, shelf, stand or other unstable surfaces.
Slots and openings in the back or bottom of the telephone base and handset are provided for ventilation. To protect them from overheating, these openings
must not be blocked by placing the product on a soft surface such as a bed, sofa or rug. This product should never be placed near or over a radiator or heat
register. This product should not be placed in any area where proper ventilation is not provided.
This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply in your
home, consult your dealer or local power company.
Do not allow anything to rest on the power cord. Do not install this product where the cord may be walked on.
Never push objects of any kind into this product through the slots in the telephone base or handset as they may touch dangerous voltage points or create a
UJQTVEKTEWKVVJCVEQWNFTGUWNVKPCTKUMQHſTGQTGNGEVTKEUJQEM0GXGTURKNNNKSWKFQHCP[MKPFQPVJGRTQFWEV
To reduce the risk of electric shock, do not disassemble this product, but take it to an authorized service facility. Opening or removing parts of the telephone
DCUGQTJCPFUGVQVJGTVJCPURGEKſGFCEEGUUFQQTUOC[GZRQUG[QWVQFCPIGTQWUXQNVCIGUQTQVJGTTKUMU+PEQTTGEVTGCUUGODNKPIECPECWUGGNGEVTKEUJQEM
when the product is subsequently used.
&QPQVQXGTNQCFYCNNQWVNGVUCPFGZVGPUKQPEQTFUCUVJKUECPTGUWNVKPVJGTKUMQHſTGQTGNGEVTKEUJQEM
Unplug this product from the wall outlet and refer servicing to an authorized service facility under the following conditions:
When the power supply cord or plug is damaged or frayed.
If liquid has been spilled onto the product.
If the product has been exposed to rain or water.
If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operation instructions.
Improper adjustment of other controls may result in damage and often requires extensive work by an authorized technician to restore the product to
normal operation.
If the product has been dropped and the telephone base and/or handset has been damaged.
If the product exhibits a distinct change in performance.
Avoid using a telephone (other than cordless) during an electrical storm. There is a remote risk of electric shock from lightning.
Do not use the telephone to report a gas leak in the vicinity of the leak.
Only put the handset of your telephone next to your ear when it is in normal talk mode.
6JGRQYGTWPKVKUKPVGPFGFVQDGEQTTGEVN[QTKGPVGFKPCXGTVKECNQTƀQQTOQWPVRQUKVKQP6JGRTQPIUCTGPQVFGUKIPGFVQJQNFVJGRNWIKPRNCEGKHKVKURNWIIGF
into a ceiling or an under-the-table/cabinet outlet.
SAVE THESE INSTRUCTIONS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
A.
B.
C.
D.
E.
F.
13.
14.
15.
16.
www.vtechphones.com 33
Appendix
Troubleshooting
Problem Suggestion
My telephone does not
work at all.
Make sure the battery is installed and charged correctly (page 3). For optimum daily
performance, return the handset to the telephone base after use.
Make sure the power adapter is securely plugged into an outlet not controlled by a wall
switch.
/CMGUWTGVJGVGNGRJQPGNKPGEQTFKURNWIIGFſTON[KPVQVJGVGNGRJQPGDCUGCPFVJGYCNNLCEM
Unplug the unit’s electrical power. Wait for approximately 15 seconds, then plug it back in.
Allow up to one minute for the handset and telephone base to synchronize.
Charge the battery in the handset for at least 16 hours.
Remove and re-insert the battery. If that still does not work, it may be necessary to purchase
a new battery.
Disconnect the telephone base from the jack and plug in a working telephone. If this telephone
does not work, the problem is probably in the wiring or the local service. Call the local telephone
company.
•
•
•
•
•
•
•
BATTERY LOW is
displayed on screen.
Place the handset in the telephone base for recharging.
Remove and re-install the battery and use it normally until fully depleted, then recharge the
handset in the telephone base for 16 hours.
If the above measures do not correct the problem, the battery may need to be replaced.
•
•
•
+H[QWJCXGFKHſEWNV[YKVJ[QWTVGNGRJQPGRNGCUGVT[VJGUWIIGUVKQPUDGNQY(QT%WUVQOGT5GTXKEGXKUKV
our website at www.vtechphones.com, or call 1 (800) 595-9511; in Canada, call 1 (800) 267-7377.
www.vtechphones.com
34
Problem Suggestion
The battery does not
charge in the handset
or the handset battery
does not accept
charge.
Make sure the handset is placed in the telephone base correctly.
Remove the battery from the handset and then re-install it in the handset. Put the handset
back to the telephone base and charge for 16 hours.
It may be necessary to purchase a new battery. Please see the Battery section of this user’s
manual (page 31).
The telephone might be malfunctioning. Please see the Warranty section of this user’s manual
(page 43) for further instruction.
•
•
•
•
There is no dial tone. First, try all the above suggestions.
Move the handset closer to the telephone base. It might be out of range.
The telephone line cord might be malfunctioning. Try installing a new telephone line cord.
Disconnect the telephone base from the telephone jack and connect a different telephone. If
there is no dial tone on the other telephone either, the problem is in your wiring or local service.
Contact your local telephone company.
•
•
•
•
My handset displays
CONNECTING...
Move the handset closer to the telephone base. You might have moved out of range.•
Troubleshooting
www.vtechphones.com 35
Appendix
Troubleshooting
Problem Suggestion
The telephone does
not ring when there is
an incoming call.
Make sure the ringer is on (page 8).
Make sure the telephone line cord and power adapter are plugged in properly (page 2).
The handset may be too far from the telephone base. Move it closer to the telephone base.
There may be too many extension telephones on the telephone line to allow all of them to ring
simultaneously. Try unplugging some of them.
If the other telephones in your home are having the same problem, the problem is in the wiring
or local service. Contact the local telephone company (charges may apply).
Other electronic products can cause interference to your cordless telephone. Try installing your
telephone as far away as possible from the following electronic devices: wireless routers, radios,
radio towers, pager towers, cellular telephones, digital telephones, intercoms, room monitors,
televisions, VCRs, personal computers, kitchen appliances, and other cordless telephones.
Test a working telephone at the telephone jack. If another telephone has the same problem, the
problem is in the telephone jack. Contact your local telephone company (charges may apply)
.
The telephone line cord might be malfunctioning. Try installing a new telephone line cord.
Remove and re-insert the battery and place the handset in the telephone base.
Wait for the handset to synchronize with the telephone base. Allow up to one minute for this
to take place.
•
•
•
•
•
•
•
•
•
•
www.vtechphones.com
36
Troubleshooting
Problem Suggestion
I cannot dial out. First, try all the above suggestions.
Make sure there is a dial tone before dialing. It is normal if the handset takes a second or two
to synchronize with the telephone base before producing a dial tone. Wait an extra second
before dialing.
Make sure the telephone is set to the correct dial type (pulse dial or tone dial) for the service
in your area. See Dial mode on page 9 to set the dial type.
If the other telephones in your home are having the same problem, the problem is in the wiring
or local service. Contact your local telephone company (charges may apply).
Eliminate any background noise. Noise from a television, radio, or other appliances may
cause the telephone not to dial out properly. If you cannot eliminate the background noise,
ſTUVVT[OWVKPIVJGJCPFUGVDGHQTGFKCNKPIQTFKCNKPIHTQOCPQVJGTTQQOKP[QWTJQOGYKVJNGUU
background noise.
•
•
•
•
•
www.vtechphones.com 37
Appendix
Troubleshooting
Problem Suggestion
There is noise
or interference
during a telephone
conversation.
My calls cut in and out
when I am using the
cordless handset.
The handset may be out of range. Move it closer to the telephone base.
Appliances or other cordless telephones plugged into the same circuit as the telephone base
can cause interference. Try moving the appliance or telephone base to another outlet.
Other electronic products can cause interference to your cordless telephone. Try installing your
telephone as far away as possible from the following electronic devices: wireless routers, radios,
radio towers, pager towers, cellular telephones, digital telephones, intercoms, room monitors,
televisions, VCRs, personal computers, kitchen appliances, and other cordless telephones.
If your telephone is plugged in with a modem or a surge protector, plug the telephone (or
modem/surge protector) into a different location. If this solves the problem, re-locate your
telephone or modem farther apart from each other, or use a different surge protector.
6JGNC[QWVQH[QWTJQOGQTQH ſEGOKIJVDGNKOKVKPIVJGQRGTCVKPITCPIG6T[OQXKPIVJGVGNGRJQPG
base to another location, preferably a higher location for better reception.
Disconnect the telephone base from the telephone jack and plug in a corded telephone. If
calls are still not clear, the problem is probably in the wiring or local service. Contact the local
telephone company (charges may apply).
If the other telephones in your home are having the same problem, the problem is in the wiring
or local service. Contact the local telephone company (charges may apply).
&Q[QWJCXG&5.UGTXKEG!+H[GU[QWPGGFVQJCXGC&5.ſNVGTKPUVCNNGFCVGXGT[VGNGRJQPGLCEM
VJCVJCUCVGNGRJQPGEQPPGEVGFVQKV%QPVCEV[QWT&5.UGTXKEGRTQXKFGTHQTſNVGTKPHQTOCVKQP
•
•
•
•
•
•
•
•
www.vtechphones.com
38
Troubleshooting
Problem Suggestion
I hear other calls when
using the telephone.
Disconnect the telephone base from the telephone jack. Plug in a different telephone. If
there are still other calls, the problem is probably in the wiring or local service. Call your local
telephone company.
Press CHAN/DELETE to switch to a clearer channel when on a call.
•
•
I hear noise in the
handset, and none of
the keys or buttons
work.
Make sure the telephone line cord is plugged in securely.
Remove and re-insert the battery.
•
•
www.vtechphones.com 39
Appendix
Troubleshooting
Problem Suggestion
My caller ID features are
not working properly.
Caller ID is a subscription service. You must subscribe to this service from your local telephone
company for this feature to work on your telephone.
The caller may not be calling from an area which supports caller ID.
Both you and the caller’s telephone companies must use equipment which are compatible
with caller ID service.
+H[QWUWDUETKDGVQ&5.UGTXKEGKPUVCNNC&5.ſNVGTVQVJGVGNGRJQPGNKPGDGVYGGPVJGVGNGRJQPG
DCUGCPFVJGVGNGRJQPGNKPGLCEM%QPVCEV[QWT&5.UGTXKEGRTQXKFGTHQTſNVGTKPHQTOCVKQP
•
•
•
•
The system does
not receive caller ID,
or the system does
not display caller ID
during call waiting.
Make sure you subscribe to caller ID with call waiting features provided by the local telephone
company.
The caller may not be calling from an area which supports caller ID.
Both you and the caller’s telephone companies must use equipment which are compatible
with caller ID service.
+H[QWUWDUETKDGVQ&5.UGTXKEGKPUVCNNC&5.ſNVGTVQVJGVGNGRJQPGNKPGDGVYGGPVJGVGNGRJQPG
DCUGCPFVJGVGNGRJQPGNKPGLCEM%QPVCEV[QWT&5.UGTXKEGRTQXKFGTHQTſNVGTKPHQTOCVKQP
•
•
•
•
www.vtechphones.com
40
Problem Suggestion
Caller ID entries do not
match the numbers I
need to dial.
Although the call log entries you receive have 10 digits, (the area code plus the seven-digit
number,) in some areas, you may need to dial only seven digits, or a 1 plus the seven digits,
or a 1 plus the area code plus the seven digits. You can change the number of digits that you
dial or store from the call log.
While reviewing the call log, press # repeatedly to display these dialing options for local and
long distance numbers before dialing or saving the telephone number.
•
•
My cordless handset
beeps and is not
performing normally.
Make sure the power cord is securely plugged into the telephone base. Plug the unit into a
different working electrical outlet not controlled by a wall switch.
Move the handset closer to the telephone base. It may be out of range.
Reset the telephone base by unplugging the unit’s electrical power. Wait for 15 seconds
and plug it back in again. Allow up to one minute for the handset and the telephone base to
synchronize.
Other electronic products can cause interference to your cordless telephone. Try installing
your telephone as far away from these electronic devices as possible: wireless routers, radios,
radio towers, pager towers, cellular telephones, intercoms, room monitors, televisions, personal
computers, kitchen appliances and other cordless telephones.
•
•
•
•
Troubleshooting
www.vtechphones.com 41
Appendix
Troubleshooting
Problem Suggestion
Common cure for
electronic equipment
If the unit is not responding normally, try putting the handset in the telephone base. If it does
not seem to respond, try the following (in the order listed):
Disconnect the power to the telephone base.
Disconnect the battery on the handset.
Wait a few minutes before connecting the power to the telephone base.
Re-install the battery and place the handset in the telephone base.
Wait for the handset to synchronize with the telephone base. Allow up to one minute for this
to take place.
•
•
•
•
•
•
www.vtechphones.com
42
Operating range
This cordless telephone operates with the maximum power allowed by the Federal Communications Commission (FCC). Even so, this handset and telephone base can
EQOOWPKECVGQXGTQPN[CEGTVCKPFKUVCPEGYJKEJECPXCT[YKVJVJGNQECVKQPUQHVJGVGNGRJQPGDCUGCPFJCPFUGVVJGYGCVJGTCPFVJGNC[QWVQH[QWTJQOGQTQHſEG
When the handset is out of range, the handset will display CONNECTING...
If there is a call while the handset is out of range, it might not ring, or if it does ring, the call might not connect well when you press /FLASH. Move closer to the
telephone base, then press /FLASH to answer the call.
If the handset moves out of range during a telephone conversation, there might be interference.
To improve reception, move closer to the telephone base.
Maintenance
Taking care of your telephone
Your cordless telephone contains sophisticated electronic parts, so it must be treated with care.
Avoid rough treatment
Place the handset down gently. Save the original packing materials to protect your telephone if you ever need to ship it.
Avoid water
Your telephone can be damaged if it gets wet. Do not use the handset outdoors in the rain, or handle it with wet hands. Do not install the telephone base near a
sink, bathtub or shower.
Electrical storms
Electrical storms can sometimes cause power surges harmful to electronic equipment. For your own safety, take caution when using electric appliances during storms.
Cleaning your telephone
Your telephone has a durable plastic casing that should retain its luster for many years. Clean it only with a soft cloth slightly dampened with water or a mild soap.
Do not use excess water or cleaning solvents of any kind.
Remember that electrical appliances can cause serious injury if used when you are wet or standing in the water. If the telephone base should fall into the water, DO
NOT RETRIEVE IT UNTIL YOU UNPLUG THE POWER CORD AND TELEPHONE LINE CORDS FROM THE WALL. Then pull the unit out by the unplugged cords.
www.vtechphones.com 43
Appendix
About cordless telephones
Privacy: The same features that make a cordless telephone convenient create some limitations. Telephone calls are transmitted between the telephone base and
the cordless handset by radio waves, so there is a possibility that the cordless telephone conversations could be intercepted by radio receiving equipment within
range of the cordless handset. For this reason, you should not think of cordless telephone conversations as being as private as those on corded telephones.
Electrical Power: The telephone base of this cordless telephone must be connected to a working electrical outlet. The electrical outlet should not be controlled
by a wall switch. Calls cannot be made from the cordless handset if the telephone base is unplugged or switched off, or if the electrical power is interrupted.
Potential TV interference: Some cordless telephones operate at frequencies that may cause interference to televisions and VCRs. To minimize or prevent
such interference, do not place the telephone base of the cordless telephone near or on top of a TV or VCR. If interference is experienced, moving the cordless
telephone farther away from the TV or VCR will often reduce or eliminate the interference.
Rechargeable batteries: This product contains either Nickel-Cadmium or Nickel-Metal Hydride rechargeable batteries. Exercise care in handling batteries in
order not to create a short circuit with conducting material such as rings, bracelets, and keys. The battery or conductor may overheat and cause harm. Observe
proper polarity between the battery and the battery charger.
Nickel-cadmium rechargeable batteries: Dispose of these batteries in a safe manner. Do not burn or puncture. Like other batteries of this type, if burned or
punctured, they could release caustic material which could cause injury.
•
•
•
•
•
Warranty
What does this limited warranty cover?
The manufacturer of this VTech Product warrants to the holder of a valid proof of purchase (“Consumer” or “you”) that the Product and all accessories provided
in the sales package (“Product”) are free from defects in material and workmanship, pursuant to the following terms and conditions, when installed and used
normally and in accordance with the Product operating instructions. This limited warranty extends only to the Consumer for Products purchased and used in the
United States of America and Canada.
What will VTech do if the Product is not free from defects in materials and workmanship during the limited warranty period (“Materially Defective Product”)?
During the limited warranty period, VTech’s authorized service representative will repair or replace at VTech’s option, without charge, a Materially Defective Product. If
we repair the Product, we may use new or refurbished replacement parts. If we choose to replace the Product, we may replace it with a new or refurbished Product of
the same or similar design. We will retain defective parts, modules, or equipment. Repair or replacement of the Product, at VTech’s option, is your exclusive remedy.
VTech will return repaired or replacement Products to you in working condition. You should expect the repair or replacement to take approximately 30 days.
How long is the limited warranty period?
The limited warranty period for the Product extends for ONE (1) YEAR from the date of purchase. If VTech repairs or replaces a Materially Defective Product under
the terms of this limited warranty, this limited warranty also applies to repaired or replacement Product for a period of either (a) 90 days from the date the repaired
or replacement Product is shipped to you or (b) the time remaining on the original one-year warranty; whichever is longer.
What is not covered by this limited warranty?
This limited warranty does not cover:
1. Product that has been subjected to misuse, accident, shipping or other physical damage, improper installation, abnormal operation or handling, neglect,
KPWPFCVKQPſTGYCVGTQTQVJGTNKSWKFKPVTWUKQPQT
www.vtechphones.com
44
Warranty
 2TQFWEVVJCVJCUDGGPFCOCIGFFWGVQTGRCKTCNVGTCVKQPQTOQFKſECVKQPD[CP[QPGQVJGTVJCPCPCWVJQTK\GFUGTXKEGTGRTGUGPVCVKXGQH86GEJQT
3. Product to the extent that the problem experienced is caused by signal conditions, network reliability, or cable or antenna systems; or
4. Product to the extent that the problem is caused by use with non-VTech accessories; or
5. Product whose warranty/quality stickers, product serial number plates or electronic serial numbers have been removed, altered or rendered illegible; or
6. Product purchased, used, serviced, or shipped for repair from outside the United States of America or Canada, or used for commercial or institutional purposes
(including but not limited to Products used for rental purposes); or
7. Product returned without valid proof of purchase (see item 2 below); or
8. Charges for installation or set up, adjustment of customer controls, and installation or repair of systems outside the unit.
How do you get warranty service?
To obtain warranty service in the United States of America, please call 1 (800) 595-9511. In Canada, please call 1 (800) 267-7377. NOTE: Before calling for service,
please review the user’s manual - a check of the Product controls and features may save you a service call.
Except as provided by applicable law, you assume the risk of loss or damage during transit and transportation and are responsible for delivery or handling charges
incurred in the transport of the Product(s) to the service location. VTech will return repaired or replaced Product under this limited warranty to you, transportation,
delivery or handling charges prepaid. VTech assumes no risk for damage or loss of the Product in transit. If the Product failure is not covered by this limited warranty,
or proof of purchase does not meet the terms of this limited warranty, VTech will notify you and will request that you authorize the cost of repair prior to any further
repair activity. You must pay for the cost of repair and return shipping costs for the repair of Products that are not covered by this limited warranty.
What must you return with the Product to get warranty service?
1.
4GVWTPVJGGPVKTGQTKIKPCNRCEMCIGCPFEQPVGPVUKPENWFKPIVJG2TQFWEVVQVJG86GEJUGTXKEGNQECVKQPCNQPIYKVJCFGUETKRVKQPQHVJGOCNHWPEVKQPQTFKHſEWNV[CPF
2. Include “valid proof of purchase” (sales receipt) identifying the Product purchased (Product model) and the date of purchase or receipt; and
3. Provide your name, complete and correct mailing address, and telephone number.
Other Limitations
This warranty is the complete and exclusive agreement between you and VTech. It supersedes all other written or oral communications related to this Product.
VTech provides no other warranties for this Product. The warranty exclusively describes all of VTech’s responsibilities regarding the Product. There are no other
GZRTGUUYCTTCPVKGU0QQPGKUCWVJQTK\GFVQOCMGOQFKſECVKQPUVQVJKUNKOKVGFYCTTCPV[CPF[QWUJQWNFPQVTGN[QPCP[UWEJOQFKſECVKQP
5VCVG2TQXKPEKCN.CY4KIJVU6JKUYCTTCPV[IKXGU[QWURGEKſENGICNTKIJVUCPF[QWOC[CNUQJCXGQVJGTTKIJVUYJKEJXCT[HTQOUVCVGVQUVCVGQTRTQXKPEGVQRTQXKPEG
.KOKVCVKQPU+ORNKGFYCTTCPVKGUKPENWFKPIVJQUGQHſVPGUUHQTCRCTVKEWNCTRWTRQUGCPFOGTEJCPVCDKNKV[CPWPYTKVVGPYCTTCPV[VJCVVJG2TQFWEVKUſVHQTQTFKPCT[WUG
are limited to one year from the date of purchase. Some states/provinces do not allow limitations on how long an implied warranty lasts, so the above limitation
may not apply to you. In no event shall VTech be liable for any indirect, special, incidental, consequential, or similar damages (including, but not limited to lost
RTQſVUQTTGXGPWGKPCDKNKV[VQWUGVJG2TQFWEVQTQVJGTCUUQEKCVGFGSWKROGPVVJGEQUVQHUWDUVKVWVGGSWKROGPVCPFENCKOUD[VJKTFRCTVKGUTGUWNVKPIHTQOVJGWUG
of this Product. Some states/provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may
not apply to you.
Please retain your original sales receipt as proof of purchase.
www.vtechphones.com 45
Appendix
FCC, ACTA and IC regulations
FCC Part 15
This equipment has been tested and found to comply with the requirements for a Class B digital device under Part 15 of the Federal Communications Commission
(FCC) rules. These requirements are intended to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
%JCPIGU QT OQFKſECVKQPU VQ VJKU GSWKROGPV PQV GZRTGUUN[ CRRTQXGFD[VJGRCTV[TGURQPUKDNGHQTEQORNKCPEGEQWNFXQKFVJGWUGTŏU CWVJQTKV[ VQ QRGTCVG VJG
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured
when using this telephone.
To ensure safety of users, the FCC has established criteria for the amount of radio frequency energy that can be safely absorbed by a user or bystander according
to the intended usage of the product. This product has been tested and found to comply with the FCC criteria. The handset may be safely held against the ear of
the user. The telephone base shall be installed and used such that parts of the user’s body other than the hands are maintained at a distance of approximately 20
cm (8 inches) or more. If you choose to use a clipping device, please make sure to only use the supplied VTech belt clip.
This Class B digital apparatus complies with Canadian ICES-003.
FCC Part 68 and ACTA
This equipment complies with Part 68 of the FCC rules and with technical requirements adopted by the Administrative Council for Terminal Attachments (ACTA).
6JGNCDGNQPVJGDCEMQTDQVVQOQHVJKUGSWKROGPVEQPVCKPUCOQPIQVJGTVJKPIUCRTQFWEVKFGPVKſGTKPVJGHQTOCV75###'36::::6JKUKFGPVKſGTOWUVDG
provided to your local telephone company upon request.
The plug and jack used to connect this equipment to premises wiring and the telephone network must comply with applicable Part 68 rules and technical
requirements adopted by ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular
jack that is also compliant. An RJ11 jack should normally be used for connecting to a single line and an RJ14 jack for two lines. See Installation Instructions in the
user’s manual.
The Ringer Equivalence Number (REN) is used to determine how many devices you may connect to your telephone line and still have them ring when you are
ECNNGF6JG4'0HQTVJKURTQFWEVKUGPEQFGFCUVJGVJCPFVJEJCTCEVGTUHQNNQYKPIVJG75KPVJGRTQFWEVKFGPVKſGTGIKHKUVJG4'0KU+POQUVDWV
PQVCNNCTGCUVJGUWOQHCNN4'0UUJQWNFDGſXGQTNGUU(QTOQTGKPHQTOCVKQPRNGCUGEQPVCEV[QWTNQECNVGNGRJQPGEQORCP[
This equipment may not be used with Party Lines. If you have specially wired alarm dialing equipment connected to your telephone line, ensure the connection
of this equipment does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a
SWCNKſGFKPUVCNNGT
•
•
•
•
www.vtechphones.com
46
FCC, ACTA and IC regulations
The RBRC® seal
The RBRC® seal on the nickel-cadmium battery indicates that VTech Communications, Inc. is voluntarily participating in an industry program
to collect and recycle these batteries at the end of their useful lives, when taken out of service within the United States and Canada.
The RBRC® program provides a convenient alternative to placing used nickel-cadmium batteries into the trash or municipal waste, which
may be illegal in your area.
VTech’s participation in RBRC®makes it easy for you to drop off the spent battery at local retailers participating in the RBRC® program or
at authorized VTech product service centers. Please call 1-800-8-BATTERYTM for information on Ni-Cd battery recycling and disposal
bans/restrictions in your area. VTech’s involvement in this program is part of its commitment to protecting our environment and conserving
natural resources.
RBRC® is a registered trademark of Rechargeable Battery Recycling Corporation.
If this equipment is malfunctioning, it must be unplugged from the modular jack until the problem has been corrected. Repairs to this telephone equipment can
only be made by the manufacturer or its authorized agents. For repair procedures, follow the instructions outlined under the Limited Warranty.
If this equipment is causing harm to the telephone network, the telephone company may temporarily discontinue your telephone service. The telephone company
KUTGSWKTGFVQPQVKH[[QWDGHQTGKPVGTTWRVKPIUGTXKEG+HCFXCPEGPQVKEGKUPQVRTCEVKECN[QWYKNNDGPQVKſGFCUUQQPCURQUUKDNG;QWYKNNDGIKXGPVJGQRRQTVWPKV[
VQEQTTGEVVJGRTQDNGOCPFVJGVGNGRJQPGEQORCP[KUTGSWKTGFVQKPHQTO[QWQH[QWTTKIJVVQſNGCEQORNCKPVYKVJVJG(%%;QWTVGNGRJQPGEQORCP[OC[OCMG
changes in its facilities, equipment, operation, or procedures that could affect the proper functioning of this product. The telephone company is required to notify
you if such changes are planned.
If this product is equipped with a corded or cordless handset, it is hearing aid compatible.
+HVJKURTQFWEVJCUOGOQT[FKCNKPINQECVKQPU[QWOC[EJQQUGVQUVQTGGOGTIGPE[VGNGRJQPGPWODGTUGIRQNKEGſTGOGFKECNKPVJGUGNQECVKQPU+H[QWFQ
store or test emergency numbers, please:
4GOCKPQPVJGNKPGCPFDTKGƀ[GZRNCKPVJGTGCUQPHQTVJGECNNDGHQTGJCPIKPIWR
Perform such activities in off-peak hours, such as early morning or late evening.
Industry Canada
Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference, including
interference that may cause undesired operation.
6JGVGTOŎŏ+%ŎŏDGHQTGVJGEGTVKſECVKQPTGIKUVTCVKQPPWODGTQPN[UKIPKſGUVJCVVJG+PFWUVT[%CPCFCVGEJPKECNURGEKſECVKQPUYGTGOGV
The Ringer Equivalence Number (REN) for this terminal equipment is 0.1. The REN is an indication of the maximum number of devices allowed to be connected
to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the RENs of
CNNVJGFGXKEGUFQGUPQVGZEGGFſXG
6JKURTQFWEVOGGVUVJGCRRNKECDNG+PFWUVT[%CPCFCVGEJPKECNURGEKſECVKQPU
www.vtechphones.com 47
Appendix
6GEJPKECNURGEKſECVKQPU
Frequency control Crystal controlled PLL synthesizer
Transmit frequency Handset: 912.75-917.10 MHz
Telephone base: 2410.20-2418.90MHz
Receive frequency Handset: 2410.20-2418.90 MHz
Telephone base: 912.75-917.10MHz
Channels 30
Nominal effective range Maximum power allowed by FCC and IC. Actual operating range may vary according
to environmental conditions at the time of use.
Size Handset: 184.1mm X 51.8mm X 37.5mm
Telephone base: 110.2mm X 85.5mm X 122.4mm
Weight Handset: 151.9 grams (including battery)
Telephone base: 120.2 grams
Power requirements Handset: 3.6V 300mAh Ni-Cd battery
Telephone base: 7.5V AC @ 200mA
Memory Handset directory: 10 memory locations (9 speed dial inclusive);
up to 24 digits and 14 characters
Handset call log: 30 memory locations; up to 11 digits and 14 characters
www.vtechphones.com
48
Index
A
About caller ID 23
About cordless telephones 43
Answer calls 11
B
Battery 3, 31
C
Call log 24
Call log display screen messages 29
Call waiting 12
Channel 11
Character chart 15
Charging 3
Clear voicemail 10
Copy a directory entry into speed dial 18
D
Date and time 7
Delete a directory entry 17
Delete a speed dial entry 21
Delete from the call log 28
Dial a call log number 26
Dial a number from the directory 18
Dial a speed dial number 21
Dial mode 9
Directory 14
&5.ſNVGT
E
Edit a directory entry 16
Edit a speed dial entry 20
End calls 11
F
FCC, ACTA and IC regulations 45
Find handset 13
H
Handset display screen messages 30
Home area code 9
I
Index 48
L
Language 10
www.vtechphones.com 49
M
Maintenance 42
Make a call log entry ready to dial 25
Make calls 11
Mounting bracket installation 4
O
Operating range 42
P
Parts checklist 1
Pause 13
R
RBRC® seal 46
Reassign speed dial locations 22
Redial 13
Review the call log 25
Ringer 8
Ringer volume 8
S
Save a call log entry to the directory 27
Speed dial 19
Store a directory entry 14
Store a speed dial entry 19
T
6GEJPKECNURGEKſECVKQPU 47
Temporary tone dialing 12
Troubleshooting 33
V
Volume 8, 11
W
Warranty 43
Index
VTECH TELECOMMUNICATIONS LTD.
A member of THE VTECH GROUP OF COMPANIES.
Distributed in the U.S.A. by VTech Communications, Inc. Beaverton, Oregon
Distributed in Canada by VTech Telecommunications Canada, Ltd., Richmond, B.C.
Copyright ©2007 for VTECH TELECOMMUNICATIONS LTD.
Printed in China.
91-001545-010-100
User’s manual
www.vtechphones.com
Model: CS2111
CHARGE
OPER
DEF
JKL
P
QRS
W
XYZ
TUV
MNO
TONE
ABC

Navigation menu
