Getting started
Battery charging
After installing the battery, charge the headset by placing it in
the headset base as shown below. The headset ON/OFF light will
be on when the headset is charging.
IMPORTANT INFORMATION
Use only the supplied rechargeable battery or replacement battery
(model BT191545). To obtain a free replacement battery, call
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
1. Insert the headset into the
headset base.
2. Push the headset downward
until the ON/OFF light on the
headset turns on.
12
Getting started
Headset attachments
Over-the-ear
To attach the ear hook to the headset:
Remove any headset attachment that is currently connected to
the headset.

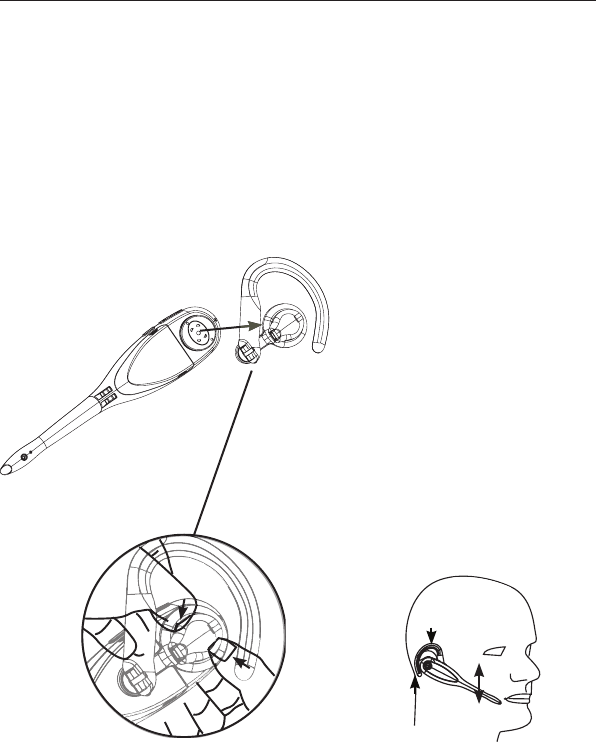

Insert the earpiece into the ear hook as shown in Figure 1.
Press the ear hook onto the earpiece as shown in Figure 2.
4. Hook the headset onto the desired ear. Adjust the angle of the
headset until the microphone is pointing towards your mouth as
shown in Figure 3.
1.
2.
3.
Figure 2
Figure 1
Figure 3
13
Getting started
Headset attachments
Over-the-ear
Adjusting the headset to wear on the left or right ear:

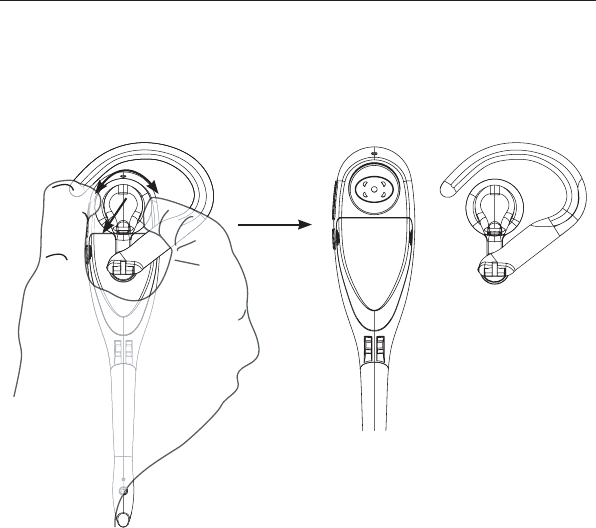

Hold the headset in your hand. Lift the hook upward as shown in
Figure 1.
(counter clockwise) as shown in Figure 2.
Push the hook downward as shown in Figure 3.
Hook the headset onto the desired ear. Adjust the angle of the
headset until the microphone is pointing towards your mouth as
shown in Figure 4.
1.
2.
3.
4.
Figure 4Figure 3
Figure 2
Figure 1
14
Getting started
Headset attachments
Over-the-ear

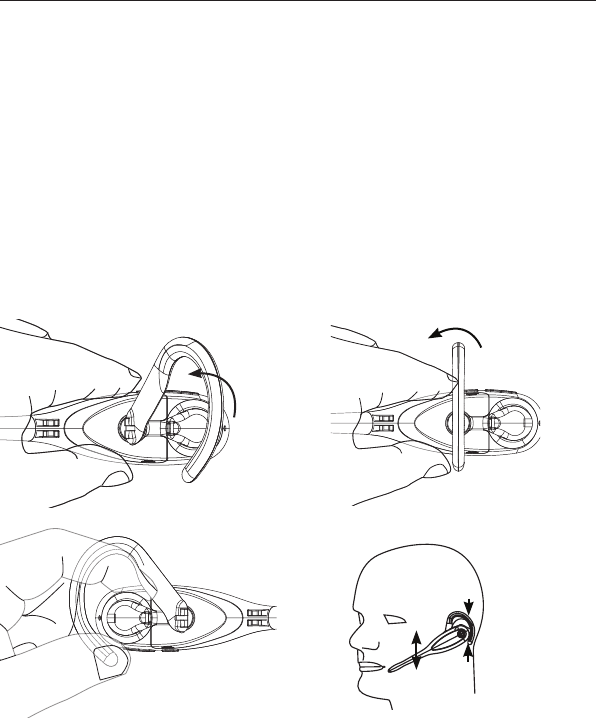

Removing the ear hook from the headset:
Hold the headset with one hand and the ear hook with the other
hand. Twist and pull the ear hook until it separates from the
earpiece.
15
Getting started
Headset attachments
Over-the-head

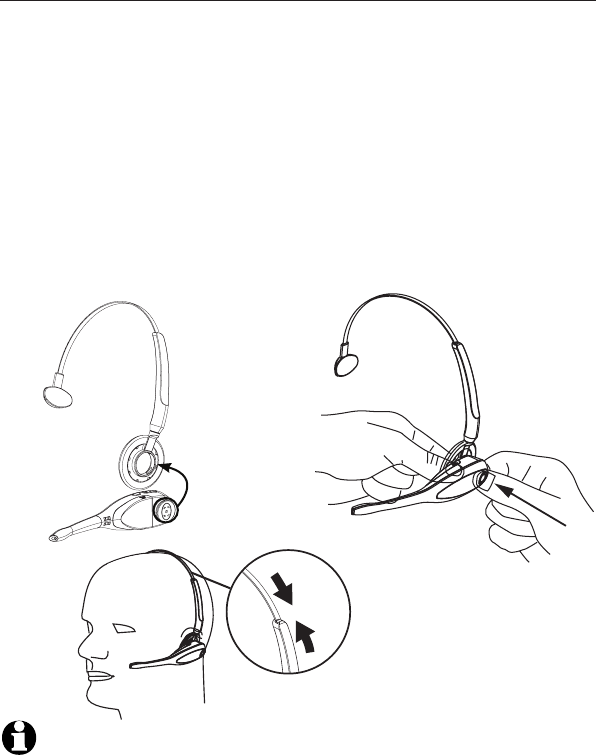

To attach the headset to the headband for wearing on the left or
right ear:
Remove any headset attachment that is currently connected to
the headset.

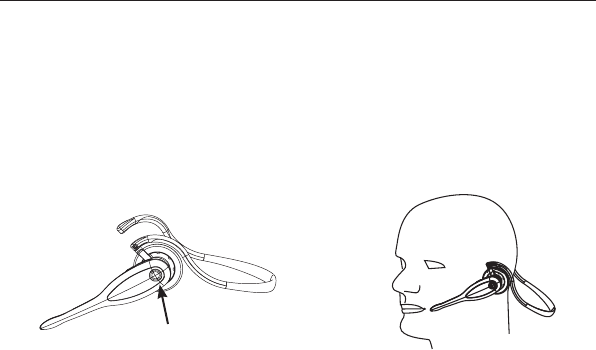

Insert the earpiece into the headband ring as shown in Figure 1.
Push the earpiece towards the headband ring until it clicks into
place as shown in Figure 2.
Adjust the headband to fit your head. Adjust and rotate the angle
of the headset until the microphone is pointing toward your mouth
as shown in Figure 3.
1.
2.
3.
4.
NOTE: To wear on the other ear, rotate the headset within the headband ring.
Figure 2
Figure 1
Figure 3
16
Getting started
Headset attachments
Over-the-head
Removing the headset from the headband:

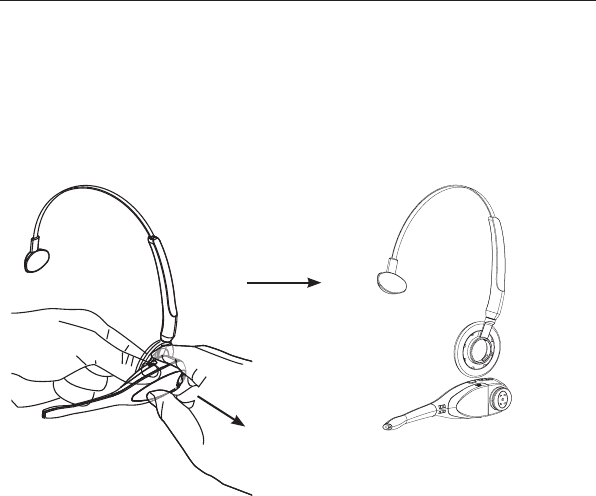

Hold the headset with one hand and the headband ring with the
other hand. Twist and pull the headset until it separates from the
ring of the headband.
17
Getting started
The neckband ring is positioned for right-ear wearing when first
purchased.
To wear the headset on your left ear:
Remove the ring from the neckband. Note the small opening in
the plastic at the place where the ring meets the neckband. Then
rotate the ring post up and through that small opening, as shown
in Figure 1.
2. Snap the ring into the small socket on the end of the left arm of the
neckband
To attach the headset to the neckband for wearing on the left or
right ear:
Remove any headset attachment that is currently connected to
the headset.
Insert the earpiece into the neckband ring as shown in Figure 2.
1.
1.
2.
Headset attachments
Behind-the-neck
Figure 1
Figure 2
Ring
18
Getting started
3. Push the earpiece towards the neckband ring until it clicks into
place as shown in Figure 3.
4. Place the neckband around your neck and over your ears.
5. Adjust and rotate the angle of the headset until the microphone is
pointing toward your mouth as shown in Figure 4.
Headset attachments
Behind-the-neck
Figure 4
Figure 3
19
Getting started

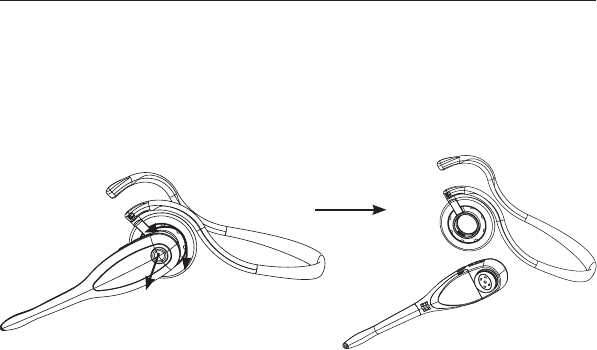

To remove the headset from the ring of the neckband:
Hold the headset with one hand and the neckband ring with the
other hand. Twist and pull the headset until it separates from the
ring of the neckband.
Headset attachments
Behind-the-neck
20
Operation
Headset base settings
No lifter or lifter mode
There are two answer modes available on the
headset base:
NO LIFTER MODE is the default mode.
-OR-
If you are using the handset lifter (model
TL7611 or sold separately as model TL7000),
you must use LIFTER MODE.
To change the answer mode:
When the headset is not in use, press MODE on
the headset base to select NO LIFTER MODE or
LIFTER MODE. The corresponding light on the
front of the headset base will turn on to indicate
the mode.
For complete instructions on installing and
using the handset lifter, see the TL7000 handset
lifter user’s manual. You may also download the
manual at www.telephones.att.com.
•
•
MODE
21
Operation
Headset operation
Making a call
Using stand-alone headset base:
You cannot make calls unless you have a dial
pad (TL7601 sold separately) or you install
the headset base with a corded or cordless
telephone.
Using headset base (without TL7000 lifter) with
a corded or cordless phone (any brand):
NO LIFTER MODE must be selected on the
headset base (see page 20).
Follow the instructions in your telephone user’s
manual for making calls.
To switch to the headset, press ON/OFF on the
headset at any time.
After you hear the telephone line ringing, you can
hang up the telephone and continue the call on
the headset.
NOTES:
For instructions on using the lifter, see the TL7000 user’s
manual. Visit www.telephones.att.com to
download the manual.
For instructions on using the dial pad, see the TL7601 user’s
manual. VisitVisit www.telephones.att.com to
download the manual.
•
1.
2.
3.
1.
2.
22
Operation
Headset operation
Answering a call on the headset
Press ON/OFF on the headset.
End a call on the headset
Press ON/OFF on the headset.
Auto off
A call will end automatically when you put the
headset in the headset base.
NOTE: The headset base and headset do not have an
external ringer. When you receive calls, the headset earpiece
plays a ring tone. If you have telephones connected to the
same telephone line as the headset base, you can rely on
the ringers of those telephones to alert you to incoming
calls.
23
Operation
Headset operation
Temporary ring tone silencing
Press MUTE/FLASH to temporarily silence the ring
tone in the headset earpiece. This will silence
the ring tone without disconnecting the call. The
next incoming call will ring normally at the preset
volume.
NOTE: If you have more than one headset registered to
the headset base, both headsets will receive the ring tone
when there is an incoming call. Pressing MUTE/FLASH on
one headset will only silence the ring tone of that particular
headset.
24
Operation
Options while on calls
Volume control
To adjust the listening volume:
While on a call, press the VOLUME keys
on the side of the headset to adjust the listening
volume.
To adjust the speaking volume:
While on a call, press the VOLUME keys
on the side of the headset base to adjust the
speaking volume.
NOTES:
1. Listening volume settings are independent for each headset,
but the speaking volume will be shared by all the registered
headset(s).
2. When the volume reaches the minimum or maximum setting,
you will hear three quick beeps.

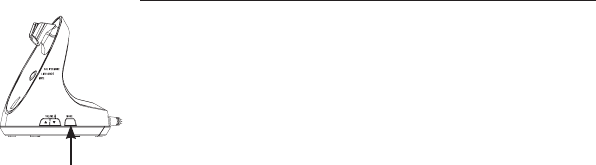

VOLUME
25
Operation
Options while on calls
Call waiting
If you subscribe to call waiting service offered by
your telephone service provider, you will hear a
beep if there is an incoming call while you are
already on a call. Press and hold MUTE/FLASH on
the side of the headset to put your current call on
hold and answer the new call. You can press and
hold MUTE/FLASH at any time to switch back and
forth between calls.
Switch a call between handset and headset
To switch from a corded handset to headset:
While on a call, presspress ON/OFF on the headset,
then place the corded handset back into the
telephone base.
To switch from headset to corded handset:
While on call, lift the corded handset from the
telephone base, then press ON/OFF on the
headset.

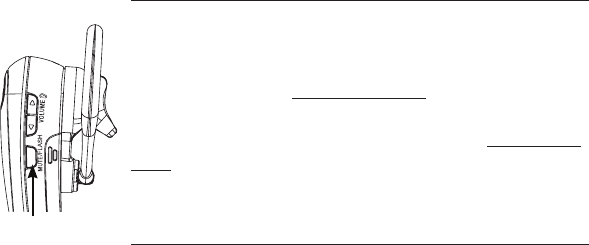

MUTE/FLASH
26
Operation
Options while on calls
Mute
The mute function allows you to turn off the
headset microphone. You can hear the caller, but
the caller will not be able to hear you.
To mute the call:
• Press MUTE/FLASH on the headset to turn off
the headset microphone. When mute is on, the
MUTE light on the headset base will be on and
a short beep will be heard every 15 seconds
until mute is turned off.
To un-mute the call:
• Press MUTE/FLASH on the headset again and
resume speaking.
27
Operation
Headset alert tones
Three quick
beeps.
VOLUME keys are
pressed when the volume
is already at its highest or
lowest setting.
The headset is not
registered and the headset
ON/OFF button was
pressed.
The headset has gone out
of range from the base
during a call.
•
•
•
1 short beep
every 20
seconds.
Low battery warning.
1 short beep
every 15
seconds.
The call is muted.
1 long beep
repeated.
Call waiting alert tone.
1 short beep. When the headset ON/OFF
key is pressed to go on-hook
or off-hook.
Alert tones
Headset alert tones
28
Operation

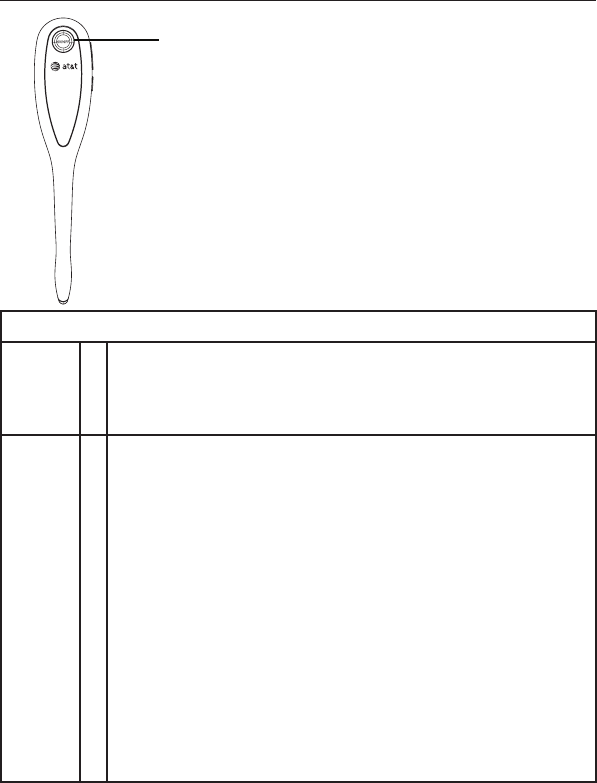

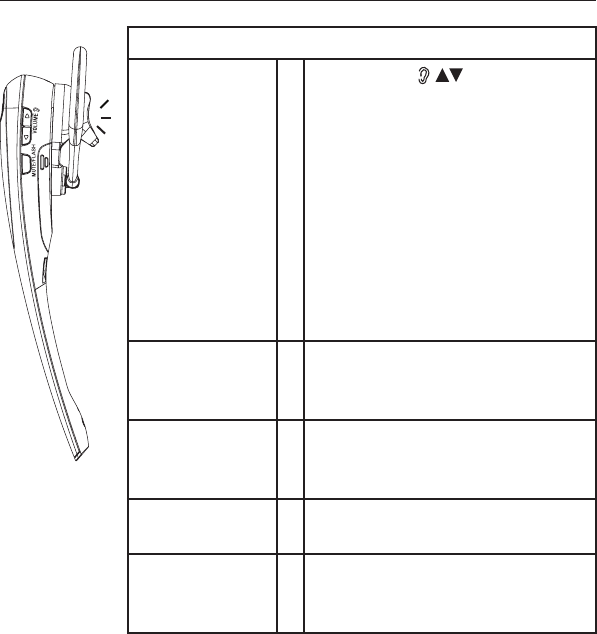

ON/OFF light status
On Headset is charging in the headset base.
Headset is trying to register to the headset base.
Headset may be too far from the headset base.
•
•
•
Flash Flashes slowly when incorrect battery is installed.
Flashes three times, followed by a pause; then
repeats this cycle three more times and then
shuts down to indicate the battery level is very
low.
Flashes twice every five seconds to indicate the
headset is not registered.
Flashes every 20 seconds to indicate the battery
is low and needs to be charged in the headset
base.
Flashes every three seconds to indicate the
headset is in use.
Flashes quickly when there is an incoming call.
•
•
•
•
•
•
Indicator lights
Indicator lights
ON/OFF light
Blue light for headset 1.
Orange light for headset 2.
•
•
29
Operation

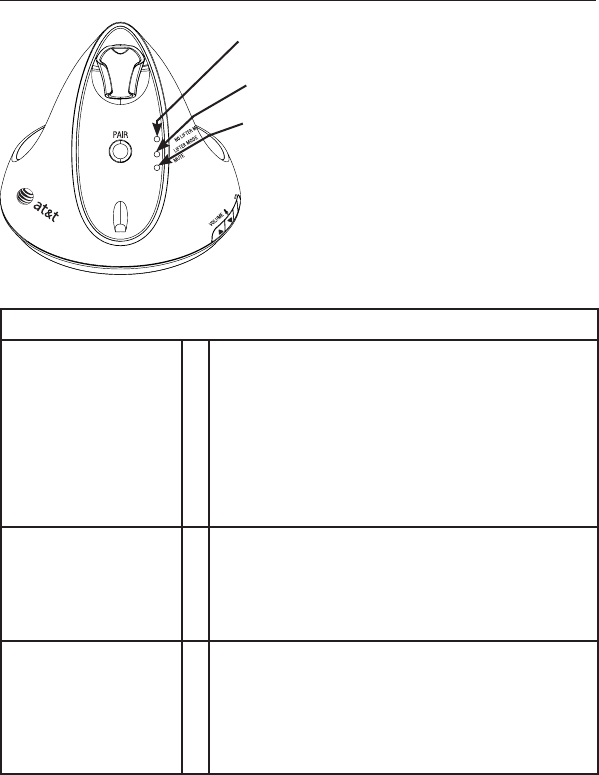

Headset base light status
NO LIFTER MODE On when NO LIFTER MODE is
selected (default mode).
Flashes quickly when there is an
incoming call.
Flashes when the headset is in use
or another telephone is in use on the
same line.
•
•
•
LIFTER MODE On when LIFTER MODE is selected.
Flashes quickly when there is anquickly when there is an
incoming call.
Flashes when the headset is in use.
•
•
•
MUTE On when a call is muted or you are
registering a headset.
Flashes when you are de-registering
headset(s) or dial pad from the
headset base.
•
•
NO LIFTER MODE
LIFTER MODE
MUTE
Headset base
Indicator lights
Indicator lights
30
Registration and de-registration

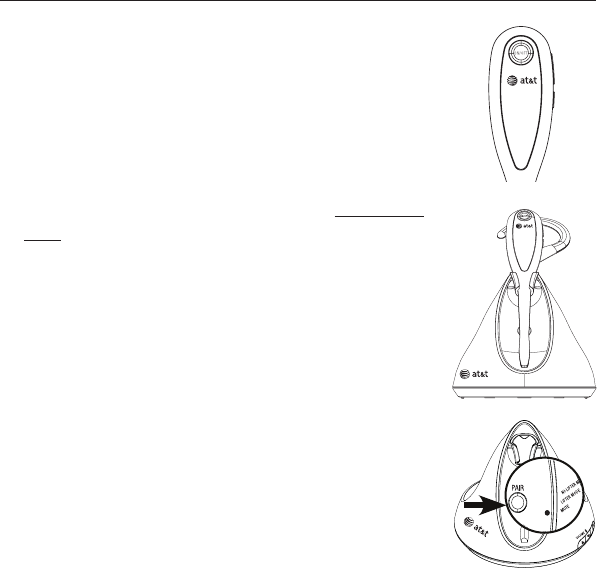

Adding and registering headset
Your telephone can accommodate up to two cordless headsets.
You can add a new headset (TL7600, sold separately) to the
TL7610/TL7611 at any time, but each new headset must be
registered with the headset base before use.
The first headset provided with your TL7610/TL7611/TL7650/
TL7651 will have a blue ON/OFF light. When you register a
second headset, the ON/OFF light of the headset will be orange
to help you to tell the headsets apart.
You cannot register a headset if another system headset is in use.
The headset can only be registered to one product at a time, so
the headset must be unregistered before registering to a headset
base or cordless phone.
You can register the headset to a compatible DECT 6.0 AT&T
cordless phone. However, you must de-register the headset
from the headset base first (see page 32). Then register the
headset to the cordless phone. For registration instructions, go to
www.telephones.att.com to read and/or download the
TL7600 expansion headset manual.
31
Registration and de-registration
Adding and registering headset
To register a headset to the headset base:
Make sure the battery is properly installed in the
headset (see page 10). The ON/OFF light will
flash twice every five seconds to indicate the
headset is not registered.
Place the headset in the headset base and allow
it to charge for at least five minutes before
beginning registration.
Remove the headset from the base. Press and
hold the PAIR button until the MUTE light on the
headset base turns on (about four seconds) and
release the button.
Place the headset back in the headset base to
register the headset.
Registration may take up to 10 seconds to
complete. The MUTE light on the headset base
will turn off The headset ON/OFF light will be
blue on the first headset registered. The headset
ON/OFF light will turn orange on the second
headset registered. To verify registration was
successful, press the headset ON/OFF button
and check for a dial tone.
If the registration is not successful, the
ON/OFF light on the headset will flash twice
every five seconds. To reset the headset, remove
the headset from headset base and try the
registration process again.
1.
2.
3.
4.
32
Registration and de-registration
Replacing a headset
You may need to de-register your headsets if:
You have two registered headsets and need to replace one of
them.
-OR-
You wish to change the designated headset number and/or the
color of the ON/OFF light of your registered headsets.
You must first de-register both headsets, and then re-register
each headset you wish to use.
Please read carefully through all the instructions on this page
before beginning the de-registration process.
To de-register all headsets and dial pad (if applicable)
This procedure will de-register all the items registered to the
headset base including all headsets and dial pad.
Press and hold PAIR on the headset base until the MUTE light on
the headset base turns on and starts to flash (at least 10 seconds),
then release the PAIR button.
Immediately press and release PAIR again. You must press PAIR
while the MUTE light is still flashing. (The light flashes for about
seven seconds. If the light stops flashing, start again with step one
above.)
3. If the de-registration was successful:
The MUTE light on the headset base will turn
off.
The headset(s) ON/OFF light will flash twice
every five seconds.
The dial pad (if applicable) will display NOT
REGISTERED.
1.
2.
•
•
•
NOT REGISTERED
33
Registration and de-registration
Replacing a headset
To de-register all headsets and dial pad (if applicable)
4. To re-register the headset(s) to the headset base, follow the
registration instructions on page 31.
NOTES:
1. If the de-registration process was not successful, you may need to reset the
system and try again. Remove the headset from the base and press ON/OFF.
Then place the headset back into the base. You may also reset by unplugging the
power from the base, wait a few seconds, and plug it back in.
2. You cannot de-register the headset(s) and dial pad if another system headset is in
use.
34
Maintenance and Troubleshooting
My headset
doesn’t work
at all.
• Make sure the power cord is securely
plugged in.
• Make sure that the battery connector is
securely plugged into the cordless headset.
• Make sure the telephone line cord is
securely and firmly plugged into the
headset base and the telephone wall jack.
• Charge the battery in the cordless headset
for at least 6 hours. For optimum daily
performance, return the cordless headset to
its base when not in use.
• Reset the headset base. Unplug the unit’s
electrical power. Wait for approximately 15
seconds, then plug it back in. Allow up to
one minute for the cordless headset and
headset base to reset.
• You may need a new battery. Please refer to
page 11 of this user’s manual.
I cannot get a
dial tone.
• First, try all the suggestions above.
• Move the cordless headset closer to the
headset base. You might have moved out of
range.
Troubleshooting
If you have difficulty with your headset, please try the
suggestions below. For Customer Service, visit our website at
www.telephones.att.com, or call 1 (800) 222–3111. In
Canada dial 1 (866) 288-4268.
35
Maintenance and Troubleshooting
If you are using the handset lifter, LIFTER
MODE must be selected on the headset
base (page 20). See the TL7000 remote
handset lifter manual for instructions on
setting the LIFTER AUDIO ADJUST.
• If the previous suggestions do not work,
disconnect the headset base from the
telephone jack and connect a different
phone. If there is no dial tone on that
phone either, the problem is in your
wiring or local service. Contact your local
telephone company.
• Your telephone line cord might be
malfunctioning. Try installing a telephone
new line cord.
•
Nothing
happens when
I slide the
LIFTER AUDIO
ADJUST to get
a clear dial
tone.
There is no need to change the LIFTER
AUDIO ADJUST switch when you use NO
LIFTER MODE. If you cannot get a dial
tone, try all the suggestions above.
If you are using a handset lifter, see
the TL7000 remote handset lifter user’s
manual for instructions on setting the
LIFTER AUDIO ADJUST.
•
•
Troubleshooting
36
Maintenance and Troubleshooting
Your telephone may experience
interference from the headset. To
overcome this problem, move the headset
base at least 12 inches away from the
telephone.
Other electronic products can cause
interference to your cordless headset.
Try installing your headset as far away
from these types of electronic devices
as possible: television sets, VCRs, or other
cordless telephones.
•
•
I am getting a
buzzing sound
on my headset.
Troubleshooting
37
Maintenance and Troubleshooting
• First try all the suggestions above.
• Make sure you have a dial tone before
dialing. The cordless headset may take a
second or two to find the headset base
and produce a dial tone. This is normal.
Wait an extra second before dialing.
• Eliminate any background noise. Noise
from a television, radio or other appliances
may cause the headset to not dial out
properly. If you cannot eliminate the
background noise, try dialing from another
room with less background noise.
• If the other phones in your home are
having the same problem, the problem
is in your wiring or local service. Contact
your local telephone company (charges
may apply).
I cannot dial
out.
The other party
cannot hear my
voice during a
call.
Adjust the speaking volume during a call
(page 24).
If you are using a handset lifter, see
the TL7000 remote handset lifter user’s
manual for instructions on setting the
LIFTER AUDIO ADJUST.
•
•
Troubleshooting
38
Maintenance and Troubleshooting
I want to use my
headset with a
different headset
base.
• You will need to de-register (see page 32)
the headset from the current base and then
register (see page 31) it to the new base.
My cordless
headset isn’t
performing
normally.
• Make sure the power cord is securely
plugged into the headset base. Plug the unit
into a different, working electrical outlet not
controlled by a wall switch.
• Move the cordless headset closer to the
headset base. You might have moved out of
range.
• Reset the headset base. Unplug the unit’s
electrical power. Wait for 15 seconds, then
plug it back in. Allow up to one minute for
the cordless headset and headset base to
reset.
• Other electronic products can cause
interference to your cordless headset.
Try installing your headset as far away
from these types of electronic devices
as possible: television sets, VCRs, or other
cordless telephones.
Troubleshooting
39
Maintenance and Troubleshooting
The batteries
will not hold a
charge.
• Make sure that the headset battery is
installed and securely plugged into the
connector.
If the cordless headset is in the headset base
and the ON/OFF light on the headset does
not come on, refer to The ON/OFF light on
the headset is off while charging in this
Troubleshooting guide.
• Charge the battery in the cordless headset
for at least 6 hours. For optimum daily
performance, return the cordless headset to
its base when not in use.
• You may need a new battery. Please refer
to the Battery installation section on page
10.
• Your headset might be malfunctioning.
Please refer to the Limited warranty
section on page 56 for further instructions.
•
Troubleshooting
40
Maintenance and Troubleshooting
•
If you subscribe to high-speed Internet
service (Digital Subscriber Line - DSL) through
your telephone lines, you must install a DSL
filter between the telephone line cord and
the telephone wall jack. The filter will prevent
noise and caller ID problems caused by DSL
interference. Please contact your DSL service
provider for more information about DSL
filters.
• You may be able to improve the
performance of your cordless headset by
installing your new headset base as far as
possible from any other existing cordless
telephone system.
• Other electronic products can cause
interference to your cordless phone. Try
installing your phone as far away from the
following electronic devices as possible:
television sets, VCRs, or other cordless
telephones.
• Do not install this headset near a
microwave oven or on the same electrical
outlet. You may experience decreased
performance while the microwave oven is
operating.
• If your headset is plugged in with a modem
or a surge protector, plug the headset (or
modem/surge protector) into a different
location. If this doesn't solve the problem,
re-locate your headset or modem farther
apart from one another, or use a different
surge protector.
I get noise,
static, or weak
signal even
when I’m near
the headset
base.
Troubleshooting
41
Maintenance and Troubleshooting
I hear other
calls while using
my headset.
• Disconnect the headset base from the
telephone jack, and plug in a different
telephone. If you still hear other calls,
the problem is probably in your building’s
wiring or local service. Call your local
telephone company.
• Relocate your headset base to a higher
location. You may experience better
reception by elevating the base.
• If the other phones in your home are
having the same problem, the problem is in
your wiring or local service. Contact your
local telephone company (charges may
apply).
I cannot hear a
ring tone from
the headset
when there is
an incoming
call.
• If you have pressed MUTE/FLASH on the
headset when it is ringing, it will mute the
ring tone of the headset. The ring tone will
resume on the next call.
• If you are using a handset lifter, see
the TL7000 remote handset lifter user’s
manual.
You may have too many extension phones
on your telephone line to allow all of them
to ring simultaneously. Try unplugging
some of the other phones.
• The layout of your home or office might
be limiting the operating range. Try moving
the headset base to another location,
preferably on an upper floor.
•
Troubleshooting
42
Maintenance and Troubleshooting
• Test a working phone at the phone jack.
If another phone has the same problem,
the problem is the phone jack, wiring
or service. Contact your local telephone
company (charges may apply).
• Other electronic products can cause
interference with your cordless headset.
Try installing your headset as far away as
possible from electronic devices such as
television sets, VCRs, or other cordless
telephones.
• Re-install the battery, and place the
cordless headset in the headset base. Wait
for the cordless headset to re-establish its
connection with the headset base. Allow up
to one minute for this to take place.
• Your telephone line cord might be
malfunctioning. Try installing a new
telephone line cord.
Troubleshooting
43
Maintenance and Troubleshooting
•
Other electronic products can cause
interference with your cordless headset. Try
installing your headset as far away from
the following electronic devices as possible:
television sets, VCRs, or other cordless
telephones.
• Do not install this headset near a
microwave oven or on the same electrical
outlet. You may experience decreased
performance while the microwave oven is
operating.
• If your headset is plugged in with a modem
or surge protector, plug the headset (or
modem/surge protector) into a different
location. If this doesn't solve the problem,
re-locate your headset or modem farther
apart from one another, or use a different
surge protector.
• Relocate your headset base to a higher
location. You may experience better
reception by elevating the base.
• If the other phones in your home are
having the same problem, the problem is in
your wiring or local service. Contact your
local telephone company (charges may
apply).
My calls
cut in and
out while
I’m using
my cordless
headset.
Troubleshooting
44
Maintenance and Troubleshooting
The ON/OFF
light on the
headset is off
while charging.
• Make sure the power and line cords are
plugged in correctly and securely.
Make sure that the battery connector is
securely plugged into the cordless headset.
Push the headset downwards in the headset
base charging cradle until the ON/OFF light
on the headset turns on.
• Unplug the unit’s electrical power. Wait for
15 seconds, then plug it back in. Allow up
to one minute for the cordless headset and
headset base to reset.
Clean the cordless headset and headset
base charging contacts each month using a
pencil eraser or cloth.
• Your headset or headset base might be
malfunctioning. Please refer to the Limited
warranty section on page 56 for further
instructions.
•
•
•
Troubleshooting
45
Maintenance and Troubleshooting
Common cure
for electronic
equipment.
If the unit does not seem to be responding
normally, try putting the cordless headset in
its base. If it does not seem to respond, do the
following (in the order listed):
• Disconnect the power to the headset base.
• Disconnect the cordless headset battery.
• Wait a few minutes.
• Connect power to the headset base.
• Re-install the battery, and place the
cordless headset into the headset base.
• Wait for the cordless headset to re-establish
its connection with the headset base. Allow
up to one minute for this to take place.
Troubleshooting
46
Maintenance and Troubleshooting
Important safety information
This symbol is to alert you to important operating or
servicing instructions that may appear in this user’s manual.
Always follow basic safety precautions when using this product to
reduce the risk of injury, fire, or electric shock.
Safety information
Read and understand all instructions in the user’s manual.
Observe all markings on the product.
Avoid using a headset during a thunderstorm. There may be
a slight chance of electric shock from lightning.
Do not use a headset in the vicinity of a gas leak. If you
suspect a gas leak, report it immediately, but use a headset
away from the area where gas is leaking. If this product is a
cordless model, make sure the headset base is also away from
the area.
Do not use this product near water, or when you are wet.
For example, do not use it in a wet basement or shower, or
next to a swimming pool, bathtub, kitchen sink, or laundry tub.
Do not use liquids or aerosol sprays for cleaning. If the product
comes in contact with any liquids, unplug any line or power
cord immediately. Do not plug the product back in until it has
dried thoroughly.
Install this product in a protected location where no one can
trip over any line or power cords. Protect cords from damage
or abrasion.
If this product does not operate normally, see the
Troubleshooting section on pages 34-45 of this user’s
manual. If you cannot solve the problem, or if the product is
damaged, refer to the Limited warranty on pages 56-59. Do
not open this product except as may be directed in your user’s
manual. Opening the product or reassembling it incorrectly
may expose you to hazardous voltages or other risks.
•
•
•
•
•
•
47
Maintenance and Troubleshooting
Important safety information
Replace batteries only as described in your user’s manual.
Do not burn or puncture batteries — they contain caustic
chemicals.
This power adapter is intended to be correctly oriented in a
vertical or floor mount position. The prongs are not designed
to hold the plug in place if it is plugged into a ceiling or an
under-the-table/cabinet outlet.
Caution: Use only the power adapter provided with this product. To
obtain a replacement, visit our website at
www.telephones.att.com or call 1 (800) 222-3111.
In Canada dial 1 (866) 288-4268.
Especially about cordless headsets
Privacy: The same features that make a cordless headset con-
venient create some limitations. Telephone calls are transmit-
ted between the headset base and the headset by radio waves,
so there is a possibility that your cordless headset conversa-
tions could be intercepted by radio receiving equipment within
range of the cordless headset. For this reason, you should
not think of cordless headset conversations as being as
private as those on corded telephones.
Electrical power: The headset base of this cordless headset
must be connected to a working electrical outlet which is not
controlled by a wall switch. Calls cannot be made from the
headset if the headset base is unplugged or switched off, or
if the electrical power is interrupted.
Potential TV interference: Some cordless headsets operate at
frequencies that may cause interference to TVs and VCRs. To
minimize or prevent such interference, do not place the head-
set base of the cordless headset near or on top of a TV or VCR.
If interference is experienced, moving the cordless headset
farther away from the TV or VCR will often reduce or eliminate
the interference.
•
•
•
•
•
48
Maintenance and Troubleshooting
Important safety information
Rechargeable batteries: This product contains nickel-cadmium,
nickel-metal hydride or lithium-ion rechargeable batteries.
Exercise care in handling batteries in order not to create a short
circuit with conductive material such as rings, bracelets, and
keys. The battery or conductor may overheat and cause harm.
Observe proper polarity between the battery and the battery
charger.
Lithium-ion rechargeable batteries: Dispose of these batteries
in a safe manner. Do not burn or puncture. Like other batteries
of this type, if burned or punctured, they could release caustic
material which could cause injury.
The RBRC™ Seal means that the manufacturer is voluntarily
participating in an industry program to collect and recycle lithium-
ion rechargeable batteries when taken out of service within the
United States. These batteries may be taken to a participating local
retailer of replacement batteries or recycling center. Or you may
call 1-800-8-BATTERY for locations accepting spent Li-ion batteries.
CAUTION
Use only the batteries provided or their equivalent.
Change this product’s batteries only in accordance with the in-
structions and limitations specified in this manual.
As with any batteries, do not let the contacts of these batteries
touch conductive materials such as rings, bracelets, and keys.
The battery and/or conductor may overheat and cause burns.
Do not open or damage the batteries. Released electrolyte is
corrosive and may cause injury to the eyes or skin. The electro-
lyte may be toxic if swallowed.
Do not dispose the batteries in a fire. Check with local waste
management codes for special disposal instructions.
•
•
•
•
•
•
•
49
Maintenance and Troubleshooting
Important safety information
To prevent fire or shock hazard, do not expose this product to
water or any type of moisture.
Precautions for users of implanted cardiac pacemakers
Cardiac pacemakers (applies only to digital cordless telephones):
Wireless Technology Research, LLC (WTR), an independent
research entity, led a multidisciplinary evaluation of the
interference between portable cordless telephones and implanted
cardiac pacemakers. Supported by the U.S. Food and Drug
Administration, WTR recommends to physicians that:
PACEMAKER PATIENTS
Should keep cordless telephones at least six inches from the
pacemaker.
Should NOT place cordless telephones directly over the pace-
maker, such as in a breast pocket, when it is turned ON.
Should use the cordless telephone at the ear opposite the pace-
maker.
WTR’s evaluation did not identify any risk to bystanders with pace-
makers from other persons using cordless telephones.
SAVE THESE INSTRUCTIONS
•
•
•
•
50
Maintenance and Troubleshooting
Maintenance
Taking care of your headset
Your cordless headset contains sophisticated electronic parts,
so it must be treated with care.
Avoid rough treatment.
Place the headset down gently. Save the original packing
materials to protect your headset if you ever need to ship it.
Avoid water
Your headset can be damaged if it gets wet. Do not use the
headset outdoors in the rain, or handle it with wet hands. Do
not install the headset base near a sink, bathtub or shower.
Electrical storms
Electrical storms can sometimes cause power surges harmful to
electronic equipment. For your own safety, take caution when
using electrical appliances during storms.
Cleaning your headset
Your headset has a durable plastic casing that should retain
its luster for many years. Clean it only with a soft cloth slightly
dampened with water or a mild soap.
Do not use excess water or cleaning solvents of any kind.
Remember that electrical appliances can cause serious injury if used when you
are wet or standing in water. If the headset base should fall into water, DO NOT
RETRIEVE IT UNTIL YOU UNPLUG THE POWER CORD AND TELEPHONE LINE CORDS
FROM THE WALL. Then pull the unit out by the unplugged cords.
•
•
•
•
•
•
•
51
Appendix A
FCC Part 68 and ACTA
This equipment complies with Part 68 of the FCC rules and with
technical requirements adopted by the Administrative Council for
Terminal Attachments (ACTA). The label on the back or bottom of this
equipment contains, among other things, a product identifier in the
format US:AAAEQ##TXXXX. This identifier must be provided to your
local telephone company upon request.
The plug and jack used to connect this equipment to premises wiring
and the telephone network must comply with applicable Part 68 rules
and technical requirements adopted by ACTA. A compliant telephone
cord and modular plug is provided with this product. It is designed to
be connected to a compatible modular jack that is also compliant. An
RJ11 jack should normally be used for connecting to a single line and
an RJ14 jack for two lines. See Installation Instructions in the user’s
manual.
The Ringer Equivalence Number (REN) is used to determine how many
devices you may connect to your telephone line and still have them
ring when you are called. The REN for this product is encoded as the
6th and 7th characters following the US: in the product identifier (e.g., if
## is 03, the REN is 0.3). In most, but not all areas, the sum of all RENs
should be five (5.0) or less. For more information, please contact your
local telephone company.
This equipment may not be used with Party Lines. If you have specially
wired alarm dialing equipment connected to your telephone line,
ensure the connection of this equipment does not disable your alarm
equipment. If you have questions about what will disable alarm
equipment, consult your telephone company or a qualified installer.
If this equipment is malfunctioning, it must be unplugged from the
modular jack until the problem has been corrected. Repairs to this
telephone equipment can only be made by the manufacturer or
its authorized agents. For repair procedures, follow the instructions
outlined under the Limited Warranty.
52
Appendix A
FCC Part 68 and ACTA
If this equipment is causing harm to the telephone network, the
telephone company may temporarily discontinue your telephone
service. The telephone company is required to notify you before
interrupting service. If advance notice is not practical, you will be
notified as soon as possible. You will be given the opportunity to
correct the problem and the telephone company is required to inform
you of your right to file a complaint with the FCC. Your telephone
company may make changes in its facilities, equipment, operation, or
procedures that could affect the proper functioning of this product.
The telephone company is required to notify you if such changes are
planned.
If this product is equipped with a corded or cordless handset, it is
hearing aid compatible.
If this product has memory dialing locations, you may choose to store
emergency telephone numbers (e.g., police, fire, medical) in these
locations. If you do store or test emergency numbers, please:
Remain on the line and briefly explain the reason for the call before
hanging up.
Perform such activities in off-peak hours, such as early morning or late
evening.
53
Appendix A
FCC Part 68 and ACTA
Industry Canada
Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept
any interference, including interference that may cause undesired
operation.
The term ‘’IC:‘’ before the certification/registration number only signifies
that the Industry Canada technical specifications were met.
The Ringer Equivalence Number (REN) for this terminal equipment
is 0.1. The REN is an indication of the maximum number of devices
allowed to be connected to a telephone interface. The termination on
an interface may consist of any combination of devices subject only to
the requirement that the sum of the RENs of all the devices does not
exceed five.
This product meets the applicable Industry Canada technical
specifications.
54
Appendix B
FCC Part 15
This equipment has been tested and found to comply with the
requirements for a Class B digital device under Part 15 of the
Federal Communications Commission (FCC) rules.
These requirements are intended to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
Changes or modifications to this equipment not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation. Privacy of communications may not be
ensured when using this device.
55
Appendix B
FCC Part 15
To ensure safety of users, the FCC has established criteria for the
amount of radio frequency energy that can be safely absorbed
by a user or bystander according to the intended usage of the
product. This product has been tested and found to comply with
the FCC criteria. The headset may be safely held against the ear
of the user. The headset base shall be installed and used such
that parts of the user’s body other than the hands are maintained
at a distance of approximately 20 cm (8 inches) or more.
This Class B digital apparatus complies with Canadian ICES-003.
56
Appendix C
Limited warranty
The AT&T brand is used under license - any repair, replacement or
warranty service, and all questions about this product should be
directed to: In the United States of America, visit
www.telephones.att.com or call 1 (800) 222-3111. In
Canada, call 1 (866) 288-4268.
1. What does this limited warranty cover?
The manufacturer of this AT&T-branded product warrants to the
holder of a valid proof of purchase (“CONSUMER” or “you”) that the
product and all accessories provided in the sales package (“PRODUCT”)
are free from defects in material and workmanship, pursuant to the
following terms and conditions, when installed and used normally and
in accordance with the PRODUCT operating instructions. This limited
warranty extends only to the CONSUMER for products purchased and
used in the United States of America and Canada.
2. What will be done if the PRODUCT is not free from defects in
materials and workmanship during the limited warranty period
(“materially defective PRODUCT”)?
During the limited warranty period, the manufacturer’s authorized
service representative will repair or replace at the manufacturer’s option,
without charge, a materially defective PRODUCT. If the manufacturer
repairs the PRODUCT, they may use new or refurbished replacement
parts. If the manufacturer chooses to replace the PRODUCT, they
may replace it with a new or refurbished PRODUCT of the same or
similar design. The manufacturer will retain defective parts, modules,
or equipment. Repair or replacement of the PRODUCT, at the
manufacturer’s option, is your exclusive remedy. The manufacturer will
return repaired or replacement products to you in working condition.
You should expect the repair or replacement to take approximately 30
days.
57
Appendix C
Limited warranty
3. How long is the limited warranty period?
The limited warranty period for the PRODUCT extends for ONE
(1) YEAR from the date of purchase. If the manufacturer repairs or
replaces a materially defective PRODUCT under the terms of this limited
warranty, this limited warranty also applies to repaired or replacement
PRODUCT for a period of either (a) 90 days from the date the repaired
or replacement PRODUCT is shipped to you or (b) the time remaining
on the original one-year limited warranty; whichever is longer.
4. What is not covered by this limited warranty?
This limited warranty does not cover:
PRODUCT that has been subjected to misuse, accident, ship-
ping or other physical damage, improper installation, abnormal
operation or handling, neglect, inundation, fire, water, or other
liquid intrusion; or
PRODUCT that has been damaged due to repair, alteration, or
modification by anyone other than an authorized service repre-
sentative of the manufacturer; or
PRODUCT to the extent that the problem experienced is caused
by signal conditions, network reliability or cable or antenna sys-
tems; or
PRODUCT to the extent that the problem is caused by use with
non-AT&T accessories; or
PRODUCT whose warranty/quality stickers, PRODUCT serial
number plates or electronic serial numbers have been removed,
altered or rendered illegible; or
PRODUCT purchased, used, serviced, or shipped for repair from
outside the United States of America or Canada, or used for
commercial or institutional purposes (including but not limited
to products used for rental purposes); or
•
•
•
•
•
•
58
Appendix C
Limited warranty
PRODUCT returned without valid proof of purchase (see item 6
below); -or-
Charges for installation or setup, adjustment of customer
controls, and installation or repair of systems outside the unit.
5. How do you get warranty service?
To obtain warranty service in the United States of America, visit
www.telephones.att.com or call 1 (800) 222-3111. In
Canada, call 1 (866) 288-4268. NOTE: Before calling for service,
please review the user’s manual; a check of the PRODUCT controls
and features may save you a service call.
Except as provided by applicable law, you assume the risk of loss or
damage during transit and transportation and are responsible for delivery
or handling charges incurred in the transport of the PRODUCT(s) to
the service location. The manufacturer will return repaired or replaced
PRODUCT under this limited warranty to you. Transportation, delivery
or handling charges are prepaid. The manufacturer assumes no risk
for damage or loss of the PRODUCT in transit. If the PRODUCT failure
is not covered by this limited warranty, or proof of purchase does not
meet the terms of this limited warranty, the manufacturer will notify
you and will request that you authorize the cost of repair prior to any
further repair activity. You must pay for the cost of repair and return
shipping costs for the repair of products that are not covered by this
limited warranty.
6. What must you return with the PRODUCT to get warranty service?
You must:
Return the entire original package and contents including the
PRODUCT to the service location along with a description of the
malfunction or difficulty; and
Include “valid proof of purchase” (sales receipt) identifying the
PRODUCT purchased (PRODUCT model) and the date of purchase
or receipt; and
Provide your name, complete and correct mailing address, and
telephone number.
•
•
a.
b.
c.
59
Appendix C
Limited warranty
7. Other limitations
This warranty is the complete and exclusive agreement between you
and the manufacturer of this AT&T branded PRODUCT. It supersedes
all other written or oral communications related to this PRODUCT.
The manufacturer provides no other warranties for this PRODUCT. The
warranty exclusively describes all of the manufacturer’s responsibilities
regarding the PRODUCT. There are no other express warranties. No
one is authorized to make modifications to this limited warranty and
you should not rely on any such modification.
State/Provincial Law rights: This warranty gives you specific legal
rights, and you may also have other rights which vary from state to
state or province to province.
Limitations: Implied warranties, including those of fitness for a
particular purpose and merchantability (an unwritten warranty that the
PRODUCT is fit for ordinary use) are limited to one year from date
of purchase. Some states/provinces do not allow limitations on how
long an implied warranty lasts, so the above limitation may not apply
to you. In no event shall the manufacturer be liable for any indirect,
special, incidental, consequential, or similar damages (including, but
not limited to lost profits or revenue, inability to use the PRODUCT
or other associated equipment, the cost of substitute equipment, and
claims by third parties) resulting from the use of this PRODUCT. Some
states/provinces do not allow the exclusion or limitation of incidental
or consequential damages, so the above limitation or exclusion may
not apply to you.
Please retain your original sales receipt as proof of
purchase.
60
Appendix C
Operating range
This cordless headset operates within the maximum power
allowed by the Federal Communications Commission (FCC). Even
so, this headset and headset base can communicate over only
a certain distance — which can vary with the locations of the
headset base and headset, the weather, and the construction of
your home or office.
Extended range and clarity
The TL7610/TL7611 are fully cordless DECT 6.0 headsets
offering a range of up to 500 ft. This product uses SRS® licensed
sound technology to refine the DSP sound quality and enhance
noise cancellation. Sound level protection technology conforms
to the current regulations and is used to filter out the loud and
high-pitched noises.
RF frequency band 1921.536 MHz — 1928.448 MHz
Channels 5
Operating temperature 32°F — 122°F
0°C — 50°C
Headset base voltage
(AC voltage, 60Hz)
96 — 127 Vrms
Headset base voltage
(AC adapter output)
6VDC @300mA
Headset voltage 3.2 — 4.2 VDC
Replacement battery 3.7V 240mAH
Technical specifications
61
Index
A
AC adapter, 8, 9, 47, 60
Alert tones, 27
Answering calls, 22
Auto off, 22
B
Battery charging, 11
Battery installation, 10
C
Call waiting, 25
D
De-registration, 32
DSL, 4, 6, 8, 9, 40
E
Ear hook headset
attachment, 12
Ending calls, 22
F
Flash (switchhook flash), 25
H
Headband headset
attachment, 15
Headset buttons, 1
Headset operation, 21
I
Incoming calls, answering,
22
Indicator lights, 28, 29
L
Lights, 28, 29
Listening volume, 24
M
Maintenance of your
headset, 50
Making calls, 21
Mute, 26
N
Neckband headset
attachment, 17
O
Operating range, 60
Q
Quick reference guide, 1-3
R
Receiving calls, 22
Registering the headset, 30
Replacing a headset, 32
Ring tone silencing, 23
S
Safety information, 46-49
Speaking volume, 24
Switching a call, 25
Index
62
Index
Index
T
Technical specifications, 60
Temporary ring tone silencing,
23
Troubleshooting, 34-45
V
Volume controls, 24
W
Warranty, 56-59
www.telephones.att.com
© 2008 Advanced American Telephones. All rights reserved.
AT&T and the AT&T logo are trademarks of AT&T Intellectual Property II, L.P. d/b/a
AT&T Intellectual Property licensed to Advanced American Telephones.
Printed in China. Issue 1 AT&T 06/08.
