VTech Telecommunications 80-7446-00 1.9GHz CORDLESS PHONE User Manual TL32100 200 300 CIB i1 2 8 10
VTech Telecommunications Ltd 1.9GHz CORDLESS PHONE TL32100 200 300 CIB i1 2 8 10
Users Manual
User’s manual
TL32100/TL32200/TL32300
DECT 6.0 cordless telephone/
answering system with
caller ID/call waiting
Audio assist™ is a trademark of Advanced American Telephones.
© 2010 Advanced American Telephones. All Rights Reserved. AT&T and
the AT&T logo are trademarks of AT&T Intellectual Property licensed to
Advanced American Telephones, San Antonio, TX 78219. Printed in China.
Congratulations
on purchasing your new AT&T product. Before using this AT&T product,
please read Important safety information on page 77 of this user’s manual.
Please thoroughly read the user’s manual for all the feature operations and
troubleshooting information you need to install and operate your new AT&T
product. You can also visit our website at www.telephones.att.com or
call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
The ENERGY STAR® program (www.energystar.gov) recognizes
and encourages the use of products that save energy and
help protect our environment. We are proud to mark this
product with the ENERGY STAR® label indicating it meets the
latest energy efficiency guidelines.
Telephones identified with this logo have reduced noise and
interference when used with most T-coil equipped hearing
aids and cochlear implants. The TIA-1083 Compliant Logo is
a trademark of the Telecommunications Industry Association.
Used under license.
Model #: TL32100 (one-handset system)
TL32200 (two-handset system)
TL32300 (three-handset system)
Type: DECT 6.0 cordless telephone with answering system
Serial #:
Purchase date:
Place of purchase:
Both the model and serial number of your AT&T product can be found on the
bottom of the telephone base.

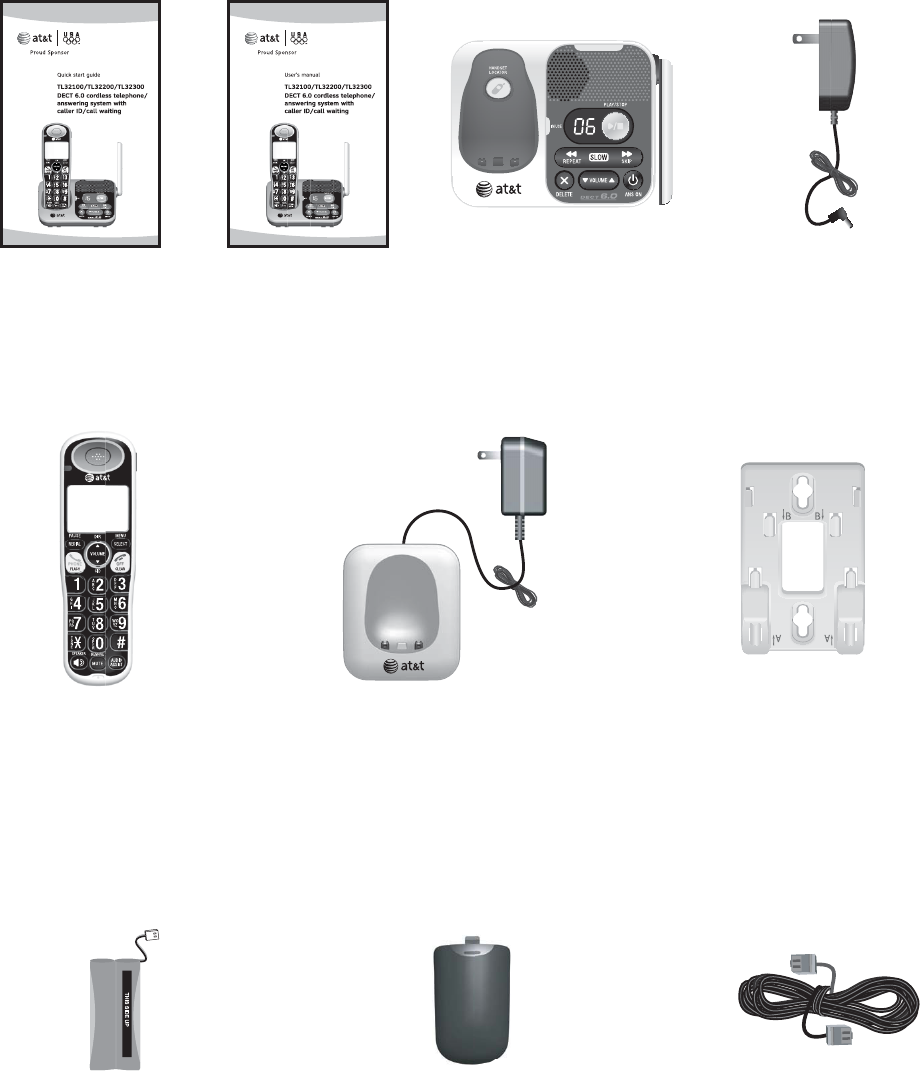

Parts checklist
Your telephone package contains the following items. Save your sales receipt
and original packaging in the event warranty service is necessary.
Power adapter for
telephone base
Telephone base
Quick start guide User’s manual
Wall mount bracket
Charger for cordless handset
with power adapter installed
(1 for TL32200)
(2 for TL32300)
Cordless handset
(1 for TL32100)
(2 for TL32200)
(3 for TL32300)
Telephone line cord
Battery for cordless handset
(1 for TL32100)
(2 for TL32200)
(3 for TL32300)
Battery compartment cover
(1 for TL32100)
(2 for TL32200)
(3 for TL32300)
i
User’s manual
TL32100/TL32200/TL32300
DECT 6.0 cordless telephone/
answering system with
caller ID/call waiting
Table of contents
Getting started
Quick reference guide ..................................................2
Telephone base and charger installation............5
Battery installation and charging............................6
Battery installation..................................................6
Battery charging.......................................................7

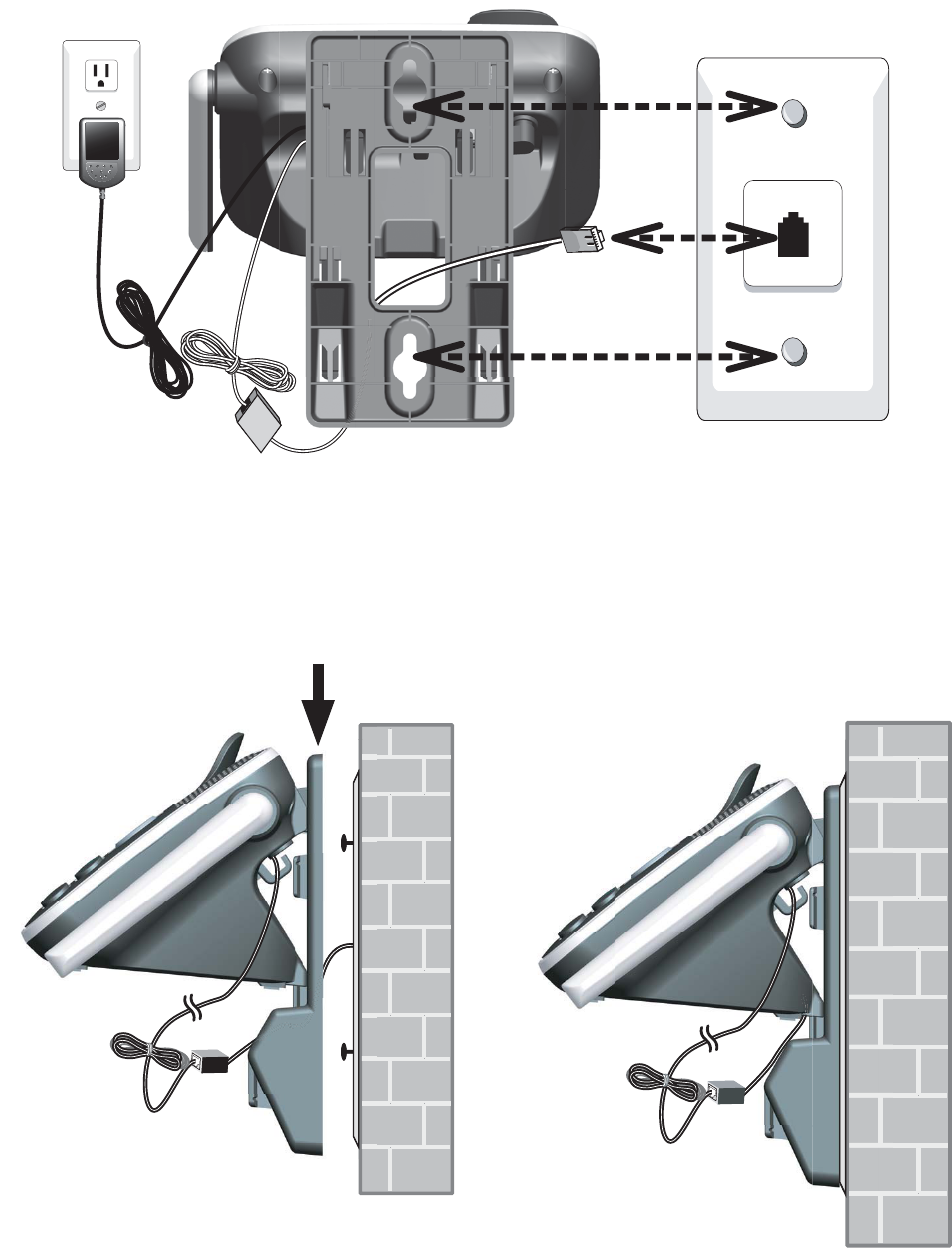

Wall mount installation................................................8

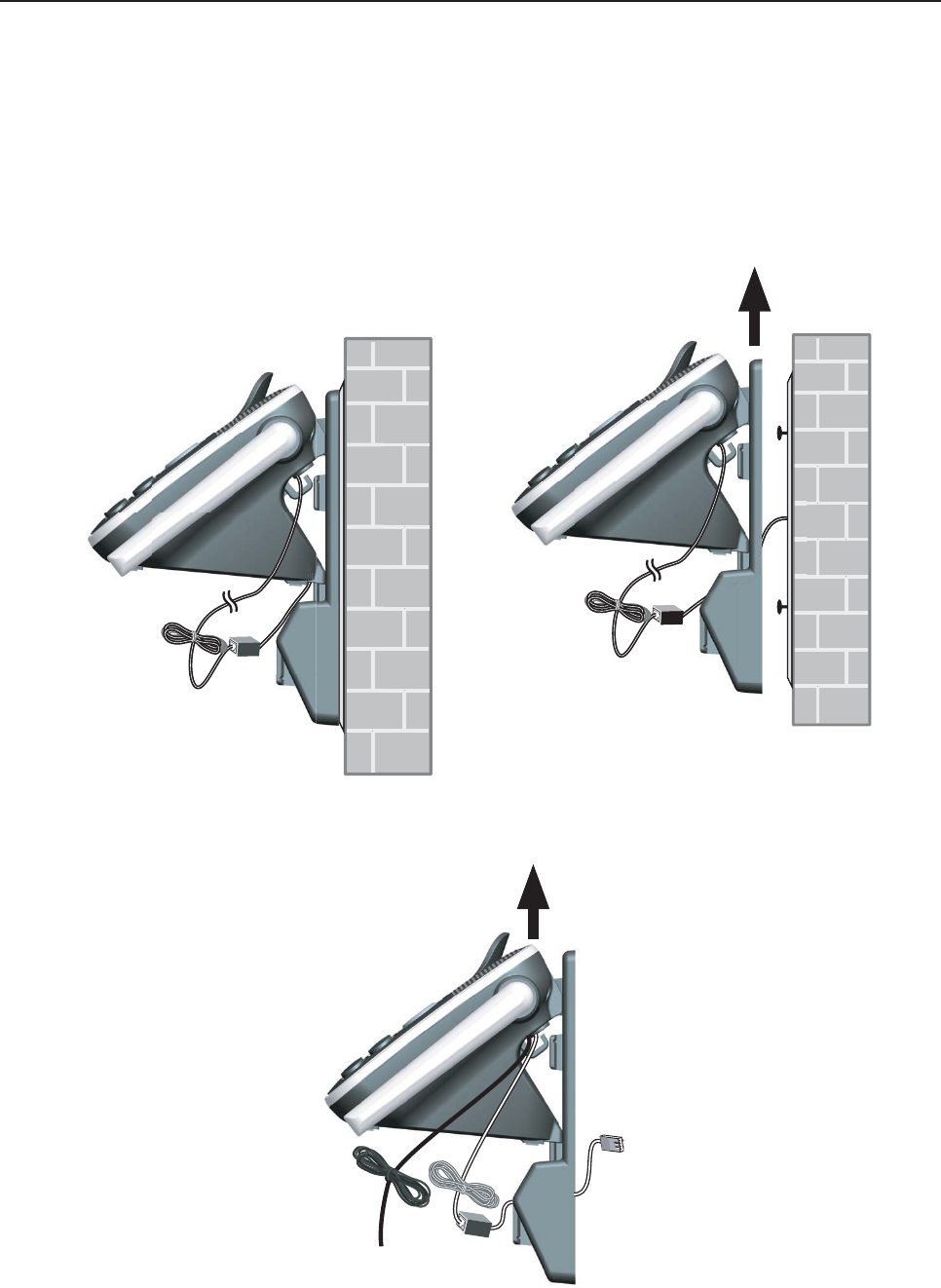

Tabletop to wall mount installation................8
Wall mount to tabletop installation ............10
Telephone settings
Menu overview...............................................................11
Handset settings...........................................................12
Ringer volume.........................................................12
Ringer tone...............................................................12
LCD language..........................................................12
Voicemail waiting
(visual message waiting) indicator...............13
Clear voicemail indication ................................13
Key tone.....................................................................14
Set date/time..........................................................14
CID time synchronization..................................15
Home area code....................................................15
Dial mode..................................................................16
Website ......................................................................16
Answering system settings......................................17
Announcement.......................................................17
Answering mode....................................................18
Call screening setup............................................19
Number of rings.....................................................20
Remote access code............................................20
Message alert tone...............................................21
Recording time.......................................................21
Telephone base ringer volume..............................22
Telephone operation
Making, answering and ending a call.................23
Making a call ...........................................................23
Temporary ringer silencing...............................23
Answering a call....................................................24
Speakerphone.........................................................24
Ending a call............................................................24
Redial..................................................................................25
To review numbers in the redial list............25
To call a number from the redial list ..........25
To copy a number from the redial list
to the directory......................................................25
To delete a number in the redial list ..........26
Options while on calls...............................................27
Volume control.......................................................27
Mute.............................................................................27
Flash/call waiting .................................................27
Equalizer ....................................................................28
Audio assist..............................................................28
Temporary tone dialing......................................28
Chain dialing............................................................29
Join a call in process ..........................................30
Handset locator.............................................................31
Intercom............................................................................32
To make and answer an intercom call.......32
To answer an incoming call during
an intercom call.....................................................33
Call transfer using intercom ...................................34
Directory
Directory overview.......................................................36
Shared directory ....................................................36
Directory memory capacity..............................36
Exiting the directory ............................................36
Speed dial overview.............................................36
ii
Create directory entries............................................37
To create a new directory entry....................37
To add a predialed telephone number
to the directory......................................................38
Reviewing the directory............................................39
To review directory entries...............................39
To search by name...............................................39
Dialing, deleting and editing
a directory entry...........................................................41
To dial a directory number...............................41
To delete a directory entry ..............................41
To edit a directory entry....................................41
Speed dial locations ...................................................42
To assign or reassign a directory entry
to a speed dial location.....................................42
To clear a speed dial location........................42
To dial a speed dial number............................43
Caller ID
About caller ID ..............................................................44
Information about caller ID
with call waiting ....................................................44
About home area code ......................................44
Caller ID history............................................................45
How caller ID history (call log) works ........45
Memory match........................................................45
Caller ID operation......................................................46
Missed (new) calls indicator ............................46
Reasons for missing caller ID
information...............................................................46
To review the caller ID history .......................47
To view the dialing options..............................47
To dial a caller ID history number................48
To delete caller ID history entries ................48
Saving a caller ID history entry
in the directory.......................................................49
Answering system
Answering system and voicemail.........................50
About answering system and voicemail....50
Answering system new message
indication...................................................................50
Answering system overview ...................................51
Voice prompts.........................................................51
Message capacity..................................................51
Call screening.........................................................51
Call intercept...........................................................52
Temporarily turning off
the message alert tone......................................52
Message playback........................................................53
To listen to messages.........................................53
Options during playback ...................................54
To delete all old messages..............................55
Recording and playing memos..............................56
To record a memo ................................................56
To play back memos ...........................................56
Message window displays........................................57
Remote access...............................................................58
Appendix
Adding and registering a handset .......................60
Deregistering all handsets.......................................61
Screen icons, indicator lights
and alert tones..............................................................62
Screen icons ............................................................62
Handset indicator lights.....................................63
Telephone base indicator lights.....................63
Handset alert tones .............................................64
Telephone base alert tones.............................64
Handset display screen messages.......................65
Troubleshooting ............................................................67
Maintenance....................................................................76
Important safety information .................................77
Safety information ................................................77
Especially about cordless telephones ........77
Precautions for users of implanted
cardiac pacemakers .............................................78
Pacemaker patients .............................................78
Especially about telephone
answering systems...............................................78
FCC Part 68 and ACTA...............................................79
FCC Part 15.....................................................................80
Limited warranty...........................................................81
Technical specifications ............................................83
DECT 6.0 digital technology ............................83
Telephone operating range..............................83
Index...................................................................................84
Remote access wallet card .....................................86
1
Install the telephone base close to a telephone wall jack and an electrical
outlet not controlled by a wall switch. The telephone base can be placed on a
flat surface or vertically mounted on the wall (page 8). For optimum range and
better reception, place the telephone base in a central and open location.
If you subscribe to high-speed Internet service (digital subscriber line - DSL)
through your telephone line, you must install a DSL filter between the
telephone line cord and the telephone wall jack (page 5). The filter prevents
noise and caller ID problems caused by DSL interference. Please contact your
DSL service provider for more information about DSL filters.
Your product may be shipped with a protective sticker covering the handset
or telephone base display - remove it before use.
For customer service or product information, visit our website at
www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial
1 (866) 288-4268.
Avoid placing the telephone base too close to:
Communication devices such as: television sets, VCRs, or other
cordless telephones.
Excessive heat sources.
Noise sources such as a window with traffic outside, motors, microwave
ovens, refrigerators, or fluorescent lighting.
Excessive dust sources such as a workshop or garage.
Excessive moisture.
Extremely low temperature.
Mechanical vibration or shock such as on top of the washing machine or
work bench.
•
•
•
•
•
•
•
You must install and charge
the battery before using the
cordless handset.
See pages 6 and 7 for easy
instructions.
2
Getting started
Quick reference guide
REDIAL/PAUSE
Press repeatedly to view the
last 20 numbers dialed
(page 25).
While entering numbers,
press and hold to insert a
dialing pause (pages 23
and 37).
PHONE/FLASH
Press to make or answer a
call (pages 23 and 24).
During a call, press to answer
an incoming call when you
receive a call waiting alert
(page 27).
1
While reviewing a caller ID
history entry, press repeatedly
to add or remove 1 in front of
the telephone number before
dialing or saving it in the
directory (page 47).
0
While entering names in the
directory, press to add a space
(page 37).
MUTE/REMOVE
During a call, press to mute
the microphone (page 27).
While predialing, press to
delete digits (page 23).
While reviewing the redial
list, directory, speed dial list
or caller ID history, press to
delete an individual entry
(pages 26, 41, 42 and 48).
TONE
During a call, press to send
touch-tone signals (page 28).
SPEAKER
Press to turn on the handset
speakerphone, press again to
resume normal handset use
(pages 17, 24 and 54).
DIR/VOLUME
Press to scroll up while in
menus (page 11).
Press to increase the listening
volume (pages 17, 27 and 54).
Press to show directory
entries when the handset is
not in use (page 39).
While entering names or
numbers in the directory,
press to move the cursor to
the right (page 37).
MENU/SELECT
Press to display the menu
(page 11).
Once in the menu, press to
select an item or save an
entry or setting (page 11).
OFF/CLEAR
During a call, press to hang
up (page 24).
While using menus, press to
cancel an operation, back up
to the previous menu, or exit
the menu display (page 11).
Press and hold while the
handset is not in use to erase
the missed calls indicator
(page 46).
CID/VOLUME
Press to scroll down while in
menus (page 11).
Press to decrease the
listening volume (pages 17, 27
and 54).
Press to show the caller ID
history when the handset is
not in use (page 47).
While entering names or
numbers in the directory,
press to move the cursor to
the left (page 37).
#
When reviewing a caller ID
history entry, press repeatedly
to view the dialing options
(page 47).
AUDIO ASSIST™
During a call (normal handset
use), press to make some
voices to sound louder and
clearer (page 28).
Audio assist™ is a trademark of Advanced American Telephones.
3
Getting started
Quick reference guide
Using menus
Press MENU/SELECT to enter the main menu.
Press DIR or CID to scroll through menu items.
Press MENU/SELECT to select or modify an item.
Press OFF/CLEAR to cancel an operation, back up to the
previous menu, or exit the menu display.
Main menu
Play messages (page 53)
Answering sys (page 17)
Directory (page 39)
Call log (page 47))
Intercom (appears if you have more than one handset, page 32)
Ringers (page 12)
Settings (pages 12-16)
Website (page 16)
The > symbol indicates
the feature to select.
>Play messages
Answering sys
EQUALIZER
During an outside call, intercom call, message or announcement
playback, press to change the quality of the audio to best suit
your hearing (page 28).
4
Getting started
Quick reference guide
HANDSET LOCATOR
Press to make handsets beep so you can locate
them (page 31).
Message window
Displays the number of messages. During
playback, displays the message number
currently playing (page 57).
PLAY/STOP
Press to start or stop message playback
(page 53).
While call screening, press to temporarily turn
the call screening on or off (page 51).
REPEAT
After the answering system plays the day and
time the current message was received, press to
repeat the message currently playing (page 54).
While the answering system is playing the day
and time the current message was received,
press to listen to the previous message
(page 54).
SKIP
Press to skip a message (page 54).
ANS ON
Press to turn the built-in answering system on
or off (page 18).
SLOW
Press to slow message playback (page 54).
VOLUME
While the telephone is not in use, press to
adjust the telephone base ringer volume
(page 22).
During call screening or message playback,
press to adjust the listening volume
(pages 51 and 54).
DELETE
Press to delete the message
currently playing (page 54).
Press twice to delete all old
messages when the telephone
is not in use (page 55).
5
Getting started
Install the telephone base and charger as shown below. If you subscribe
to high-speed Internet service (digital subscriber line - DSL) through your
telephone line, you must install a DSL filter between the telephone line cord
and the telephone wall jack. The filter prevents noise and caller ID problems
caused by DSL interference. Please contact your DSL service provider for more
information about DSL filters.
The telephone base comes ready for tabletop use. If you want to mount your
telephone on a wall, refer to Wall mount installation on page 8 for details.
Telephone base and charger installation
IMPORTANT INFORMATION:
Use only the power adapters provided with this
product. To obtain a replacement, visit our website
at www.telephones.att.com or call
1 (800) 222-3111. In Canada, dial
1 (866) 288-4268.
Raise the antenna.
Plug the large end
of the smaller power
adapter into an
electrical outlet not
controlled by a
wall switch.
Ensure the small end
of the smaller power
adapter is plugged into
the power jack on the
back of the charger.
Route the cord through
the slot.
Telephone line cord
DSL filter (not included)
is required if you
have DSL high-speed
Internet service.
Telephone wall jack Electrical outlet not
controlled by a wall
switch
Plug the small end
of the larger power
adapter into the power
jack on the back of the
telephone base.
Plug the large end
of the larger power
adapter into an
electrical outlet not
controlled by a wall
switch.
Plug one end of the
telephone line cord
into the TEL. LINE jack
on the back of the
telephone base.
Plug the other end of
the telephone line cord
into a telephone wall
jack.
Route the cords
through the slot.
6
Getting started
Battery installation and charging
Battery installation
Install the battery as shown below.
IMPORTANT INFORMATION:
Use only the supplied rechargeable battery or replacement battery (model BT166342). To order,
visit our website at www.telephones.att.com, or call 1 (800) 222-3111.
In Canada, dial 1 (866) 288-4268.
Plug the battery
connector securely
into the socket inside
the handset battery
compartment, matching
the color-coded label.
1. Insert the supplied battery
with the label THIS SIDE
UP facing up as indicated.
2.
To replace the battery, press the tab and
slide the battery compartment cover
downwards. Lift out the old battery and
disconnect it from the handset. Follow the
instructions above to install and charge the
new battery.
Align the cover flat against
the battery compartment,
then slide it upwards until
it clicks into place.
3.
Charge the handset by placing it face up in
the telephone base or charger. The CHARGE
light is on when charging.
4.
CHARGE light
7
Getting started
Battery installation and charging
Battery charging
Once you have installed the battery, the screen indicates
the battery status (see the table below). If necessary, place
the handset in the telephone base or charger to charge
the battery. For best performance, keep the handset in the
telephone base or charger when not in use. The battery is
fully charged after 16 hours of continuous charging. See
Technical specifications on page 83 for battery
operating times.
If the screen is blank, you need to charge the handset without interruption
for at least 30 minutes to give the handset enough charge to use the
telephone for a short time. The screen shows LOW BATTERY until you
have charged the battery without interruption for at least 30 minutes. The
following table summarizes the battery charge indicators and actions to take.
Battery indicators Battery status Action
The screen is blank or shows
PLACE IN CHARGER.
Battery has no or very little
charge. The handset cannot
be used.
Charge without interruption
until the screen shows
LOW BATTERY or HANDSET X
(at least 30 minutes).
The screen shows
LOW BATTERY and flashes.
Battery has enough charge to
be used for a short time.
Charge without interruption
until the screen shows
HANDSET X (at least
30 minutes).
The screen shows HANDSET X
and the battery icon shows
, or .
Battery is charged. To keep the battery charged,
place it in the telephone base
or charger when not in use.
NOTES:
If you are on a call in low battery mode, you hear four short beeps every 50 seconds.
When you place the handset in the telephone base or charger, if no battery is installed
in that handset, the CHARGE light is off and the screen shows No battery. Follow the
instructions in Battery installation on page 6 to install the battery.
•
•
Battery status icon
HANDSET 1
11/20
10:30PM
8
Getting started
Wall mount installation
The telephone base comes ready for tabletop use. If you want to mount your
telephone on a wall, use the provided wall mount bracket to connect with
a standard dual-stud telephone wall mounting plate. If you do not have this
mounting plate, you can purchase one from many hardware or consumer
electronics retailers. Professional assistance may be required to install the
mounting plate.
Tabletop to wall mount installation
To change the telephone base from the tabletop installation to wall mount
installation, make sure you first unplug the power adapter from the electrical
outlet and unplug the telephone line cord from the telephone wall jack.
Plug one end of the telephone line cord into the TEL. LINE jack on the
back of the telephone base. Plug the small end of the larger power
adapter into the power jack on the back of the telephone base.
Position the telephone base as shown below. Insert the extended tabs of
the wall mount bracket into the slots on the back of the telephone base.
Push the telephone base down until it clicks securely in place.
Route the telephone line cord through the wall mount bracket hole. Route
the power cord out of the back of the telephone.
1.
2.
3.
Slots for wall mount
bracket installation
DSL filter (not included) is
required if you have DSL high-
speed Internet service.
Power cord
9
Getting started
Wall mount installation
Plug the other end of the telephone line cord into the telephone wall jack.
Plug the large end of the larger power adapter into an electrical outlet not
controlled by a wall switch.
4.
Align the holes on the wall mount bracket with the mounting studs of the
wall mounting plate and slide the bracket down until it locks securely.
Bundle the telephone line cord and power adapter cord neatly with
twist ties.
5.
10
Getting started
Wall mount installation
Wall mount to tabletop installation
To change the telephone base from the wall mount installation to tabletop
installation, follow the steps below.
Unplug the large end of the larger power adapter from the electrical outlet.
If the telephone line cord and power adapter cord are bundled, untie
them first. Slide the wall mount bracket up and remove it from the wall
mounting plate. Unplug the end of the telephone line cord from the
telephone wall jack.
1.
2.
Lift the telephone base up to detach it from the wall mount bracket.3.
Refer to Telephone base and charger installation on page 5 to install the
telephone base.
4.
11
Menu overview
Use the menu to change the telephone settings.
Press MENU/SELECT in idle mode (when the handset is
not in use) to enter the main menu.
Press DIR or CID until the > is next to the feature you
want to select.
Press MENU/SELECT to select or save the indicated item.
-OR-
Press OFF/CLEAR to cancel an operation, back up to
the previous menu or exit the menu display.
-OR-
Press and hold OFF/CLEAR to cancel an operation
and return to idle mode.
-OR-
If no key is pressed within 30 seconds, the handset
automatically cancels an operation and returns to
idle mode.
NOTES:
Only when you have more than one handset, the menu item Intercom appears in the main
menu. To register a handset, refer to Adding and registering a handset on page 60.
The menu items Play messages,Answering sys,Directory,Call log,Clr voicemail,
Set date/time,Home area code and Dial mode are shared by all handsets. Any changes
made to these menu items on any one handset apply to all.
1.
2.
3.
•
•
Telephone settings
>Play messages
Answering sys
The > symbol indicates
the feature to select.
HANDSET 1
10/20
10:30PM
The handset is in
idle mode.
Menu structure
Play messages
Answering sys
Directory
Call log
Intercom
Ringers
Settings
Website
Call screening
# of rings
Remote code
Msg alert tone
Recording time
Announcement
Delete all old
Record memo
Answer on/off
Ans sys setup
Ringer volume
Ringer tone
LCD language
Clr voicemail
Key tone
Set date/time
Home area code
Dial mode Date & time
CID time sync
12
Telephone settings
Handset settings
Ringer volume
You can set the handset ringer volume level (1-6), or turn the ringer off.
When the ringer is off, appears on the handset screen.
Press MENU/SELECT in idle mode.
Press DIR or CID to scroll to >Ringers. Press
MENU/SELECT.
Press MENU/SELECT to select >Ringer volume.
Press DIR or CID to sample each volume level.
Press MENU/SELECT to save your preference.
NOTES:
Changing the handset ringer volume does not affect the base ringer volume. For more
information on the base ringer volume, see Telephone base ringer volume on page 22.
The handset ringer volume also determines the ringer volume of intercom calls (see
Intercom on page 32).
If the handset ringer volume is set to off, that handset ringer is silenced for all incoming
calls; however, that handset still plays the paging tone when initiating the handset locator
feature (see Handset locator on page 31).
While the telephone is ringing, press OFF/CLEAR or MUTE/REMOVE to silence the ringer
temporarily on that handset only (see Temporary ringer silencing on page 23).
Ringer tone
You can choose one of 10 ringer tones for the handset.
Follow steps 1 and 2 in Ringer volume on this page.
Press DIR or CID to scroll to >Ringer tone, then
press MENU/SELECT.
Press DIR or CID to sample each ringer tone.
Press MENU/SELECT to save your preference.
NOTE: If you turn off the handset ringer volume, you will not hear ringer tone samples.
LCD language
You can select the language used for all screen displays.
Press MENU/SELECT in idle mode.
Press DIR or CID to scroll to >Settings.
Press MENU/SELECT twice to select >LCD language.
Press DIR or CID to select English,Français or
Español.
Press MENU/SELECT to save your preference.
1.
2.
3.
4.
5.
•
•
•
•
1.
2.
3.
4.
1.
2.
3.
4.
5.
Ringer volume
Ringer tone
>1
LCD language
>English
13
Telephone settings
Handset settings
Voicemail waiting (visual message waiting) indicator
If you subscribe to a voicemail service offered by your
telephone service provider, this feature provides a visual
indication when you have new voicemail messages.
New voicemail and appear on the handset screen.
NOTES:
Your telephone service provider might alert you to new voicemail messages with a stutter
(broken) dial tone. Contact your telephone service provider for more details.
This feature does not indicate new messages recorded on your telephone’s built-in
answering system.
For more information about the difference between your answering system and voicemail,
see About answering system and voicemail on page 50.
Clear voicemail indication
Use this feature when the telephone indicates there is new voicemail but
there is none. This may occur, for example, when you have accessed your
voicemail while away from home. This feature only turns off the displayed
New voicemail message and icon; it does not delete your voicemail
messages. As long as you have new voicemail messages, your telephone
service provider continues to send the signal to turn on the indicator.
To manually turn off the new voicemail indicator:
Press MENU/SELECT when in idle mode.
Press DIR or CID to scroll to >Settings, then press
MENU/SELECT.
Press DIR or CID to scroll to >Clr voicemail, then
press MENU/SELECT. The screen shows TURN OFF INDICATOR?
Press MENU/SELECT to turn the voicemail indication off. A confirmation
tone sounds.
-OR-
Press OFF/CLEAR to cancel the procedure.
NOTE: For information about using your voicemail service, contact your telephone service
provider for assistance.
•
•
•
1.
2.
3.
4.
HANDSET 1
New voicemail
10/20
10:30PM
TURN OFF
INDICATOR?
10/20
10:30PM
14
Telephone settings
Handset settings
Key tone
The handset is programmed to beep with each key press. You can turn
Key tone off, so there are no beeps when you press keys.
Press MENU/SELECT in idle mode.
Press DIR or CID to scroll to >Settings, then press
MENU/SELECT.
Press DIR or CID to scroll to >Key tone, then press
MENU/SELECT.
Press DIR or CID to select On or Off.
Press MENU/SELECT to save your preference.
Set date/time
The answering system announces the day of the week and time of each
message received prior to playing it. If CID time sync is On (see
CID time synchronization on page 15) and you subscribe to caller ID
service, the day, month and time are set automatically with each incoming
call (see About caller ID on page 44). However, the year must be set so that
the day of the week can be calculated from the caller ID information.
Follow the steps below to set the month, day, year and time.
Follow steps 1 and 2 in Key tone on this page.
Press DIR or CID to scroll to >Set date/time, then press MENU/SELECT.
Press MENU/SELECT to choose >Date & time.
Use the dial pad keys (0-9) to enter the two-digit
number (01-12) for the month.
Use the dial pad keys (0-9) to enter the two-digit
number (01-31) for the day.
Use the dial pad keys (0-9) to enter the two-digit
number (00-99) for the year. Press MENU/SELECT.
Use the dial pad keys (0-9) to enter the two-digit
number (01-12) for the hour.
Use the dial pad keys (0-9) to enter the two-digit
number (00-59) for the minute.
Press DIR or CID to choose AM or PM. Press MENU/SELECT to confirm. A
confirmation tone sounds.
NOTE: If the date and time are not set and the handset is powered up, SET DATE appears
on the screen to prompt you to set the date and time. You can set the date and time in this
time or set them later by pressing OFF/CLEAR to show the idle mode.
1.
2.
3.
4.
5.
1.
2.
3.
4.
5.
6.
7.
8.
9.
Key tone
>On
SET DATE
11/20/09
SET TIME
10:30 PM
15
Telephone settings
CID time synchronization
CID time sync is programmed to be on. If you subscribe to caller ID service,
the day, month and time are set automatically with each incoming call
(see About caller ID on page 44). You can turn CID time sync off, so the
handset will show the date and time as you manually set (see Set date/time
on page 14).
Press MENU/SELECT in idle mode.
Press DIR or CID to scroll to >Settings, then press
MENU/SELECT.
Press DIR or CID to scroll to >Set date/time, then
press MENU/SELECT.
Press DIR or CID to scroll to >CID time sync, then
press MENU/SELECT.
Press DIR or CID to select On or Off.
Press MENU/SELECT to save your preference.
Home area code
If you dial seven digits to make a local call (no area code required), enter
your area code into the telephone as the home area code. When you receive
a call from within your home area code, the caller ID history only displays the
seven digits of the telephone number.
This feature makes it easy for you to place a call from the caller ID history. If
you dial 10 digits to make a local telephone call, do not use this home area
code feature. If you do, you will not be able to place calls from your caller ID
history as they have only seven digits.
Follow steps 1 and 2 in CID time synchronization on
this page.
Press DIR or CID to scroll to >Home area code, then
press MENU/SELECT.
Press the dial pad keys to enter your three-digit area
code. Press MUTE/REMOVE to delete digits while entering.
Press MENU/SELECT to save the setting.
NOTE: If, in the future, your telephone service provider requires you to dial 10 digits to make
a local call (area code + telephone number), you will need to delete your home area code. While
the home area code displaying in step 4 above, press and hold MUTE/REMOVE. The home area
code is now restored to its default setting of _ _ _ (empty).
1.
2.
3.
4.
5.
6.
1.
2.
3.
4.
Handset settings
Home area code
___
CID time sync
>On
16
Telephone settings
Dial mode
The dial mode is preset to tone dialing. If you have pulse (rotary) service, you
must change the dial mode to pulse dialing before using the telephone.
Press MENU/SELECT in idle mode.
Press DIR or CID to scroll to >Settings, then press
MENU/SELECT.
Press DIR or CID to scroll to >Dial mode, then press
MENU/SELECT.
Press DIR or CID to select Tone or Pulse.
Press MENU/SELECT to save the setting.
NOTE: If you have dial pulse (rotary) dialing service only, refer to Temporary tone dialing
on page 28 to temporarily switch from dial pulse to touch-tone dialing during a call.
Website
You can use this feature to view the AT&T website address on the handset.
Press MENU/SELECT in idle mode.
Press DIR or CID to scroll to >Website, then press
MENU/SELECT.
The screen shows www.telephones.att.com.
Press MENU/SELECT to finish the view.
1.
2.
3.
4.
5.
1.
2.
3.
4.
Handset settings
Dial mode
>Tone
www.telephones.
att.com
17
Telephone settings
Use the answering system menu of a system handset to turn on or off the
answering system, record your announcement, activate the call screening,
change the number of rings, set the remote access code, activate the
message alert tone and select the recording time of incoming messages.
Announcement
The announcement is the greeting callers hear when calls are answered by
the answering system.
The telephone has a default announcement, “Hello. Please leave a message
after the tone.” You can use this announcement, or record your own
announcement.
You can record an announcement up to 90 seconds. The system does not
record any announcement shorter than two seconds.
To play the current announcement:
Press MENU/SELECT when in idle mode.
Press DIR or CID to scroll to >Answering sys, then
press MENU/SELECT.
Press MENU/SELECT to choose >Announcement. The
system announces, “To play, press 2. To record, press 7.”
Press 2 to play the current announcement from the
speakerphone.
Press DIR/VOLUME to increase or press
CID/VOLUME to decrease the message playback
volume.
Press SPEAKER to switch between speakerphone
and handset earpiece.
Press EQUALIZER to select the equalizer setting to change the quality
of the audio of the handset to best suit your hearing (see Equalizer on
page 28).
If use the handset earpiece, press AUDIO ASSIST to make some voices
to sound louder and clearer (see Audio assist on page 28). Press again
to stop this feature.
1.
2.
3.
4.
•
•
•
•
Answering system settings
>Announcement
Delete all old
2-Play 3-Delete
5-Stop 7-Record
18
Telephone settings
To record a new announcement:
Press MENU/SELECT when in idle mode.
Press DIR or CID to scroll to >Answering sys, then press MENU/SELECT.
Press MENU/SELECT to choose >Announcement. The system announces,
“To play, press 2. To record, press 7.”
Press 7. The system announces, “Record after the tone,
press 5 when you are done.”
Face the handset and speak towards the microphone to
record your announcement.
Press 5 when you finish the recording. The handset
plays back the recorded announcement.
NOTE: If the answering system memory is full, when you press 7 in step 3, the answering
system announces, “Memory is full.” You must delete some messages before you can record a
new announcement. Refer to Message playback on page 53.
To delete your announcement:
Follow steps 1 through 4 in To play the current
announcement on page 17 to play the announcement.
Press 3 during playback to delete your recorded
announcement. The system announces,
“Announcement deleted.”
If your announcement is deleted, calls are answered with the default
announcement, “Hello. Please leave a message after the tone.”
Answering mode
Unless you change it, the answering system is on and ready to record
messages. If the answering system is on, the ANS ON icon displays on the
handset screen and the ANS ON light on the telephone base is on. You can
turn the answering system off, but if you do so, the answering system does
not answer calls and record incoming messages.
Using the handset:
Press MENU/SELECT when in idle mode.
Press DIR or CID to scroll to >Answering sys, then
press MENU/SELECT.
Press DIR or CID to scroll to >Answer on/off, then
press MENU/SELECT.
Press DIR or CID to select between On and Off, then press
MENU/SELECT to confirm the setting. A confirmation tone sounds.
1.
2.
3.
4.
5.
6.
1.
2.
1.
2.
3.
4.
Answering system settings
2-Play 3-Delete
5-Stop 7-Record
Answer on/off
>On
RECORD ANNC...
5-Stop
19
Telephone settings
Using the telephone base:
Press ANS ON to turn the answering system
on or off. If the answering system is turned on,
it announces, “Calls will be answered.” If the
answering system is turned off, it announces,
“Calls will not be answered.”
NOTES:
You can turn the answering system on or off from either the handset or the telephone base,
but you must use the handset to change the other answering system settings.
During an incoming call, if the answering system is off, press ANS ON if you wish to
immediately send the call to the answering system. If the answering system is on, press
ANS ON if you wish to stop sending the call to the answering system.
If the answering system is off and there is an incoming call, the system answers after 10 rings
and announces to the caller, “Please enter your remote access code.” For more information,
see Remote access on page 58.
If the answering system has less than three minutes of recording time left, when you turn
on the answering system using the handset, it displays Less than 3 min to record. The
telephone base announces, “Less than three minutes to record.”
If the memory of the answering system is full, when you turn on the answering system using
the handset, it displays Memory full. The telephone base announces, “Memory is full.”
You cannot turn the answering system on or off while a handset is on a call or the telephone
base is playing messages.
Call screening setup
You can choose whether incoming messages are played through the speaker
on the telephone base while they are being recorded.
To change the settings:
Press MENU/SELECT when in idle mode.
Press DIR or CID to scroll to >Answering sys, then
press MENU/SELECT.
Press DIR or CID to scroll to >Ans sys setup. Press
MENU/SELECT.
Press MENU/SELECT to select >Call screening.
Press DIR or CID to choose between On and Off.
Press MENU/SELECT to confirm your setting. A confirmation tone sounds.
NOTE: For more details about the feature call screening, see Call screening on page 51.
•
•
•
•
•
•
•
1.
2.
3.
4.
5.
6.
Answering system settings
Call screening
>On
20
Telephone settings
Number of rings
You can set the answering system to answer an incoming call after two, four
or six rings. You can also select toll saver, which is explained below. Unless
you change it, the answering system answers an incoming call after four rings.
To set the number of rings:
Press MENU/SELECT when in idle mode.
Press DIR or CID to scroll to >Answering sys, then
press MENU/SELECT.
Press DIR or CID to scroll to >Ans sys setup. Press
MENU/SELECT.
Press DIR or CID to scroll to ># of rings, then press MENU/SELECT.
Press DIR or CID to scroll and choose among 2,4,6 or Toll saver.
Toll saver - the answering system answers a call after two rings if
you have new messages, and after four rings when there are no new
messages. This feature allows you to check for new messages and avoid
paying long distance charges if you are calling from out of your local area.
Press MENU/SELECT to confirm your setting. A confirmation tone sounds.
NOTE: If you subscribe to a voicemail service offered through your telephone service
provider, see About answering system and voicemail on page 50.
Remote access code
To access your answering system remotely from any touch-tone telephone,
you need to enter a two-digit number (00-99). Unless you change it, the
remote access code is 19.
To change the remote access code:
Follow steps 1 through 3 in Number of rings on this page.
Press DIR or CID to scroll to >Remote code, then
press MENU/SELECT.
Press DIR or CID to select the remote access code,
or use the dial pad keys to enter the correct number
(00-99).
Press MENU/SELECT to confirm your setting. A confirmation tone sounds.
NOTE: For more details about the feature remote access, refer to Remote access on page 58.
1.
2.
3.
4.
5.
•
5.
1.
2.
3.
4.
Answering system settings
Remote code
19
# of rings
>4
21
Telephone settings
Message alert tone
When the message alert tone is set to On, and there is at least one new
message, the telephone base beeps every 10 seconds. Unless you change it,
the message alert tone is set to off.
To change the setting:
Press MENU/SELECT when in idle mode.
Press DIR or CID to scroll to >Answering sys, then
press MENU/SELECT.
Press DIR or CID to scroll to >Ans sys setup. Press
MENU/SELECT.
Press DIR or CID to scroll to >Msg alert tone, then press MENU/SELECT.
Press DIR or CID to choose between On and Off.
Press MENU/SELECT to confirm your setting. A confirmation tone sounds.
NOTES:
The message alert tone beeps only if all the conditions below are met:
Answering system is on.
Message alert tone setting is on.
There are new messages.
To temporarily turn off the message alert tone, see Temporarily turning off the message
alert tone on page 52.
Recording time
You can select the recording time (up to one, two or three minutes) for each
message (incoming message) callers can record in the answering system.
To set the recording time:
Follow steps 1 through 3 in Message alert tone on this page.
Press DIR or CID to scroll to >Recording time, then
press MENU/SELECT.
Press DIR or CID to scroll and choose from 1 minute,
2 minutes or 3 minutes.
Press MENU/SELECT to confirm your setting.
A confirmation tone sounds.
NOTE: You can only set the recording time for incoming messages. You cannot set the
recording time for memos. (Individual memos can be up to three minutes. Refer to
Recording and playing memos on page 56.)
1.
2.
3.
4.
5.
6.
•
–
–
–
•
1.
2.
3.
4.
Msg alert tone
>Off
Answering system settings
Recording time
>3 minutes
22
Telephone settings
When the telephone is not in use, press VOLUME
on the telephone base to set the ringer volume level
(1-6), or turn the ringer off. A sample of the ringer
sounds as you adjust the volume. The telephone base
announces, “Base ringer is off” when you set the
volume to 0.
NOTE: If a handset is on an outside call or accessing the answering system, the telephone
base volume cannot be changed.
Telephone base ringer volume
23
Making, answering and ending a call
Making a call
To make a call:
Press PHONE/FLASH, then wait for the dial tone.
-OR-
Press SPEAKER to use the speakerphone, then wait
for the dial tone.
Use the dial pad keys to enter the telephone number.
On hook dialing (predialing):
Use the dial pad keys to enter the telephone number
(up to 30 digits).
Press and hold REDIAL/PAUSE to insert a three-
second dialing pause (a P appears).
Press MUTE/REMOVE or OFF/CLEAR to make
corrections.
Press PHONE/FLASH to call.
-OR-
Press SPEAKER to call using the speakerphone.
-OR-
Press and hold OFF/CLEAR to return to the idle mode.
NOTES:
Pressing PHONE/FLASH to access services from your telephone service provider does not
affect the elapsed time.
When a handset is on a call, if another handset attempts to access the directory, speed dial
list, caller ID history or answering system, the screen shows Not available at this time.
Temporary ringer silencing
To silence the ringer temporarily on that handset only:
While the telephone is ringing, press OFF/CLEAR or
MUTE/REMOVE.
To silence the ringer temporarily on the telephone base:
While the telephone is ringing, press VOLUME on the
telephone base.
This turns off the ringer without disconnecting the call. The next incoming
call rings normally at the preset volume.
NOTE: Unless the ringer volume is turned off on that handset, each handset rings when
there is an incoming call.
1.
2.
1.
•
•
2.
•
•
•
•
Telephone operation
888-722-7702
Ringer muted
10/20
10:30PM
Phone 0:01:30
888-722-7702
10/20
10:30PM
The screen displays the
elapsed time as you
talk (in hours, minutes
and seconds).
24
Telephone operation
Answering a call
Press any dial pad key (known as Any Key Answer) or
PHONE/FLASH.
-OR-
Press SPEAKER to use the speakerphone.
Speakerphone
During a call, press SPEAKER to switch between
speakerphone and normal handset use.
Press OFF/CLEAR to hang up.
NOTE: After installing the battery in the handset, the screen may
show LOW BATTERY. If you use the speakerphone at this time, the
battery may become depleted. Follow the instructions in Battery charging on page 7.
Ending a call
Press OFF/CLEAR.
-OR-
Put the handset in the telephone base or charger to
end the call (known as Auto Off).
•
•
•
•
Making, answering and ending a call
Speaker 0:01:30
888-722-7702
10/20
10:30PM
25
Telephone operation
Redial
Each handset stores the 20 numbers most recently called in the redial list.
To review numbers in the redial list
Press REDIAL/PAUSE in idle mode.
Press DIR or CID, or press REDIAL/PAUSE repeatedly
to scroll through the 20 recently called numbers (up
to 30 digits each). The handset beeps twice at the
beginning or end of the list.
Press OFF/CLEAR to exit the redial list.
NOTE: If you access an empty redial list, the handset sounds an error tone.
To call a number from the redial list
With the desired number from redial displaying, press
PHONE/FLASH or SPEAKER to dial (known as
Display Dial).
-OR-
Press PHONE/FLASH or SPEAKER and then wait
for the dial tone.
Press REDIAL/PAUSE. The screen shows the number most
recently called. If it is not the desired number, press DIR
or CID to scroll to the desired number.
Press MENU/SELECT. The handset dials the displayed number.
NOTE: If you access an empty redial list, the handset sounds an error tone.
To copy a number from the redial list to the directory
While reviewing the desired number in the redial list,
press MENU/SELECT twice to edit the telephone number.
Refer to step 5 in To create a new directory entry on
page 37.
Press MENU/SELECT to add the name. Refer to step 7 in
To create a new directory entry on page 37.
Press MENU/SELECT to store your new directory entry. The
handset shows Saved and sounds a confirmation tone.
1.
2.
3.
•
1.
2.
3.
1.
2.
3.
REDIAL
888-722-7702
10/20
10:30PM
EDIT NUMBER
888-722-7702_
EDIT NAME
_
26
Telephone operation
To delete a number in the redial list
While reviewing a number in the redial list, press
MUTE/REMOVE to delete the displayed number from
the redial list.
•
Redial
27
Telephone operation
Options while on calls
Volume control
While on a call, press DIR/VOLUME to increase or press
CID/VOLUME to decrease the listening volume.
When the volume reaches the minimum or maximum
setting, you hear two beeps.
NOTE: The handset earpiece volume setting (1-5) and speakerphone volume setting (1-6)
are independent.
Mute
Use the mute function to turn off the microphone while on a call. You can
hear the caller, but the caller does not hear you.
To mute the call:
Press MUTE/REMOVE. When mute is on, the handset
screen shows Muted for a few seconds and the MUTE
icon appears until you turn off mute.
To end mute:
Press MUTE/REMOVE and then resume speaking. When
mute is off, Microphone on appears temporarily on the
handset screen.
-OR-
Mute is automatically canceled when you end the call.
NOTE: The mute feature is automatically canceled if you press PHONE/FLASH
(see Flash/call waiting on this page).
Flash/call waiting
For more information on caller ID with call waiting, refer to About caller ID on
page 44. If you subscribe to call waiting service provided by your telephone
service provider, you hear a beep if someone calls you while you are already
on a call.
Press PHONE/FLASH to put your current call on hold
and take the new call.
Press PHONE/FLASH anytime to switch back and
forth between calls.
•
•
•
•
Muted
10/20
10:30PM
28
Telephone operation
Options while on calls
Equalizer
You can use the equalizer feature to change the quality of the
audio of the handset to best suit your hearing.
While on a call, listening to a message or announcement
on the handset, press EQUALIZER to select the equalizer
setting Treble 1,Treble 2,Bass or Natural (the default
setting). The current setting appears temporarily on the
handset screen.
Audio assist
You can use this feature to make some voices to sound louder and clearer
while you are on a call, listening to a message or announcement by using the
handset earpiece.
To turn on this feature:
While you are on a call, listening to a message or announcement by
using the handset earpiece, press AUDIO ASSIST.
The handset screen shows Audio assist on for a few
seconds and the AUDIO ASSIST icon appears until you
turn off this feature.
To turn off this feature:
Press AUDIO ASSIST. The handset screen shows
Audio assist off for a few seconds.
-OR-
This feature is automatically canceled when you end
the call.
You must press AUDIO ASSIST every time you want to activate the feature.
NOTE: The audio assist™ feature is automatically canceled if you switch from the handset
earpiece (normal handset use) to the speakerphone.
Temporary tone dialing
If you have dial pulse (rotary) dialing service only, you can temporarily switch
from dial pulse to touch-tone dialing during a call.
During a call, press TONE . Buttons pressed after this
send touch-tone signals.
Use the dial pad keys to enter the number.
The telephone automatically returns to pulse dial mode
after you end the call.
•
•
1.
2.
3.
Audio assist
on
10/20
10:30PM
Audio assist™ is a trademark of Advanced American Telephones.
29
Telephone operation
Options while on calls
Chain dialing
While on a call, you can initiate a dialing sequence from
numbers stored in the directory, caller ID history or
redial list. Doing this can be useful if you need to access
numbers other than telephone numbers (such as bank
account numbers or access codes).
To access the directory while on a call:
Press MENU/SELECT.
Press DIR or CID to scroll to >Directory, then press
MENU/SELECT.
Press DIR or CID to scroll or press the dial pad keys
(0 through 9) to find the desired entry (see To search
by name on page 39).
Press MENU/SELECT. The telephone automatically
dials the displayed number.
To access the caller ID history while on a call:
Press MENU/SELECT.
Press DIR or CID to scroll to >Call log, then press MENU/SELECT.
Press DIR or CID to scroll to the desired entry.
(If necessary to view the dialing options, press #. See
To view the dialing options on page 47 for more
details.)
Press MENU/SELECT. The telephone automatically
dials the displayed number.
To access the redial list while on a call:
Press REDIAL/PAUSE. The screen shows the number
most recently called. If it is not the desired number,
press DIR or CID to scroll to the desired number.
Press MENU/SELECT. The handset dials the displayed
number.
NOTES:
While on a call, you cannot edit a directory entry or copy a caller ID entry into the directory.
If someone else is already using the directory, speed dial list, caller ID history or answering
system, when you attempt to access one of them, the screen shows Not available at this time.
Press OFF/CLEAR to exit directory, caller ID history or redial list and return to the call
without dialing the displayed number.
•
1.
2.
3.
4.
•
1.
2.
3.
4.
•
1.
2.
•
•
•
>Directory
Call log
Charlie Johnson
888-883-2445
Phone 0:01:30
888-722-7702
10/20
10:30PM
ROBERT BROWN
800-360-4121
10/20
8:30PM
REDIAL
888-722-7702
30
Telephone operation
Join a call in process
If you have more than one handset (see Adding and registering a handset
on page 60), a handset is already on a call and you would
like to join the call:
Press PHONE/FLASH or SPEAKER on another
system handset.
To exit the call:
Press OFF/CLEAR or place the handset in the telephone base or charger.
The call does not end until all handsets hang up.
NOTE: You can only use up to four system handsets at the same time on an outside call. If
you attempt to use another handset to join the call, the handset screen shows Unable to call
Try again.
•
•
Options while on calls
31
Telephone operation
You can use the handset locator feature to find misplaced handsets.
To start the paging tone:
Press HANDSET LOCATOR on the telephone base
to start the paging tone on all handsets for
60 seconds.
To stop the paging tone:
Press PHONE/FLASH,SPEAKER, or any dial
pad key (0-9, , or #) on the handset(s).
-OR-
Press HANDSET LOCATOR on the telephone base.
-OR-
Put the handset in the telephone base or charger.
NOTES:
If you press OFF/CLEAR or MUTE/REMOVE on a handset, the
ringer of that handset is silenced but the paging tone continues
on the other handsets.
If the handset is accessing the answering system, on a call (intercom call or outside call),
or out of range, that handset does not beep when paged.
You cannot use the handset locator feature while the telephone base is playing messages or
the answering system is being accessed remotely.
•
•
•
•
•
•
•
Handset locator
32
Telephone operation
To make and answer an intercom call
If you have more than one handset (see Adding and registering a handset
on page 60), you can use the intercom feature for conversations between
handsets.
Press MENU/SELECT on your handset when not in use.
Press DIR or CID to scroll to >Intercom, then press
MENU/SELECT.
If you have two handsets, your handset screen shows
Calling HANDSET X.
If you have more than two handsets, your screen
shows INTERCOM TO: Use the dial pad keys to
select the other handset. Your handset screen shows
Calling HANDSET X.
The other handset rings and its screen shows
HANDSET X is calling.
To answer the intercom call, press any dial pad key
(0-9, , or #), PHONE/FLASH or SPEAKER on the
other handset. Both handsets now show Intercom.
To end an intercom call, press OFF/CLEAR or place
the handset back in the telephone base or charger.
Both handsets now show Intercom ended.
NOTES:
Before the intercom call is answered, you can cancel the intercom call by pressing
OFF/CLEAR on your originating handset.
If the other handset is not answered within 100 seconds, is in use, on a call or is out of
range, your originating handset shows Unable to call Try again.
Pressing OFF/CLEAR or MUTE/REMOVE temporarily silences the intercom ringer.
If you have four handsets, when two handsets are on an intercom call, the other two
system handsets can be used on an outside call (see Join a call in process on page 30) or
a separate intercom call.
If you have five handsets and four of them are on intercom calls, you can use the other
handset for an outside call.
1.
2.
•
•
•
3.
4.
•
•
•
•
•
Intercom
INTERCOM TO:
Calling
HANDSET X
Intercom
33
Telephone operation
To answer an incoming call during an intercom call
If you receive an incoming outside call during an intercom call, there is an
alert tone.
To answer the incoming outside call:
Press PHONE/FLASH. The intercom call ends
automatically.
To end the intercom call without answering the
incoming outside call:
Press OFF/CLEAR. The intercom call ends and the
handsets ring for the incoming call.
To let the answering system answer the incoming outside call:
Do nothing. Continue with the intercom call. If the answering system is on,
it answers the incoming call after the number of rings you have set.
•
•
•
Intercom
34
Telephone operation
Call transfer using intercom
If you have more than one handset (see Adding and registering a handset
on page 60), you can use the intercom feature to transfer an outside call to
another system handset.
During a call, press MENU/SELECT on your handset.
Press DIR or CID to scroll to >Intercom, then press
MENU/SELECT.
If you have two handsets, the outside call is put on
hold and your handset screen shows
Calling HANDSET X. The other handset rings and its
screen shows HANDSET X is Calling.
If you have more than two handsets, your screen
shows INTERCOM TO: Use the dial pad keys to enter
a handset number. The outside call is put on hold
and your handset screen shows Calling HANDSET X.
The other handset rings and its screen shows
HANDSET X is Calling.
To answer the intercom call on the other handset, press
any dial pad key (0-9, , or #), PHONE/FLASH or
SPEAKER. The outside call is still on hold and both
handsets now show Intercom. You can now have a
private conversation between the system handsets.
NOTES:
To cancel the transfer and return to the external call before the
intercom call is answered, press OFF/CLEAR or
PHONE/FLASH on your handset.
If the other handset is not answered within 100 seconds, is in use, on a call or is out of
range, the calling handset shows Unable to call Try again on its screen and automatically
returns to the external call.
1.
2.
•
•
3.
•
•
INTERCOM TO:
Calling
HANDSET X
Intercom
Phone 0:00:20
10/20
10:30PM
35
Telephone operation
From this intercom call, you have the following options:
You can let the other handset join you on the outside
call in a three-way conversation. Follow the steps
below:
Press MENU/SELECT on the calling handset.
Press DIR or CID to scroll to >Share call.
Press MENU/SELECT.
You can transfer the call. Press OFF/CLEAR, or
place your handset back in the telephone base or
charger. Your handset screen shows Call Transferred.
The other handset automatically connects to the
outside call.
-OR-
Press MENU/SELECT on your handset. Press MENU/SELECT twice to
select >Transfer.
You can press PHONE/FLASH on the original
system handset to end the intercom call or the other
person can end the intercom call by pressing
OFF/CLEAR, or by placing the other handset back
in the telephone base or charger. The outside call
continues with the original system handset.
4.
•
a.
b.
c.
•
•
Call
Transferred
>Share call
Transfer
Call transfer using intercom
36
Directory overview
Shared directory
If you have more than one handset (see
Adding and registering a handset on page 60), the
directory is shared by all handsets. Changes made to the
directory on any one handset apply to all.
NOTE: Only one handset can review the directory at a time. If
another handset attempts to enter the directory, the screen shows Not available at this time.
Directory memory capacity
The directory can store up to 100 entries, with a maximum of 15
alphanumeric characters (including spaces) for the names and 30 digits for
the telephone numbers. A convenient search feature can help you find and
dial numbers quickly (see To search by name on page 39).
If there are already 100 entries, the screen shows
Directory full. You cannot store a new number until you
delete one.
If the directory is empty, when you access it, the screen
shows Directory empty.
Exiting the directory
Press OFF/CLEAR to cancel an operation, back up to the
previous menu, or exit the menu display. Press and hold
OFF/CLEAR to return to the idle mode.
Speed dial overview
This telephone has 10 speed dial locations where you can
assign telephone numbers from the directory you wish to
dial numbers using only one key press. For more details,
refer to Speed dial locations on page 42.
If you have more than one handset (see
Adding and registering a handset on page 60), the speed
dial locations are shared by all handsets. Changes made to the entries in the
speed dial locations on any one handset apply to all.
NOTE: Only one handset can access the speed dial locations at a time. If another handset
attempts to access the speed dial locations, the screen shows Not available at this time.
Directory
Charlie Johnson
888-883-2445
Directory full
>0: Charlie John
1: Robert Brown
37
Directory
Create directory entries
To create a new directory entry
Press MENU/SELECT in idle mode.
Press DIR or CID to scroll to >Directory, then press MENU/SELECT.
Press DIR or CID to scroll to >Add contact.
Press MENU/SELECT.
Enter the telephone number when prompted.
Copy a number from redial:
Press REDIAL/PAUSE.
Press DIR or CID or press REDIAL/PAUSE repeatedly to locate the
number to copy.
Press MENU/SELECT to copy the number.
-OR-
Use the dial pad keys to enter a number (up to 30 digits).
Press DIR or CID to move the cursor to the right or left.
Press and hold REDIAL/PAUSE to enter a three-second dialing pause
(a P appears).
Press MUTE/REMOVE to erase digits.
Press and hold MUTE/REMOVE to erase all digits.
Press MENU/SELECT to save the number in the display.
Enter the name when prompted. Use the dial pad keys and refer to
Character chart on page 38 to enter a name (up to 15 characters). Each
time you press a key, the character on that key appears. Additional key
presses produce other characters on that key.
Press DIR or CID to move the cursor to the right or left.
Press 0 to add a space.
Press MUTE/REMOVE to erase characters.
Press and hold MUTE/REMOVE to erase all characters.
1.
2.
3.
4.
5.
•
a.
b.
c.
•
–
–
–
–
6.
7.
•
•
•
•
ENTER NUMBER
888-883-2445_
ENTER NAME
Charlie Johnson_
38
Directory
The first letter of every word is capitalized. The remaining letters in a
word start as lower case letters as shown in the character chart below:
Dial
Key
Characters by number of key press
1234567891011
11.- ‘ () #&/ ,
2abcABC2
3defDEF3
4gh iGHI 4
5jklJKL5
6mn oMNO6
7pqr sPQRS7
8tuvTUV8
9wx y zWXYZ9
0space 0
Press MENU/SELECT to store your new directory entry. The handset shows
Saved and a confirmation tone sounds.
NOTES:
The screen shows Number already saved if the number is already in the directory. You
cannot save the same number more than once.
If you pause for too long while creating an entry, the procedure times out and you have to
begin again.
To add a predialed telephone number to the directory
While the handset is in idle mode, use the dial pad keys
to enter the telephone number (up to 30 digits).
Press and hold REDIAL/PAUSE to insert a three-
second dialing pause (a P appears).
Press MUTE/REMOVE to make corrections.
Press MENU/SELECT to edit the telephone number.
Refer to step 5 in To create a new directory entry on
page 37.
Press MENU/SELECT to edit the name. Refer to step 7 in
To create a new directory entry on page 37.
Press MENU/SELECT to store your new directory entry. The
handset shows Saved and sounds a confirmation tone.
•
8.
•
•
1.
•
•
2.
3.
4.
Create directory entries
EDIT NUMBER
888-883-2445_
EDIT NAME
Charlie Johnson_
888-883-2445
39
Directory
Reviewing the directory
To review directory entries
Press DIR when in idle mode to show the first entry in
the directory. Directory empty appears if there are no
directory entries.
-OR-
You can also show the first entry in the directory by
pressing MENU/SELECT when in idle mode. Press DIR
or CID to scroll to >Directory, then press
MENU/SELECT twice to select >Review.
Press DIR or CID to browse through the directory.
Entries appear alphabetically by the first letter in the
name.
NOTES:
If the telephone number in the directory exceeds 15 digits, < appears in front of the
telephone number. Press TONE to move towards the end of the telephone number or press
# to move towards the beginning of the telephone number.
If you pause for too long while reviewing an entry, the procedure times out and you have to
begin again.
To search by name
Press DIR when in idle mode to show the first entry in
the directory.
When an entry appears, press the dial pad keys (0-9) to
start a name search (alphabetical search).
The directory shows the first name beginning with the
first letter associated with the dial pad key if there is an
entry in the directory that begins with that letter. Press
DIR or CID to scroll through the entries beginning with
that letter.
To see other names that start with the letters on the
same dial pad key, keep pressing the key until the desired
letter is shown. The names appear in alphabetical order.
1.
2.
•
•
1.
2.
3.
Christine Smith
888-722-7702
Charlie Johnson
888-883-2445
Charlie Johnson
888-883-2445
40
Directory
For example, if you have the names Jennifer, Jessie, Kevin and Linda in
your directory:
If you press 5 (JKL) once, J and then Jennifer displays.
If you press 5 (JKL) once, J displays. Press CID.Jessie displays.
If you press 5 (JKL) twice, K and then Kevin displays.
If you press 5 (JKL) three times, L and then Linda displays.
If you press 5 (JKL) four times, 5 displays.
If you press 5 (JKL) five times, J displays and then Jennifer displays again.
NOTE: If you press a key (0-9) and no name starts with the letters on that key, the
directory shows the entry that matches the next letter in the directory.
•
•
•
•
•
•
Reviewing the directory
41
Directory
You can dial, delete or edit the displayed directory entry.
See To review directory entries or To search by name on
page 39 to show an entry from the directory first.
To dial a directory number
While reviewing a directory entry, press
PHONE/FLASH or SPEAKER to dial the displayed
telephone number from the directory (known as
Display Dial).
To delete a directory entry
While reviewing a directory entry, press MUTE/REMOVE.
The screen shows Delete contact?
Press MENU/SELECT to delete the displayed entry
from the directory. The handset shows Deleting... and
then Contact deleted with a confirmation tone. Once
deleted, you cannot retrieve that entry.
-OR-
Press OFF/CLEAR to exit and leave the entry intact.
NOTE: If the directory entry you deleted is also in the speed dial
location, the telephone will automatically clear the speed dial location
that entry occupied.
To edit a directory entry
While reviewing a directory entry, press MENU/SELECT.
The screen shows EDIT NUMBER with the current
number of the entry.
Follow step 5 in To create a new directory entry on
page 37.
Press MENU/SELECT to save the number in the display.
The screen shows EDIT NAME with the current name of
the entry.
Follow step 7 in To create a new directory entry on
page 37 to edit the characters.
Press MENU/SELECT to confirm. The handset shows
Saved with a confirmation tone and then shows the updated entry.
•
1.
2.
1.
2.
3.
4.
5.
Dialing, deleting and editing a directory entry
Robert Brown
800-360-4121
Robert Brown
Delete contact?
Contact deleted
EDIT NUMBER
360-4121_
EDIT NAME
Robert_
Phone 0:00:20
Robert Brown
10/20
10:30PM
42
Directory
Speed dial locations
To assign or reassign a directory entry to a speed dial location
Press MENU/SELECT in idle mode.
Press DIR or CID to scroll to >Directory. Press
MENU/SELECT.
Press DIR or CID to scroll to >Speed dial. Press
MENU/SELECT.
To assign a speed dial location, press DIR or CID to
scroll to an empty speed dial location.
-OR-
To reassign a speed dial location, press DIR or CID to
scroll to the desired speed dial location.
Press MENU/SELECT. The screen shows Copy from
Directory... and then the directory.
Press DIR or CID to browse through the directory and
find the desired entry.
-OR-
Use the alphabetical search to find the desired entry.
Refer to steps 2 and 3 in To search by name on page 39.
Press MENU/SELECT to confirm. The name (up to 12
characters) of the desired directory entry appears in
the selected speed dial location.
NOTES:
If the directory is empty, when you press MENU/SELECT in step 5, the screen shows
Directory empty.
If the speed dial location you selected is occupied, the new directory entry you selected
replaces the old one. Take caution not to replace entries you do not wish to delete from the
speed dial locations.
To clear a speed dial location
Follow steps 1 through 3 in To assign or reassign a
directory entry to a speed dial location on this page
to enter the speed dial list.
Press DIR or CID to scroll to a speed dial location.
Press MUTE/REMOVE to clear the selected speed dial
location. Speed dial empty appears temporarily and
then <empty> appears in that speed dial location.
NOTE: Clearing the speed dial locations does not affect the entries
in the directory.
1.
2.
3.
4.
5.
6.
7.
•
•
1.
2.
3.
>Speed dial
Review
>0: <empty>
1: Robert Brown
Charlie Johnson
888-883-2445
>0: Charlie John
1: Robert Brown
>0: Charlie John
1: Robert Brown
>0: <empty>
1: Robert Brown
43
Directory
To dial a speed dial number
When in idle mode, press and hold a dial pad key
(0 through 9) to display the desired speed dial entry.
The handset automatically dials out the displayed number.
-OR-
Press OFF/CLEAR within one second to stop dialing
the displayed number.
NOTE: If the speed dial location you selected is empty, the screen
shows the speed dial list.
1.
2.
Speed dial locations
44
This product supports caller ID services offered by most telephone service
providers. Caller ID allows you to see the name, number, date and time of calls.
The available caller ID information will appear after the first or second ring.
Information about caller ID with call waiting
Caller ID with call waiting lets you see the name and telephone number of
the caller before answering the call, even while on another call.
It may be necessary to change your telephone service to use this feature.
Contact your telephone service provider if:
You have both caller ID and call waiting, but as
separate services (you may need to combine these
services).
You have only caller ID service, or only call waiting
service.
You don’t subscribe to caller ID or call waiting services.
There are fees for caller ID services. In addition, services
may not be available in all areas.
This product can provide information only if both you and
the caller are in areas offering caller ID service and if both
telephone service providers use compatible equipment.
The time and date are sent by the telephone service provider along with the
call information.
The caller ID information may not be available for every incoming call. The
callers may intentionally block their names and/or telephone numbers.
NOTE: You can use this product with regular caller ID service, or you can use this
product’s other features without subscribing to either caller ID or combined caller ID with call
waiting service.
About home area code
See Home area code on page 15 to determine if you should enter your area
code. Entering the area code changes how numbers are displayed in the
caller ID history and how to return a call from the caller ID history (see
To view the dialing options on page 47).
•
•
•
About caller ID
Caller ID
Christine Smith
888-722-7702
10/20
10:30PM
45
Caller ID
How caller ID history (call log) works
The telephone stores caller ID information about the last 50 incoming calls
in the telephone base. Each entry may have up to 24 digits for the telephone
number and 15 characters for the name. Entries are stored in reverse
chronological order. The telephone deletes the oldest entry when the log
is full to make room for new calls. If you have more than one handset (see
Adding and registering a handset on page 60), this information is common
to all handsets, so changes made in any handset are reflected in all other
handsets. If you answer a call before the information appears on the screen,
it does not show in the caller ID history.
NOTE: The caller ID information might not be available for every incoming call. The callers
might intentionally block their names and/or telephone numbers (see Reasons for missing
caller ID information on page 46).
Memory match
If the incoming telephone number matches the last seven
digits of a telephone number in your directory, the name
that appears on the screen matches the corresponding
name in your directory.
For example, if Christine Smith calls, her name appears as
Chris if this is how you entered into your directory.
NOTE: The number shown by your caller ID is in the format sent by the telephone service
provider. The telephone service provider usually delivers ten-digit telephone numbers (area
code plus telephone number). If the telephone number of the caller does not match a number
in your directory, the name appears as it is delivered by the telephone service provider. For
example, if the telephone service provider includes the area code and the directory number
does not, the name appears as delivered by the telephone service provider.
Caller ID history
Christ
888-722-7702
10/20
10:30PM
46
Caller ID
Missed (new) calls indicator
When you have calls that have not been reviewed, the
handset idle screen shows XX missed calls.
All entries that have not been reviewed are counted as
missed (new) calls. Each time you review a caller ID history
entry marked NEW, the number of missed calls decreases
by one.
If you do not want to review the missed (new) calls one
by one, but you still want to keep them in the caller ID
history, you can press and hold OFF/CLEAR for four
seconds when the handset is idle. All the entries in the
caller ID history are considered old (reviewed), and the
missed calls message goes away.
Reasons for missing caller ID information
There are occasions when other information or no information shows for
various reasons:
Screen message Reason
PRIVATE NAME The caller prefers not to show the name.
PRIVATE NUMBER The caller prefers not to show the telephone number.
PRIVATE CALLER The caller prefers not to show the name and telephone number.
UNKNOWN NAME Your telephone service provider cannot determine the caller’s
name.
UNKNOWN NUMBER Your telephone service provider cannot determine the caller’s
telephone number.
UNKNOWN CALLER
Your telephone service provider cannot determine the caller’s
name and telephone number. Calls from other countries may also
generate this message.
Caller ID operation
HANDSET 1
16 missed calls
10/20
10:30PM
HANDSET 1
10/20
10:30PM
47
Caller ID
To review the caller ID history
Review the caller ID history to find out who called, to return the call or
to copy the caller’s name and number into your directory. Call log empty
appears if there are no records in the caller ID history.
When a handset is in idle mode, press CID to review the caller ID history
in reverse chronological order starting with the most recent call.
-OR-
You can also review the caller ID history by pressing MENU/SELECT. Press
DIR or CID to scroll to >Call log, then press MENU/SELECT twice to
select >Review.
Press DIR or CID to scroll through
the list. A double beep sounds when
the list reaches the beginning or end
of the caller ID history.
Press OFF/CLEAR to exit the caller
ID history.
NOTES:
If the telephone number has more than 15 digits, only the last 15 digits appear in the caller
ID history.
Only one handset can review the caller ID history at a time. If another handset attempts to
enter the caller ID history, it shows Not available at this time.
To view the dialing options
Although the caller ID history entries received typically have 10 digits (the
area code plus the seven-digit number), in some areas, you might need to
dial only the seven digits, or 1 plus the seven digits, or 1 plus the area code
plus the seven digits. You can follow the steps
below to change the number of digits that you dial
from or store in the directory:
Follow steps 1 and 2 in To review the caller ID
history on this page to find the entry.
Before dialing or saving the telephone number
in the directory, press # repeatedly to show
different dialing options for local and long
distance numbers.
-OR-
Before dialing or saving the telephone number in
the directory, press 1 repeatedly if you need to
add or remove 1 in front of the telephone number.
NOTE: If you do not need to dial the area code for local calls, make sure to program your
home area code (see Home area code on page 15).
1.
2.
3.
•
•
1.
2.
Christine Smith
888-722-7702
10/20
10:30PM
Caller’s name
Caller’s number
Appears when
the call is missed
and not reviewed.
Date of callTime of call
Robert Brown
800-360-4121
10/20
10:45PM
Press #1-800-360-4121
Press #360-4121
Press #1-360-4121
Press #800-360-4121
Press 11-800-360-4121
Press 1800-360-4121
-OR-
Caller ID operation
48
Caller ID
To dial a caller ID history number
While reviewing the caller ID history, press DIR or
CID to browse through the caller ID history and find
the entry.
Press PHONE/FLASH or SPEAKER to dial the
displayed telephone number from the caller ID history
(known as Display Dial).
NOTES:
If the telephone number has more than 15 digits, only the last 15
digits appear in the caller ID history. But, the telephone can still dial
out all digits (up to 24 digits) of that telephone number.
You might need to change how a caller ID number is dialed if the
entry does not appear in the correct format. Caller ID numbers might appear with an area
code that might not be necessary for local calls, or without a 1 that might be necessary for
long distance calls. For details, see To view the dialing options on page 47.
To delete caller ID history entries
To delete a caller ID history entry:
While reviewing the caller ID history, press DIR or
CID to browse through the caller ID history and find
the entry.
Press MUTE/REMOVE to delete the displayed entry from
the caller ID history. A confirmation tone sounds. Once
deleted, you cannot retrieve that entry.
To delete all caller ID history entries:
Press MENU/SELECT in idle mode.
Press DIR or CID to scroll to >Call log. Press
MENU/SELECT.
Press DIR or CID to scroll to >Del all calls. Press
MENU/SELECT. The screen shows Delete all calls?
Press MENU/SELECT to delete all entries from the caller
ID history. A confirmation tone sounds. Once deleted,
you cannot retrieve an entry.
-OR-
Press OFF/CLEAR to exit and leave all entries in the
caller ID history intact.
1.
2.
•
•
1.
2.
1.
2.
3.
4.
Caller ID operation
Christine Smith
888-722-7702
10/20
10:30PM
Phone 0:01:30
Christine Smith
10/20
10:40PM
>Del all calls
Review
Delete all
calls?
49
Caller ID
Saving a caller ID history entry in the directory
While reviewing the caller ID history, press DIR or
CID to browse through the caller ID history and find
the desired entry.
Press MENU/SELECT. The screen shows EDIT NUMBER.
Use the dial pad keys to modify the telephone number
(up to 24 digits).
Press DIR or CID to move the cursor to the right
or left.
Press and hold REDIAL/PAUSE to enter a three-
second dialing pause (a P appears).
Press MUTE/REMOVE to erase digits.
Press and hold MUTE/REMOVE to erase all digits.
Press MENU/SELECT to save the number in the display.
The screen shows EDIT NAME.
Use the dial pad keys and refer to Character chart on
page 38 to modify the name (up to 15 characters).
Press DIR or CID to move the cursor to the right or left.
Press 0 to add a space.
Press MUTE/REMOVE to erase characters.
Press and hold MUTE/REMOVE to erase all characters.
Press MENU/SELECT to confirm. The screen shows Saved with a
confirmation tone.
NOTES:
The screen shows Number already saved if the number is already in the directory. You
cannot save the same number more than once.
If the directory is full, the screen shows Directory full.
If you try to save a caller ID history entry to the directory without a number,
Unable to save displays.
If the telephone number has more than 15 digits, only the last 15 digits appear in the
caller ID history. But, the telephone can still save all digits (up to 24 digits) of that
telephone number from the caller ID history in the directory.
You might need to change how a caller ID number is saved in the directory if the entry
does not appear in the correct format. Caller ID numbers might appear with an area code
that might not be necessary for local calls, or without a 1 that might be necessary for long
distance calls. For details, see To view the dialing options on page 47.
1.
2.
3.
•
•
•
•
4.
5.
•
•
•
•
6.
•
•
•
•
•
Caller ID operation
Christine Smith
888-722-7702
10/20
10:30PM
EDIT NUMBER
722-7702_
EDIT NAME
Chris_
50
Answering system and voicemail
About answering system and voicemail
Your telephone has separate indicators for two different types of voice
messages: those left on its built-in answering system and those left at
your service provider’s voicemail (fees may apply). Your telephone’s built-
in answering system messages and voicemail messages are separate. Each
alerts you to new messages differently.
If and New voicemail display on the handset, your telephone service
provider is indicating that it has new voicemail for you. To listen to your
voicemail, you typically dial an access number provided by your telephone
service provider, followed by a security code or PIN.
Some service providers bundle or combine multiple services like voicemail
and call waiting, so you may not be aware that you have voicemail. To check
what services you have and how to access them, contact your telephone
service provider.
To use your voicemail service rather than your answering system, turn off
your answering system. To use your answering system rather than your
voicemail service, contact your telephone service provider to deactivate
your voicemail service. You can also use your telephone answering system
and voicemail together by setting your built-in answering system to answer
before voicemail answers as described below. To learn how to program your
voicemail settings, contact your telephone service provider. Then, if you are
on a call, or if the answering system is busy recording a message and you
receive another call, the second caller can leave a voicemail message.
If you have voicemail provided by your telephone service provider, we
recommend setting your answering system to answer calls at least two rings
earlier than your voicemail is set to answer. For example, if your voicemail
answers after six rings, set your answering system to answer after four rings.
Some voicemail providers may program the delay before answering calls
in seconds instead of rings. In this case, allow six seconds per ring when
determining the appropriate setting.
Answering system new message indication
When there are new messages (including memos) on the answering system,
the number of new messages stored flashes in the message window on the
telephone base and the icon and XX new messages
appear on the screen of each system handset. If the new
message alert tone is turned on, the telephone base
beeps every 10 seconds when there are new messages.
To listen to messages recorded on your digital answering
system, use the Play messages menu from a handset or
press PLAY/STOP on the telephone base (see To listen to messages on
page 53).
Answering system
HANDSET 1
16 new messages
10/20
10:30PM
51
Answering system
Answering system overview
Voice prompts
The system provides voice prompts to guide you through recording
announcements and remote access.
Message capacity
The answering system can record up to 99 messages, depending on the
length of each message. Individual messages can be up to the minutes you
set (see Recording time on page 21; the individual memos can be up to
three minutes), and the approximate recording time is 14 minutes. The actual
recording time depends on individual message characteristics. Messages
remain available for replay until you delete them.
At the beginning of messages playback, if the answering system has less
than three minutes of recording time left, the answering system announces,
“Less than three minutes to record.” If the memory is full, the answering
system announces, “Memory is full.”
If the memory is full, the number of messages and F flash alternately in the
message window, and Rec mem full appears on the handset screen. You
must delete some messages before recording new ones.
NOTE: If the message is low or full, the answering system also prompts when you turn on
the answering system. For more details, see Answering mode on page 18.
Call screening
Call screening on the telephone base:
If the answering system and call screening are on, the announcement and the
incoming message broadcast at the telephone base when a call arrives.
You can turn call screening on or off using the handset (see Call screening
setup on page 19). When call screening is off, you can temporarily turn on
the call screening by pressing PLAY/STOP or VOLUME on the telephone
base. The call screening will be off for the next incoming call.
If call screening is on and you want to adjust the
playback volume to a comfortable level (1-8) while
it is recording messages, press VOLUME on the
telephone base. This volume setting is shared with
message playback, so when you play messages at
volume 1, they play at a very low volume. If you turn up
the volume for playback, the call screening for the next
incoming message plays at the same volume level.
If call screening is on and you want to silence the telephone base while it
is recording messages, press PLAY/STOP on the telephone base. The call
screening will be on for the next incoming call.
52
Answering system
Call screening on a handset:
If the answering system is on, the handset shows
To screen call, press SELECT when a call arrives.
Press MENU/SELECT on the handset. The announcement
and the incoming message broadcast from the handset
speakerphone.
Press DIR/VOLUME to increase or press
CID/VOLUME to decrease the message playback
volume.
Press SPEAKER to switch between speakerphone
and handset earpiece.
Press EQUALIZER to select the equalizer setting to change the quality
of the audio of the handset to best suit your hearing (see Equalizer on
page 28).
If use the handset earpiece, press AUDIO ASSIST to make some voices
to sound louder and clearer (see Audio assist on page 28). Press again
to stop this feature.
NOTE: If you have more than one handset, you can use the telephone base and only one
handset to call screening at the same time.
Call intercept
While call screening, you can press PHONE/FLASH or
SPEAKER on the handset to stop recording and speak
to the caller.
Temporarily turning off the message alert tone
Follow the step below to temporarily silence the
message alert tone:
When the telephone base is in idle mode, press any
telephone base key (except HANDSET LOCATOR).
The message alert tone is activated again with the
next incoming message.
NOTES:
When the telephone base is in idle mode, if you press DELETE to temporarily silence the
message alert tone, there is a voice prompt to direct you to press DELETE again to delete
all old messages (see To delete all old messages at the telephone base on page 55). If
you are not going to delete all old messages, wait at least 5 seconds to allow the telephone
base to return to idle mode.
To turn off the message alert tone, see Message alert tone on page 21.
1.
2.
•
•
•
•
•
•
•
Answering system overview
To screen call,
press SELECT
53
Answering system
Message playback
To listen to messages
You can use either a handset or the telephone base to play messages. If there
are new messages, the system plays back only the new messages (oldest first). If
there are no new messages, the system plays back all old messages (oldest first).
At the beginning of messages playback, if the answering system has less
than three minutes of recording time left, the answering system announces,
“Less than three minutes to record.” If the memory is full, the answering
system announces, “Memory is full.” When playback begins, the total number
of messages is announced. Before each message, you hear the day and time
it was received. After the last message, you hear “End of messages.”
NOTES:
If the date and time is not set when a message is recorded, the system announces, “Time and
date not set” before the message is played. To set the date and time, see Set date/time on
page 14.
Only one handset or the telephone base can access the answering system at a time.
While a handset is on an outside call, you cannot play messages.
To listen to messages at the telephone base:
Press PLAY/STOP on the telephone base to listen to the messages.
The system announces the number of messages,
then begins playback. The message sequence is
shown on the message window.
Press PLAY/STOP to stop the playback.
NOTE: If there are no messages in the answering system, when
in step 1 above, the system announces, “You have no message.”
To listen to messages at the handset:
Press MENU/SELECT when in idle mode.
Press MENU/SELECT to choose >Play messages.
To play new messages, press MENU/SELECT to choose
>Play new msgs.
-OR-
To play old messages, press DIR or CID to scroll to
>Play old msgs. Press MENU/SELECT.
The system announces the number of messages, then
begins playback. The message sequence is shown on
the handset’s screen.
Press 5 to stop the playback.
NOTE: If there are no messages in the answering system, the handset shows No message
and announces, “You have no message.”
•
•
•
1.
2.
3.
1.
2.
3.
4.
5.
16 new messages
3-Delete 5-Stop
4-Repeat 6-Skip
MSG #
1/16
10:30PM
54
Answering system
Options during playback
When a message is playing, you can adjust the playback volume, skip, repeat,
or delete the message.
When messages are playing on the telephone base:
Press VOLUME to adjust the message playback volume (1-8).
To repeat the message currently playing, press
REPEAT after the answering system plays the
day and time the current message was received.
To listen to the previous message, press REPEAT
while the answering system is playing the day and
time the current message was received.
Press SKIP to skip to the next message.
Press SLOW to slow message playback. The
message window shows SL. Press again to stop
slowing playback.
Press DELETE to delete the message. The telephone base announces,
“Message deleted.”
Press PLAY/STOP to stop the playback.
When messages are playing on the handset:
Press DIR/VOLUME to increase or press CID/VOLUME to decrease the
message playback volume.
Press SPEAKER to switch between speakerphone and handset earpiece.
To repeat the message currently playing, press 4 after
the answering system plays the day and time the current
message was received.
To listen to the previous message, press 4 while the
answering system is playing the day and time the current
message was received.
Press 6 to skip to the next message.
Press EQUALIZER to select the equalizer setting to
change the quality of the audio of the handset to best suit your hearing
(see Equalizer on page 28).
If use the handset earpiece, press AUDIO ASSIST to make some voices to
sound louder and clearer (see Audio assist on page 28). Press again to
stop this feature.
Press 3 to delete the message. The handset announces, “Message deleted.”
Press 5 to stop the playback.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Message playback
55
Answering system
Message playback
To delete all old messages
Use this feature to delete all old messages. Once deleted, you cannot
retrieve the deleted messages. New (unheard) messages cannot be deleted
until you have listened to them.
NOTE: If there are no old messages and you press DELETE again on the telephone base,
the system announces, “You have no old message.” On the handset, when you select
Delete all old, the screen shows No message.
To delete all old messages at the telephone base:
Press DELETE on the telephone base. The system
announces, “To delete all old messages, press
DELETE again.”
Press DELETE within three seconds. The system
announces, “All old messages deleted.”
To delete all old messages at the handset:
Press MENU/SELECT when in idle mode.
Press DIR or CID to scroll to >Answering sys, then
press MENU/SELECT.
Press DIR or CID to scroll to >Delete all old.
Press MENU/SELECT. The screen shows Delete all old messages?
Press MENU/SELECT to confirm. The screen shows Deleting... and then
All old msgs deleted! with a confirmation tone sounds.
-OR-
Press OFF/CLEAR to exit and leave all old messages intact.
1.
2.
1.
2.
3.
4.
5.
>Delete all old
Record memo
56
Answering system
Recording and playing memos
Memos are messages you record yourself. They are saved, played back and
deleted exactly like incoming messages. You can record a memo as a reminder
to yourself, or leave a message for someone else using the same telephone.
To record a memo
Press MENU/SELECT when in idle mode.
Press DIR or CID to scroll to >Answering sys, then
press MENU/SELECT.
Press DIR or CID to scroll to >Record memo.
Press MENU/SELECT. The system announces, “Record
after the tone. Press 5 when you are done.”
Speak towards the microphone on the handset after a long beep. You can
record a memo up to three minutes. Memos shorter than two seconds are
not recorded.
Press 5 to stop recording. The system announces, “Recorded“ to confirm
the recording has finished.
NOTE: If the answering system memory is full, when you press MENU/SELECT in step 4, the
answering system announces, “Memory is full.”
To play back memos
Memos are stored as messages. See Message playback on page 53 for
instructions on playback and deletion.
1.
2.
3.
4.
5.
6.
RECORD MEMO...
5-STOP
57
Answering system
Message window displays
The message window on the telephone base displays the total number of
messages. See the table below for other message window displays.
0There are no messages in the answering system.
0
(flashing)
After a power failure, the number in the message window flashes
to indicate the date and time need to be set.
0-6Telephone base ringer volume while adjusting.
1-8Speaker volume level of the telephone base while adjusting.
1-99 Total number of messages and memos.
Current message number during old message playback.
•
•
1-99
(flashing)
Total number of new messages and memos. The number flashes
when there are new messages that have not been reviewed.
Current message number during new message playback.
After a power failure, the number in the message window
flashes to indicate the date and time need to be set.
•
•
•
1-99 and F
(alternating)
Memory is full. Messages must be deleted before new messages
can be recorded.
SL The message playback is slowing.
--
The answering system is being programmed by a system
handset.
The answering system is answering a call or recording a
memo or announcement.
The answering system is being accessed remotely.
•
•
•
58
Answering system
Remote access
You can access the answering system remotely by dialing your home
telephone number from any touch-tone telephone.
To remotely access the answering system:
Dial your telephone number from any touch-tone telephone.
When the answering system answers, enter the two-digit remote access
code (19, unless you have changed it; refer to Remote access code on
page 20). The answering system automatically announces the number of
messages (new or old) if there are any.
If there are new messages, the answering system automatically begins to
play new messages only.
-OR-
If there are no new messages, the answering system automatically begins
to play all old messages.
You can also enter the remote commands:
Play all messages
1
Press to listen to all messages. If there are new messages, the
system plays back only the new messages (oldest first). If there
are no new messages, the system plays back all old messages
(oldest first).
Play new messages
2
Press to listen to new messages only.
Delete a message
3
Press during a message playback to delete the current message.
Delete all old messages
33
Press to delete all old messages.
Replay current or previous
message
4
To repeat the message currently playing, press 4 after the
answering system plays the day and time the current message
was received.
To listen to the previous message, press 4 while the answering
system is playing the day and time the current message was
received.
Stop
5
Press to stop playback and recording.
Play help menu
* 5
Press to listen to a list of remote commands.
Skip to next message
6
Press during playback to skip the current message and advance
to the next message.
Record a announcement
* 7
Press to record a new announcement. Begin speaking after the
long beep.
Exit
8 or hang up
Press to end remote access (the call is terminated).
Turn system on or off
0
Press to turn the answering system on or off.
1.
2.
3.
4.
59
Answering system
Remote access
Hang up to end the call and save all messages.
There is a wallet card listing the remote commands at the back of this user’s
manual. Cut it out and keep it in your wallet for quick reference.
NOTES:
If you do not enter a valid remote access code, the system answers the call automatically.
If the date and time is not set when a message is recorded, the system announces,
“Time and date not set.”
If there are no messages in the answering system, the system announces,
“You have no message.”
If there are no new messages in the answering system, when you press 2 to play back new
messages, the system announces, “You have no new message.”
At the beginning of new messages playback, if the answering system has less than three
minutes of recording time left, the answering system announces, “Less than three minutes to
record.” If the memory is full, the answering system announces, “Memory is full.”
If you pause for more than four seconds during remote access, you hear a help menu listing
all features and commands. If there is no command for another 20 seconds, the call
ends automatically.
If the memory is full, the answering system answers after 10 rings and announces,
“Memory is full. Enter the remote access code.” Enter your remote access code to access the
messages and announcements.
When the answering system is turned off, the telephone answers after 10 rings, and
announces, “Please enter your remote access code.”
5.
•
•
•
•
•
•
•
•
60
Your telephone can support up to five cordless handsets (AT&T model TL30100,
sold separately). The handset needs to register with the telephone base before
use. You must register each handset separately.
The handsets provided within your product box are already
registered as HANDSET 1 and so forth. Additional handset
are assigned numbers in the order they are registered
(HANDSET 2 to HANDSET 5).
When first purchased, all expansion handsets alternately
show 1.Press HS LOC on Base 4 sec and 2.Then press
# on Handset on the screen. The new handset should
be charged without interruption for at least 30 minutes
before registering to the telephone base.
To register a handset to your telephone base:
Make sure the handset is out of the telephone base
or charger and alternately shows 1.Press HS LOC
on Base 4 sec and 2.Then press # on Handset
before you begin the registration.
Press and hold HANDSET LOCATOR on the
telephone base for about four seconds (until the
IN USE light on the telephone base is on) and then
release the button.
Press # on the handset. The screen shows
Registering...Please wait. It takes up to 60 seconds
to complete the registration. Handset registered and
then HANDSET X appears on the screen, with X being
the handset number (1-5) and the handset beeps. The
handset is now registered with the telephone base.
If the registration is not successful, the handset screen
shows Registration failed. Please start again from steps
1-3 above.
NOTE: You cannot register a handset if any other system handset is
in use.
1.
2.
3.
Appendix
Adding and registering a handset
HANDSET 2
10/20
10:30PM
1.Press HS LOC
on Base 4 sec
--/--
--:--
2.Then press #
on Handset
--/--
--:--
Handset
registered
Registering...
Please wait
61
Appendix
You can deregister handsets. You may need to deregister your handsets if:
You have five registered handsets and need to replace a handset.
-OR-
You wish to change the designated handset number of your registered
handsets.
You must first deregister ALL the handsets, and then register each handset
you wish to use again, one at a time.
Please read carefully through all the instructions on
this page before beginning the deregistration process.
To deregister all handsets:
Press and hold HANDSET LOCATOR on the
telephone base for about 10 seconds (until the
IN USE light starts to flash), then release the
HANDSET LOCATOR button.
Immediately press HANDSET LOCATOR again.
You must press HANDSET LOCATOR while the
IN USE light is still flashing. (The light flashes for
about seven seconds. If the light stops flashing,
start again with step 1 above.)
It takes up to 60 seconds to complete the
deregistration process. The handset screen alternately
shows 1.Press HS LOC on Base 4 sec and 2.Then
press # on Handset to wait for re-registration.
To re-register the handset(s) to the telephone base, follow
the registration instructions in Adding and registering a
handset on page 60.
NOTES:
If the deregistration process is not successful, you might need to reset the system and
try again. To reset: You may reset by unplugging the power from the telephone base and
plugging it back in.
You cannot deregister the handset(s) if any other system handset is in use.
•
•
1.
2.
3.
•
•
Deregistering all handsets
HANDSET 2
10/20
10:30PM
2.Then press #
on Handset
--/--
--:--
1.Press HS LOC
on Base 4 sec
--/--
--:--
62
Appendix
Screen icons, indicator lights and alert tones
(flashing)
Low battery; place the handset in the
telephone base or charger to recharge.
or or Indicates the battery voltage level.
(animated display)
or
(animated display)
Battery is charging.
The speakerphone is in use.
The handset ringer is turned off.
New voicemail received from the
telephone service provider.
New message in the answering system.
10/16
MSG # While playing messages, the sequence
of the message currently playing.
(XX/YY; XX is the sequence of the
message currently playing; YY is
the total number of all new or old
messages.)
ANS ON Answering system is turned on.
AUDIO
ASSIST
The audio assist feature is on.
MUTE Microphone is muted.
NEW While reviewing the caller ID history,
missed calls that have not been reviewed.
Screen icons
HANDSET 1
16 missed calls
MSG #
10/16
10:30PM
63
Appendix
Handset indicator lights
Visual ringer light
Flashes when there is an incoming call or the telephone base
is paging all handsets.
CHARGE light
On when the handset is charging in the telephone base
or charger.
Backlight (lighted display and dial pad)
On when a call is coming in.
On when a key is pressed.
SPEAKER light
On when the speakerphone is in use.
Screen icons, indicator lights and alert tones
Telephone base indicator lights
Visual ringer light
Flashes when there is an incoming call.
IN USE light
On when the handset is in use, when the answering system
is answering an incoming call, when the answering system
is being accessed remotely, or when the telephone base is
registering a handset.
Flashes slowly when another telephone on the same line is in
use or when the telephone is deregistering all handsets.
Flashes quickly when there is an incoming call.
ANS ON/OFF light
On when the built-in answering system is on.
64
Appendix
Handset alert tones
One short beep
(Key tone or playback
confirmation tone)
A key is pressed.
Plays at the end of each message.
One long beep
(Recording or playback
confirmation tone)
Start or end recording.
Plays at the end of all messages.
Two short beeps
(Error tone)
Command has failed.
You have reached the beginning or end of the list.
You have reached the minimum or maximum listening
volume.
Three short beeps
(Out-of-range or no-power-at-
base warning tone)
The handset is out of range, failed to register to the
telephone base or there is no power at the telephone base.
Three short high-pitched beeps
(Confirmation tone)
The telephone has completed the command successfully.
Four short beeps
(Low-battery warning tone)
Low battery warning.
Telephone base alert tones
One short beep
(Playback confirmation tone)
Plays at the end of each message.
Beeps every 10 seconds
(Message alert tone)
Message alert.
One long beep
(Recording or playback
confirmation tone)
The answering system starts recording a message if call
screening is on.
Plays at the end of all messages.
Screen icons, indicator lights and alert tones
65
Appendix
1.Press HS LOC
on Base 4 sec
(alternately display)
2.Then press #
on Handset
The handset has not been registered to the telephone base.
Audio assist
off
The audio assist feature is off.
Audio assist
on
The audio assist feature is on.
Call log empty You are accessing an empty caller ID history.
Call
transferred
If you have more than one handset, you have transferred an
outside call to another cordless handset.
Calling
HANDSET X
If you have more than one handset, the handset is calling
another handset (for intercom calls).
If you have more than one handset, the handset is going to
transfer an outside call to another handset.
•
•
Directory empty There are no directory entries.
Directory full The directory is full. You cannot save any new entries unless you
delete some current entries.
Ended You have just ended a call.
HANDSET X
is calling
If you have more than one handset, another handset is calling.
Incoming call There is a call coming in.
Intercom If you have more than one handset, the handset is on an
intercom call.
Intercom ended If you have more than one handset, the intercom call has just
ended.
Intercom to:
If you have more than two handset, you have started the
intercom process, and need to enter the number of the
handset you wish to call.
If you have more than two handset, you have started
transferring a call, and need to enter the desired handset
number.
•
•
Less than 3 min
to record
The system has less than three minutes of recording time left.
Line in use An extension telephone on the same line or one of the handsets
is in use (if you have more than one handset)
LOW BATTERY The battery needs to be charged.
Handset display screen messages
66
Appendix
Microphone on Mute is off so the other party can hear your voice.
Muted The microphone is off.
New voicemail There are new voicemail messages from your telephone service
provider.
No battery You place the handset in the telephone base or charger without
installing a battery in that handset.
No line There is no telephone line connected.
No message There are no messages in the answering system.
Not available
at this time
If you have more than one handset, someone else is already
using the directory, speed dial list, caller ID history or answering
system.
Number
already saved
The telephone number you have entered is already stored in the
directory.
Out of range or
no pwr at Base
The handset has lost communication with the telephone base.
Paging The telephone base is paging all handsets.
Phone The handset is on a call.
PLACE IN
CHARGER
The battery is very low. The handset should be placed in the
telephone base or charger.
Rec mem full The answering system memory is full.
Registration
failed
The registration is not successful.
Ringer muted The ringer is muted temporarily during an incoming call.
Saved The entry is now in the directory.
Speaker The handset speakerphone is in use.
Unable to call.
Try again
If you have more than one handset, failed intercom or two
handsets are already on a call.
While the handset is on a call, it is out of range or there is no
power at the telephone base.
•
•
Unable to save You cannot save a caller ID history entry to the directory without
a name and number.
XX missed calls There are new calls in the caller ID history.
XX new messages There are new messages in the answering system.
Handset display screen messages
67
Appendix
Troubleshooting
If you have difficulty with your telephone, please try the suggestions below.
For customer service, or to purchase accessories or replacement parts, visit
our website at www.telephones.att.com, or call 1 (800) 222-3111.
In Canada, dial 1 (866) 288-4268. When you call customer service, you
will need the serial number or model number found on the bottom of the
telephone base.
My telephone doesn’t work at all.
Make sure the power cord is securely plugged in.
Make sure that the battery connector is securely plugged into the
cordless handset.
Make sure the telephone line cord is securely and firmly plugged into the
telephone base and the telephone wall jack.
Charge the battery in the cordless handset for at least 16 hours. For
optimum daily performance, return the cordless handset to the telephone
base or charger when not in use.
If the battery is depleted, it may take approximately 30 minutes to charge
the handset before it shows LOW BATTERY, refer to Battery charging on
page 7 for details.
Reset the telephone base. Unplug the electrical power. Wait for
approximately 15 seconds, then plug it back in. Allow up to one minute for
the cordless handset and telephone base to reset.
You may need to purchase a new battery. Please refer to Battery installation
on page 6.
I cannot get a dial tone.
First try all the suggestions above.
Move the cordless handset closer to the telephone base. You might have
moved out of range.
If the previous suggestions don’t work, disconnect the telephone base from
the telephone wall jack and connect to a different telephone. If there is no
dial tone on that telephone either, the problem is in your wiring or telephone
service. Contact your telephone service provider (charges may apply).
Your telephone line cord might be malfunctioning. Try installing a new
telephone line cord.
I cannot dial out.
First try all the suggestions in the item I cannot get a dial tone on this page.
Make sure you have a dial tone before dialing. The cordless handset may
take a second or two to find the telephone base and produce a dial tone.
This is normal. Wait an extra second before dialing.
•
•
•
•
•
•
•
•
•
•
•
•
•
68
Appendix
Troubleshooting
Check that all the telephones connected to the same telephone line are
hung up.
Make sure to set the dial mode to the correct setting (pulse dialing or tone
dialing) for the service in your area (see Dial mode on page 16).
Eliminate any background noise. Noise from a television, radio or other
appliances may cause the telephone to not dial out properly. If you cannot
eliminate the background noise, first try muting the cordless handset
before dialing, or dialing from another room in your home with less
background noise.
If the other telephones in your home are having the same problem, the
problem is in your wiring or telephone service. Contact your telephone
service provider (charges may apply).
My cordless handset isn’t performing normally.
Make sure the power cord is securely plugged into the telephone base.
Plug the power adapter into a different, working electrical outlet not
controlled by a wall switch.
Move the cordless handset closer to the telephone base. You might have
moved out of range.
Reset the telephone base. Unplug the electrical power. Wait for 15
seconds then plug it back in. Allow up to one minute for the cordless
handset and telephone base to reset.
Other electronic products such as HAM Radios and other DECT Phones
can cause interference with your cordless telephone. Try installing your
telephone as far away as possible from these types of electronic devices.
Out of range or no pwr at Base appears on my cordless handset.
Ensure that the telephone base is powered up.
Place the cordless handset in the telephone base for one minute to allow
the cordless handset and base to synchronize.
Move the cordless handset closer to the telephone base. You might have
moved out of range.
Reset the telephone base. Unplug the electrical power. Wait for 15
seconds then plug it back in. Allow up to one minute for the cordless
handset and telephone base to reset.
Other electronic products such as HAM Radios and other DECT Phones
can cause interference with your cordless telephone. Try installing your
telephone as far away as possible from these types of electronic devices.
•
•
•
•
•
•
•
•
•
•
•
•
•
69
Appendix
Troubleshooting
The batteries do not hold a charge.
If the cordless handset is in the telephone base or charger and the charge
light does not come on, refer to the item The charge light is off on this page.
Charge the battery in the cordless handset for at least 16 hours. For
optimum daily performance, return the cordless handset to the telephone
base or charger when not in use.
If the battery is depleted, it may take approximately 30 minutes to charge
the handset before it shows LOW BATTERY, refer to Battery charging on
page 7 for details.
You may need to purchase a new battery. Please refer to Battery installation
on page 6.
The charge light is off.
Make sure the power cord is plugged in correctly and securely.
Make sure the battery is installed correctly in the handset. Follow the
instructions in Battery installation on page 6 to install the battery.
Unplug the electrical power. Wait for 15 seconds, then plug it back in. Allow
up to one minute for the cordless handset and telephone base to reset.
Clean the cordless handset and telephone base charging contacts each
month using a pencil eraser or cloth.
I get noise, static, or weak signals even when I’m near the telephone base.
If you subscribe to high-speed Internet service (digital subscriber line - DSL)
through your telephone line, you must install a DSL filter between the
telephone line cord and the telephone wall jack (see Telephone base
and charger installation on page 5). The filter prevents noise and caller
ID problems caused by DSL interference. Please contact your DSL service
provider for more information about DSL filters.
Other electronic products such as HAM Radios and other DECT Phones
can cause interference with your cordless telephone. You may be able to
improve the performance of your telephone by installing your telephone as
far away as possible from these types of electronic devices.
Do not install this telephone near a microwave oven or on the same
electrical outlet. You may experience decreased performance while the
microwave oven is operating.
If your telephone is plugged in with a modem or a surge protector, plug
the telephone (or modem/surge protector) into a different location. If this
doesn’t solve the problem, relocate your telephone or modem farther
apart from one another, or use a different surge protector.
Relocate your telephone to a higher location. The telephone will likely
have better reception when installed in a high area.
•
•
•
•
•
•
•
•
•
•
•
•
•
70
Appendix
Troubleshooting
If the other telephones in your home are having the same problem, the
problem is in your wiring or telephone service. Contact your telephone
service provider (charges may apply).
I experience poor sound quality when using the speakerphone.
For increased sound quality while using the speakerphone, place the
handset on a flat surface with the dial pad facing up.
When using a speakerphone, controlling background noise in your
environment is essential. While you are listening to your party, press
MUTE/REMOVE to temporarily turn your microphone off. When it is your turn
to speak, remember to press MUTE/REMOVE again to turn the microphone on.
Excessive background noise will cause a speakerphone to fade in and
out. Try controlling the background noise by turning off any audio devices
near the speakerphone. Also, try to avoid interrupting the person at the
other end of the conversation while they are speaking. If background noise
cannot be controlled, you should terminate speakerphone operation and
return to normal handset mode.
I hear other calls while using my telephone.
Disconnect the telephone base from the telephone wall jack, and plug in
a different telephone. If you still hear other calls, the problem is probably
in your wiring or telephone service. Call your telephone service provider
(charges may apply).
My calls cut in and out while I’m using my cordless handset.
Other electronic products such as HAM Radios and other DECT Phones
can cause interference with your cordless telephone. Try installing your
telephone as far away as possible from these types of electronic devices.
Move the handset closer to the base. The operating range may vary with
environmental conditions and time of use. There may be places within your
environment that a cordless telephone will not work well. If the problem
only occurs in certain areas of your environment, you can conclude that
there is nothing wrong with the telephone.
Do not install this telephone near a microwave oven or on the same
electrical outlet. You may experience decreased performance while the
microwave oven is operating.
If your telephone is plugged in with a modem or surge protector, plug
the telephone (or modem/surge protector) into a different location. If this
doesn’t solve the problem, relocate your telephone or modem farther
apart from one another, or use a different surge protector.
Relocate your telephone base to a higher location. The telephone will have
better reception when installed in a high area.
•
•
•
•
•
•
•
•
•
•
71
Appendix
Troubleshooting
If the other telephones in your home are having the same problem, the
problem is in your wiring or telephone service. Contact your telephone
service provider (charges may apply).
If you subscribe to high-speed Internet service (digital subscriber line - DSL)
through your telephone line, you must install a DSL filter between the
telephone line cord and the telephone wall jack (see Telephone base
and charger installation on page 5). The filter prevents noise and caller
ID problems caused by DSL interference. Please contact your DSL service
provider for more information about DSL filters.
My cordless handset does not ring when I receive a call.
Make sure that the ringer is not turned off. Refer to Ringer volume on
page 12.
Make sure the telephone line cord is plugged securely into the telephone
base and the telephone wall jack. Make sure the power cord is securely
plugged in.
The cordless handset may be too far from the telephone base.
Charge the battery in the cordless handset for at least 16 hours. For
optimum daily performance, return the cordless handset to the telephone
base or charger when not in use.
You may have too many extension telephones on your telephone line to
allow all of them to ring simultaneously. Try unplugging one telephone at
a time until the telephone start ringing.
The layout of your home or office might be limiting the operating range. Try
moving the telephone base to another location, preferably on an upper floor.
If the other telephones in your home are having the same problem, the
problem is in your wiring or telephone service. Contact your telephone
service provider (charges may apply).
Test a working telephone at the telephone wall jack. If another telephone
has the same problem, the problem is the telephone wall jack. Contact
your telephone service provider (charges may apply).
Other electronic products such as HAM Radios and other DECT Phones
can cause interference with your cordless telephone. Try installing your
telephone as far away as possible from these types of electronic devices.
Completely remove then replace the battery. Place the cordless handset
in the telephone base. Wait for the cordless handset to reestablish its
connection with the telephone base. Allow up to one minute for this to
take place.
Your telephone line cord might be malfunctioning. Try installing a new
telephone line cord.
•
•
•
•
•
•
•
•
•
•
•
•
•
72
Appendix
Troubleshooting
My caller ID isn’t working.
Caller ID is a subscription service. You must subscribe to this service from
your telephone service provider for this feature to work on your telephone.
Your caller must be calling from an area that supports caller ID.
Both your and your caller’s telephone service providers must use caller ID
compatible equipment.
Make sure the home area code is set correctly in the telephone (see
Home area code on page 15).
If you subscribe to high-speed Internet service (digital subscriber line - DSL)
through your telephone line, you must install a DSL filter between the
telephone line and the telephone wall jack (see Telephone base and
charger installation on page 5). The filter prevents noise and caller ID
problems caused by DSL interference. Please contact your DSL service
provider for more information about DSL filters.
My telephone does not receive caller ID when on a call.
Make sure you subscribe to caller ID with call waiting features provided by
your telephone service provider. Caller ID features work only if both you
and the caller are in areas offering caller ID service, and if both telephone
service providers use compatible equipment.
A icon shows on the display and I don’t know why.
Your telephone has voicemail indication that is separate from the built-in
answering system. If appears on the display, then your telephone has
received a signal from your telephone service provider that you have a
voicemail message waiting for you to retrieve from your telephone service
provider. Contact your telephone service provider for more information on
how to access your voicemail.
I cannot retrieve voicemail messages.
Your telephone has both a built-in answering system and voicemail
indication. They are independent features and each alerts you to new
messages differently (see About answering system and voicemail on
page 50). If you subscribe to voicemail service from your telephone service
provider (charges may apply), contact your telephone service provider for
more information on how to access your voicemail.
Incomplete messages.
If a caller leaves a very long message, part of it may be lost when the
answering system disconnects the call after the recording time you set
(see Recording time on page 21).
•
•
•
•
•
•
•
•
•
73
Appendix
Troubleshooting
If the caller pauses for longer than seven seconds, the answering system
stops recording and disconnects the call.
If the answering system’s memory becomes full during a message, the
answering system announces, “Memory is full.“ The answering system
stops recording and disconnects the call.
If the caller’s voice is very soft, the answering system may stop recording
and disconnects the call.
If someone picks up the call at a telephone on the same line during a
message, the answering system stops recording and disconnects the call.
Part of the message may be lost.
Difficulty hearing messages.
Press VOLUME to adjust the speaker volume on the telephone base.
Press DIR/VOLUME to increase the message playback volume on a handset.
The answering system does not answer after correct number of rings.
Make sure the answering system is on. When the answering system is on,
ANS ON should show on the handset and the ANS ON light is lit on the
telephone base (see Answering mode on page 18).
If toll saver is selected, the number of rings changes to two when there
are new messages (see Number of rings on page 20).
If the memory is full or the answering system is off, the answering system
answers after 10 rings.
In some cases, the answering system is affected by the ringing system
used by the telephone service provider.
If you subscribe to voicemail service, change the number of rings so that
your answering system answers before your voicemail answers (see About
answering system and voicemail on page 50). To determine how many
rings activate your voicemail, contact your telephone service provider.
If there is a fax machine connected to the same telephone line, try
disconnecting the fax machine. If that solves the problem, consult your fax
machine documentation for information on compatibility with
answering systems.
The answering system announces “Time and date not set.”
You need to reset the date and time (see Set date/time on page 14).
•
•
•
•
•
•
•
•
•
•
•
•
•
74
Appendix
Troubleshooting
The answering system does not respond to remote commands.
Make sure to enter your remote access code correctly (see Remote access
on page 58).
Make sure you are calling from a touch-tone telephone. When you dial a
number, you should hear tones. If you hear clicks, the telephone is not a
touch-tone telephone and cannot activate the answering system.
The answering system may not detect the remote access code while your
announcement is playing. Try waiting until the announcement is over
before entering the code.
There may be interference on the telephone line you are using. Press dial
pad keys firmly.
The answering system does not record messages.
Make sure the answering system is on (see Answering mode on page 18).
Make sure the memory of the answering system is not full. When the
answering machine memory is full, it does not record new messages until
some old messages are deleted.
If you subscribe to voicemail service, change the number of rings so that
your answering system answers before your voicemail answers (see About
answering system and voicemail on page 50). To determine how many
rings activate your voicemail, contact your telephone service provider.
If there is a fax machine connected to the same telephone line, try
disconnecting the fax machine. If that solves the problem, consult your fax
machine documentation for information on compatibility with
answering systems.
Announcement is not clear.
When you record your announcement, make sure you speak in a normal
tone of voice, towards the microphone on the handset.
Make sure there is no background noise (TV, music, etc.) while recording.
I subscribe to a nontraditional telephone service that uses my computer
to establish connections, and my telephone doesn’t work.
Make sure your computer is powered on.
Make sure your Internet connection is working properly.
Make sure that the software is installed and running for your nontraditional
telephone service.
Make sure to plug your USB telephone adapter into a dedicated USB port
on your computer. Do not plug into a multiple port USB hub (USB splitter)
that is not powered.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
75
Appendix
In a few rare instances, the USB port on your computer may not have
enough power. In these instances, try using a USB hub with its own
external power supply.
If you are using a firewall, it may prevent access to your nontraditional
telephone service. Contact your service provider for more information.
Common cure for electronic equipment:
If the telephone is not responding normally, try resetting the telephone. Do
the following in the order listed:
Disconnect the power to the telephone base.
Disconnect the cordless handset battery, and spare battery, if applicable.
Wait a few minutes.
Connect power to the telephone base.
Completely remove then replace the battery. Place the cordless handset
into the telephone base.
Wait for the cordless handset to reestablish its connection with the
telephone base. Allow up to one minute for this to take place.
•
•
1.
2.
3.
4.
5.
6.
Troubleshooting
76
Appendix
Maintenance
Taking care of your telephone
Your cordless telephone contains sophisticated electronic parts, so it must
be treated with care.
Avoid rough treatment.
Place the handset down gently.
Save the original packing materials to protect your telephone if you ever
need to ship it.
Avoid water
Your telephone can be damaged if it gets wet. Do not use the handset in
the rain, or handle it with wet hands. Do not install the telephone base
near a sink, bathtub or shower.
Electrical storms
Electrical storms can sometimes cause power surges harmful to electronic
equipment. For your own safety, take caution when using electric
appliances during storms.
Cleaning your telephone
Your telephone has a durable plastic casing that should retain its luster for
many years. Clean it only with a soft cloth slightly dampened with water
or mild soap.
Do not use excess water or cleaning solvents of any kind.
•
•
•
•
•
•
•
•
Remember that electrical appliances can cause serious injury if used when you are wet or
standing in water. If the telephone base should fall into water, DO NOT RETRIEVE IT UNTIL
YOU UNPLUG THE POWER CORD AND TELEPHONE LINE CORDS FROM THE WALL. Then pull
the telephone out by the unplugged cords.
77
Appendix
Important safety information
This symbol is to alert you to important operating or servicing instructions that may appear
in this user’s manual. Always follow basic safety precautions when using this product to reduce
the risk of injury, fire, or electric shock.
Safety information
Read and understand all instructions in the user’s manual. Observe all markings on
the product.
Avoid using a telephone during a thunderstorm. There might be a slight chance of electric
shock from lightning.
Do not use a telephone in the vicinity of a gas leak. If you suspect a gas leak, report it
immediately, but use a telephone away from the area where gas is leaking. If this product is a
cordless model, make sure the base is also away from the area.
Do not use this product near water, or when you are wet. For example, do not use it in a
wet basement or shower, or next to a swimming pool, bathtub, kitchen sink, or laundry tub.
Do not use liquids or aerosol sprays for cleaning. If the product comes in contact with any
liquids, unplug any line or power cord immediately. Do not plug the product back in until it
has dried thoroughly.
Install this product in a protected location where no one can trip over any line or power
cords. Protect cords from damage or abrasion.
If this product does not operate normally, read Troubleshooting on page 67 in this user’s
manual. If you cannot solve the problem, or if the product is damaged, refer to
Limited warranty on page 81. Do not open this product except as may be directed in
your user’s manual. Opening the product or reassembling it incorrectly may expose you to
hazardous voltages or other risks.
Replace batteries only as described in Battery installation and charging on page 6 in
your user’s manual. Do not burn or puncture batteries — they contain caustic chemicals.
The power adapters are intended to be correctly oriented in a vertical or floor mount
position. The prongs are not designed to hold the plug in place if they are plugged into a
ceiling or an under-the-table/cabinet outlet.
CAUTION: Use only the power adapters provided with this product. To obtain a replacement,
visit our website at www.telephones.att.com, or call 1 (800) 222–3111.
In Canada, dial 1 (866) 288-4268.
Especially about cordless telephones
Privacy: The same features that make a cordless telephone convenient create some
limitations. Telephone calls are transmitted between the telephone base and the handset
by radio waves, so there is a possibility that your cordless telephone conversations could
be intercepted by radio receiving equipment within range of the cordless handset. For this
reason, you should not think of cordless telephone conversations as being as private as
those on corded telephones.
Electrical power: The telephone base of this cordless telephone must be connected to a
working electrical outlet which is not controlled by a wall switch. Calls cannot be made
from the handset if the telephone base is unplugged, switched off or if the electrical
power is interrupted.
•
•
•
•
•
•
•
•
•
•
78
Appendix
Important safety information
Potential TV interference: Some cordless telephones operate at frequencies that may
cause interference to TVs and VCRs. To minimize or prevent such interference, do not place
the telephone base of the cordless telephone near or on top of a TV or VCR. If interference
is experienced, moving the cordless telephone farther away from the TV or VCR will often
reduce or eliminate the interference.
Rechargeable batteries: This product contains nickel-metal hydride rechargeable batteries.
Exercise care in handling batteries in order not to create a short circuit with conductive
material such as rings, bracelets, and keys. The battery or conductor may overheat and cause
harm. Observe proper polarity between the battery and the battery charger.
Nickel-metal hydride rechargeable batteries: Dispose of these batteries in a safe manner.
Do not burn or puncture. Like other batteries of this type, if burned or punctured, they could
release caustic material which could cause injury.
The RBRC™ Seal means that the manufacturer is voluntarily participating in
an industry program to collect and recycle nickel-metal hydride rechargeable
batteries when taken out of service within the United States. These batteries
may be taken to a participating local retailer of replacement batteries or
recycling center. Or you may call 1 (800) 8-BATTERY for locations accepting
spent Ni-MH batteries.
Precautions for users of implanted cardiac pacemakers
Cardiac pacemakers (applies only to digital cordless telephones): Wireless Technology
Research, LLC (WTR), an independent research entity, led a multidisciplinary evaluation of the
interference between portable wireless telephones and implanted cardiac pacemakers. Supported
by the U.S. Food and Drug Administration, WTR recommends to physicians that:
Pacemaker patients
Should keep wireless telephones at least six inches from the pacemaker.
Should NOT place wireless telephones directly over the pacemaker, such as in a breast
pocket, when it is turned ON.
Should use the wireless telephone at the ear opposite the pacemaker.
WTR’s evaluation did not identify any risk to bystanders with pacemakers from other persons
using wireless telephones.
Especially about telephone answering systems
Two-way recording: This unit does not sound warning beeps to inform the other party that the
call is being recorded. To ensure that you are in compliance with any federal or state regulations
regarding recording a telephone call, you should start the recording process and then inform the
other party that you are recording the conversation.
SAVE THESE INSTRUCTIONS
•
•
•
•
•
•
79
Appendix
FCC Part 68 and ACTA
This equipment complies with Part 68 of the FCC rules and with technical requirements adopted
by the Administrative Council for Terminal Attachments (ACTA). The label on the back or bottom of
this equipment contains, among other things, a product identifier in the format US:AAAEQ##TXXXX.
This identifier must be provided to your telephone service provider upon request.
The plug and jack used to connect this equipment to premises wiring and the telephone network
must comply with the applicable Part 68 rules and technical requirements adopted by ACTA. A
compliant telephone cord and modular plug is provided with this product. It is designed to be
connected to a compatible modular jack that is also compliant. An RJ11 jack should normally be
used for connecting to a single line and an RJ14 jack for two lines. See Installation Instructions
in the user’s manual.
The Ringer Equivalence Number (REN) is used to determine how many devices you may connect
to your telephone line and still have them ring when you are called. The REN for this product is
encoded as the 6th and 7th characters following the US: in the product identifier (e.g., if ## is 03,
the REN is 0.3). In most, but not all areas, the sum of all RENs should be five (5.0) or less. For more
information, please contact your telephone service provider.
This equipment may not be used with Party Lines. If you have specially wired alarm dialing
equipment connected to your telephone line, ensure the connection of this equipment does
not disable your alarm equipment. If you have questions about what will disable the alarm
equipment, consult your telephone service provider or a qualified installer.
If this equipment is malfunctioning, it must be unplugged from the modular jack until the
problem has been corrected. Repairs to this telephone equipment can only be made by the
manufacturer or its authorized agents. For repair procedures, follow the instructions outlined
under the Limited Warranty.
If this equipment is causing harm to the telephone network, the telephone service provider may
temporarily discontinue your telephone service. The telephone service provider is required to
notify you before interrupting service. If advance notice is not practical, you will be notified as
soon as possible. You will be given the opportunity to correct the problem and the telephone
service provider is required to inform you of your right to file a complaint with the FCC.
Your telephone service provider may make changes in its facilities, equipment, operation, or
procedures that could affect the proper functioning of this product. The telephone service
provider is required to notify you if such changes are planned.
If this product is equipped with a corded or cordless handset, it is hearing aid compatible.
If this product has memory dialing locations, you may choose to store emergency telephone numbers
(e.g., police, fire, medical) in these locations. If you do store or test emergency numbers, please:
Remain on the line and briefly explain the reason for the call before hanging up.
Perform such activities in off-peak hours, such as early morning or late evening.
Industry Canada
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference, including interference that may
cause undesired operation.
The term ‘’IC:‘’ before the certification/registration number only signifies that the Industry
Canada technical specifications were met.
The Ringer Equivalence Number (REN) for this terminal equipment is 0.1B. The REN is an
indication of the maximum number of devices allowed to be connected to a telephone interface.
The termination on an interface may consist of any combination of devices subject only to the
requirement that the sum of the RENs of all the devices does not exceed five.
This product meets the applicable Industry Canada technical specifications.
•
•
80
Appendix
FCC Part 15
This equipment has been tested and found to comply with the requirements for a Class B digital
device under Part 15 of the Federal Communications Commission (FCC) rules.
These requirements are intended to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications to this equipment not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation. Privacy of
communications may not be ensured when using this telephone.
To ensure safety of users, the FCC has established criteria for the amount of radio frequency
energy that can be safely absorbed by a user or bystander according to the intended usage
of the product. This product has been tested and found to comply with the FCC criteria. The
handset may be safely held against the ear of the user. The telephone base shall be installed
and used such that parts of the user’s body other than the hands are maintained at a distance of
approximately 20cm (8 inches) or more.
This Class B digital apparatus complies with Canadian ICES-003.
•
•
•
•
81
Appendix
Limited warranty
The AT&T brand is used under license - any repair, replacement or warranty service, and all
questions about this product should be directed to our website at
www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial
1 (866) 288-4268.
What does this limited warranty cover?
The manufacturer of this AT&T-branded product warrants to the holder of a valid proof of
purchase (“CONSUMER” or “you”) that the product and all accessories provided in the sales
package (“PRODUCT”) are free from defects in material and workmanship, pursuant to the
following terms and conditions, when installed and used normally and in accordance with the
PRODUCT operating instructions. This limited warranty extends only to the CONSUMER for
products purchased and used in the United States of America and Canada.
What will be done if the PRODUCT is not free from defects in materials and workmanship
during the limited warranty period (“materially defective PRODUCT”)?
During the limited warranty period, the manufacturer’s authorized service representative
repairs or replaces at the manufacturer’s option, without charge, a materially defective
PRODUCT. If the manufacturer repairs the PRODUCT, they may use new or refurbished
replacement parts. If the manufacturer chooses to replace the PRODUCT, they may replace
it with a new or refurbished PRODUCT of the same or similar design. The manufacturer
retains the defective parts, modules, or equipment. Repair or replacement of the PRODUCT,
at the manufacturer’s option, is your exclusive remedy. The manufacturer returns the repaired
or replacement products to you in working condition. You should expect the repair or
replacement to take approximately 30 days.
How long is the limited warranty period?
The limited warranty period for the PRODUCT extends for ONE (1) YEAR from the date of
purchase. If the manufacturer repairs or replaces a materially defective PRODUCT under the
terms of this limited warranty, this limited warranty also applies to repaired or replacement
PRODUCT for a period of either (a) 90 days from the date the repaired or replacement
PRODUCT is shipped to you or (b) the time remaining on the original one-year limited
warranty; whichever is longer.
What is not covered by this limited warranty?
This limited warranty does not cover:
PRODUCT that has been subjected to misuse, accident, shipping or other physical damage,
improper installation, abnormal operation or handling, neglect, inundation, fire, water, or
other liquid intrusion; or
PRODUCT that has been damaged due to repair, alteration, or modification by anyone
other than an authorized service representative of the manufacturer; or
PRODUCT to the extent that the problem experienced is caused by signal conditions,
network reliability or cable or antenna systems; or
PRODUCT to the extent that the problem is caused by use with non-AT&T accessories; or
PRODUCT whose warranty/quality stickers, PRODUCT serial number plates or electronic
serial numbers have been removed, altered or rendered illegible; or
PRODUCT purchased, used, serviced, or shipped for repair from outside the United States
of America or Canada, or used for commercial or institutional purposes (including but not
limited to products used for rental purposes); or
PRODUCT returned without a valid proof of purchase (see item 6 below); or
Charges for installation or setup, adjustment of customer controls, and installation or
repair of systems outside the unit.
1.
2.
3.
4.
•
•
•
•
•
•
•
•
82
Appendix
How do you get warranty service?
To obtain warranty service in the United States of America, visit
www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial
1 (866) 288-4268. NOTE: Before calling for service, please review the user’s
manual. A check of the PRODUCT’s controls and features might save you a service call.
Except as provided by applicable law, you assume the risk of loss or damage during transit and
transportation and are responsible for delivery or handling charges incurred in the transport
of the PRODUCT(s) to the service location. The manufacturer will return repaired or replaced
PRODUCT under this limited warranty. Transportation, delivery or handling charges are prepaid.
The manufacturer assumes no risk for damage or loss of the PRODUCT in transit. If the
PRODUCT failure is not covered by this limited warranty, or proof of purchase does not meet the
terms of this limited warranty, the manufacturer notifies you and requests that you authorize the
cost of repair prior to any further repair activity. You must pay for the cost of repair and return
shipping costs for the repair of products that are not covered by this limited warranty.
What must you return with the PRODUCT to get warranty service?
You must:
Return the entire original package and contents including the PRODUCT to the service
location along with a description of the malfunction or difficulty; and
Include a “valid proof of purchase” (sales receipt) identifying the PRODUCT purchased
(PRODUCT model) and the date of purchase or receipt; and
Provide your name, complete and correct mailing address, and telephone number.
Other limitations
This warranty is the complete and exclusive agreement between you and the manufacturer
of this AT&T branded PRODUCT. It supersedes all other written or oral communications
related to this PRODUCT. The manufacturer provides no other warranties for this PRODUCT.
The warranty exclusively describes all of the manufacturer’s responsibilities regarding the
PRODUCT. There are no other express warranties. No one is authorized to make modifications
to this limited warranty and you should not rely on any such modification.
State/Provincial Law Rights: This warranty gives you specific legal rights, and you might also
have other rights that vary from state to state or province to province.
Limitations: Implied warranties, including those of fitness for a particular purpose and
merchantability (an unwritten warranty that the PRODUCT is fit for ordinary use) are limited
to one year from date of purchase. Some states/provinces do not allow limitations on how
long an implied warranty lasts, so the above limitation might not apply to you. In no event
shall the manufacturer be liable for any indirect, special, incidental, consequential, or similar
damages (including, but not limited to lost profits or revenue, inability to use the PRODUCT
or other associated equipment, the cost of substitute equipment, and claims by third parties)
resulting from the use of this PRODUCT. Some states/provinces do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitation or exclusion might
not apply to you.
Please retain your original sales receipt as proof of purchase.
5.
6.
a.
b.
c.
7.
Limited warranty
83
Appendix
Technical specifications
RF frequency band 1921.536MHz — 1928.448MHz
Channels 5
Operating temperature 32°F — 122°F
0°C — 50°C
Telephone base voltage
(AC voltage, 60Hz)
96 — 130Vrms
Telephone base voltage
(DC adapter output)
DC6V @400mA
Handset voltage DC2.4
Charger voltage
(AC adapter output)
AC6V @300mA
Operating times* Talk time (handset): up to seven hours
Talk time (speakerphone): up to five hours
Standby: up to seven days
* Operating time varies depending on your actual use and the age of the battery.
DECT 6.0 digital technology
The AT&T DECT 6.0 products offer superior quality of voice and sound, high
protection against wiretapping and better range than 2.4GHz and 5.8GHz
phone systems, while not interfering with wireless routers. This is achieved
through a unique antenna design and advances in noise filtering technology.
An independent laboratory has confirmed that AT&T DECT 6.0 products
perform up to 45% better in range competitions. Now calls can be taken in
the basement, backyard and garage with exceptional sound quality.
Telephone operating range
This cordless telephone operates within the maximum power allowed by
the Federal Communications Commission (FCC). Even so, this handset and
telephone base can communicate over only a certain distance — which can
vary with the locations of the telephone base and handset, the weather, and
the construction of your home or office.
84
Appendix
Index
A
Alert tones, 64
Alphabetical search, 39
Announcement, 17
Answer a call, 24
Answer an incoming call during an
intercom call, 33
Answering mode, 18
Answering system, 50–59
Answering system
and voicemail, 50
Answering system settings, 17–21
Any key answer, 24
Area code, 15, 44, 47
Audio assist, 17, 28, 52, 54
Auto off, 24
B
Base ringer volume
(ringer volume control), 22
Base volume control, 51, 54
Battery charging, 7
Battery installation, 6
C
Caller ID, 44
Caller ID history (call log), 45–49
Call intercept, 52
Call screening, 19, 51
Call transfer (intercom transfer), 34
Call waiting, 27, 44
Chain dialing, 29
Character chart, 38
Charger installation, 5
CID time synchronization, 15
Clock, 14
D
Date and time, 14
Delete all entries from caller ID
history, 48
Delete messages, 54, 58
Deregistering all handsets, 61
Dial a directory number, 41
Dial a number from caller ID
history, 48
Dial a redial list number, 25
Dial a speed dial number, 43
Dialing options, 47
Dial mode, 16
Directory, 36–41
Directory storage, 37
Display dial, 25, 41, 48
Display screen messages, 65
DSL filter, 5, 8
E
Elapsed time, 23
End a call, 24
Equalizer, 17, 28, 52, 54
F
Flash, 27
H
Handset locator, 31
Handset ringer tone
(selectable ringer tone), 12
Handset ringer volume
(ringer volume control), 12
Handset volume
control, 17, 27, 52, 54
85
Appendix
Index
I
Important safety information, 77
Indicator lights, 63
Intercom call (intercom between
handsets), 32
K
Key tone, 14
L
Language, 12
Limited warranty, 81
M
Maintenance, 76
Make a call, 23
Memo, 56
Memory match, 45
Menu, 11–22
Message alert tone, 21
Message playback, 53
Message window displays, 57
Missed (new) call indicator, 46, 47
Mute, 27
N
Number of rings, 20, 50
O
Operation time, 83
P
Pause, 23, 37
Power adapter, 5
Predialing (on hook dialing), 23
R
Reasons for missing caller ID
information, 46
Recording time, 21, 51
Redial, 25
Registering a handset, 60
Remote access, 58
Remote access code, 20
Remote commands, 58
Repeat messages, 54, 58
Ring tone, 12
S
Screen icons, 62
Skip messages, 54, 58
Slow message playback, 54
Speakerphone
switching, 17, 24, 52, 54
Speed dial, 42–43
T
Tabletop installation, 5
Technical specifications, 83
Temporary ringer silencing, 23
Temporary tone dialing, 28
Three-way conversation, 30, 35
Toll saver, 20
Troubleshooting, 67
V
Voicemail, 13, 50
Voice prompts, 51
Volume, 12, 17, 22, 27, 51, 52, 54
W
Wall mount installation, 8
Website, 16
Appendix
Fold here.
Cut along dotted line.
Action Remote command
Play all messages .....................1
Play new messages..................2
Delete the message.................3 (during message
playback)
Delete all old messages ........33
Repeat or go back....................4
Call your telephone number, then enter
your two-digit remote access code
(preset to 19).
TL32100/TL32200/TL32300 DECT 6.0 cordless telephone/
answering system with caller ID/call waiting
© 2010 Advanced American Telephones. All Rights Reserved. AT&T and
the AT&T logo are trademarks of AT&T Intellectual Property licensed to
Advanced American Telephones, San Antonio, TX 78219. Printed in China.
Stop..................................................5
Help menu ....................................*5
Skip the message......................6
Record announcement ...........*7
End remote access call ..........8 (or hang up)
Turn system on or off .............0
Remote access wallet card
The wallet card below lists the commands needed to control your answering
system from any touch-tone telephone.
Audio assist™ is a trademark of Advanced American Telephones.
© 2010 Advanced American Telephones. All Rights Reserved.
AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to
Advanced American Telephones, San Antonio, TX 78219.
Printed in China. Issue 1 AT&T 02/10.
www.telephones.att.com
