DECT 6.0 cordless telephone
To help protect the environment, this Abridged user’s manual provides you with the
basic installation and use instructions. A limited set of features are described in
abbreviated form.
Please refer to the online Complete user’s manual for a full set of installation and
operation instructions at www.vtechphones.com.
Before using this VTech product, please read Important safety instructions on
page 11 of this user’s manual.
Register online to get an additional 3-month warranty!
Go to www.vtechphones.com to register your product for enhanced warranty
support and latest VTech product news.
Telephones identified with this logo have reduced noise and
interference when used with most T-coil equipped hearing aids and
cochlear implants. The TIA-1083 Compliant Logo is a trademark of the
Telecommunications Industry Association. Used under license.
The ENERGY STAR® program (www.energystar.gov) recognizes
and encourages the use of products that save energy and help
protect our environment. We are proud to mark this product with
the ENERGY STAR® label indicating it meets the latest energy
efficiency guidelines.

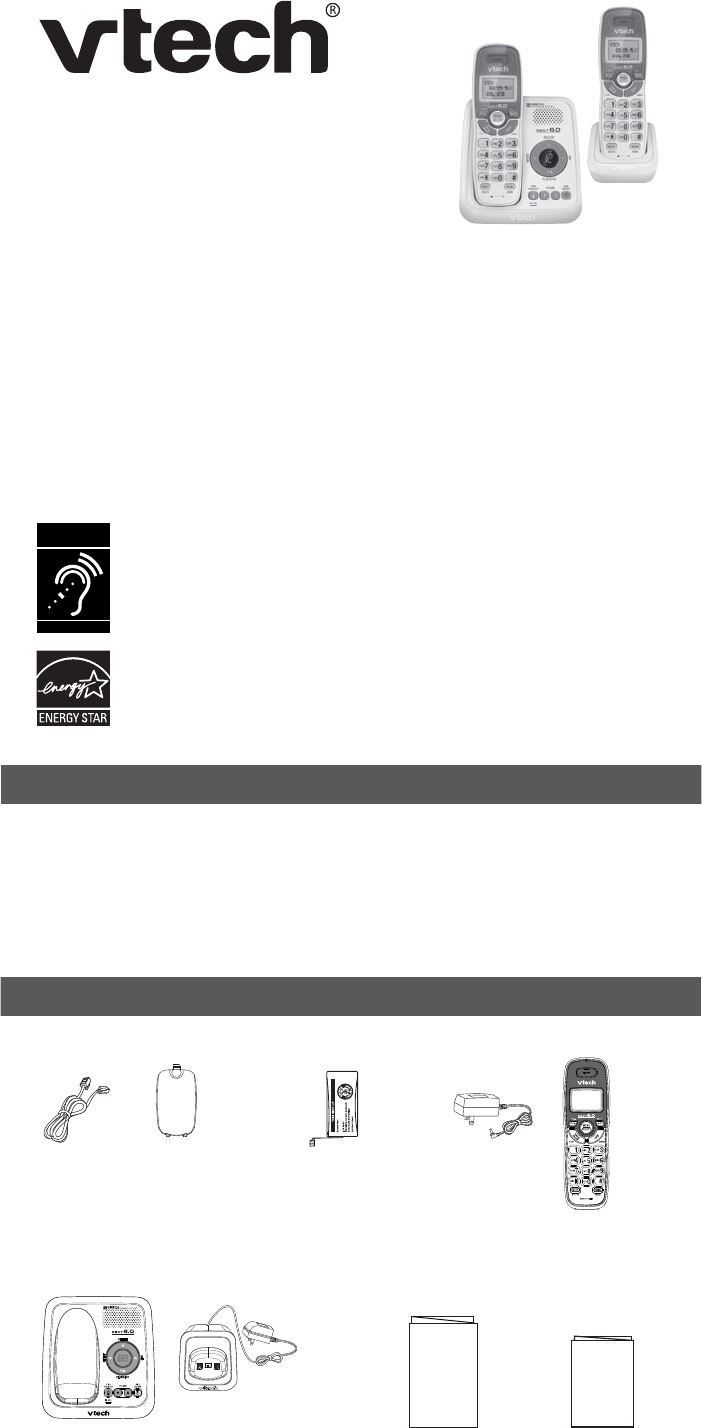

Your telephone package contains the following items. Save your sales receipt and
original packaging in the event warranty service is necessary.
Abridged user’s manual
Abridged user’s manual
Quick start guide
Quick start guide
Handset
(1 for CS6124/CS6124 B/
CS6124-11/CS6124-11 B)
(2 for CS6120-2/
CS6124-2/CS6124-2 B/
CS6124-21/CS6124-21 B)
(3 for CS6124-31/
CS6124-31 B)
Telephone base
Telephone base
power adapter
Telephone
line cord
Battery
(1 for CS6124/CS6124 B/
CS6124-11/CS6124-11 B)
(2 for CS6120-2/
CS6124-2/CS6124-2 B/
CS6124-21/CS6124-21 B)
(3 for CS6124-31/
CS6124-31 B)
Battery compartment
cover
(1 for CS6124/CS6124 B/
CS6124-11/CS6124-11 B)
(2 for CS6120-2/
CS6124-2/CS6124-2 B/
CS6124-21/CS6124-21 B)
(3 for CS6124-31/
CS6124-31 B)
CANCEL
Charger and charger
adapter
(1 for CS6120-2/CS6124-2/
CS6124-2 B/CS6124-21/
CS6124-21 B)
(2 for CS6124-31/CS6124-31 B)
T
Compatible with
Hearing Aid T-Coil
TIA-1083
Introduction
Parts checklist
2
Install the telephone base as shown below.
Use only the power adapter and battery supplied with this product. To
order a replacement, visit our website at www.vtechphones.com or call
1 (800) 595-9511. In Canada, go to www.vtechcanada.com or call
1 (800) 267-7377.
The power adapters are intended to be correctly oriented in a vertical or floor
mount position. The prongs are not designed to hold the plug in place if it is
plugged into a ceiling, under-the-table or cabinet outlet.
If you subscribe to telephone service from a cable company or a VoIP service
provider, contact your cable/VoIP service provider for more information.
•
•
•
Telephone base
Telephone line cord
Electrical outlet
(not controlled by
a wall switch)
A DSL filter (not
included) is
required if you have
DSL high-speed
Internet service
Charger

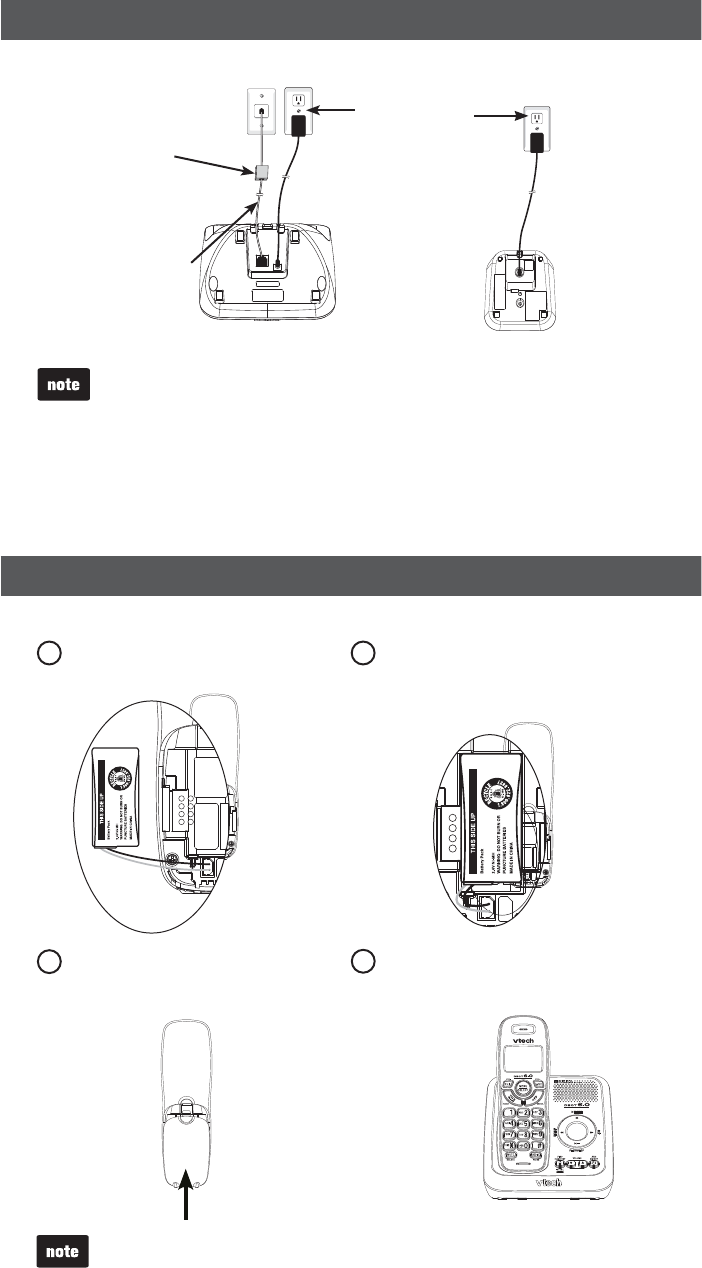

Telephone base and charger installation
2
4
Install the battery as shown below.
Plug the battery connector
securely into the socket.
Place the battery with the label
THIS SIDE UP facing up and
the wires inside the battery
compartment.
Slide the battery compartment
cover towards the center of the
handset until it clicks into place.
Place the handset in the telephone
base to charge. The handset
displays Charging.
If the handset will not be used for a long period of time, disconnect and remove the
battery to prevent any possible leakage.
1
3
Battery installation
3
Once you have installed the battery, the screen indicates the battery status (see
the table below). For best performance, keep the handset in the telephone base or
charger when not in use. The battery is fully charged after 16 hours of continuous
charging. Refer to the online user’s manual for battery operating times.
Battery indicators Battery status Action
The screen is blank,
or displays Place in
charger and flashes.
Battery has very little or no
charge. The handset cannot
be used.
Charge without interruption
(at least 30 minutes).
The screen displays
Low battery and
flashes.
Battery has enough charge
to be used for a short time.
Charge
without interruption
(about 30 minutes).
The screen displays
HANDSET 1 and
--:-- --/--.
Battery is charged. To keep the battery
charged, place it in the
telephone base when not
in use.
If you place the handset in the telephone base or charger without plugging in the
battery, the screen displays No battery.
Battery charging
1 – CID/VOL-
Review the caller ID log when the
telephone is not in use.
Decrease the listening volume
during a call.
Scroll down while in a menu.
2 – MENU/SELECT
Show the menu.
Select an item or save a setting
while in a menu.
3 – /FLASH
Make or answer a call.
4 – Dialing keys
5 – TONE
Switch to tone dialing temporarily.
6 – MUTE/DELETE
Mute the microphone.
Delete digits or characters.
•
•
•
•
•
•
•
•
•
7 – /VOL+
Review the directory when the
telephone is not in use.
Increase the listening volume during
a call.
Scroll up while in a menu.
8 – OFF/CANCEL
Hang up a call.
Return to the previous menu while
in a menu.
9 – #
Show other dialing options when
reviewing a caller ID log entry.
10 – REDIAL/PAUSE
Review the redial list.
Insert a dialing pause.
•
•
•
•
•
•
•
•
CANCEL
1
2
3
4
5
610
9
8
7
Handset overview
4
To enter the handset menu:
Press MENU when the phone is not in use.
Press CID or until the screen displays the desired feature menu.
Press SELECT.
To return to the previous menu, press CANCEL.
To return to idle mode, press and hold CANCEL.
1.
2.
3.
•
•
Use the Clr voicemail feature when the telephone indicates there is new voicemail
but there is none. For example, when you have accessed your voicemail while away
from home. The Clr voicemail feature only turns off the indicators; it does not
delete your voicemail messages. As long as you have new voicemail messages,
your telephone service provider continues to send the signal that turns on
the indicators.

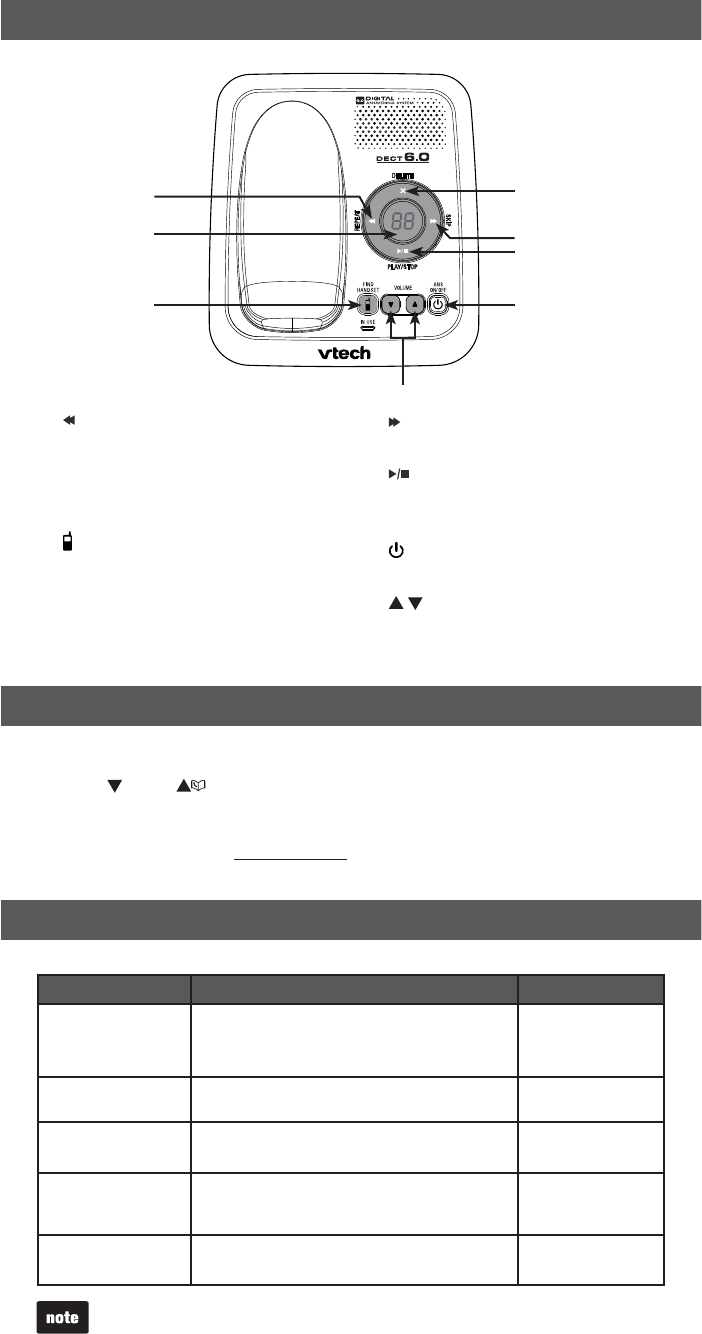

Telephone base overview
1
2
8
6
5
4
1 – /REPEAT
Repeat a message.
Press twice to play the previous
message.
2 – Message window
3 – /FIND HANDSET
Page all system handsets.
4 – X/DELETE
Delete the playing message.
Insert a dialing pause.
•
•
•
•
•
5 – /SKIP
Skip to the next message.
6 – /PLAY/STOP
Play messages.
Stop playing messages.
7 – /ANS ON/OFF
Turn on or off the answering system.
8 – //VOLUME
Adjust the listening volume.
•
•
•
•
•
37
Using the menu
Telephone settings
Default settings are indicated by an asterisk(*).
Screen display Function Options
LCD language Set the screen display language. English*;
Français;
Español
Clr voicemail Turn off the voicemail indicators. See the
note below for details.
Reset VM Icon?
Key tone Set whether the handset beeps
whenever a key is pressed.
On*;
Off
Home area code Set the home area code so that the
caller ID log stores only seven digits for
local telephone numbers.
Home area code
_ _ _
Dial mode Set the telephone to be tone dial or pulse
dial.
Touch-tone*;
Pulse
5
The following are some of the telephone features you may wish to set. Refer to
Telephone settings in the online Complete user’s manual for detailed instructions
on setting all telephone features.
Set date and time
If you subscribe to caller ID service, the day, month and time are set automatically
with each incoming call.
To set the date and time manually:
Press MENU when the handset is not in use.
Scroll to Set date/time and then press SELECT.
Use the dialing keys (0-9) to enter the month, date and year. Press SELECT.
Use the dialing keys (0-9) to enter the hour and minute. Press SELECT.
Press CID or to choose AM or PM. Press SELECT to save.
When there is a power failure or after battery replacement, the time needs to
be reset.
Ringer volume
You can adjust the ringer volume level, or turn the ringer off.
Press MENU when the handset is not in use.
Scroll to Ringers and then press SELECT twice.
Press VOL- or VOL+ to sample each volume level.
Press SELECT to save.
If the ringer volume is set to Off, the idle screen displays Ringer off.
When the ringer volume is set to Off, the handset still rings when you press
/FIND HANDSET.
Telephone operation
Make a call
Press and then dial the telephone number.
Answer a call
Press or any of the dialing keys.
End a call
Press OFF or put the handset to the telephone base.
Volume
During a call, press VOL- or VOL+ to adjust the listening volume.
Mute
The mute function allows you to hear the other party but the other party cannot
hear you.
During a call, press MUTE. The screen displays Muted until
the mute function is turned off.
Press MUTE again to resume the conversation. The screen
temporarily displays Microphone on.
Call waiting
When you subscribe to call waiting service from your telephone service provider,
you hear an alert tone if there is an incoming call while you are on another call.
Press FLASH to put the current call on hold and take the new call.
Press FLASH at any time to switch back and forth between calls.
Temporary ringer silencing
When the telephone is ringing, you can temporarily silence the ringer of the
handset without disconnecting the call. The next call rings normally at the preset
volume.
To silence the handset ringer, press OFF or MUTE.
Temporary tone dialing
If you have pulse (rotary) service only, you can switch from pulse to tone dialing
temporarily during a call. This is useful if you need to send touch-tone signals to
access your telephone banking or long distance services.
During a call, press TONE .
Use the dialing keys to enter the relevant number. The telephone sends
touch-tone signals.
The telephone automatically returns to pulse dialing mode after you end
the call.
1.
2.
3.
4.
5.
1.
2.
3.
4.
•
•
•
•
•
•
1.
2.
•
•
•
1.
2.
3.
Ringer muted
10:15 PM
12/25
6
Redial
The telephone stores the five most recently dialed numbers. When there are
already five entries, the oldest entry is deleted to make room for the new entry.
To review and dial a number from the redial list:
Press REDIAL when the handset is not in use.
Press CID, or REDIAL repeatedly until the desired entry displays.
Press to dial.
To delete a redial entry:
When the desired redial entry displays, press DELETE.
Find handset
Use this feature to find all system handsets.
To start paging:
Press /FIND HANDSET on the telephone base once and then release when
the phone is not in use. The idle handset rings and ** Paging ** flashes on the
screens.
To end paging:
Press /FIND HANDSET on the telephone base once and then release.
-OR-
Press or any of the dialing keys on the handset to stop the paging tone.
Do not press and hold /FIND HANDSET for more than four seconds. It may
lead to handset deregistration. If Not registered displays on the handset, refer to
Troubleshooting to register the handset to the telephone base.
1.
2.
3.
•
•
•
•
Directory
The directory can store up to 30 entries.
To add a directory entry:
Press MENU/SELECT three times when the handset is not in use.
Use the dialing keys to enter the number (up to 30 digits).
-OR-
Copy a number from the redial list by pressing REDIAL and then press
CID, or REDIAL repeatedly to select a number. Press SELECT to copy
the number.
Press SELECT to move to the name.
Use the dialing keys to enter the name (up to 15 characters). Additional key
presses show other characters of that particular key.
Press SELECT to store the entry.
While entering names and numbers, you can:
Press DELETE to backspace and erase a digit or character.
Press and hold DELETE to erase the entire entry.
Press CID or to move the cursor to the left or right.
Press and hold PAUSE to insert a dialing pause.
Press 0 to add a space.
To review and dial a number from the directory:
Entries are sorted alphabetically.
Press when the handset is not in use.
Scroll to browse through the directory, or use the dialing keys to start a
name search.
When the desired entry appears, press to dial.
To edit a directory entry:
When the desired entry displays, press SELECT.
Use the dialing keys to edit the number, then press SELECT.
Use the dialing keys to edit the name, then press SELECT to confirm.
To delete a directory entry:
When the desired entry displays, press DELETE.
When the screen displays Delete contact?, press SELECT.
1.
2.
3.
4.
5.
•
•
•
•
•
1.
2.
3.
1.
2.
3.
1.
2.
7
This product supports caller ID services provided by most telephone service
providers. Depending on your service subscription, you may see the caller’s name,
number, date and time of calls that are sent by your telephone service provider after
the first or second ring.
Caller ID log
The caller ID log stores up to 30 entries. If you answer a call before the caller
information appears, it will not be saved in the caller ID log.
The handset displays XX missed calls when there are calls that have not been
reviewed in the caller ID log.
If you want to erase the missed call indicator, press and hold CANCEL on the
idle handset.
To review and dial a number in the caller ID log:
Press CID when the handset is not in use.
Scroll to browse through the caller ID log. When the desired entry appears:
Press # repeatedly to show different dialing options.
Press 1 repeatedly if you need to add or remove 1 in front of the
telephone number.
Press to dial.
To save a caller ID log entry to the directory:
When the desired caller ID log entry displays, press SELECT.
Use the dialing keys to modify the number, if necessary. Then press
SELECT
.
Use the dialing keys to modify the name, if necessary. Then press SELECT.
To delete caller ID log entries:
Delete an entry: When the desired caller ID log entry displays, press DELETE.
Delete all entries: Press MENU when the handset is not in use. Scroll
to Caller ID log and then press SELECT. Scroll to Del all calls then press
SELECT twice.
•
•
1.
2.
•
•
3.
1.
2.
3.
•
•
Caller ID
Answering system settings
Default settings are indicated by asterisks (*).
Screen display Function Options
Call screening Set whether you hear the callers while they are
leaving messages to you.
On*
Off
# of rings Set the number of times the telephone rings
before the answering system answers. Toll
saver allows you to check for new messages
and avoid paying unnecessary long distance
charges when you are not calling from your
local area.
6
5
4*
3
2
Toll saver
Remote code Set a two-digit security code to access the
answering system remotely from any
touch-tone telephone.
19*
Msg alert tone Set whether the telephone beeps every 10
seconds to alert you of new messages.
On
Off*
Recording time Set the recording time for each incoming
message.
3 minutes*
2 minutes
1 minute
Number of rings
You can set the answering system to answer an incoming call after 2, 3, 4, 5 or 6
rings; or toll saver. If you choose toll saver, the answering system answers a call
after 2 rings when you have new messages, and after 4 rings when you have no
new messages.
Press MENU when the handset is not in use.
Scroll to Answering sys and then press SELECT.
Scroll to Ans sys setup and then press SELECT.
Scroll to # of rings and then press SELECT.
Press CID or to choose 6, 5, 4, 3, 2 or Toll saver and then press SELECT
to save.
1.
2.
3.
4.
5.
8
Your telephone has separate indicators for two different types of voice messages:
those left on the built-in answering system and those left at your telephone service
provider’s voicemail. Each alerts you to new messages differently.
If and XX new messages display on the handset and the message
window on the telephone base flashes, there are messages recorded on the
built-in answering system. It can record and store up to 99 messages and each
message can be up to three minutes in length. The total storage capacity for the
announcement, messages and memos is approximately 14 minutes.
If and New voicemail display on the handset, your telephone service provider
is indicating that it has new voicemail for you. Contact your telephone service
provider for more information on how to access your voicemail.
•
•
About answering system and voicemail
Answering system operation
Turn the answering system on or off
The answering system must be turned on to answer and record messages. When it
is turned on, the /ANS ON/OFF light on the telephone base turns on and ANS ON
displays on the handset.
Press /ANS ON/OFF on the telephone base to turn the built-in answering
system on or off.
Record/play/delete your own announcement
You can use the preset announcement to answer calls, or replace it with your own
recorded announcement. The announcement can be up to 90 seconds in length.
Press MENU when the handset is not in use.
Scroll to Answering Sys then press SELECT twice.
The handset announces,
“To play, press 2. To record, press 7.”
Then press 7 to record.
The handset announces,
“Record after the tone. Press 5 when you are done.”
After the tone, speak towards the handset microphone.
Press 5 when finished.
Press 2 to play the recorded announcement; or 7 to record again if desired.
Press 3 to delete your own recorded announcement. Press 5 to stop the
playback at any time.
Play messages
To play messages with the telephone base:
Press /PLAY when the phone is not in use.
Options during playback:
Press /VOLUME or /VOLUME to adjust the speaker volume.
Press /SKIP to skip to the next message.
Press /REPEAT to repeat the message currently playing. Press /REPEAT
twice to listen to the previous message.
Press X/DELETE to delete the current message. The system advances to the
next message.
Press /STOP to stop.
To play messages with a handset:
Press MENU/SELECT twice when the phone is not in use.
Options during playback:
Press VOL- or VOL+ to adjust the volume.
Press 6 to skip to the next message.
Press 4 to repeat the message currently playing.
Press 4 twice to listen to the previous message.
Press 3 to delete the current message. The system advances to the next message.
Press OFF to stop.
Delete all messages
To delete all messages at the telephone base:
Press X/DELETE twice when the phone is not in use.
To delete all messages with a handset:
Press MENU when the handset is not in use.
Scroll to Answering sys then press SELECT.
Scroll to Delete all old then press SELECT twice.
Call intercept
If you want to talk to the person whose message is being recorded, press on
the handset.
•
1.
2.
3.
4.
5.
6.
•
•
•
•
•
•
•
•
•
•
1.
2.
3.
9
If you have difficulty with your telephone, please try the suggestions below. For
customer service, visit our website at www.vtechphones.com or call 1 (800) 595-9511.
In Canada, go to www.vtechcanada.com or call 1 (800) 267-7377.
My telephone does not work at all.
Make sure the battery is installed and charged correctly. For optimum daily performance,
return the handset to the telephone base after use.
Make sure the power adapter is securely plugged into an outlet not controlled by a wall switch.
Make sure the telephone line cord is plugged firmly into the telephone base and the wall jack.
Unplug the electrical power to the telephone base. Wait for approximately 15 seconds, then plug
it back in. Allow up to one minute for the cordless handset and telephone base to synchronize.
Charge the battery in the handset for up to 16 hours.
If the battery is completely depleted, it may take up to 30 minutes to charge the handset
before Low battery appears on the screen.
Remove and install the battery again. If that still does not work, it may be necessary to
purchase a new battery.
Disconnect the telephone base from the telephone wall jack and plug in a working telephone.
If the other telephone does not work, the problem is probably in the wiring or the telephone
service. Contact your telephone service provider.
There is no dial tone.
Try all the above suggestions.
Move the handset closer to the telephone base. It may be out of range.
The telephone line cord may be defective. Install a new telephone line cord.
Disconnect the telephone base from the telephone wall jack and connect a different
telephone. If there is no dial tone on this telephone either, the problem is in your wiring or
telephone service. Contact your telephone service provider.
I cannot dial out.
Try all the above suggestions.
Make sure there is a dial tone before dialing. It is normal if the handset takes a second or
two to synchronize with the telephone base before producing a dial tone. Wait an extra
second before dialing.
If other telephones in your home are having the same problem, the problem is in the wiring or
local telephone service. Contact your telephone service provider (charges may apply).
Eliminate any background noise. Mute the cordless handset before dialing, or dial from
another room in your home with less background noise.
Not registered appears on the handset and it does not work at all.
The handset may be deregistered from the telephone base. Follow the steps below to
register the handset to the telephone base.
1. Remove the handset from the telephone base.
2. Press and hold /FIND HANDSET on the telephone base for about four seconds until the
red IN USE light turns on.
3. Then press # (pound key) on the handset. It displays Registering... and it takes about 60
seconds to complete the registration. The handset displays Registered for a few seconds
and you hear a confirmation tone when the registration process completes.
Low battery shows on the handset screen.
Place the handset in the telephone base for recharging.
Remove and install the battery again and use it until fully depleted, then charge the handset
in the telephone base for up to 16 hours.
If the above measures do not correct the problem, replace the battery.
The battery does not charge in the handset or the handset battery does not
accept charge.
Make sure the handset is placed in the telephone base correctly. The handset displays
Charging.
Remove and install the battery again, then charge for up to 16 hours.
If the battery is completely depleted, it may take up to 30 minutes to charge the handset
before Low battery appears on the screen.
Purchase a new battery. Refer to Battery installation on page 2.
The telephone does not ring when there is an incoming call.
Make sure the handset ringer volume is not set to off.
Make sure the telephone line cord and power adapter are plugged in properly.
The handset may be too far from the telephone base. Move it closer to the telephone base.
There may be too many extension phones on the telephone line to allow all of them to ring
simultaneously. Unplug some of them.
If other telephones in your home are having the same problem, the problem is in the wiring
or telephone service. Contact your telephone service provider (charges may apply).
Other electronic products such as HAM radios and other DECT phones can cause
interference with your cordless phone. Try installing your phone as far away as possible from
these types of electronic devices.
Test a working telephone at the telephone wall jack. If another telephone has the same
problem, the problem is in the telephone wall jack. Contact your telephone service provider
(charges may apply).
The telephone line cord may be defective. Install a new telephone line cord.
Remove and install the battery again and place the handset in the telephone base.
Wait for the handset to synchronize with the telephone base. Allow up to one minute for this
to take place.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Troubleshooting
10
My handset beeps and is not performing normally.
Make sure the power cord is securely plugged into the telephone base. Plug the telephone
base into a different working electrical outlet not controlled by a wall switch.
Move the handset closer to the telephone base. It may be out of range.
Reset the telephone base by unplugging the electrical power to the base. Wait for 15
seconds and plug it back in again. Allow up to one minute for the cordless handset and the
telephone base to synchronize.
Other electronic products such as HAM radios and other DECT phones can cause
interference with your cordless phone. Try installing your phone as far away as possible from
these types of electronic devices.
There is interference during a telephone conversation. My calls fade out
when I am using the cordless handset.
The handset may be out of range. Move it closer to the telephone base.
If you subscribe to high-speed Internet service (DSL - digital subscriber line) through
your telephone line, you must install a DSL filter between the telephone line cord and
the telephone wall jack. The filter prevents noise and caller ID problems caused by DSL
interference. Contact your DSL service provider for more information about DSL filters.
Appliances or other cordless telephones plugged into the same circuit as the telephone base
can cause interference. Try moving the appliance or telephone base to another outlet.
Other electronic products such as HAM radios and other DECT phones can cause
interference with your cordless phone. Try installing your phone as far away as possible from
these types of electronic devices.
If your telephone is plugged in with a modem or a surge protector, plug the telephone (or
modem/surge protector) into a different location. If this doesn’t solve the problem, relocate
your telephone or modem farther apart from each other, or use a different surge protector.
The location of your telephone base can impact the performance of your cordless phone.
For better reception, install the telephone base in a centralized location within your home or
office, away from walls or other obstructions. In many environments, elevating the telephone
base improves overall performance.
Disconnect the telephone base from the telephone wall jack and plug in a corded telephone.
If calls are still not clear, the problem is probably in the wiring or telephone service. Contact
your telephone service provider (charges may apply).
If other telephones in your home are having the same problem, the problem is in the wiring
or telephone service. Contact your telephone service provider (charges may apply).
I hear other calls when using the telephone.
Disconnect the telephone base from the telephone wall jack. Plug in a different telephone. If
you still hear other calls, the problem is probably in the wiring or telephone service. Contact
your telephone service provider.
I hear noise on the cordless handset and the keys do not work.
Make sure the telephone line cord is plugged in securely.
Out of range or no pwr at base shows on the handset screen.
The handset may be out of range. Move it closer to the telephone base.
Make sure the power cord is securely plugged into the telephone base. Use a working
electrical outlet not controlled by a wall switch.
Reset your telephone by unplugging the power adapter from the telephone base. Disconnect
the battery from the cordless handset. Wait for 15 seconds, then plug in the power adapter
and install the battery again. Place the handset in the telephone base and allow up to one
minute for the handset and telephone base to synchronize.
Other electronic products such as HAM radios and other DECT phones can cause
interference with your cordless phone. Try installing your phone as far away as possible from
these types of electronic devices.
I subscribe to a nontraditional telephone service that uses my computer to
establish connections, and my telephone doesn’t work.
Make sure your computer is powered on.
Make sure your Internet connection is working properly.
Make sure that the software is installed and running for your nontraditional telephone service.
Make sure to plug your USB telephone adapter into a dedicated USB port on your computer.
Do not plug into a multiple port USB hub (USB splitter) that is not powered.
In a few rare instances, the USB port on your computer may not have enough power. In
these instances, try using a USB hub with its own external power supply.
If you are using a firewall, it may prevent access to your nontraditional telephone service.
Contact your service provider for more information.
Common cure for electronic equipment.
If the telephone is not responding normally, put the cordless handset in the telephone base.
If it does not respond, try the following (in the order listed):
1. Disconnect the power to the telephone base.
2. Disconnect the battery on the cordless handset.
3. Wait a few minutes before connecting power to the telephone base.
4. Install the battery again and place the cordless handset in the telephone base .
5. Wait for the cordless handset to synchronize with the telephone base. Allow up to one
minute for this to take place.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
11
When using your telephone equipment, basic safety precautions should always be followed to reduce
the risk of fire, electric shock and injury, including the following:
Read and understand all instructions.
Follow all warnings and instructions marked on the product.
Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a
damp cloth for cleaning.
Do not use this product near water such as near a bath tub, wash bowl, kitchen sink, laundry tub or a
swimming pool, or in a wet basement or shower.
Do not place this product on an unstable table, shelf, stand or other unstable surfaces.
Slots and openings in the back or bottom of the telephone base and handset are provided for
ventilation. To protect them from overheating, these openings must not be blocked by placing the
product on a soft surface such as a bed, sofa or rug. This product should never be placed near or over
a radiator or heat register. This product should not be placed in any area where proper ventilation is
not provided.
This product should be operated only from the type of power source indicated on the marking label. If
you are not sure of the type of power supply in your home or office, consult your dealer or local power
company.
Do not allow anything to rest on the power cord. Do not install this product where the cord may be
walked on.
Never push objects of any kind into this product through the slots in the telephone base or handset
because they may touch dangerous voltage points or create a short circuit. Never spill liquid of any
kind on the product.
To reduce the risk of electric shock, do not disassemble this product, but take it to an authorized
service facility. Opening or removing parts of the telephone base or handset other than specified
access doors may expose you to dangerous voltages or other risks. Incorrect reassembling can cause
electric shock when the product is subsequently used.
Do not overload wall outlets and extension cords.
Unplug this product from the wall outlet and refer servicing to an authorized service facility under the
following conditions:
When the power supply cord or plug is damaged or frayed.
If liquid has been spilled onto the product.
If the product has been exposed to rain or water.
If the product does not operate normally by following the operating instructions. Adjust only those
controls that are covered by the operation instructions. Improper adjustment of other controls may
result in damage and often requires extensive work by an authorized technician to restore the
product to normal operation.
If the product has been dropped and the telephone base and/or handset has been damaged.
If the product exhibits a distinct change in performance.
Avoid using a telephone (other than cordless) during an electrical storm. There is a remote risk of
electric shock from lightning.
Do not use the telephone to report a gas leak in the vicinity of the leak. Under certain circumstances,
a spark may be created when the adapter is plugged into the power outlet, or when the handset is
replaced in its cradle. This is a common event associated with the closing of any electrical circuit.
The user should not plug the phone into a power outlet, and should not put a charged handset into
the cradle, if the phone is located in an environment containing concentrations of flammable or
flame-supporting gases, unless there is adequate ventilation. A spark in such an environment could
create a fire or explosion. Such environments might include: medical use of oxygen without adequate
ventilation; industrial gases (cleaning solvents; gasoline vapors; etc.); a leak of natural gas; etc.
Only put the handset of your telephone next to your ear when it is in normal talk mode.
The power adapter is intended to be correctly oriented in a vertical or floor mount position. The prongs
are not designed to hold the plug in place if it is plugged into a ceiling, under-the-table or cabinet outlet.
SAVE THESE INSTRUCTIONS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
A.
B.
C.
D.
E.
F.
13.
14.
15.
16.
Important safety instructions
Cardiac pacemakers (applies only to digital cordless telephones):
Wireless Technology Research, LLC (WTR), an independent research entity, led a multidisciplinary
evaluation of the interference between portable wireless telephones and implanted cardiac pacemakers.
Supported by the U.S. Food and Drug Administration, WTR recommends to physicians that:
Pacemaker patients
Should keep wireless telephones at least six inches from the pacemaker.
Should NOT place wireless telephones directly over the pacemaker, such as in a breast pocket, when it
is turned ON.
Should use the wireless telephone at the ear opposite the pacemaker.
WTR’s evaluation did not identify any risk to bystanders with pacemakers from other persons using
wireless telephones.
•
•
•
Precautions for users of implanted cardiac pacemakers
Operating range
This cordless telephone operates with the maximum power allowed by the Federal Communications
Commission (FCC). Even so, this handset and telephone base can communicate over only a certain distance
- which can vary with the locations of the telephone base and handset, the weather, and the layout of your
home or office.
When the handset is out of range, the handset displays Out of range or no pwr at base.
If there is a call while the handset is out of range, it may not ring, or if it does ring, the call may not connect well
when you press /FLASH. Move closer to the telephone base, then press /FLASH to answer the call.
If the handset moves out of range during a telephone conversation, there may be interference. To improve
reception, move closer to the telephone base.
Taking care of your telephone
Your cordless telephone contains sophisticated electronic parts, so it must be treated with care.
12
Avoid rough treatment
Place the handset down gently. Save the original packing materials to protect your telephone if you ever need
to ship it.
Avoid water
Your telephone can be damaged if it gets wet. Do not use the handset outdoors in the rain, or handle it with wet
hands. Do not install the telephone base near a sink, bathtub or shower.
Electrical storms
Electrical storms can sometimes cause power surges harmful to electronic equipment. For your own safety,
take caution when using electrical appliances during storms.
Cleaning your telephone
Your telephone has a durable plastic casing that should retain its luster for many years. Clean it only with a soft
cloth slightly dampened with water or mild soap. Do not use excess water or cleaning solvents of any kind.
Remember that electrical appliances can cause serious injury if used when you are wet or standing in the
water. If the telephone base should fall into the water, DO NOT RETRIEVE IT UNTIL YOU UNPLUG THE
POWER CORD AND TELEPHONE LINE CORD FROM THE WALL. Then remove the telephone by the
unplugged cords.
Maintenance
Privacy: The same features that make a cordless telephone convenient create some limitations.
Telephone calls are transmitted between the telephone base and the cordless handset by radio
waves, so there is a possibility that the cordless telephone conversations could be intercepted by radio
receiving equipment within range of the cordless handset. For this reason, you should not think of
cordless telephone conversations as being as private as those on corded telephones.
Electrical power: The telephone base of this cordless telephone must be connected to a working electrical
outlet. The electrical outlet should not be controlled by a wall switch. Calls cannot be made from the
cordless handset if the telephone base is unplugged, switched off or if the electrical power is interrupted.
Potential TV interference: Some cordless telephones operate at frequencies that may cause interference
to televisions and VCRs. To minimize or prevent such interference, do not place the telephone base of
the cordless telephone near or on top of a TV or VCR. If interference is experienced, moving the cordless
telephone farther away from the TV or VCR often reduces or eliminates the interference.
Rechargeable batteries: Exercise care in handling batteries in order not to create a short circuit with
conducting material such as rings, bracelets, and keys. The battery or conductor may overheat and
cause harm. Observe proper polarity between the battery and the battery charger.
Nickel-metal hydride rechargeable batteries: Dispose of these batteries in a safe manner. Do not burn
or puncture the battery. Like other batteries of this type, if burned or punctured, they could release caustic
material which could cause injury.
•
•
•
•
•
About cordless telephones
The RBRC® seal on the nickel-metal hydride battery indicates that VTech Communications, Inc. is voluntarily
participating in an industry program to collect and recycle these batteries at the end of their useful lives, when
taken out of service within the United States and Canada.
The RBRC® program provides a convenient alternative to placing used nickel-metal hydride batteries into the
trash or municipal waste, which may be illegal in your area.
VTech’s participation in RBRC
®
makes it easy for you to drop off the spent battery at local retailers participating
in the RBRC
®
program or at authorized VTech product service centers. Please call
1 (800) 8 BATTERY
TM
for information on Ni-MH battery recycling and disposal bans/restrictions in your area.
VTech’s involvement in this program is part of its commitment to protecting our environment and conserving
natural resources.
RBRC® is a registered trademark of Rechargeable Battery Recycling Corporation.
The RBRC® seal
What does this limited warranty cover?
The manufacturer of this VTech Product warrants to the holder of a valid proof of purchase (“Consumer” or
“you”) that the Product and all accessories provided in the sales package (“Product”) are free from defects in
material and workmanship, pursuant to the following terms and conditions, when installed and used normally
and in accordance with the Product operating instructions. This limited warranty extends only to the Consumer
for Products purchased and used in the United States of America and Canada.
What will VTech do if the Product is not free from defects in materials and workmanship during
the limited warranty period (“Materially Defective Product”)?
During the limited warranty period, VTech’s authorized service representative will repair or replace at
VTech’s option, without charge, a Materially Defective Product. If we repair the Product, we may use new
or refurbished replacement parts. If we choose to replace the Product, we may replace it with a new or
refurbished Product of the same or similar design. We will retain defective parts, modules, or equipment.
Repair or replacement of the Product, at VTech’s option, is your exclusive remedy. VTech will return the
repaired or replacement Products to you in working condition. You should expect the repair or replacement to
take approximately 30 days.
How long is the limited warranty period?
The limited warranty period for the Product extends for ONE (1) YEAR from the date of purchase. If VTech
repairs or replaces a Materially Defective Product under the terms of this limited warranty, this limited
warranty also applies to the repaired or replacement Product for a period of either (a) 90 days from the date
the repaired or replacement Product is shipped to you or (b) the time remaining on the original one-year
warranty; whichever is longer.
Limited warranty
13
What is not covered by this limited warranty?
This limited warranty does not cover:
1. Product that has been subjected to misuse, accident, shipping or other physical damage, improper
installation, abnormal operation or handling, neglect, inundation, fire, water or other liquid intrusion; or
2. Product that has been damaged due to repair, alteration or modification by anyone other than an authorized
service representative of VTech; or
3. Product to the extent that the problem experienced is caused by signal conditions, network reliability, or
cable or antenna systems; or
4. Product to the extent that the problem is caused by use with non-VTech accessories; or
5. Product whose warranty/quality stickers, product serial number plates or electronic serial numbers have
been removed, altered or rendered illegible; or
6. Product purchased, used, serviced, or shipped for repair from outside the United States of America or
Canada, or used for commercial or institutional purposes (including but not limited to Products used for
rental purposes); or
7. Product returned without a valid proof of purchase (see item 2 below); or
8. Charges for installation or set up, adjustment of customer controls, and installation or repair of systems
outside the unit.
How do you get warranty service?
To obtain warranty service in the USA, please visit our website at www.vtechphones.com or call
1 (800) 595-9511. In Canada, go to www.vtechcanada.com or call 1 (800) 267-7377.
NOTE: Before calling for service, please review the user’s manual - a check of the Product’s controls and
features may save you a service call.
Except as provided by applicable law, you assume the risk of loss or damage during transit and transportation and
are responsible for delivery or handling charges incurred in the transport of the Product(s) to the service location.
VTech will return repaired or replaced Product under this limited warranty. Transportation, delivery or handling
charges are prepaid. VTech assumes no risk for damage or loss of the Product in transit. If the Product failure is not
covered by this limited warranty, or proof of purchase does not meet the terms of this limited warranty, VTech will
notify you and will request that you authorize the cost of repair prior to any further repair activity. You must pay for
the cost of repair and return shipping costs for the repair of Products that are not covered by this limited warranty.
What must you return with the Product to get warranty service?
Return the entire original package and contents including the Product to the VTech service location
along with a description of the malfunction or difficulty; and
Include a “valid proof of purchase” (sales receipt) identifying the Product purchased (Product model) and
the date of purchase or receipt; and
Provide your name, complete and correct mailing address, and telephone number.
Other limitations
This warranty is the complete and exclusive agreement between you and VTech. It supersedes all other written
or oral communications related to this Product. VTech provides no other warranties for this Product. The
warranty exclusively describes all of VTech’s responsibilities regarding the Product. There are no other express
warranties. No one is authorized to make modifications to this limited warranty and you should not rely on any
such modification.
State/Provincial Law Rights: This warranty gives you specific legal rights, and you may also have other rights,
which vary from state to state or province to province.
Limitations: Implied warranties, including those of fitness for a particular purpose and merchantability (an
unwritten warranty that the Product is fit for ordinary use) are limited to one year from the date of purchase.
Some states/provinces do not allow limitations on how long an implied warranty lasts, so the above limitation
may not apply to you. In no event shall VTech be liable for any indirect, special, incidental, consequential,
or similar damages (including, but not limited to lost profits or revenue, inability to use the Product or other
associated equipment, the cost of substitute equipment, and claims by third parties) resulting from the use of this
Product. Some states/provinces do not allow the exclusion or limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply to you.
Please retain your original sales receipt as proof of purchase.
1.
2.
3.
FCC Part 15
This equipment has been tested and found to comply with the requirements for a Class B digital device under
Part 15 of the Federal Communications Commission (FCC) rules. These requirements are intended to provide
reasonable protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications to this equipment not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. Privacy of communications may not be ensured
when using this telephone.
To ensure safety of users, the FCC has established criteria for the amount of radio frequency energy that can
be safely absorbed by a user or bystander according to the intended usage of the product. This product has
been tested and found to comply with the FCC criteria. The handset may be safely held against the ear of the
user. The telephone base shall be installed and used such that parts of the user’s body other than the hands
are maintained at a distance of approximately 20 cm (8 inches) or more.
This Class B digital apparatus complies with Canadian ICES-003.
FCC Part 68 and ACTA
This equipment complies with Part 68 of the FCC rules and with technical requirements adopted by the
Administrative Council for Terminal Attachments (ACTA). The label on the back or bottom of this equipment
contains, among other things, a product identifier in the format US:AAAEQ##TXXXX. This identifier must be
provided to your telephone service provider upon request.
The plug and jack used to connect this equipment to premises wiring and the telephone network must comply
with applicable Part 68 rules and technical requirements adopted by ACTA. A compliant telephone cord and
modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is
also compliant. An RJ11 jack should normally be used for connecting to a single line and an RJ14 jack for two
lines. See Installation Instructions in the user’s manual.
The Ringer Equivalence Number (REN) is used to determine how many devices you may connect to your
telephone line and still have them ring when you are called. The REN for this product is encoded as the 6th and 7th
characters following the US: in the product identifier (e.g., if ## is 03, the REN is 0.3). In most, but not all areas, the
sum of all RENs should be five (5.0) or less. For more information, please contact your telephone service provider.
This equipment may not be used with Party Lines. If you have specially wired alarm dialing equipment connected
to your telephone line, ensure the connection of this equipment does not disable your alarm equipment. If you have
questions about what will disable alarm equipment, consult your telephone service provider or a qualified installer.
•
•
•
•
FCC, ACTA and IC regulations
14
VTECH TELECOMMUNICATIONS LTD.
A member of THE VTECH GROUP OF COMPANIES.
Distributed in the U.S.A. by VTech Communications, Inc., Beaverton, Oregon 97008.
Distributed in Canada by VTech Technologies Canada Ltd., Richmond, B.C. V6W 1L5.
VTech is the registered trademark of VTech Holdings Limited.
Copyright © 2012 for VTECH TELECOMMUNICATIONS LTD.
All rights reserved. Printed in China.
If this equipment is malfunctioning, it must be unplugged from the modular jack until the problem has been
corrected. Repairs to this telephone equipment can only be made by the manufacturer or its authorized agents.
For repair procedures, follow the instructions outlined under the Limited warranty.
If this equipment is causing harm to the telephone network, the telephone service provider may temporarily
discontinue your telephone service. The telephone service provider is required to notify you before interrupting
service. If advance notice is not practical, you will be notified as soon as possible. You will be given the
opportunity to correct the problem and the telephone service provider is required to inform you of your right to
file a complaint with the FCC. Your telephone service provider may make changes in its facilities, equipment,
operation, or procedures that could affect the proper functioning of this product. The telephone service provider
is required to notify you if such changes are planned.
If this product is equipped with a corded or cordless handset, it is hearing aid compatible.
If this product has memory dialing locations, you may choose to store emergency telephone numbers (e.g.,
police, fire, medical) in these locations. If you do store or test emergency numbers, please:
Remain on the line and briefly explain the reason for the call before hanging up.
Perform such activities in off-peak hours, such as early morning or late evening.
Industry Canada
Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference, including interference that may cause undesired operation.
The term ‘’IC:‘’ before the certification/registration number only signifies that the Industry Canada technical
specifications were met.
The Ringer Equivalence Number (REN) for this terminal equipment is 0.1. The REN is an indication of the
maximum number of devices allowed to be connected to a telephone interface. The termination on an interface
may consist of any combination of devices subject only to the requirement that the sum of the RENs of all the
devices does not exceed five.
This product meets the applicable Industry Canada technical specifications.
Technical specifications
Frequency control Crystal controlled PLL synthesizer
Transmit frequency Handset: 1921.536-1928.448 MHz
Telephone base: 1921.536-1928.448 MHz
Channels 5
Nominal effective range Maximum power allowed by FCC and IC. Actual operating range
may vary according to environmental conditions at the time of use.
Power requirements Handset: 2.4V Ni-MH battery
Telephone base: 6V DC @ 400mA
Charger: 6V AC @300mA
Memory Handset directory:
30 memory locations; up to 30 digits and 15 characters
Handset caller ID log:
30 memory locations; up to 24 digits and 15 characters
