User Manual
1

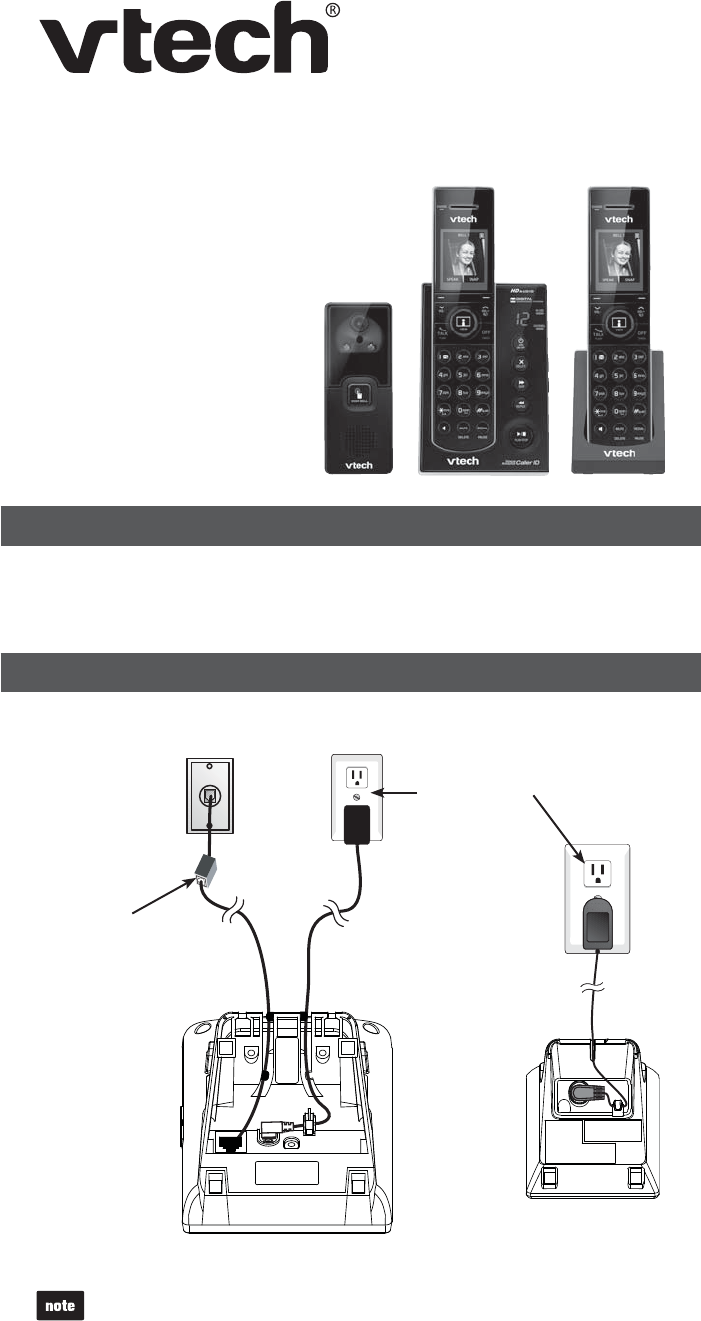

Abridged user’s manual
IS7121/IS7121-2/IS7121-22
DECT 6.0 cordless telephone
with wireless doorbell
To help protect the environment, this Abridged user’s manual provides you
with some basic setting and operation instructions. A limited set of features are
described in abbreviated form.
Please refer to the online Complete user’s manual for a full set of installation and
operation instructions at www.vtechphones.com.
Before using this VTech product, please read Important safety instructions on
page 13 of this user’s manual.
The ENERGY STAR® program (www.energystar.gov)
recognizes and encourages the use of products that save
energy and help protect our environment. We are proud to
mark this product with the ENERGY STAR® label indicating it
meets the latest energy efficiency guidelines.
Telephones identified with this logo have reduced noise and
interference when used with most T-coil equipped hearing
aids and cochlear implants. The TIA-1083 Compliant Logo is
a trademark of the Telecommunications Industry Association.
Used under license.
T
Compatible with
Hearing Aid T-Coil
TIA-1083
Register online to get an additional 3-month warranty!
Go to www.vtechphones.com to register your product for enhanced warranty
support and latest VTech product news.

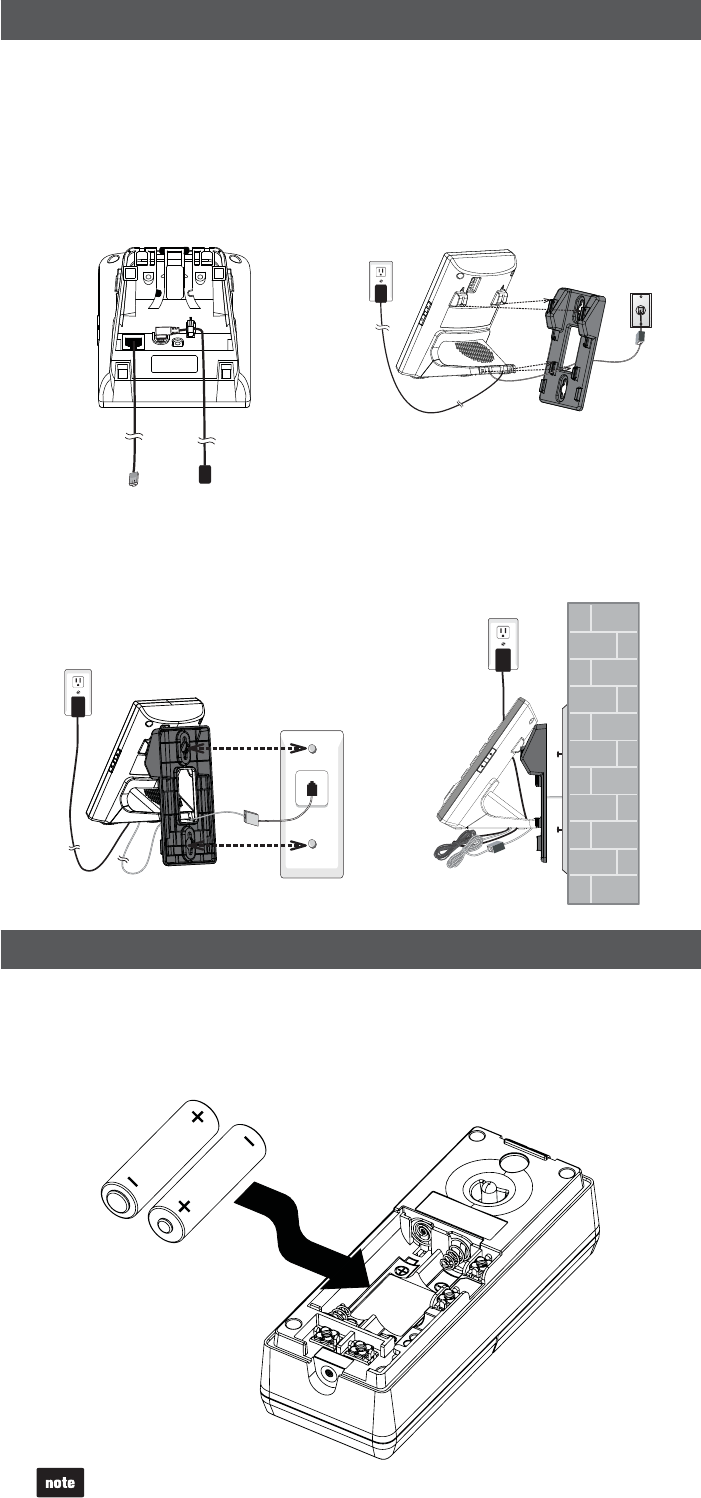

Refer to the Installation guide provided in this product package to install this
product before you can configure your telephone system.
IMPORTANT
Introduction
2

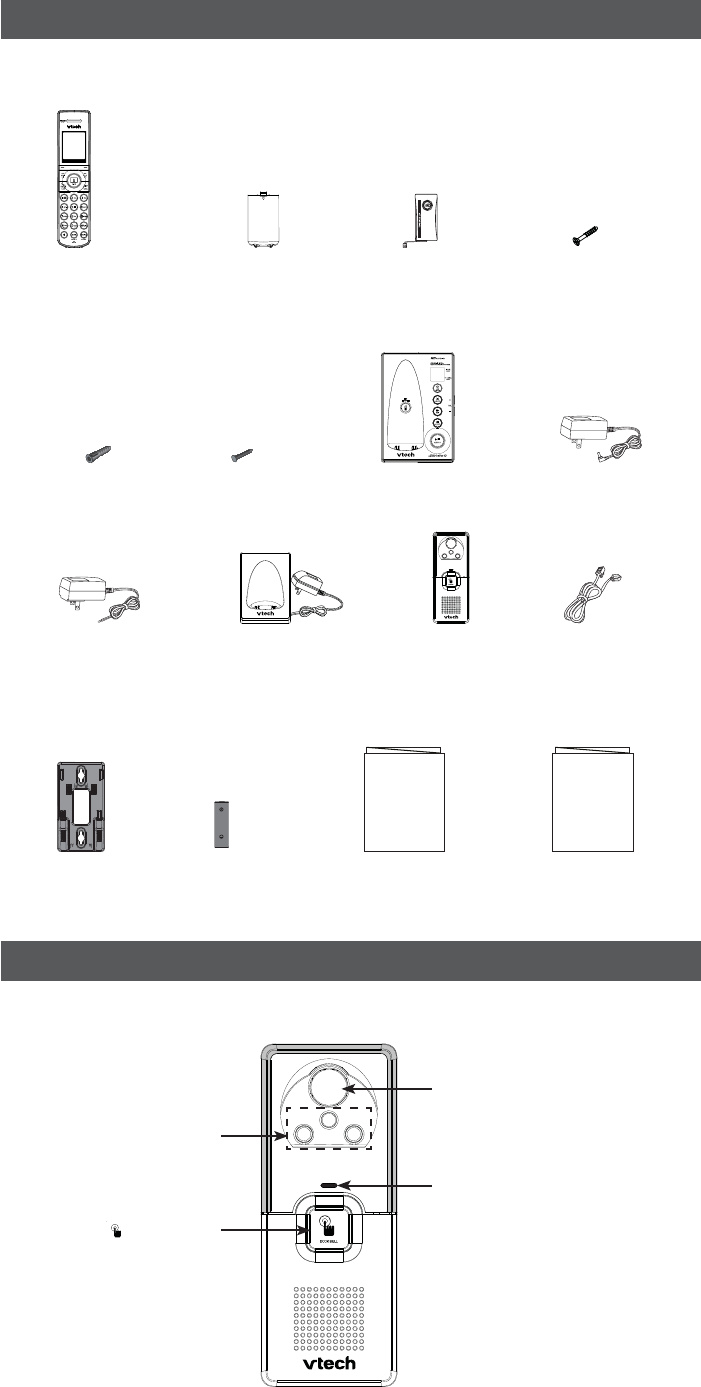

Doorbell overview
Parts checklist
Telephone
line cord
Battery
(1 for IS7121)
(2 for IS7121-2/
IS7121-22)
Battery compartment
cover
(1 for IS7121)
(2 for IS7121-2/IS7121-22)
Handset
(1 for IS7121)
(2 for IS7121-2/
IS7121-22)
Telephone base
Battery Pack
BT164392/BT264392
2.4V 550mAh Ni-MH
WARNING : DO NOT BURN OR
PUNCTURE BATTERIES
Made in China CR1222
Screw for
doorbell (bottom)
Screws for doorbell
wall mount (2)
Telephone base
power adapter
Doorbell power
adapter
Wall anchors (2)
Handset charger
and charger adapter
(1 for IS7121-2/
IS7121-22)
Doorbell
Wall mount
bracket
Alkaline
battaries (2)
Abridged user’s manual Installation guide
Abridged user’s manual Installation guide
Your telephone package contains the following items. Save your sales receipt and
original packaging in the event warranty service is necessary.
/DOORBELL
Doorbell light
Infrared LEDs
Camera lens
3
Handset overview
1
2
3
4
5
6
7
11
12
13
14
1 – CHARGE light
2 – /VOL-/CID
Scroll down while in a menu, or in the
directory, caller ID log or redial list.
Decrease the listening volume.
Review the caller ID log.
3 – /FLASH
Make or answer a call.
4 – 1
Set or dial your voicemail number.
5 – Dialing keys
6 –
Switch to tone dialing temporarily.
Switch the character between upper
and lower case.
7 –
Make or answer a call.
Switch between the speakerphone and
the handset earpiece.
8 – MUTE/DELETE
Mute the microphone.
Delete digits or characters.
9 – REDIAL/PAUSE
Review the redial list.
Insert a dialing pause.
•
•
•
•
•
•
•
•
•
•
•
•
•
10 –
Set and turn on the quiet mode, or turn
it off.
Show other dialing options when
reviewing a caller ID log entry.
Toggle the name order when saving the
caller ID entry into the directory.
11 – OFF/CANCEL
Hang up a call.
Return to the previous menu or idle
mode without making changes.
12 – /VIEW
Start video streaming.
13 – /VOL+/
Scroll up while in a menu, or in the
directory, caller ID log or redial list.
Increase the listening volume.
Review the directory.
14 – Softkeys (2)
Select a menu item displayed above
the key.
15 – PUSH TO TALK (PTT)
Begin a one-to-one or one-to-group
broadcast.
•
•
•
•
•
•
•
•
•
•
•
9
10
8
15
4
Telephone base overview
1
2
3
4
5
6
7
9
10
8
1 – Message window
2 – /ANS ON/OFF
Turn on or off the answering system.
3 – /FIND HANDSET
Page all system handsets.
4 – /REPEAT
Repeat a message.
Press twice to play the previous
message.
5 – /PLAY/STOP
Play messages.
Stop playing messages.
•
•
•
•
•
•
6 – /SKIP
Skip to the next message.
7 – +/VOL/-
Adjust the listening volume.
8 – X/DELETE
Delete the playing message.
9 – DOORBELL light
10 – IN USE light
•
•
•
Press OFF/CANCEL to wake up the sleeping screen.
Press MENU when the handset is not in use.
Press or until the screen displays the desired feature menu.
Press SELECT.
To return to the previous menu, press CANCEL.
To return to idle mode, press and hold CANCEL.
1.
2.
3.
•
•
Using the handset menu
L
5
Default settings are indicated by asterisks (*).
Settings menu Description Options
LCD language Set the handset display language. English*;
Français;
Español
CID time sync Enable the date and time to be set by incoming
caller ID information.
On*;
Off
Rename devices Change the name for each system device. Local handset;
Doorbell
Annc Caller ID Enable the telephone base and/or the handsets
to announce the incoming caller ID information.
Set all On/Off;
Local handset;
Base
LCD brightness Set the handset screen brightness. *
Wallpaper Set the handset wallpaper. Wallpaper 1*;
Wallpaper 2;
Wallpaper 3;
Wallpaper 4;
Wallpaper 5
Voicemail # Set the speed dial voicemail number. Voicemail #
-
Clr voicemail Turn off the voicemail indicators (see the
note below).
Reset voicemail
indication?
Key tone Set whether the handset beeps whenever a
key is pressed. Off; *
Dial mode Set the telephone to be touch-tone or
pulse dialing.
Touch-tone*;
Pulse
Use the Clr voicemail feature when the telephone indicates there is new voicemail
but there is none. For example, when you have accessed your voicemail while away
from home. The Clr voicemail feature only turns off the indicators; it does not delete
your voicemail messages. As long as you have new voicemail messages, your
telephone service provider continues to send the signal that turns on the indicators.
The following are some of the telephone features you may wish to set. Refer
to Telephone settings in the online Complete user’s manual for complete
instructions on setting all telephone features.
Handset ringer volume
You can adjust the handset ringer volume level, or turn the ringer off.
Press MENU when the handset is not in use.
Scroll to Ringers and then press SELECT twice.
Press or to sample each volume level or press OFF to turn off the ringer,
then press SET to save.
When the ringer volume is set to Off, the handset still rings when you press
/FIND HANDSET at the bottom of the telephone base.
Chime volume
You can adjust the telephone base or handset chime volume level, or turn the
chime off.
Press MENU when the handset is not in use.
Scroll to Chime and then press SELECT twice.
Press or to choose Local handset or Base, then press SELECT.
Press or to sample each volume level or press OFF to turn off the ringer,
then press SET to save.
Quiet mode
You can turn on the quiet mode for a period of time. During this period, all tones
(except paging tone) and call screening are muted. When you turn on the quiet
mode, the answering system turns on automatically.
Press and hold when the handset is not in use.
Use the dialing keys (0-9), or or to enter the duration (hour), then press SET
to save.
To turn off the quiet mode, press and hold when the handset is not in use.
•
1.
2.
3.
•
1.
2.
3.
4.
1.
2.
•
Telephone settings
6
Make a call
Press or and then dial the telephone number.
Answer a call
Press , or any dialing key.
End a call
Press OFF or put the handset back in the telephone
base or charger.
Handset speakerphone
During a call, press to switch between the speakerphone and the
handset earpiece.
Volume
During a call, press /VOL- or /VOL+ to adjust the listening volume.
Equalizer
During a call, press EQUILZR repeatedly to change the quality of the audio to
best suit your hearing.
•
•
•
•
•
•
Answer a chime
Press SPEAK when the visitor presses /DOORBELL.
Start a video streaming session
Press /VIEW or VIEW when the visitor presses /DOORBELL.
-OR-
Press /VIEW when the phone is not in use.
If you do not connect the doorbell to AC power, you cannot start a video streaming
session with a handset.
Options while video streaming:
Press the flashing SPEAK to talk to the visitor.
Press SNAP to take a photo shot of the visitor.
End a video streaming session
Press OFF.
Answering an incoming call during video streaming
If you receive an outside call during a video streaming session, there is an
alert tone.
To answer the outside call, press on the handset. The video streaming
session ends automatically.
To end the video streaming session without answering the outside call, press
OFF. The video streaming session ends and the telephone continues to ring.
View captured photos
Press MENU when the phone is not in use.
Scroll to Photo log and then press SELECT.
If you have more than one doorbell, scroll to the desired doorbell or scroll to
All, and then press SELECT.
Delete a captured photo
When the desired photo displays, press DELETE.
Delete all captured photos
Press MENU then the phone is not in use.
Scroll to Photo log and then press SELECT.
Scroll to Delete all and then press SELECT. Press YES.
•
•
•
•
•
•
•
•
•
1.
2.
•
•
1.
2.
3.
Set date and time
If you subscribe to caller ID service, the day, month and time are set automatically
with each incoming call. You can also set the date and time manually.
Press MENU when the handset is not in use.
Scroll to Date & Time and then press SELECT.
Use the dialing keys (0-9) to enter the month (MM), date (DD) and year (YY).
Then press SET.
Use the dialing keys (0-9) to enter the hour (HH) and minute (MM).
Then press or to choose AM or PM
.
Press SET to save.
1.
2.
3.
4.
5.
Doorbell operation
Telephone operation
7
Mute
The mute function allows you to hear the other party but the
other party cannot hear you.
During a call, press MUTE. The screen displays
Microphone off.
Press MUTE to resume the conversation. The screen
displays Microphone on briefly.
Call waiting
When you subscribe to call waiting service from your telephone service provider,
you hear an alert tone if there is an incoming call while you are already on a call.
Press FLASH to put the current call on hold and take the new call.
Press FLASH at any time to switch back and forth between calls.
Temporary ringer silencing
When the telephone is ringing, you can temporarily silence the ringer without
disconnecting the call. The next call rings normally at the preset volume.
To silence the handset ringer:
Press OFF, MUTE or SILENCE, then displays and Ringer muted
displays briefly.
To silence the telephone base ringer:
Press VOL/- on the telephone base.
Temporary tone dialing
If you have pulse (rotary) service only, you can switch from pulse to touch-tone
dialing temporarily during a call.
During a call, press .
Use the dialing keys to enter the relevant number. The telephone sends
touch-tone signals. It automatically returns to pulse dialing mode after you end
the call.
Find handset
Use this feature to find all system handsets.
To start paging:
Press /FIND HANDSET on the telephone base. All idle handsets ring and
display ** Paging **.
To end paging:
Press /FIND HANDSET again on the telephone base.
Press , , CANCEL or any dialing key on the handset.
Redial list
Each handset stores the last 10 telephone numbers dialed. When there are already
10 entries, the oldest entry is deleted to make room for the new entry.
To review and dial a number from the redial list on the handset:
Press REDIAL when the handset is not in use.
Press , or REDIAL repeatedly until the desired entry displays.
Press or to dial.
To delete a redial entry on the handset:
When the desired redial entry displays, press DELETE.
Join a call in progress
You can use four cordless handsets at a time on an outside call. You can buy
additional expansion handsets for this telephone base. You can register up to
12 handsets to the telephone base, including a maximum of two doorbells.
When a handset is on a call, press or on another handset to join the call.
Press OFF to exit the call. The call continues until all handsets hang up.
Transfer a call
While on an outside call, you can transfer the call from one handset to another.
During a call, press OPTION.
Press
or
to scroll to Transfer, then press SELECT.
When you have more than two handsets, press or to scroll to a
destination handset number, then press SELECT; or use the dialing keys
to enter a destination handset number.
To answer the call on the destination handset, press or .
Intercom
Use the intercom feature for conversations between two cordless handsets.
Press INTCOM on the handset when not in use.
When you have more than two handsets, press or to scroll to a
destination handset number then press SELECT; or use the dialing keys
to enter a destination handset number.
To answer the call, press , or any dialing key.
To end the intercom call, press END, OFF or place the handset back in the
telephone base or charger.
1.
2.
•
•
•
•
1.
2.
•
•
•
1.
2.
3.
•
•
1.
2.
•
3.
1.
•
2.
3.
8
Push to talk (PTT)
Directory
Answer an incoming call during an intercom call
If you receive an outside call during an intercom call, there is an alert tone.
To answer the outside call, press on the handset. The intercom call
ends automatically.
To end the intercom call without answering the outside call, press OFF. The
intercom call ends and the telephone continues to ring.
Call transfer using intercom
Use the intercom feature to transfer an outside call on the handset to another
system handset.
During a call, press OPTION.
Press or to scroll to Intercom, then press SELECT.
When you have more than two handsets, press or to scroll to a
destination handset number then press SELECT; or use the dialing keys
to enter a destination handset number.
To answer the call, press , or any dialing key.
The outside call is now on hold and both system handsets display Intercom.
You can have a private conversation with the other handset.
From this intercom call, you have the following options:
You can let the other handset to join you on the outside call in a three-way
conversation. Press OPTION. Press or to scroll to Share call, then
press SELECT.
You can transfer the call. Press OPTION, then press SELECT to choose
Transfer. Your handset displays Call transferred. The other handset then
automatically connects to the outside call.
Any handset can end the intercom call by pressing OFF. The outside call
continues until all handsets hang up.
•
•
1.
2.
•
3.
4.
•
•
•
You can directly broadcast messages from one handset to the speakerphone
of one or multiple handsets. Press and hold PUSH TO TALK to begin two-way
communication.
When the connection is made, both the caller and the destination handsets display
Press and hold [PTT] to talk and beep once. Only one handset can talk at a time.
To do so, press and hold PUSH TO TALK.
The directory can store up to 50 directory entries which is shared by all handsets.
To add a directory entry:
Enter the number (up to 30 digits) when the phone is not in use then press
SAVE. Then go to Step 3.
-OR-
When the phone is not in use, press MENU. Scroll to Directory and then press
SELECT. Press or to scroll to Add contact and then press SELECT.
Use the dialing keys to enter the number (up to 30 digits).
-OR-
Copy a number from the redial list by pressing REDIAL and then press , or
REDIAL repeatedly to select a number. Press INSERT to copy the number.
Press NEXT to move on to enter the name.
Use the dialing keys to enter the name (up to 15 characters). Additional key
presses show other characters of that particular key.
Press SAVE to save.
While entering names and numbers, you can:
Press DELETE or BACKSP to backspace and erase a digit or character.
Press and hold DELETE to erase the entire entry.
Press or to move the cursor to the left or right.
Press and hold PAUSE to insert a dialing pause (for entering numbers only).
Press to switch the character between upper and lower case.
Press 0 to add a space (for entering names only).
To review and dial a number from the directory:
Entries are sorted alphabetically.
Press when the phone is not in use.
Scroll to browse through the directory.
When the desired entry appears, press or to dial.
1.
2.
3.
4.
5.
•
•
•
•
•
•
1.
2.
3.
9
Caller ID
To edit a directory entry:
When the desired entry displays, press EDIT.
Use the dialing keys to edit the number, then press NEXT.
Use the dialing keys to edit the name, then press SAVE to confirm.
To delete a directory entry:
When the desired entry displays, press DELETE.
When the handset displays Delete contact? and the name of the entry,
press YES.
Speed dial
You can copy up to nine directory entries into the speed dial locations (0 and 2-9)
so that you can dial these numbers more quickly.
To assign a speed dial entry:
Press MENU when the phone is not in use.
Scroll to Directory, then press SELECT.
Scroll to Speed dial, then press SELECT.
Scroll to a desired speed dial location, then press ASSIGN.
Scroll to a desired directory entry, then press ASSIGN to save.
To dial a speed dial entry:
Press and hold a dialing key (0 or 2-9) to dial the number stored in the
corresponding location.
To delete a speed dial entry:
Press MENU when the phone is not in use.
Scroll to Directory, then press SELECT.
Scroll to Speed dial, then press SELECT.
Scroll to a desired speed dial location, then press DELETE. The handset
displays Delete Entry A speed dial assignment? Press YES.
1.
2.
3.
1.
2.
1.
2.
3.
4.
5.
•
1.
2.
3.
4.
This product supports caller ID services provided by most telephone service
providers. Depending on your service subscription, you may see the caller’s name,
number, date and time of calls that are sent by your telephone service provider
after the first or second ring.
Caller ID log
The caller ID log stores up to 50 entries. If you answer a call before the caller ID
information displays, it will not be saved in the caller ID log.
The handset displays XX Missed calls when you have incoming calls that have
not been answered.
If you want to erase the missed call indicator, press and hold CANCEL on the
idle handset.
To review and dial a number in the caller ID log:
Press CID when the phone is not in use.
Scroll to browse through the caller ID log. When the desired entry appears:
Press repeatedly to show different dialing options.
Press 1 repeatedly if you need to add or remove 1 in front of the
telephone number.
Press or to dial.
To save a caller ID log entry to the directory:
When the desired caller ID log entry displays, press SAVE.
Use the dialing keys to modify the number, if necessary. Then press NEXT.
Use the dialing keys to modify the name, if necessary. Then press SAVE.
To delete a caller ID log entry:
When the desired caller ID log entry displays, press DELETE.
To delete all caller ID log entries:
Press MENU when the phone is not in use.
Scroll to Caller ID log and then press SELECT.
Scroll to Del all calls and then press SELECT. Press YES.
•
•
1.
2.
•
•
3.
1.
2.
3.
•
1.
2.
3.
10
About answering system and voicemail
Answering system settings
Answering system operation
Your telephone has separate indicators for two different types of voice messages:
those left on the built-in answering system and those left at your telephone service
provider’s voicemail. Each alerts you to new messages differently.
If XX new msgs displays on the handsets, there are messages recorded on the
built-in answering system. It can record up to 99 messages, depending on the
length of each message. Each message can be up to three minutes in length.
The total recording time is approximately 14 minutes.
If and New voicemail display on the handsets, your telephone service
provider is indicating that it has new voicemail for you. Contact your telephone
service provider for more information on how to access your voicemail.
•
•
Default settings are indicated by asterisks (*).
Settings menu Description Options
Call screening Set whether you hear the callers while they are
leaving messages to you.
On*;
Off
# of rings Set the number of times the telephone rings
before the answering system answers.
6; 5; 4*; 3; 2;
Toll saver
Remote code Set a two-digit security code to access the
answering system remotely from any touch-
tone telephone.
19*
Msg alert tone Set whether the telephone beeps every
10 seconds to alert you of new messages.
On;
Off*
Recording time Set the recording time for each
incoming message.
3 minutes*;
2 minutes;
1 minute
Set number of rings
You can set the answering system to answer an incoming call after two, three,
four, five or six rings; or toll saver. If you choose toll saver, the answering system
answers a call after two rings when you have new messages, or after four rings
when you have no new messages.
Press MENU when the phone is not in use.
Scroll to AnsweringSys and then press SELECT.
Scroll to Ans sys setup and then press SELECT.
Scroll to # of rings and then press SELECT.
Press or to choose 6, 5, 4, 3, 2 or Toll saver and then press SET to save.
Record your own announcement
You can use the preset announcement to answer calls, or replace it with your own
recorded announcement. The announcement can be up to 90 seconds in length.
Press MENU when the phone is not in use.
Scroll to AnsweringSys then press SELECT twice.
Press RECORD. The handset announces, “Record after the tone. Press STOP
when you are done.” After the tone, speak towards the handset microphone.
Press STOP when done.
1.
2.
3.
4.
5.
1.
2.
3.
4.
Turn the answering system on or off
The answering system must be turned on to answer and record messages.
Press MENU when the phone is not in use.
Scroll to AnsweringSys and then press SELECT.
Scroll to Answer ON/OFF and then press SELECT.
Press or to choose On or Off and then press SET.
Message playback at the telephone base
Press /PLAY when the phone is not in use.
Options during playback:
Press +/VOL or VOL/- to adjust the speaker volume.
Press /SKIP to skip to the next message.
Press /REPEAT to repeat the playing message. Press /REPEAT twice to
listen to the previous message.
Press X/DELETE to delete the playing message. The system advances to the
next message.
Press /STOP to stop.
1.
2.
3.
4.
•
•
•
•
•
11
Call intercept
If you want to talk to the person whose message is being recorded, press or .
Add and register a handset
The cordless handset provided with your phone system is already registered. Each
handset is assigned a number that displays on the handset. Additional handsets
registered to the telephone system are assigned numbers in the sequential order.
This telephone system accommodates up to 12 handsets, including a maximum of
two doorbells.
You can add new handsets (IS7101, purchased separately) to your telephone
system. Each handset must be registered with the telephone base before use.
When first purchased and properly charged, each expansion handset displays
Put handset on BASE to register. The new handset should be charged without
interruption for at least 30 minutes before registering it to the telephone base.
To register a handset:
Make sure the handset is out of the telephone base or handset charger and
shows Put handset on BASE to register. Place the handset you wish to
register in the telephone base.
The handset displays Registering handset... then displays HANDSET X
Registered, and you hear a confirmation tone from the handset when
registration completes. It takes about 60 seconds to complete the
registration process.
1.
2.
Add and register a doorbell
The doorbell provided is already paired to the telephone base. You can add or
replace doorbells (IS741, purchased separately) to your telephone system. This
telephone system accommodates up to two doorbells.
Each new doorbell must be paired to the telephone base before use.
Make sure you plug in AC power before pairing it to the telephone base.
Press and hold /FIND HANDSET on the telephone base for about four
seconds until the IN USE light turns on.
Press and hold /DOORBELL for about 10 seconds until the doorbell light
flashes slowly. The doorbell light turns on steadily and you hear a confirmation
tone from the doorbell when registration completes. It takes about 60 seconds
to complete the registration process.
1.
2.
If you want to replace a handset or doorbell, or reassign the designated handset
number of a registered handset, you must deregister all system devices and then
register each handset/doorbell individually.
Make sure you plug in AC power for the doorbells before deregistration.
To deregister all handsets and doorbells:
Press and hold /FIND HANDSET on the telephone base for about 10 seconds
until the IN USE light flashes.
Immediately press /FIND HANDSET again. You must press /FIND HANDSET
while the IN USE light is still flashing. The IN USE light flashes for about
five seconds.
All handsets show Put handset on BASE to register and all doorbell lights
flash quickly. The deregistration process takes about 10 seconds to complete.
1.
2.
3.
Deregister handsets and doorbells
12
Troubleshooting
If you have difficulty with your telephone, please try the suggestions below.
For customer service, visit our website at www.vtechphones.com or call
1 (800) 595-9511. In Canada, go to www.vtechcanada.com or call 1 (800) 267-7377.
My telephone does not work at all.

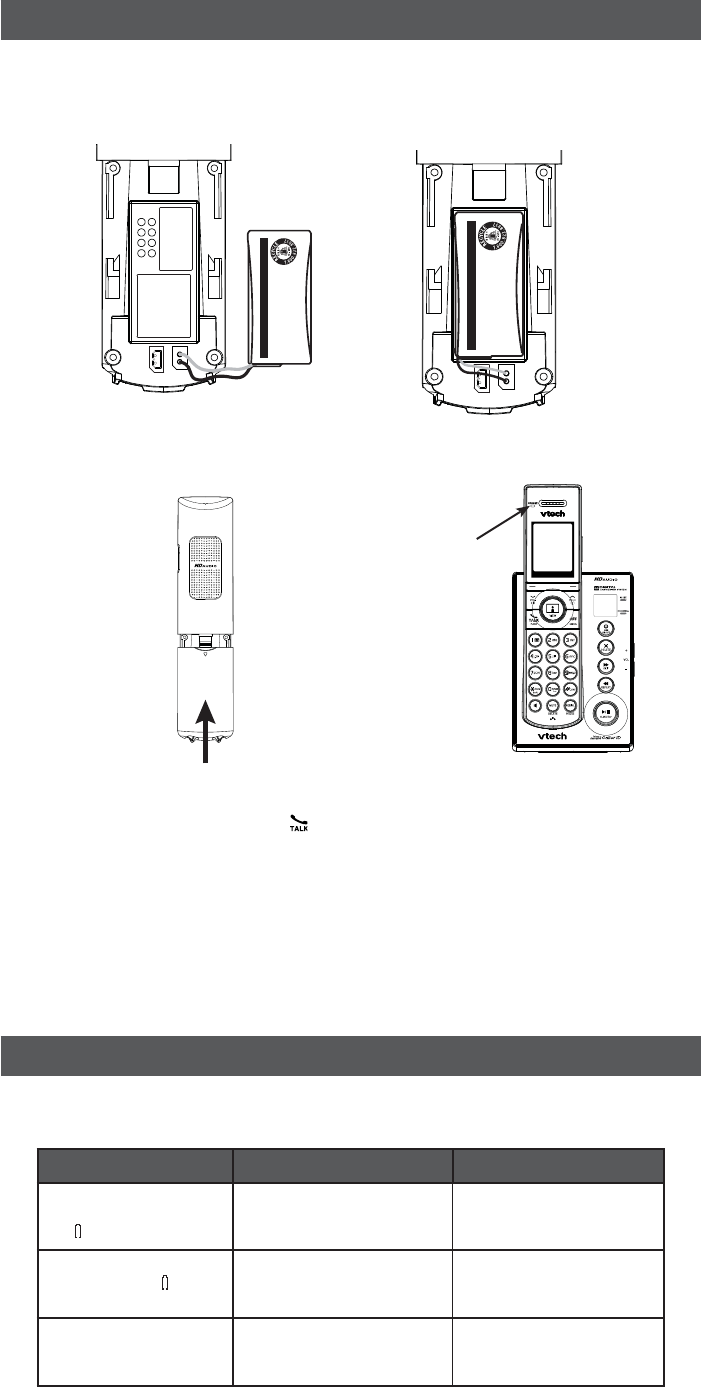

Make sure the battery is installed and charged correctly. For optimum daily
performance, return the handset to the telephone base after use.
Make sure the power adapter is securely plugged into an outlet not controlled by
a wall switch.
Make sure the telephone line cord is plugged firmly into the telephone base and
the wall jack.
Unplug the electrical power to the telephone base. Wait for approximately
15 seconds, then plug it back in. Allow up to one minute for the cordless handset
and telephone base to synchronize.
Charge the battery in the handset for up to 11 hours.
If the battery is completely depleted, charge the handset for at least 30 minutes
before use.
Remove the battery and then install it again. If that still does not work, it may be
necessary to purchase a new battery.
Disconnect the telephone base from the telephone wall jack and plug in a working
telephone. If the other telephone does not work, the problem is probably in the
wiring or telephone service. Contact your telephone service provider.
I cannot dial out.
Try all the above suggestions.
Make sure there is a dial tone before dialing. It is normal if the handset takes a
second or two to synchronize with the telephone base before producing a dial
tone. Wait an extra second before dialing.
If other telephones in your home are having the same problem, the problem is in
the wiring or telephone service. Contact your telephone service provider (charges
may apply).
Eliminate any background noise. Mute the cordless handset before dialing, or dial
from another room in your home with less background noise.
If you have changed your telephone service to digital service from a cable
company or a VoIP service provider, the telephone line may need to be rewired
to allow all existing telephone jacks to work. Contact your service provider for
more information.
The answering system does not answer after the correct number of rings.
Make sure the answering system is on. When the answering system is on,
ANS ON should display on the handset and the telephone base.
If toll saver is selected, the number of rings changes to two when there are new
messages waiting.
If the memory is full or if the answering system is off, the answering system
answers after 10 rings.
In some cases, the answering system is affected by the ringing system used by
your telephone service provider.
If you subscribe to voicemail service, change the number of rings so that your
answering system answers before your voicemail answers. To determine how
many rings activate your voicemail, contact your telephone service provider.
If there is a fax machine connected to the same telephone line, try disconnecting
the fax machine. If that solves the problem, consult your fax machine
documentation for information on compatibility with answering systems.
The answering system does not record messages.
Make sure the answering system is on.
When the answering machine memory is full, it does not record new messages
until some old messages are deleted.
If you subscribe to voicemail service, change the number of rings so that your
answering system answers before your voicemail answers. To determine
how many rings activate your voicemail, please contact your telephone
service provider.
If there is a fax machine connected to the same telephone line, try disconnecting
the fax machine. If that solves the problem, consult your fax machine
documentation for information on compatibility with answering systems.
The messages on the answering system are incomplete.
If a caller leaves a very long message, part of it may be lost when the answering
system disconnects the call after the preset recording time.
If the memory on the answering system becomes full during a message, the
answering system stops recording and disconnects the call.
If the caller’s voice is very soft, the answering system may stop recording and
disconnect the call.
I accidentally set my LCD language to Spanish or French, and I don’t
know how to change it back to English.
While the handset is in idle mode, press MENU and then enter 364 .
While the handset is on a call, press OPTION and then enter 364 .
The doorbell does not work.
Make sure the doorbell is installed correctly. Refer to the Installation guide
for details.
Make sure the doorbell is powered up.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
13
Cardiac pacemakers (applies only to digital cordless telephones):
Wireless Technology Research, LLC (WTR), an independent research entity, led a multidisciplinary
evaluation of the interference between portable wireless telephones and implanted cardiac pacemakers.
Supported by the U.S. Food and Drug Administration, WTR recommends to physicians that:
Pacemaker patients
Should keep wireless telephones at least six inches from the pacemaker.
Should NOT place wireless telephones directly over the pacemaker, such as in a breast pocket, when it
is turned ON.
Should use the wireless telephone at the ear opposite the pacemaker.
WTR’s evaluation did not identify any risk to bystanders with pacemakers from other persons using
wireless telephones.
•
•
•
Precautions for users of implanted cardiac pacemakers
This cordless telephone operates with the maximum power allowed by the Federal Communications
Commission (FCC). Even so, this handset and telephone base can communicate over only a certain
distance - which can vary with the locations of the telephone base and handset, the weather, and the
layout of your home or office.
When the handset is out of range, the handset displays Out of range or no pwr at base.
If there is a call while the handset is out of range, it may not ring, or if it does ring, the call may not connect
well when you press . Move closer to the telephone base, then press to answer the call.
If the handset moves out of range during a telephone conversation, there may be interference. To improve
reception, move closer to the telephone base.
Operating range
Common cure for electronic equipment.
If the telephone is not responding normally, put the cordless handset in the
telephone base. If it does not respond, try the following (in the order listed):
1. Disconnect the power to the telephone base.
2. Disconnect the battery on the cordless handset.
3. Wait a few minutes before connecting power to the telephone base.
4. Install the battery again and place the cordless handset in the telephone base.
5. Wait for the cordless handset to synchronize with the telephone base. Allow up
to one minute for this to take place.
•
Important safety instructions
When using your telephone equipment, basic safety precautions should always be followed to reduce the
risk of fire, electric shock and injury, including the following:
Read and understand all instructions.
Follow all warnings and instructions marked on the product.
Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a
damp cloth for cleaning.
Do not use this product near water such as near a bath tub, wash bowl, kitchen sink, laundry tub or a
swimming pool, or in a wet basement or shower.
Do not place this product on an unstable table, shelf, stand or other unstable surfaces.
Slots and openings in the back or bottom of the telephone base and handset are provided for ventilation.
To protect them from overheating, these openings must not be blocked by placing the product on a soft
surface such as a bed, sofa or rug. This product should never be placed near or over a radiator or heat
register. This product should not be placed in any area where proper ventilation is not provided.
This product should be operated only from the type of power source indicated on the marking label. If you
are not sure of the type of power supply in your home or office, consult your dealer or local power company.
Do not allow anything to rest on the power cord. Do not install this product where the cord may be
walked on.
Never push objects of any kind into this product through the slots in the telephone base or handset
because they may touch dangerous voltage points or create a short circuit. Never spill liquid of any kind
on the product.
To reduce the risk of electric shock, do not disassemble this product, but take it to an authorized service
facility. Opening or removing parts of the telephone base or handset other than specified access doors
may expose you to dangerous voltages or other risks. Incorrect reassembling can cause electric shock
when the product is subsequently used.
Do not overload wall outlets and extension cords.
Unplug this product from the wall outlet and refer servicing to an authorized service facility under the
following conditions:
When the power supply cord or plug is damaged or frayed.
If liquid has been spilled onto the product.
If the product has been exposed to rain or water.
If the product does not operate normally by following the operating instructions. Adjust only those
controls that are covered by the operation instructions. Improper adjustment of other controls may
result in damage and often requires extensive work by an authorized technician to restore the
product to normal operation.
If the product has been dropped and the telephone base and/or handset has been damaged.
If the product exhibits a distinct change in performance.
Avoid using a telephone (other than cordless) during an electrical storm. There is a remote risk of electric
shock from lightning.
Do not use the telephone to report a gas leak in the vicinity of the leak. Under certain circumstances, a
spark may be created when the adapter is plugged into the power outlet, or when the handset is replaced
in its cradle. This is a common event associated with the closing of any electrical circuit. The user should
not plug the phone into a power outlet, and should not put a charged handset into the cradle, if the
phone is located in an environment containing concentrations of flammable or flame-supporting gases,
unless there is adequate ventilation. A spark in such an environment could create a fire or explosion.
Such environments might include: medical use of oxygen without adequate ventilation; industrial gases
(cleaning solvents; gasoline vapors; etc.); a leak of natural gas; etc.
Only put the handset of your telephone next to your ear when it is in normal talk mode.
The power adapters are intended to be correctly oriented in a vertical or floor mount position. The prongs
are not designed to hold the plug in place if it is plugged into a ceiling, under-the-table or cabinet outlet.
SAVE THESE INSTRUCTIONS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
•
•
•
•
•
•
13.
14.
15.
16.
14
What does this limited warranty cover?
The manufacturer of this VTech Product warrants to the holder of a valid proof of purchase (“Consumer” or
“you”) that the Product and all accessories provided in the sales package (“Product”) are free from defects
in material and workmanship, pursuant to the following terms and conditions, when installed and used
normally and in accordance with the Product operating instructions. This limited warranty extends only to
the Consumer for Products purchased and used in the United States of America and Canada.
What will VTech do if the Product is not free from defects in materials and workmanship during the
limited warranty period (“Materially Defective Product”)?
During the limited warranty period, VTech’s authorized service representative will repair or replace at
VTech’s option, without charge, a Materially Defective Product. If we repair the Product, we may use new
or refurbished replacement parts. If we choose to replace the Product, we may replace it with a new or
refurbished Product of the same or similar design. We will retain defective parts, modules, or equipment.
Repair or replacement of the Product, at VTech’s option, is your exclusive remedy. VTech will return the
repaired or replacement Products to you in working condition. You should expect the repair or replacement
to take approximately 30 days.
The RBRC® seal on the nickel-metal hydride battery indicates that VTech Communications, Inc. is
voluntarily participating in an industry program to collect and recycle these batteries at the end of their
useful lives, when taken out of service within the United States and Canada.
The RBRC® program provides a convenient alternative to placing used nickel-metal hydride batteries into
the trash or municipal waste, which may be illegal in your area.
VTech’s participation in RBRC® makes it easy for you to drop off the spent battery at local retailers
participating in the RBRC® program or at authorized VTech product service centers. Please call
1 (800) 8 BATTERYTM for information on Ni-MH battery recycling and disposal bans/restrictions in your
area. VTech’s involvement in this program is part of its commitment to protecting our environment and
conserving natural resources.
RBRC® is a registered trademark of Rechargeable Battery Recycling Corporation.
About cordless telephones
The RBRC® seal
Limited warranty
ECO mode
This power conserving technology reduces power consumption for optimal battery performance. The ECO
mode activates automatically whenever the handset is synchronized with the telephone base.
Maintenance
Privacy: The same features that make a cordless telephone convenient create some limitations.
Telephone calls are transmitted between the telephone base and the cordless handset by radio
waves, so there is a possibility that the cordless telephone conversations could be intercepted by radio
receiving equipment within range of the cordless handset. For this reason, you should not think of
cordless telephone conversations as being as private as those on corded telephones.
Electrical power: The telephone base of this cordless telephone must be connected to a working
electrical outlet. The electrical outlet should not be controlled by a wall switch. Calls cannot be made
from the cordless handset if the telephone base is unplugged, switched off or if the electrical power
is interrupted.
Potential TV interference: Some cordless telephones operate at frequencies that may cause
interference to televisions and VCRs. To minimize or prevent such interference, do not place the
telephone base of the cordless telephone near or on top of a TV or VCR. If interference is experienced,
moving the cordless telephone farther away from the TV or VCR often reduces or eliminates
the interference.
Rechargeable batteries: Exercise care in handling batteries in order not to create a short circuit with
conducting material such as rings, bracelets and keys. The battery or conductor may overheat and
cause harm. Observe proper polarity between the battery and the battery charger.
Nickel-metal hydride rechargeable batteries: Dispose of these batteries in a safe manner. Do not
burn or puncture the battery. Like other batteries of this type, if burned or punctured, they could release
caustic material which could cause injury.
•
•
•
•
•
Taking care of your telephone
Your cordless telephone contains sophisticated electronic parts, so it must be treated with care.
Avoid rough treatment
Place the handset down gently. Save the original packing materials to protect your telephone if you ever
need to ship it.
Avoid water
Your telephone can be damaged if it gets wet. Do not use the handset outdoors in the rain, or handle it with
wet hands. Do not install the telephone base near a sink, bathtub or shower.
Electrical storms
Electrical storms can sometimes cause power surges harmful to electronic equipment. For your own safety,
take caution when using electrical appliances during storms.
Cleaning your telephone
Your telephone has a durable plastic casing that should retain its luster for many years. Clean it only with a soft
cloth slightly dampened with water or mild soap. Do not use dampened cloth or cleaning solvents of any kind.
Remember that electrical appliances can cause serious injury if used when you are wet or standing in
water. If the telephone base should fall into water, DO NOT RETRIEVE IT UNTIL YOU UNPLUG THE
POWER CORD AND TELEPHONE LINE CORD FROM THE WALL. Then remove the telephone by the
unplugged cords.
15
FCC, ACTA and IC regulations
How long is the limited warranty period?
The limited warranty period for the Product extends for ONE (1) YEAR from the date of purchase. If VTech
repairs or replaces a Materially Defective Product under the terms of this limited warranty, this limited
warranty also applies to the repaired or replacement Product for a period of either (a) 90 days from the date
the repaired or replacement Product is shipped to you or (b) the time remaining on the original one-year
warranty; whichever is longer.
What is not covered by this limited warranty?
This limited warranty does not cover:
1. Product that has been subjected to misuse, accident, shipping or other physical damage, improper
installation, abnormal operation or handling, neglect, inundation, fire, water or other liquid intrusion; or
2. Product that has been damaged due to repair, alteration or modification by anyone other than an
authorized service representative of VTech; or
3. Product to the extent that the problem experienced is caused by signal conditions, network reliability, or
cable or antenna systems; or
4. Product to the extent that the problem is caused by use with non-VTech accessories; or
5. Product whose warranty/quality stickers, product serial number plates or electronic serial numbers have
been removed, altered or rendered illegible; or
6. Product purchased, used, serviced, or shipped for repair from outside the United States of America or
Canada, or used for commercial or institutional purposes (including but not limited to Products used for
rental purposes); or
7. Product returned without a valid proof of purchase (see item 2 below); or
8. Charges for installation or set up, adjustment of customer controls, and installation or repair of systems
outside the unit.
How do you get warranty service?
To obtain warranty service in the USA, visit our website at www.vtechphones.com or call 1 (800) 595-9511.
In Canada, go to www.vtechcanada.com or call 1 (800) 267-7377.
NOTE: Before calling for service, please review the user’s manual - a check of the Product’s controls and
features may save you a service call.
Except as provided by applicable law, you assume the risk of loss or damage during transit and transportation and
are responsible for delivery or handling charges incurred in the transport of the Product(s) to the service location.
VTech will return repaired or replaced Product under this limited warranty. Transportation, delivery or handling
charges are prepaid. VTech assumes no risk for damage or loss of the Product in transit. If the Product failure
is not covered by this limited warranty, or proof of purchase does not meet the terms of this limited warranty,
VTech will notify you and will request that you authorize the cost of repair prior to any further repair activity.
You must pay for the cost of repair and return shipping costs for the repair of Products that are not covered by
this limited warranty.
What must you return with the Product to get warranty service?
1. Return the entire original package and contents including the Product to the VTech service location along
with a description of the malfunction or difficulty; and
2. Include a “valid proof of purchase” (sales receipt) identifying the Product purchased (Product model) and
the date of purchase or receipt; and
3. Provide your name, complete and correct mailing address, and telephone number.
Other limitations
This warranty is the complete and exclusive agreement between you and VTech. It supersedes all other
written or oral communications related to this Product. VTech provides no other warranties for this Product.
The warranty exclusively describes all of VTech’s responsibilities regarding the Product. There are no other
express warranties. No one is authorized to make modifications to this limited warranty and you should not
rely on any such modification.
State/Provincial Law Rights: This warranty gives you specific legal rights, and you may also have other rights,
which vary from state to state or province to province.
Limitations: Implied warranties, including those of fitness for a particular purpose and merchantability (an
unwritten warranty that the Product is fit for ordinary use) are limited to one year from the date of purchase.
Some states/provinces do not allow limitations on how long an implied warranty lasts, so the above limitation
may not apply to you. In no event shall VTech be liable for any indirect, special, incidental, consequential,
or similar damages (including, but not limited to lost profits or revenue, inability to use the Product or other
associated equipment, the cost of substitute equipment, and claims by third parties) resulting from the use
of this Product. Some states/provinces do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you.
Please retain your original sales receipt as proof of purchase.
FCC Part 15
This equipment has been tested and found to comply with the requirements for a Class B digital device
under Part 15 of the Federal Communications Commission (FCC) rules. These requirements are intended
to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications to this equipment not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation. Privacy of communications may not
be ensured when using this telephone.
To ensure safety of users, the FCC has established criteria for the amount of radio frequency energy
that can be safely absorbed by a user or bystander according to the intended usage of the product. This
product has been tested and found to comply with the FCC criteria. The handset may be safely held
against the ear of the user. The telephone base and the door bell shall be installed and used such that
parts of the user’s body other than the hands are maintained at a distance of approximately 20 cm
(8 inches) or more.
This Class B digital apparatus complies with Canadian ICES-003.
•
•
•
•
16
VTECH TELECOMMUNICATIONS LTD.
A member of THE VTECH GROUP OF COMPANIES.
Distributed in the U.S.A. by VTech Communications, Inc., Beaverton, Oregon 97008.
Distributed in Canada by VTech Technologies Canada Ltd., Richmond, B.C. V6W 1L5.
VTech is the registered trademark of VTech Holdings Limited.
Copyright © 2012 for VTECH TELECOMMUNICATIONS LTD.
All rights reserved. Printed in China.
91-006445-010-100
Technical specifications
FCC Part 68 and ACTA
This equipment complies with Part 68 of the FCC rules and with technical requirements adopted by the
Administrative Council for Terminal Attachments (ACTA). The label on the back or bottom of this equipment
contains, among other things, a product identifier in the format US:AAAEQ##TXXXX. This identifier must
be provided to your telephone service provider upon request.
The plug and jack used to connect this equipment to premises wiring and the telephone network must
comply with applicable Part 68 rules and technical requirements adopted by ACTA. A compliant telephone
cord and modular plug is provided with this product. It is designed to be connected to a compatible modular
jack that is also compliant. An RJ11 jack should normally be used for connecting to a single line and an
RJ14 jack for two lines. See the installation instructions in the user’s manual.
The Ringer Equivalence Number (REN) is used to determine how many devices you may connect to your
telephone line and still have them ring when you are called. The REN for this product is encoded as the 6th
and 7th characters following the US: in the product identifier (e.g., if ## is 03, the REN is 0.3). In most, but
not all areas, the sum of all RENs should be five (5.0) or less. For more information, please contact your
telephone service provider.
This equipment may not be used with Party Lines. If you have specially wired alarm dialing equipment
connected to your telephone line, ensure the connection of this equipment does not disable your alarm
equipment. If you have questions about what will disable alarm equipment, consult your telephone service
provider or a qualified installer.
If this equipment is malfunctioning, it must be unplugged from the modular jack until the problem has been
corrected. Repairs to this telephone equipment can only be made by the manufacturer or its authorized
agents. For repair procedures, follow the instructions outlined under the Limited warranty.
If this equipment is causing harm to the telephone network, the telephone service provider may temporarily
discontinue your telephone service. The telephone service provider is required to notify you before
interrupting service. If advance notice is not practical, you will be notified as soon as possible. You will be
given the opportunity to correct the problem and the telephone service provider is required to inform you
of your right to file a complaint with the FCC. Your telephone service provider may make changes in its
facilities, equipment, operation, or procedures that could affect the proper functioning of this product. The
telephone service provider is required to notify you if such changes are planned.
If this product is equipped with a corded or cordless handset, it is hearing aid compatible.
If this product has memory dialing locations, you may choose to store emergency telephone numbers
(e.g., police, fire, medical) in these locations. If you do store or test emergency numbers, please:
Remain on the line and briefly explain the reason for the call before hanging up.
Perform such activities in off-peak hours, such as early morning or late evening.
Industry Canada
Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference, including interference that may cause undesired operation.
The term ‘’IC:‘’ before the certification/registration number only signifies that the Industry Canada technical
specifications were met.
The Ringer Equivalence Number (REN) for this terminal equipment is 1.0. The REN is an indication of the
maximum number of devices allowed to be connected to a telephone interface. The termination on an
interface may consist of any combination of devices subject only to the requirement that the sum of the
RENs of all the devices does not exceed five.
This product meets the applicable Industry Canada technical specifications.
Frequency control Crystal controlled PLL synthesizer
Transmit frequency Handset: 1921.536-1928.448 MHz
Telephone bas e: 1921.536 -1928.448 MHz
Doorbell: 1921.536-1928.448 MHz
Channels 5
LCD 128 (RGB) x 160 DOTS; 1.77’’; TFT PANEL
Nominal effective range Maximum power allowed by FCC and IC. Actual operating range may
vary according to environmental conditions at the time of use.
Power requirements Handset unit :2.4V Ni-MH battery
Doorbell unit: Two 2A batteries
Base unit power adapter : input: 100- 120V AC 50/60Hz
output: 6V DC @ 400mA
Doorbell unit power adapter : input: 100 - 240V AC 50/60Hz
output: 6V DC @ 600mA
Charger unit power adapter : input :117V AC 50/60Hz
output: 6V AC @ 300mA
Memory Directory: 50 memory locations; up to 30 digits and 15 characters
Caller ID log: 50 memory locations; up to 24 digits and 15 characters
1
Installation guide
IS7121/IS7121-2/IS7121-22
DECT 6.0 cordless telephone
with wireless doorbell
Before using this product, read this Installation guide for installation
instructions. For basic settings and operation instructions, see the provided
Abridged user’s manual.
Install the telephone base and charger as shown below.
Use only the power adapter and battery supplied with this product. To order a
replacement, visit our website at www.vtechphones.com or call 1 (800) 595-9511.
In Canada, go to www.vtechcanada.com or call 1 (800) 267-7377.
If you subscribe to telephone service from a cable company or a VoIP service
provider, contact your telephone service provider for more information.
•
•
Telephone base
Electrical outlet
(not controlled
by a wall switch)
A DSL filter (not included)
is required if you have DSL
high-speed Internet service.
The DSL filter must be
plugged into the telephone
wall jack.
Charger
Introduction
Telephone base and charger installation
2
Install the battery as shown below.
Insert the battery connector securely
into the socket as shown below.
1. Place the battery with the label
THIS SIDE UP facing up and the
wires inside the battery compartment.
2.
Slide the battery compartment cover
towards the center of the handset until
it clicks into place.
3. Place the handset in the telephone
base or charger to charge.
4.
CHARGE light
remains on
when charging.
IMPORTANT:
Check for a dial tone by pressing . If you hear a dial tone, the installation
is successful.
If you do not hear a dial tone:
Make sure the installation procedures described above are properly done.
It may be a wiring problem. If you have changed your telephone service to
digital service from a cable company or a VoIP service provider, the telephone
line may need to be rewired to allow all existing telephone jacks to work.
Contact your telephone service provider for more information.
•
•
Battery Pack
BT164392/BT264392
2.4V 550mAh Ni-MH
WARNING : DO NOT BURN OR
PUNCTURE BATTERIES
Made in China CR1222
Handset battery installation
Battery Pack / Bloc-piles :
(2.4V Ni-MH)
WARNING / AVERTISSEMENT :
DO NOT BURN OR PUNCTURE BATTERIES.
NE PAS INCINÉRER OU PERCER LES PILES.
Made in China / Fabriqué en chine
THIS SIDE UP / CE CÔTÉ VERS LE HAUT
CR1232
Battery Pack / Bloc-piles :
(2.4V Ni-MH)
WARNING / AVERTISSEMENT :
DO NOT BURN OR PUNCTURE BATTERIES.
NE PAS INCINÉRER OU PERCER LES PILES.
Made in China / Fabriqué en chine
THIS SIDE UP / CE CÔTÉ VERS LE HAUT
CR1232
Battery charging
Once you have installed the battery, the screen indicates the battery status (see
the table below). For best performance, keep the handset in the telephone base
when not in use. The battery is fully charged after 11 hours of continuous charging.
Battery indicators Battery status Action
The screen is blank, or
displays Place in charger
and flashes.
The battery has no or very
little charge. The handset
cannot be used.
Charge without interruption
(at least 30 minutes).
The screen displays
Low battery and flashes.
The battery has enough
charge to be used for a
short time.
Charge without interruption
(about 30 minutes).
The screen displays
HANDSET 1.
The battery is charged. To keep the battery charged,
place it in the telephone base
when not in use.
3
The telephone comes ready for tabletop use. Follow the steps below to mount your
telephone on a wall.
If you have already installed the
telephone for tabletop use, unplug
the telephone line cord from the
telephone wall jack, and unplug
the telephone base power adapter
from the wall outlet. Remove the
telephone line cord and the power
adapter cord from the grooves.
1. Route the telephone line cord
through the rectangular hole on the
wall mount bracket and plug it into
the telephone wall jack. Route the
power cord out of the telephone
base and plug it into an electrical
outlet not controlled by a wall switch.
2.
Position the lower portion grooves
on the telephone base to the lower
portion tabs (marked B) on the wall
mount bracket. Make sure the upper
portion grooves of the telephone
base are above the upper portion
tabs (marked A) on the wall mount
bracket. Push the telephone base
down until it clicks securely in place.
3. Align the holes on the bracket with
the standard wall plate and slide
the bracket down until it locks
securely. Bundle the telephone line
cord and power adapter cord neatly
with twist ties.
4.
You can power up the doorbell by connecting it to the domestic power supply
(indoor) or two AA alkaline batteries (provided). Even if the doorbell is connected
to the domestic power supply, we recommend you also install two AA alkaline
batteries. This guarantees continual operation in case of a power outage.
Install two AA batteries into the battery compartment, matching the polarity
markings (+ and -) inside the battery compartment.
For longer battery life, lithium batteries (not provided) are recommended. Lithium
batteries provide approximately 30% additional battery life than alkaline batteries do.
•
Tabletop to wall mount installation
Doorbell battery installation
4
Locating the doorbell
You may need to run some tests to find out the desirable position to install the
doorbell. Hold the doorbell in position and press the doorbell key and then check
for the captured image on the handset.

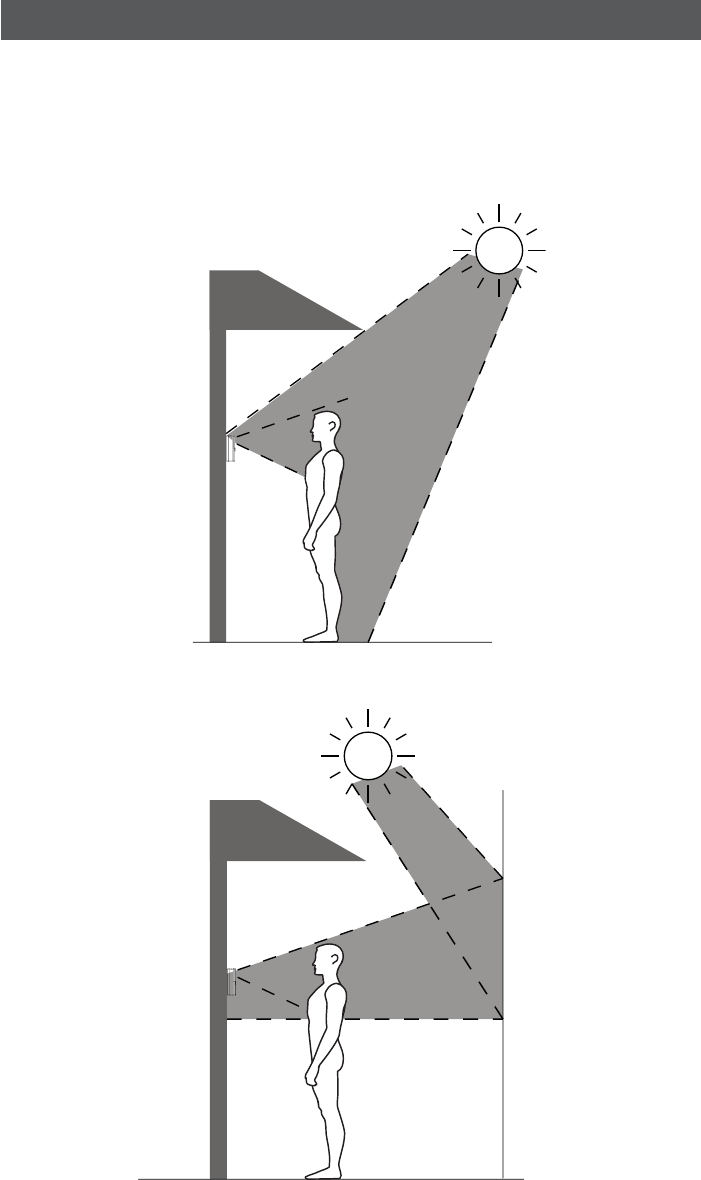

When finding a desirable location for the doorbell:
Avoid mounting it on a location which is subjected to vibration or shock.
Avoid mounting it on an enclosed area where it may cause echoes.
Avoid mounting it to where it is exposed to direct sunlight.
•
•
•
Avoid mounting it to where reflections may be caused by sunlight, for example,
opposite to a white wall.
•
5

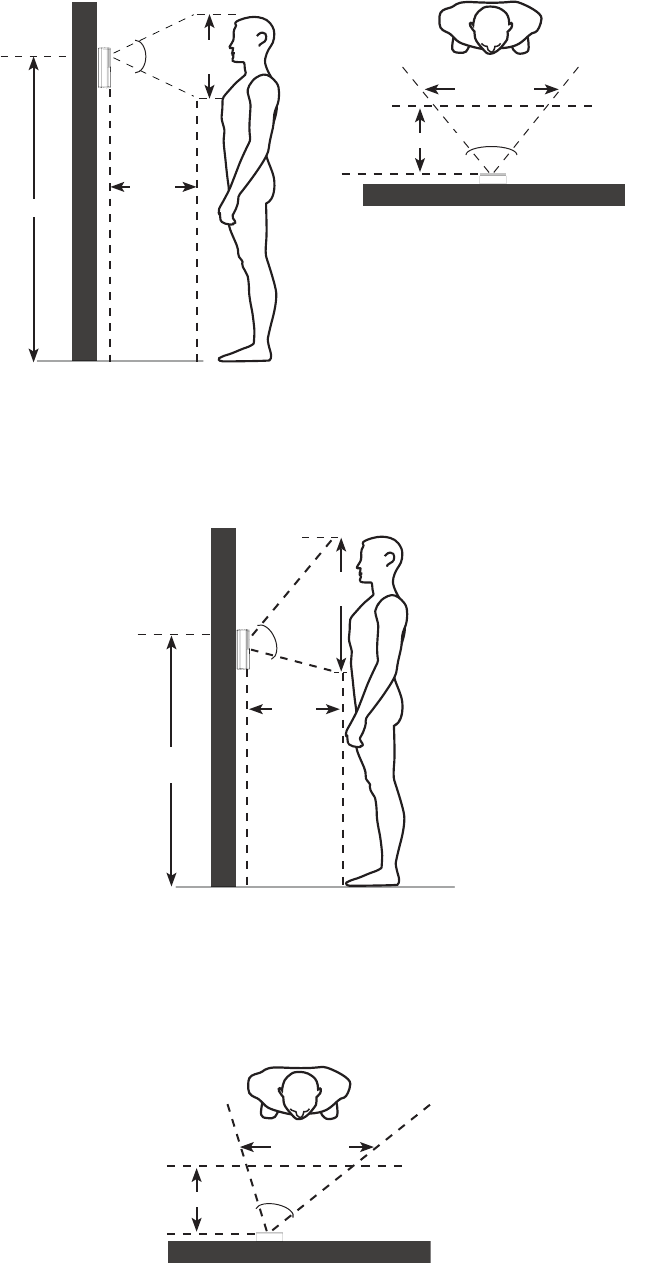

The diagrams below demonstrate an example of doorbell camera position to view
a visitor 19.7 inches from the camera. The camera in this example is set in default
angle (0 degree).
You may move the lever at the back of the doorbell to adjust the shooting area (the
camera lens).
Top viewSide view
18.3
inches
50 degrees
63 inches
19.7
inches
Shooting area
60 degrees
Shooting area
22.8 inches
19.7 inches
You may install the doorbell in a lower position. The diagram below demonstrates
an example of doorbell camera position to view a visitor 19.7 inches from the
camera. The camera in this example is set in 10 degrees angle upward.
Side view
19.7
inches
50
degrees
19.2
inches
Shooting area
43.3
inches
Top view
60 degrees
Shooting area
23.9 inches
19.7 inches
You may install the doorbell on the left or right side. The diagram below
demonstrates an example of doorbell camera position to view a visitor 19.7 inches
from the camera. The camera in this example is set in 10 degrees angle to
the right.
6
Make sure to test the reception and the doorbell position before you mount the
doorbell on the wall.
See Locating the doorbell on pages 4 and 5 to choose a desirable position
for the doorbell. Use a pencil to mark two holes on the desired location. Then
remove the wall mount and drill two holes in the wall. Check for reception
strength and camera angle before drilling the holes.
1.
If you drill the holes into a stud, go to step 3.
-OR-
If you drill the holes into an object other than a stud, insert the wall anchors into
the holes and tap gently on the ends with a hammer until the wall anchors are
flush with the wall.
2.
Align the wall mount and screws with the holes in the wall as shown.3.
Doorbell installation
7

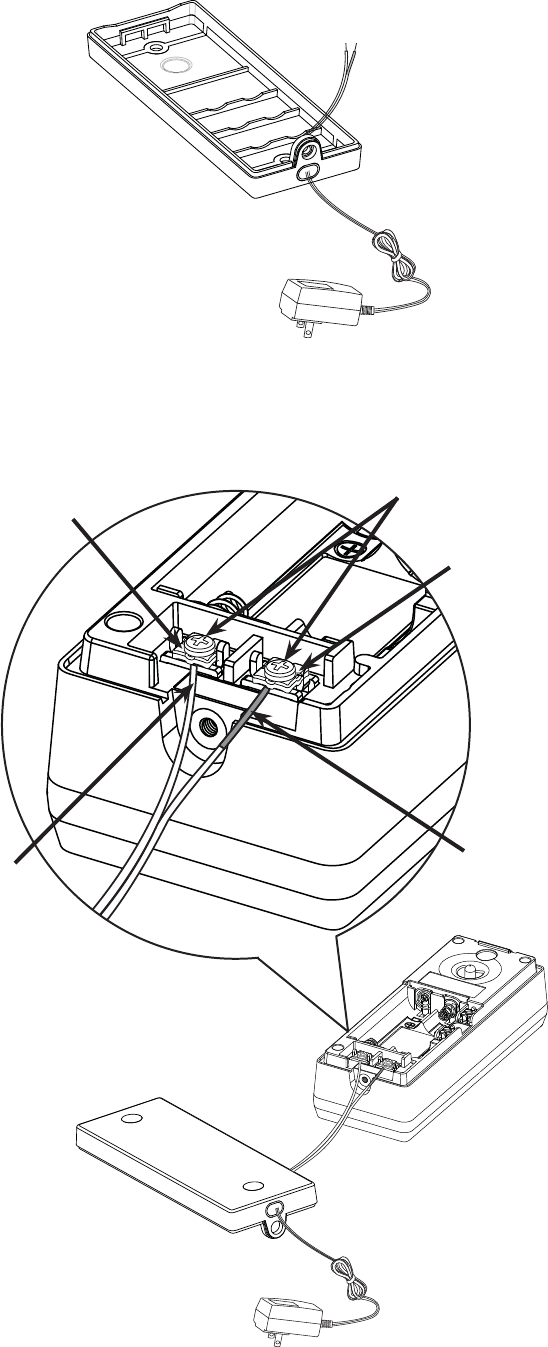

Use a sharp object to open a hole on the soft plastic part on the wall mount of
the doorbell, then route the power adapter cord through the hole.
4.
Wire with
red end
Wire with
black end
Screws
Metallic plate
Metallic plate
Insert a cross-head screwdriver to twist and lift to loosen the screws and the
metallic plates. Slide the metal part of the wire with black end underneath the
metallic plate on the left, and the metal part of the wire with red end underneath
the metallic plate on the right. Then twist the screws to secure.
5.
8
CAUTION
FCC ID: xxxxx-xxxx-xx
IC: xxxxx-xxxxxxxx
Rotate
to Left
Angle
Adjustment
Rotate
to Right
Rotate
to Left
Angle
Adjustment
Rotate
to Right

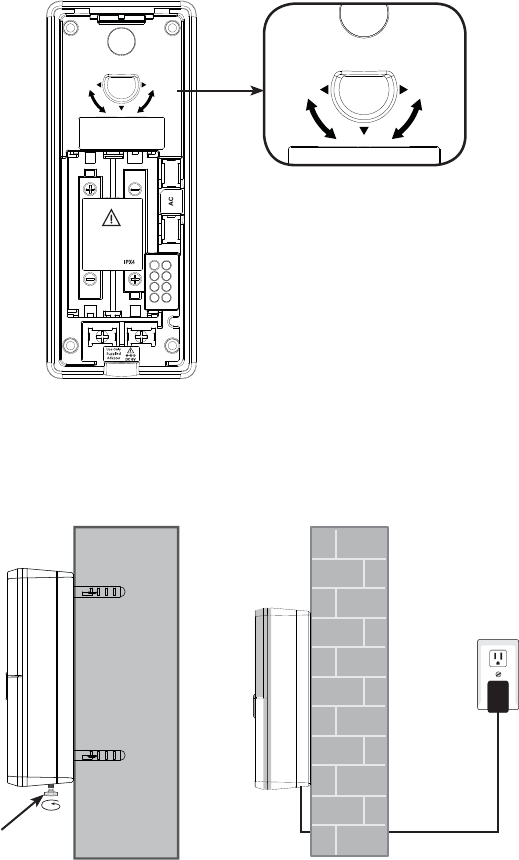

Tilt the lever to adjust the angle of the camera lens. The camera lens can be
adjusted to left, right or down up to 10 degrees. See Locating the doorbell
on page 5 for details.
6.
Place the doorbell on the wall mount and tighten the screw into the threaded
socket at the bottom to secure. Plug the adapter into the indoor domestic
power supply.
This doorbell meets the IPX4 waterproof standard. Make sure the doorbell is
tightly sealed with its wall mount in order to maintain its waterproof ability.
7.
Screw
Indoor domestic
power supply
9

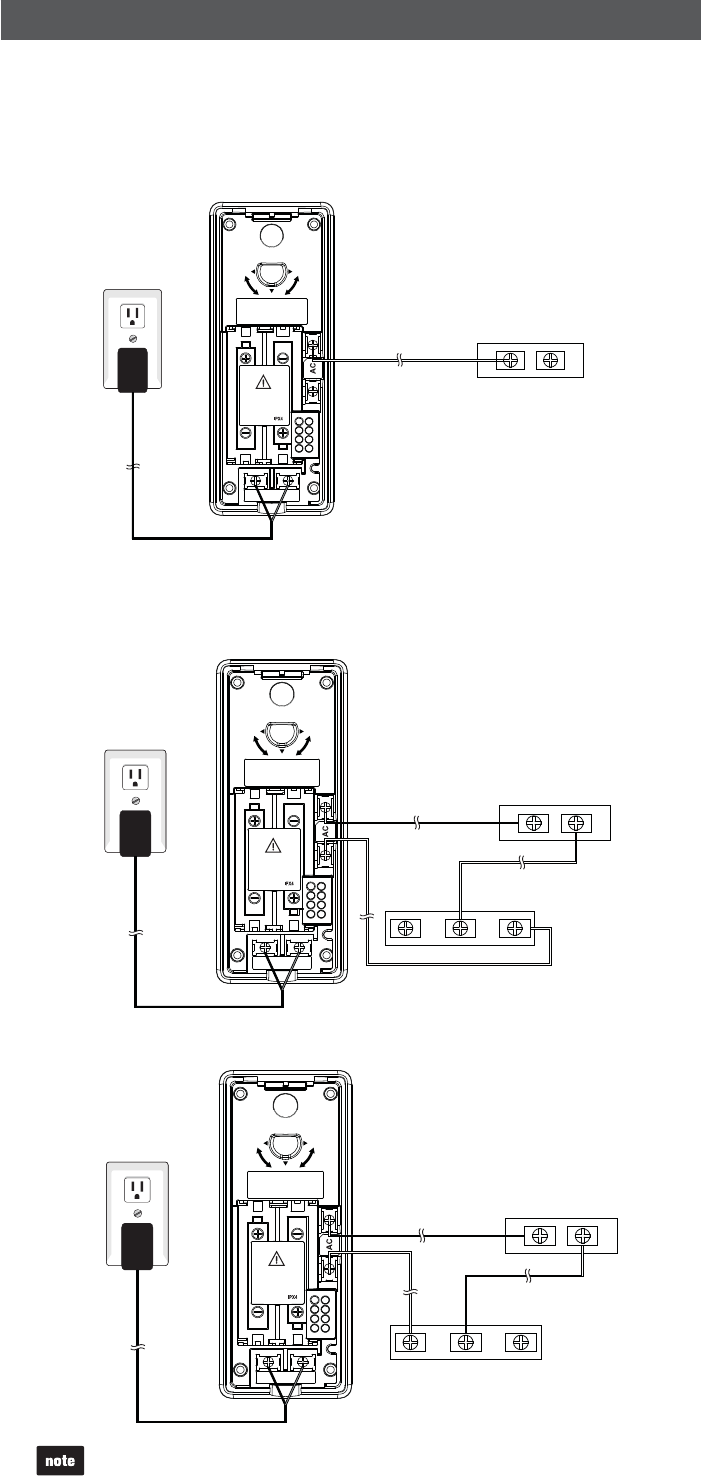

If you already have a wired doorbell installed, follow the instructions below to install
your new IS7121 doorbell unit.
Follow Step 1 through Step 6 in Doorbell installation above.
Insert a cross-head screwdriver to the side of battery compartment on the right,
then twist and lift to loosen the screw and the metallic plates. Using a wire, slide
one end of the metal part of the wire underneath the metallic plate, then twist
the screws to secure. Connect the other end to the transformer.
1.
2.
Use another wire, slide one end of the metal part underneath the metallic plate
on the doorbell, then connect the other end to the Trans terminal of your chime/
buzzer unit of the wired doorbell.
3.
If you do not connect domestic power supply nor install AA batteries to the IS7121
doorbell, only the existing wired doorbell will ring when being pressed.
•
CAUTION
FCC ID: xxxxx-xxxx-xx
IC: xxxxx-xxxxxxxx
Rotate
to Left
Angle
Adjustment
Rotate
to Right
Transformer
Transformer
Option 1: Ring the front doorbell of the IS7121 and existing wired doorbell
simultaneously.
Option 2: Ring the rear doorbell of the IS7121 and existing wired doorbell
simultaneously.
Rear Trans Front
CAUTION
FCC ID: xxxxx-xxxx-xx
IC: xxxxx-xxxxxxxx
Rotate
to Left
Angle
Adjustment
Rotate
to Right
Transformer
Chime/buzzer of wired doorbell
Chime/buzzer of wired doorbell
CAUTION
FCC ID: xxxxx-xxxx-xx
IC: xxxxx-xxxxxxxx
Rotate
to Left
Angle
Adjustment
Rotate
to Right
Transformer
Rear Trans Front
Installing the doorbell with an existing wired doorbell
10
Screw
Place the doorbell on the wall mount and tighten the screw into the threaded
socket at the bottom to secure. Plug the adapter into the indoor domestic
power supply.
The doorbell meets the IPX4 waterproof standard. Make sure the doorbell is
tightly sealed with its wall mount in order to maintain its waterproof ability.
4.
Indoor domestic
power supply
VTECH TELECOMMUNICATIONS LTD.
A member of THE VTECH GROUP OF COMPANIES.
Distributed in the U.S.A. by VTech Communications, Inc., Beaverton, Oregon 97008.
Distributed in Canada by VTech Technologies Canada Ltd., Richmond, B.C. V6W 1L5.
VTech is the registered trademark of VTech Holdings Limited.
Copyright © 2012 for VTECH TELECOMMUNICATIONS LTD.
All rights reserved. Printed in China.
96-009141-010-100
