User Manual
Complete user’s manual
CL81113/CL81213/CL81263/
CL81313/CL81363/CL81413/
CL81463
DECT 6.0 cordless telephone
with caller ID/call waiting
Congratulations
on your purchase of this AT&T product. Before using this AT&T product, please
read the Important safety information section on pages 57-58 of this manual.
Please thoroughly read this user’s manual for all the feature operations and
troubleshooting information necessary to install and operate your new AT&T
product. You can also visit our website at www.telephones.att.com or
call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
This telephone system is compatible with certain AT&T DECT 6.0 cordless
headsets. Visit www.telephones.att.com/headsets for a list of
compatible cordless headsets.
Model number: CL81113 (one handset)
CL81213/CL81263 (two handsets)
CL81313/CL81363 (three handsets)
CL81413/CL81463 (four handsets)
Type: DECT 6.0 cordless telephone with caller ID/call waiting
Serial number: ____________________________________________________________
Purchase date: ____________________________________________________________
Place of purchase: _________________________________________________________________
Both the model and serial numbers of your AT&T product can be found on the
bottom of the telephone base.
Save your sales receipt and original packaging in case it is necessary to return
your telephone for warranty service.
T
Compatible with
Hearing Aid T-Coil
TIA-1083
Telephones identified with this logo have reduced noise and interference when
used with most T-coil equipped hearing aids and cochlear implants. The TIA-1083
Compliant Logo is a trademark of the Telecommunications Industry Association.
Used under license.
© 2012 Advanced American Telephones. All Rights Reserved. AT&T and
the AT&T logo are trademarks of AT&T Intellectual Property licensed to
Advanced American Telephones, San Antonio, TX 78219. Printed in China.
The ENERGY STAR® program (www.energystar.gov) recognizes and encourages
the use of products that save energy and help protect our environment. We are
proud to mark this product with the ENERGY STAR® label indicating it meets the
latest energy efficiency guidelines.
Complete user’s manual
CL81113/CL81213/CL81263/
CL81313/CL81363/CL81413/
CL81463
DECT 6.0 cordless telephone
with caller ID/call waiting
Table of contents
Getting started
Quick reference guide - handset ........1
Quick reference guide - telephone
base .............................................................3
Installation .....................................................4
Telephone base and charger
installation ...............................................5
Telephone base installation ............5
Charger installation .............................5
Battery installation and charging ....... 6
Installation options .................................... 8
Tabletop to wall mount
installation.............................................8
Wall mount to tabletop
installation.............................................9
Telephone settings
Handset settings ...................................... 10
Ringer volume ..................................... 10
Ringer tone ........................................... 11
Set date/time ...................................... 12
LCD language ...................................... 13
Set speed dial voicemail number ...13
Voicemail (visual message
waiting) indicator ............................ 14
Clear voicemail indication ........... 14
Rename handset ................................ 15
Key tone ................................................. 15
Use caller ID to automatically
set date and time ........................... 16
Home area code ................................. 16
Dial mode .............................................. 17
Website ................................................... 17
Telephone operation
Handset operation .................................. 18
Making a call ........................................ 18
On hook dialing (predialing) ........ 18
Answering a call ................................ 18
Ending a call ........................................ 18
Auto off .................................................. 18
Temporary ringer silencing ........... 18
Speakerphone ..................................... 19
Last number redial ............................ 19
Equalizer ................................................. 20
Options while on calls .......................... 21
Volume control ................................... 21
Call waiting ........................................... 21
Mute ......................................................... 21
Chain dialing ........................................ 22
Temporary tone dialing .................. 23
Blind transfer ....................................... 23
Multiple handset use
Multiple handset use ............................. 24
Handset locator .................................. 24
Join a call in progress ..................... 24
Intercom ....................................................... 25
Answer an incoming call during an
intercom call ..................................... 25
Call transfer using intercom .............. 26
Push-to-talk (PTT) ................................... 27
Turn PTT on or off ............................. 27
PTT call to a single handset ........ 27
PTT call to a group of handsets .28
Answer a PTT call .............................. 29
Change a one-to-one PTT call to an
intercom call ..................................... 29
Answer an incoming call during
PTT ......................................................... 30
Make an outgoing call during
PTT ......................................................... 30
End or leave a PTT call ................... 30
Directory
About the directory ................................ 31
Shared directory ................................. 31
Capacity .................................................. 31
Create directory entries ....................... 32
Create a new directory entry ...... 32
Add a predialed telephone number
to the directory ................................ 33
Review the directory .............................. 34
Review directory entries ................ 34
Search by name.................................. 34
Dial, delete or edit directory
entries ..................................................... 35
Display dial ........................................... 35
Delete a directory entry ................. 35
Edit a directory entry ....................... 35
Speed dial .................................................. 36
Assign a speed dial number......... 36
Reassign a speed dial number .... 36
Delete a speed dial number......... 37
Assign your speed dial
voicemail number ........................... 37
Make a call using speed dial ....... 37
Check your voicemail using
speed dial ........................................... 37
Caller ID
About caller ID ......................................... 38
Information about caller ID with call
waiting .................................................. 38
Caller ID history ....................................... 39
How the caller ID history (caller ID
log) works ........................................... 39
Missed (new) call indicator ........... 39
Caller ID operation ................................. 40
Memory match .................................... 40
Review the caller ID history ......... 40
View dialing options ......................... 41
Dial a caller ID log entry ............... 41
Delete caller ID log entries .......... 41
Save a caller ID log entry to the
directory .............................................. 42
Reasons for missing caller ID informa-
tion ............................................................ 43
Appendix
Adding and registering handsets/
headsets ................................................. 44
Register a handset to your
telephone base ................................ 44
Deregistering handsets ........................ 45
Deregister all handsets from
your telephone base ..................... 45
Alert tones and lights ........................... 46
Screen icons ......................................... 46
Handset alert tones .......................... 46
Lights ....................................................... 47
Handset display screen messages .. 48
Screen display messages ............... 48
Screen display messages ............... 49
Maintenance............................................... 57
Important safety information ............ 58
Safety information ............................. 58
Especially about cordless
telephones ......................................... 59
Precautions for users of
implanted cardiac
pacemakers ........................................ 59
Pacemaker patients .......................... 59
FCC Part 68 and ACTA.......................... 60
FCC Part 15 ................................................ 61
Technical specifications ....................... 65
DECT 6.0 digital technology ......... 65
Telephone operating range .......... 65
Redefining long range coverage
and clarity .......................................... 65
HD audio ................................................ 65
Index
Index .............................................................. 66
Getting started
5
See pages 7-8 for
easy instructions.
You must install and
charge the battery before
using the telephone. STOP!
Installation
Install the telephone base close to a telephone jack and a power outlet not
controlled by a wall switch. The telephone base can be placed on a flat surface
or vertically mounted on the wall (see page 9). For optimum range and better
reception, place the telephone base in a central and open location.
If you subscribe to high-speed Internet service (DSL - digital subscriber line) through
your telephone line, you must install a DSL filter between the telephone line cord
and the telephone wall jack (see the following page). The filter prevents noise and
caller ID problems caused by DSL interference. Please contact your DSL service
provider for more information about DSL filters.
Your product may be shipped with a protective sticker covering the handset
display - remove it before use.
For customer service or product information, visit our website at
www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial
1 (866) 288-4268.
Avoid placing the telephone base too close to:
Communication devices such as television sets, VCRs, or other
cordless telephones.
Excessive heat sources.
Noise sources such as a window with traffic outside, motors, microwave
ovens, refrigerators, or fluorescent lighting.
Excessive dust sources such as a workshop or garage.
Excessive moisture.
Extremely low temperature.
Mechanical vibration or shock such as on top of a washing machine
or workbench.
•
•
•
•
•
•
•
6
Getting started
Telephone base and charger installation
Install the telephone base and charger as shown below.

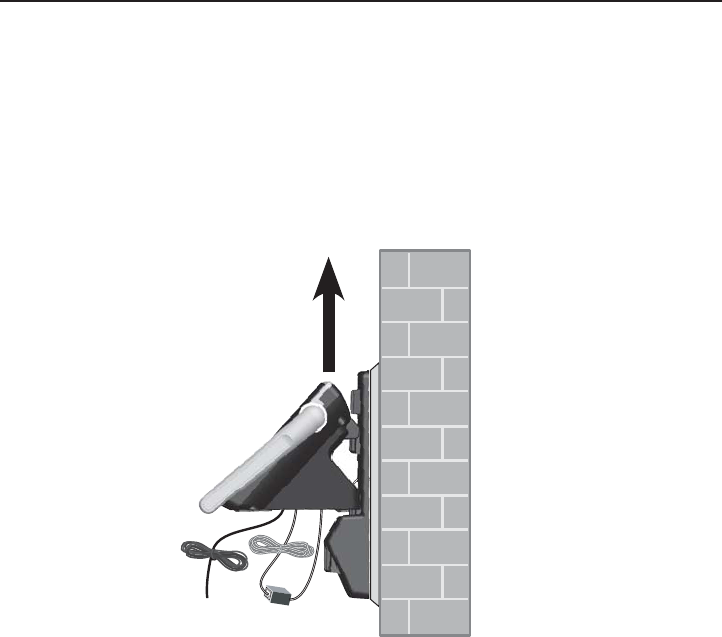

The telephone base is ready for tabletop use. If you want to change to wall
mounting, see Installation options on page 9 for details.
IMPORTANT INFORMATION
1. Use only the power adapter(s) supplied with this product. To order a replacement
power adapter, visit our website at www.telephones.att.com or call
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
2. The power adapters are intended to be correctly oriented in a vertical or floor mount
position. The prongs are not designed to hold the plug in place if it is plugged into a
ceiling, under-the-table or cabinet outlet.
Plug the power adapter into an electrical outlet
not controlled by a wall switch.
Charger installation
Telephone base installation
Raise the antenna.•Plug the other end
of the telephone line
cord into the telephone
jack on the back of the
telephone base.
•
Route the power
adapter cord and the
telephone line cord
through these slots.
•
Plug the small end of the telephone base power adapter into
the power adapter jack on the back of the telephone base.
•
Plug the large end of the
telephone base power
adapter into a power
outlet not controlled by
a wall switch.
•Plug one end of the
telephone line cord
into a telephone jack
or a DSL filter.
•
If you have DSL high-
speed Internet service, a
DSL filter (not included)
is required.
Telephone
line cord
Getting started
7
Battery installation and charging
Install the battery as shown below. Once you have installed the battery, the
screen indicates the battery status (see the table below). If necessary, place
the handset in the telephone base or charger to charge the battery. For best
performance, keep the handset in the telephone base or charger when not in
use. The battery is fully charged after 10 hours of continuous charging. See the
table on page 64 for battery operating times.
If the screen shows Place in charger and flashes, you need to charge the
handset without interruption for at least 30 minutes to give the handset
enough charge to use the telephone for a short time. The following table
summarizes the battery charge indicators and actions to take.
Battery indicators Battery status Action
The screen is blank, or
shows Place in charger
and (flashing).
Battery has no or very
little charge. The handset
cannot be used.
Charge without interruption
(at least 30 minutes).
The screen shows
Low battery and
(flashing).
Battery has enough charge
to be used for a short time.
Charge without interruption
(at least 30 minutes).
The screen shows
HANDSET X.
Battery is charged. To keep the battery charged,
place it in the telephone base or
charger when not in use.
Step 1
Plug the battery
connector securely
into the socket inside
the handset battery
compartment. Insert
the supplied battery
with the label THIS
SIDE UP facing up as
indicated.
Step 2
Align the cover flat
against the battery
compartment, then slide
it upwards until
it clicks into place.
NOTE: If you are on a phone call in low battery mode, you hear four short beeps every minute.
8
Getting started
Battery installation and charging

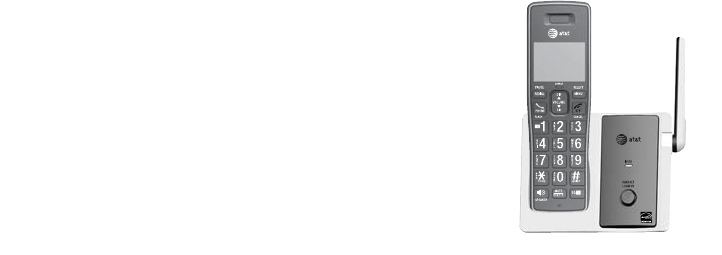

Step 3
Charge the handset by placing it face forward in the
telephone base or charger. The CHARGE light on
the handset is on during charging.
IMPORTANT INFORMATION
1. Use only the supplied rechargeable battery or replacement battery (model BT166342).
To order, visit our website at www.telephones.att.com or call
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
2. If you do not use the handset for a long time, disconnect and remove the battery to
prevent possible leakage.
CHARGE light
After you install your telephone or power returns following a
power outage, the handset will prompt you to set the date and
time. For instructions, see Set date/time on page 13. To skip
setting the date and time, press OFF/CANCEL.
Getting started
9
2
4
Installation options
Your telephone base is ready for tabletop use. If you want to mount your
telephone on a wall, use the provided wall mount bracket to connect with
a standard dual-stud telephone wall mounting plate. If you do not have this
mounting plate, you can purchase one from many hardware or consumer electronic
retailers. You might need a professional to install the mounting plate.
Tabletop to wall mount installation
Plug the power cord and telephone line into the telephone base. If you
are using a DSL filter, plug the other end of the telephone line into the
filter. Route the telephone line cord (or DSL filter) through the wall mount
bracket hole.
Position the telephone base as shown below. Insert the extended tabs (see
below figure 2) of the wall mount bracket into the slots on the back of
the telephone base (marked B). Push the telephone base down until it is
securely in place.
Plug the telephone line cord (or DSL filter) into the wall jack. Plug the power
adapter into a power outlet not controlled by a wall switch.
Align the holes on the wall mount bracket with the standard wall plate
and slide the wall mount bracket down until it locks securely. Bundle the
telephone line cord and power adapter cord neatly with twist ties.
1.
2.
3.
4.
1
3
10
Getting started
Installation options
Wall mount to tabletop installation
If the telephone line cord and power adapter cord are bundled, untie
them first.
Push the telephone base up to detach it from the wall mount bracket.
Unplug the telephone line cord (or DSL filter) from the wall. Unplug the
power adapter from the power outlet.
Push the wall mount bracket up to remove it from the wall.
See Telephone base and charger installation on page 6.
1.
2.
3.
4.
11
Telephone settings
Handset settings
Use the menu to change the telephone settings.
1. Press MENU/SELECT when in idle mode (when the phone
is not in use) to enter the main menu.
2. Press TCID or SDIR to scroll to the feature to be changed. When scrolling
through the menu, the > symbol indicates the selected menu item.
3. Press MENU/SELECT to select the highlighted item.
NOTE: Press OFF/CANCEL to cancel an operation, back up to the previous menu or exit
the menu display. Press and hold OFF/CANCEL to return to idle mode.
Ringer volume
You can set the ringer volume level (1-6) to one of six levels or turn the ringer
off. When the ringer is off, appears on the screen.
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use TCID or SDIR to scroll to >Ringers, then press
MENU/SELECT.
3. Press MENU/SELECT again to select >Ringer volume.
4. Press TCID or SDIR to sample each volume level.
5. Press MENU/SELECT to save your preference. There is a confirmation tone and
the screen returns to the previous menu.
NOTES:
The handset ringer volume also determines the ringer volume for
intercom calls.
If the ringer volume is set to off, that handset is silenced for all incoming calls. However, the handset
still plays the paging tone when responding to the
handset locator.
•
•
Telephone settings
Telephone settings
12
12
Telephone settings
Handset settings
Ringer tone
You can choose one of 10 ringer tones.
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use TCID or SDIR to scroll to >Ringers, then press
MENU/SELECT.
3. Press TCID or SDIR to scroll to >Ringer tone, then press
MENU/SELECT.
4. Press TCID or SDIR to sample each ringer tone.
5. Press MENU/SELECT to save your preference. There is
a confirmation tone and the screen returns to the
previous menu.
NOTE: If you turn off the ringer volume, you do not hear ringer tone samples.
13
Telephone settings
Handset settings
Set date/time
If you subscribe to caller ID service, the day, month and time are set
automatically with each incoming call. You can turn off the date and time
settings of the caller ID service and set the date and time manually (see Use
caller ID to automatically set date and time on page 17).
After a power failure or handset registration, the system reminds you to set the
date and time.
Follow the steps below to set the month, day, year and time.
1. When the handset is in idle mode, press MENU/SELECT to enter the main
menu.
2. Press TCID or SDIR to scroll to >Set date/time and then press MENU/
SELECT.
3. Press TCID or SDIR to select the month, then press
MENU/SELECT, or enter the number using the dialing keys.
4. Press TCID or SDIR to select the day, then press
MENU/SELECT, or enter the number using the dialing keys.
5. Press TCID or SDIR to select the year, then press
MENU/SELECT, or enter the number using the dialing keys, then press MENU/
SELECT to move on to set the time.
6. Press TCID or SDIR to select the hour, then press
MENU/SELECT, or enter the number using the dialing keys.
7. Press TCID or SDIR to select the minute, then press
MENU/SELECT, or enter the number using the dialing keys.
8. Press TCID or SDIR to highlight AM or PM, or press 2 for AM or 7 for PM.
Then press MENU/SELECT to confirm. There is a confirmation tone and the
screen returns to the previous menu.
Telephone settings
14
Handset settings
LCD language
You can select the language used for all screen displays.
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use TCID or SDIR to scroll to >Settings, then press
MENU/SELECT.
3. Press MENU/SELECT to choose >LCD language.
4. Press TCID or SDIR to highlight >English, >Français or >Español, then
press MENU/SELECT. The screen prompts you with the message Set English/
Français/Español as LCD language?
5. Press MENU/SELECT to save. There is a confirmation tone and the screen
returns to the previous menu.
NOTE: If you accidentally change the LCD language to French or Spanish, you can reset it
back to English without going through the French or Spanish menus. Press MENU/SELECT in
idle mode, then enter 364#. There is a confirmation tone.
Set speed dial voicemail number
This feature lets you save your voicemail number for quick access when you
press and hold the 1 key.
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use TCID or SDIR to scroll to >Settings, then press
MENU/SELECT.
3. Use TCID or SDIR to scroll to >Voicemail #, then press
MENU/SELECT.
4. Use the dialing keys to enter the voicemail access number provided by your
telephone service provider (up to 30 digits) when prompted.
Press TCID or SDIR to move the cursor to the left or right.
Press MUTE/DELETE to erase a digit.
Press and hold MUTE/DELETE to erase all digits.
Press and hold REDIAL/PAUSE to enter a three-second dialing pause (a p
appears).
5. Press MENU/SELECT to save. Voicemail # saved shows on the handset.
•
•
•
•
14
Telephone settings
15
Telephone settings
Handset settings
Voicemail (visual message waiting) indicator
If you subscribe to a voicemail service offered by your telephone service
provider, this feature provides a visual indication when you have new voicemail
messages.
New voicemail and the icon appear on the handset screen.
Clear voicemail indication
Use this feature when the telephone indicates there is new voicemail but there
is none. For example, when you have accessed your voicemail while away from
home. This feature only turns off the displayed New voicemail and the icon;
it does not delete your voicemail messages. As long as you have new voicemail
messages, your telephone service provider continues to send the signal to turn
on the indicators.
To manually turn off the new voicemail indicators:
1. Press MENU/SELECT when in idle mode to enter the main menu.
2. Use TCID or SDIR to scroll to >Settings, then press MENU/SELECT.
3. Use TCID or SDIR to scroll to >Clr voicemail, then press MENU/SELECT. The
screen shows Turn off indicator?
4. Press MENU/SELECT again to turn the voicemail indication off. There is a
confirmation tone and the screen returns to the previous menu.
NOTES:
Your telephone service provider voicemail might alert you to new messages with a stutter (broken)
dial tone. Contact your telephone service provider for more details.
For information about using your voicemail service, contact your telephone service provider.
•
•
Telephone settings
16
Handset settings
Rename handset
You can create a handset name for each system handset.
When the handset is idle, press MENU/SELECT.
Use TCID or SDIR to scroll to >Settings, then press
MENU/SELECT.
Use TCID or SDIR to scroll to >Rename handset, then press MENU/SELECT.
Change the handset name when prompted.
Press TCID or SDIR to move the cursor to the left or right.
Use the dialing keys to enter a name (up to 11 characters). Each time
you press a key, a character on that key appears. Additional key presses
produce other characters on that key. See the chart on page 34.
Press MUTE/DELETE to backspace and delete characters.
Press and hold MUTE/DELETE to delete all characters.
Press MENU/SELECT to save the setting and return to the previous menu.
There is a confirmation tone.
Key tone
The handset is set to beep with each key press. You can adjust the key tone
volume or turn it off. If you turn off the key tone, there are no beeps when you
press keys.
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use TCID or SDIR to scroll to >Settings, then press
MENU/SELECT.
3. Use TCID or SDIR to scroll to >Key tone, then press
MENU/SELECT.
4. Use TCID or SDIR to select the desired volume or Off.
5. Press MENU/SELECT to save your preference. There is a confirmation tone and
the screen returns to the previous menu.
1.
2.
3.
4.
•
•
•
•
5.
Handset settings
Use caller ID to automatically set date and time
Follow the steps below to turn the CID time sync feature on or off. The default
setting is On.
1. When the handset is in idle mode, press MENU/SELECT to enter the main
menu.
2. Press TCID or SDIR to scroll to >Settings, then press
MENU/SELECT.
3. Press TCID or SDIR to scroll to >CID time sync, then press MENU/SELECT.
4. Press TCID or SDIR to highlight >On or >Off, then press
MENU/SELECT to save. There is a confirmation tone and the screen returns to
the previous menu.
Home area code
If you dial seven digits to make a local call (no area code required), enter your
area code into the telephone as the home area code. When you receive a call
from within your home area code, the caller ID history only displays the seven
digits of the telephone number.
This feature makes it easy for you to place a call from the caller ID log. If
you dial 10 digits to make a local phone call, do not use this home area code
feature. If you do, you cannot place local calls from your caller ID log, as they
will have only seven digits.
To set the home area code:
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use TCID or SDIR to scroll to >Settings, then press
MENU/SELECT.
3. Use TCID or SDIR to scroll to >Home area code, then press MENU/SELECT.
The screen briefly shows Only for 7digit dial from CID.
4. Use the dialing keys to enter a three-digit home area code.
Press MUTE/DELETE to delete a digit.
Press and hold MUTE/DELETE to delete all digits.
5. Press MENU/SELECT to save. There is a confirmation tone and the screen
shows Area code will not show in CID briefly before returning to the
previous menu.
•
•
Handset settings
NOTE: If in the future, your telephone service provider requires you to dial 10 digits to make
a local call (area code plus telephone number), you need to delete your home
area code and dial out locally from the caller ID log. With the home area code displayed,
press and hold MUTE/DELETE until the digits are deleted, and then press MENU/SELECT.
The home area code is now restored to its default setting of _ _ _ (empty).
Dial mode
The dial mode is preset to tone dialing. If you have pulse (rotary) service, you
must change the dial mode to pulse dialing before using the telephone.
To set the dial mode:
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use TCID or SDIR to scroll to >Settings, then press
MENU/SELECT.
3. Use TCID or SDIR to scroll to >Dial mode, then press MENU/SELECT.
4. Use TCID or SDIR to highlight >Tone or >Pulse, then press MENU/SELECT.
There is a confirmation tone and the screen returns to the previous menu.
Website
Use this feature to view the AT&T website address.
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use TCID or SDIR to scroll to >Website, then press
MENU/SELECT.
18
Telephone settings
Telephone operation
19
Handset operation
Making a call
Press PHONE/FLASH or /SPEAKERSPEAKER, then enter the telephone number.
The screen displays the elapsed time as you talk (in hours, minutes and
seconds).
NOTE: Pressing PHONE/FLASH to access services from your telephone service provider
does not affect the elapsed time.
On hook dialing (predialing)
1. Enter the telephone number. Press MUTE/DELETE to make corrections when
entering the phone number.
2. Press PHONE/FLASH or /SPEAKERSPEAKER to dial.
Answering a call
Press PHONE/FLASH or /SPEAKERSPEAKER.
-OR-
Press any dialing key (0-9, TONE or #).
Ending a call
Press OFF/CANCEL or return the handset to the telephone base or charger.
Auto off
A call ends automatically when you put the handset in the telephone base
or charger.
Temporary ringer silencing
Press OFF/CANCEL or MUTE/DELETE while the telephone is ringing to silence
the ringer temporarily on that handset only. This turns off the ringer without
disconnecting the call. The next incoming call rings normally at the preset volume.
NOTE: Each handset rings when there is an incoming call unless the ringer volume is turned
off on that handset.
•
•
•
Telephone operation
Telephone operation
20
Handset operation
Speakerphone
During a call, press /SPEAKERSPEAKER to switch between handsfree speakerphone
and normal handset use. Press OFF/CANCEL to hang up.
NOTES:
When you use the speakerphone, the key pad of the handset and the
/SPEAKER button are lit.
The speakerphone uses more power than the normal handset. If the handset battery becomes very
low while you are using the speakerphone, the call remains in speakerphone mode until you hang
up or the battery becomes depleted.
After installing a battery into the handset, the screen may show Low battery. If you use the
speakerphone at this time, the battery may become depleted. Follow the instructions in the Battery
installation and charging section on pages 7-8.
Last number redial
Each handset stores the last 10 telephone numbers dialed
(up to 30 digits).
To view the 10 most recently dialed numbers:
To display the most recently called number, press
REDIAL/PAUSE.
To view up to 10 recently called numbers, press REDIAL/PAUSE then
TCID or SDIR, or press REDIAL/PAUSE repeatedly.
The handset beeps twice at the end of the list. Press OFF/CANCEL to exit.
To redial a number:
To dial the displayed number, press PHONE/FLASH or /SPEAKERSPEAKER.
-OR-
Press PHONE/FLASH or /SPEAKERSPEAKER, then press REDIAL/PAUSE repeatedly
to view the redial memory. Press MENU/SELECT to dial the displayed number.
To delete a number:
While the screen displays the desired number, press MUTE/DELETE to delete
the number from the redial memory.
•
•
•
•
•
•
•
•
Telephone operation
21
Handset operation
Equalizer
The equalizer feature on the handset enables you to
change the quality of the audio to best suit your hearing.
While on a call or intercom call, press EQ to select the equalizer setting
Treble 1, Treble 2, Bass or Natural (the default setting). The current setting is
shown on the handset screen for two seconds.
NOTES:
If you switch the call between the handset and the speakerphone by
pressing /SPEAKER, the audio setting remains unchanged.
The current equalizer setting remains unchanged until a new setting
is selected.
•
•
Telephone operation
22
Options while on calls
Volume control
While on a call, press TCID/VOLUME to decrease or press SDIR/VOLUME to
increase the listening volume. You can set the listening volume to one of
six levels.
NOTES:
Handset and speakerphone volume settings are independent.
When the volume reaches the minimum or maximum setting, you hear two beeps.
Call waiting
If you subscribe to call waiting service from your telephone service provider,
you hear two beeps if someone calls while you are already on a call. Press
PHONE/FLASH to put your current call on hold and take the new call.
Press PHONE/FLASH at any time to switch back and forth between calls.
NOTE: Missed call waiting calls are not counted as missed calls.
Mute
Use the mute function to turn off the microphone. You
can hear the caller, but the caller cannot hear you.
To mute a call:
• While on a call, press MUTE/DELETE. When mute is on,
the handset screen shows Muted for a few seconds and MUTE displays until
you turn off mute.
To end mute a call:
• Press MUTE/DELETE again. When mute is off, Microphone ON appears
temporarily on the handset screen.
•
•
Telephone operation
23
Options while on calls
Chain dialing
Use this feature to initiate a dialing sequence from the numbers in the directory,
caller ID history or redial memory while you are on a call.
Chain dialing is useful when you wish to access other numbers (such as bank
account numbers or access codes) from the directory, caller ID history or redial list.
To access the directory while on a call:
1. Press MENU/SELECT.
2. Press TCID or SDIR to scroll to >Directory and then press MENU/SELECT.
3. Press TCID or SDIR to scroll to the desired number.
4. Press MENU/SELECT to dial the number shown.
To access the caller ID log while on a call:
1. Press MENU/SELECT.
2. Press TCID or SDIR to scroll to >Caller ID log, then press
MENU/SELECT.
3. Press TCID or SDIR to scroll to the desired number.
4. Press MENU/SELECT to dial the number shown.
To access the redial list while on a call:
1. Press REDIAL/PAUSE to show the most recently dialed number.
2. Press TCID or SDIR to scroll to the desired number, or press REDIAL/PAUSE
repeatedly to show the last 10 recently dialed numbers. Then press MENU/
SELECT to dial the number shown.
NOTES:
You cannot edit a directory entry while on a call. For more details about the directory, see page 32.
You cannot copy a caller ID entry into the directory while on a call. For more details about the
caller ID history, see page 39.
If you press REDIAL/PAUSE while on a call, you can only view the 10 most recently dialed
numbers and you cannot erase the entries. For more details about the redial memory, see page 20.
Press OFF/CANCEL to exit redial, directory or caller ID history when on a call.
•
•
•
•
Telephone operation
24
Options while on calls
Temporary tone dialing
If you have pulse (rotary) service only, you can switch from pulse to touch-tone
dialing temporarily during a call. This is useful if you need to send touch-tone
signals to access your telephone banking or long distance services.
1. During a call, press TONE .
2. Use the dialing keys to enter the desired number. The telephone sends
touch-tone signals.
3. The telephone automatically returns to pulse dialing after you end the call.
Blind transfer
While on an outside call, you can transfer it to a specific handset or any
handset. This feature is not available for model CL81113 unless you purchase
an accessory handset (AT&T model CL80113).
To transfer an outside call directly without notifying the desired handset:
1. During the call, press MENU/SELECT.
2. Press MENU/SELECT to choose >Transfer.
If you have a two-handset system, the outside call is put on hold and your
handset screen shows Transferring call... The other handset rings and its
screen shows Transfer from other handset.
If you have more than two handsets, your screen shows TRANSFER TO:
Use the dialing keys to eenter a specific handset number (1-9 for handsets
1-9, TONE followed by 0-2 for handsets 10-12, or TONE followed by #
for all handsets), or press TCID or SDIR to scroll to the desired handset
and press MENU/SELECT. The outside call is put on hold and your handset
screen shows Transferring call... or Transferring call to all... The other
handset(s) rings and shows Transfer from HANDSET X (X represents the
handset number).
3. To answer the call on the destination handset, press, press PHONE/FLASH, or
/SPEAKERSPEAKER. The original handset shows Call transferred and goes to idle mode.
NOTES:
To cancel the transfer and return to the external call before the blind transfer call is answered, press
OFF/CANCEL on your handset.
If the other handset does not answer the transfer within 30 seconds, the transfer ends and the
original handset rings while showing No response to transfer. If it does not pick up within 30
seconds, the handset returns to idle mode and the outside call ends.
•
•
•
•
Multiple handset use
25
Multiple handset use
Handset locator
The handset locator feature is useful if you misplace
any handsets.
To start the paging tone:
Press /HANDSET LOCATOR on the telephone
base to start the paging tone on all handsets for
60 seconds.
NOTE: If you press OFF/CANCEL or MUTE/DELETE on a handset, the ringer of that handset
stops, but the paging to the rest of the handsets continues.
To stop the paging tone:
Press PHONE/FLASH, /SPEAKERSPEAKER, or any dialing key
(0-9, TONE , or #) on the handset(s).
-OR-
Press /HANDSET LOCATOR on the telephone base.
Join a call in progress
When a handset is already on a call and you would like to join the call, press
PHONE/FLASH or /SPEAKERSPEAKER on your handset.
Press OFF/CANCEL or place the handset in the telephone base or charger to
end the call. The call does not end until all handsets hang up.
NOTE: You can use up to four system handsets at the same time on an outside call.
•
•
•
Multiple handset use
Multiple handset use
26
Intercom
Use the intercom feature for conversations between two handsets. This feature is only
available if you have at least two system handsets. Intercom is not available for the
CL81113 model. You can buy accessory handsets (AT&T model CL80113) to expand
your system.
Use a handset to initiate intercom calls and transfer calls.
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Press TCID or SDIR to scroll to >Intercom, then press
MENU/SELECT. Choose from the options below:
If you have a two-handset system, your handset screen shows Calling
other handset.
If you have more than two handsets, your screen shows INTERCOM TO:
Use the dialing keys to eenter a specific handset number (1-9 for handsets
1-9, TONE followed by 0-2 for handsets 10-12, or TONE followed by #
for all handsets), or press TCID or SDIR to scroll to the desired handset
and press MENU/SELECT. Your handset screen shows Calling HANDSET X
or Calling all handsets.
The other handset(s) rings and shows either Other handset is calling or
HANDSET X is calling (X represents the handset number).
3. To answer the intercom call, press PHONE/FLASH, /SPEAKERSPEAKER or any dialing
key (0-9, TONE , or #) on any called handset. Both handsets now show Intercom.
4. To end the intercom call, one party presses OFF/CANCEL, or places the
handset back in the telephone base or charger. The other party hears four beeps.
Both handsets display Intercom ended.
NOTES:
Before the intercom call is answered, you can cancel it by pressing OFF/CANCELCANCEL.
If the called handset is not answered within 100 seconds, or if it is in the directory or caller ID log,
or is on a call, or is out of range, the calling handset shows No answer. Try again.
Pressing OFF/CANCEL or MUTE/DELETE temporarily silences the intercom ringer.
You can only use one pair of handsets to make intercom calls at a time.
Answer an incoming call during an intercom call
If you receive an outside call during an intercom call, there is a call waiting tone.
To answer the call, press PHONE/FLASH. The intercom call ends
automatically. The party on the intercom call hears four beeps. Other system
handsets can also answer the incoming call by pressing PHONE/FLASH.
To end the intercom call without answering the incoming call, press OFF/CANCEL.
•
•
•
•
•
•
•
•
Multiple handset use
Multiple handset use
27
Call transfer using intercom
Use the intercom feature to transfer an outside call to another system handset.
You can also share an outside call with another system handset. This feature is
available only if you have two or more handsets.
To transfer or share an outside call using intercom:
1. During the call, press MENU/SELECT.
2. Press TCID or SDIR to scroll to >Intercom and press
MENU/SELECT.
3. Choose the handset(s) you would like to transfer the call to:
If you have a two-handset system, your handset screen shows Calling
other handset.
If you have more than two handsets, your screen shows INTERCOM TO:
Use the dialing keys to eenter a specific handset number (1-9 for handsets
1-9, TONE followed by 0-2 for handsets 10-12, or TONE followed by #
for all handsets), or press TCID or SDIR to scroll to the desired handset
and press MENU/SELECT. Your handset screen shows Calling HANDSET X or
Calling all handsets.
4. When the destination handset(s) picks up, your handset shows Intercom and
the outside call is put on hold. Then you have the following options:
You can transfer the call. Press MENU/SELECT twice to select >Transfer
on the calling handset. Your screen shows Call transferred. The other
handset automatically connects to the outside call.
You can let the other handset join you on the outside call in a
three-way conversation. Press MENU/SELECT. Press TCID or SDIR to
highlight >Share call on the calling handset, then press MENU/SELECT.
You can end the intercom call and continue the outside call with
your handset. Press PHONE/FLASH on your handset (the ended intercom
call party hears four beeps), or the other person can press OFF/CANCEL
on other system handset.
•
•
•
•
•
Multiple handset use
28
Push-to-talk (PTT)
You can directly broadcast messages to the speakerphone of any handset. Any
handset you call can respond by pressing the PUSH TO TALK key to begin two-
way communication.
While talking to another device, hold down PUSH TO TALK and release when
you are finished speaking, so that the other person can respond.
Only one device can talk at a time.
Only one PTT session can be active at a time.
While PTT is in use between two devices, other devices cannot use the
intercom feature.
Turn PTT on or off
1. Press PUSH TO TALK when the handset is not in use.
The PUSH TO TALK menu displays.
2. Press TCID or SDIR to highlight >PTT On/Off, then press MENU/SELECT.
3. Press TCID or SDIR to choose >On or >Off, then press
MENU/SELECT.
•
•
•
•
PTT call to a single handset
1. There are a few ways to begin a PTT call to a single handset. When the
handset is not in use:
If you have a two-handset system, press and hold PUSH
TO TALK.
If you have more than two handsets, press PUSH TO TALK. Then use the
dialing keys to enter the destination handset number.
-OR-
Press TCID or SDIR to highlight the destination handset number and then
press MENU/SELECT or PUSH TO TALK.
Your handset screen shows Connecting to HANDSET X...
(X represents the
destination handset number)
for a few seconds. When the connection is
made, both your and the destination handset screens display Press and hold
[PTT] to talk.
2. Press and hold PUSH TO TALK on your handset. A chirp indicates your
microphone is on. Speak towards the handset. Your voice is broadcast to the
•
•
Multiple handset use
29
destination handset. While you are speaking, your handset screen shows PTT
To handset: X.
3. Release PUSH TO TALK after speaking. Both handsets beep
once again. After the handsets beep, you can press and hold PUSH TO TALK to
continue speaking or the destination handset can respond (see Answer a PTT
call on the next page).
4. To end the PTT call, press OFF/CANCEL or place the handset in the telephone
base or charger. The handset screen shows Push to talk Ended for a few
seconds.
PTT call to a group of handsets
When there are multiple handsets registered to the phone system, PTT supports
one-to-group calls. PTT supports a maximum of one-to-four calls when two to
five handsets are registered, and a maximum of one-to-three calls when six or
more handsets are registered. The first four registered handsets will be able to
use this feature. Other handsets can only use PTT for one-to-one calls.
To call a group of handsets:
1. You have three ways to call a group of handsets. When the handset is not in
use:
Press and hold PUSH TO TALK until your handset screen shows
Connecting to group...
Press PUSH TO TALK. Press TCID or SDIR to choose Group. Press
MENU/SELECT or press and hold PUSH TO TALK until your handset screen
shows Connecting to group...
Press PUSH TO TALK. Press TONE followed by # (pound key). The screen
shows Connecting to group...
When the connection is made, both the caller and the destination parties hear
a beep. The speakerphones on all other handsets automatically activate.
2. You need to press and hold PUSH TO TALK when you want to speak. Speak
towards the handset. Your voice is broadcast to all eligible handsets.
3. Release PUSH TO TALK after speaking.
4. Any extension can reply (see Answer a PTT call on the next page).
NOTE: After PUSH TO TALK is released, the PTT call remains open for a short time. If no
one presses PUSH TO TALK within 10 seconds, the PTT call ends automatically.
•
•
•
Push-to-talk (PTT)
Multiple handset use
30
Push-to-talk (PTT)
Answer a PTT call
You can respond to a PTT call whenever the speakerphone light is off, as
described below.
When your handset receives a PTT call, the handset beeps and the screen
shows Press and hold [PTT] to talk.
When the other party is speaking, your speakerphone light is on, and your
handset shows PTT From HS X To HS X (the first X represents the initiating
handset number, the second X represents your handset number; a maximum
of four handset numbers appear).
When your speakerphone light is off (the screen shows Press and hold
[PTT] to talk), press and hold PUSH TO TALK on your handset. You will hear
a chirp. Speak towards the handset.
While you are speaking, your handset screen shows PTT To handset: X
(X represents the handset numbers of one or more destination handsets;
a maximum of four handset numbers appear).
Your voice is broadcast to all destination handsets.
After speaking, release PUSH TO TALK. Your handset will beep.
After the beep, if your speakerphone light is off, you can press and hold
PUSH TO TALK to continue speaking, or the destination handset can respond.
Change a one-to-one PTT call to an intercom call
You can convert a one-to-one PTT session to an intercom call.
When your handset screen shows Press and hold [PTT] to talk, press
MENU/SELECT. The screen shows >Intercom.
Press MENU/SELECT. Your handset displays Calling other handset or
Calling HANDSET X. The destination handset screen briefly shows Push to
talk Ended and then Other handset is calling or HANDSET X is calling.
The destination handset rings.
On the destination handset, press PHONE/FLASH or any of the dialing
keys (0-9, #, or TONE ) to answer the intercom call. Both handsets now
show Intercom.
To end the intercom call, press OFF/CANCEL or place the handset in the
telephone base or charger. Both screens show Intercom ended.
1.
2.
3.
•
•
1.
2.
3.
4.
Multiple handset use
31
Push-to-talk (PTT)
Answer an incoming call during PTT
When you receive an incoming outside call during PTT, there is an alert tone.
During a one-to-one PTT, press PHONE/FLASH on the initiating or
destination handset. The PTT call ends automatically and the outside call
is answered.
During a one-to-group PTT, press PHONE/FLASH on the initiating handset.
The PTT call ends automatically and the outside call is answered.
During a one-to-group PTT, press PHONE/FLASH on any one of the
destination handsets and that handset answers the outside call. The PTT call
continues for the rest of the PTT participants.
To leave the PTT call without answering the incoming call, press
OFF/CANCEL. The telephone continues to ring.
Make an outgoing call during PTT
During a one-to-one PTT, press PHONE/FLASH to get a dial tone. The PTT
call ends automatically.
During a one-to-group PTT, press PHONE/FLASH on the initiating handset.
The PTT call ends automatically and you get a dial tone.
During a one-to-group PTT, press PHONE/FLASH on any one of the
destination handsets and that handset gets a dial tone. The PTT call
continues for the rest of the PTT participants.
End or leave a PTT call
For one-to-one PTT calls, both initiating and destination handsets can end PTT.
For PTT calls to a group of handsets, the initiating handset can end the PTT
call for the group of handsets on the PTT call. If any one of the destination
handsets leaves the PTT call, the call continues until all participants or the
initiator hangs up.
Press OFF/CANCEL or place the handset in the telephone base or charger.
The handset screen shows Push to talk Ended.
NOTE: After PUSH TO TALK is released, the PTT call remains open for a short time. If no one
presses PUSH TO TALK within 10 seconds, the PTT call ends automatically.
•
•
•
•
•
•
•
32
About the directory
Shared directory
The directory is shared by all handsets. Changes made to the directory from
any handset apply to all.
NOTE: Only one handset can review the directory at a time. If another handset tries to enter
the directory, the screen shows Not available at this time.
Capacity
The directory can store up to 50 entries, with a maximum of 15 alphanumeric
characters (including spaces) for names and 30 digits for telephone numbers.
A convenient search feature can help you find and dial numbers quickly
(page 35).
If you try to save an entry when there are already 50 entries, the screen
shows Directory full. You cannot store a new number until you delete one.
Directory
Directory
33
Create directory entries
Create a new directory entry
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Press MENU/SELECT to select >Directory.
3. Press TCID or SDIR to highlight >Add contact.
4. Press MENU/SELECT.
5. Use the dialing keys to enter a telephone number (up to 30 digits) when
prompted.
Press TCID or SDIR to move the cursor to the left or right.
Press MUTE/DELETE to erase a digit.
Press and hold MUTE/DELETE to erase all digits.
Press and hold REDIAL/PAUSE to enter a three-second
dialing pause (a p appears).
-OR-
Copy a number from the redial list by pressing REDIAL/PAUSE then TCID
or SDIR, or pressing REDIAL/PAUSE repeatedly to locate the number. Press
MENU/SELECT to copy the number.
6. Press MENU/SELECT to move on to the name. The display shows Number
already saved if the number is already in
the directory. You cannot save the same number twice.
7. Use the dialing keys to enter a name (up to 15 characters) when prompted.
Each time you press a key, the character on that key appears. Additional key
presses produce other characters on that key. See the chart on the next page.
Press TCID or SDIR to move the cursor to the left
or right.
Press 0 to add a space.
Press MUTE/DELETE to erase a character.
Press and hold MUTE/DELETE to erase all characters.
•
•
•
•
•
•
•
•
Directory
34
Create directory entries
8. Press MENU/SELECT to store your new directory entry. There is a
confirmation tone and the screen shows Saved. To change the entry later,
see page 36.
NOTE: The first letter of every word is a capital letter. The remaining letters in a word start as
lower case letters as shown in the chart on the next page.
Add a predialed telephone number to the directory
You can save a predialed telephone number to the directory.
1. Enter the telephone number when in idle mode.
2. Follow the steps in Edit a directory entry on page 36.
Dialing keys Characters by number of key presses
1234567891011
11.-‘()*#&/,
2ABCabc2
3DEFdef3
4GHI ghi 4
5JKLjkl5
6MNOmno6
7PQRSpqr s7
8TUVtuv8
9WXY Zwx y z 9
0space 0
*
#
Directory
35
Review the directory
Review directory entries
1. Press DIRS when in idle mode. The summary screen shows briefly and then
the first entry in the directory shows.
-OR-
Press MENU/SELECT when in idle mode, then press MENU/SELECT to select
>Directory. Press MENU/SELECT again to select >Review.
2. Press TCID or SDIR to browse through the directory. Entries appear
alphabetically by the first letter in the name.
NOTES:
If the telephone number in the directory exceeds 15 digits, < appears in front of the telephone
number. Press TONE to move towards the end of the telephone number or press # (pound key) to
move towards the beginning of the telephone number.
Directory empty appears if there are no directory entries.
Search by name
1. Press DIRS in idle mode to show the first listing in the directory.
2. When an entry appears, press the dialing keys (0-9) to start a name search.
The directory shows the first name beginning with the first letter associated with
the dialing key if there is an entry in the directory beginning with that letter.
Press TCID or SDIR to scroll through the directory.
3. To see other names starting with the letters on the same dialing key, keep
pressing the key. The names appear in alphabetical order.
For example, if you have the names Jennifer, Jessie, Kevin and Linda in your directory:
If you press 5 (JKL) once, you see Jennifer. Press TCID and you see Jessie.
If you press 5 (JKL) twice, you see Kevin.
If you press 5 (JKL) three times, you see Linda.
If you press 5 (JKL) four times, you see 5 and then the directory entry
beginning with 5 or the next closest entry after 5.
If you press 5 (JKL) five times, you see Jennifer again.
NOTES:
If there is no name matching the first letter of the key you press, the directory shows a name
matching the following letters of the key.
If you press a key (0-9) and no name starts with any of the letters on that key, the directory shows
the entry matching the next letter in the directory.
•
•
•
•
•
•
•
•
•
Directory
36
Dial, delete or edit directory entries
To dial, delete or edit a directory entry (name and number), the entry must
be displayed on the handset. Use Review the directory (page 35) to show
an entry.
Display dial
To dial a displayed number from the directory, press PHONE/FLASH or
/SPEAKERSPEAKER.
Delete a directory entry
To delete the displayed directory entry, press MUTE/DELETE. Press MENU/SELECT to
confirm. There is a confirmation tone and the screen shows Contact deleted. You
cannot retrieve a deleted entry.
Edit a directory entry
1. When a directory entry displays, press MENU/SELECT. The screen shows
EDIT NUMBER along with the phone number to be edited.
If you only want to edit the name, skip to Step 3.
2. To edit the number:
Press the dialing keys to add digits.
Press TCID or SDIR to move the cursor to the left
or right.
Press MUTE/DELETE to erase a digit.
Press and hold MUTE/DELETE to erase all digits.
Press and hold REDIAL/PAUSE to add a three-second pause, if
desired.
3. Press MENU/SELECT to save the number. The screen shows EDIT NAME
along with the name to be edited.
4. To edit the name:
Press the dialing keys to add characters (page 34).
Press TCID or SDIR to move the cursor to the left
or right.
Press MUTE/DELETE to erase a character.
Press and hold MUTE/DELETE to erase all characters.
5. Press MENU/SELECT. There is a confirmation tone and the screen shows Saved.
•
•
•
•
•
•
•
•
•
Directory
37
Speed dial
The telephone system has 10 speed dial locations (2-9 and 0, location 1 is
reserved for voicemail) where you can store the telephone numbers you wish
to dial more quickly. You can store up to 30 digits in each location. Speed dial
assignments can only be selected from the existing directory entries, with the
exception of 1, which must be manually entered. In the directory, speed dial
locations except for 1 are indicated by their number in the bottom right
hand corner of the entry.
Assign a speed dial number
1. When the telephone is idle, press MENU/SELECT.
2. Press MENU/SELECT to select >Directory.
3. Press TCID or SDIR to scroll to >Speed dial. Press MENU/SELECT.
4. Press TCID or SDIR to choose your desired speed dial
location (2-9, 0), then press MENU/SELECT. The screen
briefly shows Copy from Directory... then enters your
directory list.
5. Press TCID or SDIR to scroll to the phone number you wish
to assign to the selected speed dial location.
6. Press MENU/SELECT to save the setting and return to the previous menu.
There is a confirmation tone.
Reassign a speed dial number
1. When the telephone is idle, press MENU/SELECT.
2. Press MENU/SELECT to select >Directory.
3. Press TCID or SDIR to scroll to >Speed dial. Press
MENU/SELECT.
4. Press TCID or SDIR to choose the location you wish to reassign,
(2-9, 0) then press MENU/SELECT to show the directory entry.
5. Press MENU/SELECT again.
6. Scroll to >Change SD and then press MENU/SELECT. The screen briefly shows Copy
from Directory... then enters your directory list.
7. Press TCID or SDIR to scroll to the phone number you wish
to reassign to the selected speed dial location.
8. Press MENU/SELECT to save the setting and return to the
previous menu. There is a confirmation tone.
Speed dial
Directory
38
Delete a speed dial number
1. When the telephone is idle, press MENU/SELECT.
2. PressPress MENU/SELECT to select >DirectoryDirectory.
3. Press TCID or SDIR to scroll to >Speed dial.Speed dial. Press MENU/SELECT.
4. Press TCID or SDIR to scroll to the location you wish to delete the speed
dial number from, then press MUTE/DELETE. There is a confirmation tone and
the screen shows
Speed dial empty before returning to the previous menu.
-OR-
1. Follow Steps 1-3 above.
2. PressPress TCID or SDIR to scroll to the location you wish to delete the speed dial
number from, then press MENU/SELECT
to show the directory entry.
3. PressPress MENU/SELECT again. Scroll toScroll to >Clear SD and then
press MENU/SELECT to delete the displayed speed dial
number. There is a confirmation tone and the screen shows Speed dial
empty before returning to the previous menu.
Assign your speed dial voicemail number
See the Set speed dial voicemail number section on page 14 for instructions
on assigning your speed dial voicemail number.
Make a call using speed dial
When in idle mode, press and hold the dialing key (2-9, 0) corresponding to the
assigned location you wish to call.
-OR-
1. Press MENU/SELECT when in idle mode.
2. PressPress MENU/SELECT to select >Directory.
3. Press TCID or SDIR to scroll to >Speed dialSpeed dial, then press MENU/SELECT.
4. Press TCID or SDIR to scroll to the desired location and then press
PHONE/FLASH or /SPEAKERSPEAKER.
Check your voicemail using speed dial
Press and hold the 1 key on your handset to dial your voicemail number if it
has been set already.
39
About caller ID
This product supports caller ID services offered by most telephone service
providers. Caller ID allows you to see the name, number, date and time of calls.
The available caller ID information will appear after the first or second ring.
Information about caller ID with call waiting
Caller ID with call waiting lets you see the name and telephone number of the
caller before answering the call, even while on another call.
It might be necessary to change your telephone service to
use this feature. Contact your telephone service provider if:
You have both caller ID and call waiting, but as separate services (you might
need to combine these services).
You have only caller ID service, or only call waiting service.
You don’t subscribe to caller ID or call waiting services.
There are fees for caller ID services. In addition, services may
not be available in all areas.
This product can provide information only if both you and the caller are in
areas offering caller ID service and if both
telephone service providers use compatible equipment. The time and date,
along with the call information, are from the telephone service provider.
Caller ID information might not be available for every incoming call. Callers
may intentionally block their names and/or telephone numbers.
To view caller ID log entries with numbers between 16 and 24 digits, you must
save the entry to the directory (see page 43).
NOTE: You can use this product with regular caller ID service, or you can use this product’s
other features without subscribing to caller ID or combined caller ID with call waiting service.
•
•
•
Caller ID
Caller ID
40
Caller ID history
How the caller ID history (caller ID log) works
The telephone stores caller ID information about the last 50 incoming calls
in the telephone base. Entries are stored in reverse chronological order. The
phone deletes the oldest entry when the log is full to make room for new
calls. This information is common to all handsets, so changes made using any
handset are reflected in all other handsets. If you answer a call before the
information appears on the screen, it does not show in the caller ID history.
NOTE: Each entry may have up to 24 digits for the phone number and 15 characters for the
name.
Missed (new) call indicator
When a handset is in idle mode and has new or missed calls, its screen shows
XX Missed calls.
All new or missed entries are counted as missed calls. Each time you review a
new caller ID log entry (indicated by NEW on the
handset screen), the number of missed calls decreases by one.
If you do not want to review the missed calls one by one, but still want to keep
them in the caller ID history, you can
press and hold OFF/CANCEL for four seconds when the handset is idle. All
the entries in the caller ID history become
old (reviewed already), and the missed calls message
goes away.
Caller ID
41
Caller ID operation
Memory match
If the incoming telephone number matches the last seven digits of a telephone
number in your directory, the name that appears on the screen matches the
corresponding name in your directory.
For example, if Christine Smith calls, her name appears as Chris
if this is how you entered it into your directory.
NOTE: The number shown in the caller ID log will be in the format sent
by the telephone service provider. The telephone service provider usually delivers 10-digit
phone numbers (area code plus telephone number). If the telephone number of the caller
does not match a number in your directory, the name will appear as it is delivered by the
telephone service provider.
Review the caller ID history
Review the caller ID history to find out who called, to return the call, or to copy
the caller’s name and number into your directory. Caller ID log empty appears
if there are no records in the caller ID log.
1. When a handset is in idle mode, press TCID to review the caller ID history in
reverse chronological order starting with the most recent call.
-OR-
Review the caller ID history by pressing MENU/SELECT.
Press TCID or SDIR to scroll to >Caller ID log, then press
MENU/SELECT twice to select >Review.
2. Press TCID or DIRS to scroll through the list.
3. Press OFF/CANCEL to exit the caller ID history.
You hear a double beep when the list reaches the beginning or end of the caller ID log.
NOTE: Only one handset can review the caller ID history at a time. If another handset tries to
enter the directory or caller ID history, it shows Not available at this time.
Caller ID
42
Caller ID operation
View dialing options
Although the incoming caller ID log entries have 10 digits (the area code plus
the seven-digit number), in some areas, you might need to dial only the seven
digits, 1 plus the seven digits, or 1 plus the area code plus the seven digits. You
can change and store the number of digits that you dial in the caller ID log.
While reviewing the caller ID log, press # (pound key) repeatedly to show
different dialing options for local and long distance numbers before dialing or
saving the telephone number in the directory.
Press 1 repeatedly if you need to add or remove 1 in front of the telephone
number before dialing or saving it in the directory.
When the number is in the correct format for dialing, press PHONE/FLASH or
/SPEAKERSPEAKER to call the number.
To save the number to the directory, see Save a caller ID log entry to the
directory on the next page.
Dial a caller ID log entry
1. When in the caller ID log, press TCID or DIRS to browse.
2. Press PHONE/FLASH or /SPEAKERSPEAKER to dial the displayed entry.
Delete caller ID log entries
To delete an entry:
Press MUTE/DELETE to delete the shown entry.
To delete all entries:
1. Press MENU/SELECT when in idle mode.
2. Press TCID or SDIR to scroll to >Caller ID log, then press MENU/SELECT.
3. Press TCID or SDIR to scroll to >Del all calls, then press MENU/SELECT.
4. When the screen shows Delete all calls?, press MENU/SELECT to confirm.
There is a confirmation tone and the screen returns to the previous menu.
•
Caller ID
43
Caller ID operation
Save a caller ID log entry to the directory
1. When in the caller ID log, press TCID or SDIR to browse.
2. Press MENU/SELECT to select an entry. The screen displays EDIT NUMBER.
3. Use the dialing keys to edit the number.
Press TCID or SDIR to move the cursor to the left or right.
Press MUTE/DELETE to backspace and erase a digit.
Press and hold MUTE/DELETE to erase the entire entry.
Press and hold REDIAL/PAUSE to insert a three-second dialing pause
(a p appears).
4. Press MENU/SELECT to move to the name. The screen displays EDIT NAME.
Use the dialing keys (page 34) to edit the name.
Press TCID or SDIR to move the cursor to the left or right.
Press MUTE/DELETE to erase a character.
Press and hold MUTE/DELETE to erase all characters.
Press # (pound key) to move the last word to the front. For example,
Johnson Charlie becomes Charlie Johnson when you press # (pound key).
5. Press MENU/SELECT when done. The handset shows Saved.
NOTES:
You might need to change how a caller ID number is dialed if the entry does not appear in the
correct format. Caller ID numbers might appear with an area code that might not be necessary for
local calls, or without a 1 that might be necessary for long distance calls (see View dialing options
on page 41).
If the name you received from the telephone service provider is all in capital letters, the first
letter of every word remains a capital letter, while other letters become lowercase. However, the
next letter after the prefix “Mac”, “Mc”, or “O’”, is kept as a capital letter. For example, the “D” in
“MacDonald” is kept as a capital letter. Another exception is that “VAN DER” will be changed to
“Van der”.
If the telephone number from the caller ID information has already been saved in the directory
under a different name, the new name will overwrite the old one.
•
•
•
•
•
•
•
•
•
•
•
Caller ID
44
Reasons for missing caller ID information
There are occasions when other information or no information shows for
various reasons:
On-screen message Reason
PRIVATE NUMBER The caller prefers not to show the phone number.
PRIVATE NAME The caller prefers not to show the name.
PRIVATE CALLER The caller prefers not to show the phone number and name.
UNKNOWN NUMBER Your telephone service provider cannot determine the
caller’s number.
UNKNOWN NAME Your telephone service provider cannot determine the
caller’s name.
UNKNOWN CALLER Your telephone service provider cannot determine the caller’s
name and telephone number.
Calls from other countries may also generate this message.
45
Adding and registering handsets/headsets
Your telephone can support up to 12 DECT 6.0 cordless handsets (AT&T model
CL80101, sold separately) or up to 10 cordless handsets and 2 cordless
headsets (sold separately). Visit www.telephones.att.com/headsets for
a list of compatible DECT 6.0 cordless headsets. Each new handset or headset
must be registered to the telephone base before use. You must register each
handset or headset separately.
To register a cordless headset to this telephone system, please refer to the user’s
manual of the cordless headset for more details. To register a cordless handset,
see below.
The handsets provided within your product box are already registered as
HANDSET 1 and so forth. Additional handsets are assigned numbers in the
sequential order they are registered (up to HANDSET 12).
Register a handset to your telephone base
1. Before you begin registration, make sure the handset is out
of the telephone base or charger and shows To register,
see manual.
2. Put the handset you wish to register on the telephone
base cradle.
3. The screen shows Registering... Please wait and the IN USE light turns on. It
takes up to 90 seconds to complete registration. Then HANDSET X Registered
appears on the screen, with HANDSET being the handset name and X being
the handset number (1-12). The handset beeps and the
IN USE light turns off. The handset is now registered with the telephone base.
If registration fails, the system will automatically try to register again. If
registration fails after the third try, Registration failed appears on the screen
for a few seconds, and then To register,
see manual. This may take up to five
minutes to occur. Please start again from
Step 1 above.
Appendix
Appendix
46
Deregistering handsets
You may need to deregister your handsets if:
You have 12 registered handsets and need to replace a handset.
-OR-
You wish to change the designated handset number of your registered handsets.
You must first deregister ALL the handsets, and then register each handset you
wish to use again, one at a time.
Please read carefully through all the instructions on this page before
beginning the deregistration process.
Deregister all handsets from your telephone base
1. Make sure that all handsets are out of the telephone base
and chargers before you begin deregistration.
2. Press and hold /HANDSET LOCATOR on the telephone base for about
10 seconds (until the IN USE light starts to flash), then release the
/HANDSET LOCATOR button.
3. Immediately press /HANDSET LOCATOR while the
IN USE light is still flashing. (The light flashes for about seven seconds. If the
light stops flashing, start again with Step 1 above.)
4. It takes up to 10 seconds to complete the deregistration process. Before
registering the handset again, wait for the cordless handset screen to display
To register, see manual.
5. To register the handset(s) to the telephone base again, follow the
registration instructions on the previous page.
NOTES:
If the deregistration process is not successful, you might need to reset the system and try again. To
reset, unplug the power from the telephone base and plug it back in.
You cannot deregister the handset(s) if any other system handset is in use.
Even if the battery is depleted, you can still deregister the handset by following the steps above. After
the handset is charged for at least 10 minutes, the screen shows To register, see manual.
•
•
•
•
•
Appendix
47
Handset display screen messages
Screen display messages
Caller ID log
empty
There are no entries in the caller ID history.
Call
transferred
You have transferred an outside call to another cordless handset.
Calling
HANDSET X (for systems
with 3 or more handsets)
The handset is calling another handset (for intercom calls).
The handset is transferring an outside call to another handset.
Calling other
handset (for systems
with 2 handsets)
The handset is calling the other handset (for intercom calls).
The handset is transferring an outside call to the other handset.
Contact deleted A directory entry is deleted.
Directory empty There are no directory entries.
Directory full The directory is full. You cannot save any new entries unless you
delete some current entries.
Ended You have just ended a call.
HANDSET X
is calling
Another system handset is calling.
Incoming call There is an incoming call.
Intercom The handset is on an intercom call.
Intercom ended The intercom call has just ended.
INTERCOM TO:
(for systems with 3 or more
handsets)
You have started the intercom process, and need to enter the
number of the handset you wish to call.
Line in use An extension phone, or one of the handsets is in use.
Low battery The battery is low. You should charge the battery.
Microphone ON Mute is off so the other party can hear your voice.
Muted The microphone is off. The other party cannot hear you.
New voicemail There are new voicemail messages from your telephone
service provider.
No battery The handset in the telephone base or charger has no
battery installed.
No line There is no telephone line connection.
Appendix
48
Handset display screen messages
Screen display messages
No answer. Try
again
The handset(s) you are trying to transfer a call to is out of range,
off hook, or has no power.
Not available
at this time
Someone else is already using the directory or caller ID history.
Other handset
is calling (for
systems with 2 handsets)
The other handset is calling.
Number already
saved
The telephone number you have entered is already in the
directory.
Out of range OR
No pwr at base
The telephone base has lost power, or the handset is out
of range.
** Paging ** The cordless handset is paged by the telephone base.
Phone The handset is on a call.
Place in charger The battery is very low. The handset should be charged.
Registering...
Please wait
The handset is registering to the telephone base.
Registration failed The handset registration is not successful.
Ringer off The ringer is turned off.
Ringer muted The ringer is off temporarily while the handset is ringing.
Saved An entry has been successfully saved in the directory.
Speaker The handset speakerphone is in use.
To register,
see manual.
Screen display before handset registration.
TRANSFER TO:
(for systems with 3 or more
handsets)
You have started transferring a call, and need to enter the desired
handset number or choose all handsets.
Unable to call.
Line in use
Failed phone call (the telephone line is in use).
Unable to call.
Try again
You try to join a call when four handsets are already on that call.
You try to make an outside call when another handset is
transferring a call with the intercom feature.
XX Missed calls There are new calls in the caller ID history.
Appendix
49
If you have difficulty with your phone, please try the suggestions below. For
Customer Service, visit our website at www.telephones.att.com or call
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
My telephone doesn’t work at all.
Make sure the power cord is securely plugged in.
Make sure you plug the battery connector securely into the cordless handset.
Make sure you plug the telephone line cord securely and firmly into the
telephone base and the telephone wall jack.
Charge the battery in the cordless handset for at least 10 hours. For
optimum daily performance, return the cordless handset to the telephone
base or charger when not in use.
If the battery is depleted, it might take approximately 30 minutes to charge
the handset before it shows Low battery. See page 7 for details.
Reset the telephone base. Unplug the electrical power. Wait for
approximately 15 seconds, then plug it back in. Allow up to one minute for
the cordless handset and telephone base to reset.
You may need to purchase a new battery. Please refer to
Battery installation and charging in this user’s manual on pages 7-8.
I cannot get a dial tone.
Try all the suggestions above.
Move the cordless handset closer to the telephone base. You might have
moved out of range.
If the previous suggestions do not work, disconnect the telephone base from
the telephone jack and connect to a different phone. If there is no dial tone
on that phone either, the problem is in your wiring or telephone service.
Contact your telephone service provider.
Your line cord might be defective. Try installing a new line cord.
I cannot dial out.
Try all the suggestions above.
Make sure you have a dial tone before dialing. The cordless handset might
take a second or two to find the telephone base and produce a dial tone.
This is normal. Wait an extra second before dialing.
•
•
•
•
•
•
•
•
•
•
•
•
•
Troubleshooting
Appendix
50
Eliminate any background noise. Noise from a television, radio or other
appliances might cause the phone to not dial out properly. If you cannot
eliminate the background noise, first try muting the cordless handset before
dialing, or dialing from another room with less background noise.
If other phones in your home are having the same problem, contact your
telephone service provider (charges might apply).
My cordless handset isn’t performing normally.
Make sure you plug the power cord securely into the telephone base. Plug the
power adapter into a different, working electrical outlet without a wall switch.
Move the cordless handset closer to the telephone base. You might have
moved out of range.
Reset the telephone base. Unplug the electrical power. Wait for 15 seconds
then plug it back in. Allow up to one minute for the cordless handset and
telephone base to reset.
Other electronic products such as HAM radios and other DECT phones can
cause interference with your cordless phone. Try installing your phone as far
away as possible from these types of electronic devices.
Out of range OR No pwr at base appears on my cordless handset.
Ensure you plug the telephone base in properly and the power is on.
Place the cordless handset in the telephone base for one minute to allow
the cordless handset and base to synchronize.
Move the cordless handset closer to the telephone base. You might have
moved out of range.
Reset the telephone base. Unplug the electrical power. Wait for 15 seconds
then plug it back in. Allow up to one minute for the cordless handset and
telephone base to reset.
Other electronic products such as HAM radios and other DECT phones can
cause interference with your cordless phone. Try installing your phone as far
away as possible from these types of electronic devices.
The batteries do not hold a charge.
If the cordless handset is in the telephone base or charger and the charge
light is not on, refer to The charge light is off or blinking (page 53).
•
•
•
•
•
•
•
•
•
•
•
•
Troubleshooting
Appendix
51
Charge the battery in the cordless handset for at least 10 hours. For
optimum daily performance, return the cordless handset to the telephone
base or charger when not in use.
If the battery is depleted, it might take approximately 30 minutes to charge
the handset before it shows Low battery. Refer to the table on page 7
for details.
You might need to purchase a new battery. Please refer to Battery
installation and charging in this user’s manual on pages 7-8.
I get noise, static, or weak signals even when I’m near the telephone base.
If you subscribe to high-speed Internet service (DSL - digital subscriber
line) through your telephone line, you must install a DSL filter between the
telephone line cord and the telephone wall jack (see page 6). The filter
prevents noise and caller ID problems as a result of DSL interference. Please
contact your DSL service provider for more information about DSL filters.
You may be able to improve the performance of your cordless phone by
installing your new telephone base as far as possible from any other existing
cordless telephone system that may already be installed.
Other electronic products such as HAM radios and other DECT phones can
cause interference with your cordless phone. Try installing your phone as far
away as possible from these types of electronic devices.
Do not install this phone near a microwave oven or on the same electrical
outlet. You might experience decreased performance while the microwave
oven is operating.
If you plug your phone in with a modem or a surge protector, plug the
phone (or modem/surge protector) into a different location. If this does not
solve the problem, relocate your phone or modem farther apart from one
another, or use a different surge protector.
Move your phone to a higher location. The phone might have better
reception in a high area.
If other phones in your home are having the same problem, contact your
telephone service provider (charges may apply).
I experience poor sound quality when using the speakerphone.
For increased sound quality while using the speakerphone, place the handset
on a flat surface with the dial pad facing up.
•
•
•
•
•
•
•
•
•
•
•
Troubleshooting
Appendix
52
I hear other calls while using my phone.
Disconnect the telephone base from the telephone jack, and plug in
a different telephone. If you still hear other calls, call your telephone
service provider.
My cordless handset does not ring when I receive a call.
Make sure that the ringer is not off. Refer to Ringer volume on page 11 in
this user’s manual.
Make sure you plug in the telephone line cord securely into the telephone
base and the telephone jack. Make sure you plug in the power cord securely.
The cordless handset may be too far from the telephone base.
Charge the battery in the cordless handset for at least 10 hours. For
optimum daily performance, return the cordless handset to the telephone
base or charger when not in use.
You may have too many extension phones on your telephone line to allow
all of them to ring simultaneously. Try unplugging some of the other
phones.
The layout of your home or office might be limiting the operating range.
Try moving the telephone base to another location, preferably to a
higher location.
If other phones in your home are having the same problem, contact your
telephone service provider (charges might apply).
Test a working phone at the phone jack. If another phone has the same
problem, contact your telephone service provider (charges might apply).
Other electronic products can cause interference with your cordless phone.
Try installing your phone as far away as possible from electronic devices
such as television sets, VCRs, or other cordless telephones.
Completely remove the battery. Install the battery again and place the
cordless handset into the telephone base. Wait for the cordless handset to
reestablish its connection with the telephone base. Allow up to one minute
for this to take place.
Your line cord might be defective. Try installing a new line cord.
•
•
•
•
•
•
•
•
•
•
•
•
Troubleshooting
Appendix
53
My calls cut in and out while I’m using my cordless handset.
Other electronic products such as HAM radios and other DECT phones can
cause interference with your cordless phone. Try installing your phone as far
away as possible from these types of electronic devices.
Do not install this phone near a microwave oven or on the same electrical
outlet. You might experience decreased performance while the microwave
oven is operating.
If you plug your phone in with a modem or surge protector, plug the phone
(or modem/surge protector) into a different location. If this does not solve
the problem, relocate your phone or modem farther apart from one another,
or use a different surge protector.
Move your telephone base to a higher location. The phone might have better
reception when installed in a high area.
If other phones in your home are having the same problem, contact your
telephone service provider (charges may apply).
The charge light is off or blinking.
Make sure you plug the power and line cords in correctly and securely.
Unplug the electrical power. Wait for 15 seconds, then plug it back in. Allow
up to one minute for the cordless handset and telephone base to reset.
Clean the cordless handset, charger and telephone base charging contacts
each month with a pencil eraser or cloth.
A blinking CHARGE light is an indication that the battery is not
connected to the handset or is missing completely. Ensure that the
battery is installed properly.
My caller ID isn’t working.
Caller ID is a subscription service. You must subscribe to this service from
your telephone service provider for this feature to work on your phone.
The caller may not be calling from an area which supports caller ID.
Both your and your caller’s telephone service providers must use caller ID
compatible equipment.
•
•
•
•
•
•
•
•
•
•
•
•
Troubleshooting
Appendix
54
If you subscribe to high-speed Internet service (DSL - digital subscriber line)
through your telephone line, you must install a DSL filter between the
telephone line cord and the telephone wall jack (page 6). The filter prevents
noise and caller ID problems resulting from DSL interference. Please contact
your DSL service provider for more information about DSL filters.
System does not receive caller ID when on a call.
Make sure you subscribe to caller ID with call waiting features from your
telephone service provider. Caller ID features works only if both you and the
caller are in areas offering caller ID service, and if both telephone service
providers use compatible equipment.
New voicemail and show on the handset display, and I don’t know why.
•
Your telephone has received a signal from your telephone service provider
that you have a voicemail message waiting for you to retrieve from them.
Contact your telephone service provider for more information on how to
access your voicemail.
I’ve set my LCD language to Spanish or French and I don’t know how to
change it back to English.
• Press MENU/SELECT in idle mode, then enter 364#. You hear a confirmation
tone.
I cannot retrieve voicemail messages.
•
If you subscribe to voicemail service from your telephone service provider,
contact your telephone service provider for more information on how to
access your voicemail.
I subscribe to a nontraditional telephone service that uses my computer to
establish connections, and my telephone doesn’t work.
Make sure your computer is powered on.
Make sure your Internet connection is working properly.
Make sure that the software is installed and running for your nontraditionalning for your nontraditional
telephone service.
Make sure to plug your USB telephone adapter into a dedicated USB port
on your computer. Do not plug it into a multiple port USB hub (USB splitter)
that is not powered.
•
•
•
•
•
•
Troubleshooting
Appendix
55
Troubleshooting
In a few rare instances, the USB port on your computer may not have
enough power. Try using a USB hub with its own external power supply.
If you are using a firewall, it may prevent access to your nontraditional telephone
service provider. Contact your service provider for more information.
Common cure for electronic equipment.
If the telephone does not seem to be responding normally, try putting the
cordless handset in the telephone base or charger. If it does not fix the
problem, do the following (in the order listed):
Disconnect the power to the telephone base.
Disconnect the cordless handset battery.
Wait a few minutes.
Connect power to the telephone base.
Completely remove the battery. Replace the battery and place the cordless
handset into the telephone base or charger.
Wait for the cordless handset to reestablish its connection with the
telephone base. Allow up to one minute for this to take place.
•
•
1.
2.
3.
4.
5.
6.
Appendix
56
Maintenance
Taking care of your telephone
Your cordless telephone contains sophisticated electronic parts, so you must
treat it with care.
Avoid rough treatment.
Place the handset down gently.
Save the original packing materials to protect your telephone if you ever
need to ship it.
Avoid water
You can damage your telephone if it gets wet. Do not use the handset in the
rain, or handle it with wet hands. Do not install the telephone base near a
sink, bathtub or shower.
Electrical storms
Electrical storms can sometimes cause power surges harmful to electronic
equipment. For your own safety, take caution when using electric appliances
during storms.
Cleaning your telephone
Your telephone has a durable plastic casing that should retain its luster for
many years. Clean it only with a soft cloth slightly dampened with water or
mild soap.
Do not use excess water or cleaning solvents of any kind.
•
•
•
•
•
•
•
•
Remember that electrical appliances can cause serious injury if used when you are wet or
standing in water. If the telephone base should fall into water, DO NOT RETRIEVE IT UNTIL YOU
UNPLUG THE POWER CORD AND TELEPHONE LINE CORDS FROM THE WALL. Then pull the unit
out by the unplugged cords.
Appendix
57
Important safety information
This symbol is to alert you to important operating or servicing instructions that may
appear in this user’s manual. Always follow basic safety precautions when using this
product to reduce the risk of injury, fire, or electric shock.
Safety information
Read and understand all instructions in the user’s manual. Observe all markings on the product.
Avoid using a telephone during a thunderstorm. There may be a slight chance of electric shock
from lightning.
Do not use a telephone in the vicinity of a gas leak. Under certain circumstances, a spark may
be created when the adapter is plugged into the power outlet, or when the handset is replaced
in its cradle. This is a common event associated with the closing of any electrical circuit. The
user should not plug the phone into a power outlet, and should not put a charged handset into
the cradle, if the phone is located in an environment containing concentrations of flammable or
flame-supporting gases, unless there is adequate ventilation. A spark in such an environment
could create a fire or explosion. Such environments might include: medical use of oxygen
without adequate ventilation; industrial gases (cleaning solvents; gasoline vapors; etc.); a leak of
natural gas; etc.
Do not use this product near water, or when you are wet. For example, do not use it in a wet
basement or shower, or next to a swimming pool, bathtub, kitchen sink, or laundry tub. Do
not use liquids or aerosol sprays for cleaning. If the product comes in contact with any liquid,
unplug any line or power cord immediately. Do not plug the product back in until it has dried
thoroughly.
Install this product in a protected location where no one can trip over any line or power cords.
Protect cords from damage or abrasion.
If this product does not operate normally, see the Troubleshooting section on pages 49-55 of
this user’s manual. If you cannot solve the problem, or if the product is damaged, refer to the
Limited warranty section on pages 61-63. Do not open this product except as directed in your
user’s manual. Opening the product or reassembling it incorrectly may expose you to hazardous
voltages or other risks.
Replace batteries only as described in your user’s manual (pages 7-8). Do not burn or puncture
batteries — they contain caustic chemicals.
This power adapter is intended to be correctly oriented in a vertical or floor mount position. The
prongs are not designed to hold the plug in place if it is plugged into a ceiling or an under-the-
table/cabinet outlet.
Caution: Use only the power adapter provided with this product. To obtain a replacement,
visit our website at www.telephones.att.com or call 1 (800) 222-3111. In
Canada, dial 1 (866) 288-4268.
•
•
•
•
•
•
•
•
Appendix
58
Important safety information
Especially about cordless telephones
Privacy: The same features that make a cordless telephone convenient create some limitations.
Telephone calls are transmitted between the telephone base and the handset by radio waves, so
there is a possibility that your cordless telephone conversations could be intercepted by radio
receiving equipment within range of the cordless handset. For this reason, you should not think
of cordless telephone conversations as being as private as those on corded telephones.
Electrical power: The telephone base of this cordless telephone must be connected to a working
electrical outlet which is not controlled by a wall switch. Calls cannot be made from the handset
if the telephone base is unplugged, switched off or if the electrical power is interrupted.
Potential TV interference: Some cordless telephones operate at frequencies that may cause
interference to TVs and VCRs. To minimize or prevent such interference, do not place the
telephone base of the cordless telephone near or on top of a TV or VCR. If interference is
experienced, moving the cordless telephone farther away from the TV or VCR will often reduce or
eliminate the interference.
Rechargeable batteries: This product contains nickel-metal hydride rechargeable batteries.
Exercise care in handling batteries in order not to create a short circuit with conductive material
such as rings, bracelets and keys. The battery or conductor may overheat and cause harm.
Observe proper polarity between the battery and the battery charger.
Nickel-metal hydride rechargeable batteries: Dispose of these batteries in a safe manner. Do not
burn or puncture. Like other batteries of this type, if burned or punctured, they could release
caustic material which could cause injury.
The RBRC™ Seal means that the manufacturer is voluntarily participating in an
industry program to collect and recycle nickel-metal hydride rechargeable batteries
when taken out of service within the United States. These batteries may be taken to
a participating local retailer of replacement batteries or recycling center. Or you may
call 1 (800) 8-BATTERY for locations accepting spent Ni-MH batteries.
Precautions for users of implanted cardiac pacemakers
Cardiac pacemakers (applies only to digital cordless telephones):
Wireless Technology Research, LLC (WTR), an independent research entity, led a multidisciplinary
evaluation of the interference between portable wireless telephones and implanted cardiac
pacemakers. Supported by the U.S. Food and Drug Administration, WTR recommends to
physicians that:
Pacemaker patients
Should keep wireless telephones at least six inches from the pacemaker.
Should NOT place wireless telephones directly over the pacemaker, such as in a breast pocket, when
it is turned ON.
Should use the wireless telephone at the ear opposite the pacemaker.
WTR’s evaluation did not identify any risk to bystanders with pacemakers from other persons using
wireless telephones.
SAVE THESE INSTRUCTIONS
•
•
•
•
•
Appendix
59
FCC Part 68 and ACTA
This equipment complies with Part 68 of the FCC rules and with technical requirements adopted by
the Administrative Council for Terminal Attachments (ACTA). The label on the back or bottom of this
equipment contains, among other things, a product identifier in the format US:AAAEQ##TXXXX. This
identifier must be provided to your telephone service provider upon request.
The plug and jack used to connect this equipment to premises wiring and the telephone network must
comply with the applicable Part 68 rules and technical requirements adopted by ACTA. A compliant
telephone cord and modular plug is provided with this product. It is designed to be connected to a
compatible modular jack that is also compliant. An RJ11 jack should normally be used for connecting to
a single line and an RJ14 jack for two lines. See the installation instructions in the user’s manual.
The Ringer Equivalence Number (REN) is used to determine how many devices you may connect to your
telephone line and still have them ring when you are called. The REN for this product is encoded as
the 6th and 7th characters following the US: in the product identifier (e.g., if ## is 03, the REN is 0.3).
In most, but not all areas, the sum of all RENs should be five (5.0) or less. For more information, please
contact your telephone service provider.
This equipment may not be used with Party Lines. If you have specially wired alarm dialing equipment
connected to your telephone line, ensure the connection of this equipment does not disable your alarm
equipment. If you have questions about what will disable the alarm equipment, consult your telephone
service provider or a qualified installer.
If this equipment is malfunctioning, it must be unplugged from the modular jack until the problem
has been corrected. Repairs to this telephone equipment can only be made by the manufacturer or its
authorized agents. For repair procedures, follow the instructions outlined under the Limited warranty.
If this equipment is causing harm to the telephone network, the telephone service provider may
temporarily discontinue your telephone service. The telephone service provider is required to notify you
before interrupting service. If advance notice is not practical, you will be notified as soon as possible.
You will be given the opportunity to correct the problem and the telephone service provider is required
to inform you of your right to file a complaint with the FCC. Your telephone service provider may make
changes in its facilities, equipment, operation, or procedures that could affect the proper functioning of
this product. The telephone service provider is required to notify you if such changes are planned.
If this product is equipped with a corded or cordless handset, it is hearing aid compatible.
If this product has memory dialing locations, you may choose to store emergency telephone numbers
(e.g., police, fire, medical) in these locations. If you do store or test emergency numbers, please:
Remain on the line and briefly explain the reason for the call before hanging up.
Perform such activities in off-peak hours, such as early morning or late evening.
Industry Canada
Operation is subject to the following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference, including interference that may cause undesired operation.
The term ‘’IC:‘’ before the certification/registration number only signifies that the Industry Canada
technical specifications were met.
The Ringer Equivalence Number (REN) for this terminal equipment is 1.0. The REN is an indication of the
maximum number of devices allowed to be connected to a telephone interface. The termination on an
interface may consist of any combination of devices subject only to the requirement that the sum of the
RENs of all the devices does not exceed five.
This product meets the applicable Industry Canada technical specifications.
Appendix
60
FCC Part 15
This equipment has been tested and found to comply with the requirements for a Class B digital
device under Part 15 of the Federal Communications Commission (FCC) rules. These requirements
are intended to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications to this equipment not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation. Privacy of
communications may not be ensured when using this telephone.
To ensure safety of users, the FCC has established criteria for the amount of radio frequency energy
that can be safely absorbed by a user or bystander according to the intended usage of the product.
This product has been tested and found to comply with the FCC criteria. The handset may be safely
held against the ear of the user. The telephone base shall be installed and used such that parts
of the user’s body other than the hands are maintained at a distance of approximately 20 cm (8
inches) or more.
This Class B digital apparatus complies with Canadian ICES-003.
•
•
•
•
Appendix
61
The AT&T brand is used under license - any repair, replacement or warranty service, and all questions
about this product should be directed to our website at www.telephones.att.com or call
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
1. What does this limited warranty cover?
The manufacturer of this AT&T branded product warrants to the holder of a valid proof of
purchase (“CONSUMER” or “you”) that the product and all accessories provided in the sales
package (“PRODUCT”) are free from defects in material and workmanship, pursuant to the
following terms and conditions, when installed and used normally and in accordance with the
PRODUCT operating instructions. This limited warranty extends only to the CONSUMER for
products purchased and used in the United States of America and Canada.
What will be done if the PRODUCT is not free from defects in materials and workmanship
during the limited warranty period (“materially defective PRODUCT”)?
During the limited warranty period, the manufacturer’s authorized service representative will
repair or replace at the manufacturer’s option, without charge, a materially defective PRODUCT.
If the manufacturer repairs the PRODUCT, they may use new or refurbished replacement
parts. If the manufacturer chooses to replace the PRODUCT, they may replace it with a new
or refurbished PRODUCT of the same or similar design. The manufacturer will retain defective
parts, modules, or equipment. Repair or replacement of the PRODUCT, at the manufacturer’s
option, is your exclusive remedy. The manufacturer will return repaired or replacement products
to you in working condition. You should expect the repair or replacement to take approximately
30 days.
How long is the limited warranty period?
The limited warranty period for the PRODUCT extends for ONE (1) YEAR from the date of
purchase. If the manufacturer repairs or replaces a materially defective PRODUCT under the
terms of this limited warranty, this limited warranty also applies to repaired or replacement
PRODUCT for a period of either (a) 90 days from the date the repaired or replacement
PRODUCT is shipped to you or (b) the time remaining on the original one-year limited warranty;
whichever is longer.
What is not covered by this limited warranty?
This limited warranty does not cover:
PRODUCT that has been subjected to misuse, accident, shipping or other physical damage,
improper installation, abnormal operation or handling, neglect, inundation, fire, water, or
other liquid intrusion; or
PRODUCT that has been damaged due to repair, alteration, or modification by anyone other
than an authorized service representative of the manufacturer; or
2.
3.
4.
•
•
Limited warranty
Appendix
62
PRODUCT to the extent that the problem experienced is caused by signal conditions,
network reliability or cable or antenna systems; or
PRODUCT to the extent that the problem is caused by use with non-AT&T accessories; or
PRODUCT whose warranty/quality stickers, PRODUCT serial number plates or electronic
serial numbers have been removed, altered or rendered illegible; or
PRODUCT purchased, used, serviced, or shipped for repair from outside the United States
of America or Canada, or used for commercial or institutional purposes (including but not
limited to products used for rental purposes); or
PRODUCT returned without valid proof of purchase (see item 6 below); or
Charges for installation or setup, adjustment of customer controls, and installation or repair
of systems outside the unit.
5. How do you get warranty service?
To obtain warranty service, visit our website at www.telephones.att.com or call
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
NOTE: Before calling for service, please review the user’s manual; a check of the PRODUCT’s
controls and features may save you a service call.
Except as provided by applicable law, you assume the risk of loss or damage during transit
and transportation and are responsible for delivery or handling charges incurred in the
transport of the PRODUCT(s) to the service location. The manufacturer will return repaired or
replaced PRODUCT under this limited warranty to you. Transportation, delivery or handling
charges are prepaid. The manufacturer assumes no risk for damage or loss of the PRODUCT
in transit. If the PRODUCT failure is not covered by this limited warranty, or proof of purchase
does not meet the terms of this limited warranty, the manufacturer will notify you and will
request that you authorize the cost of repair prior to any further repair activity. You must pay
for the cost of repair and return shipping costs for the repair of products that are not covered
by this limited warranty.
6. What must you return with the PRODUCT to get warranty service?
You must:
Return the entire original package and contents including the PRODUCT to the service
location along with a description of the malfunction or difficulty; and
Include a “valid proof of purchase” (sales receipt) identifying the PRODUCT purchased
(PRODUCT model) and the date of purchase or receipt; and
Provide your name, complete and correct mailing address, and telephone number.
•
•
•
•
•
•
•
•
•
Limited warranty
Appendix
63
Limited warranty
7. Other limitations
This warranty is the complete and exclusive agreement between you and the manufacturer of
this AT&T branded PRODUCT. It supersedes all other written or oral communications related to
this PRODUCT. The manufacturer provides no other warranties for this PRODUCT. The warranty
exclusively describes all of the manufacturer’s responsibilities regarding the PRODUCT. There are
no other express warranties. No one is authorized to make modifications to this limited warranty
and you should not rely on any such modification.
State/Provincial Law rights: This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state or province to province.
Limitations: Implied warranties, including those of fitness for a particular purpose and
merchantability (an unwritten warranty that the PRODUCT is fit for ordinary use) are limited to
one year from date of purchase. Some states/provinces do not allow limitations on how long
an implied warranty lasts, so the above limitation may not apply to you. In no event shall the
manufacturer be liable for any indirect, special, incidental, consequential, or similar damages
(including, but not limited to lost profits or revenue, inability to use the PRODUCT or other
associated equipment, the cost of substitute equipment, and claims by third parties) resulting
from the use of this PRODUCT. Some states/provinces do not allow the exclusion or limitation
of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
Please retain your original sales receipt as proof of purchase.
Appendix
64
Technical specifications
Operation Operating time*
Talk time (cordless handset) Up to seven hours
Talk time (cordless handset speakerphone) Up to five hours
Standby Up to six days
* Operating times vary depending on your actual use and the age of the battery.
DECT 6.0 digital technology
The AT&T DECT 6.0 products offer unsurpassed range performance and sound clarity. This is
achieved through a unique antenna design and advances in noise-filtering technology. An
independent laboratory has confirmed that AT&T DECT 6.0 products perform up to 45% better in
range competitions against similarly equipped phones of the leading competition. Now calls can be
taken in the basement, backyard and garage with exceptional sound quality.
Telephone operating range
This cordless telephone operates within the maximum power allowed by the Federal
Communications Commission (FCC). Even so, this handset and telephone base can communicate
over only a certain distance — which can vary with the locations of the telephone base and
handset, the weather, and the construction of your home or office.
Redefining long range coverage and clarity
This telephone base comes with an antenna which gives much better clarity and covers a longer
range than before.
HD audio
HD audio improves sound quality by expanding and rebuilding frequencies that are lost with
traditional phone calls. There is no additional telephone service requirement to use HD audio. It
is designed to work with standard telephone service. Your system will automatically enhance all
received sound with HD audio.
RF frequency band 1921.536MHz - 1928.448MHz
Channels 5
Operating temperature 32°F - 122°F
0°C - 50°C
Telephone base voltage
(DC voltage, 60Hz)
96Vrms - 130Vrms
Telephone base voltage
(AC adapter output)
6VAC @ 300mA
Handset voltage 2.4VDC
Charger voltage
(AC adapter output)
6VAC @ 300mA
65
Index
Index
A
Alert tones, 46
Answering calls, 18
Auto off, 18
B
Battery charging, 7
Battery installation, 6
Blind transfer, 23
C
Caller ID (CID),
add entries to phone directory, 42
dial entries, 41
Caller ID, 38
Call transfer, 23
Call waiting, 38
Chain dialing, 22
Charger installation, 5
Clock, 12
D
Dialing,
From a record in the caller ID
history, 41
from the directory, 35
Directory,
Dial number, 35
Name search, 34
New entries, 32
Display dial, 35
DSL, 5
E
Ending calls, 18
Equalizer, 20
F
Flash, 21
H
Handset,
Quick reference guide, 1–3
Screen display message, 48
Screen icons, 46
Speakerphone, 19
Handset locator, 24
HD audio, 65
I
Important safety information, 58–59
Installation, 4
Intercom, 25
L
Language reset, 55
Lights, 47
Limited warranty, 62–64
M
Maintenance, 57
Making calls, 18
Memory match, 40
Mute, 21
N
Names,
Enter into directory, 32
Search for, 34
O
On-hook dialing (predialing), 18
66
Index
Index
P
Paging tone, 24
Phonebook, see directory, 31
Power adapter, 5
Predialing, 18
Push-to-talk, 27–30
Q
Quick reference guide, 1–3
R
Receiving calls, 18
Recharging, 7
Ringer silencing, 18
S
Safety information, 58–59
Speakerphone, 19
Speed dial, 36–37
Assign or reassign number, 36
Delete number, 37
Make a call, 37
Set voicemail number, 13
T
Technical specifications, 65
Telephone operating range, 65
Transfer (blind), 23
Troubleshooting, 50–56
V
Visual message waiting indicator, 14
Voicemail, 13
Quick access, 13, 37
Volume,
Handset, 10
Listening volume, 21
W
Wall mount installation, 8
Warranty, 62–64
© 2012 Advanced American Telephones. All Rights Reserved.
AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to
Advanced American Telephones, San Antonio, TX 78219.
Printed in China. Issue 1 AT&T 11/12.
www.telephones.att.com
