Models:
DM111 BU/DM111 PU
DM111-2 BU/DM111-2 PU
Safe & SoundTM audio monitor
User’s manual
POWER
Congratulations
on purchasing your new VTech product. Before using this product, please
read Important safety instructions on page iii of this manual.
This manual has all the feature operations and troubleshooting necessary
to install and operate your new VTech product. Please review this manual
thoroughly to ensure proper installation and operation of this innovative and
feature rich VTech product. For support, shopping, and everything new at
VTech, visit our website at www.vtechphones.com. In Canada, please visit
www.vtechcanada.com.
Register online to get an additional 3-month warranty!
Visit www.vtechphones.com.
Registration
Register your product online for enhanced warranty
support.
Product news
Learn about the latest VTech products.
ii
Product introduction
DM111 is an audio monitor which consists of one baby unit (DM111 BU) and
one parent unit (DM111 PU).
DM111-2 is an audio monitor which consists of one baby unit (DM111-2 BU)
and two parent units (DM111-2 PU).
POWER
POWER
iii
Important safety instructions
When using your equipment, basic safety precautions should always be followed to
reduce the risk of re, electric shock and injury, including the following:
Follow all warnings and instructions marked on the product.
Adult setup is required.
This product is intended as an aid. It is not a substitute for responsible and proper
adult supervision and should not be used as such.
This product is not intended for use as a medical monitor.
Do not use this product near water. For example, do not use it next to a bath tub,
wash bowl, kitchen sink, laundry tub or swimming pool, or in a wet basement
or shower.
CAUTION: Use only the battery indicated in this manual. There may be a risk of
explosion if a wrong type of battery is used for the parent unit. Do not dispose of
batteries in a re. They may explode. Check with local codes for possible special
disposal instructions.
Use only the adapters included with this product. Incorrect adapter polarity or
voltage can seriously damage the product.
Baby unit power adapter: Input 117V AC 60 Hz; output: 6V AC 300 mA
Parent unit power adapter: Input 100-120V AC 60 Hz; output: 6V DC 400 mA
The power adapters are intended to be correctly oriented in a vertical or oor mount
position. The prongs are not designed to hold the plug in place if it is plugged into a
ceiling, under-the-table or cabinet outlet.
Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol
cleaners. Use a damp cloth for cleaning.
Unplug the power cords before replacing the battery.
Do not cut off the adapters to replace them with other plugs, as this causes a
hazardous situation.
Do not allow anything to rest on the power cords. Do not install this product where
the cords may be walked on or crimped.
This product should be operated only from the type of power source indicated on the
marking label. If you are not sure of the type of power supply in your home, consult
your dealer or local power company.
Do not overload wall outlets or use an extension cord.
Do not place this product on an unstable table, shelf, stand or other unstable
surfaces.
This product should not be placed in any area where proper ventilation is not
provided. Slots and openings in the back or bottom of this product are provided for
ventilation. To protect them from overheating, these openings must not be blocked
by placing the product on a soft surface such as a bed, sofa or rug. This product
should never be placed near or over a radiator or heat register.
Never push objects of any kind into this product through the slots because they may
touch dangerous voltage points or create a short circuit. Never spill liquid of any kind
on the product.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
iv
Important safety instructions (continued)
To reduce the risk of electric shock, do not disassemble this product, but take it to
an authorized service facility. Opening or removing parts of the product other than
specied access doors may expose you to dangerous voltages or other
risks. Incorrect reassembling can cause electric shock when the product is
subsequently used.
You should test the sound reception every time you turn on the units or move one of
the components.
Periodically examine all components for damage.
Be aware of possible loss of privacy while using public airwaves. Conversations may
be picked up by other nursery monitors, cordless phones, scanners, etc.
Children should be supervised to ensure that they do not play with the product.
The product is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
SAVE THESE INSTRUCTIONS
18.
19.
20.
21.
22.
23.
v
Cautions
Use and store the product at a temperature between 32oF and 104oF.
Do not expose the product to extreme cold, heat or direct sunlight. Do not put the
product close to a heating source.
The batteries should not be exposed to excessive heat such as bright sunshine or
re.

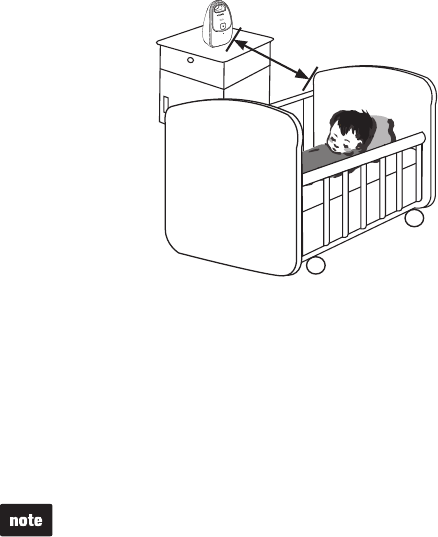

Make sure the baby unit and the adapter cord are always out of reach of the baby,
at least 1 metre away from the baby or crib, to avoid a possible strangulation
hazard.
Never place the baby unit inside the baby’s crib or playpen.
Never cover the baby unit or parent unit(s) with anything such as a towel or
a blanket.
Other electronic products may cause interference with your audio monitor.
Try installing your audio monitor as far away from these electronic devices as
possible: wireless routers, radios, cellular telephones, intercoms, room monitors,
televisions, personal computers, kitchen appliances and cordless telephones.
Electromagnetic elds (EMF)
This VTech product complies with all standards regarding electromagnetic elds (EMF).
If handled properly and according to the instructions in this user’s manual, the product is
safe to be used based on scientic evidence available today.
1.
2.
3.
4.
5.
6.
7.
vi
Table of contents
Getting started ...................................................................1
Parts checklist ......................................................................1
Baby unit installation ............................................................2
Parent unit battery installation ..............................................3
Parent unit installation ..........................................................4
Baby unit overview ...............................................................5
Parent unit overview .............................................................6
Parent unit lights...................................................................7
Positioning and operating range ..........................................8
Positioning the audio monitor ...............................................8
Audio settings .......................................................................8
Operating range ...................................................................8
Test your audio monitor before use ...................................... 9
Using your audio monitor ...............................................10
Power on or off the baby unit.............................................. 10
Power on or off the parent unit ........................................... 10
Speaker volume ................................................................. 10
Appendix ........................................................................... 11
Parent unit battery .............................................................. 11
Troubleshooting .................................................................. 12
Operating range.................................................................. 15
Maintenance ....................................................................... 15
Precautions for users of implanted cardiac pacemakers .... 16
Limited warranty ................................................................. 17
FCC and IC regulations ...................................................... 19
FCC Part 15 ........................................................................ 19
Industry Canada ................................................................. 19
RF radiation exposure statement .......................................20
Technical specications ..................................................... 21
Index ..................................................................................22
1
Parts checklist

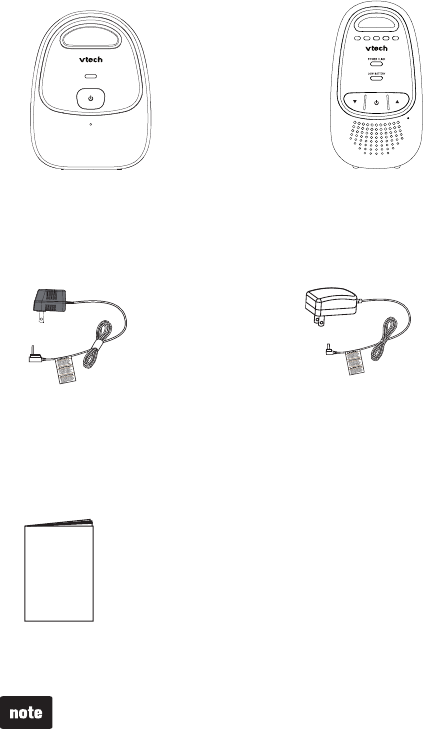

Check to make sure the package contains the following items.
Save your sales receipt and original packaging in the event warranty service
is necessary.
User’s manual
Parent unit
(DM111 PU/DM111-2 PU)
(1 for DM111 PU and
2 for DM111-2 PU)
Baby unit
(DM111 BU/DM111-2 BU)
Power adapter for
baby unit
Getting started
User’s manual
To purchase any accessories or replacements, visit our website at
www.vtechphones.com or call 1 (800) 595-9511. In Canada, go to
www.vtechcanada.com or call 1 (800) 267-7377.
Power adapter for
parent unit
(1 for DM221 PU and
2 for DM221-2 PU)
POWER
2
Getting started
POWER
Baby unit installation
You can power up the baby unit by connecting it to AC power.

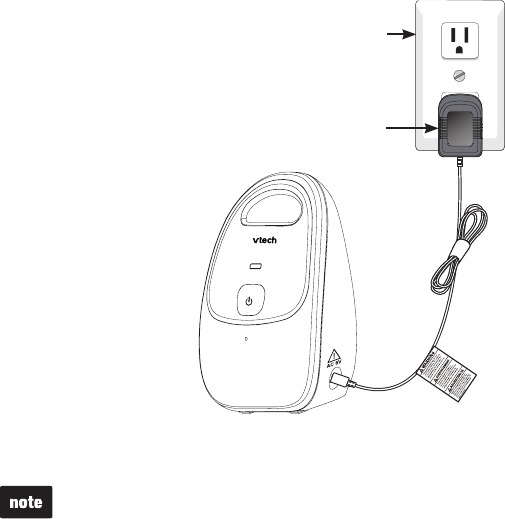

Install the baby unit as shown below.
Make sure that the power outlet is not controlled by a wall switch. Bundle the
power adapter cord neatly with a twist tie.
The baby unit turns on when it is powered up.
Use only the power adapter supplied with this product. To order a
replacement, visit our website at www.vtechphones.com or call
1 (800) 595-9511. In Canada, go to www.vtechcanada.com or call
1 (800) 267-7377.
The power adapter is intended for a vertical or oor mount position. The
prongs are not designed to hold the plug in place if it is plugged into a ceiling,
under-the-table or cabinet outlet.
Make sure the baby unit and the power adapter cord are out of reach of
children.
•
•
•
Baby unit
Power outlet not
controlled by a
wall switch
Power adapter
3
Getting started
Parent unit battery installation
You can power up the parent unit by connecting it to AC power or installing
2 AAA alkaline batteries (not included) into it. Even if the parent unit is
connected to AC power, we recommend you also install the batteries. This
guarantees continued operation in case of a power outage.
Install the battery as shown below.

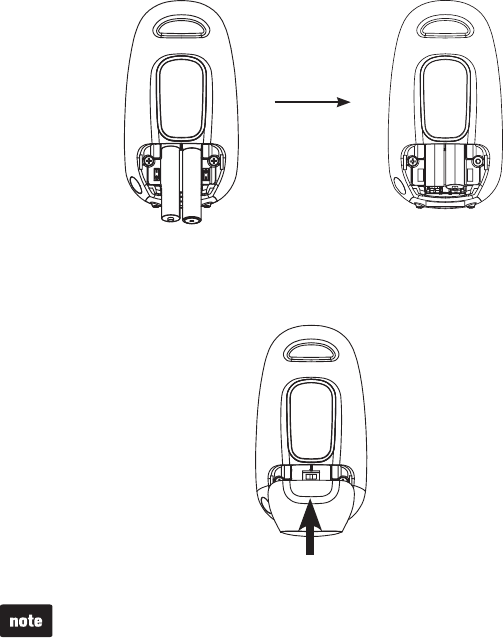

Place the 2 AAA alkaline batteries into the battery compartment as
indicated following the polarity signs.
Align the cover at against the battery compartment, then slide it towards
the center of the parent unit until it clicks into place.
1.
2.
When the batteries are installed, the parent unit turns on.
Use only the AAA alkaline batteries (not included).
•
•
baby’s safetyworld
Parent Unit
baby’s safetyworld
Parent Unit
baby’s safety world
Parent Unit
4
Getting started
Parent unit installation

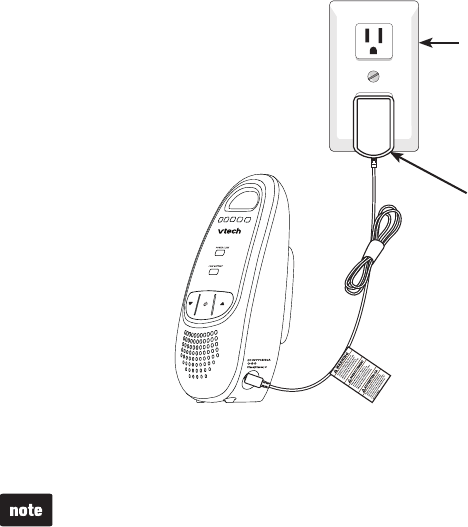

Install the parent unit as shown below.
Make sure that the power outlet is not controlled by a wall switch. Bundle the
power adapter cord neatly with a twist tie.
Use only the power adapter supplied with this product. To order a
replacement, visit our website at www.vtechphones.com or call
1 (800) 595-9511. In Canada, go to www.vtechcanada.com or call
1 (800) 267-7377.
The power adapter is intended for a vertical or oor mount position. The
prongs are not designed to hold the plug in place if it is plugged into a ceiling,
under-the-table or cabinet outlet.
Make sure the parent unit and the power adapter cord are out of reach of
children.
•
•
•
Parent unit
Power outlet not
controlled by a
wall switch
Power adapter
5
Getting started

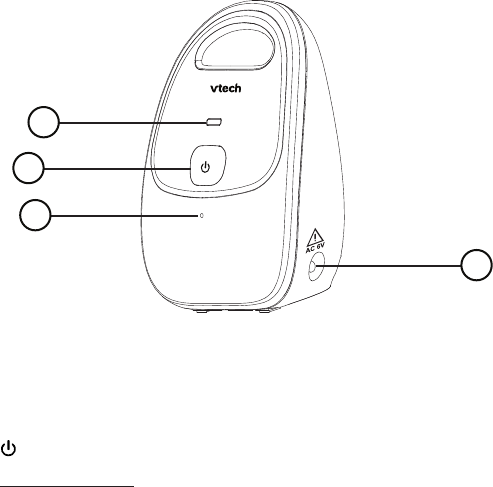

Baby unit overview
1. POWER Light
On when the baby unit turns on.
2. (On/off)
Press and hold to turn on or off the baby unit.
3. Microphone
4. Power Jack
1
2
3
4
POWER
6
Getting started

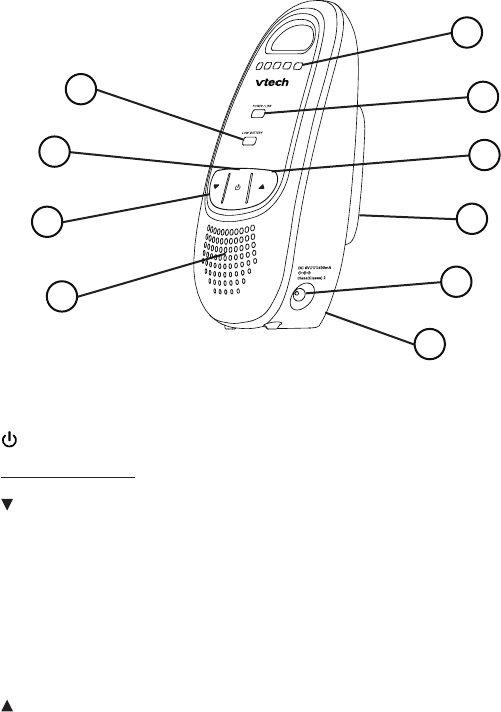

Parent unit overview
5
6
1
2
3
4
7
8
9
10
1. LOW BATTERY Light
2. (On/off)
Press and hold to turn on or off the parent unit.
3. (Volume down)
Press to decrease
the speaker volume.
4. Speaker
To listen to sounds transmitted from the baby unit.
5. Sound Level Indicatiors
6. POWER / LINK Light
7. (Volume up)
Press to increase
the speaker volume.
8. Belt Clip
9. Power Jack
10. Battery Compartment Cover
baby’s safety world
Parent Unit
7
Getting started
Parent unit overview
Parent unit lights
3 green lights and 2 red lights indicating the sound level
detected by the baby unit.
Green lights indicate a moderate level of sound is
detected.
Red lights indicate a higher level of sound is detected.
More lights turn on when the sound level detected
increases.
POWER / LINK Off when the parent unit is off.
On in green steadily when the parent unit is on and is
linked to the baby unit.
Flashes in green when there is no link between the
baby unit and parent unit.
LOW BATTERY
Off when the battery is fully depleted.
On in red steadily when the battery is full.
Flashes in red when the battery is low.
8
Getting started
Positioning and operating range
Positioning the audio monitor
Place the parent unit within the operating range (see below) of the baby unit.
We recommend you place the parent unit at least 1 metre away from the baby
unit to avoid audio feedback. If you still experience audio feedback, move the
parent unit and the baby unit farther apart.
Audio settings
You may need to turn the speaker volume on the parent unit louder to hear
the sounds transmitted from the baby unit (see page 10).
Operating range
The operating range of the audio monitor is up to 300 metres outdoors or
50 metres indoors. The actual operating range may vary depending on the
environmental conditions and other interferences such as walls, doors and
other obstructions.
It is the caregiver’s responsibility to stay close enough to take care of
any eventuality.
At least 1 metre
POWER
9
Getting started
Test your audio monitor before use
It is important to test the audio monitor when it is installed initially, and at
regular times thereafter. Test your parent units and baby unit if they have not
been used for a long time or you suspect they are defective.
To test your audio monitor:
Place the parent unit and the baby unit in the same room to test the product.
Make sure the baby unit is at least 1 metre away from the parent unit.
Install the baby unit and the parent unit as described on pages 2 to 4. Both
units should turn on when they are powered up.
When the parent unit is linked to the baby unit, the POWER / LINK light on
the parent unit will be on.
If no connection can be established, the POWER / LINK light on the parent
unit ashes.
1.
2.
3.
10

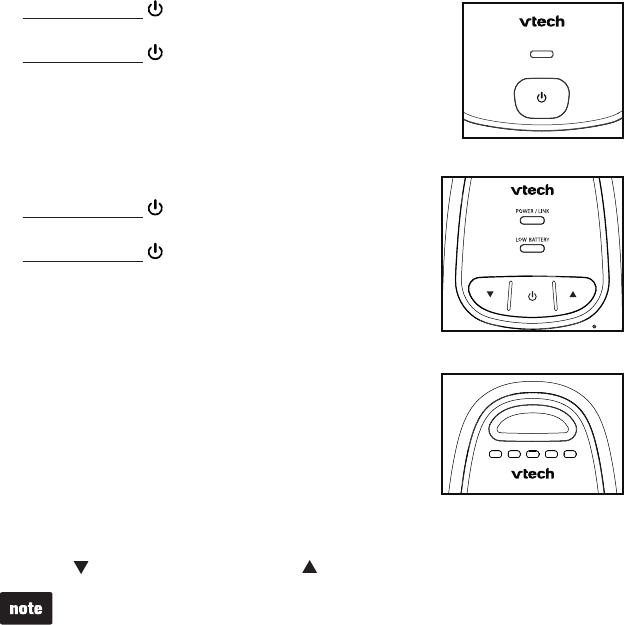

Power on or off the baby unit
Press and hold for 2 seconds to turn on the baby
unit. The POWER light turns on.
Press and hold for 2 seconds again to turn off the
baby unit. The POWER light turns off.
Power on or off the parent unit
Press and hold for 2 seconds to turn on the
parent unit. The POWER / LINK light turns on.
Press and hold for 2 seconds again to turn off
the parent unit. The POWER / LINK light turns off.
Speaker volume
You can change the speaker volume
(listening volume) from VOLUME 1 to VOLUME 5,
or turn it off. The speaker volume is preset to
VOLUME 3.
When the speaker volume is off, the sound level
indicators light off.
To adjust the speaker volume:
Press to increase the volume or to decrease the volume.
When the volume reaches the minimum or maximum setting, you hear a beep.
•
•
•
•
•
Using your audio monitor
POWER
11
Appendix
Parent unit battery
When the battery is full, you can expect the following performance:
Operation Operating time
While in standby* mode Up to 8 days
* The parent unit is not connected to the power supply. There is no sound detected
from the baby unit. The standby time varies depending on your actual use and the age
of the battery.
The batteries need to be replaced when:
The parent unit beeps four times every minute.
The batteries are properly installed into the parent unit and the POWER / LINK light
on the parent unit is not on.
LOW BATTERY light ashes on the parent unit.
CAUTION:
To reduce the risk of re or injury, read and follow these instructions:
Use only the AAA alkaline batteries (not included). To order a replacement, visit our
website at www.vtechphones.com or call
1 (800) 595-9511. In Canada, go to www.vtechcanada.com or call 1 (800) 267-7377.
Do not dispose of the batteries in a re. Check with local waste management codes
for special disposal instructions.
Do not open or mutilate the batteries. Released electrolyte is corrosive and may
cause burns or injury to the eyes or skin. The electrolyte may be toxic if swallowed.
Exercise care in handling the batteries in order not to create a short circuit with
conductive materials.
Charge the batteries identied for use with this product only in accordance with the
instructions and limitations specied in this manual.
Observe proper polarity orientation between the battery and metallic contacts.
To prevent re or shock hazard, do not expose this product to water or any type
of moisture.
•
•
•
•
•
•
•
•
•
•
12
Appendix
Troubleshooting
If you have difculty with this product, please try the suggestions below. For
customer service, visit our website at www.vtechphones.com or call
1 (800) 595-9511. In Canada, go to www.vtechcanada.com or call
1 (800) 267-7377.
My audio monitor does not work at all.
Make sure the baby unit and the parent units are installed correctly (pages 2 to 4).
Make sure the parent unit batteries are installed and connected to the power supply
correctly (pages 3 and 4). For optimum daily performance, keep the parent unit
connected to the power supply when it is not is use.
Make sure the power adapters are securely plugged into the outlet not controlled by a
wall switch.
Make sure the power adapter cords are plugged rmly into the baby unit and
parent unit.
Make sure the baby unit and the parent unit are turned on.
The parent unit may be too far away from the baby unit. Move the parent unit closer
to the baby unit (but not less than 1 metre).
Unplug the electrical power to the baby unit and parent unit. Wait for approximately
15 seconds, then plug it back in. Turn on the baby unit and the parent unit. Allow up
to one minute for the baby unit and the parent unit to synchronize.
Replace the AAA alkaline batteries with new ones of the same type.
Completely remove and install the batteries again. If that still does not work, it may be
necessary to use new batteries.
Large obstructions may impact the reception. Try to relocate the baby unit, away from
large obstructions such as walls and doors.
Other electronic products such as HAM radios and DECT cordless phones can cause
interference with your audio monitor. Try installing your audio monitor as far away as
possible from these types of electronic devices.
The audio monitor produces high-pitched noise.
The parent unit may be too close to the baby unit or another parent unit. Make sure
the parent units and the baby unit are at least 1 metre away from one another.
My parent unit plays any sounds from the baby unit and I think it is too
noisy.
You may need to adjust the speaker volume on the parent unit (page 10).
•
•
•
•
•
•
•
•
•
•
•
•
•
13
Appendix
Troubleshooting (continued)
My parent unit does not play any sound when there is noise from the
baby unit.
Make sure the parent unit is powered up by connecting it to AC power (page(page 4) or
installing the AAA alkaline batteries into it ( (page 3).
Make sure the power adapter and the parent unit are plugged in correctly and
securely (page(page 4)..
Make sure the parent unit is turned on (page 10) and the speaker volume is not set to
off (page 10).
The parent unit may be too far away from the baby unit. Move the parent unit closer
to the baby unit (but not less than 1 metre).
If the parent unit is powered by the batteries, make sure there is sufcient charge.
Other electronic products such as HAM radios and DECT cordless phones can cause
interference with your audio monitor. Try installing your audio monitor as far away as
possible from these types of electronic devices.
Large obstructions may impact the reception. Try to relocate the baby unit, away from
large obstructions such as walls and doors.
Completely remove and install the batteries again. Turn on the baby unit and
the parent unit. Allow up to one minute for the parent unit and the baby unit to
synchronize.
The LOW BATTERY light ashes on the parent unit.
Replace the AAA alkaline batteries with new ones of the same type.
Completely remove and install the batteries again and use it until fully depleted, then
replace the AAA alkaline batteries with new ones of the same type.
.
The LOW BATTERY light on the parent unit is off.
Replace the AAA alkaline batteries with new ones of the same type.
The parent unit beeps and is not performing normally.
Make sure the baby unit is turned on.
Move the parent unit closer to the baby unit (but not less than 1 metre). The parent(but not less than 1 metre). The parent. The parent
unit may be out of range.
If the parent unit is powered by the batteries, it may not have enough charge for the
parent unit to perform normally. Replace the AAA alkaline batteries with new ones of
the same type.
Reset the parent units and the baby unit by turning them off and unplugging the
electrical power to the parent units and the baby unit. Wait for 15 seconds and plug
them back in again. Turn on the parent units and the baby unit. Allow up to one
minute for the parent unit and the baby unit to synchronize.
Other electronic products such as HAM radios and DECT cordless phones can cause
interference with your audio monitor. Try installing your audio monitor as far away as
possible from these types of electronic devices.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
14
Appendix
Troubleshooting (continued)
The link between the baby unit and the parent unit is lost every now and
then, and I’m experiencing sound interruptions.
Move the parent unit closer to the baby unit (but not less than 1 metre). The parent
unit may be out of range.
Reset the baby unit by unplugging the electrical power to the baby unit. Wait for 15
seconds and plug it back in again. Turn on the baby unit and the parent unit. Allow up
to one minute for the parent unit and the baby unit to synchronize.
Common cure for electronic equipment.
If the audio monitor is not responding normally, try the following (in the order listed):
1. Disconnect the power to the baby unit and the parent units.
2. Remove the batteries from the parent units and then install again.
3. Wait a few minutes before connecting power back to the baby unit and the
parent units.
4. The baby unit and the parent units should turn on when they are powered up.
5. Wait for the parent units to synchronize with the baby unit. Allow up to one minute
for this to take place.
•
•
•
15
Appendix
Operating range
This product operates with the maximum power allowed by the Federal Communications
Commission (FCC). Even so, the baby unit and the parent unit can communicate over
only a certain distance - which can vary with the locations of the baby unit, the parent
unit, the weather, and the layout of your home.
When the parent unit is out of range, the parent will beep and enter searching mode.
To improve reception, move closer to the baby unit (but not less than 1 metre).
Maintenance
Taking care of your audio monitor
Your audio monitor contains sophisticated electronic parts, so it must be treated
with care.
Avoid rough treatment
Place the baby unit and parent unit down gently. Save the original packing materials to
protect your audio monitor if you ever need to ship it.
Avoid water
Your audio monitor can be damaged if it gets wet. Do not use the parent unit and/or
baby unit outdoors in the rain, or handle it with wet hands. Do not install the audio
monitor near a sink, bathtub or shower.
Electrical storms
Electrical storms can sometimes cause power surges harmful to electronic equipment.
For your own safety, take caution when using electrical appliances during storms.
Cleaning your audio monitor
Your audio monitor has a durable plastic casing that should retain its luster for many
years. Clean it only with a soft cloth slightly dampened with water or mild soap. Do not
use excess water or cleaning solvents of any kind.
Remember that electrical appliances can cause serious injury if used when you are wet or
standing in water. If the baby unit and/or parent units should fall into water, DO NOT RETRIEVE
IT UNTIL YOU UNPLUG THE POWER CORDS FROM THE WALL. Then pull the units out by
the unplugged cords.
16
Appendix
Precautions for users of implanted cardiac pacemakers
Cardiac pacemakers (applies only to digital cordless devices):
Wireless Technology Research, LLC (WTR), an independent research entity, led a
multidisciplinary evaluation of the interference between portable wireless devices and
implanted cardiac pacemakers. Supported by the U.S. Food and Drug Administration,
WTR recommends to physicians that:
Pacemaker patients
Should keep wireless devices at least six inches from the pacemaker.
Should NOT place wireless devices directly over the pacemaker, such as in a breast
pocket, when it is turned ON.
WTR’s evaluation did not identify any risk to bystanders with pacemakers from other
persons using wireless devices.
•
•
17
Appendix
Limited warranty
What does this limited warranty cover?
The manufacturer of this VTech Product warrants to the holder of a valid proof of
purchase (“Consumer” or “you”) that the Product and all accessories provided in
the sales package (“Product”) are free from defects in material and workmanship,
pursuant to the following terms and conditions, when installed and used normally and in
accordance with the Product operating instructions. This limited warranty extends only
to the Consumer for Products purchased and used in the United States of America
and Canada.
What will VTech do if the Product is not free from defects in materials and
workmanship during the limited warranty period (“Materially Defective Product”)?
During the limited warranty period, VTech’s authorized service representative will repair
or replace at VTech’s option, without charge, a Materially Defective Product. If we repair
the Product, we may use new or refurbished replacement parts. If we choose to replace
the Product, we may replace it with a new or refurbished Product of the same or similar
design. We will retain defective parts, modules, or equipment. Repair or replacement of
the Product, at VTech’s option, is your exclusive remedy. VTech will return the repaired
or replacement Products to you in working condition. You should expect the repair or
replacement to take approximately 30 days.
How long is the limited warranty period?
The limited warranty period for the Product extends for ONE (1) YEAR from the date of
purchase. If VTech repairs or replaces a Materially Defective Product under the terms
of this limited warranty, this limited warranty also applies to the repaired or replacement
Product for a period of either (a) 90 days from the date the repaired or replacement
Product is shipped to you or (b) the time remaining on the original one-year warranty;
whichever is longer.
What is not covered by this limited warranty?
This limited warranty does not cover:
1. Product that has been subjected to misuse, accident, shipping or other physical
damage, improper installation, abnormal operation or handling, neglect, inundation,
re, water or other liquid intrusion; or
2. Product that has been damaged due to repair, alteration or modication by anyone
other than an authorized service representative of VTech; or
3. Product to the extent that the problem experienced is caused by signal conditions,
network reliability, or cable or antenna systems; or
4. Product to the extent that the problem is caused by use with non-VTech
accessories; or
5. Product whose warranty/quality stickers, product serial number plates or electronic
serial numbers have been removed, altered or rendered illegible; or
6. Product purchased, used, serviced, or shipped for repair from outside the United
States of America or Canada, or used for commercial or institutional purposes
(including but not limited to Products used for rental purposes); or
7. Product returned without a valid proof of purchase (see item 2 on the next page); or
8. Charges for installation or set up, adjustment of customer controls, and installation or
repair of systems outside the unit.
18
Appendix
How do you get warranty service?
To obtain warranty service in the United States of America, visit
www.vtechphones.com or call 1 (800) 595-9511. In Canada, go to
www.vtechcanada.com or call 1 (800) 267-7377. NOTE: Before calling for service,
please review the user’s manual - a check of the Product’s controls and features may
save you a service call.
Except as provided by applicable law, you assume the risk of loss or damage during
transit and transportation and are responsible for delivery or handling charges incurred
in the transport of the Product(s) to the service location. VTech will return repaired
or replaced Product under this limited warranty. Transportation, delivery or handling
charges are prepaid. VTech assumes no risk for damage or loss of the Product in
transit. If the Product failure is not covered by this limited warranty, or proof of purchase
does not meet the terms of this limited warranty, VTech will notify you and will request
that you authorize the cost of repair prior to any further repair activity. You must pay
for the cost of repair and return shipping costs for the repair of Products that are not
covered by this limited warranty.
What must you return with the Product to get warranty service?
Return the entire original package and contents including the Product to the VTech
service location along with a description of the malfunction or difculty; and
Include a “valid proof of purchase” (sales receipt) identifying the Product purchased
(Product model) and the date of purchase or receipt; and
Provide your name, complete and correct mailing address, and telephone number.
Other limitations
This warranty is the complete and exclusive agreement between you and VTech. It
supersedes all other written or oral communications related to this Product. VTech
provides no other warranties for this Product. The warranty exclusively describes all of
VTech’s responsibilities regarding the Product. There are no other express warranties.
No one is authorized to make modications to this limited warranty and you should not
rely on any such modication.
State/Provincial Law Rights: This warranty gives you specic legal rights, and you may
also have other rights, which vary from state to state or province to province.
Limitations: Implied warranties, including those of tness for a particular purpose and
merchantability (an unwritten warranty that the Product is t for ordinary use) are limited
to one year from the date of purchase. Some states/provinces do not allow limitations
on how long an implied warranty lasts, so the above limitation may not apply to you.
In no event shall VTech be liable for any indirect, special, incidental, consequential, or
similar damages (including, but not limited to lost prots or revenue, inability to use the
Product or other associated equipment, the cost of substitute equipment, and claims
by third parties) resulting from the use of this Product. Some states/provinces do not
allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you.
Please retain your original sales receipt as proof of purchase.
1.
2.
3.
Limited warranty (continued)
19
Appendix
FCC and IC regulations
FCC Part 15
This equipment has been tested and found to comply with the requirements for a
Class B digital device under Part 15 of the Federal Communications Commission
(FCC) rules. These requirements are intended to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modications to this equipment not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
To ensure safety of users, the FCC has established criteria for the amount of radio
frequency energy that can be safely absorbed by a user or bystander according to the
intended usage of the product. This product has been tested and found to comply with
the FCC criteria. The baby unit shall be installed and used such that parts of the baby’s
body are maintained at a distance of approximately 8 in (20 cm) or more.
This Class B digital apparatus complies with Canadian requirement:
CAN ICES-3 (B)/NMB-3(B)
For body worn operation, this parent unit has been tested and meets the FCC RF
exposure guidelines when used with the accessories supplied or designated for this
product. Use of other accessories may not ensure compliance with FCC RF exposure
guidelines.
Industry Canada
Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference, including
interference that may cause undesired operation.
The term ‘’IC:‘’ before the certication/registration number only signies that the Industry
Canada technical specications were met.
This product meets the applicable Industry Canada technical specications.
•
•
•
•
20
Appendix
RF radiation exposure statement
The baby unit complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. The baby unit should be installed and operated with a
minimum distance of 8 in (20 cm) between the baby unit and the baby’s body. For
hand held operation, the parent unit has been tested and meets the FCC RF exposure
guidelines. Use of other accessories may not ensure compliance with FCC RF
exposure guidelines. For body worn operation, the parent unit has been tested and
meets the FCC RF radiation exposure guideline when used with the belt clip. Use of
other accessories may not ensure compliance with FCC RF exposure guidelines. This
transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter. This equipment complies also with Industry Canada RSS-102 with respect
to Canada’s Health Code 6 for Exposure of Humans to RF Fields.
FCC and IC regulations (continued)
21
Appendix
Frequency control Crystal controlled PLL synthesizer
Transmit frequency Baby unit: 1921.536-1928.448 MHz
Parent unit: 1921.536-1928.448 MHz
Channels 5
Nominal effective range Maximum power allowed by FCC and IC. Actual operating
range may vary according to environmental conditions at
the time of use.
Power requirements Baby unit adapter: Input: 117V AC 60Hz
Output: 6V AC @ 300mA
Parent unit adapter: Input: 100-120V AC 60Hz
Output: 6V DC @ 400mA
Parent unit battery: 2 X AAA 2.4V 400mAh alkaline batteries
Technical specications
22
Index
A
Audio settings 8
B
Baby unit installation 2
Baby unit operation 10
Baby unit overview 5
Battery 11
Battery installation 3
C
Cardiac pacemakers 16
Cautions v
F
FCC and IC regulations 19–20
I
Important safety instructions iii–iv
Installation 2–5
L
Limited warranty 17–18
M
Maintenance 15
O
Operating range 8, 15
Operation 10–11
Overview 5, 6
P
Pacemaker patients 16
Parent unit battery 11
Parent unit battery installation 3–4
Parent unit installation 4
Parent unit overview 6
Parts checklist 1
Position for the audio baby monitor 8
Power off the baby unit 10
Power off the parent unit 10
Power on the baby unit 10
Power on the parent unit 10
R
Range 8, 15
S
Safety instructions iii–iv
Speaker volume 10
T
Technical specications 21
Test your baby monitor 9
Troubleshooting 12–14
Turn off the baby unit 10
Turn off the parent unit 10
Turn on the baby unit 10
Turn on the parent unit 10
V
Volume 10
W
Warranty 17–18
VTECH TELECOMMUNICATIONS LTD.
A member of THE VTECH GROUP OF COMPANIES.
VTech is the registered trademark of VTech Holdings Limited.
Copyright © 2013 for VTECH TELECOMMUNICATIONS LTD.
All rights reserved. Version 1 09/13.
