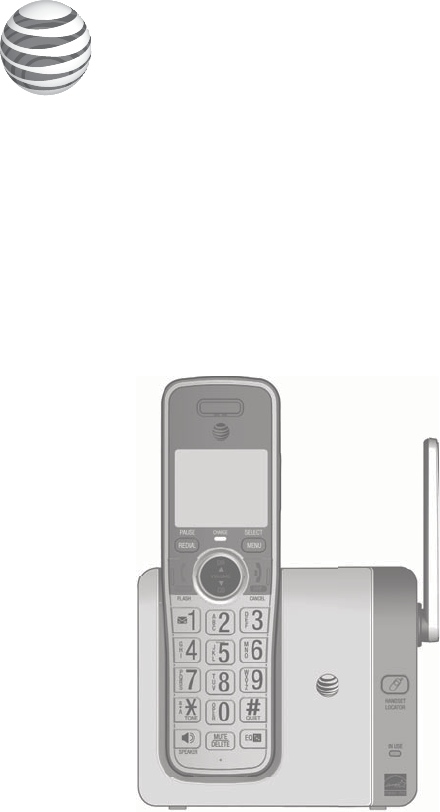

VTech Telecommunications Ltd DECT 6.0 Cordless Telephone
Users Manual
Complete user’s manual
CL81114/CL81214
DECT 6.0 cordless telephone
with caller ID/call waiting
Congratulations
on your purchase of this AT&T product. Before using this AT&T
product, please read the Important safety information section on
pages 85-87 of this manual. For complete instructions, please
refer to the manual provided with your CL81114/CL81214 telephone.
You can also visit our website at www.telephones.att.com or
call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
This telephone meets the California Energy Commission regulations
for energy consumption. Your telephone is set up to comply with the
energy-conserving standards right out of the box. No further action
is necessary.
This telephone system is compatible with certain AT&T DECT 6.0
cordless headsets and speakerphones. Visit
www.telephones.att.com/accessories for a list of
compatible cordless headsets and speakerphones.
Model number: CL81114 (one handset)
CL81214 (two handsets)
Type: DECT 6.0 cordless telephone with caller ID/
call waiting
Serial number:
Purchase date:
Place of purchase:
Both the model and serial numbers of your AT&T product can be
found on the bottom of the telephone base.
Save your sales receipt and original packaging in case it is
necessary to return your telephone for warranty service.
Telephones identified with this logo have reduced noise and
interference when used with most T-coil equipped hearing aids and
cochlear implants. The TIA-1083 Compliant Logo is a trademark of
the Telecommunications Industry Association. Used under license.
© 2014 Advanced American Telephones. All Rights Reserved. AT&T and
the AT&T logo are trademarks of AT&T Intellectual Property licensed to
Advanced American Telephones, San Antonio, TX 78219. Printed in China.
The ENERGY STAR® program (www.energystar.gov) recognizes and
encourages the use of products that save energy and help protect
our environment. We are proud to supply this product with an
ENERGY STAR® qualified power adapter meeting the latest energy
efficiency guidelines.

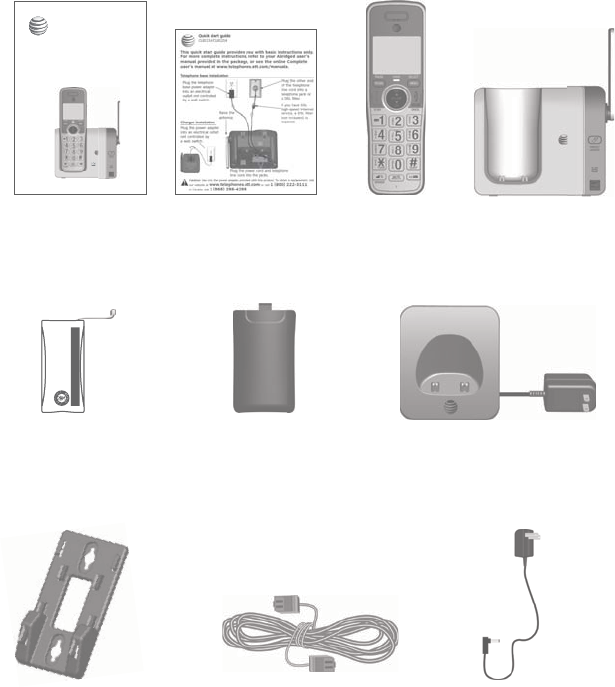

Parts checklist
Your telephone package contains the following items. Save your
sales receipt and original packaging in the event warranty service
is necessary.
Battery for
cordless handset
(1 for CL81114)
(2 for CL81214)
Cordless handset
(1 for CL81114)
(2 for CL81214)
Charger for cordless
handset with power
adapter installed
Battery
compartment cover
(1 for CL81114)
(2 for CL81214)
User’s manual
User’s manual
CL81114/ CL81214
DECT 6.0 cordless telephone
with caller ID/call waiting
THIS SIDE UP / CE CÔTÉ VERS LE HAUT
Battery Pack / Bloc-piles :
BT183342/BT283342 (2.4V 400mAh Ni-MH)
WARNING / AVERTISSEMENT :
DO NOT BURN OR PUNCTURE BATTERIES.
NE PAS INCINÉRER OU PERCER LES PILES.
Made in China / Fabriqué en chine CR1349
Telephone line cordWall mount bracket
Quick start guide Telephone base
Power adapter for
telephone base
Complete user’s manual
CL81114/CL81214
DECT 6.0 cordless telephone
with caller ID/call waiting
Getting started
Quick reference guide -
handset............................................. 2
Telephone base and charger
installation ...................................... 6
Telephone base installation ... 6
Charger installation .................... 7
Installation options .......................11
Wall-mount to tabletop
installation ....................................12
Telephone settings
Handset settings ............................13
Ringer volume .............................14
Ringer tone ...................................15
Set date/time ..............................16
LCD language ..............................17
Set speed dial voicemail
number ...........................................19
Voicemail (visual message
waiting) indicator.......................19
Clear voicemail indication ...20
Key tone .........................................21
Use caller ID to automatically
set date and time ......................21
Home area code.........................22
Dial mode ......................................23
Web address ................................23
QUIET mode .................................24
Telephone operation
Telephone operation....................25
Making a call................................25
On hook dialing
(predialing)....................................25
Answering a call ........................25
Ending a call ................................25
Auto off ..........................................25
Temporary ringer silencing ...26
Handset speakerphone ...........26
Last number redial ....................26
Equalizer ........................................27
Options while on call ..................28
Volume control ...........................28
Call waiting ...................................28
Mute .................................................28
Chain dialing ................................29
Temporary tone dialing ..........30
Blind transfer ...............................30
Multiple handset use
Multiple handset use ...................32
Handset locator ..........................32
Join a call in progress .............32
Intercom .............................................34
Answer an incoming call
during an intercom call ..........34
Call transfer using intercom ....35
Push-to-talk (PTT) .........................36
Table of contents
Turn PTT on or off .....................36
PTT call to a single
handset...........................................37
PTT call to multiple
handsets ........................................38
Answer a PTT call ......................39
Change a one-to-one PTT
call to an intercom call ..........40
Answer an incoming call
during a PTT call ........................40
Make an outgoing call
during PTT call ............................41
End or leave a PTT call ...........41
Directory
About the directory ......................42
Shared directory .........................42
Capacity .........................................42
Create a new directory
entry ................................................43
Create directory entries .............44
Review directory entries ........45
Review the directory ....................45
Search the directory ....................46
Search by name .........................46
Dial, delete or edit directory
entries .............................................47
Display dial ...................................47
Delete a directory entry .........47
Edit a directory entry ...............48
Speed dial .........................................49
Assign a speed dial
number ...........................................49
Assign your voicemail
speed dial number ....................50
Reassign a speed dial
number ...........................................50
Delete a speed dial
number ...........................................51
Make a call using speed
dial ....................................................52
Check your voicemail using
speed dial ......................................52
Caller ID
About caller ID ...............................53
Information about caller ID
with call waiting ........................53
Call ID history .................................54
How the caller ID history
(caller ID log) works.................54
Missed (new) call indicator ...54
Call ID operation ...........................55
Memory match ............................55
Review the caller ID history ...
56
View dialing options .................57
Dial a caller ID log entry .......58
Delete caller ID log entries....58
Save a caller ID log entry to
the directory ................................58
Reasons for missing caller ID
information ...................................60
Call block
About call block .............................61
Add a call block entry .............62
Review call block list ...............63
Save a caller ID log entry to
call block list ...............................64
Edit a call block entry .............65
Delete a call block entry .......66
Block calls without number ...
66
Appendix
Adding and registering
handsets ........................................67
Register a handset to your
telephone base .........................68
Deregistering handsets ..............69
Deregister all handsets from
your telephone base................69
Alert tones and lights .................70
Handset screen icons ..............70
Handset alert tones ..................70
Lights ...............................................71
Screen display messages ..........72
Screen display messages .......72
Troubleshooting .............................75
Maintenance.....................................84
Important safety information ....85
Safety information.....................85
Especially about cordless
telephones ....................................86
Precautions for users of
implanted cardiac
pacemakers ..................................87
Pacemaker patients ..................87
ECO mode .....................................87
For C-UL compliance ...................88
Mesures de sécurité
importantes ..................................88
FCC Part 68 and ACTA................92
FCC Part 15 ......................................94
California Energy Commission
battery charging testing
instructions ...................................95
Limited warranty ............................96
Technical specifications .............99
DECT 6.0 digital
technology ....................................99
Telephone operating range .... 99
Redefining long range
coverage and clarity ................99
HD audio .....................................100
Simulated full-duplex
handset speakerphone ........100
Index
Index .................................................101
Installation
Getting started
1
See pages 8-10 for
easy instructions.
You must install and
charge the battery
before using the
telephone.
STOP!
Install the telephone base close to a telephone jack and a power
outlet not controlled by a wall switch. The telephone base can
be placed on a flat surface or vertically mounted on the wall
(see page 11). For optimum range and better reception, place the
telephone base in a central and open location.
If you subscribe to high-speed Internet service (DSL - digital subscriber
line) through your telephone line, you must install a DSL filter between
the telephone line cord and the telephone wall jack (see the following
page). The filter prevents noise and caller ID problems caused by
DSL interference. Please contact your DSL service provider for more
information about DSL filters.
Your product may be shipped with a protective sticker covering the
handset display - remove it before use.
For customer service or product information, visit our website at
www.telephones.att.com or call 1 (800) 222-3111. In
Canada, dial 1 (866) 288-4268.
Avoid placing the telephone base and charger too close to:
Communication devices such as television sets, VCRs, or other
cordless telephones.
Excessive heat sources.
Noise sources such as a window with traffic outside, motors,
microwave ovens, refrigerators, or fluorescent lighting.
Excessive dust sources such as a workshop or garage.
Excessive moisture.
Extremely low temperature.
Mechanical vibration or shock such as on top of a washing
machine or workbench.
•
•
•
•
•
•
•
Quick reference guide - handset
Getting started
2
CHARGE light
On when the handset is charging in the
telephone base or charger.
TCID/VOLUME
Press TCID to show caller ID log when
the handset is not in use.
Press to scroll down while in menus.
While entering names or numbers, press
to move the cursor to the left.
Press to decrease the listening volume when
on a call.
Press to decrease the message playback
volume (for models with built-in answering
system only).
•
•
•
•
•
/SPEAKERSPEAKER
Press to make or answer a call using the
speakerphone.
TONE /a>A
Press to switch to tone dialing temporarily
during a call if you have pulse service.
While entering names, press to change the
next letter to upper or lower case.
•
•
1
Press and hold to set or to dial your
voicemail number.
PHONE/FLASH
Press to make or answer a call.
During a call, press to answer an incoming
call when you receive a call waiting alert.
•
•
REDIAL/PAUSE
Press repeatedly to view the last ten
numbers dialed.
While entering numbers, press and hold to
insert a dialing pause.
•
•
Quick reference guide - handset
Getting started
3
SDIR/VOLUME
Press SDIR to show directory entries
when the handset is not in use.
Press to scroll up while in menus.
While entering names or numbers, press
to move the cursor to the right.
Press to increase the listening volume
when on a call.
Press to increase the message playback
volume (for models with built-in answering
system only).
•
•
•
•
•
MENU/SELECT
When the handset is not in use, press to
show the menu.
While in the menu, press to select an item
or save an entry or setting.
•
•
OFF/CANCEL
During a call, press to hang up.
While in a menu, press to cancel an
operation, back up to the previous menu,
or exit the menu display; or press and
hold this button to exit to idle mode.
Press and hold while the telephone is not
in use to erase the missed call indicator.
•
•
•
QUIET# (pound key)
Press and hold to enter the QUIET mode
setting screen, or to deactivate QUIET mode.
MUTE/DELETE
During a call, press to mute the
microphone.
While reviewing the caller ID log, the
directory or the redial memory, press to
delete an individual entry.
While predialing, press to delete digits.
•
•
•
EQ
During an outside call, intercom call, message
or announcement playback, press to change
the audio quality to best suit your hearing.
Using menus:
Press MENU/SELECT to show the menu.
Press TCID or SDIR to scroll through menu items.
Press MENU/SELECT to confirm or save changes to a highlighted
menu item.
Press OFF/CANCEL to cancel an operation, back up to the
previous menu, or exit the menu display.
•
•
•
•
Main menu
Directory (page 42)
Caller ID log (page 54)
Call block (page 61)
Intercom (page 33)
Ringers (page 14)
Set date/time (page 16)
Settings (page 17)
Web address (page 23)
Quick reference guide - handset
Getting started
4
Handset side view
Main menu
The > symbol highlights
a menu item.
>Directory
Caller ID log
PUSH TO TALK
Press to initiate a one-to-one or one-to-group broadcast.
Press and hold to broadcast to a group of system devices.
•
•
5
Getting started
Quick reference guide - telephone base
indicator
On when the handset is in use.
Flashes when another telephone is in
use on the same line.
•
•
While the telephone is idle, press to page
all handsets (page 32).
6
Getting started
Telephone base and charger installation
Telephone base installation
Raise the antenna.
Plug the other end of the
telephone line cord into
the telephone jack on the
back of the telephone
base.
Plug the small end of the telephone base power
adapter into the power adapter jack on the back
of the telephone base.
Plug the large end of
the telephone base
power adapter into
a power outlet not
controlled by a wall
switch.
Plug one end of the
telephone line cord into
a telephone jack or a DSL
filter.
If you have DSL high-
speed Internet service, a
DSL filter (not included) is
required.
Install the telephone base and charger, as shown below.
The telephone base is ready for tabletop use. If you want to
change to wall-mounting, see Installation options on page 11
for details.
Getting started
7
IMPORTANT INFORMATION
Use only the power adapter(s) supplied with this product. To order a
replacement power adapter, visit our website at
www.telephones.att.com or call 1 (800) 222-3111. In
Canada, dial 1 (866) 288-4268.
The power adapters are intended to be correctly oriented in a vertical
or floor mount position. The prongs are not designed to hold the plug
in place if it is plugged into a ceiling, under-the-table or cabinet outlet.
•
•
Plug the power adapter into a power outlet not
controlled by a wall switch.
Charger installation
Telephone base and charger installation
8
Battery installation and charging
Install the battery as shown on page 9. Once you have installed
the battery, the screen indicates the battery status (see the
following table). If necessary, place the handset in the telephone
base or charger to charge the battery. For best performance, keep
the handset in the telephone base or charger when not in use. The
battery is fully charged after ten hours of continuous charging. See
the table on page 99 for battery operating times.
If the screen shows Place in charger and flashes, you need to
charge the handset without interruption for at least 30 minutes to
give the handset enough charge to use the telephone for a short
time. The following table summarizes the battery charge indicators
and actions to take.
Getting started
Battery indicators Battery status Action
The screen is blank, or
shows Place in charger
and (flashing).
Battery has no or
very little charge. The
handset cannot be used.
Charge without interruption
(at least 30 minutes).
The screen shows
Low battery and
(flashing).
Battery has enough
charge to be used for a
short time.
Charge without interruption
(at least 30 minutes).
The screen shows
HANDSET X.
Battery is charged. To keep the battery
charged, place it in the
telephone base or charger
when not in use.
NOTE: If you are on a phone call in low battery mode, you hear four short
beeps every minute.
AUT
MH)
423
Battery installation and charging
Getting started
9
Step 1
Plug the battery connector securely into the socket inside the
handset battery compartment. Insert the supplied battery with the
label THIS SIDE UP facing up, as indicated.
Step 3
Charge the handset by placing it
face forward in the telephone base
or charger. The CHARGE light on the
handset is on during charging.
CHARGE light
Step 2
Align the cover flat against the battery compartment, then slide it
upwards until it clicks into place.
T
Battery Pa
BT162342/B
WARNING / AV
DO NOT BURN O
NE PAS INCINÉRER
Made in China / Fabri
THIS SIDE UP / CE CÔTÉ VERS LE HAUT
Battery Pack / Bloc-piles :
BT183342/BT283342 (2.4V 400mAh Ni-MH)
WARNING / AVERTISSEMENT :
DO NOT BURN OR PUNCTURE BATTERIES.
NE PAS INCINÉRER OU PERCER LES PILES.
Made in China / Fabriqué en chine CR1349
10
Getting started
Battery installation and charging
IMPORTANT INFORMATION
Use only the supplied rechargeable battery or replacement
battery (model BT183342/BT283342). To order, visit our website
at www.telephones.att.com or call 1 (800) 222-3111.
In Canada, dial 1 (866) 288-4268.
If you do not use the handset for a long time, disconnect and
remove the battery to prevent possible leakage.
•
•
After you install your telephone or power returns
following a power outage, the handset will prompt
you to set the date and time. For instructions, see
Set date/time on page 16. To skip setting the date
and time, press OFF/CANCEL on the handset.
SET TIME
HH:MM --
SET DATE
MM/DD/YY
Getting started
11
Your telephone base is ready for tabletop use. If you want to mount
your telephone on a wall, follow the steps to connect the telephone
base with a standard dual-stud telephone wall-mounting plate. You
may need a professional to install the mounting plate.
Tabletop to wall-mount installation
1. Plug the power cord and telephone line into the telephone
base. If you are using a DSL filter, plug the other end of the
telephone line into the filter. Route the telephone line cord (or
DSL filter) through the wall-mount bracket hole.
2. Position the telephone base, as shown below. Insert the
extended tabs (marked A in the following illustration) of the
wall-mount bracket into the slots on the back of the telephone
base. Push the telephone base down until it is securely in place.
3. Plug the telephone line cord (or DSL filter) into the wall jack.
Plug the power adapter into a power outlet not controlled by a
wall switch.
4. Align the holes on the wall-mount bracket with the standard
wall plate and slide the wall-mount bracket down until it locks
securely. Bundle the telephone line cord and power adapter
cord neatly with twist ties.
1
Installation options
2
3 4
12
Wall-mount to tabletop installation
1. Unplug the large end of the power adapter from the
electrical outlet.
2. If the telephone line cord and power adapter cord are bundled,
untie them first. Slide the wall-mount bracket up and remove it
from the wall-mounting plate.
3. Unplug the telephone line cord or the DSL filter from the
telephone wall jack. Push the telephone base up and away
from the wall-mount bracket to detach it from the wall-mount
bracket.
4. See Telephone base and charger installation on page 6.
Installation options
Getting started
13
Use the menu to change the telephone settings.
1. Press MENU/SELECT on the handset when it is
not in use to enter the main menu.
2. Press TCID or SDIR to scroll to the feature to be
changed. When scrolling through the menu, the
> symbol indicates the selected menu item.
3. Press MENU/SELECT to select the highlighted item.
NOTE: Press OFF/CANCEL to cancel an operation, back up to the previous
menu or exit the menu display. Press and hold OFF/CANCEL to return to
idle mode.
>Play messages
Answering sys
Handset settings
Telephone settings
Telephone settings
14
Handset settings
Ringer volume
You can set the ringer volume level to one of six
levels or turn the ringer off. When the ringer is
off, appears on the screen.
1. Press MENU/SELECT in idle mode to enter the
main menu.
2. Use TCID or SDIR to scroll to Ringers, then
press MENU/SELECT.
3. Press MENU/SELECT again to select Ringer
volume.
4. Press TCID or SDIR to sample each volume
level.
5. Press MENU/SELECT to save your preference. There
is a confirmation tone and the screen returns to the
previous menu.
NOTES:
The handset ringer volume also determines the ringer volume for intercom calls.
If the ringer volume is set to off, that handset is silenced for all incoming calls except
paging tone.
If the ringer volume is set to off, the caller ID will not be announced and the screen
will briefly display Caller ID won’t be announced.
•
•
•
>
Ringer volume
Ringer tone
>Ringers
Intercom
RINGER VOLUME
15
Telephone settings
Ringer tone
You can choose one of ten ringer tones.
1. Press MENU/SELECT in idle mode to enter the
main menu.
2. Use TCID or SDIR to scroll to Ringers, then
press MENU/SELECT.
3. Press TCID or SDIR to scroll to Ringer tone,
then press
MENU/SELECT.
4. Press TCID or SDIR to sample each ringer tone.
5. Press MENU/SELECT to save your preference.
There is
a confirmation tone and the screen returns to the
previous menu.
NOTE: If you turn off the ringer volume, you will not hear ringer tone samples.
RINGER TONE
>
Tone 1
>
Ringer tone
Ringer volume
Handset settings
Telephone settings
16
Set date/time
If you subscribe to caller ID service, the day, month and time are
set automatically with each incoming call. The year must be set
so that the day of the week can be calculated from the caller ID
information. You can turn off the date and time settings of the
caller ID service and set the date and time manually (see Use
caller ID to automatically set date and time on page 21).
After a power failure or handset registration, the system reminds
you to set the date and time.
To set the date and time manuall: .
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Press TCID or SDIR to scroll to Set date/time
and then press MENU/SELECT.
3. Press TCID or SDIR to select the month, then
press MENU/SELECT, or enter the number using
the dialing keys.
4. Press TCID or SDIR to select the day, then press
MENU/SELECT, or enter the number using the
dialing keys.
5. Press TCID or SDIR to select the year, then
press MENU/SELECT, or enter the number using
the dialing keys, then press MENU/SELECT to
move on to set the time.
6. Press TCID or SDIR to select the hour, then
press MENU/SELECT, or enter the number using
the dialing keys.
7. Press TCID or SDIR to select the minute, then press
MENU/SELECT, or enter the number using the dialing keys.
8. Press TCID or SDIR to highlight AM or PM, or press 2 for AM
or 7 for PM. Then, press MENU/SELECT to confirm. There is a
confirmation tone and the screen returns to the previous menu.
NOTE: If the clock is not set when a message is recorded, the system
announces, “Time and day not set,” before it plays the message.
SET DATE
MM/DD/YY
SET TIME
HH:MM --
Ringers
>Set date/time
Handset settings
17
Telephone settings
Handset settings
LCD language
You can select the language used for all screen
displays.
1. Press MENU/SELECT in idle mode to enter the
main menu.
2. Use TCID or SDIR to scroll to Settings, then
press MENU/SELECT.
3. Press MENU/SELECT to choose LCD language.
4. Press TCID or SDIR to highlight English,
Français or Español, then press MENU/SELECT.
The screen prompts Set English/Français/Español as LCD
language?
5. Press MENU/SELECT to save. There is a confirmation tone and
the screen returns to the previous menu.
NOTE: If you accidentally change the LCD language to French or Spanish, you
can reset it back to English without going through the French or Spanish
menus. Press MENU/SELECT in idle mode, then enter 364#. There is a
confirmation tone.
Caller ID announce
The caller ID announce feature lets you know who’s calling without
having to look at the display. When you have an incoming call,
the handset and/or base speaks “Call from...” and the name of the
caller based on the directory or caller ID information. If the caller’s
name is private or unknown, the phone number up to the last
11 digits will be announced. If the caller’s phone number is also
private or unknown, no information will be announced. The default
setting is On.
LCD LANGUAGE
>
English
Set FranFrancais as
LCD language?
Telephone settings
18
To turn on or off the caller ID announce feature:
1. Press MENU/SELECT in idle mode to enter the
main menu.
2. Use TCID or SDIR to scroll to Settings, then
press MENU/SELECT.
3. Use TCID or SDIR to scroll to Caller ID annc,
then press MENU/SELECT.
4. Use TCID or SDIR to highlight the desired option,
then press MENU/SELECT.
Set all On/Off - Change the setting for the
base and all handsets.
Local handset - Change the setting for that
handset only.
Base - Change the setting for the telephone
base only.
5. Use TCID or SDIR to highlight On or Off, then press
MENU/SELECT. There is a confirmation tone and the screen
returns to the previous menu. If you change the setting to Set
all On/Off, the screen shows CID Annc ON/OFF on all
HS & BS.
NOTES:
To use the caller ID announce feature, you must subscribe to caller ID service from your
telephone service provider.
When there are up to five handsets registered, the telephone system supports caller
ID announce for all handsets. If six or more handsets are registered, the system sup-
ports caller ID announce for the first four registered handsets only.
This feature does not announce information for call waiting calls.
It takes at least two rings for the phone to receive caller ID information and
announce it. If the phone is answered before the end of the second ring, the phone
won’t have time to announce the caller’s information.
Pronunciation of names may vary with this feature. Not all names may be pro-
nounced correctly.
Caller ID announce is available in English only.
•
•
•
•
•
•
•
•
•
Handset settings
HS CID ANNOUNCE
>On
CALLER ID ANNC
>Local handset
LCD language
>Caller ID annc
19
Telephone settings
Handset settings
Set speed dial voicemail number
This feature lets you save your voicemail number
for easy access when you press and hold the
1 key.
To save your voicemail number:
1. Press MENU/SELECT in idle mode to enter the
main menu.
2. Use TCID or SDIR to scroll to Settings, then
press MENU/SELECT.
3. Use TCID or SDIR to scroll to Voicemail #, then
press MENU/SELECT.
4. Use the dialing keys to enter the voicemail
access number provided by your telephone
service provider (up to 30 digits) when
prompted.
Press TCID or SDIR to move the cursor to the left or right.
Press MUTE/DELETE on the handset to erase a digit.
Press and hold MUTE/DELETE on the handset to erase all
digits.
Press REDIAL/PAUSE to enter a three-second dialing pause (a
p appears).
5. Press MENU/SELECT to save. There is a confirmation tone and
the screen displays Voicemail # saved, then returns to the
previous menu.
Voicemail (visual message waiting) indicator
If you subscribe to a voicemail service offered by your telephone
service provider, this feature provides a visual
indication when you have new voicemail messages.
New voicemail and the icon appear on the
handset screen.
•
•
•
•
VOICEMAIL #
800-222-3111_
Caller ID annc
>Voicemail #
Voicemail #
saved
HANDSET 1
New voicemail
10:21PM 2/11
Telephone settings
20
Clear voicemail indication
Use this feature when the telephone indicates that
you have new voicemail but there is none. For
example, when you have accessed your voicemail
while away from home. This feature only turns
off the displayed New voicemail and the icon;
it does not delete your voicemail messages. As
long as you have new voicemail messages, your
telephone service provider continues to send the
signal to turn on the indicators.
To manually turn off the new voicemail
indicators:
1. Press MENU/SELECT when in idle mode to enter the main menu.
2. Use TCID or SDIR to scroll to Settings, then press
MENU/SELECT.
3. Use TCID or SDIR to scroll to Clr voicemail, then press MENU/
SELECT. The screen shows Reset Voicemail Indicator?
4. Press MENU/SELECT again to turn the voicemail indication off.
There is a confirmation tone and the screen returns to the
previous menu.
NOTES:
Your telephone service provider voicemail may alert you to new messages with a
stutter (broken) dial tone. Contact your telephone service provider for more details.
For information about using your voicemail service, contact your telephone service
provider.
•
•
Handset settings
Reset Voicemail
Indicator?
>
Clr voicemail
Rename handset
21
Telephone settings
Key tone
The handset is set to beep with each key press.
You can adjust the key tone volume or turn it off. If
you turn off the key tone, there are no beeps when
you press keys.
1. Press MENU/SELECT in idle mode to enter the
main menu.
2. Use TCID or SDIR to scroll to Settings, then
press MENU/SELECT.
3. Use TCID or SDIR to scroll to Key tone, then
press MENU/SELECT.
4. Use TCID or SDIR to select the desired volume or Off.
5. Press MENU/SELECT to save your preference. There is a
confirmation tone and the screen returns to the
previous menu.
Use caller ID to automatically set date and time
If you subscribe to caller ID service, the day,
month and time are set automatically with each
incoming call. Follow the steps to turn the CID
time sync feature on or off. The default setting is
On.
1. When the handset is in idle mode, press
MENU/SELECT to enter the main menu.
2. Press TCID or SDIR to scroll to Settings, then
press MENU/SELECT.
3. Press TCID or SDIR to scroll to CID time sync,
then press MENU/SELECT.
4. Press TCID or SDIR to highlight On or Off, then press
MENU/SELECT to save. There is a confirmation tone and the
screen returns to the previous menu.
Rename handset
>
Key tone
KEY TONE
Handset settings
Key tone
>CID time sync
CID TIME SYNC
>On
Telephone settings
22
Handset settings
Home area code
If you dial seven digits to make a local call (no area code required),
enter your area code into the telephone as the home area code.
When you receive a call from within your home area code, the
caller ID history only displays the seven digits of the telephone
number.
This feature makes it easy for you to place a call from the caller
ID log. If you dial ten digits to make a local phone call, do not use
this home area code feature. If you do, you cannot place local calls
from your caller ID log, as they will have only seven digits.
To set the home area code:
1. Press MENU/SELECT in idle mode to enter the
main menu.
2. Use TCID or SDIR to scroll to Settings, then
press MENU/SELECT.
3. Use TCID or SDIR to scroll to Home area code,
then press MENU/SELECT. The screen briefly
shows Only for 7digit dial from CID.
4. Use the dialing keys to enter a three-digit home
area code.
Press MUTE/DELETE to delete a digit.
Press and hold MUTE/DELETE to delete all digits.
5. Press MENU/SELECT to save. There is a confirmation tone and
the screen shows Area code will not show in CID briefly before
returning to the previous menu.
NOTE: If in the future, your telephone service provider requires you to dial ten
digits to make a local call (area code plus telephone number), you need to
delete your home area code and dial out locally from the call ID log. With the
home area code displayed, press and hold MUTE/DELETE until the digits are
deleted, and then press MENU/SELECT. The home area code is now restored to
its default setting of _ _ _ (empty).
•
•
CID time sync
>Home area code
HOME AREA CODE
___
23
Telephone settings
Dial mode
The dial mode is preset to tone dialing. If you have
pulse (rotary) service, you must change the dial
mode to pulse dialing before using the telephone.
To set the dial mode:
1. Press MENU/SELECT in idle mode to enter the
main menu.
2. Use TCID or SDIR to scroll to Settings, then
press MENU/SELECT.
3. Use TCID or SDIR to scroll to Dial mode, then
press MENU/SELECT.
4. Use TCID or SDIR to highlight Touch-tone or Pulse, then press
MENU/SELECT. There is a confirmation tone and the screenand the screen
returns to the previous menu.
Web address
Use this feature to view the AT&T website address.
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use TCID or SDIR to scroll to Web address, then press
MENU/SELECT.
DIAL MODE
>Touch-tone
Home area code
>Dial mode
Handset settings
Telephone settings
24
Handset settings
QUIET mode
When QUIET mode is turned on, the telephone silences all
sounds (except the handset locator paging tone) during the set
period of time (1-12 hours). After you turn on QUIET mode, this
feature activates immediately and the answering system turns on
automatically. When QUIET mode is on, the answering system
takes calls and records messages without broadcasting them.
To turn QUIET mode on:
1. Press and hold QUIET # in idle mode to enter the QUIET mode
setting screen. The screen shows Quiet: _ _ hours (1-12 hours).
2. Use the dialing keys to enter the desired number of hours (1-
12) you would like to turn on QUIET mode, then press MENU/
SELECT. Your screen briefly shows Answering sys is ON, and
then Quiet mode on.
To turn QUIET mode off:
While QUIET mode is on, press and hold QUIET #. The screen
then shows Quiet mode is off and you hear a confirmation
tone.
NOTES:
If you change the base ringer, handset ringer, ringer volume, key tone, or caller ID
announce features when QUIET mode is on, the sample plays but the feature is still
muted after saving the setting.
After QUIET mode is turned off or the set period of time has expired, all muted
features will be activated again.
The PTT function is not available when QUIET mode is on.
Intercom is available during QUIET mode, but the handset will not ring.
•
•
•
•
•
25
Telephone operation
Making a call
Press PHONE/FLASH or /SPEAKERSPEAKER, then
enter the telephone number.
The screen displays the elapsed time as you talk
(in hours, minutes and seconds).
NOTE: Pressing PHONE/FLASH or /SPEAKERSPEAKER to
access services from your telephone service provider
does not affect the elapsed time.
On hook dialing (predialing)
1. Enter the telephone number. Press MUTE/
DELETE to make corrections when entering the phone number.
2. Press PHONE/FLASH or /SPEAKERSPEAKER to dial.
Answering a call
Press PHONE/FLASH or /SPEAKERSPEAKER.
-OR-
Press any dialing key (0-9, TONE or #).
Ending a call
Press OFF/CANCEL or return the handset to the telephone base
or charger.
Auto off
A call ends automatically when you put the handset in the
telephone base or charger.
•
•
•
•
Elapsed time
Phone 0:00:30
6:30AM 8/06
6:30AM 8/06
Speaker 0:00:30
Telephone operation
Telephone operation
26
Telephone operation
Temporary ringer silencing
While the telephone is ringing, press
OFF/CANCEL or MUTE/DELETE to silence the
ringer temporarily on that handset only. This turns
off the ringer without disconnecting the call. The
next incoming call rings normally at the
preset volume.
Handset speakerphone
During a call, press /SPEAKERSPEAKER to switch between handsfree
speakerphone and normal handset use. Press OFF/CANCEL or
return the handset to the telephone base or charger to hang up.
NOTES:
When you use the speakerphone, the key pad and the /SPEAKER button on the
handset are lit.
The speakerphone uses more power than the normal handset. If the handset battery
becomes very low while you are using the speakerphone, the call remains in
speakerphone mode until you hang up or the battery becomes depleted.
Last number redial
Each handset stores the last ten telephone numbers dialed (up to
30 digits).
To view the ten most recently dialed numbers:
To display the most recently called number, press REDIAL/PAUSE.
To view up to ten recently called numbers, press REDIAL/PAUSE,
then TCID, SDIR or REDIAL/PAUSE repeatedly.
The handset beeps twice at the end of the list. Press
OFF/CANCEL to exit.
•
•
•
•
Ringer muted
Telephone operation
27
To redial a number:
To dial the displayed number, press
PHONE/FLASH or /SPEAKERSPEAKER.
-OR-
Press PHONE/FLASH or /SPEAKERSPEAKER, then
press REDIAL/PAUSE repeatedly to view the redial memory.
Press MENU/SELECT to dial the displayed number.
Equalizer
The handset equalizer enables you to change the
quality of the audio to best suit your hearing.
While on a call or intercom call, or listening to a
message or announcement, press EQ to select
the equalizer setting Treble 1, Treble 2, Bass or
Natural (the default setting). The current setting is
shown on the handset screen for two seconds.
NOTES:
If you switch the call between the handset and the speakerphone by pressing
/SPEAKER, the audio setting remains unchanged.
The current equalizer setting remains unchanged until a new setting is selected.
•
•
•
•
Telephone operation
Redial #1/10
888-883-2445
Telephone operation
28
Volume control
You can set the listening volume to one of six
levels. While on a call, press TCID/VOLUME to
decrease or press TDIR/VOLUME to increase
the listening volume.
NOTES:
Handset and speakerphone volume settings are independent.
When the volume reaches the minimum or maximum setting, you hear two beeps.
Call waiting
If you subscribe to call waiting service from your telephone service
provider, and someone calls while you are already on a call, you
hear two beeps.
Press PHONE/FLASH on the handset to put your current call
on hold and take the new call.
Press PHONE/FLASH on your handset at any time to switch back
and forth between calls.
NOTE: Missed call waiting calls are not counted as missed calls.
Mute
Use the mute function to turn off the microphone.
You can hear the caller, but the caller cannot
hear you.
To mute a call:
While on a call, press MUTE/DELETE. When
mute is on, the handset shows Muted for a few
seconds and MUTE icon displays until you turn
off mute.
•
•
•
•
•
Options while on call
Muted
MUTE
6:30AM 8/06
Microphone ON
6:30AM 8/06
Telephone operation
29
To end mute a call:
Press MUTE/DELETE again. When mute is off, Microphone ON
appears temporarily on the handset.
Chain dialing
Use this feature to initiate a dialing sequence from the numbers in
the directory, caller ID history or redial memory while you are on
a call.
Chain dialing is useful when you wish to access other numbers (such
as bank account numbers or access codes) from the directory, caller
ID log or redial list.
To access the directory while on a call:
1. Press MENU/SELECT.
2. Press TCID or SDIR to scroll to Directory, and
then press MENU/SELECT.
3. Press TCID or SDIR to scroll to the desired
number.
4. Press MENU/SELECT to dial the number shown.
To access the caller ID log while on a call:
1. Press MENU/SELECT.
2. Press TCID or SDIR to scroll to Caller ID log,
then press MENU/SELECT.
3. Press TCID or SDIR to scroll to the desired
number.
4. Press MENU/SELECT to dial the number shown.
•
Options while on call
>Directory
Intercom
888-883-2445
Charlie Johnson
REDIAL #1/10
800-360-4121
Phone 0:01:20
Charlie Johnson
6:30AM 8/06
Telephone operation
30
To access the redial list while on a call:
1. Press REDIAL/PAUSE to show the most recently
dialed number.
2. Press TCID or SDIR to scroll to the desired number,
or press REDIAL/PAUSE repeatedly to find the desired number..
Press MENU/SELECT to dial the number shown.
NOTES:
You cannot edit a directory entry while on a call. For more details about the
directory, see pages 38-47.
You cannot copy a caller ID entry into the directory while on a call. For more details
about the caller ID history, see pages 48-54.
If you press REDIAL/PAUSE while on a call, you can only view the ten most recently
dialed numbers but you cannot erase the entries. For more details about the redial
memory, see page 23.
Press OFF/CANCEL on the handset to exit redial, directory or caller ID log when
on a call.
Temporary tone dialing
If you have pulse (rotary) service only, you can switch from pulse
to touch-tone dialing temporarily during a call. This is useful if you
need to send touch-tone signals to access your telephone banking
or long distance services.
1. During a call, press TONE .
2. Use the dialing keys to enter the desired number. The telephone
sends touch-tone signals.
3. The telephone automatically returns to pulse dialing after you
end the call.
Blind transfer
While on an outside call, you can transfer the call to a specific
handset or any handset without notifying them.
•
•
•
•
Options while on call
Telephone operation
31
Options while on call
To transfer an outside call directly without notifying the desired
handset:
1. During the call, press MENU/SELECT.
2. Press MENU/SELECT again to choose Transfer.
If you have a two-handset system and no
other registered devices, the outside call is put
on hold and your handset shows Transferring
call... The other handset rings and shows
Transfer from other handset.
If you have other registered device(s) or
more than two handsets, your screen shows
TRANSFER TO: Use the dialing keys to enterenter
a specific handset number (1-9 for handsets
1-9, TONE followed by 0-2 for handsets 10-
12, or TONE followed by # for all handsets),
or press TCID or SDIR to scroll to the desired
handset and press MENU/SELECT. The outsidehe outside
call is put on hold and your handset screen
shows Transferring call... or Transferring
call to all... The other handset rings and shows Transfer
from HANDSET X (HANDSET represents the handset name, X
represents the handset number).
3. To answer the call on the destination handset, press, press PHONE/
FLASH, /SPEAKERSPEAKER, or any dialing key (or any dialing key (0-9, TONE or #). The The
initiating handset shows Call transferred and goes to
idle mode.
NOTES:
To cancel the transfer and return to the external call before the blind transfer call is
answered, press OFF/CANCEL, PHONE/FLASH or /SPEAKER on your handset.
If the other device does not answer the transfer within 30 seconds, the transfer ends
and the initiating handset rings while showing No response to transfer. If it does not
pick up within 30 seconds, the handset returns to idle mode and the outside
call ends.
•
•
•
•
>Transfer
Intercom
TRANSFER TO:
>Handset 2
Phone 0:00:12
6:30AM
8/06
32
Multiple handset use
Handset locator
The handset locator feature is useful if you
misplace any handsets.
To start the paging tone:
Press /HANDSET LOCATOR on the
telephone base to start the paging tone on all
handsets for 60 seconds.
NOTE: If you press OFF/CANCEL or MUTE/DELETE on a
handset, the ringer of that handset stops, but the paging
to the rest of the handsets continues.
To stop the paging tone:
Press PHONE/FLASH, /SPEAKERSPEAKER, or
any dialing key (0-9, TONE or #) on the
handset(s).
-OR-
Press /HANDSET LOCATOR on the telephone base.
Join a call in progress
When a handset is already on a call and you would like to join the
call, press PHONE/FLASH or /SPEAKERSPEAKER on your handset.
To end the call using a handset, press OFF/CANCEL or place the
handset in the telephone base or charger. The call does not end
until all handsets hang up.
NOTE: You can use up to four system handsets at the same time on an
outside call.
•
•
•
Multiple handset use
**Paging**
33
Intercom
Use the intercom feature for conversations between two
handsets, or a handset and a cordless headset/speakerphone
(sold separately). You can purchase expansion handsets (model
AT&T CL80114) for this telephone base to expand your telephone
system (up to 12 handsets).
Using a handset to initiate intercom calls:
1. Press MENU/SELECT in idle mode to enter the
main menu. Press TCID or SDIR to scroll to
Intercom, then press MENU/SELECT.
If you have a two-handset system, and no
other registered devices, your originating
handset screen shows shows Calling other
handset.
If you have more than two handsets and/or
cordless headset(s)/speakerphone(s), your
originating handset screen shows shows
INTERCOM TO:. Use the dialing keys to
enter a specific handset number (1-9 for
handsets 1-9, TONE followed by 0-2 for
handsets 10-12, or TONE followed by # for
all handsets), or presspress TCID or SDIR to scroll
to the desired handset and press MENU/SELECT. Your handset
screen shows Calling HANDSET X, or Calling all handsets.
The destination handset(s) rings and shows HANDSET X is calling
or HANDSET X is calling all (HANDSET represents the handset
name, X represents the handset number).
2. To answer the intercom call, press PHONE/FLASH,
/SPEAKERSPEAKER or any dialing key (0-9, TONE , or #) on the called
device. Both handsets now show Intercom.
3. To end the intercom call, one party pressesTo end the intercom call, one party presses OFF/CANCEL, or
place the handset back in the telephone base or charger. The.The The
other party hears four beeps. Both handsets display
Intercom ended.
•
•
Calling
HANDSET X
HANDSET X
is calling
Intercom
11:35AM 12/02
Multiple handset use
Multiple handset use
34
Intercom
NOTES:
Before the intercom call is answered, you can cancel it by pressing OFF/CANCEL.
If the called party does not answer within 100 seconds, or if the handset is in use, on
a call or out of range, the initiating handset shows No answer. Try again.
To temporarily silence the intercom ringer, press OFF/CANCEL or MUTE/DELETE.
You can only use one pair of handsets at a time to make intercom calls.
Answer an incoming call during an intercom call
If you receive an outside call during an intercom call, there is a
two-beep call waiting tone.
To answer the call, press PHONE/FLASH or /SPEAKERSPEAKER. The
intercom call ends automatically. The party on the intercom call
hears four beeps. Other system handsets can also answer the
incoming call by pressing PHONE/FLASH or /SPEAKERSPEAKER.
To end the intercom call without answering the incoming call,
press OFF/CANCEL
•
•
•
•
•
•
Multiple handset use
35
Call transfer using intercom
Use the intercom feature to transfer an outside call to another
system handset. You can also share an outside call with another
system handset.
To transfer or share an outside call using intercom::
1. During the call, press MENU/SELECT.
2. Press TCID or SDIR to scroll to Intercom and press
MENU/SELECT.
3. If you have a two-handset system and no other registered
devices, your handset screen shows Calling other handset.
-OR-
If you have more than two handsets and/or cordless headset(s)/
speakerphone(s), your screen shows INTERCOM TO: Press TCID
or SDIR to scroll to the desired device and press MENU/SELECT.
Your handset screen shows Calling HANDSET X or
Calling all handsets.
4. When the destination handset picks up, your handset shows
Intercom and the outside call is put on hold. You have the
following options:
You can transfer the call. Press MENU/SELECT twice to
choose Transfer. The handset shows Call transferred. The
other handset automatically connects to the outside call.
You can let the other handset join you on the outside call in
a three-way conversation. Press MENU/SELECT. Press TCID or
SDIR to highlight Share call, then press MENU/SELECT.
You can end the intercom call and continue the outside call
with your handset. Press PHONE/FLASH on your handset (the
ended intercom call party hears four beeps).
•
•
•
Multiple handset use
36
You can directly broadcast messages to the
speakerphone of any handset. Press and hold
PUSH TO TALK on a handset to begin
two-way communication.
Only one handset can talk at a time. To do so,
press and hold PUSH TO TALK.
You must release PUSH TO TALK, so the other person can respond.
Only one PTT session can be active at a time.
While PTT is in use between two handsets, other handsets
cannot use the intercom feature.
When you attempt to place a PTT call to another device which
is on an intercom call or outside call, your device screen shows
Not available at this time.
NOTE: The PTT function is not available when QUIET mode is on or if you
have only one handset.
Turn PTT on or off
1. Press PUSH TO TALK when the handset is not in use. The PUSH
TO TALK menu displays.
2. Press TCID or SDIR to highlight PTT On/Off,
then press MENU/SELECT.
3. Press TCID or SDIR to choose On or Off, then
press MENU/SELECT.
NOTE: The handset screen displays No Incoming PTT when PTT is turned off.
•
•
•
•
•
Push-to-talk (PTT)
PUSH TO TALK
>PTT On/Off
PTT
Multiple handset use
37
Push-to-talk (PTT)
PTT call to a single handset
1. There are a few ways to begin a PTT call to a
single handset. When the handset is not in use:
If you have 2 handsets and no other
registered devices, press and hold
PUSH TO TALK.
If you have more than two handsets and/or
cordless headset(s)/speakerphone(s):
Press PUSH TO TALK on the handset, then
use the dialing keys to enter the destination
handset number.
-OR-
Press PUSH TO TALK on the handset. PressPress
qCID or pDIR to highlight the destination
handset number, then press MENU/SELECT
or PUSH TO TALK.
The handset shows Connecting to HANDSET X...
(HANDSET
represents the handset name, X represents the destination
handset number).
When the connection is made, both your and
the destination handset screens display
Press and hold [PTT] to talk.
2. Press and hold PUSH TO TALK. A chirp
indicates your microphone is on. Speak towards
the handset. Your voice is broadcast to the
destination handset.
While you are speaking, your handset shows
PTT To handset: X.
3. Release PUSH TO TALK after speaking. Both handsets beep
once again and the screens show Press and hold [PTT] to
talk, then you can press and hold PUSH TO TALK to continue
speaking or the destination handset can respond (see Answer a
PTT call on page 39).
4. To end the PTT call, press OFF/CANCEL or place the handset in
the telephone base or charger. The handset shows Push to
talk ended.
•
•
PTT To
handset: X
PUSH TO TALK
>Handset X
Connecting to
Handset X...
Press and hold
[PTT] to talk
Multiple handset use
38
Push-to-talk (PTT)
PTT call to multiple handsets
When there are multiple handsets and/or cordless headset(s)/
speakerphone(s) registered to the phone system, PTT supports
one-to-group calls. PTT supports a maximum of one-to-four calls
when one to five handsets are registered, and a maximum of
one-to-three calls when six or more handsets are registered. The
first four registered handsets will be able to use this feature. Other
handsets can only use PTT for one-to-one calls.
To call multiple handsets:
1. You have three ways to call multiple handsets. When the handset
is not in use:
Press and hold PUSH TO TALK until the handset shows
Connecting to group...
Press PUSH TO TALK. Press qqCID or pDIR to choose Group.
Press MENU/SELECT or press PUSH TO TALK and your
handset shows Connecting to group...
Press PUSH TO TALK. Press TONE followed by # (pound
key). The handset shows Connecting to group...
When the connection is made, both the caller and the
destination parties hear a beep. The speakerphones on all
other handsets automatically activate.
2. You need to press and hold PUSH TO TALK when you want to
speak. Speak towards the handset. Your voice is broadcast to
all handsets.
3. Release PUSH TO TALK after speaking.
4. Any extension can reply (see Answer a PTT call on page 39).
NOTE: After PUSH TO TALK on the handset is released, the PTT call remains
open for a short time. If no one presses PUSH TO TALK on the handset within
ten seconds, the PTT call ends automatically.
•
•
•
Multiple handset use
39
Push-to-talk (PTT)
Answer a PTT call
You can respond to a PTT call, as described below.
1. When your handset receives a PTT call, it beeps and shows
Press and hold [PTT] to talk.
2. When the other party is speaking, your speakerphone light is
on, and your handset shows PTT From HS X To HS X (the first
X represents the initiating handset number, and the second X
represents your handset number; a maximum of four handset
numbers appear).
3. When your speakerphone light is off (the screen shows Press
and hold [PTT] to talk), press and hold PUSH TO TALK on youron your
handset. You will hear a chirp. Speak towards the handset.You will hear a chirp. Speak towards the handset.
While you are speaking, your handset shows PTT To Handset:
X (X represents the handset numbers of one or more
destination handsets; a maximum of four handset
numbers appear).
Your voice is broadcast to all destination handsets.
After speaking, release PUSH TO TALK. Your handset will beep.
After the beep, if your speakerphone light is off, you can
press and hold PUSH TO TALK to continue speaking.
•
•
Multiple handset use
40
Push-to-talk (PTT)
Change a one-to-one PTT call to an intercom call
You can convert a one-to-one PTT session to an intercom call.
1. When your handset shows Press and hold [PTT] to talk, press
MENU/SELECT. The screen shows Intercom.
2. Press MENU/SELECT. Your handset displays Calling other
handset or Calling HANDSET X. The destination handset briefly
shows Push to talk Ended, and then Other handset is calling
or HANDSET X is calling. The destination handset rings.
3. Press PHONE/FLASH or any dialing keys (or any dialing keys (0-9, # or
TONE ) on the destination handset to answer the intercom call.on the destination handset to answer the intercom call.to answer the intercom call.
Both handsets now show Intercom.
4. To end the intercom call, press OFF/CANCEL on your handseton your handset
or place the handset in the telephone base or charger. Both
screens show Intercom ended.
Answer an incoming call during a PTT call
When you receive an outside call during PTT, there is an alert tone.
During a one-to-one PTT, press PHONE/FLASH on the initiating
or destination handset. The PTT call ends automatically and the
outside call is answered.
During a one-to-group PTT call, press PHONE/FLASH on the
initiating handset. The PTT call ends automatically and the
outside call is answered.
During a one-to-group PTT call, press PHONE/FLASH on any
one of the destination handsets. That handset answers the
outside call. The PTT call continues for the rest of the
PTT participants.
To leave the PTT call without answering the incoming call, press
OFF/CANCEL. The telephone continues to ring.
•
•
•
•
Multiple handset use
41
Push-to-talk (PTT)
Make an outgoing call during PTT call
During a one-to-one PTT call, press PHONE/FLASH to get a dial
tone. The PTT call ends automatically.
During a one-to-group PTT call, press PHONE/FLASH on the
initiating handset. The PTT call ends automatically and you get a
dial tone.
During a one-to-group PTT call, press PHONE/FLASH on any
one of the destination handsets. That handset gets a dial tone.
The PTT call continues for the rest of the PTT participants.
End or leave a PTT call
For one-to-one PTT calls, both initiating and destination handsets
can end the PTT call. For PTT calls to multiple handsets, the
initiating handset can end the PTT call. If any one of the
destination handsets leaves the PTT call, the call continues until all
participants or the initiator hangs up.
Press OFF/CANCEL on the handset. The screen shows Push to
talk Ended.
-OR-
Place the handset in the telephone base or charger, then the
handset return to idle mode.
NOTE: After PUSH TO TALK is released, the PTT call remains open for a short
time. If no one presses PUSH TO TALK within ten seconds, the PTT call ends
automatically.
•
•
•
42
About the directory
Shared directory
The directory is shared by all handsets. Changes
made to the directory from any device apply to all.
NOTE: Only one handset can review the directory at a
time. If another handset tries to enter the directory, the
screen shows Not available at this time.
Capacity
The directory can store up to 50 entries, with a maximum of 15
alphanumeric characters (including spaces) for names and 30
digits for telephone numbers. A convenient search feature can
help you find and dial numbers quickly (page 46).
If you try to save an entry when there are already 50 entries, the
screen shows Directory full. You cannot store a new number until
you delete one.
Charlie Johnson
888-883-2445
Directory
43
Create directory entries
Create a new directory entry
1. Press MENU/SELECT in idle mode to enter the
main menu.
2. Press TCID or SDIR to scroll to Directory, then
press
MENU/SELECT.
3. Press TCID or SDIR to highlight Add contact,
then press MENU/SELECT.
4. Use the dialing keys to enter a telephone
number (up to 30 digits) when prompted.
Press TCID or SDIR to move the cursor to the
left or right.
Press MUTE/DELETE to erase a digit.
Press and hold MUTE/DELETE to erase
all digits.
Press and hold REDIAL/PAUSE to enter a
three-second dialing pause (a p appears).
-OR-
Copy a number from the redial list by pressing REDIAL/PAUSE,
then TCID, SDIR, or pressing or pressing REDIAL/PAUSE repeatedly to
locate the number. Press MENU/SELECT to copy the number.
5. Press MENU/SELECT to move on to the name.
6. Use the dialing keys to enter a name (up to
15 characters) when prompted. Each time you
press a key, the character on that key appears.
Additional key presses produce other characters
on that key. See the chart on next page.
Press TCID or SDIR to move the cursor to the
left or right.
Press 0 to add a space.
Press MUTE/DELETE to erase a character.
Press and hold MUTE/DELETE to erase all characters.
Press TONE to change the next letter to upper or lower
case.
•
•
•
•
•
•
•
•
•
ENTER NAME
Robert Brown_
Saved
ENTER NUMBER
888-883-2445
_
Review
>Add contact
Answering sys
>Directory
Directory
44
Create directory entries
NOTE: The first letter of every word is a capital letter. The remaining letters in
a word start as lower case letters, as shown in the chart below.
7. Press MENU/SELECT to store your new directory entry. There is
a confirmation tone and the screen shows Saved. To change the
entry later, see page 48.
Add a predialed telephone number to the directory
You can save a predialed telephone number to the directory.
1. Enter the telephone number when in idle mode.
2. Follow the steps in Edit a directory entry on page 48.
Dialing
keys
Characters by number of key presses
1234567891011
11.-‘()*#&/,
2ABCabc2
3DEFdef 3
4GHI gh i 4
5JKLjkl5
6MNOmno 6
7PQRSpq rs7
8TUVtuv8
9WXYZwx yz9
0space 0
*
#
Directory
45
Review directory entries
1. Press SDIR when in idle mode. The summary screen shows
briefly, and then the first entry in the directory shows.
-OR-
Press MENU/SELECT when in idle mode, then press TCID or
SDIR to scroll to Directory. Press MENU/SELECT twice.
2. Press TCID or SDIR to browse through the directory. Entries
appear alphabetically by the first letter in the name.
NOTES:
If the telephone number in the directory exceeds 15 digits, < appears in front of the
telephone number. Press TONE to move towards the end of the telephone number
or press # (pound key) to move towards the beginning of the telephone number.
If there are no directory entries when you press SDIR in idle mode, Directory empty
appears briefly on the screen, followed by Add contact? If you would like to add a
new contact, press MENU/SELECT and refer to page 39 for instructions on creating a
new directory entry. Otherwise, press OFF/CANCEL to cancel.
•
•
Review the directory
Directory
46
Search by name
1. Press SDIR in idle mode to show the first listing in the
directory.
2. When an entry appears, press the dialing keys (0-9) to start a name
search. The directory shows the first name beginning with the first
letter associated with the dialing key, if there is an entry in the
directory beginning with that letter. Press TCID or SDIR to scroll
through the directory.
3. To see other names starting with the letters on the same dialing
key, keep pressing the key. The names appear in alphabetical
order.
For example, if you have the names Jennifer, Jessie, Kevin and
Linda in your directory:
If you press 5 (JKL) once, you see Jennifer. Press TCID and
you see Jessie.
If you press 5 (JKL) twice, you see Kevin.
If you press 5 (JKL) three times, you see Linda.
If you press 5 (JKL) four times, you see 5, and then the
directory entry beginning with 5 or the next closest entry
after 5.
If you press 5 (JKL) five times, you see Jennifer again.
NOTES:
If there is no name matching the first letter of the key you press, the directory shows
a name matching the following letters of the key.
If you press a key (0-9) and no name starts with any of the letters on that key, the
directory shows the entry matching the next letter in the directory.
•
•
•
•
•
•
•
Search the directory
Directory
47
To dial, delete or edit a directory entry (name and number), the
entry must be displayed on the screen. Use Review the directory
(page 45) or Search by name (page 46) to show an entry.
Display dial
To dial a displayed number from the directory, press PHONE/
FLASH or /SPEAKERSPEAKER.
Delete a directory entry
To delete the displayed directory entry, press
MUTE/DELETE. Press MENU/SELECT to confirm.
There is a confirmation tone and the screen shows
Contact deleted. You cannot retrieve a
deleted entry.
Robert Brown
Delete contact?
Dial, delete or edit directory entries
Directory
48
Edit a directory entry
1. When a directory entry displays, press
MENU/SELECT. The screen shows EDIT NUMBER
along with the phone number to be edited. If
you only want to edit the name, skip to Step 3.
2. To edit the number:
Press the dialing keys to add digits.
Press TCID or SDIR to move the cursor to the
left or right.
Press MUTE/DELETE to erase a digit.
Press and hold MUTE/DELETE to erase
all digits.
Press and hold REDIAL/PAUSE to add a
three-second dialing pause (a p appears).
3. Press MENU/SELECT to move on to the name.
The screen shows EDIT NAME along with the
name to be edited.
4. To edit the name:
Press the dialing keys to add characters
(page 40).
Press TCID or SDIR to move the cursor to the left
or right.
Press 0 to add a space.
Press MUTE/DELETE to erase a character.
Press and hold MUTE/DELETE to erase all characters.
Press TONE to change the next letter to upper or
lower case.
5. Press MENU/SELECT to save the entry. There is a confirmation
tone and the screen shows Saved.
NOTE: If the telephone number has more than 11 digits, EDIT NUMBER will
not be displayed on the screen.
•
•
•
•
•
•
•
•
•
•
•
Linda Miller
888-722-7702
Robert Brown
888-883-2445
EDIT NAME
Robert Brown_
EDIT NUMBER
888-883-2445_
Dial, delete or edit directory entries
Directory
49
Speed dial
The telephone system has nine speed dial
locations (2-9, 0) and a voicemail access location
1 where you can store the telephone numbers
you wish to dial more quickly. You can store up
to 30 digits in each location. Speed dial
assignments can only be selected from the
existing directory entries. The voicemail access
number must be manually entered. In the directory, speed dial
locations are indicated by their number on the bottom of
the screen.
Assign a speed dial number
1. When the telephone is idle, press MENU/SELECT.
2. Press TCID or SDIR to scroll to Directory. Press
MENU/SELECT.
3. Press TCID or SDIR to scroll to Speed dial. Press
MENU/SELECT.
4. Press TCID or SDIR to choose your desired
speed dial location (0 or 2-9), then press
MENU/SELECT. The screen briefly shows Copy
from Directory... and then displays the
directory list.
5. Press TCID or SDIR to scroll to the phone
number you wish to assign to the selected
speed dial location.
6. Press MENU/SELECT to save the setting and
return to the previous menu. There is a confirmation tone and
the screen returns to the speed dial list.
Add contact
>Speed dial
>2:Robert Brown
3:<Unassigned>
Answering sys
>Directory
Speed dial location
Robert Brown
888-883-2445
2
Directory
Directory
50
-OR-
1. When the telephone is idle, press and hold any dialing keys
(0 or 2-9).
2. Press TCID or SDIR to choose your desired speed dial location
(0 or 2-9), then press MENU/SELECT. The screen briefly shows
Copy from Directory... and then displays the directory list.
3. Press TCID or SDIR to scroll to the phone number you wish to
assign to the selected speed dial location.
4. Press MENU/SELECT to save the setting and return to the
previous menu. There is a confirmation tone and the screen
returns to the speed dial list.
Assign your voicemail speed dial number
To assign your voicemail speed dial number to location 1, see
page 16.
Reassign a speed dial number
1. When the telephone is idle, press MENU/SELECT.
2. Press TCID or SDIR to scroll to Directory. Press
MENU/SELECT.
3. Press TCID or SDIR to scroll to Speed dial.
Press MENUMENU/SELECT.
4. Press TCID or SDIR to choose the location you
wish to reassign, then press MENU/SELECT to
show the directory entry.
5. Press MENU/SELECT again.
6. Scroll to Change SD, and then press MENU/
SELECT. The screen briefly shows Copy from
Directory... and then displays the directory list.
7. Press TCID or SDIR to scroll to the phone
number you wish to reassign to the selected
speed dial location.
8. Press MENU/SELECT to save the setting and return to the speed
dial list. There is a confirmation tone.
Speed dial
Linda Miller
888-722-7702
2
Robert Brown
888-883-2445
2
Copy from
Directory...
Directory
51
Speed dial
Delete a speed dial number
1. When the telephone is idle, press MENU/SELECT.
2. Press TCID or SDIR to scroll to Directory. Press
MENU/SELECT.
3. Press TCID or SDIR to scroll to Speed dial.
Press
MENU/SELECT.
4. Press TCID or SDIR to scroll to the location you
wish
to delete the speed dial number from, then:
Press MUTE/DELETE to delete the displayed
speed dial number. There is a confirmation
tone and the screen shows Speed dial empty
before returning to the speed dial list.
-OR-
i. Press MENU/SELECT to show the directory entry.
ii. Press MENU/SELECT again.
iii. Scroll to Clear SD, and then press MENU/SELECT to delete
the displayed speed dial number. There is a confirmation
tone and the screen shows Speed dial empty before
returning to the speed dial list.
•
Speed dial
empty
Linda Miller
888-722-7702
2
>2:<Unassigned>
3:<
Unassigned
>
Directory
52
Speed dial
Make a call using speed dial
When in idle mode, press and hold the dialing key (0 or 2-9)
corresponding to the assigned location you wish to call.
-OR-
1. Press MENU/SELECT when in idle mode.
2. Press TCID or SDIR to scroll to Directory, then press
MENU/SELECT.
3. Press TCID or SDIR to scroll to Speed dial, then press
MENU/SELECT.
4. Press TCID or SDIR to scroll to the desired location (0 or 2-9),
and then press PHONE/FLASH or /SPEAKERSPEAKER.
Check your voicemail using speed dial
When in idle mode, press and hold 1 to dial the voicemail
number you have set. See page 16 to set your voicemail speed dial
number.
53
This product supports caller ID services offered by most telephone
service providers. Caller ID allows you to see the name, number, date
and time of calls. The available caller ID information will appear after
the first or second ring.
Information about caller ID with call waiting
Caller ID with call waiting lets you see the name
and telephone number of the caller before
answering the call, even while on another call.
It may be necessary to change your telephone
service to use this feature. Contact your telephone
service provider if:
You have both caller ID and call waiting, but as
separate services (you may need to combine
these services).
You have only caller ID service, or only call
waiting service.
You don’t subscribe to caller ID or call waiting
services.
There are fees for caller ID services. In addition,
services may not be available in all areas.
This product can provide information only if both
you and the caller are in areas offering caller ID
service and if both telephone service providers use compatible
equipment. The time and date, along with the call information, are
from the telephone service provider.
Caller ID information may not be available for every incoming
call. Callers may intentionally block their names and/or telephone
numbers. You can only view a maximum of 15 digits of every caller
ID log entry. To view caller ID log entries with numbers between
16 and 24 digits, you must save the entry to the directory (see
page 53).
NOTE: You can use this product with regular caller ID service, or you can use
this product’s other features without subscribing to caller ID or combined
caller ID with call waiting service.
•
•
•
About caller ID
CHRISTINE SMITH
888-883-2445
NEW
10/15
10:01AM
Caller ID
54
Call ID history
How the caller ID history (caller ID log) works
The telephone stores caller ID information about the last 50
incoming calls in the telephone base. Entries are stored in
reverse chronological order. The phone deletes the oldest entry
when the log is full to make room for new calls. This information
is common to all handsets, so changes made using any handset
are reflected in all other handsets. If you answer a call before the
information appears on the screen, it does not show in the caller
ID history.
NOTE: Each entry may have up to 24 digits for the phone number and 15
characters for the name.
Missed (new) call indicator
When a handset is in idle mode and has new or
missed calls, its screen shows XX Missed calls.
All new and missed entries are counted as missed
calls. Each time you review a new caller ID log
entry (indicated by NEW on the screen), the
number of missed calls decreases by one.
If you do not want to review the missed calls one
by one, but still want to keep them in the caller
ID log, you can press and hold OFF/CANCEL
for four seconds when the handset is idle. You
will hear a confirmation tone. All the entries in the caller ID log
become old (reviewed already), and the missed calls message
goes away.
Robert Brown
888-883-2445
NEW
10/15
09:30 AM
6 Missed calls
10:01AM 10/15
HANDSET 1
Caller ID
55
Memory match
If the incoming telephone number matches
the last 7 digits of a telephone number in your
directory, the name that appears on the screen
matches the corresponding name in your
directory.
For example, if Christine Smith calls, her name
appears as Chris if this is how you entered it
into your directory.
NOTE: The number shown in the caller ID log will be
in the format sent by the telephone service provider.
The telephone service provider usually delivers ten-
digit phone numbers (area code plus telephone
number). If the telephone number of the caller does
not match a number in your directory, the name will
appear as it is delivered by the telephone service
provider.
Call ID operation
Chris
888-883-2445
NEW
10/15
10:01AM
Caller ID
Caller ID
56
Caller ID operation
Review the caller ID history
Review the caller ID history to find out who called,
to return the call, or to copy the caller’s name and
number into your directory. Caller ID log empty
appears if there are no records in the caller ID log.
1. When the handset is in idle mode, press
TCID to review the caller ID history in reverse
chronological order starting with the most
recent call.
-OR-
Review the caller ID history by pressing MENU/
SELECT. Press TCID or SDIR to scroll to Caller
ID log, then press MENU/SELECT twice to select
Review.
2. Press TCID or SDIR to scroll through the list.
3. Press OFF/CANCEL to exit the caller ID history.
You hear a double beep when the list reaches the beginning or
end of the caller ID log.
NOTE: Only one handset can review the caller ID history at a time. If another
device tries to enter the directory or caller ID history, it shows Not available
at this time.
Directory
>Caller ID log
HANDSET 1
6 Missed calls
10:01AM 10/15
CHRISTINE SMITH SMITH
888-883-2445
NEW
10:01 10/15
Caller’s name
Caller’s number
Appears if it is a
new or missed call.
Date of call
Time of
call
Caller ID
57
Caller ID operation
View dialing options
Although the incoming caller ID log entries have ten digits (the area
code plus the seven-digit number), in some areas, you may need to
dial only the 7 digits, 1 plus the seven digits, or 1 plus the area code
plus the seven digits. You can change and store the number of digits
that you dial in the caller ID log.
While reviewing the caller ID log, press
# (pound key) repeatedly to show
different dialing options for local and
long distance numbers before dialing
or saving the telephone number in the
directory.
Press 1 repeatedly if you need to add
or remove 1 in front of the telephone
number before dialing or saving it in the
directory.
When the number is in the correct format for dialing, press
PHONE/FLASH or /SPEAKERSPEAKER to call the number.
NOTE: This feature is only available to telephone numbers with 7 or
11 digits.
To save the number to the directory, see Save a caller ID log
entry to the directory on the next page.
883-2445
1-883-2445
888-883-2445
1-888-883-2445
Press #
883-2445
1-883-2445
888-883-2445
1-888-883-2445
Press 1
Caller ID
58
Dial a caller ID log entry
1. When in the caller ID log, press TCID or SDIR to browse.
2. Press PHONE/FLASH or /SPEAKERSPEAKER to dial the
displayed entry.
Delete caller ID log entries
To delete an entry:
Press MUTE/DELETE to delete the shown entry.
To delete all entries:
1. Press MENU/SELECT when in idle mode.
2. Press TCID or SDIR to scroll to Caller ID log, then press
MENU/SELECT.
3. Press TCID or SDIR to scroll to Del all calls, then press
MENU/SELECT.
4. When the screen shows Delete all calls?, press
MENU/SELECT to confirm. There is a confirmation tone
and the screen returns to the previous menu.
Save a caller ID log entry to the directory
1. When in the caller ID log, press TCID or SDIR to browse.
2. Press MENU/SELECT to select the desired entry.
3. Press MENU/SELECT to select Directory.
4. When the screen displays EDIT NUMBER, use the dialing keys to
edit the number.
Press TCID or SDIR to move the cursor to the left or right.
Press MUTE/DELETE to backspace and erase a digit.
Press and hold MUTE/DELETE to erase the entire entry.
Press and hold REDIAL/PAUSE to insert a three-second dialing
pause (a p appears).
•
•
•
•
•
Caller ID operation
Review
>Del all calls
Caller ID
59
Caller ID operation
5. Press MENU/SELECT to move to the name.
6. When the screen displays EDIT NAME, use the dialing keys
(page 44) to edit the name.
Press TCID or SDIR to move the cursor to the left or right.
Press 0 to add a space.
Press MUTE/DELETE to erase a character.
Press and hold MUTE/DELETE to erase all characters.
Press # (pound key) to move the last word to the front. For
example, Johnson Charlie becomes Charlie Johnson when
you press # (pound key).
6. Press MENU/SELECT when done. The screen shows Saved.
NOTES:
You may need to change how a caller ID number is dialed if the entry does not
appear in the correct format. Caller ID numbers may appear with an area code that is
not necessary for local calls, or without a 1 that is necessary for long distance calls
(see View dialing options on page 57).
If the caller’s name you received from the telephone service provider is all in
capital letters, the first letter of every word remains a capital letter, while other let-
ters become lower case. However, the next letter after the prefix “Mac”, “Mc”, “D’”,
“C’” or “O’”, is kept as a capital letter. For example, the “D” in “MacDonald” is kept as
a capital letter. Another exception is that “VAN DER” will be changed to “Van der”.
If the telephone number from the caller ID information has already been saved in the
directory under a different name, the new name will overwrite the old one.
•
•
•
•
•
•
•
•
60
Reasons for missing caller ID information
There are occasions when other information or no information
shows for various reasons:
On-screen message Reason
PRIVATE NUMBER The caller prefers not to show the phone number.
PRIVATE NAME The caller prefers not to show the name.
PRIVATE CALLER The caller prefers not to show the phone number
and name.
UNKNOWN NUMBER Your telephone service provider cannot determine
the caller’s number.
UNKNOWN NAME Your telephone service provider cannot determine
the caller’s name.
UNKNOWN CALLER Your telephone service provider cannot determine
the caller’s name and telephone number.
Calls from other countries may also generate this
message.
Caller ID
61
About call block
If you have subscribed to caller ID service, you can use the call
block feature to reject certain calls automatically. The call block
list can store up to 20 entries. Automatic call rejection can be ap-
plied to:
Numbers saved into the call block list.
Incoming calls without numbers.
This feature is only available on the cordless
handset.
When a call is blocked, the caller will hear a
simulated busy tone for one ring cycle. The call recipient may pick
up the call during the first ring when there is no caller ID
information. Otherwise, the call is disconnected.
NOTE: The blocked calls are displayed as Blocked call in the caller ID log.
•
•
Blocked call
888-722-7702
Call block
62
Add a call block entry
Press MENU/SELECT in idle mode.
Press CID or DIR to scroll to Call block,
then press MENU/SELECT.
Press MENU/SELECT to choose Block list.
Press CID or DIR to scroll to Add new entry,
then press MENU/SELECT.
When the screen displays Enter number, use
the dialing keys to enter a telephone number
(up to 30 digits).
Press CID or DIR to move the cursor to the
left or right.
Press MUTE/DELETE to erase a digit.
Press and hold MUTE/DELETE to erase
all digits.
Press and hold REDIAL/PAUSE to enter a
three-second dialing pause (a p appears).
-OR-
Copy a number from the redial list by pressing
REDIAL/PAUSE. Then, press CID or DIR or
REDIAL/PAUSE repeatedly to find the desired number. Press
MENU/SELECT to copy the number.
6. Press MENU/SELECT to move on to the name.
The display shows Number repeated if the number is already
in the call block list. You cannot save the same number twice.
7. When the screen displays Enter name, use the
dialing keys to enter a name (up to 15 charac-
ters). Each time you press a key, the character
on that key appears. Additional key presses pro-
duce other characters on that key. Press a key
repeatedly until the desired character appears.
1.
2.
3.
4.
5.
•
•
•
•
•
•
Call block
Review
>Add new entry
>Block list
Calls w/o num
Caller ID log
>Call block
ENTER NUMBER
888-883-2445_
ENTER NAME
Salesman_
Call block
Call block
63
Call block
Press CID or DIR to move the cursor to the left
or right.
Press 0 to add a space.
Press MUTE/DELETE to erase a character.
Press and hold MUTE/DELETE to erase all characters.
Press TONE to change the next letter to upper or
lower case.
8. Press MENU/SELECT to save your call block entry.
Review call block list
Press MENU/SELECT in idle mode.
Press CID or DIR to scroll to Call block, then
press MENU/SELECT.
Press MENU/SELECT to choose Block list.
Press MENU/SELECT to choose Review.
Press CID or DIR to browse through the call
block entries.
NOTE: List empty appears if there are no call block entries.
•
•
•
•
•
1.
2.
3.
4.
5.
>Review
Add new entry
Salesman
888-883-2445
Call block
64
Call block
Save a caller ID log entry to call block list
Search for the desired caller ID log entry (see Review the caller
ID history on page 56).
When the desired entry displays, press MENU/SELECT.
Press CID or DIR to scroll to To Call block, then press
MENU/SELECT.
The handset displays Enter number. Use the dialing keys to edit
the number when necessary.
Press CID or DIR to move the cursor to the left or right.
Press MUTE/DELETE to erase a digit.
Press and hold MUTE/DELETE to erase all digits.
Press and hold REDIAL/PAUSE to enter a three-second dialing
pause (a p appears).
5. Press MENU/SELECT to move on to the name.
6. The screen displays Enter name. Use the dialing keys to enter
a name (up to 15 characters). Press a key repeatedly until the
desired character appears.
Press CID or DIR to move the cursor to the left or right.
Press 0 to add a space.
Press MUTE/DELETE to erase a character.
Press and hold MUTE/DELETE to erase all characters.
Press # (pound key) to move the last word to the front. For
example, Johnson Charlie becomes Charlie Johnson when
you press # (pound key).
7. Press MENU/SELECT to save the entry. The screen shows Saved.
1.
2.
3.
4.
•
•
•
•
•
•
•
•
•
Call block
65
Call block
Edit a call block entry
Search for the desired call block entry (see
Review call block list on page 63).
When the desired entry displays, press
MENU/SELECT.
The handset displays Enter number. Use the
dialing keys to edit the number when necessary.
Press CID or DIR to move the cursor to the
left or right.
Press MUTE/DELETE to erase a digit.
Press and hold MUTE/DELETE to erase
all digits.
Press and hold REDIAL/PAUSE to enter a
three-second dialing pause (a p appears).
4. Press MENU/SELECT to move on to the name.
5. The screen displays Enter name. Use the dialing
keys to enter a name. Press a key repeatedly until the desired
character appears.
Press CID or DIR to move the cursor to the left or right.
Press 0 to add a space.
Press MUTE/DELETE to erase a character.
Press and hold MUTE/DELETE to erase all characters.
6. Press MENU/SELECT to save the entry. The screen shows Saved.
1.
2.
3.
•
•
•
•
•
•
•
•
ENTER NUMBER
888-883-2445_
ENTER NAME
TV Salesman_
Salesman
888-883-2445
66
Delete a call block entry
Search for the desired call block entry (see Review call block
list on page 63).
When the desired entry displays, press MUTE/DELETE on the
handset. The screen shows Deleted and the next entry displays.
You cannot retrieve a deleted entry.
NOTE: If the call block list is empty after an entry is deleted, the screen
displays Blocked list is empty.
Block calls without number
You can use this feature to reject all incoming calls
which are “out of area“ or with numbers set to
“Private“.
Press MENU/SELECT in idle mode.
Press CID or DIR to scroll to Call block, then
press MENU/SELECT.
Press CID or DIR to scroll to
Calls w/o num, then press MENU/SELECT.
Press CID or DIR to choose Not block or
Block, then press MENU/SELECT.
1.
2.
1.
2.
3.
4.
Call block
Block list
>Calls w/o num
>Not block
Block
Call block
67
Adding and registering handsets
Your telephone can support up to 12 DECT 6.0 cordless handsets
(AT&T model CL80114, sold separately) or up to ten cordless
handsets and two cordless headsets or speakerphones (sold
separately). Visit www.telephones.att.com/accessories for
a list of compatible DECT 6.0 cordless headsets and speakerphones.
Each new handset or headset must be registered to the telephone
base before use. You must register each handset, headset or
speakerphone separately.
To register a cordless headset to this telephone system, please
refer to the corresponding user’s manual for details. To register a
cordless handset, see below.
The handsets provided within your product box are already
registered as HANDSET 1, and so forth. Additional handsets are
assigned numbers in the sequential order they are registered (up
to HANDSET 12).
Appendix
Appendix
68
Register a handset to your telephone base
1. Before you begin registration, make sure the
handset is out of the telephone base or charger
and shows To register HS, see manual.
2. Put the handset you wish to register on the
telephone base cradle.
3. The screen shows Registering... Please wait
and the light on the telephone base turns
on. If the registration is successful, HANDSET X
Registered appears on the screen (HANDSET
represents the handset name, X represents
the handset number). The handset beeps
and the light turns off. The handset is
now registered with the telephone base.
If registration fails, the system will automatically try to register
again. If registration fails after the third try, Registration failed
appears on the screen for a few seconds, and then To register
HS, see manual. This may take up to five minutes to occur. Please
start again from Step 1.
NOTE: You cannot register a handset if any other system handset is in use.
Adding and registering handsets
To register HS,
see manual.
For registration, put the handset on the
telephone base, not the handset charger.
Registering...
Please wait
HANDSET X
Registered
Appendix
69
Deregistering handsets
You may need to deregister your handsets if:
You have 12 registered handsets and need to replace a handset.
-OR-
You wish to change the designated handset number of your
registered handsets.
You must first deregister ALL the handsets, and then register each
handset you wish to use again, one at a time.
Please read carefully through all the instructions on this page
before beginning the deregistration process.
Deregister all handsets from your telephone base
In addition to the cordless handsets, this operation will also
deregister all cordless headsets and speakerphones registered to
your telephone base.
1. Make sure that all handsets are out of the telephone base and
chargers before you begin deregistration.
2. Press and hold on the telephone base for about
ten seconds (until the light starts to flash). Release
.
3. Immediately press again while the
light is still flashing. (If the light stops flashing, start again
with Step 1.)
4. It takes up to ten seconds to complete deregistration. Before
registering the handset again, wait for the cordless handset
screen to display To register HS, see manual.
5. To register the handset(s) to the telephone base again, follow
the instructions on pages 68-68.
NOTES:
If the deregistration process is not successful, you might need to reset the
system and try again. To reset, unplug the power from the telephone base and
plug it back in.
You cannot deregister the handset(s) if any other system handset is in use.
Even if the battery is depleted, you can still deregister the handset by following
the steps mentioned above. After the handset is charged for at least ten
minutes, the screen shows To register HS, see manual.
•
•
•
•
•
Appendix
70
Handset screen icons
Battery status - battery is charging (animated
display).
Battery status - low battery (flashing); place
the handset in telephone base or charger
to recharge.
Speakerphone - the speakerphone is in use.
Ringer off - the handset ringer is off.
New voicemail - you have new voicemail
from your telephone service provider.
NEW New caller ID log - new and missed calls.
MUTE MUTE - the handset microphone is off.
Handset alert tones
One short beep Tone of each key press, if key tone is turned on.
Two short beeps You are pressing TCID or SDIR on a cordless
handset when the volume is already at its highest or
lowest setting.
-OR-
Call waiting tone.
-OR-
Error tone.
Confirmation tone
(three rising tones)
The system has completed the command successfully.
Four beeps The other party has ended your intercom call.
-OR-
The handset has gone out of range from the base
during a call.
Four short beeps Low battery warning.
Alert tones and lights
10:01AM
NEW
MUTE
Appendix
71
Alert tones and lights
Lights
CHARGE light
On when the
handset is charging
in the telephone
base or charger.
/SPEAKERSPEAKER
On when the
speakerphone is on.
Lighted display
Lighted key pad
IN USE
On when the handset is in use.
On when a handset is being
registered.
Flashes when there is an incoming
call or when handsets are
being deregistered.
Flashes when another telephone is in
use on the same line.
•
•
•
•
Appendix
72
Screen display messages
Screen display messages
Caller ID log
empty
There are no entries in the caller ID history.
Call
transferred
You have transferred an outside call to another
cordless handset.
Calling
HANDSET X (for systems
with 3 or more handsets)
The handset is calling another handset (for
intercom calls).
The handset is transferring an outside call to
another handset.
Calling other
handset (for systems
with 2 handsets)
The handset is calling the other handset (for
intercom calls).
The handset is transferring an outside call to the
other handset.
Contact deleted A directory entry is deleted.
Directory empty There are no directory entries.
Directory full The directory is full. You cannot save any new
entries unless you delete some current entries.
Ended You have just ended a call.
HANDSET X
is calling
Another system handset is calling.
Incoming call There is an incoming call.
Intercom The handset is on an intercom call.
Intercom ended The intercom call has just ended.
INTERCOM TO:
(for systems with 3 or more
handsets)
You have started the intercom process, and need
to enter the number of the handset you wish to
call.
Appendix
73
Screen display messages
Screen display messages
Line in use An extension phone, or one of the handsets is in
use.
Low battery The battery is low. You should charge the battery.
Microphone ON Mute is off so the other party can hear your voice.
Muted The microphone is off. The other party cannot
hear you.
New voicemail There are new voicemail messages from your
telephone
service provider.
No battery The handset in the telephone base or charger has
no
battery installed.
No line There is no telephone line connection.
No answer. Try
again
The handset(s) you are trying to transfer a call to
is out of range, off hook, or has no power.
Not available
at this time
Someone else is already using the directory or
caller ID history.
Other handset
is calling (for
systems with 2 handsets)
The other handset is calling.
Number already
saved
The telephone number you have entered is already
in the directory.
Out of range OR
No pwr at base
The telephone base has lost power, or the handset
is out of range.
** Paging ** The cordless handset is paged by the telephone
base.
Appendix
74
Screen display messages
Screen display messages
Phone The handset is on a call.
Place in charger The battery is very low. The handset should be
charged.
Registering...
Please wait
The handset is registering to the telephone base.
Registration failed The handset registration is not successful.
Ringer off The ringer is turned off.
Ringer muted The ringer is off temporarily while the handset is
ringing.
Saved An entry has been successfully saved in the
directory.
Speaker The handset speakerphone is in use.
To register,
see manual.
Screen display before handset registration.
TRANSFER TO:
(for systems with 3 or more
handsets)
You have started transferring a call, and need to
enter the desired handset number or choose all
handsets.
Unable to call.
Line in use
Failed phone call (the telephone line is in use).
Unable to call.
Try again
You try to join a call when four handsets are
already on that call.
You try to make an outside call when another
handset is transferring a call with the intercom
feature.
XX Missed calls There are new calls in the caller ID history.
Appendix
75
Troubleshooting
If you have difficulty with your phone, please try the suggestions,
as mentioned below. For Customer Service, visit our website at
www.telephones.att.com or call 1 (800) 222-3111.
In Canada, dial 1 (866) 288-4268.
My telephone doesn’t work at all.
Make sure the power cord is securely plugged in.
Make sure you plug the battery connector securely into the
cordless handset.
Make sure you plug the telephone line cord securely and firmly
into the telephone base and the telephone wall jack.
Charge the battery in the cordless handset for at least 10 hours.
For optimum daily performance, return the cordless handset to
the telephone base or charger when not in use.
If the battery is depleted, it might take approximately 30 minutes
to charge the handset before it shows Low battery. See page 8
for details.
Reset the telephone base. Unplug the electrical power. Wait for
approximately 15 seconds, then plug it back in. Allow up to one
minute for the cordless handset and telephone base to reset.
You may need to purchase a new battery. Refer to Battery
installation and charging in this user’s manual on pages 8-9.
The display shows No line. I cannot get a dial tone.
Try all the suggestions, as mentioned above.
If the previous suggestions do not work, disconnect the
telephone line cord from your telephone and connect the
telephone line cord to another telephone.
If there is no dial tone on that other telephone either, your
telephone line cord may be defective. Install a new telephone
line cord.
•
•
•
•
•
•
•
•
•
•
Appendix
76
Troubleshooting
If changing the telephone line cord does not help, the wall
jack (or the wiring to this wall jack) may be defective. Try using
a different wall jack in your home to connect your CL81114/
CL81214 telephone, or contact your telephone service provider
(charges may apply)..
I cannot dial out.
Try all the suggestions, as mentioned above.
Make sure you have a dial tone before dialing. The cordless handset
might take a second or two to find the telephone base and produce
a dial tone. This is normal. Wait an extra second before dialing.
Eliminate any background noise. Noise from a television, radio or
other appliances might cause the phone to not dial out properly.
If you cannot eliminate the background noise, try muting the
cordless handset before dialing, or dialing from another room
with less background noise.
If other phones in your home are having the same problem,
contact your telephone service provider (charges might apply).
My cordless handset isn’t performing normally.
Make sure you plug the power cord securely into the telephone
base. Plug the power adapter into a different, working electrical
outlet without a wall switch.
Move the cordless handset closer to the telephone base. You
might have moved out of range.
Reset the telephone base. Unplug the electrical power. Wait for
15 seconds, then plug it back in. Allow up to one minute for the
cordless handset and telephone base to reset.
Other electronic products such as HAM radios and other DECT
phones, can cause interference with your cordless phone. Try
installing your phone as far away as possible from these types
of electronic devices.
•
•
•
•
•
•
•
•
•
Appendix
77
Troubleshooting
Out of range OR No pwr at base appears on my cordless handset.
Ensure you plug the telephone base in properly and the power is on.
Place the cordless handset in the telephone base for one
minute to allow the cordless handset and base to synchronize.
Move the cordless handset closer to the telephone base. You
might have moved out of range.
Reset the telephone base. Unplug the electrical power. Wait for
15 seconds, then plug it back in. Allow up to one minute for the
cordless handset and telephone base to reset.
Other electronic products such as HAM radios and other DECT
phones, can cause interference with your cordless phone. Try
installing your phone as far away as possible from these types
of electronic devices.
The batteries do not hold a charge.
If the cordless handset is in the telephone base or charger
and the charge light is not on, refer to The charge light is off
(page 80) in this Troubleshooting guide.
Charge the battery in the cordless handset for at least 10 hours.
For optimum daily performance, return the cordless handset to
the telephone base or charger when not in use.
If the battery is depleted, it might take approximately 30 minutes to
charge the handset before it shows Low battery. Refer to the table
on page 6 for details.
You might need to purchase a new battery. Refer to Battery
installation and charging in this user’s manual on pages 6-7.
I hear other calls while using my phone.
Disconnect the telephone base from the telephone jack, and
plug in a different telephone. If you still hear other calls, call
your telephone service provider.
•
•
•
•
•
•
•
•
•
•
Appendix
78
I get noise, static, or weak signals even when I’m near the
telephone base.
If you subscribe to high-speed Internet service (DSL - digital
subscriber line) through your telephone line, you must install a
DSL filter between the telephone line cord and the telephone
wall jack. The filter prevents noise and caller ID problems as
a result of DSL interference. Please contact your DSL service
provider for more information about DSL filters.
You may be able to improve the performance of your cordless
phone by installing your new telephone base as far as possible
from any other existing cordless telephone system that may
already be installed.
Other electronic products such as HAM radios and other DECT
phones, can cause interference with your cordless phone. Try
installing your phone as far away as possible from these types
of electronic devices.
Do not install this phone near a microwave oven or on the same
electrical outlet. You might experience decreased performance
while the microwave oven is operating.
If you plug your phone in with a modem or a surge protector,
plug the phone (or modem/surge protector) into a different
location. If this does not solve the problem, relocate your phone
or modem farther apart from one another, or use a different
surge protector.
Move your phone to a higher location. The phone might have
better reception in a high area.
If the other phones in your home are having the same problem,
contact your telephone service provider (charges may apply).
I experience poor sound quality when using the speakerphone.
For increased sound quality while using the speakerphone, place
the handset on a flat surface with the dialing keys facing up.
•
•
•
•
•
•
•
•
Troubleshooting
Appendix
79
My cordless handset does not ring when I receive a call.
Make sure that the ringer is not off. Refer to Ringer volume in
the user’s manual provided with your CL81114/
CL81214 telephone.
Make sure you plug the telephone line cord securely into the
telephone base and telephone jack. Make sure you plug in the
power cord securely.
The cordless handset may be too far from the telephone base.
Charge the battery in the cordless handset for at least 10 hours.
For optimum daily performance, return the cordless handset to
the telephone base or charger when not in use.
You may have too many extension phones on your telephone
line to allow all of them to ring simultaneously. Try unplugging
some of the other phones.
The layout of your home or office might be limiting the
operating range. Try moving the telephone base to another
location, preferably on an upper floor.
If the other phones in your home are having the same problem,
contact your telephone service provider (charges might apply).
Test a working phone at the phone jack. If another phone has
the same problem, contact your telephone service provider
(charges might apply).
Other electronic products such as HAM radios and other DECT
phones, can cause interference with your cordless phone. Try
installing your phone as far away as possible from these types
of electronic devices.
Completely remove the battery. Replace it and place the
cordless handset into the telephone base. Allow up to one
minute for the handset to reestablish its connection with the
telephone base.
Your line cord might be defective. Try installing a new line cord.
•
•
•
•
•
•
•
•
•
•
•
Troubleshooting
Appendix
80
Troubleshooting
My calls cut in and out while I’m using my cordless handset.
Other electronic products such as HAM radios and other DECT
phones, can cause interference with your cordless phone. Try
installing your phone as far away as possible from these types
of electronic devices.
Do not install this phone near a microwave oven or on the same
electrical outlet. You might experience decreased performance
while the microwave oven is operating.
If you plug your phone in with a modem or surge protector, try
plugging the phone (or modem/surge protector) into a different
location. If this does not solve the problem, relocate your phone
or modem farther apart from one another, or use a different
surge protector.
Move your telephone base to a higher location. The phone
might have better reception when installed in a high area.
If other phones in your home are having the same problem,
contact your telephone service provider (charges may apply).
The charge light is off.
Make sure you plug the power and line cords in correctly
and securely.
Unplug the electrical power. Wait for 15 seconds, then plug it
back in. Allow up to one minute for the cordless handset and
telephone base to reset.
Clean the cordless handset, charger and telephone base
charging contacts each month with a pencil eraser or cloth.
The battery may not be connected to the handset or is missing
completely. Ensure that the battery is installed properly.
•
•
•
•
•
•
•
•
•
Appendix
81
Troubleshooting
My caller ID isn’t working.
Caller ID is a subscription service. You must subscribe to this
service from your telephone service provider for this feature to
work on your phone.
The caller may not be calling from an area that supports caller ID.
Both your and your caller’s telephone service providers must
use caller ID compatible equipment.
If you subscribe to high-speed Internet service (DSL - digital
subscriber line) through your telephone line, you must install a
DSL filter between the telephone line cord and the telephone
wall jack. The filter prevents noise and caller ID problems
resulting from DSL interference. Contact your DSL service
provider for more information about DSL filters.
System does not receive caller ID when on a call.
Make sure you subscribe to caller ID with call waiting features
from your telephone service provider. Caller ID features
work only if both you and the caller are in areas offering
caller ID service, and if both telephone service providers use
compatible equipment.
Incomplete messages.
If a caller leaves a very long message, part of it may be lost when
the system disconnects the call after the maximum recording
time you have set.
If the caller pauses for longer than seven seconds, the system
stops recording and disconnects the call.
If the system’s memory becomes full during a message, the
system stops recording and disconnects the call.
If the caller’s voice is very soft, the system may stop recording
and disconnect the call.
•
•
•
•
•
•
•
•
•
Appendix
82
Troubleshooting
New voicemail and show on the screens, and I don’t know
why.
Your telephone has received a signal from your telephone
service provider that you have a voicemail message waiting
for you to retrieve from them. Contact your telephone service
provider for more information on how to access your voicemail.
I cannot retrieve voicemail messages.
If you subscribe to voicemail service from your telephone
service provider, contact your telephone service provider for
more information on how to access your voicemail.
I’ve set my LCD language to Spanish or French and I don’t know
how to change it back to English.
• Press MENU/SELECT in idle mode. Then enter 364# using the
dialing keys. You hear a confirmation tone.
I subscribe to a nontraditional telephone service that uses
my computer to establish connections, and my telephone
doesn’t work.
Make sure your computer is powered on.
Make sure your Internet connection is working properly.
Make sure that the software is installed and running for your
nontraditional telephone service.
Make sure to plug your USB telephone adapter into a dedicated
USB port on your computer. Do not plug it into a multiple port
USB hub (USB splitter) that is not powered.
In a few rare instances, the USB port on your computer may
not have enough power. In these instances, try using a USB hub
with its own external power supply.
If you are using a firewall, it may prevent access to your
nontraditional telephone service provider. Contact your service
provider for more information.
•
•
•
•
•
•
•
•
Appendix
83
Troubleshooting
Common cure for electronic equipment.
If the telephone does not seem to be responding normally, try
putting the cordless handset in the charger. If it does not fix the
problem, do the following (in the order listed):
1. Disconnect the power to the telephone base.
2. Disconnect the cordless handset battery.
3. Wait a few minutes.
4. Connect power to the telephone base.
5. Completely remove the battery. Replace the battery and place
the cordless handset into the telephone base or charger.
6. Wait for the cordless handset to reestablish its connection with
the telephone base. Allow up to one minute for this to take place.
Appendix
84
Maintenance
Taking care of your telephone
Your cordless telephone contains sophisticated electronic parts,
so you must treat it with care.
Avoid rough treatment.
Place the handset down gently.
Save the original packing materials to protect your telephone if
you ever need to ship it.
Avoid water
You can damage your telephone if it gets wet. Do not use the
handset in the rain, or handle it with wet hands. Do not install
the telephone base near a sink, bathtub or shower.
Electrical storms
Electrical storms can sometimes cause power surges harmful to
electronic equipment. For your own safety, take caution when
using electric appliances during storms.
Cleaning your telephone
Your telephone has a durable plastic casing that should retain
its luster for many years. Clean it only with a soft cloth slightly
dampened with water or mild soap.
Do not use excess water or cleaning solvents of any kind.
•
•
•
•
•
•
•
•
Remember that electrical appliances can cause serious injury if used when you
are wet or standing in water. If the telephone base should fall into water, DO
NOT RETRIEVE IT UNTIL YOU UNPLUG THE POWER CORD AND TELEPHONE LINE
CORDS FROM THE WALL. Pull the unit out by the unplugged cords.
Appendix
85
Important safety information
This symbol is to alert you to important operating or servicing instructions
that may appear in this user’s manual. Always follow basic safety
precautions when using this product to reduce the risk of injury, fire, or
electric shock.
Safety information
Read and understand all instructions in the user’s manual. Observe all markings on
the product.
Avoid using a telephone during a thunderstorm. There may be a slight chance of
electric shock from lightning.
Do not use a telephone in the vicinity of a gas leak. Under certain circumstances, a
spark may be created when the adapter is plugged into the power outlet, or when
the handset is replaced in its cradle. This is a common event associated with the
closing of any electrical circuit. The user should not plug the phone into a power
outlet, and should not put a charged handset into the cradle, if the phone is located
in an environment containing concentrations of flammable or flame-supporting
gases, unless there is adequate ventilation. A spark in such an environment could
create a fire or explosion. Such environments might include: medical use of oxygen
without adequate ventilation; industrial gases (cleaning solvents; gasoline vapors;
etc.); a leak of natural gas; etc.
Do not use this product near water, or when you are wet. For example, do not use it
in a wet basement or shower, or next to a swimming pool, bathtub, kitchen sink, or
laundry tub. Do not use liquids or aerosol sprays for cleaning. If the product comes
in contact with any liquid, unplug any line or power cord immediately. Do not plug
the product back in until it has dried thoroughly.
Install this product in a protected location where no one can trip over any line or
power cords. Protect cords from damage or abrasion.
If this product does not operate normally, see the Troubleshooting section on
pages 75-80 of this user’s manual. If you cannot solve the problem, or if the
product is damaged, refer to the Limited warranty section pages 96-98. Do not
open this product except as directed in your user’s manual. Opening the product or
reassembling it incorrectly may expose you to hazardous voltages or other risks.
Replace batteries only as described in your user’s manual (pages 8-9). Do not burn
or puncture batteries — they contain caustic chemicals.
This power adapter is intended to be correctly oriented in a vertical or floor mount
position. The prongs are not designed to hold the plug in place if it is plugged into a
ceiling or an under-the-table/cabinet outlet.
•
•
•
•
•
•
•
•
Appendix
86
Important safety information
CAUTIONS:
Use only the power adapter provided with this product. To obtain a replacement,
visit our website at www.telephones.att.com or call
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
Use only the supplied rechargeable battery or replacement battery (model
BT183342/BT283342). To order, visit our website at
www.telephones.att.com or call 1 (800) 222-3111. In
Canada, dial 1 (866) 288-4268.
To prevent risk of fire or battery explosion, replace with the correct battery type.
Dispose of used batteries according to the instructions.
Especially about cordless telephones
Privacy: The same features that make a cordless telephone convenient create
some limitations. Telephone calls are transmitted between the telephone base
and the handset by radio waves, so there is a possibility that your cordless
telephone conversations could be intercepted by radio receiving equipment
within range of the cordless handset. For this reason, you should not think
of cordless telephone conversations as being as private as those on corded
telephones.
Electrical power: The telephone base of this cordless telephone must be
connected to a working electrical outlet which is not controlled by a wall switch.
Calls cannot be made from the handset if the telephone base is unplugged,
switched off or if the electrical power is interrupted.
Potential TV interference: Some cordless telephones operate at frequencies
that may cause interference to TVs and VCRs. To minimize or prevent such
interference, do not place the telephone base of the cordless telephone near
or on top of a TV or VCR. If interference is experienced, moving the cordless
telephone farther away from the TV or VCR will often reduce or eliminate the
interference.
Rechargeable batteries: This product contains nickel-metal hydride rechargeable
batteries. Exercise care in handling batteries in order not to create a short
circuit with conductive material such as rings, bracelets, and keys. The battery or
conductor may overheat and cause harm. Observe proper polarity between the
battery and the battery charger.
Nickel-metal hydride rechargeable batteries: Dispose of these batteries in a safe
manner. Do not burn or puncture. Like other batteries of this type, if burned or
punctured, they could release caustic material which could cause injury.
•
•
•
•
•
•
•
•
Appendix
87
The RBRC® Seal means that the manufacturer is voluntarily
participating in an industry program to collect and recycle nickel-
metal hydride rechargeable batteries when taken out of service
within the United States. These batteries may be taken to a
participating local retailer of replacement batteries or recycling
center. Or you may call 1-800-8-BATTERY® for locations accepting
spent Ni-MH batteries.
RBRC® and 1-800-8-BATTERY® are registered trademarks of the
Rechargeable Battery Recycling Corporation.
Precautions for users of implanted cardiac pacemakers
Cardiac pacemakers (applies only to digital cordless telephones):
Wireless Technology Research, LLC (WTR), an independent research entity, led
a multidisciplinary evaluation of the interference between portable wireless
telephones and implanted cardiac pacemakers. Supported by the U.S. Food and
Drug Administration, WTR recommends to physicians that:
Pacemaker patients
Should keep wireless telephones at least six inches from the pacemaker.
Should NOT place wireless telephones directly over the pacemaker, such as in a
breast pocket, when it is turned ON.
Should use the wireless telephone at the ear opposite the pacemaker.
WTR’s evaluation did not identify any risk to bystanders with pacemakers from
other persons using wireless telephones.
ECO mode
This power conserving technology reduces power consumption for optimal battery
performance. The ECO mode activates automatically whenever the handset is
synchronized with the telephone base.
SAVE THESE INSTRUCTIONS
Important safety information
Appendix
88
For C-UL compliance
In compliance with the bilingual requirements for safety, caution, and warning
markings of Canadian Federal and Provincial/Territorial statutes and regulations,
the French version of Important safety information is included. Important safety
information is included.
Mesures de sécurité importantes
Ce symbole vous alertera d’informations importantes ou d’instructions
d’entretien pouvant apparaître dans ce guide d’utilisation. Respectez
toujours les mesures de sécurité et de sécurité de base lorsque vous
utilisez ce produit, afin de réduire les risques de blessures, d’incendie, ou
d’électrocution.
Information relative à la sécurité
Veuillez lire et comprendre toutes les instructions de ce guide d’utilisation.
Relectez toutes les inscriptions apparaissant sur le produit.
Évitez d’utiliser le téléphone pendant un orage. Il pourrait y avoir un faible risque
d’électrocution.
N’utilisez pas un téléphone près d’une fuite de gaz. Dans certaines circonstances,
une flammèche pourrait se produire lorsque l’adaptateur est branché à une prise
de courant, ou lorsque le combiné est déposé sur son chargeur. Ceci est un
événement fréquent associé avec la fermeture d’un circuit électrique. L’utilisateur
ne devrait pas brancher un téléphone dans une prise de courant, et ne devrait
pas déposer un combiné chargé dans le chargeur, si le téléphone se trouve
dans un environnement comportant une concentration de gaz inflammables ou
ignifuges, à moins de se trouver dans un endroit où la ventilation est adéquate.
Une flammèche dans de tels environnements pourrait provoquer une explosion.
De tels environnements peuvent comprendre : les endroits où de l’oxygène à des
fins médicales est utilisé sans ventilation adéquate; des endroits où se trouvent
des gaz industriels (dissolvants de nettoyage, des vapeurs de gazoline, etc.), une
fuite de gaz naturel, etc.
N’utilisez pas ce produit près de l’eau ou lorsque vous êtes mouillés. Par exemple,
ne l’utilisez pas dans des sous-sols humides ou sous la douche, ou près d’une
piscine, d’un bain, d’un évier de cuisine, ou d’une cuve de lavage. N’utilisez pas de
liquides, ou de vaporisateurs aérosol de nettoyage. Si le produit entre en contact
avec du liquide, débranchez immédiatement le fil téléphonique ou le cordon
d’alimentation. Ne rebranchez pas le produit avant qu’il soit complètement sec.
Installez cet appareil dans un endroit protégé où personne ne peut trébucher sur
les cordons d’alimentation ou la ligne téléphonique. Protégez les câbles contre les
dommages ou l’abrasion.
•
•
•
•
•
Appendix
89
N’utilisez seulement l’adaptateur inclus avec ce produit. Pour obtenir une pièce
de rechange, visitez notre site Web au www.telephones.att.com ou
composez le 1-800-222-3111. Au Canada, composez le
1-866-288-4268.
N’utilisez que la pile de rechargeable incluse ou une pile de rechange (modèle
BT183342/BT283342). Pour commander, visitez notre site Web
www.telephones.att.com ou composez le
1-800-222-3111. Au Canada, composez le 1-866-288-4268.
Risque d’incendie si la pile est remplacée par une pile de types incorrects. Jetez
les piles épuisées en respectant les instructions.
•
•
•
MISES EN GARDE:
For C-UL compliance
Si le produit ne fonctionne pas correctement, consultez la section Dépannage
(Troubleshooting) des pages 12-19 de ce guide d’utilisation. Si vous ne pouvez
pas régler le problème, ou si le produit est endommagé, consultez la section
Garantie limitée (Limited warranty) des pages 32-34. N’ouvrez pas ce produit,
sauf tel qu’indiqué dans le guide d’utilisation. L’ouverture du produit ou le
remontage inadéquat pourrait vous exposer à des tensions dangereuses ou
autres dangers.
Remplacez les piles uniquement tel que décrit dans votre guide d’utilisation pages
pages 7-8 N’incinérez pas et ne percez pas les piles — elles contiennent des
produits chimiques caustiques.
L’adaptateur de courant est conçu pour être orienté verticalement ou installé sur
le plancher. Les broches ne sont pas conçues pour se maintenir en place si la
fiche est branchée dans une prise de courant au plafond, sous la table ou sous
une armoire..
•
•
•
Appendix
90
Le sceau de l’organisme de recyclage RBRCMD sur les piles à
l’hydrure métallique de nickel signifie que le fabricant de cet ap-
pareil participe volontairement au programme industriel visant à re-
prendre et recycler ce type de piles lorsqu’elles ne servent plus, au
sein du territoire des États-Unis et du Canada. Vous devez apporter
ces piles chez un détaillant participant ou le centre de recyclage
le plus près de chez vous. Ou vous pouvez composer le 1-800-8-
BATTERYMD afin de connaître les endroits qui acceptent les piles à
l’hydrure métallique de nickel mortes.
RBRCMD et 1-800-8-BATTERYMD sont des marques déposées de
Rechargeable Battery Recycling Corporation.
For C-UL compliance
Spécifiquement en rapport avec les téléphones sans fil
Confidentialité : Les mêmes caractéristiques qui rendent les téléphones sans fil
si pratiques créent également des restrictions. Les appels téléphoniques sont
transmis entre le socle du téléphone et le combiné par le biais d’ondes radio, et
il se peut que vos conversations téléphoniques soient interceptées par d’autres
équipements de réception d’ondes radio au sein de la portée du téléphone sans
fil. Pour cette raison, vous ne devez pas considérer les conversations sur un
téléphone sans fil comme étant aussi confidentielles que celles d’un téléphone à
cordon.
Alimentation électrique : La base de ce téléphone sans fil doit être branchée à
une prise de courant électrique fonctionnelle. La prise électrique ne doit pas être
contrôlée par un interrupteur mural. Les appels ne peuvent pas être effectués à
partir du combiné si la base n’est pas branchée, si elle est hors fonction ou si le
courant électrique est coupé.
Interférences potentielles aux téléviseurs : Certains téléphones sans fil
fonctionnent sur des fréquences pouvant causer des interférences aux téléviseurs
et magnétoscopes. Pour réduire ou prévenir de tels parasites, ne pas déposer
la base du téléphone sans fil à proximité d’un téléviseur ou magnétoscope, ni
directement sur celui-ci. Si votre téléviseur affiche des interférences, éloignez le
téléphone sans fil de celui-ci afin de réduire les parasites.
Piles rechargeables : Ce produit comporte des piles rechargeables à l’hydrure
métallique de nickel. Usez de prudence lorsque vous manipulez de telles piles et
veillez à ne pas les court-circuiter avec des matériaux conducteurs, tels que des
bagues, bracelets et clés. La pile ou le conducteur peut surchauffer et vous brûler.
Respectez la polarité adéquate entre les piles et le chargeur de piles.
Piles rechargeables à l’hydrure métallique de nickel : Jetez ces piles de manière
sécuritaire. N’incinérez pas et ne peercez pas les piles. Comme pour les autres piles
du même type, si elles sont brûlées ou percées, des matières corrosives peuvent s’en
échapper, ce qui risque de causer des brûlures ou autres blessures corporelles.
•
•
•
•
•
Appendix
91
For C-UL compliance
Mesures préventives pour les utilisateurs de stimulateurs
cardiaques implantés dans l’organisme
Stimulateurs cardiaques (ne s’applique qu’aux téléphones sans fil numériques) :
L’organisme ‘Wireless Technology Research, LLC (WTR)’, une firme de recherche
indépendante, a mené une évaluation pluridisciplinaire des interférences entre
les téléphones sans fil portatifs et les stimulateurs cardiaques implantés dans
l’organisme. Appuyée par l’Administration des aliments et drogues (FDA) des
États-unis, la firme WTR recommande aux médecins :
Avis aux détenteurs de stimulateurs cardiaques
Ils doivent tenir le téléphone sans fil à une distance d’au moins six pouces du
stimulateur cardiaque.
Ils ne doivent PAS placer le téléphone sans fil directement sur le stimulateur
cardiaque, tel que dans une poche de chemise, lorsque celui-ci est en fonction.
Ils doivent utiliser le téléphone sans fil en l’appuyant sur l’oreille qui se trouve
dans la direction opposée au stimulateur cardiaque.
L’étude effectuée par l’organisme WRS n’a pas identifié de risque pour les
détenteurs de simulateurs cardiaques causé par les gens qui utilisent un téléphone
sans fil à proximité de ceux-ci.
Mode ECO
Lorsque le socle communique avec le combiné, le mode ECO sera activé
automatiquement. Ceci réduit la consommation d’énergie selon la distance entre le
socle du téléphone et le combiné.
CONSERVEZ CES INSTRUCTIONS
•
•
•
Appendix
92
FCC Part 68 and ACTA
This equipment complies with Part 68 of the FCC rules and with technical requirements
adopted by the Administrative Council for Terminal Attachments (ACTA). The label on
the back or bottom of this equipment contains, among other things, a product identifier
in the format US:AAAEQ##TXXXX. This identifier must be provided to your telephone
service provider upon request.
The plug and jack used to connect this equipment to premises wiring and the
telephone network must comply with the applicable Part 68 rules and technical
requirements adopted by ACTA. A compliant telephone cord and modular plug is
provided with this product. It is designed to be connected to a compatible modular jack
that is also compliant. An RJ11 jack should normally be used for connecting to a single
line and an RJ14 jack for two lines. See the installation instructions in the user’s manual.
The Ringer Equivalence Number (REN) is used to determine how many devices you
may connect to your telephone line and still have them ring when you are called. The
REN for this product is encoded as the 6th and 7th characters following the US: in
the product identifier (e.g., if ## is 03, the REN is 0.3). In most, but not all areas, the
sum of all RENs should be five (5.0) or less. For more information, please contact your
telephone service provider.
This equipment may not be used with Party Lines. If you have specially wired alarm
dialing equipment connected to your telephone line, ensure the connection of this
equipment does not disable your alarm equipment. If you have questions about what
will disable the alarm equipment, consult your telephone service provider or a
qualified installer.
If this equipment is malfunctioning, it must be unplugged from the modular jack until
the problem has been corrected. Repairs to this telephone equipment can only be
made by the manufacturer or its authorized agents. For repair procedures, follow the
instructions outlined under the Limited warranty.
If this equipment is causing harm to the telephone network, the telephone service
provider may temporarily discontinue your telephone service. The telephone service
provider is required to notify you before interrupting service. If advance notice is not
practical, you will be notified as soon as possible. You will be given the opportunity
to correct the problem and the telephone service provider is required to inform you
of your right to file a complaint with the FCC. Your telephone service provider may
make changes in its facilities, equipment, operation, or procedures that could affect the
proper functioning of this product. The telephone service provider is required to notify
you if such changes are planned.
If this product is equipped with a corded or cordless handset, it is hearing aid
compatible.
If this product has memory dialing locations, you may choose to store emergency
telephone numbers (e.g., police, fire, medical) in these locations. If you do store or test
emergency numbers, please:
Remain on the line and briefly explain the reason for the call before hanging up.
Perform such activities in off-peak hours, such as early morning or late evening.
Appendix
93
Industry Canada
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Privacy of communications may not be ensured when using this telephone.
The term ‘’IC:‘’ before the certification/registration number only signifies that the
Industry Canada technical specifications were met.
The Ringer Equivalence Number (REN) for this terminal equipment is 1.0. The
REN is an indication of the maximum number of devices allowed to be connected
to a telephone interface. The termination on an interface may consist of any
combination of devices subject only to the requirement that the sum of the RENs of
all the devices does not exceed five.
This product meets the applicable Industry Canada technical specifications.
FCC Part 68 and ACTA
Appendix
94
FCC Part 15
This equipment has been tested and found to comply with the requirements for a
Class B digital device under Part 15 of the Federal Communications Commission
(FCC) rules. These requirements are intended to provide reasonable protection
against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications to this equipment not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation. Privacy of communications may not be ensured when
using this telephone.
To ensure safety of users, the FCC has established criteria for the amount of radio
frequency energy that can be safely absorbed by a user or bystander according
to the intended usage of the product. This product has been tested and found to
comply with the FCC criteria. The handset may be safely held against the ear of the
user. The telephone base shall be installed and used such that parts of the user’s
body other than the hands are maintained at a distance of approximately 20 cm (8
inches) or more.
This Class B digital apparatus complies with Canadian requirement:
CAN ICES-3 (B)/NMB-3(B)
•
•
•
•
Appendix
95
California Energy Commission battery charging
testing instructions
This telephone is set up to comply with the energy-conserving standards right out of the
box. These instructions are intended for California Energy Commission (CEC) compliance
testing only. When the CEC battery charging testing mode is activated, all telephone
functions, except battery charging, will be disabled.
To activate the CEC battery charging testing mode:
1. Unplug the telephone base power adapter from the power outlet. Make sure all
handsets are plugged with charged batteries before proceeding.
2. While you press and hold , plug the telephone base power adapter
back to the power outlet.
3. After about 20 seconds, when the light starts flashing, release
, and then press it again within two seconds.
The process takes up to one minute to complete. When the phone successfully
enters the CEC battery charging testing mode, the light turns off and all
handsets display To register HS, see manual. You hear a confirmation tone.
When the phone fails to enter this mode, repeat the steps mentioned above.
Note: The telephone base will be powered up as normal if you fail to press
within two seconds in Step 3.
To deactivate the CEC battery charging testing mode:
1. Unplug the telephone base power adapter from the power outlet, then plug it back in.
The telephone base is powered up as normal.
2. Register the handsets back to the telephone base. See pages 67-68 for handset
registration instructions.
BC
Appendix
96
Limited warranty
The AT&T brand is used under license - any repair, replacement or warranty service, and
all questions about this product should be directed to our website at
www.telephones.att.com or call 1 (800) 222-3111. In Canada,
dial 1 (866) 288-4268.
What does this limited warranty cover?
The manufacturer of this AT&T branded product warrants to the holder of a valid
proof of purchase (“CONSUMER” or “you”) that the product and all accessories
provided in the sales package (“PRODUCT”) are free from defects in material and
workmanship, pursuant to the following terms and conditions, when installed
and used normally and in accordance with the PRODUCT operating instructions.
This limited warranty extends only to the CONSUMER for products purchased and
used in the United States of America and Canada.
What will be done if the PRODUCT is not free from defects in materials
and workmanship during the limited warranty period (“materially defective
PRODUCT”)?
During the limited warranty period, the manufacturer’s authorized service
representative will repair or replace at the manufacturer’s option, without charge,
a materially defective PRODUCT. If the manufacturer repairs the PRODUCT,
they may use new or refurbished replacement parts. If the manufacturer
chooses to replace the PRODUCT, they may replace it with a new or refurbished
PRODUCT of the same or similar design. The manufacturer will retain defective
parts, modules, or equipment. Repair or replacement of the PRODUCT, at the
manufacturer’s option, is your exclusive remedy. The manufacturer will return
repaired or replacement products to you in working condition. You should expect
the repair or replacement to take approximately 30 days.
How long is the limited warranty period?
The limited warranty period for the PRODUCT extends for ONE (1) YEAR from the
date of purchase. If the manufacturer repairs or replaces a materially defective
PRODUCT under the terms of this limited warranty, this limited warranty also
applies to repaired or replacement PRODUCT for a period of either (a) 90 days
from the date the repaired or replacement PRODUCT is shipped to you or (b) the
time remaining on the original one-year limited warranty; whichever is longer.
What is not covered by this limited warranty?
This limited warranty does not cover:
PRODUCT that has been subjected to misuse, accident, shipping or other
physical damage, improper installation, abnormal operation or handling,
neglect, inundation, fire, water, or other liquid intrusion; or
PRODUCT that has been damaged due to repair, alteration, or modification by
anyone other than an authorized service representative of the manufacturer; or
1.
2.
3.
4.
•
•
Appendix
97
PRODUCT to the extent that the problem experienced is caused by signal
conditions, network reliability or cable or antenna systems; or
PRODUCT to the extent that the problem is caused by use with non-AT&T
accessories; or
PRODUCT whose warranty/quality stickers, PRODUCT serial number plates or
electronic serial numbers have been removed, altered or rendered illegible; or
PRODUCT purchased, used, serviced, or shipped for repair from outside the
United States of America or Canada, or used for commercial or institutional
purposes (including but not limited to products used for rental purposes); or
PRODUCT returned without valid proof of purchase (see item 6); or
Charges for installation or setup, adjustment of customer controls, and
installation or repair of systems outside the unit.
5. How do you get warranty service?
To obtain warranty service, visit www.telephones.att.com or call
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
NOTE: Before calling for service, please review the user’s manual; a check of the
PRODUCT’s controls and features may save you a service call.
Except as provided by applicable law, you assume the risk of loss or damage
during transit and transportation and are responsible for delivery or handling
charges incurred in the transport of the PRODUCT(s) to the service location.
The manufacturer will return repaired or replaced PRODUCT under this limited
warranty to you. Transportation, delivery or handling charges are prepaid. The
manufacturer assumes no risk for damage or loss of the PRODUCT in transit.
If the PRODUCT failure is not covered by this limited warranty, or proof of
purchase does not meet the terms of this limited warranty, the manufacturer
will notify you and will request that you authorize the cost of repair prior to any
further repair activity. You must pay for the cost of repair and return shipping
costs for the repair of products that are not covered by this limited warranty.
6. What must you return with the PRODUCT to get warranty service?
You must:
Return the entire original package and contents including the PRODUCT to
the service location along with a description of the malfunction or difficulty;
and
Include a “valid proof of purchase” (sales receipt) identifying the PRODUCT
purchased (PRODUCT model) and the date of purchase or receipt; and
Provide your name, complete and correct mailing address, and telephone
number.
•
•
•
•
•
•
•
•
•
Limited warranty
Appendix
98
Limited warranty
7. Other limitations
This warranty is the complete and exclusive agreement between you and the
manufacturer of this AT&T branded PRODUCT. It supersedes all other written
or oral communications related to this PRODUCT. The manufacturer provides
no other warranties for this PRODUCT. The warranty exclusively describes all of
the manufacturer’s responsibilities regarding the PRODUCT. There are no other
express warranties. No one is authorized to make modifications to this limited
warranty and you should not rely on any such modification.
State/Provincial Law rights: This warranty gives you specific legal rights, and
you may also have other rights which vary from state to state or province
to province.
Limitations: Implied warranties, including those of fitness for a particular purpose
and merchantability (an unwritten warranty that the PRODUCT is fit for ordinary
use) are limited to one year from date of purchase. Some states/provinces
do not allow limitations on how long an implied warranty lasts, so the above
limitation may not apply to you. In no event shall the manufacturer be liable for
any indirect, special, incidental, consequential, or similar damages (including,
but not limited to lost profits or revenue, inability to use the PRODUCT or other
associated equipment, the cost of substitute equipment, and claims by third
parties) resulting from the use of this PRODUCT. Some states/provinces do not
allow the exclusion or limitation of incidental or consequential damages, so the
above limitation or exclusion may not apply to you.
Please retain your original sales receipt as proof of purchase.
Appendix
99
DECT 6.0 digital technology
The AT&T DECT 6.0 products offer unsurpassed range performance and sound
clarity. This is achieved through a unique antenna design and advances in noise-
filtering technology. An independent laboratory has confirmed that AT&T DECT 6.0
products perform up to 45% better in range competitions against similarly equipped
phones of the leading competition. Now, calls can be taken in the basement,
backyard and garage with exceptional sound quality.
Telephone operating range
This cordless telephone operates within the maximum power allowed by the Federal
Communications Commission (FCC). Even so, this handset and telephone base can
communicate over a certain distance — which can vary with the locations of the
telephone base and handset, the weather, and the construction of your home or office.
Redefining long range coverage and clarity
This telephone base comes with an antenna which gives much better clarity and
covers a longer range than before.
RF frequency band 1921.536MHz - 1928.448MHz
Channels 5
Telephone base voltage
(AC voltage, 60Hz)
96Vrms - 130Vrms
Telephone base voltage
(AC adapter output)
6VAC @ 300mA
Handset battery 2.4V 400mA, 2xAAA Ni-MH
Charger voltage
(AC adapter output)
6VDC @ 100mA
Operating times*Talk time (cordless handset): Up to 7 hours
Talk time (cordless handset speakerphone): Up
to 4 hours
Standby: Up to 5 days
* Operating times vary depending on your actual use and the age of the battery.
Technical specifications
Appendix
100
HD audio
HD audio improves sound quality by expanding and rebuilding frequencies that
are lost with traditional phone calls. There is no additional telephone service
requirement to use HD audio. It is designed to work with standard telephone
service. Your system will automatically enhance all received sound with HD audio.
Simulated full-duplex handset speakerphone
The simulated full-duplex speakerphone on your handset allows both ends of a call
to speak and be heard at the same time. Optimal performance is subject to external
factors and individual usage.
Technical specifications
101
A
Alert tones 70
Answer an incoming call
during an intercom call 34
during PTT 39
Answering calls 25
Assign a speed dial number 49
Auto off 25
B
Battery charging 9
Battery installation 8–9
Blind transfer 30
C
Call block
delete entries 66
edit entries 65
new entries 62
review entries 63
Caller ID (CID)
delete entries 58
dial entries 58
review entries 56
Call transfer 35
Charger installation 6, 7
Clear voicemail indication
handset 19
Clock, 16
D
Delete
a caller ID log entry 58
a directory entry 47
Dialing
from a record in the caller ID
history 58
from the directory 47
Directory
dial a number 47
name search 46
Display dial 47
E
Ending a call 25
H
Handset
handset locator 32
ringer tone 15
ringer volume 14
screen icons 70
temporary ringer silencing 26
voicemail indicator 20
I
Important safety information,
85–86
Intercom 34–36
L
Last number redial 26
LCD language,
Index
Index
Index
102
82
Reset to English, 82
Lights, 71
Limited warranty, 96–97
M
Maintenance, 84
Make an outgoing call during
PTT 41
Making calls 25
Memory match 55
Mute 28
N
Names
search 46
O
On-hook dialing (predialing) 25
P
Paging tone 32
Power adapter 7
Predialing 25
Push-to-talk 36–42
R
Reassign a speed dial number
50, 51
Receiving calls 25
Recharging 9
Redial 26–27
Review the caller ID history 56
Ringer silencing 26
Ring tone options
handset 15
S
Safety information, 85–86
Speed dial
edit a number 50, 51
enter a number 49
Speed dial,
Set voicemail number, 19
T
Technical specifications, 99,
100
Telephone operating range, 99
Temporary ringer silencing 26
Troubleshooting, 75–81
V
Visual message waiting
indicator
handset 19
Voicemail 19
quick access 50, 52
Quick access, 19
Volume control
handset 14, 28
W
Wall mount installation 11
Warranty, 96–97
Index
© 2014 Advanced American Telephones. All Rights Reserved.
AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to
Advanced American Telephones, San Antonio, TX 78219.
RBRC® and 1-800-8-BATTERY® are registered trademarks of the Rechargeable Battery
Recycling Corporation.
Printed in China. Issue 1.0 AT&T 12/14.
www.telephones.att.com
