User’s manual
VM302
Accessory baby unit
for use with VTech model
VM312/VM312-2
Congratulations
on purchasing your new VTech product.
Before using this product, please read
Important safety instructions.
This manual has instructions on how to set
up and pair your new baby unit. For complete
instructions on using the baby unit, see the
user’s manual that came with your video and
audio monitor.
For support, shopping, and everything new at
VTech, visit our website at
www.vtechphones.com.
Register online to get an additional
3-month warranty!
Visit www.vtechphones.com.
Registration
Register your product online for
enhanced warranty support.
Product news
Learn about the latest VTech
products.
When using your equipment, basic safety
precautions should always be followed to
reduce the risk of fire, electric shock and injury,
including the following:
Follow all warnings and instructions marked
on the product.
Adult setup is required.
This product is intended as an aid. It is not
a substitute for responsible and proper adult
supervision and should not be used as
such.
This product is not intended for use as a
medical monitor.
Do not use this product near water. For
example, do not use it next to a bath tub, wash
bowl, kitchen sink, laundry tub or swimming
pool, or in a wet basement or shower.
Use only the adapter included with this
product. Incorrect adapter polarity or voltage
can seriously damage the product.
Baby unit power adapter: Input 100-240V
AC 150mA 50/60Hz; Output: 6V DC 600mA.
The power adapter are intended to be
correctly oriented in a vertical or floor mount
position. The prongs are not designed to
hold the plug in place if it is plugged into a
ceiling, under-the-table or cabinet outlet.
Unplug this product from the wall outlet
before cleaning. Do not use liquid or aerosol
cleaners. Use a damp cloth for cleaning.
Do not cut off the power adapter to replace it
with other plug, as this causes a hazardous
situation.
Do not allow anything to rest on the power
cords. Do not install this product where the
cords may be walked on or crimped.
This product should be operated only from
the type of power source indicated on the
marking label. If you are not sure of the type
of power supply in your home, consult your
dealer or local power company.
Do not overload wall outlets or use an
extension cord.
Do not place this product on an unstable
table, shelf, stand or other unstable surfaces.
This product should not be placed in
any area where proper ventilation is not
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
provided. Slots and openings in the back
or bottom of this product are provided
for ventilation. To protect them from
overheating, these openings must not be
blocked by placing the product on a soft
surface such as a bed, sofa or rug. This
product should never be placed near or over
a radiator or heat register.
Never push objects of any kind into this
product through the slots because they may
touch dangerous voltage points or create a
short circuit. Never spill liquid of any kind on
the product.
To reduce the risk of electric shock, do
not disassemble this product, but take it to
an authorized service facility. Opening or
removing parts of the product other than
specified access doors may expose you to
dangerous voltages or other risks. Incorrect
reassembling can cause electric shock when
the product is subsequently used.
You should test the sound reception every
time you turn on the units or move one of
the components.
Periodically examine all components for
damage.
Be aware of possible loss of privacy while
using public airwaves. Conversations may
be picked up by other nursery monitors,
cordless phones, scanners, etc.
Children should be supervised to ensure
that they do not play with the product.
The product is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
SAVE THESE INSTRUCTIONS
Cautions
Use and store the product at a temperature
between 32oF and 104oF.
Do not expose the product to extreme
cold, heat or direct sunlight. Do not put the
product close to a heating source.
Make sure the baby unit(s) and the adapter
cord(s) are always out of reach of the baby,
at least 3 feet away from the baby or crib, to
avoid a possible strangulation hazard.
Never place the baby unit(s) inside the
baby’s crib or playpen. Never cover the
15.
16.
17.
18.
19.
20.
21.
1.
2.
3.
4.
Important safety
instructions
Use only the baby unit power adapter
supplied with this product.
The baby unit power adapter is intended
to be correctly oriented in a vertical or
floor mount position. The prong are not
designed to hold the plug in place if it is
plugged into a ceiling, under-the-table or
cabinet outlet.
Make sure the baby unit and the power
adapter cord are out of reach of children.
•
•
•

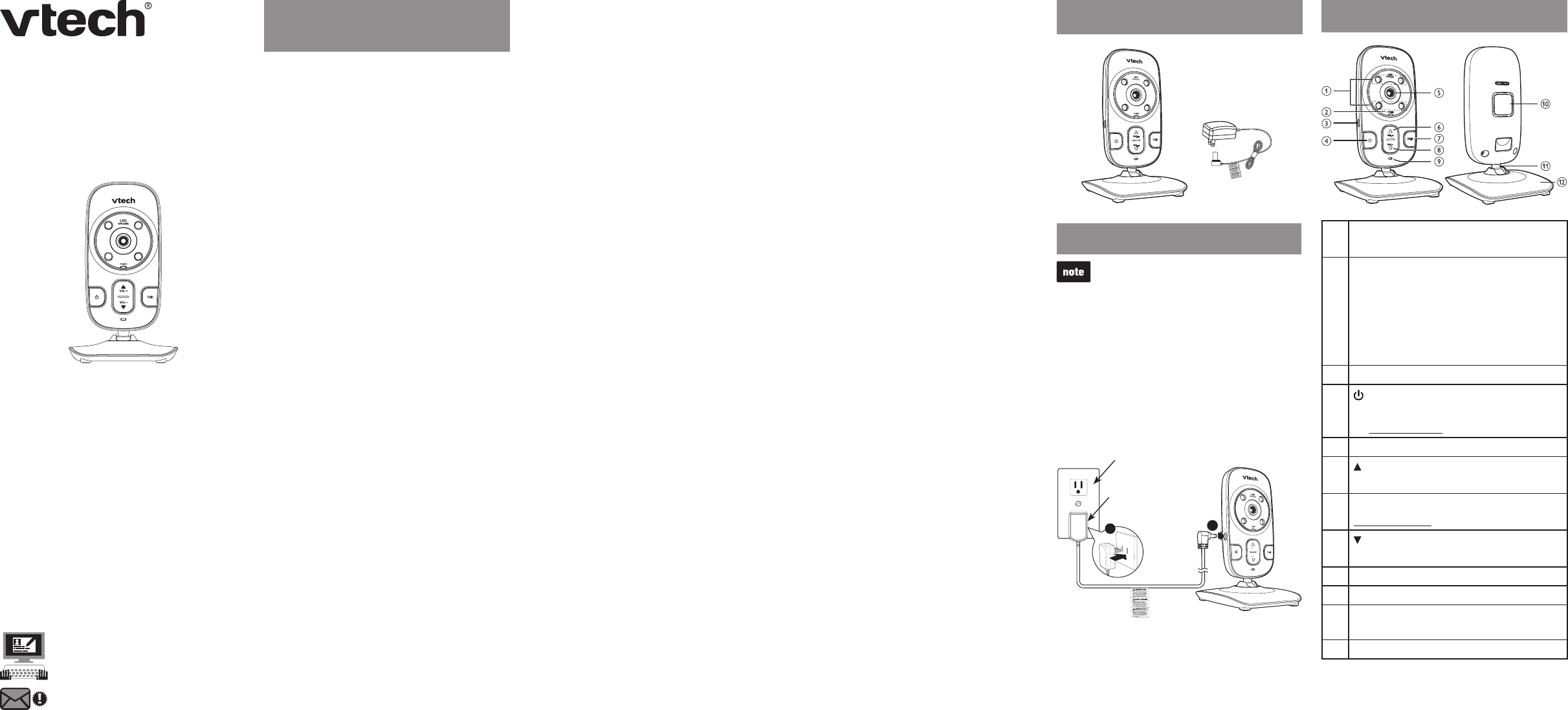

Connect the baby unit 1Infrared LEDs
Backup light for night vision.
2POWER on/off indicator
On when the baby unit is powered on
and currently linked to parent unit.
Flashes when the baby unit is not
linked to a parent unit; or the pairing
process is in progress; or the parent
unit is not viewing this baby unit.
•
•
3Power jack
4 (On/Off)
Press to turn on
Press and hold to turn off.
•
•
5Camera
6/VOL+
Press to increase the listening volume.
7PAIR
Press and hold to pair to the parent unit.
8/VOL
-
Press to decrease the listening volume.
9Microphone
10 Speaker
11 Ball joint stand
Pan or tilt to adjust the camera angle.
12 Base
OverviewParts checklist
baby unit(s) with anything such as a towel or
a blanket.
Other electronic products may cause
interference with your baby monitor. Try
installing your baby monitor as far away
from these electronic devices as possible:
wireless routers, radios, cellular telephones,
intercoms, room monitors, televisions,
personal computers, kitchen appliances and
cordless telephones.
Precautions for users of implanted cardiac
pacemakers
Cardiac pacemakers (applies only to digital
cordless devices):
Wireless Technology Research, LLC (WTR),
an independent research entity, led a
multidisciplinary evaluation of the interference
between portable wireless devices and
implanted cardiac pacemakers. Supported by
the U.S. Food and Drug Administration, WTR
recommends to physicians that:
Pacemaker patients
Should keep wireless devices at least six
inches from the pacemaker.
Should NOT place wireless devices directly
over the pacemaker, such as in a breast
pocket, when it is turned ON.
WTR’s evaluation did not identify any risk
to bystanders with pacemakers from other
persons using wireless devices.
Electromagnetic fields (EMF)
This VTech product complies with all standards
regarding electromagnetic fields (EMF).
If handled properly and according to the
instructions in this user’s manual, the product
is safe to be used based on scientific evidence
available today.
5.
•
•
Baby unit
1
2
Power outlet not
controlled by a wall
switch
Baby unit
power adapter
FCC Part 15
This equipment has been tested and found to comply
with the requirements for a Class B digital device
under Part 15 of the Federal Communications
Commission (FCC) rules. These requirements are
intended to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
To keep this product working well and looking good,
follow these guidelines:
Avoid putting it near heating appliances and
devices that generate electrical noise (for example,
motors or fluorescent lamps).
DO NOT expose it to direct sunlight or moisture.
Avoid dropping the product or treating it roughly.
Clean with a soft cloth.
DO NOT immerse the baby unit in water and do
not clean them under the tap.
DO NOT use cleaning spray or liquid cleaners.
Make sure the baby unit is dry before you
connect them to the mains again.
•
•
•
•
•
•
•
General product care
FCC and IC regulations
Limited warranty
What does this limited warranty cover?
The manufacturer of this VTech Product warrants to
the holder of a valid proof of purchase (“Consumer”
or “you”) that the Product and all accessories
provided in the sales package (“Product”) are
free from defects in material and workmanship,
pursuant to the following terms and conditions,
when installed and used normally and in accordance
with the Product operating instructions. This limited
warranty extends only to the Consumer for Products
purchased and used in the United States of America
and Canada.
What will VTech do if the Product is not free from
defects in materials and workmanship during
the limited warranty period (“Materially Defective
Product”)?
During the limited warranty period, VTech’s
authorized service representative will repair or
replace at VTech’s option, without charge, a
Materially Defective Product. If we repair the Product,
we may use new or refurbished replacement
parts. If we choose to replace the Product, we
may replace it with a new or refurbished Product
of the same or similar design. We will retain
defective parts, modules, or equipment. Repair or
replacement of the Product, at VTech’s option, is
your exclusive remedy. VTech will return the repaired
or replacement Products to you in working condition.
You should expect the repair or replacement to take
approximately 30 days.
How long is the limited warranty period?
The limited warranty period for the Product extends
for ONE (1) YEAR from the date of purchase. If VTech
repairs or replaces a Materially Defective Product
under the terms of this limited warranty, this limited
warranty also applies to the repaired or replacement
Product for a period of either (a) 90 days from the date
the repaired or replacement Product is shipped to
you or (b) the time remaining on the original one-year
warranty; whichever is longer.
What is not covered by this limited warranty?
This limited warranty does not cover:
Product that has been subjected to misuse,
accident, shipping or other physical damage,
improper installation, abnormal operation or
handling, neglect, inundation, fire, water or other
liquid intrusion; or
Product that has been damaged due to repair,
alteration or modification by anyone other than an
1.
2.
authorized service representative of VTech; or
Product to the extent that the problem experienced
is caused by signal conditions, network reliability,
or cable or antenna systems; or
Product to the extent that the problem is caused
by use with non-VTech accessories; or
Product whose warranty/quality stickers, product
serial number plates or electronic serial numbers
have been removed, altered or rendered illegible; or
Product purchased, used, serviced, or shipped for
repair from outside the United States of America
or Canada, or used for commercial or institutional
purposes (including but not limited to Products
used for rental purposes); or
Product returned without a valid proof of purchase
(see item 2 on the next page); or
Charges for installation or set up, adjustment of
customer controls, and installation or repair of
systems outside the unit.
How do you get warranty service?
NOTE: Before calling for service, please review the
user’s manual - a check of the Product’s controls and
features may save you a service call.
Except as provided by applicable law, you assume
the risk of loss or damage during transit and
transportation and are responsible for delivery or
handling charges incurred in the transport of the
Product(s) to the service location. VTech will return
repaired or replaced Product under this limited
warranty. Transportation, delivery or handling
charges are prepaid. VTech assumes no risk for
damage or loss of the Product in transit. If the
Product failure is not covered by this limited warranty,
or proof of purchase does not meet the terms of
this limited warranty, VTech will notify you and will
request that you authorize the cost of repair prior
to any further repair activity. You must pay for the
cost of repair and return shipping costs for the repair
of Products that are not covered by this limited
warranty.
What must you return with the Product to get
warranty service?
Return the entire original package and
contents including the Product to the VTech
service location along with a description of the
malfunction or difficulty; and
Include a “valid proof of purchase” (sales receipt)
identifying the Product purchased (Product
model) and the date of purchase or receipt; and
Provide your name, complete and correct mailing
address, and telephone number.
Other limitations
This warranty is the complete and exclusive
3.
4.
5.
6.
7.
8.
1.
2.
3.
Technical specications
Frequency
control
Crystal controlled PLL synthesizer
Transmit
frequency
2407.5 - 2475 MHz
Channels 21
Nominal
effective
range
Maximum power allowed by FCC
and IC. Actual operating range may
vary according to environmental
conditions at the time of use.
Power
requirement
Input: 100-240V AC 150mA 50/60Hz
Output: 6V DC 600mA
Specifications are subject to change without notice.
© 2014 VTECH TELECOMMUNICATIONS LTD.
All rights reserved. 03/14. VM302_CIB_V1.0
Document order number: 91-007355-010-100
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment
and receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
Changes or modifications to this equipment not
expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
To ensure safety of users, the FCC has established
criteria for the amount of radio frequency energy
that can be safely absorbed by a user or bystander
according to the intended usage of the product. This
product has been tested and found to comply with
the FCC criteria. The baby unit shall be installed
and used such that parts of all persons’ body are
maintained at a distance of approximately
8 in (20 cm) or more.
This Class B digital apparatus complies with
Canadian requirement:
CAN ICES-3 (B)/NMB-3(B)
Industry Canada
This device complies with Industry Canada licence-
exempt RSS standard(s).
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and
(2) this device must accept any interference, including
interference that may cause undesired operation.
The term ‘’IC:‘’ before the certification/registration
number only signifies that the Industry Canada
technical specifications were met.
This product meets the applicable Industry Canada
technical specifications.
RF radiation exposure statement
The baby unit complies with FCC RF radiation
exposure limits set forth for an uncontrolled
environment. The baby unit should be installed and
operated with a minimum distance of 8 in (20 cm)
between the baby unit and all persons’ body. Use of
other accessories may not ensure compliance with
FCC RF exposure guidelines. This transmitter must
not be co-located or operating in conjunction with
any other antenna or transmitter. This equipment
•
•
•
•
agreement between you and VTech. It supersedes
all other written or oral communications related to
this Product. VTech provides no other warranties for
this Product. The warranty exclusively describes all
of VTech’s responsibilities regarding the Product.
There are no other express warranties. No one
is authorized to make modifications to this limited
warranty and you should not rely on any such
modification.
State/Provincial Law Rights: This warranty gives you
specific legal rights, and you may also have other rights,
which vary from state to state or province to province.
Limitations: Implied warranties, including those of
fitness for a particular purpose and merchantability
(an unwritten warranty that the Product is fit for
ordinary use) are limited to one year from the date
of purchase. Some states/provinces do not allow
limitations on how long an implied warranty lasts,
so the above limitation may not apply to you. In no
event shall VTech be liable for any indirect, special,
incidental, consequential, or similar damages
(including, but not limited to lost profits or revenue,
inability to use the Product or other associated
equipment, the cost of substitute equipment, and
claims by third parties) resulting from the use of this
Product. Some states/provinces do not allow the
exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may
not apply to you.
Please retain your original sales receipt as proof
of purchase.
Pair and replace extra new baby unit
Each newly purchased baby units (VM302)
must be paired to your video and audio monitor
system (VM312/VM312-2).
You can pair a maximum of four baby
units to your parent unit. Each new baby
unit must be paired to the parent unit
before use.
Make sure you power on the parent unit
before pairing.
To pair and replace a baby unit:
Press MENU/SELECT when the parent unit is
not in use.
Press or to choose .
Press or to choose a desired baby unit
slot, then press MENU/SELECT. The screen
displays .
If you choose an occupied baby unit slot,
the new baby unit will replace the existing
baby unit.
4. Press and hold on the new baby unit
until the POWER light flashes.
Then immediately press and hold PAIR
until the POWER light turns on.
When pairing is successful, the screen displays
, and then the image from the newly paired
baby unit.
If pairing fails, the screen displays . Try
the pairing process again.
Only one baby unit can be paired at a time.
To unpair a baby unit:
Make sure you power on the baby unit and
the parent unit before unpairing the baby unit.
Press MENU/SELECT when the parent unit
is not in use.
Press or to scroll to .
Press or to select the desired baby unit
(1, 2, 3 or 4).
Press and hold TALK until and
display.
Press or to select to cancel, or to
confirm the unpair process.
Press MENU/SELECT to confirm your selection.
When unpairing is successful, the POWER
light on the selected baby unit flashes. The
parent unit displays for a while, and then the
image from the baby unit previously viewing.
•
•
1.
2.
3.
•
•
1.
2.
3.
4.
5.
6.
Before use Positioning the baby monitor
Place the parent unit within the operating range
of the baby unit. We recommend the parent
unit is at least 3 feet away from the baby unit
to avoid audio feedback. If you still experience
audio feedback, move the parent unit and the
baby unit farther apart.
For better image quality, do not place the
baby unit too far away from your baby.
For desktop usage and/or wall mounting the
baby unit, you can refer to Installation guide.
Operating range
The operating range of the baby monitor is up
to 1,000 feet outdoors or 150 feet indoors. The
actual operating range may vary depending
on the environmental conditions and other
interferences such as walls, doors and other
obstructions.
complies also with Industry Canada RSS-102 with
respect to Canada’s Health Code 6 for Exposure of
Humans to RF Fields.
