VTech Telecommunications 80-9875-00 1.9GHz Digital Modulation Cordless Phone with Caller ID and Digital Answering Machine User Manual CL84XX5 CIB i1 0 20150226
VTech Telecommunications Ltd 1.9GHz Digital Modulation Cordless Phone with Caller ID and Digital Answering Machine CL84XX5 CIB i1 0 20150226
User Manual
Complete user’s manual
CL84115/CL84215/CL84265/
CL84365
DECT 6.0 corded/cordless
telephone/answering system
with caller ID/call waiting
Congratulations
on your purchase of this AT&T product. Before using this AT&T product,
please read the Important safety information section on pages 112-113
of this manual. Please thoroughly read this user’s manual for all the
feature operations and troubleshooting information necessary to install
and operate your new AT&T product. You can also visit our website at
www.telephones.att.com or call 1 (800) 222-3111. In Canada,
dial 1 (866) 288-4268.
This telephone meets the California Energy Commission regulations for energy
consumption. Your telephone is set up to comply with the energy-conserving
standards right out of the box. No further action is necessary.
This telephone system is compatible with certain AT&T DECT 6.0 cordless
headsets and speakerphones. Visit
www.telephones.att.com/accessories for a list of compatible
cordless headsets and speakerphones.
Model number: CL84115 (one handset)
CL84215/CL84265 (two handsets)
CL84365 (three handsets)
Type: DECT 6.0 corded/cordless telephone/answering system with
caller ID/call waiting
Serial number: __________________________________________________________
Purchase date: __________________________________________________________
Place of purchase: _______________________________________________________________
Both the model and serial numbers of your AT&T product can be found on
the bottom of the telephone base.
Save your sales receipt and original packaging in case it is necessary to
return your telephone for warranty service.
Telephones identified with this logo have reduced noise and interference
when used with most T-coil equipped hearing aids and cochlear implants. The
TIA-1083 Compliant Logo is a trademark of the Telecommunications Industry
Association. Used under license.
© 2015 Advanced American Telephones. All Rights Reserved. AT&T and
the AT&T logo are trademarks of AT&T Intellectual Property licensed to
Advanced American Telephones, San Antonio, TX 78219. Printed in China.
The ENERGY STAR® program (www.energystar.gov) recognizes and encourages
the use of products that save energy and help protect our environment. We are
proud to mark this product with the ENERGY STAR® label indicating it meets the
latest energy efficiency guidelines.
Parts checklist
Your telephone package contains the following items. Save your sales receipt
and original packaging in the event warranty service is necessary.
Telephone line cord
Power adapter for
telephone base
Telephone base
Quick start guide
Corded handset
with coiled handset
cord attached
Cordless handset
(1 for CL84115)
(2 for CL84215/CL84265)
(3 for CL84365)
Charger for cordless
handset with power
adapter installed
(1 for CL84115)
(2 for CL84215/CL84265)
(3 for CL84365)
Battery for cordless handset
(1 for CL84115)
(2 for CL84215/CL84265)
(3 for CL84365)
THIS SIDE UP / CE CÔTÉ VERS LE HAUT
Battery Pack / Bloc-piles :
BT183342/BT283342 (2.4V 400mAh Ni-MH)
WARNING / AVERTISSEMENT :
DO NOT BURN OR PUNCTURE BATTERIES.
NE PAS INCINÉRER OU PERCER LES PILES.
Made in China / Fabriqué en chine CR1349
Battery compartment cover
(1 for CL84115)
(2 for CL84215/CL84265)
(3 for CL84365)
Abridged
user’s manual
Abridged user’s manual
CL84115/CL84215/CL84265/
CL84365
DECT 6.0 corded/cordless
telephone/answering system
with caller ID/call waiting
Telephone base installation
This quick start guide provides you with basic instructions only.
For more complete instructions, refer to your Abridged user’s
manual provided in the package, or see the online Complete
user’s manual at www.telephones.att.com/manuals.
Quick start guide
CL84115/CL84215/CL84265/CL84365
Caution: Use only the power adapter provided with this product. To obtain a replacement, visit
our website at www.telephones.att.com or call 1 (800) 222-3111. In
Canada, dial 1 (866) 288-4268.

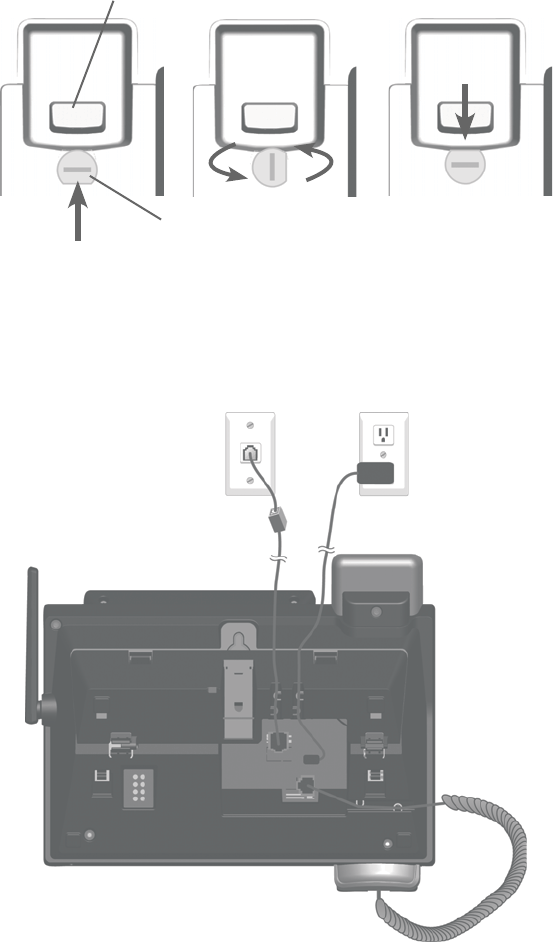

Charger installation
Raise the antenna.
Plug the other end of the
telephone line cord into the
telephone jack on the back
of the telephone base.
Plug the small end of the
telephone base power
adapter into the power
adapter jack on the back
of the telephone base.
Plug the large end of the
telephone base power
adapter into a power
outlet not controlled by a
wall switch.
Plug one end of the
telephone line cord
into a telephone jack
or a DSL filter.
If you have DSL high-speed
Internet service, a DSL filter
(not included) is required.
Telephone line cord
Route the cords through
the channels.
Plug the other end
of the coiled handset
cord into the jack
on the back of the
telephone base.
One end of the coiled
handset cord has already
been plugged into the
handset. Make sure it is
plugged in firmly.
Route the handset
cord through its
channel.
Plug the power adapter into
a power outlet not controlled
by a wall switch.
Telephone line cord
Complete user’s manual
CL84115/CL84215/CL84265/
CL84365
DECT 6.0 corded/cordless
telephone/ answering system
with caller ID/call waiting
Table of contents
Getting started
Quick reference guide - handset ........1
Quick reference guide - telephone
base .............................................................3
Installation .....................................................5
Telephone base and charger
installation ...............................................6
Battery installation and charging ....... 7
Installation options .................................... 9

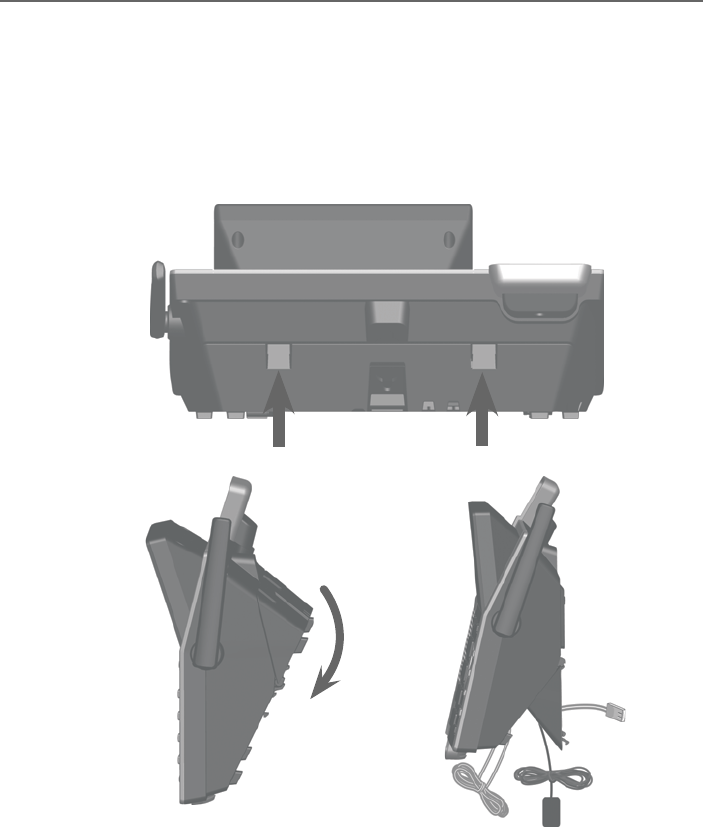

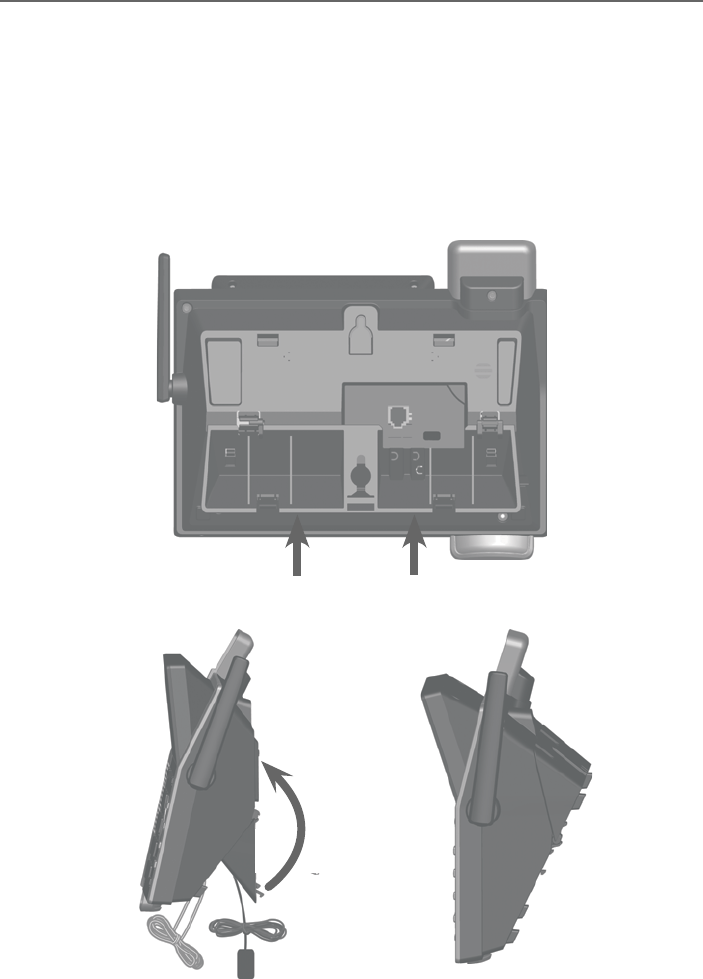

Tabletop to wall-mount
installation.............................................9
Wall-mount to tabletop
installation.......................................... 11
Telephone settings
Handset settings ...................................... 13
Ringer volume ..................................... 14
Ringer tone ........................................... 14
Set date/time ...................................... 15
LCD language ...................................... 16
Caller ID announce ........................... 17
Set speed dial voicemail
number ................................................. 18
Voicemail (visual message
waiting) indicator ............................ 18
Clear voicemail indicator ............... 19
Rename handset ................................ 20
Key tone ................................................. 20
Use caller ID to automatically
set date and time ........................... 21
Home area code ................................. 21
Dial mode .............................................. 22
Web address ........................................ 22
QUIET mode ......................................... 23
Telephone base settings ...................... 24
Ringer volume ..................................... 25
Ringer tone ........................................... 25
Set date/time ...................................... 26
LCD language ...................................... 27
Caller ID announce ........................... 28
Set speed dial voicemail
number ................................................. 29
Voicemail (visual message
waiting) indicator ............................ 29
Clear voicemail indicator ............... 30
Rename base ....................................... 30
Key tone ................................................. 31
Use caller ID to automatically
set date and time ........................... 31
Home area code ................................. 32
Dial mode .............................................. 33
Web address ........................................ 33
Telephone operation
Telephone operation.............................. 34
Making a call ........................................ 34
On hook dialing (predialing) ........ 34
Answering a call ................................ 34
Ending a call ........................................ 35
Auto off .................................................. 35
Temporary ringer silencing ........... 35
Handset speakerphone ................... 36
Last number redial ............................ 36
Equalizer ................................................. 37
Options while on calls .......................... 38
Volume control ................................... 38
Call waiting ........................................... 38
Mute ......................................................... 38
Chain dialing ........................................ 39
Temporary tone dialing .................. 40
Blind transfer ....................................... 41
Multiple handset use
Multiple handset use ............................. 43
Handset locator .................................. 43
Join a call in progress ..................... 43
Intercom ....................................................... 44
Answer an incoming call
during an intercom call ............... 45
Call transfer using intercom .............. 46
Push-to-talk (PTT) ................................... 47
Turn PTT on or off ............................. 47
PTT call to a single device ............ 48
PTT call to multiple devices ......... 50
Answer a PTT call .............................. 51
Change a one-to-one PTT call
to an intercom call ........................ 51
Answer an incoming call during
a PTT call ............................................ 52
Make an outgoing call during
a PTT call ............................................ 52
End or leave a PTT call ................... 52
Directory
About the directory ................................ 53
Shared directory ................................. 53
Capacity .................................................. 53
Create directory entries ....................... 54
Create a new directory entry ...... 54
Add a predialed telephone
number to the directory .............. 55
Review the directory .............................. 56
Review directory entries ................ 56
Search by name.................................. 57
Dial, delete or edit directory
entries ..................................................... 58
Display dial ........................................... 58
Delete a directory entry ................. 58
Edit a directory entry ....................... 59
Speed dial ................................................... 60
Assign a speed dial number......... 60
Reassign a speed dial number .... 61
Assign your speed dial
voicemail number ........................... 61
Delete a speed dial number......... 62
Make a call using speed dial ....... 62
Check your voicemail using
speed dial ........................................... 62
Caller ID
About caller ID ......................................... 63
Information about caller ID with
call waiting......................................... 63
Caller ID log ............................................... 64
How the caller ID log works ........ 64
Missed (new) call indicator ........... 64
Caller ID operation ................................. 65
Memory match .................................... 65
Review the caller ID log ................. 66
View dialing options ......................... 67
Dial a caller ID log entry ............... 67
Delete caller ID log entries .......... 67
Save a caller ID log entry to
the directory ...................................... 68
Reasons for missing caller ID
information ........................................... 69
Call block
About call block ....................................... 70
Add a call block entry ..................... 71
Review call block list ....................... 72
Save a caller ID log entry to
call block list ..................................... 72
Edit a call block entry ..................... 73
Delete a call block entry ............... 74
Block calls without number ......... 74
Mute first ring of blocked calls ... 74
Answering system
Answering system settings ................. 75
Announcement ................................... 75
Answer on/off ..................................... 78
Voice guide ........................................... 79
Call screening ...................................... 80
Number of rings ................................. 81
Remote access code ........................ 82
Message alert tone ........................... 83
Message recording time ................. 84
About the answering system............. 85
Answering system and
voicemail indicators ....................... 85
Using the answering system
and voicemail together .................. 85
Message capacity .............................. 86
Voice prompts ..................................... 86
Call screening ...................................... 86
Call intercept ....................................... 87
Base ringer ........................................... 87
Temporarily turning off the
message alert tone ........................ 87
Message playback ................................... 88
Options during playback ................ 89
Delete all old messages ................. 90
Recording and playing memos ......... 91
Record a memo .................................. 91
Play back a memo ............................ 91
Base message counter displays ....... 92
Message counter displays ............. 92
Remote access .......................................... 93
Appendix
Adding and registering handsets/
headsets/speakerphones .............. 95
Register a handset to the
telephone base ................................ 95
Deregistering handsets ........................ 96
Deregister all handsets from
the telephone base ....................... 96
Alert tones and lights ........................... 97
Handset screen icons ...................... 97
Telephone base screen icons ...... 97
Handset alert tones .......................... 98
Telephone base alert tones .......... 98
Lights ....................................................... 99
Screen display messages ..................100
Troubleshooting .....................................103
Maintenance.............................................111
Important safety information ..........112
Safety information ...........................112
Especially about cordless
telephones .......................................113
Precautions for users of
implanted cardiac
pacemakers ......................................113
Pacemaker patients ........................113
ECO mode ...........................................113
Especially about telephone
answering systems .......................113
FCC Part 68 and ACTA........................114
FCC Part 15 ..............................................115
California Energy Commission
battery charging testing
instructions .........................................116
Limited warranty ....................................117
Technical specifications .....................119
DECT 6.0 digital technology .......119
Telephone operating range ........119
Redefining long range coverage
and clarity ........................................119
HD audio ..............................................119
Simulated full-duplex handset
speakerphone .................................119
Index
Index ............................................................120
1
TONE /a>A
Press to switch to tone dialing
temporarily during a call if you
have pulse service (page 40).
While entering names, press
to change the next letter to
upper or lower case.
CHARGE indicator
On when the handset is
charging in the charger.
CID/VOLUME
Press CID to show caller ID
log when the handset is not in
use (page 66).
Press to scroll down while in
menus.
While entering names or
numbers, press to move the
cursor to the left.
Press to decrease the listening
volume when on a call (page 38),
or to decrease the message
playback volume (page 89).
/SPEAKERSPEAKER
Press to make or answer a call
using the speakerphone (page 34).
Press to switch between the
speakerphone and the handset
(page 36).
Quick reference guide - handset
QUIET# (pound key)
Press repeatedly to display other
dialing options when reviewing a
caller ID log entry (page 67).
Press and hold to enter the
QUIET mode setting screen, or to
deactivate QUIET mode (page 23).
OFF/CANCEL
During a call, press to hang up
(page 35).
While in a menu, press to cancel an
operation, back up to the previous
menu, or exit the menu display; or
press and hold this button to exit
to idle mode.
When the handset is ringing, press
to mute the ringer temporarily
(page 35).
Press and hold while the telephone
is not in use to erase the missed
call indicator.
MENU/SELECT
When the handset is not in use,
press to show the menu.
While in the menu, press to select
an item or save an entry or setting.
DIR/VOLUME
Press DIR to show directory
entries when the handset is not in
use (page 56).
Press to scroll up while in menus.
While entering names or numbers,
press to move the cursor to the right.
Press to increase the listening
volume when on a call (page 38),
or to increase the message
playback volume (page 89).
REDIAL/PAUSE
Press repeatedly to view
the last 10 numbers dialed
(page 36).
While entering numbers,
press and hold to insert a
dialing pause.
1
While reviewing a caller ID
log entry, press repeatedly to
add or remove 1 in front of
the telephone number before
dialing or saving it (page 67).
Press and hold to set (page 18)
or dial your voicemail number
(page 62).
MUTE/DELETE
During a call, press to mute the microphone (page 38).
When the handset is ringing, press to mute the ringer
temporarily (page 35).
While reviewing the caller ID log, the directory or the redial
memory, press to delete an individual entry (page 67,
page 58 and page 37, respectively).
While predialing, press to delete digits (page 34).
During message or announcement playback, press to delete
the playing message or the recorded announcement
(page 89 and page 77, respectively).
PHONE/FLASH
Press to make or answer a call
(page 34).
During a call, press to answer an
incoming call when you receive
a call waiting alert (page 38).
During message playback,
press to call back the caller if
the caller’s number is available
(page 89).
Getting started
EQ
During an outside call, intercom
call, message or announcement
playback, press to change the
audio quality to best suit your
hearing (page 37).
Getting started
2
Quick reference guide - handset
Main menu
Play messages (page 88)
Answering sys (page 75)
Directory (page 53)
Caller ID log (page 63)
Intercom (page 44)
Ringers (page 14)
Set date/time (page 15)
Settings (page 16)
Web address (page 22)
•
•
•
•
•
•
•
•
•
Using menus:
Press MENU/SELECT to show the menu.
Press CID or DIR to scroll through menu items.
Press MENU/SELECT to confirm or save changes to a highlighted menu item.
Press
OFF/CANCEL to cancel an operation, back up to the previous
menu, or exit the menu display.
•
•
•
•
PUSH TO TALK
Press to initiate a one-to-one (page 48)
or one-to-group broadcast (page 50).
Press and hold to broadcast to a group of
system devices (page 50).
The > symbol highlights
a menu item.
Main menu
>Play messages
Answering sys
Getting started
3
IN USE indicator
On when the telephone is in use, or when the answering
system is answering an incoming call.
On when a handset is being registered.
Flashes when there is an incoming call or when all
handsets are being deregistered.
Flashes when another telephone is in use on the same line.
Quick reference guide - telephone base
DIR
Press to display the directory when the
telephone is not in use (page 56).
Press to scroll up while in menus and lists.
While entering names or numbers, press to
move the cursor to the right.
MENU/SELECT
When the telephone base is not in use,
press to show the menu.
While in the menu, press to confirm or
save an entry or setting.
REDIAL/PAUSE
Press repeatedly to view the last 10
numbers dialed (page 36).
While entering numbers, press and hold
to insert a dialing pause.
CANCEL
While in a menu, press to cancel an operation, back
up to the previous menu or exit the menu display;
or press and hold to go back to idle mode.
When the telephone base is ringing, press to mute
the ringer temporarily (page 35).
When the telephone base is not in use, press and hold
to erase the missed call indicator.
CID
Press to display the caller ID log when the
telephone is not in use (page 66).
Press to scroll down while in menus and lists.
While entering names or numbers, press to move
the cursor to the left.
/HANDSET LOCATOR
While the telephone is idle, press to page all
handsets (page 43).
Large tilt display
INT
Press to initiate an intercom conversation
(page 44) or transfer a call (page 46).
VOL /VOL
During message playback or call
screening, press to adjust the listening
volume (page 89).
While in idle mode, press to adjust the
base ringer volume (page 87).
When on a call, press to adjust the
listening volume (page 38).
PTT/FLASH
Press to initiate a one-to-one (page 48)
or one-to-group broadcast (page 50).
Press and hold to broadcast to a group of
system devices (page 50).
During a call, press to answer an
incoming call when you receive
a call waiting alert (page 38).
MIC
Microphone.
1
Press and hold to set (page 29)
or to dial your voicemail
number (page 62).
Getting started
4
X/DELETE
While reviewing the caller ID log, the directory or the
redial memory, press to delete an individual entry
(page 67, page 58 and page 37, respectively).
While predialing, press to delete digits (page 34).
During message or announcement playback, press to
delete the playing message or announcement (page 89
and page 77, respectively).
Press twice to delete all old messages when the
telephone is not in use (page 90).
/REPEAT
During playback, press to repeat the playing message
(page 89).
During playback, press twice to play the previous
message (page 89).
/SKIP
Press to skip a message (page 89).
/RECORD
Press to record memo (page 91) or record your own
announcement (page 76).
/ANS ON/OFF
Press to turn the built-in answering system on or off
(page 78).
/PLAY/STOP
Press to start or stop message playback (page 88).
Main menu
Play messages (page 88)
Answering sys (page 75)
Directory (page 53)
Caller ID log (page 63)
Call block (page 70)
Intercom (page 44)
Ringers (page 25)
Set date/time (page 26)
Settings (page 27)
Web address (page 33)
•
•
•
•
•
•
•
•
•
•
The > symbol highlights
a menu item.
>Play messages
Answering sys
Main menu
Quick reference guide - telephone base
Using menus:
Press MENU/SELECT to show the menu.
Press CID or DIR to scroll through menu items.
Press MENU/SELECT to confirm or save changes to a highlighted menu item.
Press CANCEL to cancel an operation, back up to the previous menu, or
exit the menu display.
•
•
•
•
MUTE
During a call, press to mute the
microphone (page 38).
When the telephone is ringing,
press to mute the ringer
temporarily (page 35).
/SPEAKER
Press to make or answer a call
using the speakerphone (page 34).
Getting started
5
See pages 7-8 for
easy instructions.
You must install and
charge the battery before
using the telephone. STOP!
Install the telephone base close to a telephone jack and a power outlet not
controlled by a wall switch. The telephone base can be placed on a flat surface
or vertically mounted on the wall (see page 9). For optimum range and better
reception, place the telephone base in a central and open location.
If you subscribe to high-speed Internet service (DSL - digital subscriber
line) through your telephone line, you must install a DSL filter between the
telephone line cord and the telephone wall jack (see the following page). The
filter prevents noise and caller ID problems caused by DSL interference. Please
contact your DSL service provider for more information about DSL filters.
Your product may be shipped with protective stickers covering the handset
and telephone base displays - remove them before use.
For customer service or product information, visit our website at
www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial
1 (866) 288-4268.
Avoid placing the telephone base and charger too close to:
Communication devices such as television sets, VCRs, or other
cordless telephones.
Excessive heat sources.
Noise sources such as a window with traffic outside, motors, microwave
ovens, refrigerators, or fluorescent lighting.
Excessive dust sources such as a workshop or garage.
Excessive moisture.
Extremely low temperature.
Mechanical vibration or shock such as on top of a washing machine
or workbench.
•
•
•
•
•
•
•
Installation
Getting started
6
Telephone base and charger installation
Install the telephone base and charger, as shown below.
The telephone base is ready for tabletop use. If you want to change to wall-
mounting, see Installation options on page 9 for details.
IMPORTANT INFORMATION
Use only the power adapter(s) supplied with this product. To order a replacement
power adapter, visit our website at www.telephones.att.com or call
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
The power adapters are intended to be correctly oriented in a vertical or floor
mount position. The prongs are not designed to hold the plug in place if it is
plugged into a ceiling, under-the-table or cabinet outlet.
•
•
Plug the power adapter into a power
outlet not controlled by a wall switch.
Raise the antenna.
Charger installation
Telephone base installation
Plug the other end
of the telephone line
cord into the telephone
jack on the back of the
telephone base.
Plug the small end of the
telephone base power
adapter into the power
adapter jack on the back
of the telephone base.
Plug the large end of
the telephone base
power adapter into
a power outlet not
controlled by a wall
switch.
Plug one end of the
telephone line cord
into a telephone jack
or a DSL filter.
If you have DSL high-speed
Internet service, a DSL filter
(not included) is required.
Telephone line cord
Route the cords through
the channels.
Plug the other end of
the coiled handset cord
into the jack on the back
of the telephone base.
One end of the coiled
telephone line cord has
already been plugged into
the handset. Make sure it
is plugged in firmly.
Route the
handset cord
through its
channel.
Getting started
7
Battery installation and charging
Install the battery, as shown below. Once you have installed the battery, the
screen indicates the battery status (see the following table). If necessary,
place the handset in its charger to charge the battery. For best performance,
keep the handset in the charger when not in use. The battery is fully charged
after 10 hours of continuous charging. See the table on page 119 for battery
operating times.
If the screen shows Place in charger and flashes, you need to charge the
handset without interruption for at least 30 minutes to give the handset
enough charge to use the telephone for a short time. The following table
summarizes the battery charge indicators and actions to take.
Battery indicators Battery status Action
The screen is blank, or
shows Place in charger
and (flashing).
Battery has no or very
little charge. The handset
cannot be used.
Charge without interruption
(at least 30 minutes).
The screen shows
Low battery and
(flashing).
Battery has enough charge
to be used for a short time.
Charge without interruption
(at least 30 minutes).
The screen shows
HANDSET X.
Battery is charged. To keep the battery charged, place
the handset in the charger when
not in use.
Step 1
Plug the battery connector securely into the socket inside the handset
battery compartment. Insert the supplied battery with the label THIS SIDE UP
facing up, as indicated.
NOTE: If you are on a phone call in low battery mode, you hear four short beeps
every minute.
THIS SIDE UP / CE CÔTÉ VERS LE HAUT
Battery Pack / Bloc-piles :
BT183342/BT283342 (2.4V 400mAh Ni-MH)
WARNING / AVERTISSEMENT :
DO NOT BURN OR PUNCTURE BATTERIES.
NE PAS INCINÉRER OU PERCER LES PILES.
Made in China / Fabriqué en chine
Batter
BT16234
WARNING
DO NOT BUR
NE PAS INCINÉ
Made in China / F
Getting started
8
Battery installation and charging
Step 3
Charge the handset by placing it face forward in the
charger. The CHARGE light on the top of the handset is
on during charging.
IMPORTANT INFORMATION
Use only the supplied rechargeable battery or replacement battery (model BT183342/
BT283342). To order, visit our website at www.telephones.att.com or call
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
If you do not use the handset for a long time, disconnect and remove the battery
to prevent possible leakage.
•
•
CHARGE light
After you install your telephone or power returns following
a power outage, the handset and base will prompt you to
set the date and time. For instructions on setting the date
and time using a cordless handset or the telephone base,
see Set date/time on page 15 and page 26, respectively.
To skip setting the date and time, press
OFF/CANCEL on
a cordless handset or CANCEL on the telephone base.
After the date and time setting is done or skipped, the
telephone base will prompt if you want to set up the
answering system. Press MENU/SELECT to start the
answering system setup via voice guide. For more details,
see Voice guide on page 79. To skip the setup, press
CANCEL on the telephone base.
Step 2
Align the cover flat against the battery compartment, then slide it upwards
until it clicks into place.
HAUT
i-MH)
S.
SET DATE
MM/DD/YY
SET TIME
HH:MM --
Setup Ans sys?
Getting started
9
Installation options
The telephone base comes with a mount bracket set for tabletop use. If you
want to mount your telephone on a wall, rotate the mount bracket down
so the telephone can connect with a standard dual-stud telephone wall-
mounting plate. If you do not have this mounting plate, you can purchase
one from many hardware or consumer electronics retailers. You might need a
professional to install the mounting plate.
Tabletop to wall-mount installation
To install the telephone base in the wall-mount position, make sure that you
first unplug the telephone line cord and power adapter from the telephone
wall jack and power outlet. Make sure they are plugged into their jacks on
the telephone base and routed through the channels.
1. Press the tabs indicated by the arrows. The bracket will detach from the
telephone base. Rotate it down into wall-mount position, making sure it
clicks into place.
Table-mount Wall-mount
Side view
Rear view
Getting started
10
Installation options
3. If necessary, bundle the telephone cord and power adapter cord, and
secure them with twist ties. Plug the power adapter and telephone line
into the wall outlets.
4. Align the mounting studs on the mounting plate with the mounting holes
on the bracket and press the telephone base down until it clicks securely
into place.
2. Slide the handset tab upward. Rotate the handset tab by 180 degrees.
The protruding edge of the handset tab holds the corded handset in place
when the telephone is mounted on the wall.
Handset tab
Switch hook
Getting started
11
Installation options
Wall-mount to tabletop installation
To change the telephone base from the wall-mount position to tabletop position:
1. Remove the telephone base from the wall.
2. If necessary, untie the bundled telephone cord and power adapter cord.
Make sure that you unplug the power adapter and telephone line cord
from the wall outlets before you begin.
3. Push, as indicated by arrows in the illustration, until the bracket is
released, and then rotate it upward until it clicks into the tabletop position.
Table-mount
Wall-mount
Side view
Bottom view
Getting started
12
Installation options
5. Make sure the telephone line cord and power adapter cord are securely
plugged into their jacks on the back of the telephone base. Plug the
power adapter and telephone line into the wall outlets.
4. Slide the handset tab upward. Rotate the handset tab by 180 degrees.
Handset tab
Switch hook
13
Handset settings
Use the menu to change the telephone settings.
1. Press MENU/SELECT on the handset when it is not in use
to enter the main menu.
2. Press CID or DIR to scroll to the feature to be changed.
When scrolling through the menu, the > symbol indicates
the selected menu item.
3. Press MENU/SELECT to select the highlighted item.
NOTE: Press
OFF/CANCEL to cancel an operation, back up to the previous menu or exit
the menu display. Press and hold
OFF/CANCEL to return to idle mode.
Go to Answering system settings starting on page 75 for instructions on
how to use a system handset to modify the answering system settings, as
shown below.
Setting Page
Announcement (play, record and delete) 75-77
Answer on/off 78
Call screening 80
Number of rings 81
Remote access code 82
Message alert tone 83
Message recording time 84
Telephone settings
>Play messages
Answering sys
Telephone settings
14
Handset settings
Ringer volume
You can set the ringer volume level to one of six levels or
turn the ringer off. When the ringer is off, appears on
the screen.
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use CID or DIR to scroll to Ringers, then press
MENU/SELECT.
3. Press MENU/SELECT again to select Ringer volume.
4. Press CID or DIR to sample each volume level.
5. Press MENU/SELECT to save your preference. There is
a confirmation tone and the screen returns to the
previous menu.
NOTES:
The handset ringer volume also determines the ringer volume for
intercom calls.
If the ringer volume is set to off, that handset is silenced for all incoming calls. However, the
handset still plays the paging tone when responding to the handset locator.
If the ringer volume is set to off, the caller ID will not be announced and the screen will
briefly display Caller ID won’t be announced.
Ringer tone
You can choose one of ten ringer tones.
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use CID or DIR to scroll to Ringers, then press
MENU/SELECT.
3. Press CID or DIR to scroll to Ringer tone, then press
MENU/SELECT.
4. Press CID or DIR to sample each ringer tone.
5. Press MENU/SELECT to save your preference. There is
a confirmation tone and the screen returns to the
previous menu.
NOTE: If you turn off the ringer volume, you will not hear ringer tone samples.
•
•
•
>
Ringer volume
Ringer tone
>Ringers
Intercom
RINGER VOLUME
RINGER TONE
>
Tone 1
>
Ringer tone
Ringer volume
15
Telephone settings
Handset settings
Set date/time
The answering system announces the day and time of each message prior
to playing it. Before using the answering system, set the date and time as
follows. If you subscribe to caller ID service, the day, month and time are
set automatically with each incoming call. The year must be set so that the
day of the week can be calculated from the caller ID information. You can
turn off the date and time settings of the caller ID service and set the date
and time manually (see Use caller ID to automatically set date and time
on page 21).
After a power failure or handset registration, the system prompts you to set
the date and time.
To set the date and time manually:
1. When the handset is in idle mode, press MENU/SELECT to
enter the main menu.
2. Press CID or DIR to scroll to Set date/time and then
press MENU/SELECT.
3. Press CID or DIR to select the month, then press
MENU/SELECT, or enter the number using the dialing keys.
4. Press CID or DIR to select the day, then press
MENU/SELECT, or enter the number using the dialing keys.
5. Press CID or DIR to select the year, or enter the number
using the dialing keys, then press MENU/SELECT to move on
to set the time.
6. Press CID or DIR to select the hour, then press
MENU/SELECT, or enter the number using the dialing keys.
7. Press
CID or DIR to select the minute, then press
MENU/SELECT, or enter the number using the dialing keys.
8. Press CID or DIR to highlight AM or PM, or press 2 for AM or
7 for PM. Then, press MENU/SELECT to confirm. There is a confirmation
tone and the screen returns to the previous menu.
NOTE: If the clock is not set when a message is recorded, the system announces, “Time and
day not set,” before it plays the message.
SET DATE
MM/DD/YY
SET TIME
HH:MM --
Ringers
>Set date/time
Telephone settings
16
Handset settings
LCD language
You can select the language used for all screen displays.
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use CID or DIR to scroll to Settings, then press
MENU/SELECT.
3. Press MENU/SELECT to choose LCD language.
4. Press CID or DIR to highlight English, Français
or Español, then press MENU/SELECT. The screen prompts
Set English/ Français/ Español as LCD language?.
5. Press MENU/SELECT to confirm. There is a confirmation tone
and the screen returns to the previous menu.
NOTE: If you accidentally change the LCD language to French or Spanish, you can reset it
back to English without going through the French or Spanish menus. When in idle mode,
press MENU/SELECT once on the handset, then enter 364#. There is a confirmation tone.
LCD LANGUAGE
>
English
Set Francais as
LCD language?
17
Telephone settings
Handset settings
Caller ID announce
The caller ID announce feature lets you know who’s calling without having
to look at the display. When you have an incoming call, the handset and/or
base speaks “Call from...” and the name of the caller based on the directory
or caller ID information. If the caller’s name is private or unknown, the phone
number up to the last 11 digits will be announced. If the caller’s phone
number is also private or unknown, no information will be announced. The
default setting is On.
To turn on or off the caller ID announce feature:
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use CID or DIR to scroll to Settings, then press
MENU/SELECT.
3. Use CID or DIR to scroll to Caller ID annc, then
press MENU/SELECT.
4. Use CID or DIR to scroll to the desired option, then
press MENU/SELECT.
Set all On/Off - Change the setting for the base and
all handsets.
Local handset - Change the setting for that handset only
(when programming from a cordless handset only).
Base - Change the setting for the telephone base only.
5. Use CID or DIR to highlight On or Off, then press
MENU/SELECT. There is a confirmation tone and the screen
returns to the previous menu. If you change the setting for Set all On/Off,
the screen shows CID Annc ON/OFF on all HS & BS.
NOTES:
To use the caller ID announce feature, you must subscribe to caller ID service from your
telephone service provider.
If you have paired an AT&T TL80133 DECT 6.0 cordless speakerphone to the telephone base,
the caller ID announce setting for all devices also applies to the cordless speakerphone.
When the setting is On, the cordless speakerphone speaks “Call from...” and the name of the
caller based on the directory or caller ID information during an incoming call. If the caller’s
name is unavailable, the phone number up to the last 11 digits will be announced.
When there are up to five handsets registered, the telephone system supports caller ID
announce for all handsets. If six or more handsets are registered, the system supports caller
ID announce for the first four registered handsets only.
This feature does not announce information for call waiting calls.
It takes at least 2 rings for the phone to receive caller ID information and announce it. If
the phone is answered before the end of the second ring, the phone won’t have time to
announce the caller’s information.
Pronunciation of names may vary with this feature. Not all names may be pronounced correctly.
Caller ID announce is available in English only.
•
•
•
•
•
•
•
•
•
•
HS CID ANNOUNCE
>On
CALLER ID ANNC
>Local handset
LCD language
>Caller ID annc
Telephone settings
18
Handset settings
Set speed dial voicemail number
This feature lets you save your voicemail number for easy access when you
press and hold the 1 key.
To save your voicemail number:
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use CID or DIR to scroll to Settings, then press
MENU/SELECT.
3. Use CID or DIR to scroll to Voicemail #, then press
MENU/SELECT.
4. Use the dialing keys to enter the voicemail access
number provided by your telephone service provider
(up to 30 digits).
Press CID or DIR to move the cursor to the left
or right.
Press MUTE/DELETE to erase a digit.
Press and hold MUTE/DELETE to erase all digits.
Press REDIAL/PAUSE to enter a three-second dialing
pause (a p appears).
Press MENU/SELECT to save. There is a confirmation tone. The screen
displays Voicemail # saved, and then returns to the previous menu.
Voicemail (visual message waiting) indicator
If you subscribe to a voicemail service offered by your
telephone service provider, this feature provides a visual
indication when you have new voicemail messages.
New voicemail and the icon appear on the handset screen.
NOTES:
This feature does not indicate new messages recorded on your phone’s built-in answering system.
For more information about the difference between your answering system and voicemail, see
page 85.
•
•
•
•
5.
•
•
Caller ID annc
>Voicemail #
VOICEMAIL #
800-222-3111_
Voicemail #
saved
AM
HANDSET 1
New voicemail
10:21PM 2/11
19
Telephone settings
Clear voicemail indicator
Use this feature when the telephone indicates there is new voicemail but
there is none. For example, when you have accessed your voicemail while
away from home. This feature only turns off the displayed New voicemail
and the icon; it does not delete your voicemail messages. As long as you
have new voicemail messages, your telephone service provider continues to
send the signal to turn on the indicator.
To manually turn off the new voicemail indicator:
1. Press MENU/SELECT when in idle mode to enter the
main menu.
2. Use CID or DIR to scroll to Settings, then press
MENU/SELECT.
3. Use CID or DIR to scroll to Clr voicemail, then press
MENU/SELECT. The screen shows Reset Voicemail
Indicator?.
4. Press MENU/SELECT again to turn the voicemail indicator
off. There is a confirmation tone and the screen returns to
the previous menu.
NOTES:
Your telephone service provider voicemail may alert you to new messages with a stutter
(broken) dial tone. Contact your telephone service provider for more details.
For information about using your voicemail service, contact your telephone service provider.
•
•
Handset settings
Voicemail #
>Clr voicemail
Reset Voicemail
Indicator?
Telephone settings
20
Rename handset
The default handset name is HANDSET. You can create your own handset
name for each system handset.
1. When the handset is idle, press MENU/SELECT.
2. Use CID or DIR to scroll to Settings, then press
MENU/SELECT.
3. Use CID or DIR to scroll to Rename handset, then press
MENU/SELECT.
4. Change the handset name when prompted.
Use the dialing keys and the chart on page 55 to enter
a name (up to 11 characters). Press a key repeatedly
until the desired character appears on the screen.
Press CID or DIR to move the cursor to the left or right.
Press MUTE/DELETE to backspace and delete a character.
Press and hold MUTE/DELETE to delete all characters.
5. Press MENU/SELECT to save the setting and return to the previous menu.
There is a confirmation tone.
Key tone
The handset is set to beep with each key press. You can adjust the key tone
volume or turn it off. If you turn off the key tone, there are no beeps when
you press keys.
Press MENU/SELECT in idle mode to enter the main menu.
Use CID or DIR to scroll to Settings, then press
MENU/SELECT.
Use CID or DIR to scroll to Key tone, then press
MENU/SELECT.
Use CID or DIR to select the desired volume or Off.
Press MENU/SELECT to save your preference. There is
a confirmation tone and the screen returns to the
previous menu.
•
•
•
•
1.
2.
3.
4.
5.
Handset settings
Clr voicemail
>
Rename handset
RENAME HANDSET
HANDSET____
Rename handset
>
Key tone
KEY TONE
21
Telephone settings
Handset settings
Use caller ID to automatically set date and time
If you subscribe to caller ID service, the day, month and time are set
automatically with each incoming call. Follow the steps below to turn the
CID time sync feature on or off. The default setting is On.
1. When the handset is in idle mode, press MENU/SELECT to
enter the main menu.
2. Press CID or DIR to scroll to Settings, then press
MENU/SELECT.
3. Press CID or DIR to scroll to CID time sync, then
press MENU/SELECT.
4. Press CID or DIR to highlight On or Off, then press
MENU/SELECT to save. There is a confirmation tone and
the screen returns to the previous menu.
Home area code
If you dial seven digits to make a local call (no area code required), enter
your area code into the telephone as the home area code. When you receive
a call from within your home area code, the caller ID log only displays the
seven digits of the telephone number.
This feature makes it easy for you to place a call from the caller ID log. If you
dial 10 digits to make a local phone call, do not use this home area code
feature. If you do, you cannot place local calls from your caller ID log, as they
will have only seven digits.
To set the home area code:
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use CID or DIR to scroll to Settings, then press
MENU/SELECT.
3. Use CID or DIR to scroll to Home area code,
then press MENU/SELECT. The screen briefly shows
Only for 7digit dial from CID.
4. Use the dialing keys to enter a three-digit home area code.
Press MUTE/DELETE to delete a digit.
Press and hold MUTE/DELETE to delete all digits.
5. Press MENU/SELECT to save. There is a confirmation tone and the screen
shows Area code will not show in CID briefly before returning to the
previous menu.
NOTE: If in the future, your telephone service provider requires you to dial 10 digits to
make a local call (area code plus telephone number), you need to delete your home area
code and dial out locally from the call ID log. With the home area code displayed,
press and hold MUTE/DELETE until the digits are deleted, and then press MENU/SELECT.
The home area code is restored to its default setting of _ _ _ (empty).
•
•
Key tone
>CID time sync
CID TIME SYNC
>On
CID time sync
>Home area code
HOME AREA CODE
___
Telephone settings
22
Handset settings
Dial mode
The dial mode is preset to tone dialing. If you have pulse (rotary) service, you
must change the dial mode to pulse dialing before using the telephone.
To set the dial mode:
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use CID or DIR to scroll to Settings, then press
MENU/SELECT.
3. Use CID or DIR to scroll to Dial mode, then press
MENU/SELECT.
4. Use CID or DIR to highlight Touch-tone or Pulse, then
press MENU/SELECT. The screen shows DIAL MODE is
touch-tone or DIAL MODE is pulse. There is a
confirmation tone and the screen returns to the
previous menu.
Web address
Use this feature to view the AT&T website address.
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use CID or DIR to scroll to Web address, then press
MENU/SELECT.
Home area code
>Dial mode
DIAL MODE
>Touch-tone
>
Web address
Settings
www.telephones.
att.com
23
Telephone settings
Handset settings
QUIET mode
When QUIET mode is turned on, the telephone silences all sounds during the
set period of time (1-12 hours). However, the handset locator paging tone and
any sound-generating operations initiated by users, such as making calls using
the speakerphone or setting ringer volume, will sound as normal. After you
turn on QUIET mode, this feature activates immediately and the answering
system turns on automatically. When QUIET mode is on, the answering
system takes calls and records messages without broadcasting them.
To turn QUIET mode on:
1. Press and hold QUIET # in idle mode to enter the QUIET mode setting
screen. The screen shows Quiet: _ _ hours (1-12 hours).
2. Use the dialing keys to enter the desired number of hours (1-12) you
would like to turn on QUIET mode, then press MENU/SELECT. Your screen
briefly shows Answering sys is ON and then Quiet mode on.
To turn QUIET mode off:
While QUIET mode is on, press and hold QUIET #. The screen then shows
Quiet mode is off and you hear a confirmation tone.
NOTES:
If you change the base ringer, handset ringer, ringer volume, key tone, or caller ID announce
features when QUIET mode is on, the sample plays but the feature is still muted after saving
the setting.
After QUIET mode is turned off or the set period of time has expired, all muted features will be
activated again.
The PTT function is not available when QUIET mode is on.
When QUIET mode is on, the handset does not ring when there is an incoming intercom call, but
the handset which initiates the intercom call does have the calling tone as normal.
•
•
•
•
•
Telephone settings
24
Telephone base settings
Use the menu to change the telephone settings.
1. Press MENU/SELECT on the telephone base when it is
not in use to enter the main menu.
2. Press CID or DIR to scroll to the feature to be
changed. When scrolling through the menu, the >
symbol indicates the selected menu item.
3. Press MENU/SELECT to select the highlighted item.
NOTE: Press CANCEL to cancel an operation, back up to the previous menu or exit the
menu display. Press and hold CANCEL to return to idle mode.
>Play messages
Answering sys
25
Telephone settings
Telephone base settings
Ringer volume
You can set the ringer volume level to one of six levels or turn the ringer off.
When the ringer is off, appears on the screen.
1. Press MENU/SELECT in idle mode to enter the
main menu.
2. Use CID or DIR to scroll to Ringers, then press
MENU/SELECT.
3. Press MENU/SELECT again to select Ringer volume.
4. Press CID or DIR to sample each volume level.
5. Press MENU/SELECT to save your preference. There is
a confirmation tone and the screen returns to the
previous menu.
NOTES:
The telephone base ringer volume also determines the ringer volume for intercom calls.
If the ringer volume is set to off, the telephone base is silenced for all incoming calls.
If the ringer volume is set to off, the caller ID will not be announced and the screen will
briefly display Caller ID won’t be announced.
Ringer tone
You can choose one of ten ringer tones.
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use CID or DIR to scroll to Ringers, then press
MENU/SELECT.
3. Press CID or DIR to scroll to Ringer tone, then press
MENU/SELECT.
4. Press CID or DIR to sample each ringer tone.
5. Press MENU/SELECT to save your preference. There is a confirmation tone
and the screen returns to the previous menu.
NOTE: If you turn off the ringer volume, you will not hear ringer tone samples.
•
•
•
Intercom
>Ringers
>Ringer volume
Ringer tone
RINGER TONE
>Tone 1
Ringer volume
>
Ringer tone
RINGER VOLUME
Telephone settings
26
Telephone base settings
Set date/time
The answering system announces the day and time of each message prior
to playing it. Before using the answering system, set the date and time as
follows. If you subscribe to caller ID service, the day, month and time are set
automatically with each incoming call. The year must be set so that the day
of the week can be calculated from the caller ID information. You can turn
off the date and time settings of the caller ID service and set the date and
time manually (see Use caller ID to automatically set date and time on
page 31).
After a power failure, the system prompts you to set the date and time.
To set the date and time manually:
1. When the telephone base is in idle mode, press
MENU/SELECT to enter the main menu.
2. Press CID or DIR to scroll to Set date/time and
then press MENU/SELECT.
3. Press CID or DIR to choose the month, then press
MENU/SELECT, or enter the number using the
dialing keys.
4. Press CID or DIR to choose the day, then press
MENU/SELECT, or enter the number using the
dialing keys.
5. Press CID or DIR to choose the year, or enter
the number using the dialing keys, then press
MENU/SELECT to move on to set the time.
6. Press CID or DIR to choose the hour, then press MENU/SELECT, or enter
the number using the dialing keys.
7. Press CID or DIR to choose the minute, then press MENU/SELECT, or
enter the number using the dialing keys.
Press CID or DIR to highlight AM or PM, or press 2 for AM or 7 for PM.
Then, press MENU/SELECT to confirm. There is a confirmation tone and the
screen returns to the previous menu.
NOTE: If the clock is not set when a message is recorded, the system announces, “Time
and day not set,” before it plays the message.
8.
SET DATE
MM/DD/YY
Ringers
>Set date/time
SET TIME
HH:MM --
27
Telephone settings
Telephone base settings
LCD language
You can select the language used for all screen displays.
1. Press MENU/SELECT in idle mode to enter the
main menu.
2. Use CID or DIR to scroll to Settings, then press
MENU/SELECT.
3. Press MENU/SELECT to choose LCD language.
4. Press CID or DIR to highlight English, Français
or Español, then press MENU/SELECT. The screen
prompts Set English/Français/Español as LCD
language?.
5. Press MENU/SELECT to confirm. There is a confirmation tone and the
screen returns to the previous menu.
NOTE: If you accidentally change the LCD language to French or Spanish, you can reset it
back to English without going through the French or Spanish menus. Press MENU/SELECT
on the telephone base, then enter 364#. There is a confirmation tone.
>LCD language
Caller ID annc
LCD LANGUAGE
>English
Telephone settings
28
Telephone base settings
Caller ID announce
The caller ID announce feature lets you know who’s calling without having
to look at the display. When you have an incoming call, the handset and/or
base speaks “Call from...” and the name of the caller based on the directory
or caller ID information. If the caller’s name is private or unknown, the phone
number up to the last 11 digits will be announced. If the caller’s phone
number is also private or unknown, no information will be announced. The
default setting is On.
To turn on or off the caller ID announce feature:
Press MENU/SELECT in idle mode to enter the
main menu.
Use CID or DIR to scroll to Settings, then press
MENU/SELECT.
Use CID or DIR to scroll to Caller ID annc, then
press MENU/SELECT.
Use CID or DIR to scroll to the desired option, then
press MENU/SELECT.
Set all On/Off - Change the setting for the base and all handsets.
Base - Change the setting for the telephone base only.
5. Use CID or DIR to highlight On or Off, then press MENU/SELECT.
There is a confirmation tone and the screen returns to the previous menu.
If you change the setting for Set all On/Off, the screen shows CID Annc
ON/OFF on all HS & BS.
NOTES:
To use the caller ID announce feature, you must subscribe to caller ID service from your
telephone service provider.
If you have paired an AT&T TL80133 DECT 6.0 cordless speakerphone to the telephone base,
the caller ID announce setting for all devices also applies to the cordless speakerphone.
When the setting is On, the cordless speakerphone speaks “Call from...” and the name of the
caller based on the directory or caller ID information during an incoming call. If the caller’s
name is unavailable, the phone number up to the last 11 digits will be announced.
This feature does not announce information for call waiting calls.
It takes at least 2 rings for the phone to receive caller ID information and announce it. If
the phone is answered before the end of the second ring, the phone won’t have time to
announce the caller’s information.
Pronunciation of names may vary with this feature. Not all names may be pronounced correctly.
Caller ID announce is available in English only.
1.
2.
3.
4.
•
•
5.
•
•
•
•
•
•
LCD language
>Caller ID annc
CALLER ID ANNC
>Set all On/Off
29
Telephone settings
Set speed dial voicemail number
This feature lets you save your voicemail number for easy access when you
press and hold the 1 key.
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use CID or DIR to scroll to Settings, then press
MENU/SELECT.
3. Use CID or DIR to scroll to Voicemail #, then press
MENU/SELECT.
4. Use the dialing keys to enter the voicemail access
number provided by your telephone service provider.
Press CID or DIR to move the cursor to the left
or right.
Press X/DELETE to erase a digit.
Press and hold X/DELETE to erase all digits.
Press REDIAL/PAUSE to enter a three-second dialing pause (a p appears).
Press MENU/SELECT to save. There is a confirmation tone. The screen
displays Voicemail # saved and then returns to the previous menu.
Voicemail (visual message waiting) indicator
If you subscribe to a voicemail service offered by your
telephone service provider, this feature provides a visual
indication when you have new voicemail messages.
New voicemail and the icon appear on the telephone
base screen.
NOTES:
This feature does not indicate new messages recorded on your phone’s built-in answering system.
For more information about the difference between your answering system and voicemail,
see page 85.
•
•
•
•
5.
•
•
•
Telephone base settings
Caller ID annc
>Voicemail #
VOICEMAIL #
800-222-3111_
10:21PM 08/08
MSG
#
1
NEW
BASE
New voicemail
Telephone settings
30
Telephone base settings
Clear voicemail indicator
Use this feature when the telephone indicates there is
new voicemail but there is none. For example, when you
have accessed your voicemail while away from home.
This feature only turns off the displayed New voicemail
and the icon; it does not delete your voicemail
messages. As long as you have new voicemail messages,
your telephone service provider continues to send the
signal to turn on the indicators.
To manually turn off the new voicemail indicators:
1. Press MENU/SELECT when in idle mode to enter the main menu.
2. Use CID or DIR to scroll to Settings, then press MENU/SELECT.
3. Use CID or DIR to scroll to Clr voicemail, then press MENU/SELECT.
The screen shows Reset Voicemail Indicator?.
4. Press MENU/SELECT again to turn the voicemail indicator off. There is a
confirmation tone and the screen returns to the previous menu.
NOTES:
Your telephone service provider voicemail may alert you to new messages with a stutter
(broken) dial tone. Contact your telephone service provider for more details.
For information about using your voicemail service, contact your telephone service provider.
Rename base
You can create a new name for the telephone base.
1. When the telephone is idle, press MENU/SELECT.
2. Use CID or DIR to scroll to Settings, then press
MENU/SELECT.
3. Use CID or DIR to scroll to Rename base, then
press MENU/SELECT.
4. Change the telephone base name when prompted.
Press CID or DIR to move the cursor to the left
or right.
Use the dialing keys to enter a name (up to 11 characters). Each time
you press a key, a character on that key appears. Additional key presses
produce other characters on that key. See the chart on page 55.
Press X/DELETE to backspace and delete a character.
Press and hold X/DELETE to delete all characters.
5. Press MENU/SELECT to save the setting and return to the previous menu.
There is a confirmation tone.
•
•
•
•
•
•
RENAME BASE
BASE_________
Clr voicemail
>Rename base
Reset Voicemail
Indicator?
Voicemail #
>Clr voicemail
31
Telephone settings
Telephone base settings settings
Key tone
The telephone base is set to beep with each key press. You can adjust the
key tone volume or turn it off. If you turn off the key tone, there are no
beeps when you press keys.
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use CID or DIR to scroll to Settings, then press
MENU/SELECT.
3. Use CID or DIR to scroll to Key tone, then press
MENU/SELECT.
4. Use CID or DIR to select the desired volume
or Off.
5. Press MENU/SELECT to save your preference. There
is a confirmation tone and the screen returns to the
previous menu.
KEY TONE
Rename base
>Key tone
Use caller ID to automatically set date and time
If you subscribe to caller ID service, the day, month and time are set
automatically with each incoming call. Follow the steps below to turn the
CID time sync feature on or off. The default setting is On.
1. When the telephone base is in idle mode, press
MENU/SELECT to enter the main menu.
2. Press CID or DIR to scroll to Settings, then press
MENU/SELECT.
3. Press CID or DIR to scroll to CID time sync, then
press MENU/SELECT.
4. Press CID or DIR to highlight On or Off, then press
MENU/SELECT to save. There is a confirmation tone and
the screen returns to the previous menu.
Key tone
>CID time sync
CID TIME SYNC
>On
Telephone settings
32
Telephone base settings
Home area code
If you dial 7 digits to make a local call (no area code required), enter your
area code into the telephone as the home area code. When you receive a
call from within your home area code, the caller ID log only displays the 7
digits of the telephone number.
This feature makes it easy for you to place a call from the caller ID log. If you
dial 10 digits to make a local phone call, do not use this home area code
feature. If you do, you cannot place local calls from your caller ID log, as they
will have only 7 digits.
To set the home area code:
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use CID or DIR to scroll to Settings, then press
MENU/SELECT.
3. Use CID or DIR to scroll to Home area code, then
press MENU/SELECT. The screen briefly shows
Only for 7digit dial from CID.
4. Use the dialing keys to enter a three-digit home area code.
Press X/DELETE to delete a digit.
Press and hold X/DELETE to delete all digits.
5. Press MENU/SELECT to save. There is a confirmation tone and the screen
shows Area code will not show in CID briefly before returning to the
previous menu.
NOTE: If in the future, your telephone service provider requires you to dial 10 digits to
make a local call (area code plus telephone number), you need to delete your home
area code and dial out locally from the caller ID log. With the home area code displayed,
press and hold X/DELETE until the digits are deleted, and then press MENU/SELECT.
The home area code is now restored to its default setting of _ _ _ (empty).
•
•
HOME AREA CODE
___
CID time sync
>Home area code
33
Telephone settings
Telephone base settings
Dial mode
The dial mode is preset to tone dialing. If you have pulse
(rotary) service, you must change the dial mode to pulse
dialing before using the telephone.
To set the dial mode:
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use CID or DIR to scroll to Settings, then press
MENU/SELECT.
3. Use CID or DIR to scroll to Dial mode, then press MENU/SELECT.
4. Use CID or DIR to highlight Touch-tone or Pulse, then press
MENU/SELECT. The screen shows DIAL MODE is touch-tone or DIAL
MODE is pulse. There is a confirmation tone and the screen returns to the
previous menu.
Web address
Use this feature to view the AT&T website address.
1. Press MENU/SELECT in idle mode to enter the
main menu.
2. Use CID or DIR to scroll to Web address, then
press MENU/SELECT.
www.telephones.
att.com
Settings
>Web address
Home area code
>Dial mode
DIAL MODE
>Touch-tone
34
Telephone operation
Making a call
Using a cordless handset:
Press
PHONE/FLASH or /SPEAKERSPEAKER, then enter the telephone number.
The screen displays the elapsed time as you talk (in hours,
minutes and seconds).
Using the telephone base:
Lift the corded handset or press /SPEAKERSPEAKER, then enter
the telephone number.
The screen displays the elapsed time as you talk (in hours,
minutes and seconds).
NOTE: Pressing
PHONE/FLASH or /SPEAKER to access
services from your telephone service provider does not affect the
elapsed time.
On hook dialing (predialing)
Using a cordless handset:
1. Enter the telephone number. Press MUTE/DELETE to make corrections
when entering the phone number.
2. Press
PHONE/FLASH or /SPEAKERSPEAKER.
Using the telephone base:
1. Enter the telephone number. Press X/DELETE to make corrections when
entering the phone number.
2. Press /SPEAKERSPEAKER, or lift the corded handset.
Answering a call
Using a cordless handset:
Press
PHONE/FLASH or /SPEAKERSPEAKER.
-OR-
Press any dialing key (0-9, TONE or #).
Using the telephone base:
Lift the corded handset, or press /SPEAKERSPEAKER.
-OR-
Press any dialing key (0-9, TONE or #).
•
•
•
•
•
•
06:30PM 8/06
Speaker 0:00:30
Elapsed time
Telephone operation
Elapsed time
Phone 0:00:30
6:30AM 8/06
Telephone operation
35
Telephone operationoperation
Ending a call
Using a cordless handset:
Press
OFF/CANCEL or return the handset to the charger.
Using the telephone base:
Return the corded handset to the telephone base, or press /SPEAKERSPEAKER.
Auto off
A call ends automatically when you put the cordless handset in the charger.
Temporary ringer silencing
Using a cordless handset:
Press
OFF/CANCEL or MUTE/DELETE while the telephone is
ringing to silence the ringer temporarily on that handset only.
This turns off the ringer without disconnecting the call. The
next incoming call rings normally at the preset volume.
Using the telephone base:
Press CANCEL or MUTE while the telephone is ringing
to silence the ringer temporarily on the telephone base
only. This turns off the ringer without disconnecting
the call. The next incoming call rings normally at the preset volume.
NOTE: The telephone base and all handsets ring when there is an incoming call unless
the ringer volume is turned off on that device.
•
•
Ringer muted
Ringer muted
Telephone operation
Telephone operation
Handset speakerphone
During a call, press /SPEAKERSPEAKER to switch between handsfree speakerphone
and normal handset use. Press
OFF/CANCEL to hang up.
NOTES:
When you use the speakerphone, the key pad of the handset and the /SPEAKER button
are lit.
The speakerphone uses more power than the normal handset. If the handset battery becomes
very low while you are using the speakerphone, the call remains in speakerphone mode until
you hang up or the battery becomes depleted.
After installing a battery into the handset, the screen may show Low battery. If you use the
speakerphone at this time, the battery may become depleted. Follow the battery charging
instructions in the Battery installation and charging section on pages 7-8.
Last number redial
Each handset and the telephone base stores the last 10 telephone numbers
dialed (up to 30 digits each).
To view the 10 most recently dialed numbers:
Using a cordless handset:
To display the most recently called number, press
REDIAL/PAUSE.
To view up to 10 recently called numbers, press REDIAL/PAUSE, then CID,
DIR or REDIAL/PAUSE repeatedly.
The handset beeps twice at the end of the list. Press
OFF/CANCEL to exit.
Using the telephone base:
To display the most recently called number, press
REDIAL/PAUSE.
To view up to 10 recently called numbers, press
REDIAL/PAUSE, then CID, DIR or REDIAL/PAUSE
repeatedly.
The telephone base beeps twice at the end of the list. Press CANCEL to exit.
•
•
•
•
•
•
•
REDIAL #1/10
888-883-2445
36
Redial #1/10
888-883-2445
Telephone operation
37
Telephone operation
To redial a number:
Using a cordless handset:
To dial the displayed number, press
PHONE/FLASH or /SPEAKERSPEAKER.
-OR-
Press
PHONE/FLASH or /SPEAKERSPEAKER, then press REDIAL/PAUSE
repeatedly to view the redial memory. Press MENU/SELECT to dial the
displayed number.
Using the telephone base:
To dial the displayed number, lift the corded handset or press /SPEAKERSPEAKER.
-OR-
Lift the corded handset or press /SPEAKERSPEAKER. Then, press REDIAL/PAUSE
repeatedly to view the redial memory. Press MENU/SELECT to dial the
displayed number.
To delete a redial entry:
Using a cordless handset:
While the screen displays the desired number, press MUTE/DELETE to
delete the number from the redial memory.
Using the telephone base:
While the screen displays the desired number, press X/DELETE to delete
the number from the redial memory.
Equalizer
The handset and base equalizers enable you to change the quality of the
audio to best suit your hearing.
Using a cordless handset:
While on a call or intercom call, or listening to a message or announcement,
press EQ on the cordless handset to select the equalizer setting Treble 1,
Treble 2, Bass or Natural (the default setting). The current setting is shown
on the handset screen for two seconds.
Using the telephone base:
1. While on a call, pressWhile on a call, press MENU/SELECT.
2. Press CID or DIR to scroll to Equalizer and then press MENU/SELECT.
3. Press CID or DIR to select Treble 1, Treble 2, Bass or Natural (the
default setting), then press MENU/SELECT to store the setting.
NOTES:
If you switch the call between the handset and the speakerphone by pressing /SPEAKER, the
audio setting remains unchanged.
The current equalizer setting remains unchanged until a new setting is selected.
•
•
•
•
•
•
•
•
Telephone operation
38
Volume control
Using a cordless handset:
You can set the listening volume to one of six levels. While
on a call, press CID/VOLUME to decrease or press
DIR/VOLUME to increase the listening volume.
Using the telephone base:
You can set the listening volume to one of eight levels.
While on a call, press VOL
to decrease or
VOL
to increase the listening volume.
NOTES:
Handset and speakerphone volume settings are independent.
When the volume reaches the minimum or maximum setting, you hear two beeps.
Call waiting
If you subscribe to call waiting service from your telephone service provider,
and someone calls while you are already on a call, you hear two beeps.
Press
PHONE/FLASH on the handset or PTT/FLASH on the telephone
base to put your current call on hold and take the new call.
Press
PHONE/FLASH on your handset or PTT/FLASH on the telephone
base at any time to switch back and forth between calls.
NOTE: Missed call waiting calls are not counted as missed calls.
Mute
Use the mute function to turn off the microphone. You
can hear the caller, but the caller cannot hear you.
To mute a call:
• While on a call, press MUTE/DELETE on the handset
or MUTE on the telephone base. When mute is on,
the handset or telephone base shows Muted for a
few seconds. The MUTE icon displays on the handset
screen or the MUTE button lights up on the base
until you turn it off.
To end mute a call:
• Press MUTE/DELETE or MUTE again. When mute is
off, Microphone ON appears temporarily on the
handset or telephone base.
•
•
•
•
Options while on calls
Telephone operation
39
Options while on calls
Chain dialing
Use this feature to initiate a dialing sequence from the numbers in the
directory, caller ID log or redial memory while you are on a call.
Chain dialing is useful when you wish to access other numbers (such as
bank account numbers or access codes) from the directory, caller ID log or
redial list.
Using a cordless handset:
To access the directory while on a call:
1. Press MENU/SELECT.
2. Press CID or DIR to scroll to Directory and then press
MENU/SELECT.
3. Press CID or DIR to scroll to the desired number.
4. Press MENU/SELECT to dial the number shown.
To access the caller ID log while on a call:
1. Press MENU/SELECT.
2. Press CID or DIR to scroll to Caller ID log, then press
MENU/SELECT.
3. Press CID or DIR to scroll to the desired number.
4. Press MENU/SELECT to dial the number shown.
To access the redial list while on a call:
1. Press REDIAL/PAUSE to show the most recently
dialed number.
2. Press CID or DIR to scroll to the desired number,
or press REDIAL/PAUSE repeatedly to find the desired
number. Then, press. Then, press MENU/SELECT to dial the number shown.
Using the telephone base:
To access the directory while on a call:
1. Press MENU/SELECT.
2. Press CID or DIR to scroll to Directory and then
press MENU/SELECT.
3. Press CID or DIR to scroll to the desired number.
4. Press MENU/SELECT to dial the number shown.
06:30AM 8/06
Speaker 0:01:20
Charlie Johnson
>Directory
Intercom
888-883-2445
Charlie Johnson
REDIAL #1/10
800-360-4121
Phone 0:01:20
Charlie Johnson
6:30AM 8/06
888-883-2445
Charlie Johnson
>Directory
Intercom
Telephone operation
40
Options while on calls
To access the caller ID log while on a call:
1. Press MENU/SELECT.
2. Press CID or DIR to scroll to Caller ID log, then press MENU/SELECT.
3. Press CID or DIR to scroll to the desired number.
4. Press MENU/SELECT to dial the number shown.
To access the redial list while on a call:
1. Press REDIAL/PAUSE to show the most recently
dialed number.
2. Press CID or DIR to scroll to the desired number,
or press REDIAL/PAUSE repeatedly to find the desired
number. Then, press Then, press MENU/SELECT to dial the number shown.
NOTES:
You cannot edit a directory entry while on a call. For more details about the directory,
see the Directory section starting on page 53.
You cannot copy a caller ID entry into the directory while on a call. For more details about
the caller ID log, see page 63.
If you press REDIAL/PAUSE while on a call, you can only view the 10 most recently dialed
numbers and you cannot erase the entries. For more details about the redial memory, see
page 36.
Press
OFF/CANCEL on the handset or CANCEL on the telephone base to exit redial,
directory or caller ID log when on a call.
Temporary tone dialing
If you have pulse (rotary) service only, you can switch from pulse to touch-tone
dialing temporarily during a call. This is useful if you need to send touch-tone
signals to access your telephone banking or long distance services.
1. During a call, press TONE .
2. Use the dialing keys to enter the desired number. The telephone sends
touch-tone signals.
3. The telephone automatically returns to pulse dialing after you end the call.
•
•
•
•
REDIAL #1/10
800-360-4121
Telephone operation
41
Options while on calls
Blind transfer
While on an outside call, you can transfer the call to a specific device or any
device without notifying them.
To transfer an outside call from a handset:
1. During the call, press MENU/SELECT.
2. Press MENU/SELECT to choose Transfer.
If you have one handset and no other registered devices,
the outside call is put on hold and your handset shows
Transferring call.... The telephone base rings and shows
Transfer from HANDSET X.
If you have other registered device(s) or more than one
handset, your screen shows TRANSFER TO:. Use the
dialing keys to eenter a specific device number (0 for the
telephone base, 1-9 for handsets 1-9, TONE followed
by 0-2 for handsets 10-12, or TONE followed by #
for all devices), or presspress CID or DIR to scroll to the
desired device and press MENU/SELECT. The outside
call is put on hold and your handset screen shows
Transferring call... or Transferring call to all.... The
other device rings and shows Transfer from HANDSET X (HANDSET
represents the handset name, X represents the handset number).
3. To answer the call on the destination handset, press, press
PHONE/FLASH
or /SPEAKERSPEAKER. To answer the call on the telephone base, lift theTo answer the call on the telephone base, lift the, lift the
corded handset or press /SPEAKERSPEAKER. The initiating handset shows
Call transferred and goes to idle mode.
•
•
Phone 0:00:12
6:30AM 8/06
>Transfer
Intercom
TRANSFER TO:
>HANDSET 2
Telephone operation
42
Options while on calls
To transfer an outside call from the telephone base:
1. During the call, press MENU/SELECT.
2. Press MENU/SELECT to choose Transfer.
If your have one handset and no other registered
devices, the outside call is put on hold and the
telephone base shows Transferring call.... The
handset rings and shows Transfer from BASE 0
(BASE represents the base name).
If you have other registered device(s) or more than
one handset, the telephone base shows TRANSFER
TO:. Use the dialing keys to eenter a specific handset
number (1-9 for handsets 1-9, TONE followed by
0-2 for handsets 10-12, or TONE followed by
# for all handsets), or presspress CID or DIR to scroll to the desired
handset and press MENU/SELECT. The outside call is put on hold and
the telephone base shows Transferring call... or Transferring call to
all.... The other handset(s) rings and shows Transfer from BASE 0 (BASE
represents the base name).
3. To answer the call on the destination handset, press, press
PHONE/FLASH or
/SPEAKERSPEAKER. The telephone base shows Call transferred and goes to
idle mode.
NOTES:
To cancel the transfer and return to the external call before the blind transfer call is
answered, press
OFF/CANCEL,
PHONE/FLASH or /SPEAKER on your handset, or
CANCEL or /SPEAKER on your telephone base.
If the other device does not answer the transfer within 30 seconds, the transfer ends and the
initiating device rings while showing No response to transfer. If it does not pick up within 30
seconds, the device returns to idle mode and the outside call ends.
•
•
•
•
06:30AM 8/06
Speaker 0:00:12
>Transfer
Intercom
TRANSFER TO:
>HANDSET 2
Multiple handset use
Handset locator
The handset locator feature is useful if you
misplace any handsets.
To start the paging tone:
Press /HANDSET LOCATOR on the
telephone base to start the paging tone on
all handsets for 60 seconds.
NOTE: If you press
OFF/CANCEL or MUTE/DELETE
on a handset, the ringer of that handset stops, but
the paging to the rest of the handsets continues.
To stop the paging tone:
Press
PHONE/FLASH, /SPEAKERSPEAKER, or
any dialing key (0-9, TONE or #) on the
handset(s).
-OR-
Press /HANDSET LOCATOR, MUTE or
CANCEL on the telephone base.
Join a call in progress
When a handset or the telephone base is already on a call and you would
like to join the call, press
PHONE/FLASH or /SPEAKERSPEAKER on your handset or
/SPEAKERSPEAKER on your telephone base, or lift the corded handset.
To end the call using a cordless handset, press
OFF/CANCEL or place the
handset in the charger. To end the call using the telephone base, press
/SPEAKERSPEAKER or return the corded handset to the telephone base. The call
does not end until all handsets and the telephone base hang up.
NOTE: You can use up to four system handsets and the telephone base at the same time
on an outside call.
•
•
•
Multiple handset use
43
**Paging**
Multiple handset use
44
Intercom
Use the intercom feature for conversations between two handsets, a handset
and the telephone base, or a handset/telephone base and a cordless
headset/speakerphone (sold separately). You can buy additional expansion
handsets (model AT&T CL80115), cordless headsets and speakerphones for
this telephone base to expand your telephone system (up to 12 handsets or
10 cordless handsets and two cordless headsets/speakerphones).
Using a cordless handset:
Press MENU/SELECT in idle mode to enter the main menu.
Press CID or DIR to scroll to Intercom, then press
MENU/SELECT.
If you have one handset and no other registered
devices, the handset shows Calling base.
If you have other registered device(s) or more than one
handset, the handset shows INTERCOM TO:. Use the
dialing keys to enter a specific device number (enter a specific device number (0 for the
telephone base, 1-9 for handsets 1-9, TONE followed
by 0-2 for handsets 10-12, # for a single headset/
speakerphone, # followed by 1 or 2 for headset/
speakerphone 1 or 2, or TONE followed by # for all
devices), or presspress CID or DIR to scroll to the desired
device and press MENU/SELECT. Your handset screen
shows Calling HANDSET X, Calling BASE 0, Calling
headset or Calling all devices.
The destination device(s) rings and shows HANDSET is calling, HANDSET
X is calling or HANDSET X is calling all (HANDSET represents the handset
name, X represents the handset number).
2. To answer the intercom call, press
PHONE/FLASH, /SPEAKERSPEAKER or
any dialing key (0-9, TONE , or #) on the called device. On the called
telephone base, press /SPEAKERSPEAKER or any dialing key (0-9, TONE , or #),
or lift the corded handset. Both devices now show Intercom.
3. To end the intercom call, one party presses
OFF/CANCEL or places the
cordless handset back in the charger, presses CANCEL on the telephone
base, or hangs up the corded handset. The other party hears four beeps.. The other party hears four beeps. The other party hears four beeps.
Both devices display Intercom ended.
1.
•
•
Using the telephone base:
1. When the telephone base is not in use, press INT. You
can also press MENU/SELECT in idle mode to enter
the main menu, then press CID or DIR to scroll to
Intercom and press MENU/SELECT.
If you have one handset and no other registered
devices, the telephone base shows Calling HANDSET X.
•
Calling
BASE 0
HANDSET X
is calling
Intercom
11:35AM 12/02
Calling
HANDSET X
Multiple handset use
45
Intercom
If you have other registered device(s) or more than one handset, the
telephone base shows INTERCOM TO:. Use the dialing keys to enter aenter a
specific handset number (1-9 for handsets 1-9, TONE followed by 0-2
for handsets 10-12, # for a single headset/speakerphone, # followed
by 1 or 2 for headset/speakerphone 1 or 2, or TONE followed by # for
all devices), or presspress CID or DIR to scroll to the desired handset and
press MENU/SELECT. The telephone base shows Calling HANDSET X or
Calling all handsets.
The destination handset(s) rings and shows Base is
calling, BASE 0 is calling or BASE 0 is calling all.
2. To answer the intercom call, press
PHONE/FLASH,
/SPEAKERSPEAKER or any dialing key (0-9, TONE , or #)
on the destination handset. Both the base and the
handset now show Intercom.
3. To end the intercom call, one party presses
OFF/CANCEL or places the cordless handset back in
the charger, presses CANCEL on the telephone base,
or hangs up the corded handset. The other party hears four beeps. Both. The other party hears four beeps. Both The other party hears four beeps. Both
devices display Intercom ended.
NOTES:
Before the intercom call is answered, you can cancel it by pressing
OFF/CANCEL on the
handset or CANCEL on the telephone base.
If the called device is not answered within 100 seconds, or if it is in use, on a call or out of
range, the initiating device shows No answer. Try again.
To temporarily silence the intercom ringer, press
OFF/CANCEL or MUTE/DELETE on the
handset, or press CANCEL or MUTE on the telephone base.
You can only use one pair of devices at a time to make intercom calls.
For cordless headsets and speakerphones, refer to the corresponding user’s manual on how
to answer and end an intercom call.
If a total of two cordless headset(s) and/or speakerphone(s) are registered to the telephone
base, they appear as HEADSET 1 and HEADSET 2, respectively, in the intercom menu.
Answer an incoming call during an intercom call
If you receive an outside call during an intercom call, there is a two-beep call
waiting tone.
To answer the call, press
PHONE/FLASH on the cordless handset. You can
also lift the corded handset or press /SPEAKER on the telephone base.
The intercom call ends automatically. The party on the intercom call hears
four beeps. Other system devices can also answer the incoming call by
pressing
PHONE/FLASH or /SPEAKER on the handset, or pressing
/SPEAKER or lifting the corded handset on the telephone base.
To end the intercom call without answering the incoming call, press
OFF/CANCEL on the handset or CANCEL on the telephone base. You can
also return the corded handset back to the telephone base.
NOTE: For cordless headsets and speakerphones, refer to the corresponding user’s manual
on how to answer an incoming call during an intercom call.
•
•
•
•
•
•
•
•
•
10:01PM 10/15
Intercom
BASE 0
is calling
Multiple handset use
46
Call transfer using intercom
Use the intercom feature to transfer an outside call to another system
handset or the telephone base. You can also share an outside call with
another system handset or the telephone base.
To transfer or share an outside call using intercom:
Using a cordless handset:
1. During the call, press MENU/SELECT.
2. Press CID or DIR to scroll to Intercom and press MENU/SELECT.
3. Choose the device(s) you would like to transfer the call to using the
options from Step 1 on page 44.
4. When the destination device picks up, your handset shows Intercom and
the outside call is put on hold. You have the following options:
You can transfer the call. Press MENU/SELECT twice
to choose Transfer. The handset shows
Call transferred. The other device automatically
connects to the outside call.
You can let the other device join you on the outside call
in a three-way conversation. Press MENU/SELECT.
Press CID or DIR to highlight Share call, then press MENU/SELECT.
You can end the intercom call and continue the outside call with your
handset. Press
PHONE/FLASH on your handset (the ended intercom call
party hears four beeps).
Using the telephone base:
1. During the call:
Press INT.
-OR-
Press MENU/SELECT. Press CID or DIR to scroll to Intercom, then
press MENU/SELECT.
2. Choose the handset(s) you would like to transfer the call to using the
options from Step 1 on pages 44-45.
3. When the destination handset(s) picks up, the telephone
base shows Intercom and the outside call is put on hold.
Then, you have the following options:
You can transfer the call. Press MENU/SELECT twice to choose
Transfer. The telephone base shows Call transferred. The other
handset automatically connects to the outside call.
You can let the other handset join you on the outside call in a three-
way conversation. Press MENU/SELECT. Press CID or DIR to highlight
Share call, then press MENU/SELECT.
You can end the intercom call and continue the outside call with the
telephone base. Press CANCEL on the telephone base (the ended
intercom call party hears four beeps).
•
•
•
•
•
•
•
•
>Transfer
Share call
>Transfer
Share call
Multiple handset use
47
Push-to-talk (PTT)
You can directly broadcast messages to the
speakerphone of any device. Press and hold
PUSH TO TALK on a handset or PTT/FLASH on the
telephone base to begin two-way communication.
While talking to another device, Press and hold
PUSH TO TALK on the handset or PTT/FLASH on the
telephone base and release when you are finished
speaking, so that the other person can respond.
Only one device can talk at a time.
Only one PTT session can be active at a time.
While PTT is in use between two devices, other
devices cannot use the intercom feature but can
access the answering system.
When you attempt to place a PTT call to another
device which is accessing the answering system
or on an intercom call or outside call, your device
screen shows Not available at this time.
Turn PTT on or off
Using a cordless handset:
Press PUSH TO TALK when the handset is not in use. The
PUSH TO TALK menu displays.
Press CID or DIR to highlight PTT On/Off, then press
MENU/SELECT.
Press CID or DIR to choose On or Off, then press MENU/SELECT.
Using the telephone base:
Press PTT/FLASH when the telephone base is not in
use. The PUSH TO TALK menu displays.
Press CID or DIR to highlight PTT On/Off, then
press MENU/SELECT.
Press CID or DIR to choose On or Off, then press MENU/SELECT.
NOTE: The handset or the telephone base screen displays No Incoming PTT when PTT is
turned off.
•
•
•
•
•
1.
2.
3.
1.
2.
3.
PUSH TO TALK
>PTT On/Off
PTT
PUSH TO TALK
>PTT On/Off
Multiple handset use
48
Push-to-talk (PTT)
PTT call to a single device
Using a cordless handset:
There are a few ways to begin a PTT call to a single device.
When the handset is not in use:
If you have one handset, press and hold PUSH TO TALK.
If you have more than one handset:
Press PUSH TO TALK on the handset. Then, use the
dialing keys to enter the destination device number.
-OR-
Press PUSH TO TALK on the handset. Press CID or
DIR to highlight the destination device number, then
press MENU/SELECT or PUSH TO TALK.
The handset shows Connecting to HANDSET X...
(HANDSET represents the handset name, X represents the
destination handset number) or Connecting to BASE 0...
(BASE represents the base name)
for a few seconds. When
the connection is made, both your and the destination
device screens display Press and hold [PTT] to talk.
Press and hold PUSH TO TALK. A chirp indicates your
microphone is on. Speak towards the device. Your voice is
broadcast to the destination device.
While you are speaking, your handset shows
PTT To handset: X or PTT To base.
Release PUSH TO TALK after speaking. Both devices beep once
again and the screens show Press and hold [PTT] to talk, then, you can
press and hold PUSH TO TALK to continue speaking or the destination
device can respond (see Answer a PTT call on page 51).
To end the PTT call, press
OFF/CANCEL or place the cordless handset in
the charger. The handset shows Push to talk Ended for a few seconds.
1.
•
•
2.
3.
4.
PUSH TO TALK
>HANDSET X
Connecting to
HANDSET X...
Press and hold
[PTT] to talk
PTT To
handset: X
Multiple handset use
49
Push-to-talk (PTT)
Using the telephone base:
1. There are a few ways to begin a PTT call to a single handset. When the
telephone base is not in use:
If you have one handset, press and hold PTT/FLASH.
If you have more than one handset:
Press PTT/FLASH, then, use the dialing keys to
enter the destination handset number.
-OR-
Press CID or DIR to highlight the destination
handset number, then press MENU/SELECT or
PTT/FLASH.
The telephone base shows Connecting to HANDSET
X...
(HANDSET represents the handset name, X
represents the destination handset number)
for a few
seconds. When the connection is made, both the
telephone base and destination handset display
Press and hold [PTT] to talk.
2. Press and hold PTT/FLASH. A chirp indicates your
microphone is on. Speak towards the telephone base.
Your voice is broadcast to the destination handset.
While you are speaking, the telephone base shows
PTT To handset: X.
3. Release PTT/FLASH after speaking. Both devices beep once again
and the screens show Press and hold [PTT] to talk. Then, you can
press and hold PTT/FLASH to continue speaking or the destination device
can respond (see Answer a PTT call on page 51).
4. To end the PTT call, press CANCEL. The telephone base shows
Push to talk Ended for a few seconds.
•
•
PTT To
handset: X
Connecting to
Handset X...
Press and hold
[PTT] to talk
PUSH TO TALK
>Handset X
Multiple handset use
50
Push-to-talk (PTT)
PTT call to multiple devices
When there are multiple handsets registered to the phone system, PTT
supports one-to-group calls. PTT supports a maximum of one-to-five calls
when one to five handsets are registered, and a maximum of one-to-four
calls when six or more handsets are registered. The first four registered
handsets will be eligible to use this feature. Other handsets can only use PTT
for one-to-one calls.
To call multiple devices using a cordless handset:
1. You have three ways to call multiple devices. When the handset is not in use:
Press and hold PUSH TO TALK until the handset shows
Connecting to group....
Press PUSH TO TALK. Press CID or DIR to choose Group. Press
MENU/SELECT or PUSH TO TALK, then your handset shows
Connecting to group....
Press PUSH TO TALK. Press TONE followed by # (pound key). The
handset shows Connecting to group....
When the connection is made, both the caller and the destination parties
hear a beep. The speakerphones on all other devices automatically activate.
2. You need to press and hold PUSH TO TALK when you want to speak.
Speak towards the handset. Your voice is broadcast to all eligible devices.
3. Release PUSH TO TALK after speaking.
4. Any device can reply (see Answer a PTT call on page 51).
To call multiple devices using the telephone base:
1. You have three ways to call multiple handsets. When the telephone base is
not in use:
Press and hold PTT/FLASH until the screen shows Connecting to group....
Press PTT/FLASH. Press CID or DIR to choose Group. Press
MENU/SELECT or PTT/FLASH, then the telephone base shows
Connecting to group....
Press PTT/FLASH. Press TONE followed by # (pound key). The screen
shows Connecting to group....
When the connection is made, both the caller and the destination parties
hear a beep. The speakerphones on all other devices automatically activate.
2. You need to press and hold PTT//FLASH when you want to speak. Speak
towards the telephone base. Your voice is broadcast to all devices.
3. Release PTT//FLASH after speaking.
4. Any handset can reply (see Answer a PTT call on page 51).
NOTE: After PUSH TO TALK on the handset or PTT/FLASH on the telephone base is released,
the PTT call remains open for a short time. If no one presses PUSH TO TALK on the handset
or PTT/FLASH on the telephone base within 10 seconds, the PTT call ends automatically.
•
•
•
•
•
•
Multiple handset use
51
Push-to-talk (PTT)
Answer a PTT call
You can respond to a PTT call, as described below.
When your device receives a PTT call, it beeps and shows Press and hold
[PTT] to talk.
When the other party is speaking, your speakerphone light is on, and your
device shows:
PTT From HS X To HS X (the first X represents the initiating handset
number, and the second X represents your handset number; a
maximum of four handset numbers appear).
-OR-
PTT From HS X To Base (X represents the initiating handset number) or
PTT From HS X To Base & HS X (the first X represents the initiating
handset number, and the second X represents your handset number;
a maximum of four handset numbers appear).
-OR-
PTT From Base To HS X (the X represents your handset number; a
maximum of five handset numbers appear).
When your speakerphone light is off (the screen shows Press and hold
[PTT] to talk), press and hold PUSH TO TALK on your handset or
PTT/FLASH on your telephone base. You will hear a chirp. Speak towards
the device.
While you are speaking, your device shows PTT To Base, PTT To
Handset: X (X represents the handset numbers of one or more
destination handsets; a maximum of five handset numbers appear), or
PTT To Base & Handset: X (X represents the handset numbers of one or
more destination handsets; a maximum of four handset numbers appear) .
Your voice is broadcast to all destination devices.
After speaking, release PUSH TO TALK on your handset or PTT/FLASH
on your telephone base. Your device will beep. After the beep, if your
speakerphone light is off, you can press and hold PUSH TO TALK on your
handset or PTT/FLASH on your telephone base to continue speaking, or
the destination device can respond.
1.
2.
•
•
•
3.
•
•
Change a one-to-one PTT call to an intercom call
You can convert a one-to-one PTT session to an intercom call.
When your device shows Press and hold [PTT] to talk, press MENU/SELECT.
The screen shows Intercom.
Press MENU/SELECT. Your device displays Calling base, Calling BASE
0 or Calling HANDSET X. The destination device briefly shows Push to
talk Ended and then HANDSET is calling, HANDSET X is calling, Base is
calling or BASE 0 is calling. The destination device rings.
1.
2.
Multiple handset use
52
Answer an incoming call during a PTT call
When you receive an outside call during PTT, there is an alert tone.
During a one-to-one PTT call, press
PHONE/FLASH on your handset or
/SPEAKER on the telephone base. The PTT call ends automatically and
the outside call is answered.
During a one-to-group PTT call, press
PHONE/FLASH on the initiating
handset or /SPEAKER on the initiating telephone base. The PTT call
ends automatically and the outside call is answered.
During a one-to-group PTT call, press
PHONE/FLASH on any one of the
destination handsets, or press /SPEAKER on the destination telephone
base. That device answers the outside call. The PTT call continues for the
rest of the PTT participants.
To leave the PTT call without answering the incoming call, press
OFF/CANCEL on your handset or CANCEL on your telephone base.
The telephone continues to ring.
Make an outgoing call during a PTT call
During a one-to-one PTT call, press
PHONE/FLASH on your handset or
/SPEAKER on your telephone base to get a dial tone. The PTT call ends
automatically.
During a one-to-group PTT call, press
PHONE/FLASH on the initiating
handset or /SPEAKER on the initiating telephone base. The PTT call
ends automatically and you get a dial tone.
During a one-to-group PTT call, press
PHONE/FLASH on any one of the
destination handsets or press /SPEAKER on the destination telephone
base. That device gets a dial tone. The PTT call continues for the rest of
the PTT participants.
End or leave a PTT call
The initiating device can end the PTT call. If any one of the destination devices
leaves the PTT call, the call continues until all participants or the initiator hangs up.
Press
OFF/CANCEL on the handset or place the handset in the charger, or
press CANCEL on the telephone base. The screen shows Push to talk Ended.
NOTE: After PUSH TO TALK on the handset or PTT/FLASH on the telephone base is released,
the PTT call remains open for a short time. If no one presses PUSH TO TALK on the handset
or PTT/FLASH on the telephone base within 10 seconds, the PTT call ends automatically.
•
•
•
•
•
•
•
Push-to-talk (PTT)
Press
PHONE/FLASH or any dialing key (0-9, # or TONE ) on the destination
handset, or press /SPEAKER or any dialing key (0-9, # or TONE ) on the
telephone base or lift the corded handset to answer. Both devices show Intercom.
To end the intercom call, press
OFF/CANCEL on your handset or place
the handset in the charger, or press CANCEL on the telephone base. Both
screens show Intercom ended.
3.
4.
53
About the directory
Shared directory
The directory is shared by all handsets and the telephone
base. Changes made to the directory from any device apply
to all.
NOTE: Only one handset or the telephone base can review the
directory at a time. If another device tries to enter the directory, the screen shows
Not available at this time.
Capacity
The directory can store up to 50 entries, with a maximum of 15
alphanumeric characters (including spaces) for names and 30 digits for
telephone numbers. A convenient search feature can help you find and dial
numbers quickly (page 57).
If you try to save an entry when there are already 50 entries, the screen
shows Directory full. You cannot store a new number until you delete one.
Directory
Charlie Johnson
888-883-2445
Directory
54
Create directory entries
Create a new directory entry
Using a cordless handset or the telephone base:
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Press CID or DIR to scroll to Directory, then press
MENU/SELECT.
3. Press CID or DIR to scroll to Add contact, then press
MENU/SELECT.
4. Use the dialing keys to enter a telephone number (up to
30 digits) when prompted.
Press CID or DIR to move the cursor to the left
or right.
Press MUTE/DELETE on the handset or X/DELETE on the
telephone base to erase a digit.
Press and hold MUTE/DELETE on the handset or
X/DELETE on the telephone base to erase all digits.
Press and hold REDIAL/PAUSE to enter a three-second
dialing pause (a p appears).
-OR-
Copy a number from the redial list by pressing REDIAL/PAUSE, then CID,
DIR or pressing REDIAL/PAUSE repeatedly to locate the number. Press
MENU/SELECT to copy the number.
5. Press MENU/SELECT to move on to the name.
The display shows Number already saved if the number
is already in the directory. You cannot save the same
number twice.
6. Use the dialing keys to enter a name (up to 15 characters)
when prompted. Each time you press a key, the character
on that key appears. Additional key presses produce other
characters on that key. See the chart on the following page.
Press CID or DIR to move the cursor to the left
or right.
Press 0 to add a space.
Press MUTE/DELETE on the handset or X/DELETE on
the telephone base to erase a character.
Press and hold MUTE/DELETE on the handset or X/DELETE on the
telephone base to erase all characters.
Press TONE to change the next letter to upper or lower case.
•
•
•
•
•
•
•
•
•
•
Answering sys
>Directory
Review
>Add contact
ENTER NUMBER
888-883-2445
_
Saved
ENTER NAME
Robert Brown_
Directory
55
7. Press MENU/SELECT to store your new directory entry. There is a
confirmation tone and the screen shows Saved. To change the entry later,
see page 59.
Add a predialed telephone number to the directory
You can save a predialed telephone number to the directory.
Enter the telephone number when in idle mode.
Follow the steps in Edit a directory entry on page 59.
1.
2.
Create directory entries
NOTE: The first letter of every word is a capital letter. The remaining letters in a word
start as lower case letters, as shown in the chart below.
Dialing
keys
Characters by number of key presses
1234567891011
11.-‘()*#&/,
2ABCabc2
3DEFdef3
4GHI ghi4
5JKLjkl5
6MNOmno6
7PQRSpqr s7
8TUVtuv8
9WXY Zwx y z 9
0space 0
*
#
Directory
56
Review the directory
Review directory entries
Using a cordless handset or the telephone base:
1. Press DIR when in idle mode. The summary screen shows briefly and
then the first entry in the directory shows.
-OR-
Press MENU/SELECT when in idle mode, then press CID or DIR to scroll
to Directory. Press MENU/SELECT twice.
2. Press CID or DIR to browse through the directory. Entries appear
alphabetically by the first letter in the name.
NOTES:
If the telephone number in the directory exceeds 15 digits, < appears in front of the telephone
number. Press TONE to move towards the end of the telephone number or press # (pound key)
to move towards the beginning of the telephone number.
Directory empty appears if there are no directory entries.
•
•
Directory
57
Search the directory
Search by name
Using a cordless handset or the telephone base:
1. Press DIR in idle mode to show the first listing in the directory.
2. When an entry appears, press the dialing keys (0-9) to start a name
search. The directory shows the first name beginning with the first letter
associated with the dialing key, if there is an entry in the directory
beginning with that letter. Press CID or DIR to scroll through
the directory.
3. To see other names starting with the letters on the same dialing key, keep
pressing the key. The names appear in alphabetical order. For example, if
you have the names Jennifer, Jessie, Kevin and Linda in your directory:
If you press 5 (JKL) once, you see Jennifer. Press CID and you
see Jessie.
If you press 5 (JKL) twice, you see Kevin.
If you press 5 (JKL) three times, you see Linda.
If you press 5 (JKL) four times, you see 5 and then the directory entry
beginning with 5 or the next closest entry after 5.
If you press 5 (JKL) five times, you see Jennifer again.
NOTES:
If there is no name matching the first letter of the key you press, the directory shows a name
matching the following letters of the key.
If you press a key (0-9) and no name starts with any of the letters on that key, the directory
shows the entry matching the next letter in the directory.
•
•
•
•
•
•
•
Directory
58
Dial, delete or edit directory entries
To dial, delete or edit a directory entry (name and number), the entry must
be displayed on the screen. Use Review the directory (page 56) or
Search by name (page 57) to show an entry.
Display dial
To dial a displayed number from the directory:
Press
PHONE/FLASH or /SPEAKERSPEAKER on the handset.
-OR-
On the telephone base, lift the corded handset or press /SPEAKERSPEAKER.
Delete a directory entry
Using a cordless handset:
To delete the displayed directory entry, press MUTE/DELETE.
Press MENU/SELECT to confirm. You cannot retrieve a
deleted entry.
Using the telephone base:
To delete the displayed directory entry, press X/DELETE.
Press MENU/SELECT to confirm. You cannot retrieve a
deleted entry.
Robert Brown
Delete contact?
Robert Brown
Delete contact?
Directory
59
Dial, delete or edit directory entries
Edit a directory entry
Using a cordless handset or the telephone base:
1. When a directory entry displays, press MENU/SELECT. The
screen shows EDIT NUMBER along with the phone number
to be edited. If you only want to edit the name, skip to
Step 3.
2. To edit the number:
Press the dialing keys to add digits.
Press CID or DIR to move the cursor to the left
or right.
Press MUTE/DELETE on the handset or X/DELETE on the
telephone base to erase a digit.
Press and hold MUTE/DELETE on the handset or
X/DELETE on the telephone base to erase all digits.
Press and hold REDIAL/PAUSE to add a three-second
dialing pause (a p appears).
3. Press MENU/SELECT to move on to the name. The screen
shows EDIT NAME along with the name to be edited.
4. To edit the name:
Press the dialing keys to add characters (page 55).
Press CID or DIR to move the cursor to the left or right.
Press MUTE/DELETE on the handset or X/DELETE on the telephone base
to erase a character.
Press and hold MUTE/DELETE on your handset or X/DELETE on your
telephone base to erase all characters.
5. Press MENU/SELECT to save the entry. There is a confirmation tone and the
screen shows Saved.
•
•
•
•
•
•
•
•
•
Linda Miller
888-722-7702
EDIT NUMBER
888-883-2445_
EDIT NAME
Robert Brown_
Robert Brown
888-883-2445
Directory
60
Speed dial
The telephone system has 10 speed dial locations
(2-9 and 0, location 1 is reserved for voicemail) where
you can store the telephone numbers you wish to dial more
quickly. You can store up to 30 digits in each location. Speed
dial assignments can only be selected from the existing
directory entries, with the exception of 1, which must be
manually entered. In the directory, speed dial locations
except for 1 are indicated by their number in the
bottom right hand corner of the entry.
Assign a speed dial number
Using a cordless handset or the telephone base:
1. When the telephone is idle, press MENU/SELECT.
2. Press CID or DIR to scroll to Directory. Press MENU/SELECT.
3. Press CID or DIR to scroll to Speed dial. Press
MENU/SELECT.
4. Press CID or DIR to choose your desired speed dial
location (2-9, 0), then press MENU/SELECT. The screen
briefly shows Copy from Directory... and then displays the
directory list.
5. Press CID or DIR to scroll to the phone number you wish
to assign to the selected speed dial location.
6. Press MENU/SELECT to save the setting and return to the
previous menu. There is a confirmation tone and the screen
returns to the speed dial list.
-OR-
1. When the telephone is idle, press and hold the desired speed dial location
(2-9, 0), then press MENU/SELECT. The screen briefly shows Copy from
Directory... and then displays the directory list.
2. Press CID or DIR to scroll to the phone number you wish to assign to
the selected speed dial location.
3. Press MENU/SELECT to save the setting and return to the previous menu.
There is a confirmation tone and the screen returns to the speed dial list.
Robert Brown
888-883-2445
2
Speed dial location
Speed dial location
Robert Brown
888-883-2445
2
Answering sys
>Directory
Add contact
>Speed dial
>2:Robert Brown
3:<Unassigned>
Directory
61
Speed dial
Reassign a speed dial number
Using a cordless handset or the telephone base:
1. When the telephone is idle, press MENU/SELECT.
2. Press CID or DIR to scroll to Directory. Press MENU/SELECT.
3. Press CID or DIR to scroll to Speed dial. Press
MENU/SELECT.
4. Press CID or DIR to choose the location you wish
to reassign, then press MENU/SELECT to show the
directory entry.
5. Press MENU/SELECT again.
6. Scroll to Change SD and then press MENU/SELECT. The
screen briefly shows Copy from Directory... and then
displays the directory list.
7. Press CID or DIR to scroll to the phone number you
wish to reassign to the selected speed dial location.
8. Press MENU/SELECT to save the setting and return to the speed dial list.
There is a confirmation tone.
Assign your speed dial voicemail number
See the Set speed dial voicemail number sections on page 18 and page 29
for instructions on assigning your speed dial voicemail number.
Robert Brown
888-883-2445
2
Copy from
Directory...
Linda Miller
888-722-7702
2
Directory
62
Speed dial
Delete a speed dial number
Using a cordless handset or the telephone base:
1. When the telephone is idle, press MENU/SELECT.
2. Press CID or DIR to scroll to Directory. Press
MENU/SELECT.
3. Press CID or DIR to scroll to Speed dial. Press
MENU/SELECT.
4. Press CID or DIR to scroll to the location you wish
to delete the speed dial number from, then:
Press MUTE/DELETE on the handset or X/DELETE on
the telephone base to delete the displayed speed dial
number. There is a confirmation tone and the screen
shows Speed dial empty before returning to the speed
dial list.
-OR-
Press MENU/SELECT to show the directory entry.
Press MENU/SELECT again.
Scroll to Clear SD and then press MENU/SELECT to delete the
displayed speed dial number. There is a confirmation tone and the
screen shows Speed dial empty before returning to the speed dial list.
Make a call using speed dial
Using a cordless handset or the telephone base:
When in idle mode, press and hold the dialing key (2-9, 0) corresponding to
the assigned location you wish to call.
-OR-
1. Press MENU/SELECT when in idle mode.
2. Press CID or DIR to scroll to Directory, then press MENU/SELECT.
3. Press CID or DIR to scroll to Speed dial, then press MENU/SELECT.
4. Press CID or DIR to scroll to the desired location and then press
PHONE/FLASH or /SPEAKERSPEAKER on the cordless handset, or press
/SPEAKERSPEAKER or lift the corded handset on the telephone base.
Check your voicemail using speed dial
Using a cordless handset or the telephone base:
Press and hold the 1 key on a cordless handset or the telephone base
to dial your voicemail number. If you are using the telephone base, the
speakerphone is used to dial out. You may switch to corded handset mode
by picking up the corded handset.
•
i.
ii.
iii.
Linda Miller
888-722-7702
2
Speed dial
empty
>2:<Unassigned>
3:<
Unassigned
>
63
About caller ID
This product supports caller ID services offered by most telephone service
providers. Caller ID allows you to see the name, number, date and time of calls.
The available caller ID information will appear after the first or second ring.
Information about caller ID with call waiting
Caller ID with call waiting lets you see the name and
telephone number of the caller before answering the call,
even while on another call.
It may be necessary to change your telephone service to
use this feature. Contact your telephone service provider if:
You have both caller ID and call waiting, but as separate
services (you may need to combine these services).
You have only caller ID service, or only call waiting service.
You don’t subscribe to caller ID or call waiting services.
There are fees for caller ID services. In addition, services may
not be available in all areas.
This product can provide information only if both you and
the caller are in areas offering caller ID service and if both
telephone service providers use compatible equipment. The
time and date, along with the call information, are from the
telephone service provider.
Caller ID information may not be
available for every incoming call. Callers
may intentionally block their names
and/or telephone numbers. You can
only view a maximum of 15 digits of
every caller ID log entry. To view caller
ID log entries with numbers between 16
and 24 digits, you must save the entry
to the directory (see page 68).
NOTE: You can use this product with regular
caller ID service, or you can use this
product’s other features without subscribing
to caller ID or combined caller ID with call
waiting service.
•
•
•
CHRISTINE SMITH
888-883-2445
NEW
10/15
10:01AM
CHRISTINE SMITH
888-883-2445
NEW
10/15
10:01AM
Caller ID
Caller ID
64
Caller ID log
How the caller ID log works
The telephone stores caller ID information about the last 50 incoming calls
in the telephone base. Entries are stored in reverse chronological order. The
phone deletes the oldest entry when the log is full to make room for new
calls. This information is common to the telephone base and all handsets,
so changes made using any handset or the telephone base are reflected
in all other devices. If you answer a call before the information appears on
the screen, it does not show in the caller ID log.
NOTE: Each entry may have up to 24 digits for the phone number and 15 characters for
the name.
Missed (new) call indicator
When a handset or the telephone base is in idle mode and
has new or missed calls, its screen shows XX Missed calls.
All new and missed entries are counted as missed calls. Each
time you review a new caller ID log entry (indicated by NEW
on the screen), the missed calls message goes away. When
there is a new unanswered call, the missed calls message
displays again. The number of missed calls includes all new
and missed entries that have not been reviewed.
If you do not want to review the missed calls one by one,
but still want to keep them in the caller ID log, you
can press and hold
OFF/CANCEL on the handset for
four seconds when the handset is idle, or press and hold
CANCEL on the telephone base for four seconds when
the telephone base is idle. You will hear a confirmation
tone. All the entries in the caller ID log become old
(reviewed already), and the missed calls message
goes away.
MSG
#
1 10:01PM 10/15
BASE
6 Missed calls
MSG
#
1 10:01PM 10/15
NEW
Robert Brown
888-883-2445
Robert Brown
888-883-2445
NEW
10/15
09:30 AM
HANDSET 1
10/15
6 Missed calls
10:01AM
Caller ID
65
Caller ID operation
Memory match
If the incoming telephone number matches the last 7 digits
of a telephone number in your directory, the name
that appears on the screen matches the corresponding
name in your directory.
For example, if Christine Smith calls, her name appears as
Chris if this is how you entered it into your directory.
NOTE: The number shown in the caller ID log will be in the format
sent by the telephone service provider. The telephone service
provider usually delivers ten-digit phone numbers (area code plus
telephone number). If the telephone number of the caller does not
match a number in your directory, the name will appear as it is
delivered by the telephone service provider.
CHRIS
888-883-2445
10/15
10:01AM
Chris
888-883-2445
NEW
10/15
10:01AM
NEW
Caller ID
66
Caller ID operation
Review the caller ID log
Review the caller ID log to find out who called, to return
the call, or to copy the caller’s name and number into your
directory. Caller ID log empty appears if there are no records
in the caller ID log.
Using a cordless handset or the telephone base:
1. When the handset or the telephone base is in idle
mode, press CID to review the caller ID log in reverse
chronological order starting with the most recent call.
-OR-
Review the caller ID log by pressing MENU/SELECT.
Press CID or DIR to scroll to Caller ID log, then press
MENU/SELECT twice to select Review.
2. Press CID or DIR to scroll through the list.
3. Press
OFF/CANCEL on the handset or CANCEL on
the telephone base to exit the caller ID log.
You hear a double beep when the list reaches the
beginning or end of the caller ID log.
NOTE: Only one handset or the telephone base can review
the caller ID log at a time. If another device tries to enter
the directory or caller ID log, it shows Not available at
this time.
10:01PM 10/15
MSG
#
1
BASE
6 Missed calls
Directory
>Caller ID log
AM
NEW
10/15
10:21PM 10/15
NEW
CHRISTINE SMITH SMITH
888-883-2445
Date of call
Caller’s name
Caller’s number
Appears if it is a
new or missed call.
Time of call
CHRISTINE SMITH SMITH
888-883-2445
NEW
10:01AM 10/15
Caller’s name
Caller’s number
Appears if it is a new or
missed call.
Date of call
Time of call
HANDSET 1
6 Missed calls
10:01AM 10/15
Directory
>Caller ID log
Caller ID
67
Caller ID operation
View dialing options
Although the incoming caller ID log entries have 10 digits (the area code plus
the seven-digit number), in some areas, you may need to dial only the seven
digits, 1 plus the seven digits, or 1 plus the area code plus the seven digits.
You can change and store the number of digits that you dial in the caller ID log.
While reviewing the caller ID log, press # (pound key)
repeatedly to show different dialing options for local
and long distance numbers before dialing or saving
the telephone number in the directory.
Press 1 repeatedly if you need to add or remove 1
in front of the telephone number before dialing or
saving it in the directory.
When the number is in the correct format for dialing,
call the number by pressing
PHONE/FLASH or
/SPEAKERSPEAKER on the cordless handset, or press /SPEAKERSPEAKER or lift the corded
handset on the telephone base.
To save the number to the directory, see Save a caller ID log entry to the
directory on the next page.
Dial a caller ID log entry
Using a cordless handset or the telephone base:
1. When in the caller ID log, press CID or DIR to browse.
2. Press
PHONE/FLASH or /SPEAKER on the cordless handset, or press
/SPEAKER or lift the corded handset on the telephone base to dial the
displayed entry.
Delete caller ID log entries
Using a cordless handset or the telephone base:
To delete an entry:
Press MUTE/DELETE on the handset or X/DELETE on the telephone base
to delete the shown entry.
To delete all entries:
1. Press MENU/SELECT when in idle mode.
2. Press CID or DIR to scroll to Caller ID log, then press MENU/SELECT.
3. Press CID or DIR to scroll to Del all calls, then press MENU/SELECT.
4. When the screen shows Delete all calls?, press MENU/SELECT to confirm.
There is a confirmation tone and the screen returns to the previous menu.
•
883-2445
1-883-2445
888-883-2445
1-888-883-2445
883-2445
1-883-2445
888-883-2445
1-888-883-2445
Press #
Press 1
Caller ID
68
Caller ID operation
Save a caller ID log entry to the directory
Using a cordless handset or the telephone base:
1. When in the caller ID log, press CID or DIR to browse.
2. Press MENU/SELECT to select an entry. On the telephone base, you need
to press MENU/SELECT again to select Directory.
3. When the screen displays EDIT NUMBER, use the dialing keys to edit
the number.
Press CID or DIR to move the cursor to the left or right.
Press MUTE/DELETE on the handset or X/DELETE on the telephone
base to backspace and erase a digit.
Press and hold MUTE/DELETE on the handset or X/DELETE on the
telephone base to erase the entire entry.
Press and hold REDIAL/PAUSE to insert a three-second dialing pause
(a p appears).
4. Press MENU/SELECT to move to the name.
5. When the screen displays EDIT NAME, use the dialing keys (page 55) to
edit the name.
Press CID or DIR to move the cursor to the left or right.
Press MUTE/DELETE on the handset or X/DELETE on the telephone
base to erase a character.
Press and hold MUTE/DELETE on the handset or X/DELETE on the
telephone base to erase all characters.
Press # (pound key) to move the last word to the front. For example,
Johnson Charlie becomes Charlie Johnson when you press
# (pound key).
6. Press MENU/SELECT when done. The screen shows Saved.
NOTES:
You may need to change how a caller ID number is dialed if the entry does not appear in the
correct format. Caller ID numbers may appear with an area code that is not necessary for
local calls, or without a 1 that is necessary for long distance calls (see View dialing options
on the previous page).
If the caller’s name you received from the telephone service provider is all in capital letters,
the first letter of every word remains a capital letter, while other letters become lower case.
However, the next letter after the prefix “Mac”, “Mc”, “D’”, “C’” or “O’”, is kept as a capital
letter. For example, the “D” in “MacDonald” is kept as a capital letter. Another exception is
that “VAN DER” will be changed to “Van der”.
If the telephone number from the caller ID information has already been saved in the directory
under a different name, the new name will overwrite the old one.
•
•
•
•
•
•
•
•
•
•
•
Caller ID
69
Reasons for missing caller ID information
There are occasions when other information or no information shows for
various reasons:
On-screen message Reason
PRIVATE NUMBER The caller prefers not to show the telephone number.
PRIVATE NAME The caller prefers not to show the name.
PRIVATE CALLER The caller prefers not to show the phone number and name.
UNKNOWN NUMBER Your telephone service provider cannot determine the
caller’s number.
UNKNOWN NAME Your telephone service provider cannot determine the
caller’s name.
UNKNOWN CALLER Your telephone service provider cannot determine the caller’s
name and telephone number.
Calls from other countries may also generate this message.
70
Call block
About call block
If you have subscribed to caller ID service, you can use the call block
feature to reject certain calls automatically. The call block list stores up
to 20 entries. The telephone system can reject calls automatically
according to:
Numbers saved into the call block list
Incoming calls without numbers
This feature is only available on the telephone base.
NOTE: The blocked calls are displayed as Blocked call in the caller ID log.
•
•
10:01PM 10/15
Blocked call
888-772-7702
71
Call block
Call block
Add a call block entry
When the telephone base is in idle mode, press
MENU/SELECT.
Press CID or DIR to scroll to Call block, then press
MENU/SELECT.
Press MENU/SELECT to choose Block list.
Press CID or DIR to scroll to Add new entry, then
press MENU/SELECT.
When the screen displays ENTER NUMBER,
use the dialing keys to enter a number (up to
30 digits).
Press CID or DIR to move the cursor to the left
or right.
Press X/DELETE to erase a digit.
Press and hold X/DELETE to erase all digits.
Press and hold REDIAL/PAUSE to enter a three-second dialing pause (a
p appears).
-OR-
Copy a number from the redial list by pressing REDIAL/PAUSE. Then, press
CID, DIR or REDIAL/PAUSE repeatedly to find the desired number. Press
MENU/SELECT to copy the number.
6. Press MENU/SELECT to move on to the name.
The display shows Number already saved if the number is already in
the call block list. You cannot save the same number twice.
7. When the screen displays ENTER NAME, use the dialing keys to enter
a name (up to 15 characters). Press a key repeatedly until the desired
character appears. The first character of every word is capitalized.
Press CID or DIR to move the cursor to the left or right.
Press 0 to add a space.
Press X/DELETE to erase a character.
Press and hold X/DELETE to erase all characters.
Press TONE to change the next letter to upper or lower case.
8. Press MENU/SELECT to store your call block entry.
1.
2.
3.
4.
5.
•
•
•
•
•
•
•
•
•
•
Caller ID log
>Call block
>Block list
Calls w/o num
Review
>Add new entry
72
Call block
Call block
Review call block list
When the telephone base is in idle mode, press MENU/SELECT.
Press CID or DIR to scroll to Call block, and then
press MENU/SELECT.
Press MENU/SELECT to choose Block list.
Press MENU/SELECT again to choose Review.
Press CID or DIR to browse through the call block entries.
NOTE: Block list is empty appears if there are no call block entries.
Save a caller ID log entry to call block list
Search for the desired caller ID log entry (see Review the caller ID log on
page 66).
When the desired entry displays, press MENU/SELECT.
Press CID or DIR to scroll to Call block, then press MENU/SELECT.
The screen displays EDIT NUMBER. Use the dialing keys to edit the
number, when necessary.
Press CID or DIR to move the cursor to the left or right.
Press X/DELETE on the telephone base to backspace and erase
a digit.
Press and hold X/DELETE on the telephone base to erase the
entire entry.
Press and hold REDIAL/PAUSE to insert a three-second dialing pause (a
p appears).
5. Press MENU/SELECT to move to the name. The screen displays EDIT NAME.
6. Use the dialing keys to add or edit the name.
Press CID or DIR to move the cursor to the left or right.
Press 0 to add a space.
Press X/DELETE on the telephone base to erase a character.
Press and hold X/DELETE on the telephone base to erase all characters.
Press # (pound key) to move the last word to the front. For example,
Johnson Charlie becomes Charlie Johnson when you press
# (pound key).
7. Press MENU/SELECT when done and the screen shows Saved.
1.
2.
3.
4.
5.
1.
2.
3.
4.
•
•
•
•
•
•
•
•
•
>Review
Add new entry
73
Call block
Call block
Edit a call block entry
Search for the desired entry in the call block list (see Review call block
list on page 72).
When the desired entry displays, press MENU/SELECT.
The screen displays EDIT NUMBER along with the
phone number to be edited. If you only want to edit
the name, skip to Step 4.
To edit the number:
Use the dialing keys to enter digits.
Press CID or DIR to move the cursor to the left
or right.
Press X/DELETE on the telephone base to erase
a digit.
Press and hold X/DELETE to erase all digits.
Press and hold REDIAL/PAUSE to enter a three-second dialing pause (a
p appears).
4. Press MENU/SELECT to move on to the name. The screen displays EDIT
NAME along with the name to be edited.
5. To edit the name:
Use the dialing keys to enter characters.
Press CID or DIR to move the cursor to the left or right.
Press 0 to add a space.
Press X/DELETE to erase a character.
Press and hold X/DELETE to erase all characters.
Press TONE to change the next letter to upper or lower case.
6. Press MENU/SELECT to save the entry. The screen displays Saved.
1.
2.
3.
•
•
•
•
•
•
•
•
•
•
•
ENTER NAME
TV Salesman_
ENTER NUMBER
888-883-2445_
Saleman
888-883-2445
74
Call block
Call block
Delete a call block entry
Search for the desired entry in the call block list (see Review call block
list on page 72).
When the desired entry displays, press X/DELETE on the telephone base.
The screen shows Deleted and the next entry displays. You cannot retrieve
a deleted entry.
Block calls without number
You can use this feature to reject all incoming calls which are “out of area“
or with numbers set to “Private“.
When the telephone base is in idle mode, press
MENU/SELECT.
Press CID or DIR to scroll to Call block, then press
MENU/SELECT.
Press CID or DIR to scroll to Calls w/o num, then
press MENU/SELECT.
Press CID or DIR to choose Not block or Block,
then press MENU/SELECT.
Mute first ring of blocked calls
An incoming call will ring once and then the system will check if the call
should be blocked. You can mute the first ring of blocked calls.
When the telephone base is in idle mode, press
MENU/SELECT.
Press 7464#.
Press CID or DIR to scroll to select On or Off, then
press MENU/SELECT.
1.
2.
3.
1.
2.
3.
4.
1.
2.
3.
Block list
>Calls w/o num
>Not block
Block
MUTE FIRST RING
>On
75
Answering system settings
Use the answering system menu of a system handset or
the telephone base to set up the announcement message,
turn on or off the answering system or message alert tone,
activate call screening, or change the number of rings,
remote access code or message recording time. If the
answering system is off when you change any setting in
the answering system setup menu, the answering system
automatically turns on.
1. When the device is in idle mode, press MENU/SELECT to enter the
main menu.
2. Press CID or DIR to scroll to Answering sys, then press MENU/SELECT.
Announcement
Your outgoing announcement plays when calls are answered by the
answering system.
The telephone has a default outgoing announcement, “Hello. Please leave a
message after the tone.” You can use this announcement, or record your own.
You can record an announcement up to 90 seconds. The system does not
record any announcement shorter than two seconds.
To play your current outgoing announcement:
Using a cordless handset:
1. When the handset is in idle mode, press MENU/SELECT to
enter the main menu.
2. Press CID or DIR to scroll to Answering sys, then press
MENU/SELECT.
3. Press MENU/SELECT again to select Announcement.
4. Press CID or DIR to scroll to Play annc, then press
MENU/SELECT.
Using the telephone base:
1. When the telephone base is in idle mode, press
MENU/SELECT to enter the main menu.
2. Press CID or DIR to scroll to Answering sys, then
press MENU/SELECT.
3. Press MENU/SELECT again to select Announcement.
4. PressPress CID or DIR to scroll to Play annc, then press
MENU/SELECT.
>
Announcement
Delete all old
Record annc
>Play annc
Answering system
Play messages
>Answering sys
>
Announcement
Delete all old
Record annc
>Play annc
Answering system
76
Answering system settings
To record a new outgoing announcement:
Using a cordless handset:
When the handset is in idle mode, press MENU/SELECT to
enter the main menu.
Press CID or DIR to scroll to Answering sys, then press
MENU/SELECT.
Press MENU/SELECT again to select Announcement.
Press MENU/SELECT to select Record annc. The system announces,
“Record after the tone. Press 5 when you are done.”
Speak towards the handset to record your announcement. Press 5 to end
recording. Your recorded announcement plays.
To listen to the recorded announcement again, scroll to Play annc and press
MENU/SELECT.
Using the telephone base:
When the telephone base is in idle mode, press
/RECORD.
Press CID or DIR to scroll to Announcement, then
press MENU/SELECT. The system announces, “Record
after the tone. Press 5 when you are done.”
Speak towards the telephone base to record your
announcement. Press 5 to end recording. Your
recorded announcement plays.
-OR-
When the telephone base is in idle mode, press
MENU/SELECT to enter the main menu.
Press CID or DIR to scroll to Answering sys, then
press MENU/SELECT.
Press MENU/SELECT again to select Announcement.
Press MENU/SELECT again to select Record annc.
The system announces, “Record after the tone. Press 5
when you are done.”
Speak towards the telephone base to record your announcement. Press 5
to end recording. Your recorded announcement plays.
To listen to the recorded announcement again, scroll to Play annc and press
MENU/SELECT.
1.
2.
3.
4.
5.
1.
2.
3.
1.
2.
3.
4.
5.
>Record annc
Play annc
>Announcement
Delete all old
>Record annc
Play annc
Record memo
>Announcement
Answering system
77
Answering system settings
To delete or reset your outgoing announcement:
Using a cordless handset:
When the handset is in idle mode, press MENU/SELECT.
Press CID or DIR to scroll to Answering sys, then press MENU/SELECT.
Press MENU/SELECT again to select Announcement.
Press CID or DIR to scroll to Play annc, then press MENU/SELECT.
While the announcement is playing, press MUTE/DELETE to delete the
announcement. The system announces, “Announcement deleted” and the
screen shows Annc. Deleted.
-OR-
When the handset is in idle mode, press MENU/SELECT.
Press CID or DIR to scroll to Answering sys, then press MENU/SELECT.
Press MENU/SELECT again to select Announcement.
Press CID or DIR to scroll to Reset annc, then press MENU/SELECT. The
screen shows Reset to default annc?.
Press MENU/SELECT again to confirm. The screen shows Annc. reset to
default before returning to the previous menu.
Using the telephone base:
When the telephone base is in idle mode, press MENU/SELECT.
Press CID or DIR to scroll to Answering sys, then press MENU/SELECT.
Press MENU/SELECT again to select Announcement.
Press CID or DIR to scroll to Play annc, then press MENU/SELECT.
While the announcement is playing, press X/DELETE to delete the
announcement. The system announces, “Announcement deleted” and the
screen shows Annc. Deleted.
-OR-
When the telephone base is in idle mode, press MENU/SELECT.
Press CID or DIR to scroll to Answering sys, then press MENU/SELECT.
Press MENU/SELECT again to select Announcement.
Press CID or DIR to scroll to Reset annc, then press MENU/SELECT. The
screen shows Reset to default annc?.
Press MENU/SELECT again to confirm. The screen shows Annc. reset to
default before returning to the previous menu.
When your announcement is deleted, the system answers calls with the
default announcement described on page 75. You cannot delete the
default announcement.
1.
2.
3.
4.
5.
1.
2.
3.
4.
5.
1.
2.
3.
4.
5.
1.
2.
3.
4.
5.
Answering system
78
Answering system settings
Answer on/off
By default, the answering system is on and ready to record messages. You
can turn the answering system off, but if you do so, the answering system
does not answer calls and record incoming messages.
To turn the answering system on or off:
Using a cordless handset:
1. When the handset is in idle mode, press MENU/SELECT to
enter the main menu.
2. Press CID or DIR to scroll to Answering sys, then
press MENU/SELECT.
3. Press CID or DIR to scroll to Answer ON/OFF, then
press MENU/SELECT.
4. Press CID or DIR to highlight On or Off, then
press MENU/SELECT to save the setting. You hear a
confirmation tone.
When the answering system is on, the handset shows
ANS ON.
Using the telephone base:
Press /ANS ON/OFF to turn the answering
system on or off. If the answering system is turned
on, it announces, “Calls will be answered.” If the
answering system is turned off, it announces, “Calls
will not be answered.”
-OR-
1. When the telephone base is in idle mode, press
MENU/SELECT to enter the main menu.
2. Press CID or DIR to scroll to Answering sys, then press MENU/SELECT.
3. Press CID or DIR to scroll to Answer ON/OFF, then press MENU/SELECT.
4. Press CID or DIR to highlight On or Off, then press MENU/SELECT to
save the setting. You hear a confirmation tone.
NOTE: If the answering system is off and there is an incoming call, the system answers
after 10 rings and announces, “Please enter your remote access code.” For more
information about remote access, see page 93.
•
Play messages
>Answering sys
Record memo
>Answer ON/OFF
ANSWER ON/OFF
>On
Answering system
79
Answering system settings
Voice guide
This feature is an alternative way for you to do the basic
setup of the answering system. You can follow the voice
guide to record your own announcement, set the number
of rings, and set the message alert tone.
This feature is only available on the telephone base.
When the telephone base is in idle mode, press
MENU/SELECT.
Press CID or DIR to scroll to Answering sys, then
press MENU/SELECT.
Press CID or DIR to scroll to Voice guide, then press
MENU/SELECT. You hear a voice prompt, “Hello! This
voice guide will assist you with the basic setup of your
answering system.“
Setup your answering system by inputting designated numbers, as
instructed in the voice guide.
NOTES:
You can press CANCEL to quit the voice guide at any time.
If the system does not receive any input, it will announce “Sorry, I still have not received any
input. If you want to restart the voice guide, please enter the menu and select Voice guide under
Answering system. Good bye.”
After a power outage, the system prompts you to set the date and time. After the date and time
setting is done or skipped, the system prompts if you want to set up the answering system via
voice guide. Press MENU/SELECT to start the setup.
1.
2.
3.
4.
•
•
•
Play messages
>Answering sys
Answer ON/OFF
>Voice guide
Setup Ans sys...
Answering system
80
Call screening
Use this feature to choose whether incoming messages can be heard over
the speaker when they are being recorded. If you turn call screening on, you
hear the incoming message. While monitoring an incoming message, you can
answer the call by pressing
PHONE/FLASH on a cordless handset,
or pressing /SPEAKERSPEAKER or lifting the corded handset on the telephone base.
To change the setting:
Using a cordless handset:
1. When the handset is in idle mode, press MENU/SELECT to
enter the main menu.
2. Press CID or DIR to scroll to Answering sys, then
press MENU/SELECT.
3. Press CID or DIR to scroll to Ans sys setup, then
press MENU/SELECT.
4. Press MENU/SELECT to select Call screening.
5. Press CID or DIR to choose On or Off.
6. Press MENU/SELECT to save the setting. You hear a
confirmation tone.
Using the telephone base:
1. When the telephone base is in idle mode, press
MENU/SELECT to enter the main menu.
2. Press CID or DIR to scroll to Answering sys, then
press MENU/SELECT.
3. Press CID or DIR to scroll to Ans sys setup, then
press MENU/SELECT.
4. Press MENU/SELECT to select Call screening.
5. Press CID or DIR to choose On or Off.
6. Press MENU/SELECT to save the setting. You hear a
confirmation tone.
NOTE: For more information on call screening, see page 86.
Answering system settings
Voice guide
>Ans sys setup
>
Call screening
# of rings
CALL SCREENING
>On
Answer ON/OFF
>Ans sys setup
>
Call screening
# of rings
CALL SCREENING
>On
Answering system
81
Answering system settings
Number of rings
You can set the answering system to answer an incoming call after two, three,
four, five or six rings. You can also select toll saver. If toll saver is selected, the
answering system answers a call after two rings when you have new messages,
and after four rings when there are no new messages. This feature allows you
to check for new messages and avoid paying long distance charges when
calling from out of your local area. By default, the answering system answers
an incoming call after four rings.
To set the number of rings:
Using a cordless handset:
When the handset is in idle mode, press MENU/SELECT to
enter the main menu.
Press CID or DIR to scroll to Answering sys, then press
MENU/SELECT.
Press CID or DIR to scroll to Ans sys setup, then press
MENU/SELECT.
Press CID or DIR to scroll to # of rings, then press
MENU/SELECT.
Press CID or DIR to choose among 2, 3, 4, 5, 6 or
Toll saver.
Press MENU/SELECT to save the setting. You hear a confirmation tone.
Using the telephone base:
When the telephone base is in idle mode, press MENU/SELECT to enter the
main menu.
Press CID or DIR to scroll to Answering sys, then
press MENU/SELECT.
Press CID or DIR to scroll to Ans sys setup, then
press MENU/SELECT.
Press CID or DIR to scroll to # of rings, then press
MENU/SELECT.
Press CID or DIR to choose 2, 3, 4, 5, 6 or
Toll saver.
Press MENU/SELECT to save the setting. You hear a confirmation tone.
NOTES:
If you subscribe to voicemail service through your telephone service provider, see Answering
system and voicemail indicators on page 85.
If you set the number of rings for the answering system as two or three rings, the caller ID
announce feature may not have enough time to announce the caller’s full information.
1.
2.
3.
4.
5.
6.
1.
2.
3.
4.
5.
6.
•
•
Call screening
># of rings
# OF RINGS
>4
Call screening
># of rings
# OF RINGS
>4
Answering system
82
Answering system settings
Remote access code
To access your answering system remotely from any touch-tone phone, you
need to enter a two-digit number (00-99). By default, the remote access code
is 19.
To change the remote access code:
Using a cordless handset:
1. When the handset is in idle mode, press MENU/SELECT to
enter the main menu.
2. Press CID or DIR to scroll to Answering sys, then press
MENU/SELECT.
3. Press CID or DIR to scroll to Ans sys setup, then
press MENU/SELECT.
4. Press CID or DIR to scroll to Remote code, then press
MENU/SELECT.
5. Use the dialing keys to enter a two-digit number. Press
MUTE/DELETE to backspace and delete a digit.
6. Press
MENU/SELECT to save the setting. You hear a
confirmation tone.
Using the telephone base:
1. When the telephone base is in idle mode, press
MENU/SELECT to enter the main menu.
2. Press CID or DIR to scroll to Answering sys, then
press MENU/SELECT.
3. Press CID or DIR to scroll to Ans sys setup, then
press MENU/SELECT.
4. Press CID or DIR to scroll to Remote code, then
press MENU/SELECT.
5. Use the dialing keys to enter a two-digit number. Press
X/DELETE to backspace and delete a digit.
6. Press MENU/SELECT to save the setting. You hear a
confirmation tone.
REMOTE CODE
19
# of rings
>Remote code
Voice guide
>Ans sys setup
# of rings
>Remote code
Answer ON/OFF
>Ans sys setup
REMOTE CODE
19
Answering system
83
Answering system settings
Message alert tone
When the message alert tone is set to On, and there is at least one new
message, the telephone base beeps every 10 seconds. By default, the
message alert tone is set to off.
There is no audible alert at the handset.
To change the setting:
Using a cordless handset:
1. When the handset is in idle mode, press MENU/SELECT to
enter the main menu.
2. Press CID or DIR to scroll to Answering sys, then
press MENU/SELECT.
3. Press CID or DIR to scroll to Ans sys setup, then
press MENU/SELECT.
4. Press CID or DIR to scroll to Msg alert tone, then
press MENU/SELECT.
5. Press CID or DIR to choose On or Off.
6. Press MENU/SELECT to save the setting. You hear a confirmation tone.
Using the telephone base:
1. When the telephone base is in idle mode, press
MENU/SELECT to enter the main menu.
2. Press CID or DIR to scroll to Answering sys, then
press MENU/SELECT.
3. Press CID or DIR to scroll to Ans sys setup, then
press MENU/SELECT.
4. Press CID or DIR to scroll to Msg alert tone, then
press MENU/SELECT.
5. Press CID or DIR to choose On or Off.
6. Press MENU/SELECT to save the setting. You hear a confirmation tone.
NOTES:
The message alert tone beeps only if all the following conditions are met:
- Answering system is on.
- Message alert tone setting is on.
- There are new messages.
To temporarily turn off the message alert tone, see page 87.
•
•
Remote code
>
Msg alert tone
MSG ALERT TONE
>On
Remote code
>
Msg alert tone
MSG ALERT TONE
>On
Answering system
84
Answering system settings
Message recording time
You can set the recording time allowed for incoming messages. The message
length is three minutes by default.
To change the setting:
Using a cordless handset:
1. When the handset is in idle mode, press MENU/SELECT to
enter the main menu.
2. Press CID or DIR to scroll to Answering sys, then
press MENU/SELECT.
3. Press CID or DIR to scroll to Ans sys setup, then
press MENU/SELECT.
4. Press CID or DIR to scroll to Recording time, then
press MENU/SELECT.
Press CID or DIR to choose 3 minutes, 2 minutes or
1 minute, then press MENU/SELECT to save the setting. You
hear a confirmation tone.
Using the telephone base:
1. When the telephone base is in idle mode, press
MENU/SELECT to enter the main menu.
2. Press CID or DIR to scroll to Answering sys, then
press MENU/SELECT.
3. Press CID or DIR to scroll to Ans sys setup, then
press MENU/SELECT.
4. Press CID or DIR to scroll to Recording time, then
press MENU/SELECT.
Press CID or DIR to choose 3 minutes, 2 minutes or 1 minute, then
press MENU/SELECT to save the setting. You hear a confirmation tone.
5.
5.
>Recording time
Msg alert tone
RECORDING TIME
>3 minutes
>Recording time
Msg alert tone
RECORDING TIME
>3 minutes
Answering system
85
About the answering system
Answering system and voicemail indicators
Your telephone has separate indicators for two different types of voice
messages: those left on its built-in digital answering system and those
left at your telephone service provider’s voicemail (fees may apply). Your
telephone’s built-in digital answering system messages and voicemail
messages are separate. Each alerts you to new messages differently.
If and XX New messages show on the handset, and
XX New messages shows and /PLAY/STOP flashes on
the telephone base, there are new messages in the built-in
answering system. To listen to messages recorded on your
digital answering system, press /PLAY/STOP on the
telephone base (page 88).
If and New voicemail display on the handset and
the telephone base, your telephone service provider is
indicating that it has new voicemail for you. To listen
to your voicemail, dial an access number provided by
your telephone service provider, followed by a security
code or PIN.
Some telephone service providers bundle or combine multiple services
like voicemail and call waiting, so you may not be aware that you have
voicemail. To check what services you have and how to access them,
contact your telephone service provider.
To use your voicemail service rather than the answering system, turn off
the answering system. To use the answering system rather than your
voicemail service, contact your telephone service provider to deactivate
your voicemail service.
NOTE: After reviewing all new messages, the number of old messages appears on the
message counter.
Using the answering system and voicemail together
You can also use your telephone answering system and voicemail together
by setting your built-in answering system to answer before voicemail
answers, as described below. To learn how to program your voicemail
settings, contact your telephone service provider. Then, if you are on a call,
or if the answering system is busy recording a message and you receive
another call, the second caller can leave a voicemail message.
Set your answering system to answer calls at least two rings earlier than
your voicemail is set to answer. For example, if your voicemail answers
after six rings, set your answering system to answer after four rings.
Some voicemail providers may program the delay before answering calls
in seconds instead of rings. In this case, allow six seconds per ring when
determining the appropriate setting.
•
•
10:01
MSG
#
1 10/15
BASE
1 New message
HANDSET 1
1 New message
10/15
10:01AM
ANS ON
Answering system
86
About the answering system
Message capacity
The answering system can record up to 99 messages, depending on the
length of each message. Individual messages can be up to three minutes,
and the maximum recording time is approximately 22 minutes. The actual
recording time depends on individual message characteristics. Messages
remain available for replay until you delete them.
When there are messages (including memos) on the
answering system, the total number of messages stored
shows in the message counter.
If the answering system has less than three minutes of
recording time left, it announces, “Less than three minutes to record,” before
message playback at the handset or the telephone base. Rec mem low
displays on the device screen in idle mode. When you turn on the answering
system at the telephone base, it announces, “Calls will be answered. Less
than three minutes to record.”
If the memory is full, the answering system announces, “Memory is full,”
before message playback. The device screen displays Rec mem full in idle
mode. Once the memory is full, you cannot turn the answering system back
on if it has been turned off, nor can you record new messages until old
ones have been deleted. Memory full displays if you want to turn on the
answering system on the handset but there is no memory.
Voice prompts
The system provides voice prompts to guide you through the setup
procedures at the telephone base, message playback, remote access and
recording outgoing announcements.
Call screening
To screen a call at the telephone base:
If the answering system and call screening are on (see Call screening on
page 80), the announcement and the incoming message broadcast at the
telephone base when a call is answered by the answering system.
Options while a message is being recorded:
Press VOL
or VOL
on the telephone base to adjust the call
screening volume.
Press /PLAY/STOP or CANCEL to temporarily silence the call screening.
Press /PLAY/STOP to temporarily turn on the call screening if call
screening is set to off.
Lift the corded handset or press /SPEAKERSPEAKER to answer the call.
•
•
•
•
10:01 10/15
MSG
#
5
BASE
5 New messages
Answering system
87
About the answering system
To screen a call at the handset:
While a message is being recorded, the handset shows
To screen call, press [SELECT]. Press MENU/SELECT to screen the call.
Options while a message is being recorded:
Press CID/VOLUME or DIR/VOLUME on the handset to adjust the call
screening volume.
Press
OFF/CANCEL to temporarily silence the call screening.
Press MENU/SELECT to temporarily turn on the call screening if call
screening is set to off.
Press /SPEAKERSPEAKER to turn off the speakerphone and screen the call
through the handset earpiece.
Call intercept
While screening a call, you can stop recording and speak to the caller by
pressing
PHONE/FLASH on the cordless handset, pressing
/SPEAKERSPEAKER on the telephone base, or lifting the corded handset.
Base ringer
Press VOL
or VOL
on the telephone base to adjust the ringer volume
when the telephone is not in use.
You hear a sample of the ringer while adjusting the volume. The telephone
base shows Ringer off and when you set the volume to 0.
Temporarily turning off the message alert tone
If the message alert tone is turned on, the telephone base beeps every
10 seconds when there are new messages. Pressing any telephone base
key temporarily silences the message alert tone.
If you press X/DELETE when in idle mode to temporarily turn off the
message alert tone, there is a voice prompt directing you to press X/DELETE
again to delete all old messages. The message alert tone is temporarily off.
Only press X/DELETE a second time if you wish to erase all old messages in
your answering system.
The message alert tone resumes when you receive another message.
•
•
•
•
Answering system
88
Message playback
If you have new messages, you hear only the new messages in chronological
order. If there are no new messages, the system plays back all old messages
(in chronological order). If there are both new and old messages, you have
the option of playing the new or old messages.
When playback begins, the total number of messages is announced. Before
each message, you hear the day and time of the recording. If the date and
time are not set, you hear, “Time and date not set,” before playback. After
the last message, you hear, “End of messages.” If the recording time is less
than three minutes, you hear, “Less than three minutes to record” before
playback (see Message capacity on page 86).
To listen to messages at the telephone base:
Press /PLAY/STOP on the telephone base to listen
to the messages.
If there are new and old messages, press CID
or DIR to select Play new msgs or Play old msgs,
then press MENU/SELECT or /PLAY/STOP.
If there are only new or only old messages, they are
played automatically.
The system announces the number of messages, then
begins playback. The message sequence is shown on
the telephone base. If there are no recorded messages,
the telephone base shows No message and you hear,
“You have no message.”
•
•
To listen to messages on a cordless handset:
1. When the handset is in idle mode, press MENU/SELECT to
enter the main menu.
2. Press MENU/SELECT again to select Play messages.
If there are new and old messages, press CID or DIR
to select Play new msgs or Play old msgs, then press
MENU/SELECT.
If there are only new or only old messages, they are
played automatically.
The system announces the number of messages, then
begins playback. The message sequence is shown on the
handset. If there are no recorded messages, the handset
shows No message and you hear, “You have no message.”
•
•
AM
NEW
10:01AM 10/15
NEW MSG #1/3
Charlie Johnson
NEW
>Play new msgs
Play old msgs
3 New messages
ANS ON
You have:
>Play new msgs
Play old msgs
ANS ON
Charlie Johnson
4-Repeat 6-Skip
MSG#
1/3
10:01AM
NEW
ANS ON
You have:
3 New messages
Answering system
89
Message playback
Options during playback
When a message is playing, you can adjust the playback volume, skip, repeat,
pause, stop or delete the message.
When messages are playing on the telephone base:
Press VOL
or VOL
to adjust the message playback volume.
Press /SKIP to skip to the next message.
Press /REPEAT to repeat the message. Press twice to hear the previous
message.
Press X/DELETE to delete the message.
Press /PLAY/STOP to stop the playback.
Press /SPEAKERSPEAKER to stop playback. The screen shows Call back?, then press
MENU/SELECT, or /SPEAKERSPEAKER to call back the caller if the caller’s number
is available. If the dialing format used is not correct, then use the following
option to choose the correct dialing format before calling back the caller.
Press MENU/SELECT to pause playback and show the caller ID information,
if available. From here, you can press CANCEL to resume playback.
You can also press # (pound key) repeatedly to show the desired dialing
option (page 67), then press /SPEAKERSPEAKER or MENU/SELECT to call back
the caller. If you do not call back within 10 seconds, message playback
resumes automatically.
When messages are playing on the handset:
Press CID/VOLUME or DIR/VOLUME to adjust the message playback volume.
Press EQ to adjust the message playback audio quality.
Press 6 to skip to the next message.
Press 4 to repeat the message. Press twice to hear the previous message.
Press MUTE/DELETE to delete the message.
Press 5 or
OFF/CANCEL to stop the playback.
Press /SPEAKERSPEAKER to switch between speakerphone mode and handset mode.
Press
PHONE/FLASH to stop playback. The screen shows Call back?,
then press MENU/SELECT,
PHONE/FLASH, or /SPEAKERSPEAKER to call back the
caller if the caller’s number is available. If the dialing format used is not
correct, then use the following option to choose the correct dialing format
before calling back the caller.
Press MENU/SELECT to pause playback and show the caller ID information,
if available. From here, you can press
OFF/CANCEL to resume playback.
You can press # (pound key) repeatedly to show the desired dialing
option (page 67), then press
PHONE/FLASH or /SPEAKERSPEAKER to call back
the caller. If you do not call back within 10 seconds, message playback
resumes automatically.
NOTE: The equalizer stays on the same settings until you change it by pressing EQ .
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Answering system
90
Message playback
Delete all old messages
You can only delete old (reviewed) messages. You cannot delete new messages
until you review them. You cannot retrieve deleted messages.
To delete all old messages on the telephone base:
1. When the telephone is idle, press X/DELETE. The screen shows Delete all
old messages? and the system announces, “To delete all old messages,
press DELETE again.”
2. Press X/DELETE again. The system announces, “All old messages deleted.”
-OR-
1. Press MENU/SELECT when in idle mode to enter the
main menu.
2. Press CID or DIR to scroll to Answering sys. Press
MENU/SELECT.
3. Press CID or DIR to highlight Delete all old,
then press MENU/SELECT. The screen shows Delete all
old messages?.
4. Press MENU/SELECT again to confirm. The screen
displays Deleting... and then All old msgs deleted!.
There is a confirmation tone.
To delete all old messages on the handset:
1. Press MENU/SELECT when in idle mode to enter the
main menu.
2. Press CID or DIR to scroll to Answering sys. Press
MENU/SELECT.
3. Press CID or DIR to highlight Delete all old, then
press MENU/SELECT. The screen shows Delete all
old messages?.
4. Press MENU/SELECT again to confirm. The screen displays
Deleting... and then All old msgs deleted!. There is a There is a
confirmation tone.
Delete all
old messages?
Deleting...
Announcement
>Delete all old
Announcement
>Delete all old
Delete all
old messages?
Deleting...
Answering system
91
Recording and playing memos
Memos are your own recorded messages used as reminders for yourself or
others using the same answering system. You can record your own memos
using a system handset or the telephone base. Play and delete them in the
same way as incoming messages.
Record a memo
Using a cordless handset:
1. When the handset is in idle mode, press MENU/SELECT to
enter the main menu.
2. Press CID or DIR to scroll to Answering sys. Press
MENU/SELECT.
3. Press CID or DIR to highlight Record memo, then press
MENU/SELECT. The system announces, “Record after the
tone. Press 5 when you are done.” You can record a memo
for up to four minutes.
4. Speak towards the handset to record a memo.
5. Press 5 to stop recording. The system announces,
“Recorded.” The system does not save memos shorter than
two seconds.
Using the telephone base:
When the telephone base is in idle mode, pressress
/RECORD.
Press /RECORD again or press MENU/SELECT to
select Record memo. The system announces,The system announces, “Record
after the tone. Press 5 when you are done.” You can
record a memo for up to four minutes.
Speak towards the telephone base to record a memo.
Press 5 to stop recording. The system announces,
“Recorded.” The system does not save memos shorter
than two seconds.
-OR-
When the telephone base is in idle mode, press
MENU/SELECT to enter the main menu.
Press CID or DIR to scroll to Answering sys, then press MENU/SELECT.
Press CID or DIR to highlight Record memo, then
press MENU/SELECT. The system announces, “Record
after the tone. Press 5 when you are done.” You can
record a memo for up to four minutes.
Speak towards the telephone base to record a memo.
Press 5 to stop recording. The system announces, “Recorded.” The system
does not save memos shorter than two seconds.
Play back a memo
Play memos the same way as messages. See Message playback on page 88.
1.
2.
3.
4.
1.
2.
3.
4.
5.
Delete all old
>Record memo
Play messages
>Answering sys
>Record memo
Delete all old
5-Stop
RECORD MEMO...
>Record memo
Announcement
Answering system
92
Base message counter displays
The base message counter shows the total number of answering system
messages. See the following table for other message counter displays.
Message counter displays
0No messages.
1-99 Total number of messages and memos.
--
The remote access system is being used.
Answering system
93
Remote access
You can reach your answering system remotely by dialing your home
telephone number from any touch-tone telephone.
To remotely reach your answering system:
1. Dial your telephone number from any touch-tone telephone.
2. When the system answers, enter the two-digit remote access code
(19 is the default code. See page 82 to change it).
The system automatically announces the number of new or old
messages (if any), and then begins to play them.
3. You can also enter the following remote commands:
Remote commands
1 Press to listen to all messages.
2 Press to listen to new messages only.
3 Press to delete the current message (during playback).
3 3 Press twice to delete all old messages.
4 Press to repeat the current message (during playback).
4 4 Press twice to listen to the previous message.
5 Press to stop any operation (including recording).
*5 Press to listen to a list of remote commands.
6 Press to skip to the next message (during playback).
*7 Press to record a new announcement.
8 Press to end remote access (the call will be terminated).
0 Press to turn the answering system on or off.
4. Hang up or press 8 to end the calls.
•
Answering system
94
Remote access
Cut out and carry the remote access wallet card at the back of this user’s
manual for quick reference.
NOTES:
If you pause for more than four seconds during remote access, you hear a help menu listing
all features and commands. If there is no command for another 20 seconds, the call
ends automatically.
If the memory is full, the answering system answers after 10 rings and announces, “Memory
is full. Enter the remote access code.” Enter your remote access code to access the messages
and announcements.
•
•
95
Adding and registering handsets/headsets/speakerphones
Your telephone can support up to 12 DECT 6.0 cordless handsets (AT&T model
CL80115, sold separately) or up to 10 cordless handsets and 2 cordless
headsets or speakerphones (sold separately). Visit
www.telephones.att.com/accessories for a list of compatible
DECT 6.0 cordless headsets and speakerphones. Each new handset, headset or
speakerphone must be registered to the telephone base before use. You must
register each handset, headset or speakerphone separately.
To register a cordless headset or speakerphone to this telephone system,
please refer to the corresponding user’s manual for more details. To register a
cordless handset, see below.
The handsets provided within your product box are already registered as
HANDSET 1, and so forth. Additional handsets are assigned numbers in the
sequential order they are registered (up to HANDSET 12).
Register a handset to the telephone base
Before you begin registration, put the handset you wish to
register near the telephone base. Make sure the handset
shows To register HS, see manual.
On the telephone base, press MENU/SELECT in idle mode.
On the telephone base, use CID or DIR to scroll to
Settings, then press MENU/SELECT.
On the telephone base, use CID or DIR to scroll to
Registration, then press MENU/SELECT.
Press # (pound key) on the handset. Both the handset
and the telephone base show Registering... Please wait
and the IN USE light turns on.
After a while, Both the handset and the telephone
base beep and the IN USE light turns off. HANDSET X
Registered appears on the handset screen (HANDSET represents the
handset name, X represents the handset number). The handset is now
registered with the telephone base.
If registration fails, the system will automatically try to register again. If
registration fails after the third try, Registration failed appears on the
handset screen. This may take up to five minutes to occur. Please start again
from Step 1.
NOTES:
You cannot register a handset if any other system handset is in use.
If you try to register more than 12 handsets to the telephone base, the telephone base shows
Registration slots are full and sounds two beeps.
1.
2.
3.
4.
5.
6.
•
•
Appendix
To register HS,
see manual.
Registering...
Please wait
HANDSET X
Registered
Appendix
96
Deregistering handsets
You may need to deregister your handsets if:
You have 12 registered handsets and need to replace a handset.
-OR-
You wish to change the designated handset number of your
registered handsets.
You must first deregister ALL handsets, and then register each handset you
wish to use again, one at a time.
Please read carefully through all the instructions on this page before
beginning the deregistration process.
Deregister all handsets from the telephone base
In addition to the cordless handsets, this operation will also deregister all
cordless headsets and speakerphones registered to your telephone base.
1. Make sure that all handsets are out of the
chargers before you begin deregistration.
2. Press and hold /HANDSET LOCATOR on the
telephone base for about 10 seconds. The
IN USE light turns on after about four seconds.
Keep holding /HANDSET LOCATOR until the
screen shows Deregister all devices? and the
IN USE light begins to flash. Release /HANDSET LOCATOR.
3. Immediately press /HANDSET LOCATOR or MENU/SELECT while the
IN USE light is still flashing. (If the light stops flashing, start again with
Step 1.)
4. It takes up to 10 seconds to complete the deregistration process. Before
registering the handset again, wait for the cordless handset screen to
display To register HS, see manual.
5. To register the handset(s) to the telephone base again, follow the
registration instructions on the previous page.
NOTES:
If the deregistration process fails, you may need to reset the system and try again. To reset,
unplug the power from the telephone base and plug it back in.
You cannot deregister the handsets if any other system handset is in use. Any call activity
will cancel the deregistration process.
Even if the battery is depleted, you can still deregister the handsets by following the steps
mentioned above. After the handset is charged for at least 10 minutes, the screen shows
To register HS, see manual.
•
•
•
•
•
97
Alert tones and lights
Handset screen icons
Battery status - battery is charging (animated display).
Battery status - low battery (flashing); place the handset
in the charger to recharge.
Speakerphone - the speakerphone is in use.
Ringer off - the handset ringer is off.
New voicemail - you have new voicemail from your
telephone service provider.
ANS ON Answering system on - the answering system is turned
on to answer calls.
Message - new message in the built-in answering system.
NEW New caller ID log - new and missed calls.
MUTE MUTE - the handset microphone is off.
Message counter - number of message playing/total
number of messages.
Telephone base screen icons
Ringer off - the telephone base ringer is off.
New voicemail - you have new voicemail from your
telephone service provider.
NEW New caller ID log - new and missed calls.
Message counter - Total number of messages.
MSG
#
1
Appendix
10:21PM 10/15
MSG
#
1
NEW
NEW
MSG #
1/2
MSG#
1/3
10:01AM
NEW
ANS ON
MUTE
Appendix
98
Alert tones and lights
Handset alert tones
One short beep Tone of each key press, if key tone is turned on.
One long beep Indication to begin recording a message, memo or announcement.
Two short beeps You are pressing CID or DIR on a cordless handset when the
volume is already at its highest or lowest setting.
-OR-
Call waiting tone.
-OR-
Error tone.
Confirmation tone
(three rising tones)
The system has completed the command successfully.
Four beeps The other party has ended your intercom call.
-OR-
The handset has gone out of range from the base during a call.
Four short beeps Low battery warning.
Telephone base alert tones
One short beep Tone of each key press, if key tone is turned on.
One long beep Indication to begin recording a message, memo or announcement.
Indicates the start of message recording during call screening or
the end of a message playback session.
Two short beeps You are pressing VOL
or VOL
on the telephone base when the
volume is already at its highest or lowest setting.
-OR-
Call waiting tone.
-OR-
Error tone.
-OR-
Registration slots are full.
Confirmation tone
(three rising tones)
The system has completed the command successfully.
Four beeps The other party has ended your intercom call.
Four short beeps Registration failure tone.
Beeps every
10 seconds
Message alert.
Appendix
99
Alert tones and lights
Lights
IN USE
On when the telephone base is in use, or when the answering
system is answering an incoming call.
On when a handset is being registered.
Flashes quickly when there is an incoming call or when
handsets are being deregistered.
Flashes when another telephone is in use on the same line.
CHARGE
On when the handset is
charging in the charger.
/SPEAKERSPEAKER
On when the
speakerphone is on.
Lighted display
Lighted key pad
/ANS ON/OFF
On when the answering system is on.
/PLAY/STOP
On when a message is being played.
Flashes when there are new messages.
MUTE
On when the microphone is muted.
/SPEAKERSPEAKER
On when the speakerphone is on.
Appendix
100
Screen display messages
Screen messages
BASE 0
is calling
The telephone base is calling.
Blocked call An incoming call is blocked.
Block list
is empty
There are no call block entries.
Call
transferred
You have transferred an outside call to another device.
Caller ID log
empty
There are no entries in the caller ID log.
Calling
BASE 0
The handset is calling the telephone base (for intercom calls).
Calling
HANDSET X
The handset or telephone base is calling another handset (for
intercom calls).
The telephone base is transferring an outside call to a handset.
Call answered The answering system has answered an incoming call.
Contact deleted A directory entry is deleted.
Directory empty There are no directory entries.
Directory full The directory is full. You cannot save any new entries unless
you delete some current entries.
Ended You have just ended a call.
HANDSET X
is calling
Another system handset is calling.
Incoming call There is an incoming call.
Intercom The device is on an intercom call.
Intercom ended The intercom call has just ended.
INTERCOM TO: You have started the intercom process, and need to enter the
number of the device you wish to call.
Line in use An extension phone, or one of the devices is in use.
Low battery The battery is low. You should charge the battery.
Microphone ON Mute is off so the other party can hear your voice.
Muted The microphone is off. The other party cannot hear you.
New voicemail There are new voicemail messages from your telephone
service provider.
No battery The handset in the charger has no battery installed.
No line There is no telephone line connection.
Appendix
101
Screen display messages
Screen messages
No answer. Try
again
The device(s) you are trying to transfer a call to is out of range,
off hook, or has no power.
No caller info The caller information is unavailable.
Number already
saved
The telephone number you have entered is already in the
directory.
Not available
at this time
Someone else is already using the directory or caller ID log.
No Incoming PTT The incoming PTT function is turned off. The handset will not
receive PTT calls.
Out of range OR
No pwr at base
The telephone base has lost power, or the handset is out
of range.
** Paging ** The cordless handset is paged by the telephone base.
Paging all
handsets
The telephone base is paging all cordless handsets.
Phone The handset or telephone base is on a call.
Place in charger The battery is very low. The handset should be charged.
Quiet mode on QUIET mode is on.
Quiet mode is off QUIET mode is turned off.
Rec mem full The system recording memory is full.
Rec mem low The system recording time is running short.
Recording message The telephone is recording a message.
Registering...
Please wait
Handset registration is in progress.
Registration
slots are full
The telephone base has the maximum of 12 handsets
registered to it.
Registration failed The handset registration is not successful.
Ringer off The ringer is turned off.
Ringer muted The ringer is off temporarily while the device is ringing.
Saved An entry has been successfully saved in the directory.
Setup Ans sys... The telephone base is playing voice guide.
Speaker The handset or telephone base speakerphone is in use.
TRANSFER TO: You have started transferring a call, and need to enter the
desired device number or choose all devices.
To register HS,
see manual.
Screen display before handset registration.
Appendix
102
Screen display messages
Screen messages
To screen call,
press [SELECT]
Press MENU/SELECT to activate call screening on the handset.
Unable to call.
Line in use
Failed phone call (the telephone line is in use).
Unable to call.
Try again
You try to join a call when there are already four handsets on that call.
You try to make an outside call when another device is
transferring a call with the intercom feature.
XX Missed calls There are new calls in the caller ID log.
XX New messages There are new messages in the answering system.
Appendix
103
Troubleshooting
If you have difficulty with your phone, please try the following suggestions.
For Customer Service, visit our website at www.telephones.att.com or
call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
My telephone doesn’t work at all.
Make sure the power cord is securely plugged in.
Make sure you plug the battery connector securely into the cordless handset.
Make sure you plug the telephone line cord securely and firmly into the
telephone base and the telephone wall jack.
Charge the battery in the cordless handset for at least 10 hours. For
optimum daily performance, return the cordless handset to the charger
when not in use.
If the battery is depleted, it may take approximately 30 minutes to charge
the handset before it shows Low battery. See page 7 for details.
Reset the telephone base. Unplug the electrical power. Wait for
approximately 15 seconds, then plug it back in. Allow up to one minute for
the cordless handset and telephone base to reset.
You may need to purchase a new battery. Please refer to
Battery installation and charging in this user’s manual on pages 7-8.
The display shows No line. I cannot get a dial tone.
Try all the suggestions, as mentioned above.
If the previous suggestions do not work, disconnect the telephone line
cord from your telephone and connect the telephone line cord to
another telephone.
If there is no dial tone on that other telephone either, your telephone line
cord may be defective. Install a new telephone line cord.
If changing the telephone line cord does not help, the wall jack (or
the wiring to this wall jack) may be defective. Try using a different
wall jack in your home to connect your CL84115/CL84215/CL84265/
CL84365 telephone, or contact your telephone service provider
(charges may apply).
I cannot dial out.
Try all the suggestions, as mentioned above.
Make sure you have a dial tone before dialing. The cordless handset may
take a second or two to find the telephone base and produce a dial tone.
This is normal. Wait an extra second before dialing.
•
•
•
•
•
•
•
•
•
•
•
•
•
Appendix
104
Troubleshooting
Eliminate any background noise. Noise from a television, radio or other
appliances may cause the phone to not dial out properly. If you cannot
eliminate the background noise, first try muting the cordless handset
before dialing, or dialing from another room with less background noise.
If other phones in your home are having the same problem, contact your
telephone service provider (charges may apply).
My cordless handset isn’t performing normally.
Make sure you plug the power cord securely into the telephone base. Plug the
power adapter into a different working electrical outlet without a wall switch.
Move the cordless handset closer to the telephone base. You may have
moved out of range.
Reset the telephone base. Unplug the electrical power. Wait for 15
seconds, then plug it back in. Allow up to one minute for the cordless
handset and telephone base to reset.
Other electronic products such as HAM radios and other DECT phones, can
cause interference with your cordless phone. Try installing your phone as
far away as possible from these types of electronic devices.
Out of range OR No pwr at base appears on my cordless handset.
Ensure you plug the telephone base in properly and the power is on.
Place the cordless handset closer to the telephone base for synchronization.
Move the cordless handset closer to the telephone base. You may have
moved out of range.
Reset the telephone base. Unplug the electrical power. Wait for 15
seconds, then plug it back in. Allow up to one minute for the cordless
handset and telephone base to reset.
Other electronic products such as HAM radios and other DECT phones, can
cause interference with your cordless phone. Try installing your phone as
far away as possible from these types of electronic devices.
The batteries do not hold a charge.
If the cordless handset is in the charger and the charge light is not on,
refer to The charge light is off (page 107).
Charge the battery in the cordless handset for at least 10 hours. For
optimum daily performance, return the cordless handset to the charger
when not in use.
If the battery is depleted, it may take approximately 30 minutes to charge
the handset before it shows Low battery. Refer to the table on page 7 for
details.
You may need to purchase a new battery. Please refer to
Battery installation and charging in this user’s manual on pages 7-8.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Appendix
105
Troubleshooting
I get noise, static, or weak signals even when I’m near the telephone base.
If you subscribe to high-speed Internet service (DSL - digital subscriber
line) through your telephone line, you must install a DSL filter between
the telephone line cord and the telephone wall jack (page 6). The filter
prevents noise and caller ID problems as a result of DSL interference.
Please contact your DSL service provider for more information about
DSL filters.
You may be able to improve the performance of your cordless phone
by installing your new telephone base as far as possible from any other
existing cordless telephone system that may already be installed.
Other electronic products such as HAM radios and other DECT phones, can
cause interference with your cordless phone. Try installing your phone as
far away as possible from these types of electronic devices.
Do not install this phone near a microwave oven or on the same electrical
outlet. You may experience decreased performance while the microwave
oven is operating.
If you plug your phone in with a modem or a surge protector, plug the
phone (or modem/surge protector) into a different location. If this does
not solve the problem, relocate your phone or modem farther apart from
one another, or use a different surge protector.
Move your phone to a higher location. The phone may have better
reception in a high area.
If other phones in your home are having the same problem, contact your
telephone service provider (charges may apply).
I experience poor sound quality when using the handset speakerphone.
For increased sound quality while using the handset speakerphone, place
the handset on a flat surface with the dial pad facing up.
I hear other calls while using my phone.
Disconnect the telephone base from the telephone jack, and plug in a
different telephone. If you still hear other calls, call your telephone
service provider.
My cordless handset does not ring when I receive a call.
Make sure that the ringer is not off. Refer to Ringer volume on page 14 in
this user’s manual.
Make sure you plug in the telephone line cord securely into the telephone
base and the telephone jack. Make sure you plug in the power cord securely.
The cordless handset may be too far from the telephone base.
•
•
•
•
•
•
•
•
•
•
•
•
Appendix
106
Troubleshooting
Charge the battery in the cordless handset for at least 10 hours. For
optimum daily performance, return the cordless handset to the charger
when not in use.
You may have too many extension phones on your telephone line to
allow all of them to ring simultaneously. Try unplugging some of the
other phones.
The layout of your home or office may be limiting the operating range. Try
moving the telephone base to another location, preferably to a
higher location.
If other phones in your home are having the same problem, contact your
telephone service provider (charges may apply).
Test a working phone at the phone jack. If another phone has the same
problem, contact your telephone service provider (charges may apply).
Other electronic products can cause interference with your cordless
phone. Try installing your phone as far away as possible from electronic
devices such as television sets, VCRs, or other cordless telephones.
Remove the battery. Install the battery again and place the cordless
handset in the charger. Wait for the cordless handset to reestablish its
connection with the telephone base. Allow up to one minute for this to
take place.
Your line cord may be defective. Try installing a new line cord.
My calls cut in and out while I’m using my cordless handset.
Other electronic products such as HAM radios and other DECT phones, can
cause interference with your cordless phone. Try installing your phone as
far away as possible from these types of electronic devices.
Do not install this phone near a microwave oven or on the same electrical
outlet. You may experience decreased performance while the microwave
oven is operating.
If you plug your phone in with a modem or surge protector, plug the
phone (or modem/surge protector) into a different location. If this does
not solve the problem, relocate your phone or modem farther apart from
one another, or use a different surge protector.
Move your telephone base to a higher location. The phone may have
better reception when installed in a high area.
If other phones in your home are having the same problem, contact your
telephone service provider (charges may apply).
•
•
•
•
•
•
•
•
•
•
•
•
•
Appendix
107
Troubleshooting
The charge light is off.
Make sure you plug the power and line cords in correctly and securely.
Unplug the electrical power. Wait for 15 seconds, then plug it back in.
Allow up to one minute for the cordless handset and telephone base
to reset.
Clean the cordless handset, charger’s charging contacts each month with
a pencil eraser or cloth.
The battery may not be connected to the handset or is missing completely.
Ensure that the battery is installed properly.
My caller ID isn’t working.
Caller ID is a subscription service. You must subscribe to this service from
your telephone service provider for this feature to work on your phone.
The caller may not be calling from an area that supports caller ID.
Both your and your caller’s telephone service providers must use caller ID
compatible equipment.
If you subscribe to high-speed Internet service (DSL - digital subscriber
line) through your telephone line, you must install a DSL filter between
the telephone line cord and the telephone wall jack (page 6). The filter
prevents noise and caller ID problems resulting from DSL interference.
Please contact your DSL service provider for more information about
DSL filters.
System does not receive caller ID when on a call.
Make sure you subscribe to caller ID with call waiting features from your
telephone service provider. The caller ID feature works only if both you
and the caller are in areas offering caller ID service, and if both telephone
service providers use compatible equipment.
Incomplete messages.
If a caller leaves a very long message, part of it may be lost when the
system disconnects the call after the maximum recording time you have set.
If the caller pauses for longer than seven seconds, the system stops
recording and disconnects the call.
If the system’s memory becomes full during a message, the system stops
recording and disconnects the call.
If the caller’s voice is very soft, the system may stop recording and
disconnect the call.
•
•
•
•
•
•
•
•
•
•
•
•
•
Appendix
108
Troubleshooting
Difficulty hearing messages.
Press VOL
to increase the telephone base speaker volume.
Press DIR/VOLUME to adjust the message playback volume on
a handset.
System does not answer after the correct number of rings.
• Make sure that the answering system is on. ANS ON should show on
the handset and the /ANS ON/OFF light on the telephone base should
be on.
• If toll saver is activated, the number of rings changes to two when you
have new messages stored (page 81).
• If the memory is full or the system is off, the system will answer after
10 rings.
In some cases, the answering system is affected by the ringing system
used by your telephone service provider.
If you subscribe to voicemail service, change the number of rings so
that your answering system answers before your voicemail (pages 81). To
determine how many rings activate your voicemail, contact your telephone
service provider.
If there is a fax machine connected to the same telephone line, try
disconnecting the fax machine. If that solves the problem, consult your
fax machine documentation for information on compatibility with
answering systems.
System does not respond to remote commands.
• Make sure to enter your remote access code correctly (page 82).
• Make sure you are calling from a touch-tone phone. When you dial a
number, you should hear tones. If you hear clicks, the phone is not a
touch-tone telephone and cannot activate the answering system.
• The answering system may not detect the remote access code while your
announcement is playing. Try waiting until the announcement is over
before entering the code.
• There may be interference on the phone line you are using. Press dialing
keys firmly.
•
•
•
•
•
Appendix
109
Troubleshooting
System does not record messages.
• Make sure the answering system is on. ANS ON should show on the
handset and the /ANS ON/OFF light on the telephone base should
be on.
• Make sure the memory of the answering system is not full.
If you subscribe to voicemail service, change the number of rings so
that your answering system answers before your voicemail (pages 81). To
determine how many rings activate your voicemail, contact your telephone
service provider.
If there is a fax machine connected to the same telephone line, try
disconnecting the fax machine. If that solves the problem, consult your
fax machine documentation for information on compatibility with
answering systems.
System announces, “Time and day not set.”
• You need to reset the system clock (page 15 or page 26).
Outgoing announcement is not clear.
• When you record your announcement, make sure you speak in a normal
tone of voice, about nine inches from the handset or the telephone base.
• Make sure there is no background noise (TV, music, etc.) while recording.
New voicemail and show on the screens, and I don’t know why.
•
Your telephone has both a built-in answering system and voicemail
indicator. If New voicemail and appear on the screens, then your
telephone has received a signal from your telephone service provider
that you have a voicemail message waiting for you to retrieve from them.
Contact your telephone service provider for more information on how to
access your voicemail.
I cannot retrieve voicemail messages.
•
Your telephone has both a built-in answering system and voicemail
indicator. They are independent features and each alerts you to new
messages differently (page 85). If you subscribe to voicemail service from
your telephone service provider, contact your telephone service provider
for more information on how to access your voicemail.
I’ve set my LCD language to Spanish or French and I don’t know how to
change it back to English.
• Press MENU/SELECT once on your handset or base. Then, on the handset
or base enter 364#. You hear a confirmation tone.
•
•
Appendix
110
Troubleshooting
I subscribe to a nontraditional telephone service that uses my computer
to establish connections, and my telephone doesn’t work.
Make sure your computer is powered on.
Make sure your Internet connection is working properly.
Make sure that the software is installed and running for your nontraditional
telephone service.
Make sure to plug your USB telephone adapter into a dedicated USB
port on your computer. Do not plug it into a multiple port USB hub (USB
splitter) that is not powered.
In a few rare instances, the USB port on your computer may not have
enough power. Try using a USB hub with its own external power supply.
If you are using a firewall, it may prevent access to your
nontraditional telephone service provider. Contact your service
provider for more information.
Common cure for electronic equipment.
If the telephone does not seem to be responding normally, try putting
the cordless handset in the charger. If it does not fix the problem, do the
following (in the order listed):
Disconnect the power to the telephone base.
Disconnect the cordless handset battery.
Wait a few minutes.
Connect power to the telephone base.
Remove the battery. Replace the battery and place the cordless handset
into the charger.
Wait for the cordless handset to reestablish its connection with the
telephone base. Allow up to one minute for this to take place.
•
•
•
•
•
•
1.
2.
3.
4.
5.
6.
Appendix
111
Maintenance
Taking care of your telephone
Your cordless telephone contains sophisticated electronic parts, so you
must treat it with care.
Avoid rough treatment.
Place the handset down gently.
Save the original packing materials to protect your telephone if you ever
need to ship it.
Avoid water
You can damage your telephone if it gets wet. Do not use the handset in
the rain, or handle it with wet hands. Do not install the telephone base
near a sink, bathtub or shower.
Electrical storms
Electrical storms can sometimes cause power surges harmful to electronic
equipment. For your own safety, take caution when using electric
appliances during storms.
Cleaning your telephone
Your telephone has a durable plastic casing that should retain its luster for
many years. Clean it only with a soft cloth slightly dampened with water
or mild soap.
Do not use excess water or cleaning solvents of any kind.
•
•
•
•
•
•
•
•
Remember that electrical appliances can cause serious injury if used when you are wet or
standing in water. If the telephone base should fall into water, DO NOT RETRIEVE IT UNTIL
YOU UNPLUG THE POWER CORD AND TELEPHONE LINE CORDS FROM THE WALL. Pull the
unit out by the unplugged cords.
Appendix
112
Important safety information
This symbol is to alert you to important operating or servicing instructions that may
appear in this user’s manual. Always follow basic safety precautions when using this
product to reduce the risk of injury, fire, or electric shock.
Safety information
Read and understand all instructions in the user’s manual. Observe all markings on the product.
Avoid using a telephone during a thunderstorm. There may be a slight chance of electric
shock from lightning.
Do not use a telephone in the vicinity of a gas leak. Under certain circumstances, a spark
may be created when the adapter is plugged into the power outlet, or when the handset is
replaced in its cradle. This is a common event associated with the closing of any electrical
circuit. The user should not plug the phone into a power outlet, and should not put a charged
handset into the cradle, if the phone is located in an environment containing concentrations
of flammable or flame-supporting gases, unless there is adequate ventilation. A spark in such
an environment could create a fire or explosion. Such environments may include: medical use
of oxygen without adequate ventilation; industrial gases (cleaning solvents; gasoline vapors;
etc.); a leak of natural gas; etc.
Do not use this product near water, or when you are wet. For example, do not use it in a
wet basement or shower, or next to a swimming pool, bathtub, kitchen sink, or laundry tub.
Do not use liquids or aerosol sprays for cleaning. If the product comes in contact with any
liquid, unplug any line or power cord immediately. Do not plug the product back in until it
has dried thoroughly.
Install this product in a protected location where no one can trip over any line or power
cords. Protect cords from damage or abrasion.
If this product does not operate normally, see the Troubleshooting section on pages 103-
110 of this user’s manual. If you cannot solve the problem, or if the product is damaged,
refer to the Limited warranty section on pages 117-118. Do not open this product except
as directed in your user’s manual. Opening the product or reassembling it incorrectly may
expose you to hazardous voltages or other risks.
Replace batteries only as described in your user’s manual (pages 7-8). Do not burn or
puncture batteries — they contain caustic chemicals.
The power adapters are intended to be correctly oriented in a vertical or floor mount
position. The prongs are not designed to hold the plug in place if it is plugged into a ceiling,
under-the-table or cabinet outlet.
For pluggable equipment, the socket-outlet shall be installed near the equipment and shall
be easily accessible.
CAUTIONS:
Use only the power adapters provided with this product. To obtain a replacement, visit our
website at www.telephones.att.com or call 1 (800) 222-3111. In
Canada, dial 1 (866) 288-4268.
Use only the supplied rechargeable battery or replacement battery (model BT183342/
BT283342). To order, visit our website at www.telephones.att.com or call
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
To prevent risk of fire or battery explosion, replace with the correct battery type. Dispose of
used batteries according to the instructions.
•
•
•
•
•
•
•
•
•
•
•
•
Appendix
113
Important safety information
Especially about cordless telephones
Privacy: The same features that make a cordless telephone convenient create some limitations.
Telephone calls are transmitted between the telephone base and the handset by radio waves,
so there is a possibility that your cordless telephone conversations could be intercepted by radio
receiving equipment within range of the cordless handset. For this reason, you should not think
of cordless telephone conversations as being as private as those on corded telephones.
Electrical power: The telephone base of this cordless telephone must be connected to a working
electrical outlet which is not controlled by a wall switch. Calls cannot be made from the handset
if the telephone base is unplugged, switched off or if the electrical power is interrupted.
Potential TV interference: Some cordless telephones operate at frequencies that may cause
interference to TVs and VCRs. To minimize or prevent such interference, do not place the
telephone base of the cordless telephone near or on top of a TV or VCR. If interference is
experienced, moving the cordless telephone farther away from the TV or VCR will often reduce
or eliminate the interference.
Rechargeable batteries: This product contains nickel-metal hydride rechargeable batteries.
Exercise care in handling batteries in order not to create a short circuit with conductive
material such as rings, bracelets and keys. The battery or conductor may overheat and cause
harm. Observe proper polarity between the battery and the battery charger.
Nickel-metal hydride rechargeable batteries: Dispose of these batteries in a safe manner. Do
not burn or puncture. Like other batteries of this type, if burned or punctured, they could
release caustic material which could cause injury.
The RBRC Seal means that the manufacturer is voluntarily participating in an
industry program to collect and recycle nickel-metal hydride rechargeable batteries
when taken out of service within the United States. These batteries may be taken to
a participating local retailer of replacement batteries or recycling center. You may
call 1-800-8-BATTERY for locations accepting spent Ni-MH batteries.
RBRC and 1-800-8-BATTERY are registered trademarks of the Rechargeable
Battery Recycling Corporation.
Precautions for users of implanted cardiac pacemakers
Cardiac pacemakers (applies only to digital cordless telephones):
Wireless Technology Research, LLC (WTR), an independent research entity, led a multidisciplinary
evaluation of the interference between portable wireless telephones and implanted cardiac
pacemakers. Supported by the U.S. Food and Drug Administration, WTR recommends to
physicians that:
Pacemaker patients
Should keep wireless telephones at least six inches from the pacemaker.
Should NOT place wireless telephones directly over the pacemaker, such as in a breast pocket,
when it is turned ON.
Should use the wireless telephone at the ear opposite the pacemaker.
WTR’s evaluation did not identify any risk to bystanders with pacemakers from other persons
using wireless telephones.
ECO mode
This power conserving technology reduces power consumption for optimal battery performance.
The ECO mode activates automatically whenever the handset is synchronized with the
telephone base.
Especially about telephone answering systems
Two-way recording: This unit does not sound warning beeps to inform the other party that the call is
being recorded. To ensure that you are in compliance with any federal or state regulations regarding
recording a telephone call, you should start the recording process and then inform the other party
that you are recording the conversation.
SAVE THESE INSTRUCTIONS
•
•
•
•
•
Appendix
114
FCC Part 68 and ACTA
This equipment complies with Part 68 of the FCC rules and with technical requirements adopted by
the Administrative Council for Terminal Attachments (ACTA). The label on the back or bottom of this
equipment contains, among other things, a product identifier in the format US:AAAEQ##TXXXX. This
identifier must be provided to your telephone service provider upon request.
The plug and jack used to connect this equipment to premises wiring and the telephone network
must comply with the applicable Part 68 rules and technical requirements adopted by ACTA. A
compliant telephone cord and modular plug is provided with this product. It is designed to be
connected to a compatible modular jack that is also compliant. An RJ11 jack should normally be
used for connecting to a single line and an RJ14 jack for two lines. See the installation instructions
in the user’s manual.
The Ringer Equivalence Number (REN) is used to determine how many devices you may connect
to your telephone line and still have them ring when you are called. The REN for this product is
encoded as the 6th and 7th characters following the US: in the product identifier (e.g., if ## is 03,
the REN is 0.3). In most, but not all areas, the sum of all RENs should be five (5.0) or less. For more
information, please contact your telephone service provider.
This equipment may not be used with Party Lines. If you have specially wired alarm dialing
equipment connected to your telephone line, ensure the connection of this equipment does not
disable your alarm equipment. If you have questions about what will disable the alarm equipment,
consult your telephone service provider or a qualified installer.
If this equipment is malfunctioning, it must be unplugged from the modular jack until the problem
has been corrected. Repairs to this telephone equipment can only be made by the manufacturer or
its authorized agents. For repair procedures, follow the instructions outlined under the
Limited warranty.
If this equipment is causing harm to the telephone network, the telephone service provider may
temporarily discontinue your telephone service. The telephone service provider is required to notify
you before interrupting service. If advance notice is not practical, you will be notified as soon
as possible. You will be given the opportunity to correct the problem and the telephone service
provider is required to inform you of your right to file a complaint with the FCC. Your telephone
service provider may make changes in its facilities, equipment, operation, or procedures that could
affect the proper functioning of this product. The telephone service provider is required to notify
you if such changes are planned.
If this product is equipped with a corded or cordless handset, it is hearing aid compatible.
If this product has memory dialing locations, you may choose to store emergency telephone
numbers (e.g., police, fire, medical) in these locations. If you do store or test emergency
numbers, please:
Remain on the line and briefly explain the reason for the call before hanging up.
Perform such activities in off-peak hours, such as early morning or late evening.
Industry Canada
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
Privacy of communications may not be ensured when using this telephone.
The term ‘’IC:‘’ before the certification/registration number only signifies that the Industry Canada
technical specifications were met.
The Ringer Equivalence Number (REN) for this terminal equipment is 1.0. The REN is an indication
of the maximum number of devices allowed to be connected to a telephone interface. The
termination on an interface may consist of any combination of devices subject only to the
requirement that the sum of the RENs of all the devices does not exceed five.
This product meets the applicable Industry Canada technical specifications.
Appendix
115
FCC Part 15
This equipment has been tested and found to comply with the requirements for a Class B
digital device under Part 15 of the Federal Communications Commission (FCC) rules. These
requirements are intended to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications to this equipment not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation. Privacy of
communications may not be ensured when using this telephone.
To ensure safety of users, the FCC has established criteria for the amount of radio frequency
energy that can be safely absorbed by a user or bystander according to the intended usage
of the product. This product has been tested and found to comply with the FCC criteria. The
handset may be safely held against the ear of the user. The telephone base shall be installed
and used such that parts of the user’s body other than the hands are maintained at a distance of
approximately 20 cm (8 inches) or more.
This Class B digital apparatus complies with Canadian requirement:
CAN ICES-3 (B)/NMB-3(B)
•
•
•
•
Appendix
116
California Energy Commission battery charging testing instructions
This telephone is set up to comply with the energy-conserving standards right out of the box. These
instructions are intended for California Energy Commission (CEC) compliance testing only. When the
CEC battery charging testing mode is activated, all telephone functions on the cordless handsets,
except battery charging, will be disabled.
To activate the CEC battery charging testing mode:
1. When the telephone base is in idle mode, press and hold /HANDSET LOCATOR.
2. After about 10 seconds, when the IN USE light starts flashing and the screen displays
Deregister all devices?, release /HANDSET LOCATOR, and then press it again or press
MENU/SELECT within two seconds.
The process takes up to one minute to complete. When the phone successfully enters the CEC
battery charging testing mode, all handsets display To register HS, see manual.
When the phone fails to enter this mode, repeat the steps mentioned above.
To deactivate the CEC battery charging testing mode:
1. Unplug the telephone base power adapter from the power outlet, then plug it back in. The
telephone base is powered up as normal.
2. Register your handsets back to the telephone base. See page 95 for handset
registration instructions.
BC
Appendix
117
Limited warranty
The AT&T brand is used under license - any repair, replacement or warranty service, and all questions
about this product should be directed to our website at www.telephones.att.com or
call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
What does this limited warranty cover?
The manufacturer of this AT&T branded product warrants to the holder of a valid proof of
purchase (“CONSUMER” or “you”) that the product and all accessories provided in the sales
package (“PRODUCT”) are free from defects in material and workmanship, pursuant to the
following terms and conditions, when installed and used normally and in accordance with the
PRODUCT operating instructions. This limited warranty extends only to the CONSUMER for
products purchased and used in the United States of America and Canada.
What will be done if the PRODUCT is not free from defects in materials and workmanship
during the limited warranty period (“materially defective PRODUCT”)?
During the limited warranty period, the manufacturer’s authorized service representative
will repair or replace at the manufacturer’s option, without charge, a materially defective
PRODUCT. If the manufacturer repairs the PRODUCT, they may use new or refurbished
replacement parts. If the manufacturer chooses to replace the PRODUCT, they may replace
it with a new or refurbished PRODUCT of the same or similar design. The manufacturer will
retain defective parts, modules, or equipment. Repair or replacement of the PRODUCT, at
the manufacturer’s option, is your exclusive remedy. The manufacturer will return repaired
or replacement products to you in working condition. You should expect the repair or
replacement to take approximately 30 days.
How long is the limited warranty period?
The limited warranty period for the PRODUCT extends for ONE (1) YEAR from the date of
purchase. If the manufacturer repairs or replaces a materially defective PRODUCT under the
terms of this limited warranty, this limited warranty also applies to repaired or replacement
PRODUCT for a period of either (a) 90 days from the date the repaired or replacement
PRODUCT is shipped to you or (b) the time remaining on the original one-year limited
warranty; whichever is longer.
What is not covered by this limited warranty?
This limited warranty does not cover:
PRODUCT that has been subjected to misuse, accident, shipping or other physical damage,
improper installation, abnormal operation or handling, neglect, inundation, fire, water, or
other liquid intrusion; or
PRODUCT that has been damaged due to repair, alteration, or modification by anyone
other than an authorized service representative of the manufacturer; or
PRODUCT to the extent that the problem experienced is caused by signal conditions,
network reliability or cable or antenna systems; or
PRODUCT to the extent that the problem is caused by use with non-AT&T accessories; or
PRODUCT whose warranty/quality stickers, PRODUCT serial number plates or electronic
serial numbers have been removed, altered or rendered illegible; or
PRODUCT purchased, used, serviced, or shipped for repair from outside the United States
of America or Canada, or used for commercial or institutional purposes (including but not
limited to products used for rental purposes); or
PRODUCT returned without valid proof of purchase (see item 6); or
Charges for installation or setup, adjustment of customer controls, and installation or
repair of systems outside the unit.
1.
2.
3.
4.
•
•
•
•
•
•
•
•
Appendix
118
Limited warranty
5. How do you get warranty service?
To obtain warranty service, visit our website at www.telephones.att.com or call
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
NOTE: Before calling for service, please review the user’s manual; a check of the PRODUCT’s
controls and features may save you a service call.
Except as provided by applicable law, you assume the risk of loss or damage during transit
and transportation and are responsible for delivery or handling charges incurred in the
transport of the PRODUCT(s) to the service location. The manufacturer will return repaired
or replaced PRODUCT under this limited warranty to you. Transportation, delivery or
handling charges are prepaid. The manufacturer assumes no risk for damage or loss of the
PRODUCT in transit. If the PRODUCT failure is not covered by this limited warranty, or proof
of purchase does not meet the terms of this limited warranty, the manufacturer will notify
you and will request that you authorize the cost of repair prior to any further repair activity.
You must pay for the cost of repair and return shipping costs for the repair of products that
are not covered by this limited warranty.
6. What must you return with the PRODUCT to get warranty service?
You must:
Return the entire original package and contents including the PRODUCT to the service
location along with a description of the malfunction or difficulty; and
Include a “valid proof of purchase” (sales receipt) identifying the PRODUCT purchased
(PRODUCT model) and the date of purchase or receipt; and
Provide your name, complete and correct mailing address, and telephone number.
7. Other limitations
This warranty is the complete and exclusive agreement between you and the manufacturer
of this AT&T branded PRODUCT. It supersedes all other written or oral communications
related to this PRODUCT. The manufacturer provides no other warranties for this PRODUCT.
The warranty exclusively describes all of the manufacturer’s responsibilities regarding the
PRODUCT. There are no other express warranties. No one is authorized to make modifications
to this limited warranty and you should not rely on any such modification.
State/Provincial Law rights: This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state or province to province.
Limitations: Implied warranties, including those of fitness for a particular purpose and
merchantability (an unwritten warranty that the PRODUCT is fit for ordinary use) are limited
to one year from date of purchase. Some states/provinces do not allow limitations on how
long an implied warranty lasts, so the above limitation may not apply to you. In no event
shall the manufacturer be liable for any indirect, special, incidental, consequential, or similar
damages (including, but not limited to lost profits or revenue, inability to use the PRODUCT
or other associated equipment, the cost of substitute equipment, and claims by third parties)
resulting from the use of this PRODUCT. Some states/provinces do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitation or exclusion may
not apply to you.
Please retain your original sales receipt as proof of purchase.
•
•
•
Appendix
119
Technical specifications
Operation Operating time*
Talk time (cordless handset) Up to 7 hours
Talk time (cordless handset speakerphone) Up to 5 hours
Standby Up to 7 days
* Operating times vary depending on your actual use and the age of the battery.
DECT 6.0 digital technology
The AT&T DECT 6.0 products offer unsurpassed range performance and sound clarity. This is
achieved through a unique antenna design and advances in noise-filtering technology. An
independent laboratory has confirmed that AT&T DECT 6.0 products perform up to 45% better in
range competitions against similarly equipped phones of the leading competition. Now, calls can
be taken in the basement, backyard and garage with exceptional sound quality.
Telephone operating range
This cordless telephone operates within the maximum power allowed by the Federal
Communications Commission (FCC). Even so, this handset and telephone base can communicate
over a certain distance — which can vary with the locations of the telephone base and handset,
the weather, and the construction of your home or office.
Redefining long range coverage and clarity
This telephone base comes with an antenna which gives much better clarity and covers a longer
range than before.
HD audio
HD audio improves sound quality by expanding and rebuilding frequencies that are lost with
traditional phone calls. There is no additional telephone service requirement to use HD audio.
It is designed to work with standard telephone service. Your system will automatically enhance
all received sound with HD audio.
Simulated full-duplex handset speakerphone
The simulated full-duplex speakerphones on your handset and telephone base allow both ends of
a call to speak and be heard at the same time. Optimal performance is subject to external factors
and individual usage.
RF frequency band 1921.536MHz - 1928.448MHz
Channels 5
Telephone base voltage
(AC voltage, 60Hz)
96Vrms - 130Vrms
Telephone base voltage
(AC adapter output)
6VDC @ 600mA
Handset voltage 2.4V 400mAh, 2 x AAA Ni-MH
Charger voltage
(AC adapter output)
6VDC @ 100mA
120
Index
A
Alert tones
handset, 98
telephone base, 98
Announcement, 75
Answering an incoming call
during an intercom call, 45
Answering calls, 34
Answering system, 75–94
Assign a speed dial number, 60
Auto off, 35
B
Battery charging, 8
Battery installation, 7
Blind transfer, 41
C
Call block
block calls without number, 74
delete entries, 74
edit entries, 73
mute first ring of blocked calls, 74
new entries, 71
review entries, 72
Call transfer, 46
Caller ID (CID)
add entries to phone directory, 68
delete entries, 67
dial entries, 67
review entries, 66
Chain dialing, 39–40
Charger installation, 6
Clear voicemail indication
handset, 19
telephone base, 30
Clock
handset, 15
telephone base, 26
D
Day and time
handset, 15
telephone base, 26
Delete
a call block entry, 74
a caller ID log entry, 67
a directory entry, 58
a speed dial number, 62
Deregistering handsets, 96
Dialing
from a record in the caller ID
log, 67
from the directory, 58
Directory
dial a number, 58
edit entries, 59
name search, 57
new entries, 54
Display dial, 58
DSL, 6
E
Elapsed time, 34
Ending a call, 35
H
Handset
handset locator, 43
quick reference guide, 1–2
ringer tone, 14
ringer volume, 14
screen icons, 97
speakerphone, 36
temporary ringer silencing, 35
voicemail indicator, 18
HD audio, 119
I
Important safety
information, 112–113
Intercom, 44–46
Index
Index
121
Index
L
Last number redial, 36
LCD language, 16, 27
reset to English, 16, 27, 109
Lights, 99
Limited warranty, 117–118
M
Maintenance, 111
Make an outgoing call during PTT, 52
Memory match, 65
Message
alert tone, 83
counter display, 92
playback, 88–90
N
Names
enter into directory, 54
search, 57
Number of rings, 81
O
On-hook dialing (predialing), 34
Outgoing announcement, 75
P
Paging tone, 43
Phonebook, 53
Power adapter, 6
Predialing, 34
Push-to-talk, 47–52
Q
Quick reference guide, 1–4
Quiet mode, 23
R
Reassign a speed dial number, 61
Receiving calls, 34
Recharging, 8
Redial, 36–37
Registering handsets, 95
Remote access, 93–94
Ringer silencing, 35
Ring tone options
handset, 14
telephone base, 25
S
Safety information, 112–113
Screen display messages, 100–102
Speakerphone, 36
Speed dial
delete a number, 62
edit a number, 61
enter a number, 60
set voicemail number, 18, 29
T
Technical specifications, 119
Telephone base
quick reference guide, 3–4
ringer tone, 25
screen icons, 97
voicemail indicator, 29
Temporary ringer silencing, 35
Time
handset, 15
telephone base, 26
Troubleshooting, 103–110
V
Visual message waiting indicator
handset, 18
telephone base, 29
Voice guide, 8, 79
Voicemail, 29, 85
quick access, 18, 29, 62
Voice prompts, 86
Volume control
handset, 14, 38, 89
telephone base, 25, 38, 89
W
Warranty, 117–118
Use the following wallet card to help you remember commands to control your
answering system from any touch-tone telephone.
Remote access wallet card
Fold here.
Cut along dotted line.
Action Remote command
Play all messages .......................................1
Play new messages ....................................2
Delete current message ...........................3
Delete all old messages ..........................33
Repeat current message ..........................4
Listen to previous message ...................44
Stop ....................................................................5
Help menu ...................................................... *5
Skip current message ................................6
Record announcement ............................. *7
End remote access call ........................... 8 (or hang up)
Turn system off or on ............................... 0
Call your phone number,
then enter your two-digit
access code (preset to 19).
Models: CL84115/CL84215/CL84265/CL84365
Type: DECT 6.0 corded/cordless telephone/answering system
with caller ID/call waiting
© 2015 Advanced American Telephones. All Rights Reserved.
AT&T and the AT&T logo are trademarks of AT&T Intellectual Property
licensed to Advanced American Telephones, San Antonio, TX 78219.
Printed in China.
© 2015 Advanced American Telephones. All Rights Reserved.
AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to
Advanced American Telephones, San Antonio, TX 78219.
RBRC and 1-800-8-BATTERY are registered trademarks of the
Rechargeable Battery Recycling Corporation.
Printed in China. Issue 1.0 AT&T 02/15.
www.telephones.att.com
